Graph-Theoretic Analysis of Belief System Dynamics under Logic Constraints

10/04/2018 ∙ by Angelia Nedić, et al. ∙ MIT 0

Opinion formation cannot be modeled solely as an ideological deduction from a set of principles; rather, repeated social interactions and logic constraints among statements are consequential in the construct of belief systems. We address three basic questions in the analysis of social opinion dynamics: (i) Will a belief system converge? (ii) How long does it take to converge? (iii) Where does it converge? We provide graph-theoretic answers to these questions for a model of opinion dynamics of a belief system with logic constraints. Our results make plain the implicit dependence of the convergence properties of a belief system on the underlying social network and on the set of logic constraints that relate beliefs on different statements. Moreover, we provide an explicit analysis of a variety of commonly used large-scale network models.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 15

page 18

page 19

page 20

page 31

page 32

page 33

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

Results

Belief System with Logic Constraints

Friedkin et al.13, 12 describe a belief system with logic constraints as a group of agents that periodically exchange and update their opinions about a set of different truth statements with logical dependencies among them. After each social interaction, the agents use shared opinions, as well as underlying logical dependencies among them, to update their beliefs. The agents exchange their opinions by interacting over a social network captured by a graph , where is the set of agents, and is the set of edges. A directed edge towards an agent indicates that it receives the opinion of another agent, i.e., a directed flow of information. Analogously, the logical dependencies among the truth statements are modeled by a graph , where an edge between two statements exists if the belief in one statement affects belief in the other. The generalized dynamics of a belief system are defined as follows. First, every agent aggregates its opinions on every truth statement according to the imposed logic constraints (i.e., modifying the opinions to take into account the dependencies on the other truth statements). The aggregation steps consist of weighted (convex) combinations of the available values, where the weights represent the relative influence. Second, the agents share their opinions over a social network, where the opinions are aggregated again to take into account those coming from the neighboring agents (i.e., social interactions). Finally, a new opinion is formed as a combination of the most recent aggregation and the initial opinion, which models adversity to deviate from the initial beliefs or stubbornness. This model is described in the following equations (1) for an arbitrary agent and an arbitrary statement :

(Aggregation by logic constraints) (1a)
(Aggregation by social network) (1b)
(Influence of initial beliefs) (1c)

where represents the opinion of an agent at time on a certain statement , while and are the intermediate aggregation steps. The opinion of an agent on a specific statement being true or false is modeled by a scalar value between zero and one. A value of zero indicates that the given agent strongly believes a specific statement is false, whereas a value of one indicates that the agent believes the statement is true. Similarly, a value of indicates the maximal uncertainty about a statement. The intermediate aggregated opinion of agent on statement is formed by using the opinions of the same agent about the other statements . The parameters are compliant with the graph that models the logic constraints in the sense that is nonzero if the statement depends on statement , and otherwise . These parameters represent the strength of the logic constraints, i.e., the influence that an opinion on a statement has on the opinion on other statements. Subsequently, the intermediate aggregated opinion of agent on statement is formed by combining all the intermediate opinions of neighboring agents . In this update, the parameters represent the weights that an agent assigns to the information coming from its neighbor , for example is how agent weights the opinions shared by agent . These parameters are compliant with the network in the sense that if there is an incoming edge to agent from agent in the graph, then the corresponding weight is nonzero. The last update in equation (1) indicates that, at time , the new opinion of agent on statement is obtained as a weighted combination of its intermediate aggregated opinion at time and its initial opinion on statement . The parameter that agent uses models its stubbornness. If we say an agent is stubborn, where indicates that the agent is maximally closed to the influence of others. If , agent is said to be maximally open to the influence of others, and oblivious if additionally it is not influenced by stubborn agents. We can group the parameters into an -by- matrix , known as the social influence structure, and the parameters into an -by- matrix , known as the multi-issues dependent structure12. We assume these matrices are nonnegative. Furthermore, the weights assigned by an agent to its neighbors sum up to one, i.e., the sum of the entries in each row of the matrix is ; likewise, the sum of the entries in each row of the matrix is . Thus, the matrices and are row-stochastic. Figure 1 illustrates a belief system with agents and truth statements, moreover, it gives examples for the choice of the matrices and . Figure 1(c) shows the belief system generated by the network of agents in Fig. 1(a) and the set of logic constraints in Fig. 1(b). This new graph depicted in Fig. 1(c) is much larger than the network of agents or the network of statements taken separately; effectively; it has nodes. The belief of each agent on each truth statement is a separate node; also, the initial beliefs are separate nodes. The model of this larger graph of the belief system can be compactly restated as

(2)

where is a state that stacks the current beliefs of all agents on all topics along side with the initial beliefs, i.e.,

and

where

is a zero matrix of size

,

is an identity matrix of size

,  indicates the Kronecker product (see Supplementary Definition 1), is a diagonal matrix with the -th diagonal entry being , and denotes the transpose of a vector or matrix . This allows for the definition of the belief system graph , which is compliant with the matrix , where an edge from to exists if . See Supplementary equation (4) for an example of a matrix for the belief system in Fig. 1(c) assuming that for all agents. Figure 2 shows an example where a network of agents forms a cycle graph, given in Fig. 2(a), a set of logic constraints forms a directed path, given in Fig. 2(b), and for all . The belief system graph is shown in Fig. 2(c). Figure 2

(d) shows the dynamics of the belief vector as the number of social interactions increases. The opinion on all

topics converges to a single value for all agents. Figure 2(e) shows the dynamics of the belief vector when no logic constraints are considered. In this case, the agents reach some agreement on the final value, but this consensual value is different for each of the statements. See Supplementary Fig. 11 for an additional example of the influence of the logic constraints on the resulting belief system and Supplementary Fig. 12 for a variation of the example discussed in Fig. 2 when the network of agents is a complete graph.

When does a Belief System Converge?

The convergence of the belief system can be stated as a question of the existence of a limit of the beliefs, as the social interactions continue with time. That is, whether or not there exists a vector of opinions such that

for any initial value . Friedkin et al.13, 12 showed that a belief system with logic constraints will converge to equilibrium if and only if either , or and exists. Moreover, if we represent the matrices and with a block structure as

where is the subgraph of oblivious agents, then the belief system is convergent if and only if and exists. We next consider how these conditions may be interpreted in terms of the topology of the network of agents and the set of logic constraints. The belief system in equation (2) converges to equilibrium if and only if every closed strongly connected component of the graph is aperiodic 4, 18. Recall that a strongly connected component is closed if it has no incoming links from other agents; otherwise, it is called open, see Fig. 3. In general, the set of strongly connected components can be computed efficiently for large-complex networks19. The matrix has two diagonal blocks, one corresponding to the initial beliefs and one involving the product . The initial belief nodes are aperiodic closed strongly connected components, each consisting of a single node. Therefore, the diagonal block in corresponding to the initial beliefs induces an aperiodic graph. Moreover, strongly connected components with stubborn agents do not affect the convergence of the belief system. Thus, one can focus on the closed strongly connected components of the graph induced by . The product can be written in its block upper triangular form, where each of the blocks in the diagonal is the product of one strongly connected component from the graph induced by and one from (see Supplementary Lemma 2). McAndrew 20 showed that the period of a product graph is the lowest common multiple of the periods of the two factor graphs (see Supplementary Definition 2 and Supplementary Theorem 1). If the factor graphs are not coprime, the resulting product graph is a disconnected set of components. Nevertheless, each of the resulting components will have the same period as defined above. Therefore, in order for a product graph to be aperiodic we require the factors to be aperiodic as well. An immediate conclusion drawn from this fact is that the process (2) converges to equilibrium if an only if every closed strongly connected component of the graph is aperiodic and every closed strongly connected component of the graph composed by oblivious agents only is aperiodic. This is a graph-theoretic interpretation of the algebraic criteria derived by Friedkin et al.13, 12. In Fig. 1, the network of agents has a single closed strongly connected component which consists of the node . The network of truth statements also has a single closed strongly connected component, consisting of the node . Thus, the belief system will converge to a set of final beliefs. In Fig. 2

, the belief system has one closed strongly connected component shown in green with the topology of a cycle graph. This strongly connected component corresponds to the product of the cycle graph and the green node of the logic constraints. The cycle graph is aperiodic if and only if the number of nodes is odd. Thus, if the cycle network of agents has an even number of nodes, the belief system will not converge.

How long does a Belief System take to Converge?

We seek to characterize the time required by the process in equation (2) to be arbitrarily close to its limiting value in terms of properties of the graphs and

, such as the number of agents and truth statements, and the topology of the graphs. We provide an estimate on the number of iterations required for the beliefs to be at a distance of at most

from their final value (assuming they converge). This estimate is expressed in terms of the total variation distance, denoted by (for its definition see the section on Methods). For this we define the convergence time as follows:

where evolves according to equation (2). Informally, the value shows the minimum number of social interactions required for the belief system to be arbitrarily close to its final value as a function of the initial disagreement. The dynamics of the belief system in equation (2

) are closely related to the dynamics of a Markov chain with a transition matrix

21, specifically, the ergodic properties of a random walk over on the graph . Particularly, consider a random walk on the state space which, at time jumps to a random neighbor of its current state. The relation between a random walk on a graph and the convergence properties of systems of the form of the belief system in (2) has been previously explored in Olshevsky and Tsitsiklis 21. In both cases, we are interested in the convergence properties of as goes to infinity. If there is a limiting distribution for a Markov chain with transition probability , then the belief system converges.

Moreover, bounds on the convergence time based on the mixing properties of this Markov chain provide rates of convergence for the belief system. The convergence time of a belief system is proportional to the maximum time required for a random walk, with transition probability matrix

, to get absorbed into a closed strongly connected component plus the time needed for such component to mix sufficiently. Figure 4 illustrates this by considering two random walks and with the same transition matrix. Denote by the maximum expected mixing time among all closed strongly connected components, and by the maximum expected time to get absorbed into a closed component. Assuming the graph , the belief system will be close to its limiting distribution after steps (see Supplementary Theorem 3 for a formal statement and a proof of this result). Therefore, not only do we have an estimate of the convergence time of the belief system in terms of the topology of the graph , but we also know this convergence happens exponentially fast. Additionally, Lemma 2 in the Supplementary material shows that each of the strongly connected components of the graph is the product of two such components, one from the graph and the other from the graph . Moreover, the expected mixing (or absorbing) time for a random walk on a product graph is the maximum of the expected mixing (or absorbing) time of the individual factor graphs (see Supplementary Lemma 4). Thus, we have an explicit characterization of the convergence time in terms of the components of the network of agents and the network of logic constraints. For example, in Fig. 2, the expected absorbing time is of the order of the number of nodes in the path, that is , while the expected mixing time of a cycle graph is of the order of the number of the nodes squared22, 23, 24, which is in this example. Thus, the expected convergence time for the belief system is . Figure 5 depicts simulation results for this bound that demonstrate its validity. In particular, Fig. 5(a) shows how the convergence time changes when the number of nodes in the cycle graph increases, while Fig. 5(b) shows how the convergence time changes when the number of truth statements in the directed path graph increases. Moreover, Fig. 5(c) shows that the convergence to the final beliefs is exponentially fast. Table 1 presents the estimates for the expected convergence time for belief systems composed of well-known classic graphs, see Supplementary Fig.13 for plots of some of these common graphs. We use the existing results about the mixing time for these graphs (see Supplementary Table 3 for a detailed list of references on each of the studied graphs) to provide an estimate of the convergence time of the resulting belief system when all agents are oblivious. Particularly, our method allows the direct estimation of the dynamics of a belief system when large-scale complex networks are involved. For example, we provide convergence time bounds for the case where networks follow random graph models, namely: the geometric random graphs, the Erdős-Rényi random graphs, and the Newman-Watts small-world networks. These graphs are usually considered for their ability to represent the behavior of complex networks encountered in a variety of fields25, 26, 27, 28 (see Supplementary Fig. 14). Figure 6 shows experimental results for the convergence time of a belief system for a subset of the graphs given in Table 1. For every pair of graphs, we show how the convergence time increases as the number of agents or the number of truth statements change. One can particularly observe the maximum-like behavior on the convergence time as predicted by the theoretical bounds, see Theorem 5 in the Supplementary Material. See Supplementary Fig. 15 and Supplementary Fig. 17 for additional numerical results on other combinations of graphs from Table 1, and Supplementary Fig. 16 and Supplementary Fig. 18 for their linear convergence rates, respectively.

Where Does a Belief System Converge?

So far we have discussed the conditions for convergence of a belief system and the corresponding convergence time. Convergence implies the existence of a vector where the set of beliefs settles as the number of interactions increases. Particularly, Proskurnikov and Tempo 18 characterize the limiting distribution as a solution of

which can be intractable to compute when the matrices and are large. We are interested in a characterization of this limit vector that admits a rapid computation of its value. The Supplementary Lemma 2 shows that one can always group the nodes in the graph into open and closed strongly connected components. In order to guarantee convergence we assume that every closed strongly connected component is aperiodic. Therefore, take any closed strongly connected component and let be the minor of the matrix obtained by taking into account only the nodes in the set . Then, corresponds to the transition matrix of an irreducible and aperiodic Markov chain with a stationary distribution , where . The vector

is effectively the left-eigenvector of the matrix

corresponding to the eigenvalue

. Let be the vector obtained from the state vector by taking only the components of corresponding to the nodes in the set . Then,

where is the cardinality of the set , and is the vector of size with all entries equal to  18, 24. Additionally, recall that every strongly connected component of is the product of two strongly connected components, one from the network of agents and one from the logic constraint network. Thus, for some matrices and (sub-matrices of and , respectively), which implies that , i.e., the vectors and are the corresponding left eigenvalues of the factor components of associated with the eigenvalue . Therefore, the final beliefs of those nodes in the closed strongly connected component are a weighted average of their initial beliefs, and the weights (sometimes referred to as the social power) are determined by the product of the left-eigenvectors of the factors and . Particularly, the value indicates the limit distribution of a random walk in , that is, it gives the probability that a random walk visits a particular node in after a long time. On the other hand, now consider the set of all open strongly connected components with incoming edges from nodes grouped into a set , in this case, the belief , for , will converge to

where is the probability of absorption of a random walk starting at node into a node with limiting value (see Supplementary Note 3). Therefore, the limiting value of nodes in an open strongly connected components is a convex combination of the limiting values of the nodes it is connected to.

Numerical Analysis of Social Networks

Next, we provide a numerical analysis for the evolution of belief systems with social network structures from large-scale networks in the Stanford Network Analysis Project (SNAP)29, see Fig. 7, and logic constraints built from random graph generating models. Random graph generating models, such at the Erdős-Rényi graphs, the Newman-Watts graph, and the geometric random graphs, have been proposed to model the dynamics and the properties of real large-scale complex networks, for example, relatively fast mixing or linear convergence of the beliefs. We use the wiki-Vote 30, ca-GrQc 31, and ego-Facebook 32 graphs as social networks and a binary tree, a Newman-Watts graph, and an Erdős-Rényi graphs as logic constraints. The wiki-Vote network represents the aggregation of elections where Wikipedia contributors assign votes to each other to select administrators. This generates a directed social network where the edges are the votes given by the users. The ca-GrQc network represents the general relativity and quantum cosmology collaboration network for e-prints from arXiv. The nodes are composed of authors, and edges represent co-authorship of a manuscript between two authors. Finally, the ego-Facebook network represents an anonymized set of Facebook users as nodes and edges indicate friendships among them in the Facebook platform. Table 2 shows the description of the networks used. In the three cases, we select the largest strongly connected component of the graph and use it as a representative of the network structure and the mixing properties of the graph. Furthermore, we assume that the agents use equal weights for all their (in)neighbors. Figure 8 shows the convergence time of a belief system when the network of agents is each the three large-scale complex networks described in Table 2. Figure 8 considers a simplified scenario where a single closed strongly connected component composes the social network of agents and the network of logic constraints. Therefore, absorbing time is effectively zero and the mixing time of the belief system is the maximum between the mixing time of the social network and the mixing time of the network of logic constraints. Convergence is guaranteed since both networks are taken to be aperiodic by introducing positive self-weights to every agent. Results show that the predicted maximum type behavior holds; that is, the convergence time of the belief system is upper bounded by the maximum mixing time of a random walk on the graph of agents and the graph of logic constraints. The convergence time remains constant and of the order of the convergence time of the network of agents, until the mixing time of the network formed by the logic constraints is larger. Then, the total convergence time increases based on the specific topology of the graph of logic constraints. Figure 9 shows the exponential convergence rate of the belief system described in Figure 8. Figure 10 shows the cumulative influence of the nodes in each of the graphs, i.e., the weight an ordered subset of the nodes has on the final value of the beliefs. In this case, since we are considering a single strongly connected component, the weights are determined by the left-eigenvalue of the weight matrix corresponding to the eigenvector .

Discussion

In a recent paper, Friedkin et al. 13 proposed a new model that integrates logic constraints into the evolution opinions of a group of agents in a belief system. Logic constraints among truth statements have a significant impact on the evolution of opinion dynamics. Such restrictions can be modeled as graphs that represent the favorable or unfavorable influence the beliefs on specific topics have on others. Starting from this context, we have here approached this model from its extended representation of a belief system, where opinions of all agents on all topics as well as their corresponding initial values are nodes in a larger graph. This larger graph is composed of the Kronecker product of the graphs corresponding to the network of agents and the network of logical constraints respectively. In this study, we have provided graph-theoretic arguments for the characterization of the convergence properties of such opinion dynamic models based on extensive existing knowledge of convergence and mixing time of random walks on graphs using the theory of Markov chains. We have shown that convergence occurs if every strongly connected component of the network of logic constraints is aperiodic and every strongly connected component of oblivious agents is aperiodic as well. Moreover, to be arbitrarily close to their limiting value we require time steps. The parameter is the maximum coupling time for a random walk among the closed strongly connected components of the product graph, and is the maximum time required for a random walk, that starts in an open component, to get absorbed by a closed component. Our analysis applies to broad classes of networks of agents and logic constraints for which we have provided bounds regarding the number of nodes in the graphs. Finally, we show that the limiting opinion value is a convex combination of the nodes in the closed strongly connected components and this convergence happens exponentially fast. Our framework offers analytical tools that deepen our abilities for modeling, control and synthesis of complex network systems, mainly human-made, and can inspire further research in domains where opinion formation and networks interact naturally, such as neuroscience and social sciences. Finally, extending this analysis to other opinion formation models that use different aggregating strategies may require further study of Markov processes and random walks.

Methods

Directed Graphs 20

We define a directed graph as a set of nodes and a set of edges where the elements of

are ordered pairs

with . A path of is a finite sequence such that for . Moreover, define as the number of edges in the path . A pair of nodes are strongly connected if there is a path from to and from to . We say a directed graph is strongly connected if each pair of nodes of are strongly connected. A cycle of a graph is a path such that , i.e., the start and end nodes of the path are the same. We denote the period of a directed graph as , and define it as the greatest common divisor of the length of all cycles in the graph .

Random Walks, Mixing and Markov chains

Consider a finite directed graph composed by a set of nodes with a set of edges

and a compliant associated row-stochastic matrix

, called the transition matrix. A random walk on the graph

is the event of a token moving from one node to an out-neighbor according to some probability distribution determined by the transition matrix. The dynamics of the random walk are modeled a Markov chain

such that with . This Markov chain is called ergodic if it is irreducible and aperiodic. For an ergodic Markov chain, there exists a unique stationary distribution , which describes the probability that a random walk visits a particular node in the graph as the time goes to infinity, that is as . The stationary distribution is invariant for the transition matrix, that is . It follows that the convergence to the stationary distribution of a random walk reduces to analyzing powers of (Theorem in Levin et al.24). The distance to stationarity at a time , i.e., after transitions of the Markov Chain, or steps in the random walk, is defined as

where is the total variation distance between two probability distributions and , defined as

Moreover, the mixing time of the Markov chain is

and we say the Markov chain has (relatively) rapid mixing if , i.e., polynomial relations in the terms and . Finally, the mixing time can be bounded in terms of the left eigenvalues of the matrix as

(3)

where is the left-eigenvalue of the transition matrix with the largest abstolute value33.

The Coupling Method

The technical advances in this paper are mostly made by using the coupling method, which is a way to bound the mixing time of Markov chains. Consider two independent Markov chains and , with the same transition matrix . Then, define the coupling time as the smallest such that , that is, . Note that

is a random variable and it depends on

as well as the initial distributions of the processes and . Finally, define the quantity as the maximum expected coupling time of a Markov chain with transition matrix over all possible initial distributions of the processes and , i.e.,

In words, this is the maximum expected time it takes for two random walks, with the same transition matrix and arbitrary initial states, to intersect. If we assume starts from a distribution , and from some other arbitrary stochastic vector and we couple the processes and by defining a new process such that

The key insight of the coupling method is that is identically distributed to ; this follows by conditioning on the events and . Therefore, questions about the distribution of can be solved by considering instead. By starting the chain in the stationary distribution, these considerations imply that

because if then ; for more details, see Lindvall 34. Thus, it follows by the Markov inequality that

Setting implies that . Thus, it follows that after steps, it holds that , for any , and being the stationary distribution of the Markov chain. Since  24, the same applies to the quantity . The coupling method is the primary technical tool we use in this work. In Supplementary Note 3, we use the coupling method to bound the convergence time of equation (1) in terms of the coupling times on the underlying social network and on the logic constraint graph. Because coupling time over the Kronecker product is, up to a multiplicative constant, the maximum of the coupling times, this allows us to analyze the effect of the social network and logic constraint graph on convergence time separately.

Network of Agents Logic Constraints Maximum Expected
Convergence Time
Complete Directed Path
Cycle Directed Path
Cycle Path
Dumbbell Graph Complete Binary Tree
-d Hypercube Complete Binary Tree
-d Grid Star
-d Grid Two Joined Star
-d Grid Star
-d Torus -d Grid
-d Torus Star
-d Torus -d Grid
Lollipop Star
Dumbbell Star
Eulerian: -degree and expansion Dumbbell
Eulerian: -degree, max-degree weights Dumbbell
Lazy Eulerian with degree -degree Dumbbell
Lamplighter on -Hypercube Bolas
Lamplighter on -Torus Bolas
Geometric Random on : Bolas
Geometric Random: Bolas
Erdős-Rényi: , Dumbbell
Erdős-Rényi: , Newman-Watts
Erdős-Rényi: , Dumbbell
Erdős-Rényi: Dumbbell
Newman-Watts : , Path
Expander Path
Any Connected Undirected Graph Expander
with Metropolis Weights
Any Connected Undirected Graph Expander
Table 1: Maximum expected convergence time for the belief system with logic constraints for different networks of Agents with nodes and networks of truth statements with nodes. The approximated maximum expected convergence time identified as should be understood in terms of the order , that is, an estimate up to constant terms. Additionally, all the estimates provided should be multiplied by the accuracy term .
Graph Nodes Edges Type Upper Bound on Description
Mixing Time
wiki-Vote 30 Directed Wikipedia who-votes-on-whom network
ca-GrQc 31 Undirected Collaboration network of arXiv General Relativity
ego-Facebook32 Undirected Social circles from Facebook
Table 2: Datasets of large-scale networks. Description, number of nodes, number of edges, simulated mixing time and an upper bound on the mixing time of the three datasets used in the numerical analysis. The upper bound on the mixing time is computed from the second largest eigenvalue bound in equation (3).
Figure 1: A belief system with agents and truth statements. (a) Agents are represented as nodes/circles, numbered from to , and the network of influences among them is shown as edges between nodes. The truth statements or topics are color-coded, e.g., the truth statement is represented as a red square. Agent is influenced by its own opinion and agents and , agent follows the opinion of agent which in turn follows the opinion of agent , agent follows its own opinion only. A possible matrix for this social network is shown below the graph. This indicates that agent assigns a higher weight of to the opinion of agent than the weight it assigns to the opinion of communicated by agent . (b) The truth statement is influenced by the belief that statement is true, statement directly follows the belief in statement . A possible matrix for this set of logic constraints is shown below the graph. The belief that the truth statement is true is influenced (with a weight of ) by the opinion that the truth statement is true. (c) The beliefs system, see equation 2, composed by the agent’s interaction graph and the logic constraints.
Figure 2: A belief system with agents on a cycle graph and logic constraints on a path graph. (a) A network of oblivious agents forming a cycle graph. (b) A set of truth statements with logic constraints forming a path graph. (c) The belief system graph . (d) The belief dynamics with logic constraints. (e) The belief dynamics with no logic constraints. The beliefs of all agents have been color coded per truth statement. The agents reach an agreement on each of the truth statements.
Figure 3: Open and closed strongly connected components of a graph. A graph with nodes and strongly connected components. The strongly connected component composed of nodes , , and is closed since it has no incoming edges from other components.

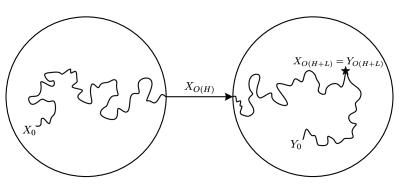

Figure 4: Coupling of two random walks. A random walk starts at in a transient state and evolves according to some transition matrix ; after time steps (the absorbing time), it gets absorbed into a closed connected component. Then, after time steps (the mixing time) it crosses paths with another random walk starting at the stationary distribution of . Then after time steps, the random walk is arbitrarily close to its limit value. Note that the random walk moves in the opposite direction to the edges in the graph.
Figure 5: Convergence time for a belief system with an undirected cycle as a social network and a directed path as a network for the logic constraints. (a) Varying the number of the agents in the social graph. (b) Varying the number of the truth statements for a directed path. (c) The exponential convergence rate of the belief system.
Figure 6: Convergence time or various belief systems. (a) Varying the number of agents on a d-Grid with fixed the number of truth statements on a star graph. (b) Varying the number of truth statements on a star graph with a fixed number of agents on a d-Grid. (c) Varying the number of agents on a Erdős-Rényi graph with fixed the number of truth statements on a dumbbell graph. (d) Varying the number of truth statements on a dumbbell graph with a fixed number of agents on a Erdős-Rényi graph. (e) Varying the number of agents on a Newman-Watts small-world graph with fixed the number of truth statements on a path graph. (f) Varying the number of truth statements on a path graph with a fixed number of agents on a Newman-Watts small-world graph.
Figure 7: Large-Scale complex networks from the Stanford Network Analysis Project (SNAP). (a) The ego-Facebook, nodes are anonymized users from Facebook and edges indicate friendship status between them. (b) The wiki-Vote graph, each node represents a Wikipedia administrator and an directed edge represents a vote used for promoting a user to admin status. (c) The ca-GrQc graph is a collaboration network from arXiv authors with papers submitted to the General Relativity and Quantum Cosmology category, edges indicated co-authorship of a manuscript. The gray scale in the node colors shows the relative social power according to the left-eigenvector corresponding to the eigenvalue .
Figure 8: Convergence time of a belief system over a large-scale complex network. (a) The social network is the ego-Facebook graph and the logic constraints form a complete binary tree with an increasing number of topics. (b) The social network is the wiki-Vote graph and the logic constraints form Newman-Watts small-world graph with an increasing number of topics. (c) The social network is the ca-GrQc arXiv collaboration graph, and the logic constraints form an Erdős-Rényi graph with an increasing number of topics.
Figure 9: Total variation distance between the beliefs and its limiting value as the number of iteration increases. Results are shown for a particular subset of randomly selected agents.
Figure 10: Cumulative social power of the agents. Each of the nodes in the graphs considered has some weight in the final value achieved by the belief system. In all three cases, the most important nodes account for of the final value.
