Graph Representation Learning with Individualization and Refinement

Graph Neural Networks (GNNs) have emerged as prominent models for representation learning on graph structured data. GNNs follow an approach of message passing analogous to 1-dimensional Weisfeiler Lehman (1-WL) test for graph isomorphism and consequently are limited by the distinguishing power of 1-WL. More expressive higher-order GNNs which operate on k-tuples of nodes need increased computational resources in order to process higher-order tensors. Instead of the WL approach, in this work, we follow the classical approach of Individualization and Refinement (IR), a technique followed by most practical isomorphism solvers. Individualization refers to artificially distinguishing a node in the graph and refinement is the propagation of this information to other nodes through message passing. We learn to adaptively select nodes to individualize and to aggregate the resulting graphs after refinement to help handle the complexity. Our technique lets us learn richer node embeddings while keeping the computational complexity manageable. Theoretically, we show that our procedure is more expressive than the 1-WL test. Experiments show that our method outperforms prominent 1-WL GNN models as well as competitive higher-order baselines on several benchmark synthetic and real datasets. Furthermore, our method opens new doors for exploring the paradigm of learning on graph structures with individualization and refinement.

READ FULL TEXT VIEW PDF

page 1

page 2

page 3

page 4

11/19/2022

EDEN: A Plug-in Equivariant Distance Encoding to Beyond the 1-WL Test

The message-passing scheme is the core of graph representation learning....
03/22/2022

Twin Weisfeiler-Lehman: High Expressive GNNs for Graph Classification

The expressive power of message passing GNNs is upper-bounded by Weisfei...
04/04/2021

Uniting Heterogeneity, Inductiveness, and Efficiency for Graph Representation Learning

With the ubiquitous graph-structured data in various applications, model...
10/02/2020

The Surprising Power of Graph Neural Networks with Random Node Initialization

Graph neural networks (GNNs) are effective models for representation lea...
12/08/2021

Trainability for Universal GNNs Through Surgical Randomness

Message passing neural networks (MPNN) have provable limitations, which ...
04/20/2022

Simplicial Attention Networks

Graph representation learning methods have mostly been limited to the mo...
12/06/2020

Counting Substructures with Higher-Order Graph Neural Networks: Possibility and Impossibility Results

While massage passing based Graph Neural Networks (GNNs) have become inc...

Introduction

Graphs are one of the most useful data structure in terms of representing real world data like molecules, social networks and citation networks. Consequently, representation learning (Bengio et al., 2013; Hamilton et al., 2017a, b)

on graph structured data has gained prominence in the machine learning community. In recent years, Graph Neural Networks (GNNs)

(Kipf and Welling, 2016; Defferrard et al., 2016; Gilmer et al., 2017; Wu et al., 2020) have become models of choice in learning representations for graph structured data. GNNs operate locally on each node by iteratively aggregating information from its neighbourhood in the form of messages and updating its embedding based on the messages received. This local procedure has been shown to capture some of the global structure of the graph. However, there are many simple topological properties like detecting triangles that GNNs fail to capture (Chen et al., 2020; Knyazev et al., 2019).

Theoretically, GNNs have been shown to be no more powerful than 1-dimensional Weisfeiler Lehman (1-WL) test for graph isomorphism (Xu et al., 2018; Morris et al., 2019) in terms of their distinguishing capacity of non-isomorphic graphs. 1-WL is a classical technique of iteratively coloring vertices by injectively hashing the multisets of colors of their adjacent vertices. Although this procedure produces a stable coloring, which can be used to compare graphs, it fails to uniquely color many non-symmetric vertices. This is precisely the reason for the failure of 1-WL and thereby GNNs, to distinguish many simple graph structures (Kiefer et al., 2020; Arvind et al., 2020). Further works on improving the power of GNNs have tried to incorporate higher-order WL generalizations in the form of -order GNNs (Morris et al., 2019; Maron et al., 2019; Morris et al., 2020), These -order GNNs jettison the local nature of 1-WL and operate on -tuples of vertices and hence are computationally demanding. However, this suggests techniques for learning better node representations can be found in classical algorithms used to detect graph isomorphisms.

Another possible approach for learning node features is the individualization and refinement (IR) paradigm which provides a useful toolbox for testing graph isomorphism. In fact, all state-of-the-art isomorphism solvers follow this approach and are fairly fast in practice (McKay and others, 1981; Darga et al., 2004; Junttila and Kaski, 2011; McKay and Piperno, 2014). IR techniques aim to assign a distinct color to each vertex such that the coloring respects permutation invariance and is canonical, a unique coloring of its isomorphism class (no two non-isomorphic graphs get the same coloring). This is achieved first by individualizion, a process of recoloring a vertex in order to artificially distinguish it from rest of the vertices. Thereafter, a color refinement procedure like the 1-WL message passing is applied to propagate this information across the graph. This process of IR is repeated until each vertex gets a unique color. But the coloring is not canonical yet. To preserve permutation invariance, whenever a vertex is individualized, we have to individualize, and thereafter refine, all other vertices with the same color as well. As each individualization of a vertex gives a different final discrete coloring, this generates a search-tree of colorings where each individualization forms a tree-node. The tree generated is canonical. The coloring of the graph at each leaf can also be used to label the graph, and the graph with the largest label can be used as a canonical graph. However, the size of search-tree grows exponentially fast and isomorphism-solvers prune the search-tree heavily by detecting symmetries like automorphisms, and by other hand-crafted techniques.

In this paper, we propose to improve representations learnt by GNNs by incorporating the inductive biases suggested by individualization and refinement in updating the node embeddings. Unlike isomorphism-solvers, it is not desirable to check for automorphisms to prune the search-tree from a learning perspective. For computational efficiency, we restrict our search to individualizing nodes in each iteration. In order to restrict the search from exponentially blowing up, we take the approach similar to beam search and reduce the refined graphs to a single representative graph and repeat the individualization and refinement process. This simple technique lets us learn richer node embeddings while keeping the computational complexity manageable. We validate our approach with experiments on synthetic and real datasets, where we show our model does well on problems where 1-WL GNN models clearly fail. Then we show that our model outperforms other prominent higher-order GNNs by a substantial margin on some real datasets.

Related Work

Over the last few years, there have been considerable number of works on understanding the representative power of GNNs in terms of their distinguishing capacity of non-isomorphic graphs (Xu et al., 2018; Morris et al., 2019; Chen et al., 2019b; Dehmamy et al., 2019; Srinivasan and Ribeiro, 2019; Loukas, 2019; Barceló et al., 2019). These works have established that the GNNs are no more expressive than 1-WL kernels in graph classification (Shervashidze et al., 2011). Furthermore,  Chen et al. (2020) have shown that many of the commonly occurring substructures cannot be detected by GNNs. One example is counting the number of triangles which can be easily computed from third power of the adjacency matrix of the graph (Knyazev et al., 2019).

To improve the expressive power of GNNs, multiple works have tried to break away from this limitation of local message passing of 1-WL. Higher-order GNNs which can be seen as neural versions of -dimensional WL tests have been proposed and studied in series of works (Maron et al., 2018; Morris et al., 2019; Maron et al., 2019; Morris et al., 2020). Although, these models are provably more powerful than 1-WL GNNs, they suffer from computational bottlenecks as they operate on -tuples of nodes. Maron et al. (2019) proposed a computationally feasible model but was limited to 3-WL expressivity. Note that 1-WL and 2-WL have same expressivity  (Maron et al., 2019). Other line of works on improving the expressivity of GNNs tend to introduce extra features which can be computed by preprocessing the graphs in the form of distance encoding (Li et al., 2020) and subgraph isomorphism counting (Bouritsas et al., 2020). These techniques help in practice but fall short in the quest of better algorithms to extract such information by improved learning algorithms.

The main problem of message passing in GNNs is that nodes fail to uniquely identify if the successive messages received are from the same or different nodes. In order to address this issue,  Sato et al. (2020) and Dasoulas et al. (2019) have proposed to introduce features with random identifiers for each node. These models, though showing some benefit, can only maintain permutation invariance in expectation. Furthermore, structural message passing in the form of matrices with unique identifiers may help as shown in Vignac et al. (2020) but its fast version has the same expressivity as in Maron et al. (2019).

In this work, we aim to address some these concerns by leveraging the individualization and refinement

paradigm of isomorphism solvers which are often fast in practice. We make a few approximations by individualizing fixed number of nodes and keeping a single representative graph in each iteration to manage the computational complexity. To avoid loss in accuracy, we use learning both for adaptively selecting the nodes to individualize and for merging the graphs from data. Our approach provides flexible trade off between robustness and speed of the model using the number of nodes to individualize as a hyperparameter which can be tuned using training data.

Preliminaries

Let be a graph with vertex set and edge set . Two graphs are isomorphic, if there exists an adjacency-preserving bijective mapping , i.e. iff . An automorphism of is an isomorphism that maps onto itself. Intuitively, two vertices can be mapped to each other via an automorphism if they are structurally indistinguishable in the graph. A prominent way of identifying isomorphism is by coloring the nodes based on the structure of the graph in a permutation invariant manner and comparing if two graphs have the same coloring. Formally, a vertex coloring is a surjective function which assigns each vertex of the graph to a color (natural number). A graph is called colored graph , if is a coloring of . Given a graph , a cell of is the set of vertices with a given color. Vertex coloring partitions into cells of color classes and hence is often called a partition. If any two vertices of the same color are adjacent to the same number of vertices of each color, then such a coloring is called equitable coloring, which cannot be further refined. If are equitable colorings of a graph, then is finer than or equal to , if for all . This implies that each cell of is a subset of a cell of , but the converse is not true. A  discrete coloring is a coloring where each color cell has a single vertex i.e. each vertex is assigned a distinct color.

Vertex refinement or 1-WL test

1-dimensional Weisfeiler Lehman coloring is a graph coloring algorithm used to test isomorphism between graphs. Initially, all vertices are labeled uniformly with the same color and then are refined iteratively based on the local neighbourhood of each vertex. In each iteration, two vertices are assigned different colors if the multisets of their colored neighbourhoods are different. Specifically, if is the color of vertex at time step , then the colors are refined with the following update: , where denotes a multiset and is the neighbourhood of . This procedure produces an equitable coloring where no further refinement is possible and the algorithm stops. This is a powerful technique of node coloring but has been shown to be restricted for many classes of graphs which cannot be distinguished by 1-WL refinement (Kiefer et al., 2020; Arvind et al., 2020; Chen et al., 2020).

Individualization and refinement

Most of the present graph isomorphism solvers i.e. Nauty (McKay and others, 1981), Traces (McKay and Piperno, 2014), etc. are based on a coloring paradigm called individualization and refinement. In practice, these solvers are quite fast even though they can take exponential time in worst case. A comprehensive explanation of the of individualization and refinement algorithms can be found in McKay and Piperno (2014). Below we give a brief description.

Individualization refers to picking a vertex among vertices of a given color and distinguishing it with a new color. Once a vertex is distinguished from the rest, this information can be propagated to the other nodes by 1-WL message passing. An example is shown in the Figure 1, where initially 1-WL coloring is unable to distinguish the two graphs. Individualizing one of the blue colored vertices and further refinement produces equitable coloring of the graphs such that they become distinguishable.

Figure 1: Example graphs where 1-WL cannot distinguish two non-isomorphic graphs. Initially, 1-WL (or GNN) message passing refines the graphs into equitable partition of same two color cells and hence the graphs are indistinguishable. In the step of individualization, one of the blue vertex is distinguished from other vertices by recoloring it (pointed by black arrows). Subsequently, 1-WL refinement i.e. message passing, produces distinct multiset of colors for the two graphs, thereby distinguishing them as non-isomorphic.

The procedure to generate a canonical coloring of the graph is as follows. Initially, vertex refinement is used to get the equitable coloring of the graph. This would partition the graph into a set of color cells. Then one of the color cells called target cell is chosen and a vertex from it is reassigned a new color. This is propagated across the graph till a further refined equitable coloring of the graph is obtained. But this refinement comes at a cost. This can only be done in a permutation invariant manner if all the vertices of the chosen target cell are individualized and thereafter refined. If we chose a target cell of size i.e. the chosen color has been assigned to nodes in the graph, then after individualization and subsequent refinement, we would have colored graphs which are finer than the one before individualization. Note that these graphs can still be not discrete and hence the process is repeated for each of refined graphs until all final graph colorings are discrete. This would take the shape of a search tree where tree nodes are graphs with equitable colorings. This search tree is canonical to the isomorphism class of the graph i.e. the search tree is unique to the graph’s isomorphism class. Finally, one of the leaves is chosen based on a predefined function which sorts all discrete colorings found as leaves of the search tree.

Furthermore, vertices belonging to the same automorphism group in the graph always get the same color in the initial equitable coloring and all of them induce the same refined coloring of the graph when individualized. Intuitively, this is because there is no structural difference between the vertices of the same automorphism group. For example, in Figure 1, individualizing any of the blue vertices would produce the same set of node colorings. Therefore, isomorphism solvers prune the search tree by detecting automorphism groups. Effectively, even if the target cell is large, the branching can be reduced if automorphisms are detected.

Proposed Method

GNNs learn node embeddings, by iteratively aggregating embeddings of its neighbours. In this work, we propose to leverage the individualization and refinement paradigm in learning to distinguish nodes with similar embeddings. The key idea is to approximate the search process generated by IR based isomorphism solvers. To make it computationally feasible, we make neccessary approximations. A conceptual overview of our approach is shown in Figure 2 and pseudocode is shown in Algorithm 1.
Notations:

We refer to hidden vectors with

for embeddings of node and for the aggregated embeddings of graph , generated with appropriate global pooling function applied on node embeddings. We use to denote matrix of node embeddings. is the embedding at layer . Note that layer refers to one full iteration of individualization-refinement step. are initialized with node features or with a constant value in the absence of node features.

Initialization

Graph Neural Networks (GNNs) are neural versions of 1-WL message passing and hence node embeddings would converge after iterating for fixed number of steps. At this stage, some of the nodes end up with same embeddings. This is equivalent to the equitable partitioning of the graph. This serves as the stable initialization of the node embeddings and partitions the graph akin to color cells.

Figure 2: Given a graph, its node embeddings are initialized with a GNN. This partitions the graph into distinct color cells with nodes in a color cell having the same embedding. We select top- nodes nearest to target-cell embedding and separately individualize them. Subsequent refinement by GNN message passing generates refined graphs. Graph-aware node embeddings across graphs are then aggregated into a single representative embedding. This IR process is repeated times before a readout function is used to make the final prediction.

Target cell selection

After initial GNN refinement, the graph would be a multiset of color (embedding) classes. To break the symmetry, we need to choose a color cell called the target cell, which contains the chosen set of nodes with the same color, in order to individualize each one of them. We approximate the target-cell selection by choosing one of the node embeddings in the graph and selecting most similar nodes with the chosen embedding. The choice of the target cell is important as it determines the breadth and the depth of the search tree and thereby the richness of the embeddings learnt. Usually, the isomorphism solvers use hand-engineered techniques to choose the target cell. Note that the size of the target cell itself may not matter much with respect to the refinement it induces on the graph. Some solvers like Nauty choose the smallest non-singleton cell whereas Traces choose the largest cell in order to shorten the depth of the search tree. This is one place where we can leverage learning from data. Given a dataset, the target cell chosen should best fit the data. Let be a scoring function on nodes which can be used to select top-k indices for individualization in each iteration. If is the set of nodes of the target cell to be individualized at layer then,

(1)

One simple method of implementing such a scoring function would be Top-K pooling as done in  (Gao and Ji, 2019; Lee et al., 2019). But this may not capture the best  target cell as these functions are only parameterized by a projection vector and do not provide specific inductive bias towards an end goal. Intuitively, to bias the scoring function towards better target cells, it should determine the cell based on the current state of the graph i.e., the number and size of distinct embeddings (cells

) and the previous embeddings that have already been individualized i.e. history. Therefore, we model the target cell selector as a Recurrent neural network with a GRU cell as it can track previous states via its hidden state.

Precisely, in each step, the GRU cell outputs a projection vector which is used to rank the nodes based on the similarity of the nodes with the projection vector. At iteration , the GRU cell takes in two inputs, one the pooled feature of the graph and the other is the hidden state of the GRU from the previous time step. It then produces two embeddings, the updated hidden state and an output embedding. The output is considered as a surrogate for the target cell embedding on which all the nodes are projected and ranked based on the projection score. Let be the projection vector output by the GRU, be an aggregator set function, be the hidden state vector and be the set of node embeddings.

Algorithm 1 The framework of GNN-IR 1:Input: Graph ; 2:-layer GNN with 1-WL expressive power; 3: Target cell selector function ; 4: Individualization function ; 5: Multiset aggregators AGG; MLP ; 6:Output: Refined embedding for Graph 7: Initialize with constant value 8: GNN() 9:for  to  do 10:    11:   for  do 12:      13:      // Individualization 14:      GNN() // Refinement 15:      16:      17:   end for 18:    // Merge 19:end for 20:Return

Then the following rule is applied to rank the nodes and get the individualization indices.

(2)
(3)
(4)
(5)
(6)

where is elementwise product. To select the nodes, the node embeddings are projected onto and a score is computed for each node. The top-k ranked indices are selected into the set

. To be able to backpropagate through the scoring function, the top-k scores are multiplied with the projection vector and a Readout function is used to generate a separate feature vector which is concatenated with the final graph embedding before prediction.

Individualization

Now that we have the selected indices in , we individualize each of the nodes separately and branch out. Our individualization function is an MLP and acts only on the selected node embeddings. The node embeddings of are updated by passing through individualization function; thereafter, the embedding matrix of the graph is updated by the procedure of masking.

(7)

This is repeated for each separately as we can only color one node at a time in the graph. The node embedding matrix is updated with the individualized node embedding. The next step is to refine the graph to propagate this information.

Refinement and Aggregation

After each individualization, we run GNN again for a fixed number of steps till the node embeddings converge again. This process of Refinement gives us refined graphs. Ideally, we should expand all the graphs further but this incurs extra computational cost which grows exponentially with depth.

In cases where we need to search over a tree, one of the popular greedy heuristic is beam search, where the search tree of a fixed width is kept. Selection of best graph out of

would require a value-function approximator which would score over each of the graphs. Such a function would be difficult to train given the limited amount of labeled data. As an approximation, we instead construct a multiset function to aggregate the embeddings of each node into a single embedding. In principle a universal multiset function approximator should be able to approximate selection as well. Also, here we need a set function of a set of sets i.e. set of graphs. For this we first construct graph-aware node embeddings by combining the node embeddings with the pooled embeddings of the same graph. Finally, node embeddings are aggregated across graphs to generate a new representative graph. Precisely, let be the set of node embeddings after individualization and refinement of index in layer . We first compute , a representation for as

(8)

Thereafter, we feed to an MLP and add to each to get a graph-representative node embedding for the nodes of the refined graphs.

(9)

We then max pool the node embeddings across the

graphs i.e. for a node , we pool together embeddings to generate the aggregated new representation for node .

(10)

With the new representative graph embeddings, we repeat the IR procedure times before readout.

On aggregation of graphs and fixing k

IR algorithms usually expand the tree until the colors are discrete. The colors are then used to label the leaves and the leaf with the largest label is selected. One way to simulate this is to learn a method of selecting the correct branch at each internal tree node in order to reach the correct leaf. Instead of selecting a branch, we learn to aggregrate the children of the internal nodes into a single node and find that aggregration works well in our experiments. In an ideal case where the multiset functions used for aggregration are universal approximators (Zaheer et al., 2017; Qi et al., 2017), it would be able to learn to an approximate algorithm that selects one of the graphs, hence can learn to work as well as an algorithm that learns to select. We use a simpler aggregrator that is not necessarily a universal approximator. However, the use of max-pooling operator will likely make simulation of selection easier – if all embeddings are positive, multiplying non-desired embeddings by a small number would result in max-pooling selecting the desired embedding.

As for determining the value of , different graphs can have different cell sizes and hence it is best to choose the value of by cross-validation. The best that fits the dataset is more likely to be the target cell size on average for a given layer. Cross-validation also helps when the cells consist of nodes from same automorphism group; for such cells, smaller value of would be sufficient. But as shown in Section Analysis, a larger value of would be more robust by including all nodes of the selected cell.

Analysis

In this section, we discuss some of the properties of the proposed GNN model with individualization and refinement as defined in Algorithm 1, which we call as GNN-IR model.

Permutation invariance: Each step of GNN-IR with arbitrary width preserves the property of permutation-invariance for a large class of graphs, though it may fail to preserve it for some graphs. All operators used in GNN-IR are either permutation-invariant operators on sets or those which operate on individual nodes. If the input graph has unique attributes for all nodes, then the node-operators will operate on same nodes irrespective of input node-permutations. Hence, GNN-IR is permutation-invariant for all graphs with unique node attributes. However, if the nodes are not distinguishable, then node-operators may operate on different nodes when the permutation of input nodes changes. The stage which decides which nodes are operated on is the target cell selection stage where top- nodes are selected for individualization.

Consider the graphs with no node-attributes. Let the initial coloring of the graph be , where is the set of vertices with same color. For arbitrary width , it is possible that not all vertices of a color-cell are included in the individualization set . Then, permutation-invariance is preserved if, upon individualization, all vertices of induce same refinement on the graph. Effectively, which is included in is irrelevant. This happens when forms an orbit i.e. all vertices of can be mapped to each other via an automorphism. Therefore, for arbitrary , if all are orbit cells i.e. is an orbit-partition, then each step of GNN-IR preserves permutation invariance of the graph embeddings. For example, consider one of the graphs in Figure 1, where blue vertices form an orbit i.e. all blue vertices are structurally equivalent, and hence individualization of any blue vertex of the graph will generate same refinement. Also, we show in Lemma 1 that, output of each step of GNN-IR remains an orbit-partitioned coloring and hence, permutation-invariance is preserved over multiple steps of GNN-IR.

Lemma 1. If the input to a GNN-IR step, which includes target-cell selection, individualization-refinement and aggregation, is an orbit-partitioned coloring, then the output will also be an orbit-partitioned coloring.
Proof: Proof is included in the Appendix.

Expressive power: We characterise the expressive power of GNN-IR in terms of its distinguishing capacity of the non-isomorphic graphs.

Proposition 1. Assume we use universal set approximators in GNN-IR for target-cell selection, refinement and aggregation steps. GNN-IR is more expressive than all 1-WL equivalent GNNs i.e., GNN-IR can distinguish all graphs distinguishable by GNN and there exist graphs non-distinguishable by GNN which can be distinguished by GNN-IR.
Proof sketch. A detailed proof is given in Appendix. Here, we give a brief sketch of the proof. First, we show that graphs distinguishable by GNNs generate orbit-partitions on 1-WL refinement. Hence, by Lemma 1, GNN-IR preserves permutation-invariance on these graphs and since, the first layer of GNN-IR is a GNN, they are distinguishable by GNN-IR. Next, we illustrate two graphs which are not-distinguishable by GNN and show how a step of GNN-IR including individualization-refinement and aggregation operators, distinguishes these two graphs. ∎

Runtime analysis: For bounded degree graphs, runtime of GNN for fixed iterations is . GNN-IR builds on GNN and in each IR step, GNN is run times. Assuming constant time aggregation with 1-layer MLPs, running GNN-IR for steps takes .

Experiments

In this section, we report evaluation results of GNN-IR with multiple experiments.

Model architecture: We follow the MPNN (Gilmer et al., 2017) architecture in all our experiments. We first convolve with a 1-WL convolution operator, then update with a GRU cell (Chung et al., 2014) and for readout, we use either sum-pooling or set2set (Vinyals et al., 2015) function. For convolution, we use either GIN (Xu et al., 2018), NNConv (Gilmer et al., 2017) or PNA (Corso et al., 2020) convolution operators depending on the dataset and availability of edge features. Also, we run GNN in each IR layer for

steps and share parameters of the GNN in each iteration of IR which allows us to go deeper without increasing the parameters. We use 1-hidden layer MLPs in all set aggregators along with sum pooling. Also, in datasets with edge features, we consider edges as variables and readout from node and edge variables before final prediction. Code was implemented in Pytorch-Geometric

(Fey and Lenssen, 2019).

Counting Triangles

Train Test Time
orig large sec/ep ratio
GIN, top-k - -
ChebyGIN - - -
GAT - -
GIN* 17.1 1
GNN - IR
   90 76 28 42.1 2.46
   92 86 34 51.7 3.02
   86 78 28 57.0 3.33
   98 97 41 80.8 4.73
   93 91 46 85.6 5.00
   99 99 51 98.7 5.77
Table 1: Accuracy on counting the number of triangles in TRIANGLES dataset. is the number of layers of IR and is the width parameter. Our baseline model with .

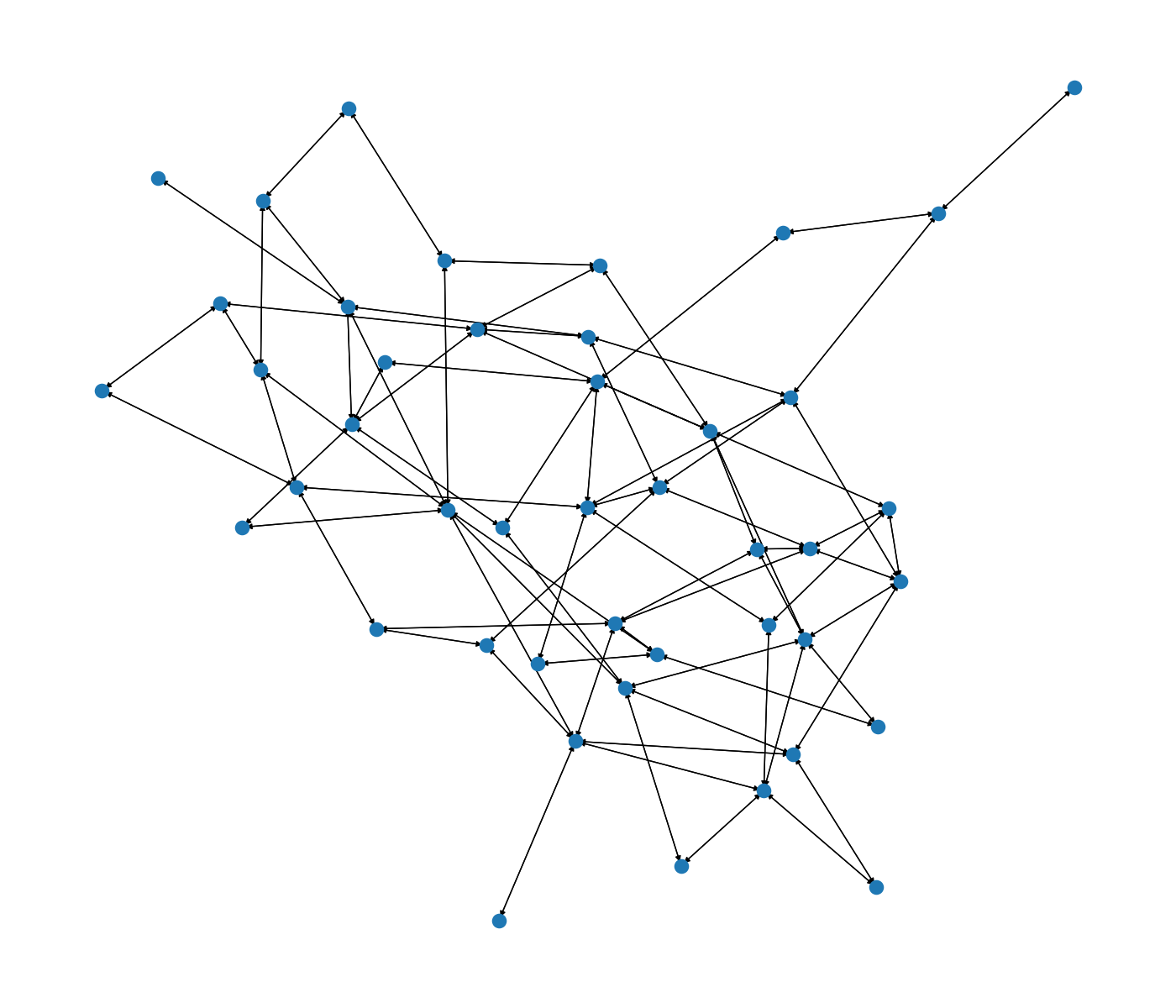

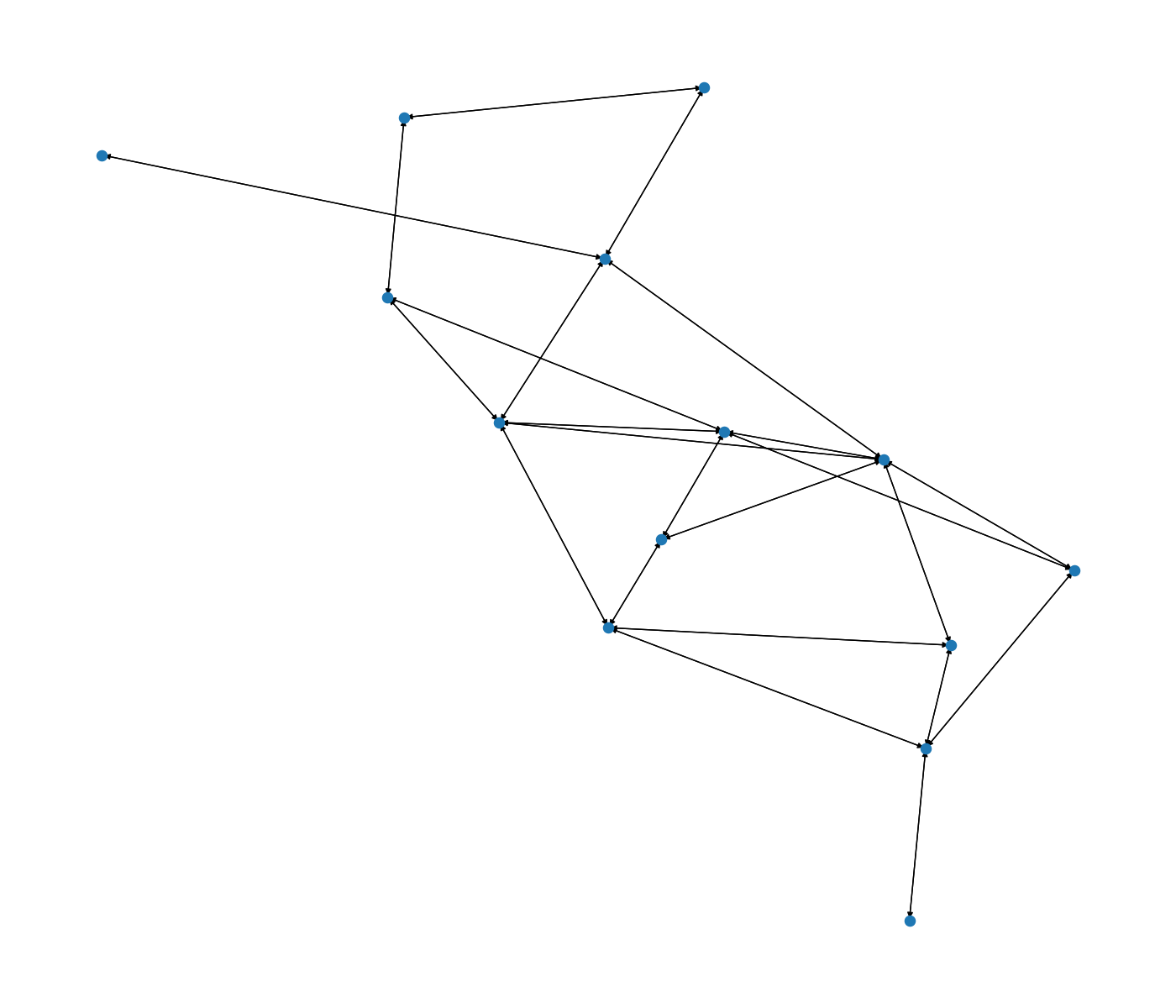

Counting triangles is a simple task and has an analytic solution of trace, where is the adjacency matrix of the graph. But, 1-WL GNN models provably cannot count triangles (Chen et al., 2020). Therefore, we evaluate GNN-IR on a publicly available synthetic dataset TRIANGLES (Knyazev et al., 2019) of graphs where the task is to count the number of triangles. The dataset comes with 4 splits, training (), validation (), test-original () and test-large (). The first three sets all have graphs with nodes and the test-large set has as many as nodes. The test-large is challenging and it tests the generalization ability of the model. We compare with baseline 1-WL GNN models, GAT, GIN and ChebyGIN (Knyazev et al., 2019) which is a more powerful GNN.

Table 1 shows the accuracy of the models on both the test sets. To analyse the effect of depth and width of IR, we report results for various values of , number of IR layers and , number of individualizations in each layer. As shown in results, just one layer of IR with individualizations significantly increases the accuracy from to for Test-orig. Furthermore, a clear pattern emerging from the results is that accuracy and generalization improves for longer depth and larger width , with highest score saturating at and . We also report the extra time taken by each IR layer, which includes steps of GNN per individualization, and compare it with GIN as it is our base GNN. The time ratio w.r.t GIN shows that with more IR layers and increased width , the amount of computation also increases; but the increase is only linear both in and .

Recognizing Circulant Skip Links (CSL) graphs

mean median max min std
GIN
RP-GIN
3WLGNN
GNN - IR
  
  
  
  
  
  
Table 2: Graph classification on the CSL dataset. Our baseline model with .
Data set ZINC 10K ALCHEMY 10K mae mae log-mae GINE- 0.278 0.185 -1.864 2-WL-GNN 0.399 0.149 -2.609 -2-GNN 0.374 0.118 -2.679 -2-LGNN 0.306 0.122 -2.573 DGN 0.168 - PNA 0.187 0.162 -2.033 GNN-IR 0.137 0.119 -2.742
Table 3: MAE on ZINC10K and ALCHEMY10K
Data set QM9 (mae) GINE- 0.081 MPNN 0.034 --GNN 0.068 --GNN 0.088 ---GNN 0.062 -IGN 0.046 --LGNN 0.029 LRBP-net 0.027 GNN-IR 0.020
Table 4: Graph regression on QM9 dataset in std mae.
Data set ZINC10K ALCHEMY10K Time-ratio mae Time-ratio mae GINE (1-WL) 1.0 0.27 1.0 0.18 2-WL-GNN 17.11 0.39 7.33 0.14 -2-WL-GNN 21.86 0.37 10.71 0.11 GNN - IR L=1    k=2 4.61 0.16 2.38 0.13 L=1    k=4 6.87 0.14 4.47 0.12 L=2    k=2 7.36 0.13 4.72 0.12 L=2    k=4 11.56 0.13 7.22 0.11
Table 5: Runtime analysis: Time-ratio compared to GINE (1-WL).

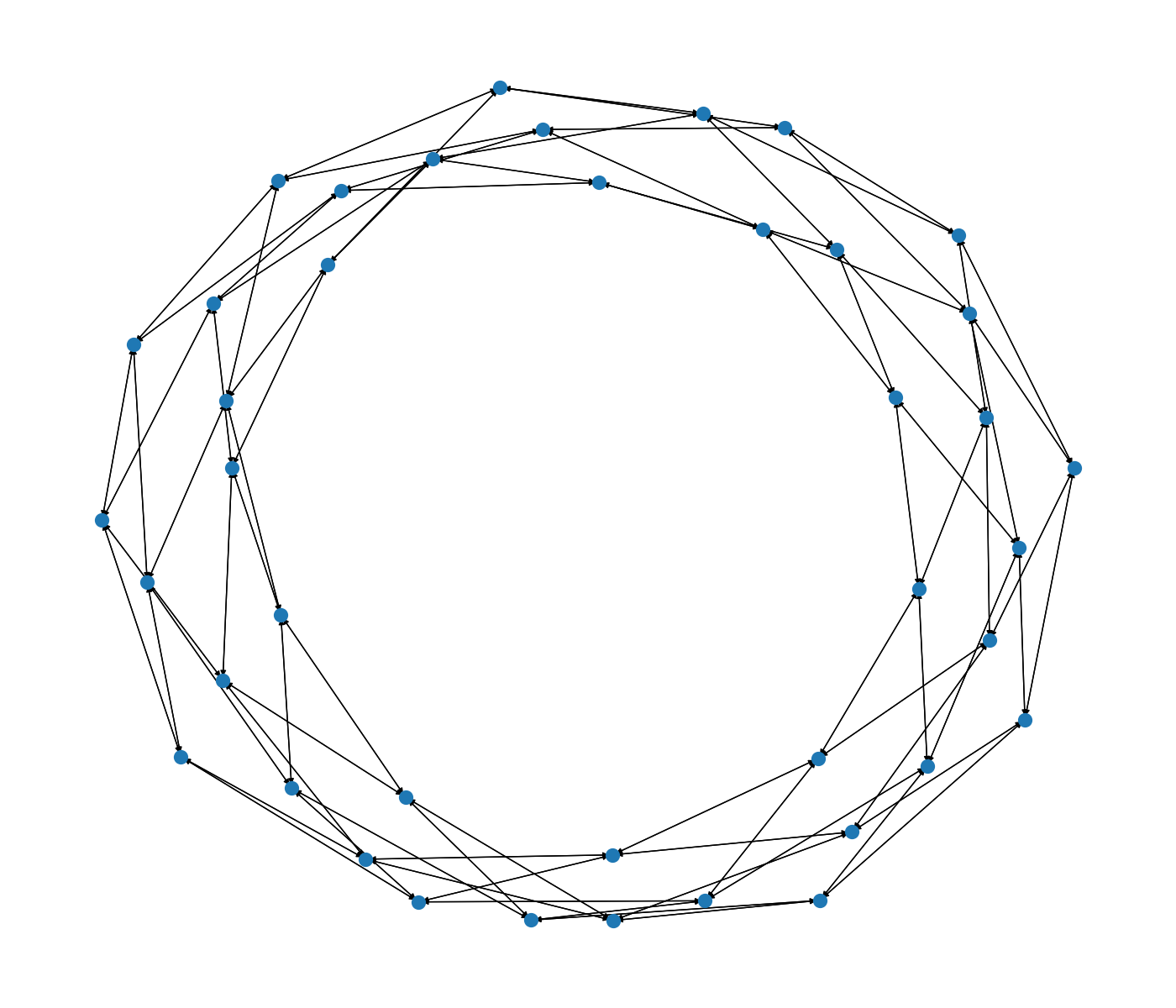

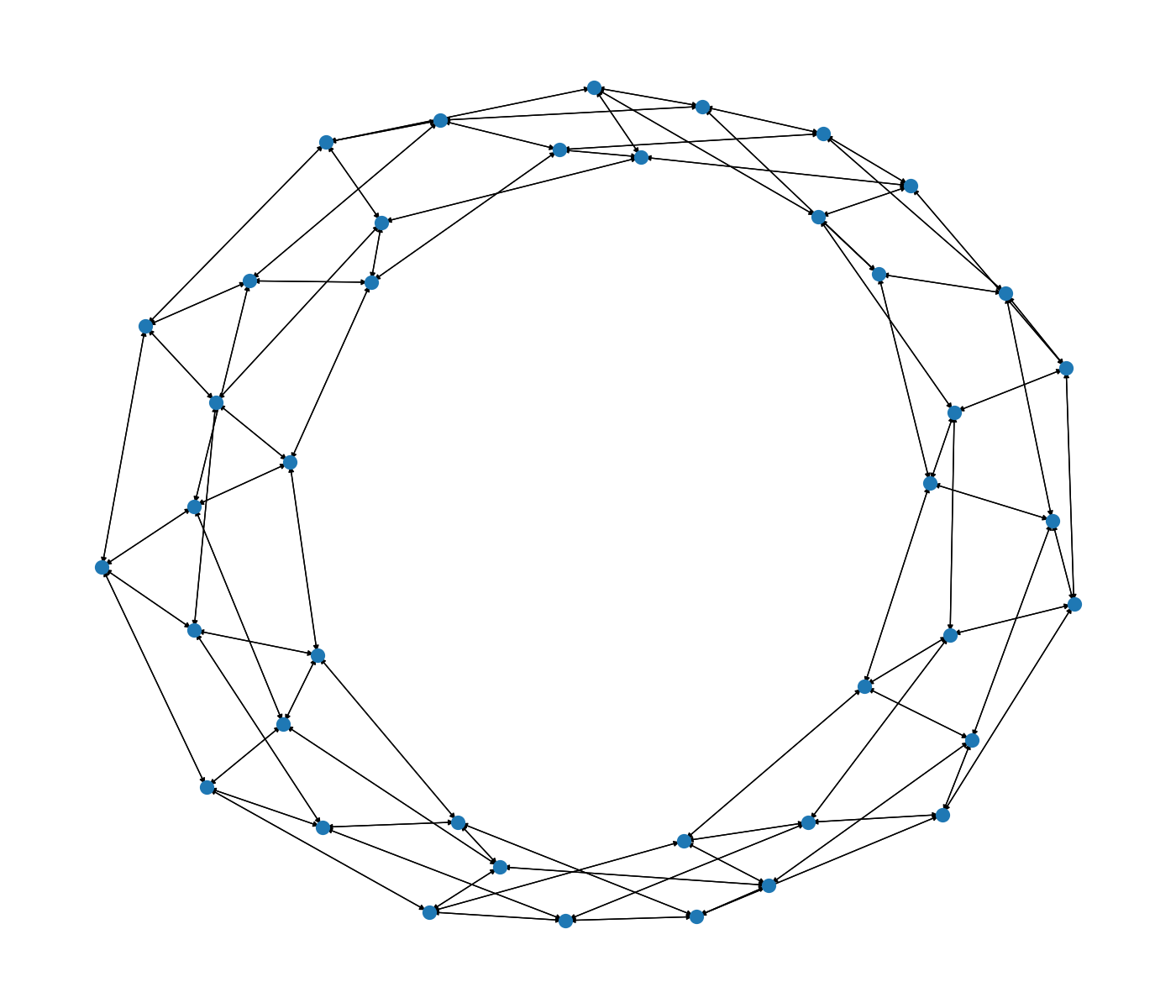

A type of graphs that 1-WL GNN models cannot classify are regular graphs that do not provide any information in node degrees. In order to evaluate GNN-IR for highly regular graphs, we use Circulant Skip Links (CSL) dataset released by

(Murphy et al., 2019). A CSL graph is a 4-regular graph with vertices with an edge between vertices distance from each other. The dataset consists of graphs with classes (). We evaluate GNN-IR with CSL dataset with -fold cross-validation as in (Murphy et al., 2019) and report results along with 1-WL and more expressive models like RP-GNN (Murphy et al., 2019) and 3-WL GNN.

Since CSL graphs have highly regular structure, the number of individualizations needed to break the symmetry is high. Table 2 shows that 1-WL GIN model fails whereas there is clear improvement by GNN-IR. Note that higher values of result in much better gain compared to increase in number of IR layers . This suggests that with larger width , either target color-cells with larger width are more helpful in breaking the symmetry or more number of smaller color-cells included for individualization helps in including the optimal target-cell in the selected nodes.

Real world benchmarks

We now evaluate GNN-IR on real-world datasets on graph regression task. We use ZINC10K (Jin et al., 2018; Dwivedi et al., 2020), ALCHEMY10K (Chen et al., 2019a) and QM9 (Ruddigkeit et al., 2012; Ramakrishnan et al., 2014) datasets, since these datasets are used by recent prominent models (Morris et al., 2020; Corso et al., 2020) and to compare with the neural versions of higher-order GNNs (Morris et al., 2020) which are more expressive than 1-WL GNNs. Note that all kernel versions usually perform much better than their neural counterparts. We use NNConv as our base GNN for QM9 and PNAConv for Alchemy and ZINC. For readout, we use Set2set output for QM9 following (Gilmer et al., 2017) and sum pooling for other datasets. For all datasets we follow the dataset splits and report mean absolute error (MAE) as in (Morris et al., 2020). For more recent comparison with state-of-the-art models, we add PNA (Corso et al., 2020) and DGN (Beani et al., 2021)for ZINC and ALCHEMY datasets and LRBP-net (Dupty and Lee, 2020) for QM9.

CSL TRIANGLES
mean median max min std Train Test
orig large
GIN 10 10 10 10 0 90 47 18
GNN-IR with
a) random nodes 11.9 13.3 13.3 10 1.8 94.7 93.6 39.5
b) without GRU 90.7 96.7 96.7 70 16.6 97.1 97.2 41.2
c) sum aggr 54.0 60.0 70.0 20 19.4 95.8 92.4 35.2
GNN-IR 98.7 100.0 100.0 96.67 1.8 99.4 99.3 51.1
Table 6: GNN-IR ablation models

Table 5 and 5 shows that the improvement over standard baselines is consistent across the datasets. Specifically for ZINC10K and QM9, the improvement of GNN-IR is substantial over k-WL GNN variants. Note that it is non-trivial to compare the expressive power of GNN-IR in terms of k-WL models. Results show that GNN-IR outperforms neural versions of k-WL. This suggests that GNN-IR has at least better inductive bias for these problems than k-WL GNNs. But it is not clear which properties of the algorithm result in better inductive bias for these tasks. It would be interesting to understand the conditions under which GNN-IR and k-WL GNNs do well for different tasks. We leave this study for future work.

Runtime and ablation study: We compare GNN-IR with k-WL GNNs in terms of their runtimes against accuracy. Table 5

shows ratio of time per epoch of models w.r.t GINE (1-WL). There is only linear increase in runtime of GNN-IR with increasing

and much better gains compared to k-WL GNNs with lesser runtimes.

We also conducted ablation experiments to study the effectiveness of various components of GNN-IR. For this, we use the best models of GNN-IR for CSL and TRIANGLES dataset and consider randomly selecting top-k nodes instead of learning, replacing GRU in equation 3 with an MLP and using sum instead of max in aggregating the refined graphs. Table 6 shows that, compared to GNN, randomly selecting top- nodes helps in TRIANGLES dataset but does not help at all in CSL dataset; suggesting that learning top-k nodes is needed for breaking the symmetry in graph structures. Replacing GRU with MLP and using sum aggregator decreases the performance slightly but fare much better than GNN.

Note: Due to space constraints, we provide results on TUDataset benchmark in the Appendix; GNN-IR gives competitive performance against GNN-based methods although it does not give state-of-the-art performance when compared to all methods.

Conclusion

In this work, we propose learning richer representations on graph structured data with individualization and refinement, a technique followed by most practical isomorphism solvers. Our approach is computationally feasible and can adaptively select nodes to break the symmetry in GNN embeddings. Experimental evaluation shows that our model substantially outperforms other 1-WL and more expressive GNNs on several benchmark datasets. Future work includes understanding the power and limitations of learning individualization and refinement functions for improving GNN models.
