Graph Prolongation Convolutional Networks: Explicitly Multiscale Machine Learning on Graphs, with Applications to Modeling of Biological Systems

02/14/2020 ∙ by C. B. Scott, et al. ∙ 0

We define a novel type of ensemble Graph Convolutional Network (GCN) model. Using optimized linear projection operators to map between spatial scales of graph, this ensemble model learns to aggregate information from each scale for its final prediction. We calculate these linear projection operators as the infima of an objective function relating the structure matrices used for each GCN. Equipped with these projections, our model (a Graph Prolongation-Convolutional Network) outperforms other GCN ensemble models at predicting the potential energy of monomer subunits in a coarse-grained mechanochemical simulation of microtubule bending. We demonstrate these performance gains by measuring an estimate of the FLOPs spent to train each model, as well as wall-clock time. Because our model learns at multiple scales, it is possible to train at each scale according to a predetermined schedule of coarse vs. fine training. We examine several such schedules adapted from the Algebraic Multigrid (AMG) literature, and quantify the computational benefit of each. Finally, we demonstrate how under certain assumptions, our graph prolongation layers may be decomposed into a matrix outer product of smaller GCN operations.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 4

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

1.1 Convolution and Graph Convolution

Recent successes of deep learning have demonstrated that the inductive bias of Convolutional Neural Networks (CNNs) makes them extremely efficient for analyzing data with an inherent grid structure, such as images or video. In particular, many applications use these models to make per-node (per-pixel) predictions over grid graphs: examples include image segmentation, optical flow prediction, anticipating motion of objects in a scene, and facial detection/identification. Further work applies these methods to emulate physical models, by discretizing the input domain. Computational Fluid Dynamics and other scientific tasks featuring PDEs or ODEs on a domain discretized by a rectangular lattice have seen recent breakthroughs applying machine learning models, like CNNs to handle data which is structured this way. These models learn a set of local filters whose size is much smaller than the size of the domain - these filters may then be applied simultaneously across the entire domain, leveraging the fact that at a given scale the local behavior of the neighborhood around a pixel (voxel) is likely to be similar at all grid points.

Graph Convolutional Networks (GCNs) are a natural extension of the above idea of image ‘filters’ to arbitrary graphs rather than

D grids, which may be more suitable in some scientific contexts. Intuitively, GCNs replace the image filtering operation of CNNs with repeated passes of: 1) aggregation of information between nodes according to some structure matrix 2) nonlinear processing of data at each node according to some rule (most commonly a flat neural network which takes as separate input(s) the current vector at each node). We refer the reader to a recent survey by Bacciu et al

(2019) for a more complete exploration of the taxonomy graph neural networks.

1.2 Microtubules

As an example of a dataset whose underlying graph is not a grid, we consider a coarse-grained simulation of a microtubule. Microtubules (MTs) are self-assembling nanostructures which are ubiquitous in living cells. MTs play important structural roles during cell division, cell growth, and separation of chromosomes (in eukaryotic cells) (Chakrabortty et al., 2018). Microtubules are comprised of a lattice structure of two conformations ( and ) of tubulin. Free-floating tubulin monomers associate energetically into dimer subunits, which then associate head-to-tail to form long chain-like complexes called protofilaments. Protofilaments associate side-to side in a sheet; at some critical number of protofilaments (which varies between species and cell type) the sheet wraps closed to form a repeating helical lattice with a seam. See (Pampaloni and Florin, 2008), Page 303, Figure 1. Key properties of microtubules are:
Dynamic instability: microtubules grow from one end by attracting free-floating tubulin monomers (VanBuren et al., 2005). Microtubules can spontaneously enter a “catastrophe” phase, in which they rapidly unravel, but can also “rescue” themselves from the catastrophe state and resume growth (Gardner et al., 2013; Shaw et al., 2003).
Interactions: Microtubules interact with one another: they can dynamically avoid one another during the growth phase, or collide and bundle up, or collide and enter catastrophe (Tindemans et al., 2014). The exact mechanism governing these interactions is an area of current research.
Structural strength: microtubules are very stiff, with a Young’s Modulus estimated at 1GPa for some cases (Pampaloni and Florin, 2008). This stiffness is thought to play a role in reinforcing cell walls (Kis et al., 2002).

In this work we introduce a model which learns to reproduce the dynamics of a graph signal (defined as an association of each node in the network with a vector of discrete or real-valued labels) at multiple scales of graph resolution. We apply this model framework to predict the potential energy of each tubulin monomer in a mechanochemical simulation of a microtubule.

1.3 Simulation of MTs and Prior Work

Non-continuum, non-event-based simulation of large molecules is typically done by representing some molecular subunit as a particle/rigid body, and then defining rules for how these subunits interact energetically. Molecular Dynamics (MD) simulation is an expansive area of study and a detailed overview is beyond the scope of this paper. We instead proceed to describe in general terms some basic ideas relevant to the numerical simulation detailed in Section 3.1. MD simulations proceed from initial conditions by computing the forces acting on each particle (according to the potential energy interactions and any external forces, as required), determining their instantaneous velocities and acceleration accordingly, and then moving each particle by the distance it would move (given its velocity) for some small timestep. Many variations of this basic idea exist. The software we use for our MD simulations, LAMMPS (Plimpton, 1993) allows for many different types of update step: we use Verlet integration (updating particle position according to the central difference approximation of acceleration (Verlet, 1967)) and Langevin dynamics (modeling the behavior of a viscous surrounding solvent implicitly (Schneider and Stoll, 1978)). We also elect to use the microcanonical ensemble (NVE) - meaning that the update steps of the system maintain the total number of particles, the volume of the system, and the total energy (kinetic + potential). For more details of our simulation, see Section 3.1 and the source code, available in the Supplementary Material accompanying this paper. Independent of implementation details, a common component of many experiments in computational molecular dynamics is the prediction of the potential energy associated with a particular conformation of some molecular structure. Understanding the energetic behavior of a complex molecule yields insights into its macro-scale behavior: for instance, the problem of protein folding can be understood as seeking a lower-energy configuration. In this work, we apply graph convolutional networks, trained via a method we introduce, to predict these energy values for a section of microtubule.

1.4 Mathematical Background and Notation

Definitions:

For all basic terms (graph, edge, vertex, degree) we use standard definitions. We use the notation to represent the sequence of indexed by the integers .
Graph Laplacian: The graph Laplacian is the matrix given by where is the adjacency matrix of , and is an appropriately sized vector of 1s. The graph Laplacian is given by some authors as the opposite sign.
Graph Diffusion Distance (GDD): Given two graphs and , with the Graph Diffusion Distance is given by:

(1)

where represents some set of constraints on , and represents the Frobenius norm. We take to be orthogonality: . Note that since in general is a rectangular matrix, it may not be the case that . Our recent work (Author and Author, 2019) has examined variants of this distance measure, and techniques for efficiently calculating this distance. Detailing these is outside of the scope of this paper; all matrices detailed in this work were calculated using the constrained optimization package Pymanopt (Townsend et al., 2016).
Prolongation matrix: we use the term “prolongation matrix” to refer to a matrix which is the optimum of the minimization given in the definition of the GDD.

2 Model Architecture

The model we propose is an ensemble of GCNs at multiple scales, with optimized projection matrices performing the mapping in between scales (i.e. between ensemble members). More formally, Let represent a sequence of graphs with , and let be their structure matrices (for some chosen method of calculating the structure matrix given the graph). In all experiments in this paper, we take , the graph Laplacian, as previously defined 111Other GCN research uses powers of the Laplcian, the normalized Laplacian, the symmetric normalized laplacian, etc. Comparison of these structure matrices is out of scope of this paper.. In an ensemble of Graph Convolutional Networks, let

represent the parameters (filter matrix and bias vector) in layer

of the th network.

We follow the GCN formulation given by Kipf and Welling (2016)

. Assuming an input tensor

of dimensions (where is the number of nodes in the graph and is the dimension of the label at each node), we inductively define the layerwise update rules for a graph convolutional network as:

where

is the activation function of the

th layer.

When , let be an optimal (in either the sense of Graph Diffusion Distance, or in the sense we detail in section 3.3) prolongation matrix from to , i.e. Then, for , let be shorthand for the matrix product . For example, .

Our multiscale ensemble model is then constructed as:



This model architecture is illustrated in Figure 1. When the matrices are constant/fixed, we will refer to this model as a GPCN, for Graph Prolongation-Convolutional Network. However, we find in our experiments in Section 3.3 that validation error is further reduced when the operators are tuned during the same gradient update step which updates the filter weights, which we refer to as an “adaptive” GPCN or A-GPCN. We explain our method for choosing and optimizing matrices in Section 3.3.

Figure 1: Schematic of GPCN model. Data matrix is fed into the model and repeatedly coarsened using optimized projection matrices . These coarsened data matrices are separately fed into GCN models. The final output of the ensemble is the projected sum of the outputs of each component GCN.

3 Numerical Experiments

3.1 Dataset

In this Section we detail the process for generating the simulated microtubule data for comparison of our model with other GCN ensemble models. Our microtubule structure has 13 protofilaments (each 48 tubulin monomers long). As in a biological microtubule, each tubulin monomer is offset (along the axis parallel to the protofilaments) from its neighbors in adjacent protofilaments, resulting in a helical structrure with a pitch of 3 tubulin units. We refer to this pitch as the “offset” in Section 3.2. Each monomer subunit (624 total) is represented as a point mass of 50 Dalton (ng). The diameter of the whole structure is 26nm, and the length is nm. The model itself was constructed using Moltemplate (Jewett et al., 2013), a tool for constructing large regular molecules to be used in LAMMPS simulations.

For this model, we define energetic interactions for angles and associations only. No steric or dihedral interactions were used: for dihedrals, this was because the lattice structure of the tube meant any set of four molecules contributed to multiple, contradictory dihedral interactions 222Association and angle constraints were sufficient to replicate the bending resistance behavior of microtubules. We hope to run a similar experiment using higher-order particle interactions (which may be more biologically plausible), in future work.. Interaction energy of an association was calculated using the “harmonic” bond style in LAMMPS, i.e. where is the resting length and is the strength of that interaction. The energy of an angle was similarly calculated using the “harmonic” angle style, i.e. where is the resting angle and is again the interaction strength. The resting lengths and angles for all energetic interactions were calculated using the resting geometry of our microtubule graph : a LAMMPS script was used to print the value of every angle interaction in the model, and these were collected and grouped based on value (all angles, all angles, etc). Each strength parameter was varied over the values in , producing parameter combinations. Langevin dynamics were used, but with small temperature, to ensure stability and emphasize mechanical interactions. See Table 1 and Figure 3 for details on each strength parameter.

GNU Parallel (Tange, 2011) was used to run a simulation for each combination of interaction parameters, using the particle dynamics simulation engine LAMMPS. In each simulation, we clamp the first two rings of tubulin monomers (nodes 1-26) in place, and apply force (in the negative direction) to the final two rings of monomers (nodes 599-624). This force starts at 0 and ramps up during the first 128000 timesteps (one step ns) to its maximum value of N. Once maximum force is reached, the simulation runs for 256000 additional timesteps, which in our experience was long enough for all particles to come to rest. See Figure 2 for an illustration (visualized with Ovito (Stukowski, 2010)) of the potential energy per-particle at the final frame of a typical simulation run. Every timesteps, we save the following for every particle: the position ; components of velocity ; components of force ; and the potential energy of the particle . The dataset is then a concatenation of the 12 saved frames from every simulation run, comprising all combinations of input parameter values, where for each frame we have:
, the input graph signal, a matrix holding the position, velocity, and force on each particle, as well as values of the five interaction coefficients; and
, the output graph signal, a matrix holding the potential energy calculated for each particle.

During training, after a training/validation split, we normalize the data by taking the mean and standard deviation of the

input and output tensors along their first axis. Each data tensor is then reduced by the mean and divided by the standard deviation so that all inputs to the network have zero mean and unit standard deviation. We normalize using the training data only.

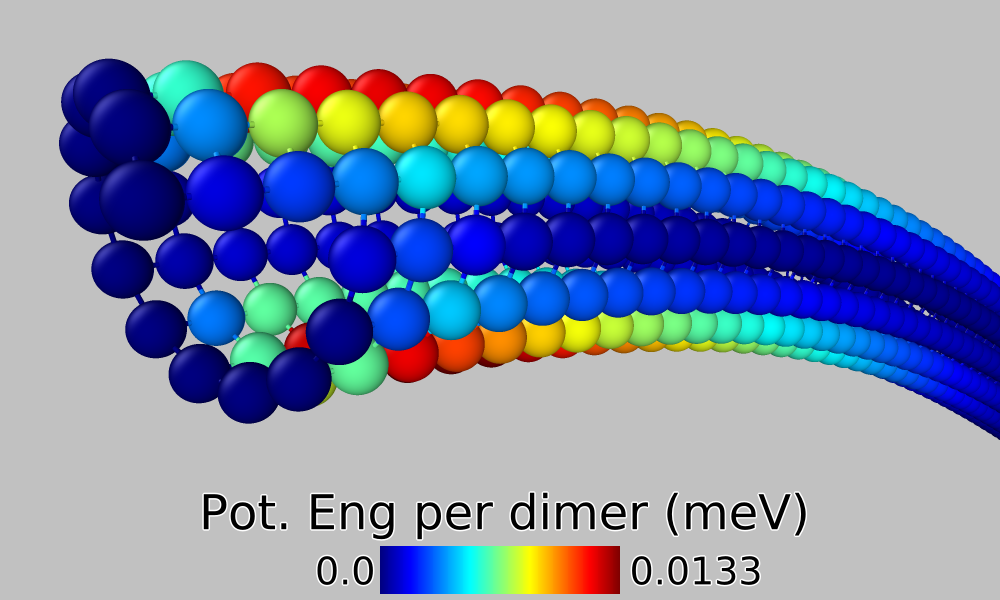

Figure 2: Microtubule model under bending load. Color of each particle indicates the sum of that particle’s share of all of the energetic interactions in which it participates. This view is of the clamped end; the other end, out of view, has a constant force applied.

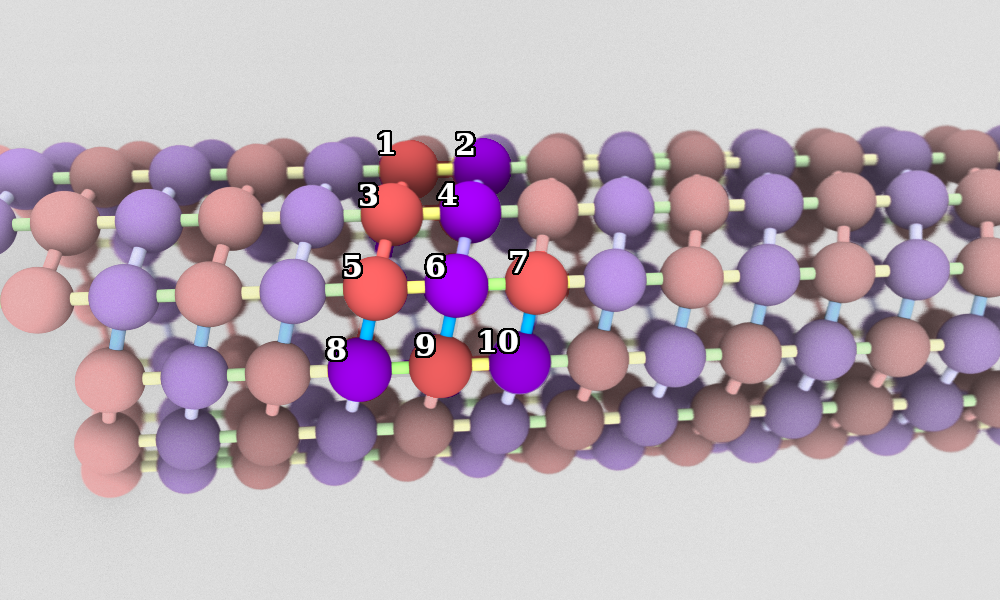

Figure 3: Microtubule model structure. Red spheres represent -tubulin; purple spheres represent -tubulin. Highlighted atoms at center are labelled to show example energetic interactions: each type of interaction indicated in Table 1 (using the particle labels in this image) is applied everywhere in the model where that arrangement of particle and association types occurs in that position.
Association interactions
Description Examples Resting Length Strength Param.
Lateral association inside lattice (1,3),(2,4) 5.15639nm LatAssoc
Lateral association across seam (5,8),(6,9) 5.15639nm LatAssoc
Longitudinal association (1,2),(3,4) 5.0nm LongAssoc
angle interactions
Description Examples Resting Angle Strength Param.
Pitch angle inside lattice (1,3,5),(2,4,6) 153.023 LatAngle
Longitudinal angle (5,6,7),(8,9,10) 180 LongAngle
Lattice cell acute angle (3,4,6),(3,5,6),(5,8,9),(6,9,10) 77.0694 QuadAngles
Lattice cell obtuse angle (4,3,5),(4,6,5),(6,5,8),(6,9,8) 102.931 QuadAngles
Table 1: Description of energetic interactions in microtubule simulation, according to the labels in Figure 3.

3.2 Graph Coarsening

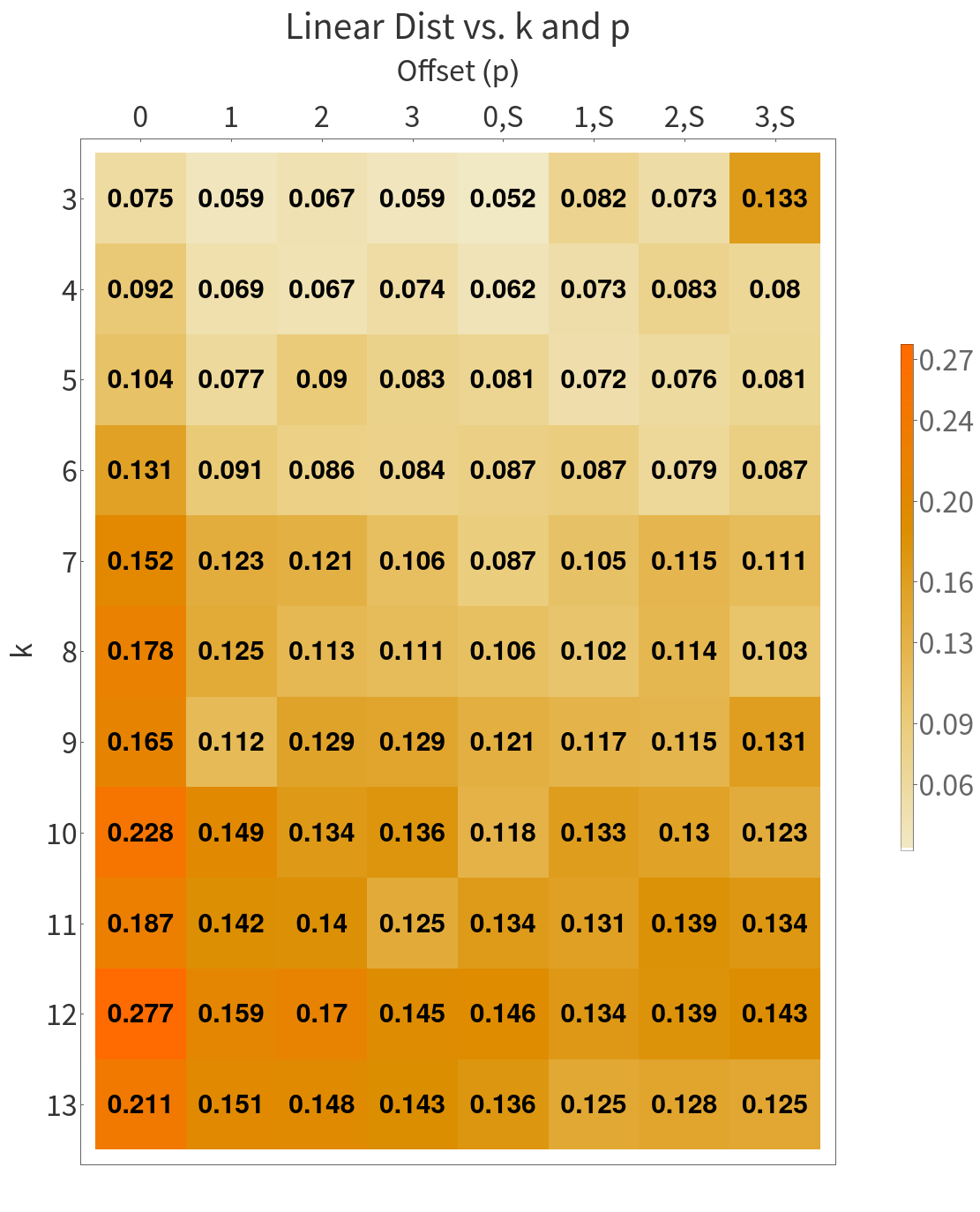

Figure 4: Directed Graph Diffusion Distance (GDD) between offset tube graphs and . Table cells colored by value. We see from this comparison that the two graphs which are closest to are and with an edge weight of 2 for connections along the seam, motivating our choice of (unweighted) as the coarsest graph in our hierarchy.


Figure 5: Three graphs used to create structure matrices for our GPCN model. Top: microtubule graph. Center: Offset tube with 13 subunits per turn, length 24, and offset 1. Bottom: Tube with 3 subunits per turn, no offset, and length 24.

In this Section we outline a procedure for determining the coarsened structure matrices to use in the hierarchy of GCN models comprising a GPCN. We use our microtubule graph as an example. In this case, we have two a-priori guidelines for producing the reduced-order graphs: 1) the reduced models should still be a tube and 2) it makes sense from a biological point of view to coarsen by combining the - pairs into single subunits. Given these restrictions, we can explore the space of coarsened graphs and find the coarse graph which is nearest to our original graph (under the GDD).

Our microtubule model is a tube of length 48 units, 13 units per complete “turn”, and with the seam offset by three units. We generalize this notion as follows: Let be the offset, and be the number of monomers in one turn of the tube, and the number of turns of a tube graph . The graph used in our simulation is thus . We pick the medium scale model to be , as this is the result of combining each pair of tubulin monomer units in the fine scale, into one tubulin dimer unit in the medium scale. We pick the coarsest graph by searching over possible offset tube graphs. Namely, we vary and , and compute the optimal and its associated distance . Figure 4 shows the distance between and various other tube graphs as parameters and are varied. The nearest to is that with and . Note that Figure 4 has two columns for each value of : these represent the coarse edges along the seam having weight (relative to the other edges) 1 (marked with an ) or having weight 2 (no ). This is motivated by the fact that our initial condensing of each dimer pair condensed pairs of seam edges into single edges.

3.3 Comparison to Other GCN Ensemble Models

Structure Matrix GCN Filters Dense Filters
Single GCN
64,64,64 256, 32, 8, 1
2-GCN Ensemble
64,64,64 256, 32, 8, 1
32,32,32 256, 32, 8, 1
3-GCN Ensemble
64,64,64 256, 32, 8, 1
32,32,32 256, 32, 8, 1
16,16,16 256, 32, 8, 1
2-level GPCN
64,64,64 256, 32, 8, 1
32,32,32 256, 32, 8, 1
3-level GPCN
64,64,64 256, 32, 8, 1
32,32,32 256, 32, 8, 1
16,16,16 256, 32, 8, 1
N-GCN (radii 1,2,4)
64,64,64 256, 32, 8, 1
N-GCN (radii 1,2,4,8,16)
64,64,64 256, 32, 8, 1
Table 2: Filter specifications for ensemble models in comparison experiment.

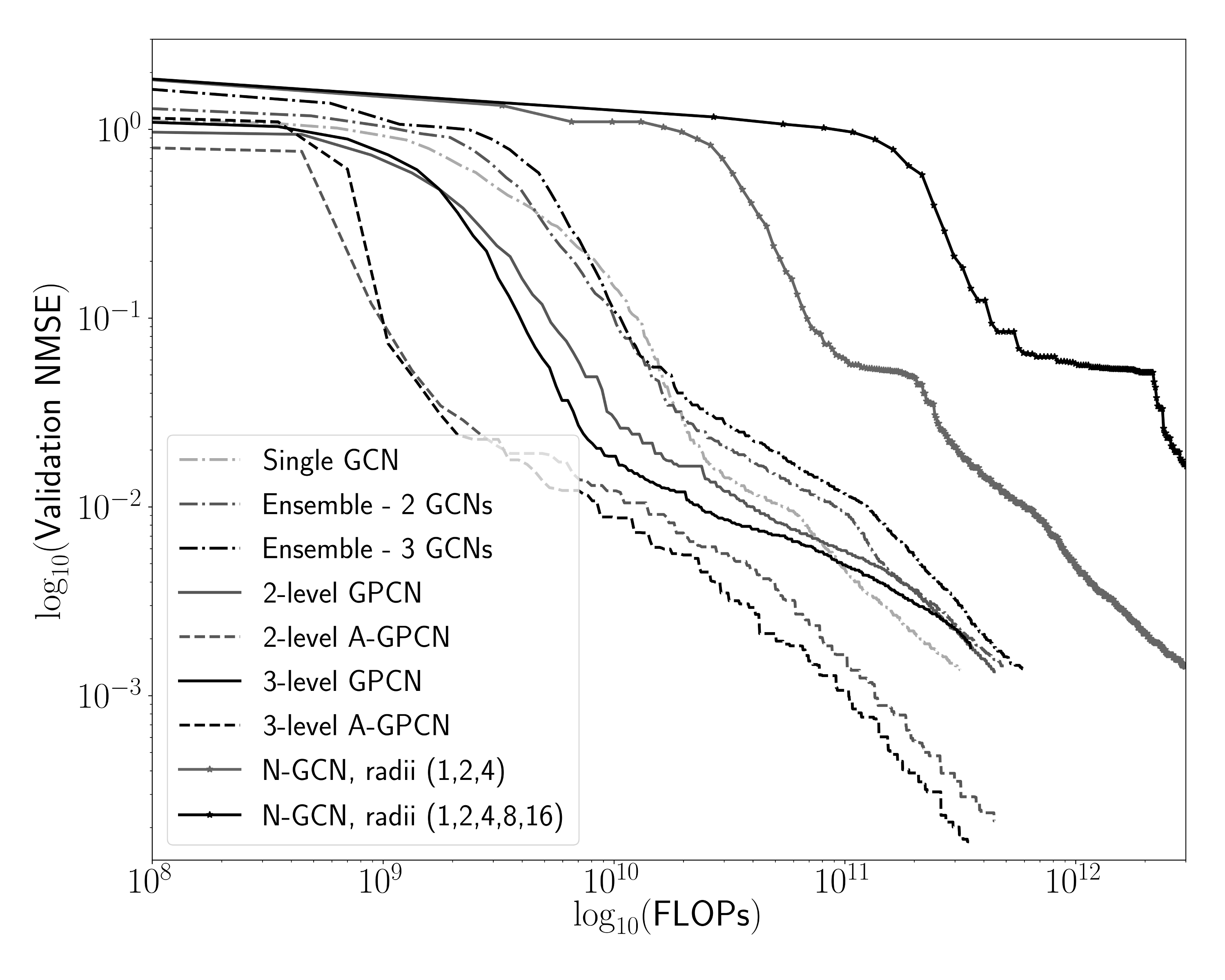

Figure 6: Comparison of Normalized MSE on held-out validation data as a function of FLOPs expended for a variety of ensemble Graph Convolutional Network Models. We see that especially in early stages of training, our model formulation learns faster than an ensemble of 2, 3 or 5 GCNs with the same number of filters. The error plotted is the model’s minimum error thus far (on the validation data). See supplementary material for a non-minimized version, and versions of same plots with wall-clock time substituted for estimated FLOP count.

Model Name
Mean NMSE
Std. Dev
()
Min NMSE
()
Single GCN 1.50 0.09 1.37796
Ensemble - 2 GCNs 1.38 0.09 1.16949
Ensemble - 3 GCNs 1.44 0.16 1.24315
2-level GPCN 1.40 0.14 1.18357
2-level A-GPCN 0.23 0.05 0.14109
3-level GPCN 1.95 0.20 1.69807
3-level A-GPCN 0.181 0.029 0.13726
N-GCN
radii (1,2,4)
1.41 0.11 1.31325
N-GCN
radii (1,2,4,8,16)
1.41 0.08 1.30904
DiffPool 4.6 1.2 3.14470

Table 3:

Mean error and uncertainty of several GCN ensemble models across ten random trials. For each trial, the random seed was set to the same value for each model. Reported values are the minimum error on the validation set during training (not the error at the final epoch). Normalized Mean Squared Error (NMSE) values are unitless.

Model Name Mean time per batch (s)
Single GCN 0.0312
Ensemble - 2 GCNs 0.0471
Ensemble - 3 GCNs 0.0588
2-level GPCN 0.0524
2-level A-GPCN 0.0339
3-level GPCN 0.0324
3-level A-GPCN 0.0371
N-GCN, radii (1,2,4) 0.0862
N-GCN, radii (1,2,4,8,16) 0.138
DiffPool 0.0580
Table 4:

Mean wall-clock time to perform feed-forward and backpropagation for one batch of data, for various GCN ensemble models. Times were collected on a single Intel(R) Xeon(R) CPU core and an NVIDIA TITAN X GPU.

In this experiment we demonstrate the efficiency advantages of our model by comparing our approach to other ensemble Graph Convolutional Networks. Within each ensemble, each GCN model consists of several graph convolution layers, followed by several dense layers which are applied to each node separately (node-wise dense layers can be alternatively understood as a GCN layer with , although we implement it differently for efficiency reasons). The input to the dense layers is the node-wise concatenation of the output of each GCN layer. Each ensemble is the sum output of several such GCNs. We compare our models to 1, 2, and 3- member GCN ensembles with the same number of filters (but all using the original fine-scale structure matrix). For GPCN models, matrices were calculated using Pymanopt (Townsend et al., 2016) to optimize Equation 1 subject to orthogonality constraints. The same were used to initialize the (variable) matrices of A-GPCN models.

We also compare our model to the work of Abu-El-Haija et. al (2018), who introduce the N-GCN model: an ensemble GCN in which each ensemble member uses a different power of the structure matrix (to aggregate information from neighborhoods of radius ). We include a N-GCN with radii (1,2,4) and a N-GCN with radii (1,2,4,8,16).

All models were trained with the same train/validation split, using ADAM with default hyperparameters, in TensorFlow

(Abadi and others, 2016)

. Random seeds for Python, TensorFlow, Numpy, and Scipy were all initialized to the same value for each training run, to ensure that the train/validation split is the same across all experiments, and the batches of drawn data are the same. See supplementary material for version numbers of all software packages used. Training batch size was set to 8, all GCN layers have ReLU activation, and all dense layers have sigmoidal activation with the exception of the output layer of each network (which is linear). All modes were trained for 1000 epochs of 20 batches each. The time per batch of each model is listed in Table

4. Since hardware implementations may differ, we estimate the computational cost in FLOPs of each operation in our models. The cost of a graph convolutional layer with structure matrix , input data , and filter matrix is estimated as: , where is the number of nonzero entries of . This is calculated as the sum of the costs of the two matrix multiplications and , with the latter assumed to be implemented as sparse matrix multiplication and therefore requiring operations. For implementation reasons, our GCN layers (across all models) do not use sparse multiplication; if support for arbitrary-dimensional sparse tensor outer products is included in TensorFlow in the future, we would expect the wall-clock times in Table 4 to decrease. The cost of a dense layer (with input data , and filter matrix ) applied to every node separately is estimated as: . The cost of taking the dot product between a matrix and a matrix (for example, the restriction/prolongation by ) is estimated as .

We summarize the structure of each of our models in Table 2. In Figure 6 we show a comparison between each of these models, for one particular random seed (42). Error on the validation set is tracked as a function of computational cost expended to train the model (under our cost assumption given above). We see that all four GPCN models outperform the other types of ensemble model during early training, in the sense that they reach lower levels of error for the same amount of computational work performed. Additionally, the adaptive GPCN models outperform all other models in terms of absolute error: after the same number of training epochs (using the same random seed) they reach an order of magnitude lower error. Table 3 shows summary statistics for several runs of this experiment with varying random seeds; we see that the A-GPCN models consistently outperform all other models considered. Note that Figures 6,8, and 7 plot the Normalize Mean Squared Error (NMSE). This unitless value compares the output signal to the target after both are normalized by the procedure described in section 3.1.

3.4 Comparison: All-at-Once or Coarse-to-Fine Training

In this Section we compare the computational cost of training the entire GPCN at once, versus training the different ‘resolutions’ (meaning the different GCNs in the hierarchy) of the network according to a more complicated training schedule. This approach is motivated by recent work in coarse-to-fine training of both flat and convolutional neural networks (Scott and Mjolsness, 2019; Zhao et al., 2019; Haber et al., 2018; Dou and Wu, 2015; Ke et al., 2017), as well as the extensive literature on Algebraic MultiGrid (AMG) methods (Vaněk et al., 1996).

AMG solvers for differential equations on a mesh (which arises as the discretization of some volume to be simulated) proceed by performing numerical “smoothing steps” at multiple resolutions of discretization. The intuition behind this approach is that modes of error should be smooth at a spatial scale which is equivalent to their wavelength, i.e. the solver shouldn’t spend many cycles resolving long-wavelength errors at the finest scale, since they can be resolved more efficiently at the coarse scale. Given a solver and a hierarchy of discretizations, the AMG literature defines several types of training procedures or “cycle” types (F-cycle, V-cycle, W-cycle). These cycles can be understood as being specified by a recursion parameter , which controls how many times the smoothing or training algorithm visits all of coarser levels of the hierarchy in between smoothing steps at a given scale. For example, when the algorithm proceeds from fine to coarse and back again, performing one smoothing step at each resolution - a ‘V’ cycle.

We investigate the efficiency of training 3-level GPCN and A-GPCN (as described in Section 3.3), using multigrid-like training schedules with , as well as “coarse-to-fine” training: training the coarse model to convergence, then training the coarse and intermediate models together (until convergence), then finally training all three models at once. For coarse-to-fine training convergence was defined to have occurred once 10 epochs had passed without improvement of the validation error.

Our experiments (see Figure 7) show that these training schedules do result in a slight increase in efficiency of the GPCN model, especially during the early phase of training. However, we also find that these schedules are seemingly not compatible with the adaptive GPCN, as demonstrated by the fact that there are long periods of training with no improvement in validation loss. Notably, the coarse-to-fine schedule is an exception: the coarse-to-fine training of the A-GPCN outperformed even the GPCN with no multigrid training.

Figure 7: Effect of varying training schedule for training a GPCN model. Notably, coarse-to-fine training outperforms all multigrid schedules and even the original training procedure.

3.5 Comparison with DiffPool

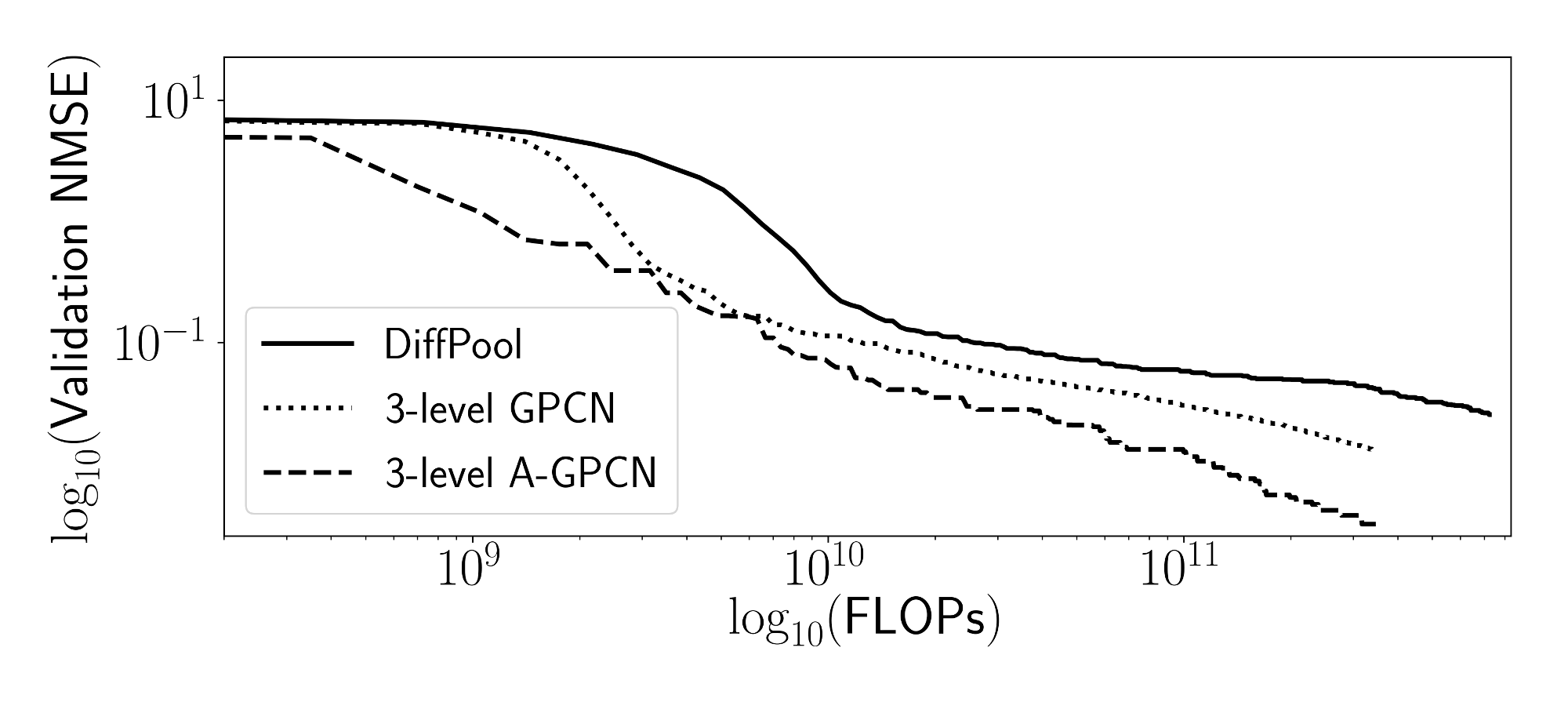

Figure 8: Comparison of 3-level GPCN and A-GPCN models to a 3-level GPCN which uses DiffPool modules to coarsen the input graph and data. Our models improve over DiffPool in terms of both efficiency and final error.

Graph coarsening procedures are in general not differentiable. DiffPool (Ying et al., 2018) aims to address this by constructing an auxiliary GCN, whose output is a pooling matrix. Formally: Suppose that at layer of a GCN we have a structure matrix and a data matrix . In addition to GCN layers as described in Section 2, Ying et. al define a pooling operation at layer as:

where is an auxillary GCN with its own set of parameters , and is the softmax function. The output of is a

matrix, each row of which is softmaxed to produce an affinity matrix

whose rows each sum to 1, representing each fine-scale node being connected to one unit’s worth of coarse-scale nodes. The coarsened structural and data matrices for the next layer are then calculated as:

(2)

Clearly, the additional GCN layers required to produce incur additional computational cost. We compare our 3-level GPCN (adaptive and not) models from the experiment in Section 3.3 to a model which has the same structure, but in which each matrix is replaced by the appropriately-sized output of a DiffPool module, and furthermore the coarsened structure matrices are produced as in Equation 2.

We see that our GPCN model achieves comparable validation loss with less computational work, and our A-GPCN model additionally achieves lower absolute validation loss.

4 Future Work

4.1 Differentiable Models of Molecular Dynamics

This work demonstrates the use of feed-forward neural networks to approximate the energetic potentials of a mechanochemical model of an organic molecule. Per-timestep, GCN models may not be as fast as highly-parallelized, optimized MD codes. However, neural networks are highly flexible function approximators: the GCN training approach outlined in this paper could also be used to train a GCN which predicts the energy levels per particle at the end of a simulation (once equilibrium is reached), given the boundary conditions and initial conditions of each particle. In the case of our MT experiments, approximately

steps were required to reach equilibrium. The computational work to generate a suitably large and diverse training set would then be amortized by the GCN’s ability to generalize to initial conditions, boundary conditions, and hyperparameters outside of this data set. Furthermore, this GCN reduced model would be fully differentiable, making it possible to perform gradient descent with respect to any of these inputs.

4.2 Tensor Factorization

Recent work has re-examined GCNs in the context of the extensive literature on tensor decompositions. LanczosNet (Liao et al., 2019)

, uses QR decomposition of the structure matrix to aggregate information from large neighborhoods of the graph. The “Tensor Graph Convolutional Network” of Zhang et. al

(2018), is a different decomposition method, based on graph factorization; a product of GCNs operating on each factor graph can be as accurate as a single GCN acting on the product graph. Since recent work (Scott and Mjolsness, 2019)

has shown that the GDD of a graph product is bounded by the distances between the factor graphs, it seems reasonable to combine both ideas into a model which uses a separate GPCN for each factor. One major benefit of this approach would be that a transfer-learning style approach can be used. For example, we could train a product of two GCN models on a short section of microtubule; and then re-use the weights in a model that predicts energetic potentials for a longer microtubule. This would allow us to extend our approach to MT models whose lengths are biologically relevant, e.g.

tubulin monomers.

5 Conclusion

We introduce a new type of graph ensemble model which explicitly learns to approximate behavior at multiple levels of coarsening. Our model outperforms several other types of GCN, including both other ensemble models and a model which coarsens the original graph using DiffPool. We also explore the effect of various training schedules, discovering that A-GPCNs can be effectively trained using a coarse-to-fine training schedule. We present the first use of GCNs to approximate energetic potentials in a model of a microtubule.

Acknowledgements

This work was funded by the Human Frontiers Science Program [grant HFSP - RGP0023/2018]; and the National Institute of Health [grant R01 HD073179], as well as the hospitality of the Center for NonLinear Studies (CNLS) at Los Alamos National Laboratory.

References

  • M. Abadi et al. (2016) Tensorflow: a System for Large-Scale Machine Learning. In 12th USENIX Symposium on Operating Systems Design and Implementation (OSDI 16), pp. 265–283. Cited by: §3.3.
  • S. Abu-El-Haija, A. Kapoor, B. Perozzi, and J. Lee (2018) N-GCN: Multi-Scale Graph Convolution for Semi-supervised Node Classification. External Links: 1802.08888 Cited by: §3.3.
  • A. Author and A. Author (2019) Novel Diffusion-Derived Distance Measures for Graphs. Suppressed for Anonymity. Cited by: §1.4.
  • D. Bacciu, F. Errica, A. Micheli, and M. Podda (2019) A Gentle Introduction to Deep Learning for Graphs. arXiv preprint arXiv:1912.12693. Cited by: §1.1.
  • B. Chakrabortty, I. Blilou, B. Scheres, and B. M. Mulder (2018) A Computational Framework for Cortical Microtubule Dynamics in Realistically Shaped Plant Cells. PLoS Computational Biology 14 (2), pp. e1005959. Cited by: §1.2.
  • H. Dou and X. Wu (2015) Coarse-to-Fine Trained Multi-Scale Convolutional Neural Networks for Image Classification. In 2015 International Joint Conference on Neural Networks (IJCNN), pp. 1–7. Cited by: §3.4.
  • M. K. Gardner, M. Zanic, and J. Howard (2013) Microtubule Catastrophe and Rescue. Current Opinion in Cell Biology 25 (1), pp. 14–22. Cited by: §1.2.
  • E. Haber, L. Ruthotto, E. Holtham, and S. Jun (2018) Learning Across Scales - Multiscale Methods for Convolution Neural Networks. In

    Thirty-Second AAAI Conference on Artificial Intelligence

    ,
    Cited by: §3.4.
  • A. I. Jewett, Z. Zhuang, and J. Shea (2013) Moltemplate: a Coarse-Grained Model Assembly Tool. Biophysical Journal 104 (2), pp. 169a. Cited by: §3.1.
  • T. Ke, M. Maire, and S. X. Yu (2017) Multigrid Neural Architectures. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    ,
    pp. 6665–6673. Cited by: §3.4.
  • T. N. Kipf and M. Welling (2016) Semi-Supervised Classification with Graph Convolutional Networks. arXiv preprint arXiv:1609.02907. Cited by: §2.
  • A. Kis, S. Kasas, B. Babić, A. Kulik, W. Benoit, G. Briggs, C. Schönenberger, S. Catsicas, and L. Forro (2002) Nanomechanics of Microtubules. Physical Review Letters 89 (24), pp. 248101. Cited by: §1.2.
  • R. Liao, Z. Zhao, R. Urtasun, and R. S. Zemel (2019) LanczosNet: Multi-Scale Deep Graph Convolutional Networks. arXiv preprint arXiv:1901.01484. Cited by: §4.2.
  • F. Pampaloni and E. Florin (2008) Microtubule Architecture: Inspiration for Novel Carbon Nanotube-based Biomimetic Materials. Trends in Biotechnology 26 (6), pp. 302–310. Cited by: §1.2.
  • S. Plimpton (1993) Fast Parallel Algorithms For Short-Range Molecular Dynamics. Technical report Sandia National Labs., Albuquerque, NM (United States). Cited by: §1.3.
  • T. Schneider and E. Stoll (1978)

    Molecular-Dynamics Study of a Three-Dimensional One-Component Model for Distortive Phase Transitions

    .
    Physical Review B 17 (3), pp. 1302. Cited by: §1.3.
  • C. Scott and E. Mjolsness (2019) Multilevel Artificial Neural Network Training for Spatially Correlated Learning. SIAM Journal on Scientific Computing 41 (5), pp. S297–S320. Cited by: §3.4, §4.2.
  • S. L. Shaw, R. Kamyar, and D. W. Ehrhardt (2003) Sustained Microtubule Treadmilling in Arabidopsis Cortical Arrays. Science 300 (5626), pp. 1715–1718. Cited by: §1.2.
  • A. Stukowski (2010) Visualization and Analysis of Atomistic Simulation Data with OVITO - the Open Visualization Tool. Modelling Simulation in Materials Science and Engineering 18 (1). External Links: Document Cited by: §3.1.
  • O. Tange (2011) GNU Parallel - The Command-Line Power Tool. ;login: The USENIX Magazine 36 (1), pp. 42–47. External Links: Link, Document Cited by: §3.1.
  • S. H. Tindemans, E. E. Deinum, J. J. Lindeboom, and B. Mulder (2014) Efficient Event-Driven Simulations Shed New Light on Microtubule Organization in the Plant Cortical Array. Frontiers in Physics 2, pp. 19. Cited by: §1.2.
  • J. Townsend, N. Koep, and S. Weichwald (2016) Pymanopt: a python Toolbox for Optimization on Manifolds using Automatic Differentiation. The Journal of Machine Learning Research 17 (1), pp. 4755–4759. Cited by: §1.4, §3.3.
  • V. VanBuren, L. Cassimeris, and D. J. Odde (2005)

    Mechanochemical Model of Microtubule Structure and Self-Assembly Kinetics. Biophysical Journal 89 (5), pp. 2911–2926. Cited by: §1.2.
  • P. Vaněk, J. Mandel, and M. Brezina (1996) Algebraic Multigrid by Smoothed Aggregation for Second and Fourth Order Elliptic Problems. Computing 56 (3), pp. 179–196. Cited by: §3.4.
  • L. Verlet (1967) Computer “Experiments” on Classical Fluids. I. Thermodynamical Properties of Lennard-Jones Molecules. Physical Review 159 (1), pp. 98. Cited by: §1.3.
  • Z. Ying, J. You, C. Morris, X. Ren, W. Hamilton, and J. Leskovec (2018) Hierarchical Graph Representation Learning with Differentiable Pooling. In Advances in Neural Information Processing Systems, pp. 4800–4810. Cited by: §3.5.
  • T. Zhang, W. Zheng, Z. Cui, and Y. Li (2018) Tensor Graph Convolutional Neural Network. arXiv preprint arXiv:1803.10071. Cited by: §4.2.
  • J. Zhao, L. Dai, M. Zhang, F. Yu, M. Li, H. Li, W. Wang, and L. Zhang (2019) PGU-net+: Progressive Growing of U-net+ for Automated Cervical Nuclei Segmentation. Lecture Notes in Computer Science, pp. 51–58. Cited by: §3.4.
