1 Introduction
Graphs are used as a natural representation for objects in many important domains; for example, for compounds in computational chemistry and for protein–protein interaction networks in systems biology. Machine learning approaches for graphs fall into two main lines of research: the spectral and the spatial
approach. The spectral approach relies on the eigenvalue decomposition of the Laplacian of the graph and is well suited for problems involving a single fixed graph structure.
By contrast, spatial
graph methods work directly on the nodes and edges of the graph. Convolutional neural networks (CNN) have inspired many spatial methods. Similarly to a local convolution filter running on the 2D grid of an image, spatial approaches update the hidden vectors of a graph node by aggregating the hidden vectors of its neighbors. Several methods have been proposed, which differ on exactly how to carry out this update. The most straightforward approach is to sum (or average) the hidden vectors of neighbors, and then transform the results with a linear layer and a nonlinearity (
e.g., as proposed in Neural Fingerprints (Duvenaud et al., 2015) and Graph Convolutional Networks (Kipf & Welling, 2016)). Instead of a simple dense feedforward layer, some methods use GRUbased gating (Li et al., 2015), edge hidden vectors (Kearnes et al., 2016), and attention to the neighbors (Veličković et al., 2017). One of the advantages of spatial methods over spectral methods is that they can be straightforwardly applied to problems involving multiple graphs.However, the update step of a node in spatial methods only has access to its own neighborhood, hence limiting the information flow throughout the whole graph. Increasing the accessible neighborhood of each node can only be achieved at the expense of stacking several layers. The dilated filters in CNNs (Yu & Koltun, 2015) are an example of solving the neighborhood limitation in images, providing an efficient way to gather information over longer distances (see Figure 1, (A) and (B)).
In this work, we propose a method that flexibly aggregates information over longer distances in one step, analogously to dilated filters. Our Graph Informer approach is inspired by the sequencetosequence transformer model (Vaswani et al., 2017). The core contribution of our work is the introduction of routebased multihead selfattention (RouteMHSA), which allows the attention mechanism to also access route information and, thus, base its attention scores both on the features of the nodes and the route between them. This enables Graph Informer to gather information from nodes that are not just direct neighbors. Furthermore, the proposed approach can straightforwardly use edge features, as they can be incorporated into the route features. In the case of chemical compounds, this allows using the annotation of the bonds between the atoms (single, double, aromatic, etc). The central idea is illustrated in Figure 1.
Our Graph Informer compares favorably with stateoftheart graphbased neural networks on 13C NMR spectrum and drug bioactivity prediction tasks, which makes it suitable for both nodelevel and graphlevel prediction tasks.
2 Proposed approach
2.1 Setup
In this work, we consider learning problems on graphs where both nodes and edges are labeled. For a graph , we denote its node features by and the node route information , where the route information is computed using the adjacency matrix of the graph and the edge labels. For example, for chemical compounds we can include the distance information between the two nodes and type of connection (shortest path) between them (e.g., whether it consists of only single bonds or aromatic bonds).
We thus propose a method that works for both (1) graphlevel tasks, such as graph classification where the whole graph is assigned a label and (2) nodelevel tasks where one should predict a value or a label for nodes (or subset of nodes) of the graph.
2.2 Routebased selfattention
Our approach is inspired by the encoder used in the transformer network (Vaswani et al., 2017), which proposed dotproduct attention for sequence models formulated as
where and are the query, key, and value matrices. This attention can be used as selfattention by projecting the hidden vectors into queries, keys, values (i.e., ). To encode sequences with dotproduct attention, the transformer network adds position encodings to the hidden vectors
. In particular, sine waves with different frequencies and phases were used in the original paper to encode the position of the sequence elements. This allows the network to change attention probabilities based on the positions.
However, in the case of graphs, the global position of a node is not available. Even though one could use eigenvectors of the Laplacian of the graph in the case of a single given graph, this does not extend to multiple graphs. By contrast, we propose a stable addressing mechanism when working with multiple heterogeneous graphs. Our powerful but straightforward scheme allows the model not only to query based on distance, but also according to route features. Firstly, we map the hidden vectors
into a route query , where with being the route query dimension. Similarly, we map the route features into a route key , where . The route information allows the attention mechanism to access the topology of the graph.The route query and key can be now contracted into a matrix of attention scores and added to the scores, after which is computed. Using the einsum convention^{1}^{1}1
We follow the convention introduced by Numpy and used also in Pytorch packages.
, let(1)
Now we can express the attention probabilities between the graph nodes as
(2)
where we have added also the size of the route key to the normalization for keeping the values within trainable (nonplateau) ranges of the function. This enables the network to use both the information on the routes, as well as the node hidden vectors, to decide the attention probabilities.
Analogously, we project the route information into the value side. Firstly, we map the route data into , where . Finally, the routebased graph selfattention is given by
(3)
where the attention probabilities are defined as in Eq. 2.
2.3 Localityconstrained attention
The routebased attention defined in Eq. 3 is general and allows unconstrained access throughout the graph. In some applications, localized access is preferred and this can be easily forced by adding a masking matrix to the attention scores:
(4)
where is 0 for unmasked routes and minus infinity for masked connections (in practice, we use a large negative value). This allows us, for example, to mask all nodes whose shortest distance from the current node is larger than or some other number, thereby creating an attention ball around the current node. Similarly, it is possible to use the mask to create an attention shell (i.e., attending nodes within a given range of shortest distances).
In our experiments, we only used the attention ball with different values for the radius.
2.4 Multihead and minibatching
Similarly to the transformer architecture, we use multiple heads. This means several routebased selfattentions are executed in parallel and their results are concatenated. This allows the network to attend to several neighbors at the same times.
Pool node
Additionally, we introduce a pool node that has a different embedding vector than the graph nodes. The pool node has no edges to the graph nodes, but is unmasked by , so that the attention mechanism can always attend and read, if required. This idea has two motivations. First, it allows the information to be easily shared across the graph. Second, the pool node can be used as a “not found” answer when the attention mechanism does not find the queried node within the graph nodes.
Minibatching
The proposed algorithm supports minibatching via a few simple modifications. To introduce the batch dimension, the input tensors
andmust first be padded with zeros to have the same size, after which they are stacked. The linear projections
are now indexed by both batch (sample) and head. We replace all matrix multiplications by batched matrix products and in we introduce leading batch and head dimensions. For the attention mechanism, we add an additional mask over the nodes, , with large negative values for nonexisting nodes (padded) for each sample:(5)
Learnable module
Finally, we use the minibatched attention probabilities for from Eq. 3, which takes in (1) hidden vectors of the nodes , with size , (2) route information , with size , and (3) masks and . We use multiple heads and concatenate their results, giving us a routebased multihead selfattention module (RouteMHSA):
(6)
(7)
where are the learnable parameters of the module.
The values for hidden size , key size , value size , route key size , and the number of heads can be chosen independently of each other. However, in our experiments we set equal to , with . We also use .
2.5 Computational complexity
The computational complexity of the is quadratic with respect to the number of nodes in the graph, because the attention mechanism computes all pairwise attention probabilities. For our druglike compound application, the quadratic complexity is not an issue because such compounds have fewer than 100 atoms.
However, the complexity can be improved if the graph is sparsely connected. Because our method masks out connections that are too long, we can use sparse computations of the attention probabilities instead computing a dense matrix. This will lower the complexity from to , where is the average number of nodes within each node’s field of attention. Also, the masking tensor needs to be replaced by a sparse counterpart. This can be done by creating a list of accessible nodes for each node. This makes it possible for Graph Informer to work on large graphs with sparse connectivity.
3 Architecture of the network

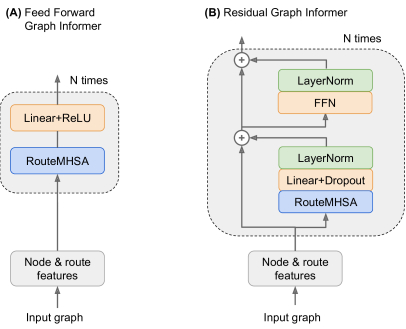

We explored two types of network architectures for the proposed routebased graph attention. In the first type, we simply combine a with a nodewise dense linear layer of size
and add a ReLU nonlinearity
(Nair & Hinton, 2010). This is the main building block for the network that we call Feedforward Graph Informer. We found that this network works well for nodelevel prediction tasks, as illustrated in Section 5.3.The second type of network we explored was inspired by the architecture of transformer networks (Vaswani et al., 2017), where the output of the multihead attention was fed through a linear layer and added to its input and then layer normalization (Ba et al., 2016) was applied. Additionally, a feedforward network (FFN) was applied to each hidden vector separately. However, in our graph experiments, both nodelevel and graphlevel tasks, we found this architecture to be quite difficult to train (for more details, see Appendix D).
Instead, we found that creating a residualstyle network (He et al., 2016) with solved the gradient flow issue and was easy to train. The layer for this architecture can be expressed as
(8)
(9)
and is the output of the block (i.e., updated hidden vectors). Empirically, we observed that in nodelevel tasks, the simple Feedforward Graph Informer outperformed the Residual Graph Informer. By contrast, the situation was reversed for graphlevel tasks. Therefore, we use the feedforward architecture for the nodelevel experiments and the residual architecture for the graphlevel experiments. The two proposed architectures are depicted in Figure 2.
4 Related research
There are several neural network approaches that can directly work on the graph inputs. The key component in many of the works is to propagate hidden vectors of the nodes using the adjacency matrix^{2}^{2}2The adjacency matrix here is assumed to include the selfconnection (i.e., ). , either by summing the neighbor vectors, , or by averaging them , where is the normalized adjacency matrix with being the diagonal matrix of degrees. Neural Fingerprint (Duvenaud et al., 2015) proposed to use the propagation , combined with a nodewise linear layer and a nonlinearity to compute fingerprints for chemical compounds. Based on the degree of the node, Neural Fingerprint uses a different set of linear weights. Similarly, Graph Convolutional Networks (GCN, Kipf & Welling (2016)) propose to combine
with a linear layer and a nonlinearity for semisupervised learning, but by contrast with Neural Fingerprint, they use the same linear layer for all nodes, irrespective of their degree.
Kearnes et al. (2016) proposed the Weave architecture, where they use embedding vectors also for the edges of the graph and the propagation step updates nodes and edges in a coupled way.In a separate line of research, Scarselli et al. (2008) proposed Graph Neural Networks (GNN), which also use to propagate the hidden vectors between the nodes, but instead of passing the output to the next layer, the same layer is executed until convergence, which is known as the AlmeidaPineda algorithm (Almeida, 1987). Recently, (Li et al., 2015) proposed a GNNbased approach called Gated Graph Neural Networks (GGNN), where at each iteration the neighborhood information is fed into a GRU (Cho et al., 2014). An iterative graph network approach, motivated by the Message Passing algorithm in graphical model inference (Pearl, 2014) was proposed by Dai et al. (2016).
Hamilton et al. (2017) propose a representation learning method, GraphSAGE, that does not require supervised signals and inductively embeds nodes in large graphs.
The method closest to ours is Graph Attention Networks (GAT) proposed by Veličković et al. (2017). Similarly to us, they proposed to use multihead attention to transform the hidden vectors of the graph nodes. However, in contrast with our approach, the integration of route features is not possible, which limits the attention to the neighbors of every node.
In a recent communication, Li et al. (2019) proposed a method different from previous works by learning a transformation from a source graph to a target graph. To this end, they used GCNlike convolutional layers without attention to propagate the hidden vectors within the graph. To propagate between graphs, they used the attention mechanism proposed for transformer networks (Vaswani et al., 2017), which solely relies on node features.
In contrast to the spatial methods reviewed above, spectral methods use the graph Fourier basis. One of the first spectral approaches to introduce this concept in the context of neural networks was SCNN (Bruna et al., 2013). To avoid the costly eigenvalue decomposition, Defferrard et al. (2016) used Chebyshev polynomials to define localized filters. Based on this work, Li et al. (2018) proposed a neural network that combines spectral methods with metric learning for graph classification.
5 Evaluation
We compare our method against several baselines on two tasks. We first consider a nodelevel task where, given the graph of the compound, the goal is to predict 13C NMR peaks for all of the carbon atoms, see Section 5.3. For the second task, we consider the drug–protein activity data set ChEMBL (Bento et al., 2014), which is a graphlevel task. This task is covered in Section 5.4. In both tasks and for all methods we used the same feature set (See Appendix A). For methods that could not use route features but supported edge features, we used the bond type (single, double, triple, aromatic).
Each method was executed using one NVIDIA P100 with 16GB RAM with the data fed using 9 Intel(R) Xeon(R) 6140 Gold cores. For the implementation of our algorithm we used Pytorch. ^{3}^{3}3The code is available here: https://github.com/jaaks/graphinformer.
5.1 Baselines
GGNN We used the Pytorch implementation of Gated Graph Neural Networks^{4}^{4}4Available from https://github.com/JamesChuanggg/ggnn.pytorch/., which was designed for nodelevel prediction on graphs. We also modified it to work on graphlevel tasks by adding the same graph pooling layer used in our network (global average pooling). For both tasks, we used 5 propagation steps.
NeuralFP We implemented the Neural Fingerprint in Pytorch. The implementation follows the original method using softmax graph pooling (Duvenaud et al., 2015). We also extended the method to work on nodelevel tasks by removing the pooling and feeding the last layer hidden vectors to the regression output layer (see Section 5.3).
GCN For the Graph Convolutional Networks, we adapted the Pytorch implementation^{5}^{5}5Available from: https://github.com/tkipf/pygcn.git. to support minibatched training, which we label GCNsum. We also adapted the code to support graph classification by incorporating the same graph pooling layer used in our network (global average pooling). Additionally, we implemented averaging GCN (GCNavg), where the adjacency matrix is replaced by its normalized version.
Weave For the Weave network, we used the Deepchem implementation^{6}^{6}6Available here: https://github.com/deepchem/deepchem/.. The implementation only supports graphlevel predictions.
GAT
We used the Tensorflow implementation of Graph Attention Networks
^{7}^{7}7Available here: https://github.com/PetarV/GAT. The implementation only supports nodelevel prediction.5.2 Model selection
All methods used the validation set to choose the optimal hidden size from and dropout from (Srivastava et al., 2014). For our method attention radius form and head count from were also selected. All methods trained the methods with the Adam optimizer (Kingma & Ba, 2014). The validation set was used for early stopping (i.e.
, we execute all methods for 100 epochs and picked the best model). At epochs 40 and 70, the learning rate was decreased by a factor of 0.3. Finally, the best early stopped model was used to measure the performance on the test set.
5.3 Nodelevel task: NMR 13C spectrum prediction
13C NMR is a costefficient spectroscopic technique in organic chemistry for molecular structure identification and structure elucidation. If 13C NMR measurements can be combined with a highly accurate prediction, based on the graph (structure) of the molecule, it is possible to validate the structure of the sample. It is crucial to have highly accurate predictions, because in many cases several atoms have peaks that are very close to each other. If such predictions are available, the chemist can avoid running additional expensive and time consuming experiments for structure validation.
To create the data set, we used 13C NMR spectra from NMRShiftDB2^{8}^{8}8Available here: https://nmrshiftdb.nmr.unikoeln.de/. We kept only molecules where all carbon atoms where assigned with a 13C peak position and removed any compounds that failed RDKit (Landrum et al., 2019) sanitization or Gasteiger partial charge calculation. This resulted in 25,645 molecules. The peak positions are measured in parts per million (ppm) and ranges from approximately 10 to 250 ppm^{9}^{9}9The ppm value measures the shift of the peak relative to a specific reference carbon atom.
. In our data set, the mean and standard deviation are 95 and 52 ppm.
Method  #layers  Test MAE  #params
Mean model  46.894  1
GCNavg  2  0.2M
GCNavg  3  0.3M
GCNsum  2  0.2M
GCNsum  3  0.1M
GAT  1  0.2M
GAT  2  0.2M
GAT  3  0.2M
GGNN  na  0.2M
NeuralFP  1  0.3M
NeuralFP  2  1.3M
NeuralFP  3  2.3M
NeuralFP  4  0.5M
FF Graph Informer  1  0.4M
FF Graph Informer  2  0.3M
FF Graph Informer  3  1.9M
FF Graph Informer  4  0.7M
In accordance to the most common Lorentzian peak shape assumption in NMR spectroscopy, we minimize the mean absolute error (MAE) (Gunther, 1980). For evaluation, we split the data into trainvalidationtest sets containing 20,000, 2,500, and 3,145 molecules, respectively, and report results over 3 repeats with different splits. All methods use the same nodelevel output head, consisting of a layer followed by a linear output layer. The MAE loss is minimized only for the atoms that have measurements for the 13C peaks (i.e., the carbon atoms). For the results, see Table 1.
Our proposed Graph Informer reaches 0.5 MAE, which is at the limit where even molecules with densely packed 13C NMR spectra can be resolved. Densely packed spectra are common for aromatic ring systems, which are prevalent in druglike compounds. As an example, see Figure 3 depicting 2chloro4fluorophenol, which has three carbons, labelled 1, 3, 4 with peaks within the 115.2 to 116.6 ppm range. Figure 2(b) displays the predictions from the molecule when it was in the test set. The predictions match closely the true spectrum and, critically, predict the true ordering, which allows us to perfectly match peaks. For more details and the table with exact prediction values, see Appendix C.
5.4 Results for graphlevel task: ChEMBL
Prediction of drug–target interaction is central to modern drug discovery, because it allows prioritizing candidate compounds and avoiding toxicity. We extracted molecule–protein interaction data from the ChEMBL v23 database (Bento et al., 2014), see Appendix B
. The extracted data set contains 94 binary classification tasks on 87,415 molecules, for a total of 349,192 activity points. Because of the wellknown series effect in drug design, allocating molecules randomly to the training and test sets results in overly optimistic and inconsistent performance estimates
(Simm et al., 2018) because highly similar molecules end up in both training and test sets. Therefore, we apply clustered holdout validation (See Appendix B.3). We allocate the clusters (rather than individual molecules) to the training (60%), validation (20%), and test sets (20%). We repeat this split 5 times.Method  #Layers  AUCROC (test)  #params

GCNsum  2  0.1M
GCNsum  3  0.8M
GGNN  na  0.2M
NeuralFP  2  0.4M
NeuralFP  3  0.4M
Weave  2  0.7M
Weave  3  0.7M
Resid. Graph Informer  2  0.5M
Resid. Graph Informer  3  0.7M
Our and all adapted methods (GCNsum and GGNN) use a graph pooling layer consisting of a linear layer, ReLU, average pooling, and a linear layer. We minimize the crossentropy loss and Table 2 reports the AUCROC. Our method outperformed all baselines in both the 2 and 3 layer settings.
6 Conclusion
In this work, we proposed a routebased multihead attention mechanism, inspired by the transformer network, which can leverage features of node pairs. Thanks to the route features our approach can incorporate information from nondirect neighbors efficiently—similarly to the use of dilated filters in CNNs. Our empirical evaluation demonstrates that the proposed method is suitable both for nodelevel and graphlevel prediction tasks, and delivers significant improvements over existing approaches in 13C NMR spectrum and drug bioactivity prediction.
Acknowledgments
We gratefully acknowledge the support of NVIDIA Corporation with the donation of the Titan Xp GPU used for this research. JS, AA, EDB and YM are funded by (1) Research Council KU Leuven: C14/18/092 SymBioSys3; CELSAHIDUCTION, (2) Innovative Medicines Initiative: MELLODY, and (3) Flemish Government (ELIXIR Belgium, IWT: PhD grants, FWO 06260). Edward De Brouwer is funded by a FWOSB grant. Computational resources and services used in this work were also provided by the VSC (Flemish Supercomputer Center), funded by the Research Foundation  Flanders (FWO) and the Flemish Government – department EWI.
References

Almeida (1987)
Almeida, L. B.
A learning rule for asynchronous perceptrons with feedback in a combinatorial environment.
In Proceedings, 1st First International Conference on Neural Networks, volume 2, pp. 609–618. IEEE, 1987.  Ba et al. (2016) Ba, J. L., Kiros, J. R., and Hinton, G. E. Layer Normalization. arXiv:1607.06450 [cs, stat], July 2016. URL http://arxiv.org/abs/1607.06450. arXiv: 1607.06450.
 Bento et al. (2014) Bento, A. P., Gaulton, A., Hersey, A., Bellis, L. J., Chambers, J., Davies, M., Krüger, F. A., Light, Y., Mak, L., McGlinchey, S., et al. The chembl bioactivity database: an update. Nucleic acids research, 42(D1):D1083–D1090, 2014.
 Bruna et al. (2013) Bruna, J., Zaremba, W., Szlam, A., and LeCun, Y. Spectral networks and locally connected networks on graphs. arXiv preprint arXiv:1312.6203, 2013.
 Cho et al. (2014) Cho, K., van Merrienboer, B., Gülçehre, Ç., Bougares, F., Schwenk, H., and Bengio, Y. Learning phrase representations using RNN encoderdecoder for statistical machine translation. CoRR, abs/1406.1078, 2014. URL http://arxiv.org/abs/1406.1078.
 Dai et al. (2016) Dai, H., Dai, B., and Song, L. Discriminative embeddings of latent variable models for structured data. In International conference on machine learning, pp. 2702–2711, 2016.
 Defferrard et al. (2016) Defferrard, M., Bresson, X., and Vandergheynst, P. Convolutional neural networks on graphs with fast localized spectral filtering. In Advances in neural information processing systems, pp. 3844–3852, 2016.
 Doddrell et al. (1982) Doddrell, D., Pegg, D., and Bendall, M. R. Distortionless enhancement of nmr signals by polarization transfer. Journal of Magnetic Resonance (1969), 48(2):323–327, 1982.
 Duvenaud et al. (2015) Duvenaud, D. K., Maclaurin, D., Iparraguirre, J., Bombarell, R., Hirzel, T., AspuruGuzik, A., and Adams, R. P. Convolutional networks on graphs for learning molecular fingerprints. In Advances in neural information processing systems, pp. 2224–2232, 2015.
 Gunther (1980) Gunther, H. NMR spectroscopy: an introduction, volume 81. Wiley Chichester, 1980.
 Hamilton et al. (2017) Hamilton, W., Ying, Z., and Leskovec, J. Inductive representation learning on large graphs. In Advances in Neural Information Processing Systems, pp. 1024–1034, 2017.
 Hartigan (1975) Hartigan, J. A. Clustering Algorithms. John Wiley & Sons, Inc., New York, NY, USA, 99th edition, 1975. ISBN 047135645X.

He et al. (2016)
He, K., Zhang, X., Ren, S., and Sun, J.
Identity mappings in deep residual networks.
In
European conference on computer vision
, pp. 630–645. Springer, 2016.  Kearnes et al. (2016) Kearnes, S., McCloskey, K., Berndl, M., Pande, V., and Riley, P. Molecular graph convolutions: moving beyond fingerprints. Journal of computeraided molecular design, 30(8):595–608, 2016.
 Kingma & Ba (2014) Kingma, D. P. and Ba, J. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
 Kipf & Welling (2016) Kipf, T. N. and Welling, M. Semisupervised classification with graph convolutional networks. arXiv preprint arXiv:1609.02907, 2016.
 Landrum et al. (2019) Landrum, G., Kelley, B., Tosco, P., sriniker, gedeck, Schneider, N., Vianello, R., Dalke, A., Savelyev, A., Turk, S., Swain, M., Cole, B., Vaucher, A., Wójcikowski, M., Pahl, A., JP, strets123, JLVarjo, Fuller, P., Gavid, D., O’Boyle, N., Cosgrove, D., Sforna, G., Nowotka, M., pzc, van Santen, J., Jensen, J. H., Hall, D., N, D., and Avery, P. RDKit: Opensource cheminformatics, 2019. URL http://www.rdkit.org.

Li et al. (2018)
Li, R., Wang, S., Zhu, F., and Huang, J.
Adaptive graph convolutional neural networks.
In
ThirtySecond AAAI Conference on Artificial Intelligence
, 2018.  Li et al. (2015) Li, Y., Tarlow, D., Brockschmidt, M., and Zemel, R. Gated graph sequence neural networks. arXiv preprint arXiv:1511.05493, 2015.
 Li et al. (2019) Li, Y., Liang, X., Hu, Z., Chen, Y., and Xing, E. P. Graph transformer, 2019. URL https://openreview.net/forum?id=HJei2RcK7.
 Nair & Hinton (2010) Nair, V. and Hinton, G. E. Rectified linear units improve restricted boltzmann machines. In Proceedings of the 27th international conference on machine learning (ICML10), pp. 807–814, 2010.
 Pearl (2014) Pearl, J. Probabilistic reasoning in intelligent systems: networks of plausible inference. Elsevier, 2014.
 Scarselli et al. (2008) Scarselli, F., Gori, M., Tsoi, A. C., Hagenbuchner, M., and Monfardini, G. The graph neural network model. IEEE Transactions on Neural Networks, 20(1):61–80, 2008.
 Simm et al. (2018) Simm, J., Klambauer, G., Arany, A., Steijaert, M., Wegner, J. K., Gustin, E., Chupakhin, V., Chong, Y. T., Vialard, J., Buijnsters, P., et al. Repurposing highthroughput image assays enables biological activity prediction for drug discovery. Cell chemical biology, 25(5):611–618, 2018.
 Srivastava et al. (2014) Srivastava, N., Hinton, G., Krizhevsky, A., Sutskever, I., and Salakhutdinov, R. Dropout: a simple way to prevent neural networks from overfitting. The Journal of Machine Learning Research, 15(1):1929–1958, 2014.
 Vaswani et al. (2017) Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones, L., Gomez, A. N., Kaiser, L., and Polosukhin, I. Attention is All you Need. In Guyon, I., Luxburg, U. V., Bengio, S., Wallach, H., Fergus, R., Vishwanathan, S., and Garnett, R. (eds.), Advances in Neural Information Processing Systems 30, pp. 5998–6008. Curran Associates, Inc., 2017. URL http://papers.nips.cc/paper/7181attentionisallyouneed.pdf.
 Veličković et al. (2017) Veličković, P., Cucurull, G., Casanova, A., Romero, A., Lio, P., and Bengio, Y. Graph attention networks. arXiv preprint arXiv:1710.10903, 2017.
 Yu & Koltun (2015) Yu, F. and Koltun, V. MultiScale Context Aggregation by Dilated Convolutions. arXiv:1511.07122 [cs], November 2015. URL http://arxiv.org/abs/1511.07122. arXiv: 1511.07122.
Appendix A Node and route features
In addition to the following features, we fed the onehot encoding of the atom types by concatenating it to the node feature vector, see Table
3. The atom types occurred in the two data sets are {C, N, O, Cl, F, S, I, Br, P, B, Zn, Si, Li, Na, Mg, K}. As the route features (Table 4) contain all edge labels (single, double, triple and aromatic bond type), all information about the graph topology is retained.Position  Description

02  Formal charge, onehot encoded {1, 0, +1}
37  Hybridization state, onehot encoded {s, sp, sp2, sp3}
813  Explicit valence, onehot encoded integer, between 0 and 5
14  Aromaticity, binary
15  Whether it is in a ring size 3, binary
16  Whether it is in a ring size 4, binary
17  Whether it is in a ring size 5, binary
18  Whether it is in a ring size 6, binary
19  Whether it is in any ring, binary
20  Partial charge, computed by Gasteiger method, real number
21  Whether it is a Hacceptor, binary
22  Whether it is a Hdonor, binary
23  Whether it is an R stereo center, binary
22  Whether it is an S stereo center, binary
Position  Description

08  Bond distance, binned, [0, 1, 2, 3, 4, 5 d 6, 7 d 8, 9 d 12, 13 d ]
9  Whether the shortest pure conjugated path containing at most 4 bonds, binary
10  Whether the shortest pure conjugated path containing at least 5 bonds, binary
11  Whether there is a route containing only up to 13 single bonds, binary
12  Whether there is a route containing only up to 13 double bonds, binary
13  Triple bond, binary
14  Whether there is a shortest path which is a pure conjugated path, binary
15  Whether the endpoints are in the same ring, binary
16  Single bond, binary
17  Double bond, binary
18  Aromatic bond, binary
Appendix B Preprocessing of the ChEMBL data set
b.1 Extracting human drug–protein interaction data
We extracted IC50 values for Homo sapiens protein targets from ChEMBL version 23 SQLite release (Bento et al., 2014) using the following SQL query, and computed the negative log10 of IC50 in nM, which we refer to as pIC50. Extreme values that cannot correspond to meaningful real measurement results are treated as database errors and filtered out (IC50 or IC50).
SELECT molecule_dictionary.chembl_id as cmpd_id, target_dictionary.chembl_id as target_id, CASE activities.standard_type WHEN ’IC50’ THEN activities.standard_value WHEN ’ug.mL1’ THEN activities.standard_value / compound_properties.full_mwt * 1E6 END ic50, CASE activities.standard_relation WHEN ’<’ THEN ’<’ WHEN ’<=’ THEN ’<’ WHEN ’=’ THEN ’=’ WHEN ’>’ THEN ’>’ WHEN ’>=’ THEN ’>’ ELSE ’drop’ END relation FROM molecule_dictionary JOIN activities on activities.molregno == molecule_dictionary.molregno JOIN assays on assays.assay_id == activities.assay_id JOIN target_dictionary on target_dictionary.tid == assays.tid JOIN compound_properties on compound_properties.molregno = molecule_dictionary.molregno WHERE target_dictionary.organism=’Homo sapiens’ AND target_dictionary.target_type=’SINGLE PROTEIN’ AND activities.standard_type = ’IC50’ AND activities.standard_units IN (’nM’,’ug.mL1’) and relation != ’drop’ and ic50 < 10e9 AND ic50 >= 10e5
b.2 Filtering
First we sanitized the molecules by removing inactive ions (Cl, Na+, K+, Br, I) from the structure. Then, we removed all nondruglike molecules containing heavy metals or more than 80 nonhydrogen atoms. We thresholded the activity for each protein with four pIC50 thresholds (5.5, 6.5, 7.5, and 8.5) taking into account the relation column. We then kept protein–threshold pairs that had measurements at least on 2,500 compounds containing at least 200 positive and 200 negative samples. This filtering process resulted in 94 protein–threshold pairs as binary classification tasks on 87,415 molecules. The matrix contains 349,192 activity points.
b.3 Clustered holdout validation
We clustered the molecules with similarity threshold 0.6 Tanimoto on ECFP6 features computed using RDKit (Landrum et al., 2019). For clustering, we used the leaderfollower method (Hartigan, 1975). We then assigned each cluster to the training, test, or validation sets randomly. We adapted the clustered validation pipeline from Simm et al. (2018).
Appendix C Description of the NMR application
In molecules, the chemical environment of the atomic nuclei has an influence on their measured resonance frequency, the NMR peak position. This influence is called the chemical shift, and measured in parts per million (ppm). The nominal value of this shift is independent from the measurement equipment and can be used to compare chemical environments between molecules measured in different laboratories.
We are specifically interested in the following scenario. An organic chemist intends to synthesize compound A. After the synthesis and purification steps, the identity of the product needs to be validated. The chemist can measure the 13C NMR spectrum of the product, and compare it to the predicted spectrum from the structure of compound A. To compare the two spectra, the correct peaks corresponding to the same atom need to be aligned. There is no way to tell from a 13C NMR spectrum alone which peak corresponds to which atom. Therefore, wrongly ordered peaks in the prediction would result in an erroneous assignment.
As in the example in the main text, we use the 13C NMR spectrum of the compound 2chloro4fluorophenol to illustrate the assignment problem. The measured and predicted chemical shifts are reported in Table 5. As can be seen in Figure 3, the three unsubstituted aromatic carbons (1,3,4) have very close peaks in the 115.2 to 116.6 ppm region. For the sake of completeness note that the intensity of the peaks (value of the axis) in the plot are directly related to the number of direct hydrogen neighbors of the carbon, and therefore does not need to be predicted (Doddrell et al., 1982).
Carbon  2  5  6  4  1  3

Measured  156.2  147.8  119.7  116.6  115.9  115.2
Predicted  156.8  148.7  120.4  117.1  116.3  115.0
Abs. Error  0.6  0.9  0.7  0.5  0.4  0.2
Appendix D Improving the convergence of Residual Graph Informer
Precisely following the strategy used for transformer networks (Vaswani et al., 2017), we get the following architecture for graphs:
(10)
(11)
(12)
and is the output of the block (i.e., updated hidden vectors).
In our experiments, we observed that the output of dominates the input in Eq. 10. This causes convergence issues as normalizing this sum by the causes the gradient through the input branch to vanish. This was the main motivation for introducing the pureresidual style network described in Section 3.
