Recently, deep convolutional neural networks (DCNN) have been extensively used for a wide range of visual perception tasks, such as object detection/classification, action/activity recognition, etc. Behind the remarkable success of DCNN on image/video anlaytics are its unique capabilities of extracting underlying nonlinear structures of image data as well as discerning the categories of semantic data contents by jointly optimizing parameters of multiple layers together.
Lately, there have been increasing efforts to use deep learning based approaches for hyperspectral image (HSI) classification[1, 2, 3, 4, 5, 6, 7, 8]. However, in reality, large scale HSI datasets are not currently commonly available, which leads to sub-optimal learning of DCNN with large numbers of parameters due to the lack of enough training samples. The limited access to large scale hyperspectral data has been preventing existing CNN-based approaches for HSI classification [1, 3, 2, 4, 5, 6] from leveraging deeper and wider
networks that can potentially better exploit very rich spectral and spatial information contained in hypersepctral images. Therefore, current state-of-the-art CNN-based approaches mostly focus on using small-scale networks with relatively fewer numbers of layers and nodes in each layer at the expense of a decrease in performance. Deeper and wider mean using relatively larger numbers of layers (depth) and nodes in each layer (width), respectively. Accordingly, the reduction of the spectral dimension of the hyperspectral images is in general initially performed to fit the input data into the small-scale networks by using techniques, such as principal component analysis (PCA), balanced local discriminant embedding (BLDE) , pairwise constraint discriminant analysis and nonnegative sparse divergence (PCDA-NSD) , etc. However, leveraging large-scale networks is still desirable to jointly exploit underlying nonlinear spectral and spatial structures of hyperspectral data residing in a high dimensional feature space. In the proposed work, we aim to build a deeper and wider network given limited amounts of hypersectral data that can jointly exploit spectral and spatial information together. To tackle issues associated with training a large scale network on limited amounts of data, we leverage a recently introduced concept of “residual learning”, which has demonstrated the ability to significantly enhance the train efficiency of large scale networks. The residual learning  basically reformulates the learning of subgroups of layers called modules in such a way that each module is optimized by the residual signal, which is the difference between the desired output and the module input, as shown in Figure (a)a. It is shown that the residual structure of the networks allows for considerable increase in depth and width of the network leading to enhanced learning and eventually improved generation performance. Therefore, the proposed network does not require pre-processing of dimensionality reduction of the input data as opposed to the current state-of-the art techiniques.
, the current state-of-the-art approaches for deep learning based HSI classification fall short of fully exploiting spectral and spatial information together. The two different types of information, spectral and spatial, are more or less acquired separately from pre-processing and then processed together for feature extraction and classification in[1, 7]. Hu et al.  also failed to jointly process the spectral and spatial information by only using individual spectral pixel vectors as input to the CNN. In this paper, inspired by , we propose a novel deep learning based approach that uses fully convolutional layers (FCN)
to better exploit spectral and spatial information from hyperspectral data. At the initial stage of the proposed deep CNN, a multi-scale convolutional filter bank conceptually similar to the “inception module” in is simultaneously scanned through local regions of hyperspectral images generating initial spatial and spectral feature maps. The multi-scale filter bank is basically used to exploit various local spatial structures as well as local spectral correlations. The initial spatial and spectral feature maps generated by applying the filter bank are then combined together to form a joint spatio-spectral feature map, which contains rich spatio-spectral characteristics of hyperspectral pixel vectors. The joint feature map is in turn used as input to subsequent layers that finally predict the labels of the corresponding hyperspectral pixel vectors.
The proposed network111A preliminary version of this paper  was presented at the 2016 IEEE International Geoscience and Remote Sensing Symposium (IGARSS 2016). is an end-to-end network, which is optimized and tested all together without additional pre- and post-processing. The proposed network is a fully convolutional network (FCN)  (Figure (c)c) to take input hyperspectral images of arbitrary size and does not use any subsampling (pooling) layers that would otherwise result in the output with different size than the input; this means that the network can process hyperspectral images with arbitrary sizes. In this work, we evaluate the proposed network on three benchmark datasets with different sizes (145145 pixels for the Indian Pines dataset, 610340 pixels for the University of Pavia dataset, and 512217 for the Salinas dataset). The proposed network is composed of three key components; a novel fully convolutional network, a multi-scale filter bank, and residual learning as illustrated in Figure 1. Performance comparison shows enhanced classification performance of the proposed network over the current state-of-the-art on the three datasets.
The main contributions of this paper are as follows:
We introduce the deeper and wider network with the help of “residual learning” to overcome sub-optimality in network performance caused primarily by limited amounts of training samples.
We present a novel deep CNN architecture that can jointly optimize the spectral and spatial information of hyperspectral images.
The proposed work is one of the first attempts to successfully use a very deep fully convolutional neural network for hyperspectral classification.
The remainder of this paper is organized as follows. In Section II, related works are described. Details of the proposed network are explained in Section III. Performance comparisons among the proposed network and current sate-of-the-art approaches are described in Section IV. The paper is concluded in Section V.
Ii Related Works
Ii-a Going deeper with Deep CNN for object detection/classification
LeCun, et al. introduced the first deep CNN called LeNet-5  consisting of two convolutional layers, two fully connected layers, and one Gaussian connection layer with additional several layers for pooling. With the recent advent of large scale image databases and advanced computational technology, relatively deeper and wider networks, such as AlexNet
, began to be constructed on large scale image datasets, such as ImageNet. AlexNet used five convolutional layers with three subsequent fully connected layers. Simonyan and Zisserman  significantly increased the depth of Deep CNN, called VGG-16, with 16 convolutional layers. Szegedy et al.  introduced a 22 layer deep network called GoogLeNet, by using multi-scale processing, which is realized by using a concept of “inception module.” He et al.  built a network substantially deeper than those used previously by using a novel learning approach called “residual learning”, which can significantly improve training efficiency of deep networks.
Ii-B Deep CNN for Hyperspectral Image Classification
A large number of approaches have been developed to tackle HSI classification problems [19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 4, 38, 39, 40, 41, 42]. Recently, kernel methods, such as multiple kernel learning [19, 20, 21, 22, 23, 24, 25]
, have been widely used primarily because they can enable a classifier to learn a complex decision boundary with only a few parameters. This boundary is built by projecting the data onto a high-dimensional reproducing kernel Hilbert space. This makes it suitable for exploiting dataset with limited training samples. However, recent advance of deep learning-based approaches has shown drastic performance improvements because of its capabilities that can exploit complex local nonlinear structures of images using many layers of convolutional filters. To date, several deep learning-based approaches [1, 3, 2, 4, 5, 6] have been developed for HSI classification. But few have achieved breakthrough performance due mainly to sub-optimal learning caused by the lack of enough training samples and the use of relatively small scale networks.
Deep learning approaches normally require large scale datasets whose size should be proportional to the number of parameters used by the network to avoid overfitting in learning the network. Chen et al.
used stacked autoencoders (SAE) to learn deep features of hyperspectral signatures in an unsupervised fashion followed by logistic regression used to classify extracted deep features into their appropriate material categories. Both a representative spectral pixel vector and the corresponding spatial vector obtained from applying principle component analysis (PCA) to hyperspectral data over the spectral dimension are acquired separately from a local region and then jointly used as an input to the SAE. In
, Chen et al. replaced SAE by a deep belief network (DBN), which is similar to the deep convolutional neural network for HSI classification. Li et al. also used a two-layer DBN but did not use initial dimensionality reduction, which would inevitably cause the loss of critical information of hyperspectral images. Hu et al.
fed individual spectral pixel vectors independently through simple CNN, in which local convolutional filters are applied to the spectral vectors extracting local spectral features. Convolutional feature maps generated after max pooling are then used as the input to the fully connected classification stage for material classification. Chen et al. also used deep convolutional neural network adopting five convolutional layers and one fully connected layer for hyperspectral classification.
Unlike these deep learning-based approaches, we first attempt to build much deeper and wider network using relatively small amounts of training samples. Once the network is effectively optimized, it is expected to provide enhanced performance over relatively shallow and narrow networks.
Iii The Contextual Deep Convolutional Neural Network
In this section, we first describe the widely used CNN model referred to as AlexNet and then discuss the overall architecture of the proposed network. We elaborate on the two key components of the proposed network, “multi-scale convolutional filter bank” and “residual learning.” The learning process of the network is discussed at the end of the section.
Iii-a Deep Convolutional Neural Network
A widely used deep CNN model includes multiple layers of neurons, each of which extracts a different level of non-linear features from the input ranging from low to high level features. Non-linearity in each layer is achieved by applying a nonlinear activation function to the output of local convoultional filters in each layer. The proposed network is basically a convolutional neural network with a nonlinear activation function used in.

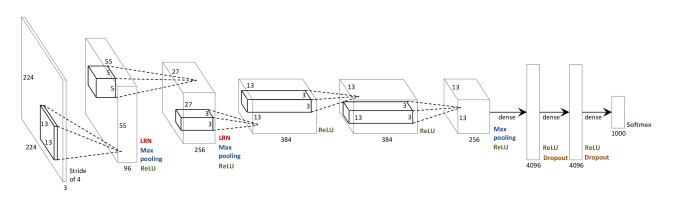

In this section, we first describe the architecture of AlexNet, a widely used deep CNN model, as shown in Figure 2, to provide the basis for understanding the architecture of the proposed network. AlexNet consists of five convolutional layers and three fully connected layers. Each fully connected layer contains linear weights connecting the relationship between input and output :
where and represent the input and output vectors. A convolutional layer with local filters, , extracts local nonlinear features from the input and is expressed as:
where denotes a convolution. The filter size of all is carefully determined to be much smaller than the size of .
In , several non-linear components, such as the local response normalization (LRN), max pooling, the rectified linear unit (ReLU), dropout, and softmax are used. LRN normalizes each activation over local activations of adjacent filters centered on the position , which aims to generalize filter responses,
where , , , and are hyper-parameters. Max pooling down-samples the output of layers by replacing a sub-region of the output with the maximum value, which is commonly used for dimensionality reduction in CNN. ReLU rectifies negative values to zero and is used for the network to learn parameters with positive activations only. ReLU
basically replaces the sigmoid function commonly used for other neural networks mainly because learning deep CNN withReLU is several times faster than the network with other nonlinear activation functions such as . Dropout
is a function that forces the output of individual nodes of each layer to be zero with a probability under a certain threshold, which takes any value within (0, 1). In this work, we used a threshold of 0.5.Dropout reduces overfitting by preventing multiple adaptations of training data simultaneously (referred to as “complex co-adaptions”). Softmax
is a generalization of the logistic function, which is defined as the gradient-log-normalizer of the categorical probability distribution:
where is a classification function for a class, whose input and output are and , respectively. Therefore, softmax is useful for probabilistic multiclass classification including HSI classification.
Iii-B Architecture of the Proposed Network

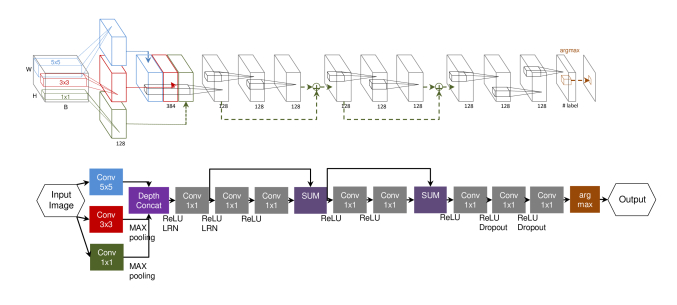

We propose a novel fully convolutional network (FCN)  with a number of convolutional layers for HSI classification, as show in Figure 3. The first part of the network is a “multi-scale filter bank” followed by two blocks of convolutional layers associated with residual learning. The last three convolutional layers function in a similar manner to the fully conected layers for classification of the AlexNet, which performs classification using local features. Similar to AlexNet, the and convolutional layers have dropout in training. The ReLU is used after the multi-scale filter bank, the , , , , convolutional layers, and two residual learning modules. The output of the first two convolutional layers is normalized by LRN. Note that the height and width of all data blobs in the architecture are the same and only their depth changes. No dimensionality reduction is performed throughout the FCN processing.
Note that convolving a blob with filters whose size is can achieve the same effect as fully connecting the input blob to output nodes, as illustrated in Figure 4. Due to this “convolutionalized model”, FCN can be used for pixel classification, such as semantic segmentation, HSI classification, etc. Since our network is based on FCN, the proposed network learns on pixels centered on individual pixel vectors and is applied to the whole image in test.
How Much Deeper Does the Proposed Network Go? The proposed network contains a total of 9 layers, which is much deeper than other CNNs for HSI classification trained on the same datasets . However, the depth of 9 still does not seem to be large enough, especially when compared to the current state-of-the-art CNNs for image classification, such as ResNet . This is mainly because HSI-based CNNs have to be trained on much smaller amounts of training samples than that of the image classification CNNs primarily trained on large scale databases, such as ImageNet (1.2 M) . Constrained by highly limited HSI training data, the proposed going deeper strategy opts not to use a very large number of layers to avoid overfitting. However, it still uses a much greater number of layers than that of any other HSI-based CNNs. Table I shows a comparison of various CNNs for both image and HSI classification with regards to network variables, such as the number of layers and parameters, training data size, and a ratio between the number of the parameters and data size.
|Method||# of Layer||param||data size||param/data|
|-U. of Pavia||3||59.8K||1.8K||33.22|
|The Proposed-Indian Pines||9||1122.5K||6.4K||175.39|
|The Proposed-U. of Pavia||9||610.6K||7.2K||84.81|

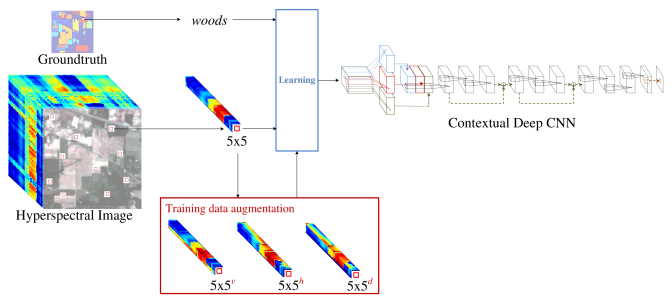

Similar to data augmentation used in image classification CNNs, the proposed network also uses a data augmentation strategy described in Section III-E. As shown Table I, the proposed network provides much larger ratios between the number of parameters and training data size than those of the baseline  for the same training dataset. Also, the parameter vs. data ratios of the proposed networks are at least approximately eight times larger than that of any image classification CNNs. This indicates that the architecture of the proposed network is designed to ensure that it provides sufficient depth of layers to fully exploit training data.
Iii-C Multi-scale Filter Bank
The first convolutional layer applied to the input hyperspectral image uses a multi-scale filter bank that locally convolves the input image with three convolutional filters with different sizes (, , and where is the number of spectral bands). The and filters are used to exploit local spatial correlations of the input image while the filters are used to address spectral correlations. The output of the first convolutional layer, the three convolutional feature maps, as shown in Figure 3, are combined together to form a joint spatio-spectral feature map used as input to the subsequent convolutional layers.
However, since the size of the feature maps from the three convolutional filters is different from each other, a strategy to adjust the size of the feature maps to be same to combine them into a joint feature map is needed. First, a space of two-pixel width filled with zeros is padded around the input image such that the size of the feature maps from the, , and filters becomes , , and , respectively. and are the height and width of the input image, respectively. The size of all the feature maps becomes after and max poolings are applied to the feature maps from the and filters, respectively.
and convolutions with a large number of spectral bands can be expensive and merging of the output of the convolutional filter bank causes the size of the network to increase, which also inevitably leads to high computational complexity. As the network size is increased, optimizing the network with a small number of training samples will face overfitting and divergence. Therefore, a strategy to address the above issues needs to be used. To tackle the issues, we use training data augmentation and residual learning modules described in Section III-D and III-E.
Functionality of the Multi-scale Filter Bank. The multi-scale filter bank conceptually similar to the inception module in  is used to optimally exploit diverse local structures of the input image.  demonstrates the effectiveness of the inception module that enables the network to get deeper as well as to exploit local structures of the input image achieving state-of-the-art performance in image classification. The multi-scale filter bank in the proposed network is used in a somewhat different manner that aims to jointly exploit local spatial structures in conjunction with local spectral correlations at the initial stage of the proposed structure.
Iii-D Residual Learning
The subsequent convolutional layers use filters to extract nonlinear features from the joint spatio-spectral feature map. We use two modules of “residual learning” , which is shown to help significantly improve training efficiency of deep networks. The residual learning is to learn layers with reference to the layer input using the following formula:
where and are the input and output vectors of the layers considered, respectively. The function is the residual mapping of the input to the residual output using convolutional filters .  proved that it is easier to optimize with the residual mapping than to optimize those weights with the unreferenced mapping. In the proposed network, two convolutional layers are used for the residual mapping, which is called “shortcut connections”. The residual learning is very effective in practice, which is also proven in . ReLU is the function that makes the first layer in the module nonlinear. Note that both the multi-scale filter bank and the residual learning are effective in increasing the depth and width of the network while keeping the computational budget constrained [12, 11]. This helps to effectively learn the deep network with a small number of training samples.
Iii-E Learning the Proposed Network
We randomly sample a certain number of pixels from the hyperspectral image for training and use the rest to evaluate the performance of the proposed network. For each training pixel, we crop surrounding 55 neighboring pixels for learning convolutional layers. The proposed network contains approximately 1000K parameters, which are learned from several hundreds of training pixels from each material category. To avoid overfitting, we augment the number of training samples four times by mirroring the training samples across the horizontal, vertical, and diagonal axes. Figure 5 illustrates the learning process of the proposed network.
For learning the proposed network, stochastic gradient descent (SGD) with a batch size of 10 samples is used with 100K iterations, a momentum of 0.9, a weight decay of 0.0005 and a gamma of 0.1. We initially set a base learning rate as 0.001. The base learning rate is decreased to 0.0001 after 33,333 iterations and is further reduced to 0.00001 after 66,666 iterations. To learn the network, the last argmax layer is replaced by a softmax layer commonly used for learning convolutional layers. The first, second, and ninth convolutional layers are initialized from a zero-mean Gaussian distribution with standard deviation of 0.01 and the remaining convolutional layers are initialized with standard deviation of 0.005. Biases of all convolutional layers except the last layer are initialized to one and the last layer is initialized to zero.
Iv Experimental Results
Iv-a Dataset and Baselines

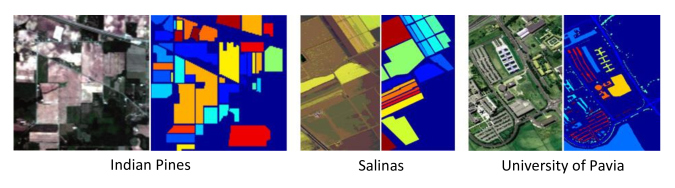

|1||Broccoli green weeds 1||200||1809|
|2||Broccoli green weeds 2||200||3526|
|4||Fallow rough plow||200||1194|
|9||Soil vineyard develop||200||6003|
|10||Corn senesced green weeds||200||3078|
|11||Lettuce romaines, 4 wk||200||868|
|12||Lettuce romaines, 5 wk||200||1727|
|13||Lettuce romaines, 6 wk||200||716|
|14||Lettuce romaines, 7 wk||200||870|
|16||Vineyard vertical trellis||200||1607|
The performance of HSI classification of the proposed network is evaluated on three datasets: the Indian Pines dataset, the Salinas dataset, and the University of Pavia dataset, as shown in Figure 6. The Indian Pines dataset consists of 145145 pixels and 220 spectral reflectance bands covering the range from 0.4 to 2.5 with a spatial resolution of 20 . The Indian Pines dataset originally has 16 classes but we only use 8 classes with relatively large numbers of samples. The Salinas dataset consists of 512217 pixels and 224 spectral bands. It contains 16 classes and is characterized by a high spatial resolution of 3.7 . The University of Pavia dataset contains 610340 pixels with 103 spectral bands covering the spectral range from 0.43 to 0.86 with a spatial resolution of 1.3 . 9 classes are in the dataset. For the Salinas dataset and the University of Pavia dataset, we use all classes because both datasets do not contain classes with a relatively small number of samples.
We compare the performance of the proposed network to the one reported in  that used a different deep CNN architecture and RBF kernel-based SVM on the three hyperspectral datasets. The deep CNN used in  consists of two convolutional layers and two fully connected layers, which is much shallower than our proposed network with nine convolutional layers. Currently, for the Indian Pines and University of Pavia datasets, an approach using diversified Deep Belief Networks (D-DBN)  provides higher HSI classification accuracy than that of the network in . We also use D-DBN as a baseline in this work. For the Indian Pines dataset, we also use three types of neural networks evaluated in : a two layer fully connected neural network (Two-layer NN), a fully connected neural network with one hidden layer (Three-layer NN), and the classic LeNet-5 .
|Indian Pines||Salinas||University of Pavia|
|Two-layer NN ||86.49|
|Three-layer NN [2, 1]||87.93|
|LeNet-5 [2, 15]||88.27|
|Shallower CNN ||90.16||92.60||92.56|
|D-DBN ||91.03 0.12||93.11 0.06|
|The proposed network||93.61 0.56 (94.24)||95.07 0.23 (95.42)||95.97 0.46 (96.73)|
|Indian Pines||80.38 14.20||93.61 0.56||93.47 0.41||92.79 0.81|
|Salinas||91.35 3.62||93.60 0.58||95.07 0.23||94.10 0.55|
|University of Pavia||94.77 0.83||95.97 0.46||95.86 0.50||95.78 0.52|
For a fair comparison, we randomly select 200 samples from each class and use them as training samples as in . The rest are used for testing the proposed network. The selected classes and the numbers of training and test samples of the three datasets are listed in Tables II, III, and IV. In the literature on HSI classification, different train/test dataset partitions are used to evaluate their approaches. Among them, our dataset partition using 200 training samples has two advantages in evaluating the proposed network; i) evaluation with this partition can verify our contribution, which is building a deeper and wider network with a relatively small number of training samples and ii)
using this partition can provide reasonable performance of relatively good baselines, such as RBF-SVM and the shallower CNN. For all experiments, we perform the random train/test partition 20 times and report mean and stand deviation of overall classification accuracy (OA). We have carried out all the experiments on Caffe framework with a Titan X GPU.
|University of Pavia||349||474||597||751|
Iv-B HSI Classification
Table V shows a performance comparison among the proposed network and baselines on the datasets. Hu et al.  only reports a single instance of classification performance without indicating if the value is the best or mean accuracy of multiple evaluations. The proposed network provided improved performance over all the baselines on all datasets. The mean of classification performance of the proposed network is better than the best baseline classification performance by 2.58 %, 2.47 %, and 2.86 % for the Indian Pines dataset, the Salinas dataset, and the University of Pavia dataset, respectively. This performance enhancement was achieved mainly by building a deeper and wider network as well as jointly exploiting the spatio-spectral information of the hyperspectral data. Residual learning also helped improve the performance by optimizing training efficiency on a relatively small number of samples. The groundtruth map (left) and the classification map (right) obtained by the proposed network for all datasets are also shown in Figure 7. The classification map is drawn from one arbitrary train/test partition among 20.
|Indian Pines||92.74 0.69||93.61 0.56||92.63 0.84|
|Salinas||94.06 0.26||95.07 0.23||94.01 0.47|
|University of Pavia||95.63 0.50||95.97 0.46||95.66 0.59|
|University of Pavia||426||474||544|
|Indian Pines||53.67 16.63||87.37 4.12||93.61 0.56||93.47 0.77|
|Salinas||50.62 30.87||92.08 0.77||95.07 0.23||94.20 0.43|
|University of Pavia||65.62 8.18||93.59 1.35||95.97 0.46||95.91 0.50|
Iv-C Finding the Optimal Depth and Width of the Network
To find the optimal width of the proposed network, we evaluate the network by varying the number of convolutional filters (i.e., the number of kernels): 64, 128, 192, and 256 for all three datasets. Table VI shows the performance of the proposed network with the varying numbers of kernels (network width) while Table VII shows training time for all cases. For the Indian Pines dataset and the University of Pavia dataset, 128 is the optimal width for the best performance while 192 is the best one for the Salinas dataset. Since the Salinas dataset contains more training samples from the larger number of classes than other datasets, more weights seem to be necessary to achieve optimal performance. As shown in Table VI and VII, adding more filters to the optimal network not only causes reduction in performance but also results in an increase in computational cost.
We also evaluate the proposed network with various depths in order to find the optimal depth. Depth can be varied by using different numbers of residual learning modules. Performance comparison of the proposed network with varying numbers of residual learning modules is shown in Table VIII. Table IX shows training time for all cases. For all the three datasets, using two residual learning modules achieves the best performance among all variations. Using three residual learning modules may face an overfitting issue, which results in performance degradation. It is also shown in Table IX that using three residual learning modules turns out to be computationally very expensive.
On the basis of these evaluations, we choose the network with two residual learning modules and the width of 128 for each layer for both the Indian Pines dataset and the University of Pavia dataset. For the Salinas dataset, the network with two residual learning modules and the width of 192 for each layer is selected.
Iv-D Effectiveness of the Multi-scale Filter Bank
To verify the effectiveness of the multi-scale filter bank used to jointly exploit the spatio-temporal information together, we compare the proposed network to the network without the multi-scale filter bank, which use only a 11 filter in the first layer. We also compare to the network with the multi-scale filter bank with a different configuration: 11, 33, 55, and 77. Figure 8 shows architectures of all various multi-scale filter banks. As shown in Table XII, the multi-scale filter bank significantly outperforms the network without it (1x1 only) for all the three datasets (by 39.94 for the Indian Pines dataset, 44.45 for the Salinas dataset, and 30.35 for the University of Pavia in mean classification performance). The drastic performance degradation is mainly caused by two reasons; i) no joint exploitation of the spatio-spectral information is performed and ii) data augmentation by mirroring local regions cannot be used due to the non-existence of spatial filtering.
We also compare the proposed network to the one multi-scale filter banks with different configurations. As shown in Table XII, The performance degradation from using the multi-scale filter bank with all the filters up to 77 denoted by 77 is caused by ’spillover’ near class boundaries resulted from using the spatial filter of 77. Therefore, we choose to use a multi-scale filter bank with 11, 33, and 55 for the proposed network.
Iv-E Effectiveness of Residual Learning
To verify the effectiveness of the “residual learning”, we also compare the performance of the proposed network to a similar network with the first residual module replaced with regular two convolutional layers, as shown in Table XI. Both the networks are built on the same number of convolutional layers, which is 9. It was found that the network without using residual learning modules at all failed to converge in training due mainly to the small size training data. The network with the first residual learning module replaced with two convolutional layers also failed to optimize the network parameters resulting in sub-optimal performance, as shown in Table XI. Figure 9 shows the comparison of training loss and classification accuracy as a function of training iterations for the two networks, which are calculated from one arbitrary train/test partition. From the training loss in the plots of the first row of Figure 9, we observe that the proposed network achieves lower loss both during learning and at the end of the iterations than the other network. The second row of the Figure 9 also shows that lower loss during learning leads to improved classification accuracy. These observations support that residual learning greatly improves overall learning efficiency resulting in both lower training loss and higher classification accuracy.
|Dataset||w/ conv. layer||w/ residual learning|
|Indian Pines||49.73 24.58||93.61 0.56|
|Salinas||46.75 25.98||95.07 0.23|
|University of Pavia||50.23 27.78||95.97 0.46|
Iv-F Performance Changes according to Training Set Size
|Indian Pines||MKL ||77.40 1.78||80.63 0.99|
|The proposed network||80.50 3.93||87.39 0.88||93.61 0.56||94.68 0.47|
|Salinas||MKL ||89.33 0.44||90.60 0.43|
|The proposed network||91.36 1.11||93.15 0.43||95.07 0.23||96.55 0.29||97.14 0.53|
|University of Pavia||MKL ||91.52 0.98||92.72 0.33|
|The proposed network||91.39 0.80||93.10 0.45||95.97 0.46||96.81 0.25||97.31 0.26|
To analyze the effects of training dataset size in learning the proposed network, we compare the performance of the proposed network as the size of training dataset is changed: 50, 100, 200, 400, or 800 examples per a class. Table XII presents classification accuracy of the proposed network w.r.t. training dataset size. For the Indian Pines dataset, we do not perform learning with 800 examples per a class because several classes have insufficient examples (e.g. 483 for Grass-pasture, 478 for Hay-windrowed, 593 for Soybean-clean).
As expected, the classification accuracy of the proposed network monotonically increases as training dataset size increases. We also note that even for smaller training dataset size, such as 50 and 100, the proposed network provides higher accuracy than multiple kernel learning (MKL)-based HSI classification , as shown in Table XII.
|Dataset||# of FP / # of test data||Percentage|
|Indian pines||93 / 717||80 / 109||310 / 5478||12.97 %||11.28 %||5.66 %|
|Salinas||94 / 1093||81 / 1082||2688 / 48754||8.60 %||7.49 %||5.51 %|
|University of Pavia||254 / 3455||299 / 4135||1737 / 33386||7.35 %||7.23 %||4.30 %|
Iv-G False Positives Analysis
Table XIII shows confusion matrices for three datasets, which are calculated from one arbitrary train/test partition. For the Indian Pines dataset, the proposed network presents the performance below 95 in only two classes that are corn-notill and soybean-mintill, among the eight classes. As shown in the Table II, the two classes are the ones with much larger numbers of samples than others. The network learning with relatively small training data seems to fail to represent overall spectral characteristics of the classes. Similarly, approximately of false positives of each of the two classes are labeled as the other class because the spectral distributions of the two classes are more widespread than others. Similar tendency is shown for the Salinas dataset. The proposed network performed worst for the two classes with more test data, which are grapes untrained and vineyard untrained, as shown in Table III: 83.4 for grapes untrained and 89.4 for vineyard untrained. Most false positives from each of the two classes are the ones misclassified as the other class of the two classes. For the University of Pavia dataset, the classification performance of the bricks class is noticeably worse, which is less than 90 . Most false positives of the bricks class are classified as gravels.
To evaluate how the proposed network performs for pixels near boundaries between different classes, we categorized all the pixels according to the pixel distance to the boundary. Pixels on the boundary are labelled as zero. Similarly, pixels near boundary with one pixel apart are labelled as one. The rest are labelled as 2. Note that we use neighboring 55 pixels for exploiting spatial information of each pixel. For pixels labelled as 2, their 55 neighboring pixels are from the same class. Table XIV shows the number of false positives versus all the test data within each pixel category for all the three datasets. For all datasets, it is observed that larger portions of false positives are generated near boundaries as expected. The false positives close to class boundaries are one of major factors for performance degradation of the proposed network. The pixels far from the boundaries by more than one pixel distance are not affected by ‘spillover’ and therefore less prone to misclassification.
In the proposed work, we have built a fully convolutional neural network with a total of 9 layers, which is much deeper than other existing convolutional networks for HSI classification. It is well known that a suitably optimized deeper network can in general lead to improved performance over shallower networks. To enhance the learning efficiency of the proposed network trained on a relatively sparse training samples a newly introduced learning approach called residual learning has been used. To leverage both spectral and spatial information embedded in hyperspectral images, the proposed network jointly exploits local spatio-spectral interactions by using a multi-scale filter bank at the initial stage of the network. The multi-scale filter bank consists of three convolutional filters with different sizes: two filters ( and ) are used to exploit local spatial correlations while is used to address spectral correlations.
As supported by the experimental results, the proposed network provided enhanced classification performance on the three benchmark datasets over current state-of-the-art approaches using different CNN architectures. The improved performance is mainly from i) using a deeper network with enhanced training and ii) joint exploitation of spatio-spectral information. The depth (the number of layers) and width (the number of kernels used in each layer) of the proposed network as well as the number of residual learning modules are determined by cross validation. The classification performance also shows that the proposed network with two residual learning modules outperforms the one with only one module, which supports the effectiveness of the residual learning incorporated into the proposed network.
