Global-Position Tracking Control of 3-D Bipedal Walking via Virtual Constraint Design and Multiple Lyapunov Analysis

08/08/2021 ∙ by Yan Gu, et al. ∙ UMass Lowell Purdue University 0

A safety-critical measure of legged locomotion performance is a robot's ability to track its desired time-varying position trajectory in an environment, which is herein termed as "global-position tracking". This paper introduces a nonlinear control approach that achieves asymptotic global-position tracking for three-dimensional (3-D) bipedal robot walking. Designing a global-position tracking controller presents a challenging problem due to the complex hybrid robot model and the time-varying desired global-position trajectory. Towards tackling this problem, the first main contribution is the construction of impact invariance to ensure all desired trajectories respect the foot-landing impact dynamics, which is a necessary condition for realizing asymptotic tracking of hybrid walking systems. Thanks to their independence of the desired global position, these conditions can be exploited to decouple the higher-level planning of the global position and the lower-level planning of the remaining trajectories, thereby greatly alleviating the computational burden of motion planning. The second main contribution is the Lyapunov-based stability analysis of the hybrid closed-loop system, which produces sufficient conditions to guide the controller design for achieving asymptotic global-position tracking during fully actuated walking. Simulations and experiments on a 3-D bipedal robot with twenty revolute joints confirm the validity of the proposed control approach in guaranteeing accurate tracking.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 10

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

A robot’s global position represents its absolute position in an environment. Poor global-position tracking can potentially put the safety of both humans and robots at risk, for example, by causing robots’ failure to avoid pedestrians in human-populated environments. To achieve accurate global-position tracking, the Zero-Moment-Point (ZMP) control approach has been introduced based on the ZMP balance criterion and the continuous-time dynamic model of bipedal walking

[37, 23, 25]. Yet, bipedal walking is inherently a hybrid process involving both continuous motions (e.g., foot swinging) and discrete impact dynamics (e.g., sudden joint-velocity jumps upon a foot landing) [11, 22, 2, 42]. Achieving reliable global-position tracking by explicitly addressing the hybrid robot dynamics presents substantial challenges.

This study focuses on addressing the challenges associated with: a) lower-level trajectory generation (i.e., Level 2 in Fig. 1) and b) controller design (i.e., Level 3 in Fig. 1). It is assumed that the desired global path and the desired time-varying position trajectory along the path have both been provided by a higher-level planner (i.e., Level 1 in Fig. 1) without impact dynamics considered.

A key challenge in the lower-level trajectory generation (i.e., Level 2 in Fig. 1) is to reduce the computational burden caused by enforcing the impact dynamics on the desired trajectories. For the controller to achieve asymptotic tracking based on a hybrid robot model, the desired trajectories need to agree with the impact dynamics; i.e., their pre- and post-impact values should satisfy the impact map. This is because the impact dynamics cannot be directly controlled due to their infinitesimally short duration  [17, 33, 34, 38]. Yet, the computational burden caused by respecting the impact dynamics is heavy because of the high dimension of a legged robot’s state space and the nonlinearity of the impact dynamics.

Another challenge is the closed-loop stability analysis of the hybrid dynamical system that produces sufficient conditions to inform the controller derivation (i.e., Level 3 in Fig. 1). Such a stability analysis is complex because a closed-loop system capable of stabilizing a time-varying global-position trajectory is hybrid, nonlinear, and time-varying with uncontrolled, state-triggered impact dynamics.

1.1 Related Work on Orbitally Stabilizing Control

The most widely studied control approach that explicitly addresses the hybrid walking dynamics is the Hybrid Zero Dynamics (HZD) method [13, 40, 29, 27, 12, 6]. The HZD method provably stabilizes dynamic walking motions through orbital stabilization of the hybrid closed-loop control system. It has realized remarkable performance for various gait types such as periodic underactuated [20, 5], fully actuated [1], and multi-domain walking [21].

The HZD framework introduces virtual constraints to represent the evolution of a robot’s desired configuration with respect to a phase variable that indicates how far a step has progressed. To enforce the impact dynamics on the desired gait, the HZD approach introduces a method termed “impact invariance construction” to produce an equality constraint under which the desired gait respects the impact dynamics, and incorporates the constraint in the optimization-based generation of virtual constraints. Yet, because the encoding of the global-position trajectory is inherently different from that of virtual constraints, the previous impact invariance construction cannot be directly applied or extended to ensure the agreement with impact dynamics for the desired global-position trajectory. Specifically, the virtual constraints are encoded by a local phase variable that is reset at the beginning of a walking step, while the desired global-position trajectory is usually encoded by a global phase variable that involves continuously and monotonically across all walking steps.

To analyze the closed-loop stability for guiding controller designs, the HZD approach exploits the Poincaré section method to examine the asymptotic convergence of a robot’s state to the desired periodic orbit representing the desired gait in the state space. Recently, the HZD framework has been extended to achieve asymptotic tracking of the desired global path during 3-D underactuated bipedal walking [41]. Yet, an orbitally stabilizing controller cannot stabilize a prespecified time-varying trajectory [24] such as the desired global-position trajectory.

1.2 Related Work on Trajectory Tracking Control

Our previous trajectory tracking controller designs either focus on individual joint trajectory tracking [18, 19] or only considers 2-D walking [15, 16, 10]. In particular, our previous work on 2-D walking, including the impact invariance construction and stability analysis, is not valid for 3-D walking. Specifically, robot dynamics during 3-D walking are nonlinearly coupled in the heading and lateral directions of the robot’s global path, but 2-D walking does not exhibit lateral motion, and accordingly, the coupling is trivial. This nonlinear coupling significantly increases the complexity of controller derivation in addressing 3-D walking compared with 2-D walking. Furthermore, experimental validation of these previous controllers has been missing.

Beyond the scope of global-position tracking control for bipedal walking robots, trajectory tracking control of general hybrid systems with state-triggered jumps is an active research topic  [28, 3, 7, 30, 36, 35]. Lyapunov-based controller design methodologies have been introduced to provably achieve asymptotic trajectory tracking for linear hybrid systems [3, 7]. In this study, to guide the needed controller design, we will extend the previous Lyapunov-based stability analysis to nonlinear hybrid systems that include 3-D bipedal robot walking.

1.3 Contributions

This study aims to derive and experimentally validate a nonlinear control approach for 3-D bipedal walking that achieves asymptotic global-position tracking by explicitly addressing the hybrid robot dynamics. The main contributions of this study are summarized as follows:

  1. Constructing impact invariance conditions that are independent of the desired global-position trajectory and yet ensure all desired trajectories respect the impact dynamics. They can be used to decouple the planning of virtual constraints and global position, thus improving trajectory generation efficiency.

  2. Establishing sufficient conditions based on the multiple Lyapunov stability analysis [4] of the hybrid system for guiding the design of a continuous state-feedback control law to achieve asymptotic global-position tracking.

  3. Demonstrating the global-position tracking accuracy of the proposed control approach both through simulations and, for the first time, experimentally on a 3-D bipedal walking robot.

  4. Experimentally validating the inherent robustness of the proposed control design in addressing irregular walking surfaces such as moderately slippery floors.

Some of the results presented in this paper were initially reported in [14] and [9]. The present paper includes substantial, new contributions in the following aspects: a) the proof of the main theorem (i.e., Theorem 1) is updated with a new choice of Lyapunov function to properly analyze the convergence of the robot’s lateral foot placement during 3-D walking, and Proposition 4 is added along with its full proof, which supports the updated proof of the main theorem; b) fully developed proofs of all theorems and propositions are presented, which were missing in [14] and [9]; c) comparative experimental results are added to show the reliable global-position tracking performance of the proposed control approach; and d) robustness evaluation is newly included to illustrate the capability of the proposed control approach in handling relatively slippery grounds.

This paper is structured as follows. Section 2 describes the problem formulation. Section 3 explains the proposed continuous-phase tracking control law. Section 4 presents the proposed construction of conditional impact invariance for designing virtual constraints. Section 5 introduces the closed-loop stability analysis based on multiple Lyapunov functions. Section 6 reports the simulation and experimental results. Section 7 discusses the proposed approach and potential directions of future work. Proofs of all theorems and propositions are given in the appendix.

2 Problem Formulation

This section presents the proposed problem formulation of global-position tracking control, including dynamics modeling, tracking error definition, and control objective.

2.1 Full-Order Robot Model

This subsection describes a full-order model that accurately captures the dynamic behaviors of all degrees of freedom (DOFs) involved in bipedal walking. Thanks to the model’s accuracy, a controller that is effective for the model would also be valid for the physical robot. Hence, we use the full-order model as a basis of the proposed control approach.

The full-order model is naturally hybrid and nonlinear, because walking dynamics are inherently hybrid, involving both nonlinear continuous behaviors (e.g., leg-swinging motions) and state-triggered discrete behaviors (e.g., the joint-velocity jumps caused by foot-landing impact).

In this study, we assume that the swing and the stance leg immediately switch roles upon a foot landing, with the new swing leg beginning to move in the air and the new stance leg remaining in a full, static contact with the ground until the next landing occurs [40]. The assumption is valid when the double-support phase is sufficiently short and when the stance foot does not notably slip on the ground.

Under this assumption, if all of the robot’s (revolute or prismatic) joints are directly actuated, then the robot is fully actuated; i.e., its full DOFs can be directly commanded within continuous phases.

This study focuses on the relatively simple gait, fully actuated gait, for two main reasons. First, asymptotic tracking of time-varying global-position trajectories for the 3-D hybrid walking model is still an open control problem for this simple gait. Second, using a simple gait allows us to focus on addressing the complexity of the controller design problem induced by the hybrid, nonlinear robot dynamics and the time-varying global-position trajectory.

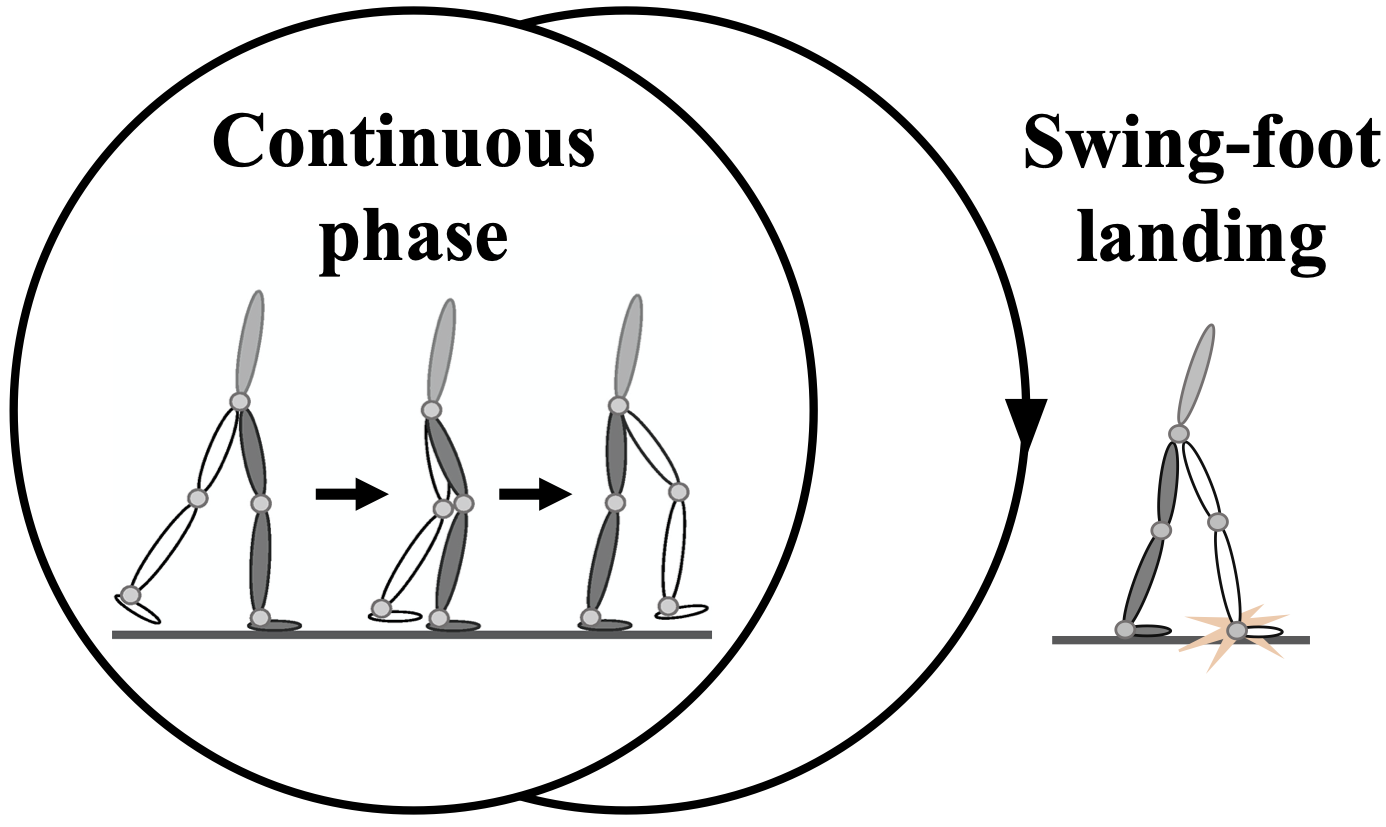

Figure 2: Illustration of a fully actuated gait cycle comprising a continuous phase and a discrete swing-foot landing.

Continuous-phase dynamics. As illustrated in Fig. 2, a complete walking cycle comprises: a) a fully-actuated continuous phase during which one foot contacts the ground and the other swings in the air and b) a landing impact.

Walking dynamics during continuous phases can be described by usual ordinary differential equations. Lagrange’s method is used to obtain the following nonlinear full-order model during continuous phases

[13]:

(1)

where

is the joint-position vector,

is the symmetric, positive-definite inertia matrix, is the sum of Coriolis, centrifugal, and gravitational terms, is the joint-torque projection matrix with full column rank, and is the joint-torque vector. Here, is the configuration space of the robot, is the tangent bundle of , and is the admissible joint-torque set. Note that when a robot is fully actuated.

Impact dynamics. When the swing foot lands on the ground, the swing and stance legs immediately switch their roles. Here we model the swing-foot landing impact as the contact between rigid bodies [40]. This assumption is valid for dynamic walking on relatively stiff surfaces (e.g., concrete and ceramic floors) during which the swing foot strikes the surface at a relatively significant downward velocity.

Due to the coordinate swap of the swing and stance legs as well as the impulsive rigid-body impact, both joint position and velocity vectors experience a sudden jump at a landing event. This state-triggered jump is described by the following nonlinear reset map  [13]:

(2)

where and represent the values of just before and just after the impact, respectively.

Switching surface. A swing-foot landing event is triggered when the robot’s state reaches the switching surface , which is given by:

(3)

where is the swing-foot height above the ground.

Combining the above equations yields the following full-order model:

(4)

2.2 Global-Position Tracking Error

A fully-actuated, -DOF bipedal robot can track independent desired position trajectories, including the reference global-position trajectories.

In this study, we choose to use the position of a biped’s base (e.g., trunk), , to represent its global position in an environment. The horizontal components of the base position are related to the stance-foot position as:

(5)

where denotes the stance-foot position with . The scalar variables and represent the - and -coordinates of the base position relative to the stance foot, respectively.

In real-world locomotion tasks, a higher-level planner typically specifies the desired global motions as:

  1. The center line of the desired global path.

  2. The desired smooth position trajectory along .

As an arbitrary curved path can be approximated as a nonsmooth curve pieced together by straight lines, this study focuses on the tracking control of straight-line paths, which could be extended to the tracking of a curved path as discussed in Section 7.

Without loss of generality, suppose that the center line coincides with the -axis of the world frame; that is

Then, the global-position tracking error along is defined as .

While and are often provided by a higher-level path planner, the desired base motion in the direction lateral to remains to be designed, which is explained next.

2.3 Virtual-Constraint Tracking Error

Besides the desired global-position trajectory , a legged robot typically has multiple directly actuated DOFs that can track additional desired motions. We choose to use virtual constraints to define the desired trajectories for the lateral base position and the remaining control variables .

Analogous to the HZD framework, we use virtual constraints to represent the desired configuration relative to a phase variable . Without loss of generality, the phase variable is chosen as the relative forward position of the base, ; that is,

The virtual constraints can be encoded by as:

(6)

where the scalar function and the vector are the desired trajectories of and , respectively. Suppose that , , and are all continuously differentiable in their respective arguments.

Thus, the tracking error corresponding to the virtual constraints is defined as .

2.4 Control Objective

The tracking errors can be compactly expressed as:

(7)

where the control variables and their desired trajectories are respectively defined as and .

The control objective is to asymptotically drive the tracking error to zero for achieving asymptotic tracking of the desired motions, which are the desired global-position trajectory and the desired functions and that define the virtual constraints, for 3-D bipedal robot walking.

To achieve this objective, the proposed control approach (Fig. 1) comprises three main components: a) continuous-phase controller design (for stabilizing the desired trajectories within continuous phases); b) impact invariance construction (for satisfying a necessary condition of asymptotic tracking for the hybrid model); and c) closed-loop stability analysis (for providing sufficient stability conditions that guide the controller design).

3 Continuous-Phase Control

This section presents a continuous state-feedback control law that asymptotically stabilizes the desired trajectories within continuous phases.

We choose to design a controller that directly regulates the continuous-phase walking dynamics instead of the impact dynamics because the impact dynamics cannot be directly commanded due to its infinitesimal short duration. We will show in Section 5 how the proposed continuous control law could be tuned to indirectly stabilize the desired trajectories for the overall hybrid system.

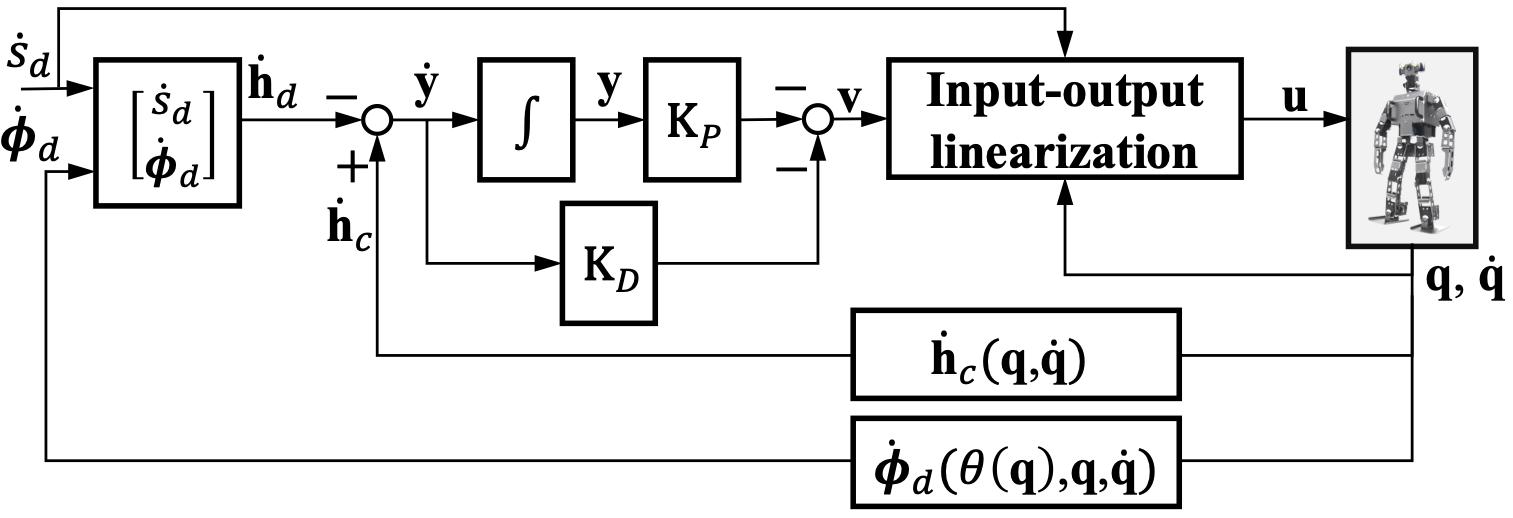

Figure 3: Block diagram of the proposed continuous-phase controller.

The proposed control law (Fig. 3) is synthesized based on the full-order model of bipedal walking dynamics. Analogous to the HZD framework, we utilize the input-output linearization technique [24] to linearize the nonlinear continuous-phase dynamics in Eq. (1) into a linear map, which allows us to exploit the well-studied linear system theory to design the needed controller for the continuous phase.

With the trajectory tracking error chosen as the output function (i.e., ), a continuous-phase control law synthesized via input-output linearization is given by:

(8)

with which yields the linearized dynamics . Note that the variables , , and can be chosen such that there exists an open subset of the configuration space on which the Jacobian matrix is invertible. Then, the matrix is invertible on .

Choosing as a proportional-derivative (PD) term

(9)

where the proportional gain matrix and the derivative gain matrix are both positive-definite diagonal matrices, the linear closed-loop dynamics of the output function becomes during continuous phases.

Define the state of the output function dynamics as . Then, the closed-loop error equation can be compactly expressed as:

(10)

Here, with

a zero matrix and

an identity matrix with appropriate dimensions.

and are the switching surface and impact map associated with the closed-loop dynamics, respectively. Note that is explicitly time-dependent because of the explicit time dependence of . The expressions of and can be obtained from their counterparts in the open-loop dynamics (Eq. (3)) as well as the output function definition (Eq. (7)).

The origin (i.e., ) of the continuous-phase closed-loop dynamics (i.e., ) will be asymptotically stable if the PD gains are chosen such that is Hurwitz [24]. Then, there exist positive numbers , , and and a Lyapunov function candidate such that

(11)

hold for all within continuous phases. These inequalities indicates that exponentially converges at the rate of within a continuous phase.

While the proposed control law with properly chosen PD gains guarantees the asymptotic tracking of the desired trajectories within continuous phases, the impact dynamics (i.e., ) remain uncontrolled, and thus the stability of the hybrid closed-loop system is not yet ensured. To satisfy a necessary condition of asymptotic trajectory stabilization in the presence of uncontrolled impact dynamics, we introduce impact invariance construction next.

4 Impact Invariance Construction for Virtual Constraint Design

This section presents the proposed construction of impact invariance conditions that can be incorporated in the trajectory generation of the desired functions and , which define the virtual constraints, for ensuring all desired trajectories (i.e., and as well as ) respect the impact dynamics.

4.1 Impact Invariance

The concept of impact invariance was first introduced within the HZD framework, along with a systematic method of impact invariance construction (see Theorem 4 in [40]). The concept was later on termed as “impact invariance” [29].

Definition 1

(Impact invariance condition) The output function and its first derivative are impact-invariant if the following condition is met: and hold just after an impact if and hold just before an impact [40, 29].

For the proposed feedback controller to achieve asymptotic tracking for hybrid dynamical systems, the output function state and need to satisfy the impact invariance condition at the steady state. Suppose that the impact invariance condition is not met at the steady state. Then, because the robot’s impact dynamics cannot be directly regulated, the output function state may become nonzero just after an impact even if it is zero just before the impact, which means asymptotic tracking cannot be achieved.

Since the impact invariance condition is placed on the output function state, we can satisfy it by properly planning the desired function . As the desired global position is often supplied by a higher-level path planner without impact dynamics considered, the generation of the remaining desired functions and , which define the virtual constraints, needs to ensure the impact agreement for all trajectories (i.e., , , and ).

The proposed impact invariance construction comprises two steps. We first extend the existing method (i.e., Theorem 4 in [40]) to derive conditions that ensure the impact invariance of the output function state associated with the virtual constraints, that is, (, ) and its first derivative (Section 4.3). Built upon this condition, we introduce a new, additional condition that guarantees the impact invariance of the global-position error state, that is, and its first derivative (Section 4.4). Both conditions are placed on the virtual constraints alone.

4.2 Impact Timings

Because the desired global-position trajectory is explicitly time-varying, we need to consider the impact timings in the proposed impact invariance construction. As the actual and desired impact timings generally do not coincide due to the state-triggered nature of a foot-landing event [33], they are individually defined as follows.

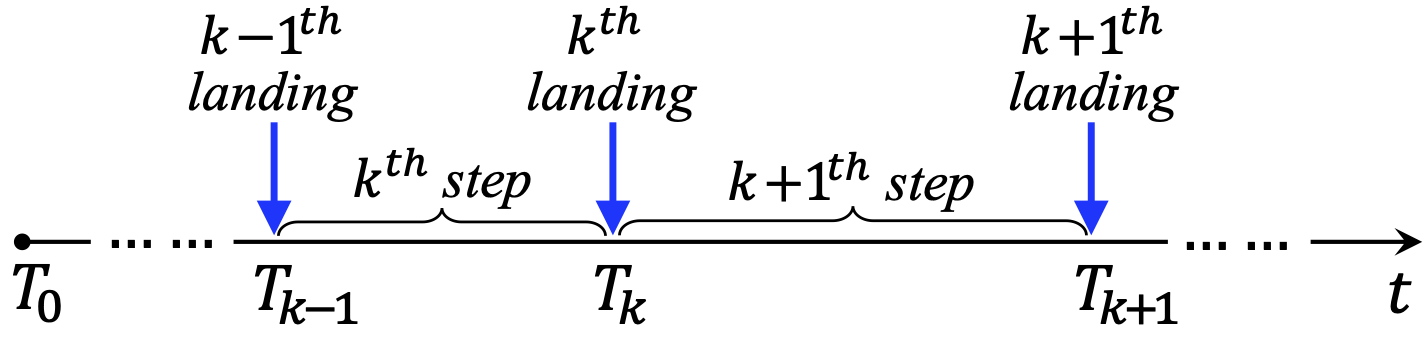

Figure 4: Illustration of the impact timings of actual walking steps. The actual walking step begins at and ends at . The actual swing-foot landing occurs at .
Definition 2

(Actual and desired impact timings) Let be the timing of the () actual landing impact, which is defined as the timing of the first intersection between the state and the switching surface on . Without loss of generality, define . Let denote the desired impact timing, which is defined as the timing of the first intersection between and on assuming .

The precise definition of is given in [40]. Figure 4 shows an illustration of . The variables and are respectively denoted as and in the rest of the paper where brevity is preferred.

4.3 Impact Invariance for Virtual Constraints

The proposed impact invariance construction utilizes the uniqueness of the robot’s joint position just before an impact event when the virtual constraints in Eq. (12) are exactly satisfied [40].

The joint position is mathematically defined as the solution to the following equations

(12)

on . Note that the last equation in Eq. (12) holds because the swing-foot height reaches 0 at a touchdown.

Due to the nonlinearity of the function , Eq. (12) may have multiple solutions on . Suppose that the output function is designed such that is invertible on . Then by the implicit function theorem, there exits such that is a unique solution to on .

We are now ready to introduce the condition that ensures the impact invariance of the output function state associated with the virtual constraints.

Proposition 1

(Impact invariance conditions for virtual constraints) Suppose that the desired functions and are planned to meet the following conditions:

  1. and .

Here, , , and . The scalar is the -coordinate of the desired foot placement. Then, under the lateral foot-placement condition , impact invariance holds for the output function state associated with the virtual constraints.

4.4 Impact Invariance for Global-Position Tracking Error

As the desired global-position trajectory is often supplied by a high-level planner without impact dynamics considered, we construct an additional condition, which is placed on the virtual constraints, to ensure the impact invariance of the global-position error state, i.e., and its first derivative. Note that .

The key to the proposed construction is to exploit the property of that it is commonly planned as a smooth function for any . Thanks to this property, the impact invariance of the output function is always guaranteed; that is, automatically holds just after an impact if it holds just before the impact. This is because both the forward base position and its desired trajectory are continuous across an impact event.

We choose to ensure the impact invariance of by enforcing the continuity of across the planned impact event. The rationale of this design choice is threefold. First, given the continuity of for any , the continuity of across the planned impact event guarantees the continuity of , which then ensures that holds just after the planned impact if it holds just before the impact. Second, the continuity of is equivalent to that of because the stance foot does not move (i.e., ). Third, is a function of the joint position and velocity only, and thus its continuity across the planned impact event can be satisfied through virtual constraint design alone without explicitly relying on the profile of .

The proposed impact invariance condition for is summarized as follows.

Proposition 2

(Impact invariance condition for global-position error) Suppose that the desired functions and satisfy conditions (A1) and (A2) and the following condition:

Then, under the lateral foot-placement condition , impact invariance of the global-position error state holds.

If the virtual constraints are generated to meet the conditions in Propositions 1 and 2, then under the lateral foot-placement condition , the impact invariance of the full output function state holds; that is, if then .

Remark 1

(Independence from desired global-position trajectory) Propositions 1 and 2 indicate that the satisfaction of the impact invariance conditions only relies on the design of the virtual constraints but not the arbitrary global-position trajectory provided by a higher-level planner. For this reason, the design of virtual constraints does not need to explicitly consider and thus can be performed offline even when the higher-level planner updates online, which could reduce the computational load for online planning.

Remark 2

(Ensuring the desired lateral foot placement through controller design) Note that the foot-placement condition underlying the proposed impact invariance construction is only assumed in the virtual constraint planning but not the controller design. Indeed, Section 5 introduces sufficient conditions under which the proposed controller guarantees this foot-placement condition holds at the actual steady state.

5 Stability Analysis

This section introduces Lyapunov-based stability analysis of the hybrid, nonlinear, time-varying closed-loop error dynamics (Eq. (10)) under the proposed continuous-phase control law (Eqs. (8) and (9)). The outcome of this stability analysis is a set of sufficient conditions under which the proposed control law provably realizes asymptotic stabilization of the desired global position trajectory and the desired functions and for the overall hybrid system.

5.1 Boundedness of Foot Placement and Impact Timing

Before presenting the main theorem on closed-loop stability, we first introduce the boundedness of the impact timing and the lateral stance-foot position . The boundedness of the impact timing is needed in the stability analysis to derive how much a Lyapunov function converges within a continuous phase. The boundedness of also needs to be explicitly considered, because underlies the proposed impact invariance conditions and should hold at the actual steady state for achieving asymptotic tracking.

Proposition 3

(Boundedness of impact timing error) Let be a solution of a fictitious continuous-time system with the initial condition , . There exists a positive number and a Lipschitz constant such that the difference between the actual and planned impact timings is bounded above in norm as

(13)

for any and any .

Proposition 4

(Boundedness of lateral foot-placement error) Suppose that the lateral swing-foot position is chosen as an element of and is thus directly controlled. Then, there exist positive numbers and such that the foot-placement error after the swing-foot landing is bounded above in norm as

(14)

for any and any .

Rationale of proofs. The full proofs of Propositions 3 and 4 are given in the appendix. The proof of Proposition 3 utilizes the implicit dependence of the actual impact timing on the error state . The proof of Proposition 4 mainly relies on the fact that the stance-foot position within the current step is the end position of the swing foot within the previous step. By including as a control variable, we can then relate the lateral foot-placement error to the error state .

5.2 Main Theorem

If the virtual constraints are designed to satisfy the impact invariance conditions in Propositions 1 and 2 and if the continuous-phase convergence rate of is sufficiently fast, then the origin of the hybrid closed-loop error system is asymptotically stable, as summarized in the main theorem:

Theorem 1

(Closed-loop stability conditions) Suppose that the virtual constraints satisfy the impact invariance conditions (A1)-(A3). Also, suppose that the PD gains in Eq. (9) are chosen such that is Hurwitz and that the continuous-phase convergence rate of is sufficiently fast. Then, there exists a positive number such that for any , the origin of the closed-loop error system in Eq. (10) is locally asymptotically stable; that is,

Furthermore, both the lateral foot placement and actual impact timing asymptotically converge to their desired values; that is,

Rationale of proof. The full proof of Theorem 1 is given in the appendix. The proof utilizes the stability theory of the multiple Lyapunov functions [4], which prescribes how a Lyapunov function candidate should evolve in order for the origin of a hybrid dynamical system to be stable.

The stability analysis begins with the construction of the Lyapunov function candidate. Since the lateral foot-placement error is not explicitly included in the state but directly affects the satisfaction of the impact invariance condition and thus the system stability, we choose to construct the Lyapunov function by augmenting with a positive-definite function of the foot-placement error:

(15)

where is a positive number to be specified in the proof.

Next, we analyze the evolution of during a continuous phase as well as through a hybrid transition. The last step is to derive the sufficient closed-loop stability conditions that the continuous-phase convergence rate should meet such that the divergence of caused by the uncontrolled impact is compensated by the continuous-phase convergence.

The convergence of the foot placement and impact timing is proved based on Propositions 3 and 4 and the asymptotic convergence of the error state . By Propositions 3 and 4, the deviations of the lateral foot placement and impact timing are bounded above by the norms of the actual state and the fictitious state . Note that by definition, overlaps with within the given actual continuous phase. Thus, driving to zero will indirectly make diminish, which then eliminates the deviations and at the actual steady state.

Remark 3

(Tuning continuous-phase convergence rate) By Theorem 1, the continuous-phase convergence rate of (or equivalently, ) needs to be sufficiently fast for guaranteeing asymptotic trajectory tracking of the hybrid closed-loop system. The continuous-phase convergence rate of solely depends on that of , because the stance foot is static during a continuous phase and remains constant. We can construct as , where is the solution to the Lyapunov equation [24]

Here, is any symmetric, positive-definite matrix satisfying with a positive number . For simplicity, we can choose as an identity matrix, and then can be any number satisfying . Then, the bounds of and in Eq. (11) become , , and , where and

are the smallest and the largest eigenvalues of

, respectively. Thus, the exponential convergence rate of becomes . Note that the value of the matrix depends on the PD gains, and thus can be adjusted by tuning those gains. The full proof (Section 9.5) provides greater details about PD gain tuning. It also provides an explicit expression of the lower bound of the convergence rate for guaranteeing asymptotic error convergence of the hybrid closed-loop system.

Remark 4

(Satisfying lateral foot-placement condition) Theorem 1 indicates that the lateral foot-placement condition underlying the proposed impact invariance construction in Propositions 1 and 2 is exactly met at the steady state. Thus, the impact invariance of , which is the necessary condition for asymptotic trajectory tracking, is indeed satisfied at the steady state; that is, if then as .

6 Simulations and Experiments

This section reports simulation and experimental results that demonstrate the global-position tracking performance of the proposed control approach.

The hardware platform used for controller validation is the OP3 bipedal humanoid robot developed by ROBOTIS (Fig. 1). OP3 weighs 3.5 kg, and its height is 0.51 m. It has twenty revolute joints comprising eight upper-body and twelve leg joints. Because OP3’s twenty revolute joints are all independently actuated, the robot is fully actuated during a continuous phase.

6.1 Virtual Constraint Generation

This subsection explains the lower-level, optimization-based trajectory generation of virtual constraints based on the proposed impact invariance conditions.

With full actuation, OP3’s twelve leg joints can be directly commanded to track twelve independent desired trajectories, which are: 1) the desired global-position trajectory and 2) the desired functions and . As a higher-level planner supplies the desired global path on the walking surface and the desired position trajectory along the path, the objective of the trajectory generation is to plan the desired lateral base position and desired function that both define the virtual constraints.

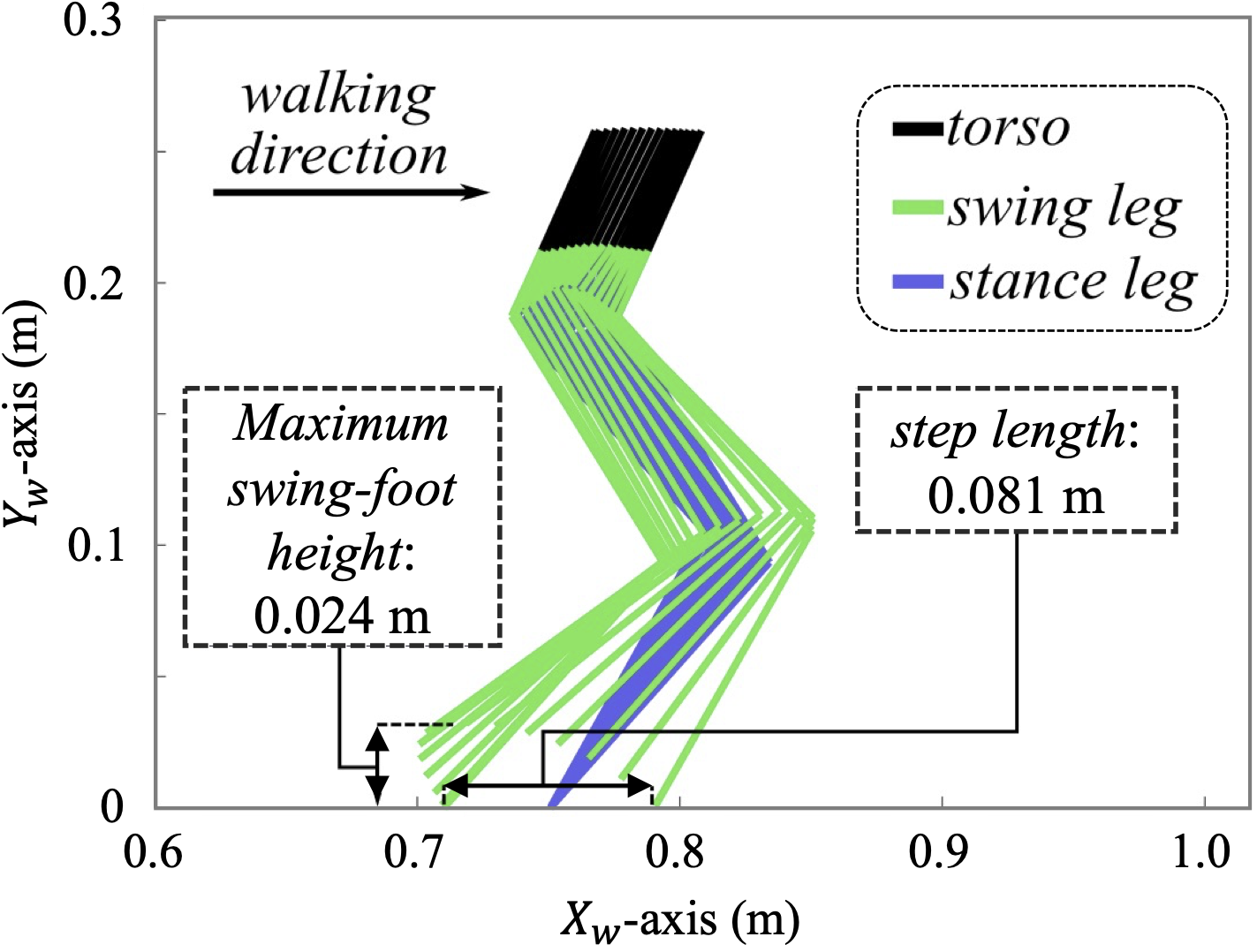

Figure 5: Illustration of the desired gait in the sagittal plane corresponding to the planned virtual constraints.

Trajectory parameterization. The desired lateral base position is chosen as the following simple sinusoidal function to enable an oscillatory global motion about the center line during 3-D walking:

(16)

where is an unknown vector to be optimized.

The desired functions are chosen as the desired trajectories for the following ten control variables :

  1. Height () and roll, pitch, and yaw angles (, , ) of the base.

  2. Position (, , ) and roll, pitch, and yaw angles (, , ) of the swing foot.

This choice of control variables allows direct regulation of the poses of the trunk and swing foot to avoid overstretched leg joints, enforce a relatively steady trunk posture, and maintain a sufficient clearance between the swing foot and the walking surface.

The desired function is parameterized using Bézier curves [39]:

(17)

where is the order of the Bézier curves, , is the unknown vector to be optimized, and and are the planned values of at the beginning and the end of a step, respectively.

Optimization formulation. The optimization variables are chosen as parameters in Eq. (16) and in Eq. (17). The constraints are set as:

  1. The proposed impact invariance conditions (A1)-(A3) in Propositions 1 and 2.

  2. Feasibility constraints (e.g., joint-position limits, joint-torque limits, and ground-contact constraints).

  3. Gait parameters (e.g., step length and duration).

This list of constraints is not intended to be exhaustive as this study focuses on impact invariance construction and controller design instead of trajectory generation. MATLAB command is used to solve the optimization.

Desired trajectories. In the simulations and experiments, the center line of the desired path is the -axis of the world reference frame, and two desired position trajectories along are considered, one with a constant velocity and the other with a varying velocity:

  1.  cm.

  2.  cm.

The planned virtual constraints are illustrated in Fig. 5.

6.2 Controller Implementation Procedure

This subsection explains the experimental procedure that we adopt to implement the proposed controller on the physical OP3 robot using the ROS package () developed by OP3’s manufacturer.

Since the ROS package does not support direct access to the output torques of joint motors, the proposed control law in Eq. (8), which is a torque command, cannot be directly implemented on OP3 and needs to be adapted for its implementation on the robot.

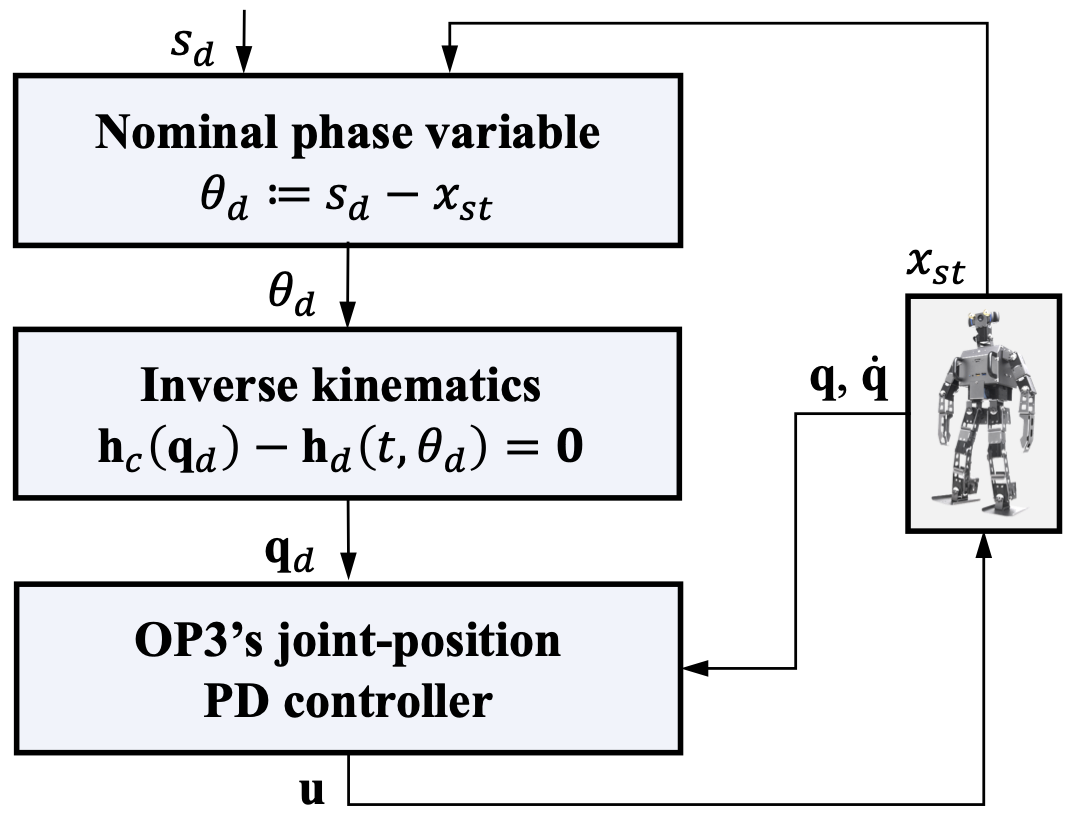

Figure 6: Flow chart of the controller implementation procedure for hardware experiments.

Considering that OP3’s ROS package allows users to send desired joint-position trajectories to individual joints and specify the PD gains of OP3’s default joint controller, we adopt the following controller implementation procedure [1]: a) to generate the desired position trajectories of individual joints, , and b) to send the desired trajectories to the default joint-position controller. The main steps of this procedure are shown in Fig. 6.

Although the adapted controller directly tracks the individual joint trajectories instead of the original Cartesian-space trajectories , the controller implementation procedure still allows satisfactory tracking of . This is because preserve the feasibility and desired features of as specified in (B1)-(B3).

6.3 Simulation and Experimental Setup

MATLAB. To validate the theoretical controller design, we utilize MATLAB to implement the control law based on the full-order model of OP3 (Eq. (4)). The control gains are set as and to ensure the matrix is Hurwitz. MATLAB simulation results are shown in Figs. 9 and 10.

Webots. To gain preliminary insights into the effectiveness of the proposed controller implementation procedure as explained in Section 6.2, we use Webots to simulate a 3-D realistic biped model that closely emulates OP3’s graphical, physical, and dynamical properties (including its limited actuator accessibility). The control gains that the emulated robot system allows users to tune are the effective PD gains, whose physical meaning is different from and in Eq. (9). These effective gains are tuned to be “10” and “0” such that the resulting tracking performance is comparable with the MATLAB results. Figure 7 shows the time-lapse figures of robot walking obtained in Webots simulations and hardware experiments. The similarity in the walking gait indicates the validity of using Webots simulations to provide preliminary insights into experiments. Webots simulation results of the adapted controller are displayed in Fig. 10.

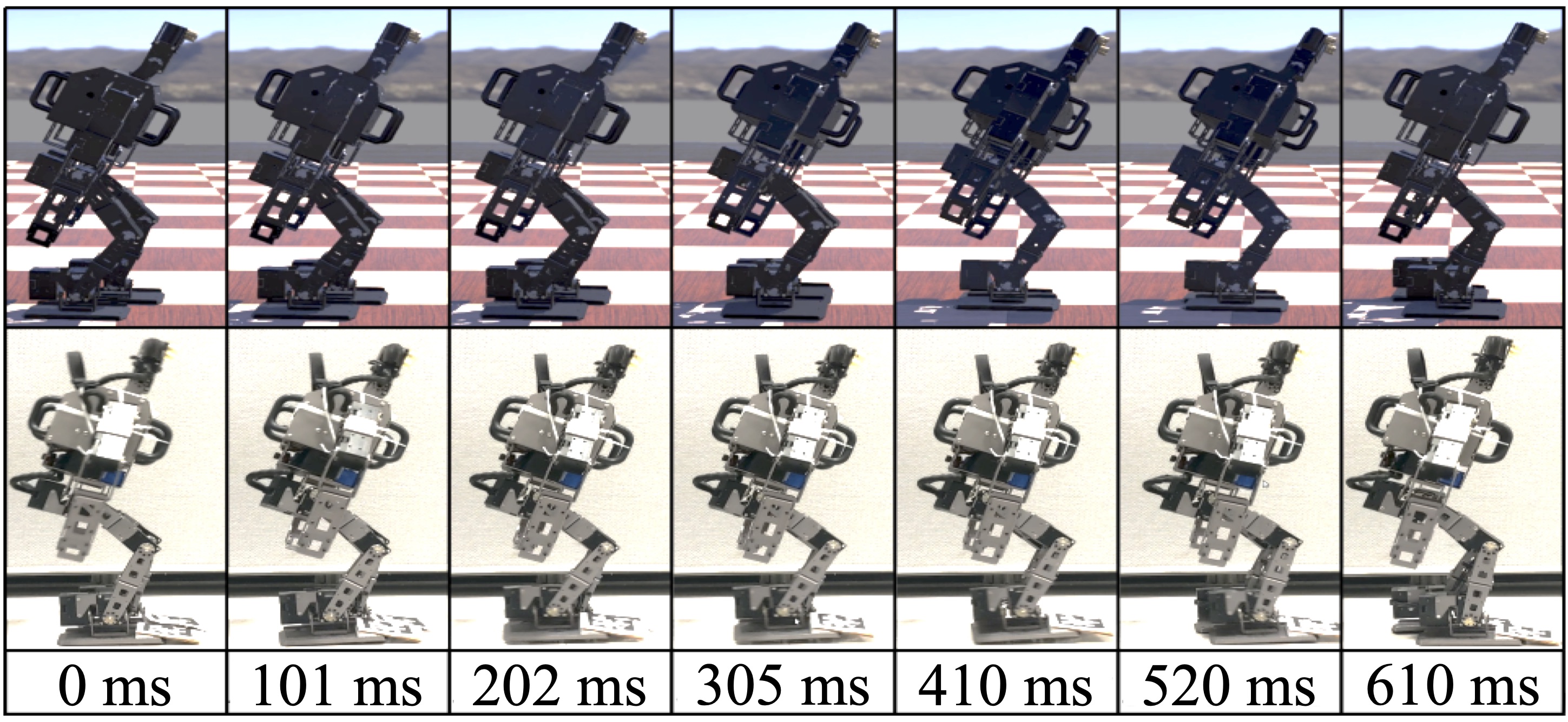

Figure 7: Time-lapse figures of OP3 walking in Webots simulation (top) and hardware experiment (bottom).

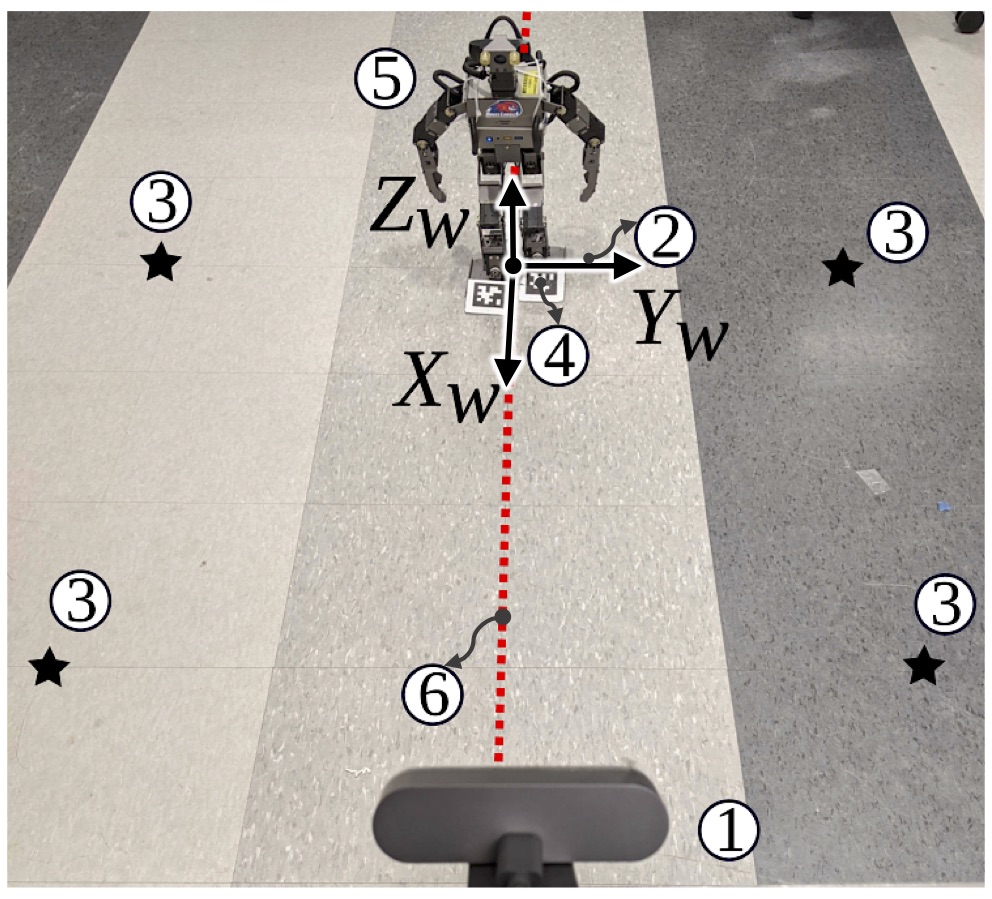

Figure 8: Experimental setup. ①: Logitech 4K PRO WEBCAM. ②: world coordinate frame. ③: reference points for perspective transformation. ④: AprilTag attached to OP3’s feet, which is used to determine the robot’s global pose. ⑤: OP3 robot. ⑥: the center line of the desired global path.

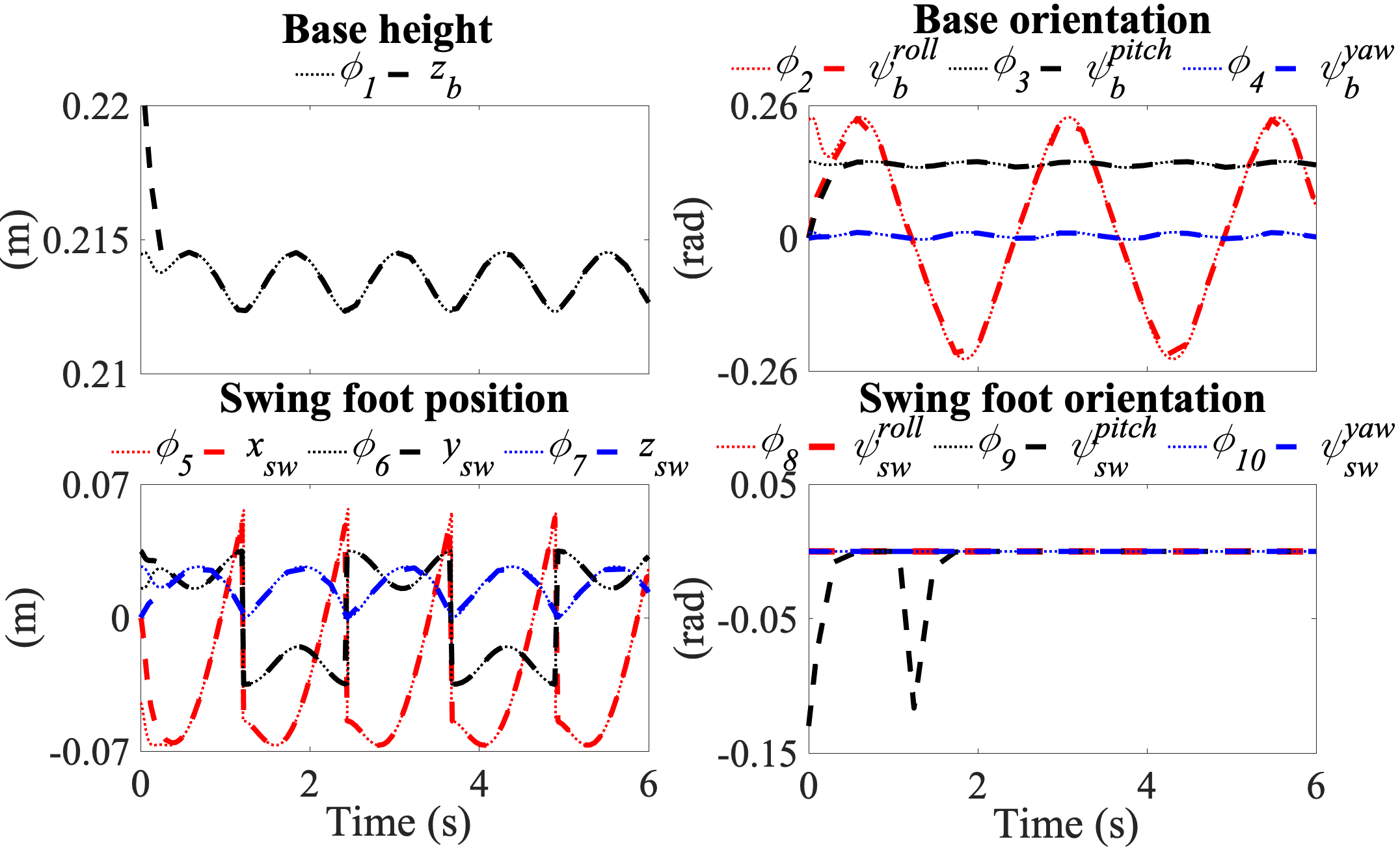

Figure 9: Asymptotic virtual constraint tracking in MATLAB. The functions () are elements of the desired function .

Experiments. The experimental setup is shown in Fig. 8. With this setup, the robot’s joint angles can be directly measured by joint encoders, and its global pose (i.e., position and orientation) can be determined by: a) using the 4K PRO WEBCAM and AprilTag [32] to obtain the stance-foot pose in the world reference frame and b) using the obtained stance-foot pose to solve for the robot’s global pose via forward kinematics. By providing relatively accurate measurement, the use of the overhead camera and AprilTag allows us to focus on controller validation. The experiment is guided by the controller adaptation procedure from Section 6.2. The initial tracking error of the desired position trajectory is  cm, which is approximately of a nominal step length. The initial path tracking error is cm. Similar to the gain tuning in Webots, the effective PD gains are respectively tuned to be “800” and “0” to ensure a relatively fast error convergence without violating the actuator’s torque limit. Experiment results of OP3 walking on a concrete and a relatively slippery ceramic floor are shown in Fig. 11. Videos of the experiments can be accessed at https://youtu.be/VJbLMkOG_xo.

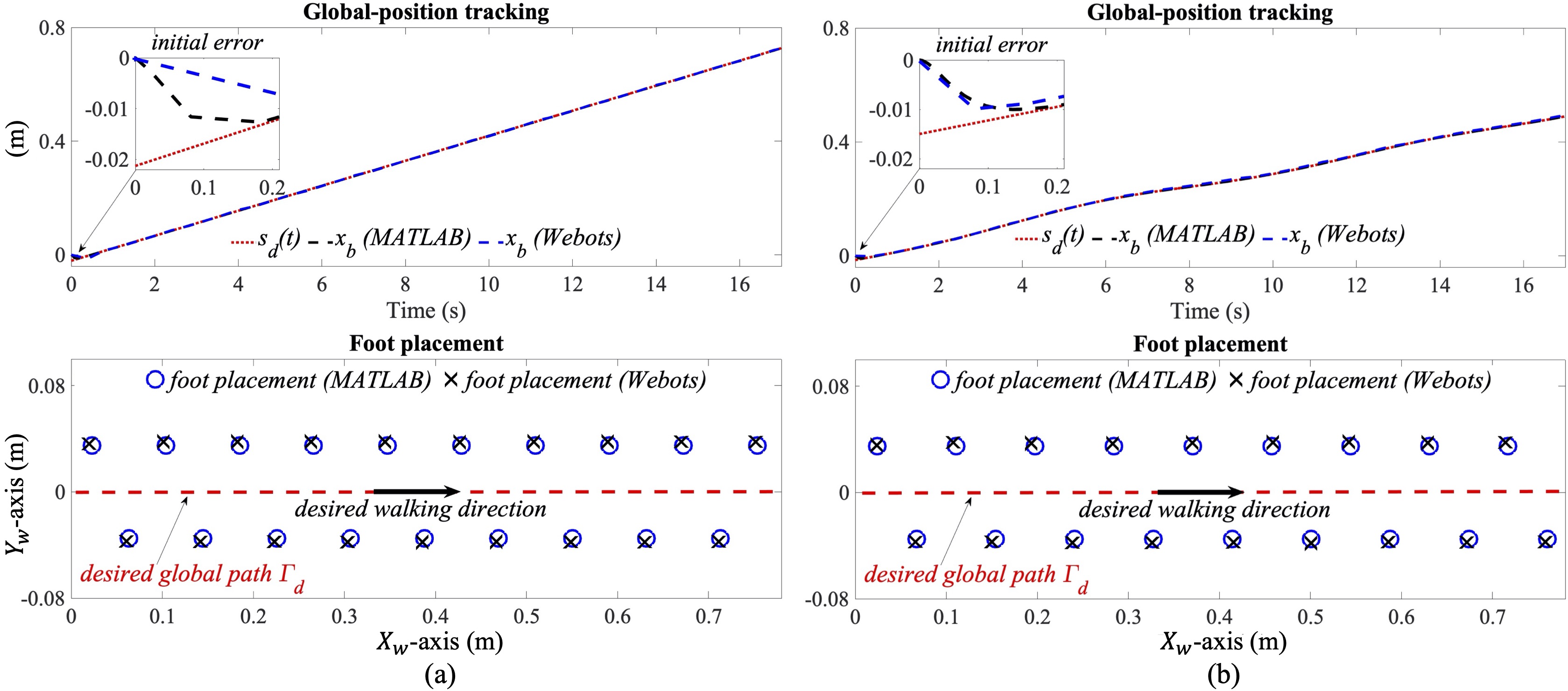

Figure 10: Global-position tracking results in MATLAB and Webots simulations with: (a)  m and (b)  m.

6.4 Discussions on Validation Results

  • The virtual-constraint tracking result in Fig. 9 shows that the proposed control law is capable of accurately enforcing the virtual constraints during 3-D fully actuated walking. The global-position tracking results in Fig. 10 validate that the proposed control law drives the robot to asymptotically converge to the desired global-position trajectory while moving along the center line of the global path. In particular, the accurate tracking results obtained in Webots indicate the effectiveness of the proposed controller implementation procedure in guaranteeing reliable trajectory tracking in the presence of hardware limitations.

  • As illustrated in Fig. 11 (a) (top), under the proposed global-position tracking (GPT) controller, the robot’s actual global position (labeled as “ (GPT)”) converges to a relatively small neighborhood about its desired trajectory within seconds when the robot walks on a concrete floor. Also, Fig. 11 (a) (bottom) illustrates that despite an initial path tracking error of cm, the robot remains close to the center line of the desired global path, as indicated by the footstep trajectories labeled as “foot placement (GPT)”. Due to uncertainties such as hardware limitations, modeling errors, and floor surface irregularity, achieving an exactly zero steady-state tracking error on a physical robot may not be feasible. Thanks to the inherent robustness of feedback control, the proposed control approach achieves a small steady-state tracking error, although uncertainties are not explicitly addressed in the proposed theoretical controller design.

  • To further test the limit of the inherent robustness of the proposed control approach, experiments of OP3 walking on a ceramic tile floor were conducted (Fig. 11 (b)). As the surface of the ceramic tiles is relatively more slippery than the concrete floor, the robot’s stance foot slips more frequently on the tile floor, causing a stronger violation of the modeling assumption of static stance foot. Yet, a relatively small global-position tracking error is still realized when the initial foot placement error is small, as shown in Fig. 11(b).

  • control. Results of a global-velocity tracking (GVT) controller, which is analogous to the orbitally stabilizing controller for 3-D fully actuated walking [1], are also displayed in Figs. 11. Although the GPV controller achieves accurate tracking of the desired global velocity , its global trajectory tracking performance is not satisfactorily guaranteed, as indicated by the relatively large deviations of the global position (labeled as “ (GVT)”) and the footstep trajectories (labeled as “foot placement (GVT)”).

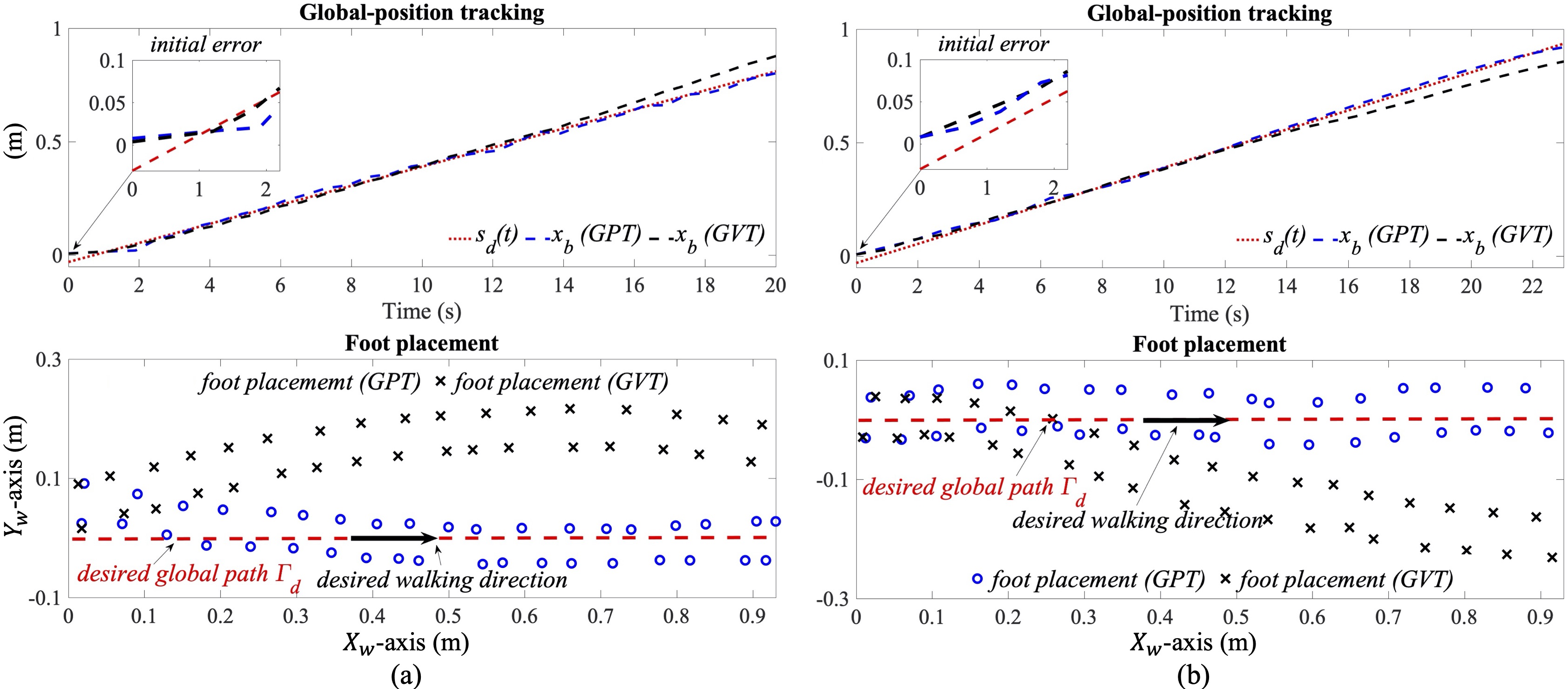

Figure 11: Experimental results of global-position tracking with  m on: (a) a concrete floor and (b) a ceramic tile floor.

7 Discussions

This study has extended the previous method of impact invariance construction from orbital stabilization to the stabilization [40] of time-varying global-position trajectory during 3-D walking. The proposed method produces impact invariance conditions that can be imposed in the trajectory generation of virtual constraints for ensuring their agreement with impact dynamics. Moreover, although the impact maps of the virtual constraints and global trajectory are generally nonlinearly coupled through the robot’s kinematic chains, these conditions can automatically ensure any arbitrary smooth desired global-position trajectory respects the impact dynamics. Indeed, as shown in Fig. 10, the proposed controller achieves asymptotic tracking of two different global-position trajectories under the same virtual constraints (Fig. 5), indicating that the virtual constraints ensure the impact agreement for different desired global-position trajectories. Thus, the proposed impact invariance conditions can allow the decoupling between the lower-level trajectory generation of virtual constraints and the higher-level planning of global-position trajectory. The decoupling could permit offline planning of virtual constraints, thus reducing the computational burden of motion planning.

This study has also introduced the Lyapunov-based stability conditions for the hybrid closed-loop error system associated with 3-D walking. Controller designs satisfying these conditions can accurately track the time-varying desired global-position trajectory, as demonstrated in Figs. 10 and 11. The proposed control approach can also indirectly drive the lateral foot placement to the desired location , which is predicted by the asymptotic convergence of the Lyapunov function that explicitly contains the lateral foot-placement error. Note that our previous controller for 2-D walking cannot address the convergence of as it does not consider the robot’s lateral movement. The capability of accurate foot placement could potentially be exploited to handle locomotion on discrete terrains (e.g., stepping stones [31]).

Uncertainties such as modeling errors and terrain irregularities are prevalent during real-world robot operations [8]. The proposed control approach achieves a small final tracking error when the uncertainties (e.g., walking surface irregularities) are relatively small, as demonstrated by the experiment results in Fig. 11. However, if the uncertainties are significant, the controller may not guarantee a reliable tracking performance because it does not explicitly deal with uncertainties. One potential approach to improve robustness is to integrate the proposed control law with adaptive and robust control [26, 43]

for enabling online model estimation and better disturbance rejection.

Real-world applications of legged robots commonly require walking in varying directions. To apply and extend the proposed approach from straight-line to curved-path locomotion, the impact invariance construction method can be directly incorporated in virtual constraint planning to ensure impact agreement. Also, to allow efficient planning, we can construct a library [5]

of virtual constraints offline that correspond to a common range of direction-varying gait parameters, and interpolate the virtual constraints online to fit the varying walking directions during curved-path navigation.

8 Conclusions

This paper has introduced a control approach that explicitly addresses the hybrid robot dynamics for achieving asymptotic global-position tracking during fully actuated 3-D bipedal walking. With the output function designed as the tracking error of the desired global-position trajectory and virtual constraints, a continuous input-output linearizing control law was synthesized to asymptotically drive the output function to zero within continuous phases. The construction of impact invariance conditions was introduced to inform the generation of virtual constraints such that the robot’s desired motions defined by the virtual constraints and the desired global-position trajectory all respect the discrete landing impact dynamics. Sufficient conditions were derived based on Lyapunov theory under which the proposed continuous control law provably guarantees the asymptotic tracking performance of the hybrid closed-loop system. Simulation and experimental results demonstrated the effectiveness of the proposed control approach in realizing satisfactory global-position tracking during 3-D walking.

References

  • [1] A. D. Ames, E. A. Cousineau, and M. J. Powell (2012) Dynamically stable bipedal robotic walking with NAO via human-inspired hybrid zero dynamics. In Proc. Int. Conf. Hybrid Syst.: Comput. Control, pp. 135–144. Cited by: §1.1, item Comparison with global-velocity tracking, §6.2.
  • [2] P. A. Bhounsule, A. Zamani, and J. Pusey (2018) Switching between limit cycles in a model of running using exponentially stabilizing discrete control lyapunov function. In Proc. Amer. Contr. Conf., pp. 3714–3719. Cited by: §1.
  • [3] J. J. B. Biemond, N. van de Wouw, W. Heemels, and H. Nijmeijer (2012) Tracking control for hybrid systems with state-triggered jumps. IEEE Trans. Automat. Contr. 58 (4), pp. 876–890. Cited by: §1.2.
  • [4] M. S. Branicky (1998) Multiple Lyapunov functions and other analysis tools for switched and hybrid syst.. IEEE Trans. Automat. Contr. 43 (4), pp. 475–482. Cited by: item ii), §5.2, §9.5.
  • [5] X. Da, O. Harib, R. Hartley, B. Griffin, and J. W. Grizzle (2016) From 2D design of underactuated bipedal gaits to 3D implementation: Walking with speed tracking. IEEE Access 4, pp. 3469–3478. Cited by: §1.1, §7.
  • [6] M. Fevre, B. Goodwine, and J. P. Schmiedeler (2019) Terrain-blind walking of planar underactuated bipeds via velocity decomposition-enhanced control. Int. J. Robot. Res. 38 (10-11), pp. 1307–1323. Cited by: §1.1.
  • [7] F. Forni, A. R. Teel, and L. Zaccarian (2013) Follow the bouncing ball: global results on tracking and state estimation with impacts. IEEE Trans. Automat. Contr. 58 (6), pp. 1470–1485. Cited by: §1.2.
  • [8] A. Gaathon and A. Degani (2020) Minimalistic control for reaching absolute state of a one-legged dynamic robot on uncertain terrain. ASME J. Dyn., Syst., Meas., Contr. 142 (7), pp. 071005. Cited by: §7.
  • [9] Y. Gao and Y. Gu (2019) Global-position tracking control of a fully actuated NAO bipedal walking robot. In Proc. Amer. Contr. Conf., pp. 4596–4601. Cited by: §1.3.
  • [10] Y. Gao and Y. Gu (2019) Global-position tracking control of multi-domain planar bipedal robotic walking. In Proc. ASME Dyn. Syst. Contr. Conf., Vol. 59148, pp. V001T03A009. Cited by: §1.2.
  • [11] C. Golliday and H. Hemami (1977) An approach to analyzing biped locomotion dynamics and designing robot locomotion controls. IEEE Trans. Autom. Control 22 (6), pp. 963–972. Cited by: §1.
  • [12] Y. Gong, R. Hartley, X. Da, A. Hereid, O. Harib, J.-K. Huang, and J. Grizzle (2019) Feedback control of a Cassie bipedal robot: walking, standing, and riding a segway. In Proc. Amer. Contr. Conf., pp. 4559–4566. Cited by: §1.1.
  • [13] J. Grizzle, G. Abba, and P. Plestan (2001) Asymptotically stable walking for biped robots: Analysis via systems with impulse effects. IEEE Trans. Automat. Contr. 46 (1), pp. 51–64. Cited by: §1.1, §2.1, §2.1.
  • [14] Y. Gu, B. Yao, and C. S. G. Lee (2018) Straight-line contouring control of fully actuated 3-D bipedal robotic walking. In Proc. Amer. Contr. Conf., pp. 2108–2113. Cited by: §1.3.
  • [15] Y. Gu, B. Yao, and C. S. G. Lee (2016) Bipedal gait recharacterization and walking encoding generalization for stable dynamic walking. In Proc. IEEE Int. Conf. Robot. Automat., pp. 1788–1793. Cited by: §1.2.
  • [16] Y. Gu, B. Yao, and C. S. G. Lee (2018) Exponential stabilization of fully actuated planar bipedal robotic walking with global position tracking capabilities. J. Dyn. Syst. Meas. Contr. 140 (5), pp. 051008. Cited by: §1.2, §9.3, §9.3.
  • [17] Y. Gu, B. Yao, and C.S.G. Lee (2017) Time-dependent orbital stabilization of underactuated bipedal walking. In Proc. Amer. Contr. Conf., pp. 4858–4863. Cited by: §1.
  • [18] Y. Gu and C. Yuan (2020) Adaptive robust trajectory tracking control of fully actuated bipedal robotic walking. In Proc. IEEE/ASME Int. Conf. Adv. Intel. Mechatron., pp. 1310–1315. Cited by: §1.2.
  • [19] Y. Gu and C. Yuan (2021) Adaptive robust tracking control for hybrid models of three-dimensional bipedal robotic walking under uncertainties. ASME J. Dyn. Syst., Meas., Contr. 143 (8), pp. 081007. Cited by: §1.2.
  • [20] K. A. Hamed and J. W. Grizzle (2014) Event-based stabilization of periodic orbits for underactuated 3-D bipedal robots with left-right symmetry. IEEE Trans. Robot. 30 (2), pp. 365–381. Cited by: §1.1.
  • [21] K. Hamed, B. Safaee, and R. D. Gregg (2019) Dynamic output controllers for exponential stabilization of periodic orbits for multidomain hybrid models of robotic locomotion. ASME J. Dyn. Syst., Meas., Contr. 141 (12). Cited by: §1.1.
  • [22] Y. Hürmüzlü and G. D. Moskowitz (1986) The role of impact in the stability of bipedal locomotion. Dyn. Stability Syst. 1 (3), pp. 217–234. Cited by: §1.
  • [23] S. Kajita, F. Kanehiro, K. Kaneko, K. Fujiwara, K. Harada, K. Yokoi, and H. Hirukawa (2003) Biped walking pattern generation by using preview control of Zero-Moment Point. In Proc. IEEE Int. Conf. Robot. Automat., pp. 1620–1626. Cited by: §1.
  • [24] H. K. Khalil (1996) Nonlinear control. Prentice Hall. Cited by: §1.1, §3, §3, Remark 3.
  • [25] J.-Y. Kim, I.-W. Park, and J.-H. Oh (2006) Experimental realization of dynamic walking of the biped humanoid robot KHR-2 using zero moment point feedback and inertial measurement. Adv. Robot. 20 (6), pp. 707–736. Cited by: §1.
  • [26] J. Liao, Z. Chen, and B. Yao (2017) High-performance adaptive robust control with balanced torque allocation for the over-actuated cutter-head driving system in tunnel boring machine. Mechatron. 46, pp. 168–176. Cited by: §7.
  • [27] A. E. Martin and R. D. Gregg (2015) Hybrid invariance and stability of a feedback linearizing controller for powered prostheses. In Proc. Amer. Contr. Conf., pp. 4670–4676. Cited by: §1.1.
  • [28] L. Menini and A. Tornambè (2001) Asymptotic tracking of periodic trajectories for a simple mechanical system subject to nonsmooth impacts. IEEE Trans. Automat. Contr. 46 (7), pp. 1122–1126. Cited by: §1.2.
  • [29] B. Morris and J. W. Grizzle (2009) Hybrid invariant manifolds in systems with impulse effects with application to periodic locomotion in bipedal robots. IEEE Trans. Automat. Contr. 54 (8), pp. 1751–1764. Cited by: §1.1, §4.1, Definition 1.
  • [30] R. Naldi and R. G. Sanfelice (2013) Passivity-based control for hybrid systems with applications to mechanical systems exhibiting impacts. Automat. 49 (5), pp. 1104–1116. Cited by: §1.2.
  • [31] Q. Nguyen, X. Da, J. W. Grizzle, and K. Sreenath (2020) Dynamic walking on stepping stones with gait library and control barrier functions. In Algorith. Foundation. Robot. XII, pp. 384–399. Cited by: §7.
  • [32] E. Olson (2011) AprilTag: a robust and flexible visual fiducial system. In Proc. IEEE Int. Conf. Robot. Automat., pp. 3400–3407. Cited by: §6.3.
  • [33] M. Rijnen, J.J. B. Biemond, N. van de Wouw, A. Saccon, and H. Nijmeijer (2019) Hybrid systems with state-triggered jumps: sensitivity-based stability analysis with application to trajectory tracking. IEEE Trans. Automat. Contr. 65 (11), pp. 4568–4583. Cited by: §1, §4.2.
  • [34] M. Rijnen, H. L. Chen, N. van de Wouw, A. Saccon, and H. Nijmeijer (2019) Sensitivity analysis for trajectories of nonsmooth mechanical systems with simultaneous impacts: a hybrid systems perspective. In Proc. Amer. Contr. Conf., pp. 3623–3629. Cited by: §1.
  • [35] M. Rijnen, E. de Mooij, S. Traversaro, F. Nori, N. van de Wouw, A. Saccon, and H. Nijmeijer (2017) Control of humanoid robot motions with impacts: numerical experiments with reference spreading control. In Proc. IEEE Int. Conf. Robot. Automat., pp. 4102–4107. Cited by: §1.2.
  • [36] M. Rijnen, A. T. van Rijn, H. Dallali, A. Saccon, and H. Nijmeijer (2016) Hybrid trajectory tracking for a hopping robotic leg. IFAC-PapersOnLine 49 (14), pp. 107–112. Cited by: §1.2.
  • [37] M. Vukobratović, B. Borovac, and D. Šurdilović (2001) Zero moment point-proper interpretation and new applications. In Proc. IEEE Int. Conf. Human. Robot., pp. 237–244. Cited by: §1.
  • [38] Y. Wang, N. Dehio, A. Tanguy, and A. Kheddar (2020) Impact-aware task-space quadratic-programming control. arXiv preprint arXiv:2006.01987. Cited by: §1.
  • [39] E. R. Westervelt, J. W. Grizzle, C. Chevallereau, J. H. Choi, and B. Morris (2007) Feedback control of dynamic bipedal robot locomotion. Vol. 28, CRC press. Cited by: §6.1.
  • [40] E. R. Westervelt, J. W. Grizzle, and D. E. Koditschek (2003) Hybrid zero dynamics of planar biped walkers. IEEE Trans. Automat. Contr. 48 (1), pp. 42–56. Cited by: §1.1, §2.1, §2.1, §4.1, §4.1, §4.2, §4.3, §7, Definition 1.
  • [41] X. Xiong, J. Reher, and A. Ames (2020) Global position control on underactuated bipedal robots: step-to-step dynamics approximation for step planning. arXiv preprint arXiv:2011.06050. Cited by: §1.1.
  • [42] M. Yeatman, G. Lv, and R. D. Gregg (2019) Decentralized passivity-based control with a generalized energy storage function for robust biped locomotion. ASME J. Dyn. Syst., Meas., Contr. 141 (10). Cited by: §1.
  • [43] M. Yuan, Z. Chen, B. Yao, and X. Liu (2019) Fast and accurate motion tracking of a linear motor system under kinematic and dynamic constraints: an integrated planning and control approach. IEEE Trans. Contr. Syst. Tech.. Cited by: §7.

9 Appendix: Proofs of All Propositions and Theorems

9.1 Proof of Proposition 1

With the pre-impact joint position , the post-impact joint position and phase variable are and , respectively.

Under the foot-placement condition and condition (A1), the post-impact value of the output function is Similarly, given condition (A1), the post-impact value of is Thus, the impact invariance of the output functions and is ensured.

Since , we have

(18)

and where . Thus, the pre-impact joint velocity is:

(19)

Note that and . Then, by condition (A2), the post-impact value of becomes ; that is, the impact invariance of is met.

9.2 Proof of Proposition 2

Because and are both continuous in , we obtain

Thus, if , then ; that is, the impact invariance of automatically holds.

Because the stance foot remains static just before and after the impact,
