Genetic Algorithm with Optimal Recombination for the Asymmetric Travelling Salesman Problem

06/21/2017 ∙ by A. V. Eremeev, et al. ∙ 0

We propose a new genetic algorithm with optimal recombination for the asymmetric instances of travelling salesman problem. The algorithm incorporates several new features that contribute to its effectiveness: (i) Optimal recombination problem is solved within crossover operator. (ii) A new mutation operator performs a random jump within 3-opt or 4-opt neighborhood. (iii) Greedy constructive heuristic of W.Zhang and 3-opt local search heuristic are used to generate the initial population. A computational experiment on TSPLIB instances shows that the proposed algorithm yields competitive results to other well-known memetic algorithms for asymmetric travelling salesman problem.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Travelling Salesman Problem (TSP) is a well-known NP-hard combinatorial optimization problem

[8]. Given a complete digraph  with the set of vertices , the set of arcs  and arc weights (lengths)  of each arc , the TSP asks for a Hamiltonian circuit of minimum length. If for at least one pair  then the TSP is called the Asymmetric Travelling Salesman Problem (ATSP). Numerous metaheuristics and heuristics have been proposed for the TSP and the genetic algorithms (GAs) are among them (see e.g. [2, 3, 7, 16, 18]).

The performance of GAs depends significantly upon the choice of the crossover operator, where the components of parent solutions are combined to build the offspring. A supplementary problem that emerges in some versions of crossover operator is called Optimal Recombination Problem (ORP). Given two feasible parent solutions, ORP consists in finding the best possible offspring in view of the basic principles of crossover [13]. Experimental results [3, 16, 18] indicate that ORP may be used successfully in genetic algorithms.

In this paper, we propose a new GA using the ORP with adjacency-based representation to solve the ATSP. Two simple crossover-based GAs for ATSP using ORPs were investigated in [7] but no problem-specific local search procedures or fine-tuning of parameters were used. In comparison to the GAs from [7], the GA proposed in this paper uses a 3-opt local search heuristic and a problem-specific heuristic of W. Zhang [19] to generate the initial population. In addition, this GA applies a new mutation operator, which performs a random jump within 3-opt or 4-opt neighborhood. The current GA is based on the steady state replacement [14], while the GAs in [7] were based on the elitist recombination (see e.g. [9]

). The experimental evaluation on instances from TSPLIB library shows that the proposed GA yields results competitive to those obtained by some other well-known evolutionary algorithms for the ATSP.

2 Genetic Algorithm

The genetic algorithm is a random search method that models a process of evolution of a population of individuals [14]. Each individual is a sample solution to the optimization problem being solved. The components of an individual are called genes. Individuals of a new population are built by means of reproduction operators (crossover and/or mutation). The crossover operator produces the offspring from two parent individuals by combining and exchanging their genes. The mutation adds small random changes to an individual.

The formal scheme of the GA with steady state replacement is as follows:

Steady State Genetic Algorithm

Step 1. Construct the initial population and assign .

Step 2. Repeat steps 2.1-2.4 until some stopping criterion is satisfied:

      2.1. Choose two parent individuals  from the population.

      2.2. Apply mutation to and and obtain individuals .

      2.3. Create an offspring , applying a crossover to  and .

      2.4. Choose a least fit individual in population and replace it by .

      2.5. Set .

Step 3. The result is the best found individual w.r.t. objective function.

Our implementation of the GA is initiated by generating initial solutions, and the population size  remains constant during the execution of the GA. Two individuals of the initial population are constructed by means of the problem-specific heuristic of W. Zhang [19]. The heuristic first solves the Assignment Problem, and then patches the cycles of the optimum assignment together to form a feasible tour. R. Karp [12] proposed two variants of the patching. In the first one, some cycle of maximum length is selected and the remaining cycles are patched into it. In the second one, cycles are patched one by one in a special sequence, starting with a shortest cycle. All other individuals of the initial population are generated using the arbitrary insertion method [18], followed by a local search heuristic with a 3-opt neighborhood (see Subsection 2.2).

Each parent on Step 2.1 is chosen by -tournament selection: sample randomly  individuals from the current population and select a fittest among them.

Operators of crossover and mutation are described in Subsections 2.1 and 2.3.

2.1 Recombination Operators

Suppose that feasible solutions to the ATSP are encoded as vectors of adjacencies, where the immediate predecessor is indicated for each vertex. Then the

optimal recombination problem with adjacency-based representation [6] consists in finding a shortest travelling salesman’s tour which coincides with two given feasible parent solutions in arcs belonging to both solutions and does not contain the arcs absent in both solutions. These constraints are equivalent to a requirement that the recombination should be respectful and gene transmitting as defined in [13]. The ORP with adjacency-based representation for the ATSP is shown to be NP-hard but it can be reduced to the TSP on graphs with bounded vertex degrees [6]. The resulting TSP may be solved in  time by means of an adaptation of the algorithm proposed by D. Eppstein [5]. A detailed description of the reduction can be found in [6]. An experimental evaluation of the ORP with adjacency-based representation in a crossover-based GA was carried out in [7]. The experiments showed that the CPU cost of solving the ORPs in this GA is acceptable and decreases with iterations count, due to decreasing population diversity. In what follows, the optimized crossover operator, which solves the ORP with adjacency-based representation will be called Optimized Directed Edge Crossover (ODEC). This operator may be considered as a deterministic ‘‘direct descendant’’ of Directed Edge Crossover (DEC) [17]. Unlike DEC, Optimized Directed Edge Crossover guarantees genes transmission.

An alternative way for solution encoding to the ATSP is the position-based representation, where a feasible solution is encoded as a sequence of the vertices of the TSP tour. The computational experiment performed in [7] indicates that the ORP for the adjacency-based representation has an advantage over the ORP for the position-based representation on ATSP instances from TSPLIB library. Therefore, in this paper we consider only the adjacency-based representation.

Note that most of the known GAs for the TSP (see e.g. [2, 10, 16]) apply a local search on GA iterations. However an optimal recombination may be considered as a best-improving move in a neighborhood defined by two parent solutions. So we use a local search only at the initialization stage.

2.2 Local Search Heuristic

In general, -opt neighborhood for TSP is defined as the set of tours that can be obtained from a given tour by replacing  arcs. Our Local Search Heuristic is a typical local search heuristic that explores a subset of -opt neighborhood.

We try to improve the current tour by changing three of its arcs (see Figure 1). To this end, we consider all possible arcs of the current tour as candidates for arc to be deleted in the order of decreasing length. Observe that, in our search, the possibilities for choosing  (arc is added) may be limited to those vertices that are closer to than . To use this property, for each vertex we store a list of the remaining vertices in the order of increasing length from . Considering candidates for , we start at the beginning of ’s list and proceed down the list until a vertex  with is reached. Moreover, only the nearest vertices are stored in the sorted list of each vertex, which allows to reduce the running time and the memory usage as observed in [10]. Finally, among all vertices belonging to the closed cycle  created by we choose a vertex  that would produce the most favorable 3-change. Local Search Heuristic stops if no favorable 3-change is possible, otherwise it proceeds to the next step with a new tour obtained.

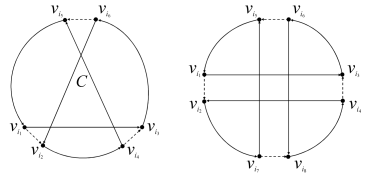

Figure 1: 3-change and quad change.
