1 Introduction

Artificial Intelligence (AI) has witnessed rapid resurgence in recent years, due to many innovations in deep learning. Exciting results have been obtained in computer vision (e.g., image classification [Simonyan and Zisserman2015, He et al.2016], object detection [Ren et al.2015, Lin et al.2017]

, etc.) as well as natural language processing (NLP) (

e.g., [Wen et al.2016, Li et al.2017], etc.). Good progress has also been made by researchers in vision-grounded NLP tasks such as image captioning [You et al.2016, Krishna et al.2017] and visual question answering [Antol et al.2015, Malinowski et al.2015]. Proposed recently, the Visual Dialogue (VD) [Das et al.2017] task leads to a higher level of interaction between vision and language. In the VD task, a machine conducts natural language dialogues with humans by answering questions grounded in an image. It requires not only reasoning on vision and language, but also generating consistent and natural dialogues.

Figure 1: (a) An example from the VisDial dataset, and (b) comparison between MLE, GAN and WLE, where positive responses are highlighted in blue. The MLE-based generator learn from data in positive answers only. The GAN-based generator learn from data in negative answers through discriminators indirectly. Our WLE-based generator learn from data in both positive and negative answers.

Existing VD systems can be summarized into two tracks [Das et al.2017]: generative models and discriminative models. The system adopting the generative model can generate responses while that using the disriminative model only chooses responses from a candidate set. Although discriminative models achieved better recall performance on the benchmark dataset [Das et al.2017], they are not as applicable as generative models in real world scenarios since candidate responses may not be available. In this work, we focus on the design of generative VD systems for broader usage.

One main weakness of existing generative models trained by the maximum likelihood estimation (MLE) method is that they tend to provide frequent and generic responses like ‘Don’t know’ or ‘Can’t tell’. This happens because the MLE training paradigm latches on to frequent generic responses [Lu et al.2017]. They may match well with some but poorly for others. There are many possible paths a dialogue may take in the future — penalizing generic poor responses eliminates candidate dialogue paths and avoids abuse of frequent responses. This helps bridge the large performance gap between generative/discriminative VD systems.

To reach this goal, we propose a novel weighted likelihood estimation (WLE) based training scheme. Specifically, instead of assigning equal weights to each training sample as done in the MLE, we assign a different weight to each training sample. The weight of a training sample is determined by its positive response as well as the negative ones. By incorporating supervision from both positive and negative responses, we enhance answer diversity in the resulting generative model. The proposed training scheme is effective in boosting the VD performance and easy to implement.

Another challenge for VD systems is effective reasoning based on multi-modal inputs. Previous work pre-defined a set of reasoning paths based on multi-modal inputs. The path is specified by a certain sequential processing order, e.g., human queries followed by the dialogue history and then followed by image analysis [Lu et al.2017]. Such a pre-defined order is not capable of handling different dialogue scenarios, e.g., answering a follow-up question of ‘Is there anything else on the table?’. We believe that a good reasoning strategy should determine the processing order by itself. Here, we propose a new reasoning module, where an adaptive reasoning path accommodates different dialogue scenarios automatically.

There are three major contributions of this work. First, an effective training scheme for the generative VD system is proposed, which directly exploits both positive and negative responses using an unprecedented likelihood estimation method. Second, we design an adaptive reasoning scheme with unconstrained attention on multi-modal inputs to accommodate different dialogue scenarios automatically. Third, our results demonstrate the state-of-the-art performance on the VisDial dataset [Das et al.2017]. Specifically, our model outperforms the best previous generative-model-based method [Wu et al.2018] by 3.06%, 5.81% and 5.28 with respect to the recall@5, the recall@10 and the mean rank performance metrics, respectively.

2 Related Work

Visual Dialogue

Different visual dialogue tasks have been examined recently. The VisDial dataset [Das et al.2017] is collected from free-form human dialogues with a goal to answer questions related to a given image. The GuessWhat task [De Vries et al.2017] is a guessing game with goal-driven dialogues so as to identify a certain object in a given image by asking yes/no questions. In this work, we focus on the VisDial task.

Most previous research on the VisDial task follows the encoder-decoder framework in [Sutskever et al.2014]. Exploration on encoder models includes late fusion [Das et al.2017], hierarchical recurrent network [Das et al.2017], memory network [Das et al.2017], history-conditioned image attentive encoder (HCIAE) [Lu et al.2017], and sequential co-attention (CoAtt) [Wu et al.2018]

. Decoder models can be classified into two types: (a) Discriminative decoders rank candidate responses using cross-entropy loss

[Das et al.2017] or n-pair loss [Lu et al.2017]; (b) Generative decoders yield responses using MLE [Das et al.2017], which can be further combined with adversarial training [Lu et al.2017, Wu et al.2018]. The latter involves a discriminator trained on both positive and negative responses, and its discriminative power is then transferred to the generator via auxiliary adversarial training.

Weighted Likelihood Estimation (WLE)

Being distinct from previous generative work that uses either MLE or adversarial training, we use WLE and develop a new training scheme for VD systems in this work. WLE has been utilized for different purposes. For example, WLE was introduced in [Warm1989]

to remove the first-order bias in MLE. Smaller weights are assigned to outliers in the training data to reduce the effect of outliers

[Ning et al.2015]. The binary indicator function and the similarity scores are compared for weighting the likelihood in visual question answering (VQA) in [Hu et al.2018]. We design a novel weighted likelihood remotely related to these concepts, to utilize both positive and negative responses.

Hard Example Mining

Hard example mining methods are frequently seen in object detection algorithms, where the amount of background samples is much more than the object samples. In [Rowley1999], the proposed face detector is trained until convergence on sub-datasets and applied to more data to mine the hard examples alternatively. Online hard example mining is favored by later work [Shrivastava et al.2016, Lin et al.2017], where the softmax-based cross entropy loss is used to determine the difficulty of samples. We adopt the concept of sample difficulty and propose a novel way to find hard examples without the preliminary of softmax-based cross entropy.

Multi-modal Reasoning

Multi-modal reasoning involves extracting and combining useful information from multi-modal inputs. It is widely used in the intersection of vision and language, such as image captioning [Xu et al.2015] and VQA [Xu and Saenko2016]. For the VD task, reasoning can be applied to images (I), questions (Q) and history dialogues (H). In [Lu et al.2017], the reasoning path adopts the order “Q  H  I”. This order is further refined to “Q  I  H   Q” in [Wu et al.2018]. In the recent arxiv paper [Gan et al.2019], the reasoning sequence of “Q  I  H ” is recurrently occurring to solve complicated problems. Unlike previous work that defines the reasoning path order a priori, we propose an adaptive reasoning scheme with no pre-defined reasoning order.

3 Proposed Generative Visual Dialogue System

In this section, we describe our approach to construct and train the proposed generative visual dialogue system. Following the problem formulation in [Das et al.2017], the input consists of an image , a ‘ground-truth’ dialogue history with image caption and a follow-up question at round . candidate responses are provided for both training and testing. Figure 1 shows an example from VisDial [Das et al.2017].

We adopt the encoder-decoder framework [Sutskever et al.2014]. Our proposed encoder, which involves an adaptive multi-modal reasoning module without pre-defined order, will be described in details in Sec. 3.1. The generative decoder receives the embedding of the input triplet from the encoder and outputs a response sequence . Our VD system is trained using a novel training scheme with weighted likelihood estimation, which will be described in Sec. 3.2 with details.

3.1 Adaptive Multi-modal Reasoning (AMR)

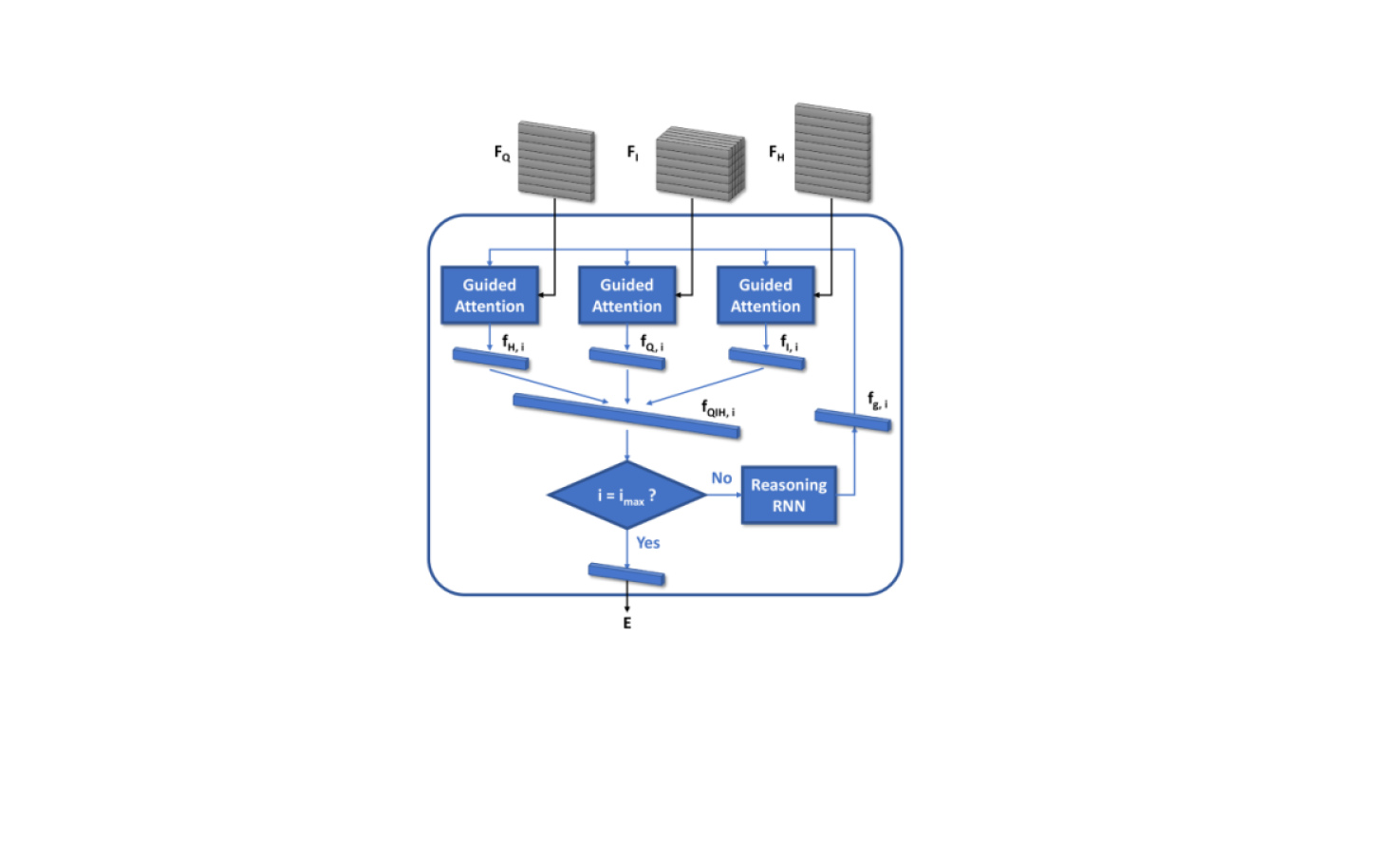

Figure 2: The adaptive multi-modal reasoning.

To conduct reasoning on multi-modal inputs, we first extract image feature

by a convolutional neural network, where

is the length of the feature, and and are the height and width of the output feature map. The question feature and history feature

are obtained by recurrent neural network, where

and are the length of the question and the history, respectively.

Our reasoning path consists of two main steps, namely the comprehension step and the exploration step, in a recurrent manner. In the comprehension step, useful information from each input modality is extracted. It is apparent that not all the input information is equally important in the conversation. Attention mechanism is thus useful to extract relevant information. In the exploration step, the relevant information is processed and the following attention direction is determined accordingly. Along the reasoning path, these two steps are performed alternatively.

In [Lu et al.2017, Wu et al.2018], the comprehension and exploration steps are merged together. The reasoning scheme focuses on one single input modality at each time and follows a pre-defined reasoning sequence through each input modality. However, this pre-defined order cannot accommodate various dialogue scenarios in real world. For example, a question of “How many people are there in the image?” should yield a short reasoning sequence like

whereas a question of “Is there anything else on the table?” should result in a long reasoning sequence such as

To overcome the drawback of pre-defined reasoning sequence, we propose an adaptive multi-modal reasoning module as illustrated in Figure 2.

Let denote any multi-modal feature type (image, question or history), and denote the features to be attended, where is the number of features. The guided attention operation that paying attention according to the given guide is denoted as , where is the attention guiding feature. The guided attention can be expressed as:

(1)
(2)
(3)

where , and are learnable weights,

is a vector with all elements set to 1.

In time step , the image features , the question features and the history features are attended separately by their own guided attention blocks. During the comprehension step, the outputs of the guided attention blocks , and , i.e. the extracted information from each modality, are merged into . During the exploration step, the merged vector is processed in the reasoning RNN block, which generates the new attention guiding feature to guide the attention in time step . The final embedding feature is

(4)

where is learnable weights, is the maximum number of recurrent steps.

Through this mechanism, the reasoning RNN block maintains a global view of the multi-modal features and reasons what information should be extracted in the next time step. The information extraction order and subject are therefore determined adaptively along the reasoning path.

3.2 WLE Based Training Scheme

As the discriminative VD models are trained to differentiate positive and negative responses, they perform better on the standard discriminative benchmark. In contrast, the generative visual dialogue models are trained to only maximize the likelihood of positive responses. The MLE loss function is expressed as:

(5)

where denotes the estimated likelihood of the positive response of sample . There is only one positive response per sample provided for training in the VisDial task. However, there are too many possible paths a dialogue may take in the future, the MLE approach therefore favors the frequent and generic responses when the training data is limited [Lu et al.2017]. In the VisDial task, negative responses are selected from positive responses to other questions, including these frequent and generic responses. Incorporating the negative responses into training to maximize the learning from all available information is thus essential to improve the generative models.

We propose a WLE based training scheme to utilize the negative responses and remedy the bias of MLE. Rather than treating each sample with equal importance, we assign a weight to each estimated log-likelihood as:

(6)

We can interpret the weighted likelihood as a hard sample mining process. We are inspired by OHEM [Shrivastava et al.2016] and focal loss [Lin et al.2017] designed for object detection, where hard samples are mined using their loss values and receive extra attention. Rather than using the preliminary softmax cross entropy loss for discriminative learning, we propose to use likelihood estimation to mine the hard samples. If the current model cannot predict the likelihood for a sample well, it indicates that this sample is hard for the model. Then we should increase the weight for this hard sample and vice versa.

Given both positive and negative responses for training, we propose to assign weights as:

(7)
(8)
(9)

where denotes the -th negative response of sample , and are hyper-parameters to shape the weights.

We can also view the proposed loss function as a ranking loss. We assign a weight to a sample by comparing the estimated likelihood of its positive and negative responses. measures the relative distance of likelihood between the positive response and the -th negative response of sample . If the likelihood of a positive response is low comparing to the negative responses, we should penalize more by increasing the weight for this sample. If the estimated likelihood of a positive sample is already very high, we should lower its weight to reduce the penalization.

4 Experiments

4.1 Dataset

We evaluate our proposed model on the VisDial dataset [Das et al.2017]. In VisDial v0.9, on which most previous work has benchmarked, there are in total 83k and 40k dialogues on COCO-train and COCO-val images, respectively. We follow the methodology in [Lu et al.2017] and split the data into 82k for train, 1k for val and 40k for test. In the new version VisDial v1.0, which was used for the Visual Dialog Challenge 2018, train consists of the previous 123k images and corresponding dialogues. 2k and 8k images with dialogues are collected for val and test, respectively.

Each question is supplemented with 100 candidate responses, among which only one is the human response for this question. Following the evaluation protocol in [Das et al.2017], we rank the 100 candidate responses by their estimated likelihood and evaluate the models using standard retrieval metrics: (1) mean rank of the human response, (2) recall rate of the human response in top-k ranked responses for , (3) mean reciprocal rank (MRR) of the human response, (4) normalized discounted cumulative gain (NDCG) of all correct responses (only available for v1.0).

Model MRR R@1 R@5 R@10 Mean
LF [Das et al.2017] 0.5199 41.83 61.78 67.59 17.07
HREA [Das et al.2017] 0.5242 42.28 62.33 68.17 16.79
MN [Das et al.2017] 0.5259 42.29 62.85 68.88 17.06
HCIAE [Lu et al.2017] 0.5467 44.35 65.28 71.55 14.23
FlipDial [Massiceti et al.2018] 0.4549 34.08 56.18 61.11 20.38
CoAtt [Wu et al.2018] 0.5578 46.10 65.69 71.74 14.43
Coref [Kottur et al.2018] 0.5350 43.66 63.54 69.93 15.69
Ours 0.5614 44.49 68.75 77.55 9.15
Table 1: Performance of generative models on VisDial 0.9. All the models use VGG as backbone except for Coref which uses ResNet.

4.2 Implementation Details

We follow the procedures in [Lu et al.2017] to pre-process the data. The captions, questions and answers are truncated at 24, 16 and 8 words for VisDial v0.9, and 40, 20 and 20 words for VisDial v1.0. Vocabularies are built afterwards from the words that occur at least five times in train. We use 512D word embeddings, which are trained from scratch and shared by question, dialogue history and decoder LSTMs.

For a fair comparison with previous work, we adopt the simple LSTM decoder with a softmax output which models the likelihood of the next word given the embedding feature and previous generated sequence. We also set all LSTMs to have single layer with 512D hidden state for consistency with other works. We extract image features from pre-trained CNN models (VGG [Simonyan and Zisserman2015] for VisDial v0.9, ResNet [He et al.2016] or bottom-up features [Anderson et al.2018] for VisDial v1.0), and train the rest of our model from scratch. We use the Adam optimizer with the base learning rate of .

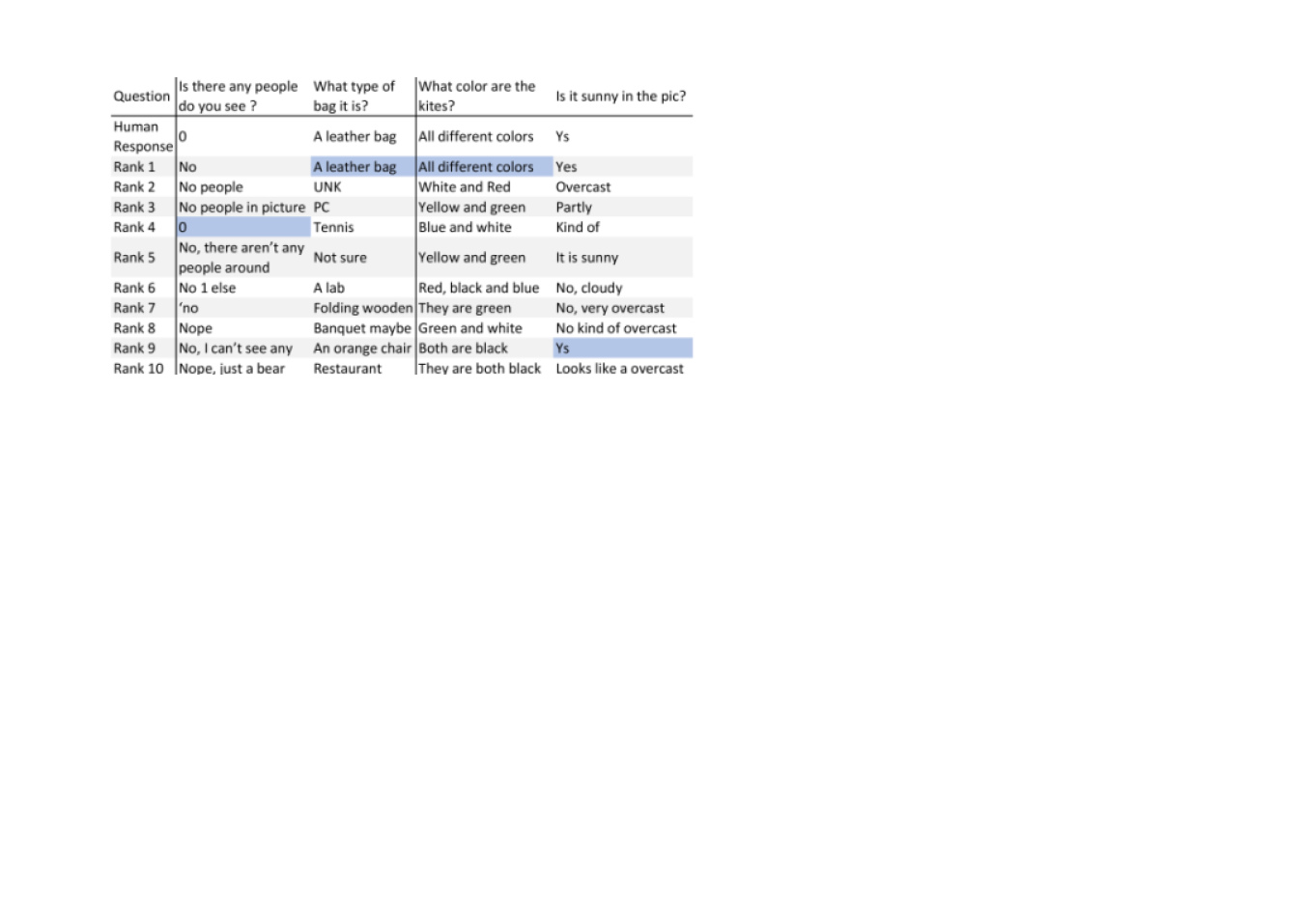

Figure 3: Examples of top-10 responses ranked by our model. When there are multiple correct responses to the question, our model may choose other candidates that are semantically similar to the human response. The human responses are highlighted in blue.

4.3 Experiments Results and Analysis

Baselines

We compare our proposed model to several baselines and the state-of-the-art generative models. In [Das et al.2017], three types of encoders are introduced. Late Fusion (LF) extracts features from each input separately and fuses them in the later stage. Hierarchical Recurrent Encoder (HRE) use hierarchical recurrent encoder for dialogue history and HREA adds attention to the dialogue history on top of the hierarchical recurrent encoder. Memory Network (MN) use memery bank to store the dialogue history and find corresponding memory to answer the question. History-Conditioned Image Attentive Encoder (HCIAE) is proposed in [Lu et al.2017] to attend on image and dialogue history and trained with generative adversarial training (GAN). Another concurrent work with GAN [Wu et al.2018]

proposes a co-attention model (

CoAtt) that attends to question, image and dialogue history. FlipDial [Massiceti et al.2018] uses VAE for sequence generation. We also compare to a neural module network approach Coref [Kottur et al.2018] in which only the performance with ResNet [He et al.2016] backbone is reported. ReDAN [Gan et al.2019] is recently proposed method which involves a multi-step reasoning path with pre-defined order.

Results on VisDial v0.9

Table 1

compares ours results to other reported generative baselines. Our model performs the best on most of the evaluation metrics. Comparing to HCIAE

[Lu et al.2017], our model shows comparable performance on R@1, and outperforms on MRR, R@5, R@10 and mean rank by 1.47%, 3.47%, 6%, 5.08, respectively. Our model also outperforms CoAtt [Wu et al.2018], which is the previous best results for generative models. Our result surpass it with large margins on R@5, R@10 and mean rank by 3.06%, 5.81% and 5.28, respectively.

While our model demonstrates remarkable improvement on R@5, R@10 and mean rank, MRR show only moderate improvement while R@1 is slightly behind. We attribute this to the fact that there could be more than one correct response among the candidates while only one is provided as the correct answer. As demonstrated by the examples of top-10 responses in Figure 3, our model is capable of ranking multiple correct answers to higher places. However, the single ground-truth answer is not necessarily ranked the 1st, thus greatly affecting R@1 and MRR.

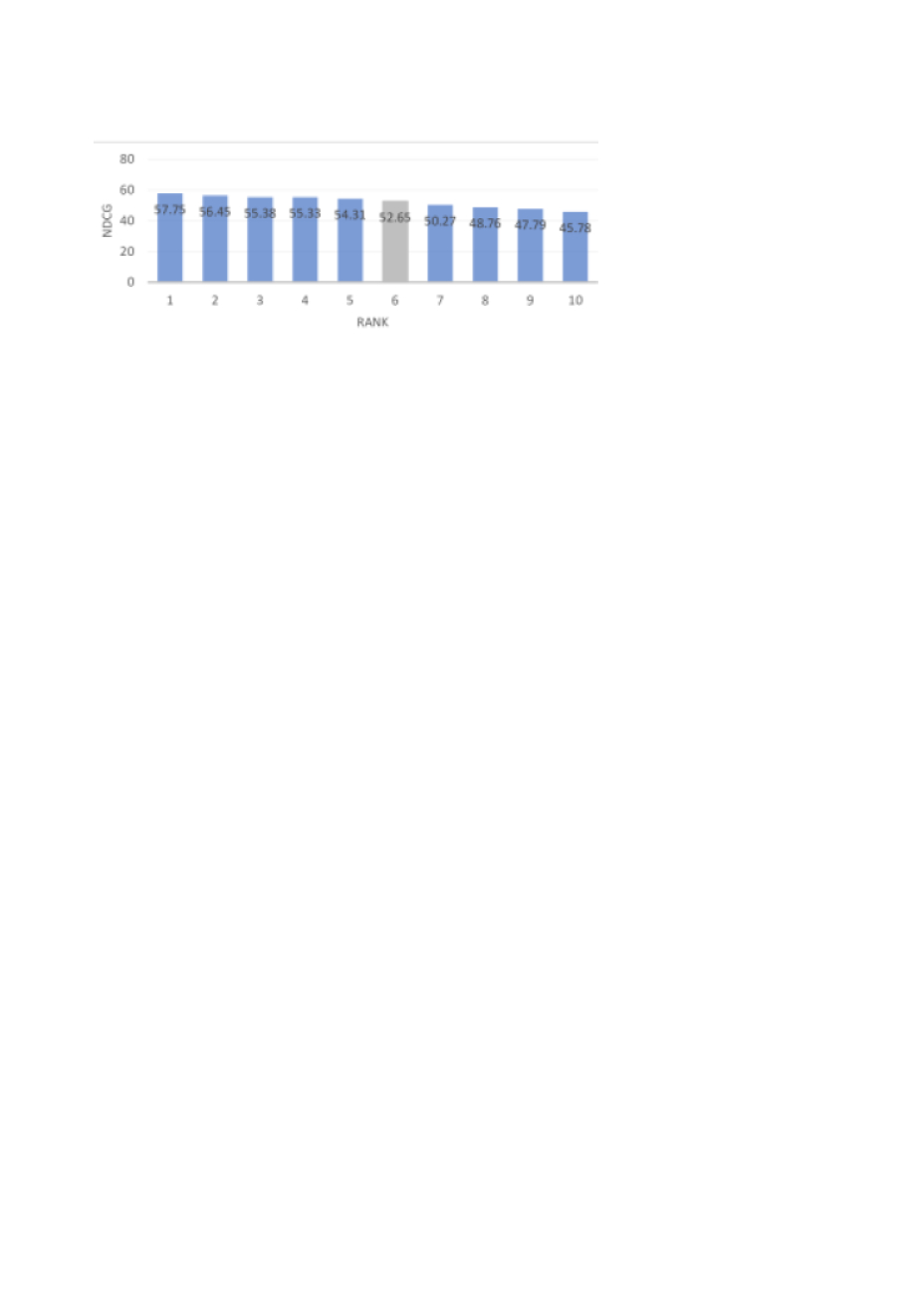

Figure 4: Results of the top-10 teams in the first visual dialog challenge. As the only team in top-10 uses generative visual dialogue system, we are ranked as the 6th place (highlighted with gray color). Our NDCG score is comparable with other discriminative systems.
Model MRR R@1 R@5 R@10 Mean
MN [Das et al.2017] 0.4799 38.18 57.54 64.32 18.60
HCIAE [Lu et al.2017] 0.4910 39.35 58.49 64.70 18.46
CoAtt [Wu et al.2018] 0.4925 39.66 58.83 65.38 18.15
ReDAN [Gan et al.2019] 0.4969 40.19 59.35 66.06 17.92
Ours 0.5015 38.26 62.54 72.79 10.71
Table 2: Performance of generative models on VisDial v1.0 val. ‘Mean’ denotes mean rank, for which lower is better. Results of previous work are reported by ReDAN.

Results on VisDial v1.0

In the Visual Dialog Challenge 2018, all correct responses in test are annotated by humans and taken into account in the evaluation. Table 4 represents the top-10 results. Our model, as the only generative model in the top-10, ranked as the 6th among those discriminative models. It also verifies our claim that our low R@1 score on v0.9 is because the evaluation only considers the human response but ignore all other correct responses. Since ReDAN only reports its generative performance on VisDial v1.0 val with bottom-up features, we also present our results using the same setting in Table 2. We list the results of previous work in Table 2 as reported in [Gan et al.2019]. Similar to the results on VisDial v0.9, our proposed method outperforms previous methods on MRR, R@5, R@10 and Mean.

Figure 5: Visualization of image attention heatmaps for different questions and reasoning steps. Regions of attention are highlighted in blue.
Figure 6: Qualitative results of our models on test. The questions and answers are truncated at 16 and 8, respectively, same as our data pre-processing.

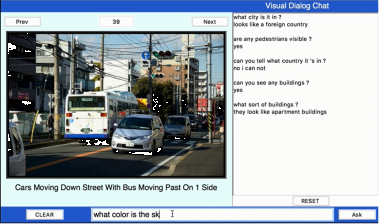

Figure 7: Screenshot of the proposed generative visual dialogue system demo video, where users can input their own questions.

Ablation Study

Our model contains two main novel components, namely the adaptive multi-modal reasoning module and the WLE based training scheme. To verify the contribution of each component, we compare the following models 111We use the official source code of [Lu et al.2017] for HCIAE: (a) HCIAE-MLE is the HCIAE model trained via MLE; (b) HCIAE-GAN is the HCIAE model trained via MLE and GAN; (c) HCIAE-WLE is the HCIAE model trained via WLE; (d) AMR-MLE is our AMR model trained via MLE; (e) AMR-WLE is our final model with both key components.

The experimental results are listed in Table LABEL:tb:ablation_results. The effectiveness of the proposed reasoning scheme is demonstrated in the HCIAE-MLE v.s. AMR-MLE and HCIAE-WLE v.s. AMR-WLE comparisons where our model outperforms HCIAE on all metrics.

The importance of our proposed weighted likelihood loss function is highlighted in the comparison between HCIAE-WLE and HCIAE-GAN. HCIAE-WLE performs better on all metrics. Specifically, the improvement on the HCIAE model by WLE is more than twice of that by GAN on R@10 (6.35 v.s. 2.31) and mean rank (6.08 v.s. 1.78). Our proposed training scheme is therefore also compatible and effective with other encoders.

Qualitative Results

Examples of image attention heatmaps are visualized in Figure 5, which demonstrate the adaptive reasoning focuses for different questions and reasoning time steps. For example, for the second question, the attention on image was first at a large area of background, then moved to more focused region to answer the question ’any buildings’.

Figure 6 shows some qualitative results of our generated responses on test. Our generative model is able to generate more non-generic answers. As evidently shown in the comparison between MLE and WLE, the WLE results are more specific and human-like.

We have built a demo of the Visual Dialog system, which takes input questions from a user and answers questions regarding an image. If the paper gets accepted for publication, we will be happy to release the demo (we cannot release it at this point due to author anonymity requirements). Figure 7 shows a screenshot from this demo.

5 Conclusion

In this work, we have presented a novel generative visual dialogue system. It involves an adaptive reasoning module for multi-modal inputs. The proposed reasoning module does not have any pre-defined sequential reasoning order and can accommodate various dialogue scenarios. The generative visual dialogue system is trained using weighted likelihood estimation, for which we design a new training scheme for generative visual dialogue systems.

References

  • [Anderson et al.2018] Peter Anderson, Xiaodong He, Chris Buehler, Damien Teney, Mark Johnson, Stephen Gould, and Lei Zhang. Bottom-up and top-down attention for image captioning and visual question answering. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    , pages 6077–6086, 2018.
  • [Antol et al.2015] Stanislaw Antol, Aishwarya Agrawal, Jiasen Lu, Margaret Mitchell, Dhruv Batra, C Lawrence Zitnick, and Devi Parikh. Vqa: Visual question answering. In Proceedings of the IEEE international conference on computer vision, pages 2425–2433, 2015.
  • [Das et al.2017] Abhishek Das, Satwik Kottur, Khushi Gupta, Avi Singh, Deshraj Yadav, José MF Moura, Devi Parikh, and Dhruv Batra. Visual dialog. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, volume 2, 2017.
  • [De Vries et al.2017] Harm De Vries, Florian Strub, Sarath Chandar, Olivier Pietquin, Hugo Larochelle, and Aaron C Courville. Guesswhat?! visual object discovery through multi-modal dialogue. In CVPR, volume 1, page 3, 2017.
  • [Gan et al.2019] Zhe Gan, Yu Cheng, Ahmed EI Kholy, Linjie Li, Jingjing Liu, and Jianfeng Gao. Multi-step reasoning via recurrent dual attention for visual dialog. arXiv preprint arXiv:1902.00579, 2019.
  • [He et al.2016] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 770–778, 2016.
  • [Hu et al.2018] Hexiang Hu, Wei-Lun Chao, and Fei Sha. Learning answer embeddings for visual question answering. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 5428–5436, 2018.
  • [Kottur et al.2018] Satwik Kottur, José MF Moura, Devi Parikh, Dhruv Batra, and Marcus Rohrbach. Visual coreference resolution in visual dialog using neural module networks. In Proceedings of the European Conference on Computer Vision (ECCV), pages 153–169, 2018.
  • [Krishna et al.2017] Ranjay Krishna, Yuke Zhu, Oliver Groth, Justin Johnson, Kenji Hata, Joshua Kravitz, Stephanie Chen, Yannis Kalantidis, Li-Jia Li, David A Shamma, et al. Visual genome: Connecting language and vision using crowdsourced dense image annotations. International Journal of Computer Vision, 123(1):32–73, 2017.
  • [Li et al.2017] Jiwei Li, Will Monroe, Tianlin Shi, Sébastien Jean, Alan Ritter, and Dan Jurafsky. Adversarial learning for neural dialogue generation. arXiv preprint arXiv:1701.06547, 2017.
  • [Lin et al.2017] Tsung-Yi Lin, Priya Goyal, Ross Girshick, Kaiming He, and Piotr Dollár. Focal loss for dense object detection. International conference on computer vision, 2017.
  • [Lu et al.2017] Jiasen Lu, Anitha Kannan, Jianwei Yang, Devi Parikh, and Dhruv Batra. Best of both worlds: Transferring knowledge from discriminative learning to a generative visual dialog model. In Advances in Neural Information Processing Systems, pages 314–324, 2017.
  • [Malinowski et al.2015] Mateusz Malinowski, Marcus Rohrbach, and Mario Fritz.

    Ask your neurons: A neural-based approach to answering questions about images.

    In Proceedings of the IEEE international conference on computer vision, pages 1–9, 2015.
  • [Massiceti et al.2018] Daniela Massiceti, N Siddharth, Puneet K Dokania, and Philip HS Torr. Flipdial: A generative model for two-way visual dialogue. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2018.
  • [Ning et al.2015] Kefeng Ning, Min Liu, and Mingyu Dong. A new robust elm method based on a bayesian framework with heavy-tailed distribution and weighted likelihood function. Neurocomputing, 149:891–903, 2015.
  • [Ren et al.2015] Shaoqing Ren, Kaiming He, Ross Girshick, and Jian Sun. Faster r-cnn: Towards real-time object detection with region proposal networks. In Advances in neural information processing systems, pages 91–99, 2015.
  • [Rowley1999] Henry A Rowley.

    Neural network-based face detection.

    Technical report, CARNEGIE-MELLON UNIV PITTSBURGH PA DEPT OF COMPUTER SCIENCE, 1999.
  • [Shrivastava et al.2016] Abhinav Shrivastava, Abhinav Gupta, and Ross Girshick. Training region-based object detectors with online hard example mining. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 761–769, 2016.
  • [Simonyan and Zisserman2015] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale image recognition. In International Conference on Learning Representations, 2015.
  • [Sutskever et al.2014] Ilya Sutskever, Oriol Vinyals, and Quoc V Le. Sequence to sequence learning with neural networks. In Advances in neural information processing systems, pages 3104–3112, 2014.
  • [Warm1989] Thomas A Warm. Weighted likelihood estimation of ability in item response theory. Psychometrika, 54(3):427–450, 1989.
  • [Wen et al.2016] Tsung-Hsien Wen, David Vandyke, Nikola Mrksic, Milica Gasic, Lina M Rojas-Barahona, Pei-Hao Su, Stefan Ultes, and Steve Young. A network-based end-to-end trainable task-oriented dialogue system. arXiv preprint arXiv:1604.04562, 2016.
  • [Wu et al.2018] Qi Wu, Peng Wang, Chunhua Shen, Ian Reid, and Anton van den Hengel. Are you talking to me? reasoned visual dialog generation through adversarial learning. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2018.
  • [Xu and Saenko2016] Huijuan Xu and Kate Saenko. Ask, attend and answer: Exploring question-guided spatial attention for visual question answering. In European Conference on Computer Vision, pages 451–466. Springer, 2016.
  • [Xu et al.2015] Kelvin Xu, Jimmy Ba, Ryan Kiros, Kyunghyun Cho, Aaron Courville, Ruslan Salakhudinov, Rich Zemel, and Yoshua Bengio. Show, attend and tell: Neural image caption generation with visual attention. In

    International conference on machine learning

    , pages 2048–2057, 2015.
  • [You et al.2016] Quanzeng You, Hailin Jin, Zhaowen Wang, Chen Fang, and Jiebo Luo. Image captioning with semantic attention. In Proceedings of the IEEE Conference on computer vision and pattern recognition, 2016.
