1 Introduction

Machine learning (ML) techniques, especially Deep Neural Networks (DNNs), have been successful in several domains, such as finance and healthcare. However, several test-time (Biggio et al., 2013; Szegedy et al., 2014; Goodfellow et al., 2015; Kurakin et al., 2016) and training-time (Jagielski et al., 2018; Shafahi et al., 2018) attacks have made their adoption in high-assurance applications, such as autonomous driving and security, problematic. ML techniques, such as generative models, have also been used for nefarious purposes such as generating “deepfakes” (Liu et al., 2017; Zhu et al., 2017). Our focus in this paper is on test-time attacks in which an adversary generates a slightly perturbed sample to fool a classifier or an object-detector.

Let be the sample space and be the space of labels. A classifier is a function from to . Given a sample , most attacks for constructing adversarial examples find a perturbation with a small norm (typical norms that are used are , , and ) such that has a different label than , i.e. . In this paper we consider the problem of generating semantic adversarial examples (SAEs) (Hosseini and Poovendran, 2018; Joshi et al., 2019; Qiu et al., 2019; Dreossi et al., 2018b). In these examples, there is a richer set of transformations that capture semantically-meaningful changes to inputs to the ML model. We assume a norm on (this norm is induced by various parameters corresponding to the transformations, such as angle of rotation and size of the translation). In our universe, an adversary is given a sample and wishes to find a transformation parameterized by with small norm such that (we consider untargeted attacks, but our ideas extend to targeted attacks as well).

SAEs can also be viewed as outcomes of perturbations in a “rich” semantic feature space (e.g., texture of the image) rather than just the concrete feature space (e.g., pixels). Consequently, SAEs are physically realizable, and it is easy to understand how the changes in semantics results in an adversarial example. SAEs have been considered in the literature (Xiao et al., 2018; Dreossi et al., 2018b; Huang et al., 2019), but prior works typically consider a small set of fixed transformations (e.g. rotation and translation, or modifying a single object’s texture). Our goal is to flexibly support a richer set of transformations implemented in a state of the art renderer (e.g. changing the background of the image, weather conditions, or the time of day). There is evidence that SAEs can help with domain adaptation (Volpi et al., 2018) or making the control loop more robust (Dreossi et al., 2018b), further motivating our approach.

To summarize, the main contributions of this paper are the following:

  • We present a new class of test-time attacks in the form of SAEs. We demonstrate how to generate SAEs that support a rich set of transformations (refer § 3) using an inverse graphics framework (refer § 2). Specifically, we show how one can systematically take techniques to perform attacks in the pixel space such as FGSM (Goodfellow et al., 2015) and PGD (Madry et al., 2017) and transform them to their semantic counterparts.

  • We evaluate the generated SAEs on the popular object detector SqueezeDet (Wu et al., 2016). By correctly choosing the semantic parameters, SAEs degrade performance (characterized by the mean average precision or mAP) by 28 percentage points (refer § 5.1).

  • We also show that by augmenting the dataset using SAEs, we can boost the robustness of SqueezeDet (characterized by mAP) by up to 15 percentage points (refer § 5.2). While augmentation with SAEs improves robustness against SAEs, augmentation using traditional pixel-based perturbations does not produce the same effect (refer § 5.3).

2 Related Work

Adversarial Examples and Robustness: There is extensive research for generating adversarial examples in the pixel space; we henceforth refer to these as pixel-perturbations. Goodfellow et al. (2015)

propose the fast gradient sign method (FGSM) where inputs are modified in the direction of the gradients of the loss function with respect to input, causing a variety of models to misclassify their inputs.

Madry et al. (2017) generalize this approach and propose the projected gradient descent (PGD) approach working using the same intuition. While these approaches suggest modifications to the raw pixel values, other methods of generating adversarial examples exist. Athalye et al. (2017) introduce an approach to generate 3D adversarial examples (over a chosen distribution of transformations). Engstrom et al. (2019) observe that modifying the spatial orientation of images results in misclassifications. Similarly, Geirhos et al. (2018) discovered that certain models are biased towards textural cues.

To improve robustness, current approaches include adversarial training (Madry et al., 2017), smoothing-based approaches (Cohen et al., 2019; Lécuyer et al., 2018), or through specific regularization (Raghunathan et al., 2018). An alternative approach, utilizing some notion of semantics, is advocated in the work of Guo et al. (2017). The authors augment the training set with transformed versions of training images, utilizing basic image transformations (e.g.

, scale and re-cropping) and total variance minimization, and demonstrate an improvement in robustness.

Dreossi et al. (2018a) improve the robustness of SqueezeDet (Wu et al., 2016) through counterexample guided data augmentation; these counterexamples are synthetically generated by sampling from a space of transformations and applying them to original training images.

Inverse Graphics: The process of finding 3D scene parameters (geometric, textural, lighting, etc.) given images is referred to as inverse graphics (Baumgart, 1974). There is a history of using gradients to solve this problem (Blanz and Vetter, 2002; Shacked and Lischinski, 2001; Barron and Malik, 2015). Kulkarni et al. (2015) propose a model that learns interpretable representations of images (similar to image semantics), and show how these interpretations can be modified to produce changes in the input space. Pipelines for general differential rendering were proposed by Loper and Black (2014) and Kato et al. (2018). Li et al. (2018) design a general-purpose differentiable ray tracer; gradients can be computed with respect to arbitrary semantic parameters such as camera pose, scene geometry, materials, and lighting parameters. Yao et al. (2018) propose a pipeline that, through de-rendering obtains various forms of semantics, geometry, texture, and appearance, which can be rendered using a generative model.

3 Semantic Adversarial Learning

Consider a space of the form , where is the sample space and is the set of labels. From here on we will assume that . Let be a hypothesis space (e.g., weights of a DNN). We assume a loss function so that given a hypothesis and a labeled data point , the loss is . The output of the learning algorithm is a classifier, which is a function from to . To emphasize that a classifier depends on a hypothesis , which is output of the learning algorithm, we will denote it as (if is clear from the context, we will sometimes simply write ).

3.1 Traditional Adversarial Examples

We will focus our discussion on untargeted attacks, but our discussion also applies to targeted attacks. An adversary

’s goal is to take any input vector

and produce a minimally altered version of , an adversarial example denoted by , that has the property of being misclassified by a classifier . The adversary wishes to solve the following optimization problem:

The various terms in the formulation are: is a norm on ; can be , , , or (). If is the solution of the optimization problem given above, then the adversarial example .

FGSM. The fast gradient sign method (FGSM) (Goodfellow et al., 2015) was one of the first untargeted attacks developed in literature. The adversary crafts an adversarial example for a given legitimate sample by computing (and then adding) the following perturbation:


The function is a shorthand for , where is the hypothesis corresponding to the classifier , is the data point and is the true label of (essentially we evaluate the loss function at the hypothesis corresponding to the classifier). The gradient of the function is computed with respect to using sample and label as inputs. Note that is an -dimensional vector and is a -dimensional vector whose element is the sign of the . The value of the input variation parameter factoring the sign matrix controls the perturbation’s amplitude. Increasing its value increases the likelihood of being misclassified by the classifier but also makes adversarial examples easier to “detect” by humans. The key idea is that FGSM takes a step in the direction of the gradient of the loss function with respect to the input

, thus attempting to maximize the loss function using its first-order approximation. Recall that stochastic gradient descent (SGD) takes a step in the direction that is on expectation opposite to the gradient of the loss function because it is trying to minimize the loss function.

PGD. In Projected Gradient Descent (PGD) (Madry et al., 2017), we find a perturbation in an iterative manner. The PGD attack can be thought of an iterative version of FGSM. Assume that we are using the norm. Assume is the original sample .


The operator is the projection operator, i.e. it takes as input a point and outputs the closest point in the -ball (using the -norm) around

. The iteration stops after a certain number of steps (the exact number of steps is a hyperparameter).

3.2 Semantic Adversarial Examples (SAEs)

Let be a set of transformations parameterized by a space , and is a norm over . The reader can think of as parameters that control the transformations (e.g. the angle of rotation). Given , is the image transformed according to the parameters . We assume that there is a special identity element in (which we call ) such that . An adversarial attack in this universe is characterized as follows:

In other words, we want to find a “small perturbation” in the parameter space that will misclassify the sample. Consider the function . The derivative with respect to is (the notation is the transposed Jacobian matrix of as a vector-valued function of , evaluated at , and is the derivative evaluated at ). The semantic version of FGSM (sFGSM) will produce the following :


The adversarial example is . Note that we do not assume any special properties about , such as linearity. We only assume that is differentiable.

In a similar manner a semantic version of the PGD attack (sPGD) can be constructed. Let and . The update steps correspond to the following two equations:

Note that is the projection operator in the parameter space . We also assume that the projection operator will keep the parameters in the feasible set, which depends on the image (e.g. translation does not take the car off the road). The operator is the aggregation operator (similar to addition in ), but in the parameter space . The precise axioms satisfied by depends on , but one axiom we require is:

In fact, our recipe can be used to transform any attack algorithm such as Carlini and Wagner (2017) that adds a perturbation to its “semantic version” as follows:

  • Replace with .

  • Replace with .

  • Use chain rule to compute the gradients of terms that involve

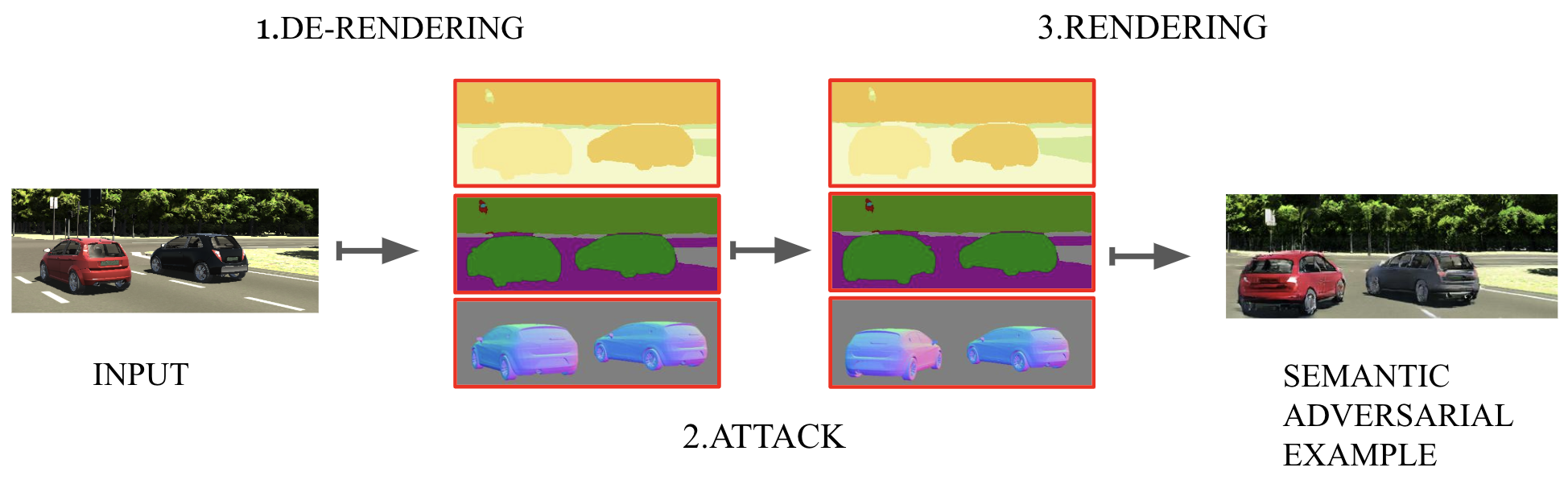

Figure 1: The input is de-rendered (step 1) to its intermediary representation (IR) - semantic, graphic, and textural maps. Then, this is adversarially perturbed (e.g. the red car is rotated) as described in § 3.2 (step 2). The resulting IR is then re-rendered to the generate the SAE (step 3).

Differentiable rendering and inverse graphics. We apply the above framework to images by employing a differentiable renderer/de-renderer in an inverse graphics setting. Such an inverse graphics setting can be thought of two transformations: (a) a de-renderer , and (b) a renderer . Here, is the intermediate representation (IR). In the differentiable renderer/de-renderer we utilize (Yao et al., 2018), the IR contains a semantic map, texture codes, and 3D attributes. Let be the set of changes to the IR (e.g. change to the texture code to make it more cloudy) and corresponds to the identity. Suppose there is an operator that given a transforms the IR, i.e. for . In this case, the function is equal to . We use the fact that for differentiable renderers/de-renderers the functions , , are differentiable and hence attacks like sFGSM and sPGD can be implemented.

4 Validation

In this section, we describe the various components used in our implementation to generate SAEs, and describe experiments carried out to determine the impact of choice of semantic parameters towards generating effective SAEs.

4.1 Implementation Details

The three main components required to successfully generate SAEs include: (a) a differentiable inverse graphics framework, (b) a victim model (which is also differentiable), and (c) an attack strategy. We describe each of these below.

To obtain the semantics associated with our inputs and to generate the final SAEs, we use the inverse graphics (i.e. a combination of a semantic, textural and geometric de-rendering pipeline and a generative model for rendering) created by  Yao et al. (2018). The models in this framework were trained entirely using the VKITTI dataset (Gaidon et al., 2016). These images comprise of simulations of cars in different road environments in virtual worlds. The de-rendering pipeline is used to obtain the initial semantic features associated with input images. These semantic features include (a) color: the car’s texture codes, which change its color, (b) weather: the weather and time of day, (c) foliage: the surrounding foliage and scenery, (d) rotate: the car’s orientation, (e) translate: the car’s position in 2D, and (f) mesh: the 3D mesh which provides structure to the car.

The final SAEs were produced using the generative model. Specific modifications were made to the differentiable graphics framework we used to ensure that gradients were easy to calculate. The codebase did not originally support end-to-end differentiation as each branch (semantic, geometric, textural) was trained separately. In particular, several image manipulation operations (normalization, rescaling through nearest-neighbor and bilinear interpolation) were implemented in a non-differentiable manner. We implemented the differentiable equivalents of these operations to allow backpropagation. Furthermore, we implemented a weak perspective projection for vehicle objects, as well as an improved heuristic for inpainting of gaps in the segmentation map due to object translations/rotations, in order to improve the quality of the rendering.

We use the popular and representative SqueezeDet object detector (Wu et al., 2016) as the victim model. This model was originally trained on the KITTI dataset (Geiger et al., 2013)

. We perform transfer learning on this model using

randomly chosen images from the VKITTI dataset; we wanted the object detector to better adapt to images outside the domain it was initially trained for. However, images produced by the differentiable graphics framework contain artifacts (i.e. distortions in the images); these artifacts could be mistaken for pixel perturbations and would impact our evaluation results. To deal with this issue, we retrain SqueezeDet using identity transform re-rendered images111Images passed through the de-rendering and rendering framework, without modifying the IR or any associated semantic parameters. produced by the generative model.

Finally, we utilize these gradients and the semantics associated with each input in crafting adversarial attacks using the iterative sFGSM (for 6 iterations). We stress that our choice of the number of iterations is restricted by our choice of the differentiable graphics framework. Using more iterations resulted in unintelligble outputs. We also stress that the exact choice of three components are irrelevant; our constructions are general (refer § 3.2 for more details).

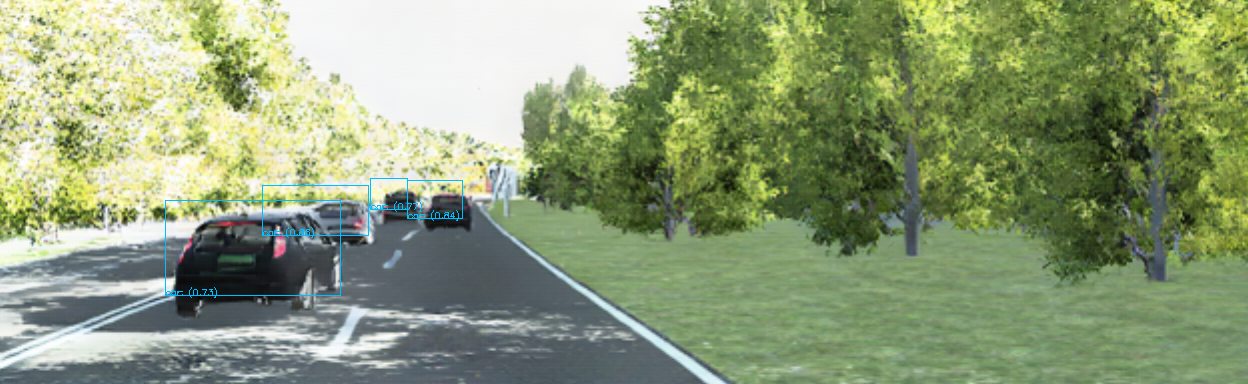

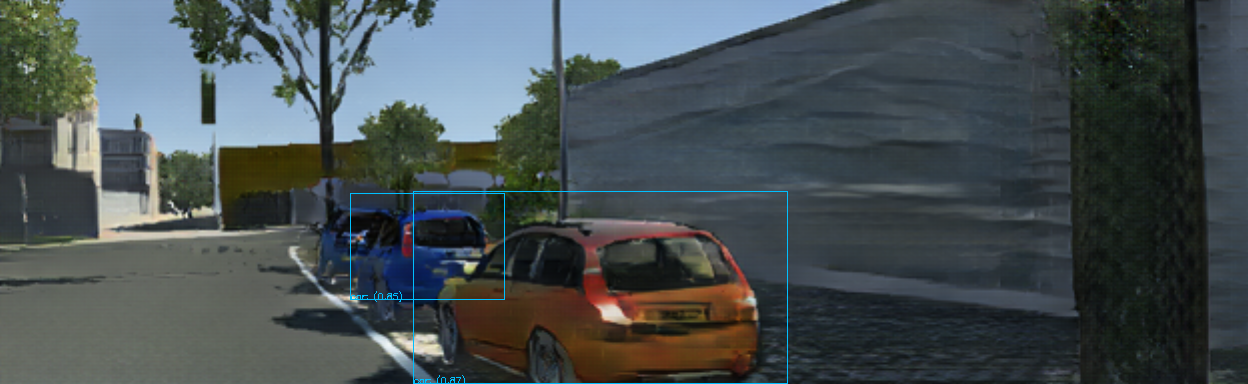

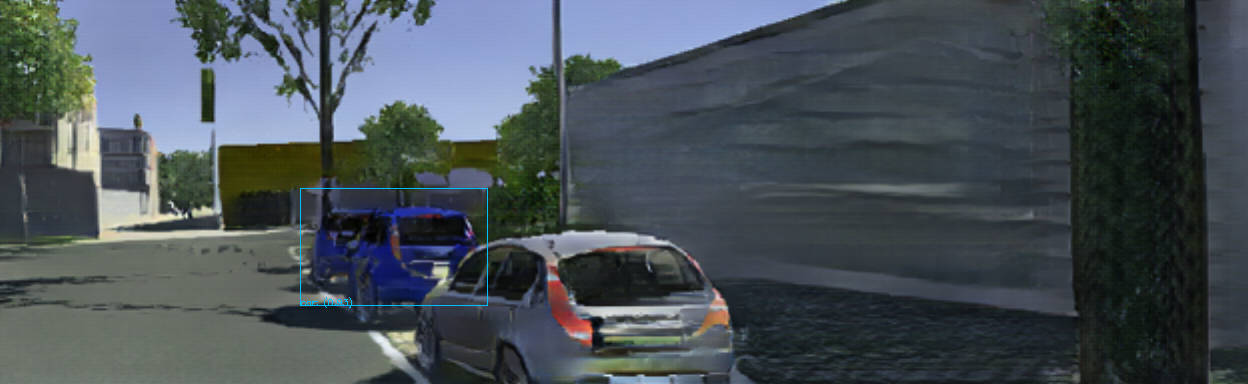

Figure 2: Semantic space adversarial examples. Benign re-rendered VKITTI image (left), adversarial examples generated by iterative sFGSM over a combination of semantic features (right). Cyan boxes indicate car detected, purple indicated pedestrian, and yellow indicate cyclist. The adversarial example introduces small changes in car positions and orientations, and noticeable changes in their color. This causes the network to detect pedestrians where there are none (top) and to fail to detect a car in the immediate foreground (bottom).

4.2 Selecting Semantic Parameters

In the pixel perturbation setting, all pixels are equal i.e.any pixel can be perturbed. Whether such homogeneity naturally exists in the semantic space is unclear. However, we have additional flexibility; we can choose to modify any of the above listed semantic parameters independently without altering the others, i.e. perform single parameter modifications. Alternatively, we can modify any subset of the parameters in unison, i.e. perform multi-parameter modifications. The degree of modification is determined by the input variation/step-size hyperparameter . In the context of pixel perturbations, the step-size corresponds to the maximum permissible change of a pixel. For SAEs, the value of is proportional to the magnitude of the geometric and textural changes induced; the effect depends on the semantic parameter under consideration.

Large values of result in unrealistic images created by the generative model (examples of this include perturbing the mesh to the point where cars are twisted into shapes no longer resembling vehicles). To avoid such issues and to simulate realistic transformations, we use a different step-size for each semantic parameter. We test various values of for each semantic parameter, and report the best choice for brevity. Specifically, (a) color: = 0.05, (b) weather: = 0.25, (c) foliage: = 0.10, (d) rotate: = 0.01, (e) translate: = 0.01, and (f) mesh: = 0.025. We stress these hyperparameters were obtained after extensive visual inspection (by 3 viewers independently); norm-based approaches typically serve as a proxy for visual verification (Sen et al., 2019). Additionally, our choice in hyperparameters enables us to use the same ground truth labels throughout our experiments; e.g. produced SAEs have bounding box coordinates that enable us to use the same ground truth labels as their benign counterparts222This fact is useful when we evaluate model robustness through retraining the models with SAEs as inputs, which we discuss in § 5.2.

We produce 50 SAEs for each semantic parameter combination choice. We then evaluate the efficacy of generated SAEs on SqueezeDet by measuring its (a) recall percentage, and (b) mean average precision, or mAP, in percentage. These metrics have been used in earlier works (Xie et al., 2017).

Parameter color weather foliage translate rotate mesh
recall 100 100 100 100 100 98.7
mAP 99.5 98.8 99.7 99.2 98.2 98.7
Table 1: Performance of SqueezeDet on SAEs generated using single parameter modifications. The model had (a) recall = 100, and (b) mAP = 99.4 on benign/non-adversarial inputs. We observed that single parameter modifications are ineffective.

From Table 1, it is clear that single parameter modification is ineffective at generating SAEs. Thus, we generate SAEs using the multi-parameter modification method. To this end, we generated SAEs using the 57 remaining combinations of semantic parameters. One could consider a weighted combination of different semantic parameters based on a pre-defined notion of precedence. However, we choose a non-weighted combination. The results of our experiments are in Table 2. For brevity, we omit most of the combinations that do not result in significant performance degradation (and discuss the insight we gained from them in § 5.1). In the remainder of the paper, we report our evaluation using the translate + rotate + mesh parameter combination to generate SAEs.

Parameters translate + rotate translate + rotate + mesh translate + mesh rotate + mesh
recall 100 100 100 100
mAP 82 65.9 80.8 98.7
Table 2: Performance of SqueezeDet on SAEs generated using multi-parameter modifications. The model had (a) recall = 100, and (b) mAP = 99.4 on benign/non-adversarial inputs. We observed that certain combinations of multiple parameters are effective towards launching an attack.

5 Evaluation

We designed and carried out experiments to answer the following questions: (1) Do SAEs cause performance degradation in SqueezeDet?, (2) Can the generated SAEs be used for improving robustness?, and (3) How does the degradation (and robustness) caused by SAEs compare to that caused by pixel perturbations?

We use 6339 images for training our SqueezeDet model, and evaluate the model using 882 SAEs. To evaluate the robustness, we augment the training dataset with 1547 SAEs and retrain the model. The various components of our framework and the datasets used are highlighted in § 4.1. Note that SqueezeDet’s loss function comprises three terms corresponding to (a) bounding box regresson, (b) confidence score regression, and (c) classification loss. In our experiments, we target the confidence score regression loss term to impact the mAP and recall of the model. All code was written in python. Our experiments were performed on two servers. The SAE generation was carried out on a server with an NVIDIA Titan GP102 GPU, 8 CPU cores, and 15GB memory. All training and evaluation was carried out on a server with 264 GB memory, using NVIDIA’s GeForce RTX 2080 GPUs and 48 CPU cores. Our experiments suggest that: (1) SAEs are indeed effective in degrading the performance of SqueezeDet. We also observe that the model is susceptible to changes that target the geometry of the input (cars in this case) rather than the changes in the background (refer § 5.1), (2) The generated SAEs do, in fact, help in improving model robustness. Our experiments show that SAE-based data augmentation can improve mAP by up to 15 percentage points (refer § 5.2), and (3) Pixel perturbation-based augmentation is ineffective against SAEs (refer § 5.3).

We do not report other metrics (classification accuracy, background error, etc.) associated with detection as our experiments are not designed to alter them.

5.1 Effectiveness of SAEs

The results in Table 2 in § 4.2 demonstrate the effectiveness of SAEs, and offer two insights.

First, the victim model was more susceptible to transformations that modify the geometry of the input (such as translate and mesh) than other types of transformations. This has dire implications for safety-critical applications; for the cars in our inputs, modifications in the mesh parameter results in deformed cars as outputs. These are common occurrences in sites of accidents, and need to be detected correctly. A combination of translations and rotations also seem to compound the degradation to the performance of the network (refer Table 2). This is most likely due to the introduction of unique angles and visual perspectives that are not frequently encountered in assembled datasets. Unlike pixel perturbations, SAEs are easy to interpret, i.e. we are able to understand how the model fails to generalize to specific changes in input semantics. Additionally, they are easier to realize i.e. the situations described above (related to translation and deformation of vehicles) occur on a daily basis. Intuitively, changing the geometry of the car can be viewed as targeting the perception of what a car really is – if the human can recognize that the object in question is a car but a model cannot, then the model is not exposed to the sufficient variety of car shapes, positions, and orientations that it may encounter in real-world scenarios; i.e. it is unable to domain adapt (Tzeng et al., 2017).

The second insight we gain is that the model was more susceptible to SAEs caused by changing multiple parameters simultaneously. We evaluate the model with 882 SAEs generated using a combination of the parameters listed in § 4.2. We observe that compared to the baseline performance on non-adversarial/benign inputs (recall = 93.63, mAP = 85.95), SAEs cause a significant performance degradation (recall = 93.17, mAP = 57.78). As stated before, these combinations are easily realizable, and the model’s poor performance is indicative of poor domain adaptation.

5.2 Data Augmentation To Increase Robustness

As we have established that SAEs are effective in attacking SqueezeDet, we wished to enhance the model’s robustness through data augmentation, as in Dreossi et al. (2018b). To this end, we carried out two sets of experiments. In the first, we incrementally (re)trained the benign SqueezeDet model on a combination of benign inputs and SAEs (4792+1547) for 24000 iterations. In the second, we tuned our benign model using just SAEs (1547) for 6000 iterations. The results of our experiments are presented in Table 3.

Model Baseline Retrained (SAE + Benign) Tuned (SAE)
recall 93.17 92.97 92.15
mAP 57.78 72.76 72.63
Table 3: Performance of SqueezeDet on SAEs when (b) the model is retrained (on a combination of SAEs + benign inputs), and (c) the model is tuned (on just SAEs), compared to (a) the baseline model (trained on benign images) on SAEs. Both retraining and tuning improve mAP.

It is clear that both approaches provide comparable increase in mAP while not impacting recall. Additionally, we found that making a model robust to semantic perturbations through either procedure described earlier allowed us to achieve good performance on benign inputs. On benign inputs, we found that for the Retrained (SAE + Benign) model, recall = 93.7 and mAP = 84.73, while for Tuned (SAE), recall = 91.9 and mAP = 79.1. This is comparable to the performance of the baseline model (which was trained and validated on benign inputs), where recall = 93.6 and mAP = 86.17.

Our results suggests that SAE-based augmentation is a promising direction for exploration; based on insight from § 3, we could formulate a framework for semantic adversarial training, similar to  (Madry et al., 2017). We leave the exact formulation to future work. In the next subsection, we will compare this approach to augmentation using pixel perturbations, and a combination of both approaches.

5.3 Pixel Perturbations vs. SAEs

Our experiments suggested that pixel perturbations are more effective in degrading SqueezeDet’s performance (recall=2.9, mAP=0.05); we conjecture this is due to the larger feature space within which a solution for the optimization can be found i.e. the space of pixels is larger than the space of specific semantic parameters/transformations we consider.

To measure the robustness provided by pixel perturbations against semantic perturbations, we performed the same experiment as in § 5.2. In one experiment, we retrained the benign SqueezeDet model on a combination of benign inputs and pixel perturbations (4792+1547) for 24000 iterations. In another experiment, we tuned our model using just pixel perturbations (1547) for 6000 iterations. The results of our experiments are presented in Table 4.

Model Retrained (Pixel + Benign) Tuned (Pixel)
recall 92.4 90.43
mAP 56.7 55.35
Table 4: Performance of SqueezeDet on SAEs when the model is (a) retrained (on pixel perturbations + benign inputs), and (b) tuned (on just pixel perturbations). Retraining and tuning (with pixel perturbations) is ineffective against SAEs.

We observed that data augmentation using pixel perturbations does not increase the robustness to SAEs. Pixel perturbations are more general, and do not capture the effects induced by SAEs. Consequently, we wished to understand if we could get the best of both worlds i.e. robustness against both pixel perturbations and SAEs. We report the results of this experiment in Appendix A.

6 Conclusions

In this paper, we describe semantic adversarial examples (SAEs), where adversaries perturb the semantics of inputs to produce outputs that are misclassified. Such instances are easier to realize in the physical world, and are more interpretable than their traditional pixel-based counterparts. We propose an algorithm to construct SAEs using advances in differentiable rendering, and evaluate the effectiveness of our approach. We observe that SAEs cause performance degradation in object detector networks (SqueezeDet), that data augmentation using SAEs increases robustness of the model, and that data augmentation using traditional adversarial examples (i.e. pixel perturbations) are ineffective against SAEs.

7 Acknowledgements

This material is partially supported by Air Force Grant FA9550-18-1-0166, the National Science Foundation (NSF) Grants CCF-FMitF-1836978, CCF-FMitF-1837132, CPS-Frontier-1545126, SaTC-Frontiers-1804648 and CCF-1652140, the DARPA Assured Autonomy project, ARO grant number W911NF-17-1-0405, the iCyPhy center, and Berkeley Deep Drive. Any opinions, findings, conclusions, and recommendations expressed herein are those of the authors and do not necessarily reflect the views of the funding agencies.


  • A. Athalye, L. Engstrom, A. Ilyas, and K. Kwok (2017) Synthesizing robust adversarial examples. CoRR abs/1707.07397. External Links: Link, 1707.07397 Cited by: §2.
  • J. T. Barron and J. Malik (2015) Shape, illumination, and reflectance from shading. IEEE Transactions on Pattern Analysis and Machine Intelligence 37 (8), pp. 1670–1687. External Links: Document, ISSN Cited by: §2.
  • B. G. Baumgart (1974)

    Geometric modeling for computer vision.

    Ph.D. Thesis, Stanford University, Stanford, CA, USA. Note: AAI7506806 Cited by: §2.
  • B. Biggio, I. Corona, D. Maiorca, B. Nelson, N. Šrndić, P. Laskov, G. Giacinto, and F. Roli (2013) Evasion attacks against machine learning at test time. In Joint European conference on machine learning and knowledge discovery in databases, pp. 387–402. Cited by: §1.
  • V. Blanz and T. Vetter (2002) A morphable model for the synthesis of 3d faces. SIGGRAPH’99 Proceedings of the 26th annual conference on Computer graphics and interactive techniques, pp. . External Links: Document Cited by: §2.
  • N. Carlini and D. Wagner (2017) Towards evaluating the robustness of neural networks. In 2017 IEEE Symposium on Security and Privacy (SP), pp. 39–57. Cited by: §3.2.
  • J. M. Cohen, E. Rosenfeld, and J. Z. Kolter (2019) Certified adversarial robustness via randomized smoothing. CoRR abs/1902.02918. External Links: Link, 1902.02918 Cited by: §2.
  • T. Dreossi, S. Ghosh, X. Yue, K. Keutzer, A. L. Sangiovanni-Vincentelli, and S. A. Seshia (2018a) Counterexample-guided data augmentation. CoRR abs/1805.06962. External Links: Link, 1805.06962 Cited by: §2.
  • T. Dreossi, S. Jha, and S. A. Seshia (2018b)

    Semantic adversarial deep learning

    CoRR abs/1804.07045. External Links: Link, 1804.07045 Cited by: §1, §1, §5.2.
  • L. Engstrom, B. Tran, D. Tsipras, L. Schmidt, and A. Madry (2019) Exploring the landscape of spatial robustness. In International Conference on Machine Learning, pp. 1802–1811. Cited by: §2.
  • A. Gaidon, Q. Wang, Y. Cabon, and E. Vig (2016) VirtualWorlds as proxy for multi-object tracking analysis.

    2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR)

    , pp. 4340–4349.
    Cited by: §4.1.
  • A. Geiger, P. Lenz, C. Stiller, and R. Urtasun (2013) Vision meets robotics: the KITTI dataset. International Journal of Robotics Research (IJRR). Cited by: §4.1.
  • R. Geirhos, P. Rubisch, C. Michaelis, M. Bethge, F. A. Wichmann, and W. Brendel (2018) ImageNet-trained cnns are biased towards texture; increasing shape bias improves accuracy and robustness. CoRR abs/1811.12231. External Links: Link, 1811.12231 Cited by: §2.
  • I. Goodfellow, J. Shlens, and C. Szegedy (2015) Explaining and harnessing adversarial examples. In International Conference on Learning Representations, External Links: Link Cited by: 1st item, §1, §2, §3.1.
  • C. Guo, M. Rana, M. Cissé, and L. van der Maaten (2017) Countering adversarial images using input transformations. CoRR abs/1711.00117. External Links: Link, 1711.00117 Cited by: §2.
  • H. Hosseini and R. Poovendran (2018) Semantic adversarial examples. CoRR abs/1804.00499. External Links: Link, 1804.00499 Cited by: §1.
  • L. Huang, C. Gao, Y. Zhou, C. Zou, C. Xie, A. Yuille, and N. Liu (2019) UPC: learning universal physical camouflage attacks on object detectors. External Links: 1909.04326 Cited by: §1.
  • M. Jagielski, A. Oprea, B. Biggio, C. Liu, C. Nita-Rotaru, and B. Li (2018) Manipulating machine learning: poisoning attacks and countermeasures for regression learning. In 2018 IEEE Symposium on Security and Privacy (SP), pp. 19–35. External Links: Document Cited by: §1.
  • A. Joshi, A. Mukherjee, S. Sarkar, and C. Hegde (2019) Semantic adversarial attacks: parametric transformations that fool deep classifiers. CoRR abs/1904.08489. External Links: Link, 1904.08489 Cited by: §1.
  • H. Kato, Y. Ushiku, and T. Harada (2018) Neural 3d mesh renderer. pp. 3907–3916. External Links: Document Cited by: §2.
  • T. D. Kulkarni, W. F. Whitney, P. Kohli, and J. Tenenbaum (2015) Deep convolutional inverse graphics network. In Advances in neural information processing systems, pp. 2539–2547. Cited by: §2.
  • A. Kurakin, I. J. Goodfellow, and S. Bengio (2016) Adversarial examples in the physical world. CoRR abs/1607.02533. External Links: Link, 1607.02533 Cited by: §1.
  • M. Lécuyer, V. Atlidakis, R. Geambasu, D. Hsu, and S. Jana (2018) Certified robustness to adversarial examples with differential privacy. 2019 IEEE Symposium on Security and Privacy (SP), pp. 656–672. Cited by: §2.
  • T. Li, M. Aittala, F. Durand, and J. Lehtinen (2018) Differentiable monte carlo ray tracing through edge sampling. In SIGGRAPH Asia 2018 Technical Papers, pp. 222. Cited by: §2.
  • M. Liu, T. Breuel, and J. Kautz (2017)

    Unsupervised image-to-image translation networks

    CoRR abs/1703.00848. External Links: Link, 1703.00848 Cited by: §1.
  • M. Loper and M. Black (2014) OpenDR: an approximate differentiable renderer. pp. . External Links: Document Cited by: §2.
  • A. Madry, A. Makelov, L. Schmidt, D. Tsipras, and A. Vladu (2017) Towards deep learning models resistant to adversarial attacks. ArXiv abs/1706.06083. Cited by: 1st item, §2, §2, §3.1, §5.2.
  • H. Qiu, C. Xiao, L. Yang, X. Yan, H. Lee, and B. Li (2019) SemanticAdv: generating adversarial examples via attribute-conditional image editing. CoRR abs/1906.07927. External Links: Link, 1906.07927 Cited by: §1.
  • A. Raghunathan, J. Steinhardt, and P. Liang (2018) Certified defenses against adversarial examples. CoRR abs/1801.09344. External Links: Link, 1801.09344 Cited by: §2.
  • A. Sen, X. Zhu, L. Marshall, and R. Nowak (2019) Should adversarial attacks use pixel p-norm?. arXiv preprint arXiv:1906.02439. Cited by: §4.2.
  • R. Shacked and D. Lischinski (2001) Automatic lighting design using a perceptual quality metric. Comput. Graph. Forum 20, pp. . External Links: Document Cited by: §2.
  • A. Shafahi, W. R. Huang, M. Najibi, O. Suciu, C. Studer, T. Dumitras, and T. Goldstein (2018) Poison frogs! targeted clean-label poisoning attacks on neural networks. In Advances in Neural Information Processing Systems, pp. 6103–6113. Cited by: §1.
  • C. Szegedy, W. Zaremba, I. Sutskever, J. Bruna, D. Erhan, I. Goodfellow, and R. Fergus (2014) Intriguing properties of neural networks. In International Conference on Learning Representations, External Links: Link Cited by: §1.
  • D. Tsipras, S. Santurkar, L. Engstrom, A. Turner, and A. Madry (2018)

    Robustness may be at odds with accuracy

    arXiv preprint arXiv:1805.12152. Cited by: §A.1.
  • E. Tzeng, J. Hoffman, K. Saenko, and T. Darrell (2017) Adversarial discriminative domain adaptation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 7167–7176. Cited by: §5.1.
  • R. Volpi, H. Namkoong, O. Sener, J. C. Duchi, V. Murino, and S. Savarese (2018) Generalizing to unseen domains via adversarial data augmentation. CoRR abs/1805.12018. External Links: Link, 1805.12018 Cited by: §1.
  • B. Wu, F. N. Iandola, P. H. Jin, and K. Keutzer (2016)

    SqueezeDet: unified, small, low power fully convolutional neural networks for real-time object detection for autonomous driving

    CoRR abs/1612.01051. External Links: Link, 1612.01051 Cited by: 2nd item, §2, §4.1.
  • C. Xiao, J. Zhu, B. Li, W. He, M. Liu, and D. Song (2018) Spatially transformed adversarial examples. CoRR abs/1801.02612. External Links: Link, 1801.02612 Cited by: §1.
  • C. Xie, J. Wang, Z. Zhang, Y. Zhou, L. Xie, and A. Yuille (2017) Adversarial examples for semantic segmentation and object detection. In Proceedings of the IEEE International Conference on Computer Vision, pp. 1369–1378. Cited by: §4.2.
  • S. Yao, T. H. Hsu, J. Zhu, J. Wu, A. Torralba, W. T. Freeman, and J. B. Tenenbaum (2018) 3D-aware scene manipulation via inverse graphics. In Advances in neural information processing systems, Cited by: §2, §3.2, §4.1.
  • J. Zhu, T. Park, P. Isola, and A. Efros (2017) Unpaired image-to-image translation using cycle-consistent adversarial networks. In 2017 IEEE International Conference on Computer Vision (ICCV), pp. 2242–2251. External Links: Document Cited by: §1.

Appendix A Appendix

a.1 Hybrid Tuning

To understand if we are able to obtain robustness against both pixel perturbations and SAEs, we repeated our experiments from earlier sections (§ 5.2); this time, we tuned the model robust to SAEs (obtained after 6000 iterations) using pixel perturbations for 6000 iterations - denoted Tuned (Pixel); we also tuned the model robust to pixel perturbations (obtained after 6000 iterations) using SAEs for 6000 iterations - denoted Tuned (SAE).

Model Tuned (SAE) Tuned (Pixel)
recall 93.2 91.7
mAP 73.8 65.7
(a) Validation set used: SAEs
Model Tuned (SAE) Tuned (Pixel)
recall 29.5 90.6
mAP 7.65 75.15
(b) Validation set used: pixel perturbations
Table 5: Performance of dual tuning (i.e. tuning a model robust to SAEs with pixel perturbations, and tuning a model robust to pixel perturbations with SAEs). The generality of pixel perturbations is masked by the specificity of SAEs (Table 4(b) - column 1).

We validated both the generated models against (a) SAEs, and (b) pixel perturbations. Our results are presented in Table 5. While the order of tuning did not greatly impact robustness in the face of SAEs, it had a direct impact for pixel perturbations (as evident from Table 4(b)). We explain the observation in Table 4(b)

using manifold learning. The detector is assumed to generalize over unobserved data on the data manifold. Due to the limited amount of sampling, the detector fails to generalize to SAEs lying on these uncovered regions; learning them aids generalization. Pixel perturbations, however, do not lie on the data manifold (due to its larger degree of freedom). Tuning the model using pixel perturbation is analogous to learning a thickened manifold (with the same uncovered regions as before). Now, if we tune this model, the detector learns uncovered regions in a thickened (and incorrect) manifold; this impacts generalization, further making it susceptible to pixel perturbations. Another intuition could be based on the generality of pixel perturbations; tuning first on such general perturbations impacts generalization

(Tsipras et al., 2018). When such a model is tuned on SAEs, we gain generalization at the expense of robustness.
