1. Introduction

The development of Cyber Physical Systems (CPSs) starts by specifying CPS control and dynamic behaviors as executable models described in languages such as Matlab/Simulink (mat, 2019). These models are complex and subject to extensive testing before they can be used as a basis for software code development. Existing research on automated testing of CPS models has largely focused on automated generation of test suites (Nardi and Damasceno, 2015; Harman et al., 2013; Oliveira et al., 2014). However, in addition to test input generation, test automation requires automated oracles (Barr et al., 2015), i.e., a mechanism to automatically determine whether a test has passed or failed.

To automate oracles, engineers often rely on runtime crashes (a.k.a. implicit oracles (Pezze and Zhang, 2014)) to detect failures. However, implicit oracles often cannot effectively reveal violations of functional requirements as most of such violations do not lead to crashes. As mandated by safety certification standards (IEC 61508 (2010), [n. d.]), for CPS, functional requirements must be specified, and be used as the main authoritative reference to derive test cases and to demonstrate system behavior correctness. To achieve this goal, we need to develop oracles that can automatically check the correctness of system behaviors with respect to requirements. In this paper, we propose an approach to generating oracles that automatically determine whether outputs of CPS models satisfy or violate their requirements. For CPS, oracles, in addition to be automated, need to contend with a number of considerations that we discuss and illustrate below.

ID Requirement Restricted Signal First-Order logic formula*
R1 The angular velocity of the satellite shall always be lower than .
R2

The estimated attitude of the satellite shall be always equal to 1.

R3 The maximum reaction torque must be equal to .
R4 The satellite attitude shall reach close to its target value within  sec (with a deviation not more than degrees) and remain close to its target value.
R5 The satellite target attitude shall not change abruptly: for every , the difference between the current target attitude and the one at two seconds later shall not be more than .
R6 The satellite shall reach close to its desired attitude (with a deviation not more than %2) exactly  sec after it enters its normal mode (i.e., ) and after it has stayed in that mode for at least 1 sec.
Table 1. Requirements for the satellite control system (SatEx) developed by LuxSpace.

Motivating Example. We motivate our work using SatEx, a real-world case study from the satellite domain (Lux, 2019). SatEx is a model of a satellite control system modeled in the Matlab/Simulink language and developed by our partner LuxSpace. Briefly, the main functions of the SatEx model are: (i) to always keep the satellite on the desired orbit, (ii) to ensure that the satellite is always facing the earth (i.e., the satellite’s attitude is always pointing to the earth), and (iii) to regulate the satellite speed. The main functional requirements of SatEx are presented in the middle column of Table 1, and the variables used in the requirements are described in Table 2.

Before software coding or generating code from Simulink models (a common practice when Simulink/Matlab models are used), engineers need to ensure that their models satisfy the requirements of interest (e.g., those in Table 1). Although there are a few automated verification tools for Simulink, in practice, verification of CPS Simulink models largely relies on simulation and testing. This is because existing tools for verifying Simulink models (qvt, 2019; Roy and Shankar, 2011; SDV, 2019; REA, 2019) are not amenable to verification of large Simulink models like SatEx that contain continuous physical computations and third-party library code (Matinnejad et al., 2018; Abbas et al., 2013). Further, CPS Simulink models often capture dynamic and hybrid systems (Alur, 2015). It is well-known that model checking such systems is in general undecidable (Henzinger et al., 1998; Alur et al., 1995; Alur, 2011).

Var. Description Var. Description
Satellite mode status. Satellite torque.
Satellite angular velocity. Current satellite attitude.
Estimated satellite attitude. Target satellite attitude.
Table 2. Signals variables of the SatEx model.

To effectively test CPS models, engineers need to have automated test oracles that can check the correctness of simulation outputs with respect to the requirements. To be effective in the context of CPS testing, oracles should further ensure the following objectives:

Figure 1. Three simulation outputs of our SatEx case study model indicating the error signal . The signal in (a) passes R4 in Table 1, but those in (b) and (c) violate R4 with low and high severity, respectively.

O1. Test oracles should check outputs in an online mode. An online oracle (a.k.a as a monitor in the literature (Bakhirkin et al., 2018b)) checks output signals as they are generated by the model under test. Provided with an online oracle, engineers can stop model simulations as soon as failures are identified. Note that CPS Simulink models are often computationally expensive because they have to capture physical systems and processes using high-fidelity mathematical models with continuous behaviors. Further, CPS models have to be executed for a large number of test cases. Also, due to the reactive and dynamic nature of CPS models, individual test executions (i.e., simulations) have to run for long durations to exercise interactions between the system and the environment over time. For example, to simulate the satellite behavior for (i.e., s), the SatEx model has to be executed for minutes (~1.5 hours) on -core Intel Core GHz GB of RAM. Further, the -length simulation of SatEx has to be (re)run for tens or hundreds of test cases. Therefore, online test oracles are instrumental to reduce the total test execution time and to increase the number of executed test cases within a given test budget time.

O2. Test oracles should be able to evaluate time and magnitude-continuous signals.

CPS model inputs and outputs are signals, i.e., functions over time. Signals are classified based on their time-domain into time-discrete and time-continuous, and based on their value-range into magnitude-discrete and magnitude-continuous. The type of input and output signals depends on the modeling formalisms. For example, differential equations

(Newton, 1774) often used in physical modeling yield continuous signals, while finite state automata (Kent et al., 1975) used to specify discrete-event systems generate discrete signals. Figure 1 shows three magnitude- and time-continuous signal outputs of SatEx indicating the error in the satellite attitude, i.e., the difference between the real and the target satellite attitudes (). An effective CPS testing framework should be able to handle the input and output signals of different CPS formalisms including the most generic and expressive signal type, i.e., time-continuous and magnitude-continuous. Such testing frameworks are then able to handle any discrete signal as well.

O3. Test oracles for CPS should provide a quantitative measure of the degree of satisfaction or violation of a requirement. Test oracles typically classify test results as failing and passing. The boolean partition into “pass" and “fail", however, falls short of the practical needs. In the CPS domain, test oracles should assess test results in a more nuanced way to identify among all the passing test cases, those that are more acceptable, and among all the failing test cases, those that reveal more severe failures. Therefore, an effective test oracle for CPS should assess test results using a quantitative fitness measure. For example, the satellite attitude error signal in Figure 1(a) satisfies the requirement R4 in Table 1. But, signals in Figures 1(b) and (c) violate R4 since the error signal does not remain below the threshold after s. However, the failure in Figure 1(c) is more severe than the one in Figure 1(b) since the former deviates from the threshold with a larger margin. A quantitative oracle can differentiate between these failure cases and assess their degree of severity.

O4. Test oracles should be able to handle uncertainties in CPS function models. There are various sources of uncertainty in CPS (Moiz, 2017). In this paper, we consider two main recurring and common sources of uncertainties in CPS (Elbaum and Rosenblum, [n. d.]; de Weck Olivier et al., 2007): (1) Uncertainty due to unknown hardware choices which results in model parameters whose values are only known approximately at early design stages. For example, in SatEx, there are uncertainties in the type of the magnetometer and in the accuracy of the sun sensors mounted on the satellite (see Table 3

). (2) Uncertainty due to the noise in the inputs received from the environment, particularly in the sensor readings. This is typically captured by white noise signals applied to the model inputs (e.g., Table

3 shows the signal-to-noise (S2N) ratios for the magnetometer and sun sensor inputs of SatEx). Oracles for CPS models should be able to assess outputs of models that contain parameters with uncertain values and signal inputs with noises.

Component Parameter Values Noises (S2N)
Magnetometer nT T/
Sun sensor A
Table 3. Uncertainty in SatEx: The values of the magnetometer type and the sun sensor accuracy parameters are given as ranges (middle column). The noise values for the magnetometer and sun sensor inputs are given in the right column.

Contributions. We propose Simulink Oracles for CPS RequiremenTs with uncErtainty (SOCRaTEs), an approach for generating online oracles in the form of Simulink blocks based on CPS functional requirements (Section 2). Our oracle generation approach achieves the four objectives discussed above through the following novel elements:

- We propose Restricted Signals First-Order Logic (RFOL), a signal-based logic language to specify CPS requirements (Section 3). RFOL is a restriction of Signal First Order logic (Bakhirkin et al., 2018a) (SFOL) that can capture properties of time- and magnitude-continuous signals while enabling the generation of efficient, online test oracles. We define a quantitative semantics for RFOL to compute a measure of fitness for test results as oracle outputs.

- We develop a procedure to translate RFOL requirements into automated oracles modeled in the Simulink language (Section 4). We prove the soundness of our translation with respect to the quantitative semantics of RFOL. Further, we demonstrate that: (1) the generated oracles are able to identify failures as soon as they are revealed (i.e., our oracles are online); and (2) our oracles can handle models containing parameters with uncertain values and signal inputs with noises. Finally, we have implemented our automated oracle generation procedure in a tool which is available online (Add, 2019).

We apply our approach to 11 industry Simulink models from two companies in the CPS domain. Our results show that our proposed logic-based requirements language (RFOL) is sufficiently expressive to specify all the 98 CPS requirements in our industrial case studies. Further, our automated translation can generate online test oracles in Simulink efficiently, and the effort of developing RFOL requirements is acceptable, showing potentials for the practical adoption of our approach. Finally, for large and computationally intensive industry models, our online oracles can bring about dramatic time savings by stopping test executions long before their completion when they find a failure, without imposing a large time overhead when they run together with the model.

Structure. Section 2 outlines SOCRaTEs and its underlying assumptions. Section 3 presents the Restricted Signals First-Order Logic and its semantics. Section 4 describes our automated oracle generation procedure. Section 5 evaluates SOCRaTEs. Section 6 presents the related work and Section 7 concludes the paper.

2. SOCRaTEs

Figure 2 shows an overview of SOCRaTeS (SOC, 2019) (Simulink Oracles for CPS RequiremenTs with uncErtainty), our approach to generate automated test oracles for CPS models. SOCRaTeS takes three inputs: (

1
) a CPS model with parameters or inputs involving uncertainties, (

2
) a set of functional requirements for the CPS model and (

3
) a set of test inputs that are developed by engineers to test the CPS model with respects to its requirements. SOCRaTeS makes the following assumptions about its inputs:

A1. The CPS model is described in Simulink (

1
). Simulink is used by more than 60% of engineers for simulation of CPS (Zheng et al., 2017; Baresi et al., 2017), and is the prevalent modeling language in the automotive domain (Matinnejad et al., 2016; Zander et al., 2012). Simulink appeals to engineers since it is particularly suitable for specifying dynamic systems, and further, it is executable and allows engineers to test their models as early as possible.

A2. Functional requirements are described in a signal logic-based language (

2
). We present our requirements language in Section 3 and compare it with existing signal logic languages (Bakhirkin et al., 2018a; Maler and Nickovic, 2004). We evaluate expressiveness of our language in Section 5.

A3. A set of test inputs exercising requirements are provided (

3
). We assume engineers have a set of test inputs for their CPS model. The test inputs may be generated manually, randomly or based on any test generation framework proposed in the literature (Matinnejad et al., 2016; Zander et al., 2012). Our approach is agnostic to the selected test generation method.

SOCRaTeS automatically converts functional requirements into oracles specified in Simulink (

4
). The oracles evaluate test outputs of the CPS model in an automated and online manner and generate fitness values that provide engineers with a degree of satisfaction or failure for each test input (

5
). Engineers can stop running a test in the middle when SOCRaTeS concludes that the test fitness is going to remain below a given threshold for the rest of its execution.

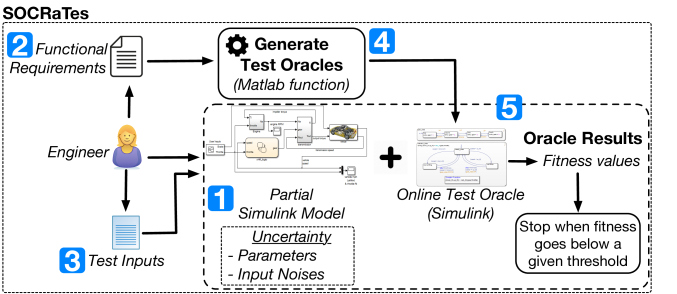

Figure 2. Overview of SOCRaTes, our automated oracle generation approach.

3. Context Formalization

In Section 3.1, we describe CPS Simulink models (

1
) without and with uncertainty and their inputs (

3
). In Section 3.2, we present Restricted Signals First-Order Logic (RFOL), the logic we propose to specify CPS functional requirements (

2
). In Section 3.3, we describe how oracles compute fitness values of test inputs (

5
).

3.1. Simulink Models

Simulink is a data-flow-based visual language that can be executed using Matlab and consists of blocks, ports and connections. Blocks typically represent operations and constants, and are tagged with ports that specify how data flow in and out of the blocks. Connections establish data-flows between ports.

To simulate a Simulink model , the simulation engine receives signal inputs defined over a time domain and computes signal outputs at successive time steps over the same time domain used for the inputs. A time domain is a non-singular bounded interval of . A signal is a function . A simulation, denoted by , receives a set of input signals and produces a set of output signals such that each corresponds to one model output. For example, Figure 3 shows a signal (black solid line) for the output of SatEx computed over the time domain .

Simulink uses numerical algorithms (Sim, 2019) referred to as solvers to compute simulations. There are two main types of solvers: fixed-step and variable-step. Fixed-step solvers generate signals over discretized time domains with equal-size time-steps, whereas variable-step solvers (e.g., Euler, Runge-Kutta (Atkinson, 2008)) generate signals over continuous time domains. While the underlying techniques and details of numerical solvers are outside the scope of this paper, we note that our oracles rely on Simulink solvers to properly handle signals based on their time domains, whether discrete or continuous. As a result, our work, in contrast to existing techniques, is able to seamlessly handle the verification of logical properties over not just discrete but also continuous CPS models.

Figure 3. Signals for the output of SatEx. The solid-line signal is generated by SatEx with no uncertainty, and the dashed-line signal is generated when the S2N ratios in Table 3 are applied to the SatEx inputs.

Simulink has built-in support to specify and simulate some forms of uncertainty. We refer to Simulink models that contain uncertain elements as partial models (denoted ), while we use the term definitive to indicate models with no uncertainty. Simulink can specifically capture the following two kinds of uncertainty that are common for CPS and also discussed in Section 1 (objective O4(Platzer, 2018):

(i) Uncertainty due to the noise in inputs. In Simulink, uncertainty due to the noise is implemented by augmenting model inputs with continuous-time random signals known as White Noise (WN) (Golnaraghi and Kuo, 2010). The degree of WN for each input is controlled by a signal-to-noise ratio (S2N) value which is the ratio of a desired signal over the background WN (Sig, 2019). Table 3 shows the S2N ratios for two inputs of SatEx. Fig. 3 shows the signal (gray dashed line) after adding some noise to the original output signal (in black solid line).

(ii) Uncertainty related to parameters with unknown values. In Simulink, parameters whose values are uncertain are typically defined using variables of type uncertain real (ureal), which is a built-in type in Matlab/Simulink that specifies a range of values for a variable (ure, 2019). Table 3 shows two parameters of SatEx whose exact values are unknown, and hence, value ranges are assigned to them.

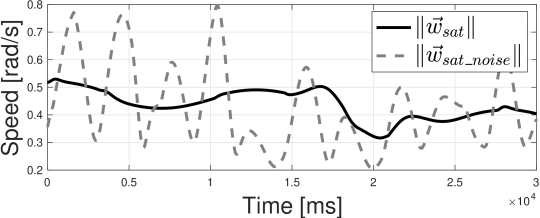

Figure 4. A set of signals for the output of SatEx with uncertain parameters (i.e., when the sun sensor and magnetometer parameters are specified as in Table 3).

Let be a partial Simulink model with outputs, and let be the number of different value assignments to uncertain parameters of . A simulation of a partial Simulink model , denoted by , receives a set of input signals defined over the same time domain, and produces a set of simulation outputs such that each is generated by one value assignment to uncertain parameters of . Specifically, for each , we have such that are signals for outputs of , i.e., each contains a signal for each output of . The function generates the simulation outputs consecutively and is provided in the Robust Control Toolbox of Simulink (Rob, 2019) which is the uncertainty modeling and simulation tool of Simulink models with dynamic behavior. The value of indicating the number of value assignments to uncertain parameters can either be specified by the user or selected based on the recommended settings of . For example, Figure 4 plots five simulation outputs for the output of SatEx. The uncertainty in this figure is due to the sun sensor accuracy parameter that takes values form the range as indicated in Table 3.

3.2. Our Requirements Language

Our choice of a language for CPS requirements is mainly driven by the objectives O1 and O2 described in Section 1. These two objectives, however, are in conflict. According to O2, the language should capture complex properties involving magnitude- and time-continuous signals. Such language is expected to have a high runtime computational complexity (Bakhirkin et al., 2018b). This, however, makes the language unsuitable for the description of online oracles that should typically have low runtime computational complexity, thus contradicting O1. For example, Signals First Order (SFO) logic (Bakhirkin et al., 2018b) is an extension of first order logic with continuous signal variables. SFO, however, is not amenable to online checking in its entirety due to its high expressive power that leads to high computational complexity of monitoring SFO properties (Bakhirkin et al., 2018b). Thus, the procedure for monitoring SFO properties is tailored to offline checking. In order to achieve both O1 and O2, we define Restricted Signals First-Order Logic (RFOL), a fragment of SFO. RFOL can be effectively mapped to Simulink to generate online oracles that run together with the model under test by the same solvers applied to the model, which can handle any signal type (i.e., discrete or continuous), hence addressing both O1 and O2. Note that even though RFOL is less expressive than SFO, as we will discuss in Section 5, all CPS requirements in our case studies can be captured by RFOL.

RFOL Syntax. Let be a set of time variables. Let be a set of signals defined over the same time domain , i.e., for every .

Let us consider the grammar defined as follows:

where , , , , and g and h are, respectively, arbitrary unary and binary arithmetic operators, is a relational operator in , and is a time interval of  (i.e., ) with lower bound and upper bound . The symbols and are equal to or , respectively to or , depending on whether , respectively , are included or excluded from the interval. We refer to , and as time term, signal term and formula term, respectively. A predicate is a formula term in the form .

Definition 3.1 ().

A Restricted Signals First-Order Logic (RFOL) formula is a formula term defined according to the grammar that also satisfies the following conditions: (1)  is closed, i.e., it does not have any free variable; and (2) every sub-formula of has at most one free time variable.

In RFOL, boolean operations (, ) combine predicates of the form , which compare signal terms with real values111Note that in our logic, negation is applied at the level of predicates.. The formulas further quantify over time variables of signal terms in and bound them in time intervals . Table 1 shows the formalization of the SatEx requirements in RFOL. For example, the predicate of formula states that the angular velocity of the satellite should be less than 1.5m/s, and forces the predicate to hold for a duration of 86 400s h, the estimated time required for the satellite to finish an orbit.

RFOL expressiveness. Here, we discuss what types of SFO properties are eliminated from RFOL due to the conditions in Definition 3.1. Condition 1 in Definition 3.1 requires closed formulas. RFOL properties must not include free variables (i.e., they should be formulas and not queries) so that they generate definitive results when checking test outputs. Condition 2 in Definition 3.1 is needed to ensure that the formulas can be translated into online oracles specified in Simulink. This condition eliminates formulas containing predicates where includes an arithmetic operator applied to signal segments over different time intervals (i.e., signal segments with different time scopes). For example, the formula is not in RFOL since has two free time variables and (i.e., it violates condition 2 in Definition 3.1). The predicate in this formula computes the sum of two segments of signal related to time intervals and . Such formulas are excluded from RFOL since during online checking, the operands and cannot be simultaneously accessed to compute . We note that formulas with arithmetic operators applied to signal segments over the same time interval (e.g., R4 and R5 in Table 1), or formulas involving different predicates over different time intervals, but connected with logical operators (e.g., R6) are included in RFOL.

Comparison with STL. In addition to SFO, Signal Temporal Logic (STL) (Maler and Nickovic, 2004) is another logic proposed in the literature that can capture CPS continuous behaviors. We compare RFOL with STL, and in particular, with bounded STL since test oracles can only check signals generated up to a given bound. Hence, for our purpose, bounded STL temporal operators have to be applied (e.g., ). RFOL subsumes bounded STL since boolean operators of STL can be trivially expressed in RFOL, and any temporal STL formula in the form of can also be specified in RFOL using time terms and time intervals. The detailed translation is available online (Add, 2019).

RFOL Semantics. We propose a (quantitative) semantics for RFOL to help engineers distinguish between different degrees of satisfaction and failure (see objective O3 in Section 1). As shown in Table 1 and also based on RFOL syntax, CPS requirements essentially check predicates over time. In other words, predicates are the building blocks of RFOL. To define a quantitative semantics for RFOL, we need to first define the semantics of these predicts in a quantitative way. In our work, we define a (domain-specific) diff function to assign a fitness value to . We require diff to have these characteristics: (1) The range of diff is . (2) A value in indicates that holds, and a value in indicates that is violated.

Definition 3.2 ().

Let diff be a domain-specific semantics function for predicates . Let be a set of signals with the same time domain . The semantics of an RFOL formula for the signal set is denoted by and is defined as follows:

The choice of the and operators for defining the semantics of and is standard (Larsen and Thomsen, 1988): the minimum has the same behavior as and evaluates whether a predicate holds over the entire time interval. Dually, the max operator captures . The semantics of signal terms depends on whether the signal is included in and whether is in the time domain , otherwise is undefined. We say is well-defined with respect to a signal set iff no signal term in is undefined. To avoid undefined RFOL formulas, signal time domains should be selected such that signal indices are included in , and further, the formula should not have negative signal indices. For example, for properties in Table 1, we need a time domain for R1 to R4, a time domain for R5, and a time domain for R6. Finally, we can infer the boolean semantics of RFOL from its quantitative semantics: For every formula term , we have . In other words, holds over the signal set iff .

Let . In our work, we define diff as follows:

In the above, is an infinitesimal positive value that ensures when and either , or is used.

Our diff function satisfies the two conditions described earlier and is closed under logical and . For example, is equal to . Our diff function, further, provides a quantitative fitness measure distinguishing between different levels of satisfaction and refutation. Specifically, a higher value of diff indicates that is fitter (i.e., it better satisfies or less severely violates the requirement under analysis). For example, the diff value of the predicate for the signals shown in Figure 4 is above zero implying that the signals satisfy the predicate. In contrast, the diff values for signals in Figures 1(b) and (c) are and , respectively. This shows that the violation in Figure 1(c) is more severe than that in Figure 1(b).

Note that the above diff function is only one alternative where we assume the fitness is proportional to the difference between and . We can define the diff function differently as long as the two properties described earlier are respected and the proposed semantics for diff respects logical conjunction and disjunction operators. For example, a simple diff can return when holds and -1, otherwise, yielding the boolean semantics of RFOL.

3.3. Test Oracles

In this section, we formally define our notion of test oracle. We specifically discuss test oracles for partial Simulink models since a definitive model is a specialization of a partial model. Recall that by simulating a partial Simulink model for a given test input , we obtain a set of alternative signals for each output of , while for a definitive model , the simulation output contains only one signal for each model output.

Definition 3.3 ().

Let be a Simulink model under test, and let be a test input for defined over the time domain . Let be an RFOL formula formalizing a requirement of . Suppose are the simulation results generated for the time domain . We denote the oracle value of for test input over model by and compute it as follows:

Specifically, indicates the fitness value of the test input over model and evaluated against requirement .

Recall that based on Definition 3.2, the oracle output is a value in . For definitive models, the test yields a single set of simulation outputs, and hence, the oracle computes , i.e., it evaluates over the set of test outputs. As defined above, for a partial model, the oracle computes the minimum value of over every test output set. Hence, for a partial model, the fitness value for a test is determined by the model output yielding the lowest fitness (i.e., the model output revealing the most severe failure or the model output yielding the lowest passable fitness).

4. Oracle generation

In this section, we present the oracle generation component of SOCRaTes (

4
in Figure 2). This component automatically translates RFOL formulas into online test oracles specified in Simulink that can handle time and magnitude-continuous signals and conform to our notion of oracle described in Definition 3.3. Note that an RFOL formula may not be directly translatable into an online test oracle if it contains sub-formulas referring to future time instants or to signal values that are not yet generated at the current simulation time. For example, consider the predicate in the R6 property of Table 1. The fitness value of this predicate at (i.e., the oracle output in Definition 3.3) can only be evaluated after generating signals and up to the time instant . This requires extending the time domain  by seconds. Instead of forcing a longer simulation time, we propose a procedure that rewrites the RFOL formulas into a form that allows a direct translation into online test oracles. This procedure, called time and interval shifting, is presented in Section 4.1. Having applied the procedure to RFOL formulas, in Section 4.2, we describe our translation to convert RFOL formulas into Simulink oracles. We further present a proof of soundness and completeness of our translation in that section. All the proofs of the Theorems are provided in our online Appendix (Add, 2019).

4.1. Time and Interval Shifting

Below, we present the time- and interval-shifting steps separately:

Time-shifting. Any signal term that refers to a signal value generated in the future should be rewritten as a signal term that does not refer to the future. For example, the formula that refers to the value of in the future cannot be checked online. Therefore, our time-shifting procedure replaces any signal term with a signal term as follows: Let be an RFOL formula. We traverse from its leaves to its root and replace every sub-formula (resp. ) of with (resp. ), where is the maximum value of constant in time terms appearing as signal indices in . For example, the requirement R5 in Table 1 is rewritten as:

Interval-Shifting. To ensure that can be translated into an online test oracle, for any in , the interval should end after all the intervals such that is a sub-formula of (i.e., ), and further, it should begin after all the intervals such that is a sub-formula of (i.e., ). Similarly, for any in , the dual of the above two conditions must hold. These conditions will ensure that the evaluation of the sub-formulas in the scope of can be fully contained and completed within the evaluation of their outer formula. For example, cannot be checked in an online way since the time interval of the inner sub-formula (i.e., ) does not end before the time interval of the outer formula (i.e., ). Therefore, our interval-shifting procedure shifts each time interval to ensure that it terminates after all its related inner time intervals.

Let be an RFOL formula. We traverse from its leaves to its root and we perform the following operations: (i) replace every sub-formula of with , where is the maximum value of constant in the upper bounds of time intervals associated with operators and the lower bounds of time intervals associated with operators in ; (ii) execute a dual procedure to update the time intervals of existential sub-formulae. For example, the interval-shifting procedure rewrites the formula previously introduced as .

To ensure interval-shifting is applied to signal variables with constant indices, we replace every in where is a constant with where is a new time variable that has not been used in . We refer to the RFOL formula obtained by sequentially applying time-shifting and interval-shifting to an RFOL formula as shifted-formula and denote it by .

Theorem 4.1 ().

Let  be an RFOL formula and let be its shifted-formula. For any signal set , we have:

The time complexity of generating a shifted-formula is where is the size of the formula , i.e., the sum of the number of its temporal and arithmetic operators. Both time and the interval shiftings scan the syntax tree of from its leaves to the root twice: one for computing the shifting values and for every subformula of ; and the other to apply the shifting, i.e., replacing the variable with or .

4.2. From RFOL to Simulink

In this section, we translate RFOL formulas written in their shifted-forms (as described in Section 4.1) into Simulink. Table 4 presents the rules for translating each syntactic construct of RFOL defined in Definition 3.1 into Simulink blocks. Note that h and g in Table 4, respectively, refer to binary arithmetic operators (e.g., +) or unary functions (e.g., sin) and map to their corresponding Simulink operations. Below, we discuss the rules for , , , and since the other rules in Table 4 directly follow from the RFOL semantics. Note that signal variables in shifted formulas are all written as s.t. . Hence, we give a translation rule for signal variables in the form of only.

Rule Rule1 Rule2 Rule3 Rule4 Rule5
Formula /
Simulink
Rule Rule6 Rule7 Rule8 Rule9
Formula
Simulink
Table 4. Translating the SFFO formulae into Simulink Oracles.

Rule1: To compute the value of , we use an integrator Simulink block to compute the formula which yields .
Rule4: To encode , we first obtain the delay applied to the signal . To obtain the value of from , we compute . We then use the transport delay block of Simulink to obtain the value of at time instants before .
Rule8: The formula is mapped into a Simulink model that initially generates the value until the start of the time interval . When holds, the multiplexer of Rule8 selects the value of instead of . Note that we use symbol for , symbol for , symbol for , and symbol for . The feedback loop in the model combined with a delay block (i.e., z) computes the minimum of over the time interval . Once the time interval expires, the multiplexer chooses constant 1 again. This, however, has no side-effect on the value already computed for the formula because and the minimum of and remains until the end of the simulation. Note that the rule for translating into Simulink is simply obtained by replacing in Rule8 MIN with MAX and constant 1 with constant -1.
Rule9: Recall that the semantics of depends on a domain specific fitness function. In our work, we implement the diff block in Rule9 based on the functions given in Section 3.2 for function diff.

Let be an RFOL formula and be its corresponding shifted formula. We denote by the Simulink model obtained by translating using the rules in Table 4. The model is a definitive Simulink model and has one and only one output because every model fragment in Table 4 has one single output. This output will be indicated in the following with the symbol . Below, we argue that conforms to our notion of test oracle given in Definition 3.3, and is an online oracle that can handle continuous signals. In order to use to check outputs of model with respect to a property , it suffices to connect the outputs of to the inputs of . We denote the model obtained by connecting the output ports of to the input ports of by . Clearly, has only one output signal (i.e., the output of ).

Theorem 4.2 ().

Let be a (partial) Simulink model, and let be a test input for defined over the time domain . Let be a requirement of in RFOL. Suppose and are simulation results generated for the time domain . Then, the value of over every signal set is equal to the value of the signal generated by at time . That is, . Further, we have:

That is, the minimum value of the outputs of at is equal to the oracle value as defined by Definition 3.3.

Theorem 4.2 states that our translation of RFOL formulas into Simulink is sound and complete with respect to our notion of oracle in Definition 3.3. Note that in the case of a definite Simulink model , the output of is a single signal . In summary, according to Theorem 4.2, (or ) is able to correctly compute the fitness value of for test input .

Theorem 4.3 ().

Let be a (partial) Simulink model, and let be a test input for over the time domain . Let be a requirement of in RFOL. Suppose are simulation results generated for . Let be the maximum constant appearing in the upper bounds of the time intervals of for existential quantifiers (i.e., time intervals in the form of in ). Each is decreasing over the time interval .

Note that in Theorem 4.3 indicates the time instant when all the existentially quantified time intervals of are terminated, and hence all the sub-formulas within the existential quantifiers of are evaluated. According to Theorem 4.3, the oracle output for becomes monotonically decreasing after . Therefore, after , we can stop model simulations as soon as the output of falls below some desired threshold level. More specifically, if the output of falls below a threshold at time it will remain below that threshold for any . Hence, is able to check test outputs in an online manner and stop simulations within the time interval as soon as some undesired results are detected. Note that if does not have any existential quantifier.

Our oracles can check Simulink models with time and magnitude-continuous signal outputs since all the blocks used in Table 4 can be executed by both fixed-step and variable-step solvers of Simulink, where the time step is decided by the same solver applied to the model under test. Finally, the running time of our oracle is linear in the size of the underlying time domain .

5. Evaluation

In this section, we empirically evaluate SOCRaTEs using eleven realistic and industrial Simulink models from the CPS domain. Specifically, we aim to answer the following questions. RQ1: Is our requirements language (RFOL) able to capture CPS requirements in industrial settings? RQ2: Is the use of RFOL and our proposed translation into Simulink models likely to be practical and beneficial? RQ3: Is a significant amount of execution time saved when using online test oracles, as compared to offline checking?

Implementation. We implemented SOCRaTEs as an Eclipse plugin using Xtext (Xte, 2019) and Sirius (sir, 2019) and have made it available online (SOC, 2019).

Study Subjects. We evaluate our approach using eleven case studies listed in Table 5. We received the case studies from two industry partners: LuxSpace (Lux, 2019), a satellite system developer, and QRA Corp (QRA, 2019), a verification tool vendor to the aerospace, automotive and defense sectors. Each case study includes a Simulink model and a set of functional requirements in natural language that must be satisfied by the model. Two of our case studies, i.e., SatEx from LuxSpace and Autopilot from QRA Corp, are large-scale industrial models and respectively represent full behaviors of a satellite and an autopilot system and their environment. The other nine models capture smaller systems or sub-systems of some CPS. Our case study models implement diverse CPS functions and capture complex behaviors such as non-linear and differential equations, continuous behaviors and uncertainty. SatEx and Autopilot are continuous models. SatEx further has inputs with noise and some parameters with uncertain values. Table 5 also reports the number of blocks (#Blocks) of the Simulink models and the number of requirements (#Reqs) in our case studies. In total, our case studies include 98 requirements.

Model Name Model Description #Blocks #Reqs
Autopilot

A full six degree of freedom simulation of a single-engined high-wing propeller-driven airplane with autopilot.

1549 12
SatEx Discussed in Section 1. 2192 8
Neural Network A two-input single-output predictor neural network model with two hidden layers. 704 6
Tustin A numeric model that computes integral over time. 57 5
Regulator A typical PID controller. 308 10
Nonlinear Guidance A non-linear guidance algorithm for an Unmanned Aerial Vehicles (UAV) to follow a moving target. 373 1
System Wide
Integrity Monitor
A numerical algorithm that computes warning to an operator when the airspeed is approaching a boundary where an evasive fly up maneuver cannot be achieved. 164 3
Effector Blender A control allocation method to calculate the optimal effector configuration for a vehicle. 95 3
Two Tanks A two tanks system where a controller regulates the incoming and outgoing flows of the tanks. 498 31
Finite State Machine A finite state machine executing in real-time that turn on the autopilot mode in case of some environment hazard. 303 13
Euler A mathematical model to compute 3-dimensional rotation matrices for an Inertial frame in a Euclidean space. 834 8
Table 5. Important characteristics of our case study systems (from left to right): (1) name, (2) description, (3) number of blocks of the Simulink model of each case study (#Blocks), and (4) number of requirements in each case study (#Reqs).

RQ1 (RFOL expressiveness). To answer this question, we manually formulated the 98 functional requirements in our case studies into the RFOL language. All of the 98 functional requirements of our eleven study subjects were expressible in RFOL without any need to alter or restrict the requirements descriptions. Further, all the syntactic constructs of RFOL described in Section 3.2 were needed to express the requirements in our study.

[colback=lightgray] The answer to RQ1 is that RFOL is sufficiently expressive to capture all the 98 CPS requirements of our industrial case studies.

RQ2 (Usefulness of the translation). Recall that engineers need to write requirements in RFOL before they can translate them into Simulink. To answer this question, we report the size of RFOL formulas used as input to our approach, the time it takes to generate online Simulink oracles and the size of the generated Simulink oracles. We measure the size of RFOL requirements as the sum of the number of quantifiers, and arithmetic and logical operators, and the size of Simulink oracles as their number of blocks and connections. Figure 5(a) shows the size of RFOL formulas (||) for our case study requirements, and Figure 5(b) shows the number of blocks (#Blocks) and connections (#Connections) of the oracle Simulink models that are automatically generated by our approach. In addition, Figure 5(c) shows the time taken by our approach to generate oracle models from RFOL formulas. As shown in Figure 5, it took on average 1.6ms to automatically generate oracle models with an average number of 64.2 blocks and 72.6 connections for our 98 case study requirements. Further, the average size of RFOL formulas is 19.2, showing that the pre-requisite effort to write the input RFOL formulas for our approach is not high. The difference in size between RFOL formulas and their corresponding Simulink models is mostly due to the former being particularly suitable for expressing declarative properties, such as logical properties with several nested quantifiers. Given this property, and in addition the fact that verification and test engineers are not always very familiar with Simulink — a tool dedicated to control engineers, we expect significant benefits from translating RFOL into Simulink.

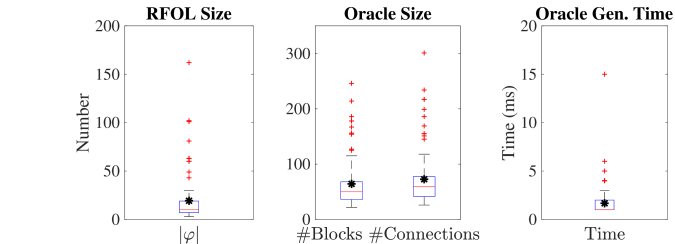

Figure 5. Plots reporting (a) the size of the RFOL formulas, (b) the number of blocks and connections of the oracle models and (c) the time took SOCRaTEs to generate the oracles.
Figure 6. Test execution time on models without oracles (), models with oracles () with and models with oracles () with for (a) Autopilot, (b) SatEx without uncertainty and (c)  SatEx with uncertainty.

[colback=lightgray] The answer to RQ2 is that, for our industrial case studies, the translation into Simulink models is practical as the time required to generate the oracles is acceptable. It takes on average 1.6ms for SOCRaTeS to generate oracle models, and the average size of the input RFOL formulas is 19.2, showing that the pre-requisite effort of our approach is manageable.

RQ3 (Impact on the execution time). Online oracles can save time by stopping test executions before their completion when they find a failure. However, by combining a model and a test oracle (i.e., generating ), the model size increases, and so does its execution time. Hence, in RQ3, we compare the time saved by online oracles versus the time overhead of running the oracles together with the models. For this question, we focus on our two large industrial models, SatEx and Autopilot, since they have long and time-consuming simulations while the other models in Table 5 are relatively small with simulation times less than one minute. For such models, both the time savings and the time overheads of our online oracles are practically insignificant.

During their internal testing, our partners identified some faults in SatEx and Autopilot violating some of the model requirements. We received, from our partners, 10 failing test inputs for Autopilot defined over the time domain , and 4 failing test inputs for SatEx defined over the time domain . Recall that SatEx contains some parameters with uncertain values. We also received the value range for one uncertain parameter of SatEx, i.e., ACM_type, from our partner. We then performed the following three experiments. EXPI: We ran all the test inputs on the models alone without including oracle models. EXPII: We combined SatEx and Autopilot with test oracle models related to their respective requirements and ran all the test inputs on the models with oracles. We did not consider any uncertainty in SatEx and set ACM_type to a fixed value. EXPIII: We ran all the tests on SatEx combined with its oracle models and defined ACM_type as an uncertain parameter with a value range. We repeated EXPII and EXPIII for two threshold values: where test executions are stopped when tests fail according to their boolean semantics, and where test executions are never stopped.

Figures 6(a) and (b), respectively, show the results of EXPI and EXPII for Autopilot and SatEx. Specifically, the figures show the time required to run the test inputs on Autopilot and SatEx (1) without any oracle model (), (2) with oracle models () for , and (3) with oracle models () for . Specifically, in the second case, test oracles stop test executions when test cases fail, and in the third case, test oracles are executed together with the model, but do not stop test executions. Our results show that on average it takes 101.1s and 4993.2s to run tests on Autopilot and SatEx, respectively (i.e., Case ). These averages, respectively, reduce to 4.3s and 180.4s when oracles stop test executions, and they, respectively, increase to 181.6s and 5311.1s when oracles do not stop test executions. That is, for Autopilot, the average time saving of our oracles is 95.6% (1.5m) while their average time overhead is 78% (1.2m). In contrast, for SatEx, our oracles lead to an average time saving of 96% (80m) and an average time overhead of 6% (5m). We note that Autopilot is less computationally intensive. In this case, the time savings and overheads are almost equivalent because the size and complexity of the generated oracles are comparable to those of the model. SatEx, on the other hand, is more computationally intensive, and as the results show, for SatEx our oracles introduce very little time overhead but are able to save a great deal of time when they identify failures. Finally, we note that the time saving depends also on the presence of faults in models and whether and when test cases trigger failures. Nevertheless, according to discussions with our partners, and as evidenced by our case studies, early CPS Simulink models typically contain faults, and hence, our approach can help in saving test execution times for such models.

Figure 6(c) shows the results of EXPIII for running SatEx with uncertainty. Since in the case of uncertainty, a set of outputs are generated, the total test execution time increases. Specifically, it takes, on average, 9974.9s to run SatEx with uncertainty without oracles, 166.2s to run it when oracles stop test executions, and 10450.0s to run it when oracles do not stop test executions. As the results show, for SatEx with uncertainty, the time saving is even higher (i.e., 98%, 163m) than the case of SatEx without uncertainty, because oracles stop simulations as soon as one output among the set of generated outputs fails.

[colback=lightgray] The answer to RQ3 is that, for large and computationally intensive industrial models, our oracles introduce very little time overhead (6%) but are able to save a great deal of time when they identify failures (96%). When models contain uncertainty the time saving becomes even larger and the time overhead decreases, making our online oracles more beneficial.

Data Availability. Our tool is available online (SOC, 2019). Among the considered models, all the models with the exception of the SatEx model are available on request (Add, 2019). The SatEx model is not shared as it is part of a non-disclosure agreement.

6. Related Work

We classified the related work (Table 6) by analyzing whether the work addresses the oracle generation problem (OG)? whether it satisfies assumptions A1 and A2 (Section 2)? and whether it aims to achieve objectives O1 to O4 (Section 1)? Note that assumption A3 is considered in all the related work included here. As shown in the table, there is no work that achieves oracle generation and satisfies all our four objectives. Below, we discuss the closest lines of work to ours among those included in Table 6.

Assumpt. Objectives
Ref OG A1 A2 O1* O2 O3 O4
(Dokhanchi et al., 2014; Jakšić et al., 2016; Fainekos and Pappas, 2009; Donzé and Maler, 2010)
(Maler and Nickovic, 2004; Baresi et al., 2017; Nardi et al., 2013; Bakhirkin et al., 2018a),
(Baresi et al., 2017; Nardi et al., 2013; Bartocci et al., 2018b)
(Silvetti et al., 2018; Maler and NiăźKović, 2013)
(Balsini et al., 2017)
(Andrés et al., 2012; Dillon and Ramakrishna, 1996)
(Schneider et al., 2018; Pill and Wotawa, 2018)
(Hoxha et al., 2015; Dillon and Yu, 1994; Mandrioli et al., 1995; Coppit and Haddox-Schatz, 2005; Le Gall and Arnould, 1996; Srinivasan and Leveson, 2002; Satpathy et al., 2007; Morasca et al., 1996; Stocks and Carrington, 1993; Richardson et al., 1992; Lin and Ho, 2001)
(Whittle et al., 2009)
Table 6. Classification of the related work based on the following criteria: Is the work about oracle generation (OG)? Does the work build on the A1 and A2 assumptions (see Section 2)? Does it achieve the O1 to O4 objectives (see Section 1)? Assumption A3 is satisfied by all the related work.

Dokhanchi et al. (Dokhanchi et al., 2014) propose an online monitoring procedure for Metric Temporal Logic (MTL) (Koymans, 1990) properties implemented in the S-TaLiRo tool (Annpureddy et al., 2011). The authors use a prediction technique to handle temporal operators that refer to future time instants compared to the shifting procedures proposed in our work. As a result, their monitoring procedure has a higher running time complexity than our oracles (i.e., polynomial in the size of time history versus linear in the time domain size). Furthermore, they do not translate their monitors into Simulink, and hence, cannot benefit from the execution time speed-up of efficient Simulink blocks and the Simulink variable step solvers to handle continuous behaviors. Thus, as shown by Dokhachi et al. (Dokhanchi et al., 2014), the time overhead of their approach is considerably high as the time history grows. Jakšić et al. (Jakšić et al., 2016) recently developed an online monitoring procedure for STL by translating STL into automata monitors with a complexity that is exponential in the size of the formula. In contrast to our work, such monitors are not able to handle continuous signals sampled at a variable rate directly. This such signals are approximated as fixed-step signals, hence decreasing the analysis precision of continuous behaviors. To the best of our knowledge and according to a recent survey (Bartocci et al., 2018a), the only work that, like us, translates a logic into Simulink to enable online monitoring is the work of Balsini et al. (Balsini et al., 2017). The translation, however, is given for a restricted version of STL, which for example does not allow the nesting of more than two temporal operators. As discussed in Section 3.2, RFOL subsumes STL. Hence, our translation subsumes that of Balsini et al. (Balsini et al., 2017). Breach (Donzé, 2010; Donzé and Maler, 2010) is a monitoring framework for continuous and hybrid systems that translates STL into online monitors specified in C++ or MATLAB S-functions. However, due to the overhead of integrating C++ or S-functions in Simulink, running monitors in the Breach framework greatly slows down model simulations, by 4.5 times (Watanabe et al., 2018), making the monitors impractical for computationally expensive CPS models such as our SatEx case study. Finally, Maler et al. (Maler and NiăźKović, 2013) propose a monitoring procedure that receives signal segments sequentially, checks each segment and stops simulations if a failure is detected. This work, however, is only partially online since each segment is eventually checked in an offline mode.

There are a number of work defining a quantitative semantics for logics used in the context of CPS. Dokhachi et al. (Dokhanchi et al., 2014) introduce the concept of robustness (Fainekos and Pappas, 2009) of an STL property specifying how robustly a requirement is satisfied or violated. Jakšić et al. (Jakšić et al., 2016) use the concept of edit distance to measure the degree of similarity between two signals. Silvetti et al. (Silvetti et al., 2018) propose a variation of STL that enables to reason about the percentage of time a formula is satisfied in a bounded interval. Our semantics for RFOL, in contrast to the existing work, captures the satisfaction degree of requirements.

7. Conclusions

In this paper, we presented SOCRaTes, an automated approach to generate online test oracles in Simulink able to handle CPS Simulink models with continuous behaviors and involving uncertainties. Our oracles generate a quantitative degree of satisfaction or failure for each test input. Our results were obtained by applying SOCRaTes to 11 industry case studies and show that (i) our requirements language is able to express all the 98 requirements of our case studies; (ii) the effort required by SOCRaTes to generate online oracles in Simulink is acceptable, paving the way for a practical adoption of the approach, and (iii) for large models, our approach dramatically reduces the test execution time compared to when test outputs are checked in an offline manner.

References

  • (1)
  • Lux (2019) 2019. LuxSpace. https://luxspace.lu/.
  • mat (2019) 2019. Mathworks. https://mathworks.com.
  • Add (2019) 2019. Online form for accessing companion material.
    https://claudiomenghi.github.io/socratesForm.html.
  • QRA (2019) 2019. QRA Corp. https://qracorp.com/.
  • qvt (2019) 2019. QVtrace. https://qracorp.com/qvtrace/.
  • REA (2019) 2019. reactive-systems. https://www.reactive-systems.com.
  • Rob (2019) 2019. Robust Control Toolbox. https://nl.mathworks.com/products/robust.html.
  • Sig (2019) 2019. Signal To Noise Ratio. https://en.wikipedia.org/wiki/Signal-to-noise_ratio.
  • SDV (2019) 2019. Simulink Design Verifier. https://nl.mathworks.com/products/sldesignverifier.html.
  • Sim (2019) 2019. Simulink Solvers. https://nl.mathworks.com/help/simulink/ug/types-of-solvers.html.
  • sir (2019) 2019. Sirius. https://www.eclipse.org/sirius/.
  • SOC (2019) 2019. SOCRaTEs. https://github.com/claudiomenghi/SOCRaTEs.
  • ure (2019) 2019. Uncertain Real Parameters. https://nl.mathworks.com/help/robust/ug/uncertain-real-parameters.html.
  • Xte (2019) 2019. Xtext. https://www.eclipse.org/Xtext/.
  • Abbas et al. (2013) Houssam Abbas, Georgios E. Fainekos, Sriram Sankaranarayanan, Franjo Ivancic, and Aarti Gupta. 2013. Probabilistic Temporal Logic Falsification of Cyber-Physical Systems. ACM Transactions on Embedded Computing Systems (TECS) 12, 2s (2013), 95:1–95:30.
  • Alur (2011) R. Alur. 2011. Formal verification of hybrid systems. In International Conference on Embedded Software (EMSOFT). 273–278.
  • Alur (2015) Rajeev Alur. 2015. Principles of Cyber-Physical Systems. MIT Press.
  • Alur et al. (1995) Rajeev Alur, Costas Courcoubetis, Nicolas Halbwachs, Thomas A Henzinger, P-H Ho, Xavier Nicollin, Alfredo Olivero, Joseph Sifakis, and Sergio Yovine. 1995. The algorithmic analysis of hybrid systems. Theoretical computer science 138, 1 (1995), 3–34.
  • Andrés et al. (2012) César Andrés, Mercedes G. Merayo, and Manuel Núñez. 2012. Formal passive testing of timed systems: theory and tools. Software Testing, Verification and Reliability 22, 6 (2012), 365–405. https://doi.org/10.1002/stvr.1464
  • Annpureddy et al. (2011) Yashwanth Annpureddy, Che Liu, Georgios Fainekos, and Sriram Sankaranarayanan. 2011. S-TaLiRo: A Tool for Temporal Logic Falsification for Hybrid Systems. In Tools and Algorithms for the Construction and Analysis of Systems, Parosh Aziz Abdulla and K. Rustan M. Leino (Eds.). Springer, 254–257.
  • Atkinson (2008) Kendall E Atkinson. 2008. An introduction to numerical analysis. John Wiley & Sons.
  • Bakhirkin et al. (2018a) Alexey Bakhirkin, Thomas Ferrère, Thomas A Henzinger, and Dejan Ničković. 2018a. The first-order logic of signals: keynote. In International Conference on Embedded Software. IEEE Press, 1.
  • Bakhirkin et al. (2018b) Alexey Bakhirkin, Thomas Ferrère, Thomas A. Henzinger, and Dejan Ničković. 2018b. The First-order Logic of Signals: Keynote. In International Conference on Embedded Software (EMSOFT). IEEE, Article 1, 10 pages. http://dl.acm.org/citation.cfm?id=3283535.3283536
  • Balsini et al. (2017) Alessio Balsini, Marco Di Natale, Marco Celia, and Vassilios Tsachouridis. 2017. Generation of Simulink monitors for control applications from formal requirements. In Industrial Embedded Systems (SIES). IEEE, 1–9.
  • Baresi et al. (2017) Luciano Baresi, Marcio Delamaro, and Paulo Nardi. 2017. Test oracles for simulink-like models. Automated Software Engineering 24, 2 (2017), 369–391.
  • Barr et al. (2015) Earl T Barr, Mark Harman, Phil McMinn, Muzammil Shahbaz, and Shin Yoo. 2015. The oracle problem in software testing: A survey. Transactions on Software Engineering 41, 5 (2015), 507–525.
  • Bartocci et al. (2018a) Ezio Bartocci, Jyotirmoy Deshmukh, Alexandre Donzé, Georgios Fainekos, Oded Maler, Dejan Ničković, and Sriram Sankaranarayanan. 2018a. Specification-based monitoring of cyber-physical systems: a survey on theory, tools and applications. In Lectures on Runtime Verification. Springer, 135–175.
  • Bartocci et al. (2018b) Ezio Bartocci, Thomas Ferrère, Niveditha Manjunath, and Dejan Ničković. 2018b. Localizing Faults in Simulink/Stateflow Models with STL. In International Conference on Hybrid Systems: Computation and Control (HSCC). ACM, 197–206.
  • Coppit and Haddox-Schatz (2005) D. Coppit and J. M. Haddox-Schatz. 2005. On the Use of Specification-Based Assertions as Test Oracles. In NASA Software Engineering Workshop. IEEE, 305–314.
  • de Weck Olivier et al. (2007) Eckert Claudia M de Weck Olivier, Clarkson P John, et al. 2007. A classification of uncertainty for early product and system design. Guidelines for a Decision Support Method Adapted to NPD Processes (2007), 159–160.
  • Dillon and Ramakrishna (1996) L. K. Dillon and Y. S. Ramakrishna. 1996. Generating Oracles from Your Favorite Temporal Logic Specifications. In Symposium on Foundations of Software Engineering (SIGSOFT). ACM.
  • Dillon and Yu (1994) Laura K Dillon and Qing Yu. 1994. Specification and Testing of Temporal Properties of Concurrent System Designs. University of California at Santa Barbara.
  • Dokhanchi et al. (2014) Adel Dokhanchi, Bardh Hoxha, and Georgios Fainekos. 2014. On-line monitoring for temporal logic robustness. In International Conference on Runtime Verification. Springer, 231–246.
  • Donzé (2010) Alexandre Donzé. 2010. Breach, a toolbox for verification and parameter synthesis of hybrid systems. In Computer Aided Verification. Springer, 167–170.
  • Donzé and Maler (2010) Alexandre Donzé and Oded Maler. 2010. Robust satisfaction of temporal logic over real-valued signals. In International Conference on Formal Modeling and Analysis of Timed Systems. Springer, 92–106.
  • Elbaum and Rosenblum ([n. d.]) Sebastian Elbaum and David S Rosenblum. [n. d.]. Known unknowns: testing in the presence of uncertainty.
  • Fainekos and Pappas (2009) Georgios E Fainekos and George J Pappas. 2009. Robustness of temporal logic specifications for continuous-time signals. Theoretical Computer Science 410, 42 (2009), 4262–4291.
  • Golnaraghi and Kuo (2010) Farid Golnaraghi and BC Kuo. 2010. Automatic control systems. Complex Variables 2 (2010), 1–1.
  • Harman et al. (2013) Mark Harman, Phil McMinn, Muzammil Shahbaz, and Shin Yoo. 2013. A comprehensive survey of trends in oracles for software testing. University of Sheffield, Department of Computer Science, Tech. Rep. CS-13-01 (2013).
  • Henzinger et al. (1998) Thomas A Henzinger, Peter W Kopke, Anuj Puri, and Pravin Varaiya. 1998. What’s decidable about hybrid automata? Journal of computer and system sciences 57, 1 (1998), 94–124.
  • Hoxha et al. (2015) Bardh Hoxha, Nikolaos Mavridis, and Georgios Fainekos. 2015. VISPEC: A graphical tool for elicitation of MTL requirements. In Intelligent Robots and Systems (IROS). IEEE, 3486–3492.
  • IEC 61508 (2010) ([n. d.]) IEC 61508 (2010) [n. d.]. Functional safety of electrical/electronic/programmable electronic safety-related systems (2.0 ed.). International Standard. IEC.
  • Jakšić et al. (2016) Stefan Jakšić, Ezio Bartocci, Radu Grosu, and Dejan Ničković. 2016. Quantitative monitoring of STL with edit distance. In International Conference on Runtime Verification. Springer, 201–218.
  • Kent et al. (1975) Allen Kent, Albert George Holzman, and Jack Belzer. 1975. Encyclopedia of computer science and technology. (1975).
  • Koymans (1990) Ron Koymans. 1990. Specifying real-time properties with metric temporal logic. Real-time systems 2, 4 (1990), 255–299.
  • Larsen and Thomsen (1988) Kim G Larsen and Bent Thomsen. 1988. A modal process logic. In Logic in Computer Science. IEEE, 203–210.
  • Le Gall and Arnould (1996) Pascale Le Gall and Agnès Arnould. 1996. Formal specifications and test: Correctness and oracle. In Recent Trends in Data Type Specification, Magne Haveraaen, Olaf Owe, and Ole-Johan Dahl (Eds.). Springer.
  • Lin and Ho (2001) Jin-Cherng Lin and Ian Ho. 2001. Generating timed test cases with oracles for real-time software. Advances in Engineering Software 32, 9 (2001), 705 – 715. https://doi.org/10.1016/S0965-9978(01)00021-7
  • Maler and Nickovic (2004) Oded Maler and Dejan Nickovic. 2004. Monitoring temporal properties of continuous signals. In Formal Techniques, Modelling and Analysis of Timed and Fault-Tolerant Systems. Springer, 152–166.
  • Maler and NiăźKović (2013) Oded Maler and Dejan NiăźKović. 2013. Monitoring Properties of Analog and Mixed-signal Circuits. Int. J. Softw. Tools Technol. Transf. 15, 3 (June 2013), 247–268. https://doi.org/10.1007/s10009-012-0247-9
  • Mandrioli et al. (1995) Dino Mandrioli, Sandro Morasca, and Angelo Morzenti. 1995. Generating Test Cases for Real-time Systems from Logic Specifications. ACM Trans. Comput. Syst. 13, 4 (Nov. 1995), 365–398. https://doi.org/10.1145/210223.210226
  • Matinnejad et al. (2018) Reza Matinnejad, Shiva Nejati, Lionel Briand, and Thomas Bruckmann. 2018. Test Generation and Test Prioritization for Simulink Models with Dynamic Behavior. IEEE Transactions on Software Engineering (2018).
  • Matinnejad et al. (2016) Reza Matinnejad, Shiva Nejati, Lionel C. Briand, and Thomas Bruckmann. 2016. Automated Test Suite Generation for Time-continuous Simulink Models. In International Conference on Software Engineering (ICSE). ACM.
  • Moiz (2017) Salman Abdul Moiz. 2017. Uncertainty in Software Testing. In Trends in Software Testing. Springer, 67–87.
  • Morasca et al. (1996) Sandro Morasca, Angelo Morzenti, and Pieluigi SanPietro. 1996. Generating Functional Test Cases In-the-large for Time-critical Systems from Logic-based Specifications. In 1996 ACM SIGSOFT International Symposium on Software Testing and Analysis (ISSTA ’96). ACM, New York, NY, USA, 39–52. https://doi.org/10.1145/229000.226300
  • Nardi and Damasceno (2015) Paulo A Nardi and Eduardo F Damasceno. 2015. A Survey on Test Oracles. (2015).
  • Nardi et al. (2013) P. A. Nardi, M. E. Delamaro, and L. Baresi. 2013. Specifying automated oracles for Simulink models. In International Conference on Embedded and Real-Time Computing Systems and Applications. IEEE, 330–333.
  • Newton (1774) Isaac Newton. 1774. Methodus fluxionum et seriarum infinitarum. Opuscula mathematica, philosophica et philologica 1 (1774).
  • Oliveira et al. (2014) Rafael AP Oliveira, Upulee Kanewala, and Paulo A Nardi. 2014. Automated test oracles: State of the art, taxonomies, and trends. In Advances in computers. Vol. 95. Elsevier, 113–199.
  • Pezze and Zhang (2014) Mauro Pezze and Cheng Zhang. 2014. Automated test oracles: A survey. In Advances in Computers. Vol. 95. Elsevier, 1–48.
  • Pill and Wotawa (2018) Ingo Pill and Franz Wotawa. 2018. Automated generation of (F) LTL oracles for testing and debugging. Journal of Systems and Software 139 (2018), 124–141.
  • Platzer (2018) André Platzer. 2018. Foundations of Cyber-Physical Systems.
  • Richardson et al. (1992) Debra J. Richardson, Stephanie Leif Aha, and T. Owen O’Malley. 1992. Specification-based Test Oracles for Reactive Systems. In International Conference on Software Engineering (ICSE). ACM.
  • Roy and Shankar (2011) Pritam Roy and Natarajan Shankar. 2011. SimCheck: a contract type system for Simulink. Innovations in Systems and Software Engineering 7, 2 (2011), 73–83.
  • Satpathy et al. (2007) Manoranjan Satpathy, Michael Butler, Michael Leuschel, and S. Ramesh. 2007. Automatic Testing from Formal Specifications. In Tests and Proofs, Yuri Gurevich and Bertrand Meyer (Eds.). Springer Berlin Heidelberg, Berlin, Heidelberg, 95–113.
  • Schneider et al. (2018) Joshua Schneider, David Basin, Frederik Brix, Srđan Krstić, and Dmitriy Traytel. 2018. Scalable Online First-Order Monitoring. In Runtime Verification, Christian Colombo and Martin Leucker (Eds.). Springer, Cham, 353–371.
  • Silvetti et al. (2018) Simone Silvetti, Laura Nenzi, Ezio Bartocci, and Luca Bortolussi. 2018. Signal Convolution Logic. arXiv preprint arXiv:1806.00238 (2018).
  • Srinivasan and Leveson (2002) J. Srinivasan and N. Leveson. 2002. Automated testing from specifications. In Digital Avionics Systems Conference. IEEE, 6A2–6A2.
  • Stocks and Carrington (1993) P. A. Stocks and D. A. Carrington. 1993. Test Templates: A Specification-based Testing Framework. In International Conference on Software Engineering (ICSE). IEEE.
  • Watanabe et al. (2018) Kosuke Watanabe, Eunsuk Kang, Chung-Wei Lin, and Shinichi Shiraishi. 2018. Runtime Monitoring for Safety of Intelligent Vehicles. In Annual Design Automation Conference (DAC). ACM.
  • Whittle et al. (2009) Jon Whittle, Pete Sawyer, Nelly Bencomo, Betty HC Cheng, and Jean-Michel Bruel. 2009. Relax: Incorporating uncertainty into the specification of self-adaptive systems. In Requirements Engineering Conference. IEEE, 79–88.
  • Zander et al. (2012) Justyna Zander, Ina Schieferdecker, and Pieter J Mosterman. 2012. Model-based testing for embedded systems. CRC Press.
  • Zheng et al. (2017) Xi Zheng, Christine Julien, Miryung Kim, and Sarfraz Khurshid. 2017. Perceptions on the state of the art in verification and validation in cyber-physical systems. Systems Journal 11, 4 (2017), 2614–2627.

Appendix

Section A describes how an STL formula can be converted into an equivalent RFOL formula. Section B contains the proofs for the Theorems of Section 4

A. Transforming STL formulae in RFOL

We show that any STL formula can be expressed in RFOL. Let be a real variable and , an STL formula can be described using the following grammar:

where , . , are boolean operators while , are temporal operators.

Any STL can be expressed in RFOL by executing a procedure that follows two steps.

Step 1. The STL formula is rewritten into an equivalent STL formula by executing the following operations:

  • compute the negation normal form (NNF) of the STL formula;222A formula is in negation formal form if negation occurs only directly in front of atoms.

  • transform any atom in the form into and into .

Note that the previous procedure pushes all the negations into formula atoms.

Step 2. The syntax tree of the STL formula is analyzed from the root to the leaves and every operator of the resulting STL formula is transformed into RFOL as follows:

  • every STL subformula in the form , and is converted into an equivalent RFOL subformula that uses the same boolean or relational operator;

  • every STL subformula in the form is converted into

    1. the RFOL formula if is not nested into another formula that uses any temporal operators;

    2. the RFOL formula if is nested into another formula that uses temporal operators. The timed variable is the timed variable introduced in the RFOL formula when the other formula is mapped into RFOL;

  • every STL subformula in the form is converted into

    1. the RFOL formula if is not nested into another formula that uses the temporal operators;

    2. the RFOL formula if is nested into another formula that uses temporal operators. The timed variable is the timed variable introduced in the RFOL formula when the other formula is mapped into RFOL;

  • every STL subformula in the form is converted into

    1. the RFOL formula if is not nested into another formula that uses temporal operators;

    2. the RFOL formula if is nested into another formula that uses temporal operators. The timed variable is the timed variable introduced in the RFOL formula when the other formula is mapped into RFOL;

  • every STL subformula in the form is converted into

    1. the RFOL formula if the formula is not nested into another formula that uses the temporal operators;

    2. the RFOL formula if is nested into another formula that uses temporal operators. The timed variable is the timed variable introduced in the RFOL formula when the other formula is mapped into RFOL.

Note that it is trivial to show correctness of the proposed encoding as the generated RFOL formulae are a direct encoding of the semantics of the corresponding STL formulae.

B. Proofs

We provide a sketch of the proofs for the theorems presented in Section 4. See 4.1

Proof Sketch.

The proof follows from the fact that every time interval and every time variable are shifted consistently together, i.e., if the bound of a variable is changed from into the occurrences of in the formula are replaced with ensuring that the correct value of signal is considered in the evaluation of the formula. Hence, the semantics of formulas is not impacted. ∎

See 4.2

Proof Sketch.

The proof follows by structural induction on RFOL formulas. The atomic terms are constructed by rules 1, 2 and 4. It is easy to show that these rules correctly compute the semantics of these atomic terms, and further, they do not rely on a signal value that is not yet generated up to the current time . The inductive proof for rules 3, 5, 6, 7, 8, and 9 is as follows: (1) Each rule correctly computes the value of RFOL constructs based on the RFOL semantics, and (2) the rules do not rely on a signal value that is not yet generated up to the current time . In particular, for Rule8, due to the interval-shifting procedure, we know that the value of in at time is correctly computed inductively. Finally, by Theorem 4.1, we know that our time and interval shifting procedures are semantic preserving. Therefore, our translation for , i.e., , is able to correctly compute the semantics of . ∎

See 4.3

Proof Sketch.

By Definition 3.1 is closed. Thus, the output of the oracle is the output of a block that is generated using either Rule6, Rule7 or Rule8. Indeed, as there is no free variable, i.e., any variable is scoped by existential and universal quantifiers, the output signal of a block generated using Rule9 cannot be the output of the oracle as it has to be then processed by at least a block generated by Rule8. The output signal generated from the Simulink blocks obtained from the univeral quantifiers by applying Rule 8 is decreasing as at each simulation step they compute the minimum of a previously computed value and a new value which is less than or equal to the previously computed value. Furthermore, if , the output signal generated from the Simulink blocks obtained from the existential quantifiers by applying Rule 8 is constant by construction. Finally, the maximum and minimum of two decreasing signals is also decreasing. Thus, each is decreasing over the time interval . ∎
