1 Introduction

Generative Adversarial Networks (GANs) are a class of generative neural network models that can be used to synthetically produce photo-realistic looking images. In the framework developed by Goodfellow et al.

[4], we aim to train two models simultaneously using an adversarial process: a generative model (called the “Generator”) representing the data distribution, and a discriminative model

(called the “Discriminator”) that estimates the probability that a given input came from the training data rather that the generative model

. More specifically, our ultimate goal is to learn the generator distribution over the data space . To do this, we will first define to be the prior distribution on the input noise and (the generative model) to be a map from the generator parameters and input noise to the data space. We also define another function (the discriminator) which takes in a sample and outputs a scalar value, representing the probability that the sample came from the data rather than .

While GANs are extremely effective models when it comes to evaluating the images they produce, they are notoriously difficult to train, as the global optimum of the loss function is a saddle point as opposed to a minimum

[1]. As a result, many techniques have been developed recently to stabilize GAN training. One of these, proposed by White [10] is to use a Gaussian prior as opposed to a uniform prior , which was previously the standard.

The latent space of a GAN has been shown to function well as a feature representation for images of a particular domain. Zhu et al. [11]

demonstrated that “Euclidean distance in the latent space often corresponds to a perceptually meaningful visual similarity,” and Radford et al.

[7] demonstrated the usefulness of GANs for unsupervised representation learning. Thus the ability to reliably extract the latent representation of a given input image is quite useful. Earlier work in the space of latent variable recovery has focused on latent spaces with uniform priors. Techniques by Lipton et al. [6] can recover latent variables with near perfect accuracy when the latent space has a uniform prior, but no techniques in the literature have demonstrated the same degree of precision when the latent space is Gaussian.

We attempt to solve this problem using techniques of probabilistic resampling. In this paper, we start by giving a high level overview of GANs and DCGANs. Next, we describe the problem of latent variable recovery in GANs. Afterwards, we present our experiments, results, and analysis. Lastly, we look at some potential applications of the methodology.

2 Generative Adversarial Networks

2.1 Basic GAN

and are typically modeled by two feedforward neural networks, since we can train these easily using backpropogation. In training, we want to maximize ’s probability of assigning the correct label to actual data points and samples from . At the same time, we want to train to minimize . The overall adversarial relationship can be summarized by the following minimax equation:

Because we are using differentiable functions to estimate our discriminator and generator, it is natural to then use stochastic gradient descent updates to train the parameters of the two functions. For example, the updates for the Discriminator and the Generator on a mini-batch of

noise samples drawn from the noise prior and a mini-batch of examples from the underlying data distribution is as follows:

In the seminal paper on GAN’s, Goodfellow et al. [4] proved that an algorithm using the gradient updates above is guaranteed to reach the global optimum, if at each iteration , the discriminator is allowed to reach it’s optimum given the current generator . Additionally, it was also shown that the global optimum for the generator distribution is the underlying distribution of the data . To see this, first note that for any fixed generator , the optimal discriminator is

With this in mind, we can rewrite our minimax function as

The above virtual training criterion is minimized when and and has value at its minimum. In addition, another way of seeing that the optimum occurs when

, is rewriting the virtual training criterion in terms of Kullback-Leibler divergence.

Thus, the closer our two distributions are to , the closer to the optimum we are, and we achieve the optimum when .

2.2 Dcgan

In this next section, we will discuss a special type of GANs called deep convolutional generative adversarial networks (DCGANs), which are commonly used for image generation. As the name suggests, the models are essentially our classic GAN models that use CNNs to represent both the discriminator and generator distributions. Historically, this approach has been unsuccessful and unstable to train. However, Radford et al. [7] recently showed that with some moderate constraints to the model architecture, we can achieve stable training. These new GANs are known as DCGANs.

We will now discuss the architecture constraints specified by Radford et al. As previously mentioned, in DCGANs, the discriminator and generator distributions are both modeled by CNNs. The first constraint introduced is the use of fully convolutional networks (CNNs with no pooling layers and only strided convolutions). Fractionally-strided convolutional layers (transposed convolution) are used for the Generator, while strided convolutional layers are used for the Discriminator. The second constraint is the elimination of fully connected layers on top of convolutional features. The last constraint is the use of batch normalization, which normalizes the input to each unit to have mean 0 and unit variance. In addition to the above constraints, Radford et al. suggested using ReLU activation in the generator in all layers except for the output, which should use the tanh function. Additionally, the use of leaky ReLU in the discriminator was also suggested. A diagram of the DCGAN architecture can be found in Figure 1.

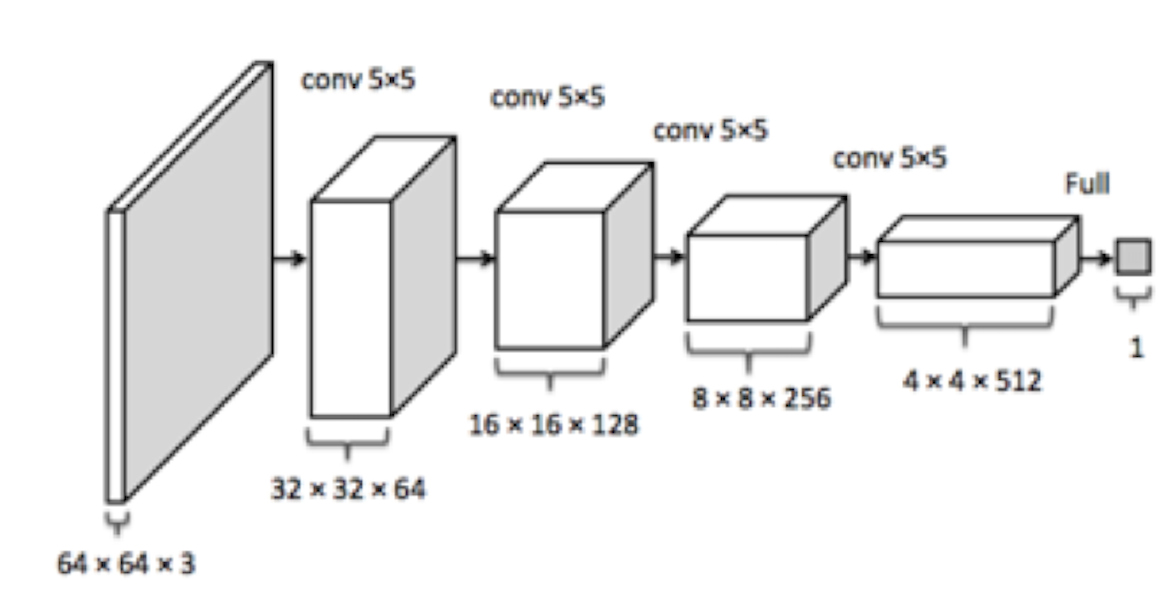

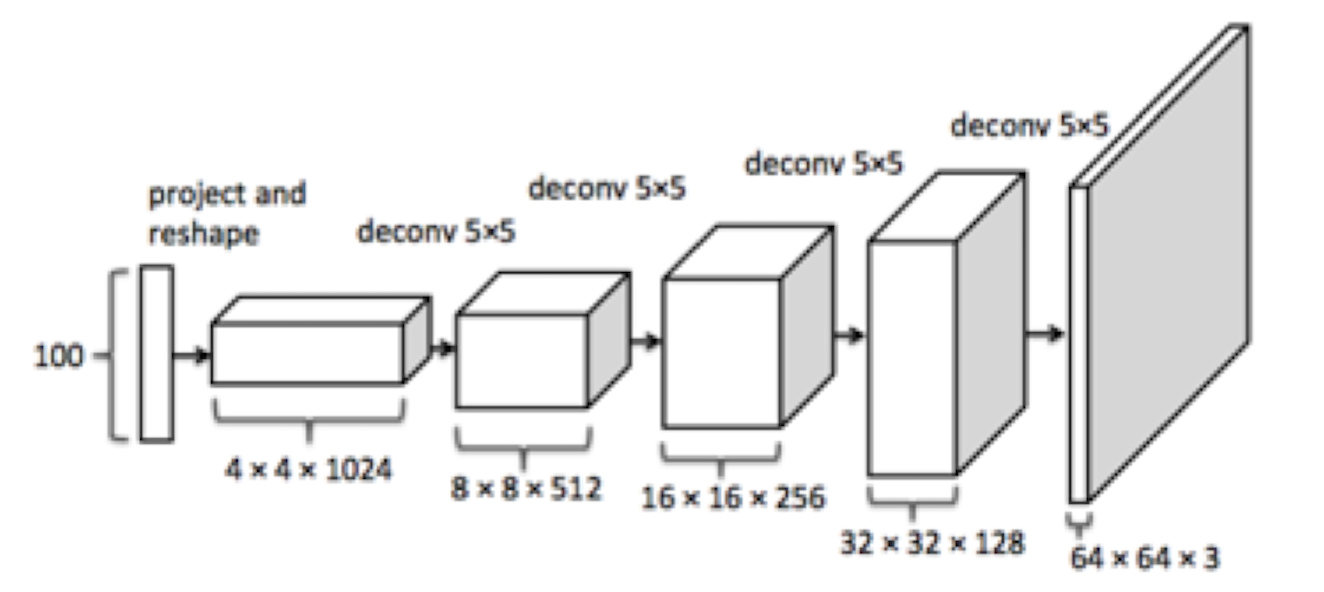

Figure 1: DCGAN Architecture - Generator (top) and Discriminator (bottom)

3 Latent Variable Recovery

3.1 Previous Work

It is a common setup in generative models to take a latent vector as input and transform it into , a realistic looking image. Based on the work of Kingma et al. [5]

, a Variational Autoencoder (VAE) is a generative model that is trained by taking an input image

, transforming it into a latent vector using an encoder network, and then transforming into using a decoder network. Thus for a VAE, encoding an image into a latent vector or decoding a latent vector into an image is explicit, as networks are trained for these tasks.

GANs also use a latent vector as input to the generative network, but this latent vector is drawn from a prior distribution as opposed to being extracted from a training image. Thus the task of projecting an input image onto the latent space of a GAN is non-trivial. Directly inverting the generator network is computationally expensive and sometimes impossible, because it is usually a multi-layered non-linear model.

Dumouli et al.[3] and Donahue et al.[2] perform latent vector recovery by changing the GAN setup to include three networks: the discriminator, the generator, and the inference network, where the inference network is trained alongside the other two networks to learn the task of mapping to . This technique has mixed success, as recovered latent vectors often fail to preserve key information about the content of their corresponding images. Additionally, adding a third network requires additional parameters to be trained, and prevents latent variable reconstruction from being performed on pre-trained networks.

An alternative approach is to start with a guess and use gradient descent to move the image generated from closer to the original image . This technique was first mentioned by Zhu et al. [11] as a step in a larger process to recover latent vectors, but shown by Creswell et al. [1] to perform fairly well as an effective technique in isolation with batching. Lipton et al. [6] showed that when the prior

is a uniform distribution, latent vectors could be reconstructed with near perfect accuracy using a technique they call stochastic clipping.

3.2 Our Methods

We attempt to extend the techniques of Lipton et al. [6] to GANs with a Gaussian prior. The setup is as follows: Given a pretrained GAN with generator , we wish to invert an image into a latent vector that approximates the original latent vector used to generate . We start by initializing to a random vector drawn from

, which in our case is a multivariate unit normal distribution. Loss is computed as:

is optimized using gradient descent, making updates of the form

where the learning rate is adjusted over time using the Adam optimizer. This optimization problem is non-convex, and using gradient descent alone often leads to components of the vector getting stuck in local minima during unlucky initializations.

The insight of Lipton et al. [6] was that if the prior distribution is a uniform distribution for each component of , then and for all . Thus if any goes beyond the bounds set by the prior distribution during gradient descent, it should be resampled.

When is a normal distribution however, there is no such that . We propose three approximate criteria to decide when to resample despite having non-zero probability in order to drive our final to a more probable result. We define as the probability that we want to resample component of , and give our formulations for below. We also define as the probability that we want to resample at timestep . What we are trying to prevent is initializations where a component quickly becomes stuck in a local minimum. If we expect iterations of our algorithm, then we can calculate the probability that we want to resample a at any individual timestep as:

Thus the full algorithm for reconstructing a latent vector is shown in Algorithm 1. Next, we will introduce our resampling criteria.

  Input: image , generator , criteria
  for  to numiter do
     for  to  do
         if  then
         end if
     end for
  end for
Algorithm 1 recover(,,)

3.2.1 Hard Cutoff Criteria

The most straightforward criteria is to set a hard cutoff , where we resample any if . In other words, we resample if it is more than away from the mean of the distribution.

is a hyperparameter to be tuned. Thus the probability that we want to resample

from its original location determined by gradient descent is

using Iverson bracket notation.

3.2.2 Logistic Cutoff Criteria

While the hard cutoff criteria assumes that it is completely impossible for a point to be beyond a certain threshold, we may instead want to loosen this condition and say it is simply less probable for a point to be beyond a certain threshold. One way to model this probability is using a Logistic function (denoted by ) as defined:

In this function, the hyper-parameter denotes the steepness of our function, and the hyper-parameter denotes the midpoint of our function, where

. We note that the Gaussian distribution from which

is sampled from is symmetric about 0, while is not. We can impose symmetry using by considering the absolute value of the input , making sigma a function of how far is from 0. In the task at hand, we can thus consider as the input to the . Using this idea, we get:

We can interpret these parameters as being the value of where we are indifferent between using the value recovered from gradient descent and resampling, and being the “softness” of the cutoff. Refer to Figure 2. for the graphical representation of the probability mapping function.

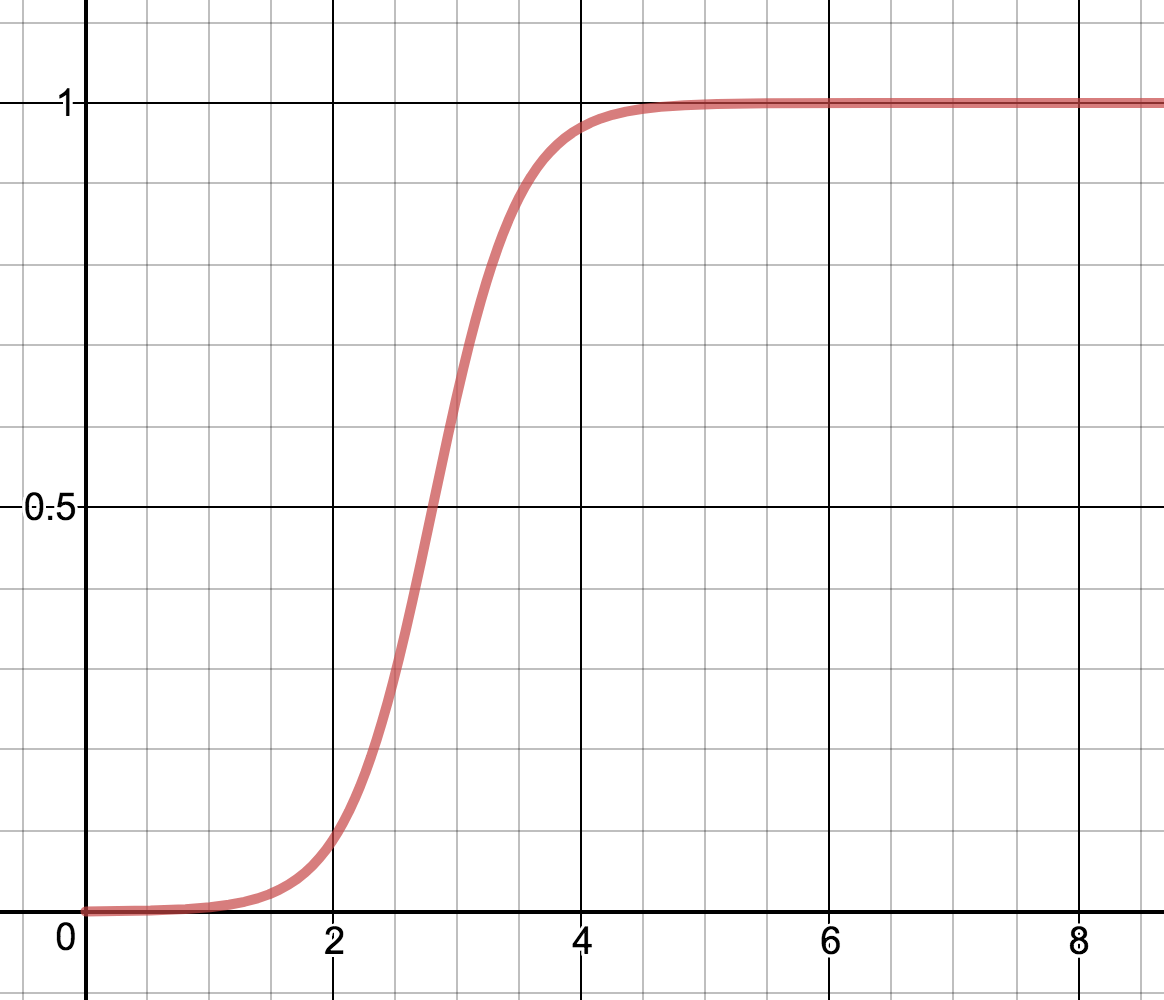

Figure 2: Logistic Criteria for Resampling. This plot shows the quantity (y-axis) as a function of (x-axis)

3.2.3 Truncated Normal Cutoff Criteria

Finally, our last re-sampling criteria is based on the prior knowledge that the latent variable is sampled from a multivariate Gaussian, implying that each coordinate is sampled from a unit Gaussian. Specifically we denote the standard Gaussian-PDF for each as follows:

Intuitively, we want a higher probability of resampling when adopts a value that occurs with a low probability. Thus, we want the resample probability to be inversely proportional to the probability that we generate from the underlying Gaussian distribution. Namely, we want:

However, we notice that the probability function as given is unbounded with respect to increasing . We deal with this condition by selecting as a thresholding hyper-parameter. Mathematically, we use in the following manner:

Solving for the appropriate scaling constant so that is continuous at , we get the following equation:

Thus, we get the following:

We may interpret the hyper-parameter as a confidence upper limit for the value that we expect any to assume. In other words, any that is beyond the -bound is deemed to be too improbable to be generated. See Figure 3. for the graphical representation of the probability mapping function.

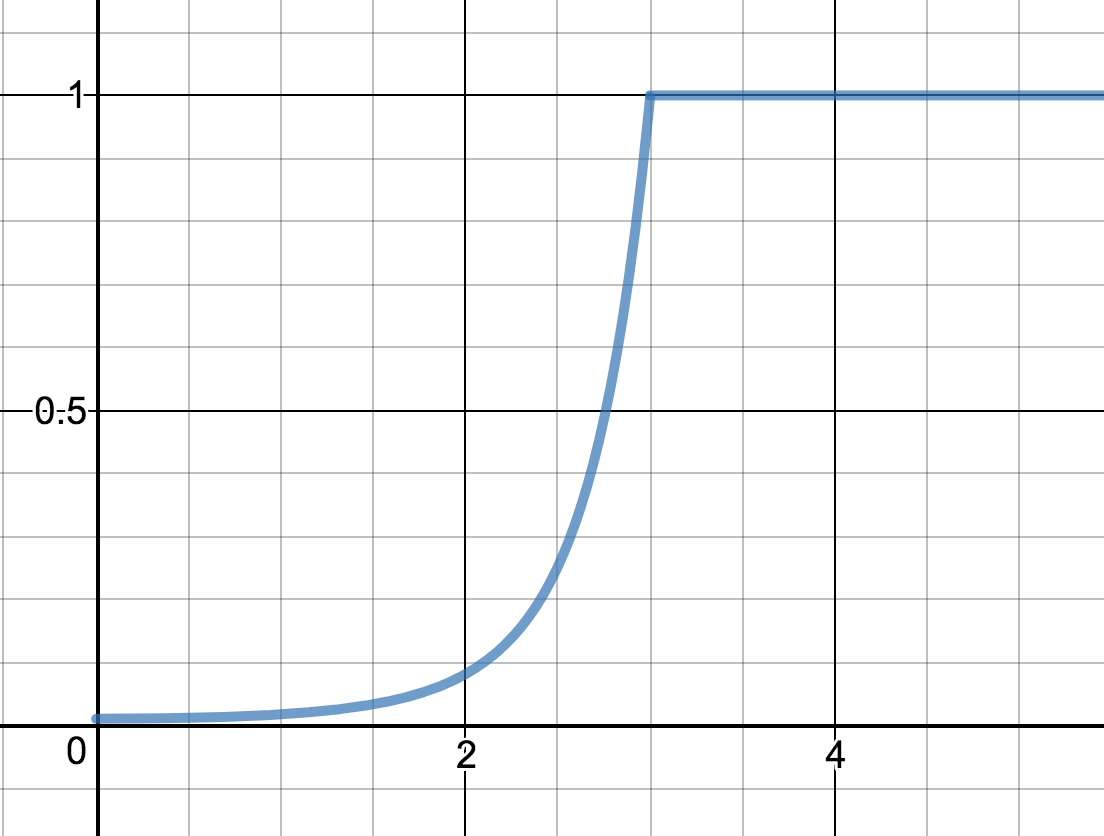

Figure 3: Truncated Normal Criteria for Resampling. This plot shows the quantity (y-axis) as a function of (x-axis)

4 Experiments

4.1 GAN Modeling and Results

4.1.1 Setup

We utilize the DCGAN framework to create a generative model that generates food images. The model is trained on food images extracted from the Yelp data set (

A fair amount of pre-processing was conducted on the Yelp photos data set. Within the photos data set, we are able to filter out images of food based on a label field that can assume a value food (this is located in the photos.json

file of the Yelp data set). At the end of this step, we are left with 121267 available data points to train the GAN. The remaining photos have a great deal of variety in terms of size, resolution, and content (images may contain multiple instances of food and food may not be centered). We further pre-process the data by scaling it to size 64x64 pixels, applying center-cropping, and normalizing the pixel RGB values to be centered around (0.5,0.5,0.5) with standard deviation (0.5,0.5,0.5). To train the models, we use the ADAM optimizer with

as the learning rate and use batch sizes of

. We train for 50 epochs, iterating through the entire training set over each epoch.

4.1.2 Basic DCGAN

We use a DCGAN architecture very similar to the one seen in Figure 1.

as the first model architecture. Note that the output size for the Generator and input size for the Discriminator is 3x64x64 corresponding to the RGB values for each pixel in the image. We base our implementation off of the Pytorch DCGAN example implementation ( dcgan). The architecture contains two main components and is as follows:

Generator G:

  • Input Layer: Input vector (length )

  • Hidden Layer 1: ConvTranspose2D(512x4x4) BatchNorm2D ReLU

  • Hidden Layer 2: ConvTranspose2D(256x8x8) BatchNorm2D ReLU

  • Hidden Layer 3: ConvTranspose2D(128x16x16) BatchNorm2D ReLU

  • Hidden Layer 4: ConvTranspose2D(64x32x32) BatchNorm2D ReLU

  • Output Layer: ConvTranspose2D(3x64x64) Tanh

Discriminator D:

  • Input Layer: Input Image (3x64x64)

  • Hidden Layer 1: Conv2D(64x32x32) LeakyReLU(0.2)

  • Hidden Layer 2: Conv2D(128x16x16) BatchNorm2D LeakyReLU(0.2)

  • Hidden Layer 3: Conv2D(256x8x8) BatchNorm2D LeakyReLU(0.2)

  • Hidden Layer 4: Conv2D(512x4x4) BatchNorm2D LeakyReLU(0.2)

  • Output Layer: Conv2D(1x1x1) Sigmoid

See Figure 4. for example images generated from the trained basic DCGAN model.

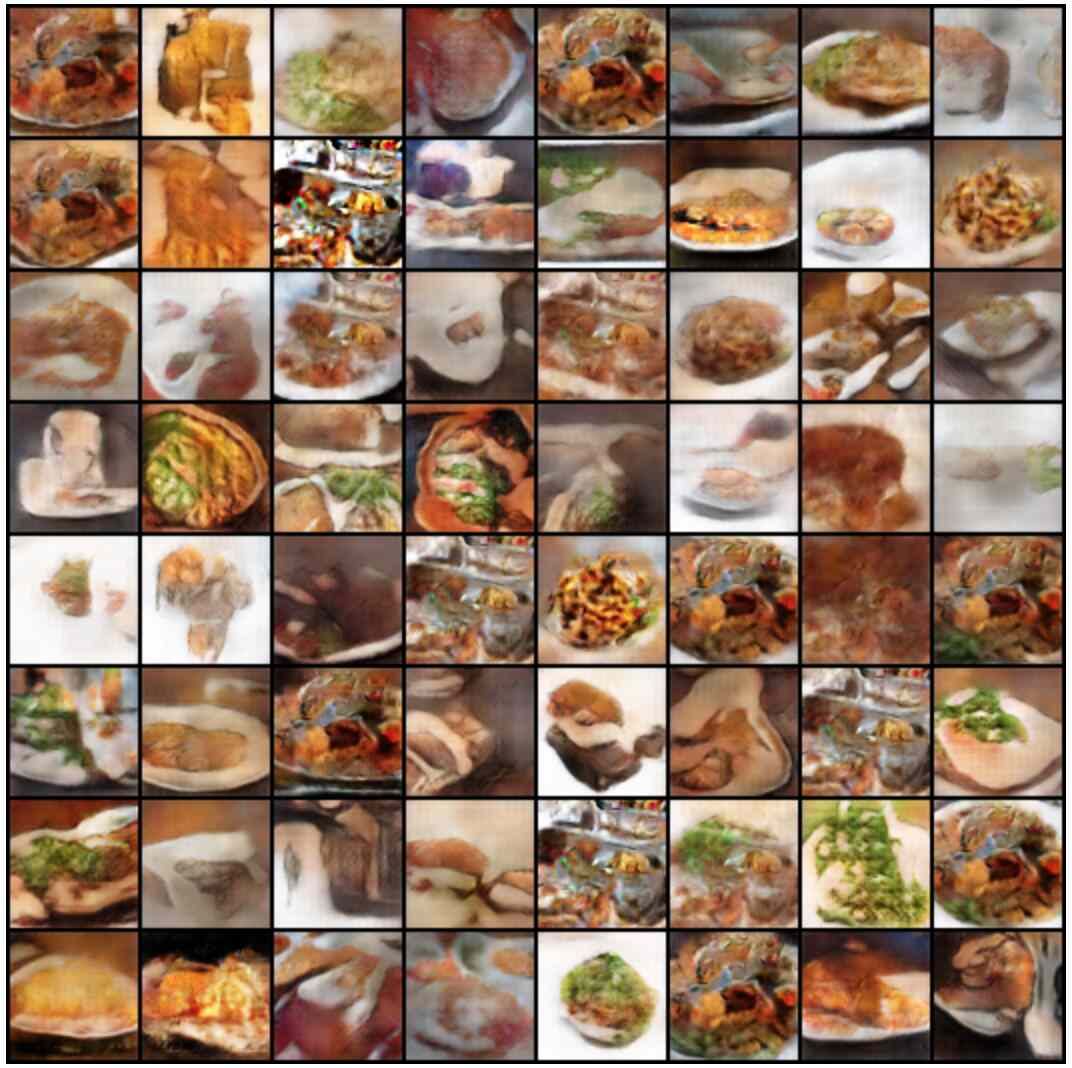

Figure 4: Basic DCGAN model. These are images generated on the epoch.

4.1.3 Pixel-Shuffle DCGAN

Pixel-shuffle is an innovative alternative to transposed convolution for the task of upsampling. Shi et al. [9]

notes that using regular transposed convolution requires adding zeros to upscale the input image and that these zeros have to later be filled with meaningful values in a somewhat arbitrary way. Furthermore, a considerably worse point is that these zero values have no gradient information which can be used for backpropagation during training. Pixel shuffling addresses this issue by using regular convolutional layers followed by an image reshaping technique known as a phase shift. Refer to Shi et al.’s paper

[9] for more information, and see Figure 5. for details.

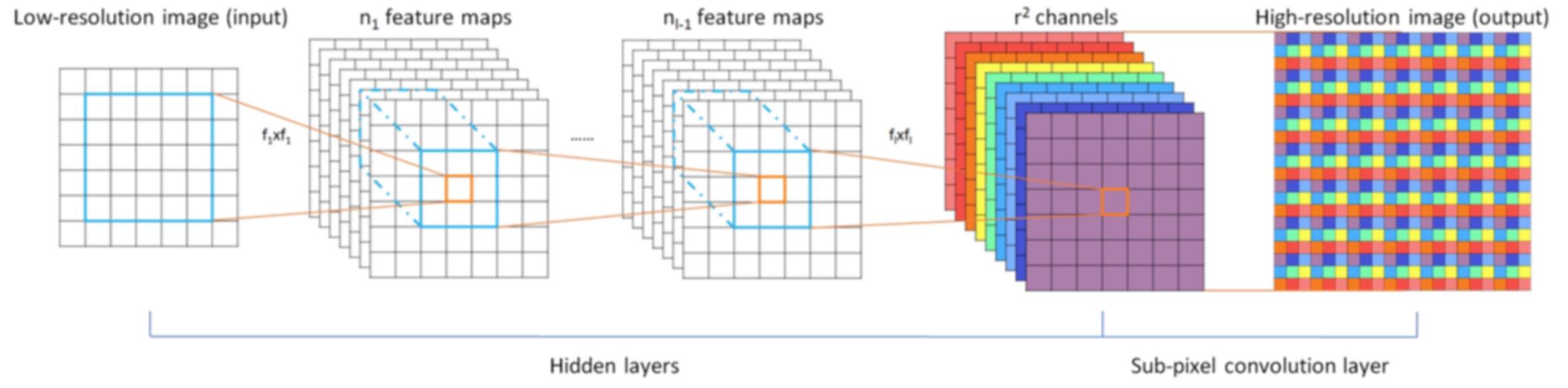

Figure 5: Pixel Shuffle Diagram.

Pixel-shuffle is primarily applied to the Generator. In particular, we replace the ConvTranspose2D layer in Hidden Layer 4 with a Pixel-Shuffle layer with upscale parameter 2. Finally, we must accordingly modify the sizes of the previous convolutional layers (HL1, HL2, HL3) to account for the next Pixel-Shuffle layer.. See Figure 6. for this model’s outputs.

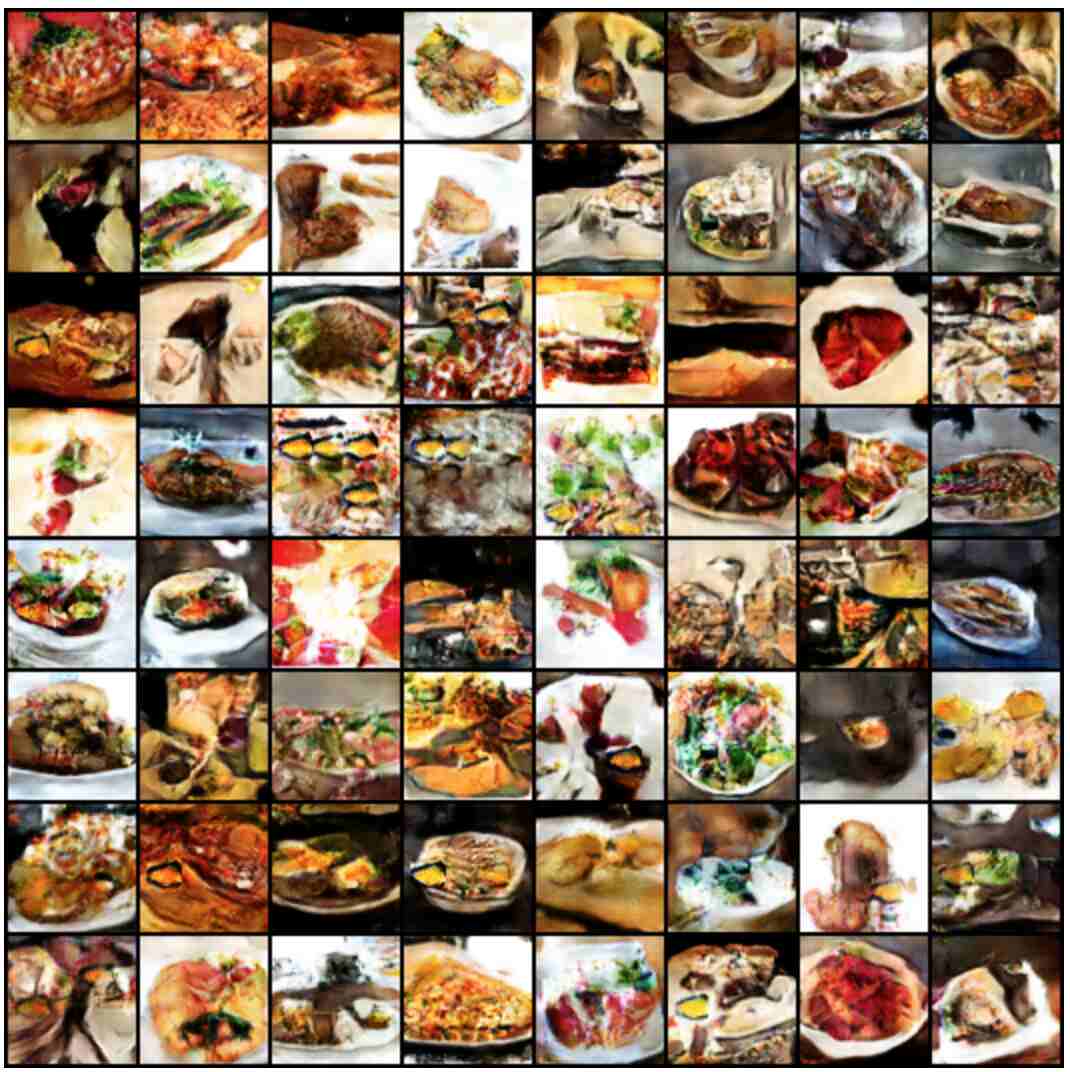

Figure 6: Pixel Shuffle DCGAN model. These are images generated on the epoch.

4.1.4 Soft-Labels DCGAN

Based on the work of Salimans et al. [8], label smoothing is shown to reduce the vulnerability of GANs to adversarial examples. To implement this idea, we replace the labels, fake = 0 and real = 1, with labels sampled from uniform distributions over fake = [0,0.3] and real = [0.7,1.2] respectively. Figure 7. shows the output of this model.

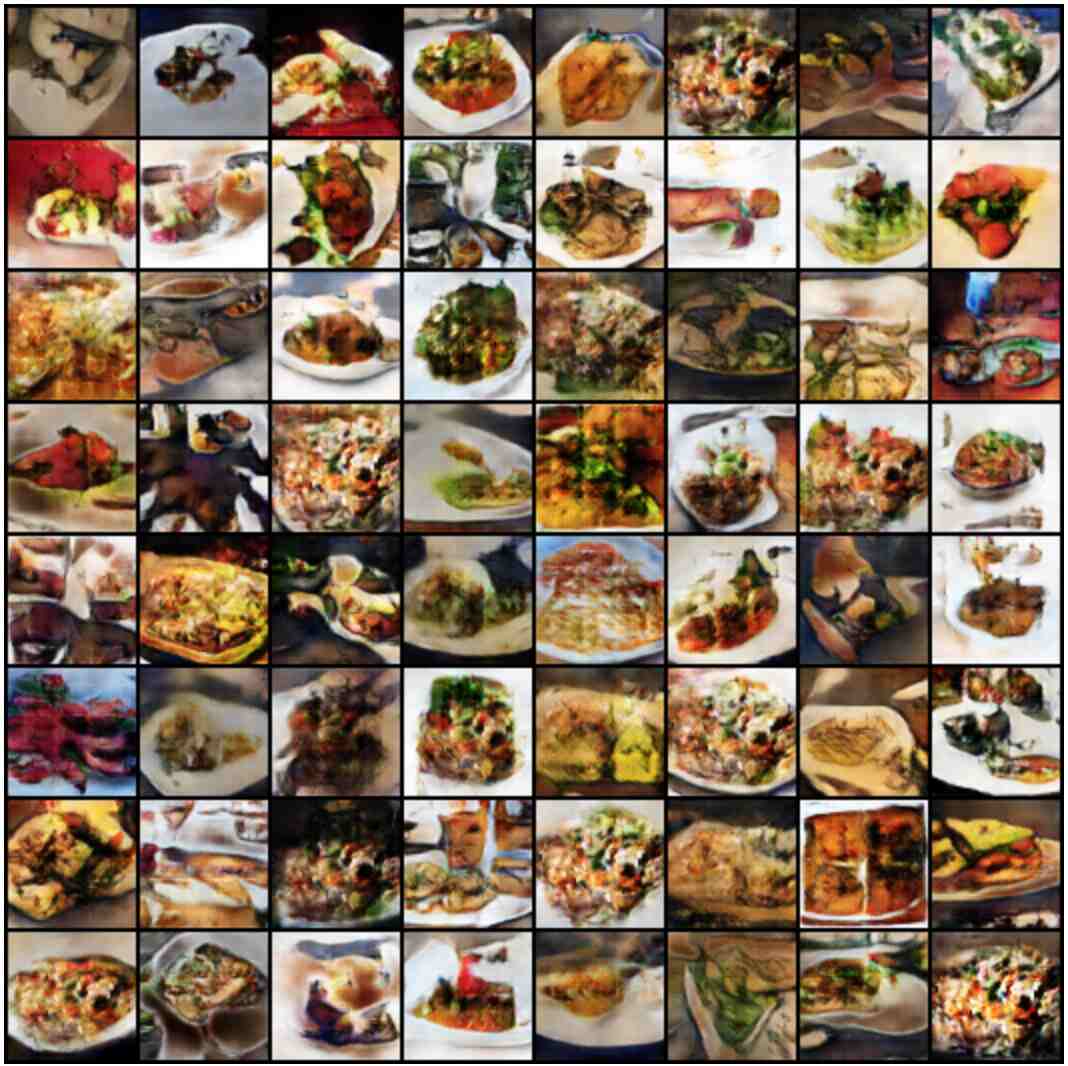

Figure 7: Soft Labels DCGAN model. These are images generated on the epoch.

4.2 Resampling Criterion Evaluation

4.2.1 Setup

We used the following experimental setup to evaluate a resampling criterion given our trained GAN with a multivariate unit normal prior.

  1. Set

  2. Set

  3. Get recover(, , ) where recover() is our latent variable recovery algorithm (Algo. 1)

  4. Calculate reconstruction error as:

    where denotes the length of vector .

In our setup, we ran SGD in recover() for 20,000 iterations. The criterion we tested were

  • disabled (no resampling)

  • hard() for

  • logistic() for

  • trunc_normal() for

To compare these criteria, we fixed 100 values of and found the reconstruction error resulting from using each criterion as . For each value of , we chose a random seed, and reseeded the CPU and GPU at the beginning of the recovery algorithm for each criterion. These steps were taken to reduce the chances of any particular run being luckier than any others, but this is still a possibility given that GPU computations are nondeterministic.

Our experiment was run on an Amazon AWS p2.xlarge instance, which has an NVIDIA K80 GPU. We used our pre-trained GAN from section 4.1.4 with soft labels and no pixel shuffle, trained for 20 epochs. Our code is structured like the example PyTorch code from Lipton et al. [6], with significant overhauls to set up our experiments. Recovering a single vector for all 20,000 iterations of SGD takes 70 to 75 seconds in this setup, depending on the resampling criterion being used.

4.2.2 Results

Our results are summarized in Table 1. The first column is the criterion evaluated with the criterion parameters in parenthesis as denoted above. The next five columns are the percentage of recoveries where the reconstruction error is less than , for five different values of . The next column, “wins,” gives the percentage of times that the given criterion had lower reconstruction error than the disabled criterion. The next column, “sig wins,” gives the percentage of significant wins, which is the percentage of the time that the criterion is better than the disabled criterion by at least a factor of 2, over the amount of times that the criterion differed from the disabled criterion by a factor of 2. The final column is the average reconstruction error for the given criterion.

The reason we kept track of “significant wins” is because it is often the case that no resampling or very minor resampling happens during a run of the reconstruction algorithm, and during these runs the winner between disabled and a given criterion is arbitrary. Due to the same starting place, seed, and number of iterations, the final reconstruction error should be the same, but the non-determinism of GPU calculations generally pushes one slightly above the other. Including these runs in the win calculations would even out the numbers between disabled and a given criterion, so we kept track of the number of wins when the difference was significant for evaluation purposes.

criterion wins sig wins avg err
disabled 0 0 6 41 59 - - .864
hard(2.5) 2 10 27 70 80 76 80.00 .362
hard(3) 3 14 30 62 67 80 80.33 .577
hard(3.5) 0 2 10 58 66 68 76.67 .671
trunc_norm(2.5) 2 9 38 79 93 82 86.75 .182
trunc_norm(2.75) 2 10 29 66 80 88 96.67 .408
trunc_norm(3) 4 9 19 63 74 85 93.62 .516
trunc_norm(3.25) 2 7 23 62 73 81 85.71 .514
trunc_norm(3.75) 1 3 8 52 67 64 77.50 .670
logistic(2, 2) 9 19 47 91 91 93 93.90 .162
logistic(3, 2) 6 16 48 85 89 90 91.25 .202
logistic(4, 2) 4 16 45 82 93 90 93.42 .183
logistic(2, 2.5) 4 15 41 74 86 89 92.11 .303
logistic(3, 2.5) 4 13 39 79 86 91 93.42 .280
logistic(4, 2.5) 2 9 39 77 83 89 94.67 .328
logistic(2, 3) 2 5 20 64 74 85 94.83 .528
logistic(3, 3) 2 7 23 62 75 80 92.16 .546
logistic(4, 3) 1 6 15 55 69 77 87.50 .644
Table 1: Results from the resampling criteria experiment. See section 4.2.2 for an explanation.

4.2.3 Analysis

There are many evaluation metrics one can use to judge relative performance of these criteria. Depending on the use case of this algorithm, here are some to consider:

  • Average Error: The simplest way to compare these criteria is to choose the one with the smallest reconstruction error averaged across the 100 runs. The winner here is logistic(2,2), with trunc_norm(2.5) and logistic(4,2) as runner ups.

  • Improvement: Another way to compare these criteria is to see how well they improve over the baseline of resampling disabled. The criterion with the most wins over disabled is logistic(2,2), followed by logistic(3, 2.5).

  • Significant Improvement: If we only care about significant runs, where a criterion differs with the baseline by a factor of two, then we could compare criteria based on significant wins. The winner here is trunc_norm(2.75), followed by logistic(2,3).

  • Reliability: If we want to have the algorithm be reliable, meaning that it produces reasonable reconstructions most of the time, then we should expect it to reconstruct within a threshold of for the highest proportion of runs. trunc_norm(2.5) and logistic(4,2) are tied in this regard with 93 each, and to break this tie we can compare the proportion of runs where they reconstruct within a threshold of , which makes logistic(4,2) the winner. The reason we go from higher thresholds to lower thresholds in this comparison is because we are preferring a reconstruction that does a decently good job most of the time over a reconstruction that gets lucky some times and performs poorly other times.

Across the board for all of our metrics, all of our resampling criteria outperform the baseline algorithm (the one with resampling disabled). Our truncated normal and logistic criteria, as expected, outperform the hard cutoff with optimal parameters set. In general, it appears that the more aggressive of our parameter settings (like hard(2.5), trunc_norm(2.5), and logistic(4,2)) score better than the more conservative parameter settings. This suggests that the probability that SGD correctly moved a coordinate of to a magnitude greater than 2.5 is fairly unlikely.

None of our resampling criteria were able to reproduce the results of Lipton et al. [6], where they successfully recovered all tested latent vectors with a reconstruction error below . Their GAN was trained with a uniform prior, and it appears that reconstructing latent vectors with a uniform prior is a much simpler task: for their runs with clipping (resampling) disabled, all recovered latent vectors had a reconstruction error below , while for our runs with resampling disabled, 41% of recovered latent vectors had a reconstruction error below .

5 Applications

5.1 Latent Variable as Embedding

The latent variable corresponding to a particular image may be used as a feature embedding. In the experiment conducted, we first examined the images generated by the same GAN (soft-labels) from the coordinate unit vectors of the latent space. We define these coordinate unit vectors ’s as follows:

In the GAN we trained, the latent vectors are of size 100 and thus there are 100 different coordinate unit vectors. We then also examine the images generated by the sum of each pair of the unit coordinate vectors. A specific example is demonstrated in Figure 9. In this example, the first image (denote as ) on the left hand side was generated from and the second image (denoted as ) on the left hand side was generated from .

Figure 8: Example of how latent variable can be used as an embedding. For the soft-label GAN, this example shows , , and


Finally, the image on the right hand side (denoted as )was generated from . This example is significant because it seems that is simply an image where the contents of is placed onto the plate in over the food contents of

. This embedding interpretation of the latent variable is significant because the embedding can be used as a tool for dimensionality reduction and feature selection. Furthermore, although this embedding may change drastically for different data sets and different types of GAN architecture, it is ultimately learned through a data motivated method and may yield some deeper insight into the underlying data.

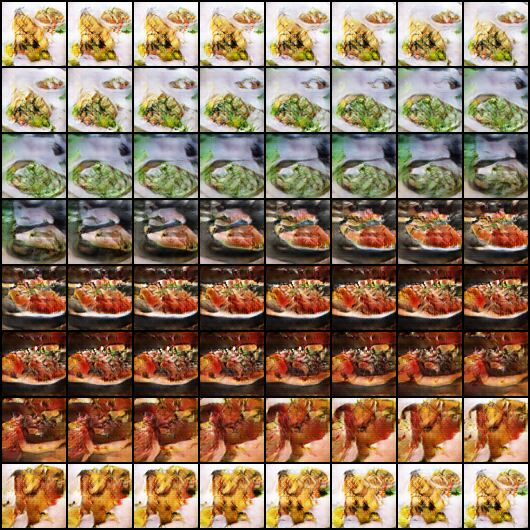

5.2 Latent Vector Interpolation

One common method for visualizing the latent space of a generative model is interpolation between points. Essentially, given two points in the latent space, we seek to traverse the path between the two points in small, discrete steps. The purpose of this is to visualize the path by using the generator to map the points along the path in the latent vector space to the space of image data. Thus, our final output would be a sequence of images.

Our implementation of latent vector interpolation works according to the above process with some extra considerations. First, recall that the prior distribution of our latent vectors is a multivariate Gaussian with mean 0. Then, White [10], has shown that for high-dimensional latent spaces, a linear interpolation (traversing the straight-line path) gives poor results. This is due to the fact that in high-dimensional spaces a linear interpolation will pass through points that are highly unlikely given the prior. Instead, White suggests using a spherical linear interpolation (SLERP) for best results. We use the following formula to calculate the path using SLERP between two points and .

Note that SLERP is equivalent to traversing the great circle of a hyperdimensional sphere. In Figure 8., we present an example of a spherical interpolation starting from a single latent vector and traversing the entire great circle back to the original vector. As one can see, we achieve nice results with this method, with smooth transitions between images.

Figure 9: SLERP method for latent vector interpolation

6 Conclusion and Future Work

We trained a GAN on food photos from the Yelp dataset and through several adjustments to the vanilla GAN formulation, managed to achieve photo-realistic results. One of these adjustments was using a Gaussian prior as opposed to a uniform prior for the latent space, and we sought to improve the current methods of latent variable recovery for latent spaces with Gaussian priors. Our techniques improved upon the currently used methods, and we demonstrated our algorithm’s potential applications to unsupervised representation learning.

To build upon this work, we plan on testing our recovery algorithm on different GANs that were trained on different datasets. By using more standard datasets, it would be easier to compare our results to the results presented in other papers. While the logistic(2,2) and trunc_norm(2.75) criteria performed well on the food GAN, it is quite likely that the optimal parameters of the reconstruction criteria differ across latent spaces. Additionally, we plan on exploring further applications of our GAN’s latent variable space to unsupervised learning.


Each of the authors participated in the conceptualization and research aspect of the final project. We each read and shared a variety of different related papers regarding the topics of GANs, GAN training, and latent vector recovery. With regards to implementation, Nicholas Egan integrated the basic DCGAN code, experimented with and trained the soft-label DCGAN model, wrote implemented the latent vector recovery algorithm, and implemented the logistic resampling criteria. Jeffrey Zhang experimented with and trained the pixel-shuffle DCGAN and created the truncated normal resampling criteria. Kevin Shen implemented the SLERP method of interpolation and created the hard cutoff resampling criteria. We all contributed to creating the final write up as well as interpretation of the experimental results.
