1 Introduction

From the early days of Medical Image Analysis, Machine Learning (ML) and Artificial Intelligence (AI) driven systems have been a key component for complex decision making - a brief history of which can be found in

litjens2017survey

. Across generations of development, the focus was mostly put on decision making at different granularity levels, with techniques ranging from low-level pixel processing over feature engineering combined with supervised classifier learning to the recent wave of feature learning using Convolutional Neural Networks (CNNs).

The driving focus of the machine learning-based Medical Image Analysis community has been on the supervised learning of decision boundaries, while generative tasks have been on the back seat. The unique ability of Generative Adversarial Networks (GANs) introduced in

goodfellow2014generative by Goodfellow et al. to mimic data distributions has carved open the possibility to bridge the gap between learning and synthesis. The rapid enhancement of GANs creswell2018generative are facilitating the synthesis of realistic-looking images at unprecedented level. The reasons behind this superiority are related to two basic properties. First, GANs as an unsupervised training method aim to obtain pieces of information over data Isola2017ImagetoImageTW , in a fashion similar to the way human learns features of an image litjens2017survey . Second, GANs have shown significant performance gains in the extraction of visual features by discovering the high dimensional latent distribution of the data.

Figure 1: The distribution of papers among the different categories.

This review summarizes GAN-based architectures proposed for medical image processing applications, including de-noising, reconstruction, segmentation, detection, classification and image synthesis. The distribution of papers according to this classification can be seen in Fig. 1. We also provide tables to have quick access to key information like the performance of methods, metrics, datasets, modality of images and the general format of the proposed architecture. Moreover, we discuss the advantages and shortcomings of the methods and specify clear directions for future works.

In this review, we have covered medical imaging application of GAN published until December 2017, and MICCAI and MIDL 2018 accepted GAN-based papers, which were available on arXiv. Papers published in this time range propose using GANs in medical applications of de-noising, reconstruction (compressed sensing and super-resolution), segmentation, detection, classification and image synthesis. These papers were applied to different image modalities such as MRI, CT, OCT, chest X-Ray, Dermoscopy, Ultrasound, PET, and Microscopy. To find the papers we searched for keywords “medical” and “GAN” (or “generative adversarial network”) along with the aforementioned applications in Google Scholar, Semantic Scholar, PubMed, and CiteSeer. Also, we checked references and citations of selected papers. Since GANs are rather new, and a significant number of articles are still in the publication process of different journals and conferences, we covered pre-prints published in arXiv as well.

We thus ended up with 63 papers which we consider the most relevant ones covering a broad spectrum of applications and variety of GANs. The rest of this paper is structured as follows. In section 3 we introduce the architecture of the GAN and its subclasses which are used in medical image applications. In section 4 different contributions of GANs in medical image processing applications (de-noising, reconstruction, segmentation, detection, classification, and synthesis) are described and Section 5 provides a conclusion about the investigated methods, challenges and open directions in employing GANs for medical image processing.

2 Opportunities for Medical Image Analysis

Supervised Deep Learning is currently the state-of-the-art in many Computer Vision and Medical Image Analysis tasks. However, a major limiting factor for this paradigm, not only in the context of medical applications, is its dependence on vast amounts of annotated training data. In the medical field, this is particularly crucial, as the acquisition and labeling of medical images require experts, is tedious, time-consuming and costly, which leads to a severe lack of labeled training data. Besides, in the medical field, many datasets suffer from severe class imbalance due to the rare nature of some pathologies. In this context, generative modeling can potentially act as a reliever for resolving these well-known machine learning problems. GANs have shown the capabilities to generate images with unprecedented realism. Under the assumption that GANs can generate meaningful samples that enhance existing datasets and carry useful information, a variety of research has already been conducted for medical image synthesis, which is reviewed in Subsection

4.6.

Another issue hampering the machine learning community is the necessity to handcraft similarity measures for general tasks such as Superresolution, In-Painting, Segmentation or Image-to-Image translation. Traditional similarity objectives comprise pixel-wise losses such as the

or -distance, both of which induce blurry results and lack the incorporation of context goodfellow2014generative . The adversarial training concept behind GANs theoretically eliminates the need to model explicit pixel-wise objective functions by learning a rich similarity metric to tell real and fake data apart. This allows optimizing for concepts in images beyond the pixel-level, leading to more realistic results. This appealing property has been recently exploited for improved medical image segmentation (reviewed in Subsection 4.3), Image-Enhancement such as Denoising (reviewed in Subsection 4.1) and tackling the general problem of domain shift in medical images using GAN-based Image-to-Image translation techniques (reviewed in Subsection 4.6.2).

The phenomenon of domain shift is in fact another major issue currently limiting the generalization capabilities of Deep Learning models. The assumption that training and inference data come from the same distributions and trained models should thus also function properly on unseen data often does not hold and limits the applicability of the models. Domain Adaptation is concerned with making models robust to such domain shift, and adversarial training holds a lot of potential for this task.

In the deficiency of annotated and simultaneous abundance of unlabeled data, the paradigm of semi-supervised learning offers different frameworks for training machine learning models by ensuring similar or dissimilar model behavior for similar or dissimilar data points, where similarity needs to be defined appropriately. Again, the notion of similarity is a crucial parameter and often highly data-dependent. Under such conditions, GANs and adversarial training have also proven useful for training classifiers or dealing with domain shift in medical data, as the explicit formulation of similarity is not required (reviewed in

4.6.2).

3 Overview

In this section, we introduce the general concept behind GANs, their conditional variants as well as a variety of prominent extensions and follow-up works that have been successfully leveraged in Medical Image Analysis applications. These extensions comprise Wasserstein-GAN, conditional GAN (for example of Pix2Pix), CycleGAN, Least Squares GAN, Markovian GAN as well as Auxiliary Classifier GAN.

In the context of this work, there are three “adversarial” concepts, which should be understood properly by their different meanings. “Adversarial attack” means to make imperceptible changes to an image such that a classifier misclassifies it, while it could classify unmodified image successfully. Usually the modified image, called “adversarial image” or “adversarial examples”, is not recognizable from the original image visually. “Adversarial training” proposed by Szegedy et al. Szegedy2013IntriguingPO is an idea that increases the robustness of neural networks against adversarial attacks by learning their characteristics. Due to the state of existing neural networks, at the time, implementing adversarial training was not a practical solution. The effectiveness of this idea becomes apparent when Goodfellow et. al employed it in GANs goodfellow2014generative . Sometimes GAN is mis-attributed as adversarial training, but it is necessary to differentiate between them. In reality, GANs consists of two types of networks and use the adversarial training concept, elaborated in the following section.

3.1 Gan

The GAN framework goodfellow2014generative consists of a generator (G), a discriminator (D) network as well as a training dataset of real data with an underlying distribution . G, as a forger, is a multilayer network with parameters , which aims to find a mapping

that relates latent random variables

to fake data following the distribution . By discovering the mapping, G generates fake data, which is supposed to not be distinguishable from real data, i.e. . On the other hand, discriminator aims to distinguish the fake samples from real ones. Thereby,

is the scalar output of the discriminator network that shows the probability that

is real rather than generated from (Fig. 6). D is trained to maximize the probability of correct label assignment to fake and real data, while G is trained to fool the discriminator by minimizing . Mathematically speaking, D and G play a two-player minimax game with value function V(G,D):

(1)

This way, the generator is updated only through gradients back-propagated from the discriminator. Goodfellow et al. goodfellow2014generative mentioned that if the generator is optimized to maximize instead of minimizing , much stronger gradients can be obtained in earlier steps (iterations) of training. In general, this indirect optimization procedure prevents input components to be explicitly memorized by the generator. The main advantage of GAN is to find similarities that map a candidate model to the distribution of real data by focusing on the underlying probability density of data. It leads to very sharp distributions around data, which can be used to degeneration of that creswell2018generative .

Though GANs show such inherent advantages over discriminatively trained CNNs, there are some challenges as well: 1) mode collapse: when G collapses to map all latent space inputs to the same data and 2) instability: which leads to the generation of different outputs for same input. The main causes for these phenomena are related to vanishing gradients through the optimization procedure.

Although batch-normalization comes as a solution for the instability of GAN, it does not enough to improve the performance of GAN to the optimal stability. So, many subclasses of GANs have been introduced to resolve these drawbacks that some of the most common ones are introduced here. Furthermore, many GAN-based deep networks are proposed specifically for medical image processing projects, in which different architecture and loss functions are used to enhance the reliability and accuracy of the deep networks in the necessary level of health-care CAD systems.

4.

3.2 Dcgan:

To address the instability of GAN, Radford et. al propose the Deep Convolutional GAN (DCGAN) Radford2015UnsupervisedRL

, in which both the generator and discriminator follow a deep convolutional network architecture. These networks are able to extract hierarchical features of the image by learning down/up-sampling due to the location of features existence. In this way, the extracted features of objects can be used to generate new ones. Key components of the DCGAN which affect the stability of the network, are batch normalization and leaky-ReLU. Although DCGANs are more stable than the vanilla GAN, they are still prone to mode collapse.

3.3 cGAN:

Mirza et al.mirza2014conditional proposing conditional GAN (cGAN), have also shown that prior information can be incorporated into the GAN framework. In the cGAN, the generator is presented with random noise as well as some prior information jointly. Additionally, the prior knowledge is fed into the discriminator together with the corresponding real or fake data. Mathematically speaking, the cGAN framework is given as follows:

(2)

By conditioning the networks, it has been shown that both training stability and output generation can be improved (Fig.6). In Isola2017ImagetoImageTW , Isola et al. propose a very successful variant of the conditional GAN named “pix2pix” for the challenging task of image-to-image translation. In this architecture, the generator and discriminator are following the U-Net ronneberger2015u and MGAN (PatchGAN) li2016precomputed networks which are demonstrated to provide a good framework for wide conditional transformation problems. In the proposed model, the loss in combination with adversarila loss is considered to put more pressure on the generator to produce images more similar to the ground truth images.

3.4 Mgan

Another conditional GAN framework is Markovian GAN (MGAN) li2016precomputed , which has been proposed by Li et al. for fast and high quality style transfer. The MGAN, as depicted in Fig. 6, heavily utilizes a pre-trained VGG19 network with fixed weights to extract high-level features for both transfering style to a target texture and simultaneously preserving the image content. In the MGAN, both discriminator and generator network are prepended with a VGG19 network to extract featuremaps. The generator transfers these featuremaps to an image with target texture, and the discriminator transforms the either input (real or texturized) image into VGG19 feature maps again, on which it finally discriminates with the help of a Fully Convolutional Network (FCN). Utilizing an FCN for classifying the input as real or fake ultimately amounts to classifying patches in VGG19 feature map space. By training the generator to fool this discriminator, it is forced to generate images which lead to realistic VGG19 feature activations as would have been obtained on real data and thus also to images with realistic style. An additional perceptual loss component (calculated using VGG) ensures that the image content does not change too much while the style is transfered.

3.5 cycleGAN:

Zhu et al. Zhu2017UnpairedIT propose a GAN architecture, which aims to discover the underlying relationship between two image domains through learning their definitive features from unpaired data. To achieve this goal a cycle training algorithm is used to capture main features of a domain of image for translating them to another domain. Since the map function learned by adversarial loss is not reliable to map input image to desired output, a cycle loss function is considered to reduce the space of possible mapping functions. In this way, two generators ( and ) are considered to find the mapping from X domain to Y domain and vice versa and also two discriminators ( and ) to train them (Fig.6). This learning strategy stabilizes network performance and generates high quality translated images. Final loss function is defined as follows:

(3)

3.6 Ac-Gan

Odena et al.odena2016conditional report that instead of providing both the generator and the discriminator networks with side information as seen in the cGAN, the discriminator can be tasked with reconstructing such side information. In their auxiliary classifier GAN framework (AC-GAN, Fig. 6), the discriminator architecture is modified such that after a few of layers it splits into a standard sample discriminator network as well as an auxiliary classifier network, which aims at classifying samples into different categories. The authors show that this framework allows to use (partially) pre-trained discriminators and appears to stabilize training.

3.7 Wgan:

In the original GAN framework, the data distributions of generated and real images are compared using the Jensen-Shannon (JS) divergence. This kind of exact comparison can make the saddle-point of optimization unreachable and gradients vanishing, which leads to mode collapse and instability. So considering another, more approximate distance estimation between real and generated data distribution can be effective as a solution. Arjovsky et al.

Arjovsky2017WassersteinG propose the Wasserstein-GAN (WGAN) architecture that uses the Earth Mover (ME) or Wasserstein-1 distance estimation instead of the JS divergence. In addition, both the generator and discriminator follow the general DCGAN architecture. WGAN provides a robust adversarial generative model through a more meaningful learning procedure, which is able to find deeper relationships between distributions. Despite these theoretical advantages, WGAN leads to a slow optimization process in practical scenarios.

3.8 Lsgan:

Mao et al. propose another solution for the instability of GAN, called Least Squares GAN (LSGAN) Mao2017LeastSG . In this architecture, some parameters are added in loss function to avoid gradient vanishing. In this way, the fake data, which are discriminated as real but is far away from the dense distribution of real data, will be penalized due to its distance from main mode of real data. Also, the gradient will become only in the case that distribution of fake data perfectly matches the distribution of real data. Loss function for LSGAN is defined as follows:

(4)
Figure 3: cGAN
Figure 4: MGAN
Figure 5: cycleGAN
Figure 2: GAN
Figure 3: cGAN
Figure 4: MGAN
Figure 5: cycleGAN
Figure 6: ACGAN
Figure 2: GAN

4 Applications in Medical Image Processing

In this section, we summarize GAN-based methods which are proposed to solve medical imaging problems, in 6 application categories: de-noising, reconstruction, segmentation, detection, classification, and synthesis. In every subsection, a table summarizes the most important details of proposed methods and the medical image modalities they are designed for.

4.1 De-noising

Due to health hazards caused by excessive radiation, lowering the radiation dose has been adopted as an effective solution. However, dose reduction increases noise level in medical images which might lead to a possible loss of some diagnostic information. The main problem with state-of-the-art CNN-based de-noising methods is the limitation of using the mean squared error in optimization, which leads to blurred predicted images that do not provide texture quality of routine-dose images. Another problem is the shortage of well aligned images of low-dose and routine-dose wolterink2017generative ; yang2018low ; Yi2018SharpnessAwareLC . GANs can eliminate this problem by detecting the mapping between noisy and de-noised images and generate de-noised images. Here some GAN-based de-noising methods are reviewed.

Wolterink et al. wolterink2017generative propose a GAN based de-noising method that can learn texture information of images from a small amount of paired data. In this paper three combinations of two loss functions for the generator optimization are explored: 1) voxel-wise MSE between generated image and routine-dose CT image, and 2) adversarial loss. The performance of this architecture is investigated on different metrics. Results show that using just the adversarial loss reduces the noise level while it saves statistics of image better than other SOTA-methods reyling on a pixel wise loss. Moreover, the runtime is less than 10 seconds.

On the other hand, Yang et al. yang2018low

propose another method utilizing two perceptual losses for training the generator: 1) the loss calculated by comparing deep features (extracted by VGG

Simonyan2014VeryDC ) of generated image and ground-truth, and 2) WGAN loss (Fig.7

). In this way, benefiting stability of WGAN model, the noise level is decreased and critical structures of an image are not damaged. Authors believe that SSIM and PSNR are not adequate metrics to evaluate the performance of such a de-noising method, because they are not able to evaluate the feature preservation power of the methods. They suggest to estimate the distance of standard deviation (SD) of generated images to the SD of ground. Evaluated results using this metric shows that the proposed method achieves the best performance in comparison with other methods.

Figure 7: Proposed architecture in yang2018low

To address the blurring problem of CNNs, Yi et al Yi2018SharpnessAwareLC propose the sharpness aware generative adversarial network (SAGAN)uses three losses in training: 1) A traditional pixel-wise loss to encourage data fidelity, 2) patch-GAN’s adversarial loss and 3) a sharpness mapping loss (Fig. 8). Presented results in the paper show that texture preservation, computational latency, generalizability and stability are advantages of the proposed method while in high level of noise it does not present a good performance. Moreover, small low-contrast data may be lost through sharp area detection.

Figure 8: SAGAN architecture Yi2018SharpnessAwareLC

Table 1 summarizes major GAN-based de-noising methods. It seems that an adequate objective metric to evaluate methods in preserving important medical information of the image is not available yet. As PSNR, MSE, SSIM, SD and mean - the most commonly used metrics in the evaluation of de-noising methods - are not sensitive enough to recognize texture details, the RoI area of any image should be segmented to be measured by metrics, which is an expensive procedure. So presenting a new metric to this goal can be a subject of future works. Despite this limitation, reviewed papers benefiting from the ability of GANs to learn main general features of medical images. Also manipulating the loss function to consider more textural features, good performance in medical image de-noising is achieved. However, finding a fast, accurate and more stable architecture is an open direction to be worked in future. Specially, if experts evaluation on the de-noised images become provided.

Method Modality Dataset Performance
wolterink2017generative
Architecture:
CNN, GAN
Loss:
CNN, GAN
CT (phantom)
and (cardiac)
Unknown
Agatston Score:
median=20.7
Min=6.1
Max=145.1
yang2018low
Architecture:
WGAN, VGG
Loss:
features distance,
WGAN
CT Unknown
Subjective [1 5]:
Noise Suppression=3.200.25
Artifact Reduction=3.450.25
Overall Quality=3.700.15
SAGAN Yi2018SharpnessAwareLC
Architecture:
MGAN,
Sharpness detector
Loss:
Pixel-wise, MGAN,
Sharpness aware
CT
CT phantom
(Catphan 600)
N=
PSNR=26.77
SSIM=0.8454
N=
PSNR=28.25
SSIM=0.87
Table 1: De-noising GAN-based methods in medical image processing

4.2 Reconstruction

Reconstruction of lost image data (e.g. losing some frequencies through slow sampling) can play an effective role in the diagnosis procedure. Due to the good performance of GANs in the synthesis of unpaired data, they have considerable potential for this task. Here we overview GAN-based reconstruction methods.

In some medical imaging modalities such as MRI, which incurs a long acquisition time, involuntary (i.e. resulted by breathing) and voluntary (i.e. because of not comfortable situation) movement of the patient is very common. These motions lead to loss of some key parts of organ in the image. To address this problem, imaging time reduction is proposed. However, in MR imaging, scan time reduction leads to problems like spatial resolution loss along the z-axis and aliasing in x-y axes. Compressive Sensing (CS) for MRI is the theory that describes how much of these lost data can be reconstructed. While classic solutions directly use k-space information of images to reconstruct missing information yu2017deep , GAN based methods try to find a mapping between incomplete (zero-filled) and fully sampled MR Images.

Yu et al. yu2017deep propose to use the U-Net architecture for the generator to extract better details from an input image. Also to consider both pixel wise and feature-based errors in optimization, a combination of loss functions is employed: 1) a pixel-wise MSE, 2) an adversarial loss and 3) a perceptual loss (by comparing VGG extracted features), which helps the network to perform more stable. In addition a refinement layer is added to force the generator to generate only missing layers of image. This framework performs about 10 times faster than previous methods and is suitable for real-time reconstruction systems. However, in this paper, frequency domain information is not considered. To address this drawback, in their follow-up publication (DAGAN) yang2017dagan , the authors added a frequency checking loss function (Fig.9), which is obtained by calculating the MSE in frequency domain. So the final loss for the generator optimization is adjusted as follows:

(5)

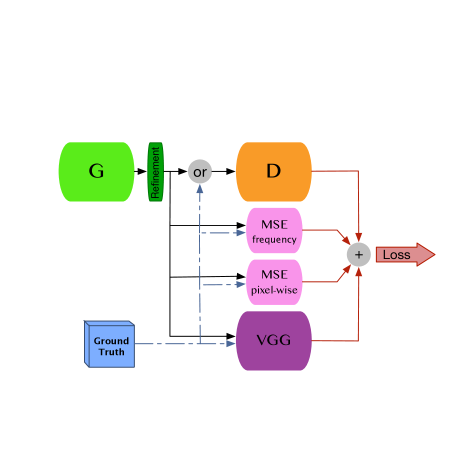

Figure 9: DGAN architecture yang2017dagan

In this way preserving frequency information of the image enhance the performance of the network (2).

Since, a network like DAGAN with simultaneous optimizations with adversarial, MSE, and perceptual loss results low in PSNR, Seitzer et al. seitzer2018adversarial proposed to add a refinement network to this architecture in order to separate the pixel-wise and perceptual training procedure. In the proposed architecture firstly, a reconstruction network is trained with MSE loss to learn the details of the image and then a refinement network is considered to fix the visual aspects of the reconstructed image (Fig. 10). To optimize the performance of refinement network 4 different optimization loss is considered as follows:

(6)

Where is feature matching loss proposed in Salimans2016ImprovedTF and is a penalty to force the network to manipulate the result of MSE optimized network with the least changes, and and are similar to the losses used in the DAGAN. To evaluate the performance of the network in addition to PSNR, mean opinion score (MOS) and semantic interpretability score (SIS) metrics are used. MOS is a subjective metric and SIS is mean Dice overlap between segmentation result on reconstructed image and a real HR image.

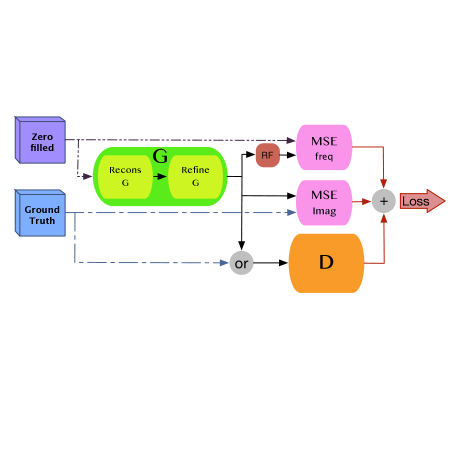

Figure 10: Proposed architecture in seitzer2018adversarial

Quan et al. quan2017compressed propose a different framework (RefineGAN) to reconstruct MRI images, using a combination of convolutional auto-encoder, residual network and GAN architectures. In addition to the loss that the discriminator returns, in a cyclic strategy two other loss functions affect the generator. One of them compares the reconstructed image with the ground-truth () and the other one compares damaged (zero-filled) reconstructed images with non-reconstructed versions (). The total loss function is defined as follows:

(7)

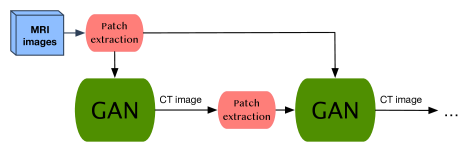

Moreover, they propose to use a chain of generators with similar architecture in which every generator address the ambiguities of the previous one (Fig.11). The results show that this framework not only performs fast enough for real time performance, but also it generates a high quality image even at low sampling rates like 10%.

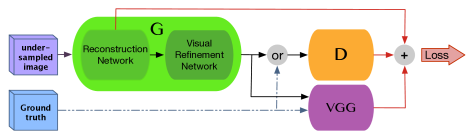

Figure 11: RefineGAN architecture quan2017compressed : The Generator G is a chain of two concatenated generators (first generator is for reconstruction and the second one is for refinement) cycle loss is calculated by MSE blocks

Mardani et al. mardani2017deep also propose using LSGANs to reconstruct MRI Compressive Sensing (CS) images. In the proposed method, the generator is a ResNet with skip connections. To control the instability collapse of classic GAN, LSGAN loss is added to general loss. According to the results shown in the paper this method is superior in the speed, stability and diagnosis quality in comparison to CNN-based methods.

Shitrit et al. Shitrit2017AcceleratedMR propose an architecture that combine GAN training strategy with ResNet which makes the model able to reconstruct entire k-space grid from under-sampled data better than other CNN based methods using only 52% of training data of them.

Li et al. li2017reconstruction propose 3DSRGAN to reconstruct thin slice tomographic 3D images from thick ones. To train the generator four different losses are considered: 1) a pixel-wise loss (), 2) an adversarial loss(), 3) a 3D total variation loss (), which controls estimations for absent data using their neighbor slice’s information, and 4) a weight regularization loss () to overcome over-fitting problem. The total loss for the generator is defined as follows:

(8)

Another contribution of this method is employing fully 3D CNNs and residual blocks in the generator architecture to avoid gradient vanishing and to provide deep structural training. The results show that this method performs better than nearest neighbor and ̵‌B-spline interpolation methods. Also 3DSRGAN provides less error in comparison with 2D/3DSRCNN.

Sánchez et al. Snchez2018BrainMS adapted SRGAN Ledig2017PhotoRealisticSI with 3D convolutional layers to deal with volumetric information in addition to manipulations which leads to enhance the stability of that. In the upsampling phase of image generation they explored three methods of nearest neighbor interpolation by convolutional layers: 1) resized convolution, 2) 3D adapted sub-pixel convolution method Shi2016RealTimeSI (achieved the best performance in SSIM), and 3) convolutional nearest neighbor resize Aitken2017CheckerboardAF (achieved the best performance in PSNR). Moreover, to stabilize the training procedure they used batch normalization in almost all layers of the generator in addition to LSGAN. Also, they used two other loss functions: 1) a pixel-wise loss to achieve high PSNR value, and 2) a gradient based loss (GDL) Mathieu2015DeepMV to improve the quality of the generated image. Actually, the second loss is defined to remedy the blurring effect of pixel-wise loss.

To overcome huge memory and time usage of DNN for 3D images (SR) reconstruction, Chen, et al. Chen2018EfficientAA proposed multy-level densely connected super-resolution network (mDCSRN) which outperforms 6 times faster than other popular DNN methods to recover 4x resolution down-scaled MRI images. The architecture of this model is a combination of WGAN and DenseNet Chen2018DeepLabSI . Although DenNet reduce the number of network parameters dramatically, it is not memory efficient enough for 3D image reconstruction. So in internal networks, authors manipulated the architecture of DenseNet to enhance skip connections significantly.

Ravi et al. Rav2018AdversarialTW proposed to use GAN for unsupervised endomicroscopy super resolution (SR). To constrain the network to save main properties of the low resolution (LR) images, a cyclic consistency approach is considered in which a loss (

) is defined due to the distance between Voronoi vectorized form of SR and LR images. Also a

is defined to regularize the training procedure. In this way, the total training loss function is defined as:

(9)

Metrics defined to evaluate the performance are SSIM, (improvement on the global contrast according to the high resolution image) , (improvement on the global contrast according to the LR image and (the average value on them), in which the proposed method outperforms other methods in SSIM and .

So far, retinal images’ resolution is not sufficient enough for small vessel segmentation. Mahapatra mahapatra2017image address this problem by proposing a new GAN based network called super resolved generative adversarial network, which is able to reconstruct the high resolution retina image from a LR one. While previous methods can not save important local information of image for scales greater than 4, proposed method overcomes this limitation. The key point of proposed architecture is to consider two loss values to tune the generator: 1) an adversarial loss () and 2) a CNN loss, weighted by the saliency map of images to save important information of high frequency parts of that (). The final loss to train the generator is defined as follows:

(10)
(11)

Where, shows the saliency map of high resolution real images (or ground-truth) and shows the saliency map of generated SR images. Evaluated results in the paper indicates that the local saliency map played an effective role in preserving structural information. Table 2 and 3 summarizes properties of mentioned methods and their performance. It seems that GANs can provide good performance in reconstruction of medical images, by adding some manipulation in loss functions, which highlights texture details and special features.

Method Image Modality Dataset Performance
yu2017deep
Arch:
cGAN, U-Net
Loss:
Adv, Pix-wise,
Perceptual, Refinement
MRI
Brain:
IXI,
MICCAI
(2013grand challenge)
mask 30%:
NMSE=0.090.02
PSNR=39.534.12
(CPU, GPU)
time=0.20.1, 5.40.1(ms)
DAGANyang2017dagan
Architecture:
cGAN,U-Net
Loss:
Adv, Pix-wise, Frequency,
Perceptual, Refinement
MRI
Brain:
IXI,
MICCAI
(2013 grand challenge)
mask 30%:
NMSE=0.080.02
PSNR=40.204.07
(CPU, GPU)
time= 0.20.1, 5.40.1(ms)
RefineGANquan2017compressed
Architecture:
Chain of generator,
ResNet
Loss:
Adv, Cyclic
MRI
Brain:
IXI
Chest:
Data Science
Bowl challenge
mask 30%, time:0.16(s)
SSIM=0.970.01
PSNR=38.712.57
mask 30%, time:0.18(s)
SSIM=0.970.01
PSNR=38.642.76
GANCS mardani2017deep
Architecture:
ResNet, LSGAN
MRI(Chest)
contrast-enhanced MRI
abdomen dataset
of pediatric patients
SNR=20.48
SSIM=0.87
time=0.02
Table 2: Reconstruction GAN-based methods in medical image processing - Brain & Chest
Method Image Modality Dataset Performance
Shitrit2017AcceleratedMR
Architecture:
ResNet, GAN
Loss: Adv
MRI(Brain) Unknown PSNR=37.95
li2017reconstruction
Architecture:
Res blocks, GAN
Loss:
Adv, Pixel-wise
3D total variation
MRI(Brain) (glioma patients)
MSE=262.2
PSNR=24.2
Snchez2018BrainMS
Architecture:
SRGAN, subpixel-NN
Loss:
LSGAN, GDL, Pixel-wise
MRI(Brain) (ANDI database)
scale 2:
PSNR=39.28
SSIM=0.98
Scale 4:
PSNR=33.58
SSIM=0.95
mDCSRNChen2018EfficientAA
Architecture:
DensNet, WGAN
Loss:
MSE, WGAN
MRI(Brain) Unknown
SSIM=0.94
PSNR=35.88
NRMSE=0.0852
Table 3: Reconstruction GAN-based methods in medical image processing - Brain & Chest
Method Image Modality Dataset Performance
seitzer2018adversarial
Architecture:
cGAN,U-Net
Loss:
Adv, feature matching,
Perceptual, penalty
MRI
Cardic
unknown
PSNR=31.822.28
MOS=3.240.63
(max=3.780.45)
SIS(max=1)=0.94
mahapatra2017image
Architecture:
ResNet, GAN
Loss:
Adv, CNN
(weighted by SL map)
Retinal
Funduscopy
Unknown
(Scale 4, Scale 8)
SSIM=0.89, 0.84
RMSE=6.2, 7.5
PSNR=44.3, 39db
Rav2018AdversarialTW
Architecture:
ledig2017photo , GAN
Loss:
Adversarial,
Cyclic,
regularization
Endomicroscopy
andre2011smart
SSIM=0.8.7
=0.66
=0.37
=0.66
Table 4: Reconstruction GAN-based methods in medical image processing - others

4.3 Segmentation

Annotation of objects and organs in medical image processing plays an important role in anomaly detection and shape recognition. In addition, segmentation is defined as the preprocessing step of many other tasks like detection and classification. So automatic segmentation attracted the attention of a large number of researchers and in recent decades it was the most common subject of papers applied for deep learning in medical image processing

litjens2017survey .

In general, CNN-based segmentation methods utilize a pixel-wise loss which is not adequate to learn local and global relations between pixels. So they need statistical modeling methods e.g. conditional random fields chen2016deeplab or statistical shape models tack2018knee to correct their results. Although some patch-based CNN methods have been proposed to address this problem , these need to meet a trade-off between accuracy and patch size. Also U-Net based architectures using a weighted cross-entropy loss or the dice-loss are proposed as a solution, but these methods face weight optimization problems. So in addition to a weighted loss, a general loss is required to address this problem.

4.3.1 Brain:

Xue et al.Xue2018SegANAN propose a U-Net GAN-based framework (SegAN) in which a multi-scale loss function is used to learn pixel dependencies. In contrast to the original GAN, this loss function is used to train both the generator and the discriminator. This framework is trainable without using patches or variant resolution input images and it does not need to use CRF as a correction. As an application, brain tumor segmentation in MRI 3D images is investigated. The loss function is defined as follows:

(12)

Where is Mean Absolute Error (MAE) or distance, is the input image masked with a generated segmentation mask, is an input image masked by the ground-truth segmentation mask, shows features extracted from the input image and the is the Mean Absolute Error.

Rezaei et al. Rezaei2017ACA also focus on the same application and propose a multi-class approach, in using a combination of cGAN and MGAN models. To overcome the well-known mode collapse phenomenon seen in GANs, Virtual-BatchNorm and Reference-BatchNorm goodfellow2016nips are proposed to train the generator and discriminator, respectively.

Moeskops et al.moeskops2017adversarial demonstrate that using GAN’s training strategy in addition to DCNN methods not only can enhance the performance of deep semantic segmentation methods, but also can bring the functionality of non-semantic segmentation methods closer to semantic ones.

For brain tumor segmentation Zeju et al. li2017brain proposed a pipeline of preprocessing, GAN, and post-processing steps. The first step contains intensity normalization and mean/distribution equalization. Then the GA segments tumor in patches of preprocessed image and finally, in the last step patches are concatenated to specify the whole area of the tumor.

Since the performance of most of the supervised segmentation methods degrades on unseen images, Kamnitsas et al. kamnitsas2017unsupervised proposed unsupervised domain adaption for brain lesion segmentation. In this method the generator extracts invariant features of inputs from different domains and then generates the segmentation mask. In this way, having data of a target domain corresponds to one of the input domains can lead the mapping procedure from other inputs (from different domains) to their corresponding targets.

4.3.2 Chest:

Bad quality, local artifacts and the overlap of lung and heart area are the main obstacles for the segmentation procedure in chest X-Ray images. Existing approaches on this field do not provide a balance on global and local features. So they are not realistic segmentation methods for diagnosis tasks. Dai et al.dai2017scan propose a GAN based solution (SCAN) to enhance global consistency of segmentation and extract contours of the heart and left/right lungs. The main contribution of this work is to use a fully connected network with a VGG down-sampling path using much fewer feature maps in the generator. In addition, residual blocks are employed to aid the optimization. This framework segments the RoI with human level performance, while using a limited amount of training data. To address instability drawbacks of GANs trough the training procedure, the generator is pre-trained by pixel-wise loss.

4.3.3 Eye:

In retinal vessel segmentation, many CNN-based approaches performed even better than human experts. But segmented vessels can be blurred or contain false positive areas near minuscule or faint branches. Son et al.son2017retinal replace the CNN with a GAN following the U-Net architecture for the generator. The experimental results on two datasets show that leveraging a traditional full-image discriminator leads to the best performance, even better than human expert’s annotation.

Lahiri et al.lahiri2017generative propose a DC-GAN-based segmentation method which segments RoI patches from the background. While a similar CNN needs a huge amount of training data to perform well, the proposed structure achieves comparable performance using 9 times less training data.

Shankaranarayana et al. shankaranarayana2017joint proposed to use cGAN network to segment optic disc and cup in 2D color fundus images. The generator is a ResU-net network which is trained by adversarial and losses. Results of the paper show that in such a network using cGAN enhances the segmentation of small, challenging ROI parts (cup), while GAN performs better in segmenting larger ROI parts (optic disc).

4.3.4 Abdomen:

Varying size and shape of the spleen in abdomen MRI images lead to false labeling in deep CNN segmentation methods. Huo et al.huo2017splenomegaly employ a new GAN-based method (SSNet: splenomegaly segmentation network) to address this problem. In the proposed model the Generator is a novel deep network architecture inspired by the global convolutional network, which uses larger convolutional kernels to have better segmentation on objects with large variations. On the other hand, the discriminator follows the cGAN architecture to alleviate the false positive rate. Presented results in the paper show that this method achieves higher robustness and accuracy in comparison to benchmark methods (U-Net and GCN), reducing the false negative rate. Also it is shown that using two or three views of abdomen images in both training and testing enhance the performance of the network.

Yang et al.yang2017automatic propose a liver segmentation method in 3D abdomen CT images. The generator is a convolutional encoder-decoder inspired by the U-Net architecture. In practice this method enhances the accuracy of segmentation benefiting adversarial loss in addition to multi-class entropy loss.

Also, Kim et al. kim2018cycle proposed to use cycleGAN for liver and tumor segmentation. In this architecture one generator generates a segmentation mask from input image and the other one generates CT image from the segmention mask. In order to enhance the performance of the model in segmenting tiny tumors, polyphase U-Net architecture is proposed to be used as the generator, because it retains the high frequency information and does not change the polarity of the input.

4.3.5 Microscopic images:

Automatic segmentation of this kind of images face some challenges due to the variety of size, shape, and texture of them Sadanandan2017SpheroidSU ; Arbelle2018MicroscopyCS . Kecheril et al. Sadanandan2017SpheroidSU proposed to use GAN with different training loss function, which considers a weight to specify which pixels if foreground/background are more important. The proposed architecture is a combination of U-net with long/short skip connections, ResNet, and multi-scale CNN. In addition, a post-processing procedure is proposed to correct the segmented area.

Also, Arbelle et al.Arbelle2018MicroscopyCS used GAN for cell segmentation. They proposed a GAN architecture in which “rib cages” - CNN blocks followed by a batch normalization are used in discriminator network. Results show that not only this architecture outperforms single CNN architectures, but also the number of training images does not affect the performance of the model strongly.

Moreover, Zhang et al. Zhang2017DeepAN proposed an adversarial network for biomedical image segmentation called DAN. The architecture of this segmentation network is a combination of DCAN Chen2016DCANDC and VGG16. The training dataset consists of annotated ( images and their paired ground-truth ) and un-annotated images ( images ). The network in the supervised training learns how to segment the ROI and in the unsupervised training learns how to generate same quality segmentation map for unseen data. Two loss functions are considered to train the network: adversarial loss (for un-supervised training) which is defined as binary loss to evaluate the quality of segmentation and multi-class cross-entropy loss to train the network to generate the segmentation map. The loss function is defined as follows:

(13)

4.3.6 Cardiography:

Left ventricle (LV) segmentation in 3D echocardiography as a real-time medical imaging provides a large volume of information about the patient situation. However, low contrast, high level of noise and automatism movement of data in echocardiography images challenge this procedure. Dong et al. Dong2018VoxelAtlasGAN3L proposed VoxelAtlasGAN which combines an atlas-based segmentation method with cGAN architecture to segment LV in low-contrast cardiography images. In this method first the shape and intensity of the atlas is estimated by a CNN (V-Net Milletari2016VNetFC ) and then a deformation network outputs the segmented image (Fig. 12). Both of the mentioned networks are placed in generator, which uses three loss functions for training: 1) Adversarial loss, 2) intensity loss, and 3) label loss, which compare the intensity and shape of the segmented real image with the generated one respectively. Using atlas-based segmentation prior to cGAN enhances the segmentation performance and interpretability of the model. In the paper it is shown that using cGAN decreases the complexity and time in comparison with other atlas-based methods while it needs less training data to be learned.

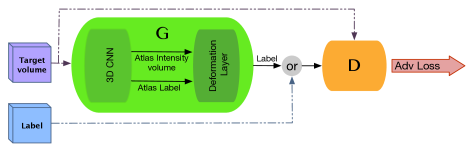

Figure 12: Proposed architecture in Dong2018VoxelAtlasGAN3L

4.3.7 Spine:

Vertebrae segmentation and localization is the first step for diagnosis of the vertebrae disease and surgery planning. Although machine learning based approaches achieved some success in this field, they suffer from not learning the anatomy of the region of interest. To overcome this problem a solution is to deepen the network to increase the receptive field, which faces the memory limitation. To address this problem, Sekuboyina et al. Sekuboyina2018BtrflyNV proposed a butterfly shape model benefiting adversarial training to segment and localize discs in vertebra CT images. The main idea behind the architecture of the generator is using two views of CT images to capture both spine curve the and the rib-vertebrae joints. Firs, in a pre-processing step, the region of the spine is selected using the single-shot object detection (SSD) Liu2016SSDSS method. Then the proposed model segments discs in two views of vertebrae and finally, in a post-processing step, these results are combined for disc localization.

Tables 10, 9, 8, 7, 6 and 5 summarizes GAN-based segmentation methods. GAN-based segmentation methods mainly worked on architectural subjects to address previous methods and GANs drawbacks. It seems that from the known DNN architectures, U-Net and ResNet - due to providing general identification features - are the most popular networks to be used as the generator in segmentation GAN-based models.

Method Image Modality Dataset Performance
SeGANXue2018SegANAN
Architecture:
U-Net, GAN
Loss:
Adv, weighted on
multiScale features
MRI
BRATS 2013
(Leadboard)
BRATS 2015
(Test)
(whole, Core, Enhanced)
Dice = 0.84, 0.70, 0.65
Precision = 0.87, 0.80, 0.68
Sensitivity = 0.83, 0.74, 0.72
Dice = 0.85, 0.70, 0.66
Precision = 0.92, 0.80, 0.69
Sensitivity = 0.80, 0.65, 0.62
Rezaei2017ACA
Architecture:
c-GAN, MGAN
MRI BRATS 2017
(Whole, core, Enhanced)
Dice = 0.70, 0.55, 0.40
Sensitivity = 0.68, 0.52, 0.99
Specificity = 0.99, 0.99, 0.99
moeskops2017adversarial
Architecture:
GAN
Loss:
Adv, cross entropy
MRI
MICCAI 2012
Challenge (adult)
MRBrainS13
challenge(elderly)
Dice = 0.920.03
Dice = 0.850.01
li2017brain
Architecture:
GAN
Loss:
Adv
MRI BRATS 2017
(Whole, Core, Enhancing)
Dice = 0.87, 0.72, 0.68
sensitivity = 0.87, 0.72, 0.68
kamnitsas2017unsupervised
Architecture:
GAN, 3D-CNN
Loss:
Adv, SGD
MRI (TBI) unknown
Dice = 0.62
Recall = 0.58
Precision = 0.71
Table 5: Segmentation GAN-based methods in medical image processing-Brain
Method Image Modality Dataset Performance
SCANdai2017scan
Architecture:
VGG, ResNet
Loss:
Adv,
pre-trained by
Pixel-wise loss
X-Ray
JSRT(247)
Montgomery(135)
(Lungs, Heart)
Dice = 0.973, 0.927
IoU = 0.947, 0.866
Table 6: Segmentation GAN-based methods in medical image processing-Chest
Method Image Modality Dataset Performance
son2017retinal
Architecture:
U-Net, GAN
Loss:
Adv, Cross entropy
Funduscopy
(Retina)
DERIVE
STARE
Dice= 0.829
ROC=0.9803
PR=0.9149
Dice= 0.834
ROC=0.9838
PR=0.9167
lahiri2017generative
Architecture:
DCGAN
Loss:
Adv, L-classification
Funduscopy
(Retina)
DERIVE
(blood vessels)
AUC= 0.945
shankaranarayana2017joint
Architecture:
c-GAN, ResU-net
Loss:
Adv,
Funduscopy
(Retina)
RIM-ONE
(Optic disc, Optic cup)
F-score= 0.97, 0.94
IOU=0.89, 0.76
Table 7: Segmentation GAN-based methods in medical image processing-eye
Method Image Modality Dataset Performance
SSNethuo2017splenomegaly
Architecture:
GCN, cGAN
Loss:
Adv, Dice
MRI (Splenomegaly) Unknown Dice=0.9260
yang2017automatic
Architecture:
U-Net, encoder-decoder
Loss:
Adv, multi-class entropy
CT 3D
(Liver)
MICCAI-SLiver07
Dice=0.95
ASD=1.90
kim2018cycle
Architecture:
U-Net, cycleGAN
Loss:
cycleGAN, cross entropy, L2
CT 3D
(Liver)
LiTS2017
(liver, lesion)
Dice= 0.89, 0.46
Recall=0.94, 0.5
Precision=0.86, 0.48
Table 8: Segmentation GAN-based methods in medical image processing-Abdomen
Method Image Modality Dataset Performance
Sadanandan2017SpheroidSU
Architecture:
GAN, U-net, res-Net,
Multi scale CNN
Loss:
Adv, weighted loss
Bright-fieled
cell 2D
Columbus
MetaXpress
F-score = 0.77
Precision = 0.82
Recall = 0.73
F-score = 0.64
Precision = 0.66
Recall = 0.66
Arbelle2018MicroscopyCS
Architecture:
GAN (with rib cage)
Loss:
Adv
cell 2D H1299
F-score = 0.89
Precision=0.82
Recall = 0.85
DAN Zhang2017DeepAN
Architecture:
GAN, DCAN, VGG
Loss:
Adv, multi-scale cross entropy
fungus 3D
2015 MICCAI
Gland Challenge
(mean of 2 part results)
F-score = 0.88
Dice=0.865
ObjectHausdorff = 74.55
Dong2018VoxelAtlasGAN3L
Architecture:
cGAN, V-Net
Loss:
Adv, intensity, label
Echocardiography
3D
unknown
Dice=0.95
MSD=1.85
HSD=7.26
corr-of-EF=0.91
time=0.1
Table 9: Segmentation GAN-based methods in medical image processing-Microscopic
Method Image Modality Dataset Performance
Btrfly Net Sekuboyina2018BtrflyNV
Architecture:
GAN, Btrfly-Net
Loss:
Adv, Btrfly-Net
CT 3D
Glocker2013VertebraeLI
Precision=0.84
Recall=0.83
F1-score= 0.84
Table 10: Segmentation GAN-based methods in medical image processing-Spine

4.4 Detection

In medical diagnosis many disease markers are known as anomalies. However, computational detection of anomalies from images requires a large amount of supervised training data. Even if such a huge database is available, there is no guarantee that a learned network is able to detect unseen cases.

Schlegl et al. schlegl2017unsupervised show that an unsupervised GAN-based architecture (AnoGAN) can detect anomalies in optical coherence tomography images of the retina. In this method, during training on healthy images, a GAN learns a mapping from the latent space to 2D healthy images. During testing, the GANs’ latent code is optimized for the reconstruction of a new unseen input image and generates the corresponding healthy image version. Anomalies cannot be reconstructed from the GAN. Then, the generated image and test input are compared and differences are considered as anomalies. To capture the nearest latent value to the input image, a loss function based on visual (pixel wise cross entropy) and feature based similarity compares the generated and input real images. This loss function is used in both the training and detection (testing), which provides more stability for the model.

Chen et al. Chen2018UnsupervisedDO employed a manipulated version of schlegl2017unsupervised for brain lesion detection in MRI images. They proposed to use WGAN with gradient penalty to have stable training and also enhance the coverage in the latent space.Due to high variability of brain MRI images it is likely that, the distance between the abnormal image and it’s corresponding healthy generated one be less than the distance between the healthy image and it’s corresponding generated one. To address this drawback they added a regularisation loss function which controls the similarity between the real and generated images and also between their latent values.

Similar to schlegl2017unsupervised and Chen2018UnsupervisedDO Baur et al. propose baur2018deep for anomaly detection and delineation in brain MR images, while they address the expensive procedure of iterative optimization of the latent space in schlegl2017unsupervised and Chen2018UnsupervisedDO

. The proposed method provides a stable reconstruction of entire brain MR slices at higher resolution. In this method a VAE-GAN, i.e. a combination of a generative Variational Autoencoder and GANs are trained on brain MR slices of healthy anatomy. Similarly, during inference, they try to reconstruct the input sample to measure the discrepancy between the input and the reconstructed image to detect anomalies.

Although CNNS show good performance in detection of bold lesions, detection of the lesions with lower attributes challenges their performance shwartz2017opening . To address this problem Baumgartner et al. baumgartner2017visual propose a map generator based on WGAN and the U-Net architecture (VA-GAN) to detect changes of the brain related to Alzheimer disease. To achieve this goal the generator is trained to generate a map which converts the class of the image from healthy to sick () if be added to the image. On the other hand, the discriminator optimizes the generator’s performance through following loss equation:

(14)

To avoid the generator from being optimization by changing the identity of the subject, another loss function is considered. This loss encourages to do mapping with smallest manipulations on the healthy image. The final optimization loss function is defined as:

(15)

Due to this trained map, a sick brain can be mapped to a healthy representation and changes discovered by the mapping detect anomalies of Alzheimer and also the class of them.

To demonstrate that using the training strategy of GAN enhances the performance of cross-entropy U-Net detection, Kohl et al. kohl2017adversarial implement it on aggressive prostate cancer detection. They show that GANs provides better detection on every amounts of training samples in comparison with a single U-Net model.

Similarly, in skin lesion detection, Udrea et al. udrea2017generative show that using the combination of U-Net and c-GAN enhances the accuracy of the performance of the model to more than 90%.

Tuysuzoglu et al. Tuysuzoglu2018DeepAC benefited adversarial training to detect the whole contour of gland in prostate ultrasound images from detected landmarks. In the first step a CNN model detects the landmarks on the boundary of the gland. Then the proposed models maps these landmarks (in a pixel level) to the whole contour. Since the contrast of gland tissue is not high enough to be used for boundary detection an adversarial training is proposed to consider contour general features in addition to pixel level information.

Table 11 summarize these papers. Papers proposed in anomaly detection by GANs have more structural complexity in comparison with previous applications because they benefit from different aspects of GANs. In fact, the role of the discriminator is more highlighted in practice. Also, the extracted map, which defines the latent aspect of recognizing the healthy and anomaly images is used in a more perceptual way.

Method Image Modality Dataset Performance
AnoGANschlegl2017unsupervised
Architecture:
DCGAN
SD-OCT scans Unknown
Precision= 0.8834
Recall= 0.7277
Sensitivity=0.7279
Specificity=0.8928
AUC=0.89
Chen2018UnsupervisedDO
Architecture:
AnoGAN, WGAN-GP
Loss:
WGAN-GP,
regularization
MRI(brain) BRATS
AUC = 0.92
VA-GANbaumgartner2017visual
Architecture:
WGAN, U-Net
MRI (brain) ADNI NCC = 0.27
kohl2017adversarial
Architecture:
U-Net, GAN
Loss:
MSE, GAN
MRI (prostate)
(NCT)
Heidelberg
specificity=0.980.14
Dice=0.410.28
Sensitivity=0.550.36
udrea2017generative
Architecture:
cGAN, U-net
Skin lesion (natural image) Unknown correct lesion detection= 0.914
Tuysuzoglu2018DeepAC
Architecture:
GAN
Loss:
Adv,
landmark location,
contour association
US (prostate) unknown Dice = 0.920.3
Table 11: Detection GAN-based methods in medical image processing.

4.5 Classification

Due to cardiac and respiratory motions occuring during cardiac ultra-sound (US) imaging, resulting images might display incomplete information, like basal and apical slices of the heart which are key specifics to recognize Left Ventricular (LV) anatomy. Thus, an automatic system is needed to complete the missing parts or to discard images with incomplete information, which can mislead the classification process.

As a solution for discarding unsuitable images, Zhang et al. zhang2017semi propose the Semi-coupled GAN (SCGAN) to classify useful cardiac images from ones with missing basal slices. The framework consists of two generators and one discriminator. Initially, the generators produce new cardiac samples (with and without the basal slice) using learned high level features from both categories. Then, the multi-class multi-label discriminator not only distinguishes between generated and real images but also classifies images into two classes: those being basal slice and not being basal slice (Fig. 13). Results show that this method achieves higher accuracy and reduce computation cost in comparison with CNN methods. In addition, SCGAN improves the robustness of adversarial training.

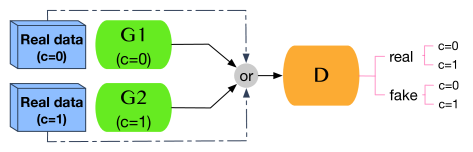

Figure 13: SCGAN architecture zhang2017semi

4.6 Synthesis

Originally, GANs have been proposed as an entirely unsupervised generative framework, with the goal to map from random noise to synthetic, realistically looking images following the training data distribution. With the conditional GAN, the framework has also been successfully turned into a supervised generative framework by conditioning both the generator and the discriminator on prior knowledge, rather than noise alone. For clarity, we refer to the original GAN framework as the unconditional or unsupervised GAN, in contrast to the conditional GAN. We want to emphasize that it is very important to make a distinction between these different concepts and consequently categorize the literature accordingly.

The generative property of both frameworks has been exploited in various ways for synthesizing certain types of medical images either from noise alone (see Unconditional Image Synthesis), or from from prior knowledge (see Conditional Image Synthesis) such as metadata or even image data for mapping images from one modality to another. In the following, a broad overview on works from unconditional and conditional image synthesis will be given. In the particular case for conditional approaches, we further classify the contributions based on the image modality. For the literature on unconditional image synthesis we do not make this distinction due to the small amount of papers.

4.6.1 Unsupervised Image Synthesis:

A great variety of works has recently appeared in the field of unsupervised medical image generation using GANs. The synthesis of realistically looking medical images opens up many new opportunities to tackle well-known deep learning problems such as class imbalance, data augmentation frid2018synthetic or the lack of labeled data. Further, it facilitates data simulation chuquicusma2017fool and aids to gain deeper insights into the nature of data distributions and their latent structure.

Initial results have shown that GANs can be used to synthesize realistically looking patches of prostate lesions kitchen2017deep or retinal images schlegl2017unsupervised . Both approaches rely on the DCGAN architecture to synthesize patches at a resolution of px and px, respectively. In chuquicusma2017fool , the authors successfully utilize DCGANs for generating px patches of lung cancer nodules which could hardly be distinguished from real patches in a visual turing test involving two radiologists.

Frid-Adar et al. frid2018synthetic make use of the DCGAN for the synthesis of focal CT liver lesion patches from different classes at a resolution of pixels. For each class, i.e. cysts, metastases and hemangiomas, they train a seperate generative model. As the training dataset is originally quite small, they use heavily augmented data for training the GANs. In a set of experiments for liver lesion classification, the authors demonstrate that synthetic samples in addition to data augmentation can considerably improve a Convolutional Neural Network classifier.

The work in bermudez2018learning has shown that the DCGAN with vanilla training is in fact also able to learn to mimic the distribution of MR data at considerably high resolution, even from a surprisingly small amount of samples. The real data distribution consisted of only 528 midline T1-weighted axial MR slices at a resolution of

x. After training for 1500 epochs, the authors obtained visually compelling results which human observers could not reliably distinguish from real MR midline slices.

In baur2018melanogans , the authors utilize and compare both DCGAN, LAPGAN and modifications of the latter for the task of skin lesion synthesis at a resolution of px. Similar to bermudez2018learning

, the training dataset was quite small, consisting of only 1,600 images. Probably due to the high variance within the training data, the small number of samples turned out not to be sufficient to train a reliable DCGAN, however the hierarchical LAPGAN and its variants showed promising synthesis results. The synthetic samples have also successfully been used for data augmentation when training a skin lesion classifier. In

baur2018generating , the same authors employed the recently proposed concept of progressive GAN growing for synthesizing images of skin lesions and showed stunning, highly realistic synthetic images which even expert dermatologists could not reliably tell apart from real samples.

4.6.2 Conditional Image Synthesis:

CT from MR In many clinical settings, the acquisition of CT images is required. This, however, puts the patient at risk of cell damage and cancer because of the radiation exposure, which motivates the synthesis of CT images from MR acquisitions. Nie et al. nie2017medical synthesize CT images from corresponding MR images with the help of a cascade of 3D Fully Convolutional Networks which they train with a normal reconstruction loss, an image gradient loss and additionally with an adversarial network in order to improve realism of the synthetic CT images. The idea of utilizing a cascade of generator networks originates from the so-called Auto-Context Model, in which a network provides its output as additional input to a succeeding network in order to provide context information and allow for refinements (Fig. 14).

Figure 14: Proposed architecture in quan2017compressed

While Nie et al. require corresponding pairs of CT and MR images for training, Wolterink et al.wolterink2017deep successfully utilize Cycle-GANs to transform 2D MR images to CT images without the need for paired, co-registered training data. Interestingly, in contrast to training from paired, co-registered data, their training led to even better results as the model avoids to learn mappings in the presence of registration artifacts.

MR from CT Similar to Wolterink et al., Chartsias et al. chartsias2017adversarial successfully leverage CycleGANs for unpaired image-to-image translation, however for synthesizing pairs of cardiac MR images and a segmentation mask from pairs of cardiac CT slices with the ground-truth segmentation mask. The authors have shown that the performance of a segmentation model can be improved by 16% when additionally trained with the synthetic data, and that synthetic data alone is sufficient for training a model which performs only 5% worse than a model trained on real data.

Retinal Image Synthesis In costa2017towards the authors utilize a slight modification of the adversarial training concept proposed in Isola2017ImagetoImageTW for the challenging task of eye fundus image generation. They learn a mapping from binary images of vessel trees to new retinal images at a resolution of 512x512px, which look extremely realistic and rate very well in common scores for retinal image quality judgement. In follow-up work costa2017end

, the authors further introduce an adversarial autoencoder which is trained to compress vessel tree images into a multivariate normal distribution and to consecutively reconstruct them. The resulting generative autoencoder allows to synthesize arbitrary high resolution vessel tree images by sampling from the multivariate normal distribution. The synthetic images in turn are fed into the image-to-image translation model, ultimately leading to an end-to-end framework for realistic, high resolution retinal image synthesis. Very similarly, Guibas et al.

guibas2017synthetic propose a two-stage approach, consisting of a GAN which is trained to synthesize vessel tree images from noise, and a second conditional GAN as seen in Pix2Pix Isola2017ImagetoImageTW to generate realistic, high resolution pairs of groundtruth vessel segmentation and the corresponding eye fundus image. In succession, they investigate the performance of a U-Net trained for segmentation using real data pairs and another model trained only on the synthetic samples, and find that training from only the synthetic data leads to an only slightly inferior model.

In zhao2017synthesizing

, the authors also leverage the Pix2Pix framework for the tasks of synthesizing filamentary structured images, i.e. eye fundus images and neurons from binary segmentation masks. Compared against

costa2017towards ; costa2017end , the authors also provide their framework with a reference image for style and train the generator also with the feedback from an additional VGG-network leveraged for style transfer. and show that only 10 training examples are sufficient fro training such an image-to-image translation model. Opposed to Pix2Pix, they do not introduce noise with the help of dropout, but by augmenting noise to the bottleneck of the encoder-decoder network. In a set of use-case experiments on retinal image segmentation it is demonstrated that the introduction of additional synthetic images, i.e. training from both real and synthetic images, slightly improves the segmentation performance.

PET from CT PET images are frequently used for diagnosis and staging in oncology, and the combined acquisition of PET and CT images is a standard procedure in clinical routine. Furthermore, PET/CT imaging is becoming an important evaluation tool for new drug therapies. However, PET devices involve radioactivity and thus put patients at risk, and are expensive in general. Consequently, the medical image analysis community has been working on synthesizing PET images directly from CT data. In this context, GANs have also shown outstanding performance. Initial promising results for synthesizing liver PET images from CT data with conditional GANs have been obtained in ben2017virtual . The conditional GAN, again inspired by Isola2017ImagetoImageTW , is able to synthesize very realistic looking PET images, however at the cost of low response to underrepresented tumor regions, which leads to poor tumor detection performance in a set of use-case experiments. In contrast, the authors find that an FCN for PET image synthesis is capable of synthesizing tumors, but produces blury images in general. By blending corresponding synthetic PET images coming from the conditional GAN and the FCN, they are able to achieve very high tumor detection performance, though. Similarly, in bi2017synthesis the authors utilize a conditional GAN for synthesizing px sized PET images from pairs of CT images and binary labelmaps. While CT images alone would be sufficient as input, they note that by adding a labelmap which marks the location of a tumor, they obtain globally more realistic, synthetic output. Because of the two-channel input to the generator, they refer to their network as the multi-channel GAN. Further, the authors validated their synthetic PET images with a tumor detection model trained on synthetic data and obtained comparable results to a model trained with real data, showing that synthetic data can in fact be beneficial when there is a lack of labeled data.

PET from MRI For monitoring disease progression, understanding physiopathology and evaluate treatment efficacy of Multiple Sclerosis (MS), measuring the myeling content in PET images of the human brain has recently shown to be very valuable. Unfortunately, PET imaging for MS is costly and invasive as it requires the injection of a radioactive tracer. In wei2018learning , the authors successfully utilize a cascade of two conditional GANs for synthesizing such PET images from a set of different MR modalities. Their approach operates directly on volumetric data, leveraging a 3D U-Net for the generator networks and discriminator networks with 3D convolutions. Interestingly, the authors noted that a single conditional GAN was insufficient for the task at hand as it produced blurry images. Splitting the synthesis task into smaller, more stable subproblems, seemed to drastically improve the results.

Ultrasound Hu et al. hu2017freehand propose a conditional GAN architecture for synthesizing 2D ultrasound images of a fetus phantom, as produced by a freehand US probe, given 3D spatial pixel locations within the anatomy. In contrast to the standard conditional GAN, the authors find it neccessary to transform the pixel locations into featuremaps and to concatenate them with the produced featuremaps at each level of the generator to facilitate training. In their experiments they demonstrate the capability of simulating US images at locations unseen to the network, quantify the generation of sound images by comparing the location of clinically relevant anatomical landmarks in synthetic and real images, and verify the realism of the generated images in a usability study. The quantitative results show that anatomical landmarks are roughly synthesized at the right locations with a mean error of 6.1mm. In their usability study, the sonographer was able to mostly correctly distinguish between real and generated samples, which is due to checkerboard artifacts in the synthetic images. After blurring the images using a gaussian kernel with , the sonographer was not able to reliably tell the difference anymore. The interested reader is also refered to the NiftyNet framework gibson2017niftynet , in which this conditional GAN is contained. Tom et al. tom2017simulating apply GANs for intravascular ultrasound (IVUS) simulation in a multi-stage setup. A first generator conditioned on physically simulated tissue maps produces speckle images, which in turn act as the conditioning input to a second residual network based generator. The second generator maps the speckle images to low resolution, synthetic px sized US images. A third generator transforms these low resolution images into high resolution samples at a resolution of px. In a visual turing test, the synthetic images could not reliably be distinguished from real ones.

Stain Normalization Conditional GANs have also been leveraged for coping with the variance in digital histopathology staining, which is well known to cause problems for CAD systems. Cho et al. cho2017neural point out that a tumor classifier generalizes poorly on both data with staining properties different from the training set, as well as on images that have been stain-normalized with state-of-the-art methods. To overcome these issues, they propose a feature-preserving conditional GAN for stain style transfer with the particular goal to prevent a degradation in performance of CAD systems on synthetic images. First, they map histological images to a canonical gray-scale representation. In succession, they leverage a conditional GAN to transform gray-scale images into RGB images with the desired staining. By employing an additional feature-preserving loss on the hidden layers of the discriminator, they demonstate that a tumor classifier model trained on data stemming from a certain distribution performs better on the stain-transfered images than on the original ones, and that their conditional GAN shows the smallest degradation in performance compared to other state-of-the-art stain transfer methods.

Bayramoglu et al. bayramoglu2017towards leverage the Pix2Pix framework for virtual H&E staining on unstained hyperspectral microscopy images using px sized patches. The authors report the SSIM and MSE between synthetically stained images and the ground-truth and point out to have obtained promising result, but require expert feedback in order to draw a valid conclusion.

BenTaieb et al. bentaieb2018adversarial try to tackle the stain transfer problem with the help of a so-called Auxiliary Classifier GAN by simultaneously training a conditional GAN for stain-transfer and a task-specific network (i.e. a segmentation or classification model). The joint optimization of the generator, the discriminator and the task-specific network drives the generator to produce images with relevant features preserved for the task-specific model and overall leads to superior results in stain-normalization compared to other state-of-the-art methods.

Aformentioned methods rely on paired training data to map from a source to target staining, which is often hardly available and requires preprocessing such as co-registration. However, co-registration itself is not perfect and is prone to artifacts. Shaban et al.shaban2018staingan alleviate the need for paired training data and co-registration by employing CycleGANs for the task of stain transfer. In a broad set of experiments on different datasets, they show visually much more compelling stain transfer results than previous deep-learning and non-deep learning based methods. In addition, they also show quantitatively how their approach significantly reduces domain shift which usually hampers deep learning models: A classifier trained for mitosis detection provides much better classification results on images stain-transfered with the proposed approach than on original data, and again also other stain transfer methods.

Microscopy Han et al. han2017transferring propose a conditional GAN framework similar to Pix2Pix for transferring between Phase Contrast and Differential Interference Contrast (DIC) Microscopy images, however with two discriminator networks rather than one. A U-net like generator is trained to synthesize the image of a certain modality from an image of the source modality and a cell mask. Two different discriminators then either discriminate between pairs of real source and target modality images versus pairs of real source and synthesized target modality image, or pairs of cell mask and real source versus cell mask and sythesized target images. In a set of qualitative and quantitative evaluations they rank their two-discriminator approach against the Pix2Pix framework which uses only a single discriminator. They report improved results in the metrics of SSIM and normalized RMSD when transferring from DIC image to Phase Contrast, and comparable results when trying to map from Phase Contrast to DIC. Noteworthy, the authors amount the comparable performance of the latter mapping to the details already present in Phase Contrast images, which leaves the cell mask with vey little impact on the synthesis outcome.

Blood Vessels Machine Learning driven analysis methods for detecting atherosclerotic plaque or stenosis in coronary CT angiography (CCTA) are powerful, but data-hungry. To deal with the lack of labeled data, Wolterink et al.wolterink2018blood propose to synthesize plausible 3D blood vessel shapes with the help of a Wasserstein GAN from noise and attribute vectors. To facilitate the synthesis in 3D at appropriately high resolution, the authors generate 1D parameterizations of primitives which characterize blood vessels and act as a proxy for the final vessel rendering. Magnetic Resonance Angiography (MRA) has also evolved into an important tool for visualizing vascular structures, but often times it is not acquired alongside the standard protocols. In olut2018generative , the authors propose the so-called steerable GAN for synthesizing MRA images from T1 and T2-weighted MR scans, potentially alleviating the need for additional MR scans. Their conditional, steerable GAN combines a ResNet-like generator with a PatchGAN-discriminator, an -loss between real and synthesized image as well as a steerable filter loss to promote faithful reconstructions of vascular structures.

Tables 12, 13 and 14 give an overview of all the presented image synthesis methods. The unconditional synthesis methods are summarized in Table 12, whereas the conditional GAN variants are summarized in Table 13 and 14. In particular, we report the method, i.e. the underlying GAN architecture, the image modalities on which the particular method operates, the datasets which have been used and the resolution of the synthesized images. Since losses are a substantial part of the underlying GAN framework, we do not explicitly report them here. Further, we do not report any quantitative results since they i) are in many case unavailable, ii) hardly interpretable and iii) overall hardly comparable. In general, many interesting GAN-based approaches have been made for both unsupervised and conditional image synthesis. However, often the validity of the method at hand is questionable and requires more elaboration. For instance, in many visual turing tests it is fairly easy to distinguish between real and generated images hu2017freehand ; chuquicusma2017fool ; frid2018synthetic due to artifacts in synthetic samples, such as the well known checkerboard pattern. In hu2017freehand ; chuquicusma2017fool , the authors tackle this problem by applying anisotropic or gaussian filtering to both real and fake samples before presenting them to the raters hu2017freehand ; chuquicusma2017fool , which is only valid as long as blurry images still contain the required amount of information for the task at hand. Another problem is that GANs are prone to the phenomenon of mode collapse, in which the model is only able to generate samples stemming from one or a few modes of the real data distribution, resulting in very similar looking synthetic samples. Particularly in the works of kitchen2017deep and schlegl2017unsupervised , where samples look fairly similar, a thorough elaboration on whether mode collapse has occured or not would have been very interesting. In general, the community still lacks a meaningful, universal quantitative measure for judging realism of synthetic images. Regardless of the realism, aforementioned works have shown that GANs can be used successfully for data simulation and augmentation in classification and segmentation tasks. How realism, artifacts in and specific properties of generated samples affect a machine learning model when used for data augmentation also remains an open question.

Method Image Modality Dataset Resolution
kitchen2017deep
Architecture:
DCGAN
MRI Prostate Lesions
SPIE ProstateX Challenge 2016 1616
chuquicusma2017fool
Architecture:
DCGAN
CT Lung Cancer Nodules
LIDC-IDRI 5656
frid2018synthetic
Architecture:
DCGAN
focal CT liver lesion patches
non-public 6464
bermudez2018learning
Architecture:
DCGAN
2D axial brain MR slices
Baltimore Longitudinal
Study of Aging (BLSA)
220172
baur2018melanogans ; baur2018generating
Architecture:
DCGAN,LAPGAN,PGAN
Dermoscopic Imags of Skin Lesions
ISIC2017 & ISIC2018
256256
Table 12: Unconditional GANs for Medical Image Synthesis
Method Image Modality Dataset Resolution
nie2017medical
Architecture:
3D Autocontext
FCN with adversarial
loss, image gradient
loss and -loss
MR to CT
ADNI and 22 non-public
pelvic image pairs
n/a
wolterink2017deep
Architecture:
CycleGAN
2D saggital brain MR
and CT slices
non-public 256256
chartsias2017adversarial
Architecture:
CycleGAN
2D cardiac MR w.
segmentation mask to
cardiac CT w. segmentation
mask
non-public 232232
costa2017towards ; costa2017end
Architecture:
AAE and Pix2Pix
2D binary vessel tree
images to retinal images
DRIVE, MESSIDOR 512512
jin2018ct
Architecture:
3D cond. GAN
3D volumes of lung nodules
LIDC 646464
guibas2017synthetic
Architecture:
GAN and Pix2Pix
2D binary vessel tree
images to retinal
DRIVE, MESSIDOR 512512
zhao2017synthesizing
Architecture:
Pix2Pix
w. Style Transfer
eye fundus images,
microscopic neuronal images
DRIVE, STARE, HRF, NeuB1 512512 and higher
ben2017virtual
Architecture:
Pix2Pix and FCN
2D liver tumor CT to PET images
non-public n/a
Table 13: Conditional GANs for Medical Image Synthesis
Method Image Modality Dataset Resolution
bi2017synthesis
Architecture:
conditional
multi-channel GAN
CT and binary segmentation
pairs to PET images
non-public 200200
hu2017freehand
Architecture:
spatially cond. GAN
2D US
non-public fetus phantom 160120
tom2017simulating
Architecture:
multi-stage cond. GAN
simulated tissue maps
to 2D Intravascular US
IVUS challenge 256256
cho2017neural
Architecture:
feature-preserving
conditional style-
transfer GAN
Digital Histopathology
CAMELYON16 n/a
bayramoglu2017towards
Architecture:
Pix2Pix
Hyperspectral microscopic images
to H&E stained images
non-public 6464
bentaieb2018adversarial
Architecture:
ACGAN
Digital Histopathology
MITOS-ATYPIA14
MICCAI’16 GlaS challenge
non-public ovarian carcinoma
250250
shaban2018staingan
Architecture:
CycleGAN
Digital Histopathology
MITOS-ATYPIA14
Camelyon16
256256
han2017transferring
Architecture:
cond. GAN with
two Discriminators
DIC & Phase Contrast Microscopy
non-public 256256
wolterink2018blood
Architecture:
WassersteinGAN
Geometric parameters extracted from CCTA
non-public n/a
olut2018generative
Architecture:
cond. steerable GAN
MRA from T1 & T2w MRI axial slices
IXI Dataset n/a
Table 14: Conditional GANs for Medical Image Synthesis

5 Discussion

5.1 Overview

GANs is receiving significant attention from the medical imaging community - this is evident by the sudden spike in the number of papers published using GANs. We found a total of 63 papers by searching Google Scholar and PubMed with ’GAN’ or ’Generative Adversarial Networks’ in title or keywords. Of these, we shortlisted 63 papers for review based on the innovation in key aspects of the GAN architecture. Of these 63, 28 are proposed in synthetic applications. However, the application fields are quite diverse ranging from segmentation, reconstruction all the way to de-noising - showing possible applications of GANs across many medical tasks.

5.2 Benefits of GANs in the medical field

Deep generative models based on GANs capable of producing realistic looking images, provide major advantages over the more established discriminative frameworks in two challenges that are unique to medical settings:

Scarcity of annotations: Often times, annotations are expensive and hard to come-by in medical imaging. Supervised learning based deep neural networks for such problems is challenging - leading to the possibility of deploying semi- or un-supervised learning. GANs can benefit both of these upcoming frameworks, as demonstrated by multiple studies in synthesis and transformation (sec. 4.6).

Unpaired data: The idea of multi-modal image fusion for better diagnostic decision making is very well grounded. However, finding properly registered data (pixel-wise or area-wise) is supremely challenging. The ability of modern GAN frameworks e.g. cycle GAN to learn distinctive patterns from unpaired training images and generating realistic outputs is certainly inspiring. The reconstruction quality of GANs can be considered as a significant benefit in its own right - which might pull out the medical image reconstruction quality from blurring effect.

5.3 Drawbacks

We identify three major drawbacks in the current form of GANs that might hinder its acceptance in the medical community:

Trustability of Synthesized Data: In healthcare, where trustability of the clinicians is the biggest challenge for any technology, images synthesized by GANs provide little comfort. The basic networks - generator and discriminator - are still deep neural networks, the mechanism of which is not well studied. In computer vision, where the overall perception is the main concern, these results are adequate. In medical images, however, intensities are typically associated with some meanings e.g. tissue types can be broadly categorized based on HU of CT data. Such an association and mapping is currently missing from the GAN reconstruction - a shortcoming severe enough for clinicians to distrust images synthesized by GAN.

Unstable Training: The typical GANs training is unstable because of numerical reasons pointed out in learning literature creswell2018generative . This results in situations such as mode collapse. State-of-the-art learning theory focuses on solving such numerical problems in GANs training for real images. However, in medical imaging, where the modes of images are unclear, how to identify such a problem is unclear. This leads to the question of what sort of numerical singularities might arise in medical imaging and how to address those.

Evaluation Metric: This is a problem, in tandem with the general computer vision community. The best possible way to evaluate reconstruction result is still unclear. In medical imaging, researchers rely mostly on traditional metrics such as PSNR or MSE to evaluate GAN reconstruction quality. This is a tricky situation in the sense that the disadvantages of such metrics were the main reason to move toward GAN. So how can we evaluate potentially better results with metrics which are not capable to understand it?

5.4 Future Works

We believe GANs need to address the significant drawbacks discussed in section 5.3 before being a technology that is trusted in healthcare. To this end, we can think of GANs as a technical building block rather than a stand-alone piece of technology for the future. For example, in the case of synthesizing CT data, enveloping GANs synthesis with a physics-based simulation might ensure realistic HU values.

The training instability issue needs to be addressed as well - which means rigorous experimentation to understand the convergence and saddle points of GAN in the medical imaging context. The question regarding metric is far trickier, going about with understanding the performance of GANs synthesized images in CAD by clinicians is a necessary first step.

In short, along with exciting results, GANs open up many possible research questions for the next few years. Proper understanding and answering those hold the key to successful GANs deployment in the real clinical scenario.

References
