In recent years, deep neural networks (DNNs) have dramatically accelerated the field of artificial intelligence. Their ability to represent data through increasingly more abstract layers of feature representations has proven effective in numerous application areas, such as image classification, speech recognition, disease diagnosis, and neural machine translation[AlexNet, deepspeech2, speechlstm, diabdeep, translation]. With increased access to powerful computational resources and large amounts of labeled training data, e.g., ImageNet has 1.28 million images from 1,000 different categories [imagenet], DNNs can achieve super-human performance on a variety of tasks.
One strategy for increasing DNN expressivity and accuracy relies on adding more layers and convolutional filters. The evolution of DNNs over the past few years exemplifies this approach. For example, the ImageNet based DNN champion VGG-19 [vgg] is deeper and has more floating-point operations (FLOPs) than the previous champion AlexNet, and DeepSpeech2 [deepspeech2] is deeper and requires more computation than the preceding DeepSpeech. Despite their improved accuracy, these bulkier models are unsuitable for edge-side inference, which typically faces stringent latency and memory constraints.
To address the deployment limitations for modern DNNs, an emerging stream of research focuses on increasing model compactness. One set of approaches aims to learn compact architectures. For example, neural architecture search (NAS) uses gradient information to unveil new building blocks [rl3, nasnet]. Model compression methods, such as pruning, are used widely to reduce the computational overhead in DNNs [han2015deep]. The derived compact architectures offer computational savings with negligible accuracy degradation. An alternative approach focuses on reducing computational overhead through weight quantization, where bit precision can be reduced without affecting accuracy [zhuternary, zeroq].
One property common to these methods is that the same model processes different input instances. Given the fact that different instances have unique visual features, a natural question arises: does every instance require all levels of embeddings and the same set of feature maps to be accurately classified? Intuitively, deeper embeddings may not be necessary for easily classifiable images. Therefore, to maximize computational efficiency, the additional computations associated with deeper layers should be reserved only for difficult input instances. In addition, since convolutional channels/filters capture class-specific features, unnecessary computations can be saved by skipping irrelevant channels during inference.
Dynamic inference is an emerging approach that exploits input properties to selectively execute salient subsets of computations needed for accurate classification. Unlike static methods that permanently remove neurons to improve model efficiency, dynamic approaches only transiently suppress computations depending on the input instance. Thus, dynamic methods maximize efficiency and preserve model expressivity. To date, however, these methods have resulted in models with limited dynamics. As a result, they cannot fully adapt to the computational needs of each instance. For example, filter pruning approaches operate at the filter level but not the layer level, which may result in the execution of redundant computations and hence incur unnecessary computational cost. In addition, these approaches often use reinforcement learning to make selection decisions, which is computationally intensive.
In this work, we propose a framework that offers fully dynamic inference on a per-instance basis. At the core of our approach lies the design of predictive control nets placed parallel to a backbone network. Specifically, we introduce two novel auxiliary networks, Layer-Net (L-Net) and Channel-Net (C-Net), that, respectively, assist with dynamic layer and channel skipping and scaling.The joint topology consisting of both control nets, referred to as LC-Net, enables fully dynamic inference that simultaneously improves inference efficiency and accuracy by (1) determining which channels and blocks to execute at inference time, (2) scaling retained channels and blocks with a salience score to maximize accuracy, and (3) predicting salient computations on-the-fly without halting the inference flow or incurring latency overhead.
We summarize our contributions as follows:
We propose an instance-based fully dynamic inference paradigm. The method enables, for the first time, fully flexible model depth and width at inference time. It is completely compatible with existing training pipelines and results in minimal overhead and high accuracy.
We introduce, study, and verify an on-the-fly predictive skipping and scaling mechanism, which incurs no halting time during inference.
We introduce the ReLU-1 activation for predictive salience generation that can (1) zero out layers and channels to reduce computational cost and (2) re-scale the remaining layers and channels to improve accuracy.
We qualitatively and quantitatively validate our approach on CIFAR-10 and ImageNet datasets. Both sets of experiments show that our approach results in state-of-the-art performance in terms of model efficiency and accuracy.
2 Related Work
In this section, we discuss methods for deriving efficient neural networks, which can be broadly categorized into static and dynamic approaches. We provide a detailed overview of both categories.
2.1 Static Approaches
Most DNNs are computationally-intensive and over-parameterized [hanpruning]. Several approaches
have been proposed to create efficient DNNs, including the design of novel compact neural network architectures and compression of existing models. We summarize these approaches next.
Compact architecture design: Exploiting efficient building blocks and operations can significantly reduce DNN computational cost. For example, MobileNetV2 shrinks the model size and reduces the number of FLOPs with inverted residual building blocks [mobilenetv2]. Ma et al. propose another compact convolutional neural network (CNN) architecture that uses channel shuffle operation and depth-wise convolution [shufflenetv2]. Wu et al. suggest replacing the spatial convolution layers with shift-based modules that have zero FLOPs. The generated ShiftNet has substantially less computational and storage costs [shift]. In addition, automated compact architecture design provides a promising solution [mnasnet]. Dai et al. propose an automated architecture adaptation and search framework based on efficient performance predictors [chamnet].
Model compression: Apart from compact architecture design, compressing and simplifying existing models has emerged as a promising approach [scann]. Network pruning is a successful DNN compression technique that removes redundant connections and neurons. Han et al. have shown that the number of parameters of VGG-16 can be reduced by more than without any accuracy loss [hanpruning]. A recent work combines pruning with network growth and improves the compression ratio of VGG-16 by another 2.5 [nest]. Furthermore, structured sparsity and pruning can significantly reduce run-time latency [structuredsparsity]. Low-bit quantization is another powerful tool for reducing storage cost [han2015deep]. Zhu et al. show that replacing a full-precision (32-bit) weight representation with ternary weight quantization only incurs a minor accuracy loss for ResNet-18 but significantly reduces the storage and memory costs [zhuternary].
Knowledge distillation: Knowledge distillation allows a compact student network to distill information (or dark knowledge) from a more accurate, but computationally-intensive, teacher network (or a group of teacher networks) by mimicking the prediction distribution, given the same data inputs. The idea was first introduced by Hinton et al. [hinton2015distilling]. Since then, knowledge distillation has been used to discover efficient networks. Romero et al. propose FitNets that distill knowledge from the teacher’s hint layers to teach compact students [fitnet]. Passalis et al
. enhance the knowledge distillation process by introducing a concept called feature space probability distribution loss[passalis2018learning]. Yim et al
. propose fast minimization techniques based on intermediate feature maps that can also support transfer learning[yim2017gift]. Yin et al. propose DeepInversion that inverts a CNN to reconstruct the dataset for data-free knowledge transfer [yin2019dreaming].
2.2 Dynamic Approaches
Although static approaches can yield compact architectures with significantly reduced computational cost, these approaches have two distinct disadvantages. First, static approaches permanently remove layers and neurons, thereby decreasing inference capability. Removing rarely activated neurons may be an effective strategy for the average case, but these same neurons may be critical for accurately classifying challenging input instances. Second, statically pruned models process all input instances equally, which may be computationally-inefficient. For example, images from unrelated classes, like
trucks and birds, have minimal feature overlap: birds do not have headlights and trucks do not have
wings. As a result, convolutional filters associated with truck features are likely unimportant
for predicting birds and vice versa. Furthermore, not all images are equally difficult to
classify. While difficult images may need deep network embeddings for accurate classification, many
images may only need shallow embeddings. Hence, the computations associated with deep embeddings are wasted on easy images.
Early prediction: To address the limitations mentioned above, recent work proposes the concept of conditional computation, where parts of a model are selectively executed depending on the input instance. Early prediction is one type of conditional computation [adaptivenn, dgate, branchy]. With this approach, predictive signals determine if a set of shallow embeddings is sufficient to correctly classify an input instance. If so, the instance is classified without receiving further processing from deeper layers. Although this approach is an intuitive solution for input-driven efficient inference, early prediction discards all embeddings subsequent to the prediction point.
Module selection: Other approaches address the above limitation and offer more selection flexibility. For example, BlockDrop, a reinforcement learning-based approach, can learn which arbitrary sets of residual blocks to drop in a ResNet architecture [blockdrop]. Leroux et al. design a ResNet-based network with parameter sharing and an adaptive computation time mechanism to reduce parameters and adaptively execute layers [iamnn]. Odena et al. propose adaptively constructing computation graphs from sub-modules using a reinforcement learning-based controller [odena]. Liu et al. propose a new type of DNN augmented with control modules to selectively execute subsets of the model with Q-learning [dynamicdnn].
Despite their additional flexibility over early prediction methods, these approaches have limited dynamics that are restricted to modules. In addition, they typically use computationally-intensive reinforcement learning to derive a control policy, due to the non-differentiable nature of the on/off decisions for each module. A more suitable approach for achieving dynamic selection may increase the flexibility and granularity of dynamic paths rather than be limited to pre-defined modules. Also, training the decision controller jointly with the backbone model in an end-to-end fashion may be favorable.
Channel pruning: Recent work in channel selection allows greater flexibility for conditional computation. For example, Gao et al. achieve channel-wise selective computation with a feature boosting and suppression mechanism to predictively evaluate feature map salience and skip unimportant channels at run time [FBS]. However, this method halts the network during the salient channel selection process and introduces overhead. Also, it utilizes a -winners-take-all function to preserve the top salient channels. It may be difficult to determine the optimal for each convolutional layer a priori.
Feature and layer importance in CNNs varies depending on the input instance. This input-dependence can be exploited in designing efficient networks for energy- and computation-constrained scenarios,
since irrelevant feature maps can, in principle, be ignored without sacrificing accuracy.
We propose a methodology with hierarchical dynamics to achieve on-the-fly selective execution of CNNs for efficient inference. At a coarse-grain level, only salient layers for image discrimination are retained at inference time, while other layers are skipped. At a finer-grain level, only salient feature maps/channels associated with retained layers are preserved. This multi-level approach imposes layer-wise and channel-wise sparsity, which significantly reduces computational cost while preserving high classification accuracy.
We primarily focus our attention on constructing a dynamic building block that can adapt its future computation graph based on its input. The block-based approach makes the method readily applicable across various network topologies, given the widespread usage of blocks in networks such as ResNets [he2016deep], Inceptions [inception], MobileNets [mobilenet], ShuffleNets [shufflenet], and EfficientNets [efficientnet].
We hypothesize that an input tensor that contains meaningful information from previous layers can be used to learn execution rules for the current block. In particular, these rules can decide if a block or the channels therein are important for correctly classifying the input instance. To test this hypothesis, we design a block that can selectively execute certain convolutional layers and convolutional channels within these layers, depending on the input instance.
3.1 L-Net: Dynamic Layer Skipping for Depth Flexibility
Not all input instances require all layer-wise computations to be correctly classified [dgate].
In modern DNNs, repeated blocks are built on top of each other to fine-tune feature details. Harder
samples may need deeper embeddings to be accurately classified, while easier samples may only need
shallow embeddings. In other words, shallower inference is viable for easier samples, while deeper layers are needed for harder cases to maintain performance.
We propose a depth-wise skipping framework that dynamically selects salient layers needed for high classification performance. Most modern DNNs have adopted a block-based residual learning design following the remarkable success of ResNet [he2016deep] (for example, MobileNetV2 [mobilenetv2], ShuffleNet [shufflenet], and ResNext [resnext]), which solved the accuracy degradation problem associated with DNNs. We therefore construct our skipping methodology to be generally applicable to arbitrary blocks used in modern DNNs.

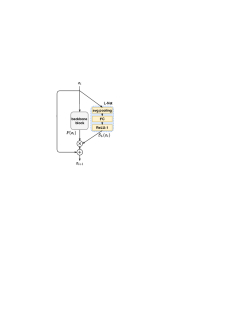

To enable dynamic block skipping, we propose adding a small network called L-Net to arbitrary blocks with shortcut connections. The L-Net architecture is illustrated in Fig. 1
. L-Net contains three parts: a global average pooling layer, a fully-connected layer, and a ReLU-1 activation function. We designed L-Net to be small and shallow to make sure that the additionally introduced computations and parameters are negligible compared to the original backbone neural network.
For simplicity, consider an arbitrary building block with skip connections in a general block-based backbone DNN. The input to the block is denoted as , the output is , and the function represented by the block is . The transformation performed by the original block architecture can be represented as follows:
where contains one or more convolutional layers, which account for the majority of network computations. In order to dynamically skip unnecessary blocks and thereby reduce computational cost, an L-Net is added in parallel to each block. For the block, L-Net takes as input. Within L-Net,
first passes through a global average pooling layer to reduce the spatial size to 1 per channel. Next, the output vector is passed to a fully-connected layerfollowed by a ReLU-1 activation, which outputs a block salience score, denoted by , between 0 and 1. The ReLU-1 output is a scaling factor applied to the block output, . If the block salience is zero, the block is skipped. We formalize the L-Net controlled block as follows:
3.2 C-Net: Dynamic Channel Selection for Width Flexibility
Most of the DNN computational cost is incurred in the convolutional layers. Within these layers, the contribution of individual channels is highly input-dependent [FBS]. For example, feature maps for cars are not useful for classifying horses, since these feature maps are generally not activated post-ReLU. As a result, these irrelevant feature maps may be avoided without degrading classification accuracy.
While L-Net improves computational efficiency through block-level skipping, the overall computational cost can be further reduced by exploiting image-dependent salience differences at the channel level within retained blocks. To this end, we propose a complementary approach to L-Net, called C-Net, which dynamically prunes unimportant channels in an input-driven manner.
Generally, consider the convolutional layer of a deep CNN. Denote the mapping performed by the layer as , which computes feature maps given input . The goal of C-Net is to predict channel salience and only execute a subset of corresponding important convolutions within the total convolutions in the layer.

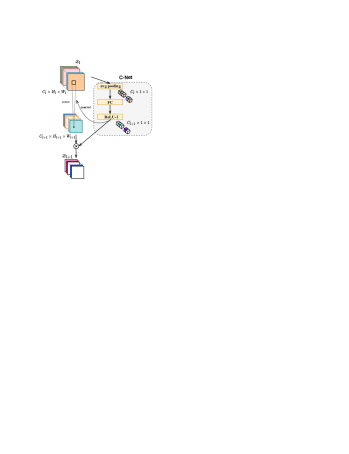

The schematic of C-Net is shown in Fig. 2. C-Net is added in parallel to the layer. Like L-Net, C-Net is a compact network that contains a global average pooling layer, a fully-connected layer, and a ReLU-1 activation function. The fully-connected layer is designed to have units to match the output’s number of channels. C-Net shares the same input as the layer. Within C-Net, the global average pooling layer processes the input and produces a vector of length . Next, this vector goes through the fully-connected layer and a ReLU-1 activation to produce a channel salience score of size , denoted by , between 0 and 1. The dynamic layer with channel selection can be expressed as follows:
where , is the salience score for the channel, which is multiplied with all elements of the channel. During inference, convolutions are not executed if their associated channels have a salience score of 0. Channels with a non-zero score are calculated, and their resulting feature maps are scaled by their corresponding score .
3.3 Joint Design: LC-Net
L-Net and C-Net are orthogonal approaches that, respectively, enable depth-wise and channel-wise
skipping and scaling for efficient dynamic inference. As such, we integrate the two approaches to
achieve fully dynamic inference and minimize computational cost.
For concreteness, we illustrate an instantiation of our co-design methodology on the ResNet family. Within this family, there are two types of building blocks: basic and bottleneck. A basic block consists of two 33 convolutional layers, and a bottleneck block consists of a sequence of 11, 33, and 11 convolutional layers. The joint design structures for both types of building blocks are illustrated in Fig. 4. L-Net and C-Net are both added in parallel to either building block type and take the same input. Since L-Net and C-Net both use a global average pooling process, we are able to reduce computation overhead by sharing one global average pooling layer between the two. As mentioned earlier, the block salience score produced by L-Net is multiplied with the residual mapping. The channel salience score is multiplied with the output of the first layer within the building block. For the basic block, this corresponds to the first 33 convolutional layer; for the bottleneck block, this corresponds to the first 11 convolutional layer.
In addition to sharing a pooling layer, we introduce two design choices to encourage training convergence and allow on-the-fly dynamics with minimal latency overhead.

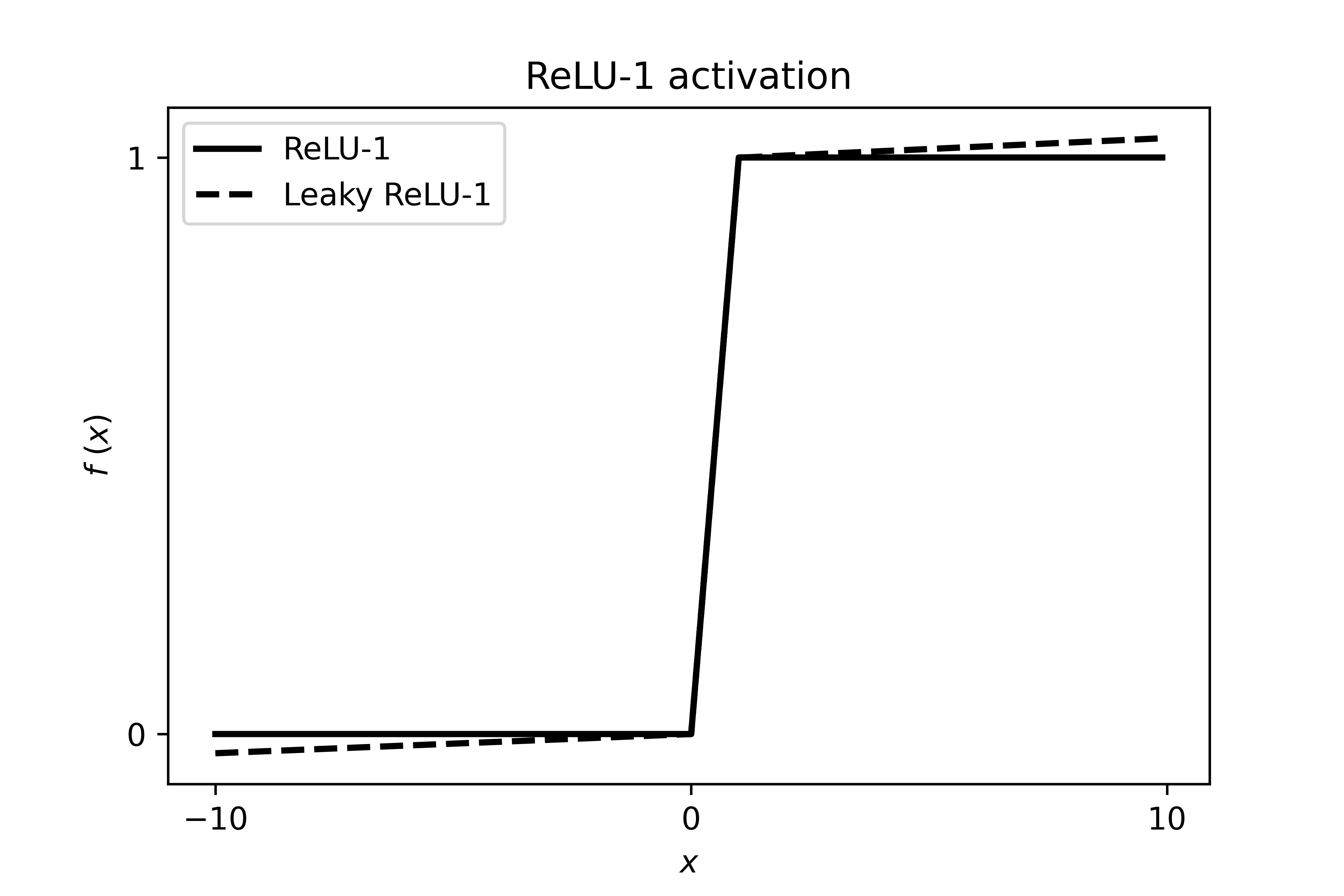

In both L-Net and C-Net, we obtain a salience score between 0 and 1 via a ReLU-1 activation function, which is displayed in Fig. 3 and formulated as:
During training, we use a leaky ReLU-1 to encourage convergence. Unlike the sigmoid activation function, which also produces results between 0 and 1, this ReLU-1 activation function does not suffer from vanishing gradients during training and is able to produce a strict range of values between 0 and 1 at inference time. In addition, the leaky ReLU-1 is less prone to exploding activations for positive inputs than the standard ReLU. Since the ReLU-1 function is differentiable, LC-Net and the backbone model can be jointly trained in an end-to-end fashion, unlike reinforcement learning-based policy controllers. This improves training efficiency.
We designed L-Net and C-Net to be parallel to the building block such that the control nets and the backbone network can all execute simultaneously. L-Net and C-Net have fewer computations than the first convolutional layer in the main building block. Hence, these two networks can produce salience scores before the first convolutional layer has finished execution. This leads to memory and cache fetching efficiency for the next convolutional layer via filter-level suppression. Therefore, unless L-Net predicts that the whole block can be skipped, some of the next convolutional layer’s computations can be saved based on which channel saliencies are set to zero.
4 Experimental Results
We run extensive experiments on classification tasks with CIFAR-10 [cifar] and ImageNet [imagenet]
datasets to demonstrate the effectiveness of our fully dynamic inference framework. We instantiate the fully dynamic design on the ResNet family backbone in PyTorch[pytorch]. On both datasets, we compare FLOPs and accuracy of our method with related work in dynamic inference. In addition, we visualize the per-instance dynamics during inference to better understand our framework’s behavior.
We evaluate our method on two popular datasets: CIFAR-10 and ImageNet. Both datasets consist of colored natural images. CIFAR-10 is divided into 50,000 training instances and 10,000 testing instances of resolution 3232 labeled for 10 classes. To demonstrate the scalability of our method to larger and more complex datasets, we evaluate it on ImageNet, which consists of images of size 224224 labeled for 1000 classes. ImageNet consists of 1.2M training images and 50,000 validation images.
4.2 Training and Implementation Details
We adopt stochastic gradient descent (SGD) with a Nesterov momentum of 0.9 without damping to train all models. We also use a weight decay (L2 penalty) of 0.0005. All backbone models with L-Net and C-Net added are trained from scratch. On CIFAR-10, we train the model for 270 epochs. We set the initial learning rate to 0.01 and decay it by ten-fold every 90 epochs. The training batch size we use on CIFAR-10 is 96. For training on ImageNet, we adjust the batch size to 256. We also train the backbone model and L-Net/C-Net with separate learning rates. Specifically, we set the initial learning rate to 0.005 for the backbone model and 0.00001 for the added L-Net and C-Net. Both learning rates decay ten-fold every 30 epochs for a total number of 120 epochs. After training the proposed dynamic framework, we run inference and record the classification accuracy and FLOPs.
4.3 Main Results
We compare our methodology to existing methods for efficient inference. The methods we consider include IamNN [iamnn], Decision Gate-Resnet (DG-Res) [dgate], Continuous Growth and Pruning
(CGaP) [cgap], filter pruning [prunefilter], and Neuron Importance Score Propagation (NISP) [nisp]. We use FLOPs and percent accuracy to assess model performance.

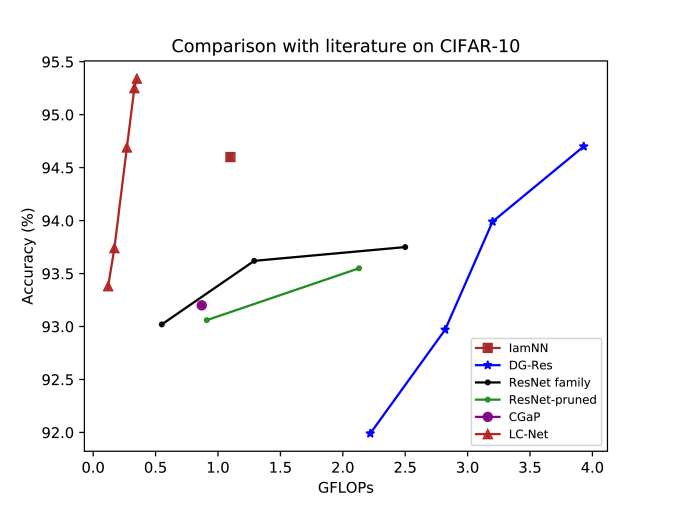

CIFAR-10: As shown in Table I, our method outperforms all prior art with respect to accuracy and FLOPs on CIFAR-10. Compared to IamNN, our method, which uses a ResNet-18 backbone, achieves higher accuracy with more than fewer FLOPs. Compared to DG-Res, our model has higher accuracy and more than fewer FLOPs than the most compact configuration, and higher accuracy and more than fewer FLOPs than the highest accuracy configuration. Compared to CGaP, which has the fewest FLOPs among the methods we considered, we achieve higher accuracy and fewer GFLOPs. Similar to the trend shown for DG-Res, our method is more accurate and has fewer FLOPs than filter-pruned ResNet-56 and ResNet-110 models. These results are depicted graphically in Fig. 5.
|DG-Res [dgate] - config A||2.22||91.99|
|DG-Res [dgate] - config B||2.82||92.97|
|DG-Res [dgate] - config C||3.20||93.99|
|DG-Res [dgate] - config D||3.93||94.70|
|LC-Net pre-trained (parallel)||0.19||93.27|
|LC-Net pre-trained (sequential)||0.06||93.27|
In addition to training LC-Net with our backbone model from scratch, we also experimented with
augmenting a pre-trained backbone with LC-Net. In principle, using a pre-trained backbone can save
considerable training time. To encourage sparser dynamic executions, we add L1 regularization to both prediction tensors coming out of L-Net and C-Net for each building block, namely, and .
We show results for a ResNet-18 backbone augmented with LC-Net. As can be seen from Table I, using a pre-trained model with L1 regularization results in an additional dramatic reduction in FLOPs with only a slight reduction in accuracy compared to the LC-Net model trained from scratch. Using a pre-trained backbone, we also tested two different configurations that allowed us to explore the trade-off between FLOPs and inference latency. In the on-the-fly predictive configuration we discussed earlier, LC-Net produces predictive salience scores in parallel with the computations within the main block, which incurs no latency overhead. In the second configuration, LC-Net is placed in series with the main block such that predictive salience scores are generated before the main block executes. Our results suggest that for very sparse models, the series configuration yields a substantial reduction in FLOPs, despite a possible increase in latency, compared to our original parallel configuration. Therefore, our framework offers the flexibility to choose between different configurations that can minimize latency or minimize computational cost depending on the deployment constraints.
ImageNet: For the ImageNet dataset, we compare our results on ResNet-50 to its baseline, as well as IamNN and NISP. Compared to the baseline, our method has comparable Top-1 and Top-5 accuracy ( and , respectively) while significantly reducing GFLOPs to ( reduction). Consistent with our finding for a ResNet-18 backbone on CIFAR-10, our method has greater accuracy and fewer FLOPs compared to IamNN and NISP-50-A, as shown in Table II. These results demonstrate the scalability of our method to larger, more complex datasets like ImageNet.
|Dataset||Models||GFLOPs||Top-1 Acc.(%)||Top-5 Acc.(%)|
4.4 Qualitative Analysis
Next, we assess the qualitative behavior of our dynamic framework to validate our intuitions.
4.4.1 Relationship between instance complexity and FLOPs
Our study was initially motivated by the intuition that images of different complexities require
different amounts of computation. In particular, easily classifiable images should require fewer
deep embeddings than more complex or atypical images. In addition, we hypothesized that since
convolutional filters capture class-specific information, not all convolutional channels should be computed for each input instance.
To qualitatively evaluate these intuitions and gain a better understanding of how our dynamic framework behaves during inference, we record FLOPs for each test instance and select representative examples with low and high FLOPs. These examples are shown in Fig. 6. Images with low and high FLOPs are shown in the top and bottom rows, respectively. The ground truth labels are shown below each image.
Visual differences are apparent between these two groups. In general, objects in the low-FLOPs image group are easily discernible, but images in the high-FLOPs image group are more challenging to classify. The low-FLOPs group tends to contain images that are more representative of their corresponding classes. For example, animals have typical poses, while vehicle features like wheels and windshields are clearly visible. Images in the high-FLOPs group, on the other hand, have ambiguous contours and atypical features. For example, the left two images of a plane are not obviously distinct from birds. The truck image shows the back of a truck, while most images in the truck class show the front or side of trucks. For the remaining instances in the high-FLOPs group, the animals have blurry outlines and have low contrast with respect to their background, which increases the likelihood of mistaken identification.
Altogether, these results are consistent with our hypothesis that images of different complexity require different amounts of computation. In particular, it appears that easily discriminated or highly class-representative images tend to require fewer computations, while more atypical or ambiguous images tend to require more computations.
4.4.2 Dynamic Selection
Next, we visualize the dynamic execution behavior of our approach during inference. We show examples of dynamic channel execution behavior within the last two basic blocks (namely, block 7 and block 8) of a ResNet-18 based model on CIFAR-10. In Fig. 7, the color patches indicate the activation percentage of each channel for each image class. More specifically, the color patch at location () in the figure represents the percentage of image instances in class that activates channel . For visual clarity, only the first 50 channels in each block’s second 33 convolutional layer are displayed. As can be seen from the figure, different classes require different subsets of channels for accurate classification. In addition, the prevalence of white space, which denotes class-specific channel inactivation, illustrates the sparsity of the dynamic inference model. Furthermore, for the channels that are active for certain classes, the activation percentage is low, implying that most images within these classes do not require the channels’ computations. These observations are consistent with the substantially reduced FLOPs reported in Table I.
We presented a new end-to-end training framework that achieves instance-based, fully dynamic inference to automatically optimize computational paths within a DNN. Two shallow networks, L-Net and C-Net, respectively, contribute on-the-fly layer-wise and channel-wise skipping and scaling decisions. Our experiments with CIFAR-10 and ImageNet demonstrate that our selective execution approach results in a dramatic reduction in FLOPs and substantially higher accuracy than competing dynamic inference methods.
