Many engineering problems and scientific phenomena are being studied in high-throughput computing facilities, through complex computer models or simulators. Due to the large amount of resources that are needed, experiments should be carefully selected and studied. This is known as the design and analysis of computer experiments [Sacks et al.1989]. Bayesian optimization (BO) can be used for designing computer experiments which require the search of an optimum value [Jones et al.1998, Mockus et al.1978]. BO carefully selects the next experiments to perform in order to find the optimum value as efficiently as possible. For example, consider the problem of finding the optimal shape of a wing profile to reduce the drag force. Instead of dealing with the infamous equations of Navier-Stokes, we can experiment with a Computational Fluid Dynamics (CDF) simulator and check the outcome [Forrester et al.2006, Martinez-Cantin2019]. Thus, for the optimization algorithm, the simulator becomes a black-box where we only care about the resulting drag force. For scientific experiments, we may want to adjust the parameters of a computational model of cell migration to mimic the behaviour of in vivo or in vitro experiments [Merino-Casallo and others2018], or we may want to find new drugs through virtual screening [Hernandez-Lobato et al.2017]Snoek et al.2012, Klein et al.2017].
BO achieves sample efficiency by learning a probabilistic surrogate model of the the target function. Then, using several heuristics, called acquisition functions, we can select the next point to be evaluated or experimented. Therefore, BO is intrinsically a sequential process. Each new observation is incorporated into the surrogate model, which at the same time, modifies the acquisition function for the selection of future experiments. There are certain algorithms that allow parallel or batch queries of experiments[Snoek et al.2012, González et al.2016a, Desautels et al.2014], but they still require the queries to be computed in a sequential manner. In high-throughput systems, these methods require a central node that computes and dispatch the queries. Furthermore, as pointed out by [Kandasamy et al.2018], many of those methods do not allow for asynchronous execution. To the authors knowledge, only the Thompson sampling approach from [Hernandez-Lobato et al.2017] can be fully distributed. However, it is well-known that there are many other acquisition functions that performs better than Thompson sampling in practice [Shahriari et al.2016]. In this work, we introduce a new method to allow a fully distributed BO, which can be combined with any acquisition function.
However, the contribution of our paper is twofold. Before introducing our distributed BO algorithm, we present a new portrayal of BO in the Markov decision process framework, following the analysis of [Toussaint2014]. We show how this new framework allows a greater understanding of the features and capabilities of BO. Then, we introduce the idea of stochastic policies for BO, which is the ingredient necessary to perform fully distributed BO in combination with any acquisition function. Furthermore, we analyze the advantages of the stochastic policies beyond parallelization, from a theoretical and practical point of view.
2 The optimization agent
We consider the optimization algorithm as an agent that is interacting with the environment, which is the space of function. The current state of the environment is the target function . The agent does not have full observability of the state and can only perform partial observations by querying the function . As pointed out in [Toussaint2014], the future decisions made by the agent can be modelled as a partially observable Markov decision process (POMDP). A similar analogy, although from a control theory perspective is also presented in [Lam et al.2016].
A POMDP is an stochastic model where the agent and the environment are fully represented by state variables and the agent can change that state by performing actions in a Markovian way . In the POMDP setting, the agent does not have full observability of the state and must rely on partial observations following an observation model . The POMDP model also assumes that the agent is rational, acting to maximize the future expected reward . The behavior of the agent is encoded in the policy which maps states to actions . Since the state is directly unobservable, the agent relies on beliefs, which are the distributions over possible states, given the known observations and actions .
In order to rank the possible actions at one state, we can compute the Q-function which represents the quality of taking a certain action considering the future reward. The optimal Q-function can be computed by doing full backups of future rewards and actions recursively. Once we have the optimal Q-function, we can obtain the optimal greedy function by:
Because, the belief is a sufficient statistic, it can be shown that a POMDP on state space, is equivalent to a MDP on belief space. In this case, the transtition model becomes . Then, the reward and the policy become functions of the belief and . In this case, the optimal policy and Q-function can also be mapped to the belief space .
|POMDP / belief MDP||Bayesian optimization|
2.2 Bayesian optimization
Bayesian optimization is a set of optimization methods [Shahriari et al.2016] with two important distinct features: a probabilistic surrogate model to learn the properties and features of the target function that we are trying to optimize and, an acquisition function that, based on the surrogate model, rate the potential interest of subsequent queries.
More formally, BO tries to optimize a function over some domain , by carefully selecting the queries of the function to reduce the number of evaluations of before finding the optimum . At iteration , all previously observed values at queried points are used to construct a probabilistic surrogate model . Typically, the next query location is determined by greedily optimizing the acquisition function in :
For example, we can use the expected improvement (EI) as the acquisition function [Mockus et al.1978]:
where is the incumbent optimum at that iteration. EI is still one of the most popular choices, although there are multiple alternatives depending on the criteria selected, such as optimism in the face of uncertainty [Srinivas et al.2010], information about the optimum [Hennig and Schuler2012, Hernandez-Lobato et al.2014, Wang and Jegelka2017], etc.
It has been found that EI might be unstable in the first iterations due to the lack of information [Jones et al.1998, Bull2011]. Therefore, the optimization is initialized with evaluations by sampling from low discrepancy sequences.
2.2.1 Surrogate model
Most frequently, this takes the form of a Gaussian process (GP), although other alternatives have been presented, such as Bayesian neural networks [Hernandez-Lobato et al.2017]. For the remainder of the paper we consider a GP with zero mean and kernel as the surrogate model. The kernel is chosen to be the Matérn kernel with smoothness parameter and hyperparameters . The GP posterior model gives predictions at a query point
which are normally distributed, such that , and where and .
2.3 BO as a POMDP
As can be seen, Equation (1) is analogous to Equation (2). The POMDP framework, as a rational Bayesian model, can also be applied to BO. Table 1 summarizes the connections between those frameworks. If we use EI as the acquisition function, then we assume that the improvement function
is the reward. In this case, the EI is the optimal myopic policy for POMDP, as it maximizes the expected reward one step ahead. More interestingly, entropy based acquisition functions can be interpreted as an active learning problem, for which the POMDP can also be applied as a framework[Lopes and Montesano2014].
3 Stochastic policies for BO

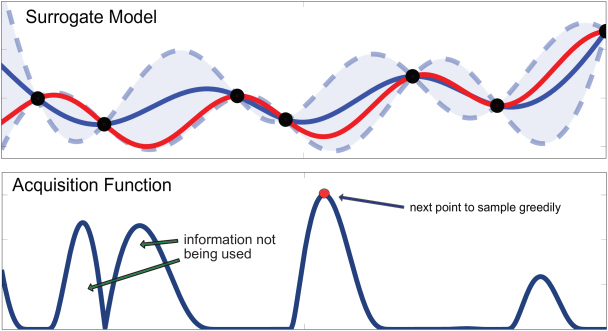

BO policies are typically greedy in two ways. First, they are temporally greedy, that is, they look for the maximum immediate reward, although some lookahead alternatives have been proposed in the past [Gonzalez et al.2016b, Lam et al.2016]. Second, they are spatially greedy, that is, they only select the action or next query that maximizes the acquisition function (or Q-function). However, one might want to explore suboptimal actions to gather knowledge about the world. In fact, Q-learning algorithms may not converge to the solution using a greedy policy due to the lack of infinite exploration.
Many acquisition functions, such as those mentioned in Section 2.2 are already designed to trade-off exploration and exploitation. However, this trade-off is based on the assumption that the surrogate model is good enough to predict both the expected function value and its uncertainty. In practice, even if the model is chosen carefully, we still need to learn the hyperparameters. Thus, for the first few iterations, the model is inaccurate. Interestingly enough, theoretical results rely on bounding the length-scales of the GP kernels to artificially increase the exploration, or directly using -greedy strategies to guarantee near-optimal convergence rates with unknown hyperparameters [Wang and de Freitas2014, Bull2011]. For inaccurate models, the acquisition function is still able to provide some information, but by greedily selecting a single value we are wasting some of that information. Figure 1 shows how the greedy policy only cares about the central mode of the acquisition function, while the two modes on the left are almost as interesting to be explored.
Instead, we propose to use a stochastic policy such as the following Boltzmann policy (also known as Gibbs or softmax policy):
This policy defines a probability distribution for the next query or action. Thus, the actual next query is selecting by sampling that distribution. This policy allows exploration even if the model is completely biased. Furthermore, it has some interesting properties for BO convergence as we will discuss in Section 3.1. The main result of this work is that the sampling process of can be done in parallel and fully distributed, as will be discussed in Section 3.2. This approach can be applied to any acquisition function or surrogate model that can be found in the literature. Nevertheless, the theoretical analysis and posterior experimentation focuses on GP and EI as previously discussed in Section 2.2.
3.1 Theoretical analysis
Convergence of BO algorithms has been extensively studied in terms of convergence rates [Bull2011] or regret bounds in a bandit setting [Srinivas et al.2010, Wang and de Freitas2014]. In this paper we are going to follow upon the analysis by [Bull2011] for the expected improvement. We show how the stochastic policy from equation 4 has the same rates as the greedy policy in the limiting case. We also show that the stochastic policy does not need to rely on the -greedy strategy for near-optimal rates.
Let be compact with non-empty interior. For a function , let denote the expectation when minimizing the fixed function with strategy . We assume a prior for , following a Gaussian process with a a Matérn kernel with smoothness parameter and length-scales , having the Square exponential kernel as the limiting case of . Each kernel is associated with a space of functions , its reproducing-kernel Hilbert space (RKHS).
An strategy chooses:
initial design points independently of ; and
further design points sampled from (4).
This is analogous to [Bull2011, Def. 1], but replacing the greedy selection by the stochastic selection. The
strategy can also be adapted to consider estimated parameters[Bull2011, Def. 3]. Note that, for the stochastic policy, there is no need to enforce that the selection is dense for constant values of the acquisition function.
Let be a finite space. If and , then (4) is a greedy in the limit with infinite exploration (GLIE) policy. Therefore:
each point is queried infinitely often if we use the strategy infinitely often, and
in the limit, the policy is greedy with respect to the acquisition function with probability 1.
The proof can be found in [Singh et al.2000, Ap. B] following the relations from Table 1. In order to generalize the previous result to , we can partition in regions of size . Following and assuming a large each region will be sampled with high probability, thus, the mesh norm is small, which is the requirement for near-optimal rates [Bull2011, Lemma 12]. In fact, with the sampling distribution is exactly uniform.
Let be the strategy in Definition 1. If , then for any ,
with probability 1, while if , the statement holds for all .
The sketch of the proof is based on [Bull2011, Theorem 5], which uses greedy EI for optimality combined with -greedy to guarantee the reduced mesh norm. Following Theorem 2, for large , the mesh norm will be small and the strategy will be greedy with probability 1. We encourage the reader to follow up the discussion in [Singh et al.2000] where it is shown that, for certain values of , the strategy followed by [Bull2011] is also GLIE.
3.2 Distributed BO
Now we are ready to present the main contribution of this work. The stochastic policy presented in Section 3 allow us to implement BO in a fully distributed setup which can be easily deployed and scaled. Contrary to most parallel or batch BO methods which require of a central node to keep track of the queries computed and deployed, our approach does not need a centralized node. All the computation can be done in each node of the distributed system. Furthermore, for optimal results, the nodes only need to broadcast their queries and observed values , requiring minimal communication bandwidth. In addition to that, communication can be asynchronous and be even robust to failures in the network, as the order of the queries and observations is irrelevant.
Algorithm 1 summarizes the code to be deployed in each node of the computing cluster or distributed system. The initialization part requires sampling from a low discrepancy sequence. This can be easily distributed by setting the precomputed sequence on a lookup table where each node accesses it based on their id. Once the initialization phase is done, each node builds its own surrogate model (e.g.: a GP) with all the data that is available to them. There is no requirement for the models to be synchronized or updated, although each node behaviour will be optimal if it has access to all the observations available as soon as possible.
One advantage of this setup is that it can be easily scaled by deploying new nodes using Algorithm 1, even halfway through the optimization process, as seen in Figure 2. In that case, the first operation is to collect all the data that has been broadcasted in the network instead of use the low discrepancy sequence. Another advantage is that we can play with the parameter from equation (4) and deploy nodes more exploitative or more exploratory , or we can combine different kind of node configurations, resulting in an overall behaviour analogous to parallel tempering [Neal1996].
Many parallel BO methods have been proposed in the past few years. The main idea of all those methods is to ensure that the parallel experiments are well-distributed among the search space, which is problematic when we use a greedy approach without adding new information between queries. Thus, some authors include artificially augmented data by hallucinated observations [Ginsbourger et al.2010, Snoek et al.2012] or by combining optimization with some degree of active learning in order maximize the knowledge about the target function [Desautels et al.2014, Contal et al.2013, Shah and Ghahramani2015] or by enforcing diversity through heuristics [González et al.2016a].
As noted on [Kandasamy et al.2018], the majority of parallel methods are synchronous. Recently, a Thompson Sampling approach [Hernandez-Lobato et al.2017, Kandasamy et al.2018] has been applied to achieve fully distributed BO. To the authors knowledge, this is the only method comparable to our proposed distributed BO method.
3.3 Sampling strategies
Sampling from equation (4) is not trivial. Most acquisition functions are highly multimodal with many large areas of low probability between modes. This is known to be problematic for MCMC methods. Tempering methods, such as simulated or parallel tempering [Neal1996] usually perform better in these situations by allowing higher temperatures and, therefore, higher mixing of particles, in combination with lower temperatures to better represent the distribution. One advantage of our distribution is that it is already in Boltzmann form, allowing us to change the temperature by altering the parameter. In our case, since we have a target temperature that we want to use for sequential convergence (as seen in Theorem 2) or for distributed exploration-exploitation (as seen in Section 3.2), we can select the temperature profile in such a way that the lower temperature matches the target. Alternatively, we can select another profile and use importance sampling on the target temperature. Finally, there are new methods being developed which are specially suitable for these kind of multimodal problems, such as pseudo-extended MCMC [Nemeth et al.2017]. In practice, we found that, for small dimensional problems as those typically found for BO, a simple Metropolis-Hasting with a carefully selected proposal function and a fixed temperature can be enough to get a good distribution.
Although the main result of this work is on distributed BO, the POMDP framework can introduce new interesting ideas to explore in the context of BO. For example, multitasking or multifidelity systems have a great potential for high-throughput computing with BO, where we are able to improve the convergence of our method by introducing new information from other sources, either from related problems where we already have previous experiments or from less expensive sources like a smaller training datasets, incomplete executions or a simpler simulator. In both scenarios the target function now belongs to a family of functions from other tasks or fidelities . In the bandit setup, this is equivalent to contextual bandits. In the POMDP formulation, the function is analogous to the state (see Table 1). The POMDP model includes a transition function , which can be known a priori or learned, that defines a probability distribution of transitions between states. This transition function allows more flexibility than contextual variables.
Recent results on lookahead policies try to avoid the temporal greediness of BO. One interesting approach is based on dynamic programming [Lam et al.2016]. However, as pointed out by the authors, the dynamic programming approach is challenging due to the nested maximizations and expectations, requiring heuristics to relax the maximization steps. By using the stochastic policy from equation (4), we can provide a full Bayesian treatment of the dynamic programming, similar to value iteration [Kaelbling et al.1996].
We show the performance of our stochastic policy for distributed BO with different acquisition functions: Expected Improvement (SP-EI), Probability of Improvement (SP-PI) and Upper Confidence Bounds (SP-UCB). We also include the parallel and distributed Thompson sampling (PDTS) [Hernandez-Lobato et al.2017] as an alternative distributed method and the sequential expected improvement (EI) as a baseline. Note that [Hernandez-Lobato et al.2017] already compares PDTS with parallel EI and
-greedy methods. In order to simplify the comparison, we use a GP as the surrogate model for all the algorithms. However, both PDTS and our stochastic policy methods allow other surrogate models such as Bayesian neural networks. In all the experiments, we assume a network of 10 nodes synchronized, that is, function evaluations are performed in batches of 10 for all distributed methods. Note that EI has an unfair advantage, as it has access to all the data for each iteration while the distributed methods only update their GP model once every 10 observations. For all the plots, we display the average of each method over 10 trials with a 95% confidence interval. We use common random numbers to reduce the variance in the comparison and use the same initial samples among all methods.
5.1 Benchmark Functions
First, we start with a set of test problems for global optimization111From: https://www.sfu.ca/~ssurjano/optimization.html. We have selected the functions to have a mixture of behaviours (smooth/sharp, single/multiple minima, etc.). The results on these functions are showcased in Figure 3. First, we can see how the performance of SP-EI is fairly consistent among the different functions, achieving better or similar results than the alternatives. Even for functions that are difficult to optimize with BO, such as Schubert, the stochastic policy is able to perform well thanks to the extra exploration induced by the sampling process. However, this exploration does not interfere with easier functions where exploitation is more important, such as Branin or Bohachevsky. Interestingly, SP-PI performs reasonably well. In the case of PI, the stochastic policy prevents excessive exploitation, a known behaviour of PI in the sequential BO setting [Shahriari et al.2016].
We have also followed the methodology from [Hennig and Schuler2012] and generated random functions from a known GP. We have studied two situations: a) we have studied the within-model problem, where the GP sample uses the same kernel as the optimization algorithm (Matérn with ) and, b) the out-of-model problem where the GP sample is generated with a different kernel (a Rational Quadratic). The results in Figure 4 show how SP-EI is comparable to PDTS both for the within-model and the out-of-model problems.
5.2 Robot pushing
In the next experiment, we use the active learning for robot pushing setup and code from [Wang and Jegelka2017]. It consists on performing active policy search on the task of selecting a pushing action of an object towards a designated goal location. The function has a 3-dimensional input: the robot location and the pushing duration . In a second experiment, we add the robot angle to have a 4-dimensional version. In this experiment, the repetitions are increased to 40, as each repetition is a different goal location. Figure 5 shows the results of both problems in which we can see how our methods SP-EI and SP-PI have faster convergence than GP-PDTS.
5.3 Hyperparameter Tuning of Neural Networks
Hyperparameter tuning of neural network problems. A Variational Autoencoder trained with the MNIST dataset (left) and a Feedforward network trained with the Boston housing dataset (right).
Finally, we use the set of problems for hyperparameter tuning of neural networks from [Martinez-Cantin et al.2018], as these are good examples of the advantage of distributed BO for training expensive models in the cloud. We can see the results of both networks in Figure 6, where SP-EI and SP-PI consistenly outperform PDTS.
Variational autoencoder (VAE) on MNIST
A VAE is a generative method that learns a low dimensional representation of high dimensional data, such as images. We train a VAE for the MNIST dataset, and tune the following hyperparameters: number of nodes in the hidden layer, learning rate, learning rate decay andconstant for the ADAM optimizer.
Feedforward network on Boston housing
We fit a single layer feedforward network on the Boston housing dataset. The hyperparameters tuned are: number of nodes in the hidden layer, learning rate, learning rate decay and
parameter for the exponential decay rate from RMSprop.
We have presented a new view of Bayesian optimization as a Markov decision process. We also have shown that this new representation can be interesting for further developments of BO, both in theory and practice. As the main contribution of the paper, we have presented a new method for fully distributed BO based on stochastic policies which can be easily integrated in any setup, independent of the surrogate model or acquisition function of choice. This distributed BO allows high scalability, even by adding new resources on demand and reducing the communication between nodes. We show how, in most cases, the stochastic policy outperforms the state of the art on distributed BO (PDTS) and even to the sequential expected improvement.
- [Bull2011] A.D. Bull. Convergence rates of efficient global optimization algorithms. JMLR, 12:2879–2904, 2011.
- [Contal et al.2013] E. Contal, D Buffoni, A Robicquet, and N Vayatis. Parallel Gaussian process optimization with upper confidence bound and pure exploration. In ECMLKDD, pages 225–240. Springer, 2013.
- [Desautels et al.2014] T Desautels, A Krause, and JW Burdick. Parallelizing exploration-exploitation tradeoffs in gaussian process bandit optimization. JMLR, 15(1):3873–3923, 2014.
- [Forrester et al.2006] A. Forrester, N. Bressloff, and A. Keane. Optimization using surrogate models and partially converged computational fluid dynamics simulations. Proceedings of the Royal Society of London A, 462(2071):2177–2204, 2006.
- [Ginsbourger et al.2010] D Ginsbourger, R Le Riche, and L Carraro. Kriging is well-suited to parallelize optimization. In Computational intelligence in expensive optimization problems, pages 131–162. Springer, 2010.
- [González et al.2016a] J González, Z Dai, P Hennig, and N Lawrence. Batch bayesian optimization via local penalization. In AISTATS, pages 648–657, 2016.
- [Gonzalez et al.2016b] J. Gonzalez, M. Osborne, and N. Lawrence. Glasses: Relieving the myopia of bayesian optimisation. In AISTATS, pages 790–799, 2016.
- [Hennig and Schuler2012] P Hennig and CJ. Schuler. Entropy search for information efficient global optimization. JMLR, 13:1809–1837, 2012.
- [Hernandez-Lobato et al.2014] JM Hernandez-Lobato, MW Hoffman, and Z Ghahramani. Predictive entropy search for efficient global optimization of black-box functions. In NIPS, pages 918–926, 2014.
- [Hernandez-Lobato et al.2017] J.M. Hernandez-Lobato, J. Requeima, E.O. Pyzer-Knapp, and A. Aspuru-Guzik. Parallel and distributed thompson sampling for large-scale accelerated exploration of chemical space. In ICML, pages 1470–1479, 2017.
- [Jones et al.1998] DR Jones, M Schonlau, and WJ Welch. Efficient global optimization of expensive black-box functions. J. of Global Optimization, 13(4):455–492, 1998.
- [Kaelbling et al.1996] L.P. Kaelbling, M.L. Littman, and A.W. Moore. Reinforcement learning: A survey. JMLR, 4:237–285, 1996.
- [Kandasamy et al.2018] K. Kandasamy, A. Krishnamurthy, J. Schneider, and B. Poczos. Parallelised Bayesian optimisation via thompson sampling. In AISTATS, 2018.
- [Klein et al.2017] A. Klein, S. Falkner, S. Bartels, P. Hennig, and F. Hutter. Fast Bayesian optimization of machine learning hyperparameters on large datasets. In AISTATS, 2017.
- [Lam et al.2016] R. Lam, K. Willcox, and D.H. Wolpert. Bayesian optimization with a finite budget: An approximate dynamic programming approach. In NIPS, pages 883–891, 2016.
- [Lopes and Montesano2014] M. Lopes and L. Montesano. Active learning for autonomous intelligent agents: Exploration, curiosity, and interaction. arXiv:1403.1497, 2014.
[Martinez-Cantin et al.2018]
R. Martinez-Cantin, K. Tee, and M. McCourt.
Practical bayesian optimization in the presence of outliers.In AISTATS, pages 1722–1731, 2018.
- [Martinez-Cantin2019] R Martinez-Cantin. Funneled Bayesian optimization for design, tuning and control of autonomous systems. IEEE Transactions on Cybernetics, 49(4):1489–1500, 2019.
- [Merino-Casallo and others2018] F. Merino-Casallo et al. Integration of in vitro and in silico models using Bayesian optimization with an application to stochastic modeling of mesenchymal 3d cell migration. Frontiers in physiology, 9, 2018.
- [Mockus et al.1978] J Mockus, V Tiesis, and A Zilinskas. The application of Bayesian methods for seeking the extremum. In Towards Global Optimisation 2, pages 117–129. Elsevier, 1978.
- [Neal1996] Radford M Neal. Sampling from multimodal distributions using tempered transitions. Statistics and computing, 6(4):353–366, 1996.
- [Nemeth et al.2017] C. Nemeth, F. Lindsten, M. Filippone, and J. Hensman. Pseudo-extended markov chain monte carlo. arXiv:1708.05239, 2017.
- [Sacks et al.1989] J Sacks, WJ Welch, TJ Mitchell, and HP Wynn. Design and analysis of computer experiments. Statistical Science, 4(4):409–423, 1989.
- [Shah and Ghahramani2015] A Shah and Z Ghahramani. Parallel predictive entropy search for batch global optimization of expensive objective functions. In NIPS, 2015.
- [Shahriari et al.2016] B Shahriari, K Swersky, Z Wang, RP Adams, and N de Freitas. Taking the human out of the loop: A review of Bayesian optimization. Proceedings of the IEEE, 104(1):148–175, 2016.
- [Singh et al.2000] S Singh, T Jaakkola, ML Littman, and C Szepesvári. Convergence results for single-step on-policy reinforcement-learning algorithms. Machine learning, 38(3):287–308, 2000.
- [Snoek et al.2012] Jasper Snoek, Hugo Larochelle, and Ryan Adams. Practical Bayesian optimization of machine learning algorithms. In NIPS, pages 2960–2968, 2012.
- [Srinivas et al.2010] N Srinivas, A Krause, S Kakade, and M Seeger. Gaussian process optimization in the bandit setting: No regret and experimental design. In ICML, 2010.
- [Toussaint2014] M Toussaint. The Bayesian search game. In Theory and Principled Methods for Designing Metaheuristics. Springer, 2014.
- [Wang and de Freitas2014] Z Wang and N de Freitas. Theoretical analysis of Bayesian optimisation with unknown Gaussian process hyperparameters. arXiv, 2014.
- [Wang and Jegelka2017] Z. Wang and S. Jegelka. Max-value entropy search for efficient Bayesian optimization. In ICML, volume 70, pages 3627–3635, 2017.
