1 Introduction
Compressive sensing (CS) theory baraniuk2010model ; baraniuk2011more ; candes2007sparsity ; haupt2010toeplitz
is able to acquire measurements of signals at subNyquist rates and recover signals with high probability when the signals are sparse in a certain domain. Greedy algorithms
needell2010cosamp ; babacan2010bayesian , convex optimization algorithms candes2005decoding ; figueiredo2007gradient , and iterative algorithms donoho2009message ; daubechies2004iterative have been used for recovering images in conventional CS. However, almost all these methods recover images by solving an optimization problem, which is timeconsuming. In order to reduce the computational complexity in the reconstruction stage, convolutional neural networks (CNNs) are applied to replace the optimization process. CNNbased methods mousavi2015deep ; kulkarni2016reconnet ; mousavi2017learning ; mousavi2017deepcodec ; xie2017adaptive use big data stevens2017 to train the networks that speed up the reconstruction stage. Mousavi, Patel, and Baraniuk mousavi2015deepfirstly propose deep learning approach to solve the CS recovery problem. They use stacked denoising autoencoders (SDA) to recover signals from undersampled measurements. ReconNet
kulkarni2016reconnet and DeepInverse mousavi2017learning introduce CNNs to the reconstruction problem, where the random Gaussian measurement matrix is used to generate the measurements. Instead, the methods mousavi2017deepcodec ; xie2017adaptive using adaptive measurement learn a transformation from signals to the measurements. This mechanism allows measurements to retain more information from images. The methods mentioned above divide an image into blocks, which breaks the structure information of the image. This will cause the block effect in the reconstructed image.In this paper, we propose a fully convolutional measurement network for CS image reconstruction. Instead of blockwise methods, a convolutional layer is applied to obtain the measurement from a full image, which keeps the integrity of structure information of the original image. Furthermore, motivated by the residual learning proposed by ResNet he2016deep
, we apply residual connection block (Resblock) in the proposed network for improvement. Experimental results show that the proposed method outperforms the stateoftheart method 1
2dB in PSNR at different measurement rates.The organization of this paper is as follows. The related works using deep learning methods for the CS reconstruction problem are introduced in Section 2. Section 3 presents the proposed fully convolutional measurement network. Section 4 shows experimental results of the proposed method and the previous works. The conclusion of this paper is drawn in Section 5.
2 Related Work

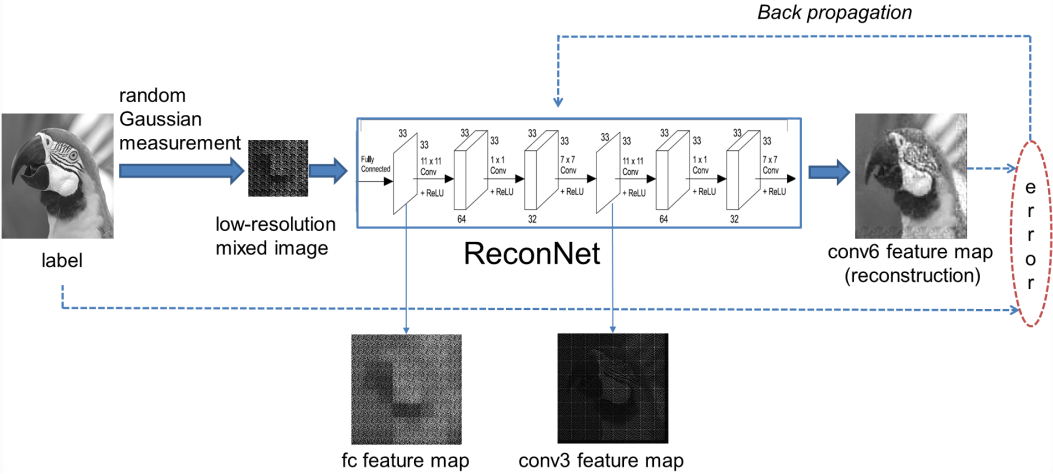

Recently, deep learning methods have been applied in CS image reconstruction tasks and achieve promising results such as mousavi2015deep ; kulkarni2016reconnet ; mousavi2017deepcodec . Among them, CNNbased methods present superior performance. ReconNet kulkarni2016reconnet is a representative work that applies CNNs in reconstructing lowresolution mixed image measured by random Gaussian matrix. The framework is shown in Fig. 1.
The training of the network is driven by the error between the label and the reconstructed image. And the loss function is given by
(1)
where is the reconstructed image of ReconNet. is the original signal as well as the label. means the training parameters in ReconNet. is the total number of image blocks in the training dataset. The loss function is minimized by tuning using back propagation.
Based on the way the original image is measured, deep learning methods for CS reconstruction can be divided into two categories: fixed random Gaussian measurement and adaptive measurement.
Fixed random Gaussian measurement
Mousavi et al. mousavi2015deep firstly use SDA to recover signals from undersampled measurements. ReconNet kulkarni2016reconnet and DeepInverse mousavi2017learning utilizes CNNs to recover signals from Gaussian measurements. DRNet yao2017dr , inheriting ReconNet, adds residual connection blocks (Resblock) to its reconstruction stage and achieves better performance. Instead of learning to directly reconstruct the highresolution image from the lowresolution one, DRNet learns the residual between the ground truth image and the preliminary reconstructed image. However, the measurements of these methods are randomly measured, which is not optimally designed for natural images.
Adaptive measurement
In order to keep the information of the training data, the adaptive measurement is proposed. Methods including improved ReconNet lohit2017convolutional , AdpRec^{1}^{1}1AdpRec stands for adaptive measurement network for CS image reconstruction, proposed in our previous work. xie2017adaptive , and DeepCodec mousavi2017deepcodec are all based on adaptive measurement. In cases of the improved ReconNet and AdpRec, a fullyconnected layer is used to measure the signals, which allows for a jointly learning of the measurement and reconstruction stages. With the learned measurement matrix, a significant gain in terms of PSNR is achieved. DeepCodec, closely related to the DeepInverse, learns a transformation for dimensionality reduction. Learning measurements from the original signals helps to preserve more information compared with taking random measurements.
3 Fully Convolutional Measurement

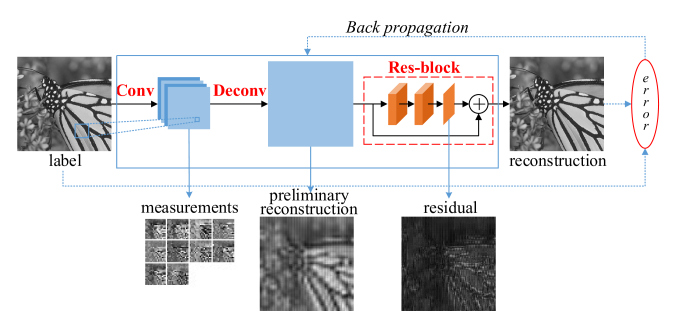

The exsiting CNNbased CS methods always adopt blockwise pattern due to the limitation of GPU memory. The block effect comes accordingly. In order to overcome this shortcoming, we propose a fully convolutional measurement network in which a convolutional layer is used to get the adaptive measurements. It is different from our previous work using fullyconnected layers xie2017adaptive . Fig. 2 shows the proposed network which is composed of a convolutional layer, a deconvolutional layer xu2014deep
, and a residual block. The first layer ‘conv’ is used to obtain measurements. The second layer ‘deconv’ is used to recover a low resolution image from the measurements. Furthermore, we apply a residual network (ResNet) to reconstruct the high resolution image. Because batch normalization would get rid of range flexibility from networks
lim2017enhanced, we remove the batch normalization layer in Resblock. Our framework is different from superresolution (SR)
deng2016similarity fan2017compressed dong2016image Ledig_2017_CVPR , since SR just learns a transform form the lowresolution images to highresolution images, while the proposed framework is jointly trained from the measurement to the recovery part.The loss function of the proposed network is given by
(2)
where is the parameter of the convolutional measurement network, and is the parameters of the reconstruction network. The Euclidian distance between the label and the reconstruction is back propagated to train the whole network.
The main advantage of the proposed network is the use of convolutional layer as the measurement matrix. By means of the overlapped convolutional kernels, this structure can remove block effect of the reconstructed images. In details, one feature map contains several measurements of each pixel, which is similar to the idea proposed by He et al. he2017mask that the feature map preserves the explicit perpixel spatial correspondence. Another advantage is that the fully convolutional neural network can deal with images of any size, which breaks the limitation that fullyconnected layer is only capable of measuring the fixed size of images. Once the network is trained, we can test images with different sizes without changing the structure of the network.
Fig. 3 shows an example of reconstruction results at three kinds of measurements. The original image and those by random Gaussian, AdpRec, and the proposed method are shown respectively in Fig. 3(a), (b), (c), and (d). The measurement rate is 10%. We can see that the proposed method performs better than the others.
The better performance can be proved through a visualization of the kernels in convolutional layer of the measurement network, as shown in Fig. 4
. Since the original signal in random Gaussian and adaptive measurements is a cloumn vector (Fig.
4(a) and (b)), we reshape the row vectors of measurement matrix to size . Fig. 4(a) shows two reshaped row vectors of the random Gaussian measurement matrix at measurement rates 1% , 10%, and 25% in both time and frequency domain. The content of random Gaussian measurement matrix is obviously irregular. Fig. 4(b) shows two reshaped row vectors of adaptive measurement matrix in AdpRec. When measurement rate is set to 1%, low frequency information is already extracted. As the measurement rate increases, much high frequency information is captured. Fig. 4(c) shows two kernels of the proposed measurement matrix. Compared with the adaptive measurements in AdpRec, the measurements by the proposed method provide more concentrated energy in the low frequency area at different measurement rates. As for the directional information, when measurement rate is 1%, two extracted typical directions ‘horizontal’ and ‘vertical’ can be easily observed in time domain.Fig. 5 shows the reconstruction of image ‘Monarch’, its lowresolution, and the corresponding residual. From residual image in frequency domain, we can see that the high frequency component is mainly learned by the residual network. Rather than ReconNet which reconstructs the high resolution image from the low resolution one directly, ResNet just reconstruct the residual between the low resolution image and the high resolution image, that is the reconstruction image. Thus, all its energy is concentrated on the residual. That is why ResNet has better performance.
4 Experiments
In this section, we perform experiments on the reconstruction of compressive sensing images with existing typical methods. The results show the outstanding performance by the proposed method.
The experiments are conducted on caffe framework
jia2014caffe . Our computer is equipped with Intel Core i76700 CPU with frequency of 3.4GHz, 4 NVidia GeForce GTX Titan XP GPUs, 128 GB RAM, and the framework runs on Ubuntu 16.04 operating system. The training dataset consists of 800 pieces of size images downsampled and divided from 800 images in DIV2K dataset timofte2017ntire .The performance of the proposed method is compared with those by ReconNet and AdpRec which are the typical CNNbased CS methods. We give the testing results using image ‘parrots’, ‘flinstones’, and ‘cameraman’ at measurement rates 1%, 10%, and 25%, as shown in Fig. 6, Fig. 7, and Fig. 8, respectively. The proposed method provides the best reconstruction results in terms of PSNR and the results are most visually attractive.
From the results shown in Fig. 6, with measurement rate being 1%, it can be seen that the block effect is removed (Fig 6(d) vs. (b) and (c)). From Fig. 7, when the measurement rate is 10%, the proposed method shows the advantage in reconstructing the image, typically in those smooth areas such as nose, hands, and legs of the man. From Fig. 8, when measurement rate rises to 25%, the proposed method still outperforms other methods, which can be easily seen in the edge of the man’s arm.
For an overall look on the performance, the reconstruction results of 11 test images at measurement rates 1%, 10%, and 25% with the methods including ReconNet, DRNet, AdpRec, FullyConv^{2}^{2}2FullyConv consists of a convolutional layer and a deconvolutional layer without Resblock, which can be regarded as the tiny model of the proposed network., and the proposed one are shown in Table 1. The mean PSNR is given in the type of blue background. It is obvious that the proposed method shows greatest performance in almost all test images.
MR  Samples  ReconNet  Net  AdpRec  FullyConv  Proposed

1%  Monarch  15.61dB  15.33dB  17.70dB  17.98dB  18.46dB
Parrots  18.93dB  18.01dB  21.67dB  21.80dB  22.49dB
Barbara  19.08dB  18.65dB  21.36dB  21.61dB  22.06dB
Boats  18.82dB  18.67dB  21.09dB  21.73dB  22.3dB
Cameraman  17.51dB  17.08dB  19.74dB  19.88dB  20.63dB
Fingerprint  15.01dB  14.73dB  16.22dB  16.24dB  16.33dB
Flinstones  14.14dB  14.01dB  16.12dB  16.55dB  16.92dB
Foreman  22.03dB  20.59dB  25.53dB  25.18dB  27.26dB
House  20.30dB  19.61dB  22.93dB  22.93dB  23.67dB
Lena  18.51dB  17.97dB  21.49dB  21.77dB  22.51dB
Peppers  17.39dB  16.90dB  19.75dB  20.80dB  21.38dB
Mean(all)  17.94dB  17.44dB  20.33dB  20.59dB  21.27dB
10%  Monarch  21.49dB  23.10dB  26.65dB  25.20dB  27.61dB
Parrots  23.36dB  23.94dB  27.59dB  26.82dB  27.92dB
Barbara  22.17dB  22.69dB  24.28dB  24.39dB  24.28dB
Boats  24.56dB  25.58dB  28.80dB  28.52dB  29.48dB
Cameraman  21.54dB  22.46dB  24.97dB  24.58dB  25.62dB
Fingerprint  20.99dB  22.03dB  26.55dB  26.92dB  27.36dB
Flinstones  19.04dB  21.09dB  23.83dB  23.08dB  24.98dB
Foreman  29.02dB  29.20dB  33.51dB  31.96dB  34.00dB
House  26.74dB  27.53dB  31.43dB  30.81dB  32.36dB
Lena  24.48dB  25.39dB  28.50dB  27.76dB  28.97dB
Peppers  22.72dB  24.32dB  26.67dB  26.69dB  28.72dB
Mean(all)  23.28dB  24.32dB  27.53dB  26.98dB  28.30dB
25%  Monarch  24.95dB  27.95dB  29.25dB  28.47dB  32.63dB
Parrots  26.66dB  28.73dB  30.51dB  29.90dB  32.13dB
Barbara  23.58dB  25.77dB  27.40dB  27.11dB  28.59dB
Boats  27.83dB  30.09dB  32.47dB  31.75dB  33.88dB
Cameraman  23.48dB  25.62dB  27.11dB  26.73dB  28.99dB
Fingerprint  26.15dB  27.65dB  32.31dB  30.92dB  32.91dB
Flinstones  22.74dB  26.19dB  27.94dB  27.02dB  30.26dB
Foreman  32.08dB  33.53dB  36.18dB  35.08dB  38.10dB
House  29.96dB  31.83dB  34.38dB  33.63dB  36.22dB
Lena  27.47dB  29.42dB  31.63dB  30.65dB  33.00dB
Peppers  25.74dB  28.49dB  29.65dB  29.71dB  32.90dB
Mean(all)  26.42dB  28.66dB  30.80dB  30.09dB  32.69dB
Samples  Original  ReconNet  Net  AdpRec  Proposed
MOS  Monarch  4.9615  1.0000  1.1538  1.7307  2.4615
Parrots  4.9615  1.0384  1.2307  2.1538  2.9230
Barbara  4.9615  1.0769  1.0769  2.0000  2.6538
Boats  4.9230  1.0769  1.0384  1.5000  2.3846
Cameraman  5.0000  1.1538  1.1923  1.8461  2.7692
Fingerprint  4.8461  1.1538  1.0384  1.4230  1.6823
Flinstones  5.0000  1.1923  1.1538  2.0769  3.1538
Foreman  4.9230  1.1538  1.1538  1.9230  2.7692
House  4.9615  1.0000  1.1153  2.0769  2.7307
Lena  5.0000  1.0384  1.0384  1.8076  2.8461
Peppers  4.9615  1.0000  1.1153  1.8076  2.5769
Mean(all)  4.9545  1.0734  1.1188  1.8496  2.6328
SSIM  Monarch  1.0000  0.3801  0.3931  0.4755  0.5058
Parrots  1.0000  0.5328  0.5617  0.6739  0.7135
Barbara  1.0000  0.3729  0.3847  0.4648  0.5007
Boats  1.0000  0.4140  0.4319  0.4888  0.5405
Cameraman  1.0000  0.4516  0.4783  0.5578  0.5867
Fingerprint  1.0000  0.1548  0.1727  0.1628  0.1700
Flinstones  1.0000  0.2502  0.2718  0.3230  0.3801
Foreman  1.0000  0.5647  0.6051  0.6912  0.7396
House  1.0000  0.5278  0.5526  0.6350  0.6624
Lena  1.0000  0.4418  0.4552  0.5554  0.6081
Peppers  1.0000  0.4002  0.4127  0.5053  0.5839
Mean(all)  1.0000  0.4083  0.4291  0.5031  0.5447
From Table 1, it can be concluded that AdpRec beats DRNet and ReconNet about 3dB in all measurement rates because of its adaptive measurement. Based on the standard ReconNet kulkarni2016reconnet , the improved ReconNet lohit2017convolutional adds several tricks such as adaptive measurement and adversarial loss. Its performance is even lower than AdpRec. Despite its promising results, AdpRec still divides image into blocks, ignoring the relevance between neighbouring blocks, which causes to the block effect in reconstructed images. For this reason, FullyConv uses a convolution layer as measurement matrix to deal with this problem. It achieves comparable results with AdpRec even though it contains no additional operation.

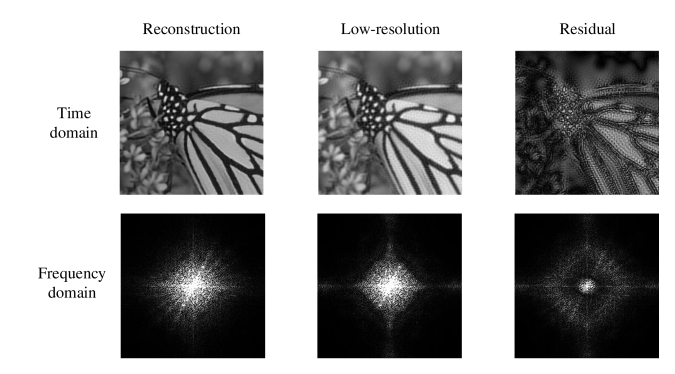

To further improve the reconstruction results, we put Resblock after FullyConv structure because of the brilliant performance of Resblock in reconstruction task. With this enhancement, the proposed method obtains the best performance in terms of PSNR at all measurement rates, as shown in Table 1.
We also measure the quality of images with Mean Opinion Score (MOS). The test results of different images are shown in Table 2. In this experiment, 26 volunteers take part in ranking the images. The quality of the images is divided into five levels, from 1 to 5, with the quality from low to high. All the test images are randomly ranked before being scored and they are displayed group by group. Each group has four reconstruction images, in different methods, and one original scene image. All participants take this test on the same computer screen, from the same angle and distance. Here the distance from the screen to the tested persons is 50 cm and the eyes of those persons are of the same height of the center of the screen. In addition, we also use structural similarity index (SSIM) to evaluate our method and existing blockwised methods as shown in Table 2. The case of MR = 1% is taken as an example.
In terms of hardware implementation, we follow the approach of the previous work proposed in shi2011high in which sliding window is used to measure the scene. Similarly, we can replace the random Gaussian measurement matrix with the learned predefined parameters in the conv layer of the measurement network. The reconstruction part is not on optical device, so only the measurement part needs to be implemented with the approach above.
5 Conclusion
This paper proposes a novel CNNbased deep neural network for highquality compressive sensing image reconstruction. The network uses a fully convolutional architecture, which removes the block effect caused by blockwise methods. For a further improvement, we add Resblock after the deconvolutional layer, making the network learn the residual information between low and high resolution images. With this enhancement, the network shows best performance in reconstruction task compared with other methods. In future work, we are going to apply perceptual loss into the network for better reconstruction result. And semanticsoriented reconstruction will be also considered.
