1 Introduction

Consider the images in Fig. 1

: what are these people doing? Are they standing or sitting? While a human can readily recognize what is going on in the images, having a similar understanding is a severe challenge to current human 3D pose estimation systems. Unfortunately, in the world of Internet video, frames like these are the rule rather than rarities since consumer videos are recorded not with the goal of providing clean demonstrations of people performing poses, but are instead meant to show something interesting to people who already know how to parse 3D poses. Accordingly, while videos from consumer sharing sites may be a useful source of data for learning how the world works

[2, 14, 59, 62], most consumer videos depict a confusing jumble of limbs and torsos flashing across the screen. The goal of this paper is to make sense of this jumble.

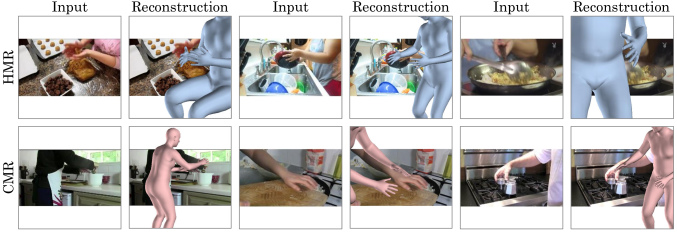

Figure 1: We present a simple but highly effective framework for adapting human pose estimation methods to highly truncated settings that requires no additional pose annotation. We evaluate the approach on HMR [24] and CMR [26] by annotating four Internet video test sets: VLOG [14] (top-left, top-middle), Cross-Task [62] (top-right, bottom-left), YouCookII [59] (bottom-middle), and Instructions [2] (bottom-right).

Current work in human pose estimation is usually not up to the challenge of the jumble of Internet footage. Recent work in human pose estimation [3, 9, 24, 34, 37] is typically trained and evaluated on 2D and 3D pose datasets [4, 19, 21, 30, 36] that show full human poses from level cameras often in athletic settings Fig. 2 (left). Unfortunately, Internet footage tends to be like Fig. 2 (right), and frequently only part of the body is visible to best show off how to perform a task or highlight something of interest. For instance, on VLOG [14], all human joints are visible in only 4% of image frames. Meanwhile, all leg keypoints are not visible 63% of the time, and head keypoints such as eyes are not visible in about 45% of frames. Accordingly, when standard approaches are tested on this sort of data, they tend to fail catastrophically, which we show empirically.

We propose a simple but surprisingly effective approach in Section 3 that we apply to multiple forms of human mesh recovery. The key insight is to combine both cropping and self-training on confident video frames: cropping introduces the model to truncation, video matches context to truncations. After pre-training on a cropped version of a standard dataset, we identify reliable predictions on a large unlabeled video dataset, and promote these instances to the training set and repeat. Unlike standard self-training, we add crops, which lets confident full-body predictions (identified via [5]) provide a training signal for challenging crops. This approach requires no extra annotations and takes k iterations of additional training (with total time hours on a single RTX2080 Ti GPU).

We demonstrate the effectiveness of our approach on two human 3D mesh recovery techniques – HMR [24] and CMR [26] – and evaluate on four consumer-video datasets – VLOG [14], Instructions [2], YouCookII [59], and Cross-Task [62]. To lay the groundwork for future work, we annotate keypoints on 13k frames across these datasets and provide a framework for evaluation in and out of images. In addition to keypoints, we evaluate using human-study experiments. Our experiments in Section 4 demonstrate the effectiveness of our method compared to off-the-shelf mesh recovery and training on crops from a standard image dataset (MPII). Our approach improves PCK both in-image and out-of-image across methods and datasets: e.g., after training on VLOG, our approach leads to a 20.7% improvement on YouCookII over off-the-shelf HMR and a 10.9% improvement over HMR trained on crops (with gains of 36.4% and 19.1% on out-of-image keypoints) Perceptual judgments by annotators show similar gains: e.g., on Cross-Task, our proposed method improves the chance of a CMR output being rated as correct by 25.6% compared to off-the-shelf performance.

Figure 2: Partially Visible Humans. Consumer video, seen in datasets like VLOG [14], Instructions [62], or YouCook2 [59], is considerably different from canonical human pose datasets. Most critically, only part of a person is typically visible within an image, making pose estimation challenging. In fact, all keypoints are only visible in 4% of VLOG test set images, while all leg joints are not visible 61% of the time. Four of the most common configurations of visible body parts are listed above.

2 Related Work

Human Pose Estimation In the Wild: Human pose estimation has improved substantially in recent years due in part to improved methods for 2D [9, 17, 37, 50, 56] and 3D [1, 28, 34, 42, 44, 60] pose, which typically utilize deep networks as opposed to classic approaches such as deformable part models [7, 10, 12, 58]. Performance of such pose models also relies critically on datasets [4, 18, 19, 21, 30, 53, 36, 47]. By utilizing annotated people in-the-wild, methods have moved toward understanding realistic, challenging settings, and become more robust to occlusion, setting, challenging pose, and scale variation [3, 35, 36, 39, 40, 61].

However, these in-the-wild datasets still rarely encounter close, varied camera angles common in consumer Internet video, which can result in people being only partially within an image. Furthermore, images that do contain truncated people are sometimes filtered out [24]. As a result, the state-of-the-art on common benchmarks performs poorly in consumer videos. In this work, we utilize the unlabeled video dataset VLOG to improve in this setting.

3D Human Mesh Estimation: A 3D mesh is a rich representation of pose, which is employed for the method presented in this paper. Compared to keypoints, a mesh represents a clear understanding of a person’s body invariant to global orientation and scale. A number of recent methods [6, 24, 27, 41, 51, 55] build this mesh by learning to predict parametric human body models such as SMPL [31] or the closely-related Adam [23]. To increase training breadth, some of these methods train on 2D keypoints [24, 41] and utilize a shape prior.

The HMR [24] model trains an adversarial prior with a variety of 2D keypoint datasets to demonstrate good performance in-the-wild, making it a strong candidate to extend to more challenging viewpoints. CMR [26] also produces strong results using a similar in-the-wild training methodology. We therefore apply our method to both models, rapidly improving performance on Internet video.

Understanding Partially-Observed People: Much of the prior work studying global understanding of partially-observed people comes from ego-centric action recognition [11, 29, 33, 46, 48]. Methods often use observations of the same human body-parts between images, typically hands [11, 29, 33]

, to classify global activity. In contrast, our goal is to predict pose, from varied viewpoints.

Some recent work explores ego-centric pose estimation. Recent setups use cameras mounted in a variety of clever ways, such as chest [20, 45], bike helmet [43], VR goggles [49], and hat [57]. However, these methods rely on camera always being in the same spot relative to the human to make predictions. On the other hand, our method attains global understanding of the body by training on entire people to reason about unseen joints as it encounters less visible images.

Prior work also focuses on pose estimation specifically in cases of occlusion [15, 16]. While this setting requires inference of non-visible joints, it does not face the same scale variation occurring in consumer video, which can contain people much larger than the image. Some recent work directly addresses truncation. Vosoughi and Amer predict truncated 3D keypoints on random crops of Human3.6M [54]. In concurrence with our work, Exemplar Fine-Tuning [22] uses upper-body cropping to improve performance in Internet video [53]. Nevertheless, consumer Internet video (Fig. 2) faces more extreme truncation. We show cropping alone is not sufficient for this setting; rather cropping and self-training on confident video frames provides the best results.

3 Approach

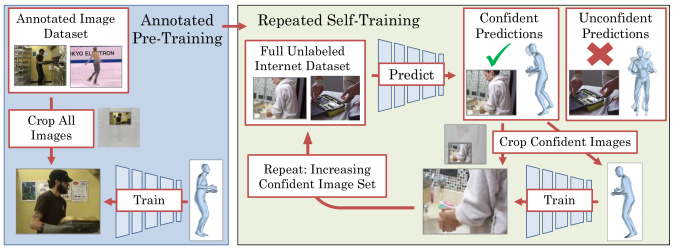

Figure 3: Our method adapts human pose models to truncated settings by self-training on cropped images. After pre-training using an annotated pose dataset, the method applies small translations to an unlabeled video dataset and selects predictions with consistent pose predictions across translations as pseudo-ground-truth. Repeating the process increases the training set to include more truncated people.

Our goal is the ability to reconstruct a full human-body 3D mesh from an image of part or all of a person in consumer video data. We demonstrate how to do this using a simple but effective self-training approach that we apply to two 3D human mesh recovery models, HMR [24] and CMR [26]. Both systems can predict a mesh by regressing SMPL [31] parameters from which a human mesh can be generated, but work poorly on this consumer video data.

Our method, shown in Fig. 3, adapts each method to this challenging setting of partial visibility by sequentially self-training on confident mesh and keypoint predictions. Starting with a model trained on crops from a labeled dataset, the system makes predictions on video data. We then identify confident predictions using the equivariance technique of Bahat and Shakhnarovich [5]. Finally, using the confident examples as pseudo-ground-truth, the model is trained to map crops of the confident images to the full-body inferences, and the process of identifying confident images and folding them into a training set is continued. Our only assumption is that we can identify frames containing a single person (needed for training HMR/CMR). In this paper, we annotate this for simplicity but assume this can be automated via an off-the-shelf detection system.

3.1 Base Models

Our base models [24, 26] use SMPL [31], which is a differentiable, generative model of human 3D meshes. SMPL maps parameters to output a triangulated mesh with vertices. consists of parameters : joint rotations , shape parameters , global rotation , global translation , and global scale . We abstract each base model as a function mapping an image to a SMPL parameter . As described in [24], the SMPL parameters can be used to yield a set of 2D projected keypoints .

Our training process closely builds off the original methods: we minimize a sum of losses on a combination of projected 2D keypoints , predicted vertices , and SMPL parameters . The most important distinctions are, we assume we have access to SMPL parameters for each image, and we train on all annotated keypoints, even if they are outside the image. We describe salient differences between the models and original training below.

HMR [24]: Kanazawa et al. use MoSh [32, 52] for their ground truth SMPL loss. However, this data is not available in most images, and thus the model relies primarily on keypoint loss. Instead, we train directly on predicted SMPL rotations, available in all images; we find loss works best. To encourage our network to adapt to poses of new datasets, we do not use a discriminator loss. We also supervise (), though experiments indicated this did not impact performance (less than 1% difference on keypoint results). The loss for a single datapoint is:


CMR [26]: CMR additionally regresses predicted mesh, and has intermediate losses after the Graph CNN. We do not change their loss, other than by always using 3D supervision and out-of-image keypoints. It is distinct from our HMR loss as it uses loss on keypoints and SMPL parameters, and converts and to rotation matrices for training [38], although they note conversion does not change quantitative results. The loss for a single datapoint is:


such that , each norm is reduced by its number of elements, and keypoint and mesh losses are also applied after the Graph CNN. While Kolotouros et al. train the Graph CNN before the MLP, we find the pretrained model trains well with both losses simultaneously.

3.2 Iterative Adaptation to Partial Visibility

Our approach follows a standard self-training approach to semi-supervised learning. In self-training, one begins with an

initial model as well as a collection of unlabeled data . Here, the inputs are images, outputs SMPL parameters, and model either CMR or HMR. The key idea is to use the inferences of each round’s model to produce labeled data for training the next round’s model . More specifically, at each iteration , the model is applied to each element of , and a confident prediction subset is identified. Then, predictions of model on elements are treated as new ground-truth for training the next round model . In standard self-training, the new training set is the original unlabeled inputs and model outputs, or . In our case, this would never learn to handle more cropped people, and the training set is thus augmented with transformations of the confident samples, or for some set of crops . The new model is retrained and the process is repeated until convergence. We now describe more concretely what we mean by each bolded point.

Initial Model: We begin by training the pretrained HMR and CMR models on MPII (Fig. 3, left) such that we apply cropping transformations to images and keypoints. SMPL predictions from full images are used for supervision, and are typically very accurate considering past training on this set. This training scheme is the same as that used for self-training (Fig. 3, right), except we use MPII ground truth keypoints instead of pseudo-ground truths.

Identifying Confident Predictions: In order to apply self-training, we need to be able to find confident outputs of each of our SMPL-regressing models. Unfortunately, it is difficult to extract confidence from regression models because there is no natural and automatically-produced confidence measure unlike in classification where measures like entropy provide a starting point.

We therefore turn to an empirical result of Bahat and Shakhnarovich [5]

that invariance to image transformations is often indicative of confidence in neural networks. Put simply, confident predictions of networks tend to be more invariant to small transformations (e.g., a shift) than non-confident predictions. We apply this technique in our setting by examining changes of parameters after applying small translational jitter: we apply the model

to copies of the image with the center jittered 10 and 20 pixels and look at joint rotation parameters

. We compute the variance of each joint rotation parameter across the jittered samples, then average the variances across joints. For HMR, we define confident samples as ones with a variance below

(chosen empirically). For CMR, for simplicity, we ensure that we have the same acceptance rate as HMR of 12%; this results in a similar variance threshold of .

Applying Transformations: The set of inputs and confident pseudo-label outputs that can be used for self-training is not enough. We therefore apply a family of crops that mimic empirical frequencies found in consumer video data. Specifically, crops consist of 23% most of body visible, 29% legs not visible, 10% head not visible, and 22% only hands or arms visible. Examples of these categories are shown in Fig. 2. Although proportions were chosen empirically from VLOG, other consumer Internet video datasets considered [2, 59, 62] exhibit similar visibility patterns, and we empirically show that our results generalize.

Retraining: Finally, given the set of samples of crops of confident images and corresponding full bodies, we retrain each model.

3.3 Implementation Details

Our cropping procedure and architecture is detailed in supplemental for both HMR [24] and CMR [26]; we initialize both with weights pretrained on in-the-wild data. On MPII, we continue using the same learning rate and optimizer used by each model (1e-5 for HMR, 3e-4 for CMR, both use Adam [25]) until validation loss converges. Training converges within 20k iterations in both cases.

Next, we identify confident predictions as detailed above on VLOG. We use the subset of the hand-contact state dataset containing single humans, which consists of 132k frames in the train + validation set. We note we could have used a simple classifier to filter by visible people in a totally unlabeled setting. Our resulting confident train + validation set is 15k images. We perform the same cropping transformations as in MPII, and continue training with the same parameters. Validation loss converges within 10k iterations. We repeat this semi-supervised component one additional time, and the new train + validation set is of approximately size 40k. Training again takes less than 10k iterations.

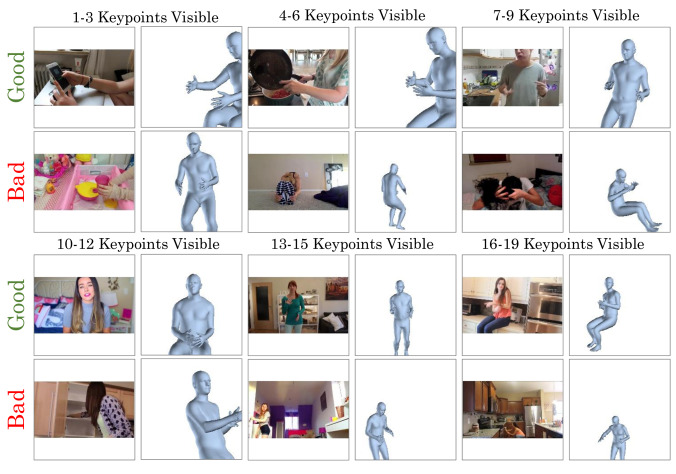

Figure 4: Randomly sampled positive and negative predictions by number of keypoints visible, as identified by workers. Images with fewer keypoints visible are typically more difficult, and our method improves most significantly in these cases (Table 2).

4 Experiments

We now describe a set of experiments done to investigate the following experimental questions: (1) how well do current 3D human mesh recovery systems work on consumer internet video? (2) can we improve the performance of these systems, both on an absolute basis and in comparison to alternate simple models that do not self-train? We answer these questions by evaluating the performance of a variety of adaptation methods applied to both HMR [24] and CMR [26] on four independent datasets of Internet videos. After introducing the datasets (Sec. 4.1) and experimental setup (Sec. 4.2), we describe experiments on VLOG (Sec. 4.3), which we use for our self-training video adaptation. To test the generality of our conclusions, we then repeat the same experiments on three other consumer datasets without any retraining (Sec. 4.4). We validate our choice of confidence against two other methods in (Sec. 4.5).

4.1 Datasets and Annotations

Independent Joint Statistics Joint Joint Statistics
Neck + Head + Fully Upper Only All But
Ankle Knee Hip Wrist Elbow Should. Face Visible Torso Arms Head
Average 7.0 12.9 31.9 71.9 50.8 53.9 51.1 2.8 26.2 31.8 18.8
VLOG [14] 10.5 20.0 34.0 71.5 54.5 61.0 53.3 4.0 32.0 24.0 14.0
Instructions [2] 14.0 24.5 32.5 73.5 52.0 44.7 43.3 5.0 14.0 32.0 18.0
YouCook II [59] 0.0 1.0 30.0 71.0 45.5 53.7 52.7 0.0 28.0 39.0 24.0
Cross-Task [62] 3.5 6.0 31.0 71.5 51.0 56.3 55.0 2.0 31.0 32.0 19.0
Table 1: Joint visibility statistics across the four consumer video datasets that we use. Across multiple consumer video datasets, fully visible people are exceptionally rare (), in contrast to configurations like an upper torso or only pieces of someone’s arms, or much of a body but no head. Surprisingly, the most likely to be visible joint is actually wrists, more than x more likely than hips and x more likely than knees.

We rely on four datasets of consumer video from the Internet for evaluating our method: VLOG [14], Instructions [2], YouCookII [59], and Cross-Task [62]. Evaluation on VLOG takes place on a random 5k image subset of the test set detailed in Sec. 3.3. For evaluation on Instructions, YouCookII, and Cross-Task, we randomly sample test-set frames (Instructions we sample from the entire dataset, which is used for cross-validation), which are filtered via crowd-workers by whether there is a single person, and then randomly subsample 5k subset.

Finally, to enable automatic metrics like PCK, we obtain joint annotations on all four datasets. We annotate keypoints for the 19 joints reprojected from HMR, or the 17 COCO keypoints along with the neck and head top from MPII. Annotations are crowd-gathered by workers who must pass a qualification test and are monitored by sentinels, and is detailed in supplemental. We show statistics of these joints in Table

1, which show quantitatively the lack of visible keypoints. In stark contrast to canonical pose datasets, the head is often not visible. Instead, the most frequently visible joints are wrists.

4.2 Experimental Setup

We evaluate our approaches as well as a set of baselines that test concrete hypotheses using two styles of metrics: 2D keypoint metrics, specifically PCK measured on both in-image joints as well as via out-of-image joints (via evaluation on crops); and 3D Mesh Human Judgments, where crowd workers evaluate outputs of the systems on an absolute or relative basis.

2D Keypoint Metrics: Our first four metrics compare predicted keypoints with annotated ones. Our base metric is PCK @ 0.5 [4], the percent of keypoints within a threshold of 0.5 times head segment, the most commonly reported threshold on MPII. Our first metric, Uncropped PCK, is performance on images where the head is visible to define PCK. We choose PCK since head segment length is typically undistorted in our data, as opposed to alternates where identifying a stable threshold is difficult: PCP [13] is affected by our high variance in body 3D orientation, and PCPm [4] by high inter-image scale variation.

PCK is defined only on images where the head is visible (a shortcoming we address with human judgment experiments). In addition to being a subset, these frames are not representative of typical visibility patterns in consumer video (as shown in Fig. 2 and Table 1), so we evaluate on crops. We sample crops to closely match the joint visibility statistics of each entire annotated test set (detailed in supplemental). We can then evaluate In-Image PCK, or PCK on joints in the cropped image. Because the original image contains precise annotations of joints not visible in the crop, we can also evaluate Out-of-Image PCK, or PCK on joints outside the crop. Total PCK is PCK on both. We calculate PCK on each image and then average over images. Not doing this gives significantly more weight to images with many keypoints in them, and ignores images with few.

3D Mesh Human Judgments: While useful, keypoint metrics like PCK suffer from a number of shortcomings. They can only be evaluated on a subset of images: this ranges from 37% of images from Instructions to 50% of images in Cross-Task. Moreover, these subsets are not necessarily representative, as argued before. Finally, in the case of out-of-image keypoints, PCK does not distinguish between plausible predictions that happen to be incorrect according to the fairly exacting PCK metric, and implausible guesses. We therefore turn to human judgments, measuring results in absolute and comparative terms.

Mesh Score/Absolute Judgment: We show workers an image and single mesh, and ask them to classify it as largely correct or not (precise definition in supplemental), from which we can calculate Percentage of Good Meshes: the proportion of predicted meshes workers consider good. Predictions from all methods are aggregated and randomly ordered, so are evaluated by the same pool of workers.

Relative Judgment: As a verification, we also perform A/B testing on HMR predictions. We follow a standard A/B paradigm and show human workers an image and two meshes in random order and ask which matches the image better with the option of a tie; when workers cannot agree, we report this as a tie.

Baselines: We compare our proposed model with two baselines to answer a few scientific questions.

Base Method: We compare with the base method being used, either HMR [24] or CMR [26], without any further training past their original pose dataset training sets. This both quantifies how well 3D pose estimation methods work on consumer footage and identifies when our approach improves over this model.

Crops: We also compare with a model trained on MPII Crops (including losses on out-of-image keypoints). This tests whether simply training the model on crops is sufficient compared to also self-training on Internet video.

4.3 Results on VLOG

Our first experiments are on VLOG [14], the dataset that we train on. We begin by showing qualitative results, comparing our method with a number of baselines in Fig. 4.3. While effective on full-body cases, the initial methods perform poorly on truncated people. Training on MPII Crops prepares the model to better identify truncated people, but self-training on Internet video provides the model context clues it can associate with people largely outside of images — some of the largest improvements occur when key indicators such as sinks and tables (Fig. 4.3) are present. In Fig. 4.3, the model identifies distinct leg and head poses outside of images given minute difference in visible pose and appearance.

Figure 5: Selected comparison of results on VLOG [14]. We demonstrate sequential improvement between ablations on HMR (left) and CMR (right). Training on MPII Crops prepares the model for truncation, while self-training provides context clues it can associate with full-body pose, leading to better predictions, particularly outside images.

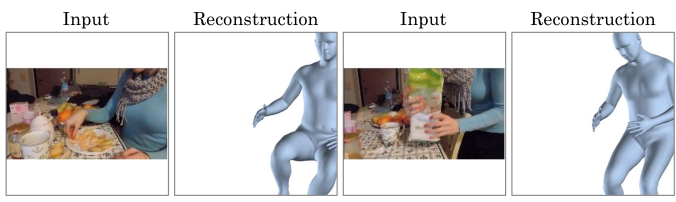

Figure 6: Shots focused on hands occur often in consumer video. While the visible body may look similar across instances, full-body pose can vary widely, meaning keypoint detection is not sufficient for full-body reasoning. After self-training, our method learns to differentiate activity such as standing and sitting given similar visible body.

Human 3D Mesh Judgments: We then consider human 3D Mesh Judgments, which quantitatively confirm the trends observed in the qualitative results. We report the frequency that each method’s predictions were rated as largely correct on the test set, broken down by the number of visible joints, in Table 2. Our approach always outperforms using the base method, and only is outperformed by Crops on full or near-full keypoint visibility. These performance gains are particularly strong in the less-visible cases compared to both the base method and crops. For instance, by using our technique, HMR’s performance in highly truncated configurations (1-3 Keypoints Visible) is improved by 23.7 points compared to the base and 11.0 compared to using crops.

HMR [24] CMR [26]
By # of Visible Joints By # of Visible Joints
1-3 4-6 7-9 10-12 13-15 16-19 All 1-3 4-6 7-9 10-12 13-15 16-19 All
Base 19.2 52.7 70.1 80.1 85.2 82.1 60.6 13.6 37.9 53.4 68.0 79.0 74.8 51.1
Crops 31.9 68.7 76.9 86.8 91.0 85.9 69.4 33.7 65.8 75.7 82.5 88.4 80.9 67.5
Full 42.9 72.1 82.8 89.6 92.3 83.1 73.9 40.9 71.2 80.2 86.0 89.2 79.5 71.2
Table 2: Percentage of Good Meshes on VLOG, as judged by human workers. We report results on All images and examine results by number of visible keypoints.
Method HMR [24] CMR [26]
Cropped Uncr. Cropped Uncr.
Total In Out Total Total In Out Total
Base 48.6 65.2 14.7 68.5 36.1 50.2 13.2 49.5
Crops 51.6 65.3 24.2 68.8 47.3 58.1 26.2 59.5
Ours 55.9 61.6 38.9 68.7 50.9 60.3 34.6 58.1
Table 3: PCK @ 0.5 on VLOG. We compute PCK on the 1.8k image VLOG test set, in which the head is fully visible, as Uncr. Total. These images are then Cropped to emulate the keypoint visibility statistics of the entire dataset, on which we can calculate PCK In and Out of cropped images, and their union Total.

2D Keypoints: We next evaluate keypoints, reporting results for all four variants in Table 3. On cropped evaluations that match the actual distribution of consumer video, our approach produces substantial improvement, increasing performance overall for both HMR and CMR. On the uncropped images where the head of the person is visible (which is closer to distributions seen on e.g., MPII), our approach remains approximately the same for HMR and actually improves by 8.6% for CMR. We note our method underperforms within cropped images on HMR. There are two reasons for this: first, supervising on out-of-image keypoints encourages predictions outside of images, sacrificing marginal in-image performance gains. Second, the cost of supervising on self-generated keypoints is reduced precision in familiar settings. Nevertheless, CMR improves enough using semi-supervision to still increase on in-image-cropped keypoints.

4.4 Generalization Evaluations

We now test generalization to other datasets. Specifically, we take the approaches evaluated in the previous section and apply them directly to Instructions [2], YouCookII [59], and Cross-Task [62] with no further training. This tests whether the additional learning is simply overfitting to VLOG. We show qualitative results of our system applied to these datasets in Fig.  7. Although the base models also work poorly on these consumer videos, simply training on VLOG is sufficient to produce more reasonable outputs.

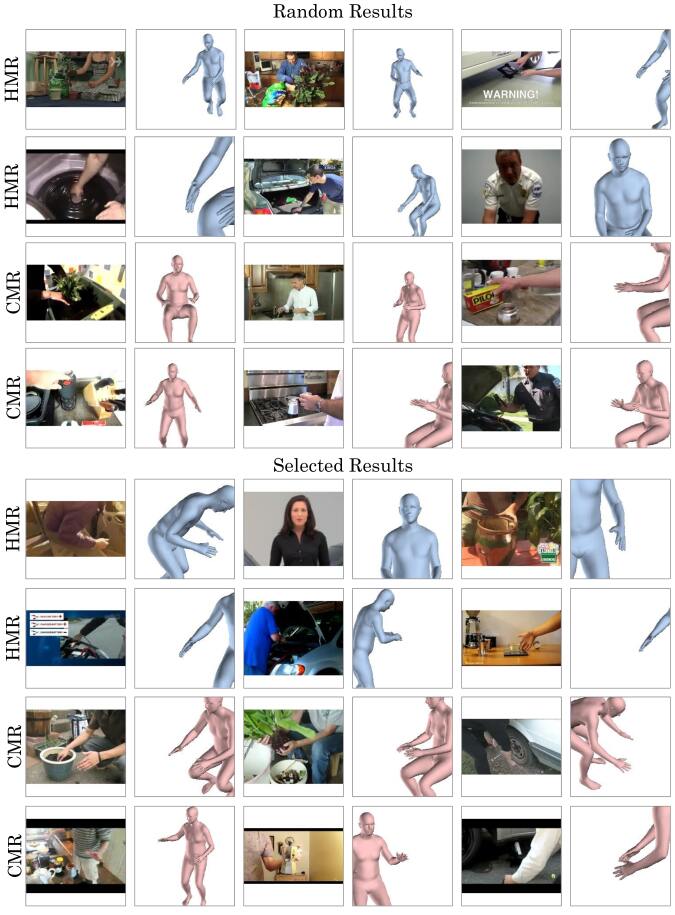

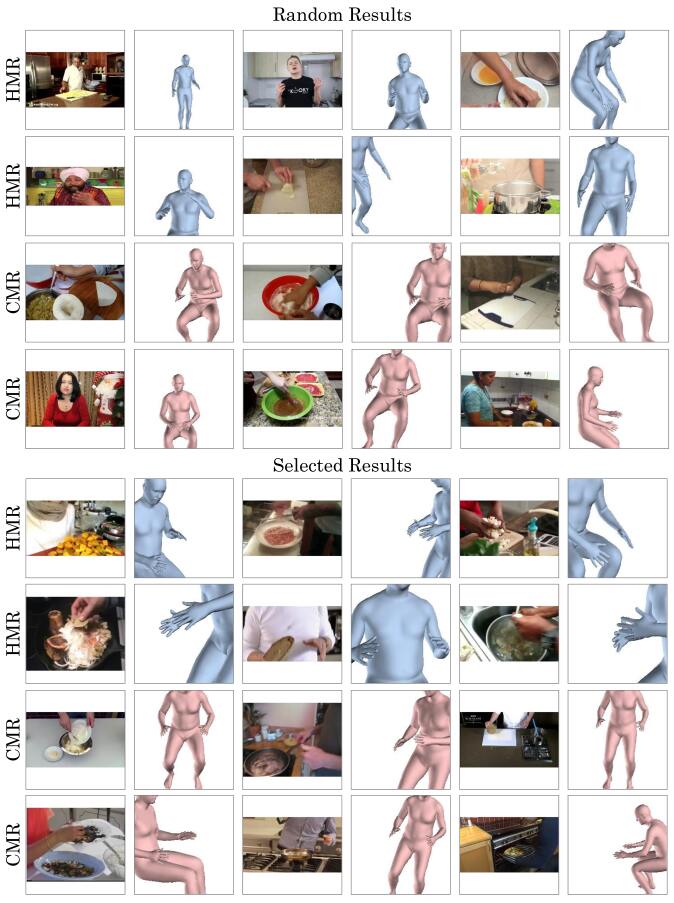

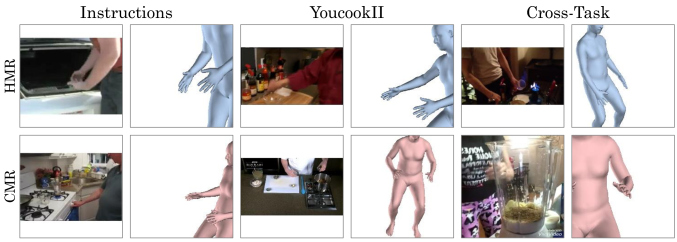

Figure 7: Results on External Datasets. While our method trains on Internet Vlogs, performance generalizes to other Internet video consisting of a variety of activities and styles; specifically instructional videos and cooking videos.
Instructions [2] YouCook II [59] Cross-Task [62]
1-6 All 1-6 All 1-6 All 1-6 All 1-6 All 1-6 All
Base 10.7 42.2 7.4 30.9 15.9 54.6 8.5 41.8 13.6 52.6 7.7 37.9
Crops 25.5 53.8 28.8 52.5 24.9 60.8 24.3 60.2 22.3 59.0 21.5 57.7
Full 37.3 60.5 35.2 57.0 43.4 71.5 39.9 68.5 37.0 68.1 31.0 63.5
Table 4: Percentage of Good Meshes on External Datasets, as judged by human workers. We report results on All images and in the case of few visible keypoints.

3D Mesh Judgments: This is substantiated quantitatively across the full dataset since, as shown in Table 4, HMR and CMR perform poorly out-of-the-box. Our approach, however, can systematically improve their performance without any additional pose annotations: gains over the best baseline range from 4.5 percentage points (CMR tested on Instructions) to 10.7 percentage points (HMR tested on YouCookII). Our outputs are systematically preferred by humans in A/B tests (Table 5): our approach is x – x more likely to be picked as preferable compared to the base system than the reverse, and similarly x – x more likely to be picked as preferable to crops than the reverse.

2D Keypoints: Finally, we evaluate PCK. Our approach produces strong performance gains on two out of the three datasets (YouCookII and Cross-Task), while its performance is more mixed on Instructions relative to MPII Crops. We hypothesize the relatively impressive performance of MPII Crops is due to 40% of this dataset consisting of car mechanical fixes. These videos frequently feature people bending down, for instance while replacing car tires. Similar activities such as swimming are more common in MPII than VLOG. The corresponding array of outdoor scenes also provides less context to accurately infer out-of-image body parts. Yet, strong human judgment results (Table 4, 5) indicate training on VLOG improves coarse prediction quality, even in this setting.

4.5 Additional Comparisons

To validate our choice of confidence, we consider two alternative criteria for selecting confident images: agreement between HMR and CMR SMPL parameters, and agreement between HMR and Openpose [8] keypoints. For fair comparison, implementations closely match our confidence method; full details and tables are in supplemental. Compared to both, our system does about the same or better across datasets, but does not require running two systems. Agreement with CMR yields cropped keypoint accuracy of 1.5-2.7% lower, and uncropped accuracy of 0.6% higher - 0.6% lower. Agreement with Openpose is stronger on uncropped images: 0.3%-2.4% higher, but weaker on uncropped: 1.3%-3.5% lower.

Method VLOG [14] Instructions [2] YouCookII [59] Cross-Task [62]
Base Crops Base Crops Base Crops Base Crops
Crops 53/28/19 - 56/28/16 - 49/35/16 - 46/39/15
Full 63/23/15 45/43/12 65/21/14 40/43/17 62/32/7 47/47/6 57/36/7 41/53/7
Table 5: A/B testing on All Datasets, using HMR. For each entry we report how frequently (%) the row wins/ties/loses to the column. For example, row 2, column 6 shows that our full method is preferred 47% of the time over a method trained on MPII Crops, and MPII Crops is preferred over the full method just 6% of the time
Method Instructions [2] YouCookII [59] Cross-Task [62]
HMR [24] CMR [26] HMR [24] CMR [26] HMR [24] CMR [26]
Total Out Total Out Total Out Total Out Total Out Total Out
Base 42.0 19.6 32.8 17.1 56.0 27.7 44.0 26.9 56.1 20.3 44.1 19.8
MPII Crops 50.6 33.7 47.9 33.9 65.8 45.0 65.0 48.6 62.9 32.5 61.9 38.2
Ours 48.7 36.4 44.8 33.7 76.7 64.1 70.7 58.5 74.5 57.2 66.9 47.9
Table 6: PCK @ 0.5 on External Datasets. We compute PCK in test set images in which the head is fully visible. These images are then cropped to emulate the keypoint visibility statistics of the entire dataset, on which we can calculate PCK on predictions outside the image.

We additionally consider performance of our model to the model after only the first iteration of VLOG training, through A/B testing (full table in supplemental). In all four datasets, the final method is x – x more likely to be picked as preferable to the model after only one round than the reverse.

5 Discussion

We presented a simple but effective approach for adapting 3D mesh recovery models to the challenging world of Internet videos. In the process, we showed that current methods appear to work poorly on Internet videos, presenting a new opportunity. Interestingly, while CMR outperforms HMR on Human3.6M, the opposite is true on this new data, suggesting that performance gains on standard pose estimation datasets do not always translate into performance gains on Internet videos. Thanks to the new annotations across the four video datasets, however, we can quantify this. These keypoint metrics are validated as a measure for prediction quality given general agreement with human judgement metrics in extensive testing. We see getting systems to work on consumer videos, including both the visible and out-of-image parts, as an interesting and impactful challenge and believe our simple method provides a strong baseline for work in this area.

Acknowledgments: This work was supported by the DARPA Machine Common Sense Program. We thank Dimitri Zhukov, Jean-Baptiste Alayrac, and Luowei Zhou, for allowing sharing of frames from their datasets, and Angjoo Kanazawa and Nikos Kolotouros for polished and easily extended code. Thanks to the members of Fouhey AI Lab and Karan Desai for the great suggestions!
