1. Introduction

Content-based image retrieval has been an active research field for decades and attracted a sustained attention from the computer vision/multimedia communities due to its wide range of applications, e.g., visual search, place recognition. Earlier works heavily rely on hand-crafted local descriptors, e.g., SIFT

(Lowe, 1999) and its variant (Arandjelović and Zisserman, 2012). Although a lot of great efforts have been made to improve performances of the SIFT-based image search systems, their performances are still limited. There are two main limitations with the SIFT features. The first and the most important one is the low-discriminability of SIFT features (Babenko and Lempitsky, 2015) which is necessary to emphasize the differences in images. Although the limitation have been relieved to some extent by embedding local features to a much higher dimensional space (Sivic et al., 2003; Perronnin and Dance, 2007; Jégou et al., 2010; Jégou and Zisserman, 2014; Do and Cheung, 2018), the semantic gap between human understanding on objects/scenes and SIFT-based image representation is still considerable large (Babenko and Lempitsky, 2015). Secondly, the burstiness effect (Jégou et al., 2009), i.e., numerous descriptors are almost identical within an image, significantly degrades the quality of SIFT-based image representation (Jégou et al., 2010, 2009; Delhumeau et al., 2013).

Recently, deep Convolutional Neural Networks (CNN) achieve great success in various problems including image classification (Krizhevsky et al., 2012; Simonyan and Zisserman, 2014; Szegedy et al., 2015; He et al., 2015), semantic segmentation (Lin et al., 2015; He et al., 2017), object detection (Girshick et al., 2014; Ren et al., 2015) and image retrieval (Babenko and Lempitsky, 2015; Kalantidis et al., 2016; Tolias et al., 2016; Arandjelović et al., 2016; Li et al., 2016; Wei et al., 2017). While the output of the deeper layers, e.g., fully-connected, can be helpful for the image retrieval task (Gong et al., 2014). Recent works (Babenko and Lempitsky, 2015; Kalantidis et al., 2016; Tolias et al., 2016; Arandjelović et al., 2016; Li et al., 2016; Wei et al., 2017) show that using the outputs of middle layers, e.g., convolution layers, can help to enhance the retrieval performances by larger margins.

Even though the local convolutional (conv.) features are more discriminative than SIFT features (Babenko and Lempitsky, 2015), the burstiness issue, which may appear in the local conv. features, has not been investigated previously. In this paper, by delving deeper into the burstiness issue, we propose three different masking schemes to select highly-representative local conv. features and robustly eliminate redundant local features. The masking schemes are named as SIFT-mask, SUM-mask, and MAX-mask. The elimination of redundant local features results in more discriminative representation and efficient computation, we will further discuss these advantages in the experiment section. The fundamentals of our proposal are that we utilize SIFT detector (Lowe, 1999)

to produce SIFT-mask; additionally, we apply sum-pooling and max-pooling across all conv. feature maps to derive SUM-mask and MAX-mask, respectively. Note that our idea of using SIFT coordinate for CNN based image retrieval is novel. Our SUM-mask is also new. Previous works apply sum-pooling within a feature map; our mask is computed by summing across feature maps. Moreover, while max-pooling

(Tolias et al., 2016) gets the maximum value, our MAX-mask obtains the location of that value.

In addition, the majority of recent works, that work on local conv. features (Tolias et al., 2016; Kalantidis et al., 2016; Radenović et al., 2016), do not utilize feature embedding and aggregating methods (Perronnin and Dance, 2007; Jégou et al., 2010; Jégou and Zisserman, 2014; Do and Cheung, 2018), which are useful steps to boost the discriminability for SIFT features. In (Babenko and Lempitsky, 2015), the authors discussed that the deep conv. features are already discriminative enough for image retrieval task; hence, the embedding step is unnecessary. However, we find that applying the state-of-the-art embedding and aggregating (Jégou and Zisserman, 2014; Do and Cheung, 2018; Jégou et al., 2010; Perronnin and Dance, 2007) can significantly help to enhance the discriminability of image representations. Therefore, by applying embedding and aggregating on our selective local conv. features, the aggregated representations improve image retrieval performance significantly.

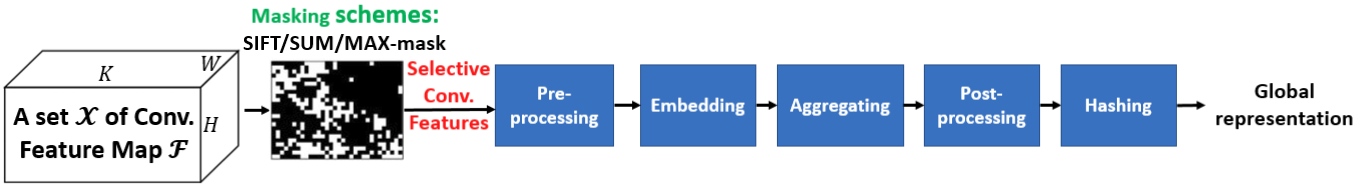

Figure 1. The overview of our proposed framework to produce discriminative global binary representations.

Furthermore, in order to achieve compact binary codes, we cascade a state-of-the-art unsupervised hashing method, e.g., Iterative Quantization (ITQ) (Gong et al., 2013)

or Relaxed Binary Autoencoder (RBA)

(Do et al., 2017) into the proposed system. The binary representations would help to achieve significant benefits in retrieval speed and memory consumption. Fig. 1 presents the overview of the proposed framework.

A preliminary version of this work has been presented in (Hoang et al., 2017)

. In this current version, firstly, we provide insight analyses to explain how various masking schemes work, both qualitatively and quantitatively. Secondly, we show that assembling information of different abstract levels is beneficial in the image retrieval task as this could help to produce more informative and discriminative representations. We then further optimize the framework to solve two crucial problems for large scale image search, i.e., searching speed and storage. Specifically, we propose to cascade a state-of-the-art unsupervised hash function into the framework to further binarize real-valued aggregated representations to binary representations. Note that binary representations would allow the fast searching and efficient storage which are very critical in large scale search systems. In addition, we also conduct very large scale experiments, i.e., on Flickr1M dataset

(Jégou et al., 2008)

, which consists of over one million images. The experiments on such kind of large scale dataset are necessary to confirm the effectiveness of the proposed method for real applications which usually have to deal with very large scale datasets. By the best of our knowledge, our work is the first deep learning-based retrieval method which conducts the evaluation on this real-like scenario. We also conduct more experiments to deeply analyze the effectiveness of the proposed framework and to extensively compare to the state of the art. The extensive experiments on six benchmark datasets show that the proposed framework significantly outperforms the state of the art when images are represented by either real-valued representations or compact binary representations.

We organize the remainders of this paper as follows. Section 2 presents related works. Section 3 presents our main contributions of the proposed masking schemes. Section 4 presents the proposed framework for computing the final image representation from a set of selected local deep conv. features. Section 5 presents comprehensive experiments to evaluate our proposed framework. Section 6 concludes the paper.

2. Related work

In the last few years, image retrieval has witnessed an increasing of performance due to the use of better image representations, i.e., deep features obtained from pre-trained CNN models, which are trained on image classification task. The early CNN-based work

(Razavian et al., 2014) directly used deep fully-connected (FC) activations for the image retrieval. Instead of directly using features from the pre-trained networks for the retrieval as (Razavian et al., 2014), other works apply different processings on the pre-trained features to enhance the discriminability. Gong et al. (Gong et al., 2014) proposed Multi-Scale Orderless Pooling to embed and aggregate CNN FC activations of image patches of an image at different scales. Hence, the final features are more invariant to the scale. However, as multiple patches (cropped and resized to a specific size) of an image are fed forward into the CNN, the method endures a high computational cost. Yan et al. (Yan et al., 2016) revisted the SIFT feature and suggested that SIFT and CNN FC features are highly complementary. Therefore, they proposed to integrate SIFT features with CNN FC features at multiple scales. Concurrently, Liu et al. (Liu et al., 2017) proposed ImageGraph to fuse various types of features, e.g., CNN FC features, BoW on SIFT (Lowe, 1999) descriptors, HSV color histogram, and GIST features (Oliva and Torralba, 2001). This method even though achieves very good performances, it requires very high-dimensional features. Furthermore, ImageGraph must be built on database images, which may be prohibitive on large scale datasets.

Recently, many image retrieval works shift the attention from FC features to conv. features. This is because outputs of lower layers contain more general information and spatial information is still preserved (Azizpour et al., 2015). In this case, the conv. features are considered as local features. Hence, the sum-pooling or max-pooling method is usually applied to achieve a single representation. Babenko and Lempitsky (Babenko and Lempitsky, 2015) demonstated that by whitening the final image representation, sum-pooling can outperform max-pooling. Kalantidis et al. (Kalantidis et al., 2016) proposed to learn weights for both feature channels and spatial locations which helps to enhance the discriminability of sum-pooling representation on conv. features. Tolias et al. (Tolias et al., 2016) revisited max-pooling by proposing the strategy to aggregate the maximum activation over multiple spatial regions sampled on a output of a conv. layer using a fixed layout. Similarly, Jian Xu et al. (Xu et al., 2018) proposed to aggregate features which are weighted using probabilistic proposals.

Instead of using pre-trained features (with / without additional processing) for the retrieval task. In (Babenko et al., 2014), Babenko et al. showed that fine-tuning an off-the-shelf network (e.g., AlexNet (Krizhevsky et al., 2012) or VGG (Simonyan and Zisserman, 2014)) can produce more discriminative deep features (Babenko et al., 2014) for the image search task. However, collecting labeled training data is non-trivial (Babenko et al., 2014). Recent works tried to overcome this challenge by proposing unsupervised/weakly-supervised fine-tuning approaches which are specific for image retrieval. Arandjelovic et al. (Arandjelović et al., 2016) proposed the NetVLAD architecture which can be trained in an end-to-end fashion. The author also proposed to collect from Google Street View Time Machine in a weakly-supervised process. Adopting a similar approach, Cao et al. (Cao et al., 2016) proposed to harvest data from Flickr with GPS information to form GeoPair dataset (Thomee et al., 2016). The dataset is afterward used to train the special Quartet-net architecture. Radenovic et al. (Radenović et al., 2016), concurrently, proposed a different approach to fine-tune a pretrained CNN on classification task for image retrieval. The authors propose to use 3D reconstruction to obtain matching / non-matching image pairs in an unsupervised manner for fine-tuning process. Recently, Noh et al. (Hyeonwoo et al., 2017) proposed the DEep Local Features (DELF) pipeline with attention-based keypoint selection for large scale image retrieval. The model is fine-tuned using their proposed Google Landmark dataset. However, the pipeline requires the geometric verification using RANSAC. Even though, features are compressed to very low dimensions, e.g., 40-D, for the trade-off between compactness, speed and discrimination, the process is still computation and memory intensive.

In regards to compact image representations, the earlier work (Zhang et al., 2016) presented feature dimension selection on embedded high-dimensional features as a compression method to achieve compact representations. Radenovic et al. (Radenović et al., 2016, 2017) later introduced to learn the whitening and dimensionality reduction in the supervised manner resulting in better performances than the baseline PCA method. Albert et al. (Gordo et al., 2017) made use of the product quantization (Jégou et al., 2011) to compress image representations. This approach even though achieves good accuracy, it is not as efficient as the hashing approach, which we utilize in this paper, in term of retrieval time (Douze et al., 2016). Do et al. (Do et al., 2017) proposed to produce binary representations by simultaneously aggregating raw local features and hashing. Differentially, in this paper, we proposed various masking schemes in combination with a complete framework to produce more discriminative binary representations.

3. Selective Local Deep Convolution Features

(a)

(b)

(c)

(d)
Figure 2. Examples of SIFT/SUM/MAX-masks to select local conv. features. The first row shows the original images. The second row shows regions which are covered by SIFT features. The 3rd, 5th, and 7th rows respectively show the SIFT/SUM/MAX-masks of corresponding images (in the 1st row). The 4th, 6th, and 8th rows show the normalized histograms of covariances of sets of local conv. features with/without applying the SIFT/SUM/MAX-masks, respectively.

In this section, firstly, we define the set of local deep conv. features which we work on throughout the paper (Section 3.1). We then propose in details the masking schemes to select a subset of discriminative local conv. features, including SIFT-mask, SUM-mask, and MAX-mask (Section 3.2). Finally, we provide in-depth analyses and experiments to qualitatively and quantitatively confirm the effectiveness of the proposed methods (Section 3.3).

3.1. Local deep convolutional features

We consider a pre-trained CNN in which all fully connected layers are discarded. Given an input image of size

that is fed through a CNN, the 3D activation tensor of a conv. layer has the size of

dimensions, where is the number of feature maps and is the spatial resolution of a feature map. We consider this 3D tensor as a set of local features; each of them has dimensions. We denote as -th feature map with size of .

3.2. Selective features

Inspired by the concept of finding the interest keypoints in the input images in traditional designs of hand-crafted features, we propose to select discriminative local deep conv. features.

We now formally propose different methods to compute a selection mask, i.e., a set of unique coordinates in the feature maps where local conv. features are retained.

3.2.1. SIFT-Mask

In the image retrieval task, prior to the era of CNN, most previous works (Jégou and Zisserman, 2014; Jégou et al., 2009, 2010; Perronnin and Dance, 2007; Jégou and Chum, 2012; Tolias et al., 2013; Delhumeau et al., 2013) rely on SIFT (Lowe, 1999) features and its variant RootSIFT (Arandjelović and Zisserman, 2012). Although the gap between the SIFT-based representation and the semantic meaning of an image is still large, these early works have clearly demonstrated the capability of SIFT feature, especially in the potential of key-point detection. Fig. 2 - Row (2) shows local image regions which are covered by SIFT. We can obverse that SIFT features mainly cover the salient regions, i.e., buildings. This means that SIFT keypoint detector is capable of locating important regions of images. Hence, we propose to take the advantage of SIFT detector in combination with highly-discriminative local conv. features. We will discuss more about the SIFT-mask in Section 3.3.

Specifically, let set be SIFT feature locations extracted from an image; , . Based on the fact that conv. layers still preserve the spatial information of the input image (Tolias et al., 2016), we select locations on the spatial grid (of the feature map) which correspond to locations of SIFT key-points, i.e.,

(1)

where and , in which represents rounding to nearest integer. By keeping only locations , we expect to remove “background” conv. features, while retaining “foreground” ones.

3.2.2. MAX-Mask

It is widely known that each feature map contains the activations of a specific visual structure (Zeiler and Fergus, 2013; Girshick et al., 2014). Hence, we propose to select the local conv. features which contain high activations for all visual contents. In other words, we select the local features that capture the most prominent structures in the input images. These features are highly desirable to differentiate scenes. In specific, we assess each feature map and select the location corresponding to the max activation value on that feature map. We formally define the selected locations as follows:

(2)

3.2.3. SUM-Mask

Departing from the MAX-mask idea, we propose a different masking method based on the motivation that a local conv. feature is more informative if it gets excited in more feature maps, i.e., the sum on description values of a local feature is larger. By selecting local features having large values of sum, we can expect that those local conv. features are very informative about various local image structures (Zeiler and Fergus, 2013). The selected locations is defined as follows:

(3)

3.3. Effectiveness of the proposed masking schemes

We now deeply analyze the effectiveness of the proposed masking schemes, in both qualitative and quantitative results.

SIFT detector (Lowe, 1999) is designed to detect interesting points which are robust with variations in scale, noise and illumination; therefore, these interesting points usually locate on high-contrast regions of images, e.g., corners. These regions also usually contain detail structures of the scenes which are necessary in differentiating scenes. While smooth regions, e.g., sky, road surfaces, are ignored as these regions are mainly background and contribute very little information. Hence, by using the SIFT-mask, we expect to select local conv. features at higher-contrast, i.e. potentially informative regions. However, there are two main issues when using the SIFT-mask: (i) in cases of blurry images, the SIFT detector unsurprisingly fails to locate informative regions. (ii) However, having too many interesting points also causes unexpected outcomes, which is known as the burstiness effect (Jégou et al., 2009), i.e., too many redundant local features are selected. For example, in Fig. 2-(2d)111Row (2) and column (d) of Fig. 2. and 2-(3d), SIFT-mask includes almost all local features of the sea regions, which are obviously redundant.

On the other hand, SUM/MAX-masks perform much better when selecting just a few features at the sea region, i.e. Fig. 2-(5d) and 2-(7d) respectively, which are necessary to distinguish scenes with and without sea, and not to cause a serious burstiness effect which potentially makes the distinguishing different scenes with sea regions difficult. In fact, the burstiness effect is the main reason explaining why SIFT-mask underperforms SUM/MAX-mask rather than due to SIFT-mask fails to select important regions, which is also confirmed by the two facts: (i) SUM/MAX-masks are mainly subsets of SIFT-mask, and (ii) applying SIFT-mask helps to improve performances (compared to no mask) which means that important regions have been selected, otherwise performances will drop. Note that the empirical results will be presented in Section 5.2.1

. It is worth noting that, the burstiness effect on local conv. features is expectedly less severe since local conv. features have much larger receptive fields than those of SIFT features. Specifically, a local conv. feature extracted from

layer of AlexNet (Krizhevsky et al., 2012) and VGG16 (Simonyan and Zisserman, 2014) have the receptive fields of and respectively. We will further investigate this effect in Section 4.4.

Comparing SUM-mask and MAX-mask, which are computed from learned features, they both have the capability of detecting important regions based on the responded activation of regions. However, their principles of selecting local features are different. In particular, given prominent regions, the corresponding local conv. features of those regions are usually highly activated. As a result, the sums on those features are larger. This fact explains why SUM-mask more densely selects local conv. features at prominent regions. However, as the receptive fields of neighbouring features are largely overlapping, they are likely to contain similar information, i.e., redundant. On the other hand, MAX-mask only selects the features which have highest activation values. Hence, we expect MAX-mask can select the best features for representing the visual structures of prominent regions. As a result, we minimize the chance of selecting multiple similar local features.

(a)
(b)
Figure 3. Fig. 2(a): The averaged percentage of remaining local conv. features after applying masks. Fig. 2(b): The averaged percentage of the covariance values in the range of .

In addition, we quantitatively evaluate the effectiveness of our proposed masking schemes in eliminating redundant local conv. features. Firstly, Fig. 2(a) shows the averaged percentage of the remaining local conv. features after applying our proposed masks on Oxford5k (Philbin et al., 2007), Paris6k (Philbin et al., 2008), and Holidays (Jégou et al., 2010) datasets (Section 5.1). Note that local conv. features are extracted from layer of the pre-trained VGG (Simonyan and Zisserman, 2014) with the input image size of . Apparently, SIFT/SUM/MAX-masks remove large numbers of local conv. features, about 25%, 50%, and 70% respectively. In addition, we present the normalized histograms of covariances of selected local conv. features after applying different masks in Fig. 2-Row 4th, 6th, and 8th. To compute the covariances, we first -normalize local conv. features, and then compute the dot products for all pairs of features. For easy comparison, the normalized histograms of covariances of all available local conv. features (i.e., before masking) are included. We can clearly observe that the distributions of covariances after applying masks have much higher peaks around 0 and have smaller tails than those without applying masks. This indicates that the masks are helpful in reducing correlation between features. Additionally, Fig. 2(b) shows the averaged percentage of -normalized feature pairs whose dot products are within the range of . The chart shows that the selected features are more uncorrelated. In summary, Fig. 3 shows that the proposed masking schemes are effective in removing a large proportion of redundant local conv. features. As a result, we can select a better representative subset of local conv. features. Furthermore, as the number of features is reduced, the computational cost is also considerably reduced, especially for the subsequent embedding and aggregating steps.

4. Framework: Embedding and aggregating on selective convolution features

In this section, we introduce the completed framework which takes a set of local deep conv. features to compute the final image representation.

4.1. Pre-processing

Given a set , where , of selective

-dimensional local conv. features belonged to the set, we apply the principal component analysis (PCA) to compress local conv. features to a lower dimension

: , where is the PCA-matrix. Applying PCA for dimension reduction can be very beneficial for two reasons. Firstly, using low-dimensional local features can help to produce compact final image representations as done in recent state-of-the-art image retrieval methods (Babenko and Lempitsky, 2015; Tolias et al., 2016; Radenović et al., 2016). Secondly, applying PCA could be helpful in removing noise and redundancy; hence, enhancing the discrimination. The compressed features are subsequently -normalized.

4.2. Embedding

We additionally aim to boost the discrimination power of the selective local conv. features. This task can be accomplished by embedding the local features to a high-dimensional space: , using state-of-the-art embedding methods:

Fisher vector

– FV (Perronnin and Dance, 2007), vector of locally aggregated descriptors – VLAD (Jégou et al., 2010), triangulation embedding – Temb (Jégou and Zisserman, 2014), function appoximation-based embedding – F-FAemb (Do and Cheung, 2018). It is worth noting that while in (Babenko and Lempitsky, 2015), the authors mentioned that local conv. features are already discriminative; hence the embedding step is not necessary. However, in this work, we find that embedding the selected features to higher dimension significantly improves their discriminability.

4.3. Aggregating

Let be an matrix that contains -dimensional embedded local descriptors of -th image. In earlier works, the two common methods to aggregate a set of local features to a single global one are max-pooling () and sum/average-pooling (). Recently, H. Jégou et al. (Jégou and Zisserman, 2014) introduced democratic aggregation method applied to image retrieval problem. The fundamental idea of democratic aggregation is to equalize the similarity between each local features and the aggregated representation. Note that, concurrently, Murray and Perronnin (Murray and Perronnin, 2014) proposed Generalized Max Pooling (GMP) (), which shares the similar idea with democratic aggregation. Democratic aggregation can be directly applied on various embedded features, e.g., FV (Perronnin and Dance, 2007), VLAD (Jégou et al., 2010), Temb (Jégou and Zisserman, 2014), F-FAemb (Do and Cheung, 2018). Moreover, when working with embedded SIFT features, this aggregation method has been shown to clearly outperform both max-pooling and sum/average-pooling (Jégou and Zisserman, 2014). Noted that democratic aggregation requires local features to be -normalized.

4.4. Post-processing

Power-law normalization (PN). The burstiness of visual elements (Jégou et al., 2009) is the phenomenon that numerous descriptors are almost similar within an image. The burstiness can severely impact the similarity measure between two images. An effective solution to the burstiness issue is to apply PN (Perronnin et al., 2010) to and subsequently -normalize (Jégou and Zisserman, 2014) the aggregated features . The PN formulation is defined as , where (Perronnin et al., 2010).

(a) Oxford5k
(b) Holidays
Figure 4. Impact of power-law normalization factor on retrieval performance. Following the setting in (Jégou and Zisserman, 2014), we set and for both SIFT and conv. features. The local conv. features are extracted from layer of the pre-trained VGG (Simonyan and Zisserman, 2014).

By the best of our knowledge, no previous work has re-studied the burstiness phenomena on the local conv. features. Fig. 4 shows the effect of PN on local conv. features using various proposed masking schemes. The figure shows that the burstiness still happens on local conv. features (), as the retrieval performance changes as varies. However, we additionally observe that the burstiness on conv. features is much weaker than on SIFT features (). More importantly, the proposed SIFT/SUM/MAX-masks clearly mitigate the burstiness phenomena: the performances achieved by are stable as varies. This confirms the effectiveness of the proposed masking schemes in removing redundant local features. Following previous works, is set at 0.5 for all later experiments, unless stated otherwise.

Rotation normalization and dimension reduction (RN). Besides the visual burstiness, frequent co-occurrences issue is also an important limitation. Fortunately, this effect can be easily addressed by whitening the data.

4.5. Hashing function

In the large scale image retrieval problem, binary hashing, where images are represented by a -bit binary codes, is an attractive approach because the binary representations allow the fast searching and sufficient storage.

There is a wide range of hashing methods have been proposed in the literature, in both unsupervised and supervised (Grauman and Fergus, 2013; Wang et al., 2017). Although supervised hashing methods usually outperform unsupervised hashing methods on some specific retrievals in which the data is labeled, they are not suitable for the general image retrieval (which is focused in this work). That is because in the general image retrieval, the label of an image is not well defined. Most of general image retrieval benchmarks, e.g., Holidays, Oxford5k, Paris6k, does not have labeled training data. On the other hand, the unsupervised hashing is well suitable for the general image retrieval task. Unsupervised hashing methods do not require the data label for training. Most of unsupervised hashing methods tries to preserve the geometric structure of data by using reconstruction criterion (Gong et al., 2013; Carreira-Perpinan and Raziperchikolaei, 2015; Do et al., 2017, 2016) or directly preserving the distance similarity between samples (Weiss et al., 2008). By above reasons, we propose to cascade a state-of-the-art unsupervised hash function, i.e., Iterative Quantization (ITQ) (Gong et al., 2013)

, K-mean Hashing (KMH)

(He et al., 2013), or Relaxed Binary Autoencoder (RBA) (Do et al., 2017), into the framework to further binarize the real-valued aggregated representations to binary representations.

The overview of our proposed framework is shown in Fig. 1. In the next section, we will conduct extensive experiments to evaluate the framework in both cases: real-valued global representations (i.e., without the hash function in the framework), and binary global representations (i.e., with the hash function in the framework).

5. Evaluation

In this section, we conduct a wide range of experiments to comprehensively evaluate the proposed framework on six standard image retrieval benchmark datasets, including Oxford5k dataset (Philbin et al., 2007), Paris6k dataset (Philbin et al., 2008), INRIA Holidays (Jégou et al., 2010) dataset, Oxford105k dataset (Philbin et al., 2007), Paris106k dataset (Philbin et al., 2008), and Holidays+Flickr1M dataset (Jégou et al., 2008).

5.1. Datasets, evaluation protocols, and implementation notes

Oxford Buildings dataset: The Oxford5k dataset (Philbin et al., 2007) consists of 5,063 images of buildings and 55 query images corresponding to 11 distinct buildings in Oxford. Each query image contains a bounding box indicating the region of interest. Following the standard practice (Jégou and Zisserman, 2014; Do and Cheung, 2018; Tolias et al., 2016; Gordo et al., 2016), we use the cropped query images based on provided bounding boxes.

Paris dataset: The Paris6k dataset (Philbin et al., 2008) consists of 6412 images of famous landmarks in Paris. Similar to Oxford5k, this dataset has 55 queries corresponding to 11 landmarks. We also use provided bounding boxes to crop the query images accordingly.

INRIA Holidays dataset: The Holidays dataset (Jégou et al., 2010) contains 1,491 images corresponding to 500 scenes. The query image set consists of one image from each scene. Following (Babenko et al., 2014; Babenko and Lempitsky, 2015; Kalantidis et al., 2016), we manually rotate images (by degrees) to fix the incorrect image orientation.

Oxford105k and Paris106k datasets: We additionally combine Oxford5k and Paris6k with 100k Flickr images (Philbin et al., 2007) to form larger databases, named Oxford105k and Paris106k respectively. The new databases are used to evaluate retrieval performance at a larger scale.

Holidays+Flickr1M: In order to evaluate the retrieval on a very large scale, we merge Holidays dataset with 1M negative images downloaded from Flickr (Jégou et al., 2008), forming the Holidays+Flickr1M dataset. This dataset allows us to evaluate real-like scenarios of the proposed framework.

Evaluation protocols: Follow the state of the art (Jégou and Zisserman, 2014; Do and Cheung, 2018; Arandjelović et al., 2016; Babenko and Lempitsky, 2015; Radenović et al., 2016; Gordo et al., 2016), the retrieval performance is measured by mean average precision (mAP) over the query sets. Additionally, the junk images are removed from the ranking.

Implementation notes: In the image retrieval task, to avoid overfitting, it is important to use held-out datasets (training set) to learn all necessary parameters (Babenko and Lempitsky, 2015; Radenović et al., 2016; Gordo et al., 2016). Following standard settings in the literature (Jégou and Zisserman, 2014; Do and Cheung, 2018; Tolias et al., 2016; Babenko and Lempitsky, 2015), we use the set of 5,000 Flickr images (Philbin et al., 2007) 222We randomly select 5,000 images from the 100k Flickr image set (Philbin et al., 2007). as the training set to learn parameters for Holidays and Holidays+Flick1M. The Oxford5k is used as the learning set for Paris6k and Paris106k, while the Paris6k is used as the learning for Oxford5k and Oxford105k

Notations Meanings Notations Meanings
SIFT-mask Average-pooling
SUM-mask Sum-pooling
MAX-mask Democratic-pooling (Jégou and Zisserman, 2014)
FV (Perronnin and Dance, 2007) VLAD (Jégou et al., 2010)
Temb (Jégou and Zisserman, 2014) F-FAemb (Do and Cheung, 2018)
Codebook333

For FV method, the codebook is learned by Gaussian Mixture Model. For VLAD, Temb, and F-FAemb methods, the codebooks learned by K-means.

Retained PCA dim.
Final dim.
Table 1. Notations and their corresponding meanings.

For fair comparison, following recent works (Tolias et al., 2016; Babenko and Lempitsky, 2015; Radenović et al., 2016; Gordo et al., 2016), we use the pretrained VGG16 (Simonyan and Zisserman, 2014) (with Matconvnet toolbox (Vedaldi and Lenc, 2014)) to extract deep conv. features. In addition, all images are resized so that the maximum dimension is 1,024 while preserving aspect ratios before fed into the CNN. We utilize the VLFeat toolbox (Vedaldi and Fulkerson, 2010) for SIFT detector. For clarity, the notations are summarized in Table 1. The implementation of the proposed framework is available at \({https://github.com/hnanhtuan/selectiveConvFeature}\).

5.2. Effects of parameters

5.2.1. Frameworks

In this section, we conduct experiments to comprehensively evaluate various embedding and aggregating methods in combination with different proposed masking schemes. Note that, we follow (Do and Cheung, 2018) to decompose the embedding and aggregating steps of VLAD and FV methods. This allows us to utilize the recent state-of-the-art aggregations (e.g., democratic pooling (Jégou and Zisserman, 2014)).

Methods
FV (Perronnin and Dance, 2007) 48 44
VLAD (Jégou et al., 2010) 64 66
T-emb (Jégou and Zisserman, 2014) 64 68
F-FAemb (Do and Cheung, 2018)444Instead of removing the first components as in original design (Do and Cheung, 2018), we remove the first components of the features after aggregating step (Section 4.3) as this generally achieves better performances. 32 10
Table 2. Configurations of different embedding methods.

In order to have a fair comparison among different combinations, we empirically set the visual codebook size- and the number of retained PCA components- (of local conv. features) such that the produced final aggregation vectors of different methods have the same dimensionality-. These parameters are presented in Table 2.

We report the comparative results on Oxford5k, Paris6k, and Holidays datasets in Table 3. The main observations from Table 3 are: (i) democratic pooling is clearly better than sum/max-pooling, (ii) our proposed masking schemes consistently boost performance for all embedding and aggregating frameworks, and finally (iii) the MAX-mask outperforms the SUM/SIFT-masks, while the performance gains of SUM-mask and SIFT-mask are comparable. At the comparison dimensionality of , the two frameworks and achieve comparable performances for various masking schemes and datasets. Hence, we choose as our default framework for analyzing other parameters.

Frameworks None
Oxford5k 67.8 65.1 65.5 59.5
72.2 71.8 72.0 69.6
66.3 65.6 66.4 65.1
69.2 70.5 71.3 69.4
75.8 75.7 75.3 73.4
75.2 74.7 74.4 73.8
Paris6k 78.4 76.4 75.8 68.0
84.5 82.2 82.4 76.9
77.7 74.5 76.0 73.2
80.3 79.5 81.3 79.3
86.9 84.8 85.3 83.9
86.6 85.9 85.6 82.9
Holidays 83.2 80.0 81.5 78.2
87.8 86.7 87.1 85.2
83.3 82.0 83.6 82.7
85.5 86.4 87.5 86.1
89.1 88.1 88.6 87.3
88.6 88.4 88.5 86.4
Table 3. Comparison of different frameworks. For simplicity, we do not include the notations for post-processing steps (PN and RN). The “Bold” values indicate the best performances in each masking scheme and the “Underline” values indicate the best performances across all settings.

5.2.2. Final feature dimensionality

Since our framework provides the flexibility of choosing different dimensions for final representations, we evaluate the impact of final image representation on the retrieval performance.

Dim. 512 1024 2048 4096 8064
32 64 64 64 128
20 18 34 66 64
Table 4. Number of retained PCA components (of local conv. features) and codebook size (of T-emb) for different dimensionalities.

Considering our default framework — , we empirically set the number of retained PCA components (of local conv. features) and the codebook size for different dimensionalities in Table 4. For compact final representations of 512-D, we choose to avoid using too few visual words as this drastically degrades performance (Jégou and Zisserman, 2014). For longer final representations, i.e. 1024, 2048, 4096, imitating Fisher and VLAD presentations for SIFT features (Jégou et al., 2012), we reduce local conv. features to . For the largest considered representation, i.e. 8064, imitating the Temb representation for SIFT features (Jégou and Zisserman, 2014), we reduce local conv. features to . Note that the settings in Table 4 are applied for all later experiments.

(a) Oxford5k
(b) Paris6k
Figure 5. Impact of the final representation dimensionality on retrieval performance.

The Figure 5 shows the retrieval performances at different final feature dimensionalities for Oxford5k and Paris6k datasets. Unsurprisingly, the proposed framework can achieve higher performance gains when the final feature dimensionality increases. At 4096-D or higher, the improvements become small (or even decreased for scheme on Paris6k dataset). More important, the masking schemes consistently boost retrieval performances across different dimensionalities.

5.2.3. Image size

Dim. Oxford5k Paris6k
512 724 56.4 60.9 79.3 81.2
1024 64.0 65.7 78.6 81.6
Table 5. Impact of different input image sizes on retrieval performance. The framework of is used to produce image representations.

Since our framework highly depends on the number of local conv. features, it is necessary to evaluate the performance of our framework with a smaller image size. We present the retrieval performance on Oxford5k and Paris6k datasets with the image sizes of and in Table 5. Similar to the reported results of (Tolias et al., 2016) on Oxford5k dataset, we observe around 6-7% drop in mAP when using smaller input images of rather than the original images. While on Paris6k dataset, interestingly, the performances are more stable to changes of the image size. We observe a small drop of 2.2% mAP on Paris6k dataset for R-MAC (Tolias et al., 2016) with our experiments. The experimental results suggest that R-MAC (Tolias et al., 2016) and our methods are equivalently affected by the change in the image size.

The large performance drops on Oxford5k can be explained that with higher resolution images, the CNN can take a closer “look” on smaller details in the images. Hence, the local conv. features can better distinguish details in different images. While the stable performance on Paris6k dataset can be perceived that the differences among scenes are at global structures, i.e., a higher abstract level, instead of small details as on Oxford5k dataset. This explanation is actually consistent with human understanding on these datasets.

5.2.4. Layer selection

In (Babenko and Lempitsky, 2015), the authors mentioned that deeper conv. layers produce features that are more reliable in differentiating images. Here, we re-evaluate this statement using our proposed framework by comparing the retrieval performance (mAP) of features extracted from different conv. layers, including , , , , , and , at the same dimensionality. The experimental results on Oxford5k and Paris6k datasets are shown in Figure 6. We observe that the performances are slightly decreased when using lower conv. layers until . It means that conv. features of these layers, e.g., , , , , are still very discriminative. Hence, combining information of these layers may be beneficial. However, when going down further to and , the performances are significantly lower. In summary, regarding the pre-trained VGG network (Simonyan and Zisserman, 2014), the last conv. layer (i.e., ) produces the most reliable representation for image retrieval.

(a) Oxford5k
(b) Paris6k
Figure 6. Impact of local deep conv. features from different layers on retrieval performance. The framework of is used to produce image representations.

Furthermore, as assembling multiple conv. layers of CNN would be beneficial (Hariharan et al., 2014) in localizing the saliency objects, we conduct additional experiments to evaluate whether combining different levels of abstraction from different conv. layers of CNN be useful for the retrieval task. Specifically, we concatenate feature maps from different layers as hyper-column feature maps which allow to normally use the proposed masking schemes. The experimental results are reported in 6, from which we observe that combining multiple conv. layers as hyper-column features helps to improve performances across many datasets, e.g., Oxford5k, Paris6k, and Holidays.

Oxford5k Paris6k Holidays
72.2 83.2 88.4
73.3 83.5 90.4
74.2 83.8 90.9
74.8 84.5 90.8
Table 6. Impact of combining multiple conv. layers as hyper-column feature maps on Oxford5k, Paris6k, and Holidays datasets. The framework of is used to produce image representations, where denotes Temb with and .

5.2.5. Binary representation framework

Embed Dim. Oxford5k Paris6k Holidays
64 128 256 512 64 128 256 512 64 128 256 512
ITQ (Gong et al., 2013) 512 18.3 31.6 45.0 57.3 32.9 49.7 63.0 74.7 57.5 70.7 79.5 83.5
1024 18.7 29.5 42.9 55.8 33.5 49.0 61.0 72.4 58.7 71.5 79.4 82.9
2048 18.3 27.7 38.4 50.3 28.4 44.3 57.9 68.6 57.9 71.1 79.1 82.3
4096 16.0 23.0 33.6 45.8 26.1 40.1 52.9 65.4 56.1 70.2 78.8 80.5
RBA (Do et al., 2017) 512 17.8 31.3 45.3 57.1 31.5 50.8 63.7 74.9 56.7 71.6 78.5 83.2
1024 18.4 30.1 42.7 55.7 32.8 49.4 61.3 72.8 57.6 71.1 79.3 82.7
2048 17.3 30.9 39.1 53.5 29.0 45.0 59.1 68.6 57.1 70.8 78.8 81.8
4096 15.7 25.1 39.0 48.3 25.8 39.3 55.6 64.6 55.6 67.5 77.5 80.1
KMH (He et al., 2013) 512 18.5 26.5 39.1 54.4 32.0 45.7 61.6 75.3 53.4 65.0 75.0 80.8
1024 18.1 28.1 41.4 53.5 30.0 48.3 61.4 73.7 54.6 68.0 78.0 82.4
2048 15.7 26.7 38.5 51.4 26.0 40.8 56.7 69.2 51.2 68.4 76.4 81.2
4096 13.4 20.7 31.2 47.0 21.1 33.3 49.8 63.7 50.0 63.2 72.8 80.1
Table 7. Comparison of different frameworks when the final representations are binary values. The values in brackets in Embedding column indicate the dimension of local conv. features after PCA and the codebook size, respectively. Dim. column indicates the dimension of real-valued representations before subjecting into a hash function. We evaluate the binary representations at code lengths with three state-of-the-art unsupervised hashing methods ITQ (Gong et al., 2013), RBA (Do et al., 2017), and KMH (He et al., 2013). Results are reported on Oxford5k, Paris6k and Holidays dataset.

In this section, we conduct experiments at a wide range of settings to find the setting that produces the best binary representation. As discussed in section 5.2.3 and 5.2.4, when using images of , the last conv. layer of the VGG network (Simonyan and Zisserman, 2014), i.e., , produces the most reliable representations. Hence, the default framework of , in combination with these two settings (i.e., and features), is used to produce real-valued representations before passing forward to a hashing module. Furthermore, in the literature, unsupervised hashing methods are usually proposed to work with hand-crafted global image features, e.g., GIST (Oliva and Torralba, 2001), or deep learning features of a fully-connected layer, e.g., of AlexNet or VGG, it is unclear which method works the best with our proposed aggregated representations. Hence, we conduct experiments with various state-of-the-art unsupervised hashing methods including iterative quantization (ITQ) (Gong et al., 2013), relaxed binary autoencoder (RBA) (Do et al., 2017), and K-means hashing (KMH) (He et al., 2013) to find the best hashing module for our framework.

The experimental results on Oxford5k, Paris6k, and Holidays datasets are presented in Table 7. There are some main observations from the results. Firstly, at the same code length, ITQ and RBA achieve comparable results, while both these methods are significantly outperforms KHM, on all datasets. Secondly, as discussed in Section 5.2.2, embedding local conv. features to a higher dimensional space helps to enhance the discriminative power of the real-valued aggregated representation; however, as shown in Table 7, embedding to too high-dimensional space also causes information loss when producing compact binary codes, i.e., the best mAPs are achieved when the aggregated representation are at 512 or 1024 dimensions. The higher dimensional representations (i.e., 2048-D or 4906-D) cause the more mAPs loss. As embedding to 512-D, i.e., , gives most stable results, we use this configuration in our final framework when producing binary representations.

Methods Dim. Size Datasets
(Byte) Oxf5k Oxf105k Par6k Par106k Hol Hol+Fl1M
SIFT (Jégou and Zisserman, 2014) 512 2k 52.8 46.1 - - 61.7 46.9
(Jégou and Zisserman, 2014) 1024 4k 56.0 50.2 - - 72.0 49.4
(Do and Cheung, 2018) 512 2k 53.9 50.9 - - 69.0 65.3
(Do and Cheung, 2018) 1024 4k 58.2 53.2 - - 70.8 68.5
Off-the-shelf network SPoC (Babenko and Lempitsky, 2015) 256 1k 53.1 - 50.1 - 80.2 -
MOP-CNN (Gong et al., 2014) 512 2k - - - - 78.4 -
CroW (Kalantidis et al., 2016) 512 2k 70.8 65.3 79.7 72.2 85.1 -
MAC (Radenović et al., 2016) 512 2k 56.4 47.8 72.3 58.0 76.7 -
R-MAC (Tolias et al., 2016) 512 2k 66.9 61.6 83.0 75.7 86.6 71.5
NetVLAD (Arandjelović et al., 2016) 1024 4k 62.6 - 73.3 - 87.3 -
PWA (Xu et al., 2018) 1024 4k 75.3 69.3 84.2 78.2 - -
NetVLAD (Arandjelović et al., 2016) 4096 16k 66.6 - 77.4 - 88.3 -
512 2k 64.4 59.4 79.5 70.6 86.5 -
512 2k 64.0 58.8 78.6 70.4 86.4 -
512 2k 65.7 60.5 81.6 72.4 85.0 71.9
512 2k 69.2 65.3 82.5 74.0 88.7 73.0
1024 4k 69.9 64.3 81.7 73.8 87.1 -
1024 4k 70.8 64.4 80.6 73.8 86.9 -
1024 4k 72.2 67.9 83.2 76.1 88.4 79.1
1024 4k 74.8 70.4 84.5 78.6 90.8 81.7
Finetuned network siaMAC MAC (Radenović et al., 2016) 512 2k 79.7 73.9 82.4 74.6 79.5 -
siaMAC R-MAC (Radenović et al., 2016) 512 2k 77.0 69.2 83.8 76.4 82.5 -
NetVLAD (Arandjelović et al., 2016) 1024 4k 69.2 - 76.5 - 86.5 -
NetVLAD (Arandjelović et al., 2016) 4096 16k 71.6 - 79.7 - 87.5 -
siaMAC 512 2k 77.7 72.7 83.2 76.5 86.3 -
siaMAC 1024 4k 81.4 77.4 84.8 78.9 88.9 82.1
NetVLAD 1024 4k 75.2 71.7 84.4 76.9 91.5 -
NetVLAD 4096 16k 78.2 75.7 87.8 81.8 92.2 -
siaMAC 4096 16k 83.8 80.6 88.3 83.1 90.1 -
Table 8. Comparison with the state of the art when the final representations are real values. The results of compared methods are cited from the corresponding papers when available. For results of R-MAC(Tolias et al., 2016) on Holidays and Holidays+Flickr1M, we use the released code of R-MAC(Tolias et al., 2016) to evaluate on these datasets.
Method Dim. Size Datasets
(Byte) Oxf5k Oxf105k Par6k Par106k Hol
siaMAC MAC (Radenović et al., 2016) 16 (re.) 64 56.2 45.5 57.3 43.4 51.3
siaMAC R-MAC (Radenović et al., 2016) 16 (re.) 64 46.9 37.9 58.8 45.6 54.4
GeM (Radenović et al., 2017) 16 (re.) 64 56.2 44.4 63.5 45.5 60.9
256 (bin.) 32 45.0 38.3 63.0 50.5 79.5
512 (bin.) 64 57.3 49.8 74.7 56.1 83.5
siaMAC 256 (bin.) 32 58.5 49.1 74.1 63.6 79.9
siaMAC 512 (bin.) 64 68.9 60.9 79.1 70.3 83.6
Table 9. Comparison with the state of the art on very compact representations. (re.) and (bin.) mean that the representations are real values and binary values, respectively. For real values, the distance meansure is cosine and for binary values, distance meansure is Hamming.

5.3. Comparison to the state of the art

We comprehensively evaluate and compare our proposed framework with the state of the art in the image retrieval task. We separate two experimental settings. The first experiment is when images are represented by mid-dimensional real-valued presentations. The second experiment is when images are represented by very compact representations, i.e., very short real-valued vectors or binary vectors.

5.3.1. Comparison with the state of the art when images are represented by mid-dimensional real-valued vectors

We report comparative results when images are represented by real-valued vectors in Table 8. We separate two different settings, i.e., when deep features are extracted from an off-the-shelf pretrained VGG network and are extracted from a VGG network which is fine-tuned for the image retrieval task.

Using off-the-shelf VGG network (Simonyan and Zisserman, 2014). The first observation is that at the dimensionality of 1024, our framework using MAX-mask () achieves the best mAP in comparison to recent deep learning-based methods (Babenko and Lempitsky, 2015; Kalantidis et al., 2016; Radenović et al., 2016; Tolias et al., 2016; Arandjelović et al., 2016) acrossing different datasets. The second observation is that by combining multiple conv. layers, , , and , denoted as , the proposed MAX scheme consistently boosts the retrieval accuracy. Our framework () with dimensionality of 512 is competitive with other state-of-the-art methods (Kalantidis et al., 2016; Tolias et al., 2016). In particular, in comparison with CroW (Kalantidis et al., 2016), while having slightly lower performances in Oxford5k, our method outperforms CroW on Paris6k and Holidays. In comparison with R-MAC (Tolias et al., 2016), the proposed framework outperforms RMAC on Oxford5k and Holidays datasets, while it is comparable to RMAC on Paris6k dataset. Note that in some comparison methods, e.g., siaMAC (Radenović et al., 2016), R-MAC (Tolias et al., 2016), SPoC (Babenko and Lempitsky, 2015), CroW (Kalantidis et al., 2016), the dimensionality is 256 or 512. This is due to the final representation dimensionality of these methods is upper bounded by the number of feature channels of the selected network architecture and layers, e.g., for of VGG16. Our proposed method, on the other hand, provides more flexibility in the representation dimensionality, thanks to the embedding process.

It is worth noting that NetVLAD (Arandjelović et al., 2016), MOP-CNN (Gong et al., 2014), and PWA (Xu et al., 2018) methods can also produce higher dimensional representation by increasing the codebook size. However, as shown in Table 8 at comparable dimensions, the proposed framework clearly outperforms NetVLAD and MOP-CNN. In addition, at the dimensionality of 1024, our framework is slightly more favorable than PWA. Our framework achieves better performances on Oxford105k, Paris6k, and Paris106k datasets and is only slightly lower in mAP in Oxford5k dataset.

Taking advantages of fine-tuned VGG networks. Since our proposed framework takes the 3D activation tensor of a conv. layer as the input, it is totally compatible with deep networks which are fine-tuned for the image retrieval task such as siaMAC (Radenović et al., 2016) and NetVLAD (Arandjelović et al., 2016) (noted as NetVLAD). In the “Fine-tuned network” section of Table 8, we evaluate our best framework — in which the local conv. features of the fine-tuned VGG networks NetVLAD (Arandjelović et al., 2016), siaMAC (Radenović et al., 2016) are used as inputs.

The experimental results from Table 8 show that, for our framework, using conv. features from the siaMAC network usually gives better performance than using those from the fine-tuned NetVLAD network. When using local conv. features extracted from the fine-tuned siaMAC network (Radenović et al., 2016), our method is competitive to siaMAC R-MAC and siaMAC MAC (Radenović et al., 2016) at dimensionality of 512. At 1024 dimensions, our method consistently outperforms both siaMAC and NetVLAD on all datasets. These considerable improvements indicate that our proposed framework can fully utilize the discrimination gain of local conv. features achieved by those fine-tuning networks.

Very large scale image retrieval. In order to verify the capabilities of our framework in real scenarios, we now evaluate it with a very large scale dataset, HolidaysFlickr1M. The experimental results show that the proposed framework “siaMAC + ” is quite robust to the database size, i.e., when adding 1M distractor images to the Holidays dataset, the performance drop is only about 7%. We achieve a mAP of 82.1 which is significantly higher than 71.5 of the R-MAC (Tolias et al., 2016).

Method Dim. mAP
Oxford5k Holidays
SCDA(Wei et al., 2017) 4096 512 67.7 92.1
4096 512 77.2 92.0
4096 512 78.6 93.2
Table 10. Comparison with SCDA (Wei et al., 2017)

Comparison to Selective Convolutional Descriptor Aggregation (SCDA) (Wei et al., 2017). Recently, Wei et al. (Wei et al., 2017) proposed a method which selects deep features on and layers from the pretrained VGG networks. Their method shares some similarities with our SUM-mask. Our work, however, is different from (Wei et al., 2017) in several improtant aspects, i.e., we propose and evalute various masking schemes, i.e., SUM-mask, SIFT-mask, and MAX-mask. Our experiments show that the MAX-mask scheme consitently outperforms other schemes. In addition, we utilize state-of-the-art embedding and aggregating methods to enhance the discirminative power of the final representation. In order to have a complete evaluation to SCDA (Wei et al., 2017), we conduct comparison with SCDA (Wei et al., 2017) on Oxford5k and Holidays datasets. We exactly follow the setting of SCDA, i.e., the 5063 and 1491 gallery images of Oxford5k and Holidays datasets are used as the training set when learning codebooks for the embedding. In this experiment, for our methods, we do not truncate the first low frequency components when embedding. This makes the original dimension of the aggregated representations of SCDA and our methods are comparable, i.e., 4096. The low dimensionality, i.e. 512, is achieved by applying PCA. The comparative results in Table 10 clearly show the superior performances, especially on Oxford5k dataset, of our proposed framework over SCDA.

5.3.2. Comparison with the state of the art when images are represented by very compact representations

We now compare the quality of binary image representations producing by our framework with compact real-valued representations from state-of-the-art methods at comparable sizes (in Bytes) (Radenović et al., 2016, 2017). Furthermore, ITQ (Gong et al., 2013) is used as the hashing function in our final framework since it gives competitive results (Section 5.2.5) and it is also computationally efficient in both training and producing new binary codes. We report the comparative results in Table 9.

First of all, at the same image descriptor size, e.g., 64 bytes, even when using off-the-shelf VGG (Simonyan and Zisserman, 2014), our framework significantly outperforms (Radenović et al., 2016, 2017) which use fine-tuned VGG networks. For examples, the proposed framwork outperforms the second best GeM (Radenović et al., 2017) large margins, i.e., and on Paris6k and Holidays datasets, respectively. Secondly, when using local conv. features of a fine-tuned VGG, e.g., siaMAC (Radenović et al., 2016), our framework achieves significant extra improvements in retrieval performances over all datasets.

5.4. Online processing time

Figure 7. The averaged online processing time images in Oxford5k dataset.

We conduct experiments to empirically measure the online processing time of our proposed framework. We additionally compare our online processing time with one of the most competitive methods: R-MAC (Tolias et al., 2016). Both implementations of our framework and R-MAC are in Matlab. The experiments are executed on a workstation with a processor core (i7-6700 CPU @ 3.40GHz). Fig. 7 reports the averaged online processing time of Oxford5k dataset ( images). Note that the processing time includes the time to compute and apply masks and excludes the time for extracting 3D convolutional feature maps. The figure clearly shows that the MAX/SUM-mask can help to considerably reduce the computational cost of our proposed framework. As the proposed masking schemes can eliminate about 70% (for MAX-mask) and 50% (for SUM-mask) of local conv. features (Section 3.3). Furthermore, at 512-D, our framework is faster than R-MAC (Tolias et al., 2016).

6. Conclusion

In this paper, we present a novel, optimized and computationally-efficient framework for image retrieval task. The framework takes activations of a convolutional layer as the input and outputs a highly-discriminative image representation. In the framework, we propose to enhance discriminative power of the image representation in two main steps: (i) applying our proposed masking schemes, e.g., SIFT/SUM/MAX-mask, to select a subset of selective local conv. features, then (ii) employing the state-of-art embedding and aggregating methods (Jégou and Zisserman, 2014; Do and Cheung, 2018). In order to make the final representations suitable for large scale search, we further compress the real-valued representation by cascading a hashing function into framework. We comprehensively evaluate and analyze each component in the framework to figure out the best configuration. Solid experimental results show that our proposed framework favorably compares with the state of the art for real-valued representations. Moreover, our binary representations are significantly outperforms the state-of-the-art methods at comparable sizes.

References

  • (1)
  • Arandjelović et al. (2016) Relja Arandjelović, Petr Gronat, Akihiko Torii, Tomas Pajdla, and Josef Sivic. 2016. NetVLAD: CNN architecture for weakly supervised place recognition. In CVPR.
  • Arandjelović and Zisserman (2012) Relja Arandjelović and Andrew Zisserman. 2012. Three things everyone should know to improve object retrieval. In CVPR.
  • Azizpour et al. (2015) Hossein Azizpour, Ali Sharif Razavian, Josephine Sullivan, Atsuto Maki, and Stefan Carlsson. 2015. From generic to specific deep representations for visual recognition. In CVPR Workshops.
  • Babenko and Lempitsky (2015) Artem Babenko and Victor Lempitsky. 2015. Aggregating Local Deep Features for Image Retrieval. In ICCV.
  • Babenko et al. (2014) Artem Babenko, Anton Slesarev, Alexandr Chigorin, and Victor Lempitsky. 2014. Neural codes for image retrieval. In ECCV.
  • Cao et al. (2016) Jiewei Cao, Zi Huang, Peng Wang, Chao Li, Xiaoshuai Sun, and Heng Tao Shen. 2016. Quartet-net Learning for Visual Instance Retrieval. In ACM MM.
  • Carreira-Perpinan and Raziperchikolaei (2015) Miguel A. Carreira-Perpinan and Ramin Raziperchikolaei. 2015. Hashing With Binary Autoencoders. In CVPR.
  • Delhumeau et al. (2013) Jonathan Delhumeau, Philippe-Henri Gosselin, Hervé Jégou, and Patrick Pérez. 2013. Revisiting the VLAD image representation. In ACM MM.
  • Do and Cheung (2018) Thanh-Toan Do and Ngai-Man Cheung. 2018. Embedding based on function approximation for large scale image search. TPAMI (2018).
  • Do et al. (2016) Thanh-Toan Do, Anh-Dzung Doan, and Ngai-Man Cheung. 2016. Learning to hash with binary deep neural network. In ECCV.
  • Do et al. (2017) Thanh-Toan Do, Dang-Khoa Le Tan, Trung T. Pham, and Ngai-Man Cheung. 2017. Simultaneous Feature Aggregating and Hashing for Large-Scale Image Search. In CVPR.
  • Douze et al. (2016) Matthijs Douze, Hervé Jégou, and Florent Perronnin. 2016. Polysemous Codes. In ECCV.
  • Girshick et al. (2014) Ross Girshick, Jeff Donahue, Trevor Darrell, and Jitendra Malik. 2014. Rich Feature Hierarchies for Accurate Object Detection and Semantic Segmentation. In CVPR.
  • Gong et al. (2013) Yunchao Gong, Svetlana Lazebnik, Albert Gordo, and Florent Perronnin. 2013. Iterative Quantization: A Procrustean Approach to Learning Binary Codes for Large-Scale Image Retrieval. TPAMI (2013), 2916–2929.
  • Gong et al. (2014) Yunchao Gong, Liwei Wang, Ruiqi Guo, and Svetlana Lazebnik. 2014. Multi-scale orderless pooling of deep convolutional activation features. In ECCV.
  • Gordo et al. (2016) Albert Gordo, Jon Almazan, Jerome Revaud, and Diane Larlus. 2016. Deep Image Retrieval: Learning Global Representations for Image Search. In ECCV.
  • Gordo et al. (2017) Albert Gordo, Jon Almazán, Jerome Revaud, and Diane Larlus. 2017. End-to-End Learning of Deep Visual Representations for Image Retrieval. IJCV (2017).
  • Grauman and Fergus (2013) Kristen Grauman and Rob Fergus. 2013. Learning Binary Hash Codes for Large-Scale Image Search. Machine Learning for Computer Vision (2013).
  • Hariharan et al. (2014) Bharath Hariharan, Pablo Arbeláez, Ross Girshick, and Jitendra Malik. 2014. Hypercolumns for Object Segmentation and Fine-grained Localization. In CVPR.
  • He et al. (2017) Kaiming He, Georgia Gkioxari, Piotr Dollár, and Ross B. Girshick. 2017. Mask R-CNN. In ICCV.
  • He et al. (2013) Kaiming He, Fang Wen, and Jian Sun. 2013. K-Means Hashing: An Affinity-Preserving Quantization Method for Learning Binary Compact Codes. In CVPR.
  • He et al. (2015) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. 2015. Deep Residual Learning for Image Recognition. arXiv preprint arXiv:1512.03385 (2015).
  • Hoang et al. (2017) Tuan Hoang, Thanh-Toan Do, Dang-Khoa Le Tan, and Ngai-Man Cheung. 2017. Selective Deep Convolutional Features for Image Retrieval. In ACM-MM.
  • Hyeonwoo et al. (2017) Noh Hyeonwoo, Araujo Andre, Sim Jack, Weyand Tobias, and Han Bohyung. 2017. Large-Scale Image Retrieval with Attentive Deep Local Features. In ICCV.
  • Jégou and Chum (2012) Hervé Jégou and Ondřej Chum. 2012. Negative Evidences and Co-occurences in Image Retrieval: The Benefit of PCA and Whitening. In ECCV.
  • Jégou et al. (2008) Hervé Jégou, Matthijs Douze, and Cordelia Schmid. 2008. Hamming Embedding and Weak Geometric Consistency for Large Scale Image Search. In ECCV.
  • Jégou et al. (2009) Hervé Jégou, Matthijs Douze, and Cordelia Schmid. 2009. On the burstiness of visual elements. In CVPR.
  • Jégou et al. (2010) Hervé Jégou, Matthijs Douze, and Cordelia Schmid. 2010. Improving Bag-of-Features for Large Scale Image Search. IJCV 87, 3 (May 2010), 316–336.
  • Jégou et al. (2011) H. Jégou, M. Douze, and C. Schmid. 2011. Product Quantization for Nearest Neighbor Search. TPAMI (2011), 117–128.
  • Jégou et al. (2010) Hervé Jégou, Matthijs Douze, Cordelia Schmid, and Patrick Pérez. 2010. Aggregating local descriptors into a compact image representation. In CVPR.
  • Jégou et al. (2012) Hervé Jégou, Florent Perronnin, Matthijs Douze, Jorge Sánchez, Patrick Pérez, and Cordelia Schmid. 2012. Aggregating Local Image Descriptors into Compact Codes. TPAMI (2012), 1704–1716.
  • Jégou and Zisserman (2014) Hervé Jégou and Andrew Zisserman. 2014. Triangulation embedding and democratic aggregation for image search. In CVPR.
  • Kalantidis et al. (2016) Yannis Kalantidis, Clayton Mellina, and Simon Osindero. 2016. Cross-dimensional Weighting for Aggregated Deep Convolutional Features. In ECCV Workshops.
  • Krizhevsky et al. (2012) Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. 2012. Imagenet classification with deep convolutional neural networks. In NIPS.
  • Li et al. (2016) Ying Li, Xiangwei Kong, Liang Zheng, and Qi Tian. 2016. Exploiting Hierarchical Activations of Neural Network for Image Retrieval. In ACM MM.
  • Lin et al. (2015) Guosheng Lin, Chunhua Shen, Ian D. Reid, and Anton van den Hengel. 2015. Efficient piecewise training of deep structured models for semantic segmentation.. In CVPR.
  • Liu et al. (2017) Z. Liu, S. Wang, L. Zheng, and Q. Tian. 2017. Robust ImageGraph: Rank-Level Feature Fusion for Image Search. TIP 26, 7 (July 2017), 3128–3141.
  • Lowe (1999) David G. Lowe. 1999. Object Recognition from Local Scale-Invariant Features. In ICCV.
  • Murray and Perronnin (2014) Naila Murray and Florent Perronnin. 2014. Generalized Max Pooling. In CVPR.
  • Oliva and Torralba (2001) Aude Oliva and Antonio Torralba. 2001. Modeling the Shape of the Scene: A Holistic Representation of the Spatial Envelope. IJCV (2001), 145–175.
  • Perronnin and Dance (2007) Florent Perronnin and Christopher Dance. 2007. Fisher Kernels on Visual Vocabularies for Image Categorization. In CVPR.
  • Perronnin et al. (2010) Florent Perronnin, Jorge Sánchez, and Thomas Mensink. 2010. Improving the fisher kernel for large-scale image classification. In ECCV.
  • Philbin et al. (2007) James Philbin, Ondřej Chum, Michael Isard, Josef Sivic, and Andrew Zisserman. 2007. Object retrieval with large vocabularies and fast spatial matching. In CVPR.
  • Philbin et al. (2008) James Philbin, Ondřej Chum, Michael Isard, Josef Sivic, and Andrew Zisserman. 2008. Lost in quantization: Improving particular object retrieval in large scale image databases. In CVPR.
  • Radenović et al. (2016) Filip Radenović, Giorgos Tolias, and Ondřej Chum. 2016. CNN Image Retrieval Learns from BoW: Unsupervised Fine-Tuning with Hard Examples. In ECCV.
  • Radenović et al. (2017) Filip Radenović, Giorgos Tolias, and Ondřej Chum. 2017. Fine-tuning CNN Image Retrieval with No Human Annotation. In arXiv:1711.02512.
  • Razavian et al. (2014) Ali Sharif Razavian, Hossein Azizpour, Josephine Sullivan, and Stefan Carlsson. 2014. CNN Features Off-the-Shelf: An Astounding Baseline for Recognition. In CVPRW.
  • Ren et al. (2015) Shaoqing Ren, Kaiming He, Ross Girshick, and Jian Sun. 2015. Faster R-CNN: Towards real-time object detection with region proposal networks. In NIPS.
  • Simonyan and Zisserman (2014) Karen Simonyan and Andrew Zisserman. 2014. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556 (2014).
  • Sivic et al. (2003) Josef Sivic, Andrew Zisserman, et al. 2003. Video Google: a text retrieval approach to object matching in videos. In ICCV.
  • Szegedy et al. (2015) Christian Szegedy, Wei Liu, Yangqing Jia, Pierre Sermanet, Scott Reed, Dragomir Anguelov, Dumitru Erhan, Vincent Vanhoucke, and Andrew Rabinovich. 2015. Going deeper with convolutions. In CVPR.
  • Thomee et al. (2016) Bart Thomee, David A Shamma, Gerald Friedland, Benjamin Elizalde, Karl Ni, Douglas Poland, Damian Borth, and Li-Jia Li. 2016. YFCC100M: The new data in multimedia research. Commun. ACM 59, 2 (2016), 64–73.
  • Tolias et al. (2013) Giorgos Tolias, Yannis Avrithis, and Hervé Jégou. 2013. To Aggregate or Not to aggregate: Selective Match Kernels for Image Search. In ICCV.
  • Tolias et al. (2016) Giorgos Tolias, Ronan Sicre, and Hervé Jégou. 2016. Particular object retrieval with integral max-pooling of CNN activations. In ICLR.
  • Vedaldi and Fulkerson (2010) Andrea Vedaldi and Brian Fulkerson. 2010. VLFeat: An Open and Portable Library of Computer Vision Algorithms. In ACM-MM.
  • Vedaldi and Lenc (2014) Andrea Vedaldi and Karel Lenc. 2014. MatConvNet - Convolutional Neural Networks for MATLAB. CoRR abs/1412.4564 (2014). http://arxiv.org/abs/1412.4564
  • Wang et al. (2017) J. Wang, T. Zhang, J. Song, N. Sebe, and H. T. Shen. 2017. A Survey on Learning to Hash. TPAMI (2017).
  • Wei et al. (2017) X. S. Wei, J. H. Luo, J. Wu, and Z. H. Zhou. 2017. Selective Convolutional Descriptor Aggregation for Fine-Grained Image Retrieval. TIP 26 (June 2017), 2868–2881.
  • Weiss et al. (2008) Yair Weiss, Antonio Torralba, and Robert Fergus. 2008. Spectral Hashing. In NIPS.
  • Xu et al. (2018) Jian Xu, Cunzhao Shi, Chengzuo Qi, Chunheng Wang, and Baihua Xiao. 2018. Unsupervised Part-Based Weighting Aggregation of Deep Convolutional Features for Image Retrieval. In AAAI.
  • Yan et al. (2016) Ke Yan, Yaowei Wang, Dawei Liang, Tiejun Huang, and Yonghong Tian. 2016. CNN vs. SIFT for Image Retrieval: Alternative or Complementary?. In ACM MM.
  • Zeiler and Fergus (2013) Matthew D. Zeiler and Rob Fergus. 2013. Visualizing and Understanding Convolutional Networks. CoRR abs/1311.2901 (2013). http://arxiv.org/abs/1311.2901
  • Zhang et al. (2016) Y. Zhang, J. Wu, and J. Cai. 2016. Compact Representation of High-Dimensional Feature Vectors for Large-Scale Image Recognition and Retrieval. TIP 25, 5 (May 2016).
