1 Introduction

Facial expression recognition is an actively researched topic in computer vision tian2011facial . Existing pipelines typically recognize single-person expressions and assign them into discrete prototypical classes, namely anger, disgust, fear, happy, sad, surprise, and neutral. Inspired by extensive psychological studies Girard:2014 ; gottman2001facial ; hess2000influence ; Knutsonfd , in this work we wish to investigate the interesting problem of characterizing and quantifying interpersonal relation traits from human face images beyond just expressions.

Interpersonal relation manifests when one establish, reciprocate, or deepen relationships with one another. The recognition task goes beyond facial expression recognition that analyzes facial motions and facial feature changes of a single subject. It aims for a higher-level interpretation of fine-grained and high-level interpersonal relation traits, such as friendliness, warm, and dominance for faces that co-exist in an image. Effectively exploiting such relational cues can provide rich social facts. An example is shown in Fig. 1. Such a capability promises a wide spectrum of applications. For instance, automatic interpersonal relation inference allows for relation mining from image collection in social networks, personal albums, and films. Face-based relational cues can also be combined with other visual cues such as body postures chu2015multi to achieve an even richer modeling and prediction of relations111Despite we did not study the integration of face and body cues, if body posture and hand gesture information are available, they can be naturally used as additional input channels for our deep models..

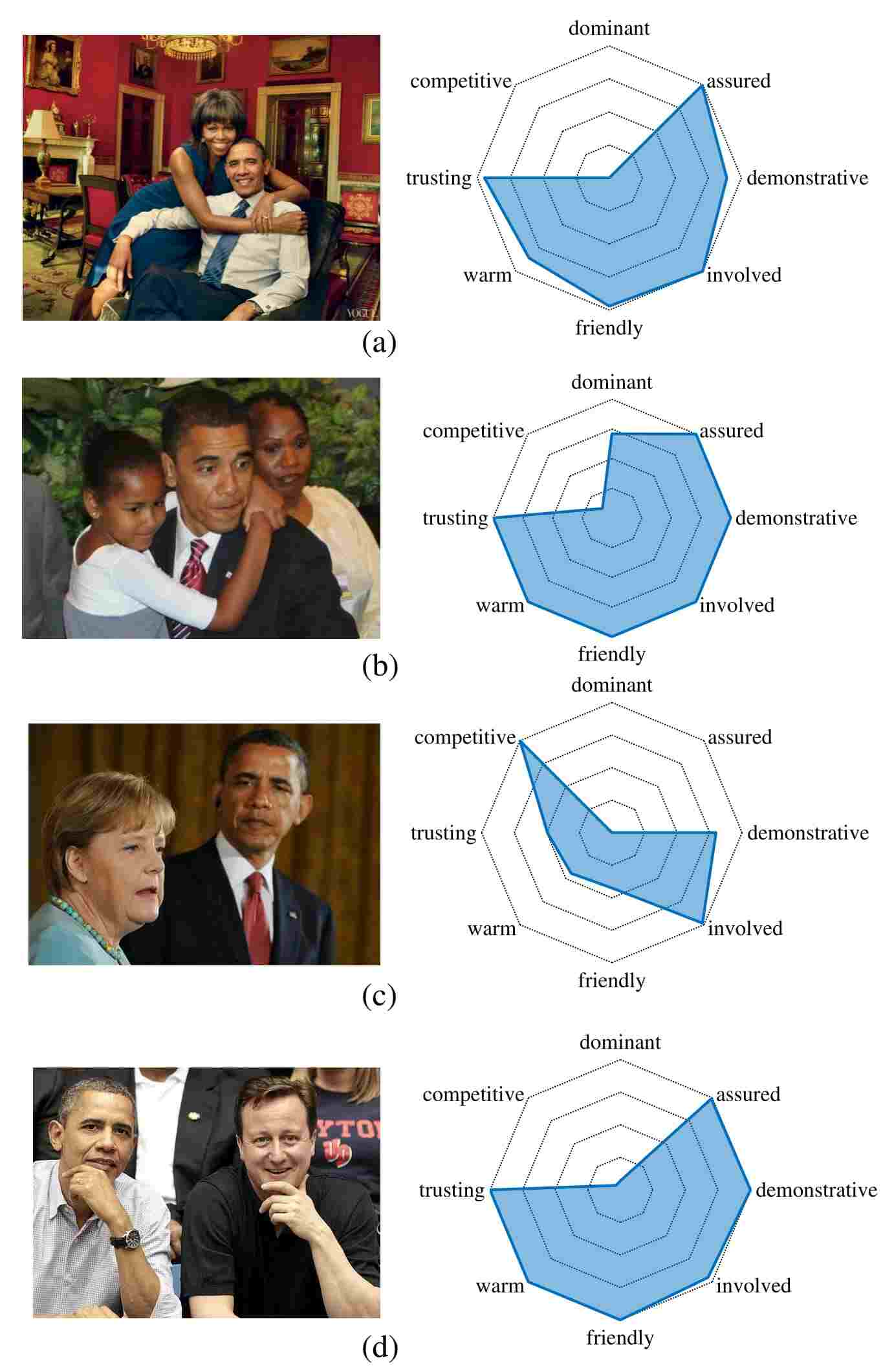

Figure 1: The image is given a caption ‘German Chancellor Angela Merkel and U.S. President Barack Obama inspect a military honor guard in Baden-Baden on April 3.’ (source: www.rferl.org). When we examine the face images jointly, we could observe far more rich social facts that are different from that expressed in the text.

Profiling unscripted interpersonal relation from face images is non-trivial. Among the most significant challenges are:

  1. Most existing face analysis models only consider a single subject. No existing methods attempt to consider pairwise faces jointly.

  2. Relations are governed by a number of high-level facial factors Girard:2014 ; gottman2001facial ; hess2000influence . Thus we need a rich face representation that captures various attributes such as expression, gender, age, and head pose;

  3. No single dataset is presently available to encompass all the required facial attribute annotations for learning such a rich representation. In particular, some datasets only contain face expression labels, while other datasets may only be annotated with the gender label. Moreover, these datasets are collected from different environments and exhibit vastly different statistical distributions. Model training on such heterogeneous data remains an open problem.

We address the first problem through formulating a novel deep convolutional network with a Siamese-like architecture bromley1994signature . The architecture consists of two convolutional network branches with shared parameters. Each branch is dedicated to one of the faces that co-exist in an image. Outputs of these two branches are fused to allow joint relation reasoning from pairwise faces, where each face serves as the mutual context to the other.

To address the second challenge, we formulate the convolutional network branches in a multitask framework such that it is capable of learning rich face representation from auxiliary attributes such as head pose, gender, and age, apart from just facial expressions. To facilitate the multitask learning, we gather various existing face expression and attribute datasets and additionally label a new large-scale face Expression in-the-Wild (ExpW) dataset, which is formed by over web images.

To mitigate the third issue of learning from heterogeneous datasets, we devise a new attribute propagation approach that is capable of dealing with missing attribute labels from different datasets, and yet bridging the gap of heterogeneous datasets. In particular, during the training process, our network dynamically infers missing attribute labels of a sample using Markov Random Field (MRF), conditioned on appearance similarity of that sample with other annotated samples. We will show that the attribute propagation approach allows our network to learn effectively from heterogeneous datasets with different annotations and statistical distributions.

The contributions of this study include:

  1. We make the first attempt to investigate face-driven fine-grained interpersonal relation prediction, of which the relation traits are defined based on psychological study kiesler1983circle . We carefully investigate the detectability and quantification of such traits from face image pairs.

  2. We formulate a new deep architecture for learning face representation driven by multiple tasks, e.g. pose, expression, and age. Specifically, we introduce a new attribute propagation approach to bridge the gap from heterogeneous sources with potentially missing target attribute labels. We show that this network leads to new state-of-the-art results on widely-used facial expression benchmarks. It also establishes a solid foundation for us to recognize interpersonal relations.

  3. We construct a new interpersonal relation dataset labeled with pairwise relation traits supported by psychological studies kiesler1983circle ; Knutsonfd . In addition, we also introduce a large-scale facial expression in-the-wild dataset222Both ExpW and relation datasets are available at http://mmlab.ie.cuhk.edu.hk/projects/socialrelation/index.html.

In comparison to our earlier version of this work zhang2015learning , we present a more principle and unified way of addressing the heterogeneous data problem using the MRF-based attribute propagation approach. This is in contrast to the deep bridging layer proposed in our previous work zhang2015learning , which requires external facial alignment step to extract local part appearances for establishing cross-dataset association. In addition, we study more closely on the facial expression recognition problem, which is crucial for accurate interpersonal relation identification. Specifically, we present a new large-scale dataset and conduct extensive experiments against state-of-the-art expression recognition methods. Apart from the methodology, the paper was also substantially improved by providing more technical details and more extensive experimental evaluations.

2 Related Work

Understanding interpersonal relation can be regarded as a subfield under social signal processing cristani2013human ; pantic2011social ; pentland2007social ; vinciarelli2009social ; vinciarelli2012bridging , an important multidisciplinary problem that has attracted a surge of interest from computer vision community. Social signal processing mainly involves facial expression recognition zhao2007dynamic ; tian2011facial ; liu2014learning ; ruiz2015emotions ; wu2016constrained ; fabian2016emotionet ; liu2013facial ; liu2014deeply ; jung2015joint ; mollahosseini2016going ; fabian2016emotionet ; zhao2016peak . We provide a concise account as follows.

Facial expression recognition.

A facial expression recognition algorithm usually consists of face representation extraction and classifier construction. Depending on the adopted face representation, existing algorithms can be broadly categorized into two groups: facial action based methods and appearance-based approaches.

Facial action based methods usually exploit the face geometrical information or face action units driven representation for facial expression classification. For example, Tiam et al. tian2001recognizing use the positions of facial landmarks for facial action recognition and then perform expression analysis. Ruiz et al. ruiz2015emotions combine the tasks of facial action detection and expression recognition to leverage their coherence. Liu et al. liu2015inspired construct a deep network to learn a middle representation known as Micro-Action-Pattern (MAP) representation, so as to bridge the semantic gap between low-level features and high-level expression concepts. Liu et al. liu2014deeply

adapt 3D Convolutional Neural Network (CNN) to detect specific facial action parts to obtain discriminative part-based representation.

Appearance-based methods extract features from face patches or the whole face region. A variety of hand-crafted features have been employed, such as LBP valstar2012meta ; zhao2007dynamic , HOG 5771368 , and SIFT 4813445 features. Recently, a number of methods jung2015joint ; khorrami2015deep ; liu2013facial ; mollahosseini2016going ; Ng:2015:DLE:2818346.2830593 ; yu2015image ; zhao2016peak

attempt to learn facial features directly from raw pixels by deep learning. Unlike methods based on hand-crafted features, a deep learning framework allows end-to-end optimization of feature extraction, selection, and expression recognition. Liu et al.

liu2013facial

show the effectiveness of Boosted Deep Belief Network (BDBN) for end-to-end feature extraction and selection. More recent studies

zhao2016peak adopt CNN architectures that permit feature extraction and recognition in an end-to-end framework. For instance, Yu et al. yu2015image employed an ensemble of multiple deep CNNs. Mollahosseini et al. mollahosseini2016going used three inception structures szegedy2015going in convolution for facial expression recognition. The Peak-Piloted Deep Network (PPDN) zhao2016peak is introduced to implicitly learn the evolution from non-peak to peak expressions. We introduce readers to a recent survey zafeiriou2016facial focusing on deep learning-based facial behavior analysis.

Our approach is regarded as an appearance-based approach, but differs significantly from the aforementioned studies in that most existing approaches are based on single person, therefore, cannot be directly employed for interpersonal relation inference. In addition, these studies mostly focus on recognizing prototypical expressions. Interpersonal relation is far more complex involving many factors such as age and gender. Thus we need to consider more attributes jointly in our problem.

Human interaction and group behavior analysis. There exists a number of studies that analyze human interaction and group behavior from images and videos ding2010learning ; ding2011inferring ; fathi2012social ; ramanathan2013social ; ricci2015uncovering ; 4757440 ; gallagher2009understanding . Many of these studies focus on the coarser level of interpersonal connection other than the one defined by Kiesler in the interpersonal circle kiesler1983circle . For instance, Ding and Yilmaz ding2010learning and Ricci et al. ricci2015uncovering

only identify the social group (or jointly for estimate head and body orientations) without inferring the relation between individuals. Fathi et al.

fathi2012social only detect three social interaction classes, i.e.,  ‘dialogue, monologue and discussion’. Wang et al. wang2010seeing define social relation by several social roles, such as ‘father-child’ and ‘husband-wife’. Chakraborty et al. chakraborty20133d classify photos into classes such as ‘couple, family, group, or crowd’. Other related problems also include image communicative intents prediction 6909429 and social role inference lan2012social , usually applied on news and talks shows raducanu2012inferring , or meetings to infer dominance hung2007using .

In comparison to the aforementioned studies ding2010learning ; fathi2012social , our work aims to recognize fine-grained and high-level interpersonal relation traits kiesler1983circle , rather than identify social group and roles. In addition, many of these studies did not use face images directly, but visual concepts ding2011inferring discovered by detectors or people spatial proximity in 2D or 3D spaces chen2012discovering . All these information sources are valuable for learning human interactions but we believe that face still serves a primary role in defining fine-grained and high-level interpersonal relation since face can reveal much richer information such as expression, age, and gender.

Other group behavior studies deng2016structure ; hoaitalking ; ibrahim2016hierarchical ; humaninteraction mainly recognize action-oriented behaviors such as hugging, handshaking or walking, but not face-based interpersonal relations. Often, group spatial configuration and actions are exploited for recognition. Our study differs in that we aim at recognizing abstract relation traits from faces.

Datasets Quantity Environment Expression Data format
JAFFE lyons1999automatic 213 images from 10 subjects lab posed 256256 gray scale image
MMI 1521424 238 sequences from 28 subjects lab posed 720576 RGB frames
Oulu-CASIA zhao2011facial 480 sequences from 80 subjects lab posed 320240 RGB frames
CK+ 5543262 593 sequences from 123 subjects lab posed 640490 or 640480 gray scale frames
FER Goodfeli-et-al-2013 35,587 images wild natural 4848 gray scale image
SFEW Dhall:2015:VIB:2818346.2829994 1,635 images wild natural 720576 RGB images
ExpW 91,793 images wild natural Original web images
Table 1: A comparison of popular facial expression datasets and the proposed ExpW dataset.

Deep learning. Deep learning has achieved remarkable success in many tasks of face analysis, e.g.

 face detection

yang2015facial ; yang2016wider ; li2015convolutional ; yang2015convolutional ; opitz2016grid , face parsing pluo2 ; liu2015multi , face landmark detection zhang ; zhu2015face ; trigeorgis2016mnemonic , face attribute recognition ziwei ; wang2016walk ; huang2016learning , face recognition schroff2015facenet ; parkhi2015deep ; sun2016sparsifying , and face clustering zhang2016joint . However, deep learning has not yet been adopted for face-driven interpersonal relation mining that requires joint reasoning from multiple persons. In this work, we propose a deep model to capture complex facial attributes from heterogeneous datasets, and joint learning from face pairs. Although there are several algorithms bi2014multilabel ; yu2014large ; yang2016improving that perform training on heterogeneous datasets, most of these studies assume fixed image features and exploit the label correlation for missing label propagation. Lee lee2013pseudo proposes a deep learning algorithm that employs pseudo label to utilize the unlabeled data. But the pseudo label is simply generated by a pre-trained network using labeled data, thus the potential correlation between the labeled and unlabeled data is ignored. Our network also differs from the multitask network in zhang , which assumes complete labels from all attributes and homogeneous data sources.

3 Face Expression and Interpersonal Relation Datasets

Before we describe our approach, we introduce two new datasets collected in this study.

3.1 Face Expression Dataset

Research in face perception and emotion typically requires very large annotated datasets of images of facial expressions. There are a number of facial expression datasets, e.g., CK+ 5543262 , JAFFE lyons1999automatic , Oulu-CASIA zhao2011facial , MMI 1521424 , FER Goodfeli-et-al-2013 , SFEW Dhall:2015:VIB:2818346.2829994 . A summary is provided in Table 1. These datasets are either collected in controlled environments, or the quantity is insufficient to train a robust deep network. An automatic method for expression dataset construction is proposed in fabian2016emotionet . This method is useful to collect large-scale dataset. Nonetheless, it relies on accurate facial landmark detection and thus may limit face variations in the collected data.

Figure 2: Example images of the proposed ExpW dataset.

To this end, we built a new database named as Expression in-the-Wild (ExpW) dataset that contains 91,793 faces manually labeled with expressions. The quantity of images in ExpW is larger and the face variations are more diverse than many existing databases, as summarized in Table 1. Figure 2 shows some example images of ExpW.

We collected ExpW dataset in the following way. Firstly, we prepared a list of emotion-related keywords such as “excited”, “afraid” and “panic”. Then we appended different nouns related to a variety of occupations, such as “student”, “teacher”, and “lawyer”, to these words and used them as queries for Google image search. Subsequently, we collected images returned from the search engine and run a face detector yang2014aggregate to obtain face regions from these images. Similar to other existing expression datasets Dhall:2015:VIB:2818346.2829994 ; Goodfeli-et-al-2013 , each of the face images was manually annotated as one of the seven basic expression categories: “angry”, “disgust”, “fear”, “happy”, “sad”, “surprise”, or “neutral”. Non-face images were removed in the annotation process.

3.2 Interpersonal Relation Dataset

To investigate the detectability of relation traits from a pair of face images, we built a new dataset containing images chosen from web and movies. Each image was labeled with faces’ bounding boxes and their pairwise relations. This is the first face dataset annotated with interpersonal relation traits. It is challenging because of large face variations including poses, occlusions, and illuminations. In addition, the images exhibit rich relation traits from various sources including news photos of politicians, photos in social media, and video frames in movies, as shown in Fig. 3.

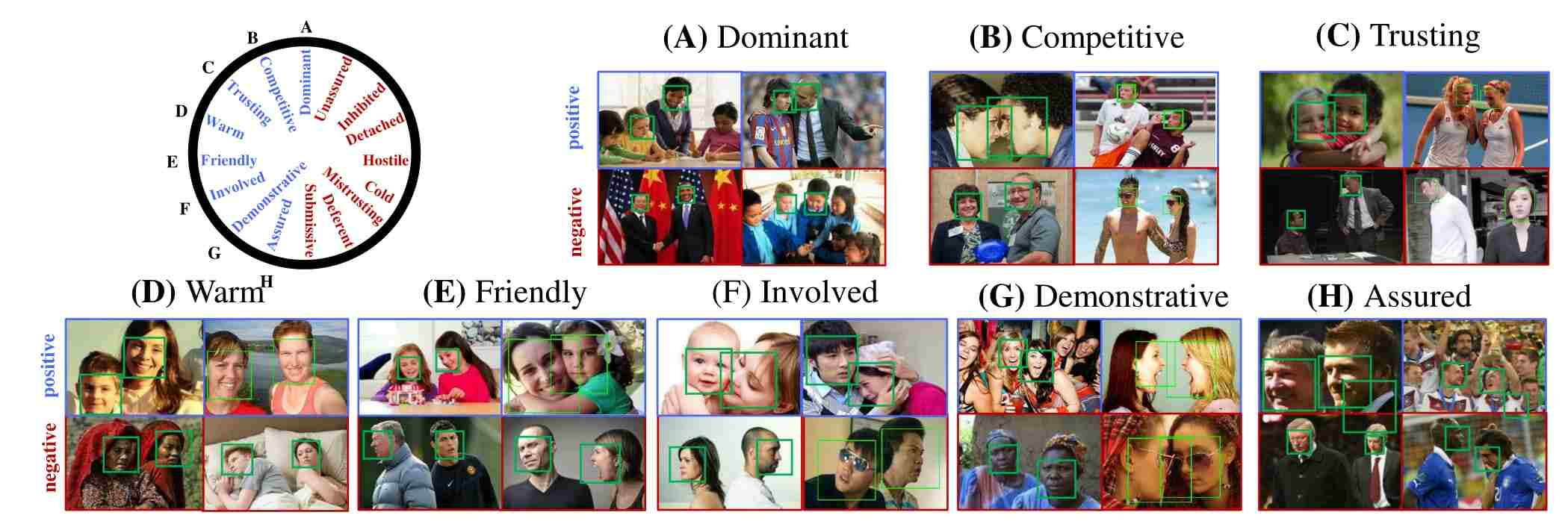

Figure 3: The 1982 Interpersonal Circle (upper left) is proposed by Donald J. Kiesler, and commonly used in psychological studies kiesler1983circle . The 16 segments in the circle can be grouped into 8 relation traits. The traits are non-exclusive therefore can co-occur in an image. In this study, we investigate the detectability and quantification of these traits from computer vision point of view. (A)-(H) illustrate positive and negative examples of the eight relation traits.
Relation trait Descriptions Example pair
Dominant
one leads, directs, or controls the other /
dominates the conversation / gives advices to the other
teacher & student
Competitive hard and unsmiling / contest for advancement in power, fame, or wealth people in a debate
Trusting
sincerely look at each other / no frowning or showing doubtful expression /
not-on-guard about harm from each other
partners
Warm speak in a gentle way / look relaxed / readily to show tender feelings mother & baby
Friendly work or act together / express sunny face / act in a polite way / be helpful host & guest
Involved engaged in physical interaction / involved with each other / not being alone or separated lovers
Demonstrative
talk freely being unreserved in speech /
readily to express the thoughts instead of keep silent / act emotionally
friends in a party
Assured express to each other a feeling of bright and positive self-concept, instead of depressed or helpless teammates
Table 2: Descriptions of interpersonal relation traits based on the 1982 interpersonal circle kiesler1983circle .
Relation trait Positive Negative
dominant controlling/leading/influencing/commanding/dictatorial equal/matched/

competitive
critical/driven/enterprising content/approving/flattering/respectful

trusting
unguarded/generous/innocent mistrusting/suspicious/cunning/vigilant

warm
gentle/pardoning/soft/absolving cold/strict/icy/harsh/cruel

friendly
cooperative/helpful/devoted hostile/harmful/impolite/rude

involved
outgoing/attached/active/sociable detached/distant/aloof

demonstrative
talkative/casual/suggestive mute/controlled/silent/unresponsive

assured
confident/cheerful/self-reliant/cocky dependent/unassured/helpless/depressed
Table 3: Example adjectives for relation traits defined by Donald J. Kiesler kiesler1983circle .

Before we collected for annotations, we first defined the interpersonal relation traits based on the interpersonal circle proposed by Kiesler kiesler1983circle that commonly used in psychological studies, where human relations are divided into 16 segments as shown in Fig. 3. Each segment has its opposite side in the circle, such as “friendly and hostile”. Therefore, the 16 segments can be considered as eight binary relation traits, whose descriptions kiesler1983circle and examples are given in Table 2. We also provide positive and negative visual samples for each relation in Fig. 3, showing that they are visually perceptible. For instance, “friendly” and “competitive” are easily separable because of the conflicting meanings. It is worth pointing out that some relations are close semantically, such as “friendly” and “trusting”. To accommodate such cases, we do not forcefully suppress any one of these relations during prediction but allowing a pair of faces to have more than one relation.

Attributes Gender Pose Expression Age

gender

left profile

left

frontal

right

right profile

angry

disgust

fear

happy

sad

surprise

neutral

smiling

mouth

opened

narrow

eyes

young

goatee

no beard

sideburns

5 o’clock

shadow

gray hair

bald

mustache

AFLW 6130513

CelebA ziwei

ExpW
Table 4: A summary of attributes annotated in AFLW 6130513 , CelebA ziwei and the proposed ExpW datasets, each of which contains 24,386, 202,599, and 91,793 face images, respectively.

Annotating relations is non-trivial and subjective by nature. We requested five performing arts students to label each relation for each face pair independently. A label was accepted if more than three annotations were consistent. The inconsistent samples were presented again to the five annotators to seek for consensus. To facilitate the annotation task, we also provided multiple cues to the annotators. First, to help them understand the definition of the relation traits, we listed ten related adjectives (see Table 3 for examples) defined by  kiesler1983circle for the positive and negative samples on each relation trait, respectively. Multiple example images were also provided. Second, for image frames selected from movies, the annotators were asked to get familiar with the plot. The subtitles were presented during the labeling process. Third, we defined some measurable rules for the annotation of all relation traits. For example, if two people open their mouths, the relation trait of “demonstrative” is considered as positive; If a teacher is teaching his student, the “dominant” trait is considered as positive; A trait is defined as negative if the annotator cannot find any evidence to support its positive existence. The average Fleiss’ kappa of the eight relation traits annotation is 0.62, indicating substantial inter-rater agreement.

4 Facial Expression and Attributes Recognition

The recognition of facial expression and other relevant attributes such as gender and age play a critical role in our relation prediction framework. In this study, we train a deep convolutional network end-to-end to map raw imagery pixels to a representation space and then perform expression and attribute prediction simultaneously. The joint learning of facial expression and attributes allows us to capture rich facial representation more effectively thus preparing a strong starting point for interpersonal relation learning.

4.1 Problem Formulation and Overview

A natural way to learn a deep representation that captures multiple attributes is by training a multitask network that jointly predicts these attributes given a face image zhang . This can be implemented directly by introducing multiple supervisory tasks during the network training. In our problem training a multitask network, unfortunately, is non-trivial:

  1. Missing attribute labels - As discussed in Section 1, face datasets that can cover all different kinds of attributes can hardly be found. The ExpW dataset collected by us, and the few popular face datasets such as AFLW 6130513 and CelebA ziwei contain subsets of attributes useful for our problem, but these subsets rarely overlap, as shown in Table 4. For instance, AFLW only contains gender and poses, while the ExpW dataset only has expressions. The many missing labels prevent us from ‘fully’ exploit an image since it is labeled with an attribute subset rather than a complete attribute set. The problem may also lead to sparsity in the supervisory signal and thus increase the convergence difficulty during training.

  2. Heterogeneous distribution - These datasets were collected from different sources, therefore, exhibit vastly disparate statistical distributions. Specifically, the AFLW dataset contains face images gathered from Flickr that typically hosts high-quality photographs. Whereas the image quality in CelebA and ExpW is much lower and more diverse. Since these datasets are labeled with different sets of attributes, a direct joint training would bias each attribute to be trained by the corresponding labeled data alone, instead of benefiting from the existence of unlabeled images.

We propose a novel learning framework to mitigate the aforementioned problems. In general, given the training faces from multiple heterogeneous sources, we aim to train a deep convolutional network (DCN) that can predict the union set of attributes of these datasets (i.e. all attributes in Table 4). The training process is divided into two stages, as summarized in Algorithm 1. Further details of each stage are provided in Sec. 4.2 and Sec. 4.3.

  1. Network initialization - Firstly, we initialize the parameters of our deep convolutional network by training it to minimize the classification error on the attributes despite the missing attribute labels in some samples.

  2. Alternating attribute propagation and face representation learning - We fine-tune the network from the first stage via an alternating optimization process for obtaining a better face representation. The process is depicted in Fig. 4. In each iteration of the optimization, we extract the deep representation from each face, and compute the prior of attribute co-occurrence, based on which we perform attribute propagation to infer the missing attribute annotations as pseudo attribute labels in a MRF. We subsequently refine the network supervised by the ground truth attribute labels and newly generated pseudo attribute labels.

0:    Multiple face image datasets with potentially non-overlapped attribute annotations.
0:    Face representation that captures the union of the attributes from input datasets. Stage 1 Training:
1:  Initialize the network filters K by maximizing Eqn. (1). Stage 2 Training:
2:  for  = 1 to  do
3:     Perform attribute propagation to fill up the missing labels by maximizing Eqn. (3).
4:     Refine the network filters K supervised by the ground truth and pseudo labels by minimizing the attribute classification error.
5:  end for
Algorithm 1 Overview of the proposed framework.

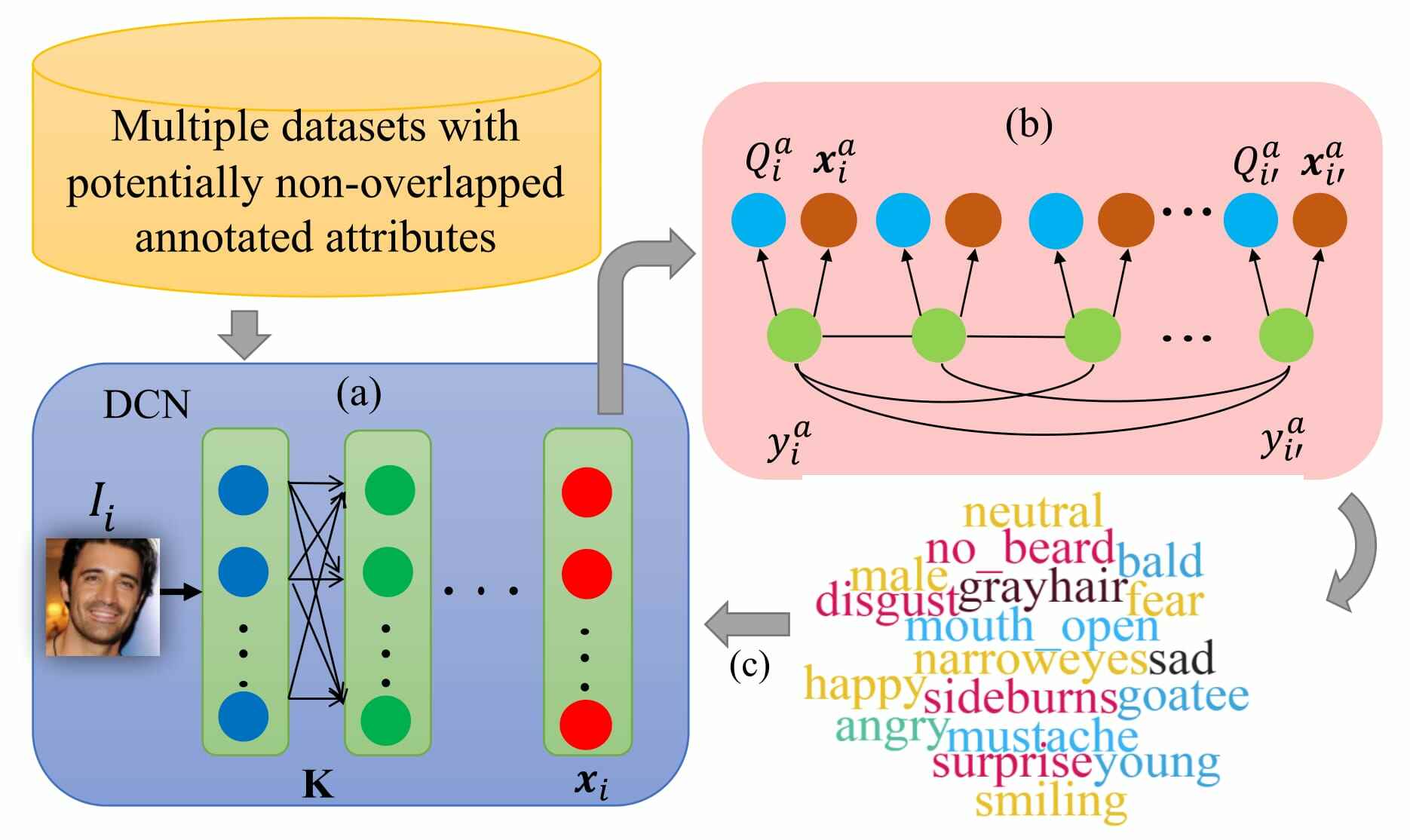

Figure 4: An illustration of the second stage training, in which we perform alternating optimization of representation learning and attribute propagation. (a) We extract face representation from the initialized DCN. (b) Given the face representation and attribute correlation, we perform attribute propagation in a Markov Random Field (MRF) to infer the missing attribute labels. (c) We refine the DCN by using the ground truth labels and pseudo labels generated from MRF.

The second stage of Algorithm 1 helps to provide pseudo attribute labels that are missing initially for network fine-tuning. There are two advantages of this method: 1) The attribute propagation process does not require any prior knowledge of the problem at hand and thus can be applied given other datasets with an arbitrary number of missing labels. 2) Filling up the missing labels with pseudo labels naturally establish shared tasks among the datasets and gradually bridge the gap between datasets of different distributions. We show in the experiments (Sec. 6) that pseudo labels obtained in the attribute propagation step are crucial for good performance in the task of relation prediction.

4.2 First Stage: Network Initialization

The first stage of our training process is network initialization. Specifically, we first train the DCN (Fig. 4(a)) using a combined dataset, which includes AFLW, CelebA, and ExpW. Note that we do not perform attribute propagation at this stage but allow missing labels in samples.

Formally, let the network parameters be K, an input face image is transformed to a higher level of representation represented as , where denotes a nonlinear mapping parameterized by K

. We employ the Batch-Normalized Inception architecture presented in

ioffe2015batch , where the network input is 224224 RGB image, and the generated face representation .

We assume the attributes are binary and thus we compute the probability for an attribute

by logistic regression. More precisely, given the attribute label

, we have , where are parameters of the logistic classifier. The network filter K and classifier parameter

can be obtained by maximizing the posterior probability:

(1)

where is the number of training samples, is the ground truth label, denotes the set of attributes, and

. As a result, we can formulate a loss function with cross entropy for each attribute. The training process is conducted via back-propagation (BP) using stochastic gradient descent (SGD)

krizhevsky2012imagenet .

Note that there are missing labels in the training set, which is combined from arbitrary datasets. To mitigate this issue, we mask the error of the missing attribute of a training sample, and only back-propagate errors if the ground truth label of an attribute exists. Despite the missing labels, this simple approach provides a good initialization point for the second stage of the training.

0:    Face representation x, and datasets with partially labeled attributes.
0:    Pseudo label on an attribute for unlabeled data.
1:  Compute the attribute co-occurrence prior and extract face representation X.
2:  For labeled data, use the original annotations; For unlabeled data, initialize the label by K-NN classification using the labeled data. Then we have the initial pseudo label .
3:  Initialize the model parameter in Eqn. (4).
4:

  Compute the affinity matrix

in Eqn. (6).
5:  Let iteration .
6:  while not converged do
7:     .
8:     Infer a new given the face representation X and current model parameter (Eqn. (8)-(11)). Set .
9:     Update to maximize the log-likelihood of by EM algorithm (Eqn. (13)-(14)).
10:  end while
Algorithm 2 Alternating attribute propagation and face representation learning.

4.3 Second Stage: Alternating Attribute Propagation and Face Representation Learning

Formulation. Following Algorithm 1, with the initialized network parameter K and attribute classifier parameters , we subsequently perform attribute propagation to infer the missing attributes.

Attribute propagation is achieved based on two criteria: 1) Similarity of appearances between two faces, and 2) the correlation between attributes. The first criterion implies that the attributes of two faces are likely the same if their facial appearances are close to each other. The second criterion reflects the fact that some attributes, such as ‘happy’ and ‘smiling’, often co-occur.

With the above intuition, we formulate the attribute propagation problem in a MRF framework. In particular, as depicted in Fig. 4(b), each node in the MRF is an attribute label for an image sample . Each edge describes the relation between the labels. For each node, we associate it with the observed variables representing the face representation obtained from the DCN, and , which serves as a co-occurrence prior that indicates the tendency of an attribute is present on a face , given another attribute as condition.

We first provide the definition of the co-occurrence prior . Given an attribute and another attribute , we define as

(2)

More precisely,

is assigned with the Pearson product-moment correlation coefficient

pearson1895note , of which the sign is governed by the ground truth label of attribute , i.e. . The is the covariance, and

is the standard deviation, while

and represent the parameters of the logistic classifier for the respective attribute. Intuitively, if attributes and tend to co-occur, their and are positively correlated. For instance, we have “happy”, “smiling”, and the Pearson correlation . For a face , if the attribute “smiling” is annotated as positive (i.e. ), then we have , suggesting that the “happy” attribute is present on the face given the “smiling” attribute. On the contrary, if the attribute “smiling” is absent (i.e. ), then , suggesting that the “happy” attribute is likely to absent too. We treat unannotated as a special case by forcing .

Let the face representation and attribute co-occurrence prior , we maximize the following joint probability to obtain the attribute labels :

(3)

where , is the unary and pairwise term, respectively. The is the partition function, and denotes a set of face images, which are the neighbors of .

We explain the unary and pairwise terms of Eqn. (3) as follows:

Unary term

- We employ the Gaussian distribution to model the feature

in the unary term

. And we use the attribute co-occurrence prior as the prior probability. Specifically,

(4)

where , and

denote the mean vector and covariance matrix of samples when

. Both and are obtained and updated during the inference process. For simplicity, we denote the model parameter in the following text. For , recall that given the attribute , denotes the prior that attribute appears. Here we define as:

(5)

Here “sigmoid” denotes a sigmoid transformation that maps the attribute co-occurrence prior from the range of [-1,1] to [0,1]. Hence, describes the prior that the attribute appears () or not ().

Pairwise term - The pairwise term in Eqn.(3) is defined as

(6)

where denotes a sign function:

(7)

The variable encodes the affinity between arbitrary pair of face image features and . We obtain

via the spectral clustering approach presented in

zelnik2004self .

Firstly, we compute an affinity matrix with entries if is within the -nearest neighbors of , otherwise we set . We set in this study. The term is the -distance between and , and is the local scaling factor with , where is the -th nearest neighbor of . Then the normalized affinity matrix is obtained by , where is a diagonal matrix with . Intuitively, Eqn. (6) penalizes face images with high affinity to be assigned with different attribute labels.

Optimization. Given the face representation X and attribute co-occurrence prior , we infer the missing attribute labels by maximizing the joint probability of Eqn. (3).

Firstly, for the unlabeled data, we initialize the attribute by K-NN classification in the space of x using the labeled data. We keep the original attribute annotations for labeled data. Then we obtain and from the Gaussian of samples with .

After the initialization of , we infer and update the model parameter by repeating the following two steps in each optimization iteration :

  1. Infer a new given the face representation X and model parameter . Set .

  2. Given , update to maximize the log-likelihood of

    by Expectation-Maximization (EM) algorithm.

For the first step, we aim to obtain a new given X and model parameter . A natural way is to infer from the posterior:

(8)

However the computation of the term involves the interaction of each and its neighborhood (i.e. the -nearest neighbors in the space of x). Thus, it is intractable. Here we employ the mean field-like approximation celeux2003procedures for computation, in which we assume each is independent, and we set the value of its neighborhood constant when we compute . In this case, we have

(9)

where we denote the value of ’s neighborhood as . For example, we can reuse the value in the previous iteration (i.e. ). Because , we have

(10)

Since is fixed, the partition function is constant when we compute . Thus can be eliminated in Eqn. (10). Combining Eqn. (4), Eqn. (8), Eqn. (10), we have

(11)

Intuitively, the posterior is proportional to the likelihood of setting , with the neighborhood’s value fixed. Then this posterior can be computed directly for each face . To this end, we have

(12)

where for the unlabeled samples, is simulated based on the posterior (i.e. the probability of setting is proportional to ). For the annotated samples, we use the annotation directly.

For the second step, we aim to maximize the log-likelihood of by updating the model parameter in an EM algorithm. Since only relates to , which is a Gaussian distribution, we update by

(13)
(14)

where denotes the subset of face images in which .

The optimization of the above two steps ends when the posterior converged. The output attribute is assigned with the final inferred . Note that we use the original annotations. The optimization process is summarized in Algorithm 2.

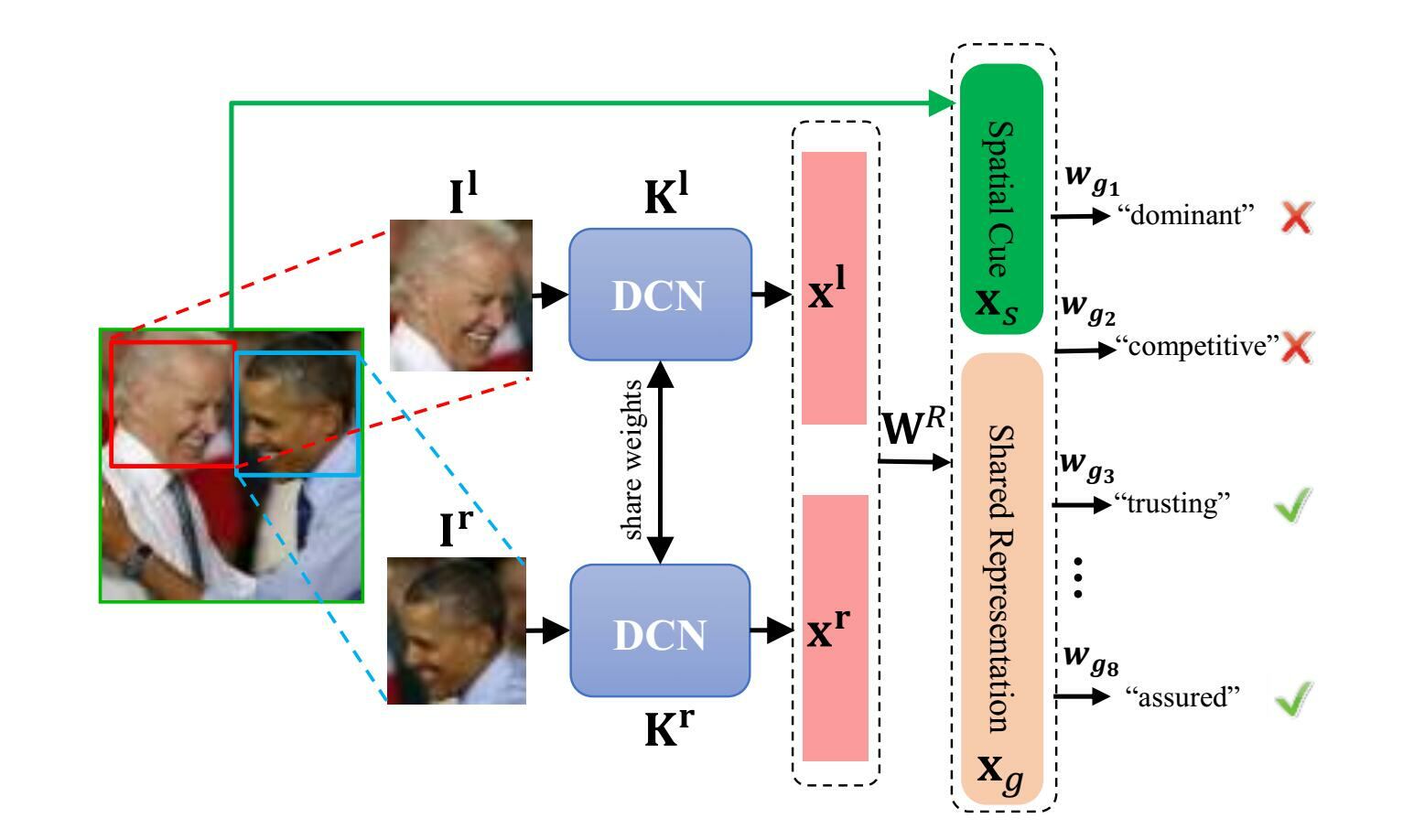

Figure 5: Overview of the network for interpersonal relation learning. The input is two face images and we extract the representation by two identical DCN, which is initialized by learning on multiple attribute datasets (see Sec. 4). Then we perform relation traits reasoning using face representation and additional spatial cues. The output is eight binary values that encode the different dimensions of relation traits.

5 Interpersonal Relation Prediction from Face Images

We have obtained a DCN that captures rich face representation through joint training with heterogeneous attribute sources. Next, we aim to jointly consider pairwise faces for interpersonal relation prediction.

We begin by arranging two identical DCNs obtained in Sec. 4 in a Siamese-like architecture as shown in Fig. 5. Using the interpersonal relation dataset introduced in Sec. 3.2, we train the new Siamese network end-to-end to map raw pixels of a pair of face images to relation traits.

As shown in Fig. 5, given an image with a detected pair of face, which is denoted as and , we extract high-level features and using two DCNs respectively. These two DCNs have identical network structure as the one we use for expression recognition (see Sec. 4). Let and denote the network parameters. So we have . A weight matrix, , projects the concatenated feature vectors to a space of shared representation , which is utilized to predict a set of relation traits, , . Each relation is modeled as a single binary classification task, parameterized by a weight vector, .

In addition to the face images, we incorporate some spatial cues to train the deep network as shown in Fig. 5. The spatial cues include:

  1. Two faces’ positions , representing the -,-coordinates of the upper-left corner, width, and height of the bounding boxes; and are normalized by the image width. Similar for and

  2. The relative faces’ positions:

  3. The ratio between the faces’ scales:

The above spatial cues are concatenated as a vector, , and combined with the shared representation for learning relation traits.

Each binary variable

can be predicted by linear regression,

(15)

where

is an additive error random variable, which is distributed following a standard logistic distribution,

. indicates the column-wise concatenation of two vectors. Therefore, the probability of given and

can be written as a sigmoid function,

, indicating that

is a Bernoulli distribution,

.

In addition, the probabilities of , , , and

can be modeled by the standard normal distributions. For example, suppose

K contains filters, then , where 0 and

are an all-zero vector and an identity matrix respectively, implying that the

filters are independent. Similarly, we have . Furthermore, can be initialized by a standard matrix normal distribution gupta1999matrix , i.e., , where indicates the trace of a matrix.

Combining the above probabilistic definitions, the deep network is trained by maximizing a posterior probability,

(16)

where and the constraint means the filters are tied. Note that and represent the hidden features and the spatial cues extracted from the left and right face images, respectively. Thus, the variable is independent with and , given and .

By taking the negative logarithm of Eqn.(16), it is equivalent to minimizing the following loss function

(17)

where the second and the third terms correspond to the traditional cross-entropy loss, while the remaining terms indicate the weight decays moody1995simple of the parameters. Equation (17) is defined over single training sample and is a highly nonlinear function because of the hidden features . Here we first initialize and by the representation we learn in Sec. 4. Then Eqn. (17) is solved by stochastic gradient descent krizhevsky2012imagenet .

6 Experiments

We divide our experiments into two subsections. Section 6.1 examines the effectiveness of our base DCN on facial expression and attributes recognition. Section 6.2 evaluates our full Siamese framework for interpersonal relation prediction.

6.1 Facial Expression and Attributes Recognition

Dataset. We evaluated our base DCN on the combined dataset of AFLW, CelebA, and ExpW. From the total of 318,778 face images, we selected 5,400 images for testing and the remaining were reserved for training and validation. The test images consisted of 3,000 CelebA, 1,000 AFLW, and 1,400 ExpW images. We ensured that the ExpW test partition was balanced in their seven facial expression classes, i.e. all expression class had 200 samples. Note that this rule was not enforced in other attribute categories.

In addition to this combined dataset, we also evaluated our approach on the Static Facial Expressions in the Wild (SFEW) dataset Dhall:2015:VIB:2818346.2829994 and CK+ 5543262 datasets.

Attributes average Gender Pose Expression Age

gender

left profile

left

frontal

right

right profile

angry

disgust

fear

happy

sad

surprise

neutral

smiling

mouth

opened

narrow

eyes

young

goatee

no beard

sideburns

5 o’clock

shadow

gray hair

bald

mustache

HOG+SVM 71.0 83.2 73.8 65.7 88.3 60.3 70.1 54.3 54.8 56.2 71.3 58.4 61.2 68.4 84.5 79.7 56.3 72.9 75.6 88.4 75.8 72.4 85.9 75.4 70.4
Baseline DCN 76.1 96.5 75.0 56.3 87.3 51.8 74.2 63.5 50.0 50.0 81.9 64.0 71.0 75.0 93.0 94.2 63.3 84.4 84.8 92.8 88.6 82.8 87.7 86.1 73.4
DCN+AP 80.9 97.0 78.4 67.3 90.0 62.1 77.9 72.1 56.5 58.7 83.8 69.1 74.2 76.0 93.3 94.5 73.5 83.5 90.1 92.5 92.5 88.3 92.2 93.0 83.9
Table 5: Balanced accuracies (%) over different attributes.

Evaluation metric

. To account for the imbalanced positive and negative attribute samples, a balanced accuracy is adopted as the evaluation metric:

(18)

where and are the numbers of positive and negative samples, while and are the numbers of true positive and true negative.

Implementation. We implemented the proposed deep model with MXNet mxnet library. Data augmentation by random translation and mirroring were introduced in the training process. The mini-batch size was fixed to 32, and the learning rate was 0.001 with a momentum rate of 0.9. Following Algorithm 1

, the first initialization stage took 30 epochs to converge, while the second stage on attribute propagation consumed another 10 epochs (

i.e., ).

Results on the combined AFLW, CelebA, and ExpW. We trained two variants of our DCN using the combined dataset:

  1. Baseline DCN - it is trained without both attribute propagation.

  2. DCN+AP - it is trained with attribute propagation (i.e. full model).

For completeness, we additionally trained a baseline classifier by extracting HOG features from the given face images, and we used a linear support vector machine (SVM) to train a binary classifier (

i.e., HOG+SVM) for each attribute. In the SVM learning process, we adjusted the weight of each class as inversely proportional to the class frequency in the training data. This helped in mitigating the imbalanced class issue.

The balanced accuracy of each method is reported in Table 5. It is observed that in general, attribute propagation helps, especially on attributes with rare positive samples such as “narrow eyes” and “goatee”. We conjecture that attribute propagation allows the proposed model to effectively leverage samples from multiple datasets, which are not annotated initially.

To further compare with existing attribute recognition methods, we follow the training and testing splits of CelebA ziwei (as for AFLW and ExpW, we use the same training data as the previous experiments). The performance is summarized in Table 6. Note that we follow the convention of ziwei , and use the overall classification accuracy instead of the balanced accuracy as Eqn. (18). We can observe that by fusing multiple datasets, our proposed method achieves superior performance compared to state-of-the-art methods.

In Table 7, we show the average balanced accuracy over different iterations of the alternating attribute propagation and representation learning process (see Sec. 4.3). The gradually improved accuracy over iterations demonstrates that the alternating optimization process is beneficial. Figure 6 shows a few initially unlabeled positive attribute samples that are automatically annotated via attribute propagation. It is worth pointing out that many of this unlabeled samples are challenging in terms of their unconstrained poses and expressions.

Method

smiling

mouth

opened

narrow

eyes

young

goatee

no beard

sideburns

5 o’clock

shadow

gray hair

bald

mustache

gender

FaceTracer kumar2008facetracer 89 87 82 80 93 90 94 85 90 89 91 91
PANDA-w zhang2014panda 89 82 79 77 86 87 90 82 88 92 83 93
PANDA-l zhang2014panda 92 93 84 84 93 93 93 88 94 96 93 97
Liu et al. ziwei 92 92 81 87 95 95 96 91 97 98 95 98
MCNN-AUX aaaiattribute 93 94 87 88 97 96 98 95 98 99 97 98
ours 94 95 89 91 98 97 98 96 99 99 98 98
Table 6: Attribute Recognition Accuracy on CelebA.
Iteration M=1 M=3 M=5 M=7 M=9 M=10
Accuracy 78.4 79.2 79.3 79.8 80.8 80.9
Table 7: Average balanced accuracies (%) over different iterations of the alternating attribute propagation and representation learning process.
Figure 6: Examples of automatically annotated positive attribute examples via the proposed attribute propagation (discussed in Sec. 4.3).

Expression Recognition on SFEW Dhall:2015:VIB:2818346.2829994 . To demonstrate the effectiveness of the proposed DCN for facial expression recognition, we evaluated its performance on the challenging Static Facial Expressions in the Wild (SFEW) 2.0 dataset Dhall:2015:VIB:2818346.2829994 . The dataset is a static subset of Acted Facial Expressions in the Wild (AFEW) dataset Dhall:2015:VIB:2818346.2829994 , which captures natural and versatile expressions from movies. Since the label for the test set is not publicly available, we follow the training/validation splits of the released dataset, we evaluated two variants of our method: 1) Our trained DCN+AP without fine-tuning on SFEW training partition, and 2) Our trained full model DCN+AP with fine-tuning on SFEW training partition. Our model treats each expression as a binary attribute, the expression with the highest predicted probability is selected as the classification result.

We compared our method with the following approaches:

  1. PHOG+LPQ Dhall:2015:VIB:2818346.2829994 - the Pyramid of Histogram of Gradients (PHOG) and Local Phase Quantization (LPQ) dhall2011emotion are computed and concatenated to form the feature of a face, and a non-linear SVM is used for expression classification.

  2. MBP Levi:2015:ERW:2818346.2830587 - expression recognition with Mapped Binary Patterns (MBP), which is proposed in Levi:2015:ERW:2818346.2830587 .

  3. AU-Aware Features Yao:2015:CAF:2818346.2830585 - expression recognition by exploiting facial action-unit aware features.

  4. Microsoft Emotion API Microsoft - emotion API of Microsoft cognitive services. Since it is a commercial API, we use the service directly without fine-tuning in on the SFEW training partition.

  5. DCN of Ng:2015:DLE:2818346.2830593 - AlexNet krizhevsky2012imagenet

    pretrained with ImageNet

    ILSVRC15 and FER Goodfeli-et-al-2013 datasets, and finetune on the SFEW training dataset.

  6. DCN of yu2015image - A customized DCN (five convolutional layers and two fully connected layers) pretrained with FER Goodfeli-et-al-2013 dataset, and fine-tune on the SFEW training dataset.

Table 8 summarizes the performances of various approaches evaluated on the SFEW dataset. Following the convention of current studies yu2015image ; liu2015inspired ; khorrami2015deep ; liu2013facial , we use the overall classification accuracy instead of the balanced accuracy as Eqn. (18). Our approach, with and without fine-tuning on SFEW training partition, outperforms state-of-the-art methods. Again, it is observed that our model is benefited from alternating optimization with attribute propagation. Figure 7 shows some failure cases. Most errors were caused by ambiguous cases.

Method

Training/Fine-tunning

on SFEW

Accuracy
PHOG+LPQ Dhall:2015:VIB:2818346.2829994 yes 35.93%
MBP Levi:2015:ERW:2818346.2830587 yes 41.92%
AU-Aware features Yao:2015:CAF:2818346.2830585 yes 44.04%
Microsoft Emotion API Microsoft no 47.71%
DCN of Ng:2015:DLE:2818346.2830593 yes 48.50%
Single DCN of yu2015image yes 52.29%
Ensemble DCNs of yu2015image 11footnotemark: 1 yes 55.96%
Our Baseline DCN no 45.51%
Our DCN+AP no 49.77%
Our Baseline DCN yes 52.06%
Our DCN+AP yes 55.27%
  • This result is obtained from an ensemble of five DCNs.

Table 8: Accuracies on the validation set of SFEW dataset Dhall:2015:VIB:2818346.2829994 .
Figure 7: Example of failure cases of our approach (DCN+AP) on the SFEW validation set. The text above each row denotes the ground truth and predicted result, e.g., “Surprise-Angry” means the surprise expression is misclassified as angry. Most failures were caused by ambiguity in facial expressions.

Expression Recognition on CK+ 5543262 . For completeness, we also evaluated our method on CK+ 5543262 since it is a classic dataset for expression recognition. CK+ contains 327 image sequences where each sequence presents a face with gradual expression evolvement from a neutral to a peak facial expression. Each sequence is annotated with one of the six prototypical expressions, i.e., angry, happy, surprise, sad, disgust, fear, or a non-standard expression (i.e. contempt). Following the widely used evaluation protocol liu2013facial ; khorrami2015deep ; zhao2016peak , we selected the last three frames of each sequence for training/testing purpose. The first frame of each sequence was regarded as the “neutral” expression. Consequently, we obtained 1,308 images for our 10-fold cross-validation. The face identity in each fold was remained exclusive. As in the SFEW experiments, we fine-tuned our trained DCN+AP on the training samples of each fold.

Table 9 presents the comparative results of our method and other state-of-the-arts. To be consistent with other methods, the averaged accuracy of the six basic expressions are reported. Similar to our approach, BDBN liu2013facial , PPDN zhao2016peak , and Zero-bias CNN khorrami2015deep also adopted different kinds of deep networks. Our approach still achieves better result although the performance on CK+ is nearly saturated.

Method Accuracy
CSPL 6247974 89.9%
LBPSVMShan:2009:FER:1523527.1523949 95.1%
BDBN liu2013facial 96.7%
PPDN zhao2016peak 97.3%
Zero-bias CNN khorrami2015deep 98.3%
Our Method 98.9%
Table 9: Accuracies on the CK+ dataset 5543262 with six prototypical facial expressions.

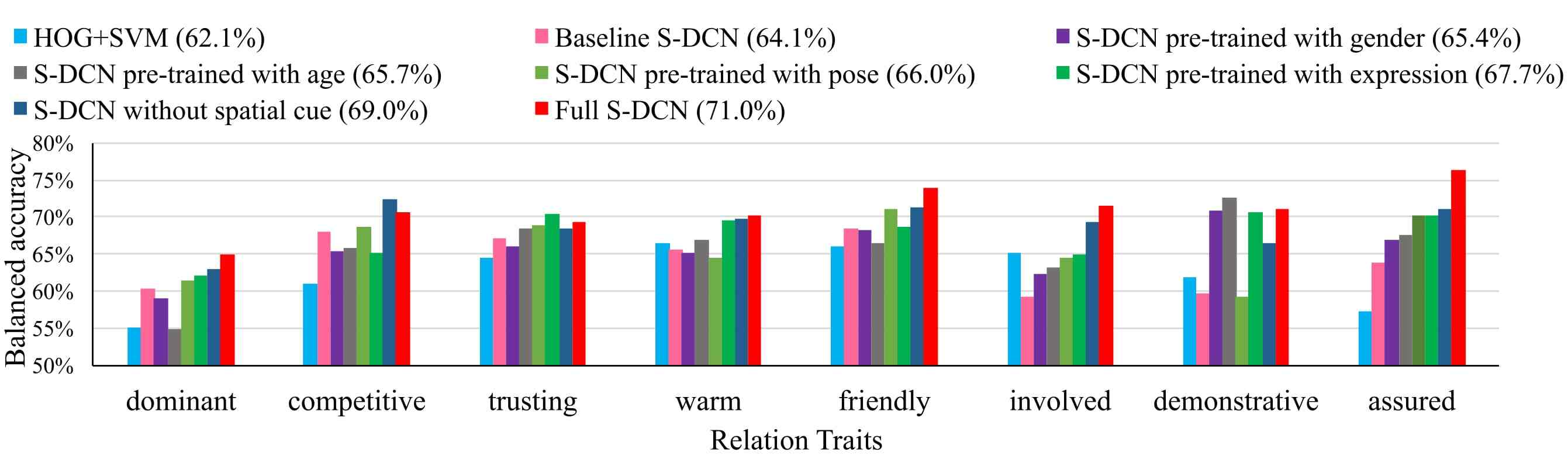

Figure 8: Relation traits prediction performance. The number in the legend indicates the average accuracy of the according method across all the relation traits.

6.2 Interpersonal Relation Prediction

Relation trait training testing
#positive #negative #positive #negative
dominant 418 6808 112 678

competitive
344 6882 70 720

trusting
6261 965 606 184

warm
6176 1050 615 175

friendly
6733 493 728 62

involved
6360 866 686 104

demonstrative
6494 732 689 101

assured
6538 688 673 117
Table 10: Statistics of the interpersonal relation dataset.

Dataset. The evaluation of interpersonal relation learning was performed on the dataset described in Sec. 3.2. We divided the dataset into training and test partitions of 7,226 and 790 images, respectively. The face pairs in these two partitions were mutually exclusive, containing no overlapped identities. Table 10 presents the statistics of this dataset.

Evaluation metric. We adopt the same balanced accuracy in Eqn. (18).

Baselines. As discussed in Sec. 5, our full model combines the two DCNs pre-trained for expression and attribute recognition in a Siamese-like architecture, as shown in Fig. 5. We call this model as “S-DCN”.

We evaluated several variants of this network.

  1. Baseline S-DCN - We trained a model similar to S-DCN in Fig. 5, but without using the DCN pre-trained for expression and attribute recognition. Instead, the parameters of the two DCNs were randomly initialized.

  2. S-DCN with its DCN pre-trained with selected attributes - To examine the influences of different attribute groups, we pre-trained four DCN variants using only one group of attribute (i.e., expression, age, gender, and pose), respectively.

  3. S-DCN without spatial cue - We trained a S-DCN with DCN pre-trained with all the attributes but the spatial cue (discussed in Sec. 5) was not used.

  4. Full S-DCN - We trained a S-DCN with DCN pre-trained with all the attributes and used the spatial cue as discussed in Sec. 5.

In addition, we established a baseline “HOG+SVM” - we extracted the HOG features from the given face images. The features from two faces were then concatenated and a linear support vector machine (SVM) was employed to train a binary classifier for each relation trait.

Results. Figure 8 shows the accuracies of different variants. All variants of the proposed S-DCN outperform the baseline HOG+SVM. We observe that the cross-dataset expression and attribute pre-training is beneficial since pre-training with any of the attribute groups improves the overall performance. In particular, pre-training with expression attributes outperforms other groups of attributes (improving from 64.1% to 67.7%). This is not surprising since interpersonal relation is largely manifested from expression. The pose attributes come next in terms of influence to relation prediction. The result is also expected since when people are in a close or friendly relation, they tend to look at the same direction or face each other.

Finally, the spatial cue is shown to be useful for relation prediction. However, we also observe that not every trait is improved by the spatial cue and some are degraded. This is because currently we simply use the face scale and location directly, of which the distribution is inconsistent in images from different sources. For example, some close-shot photographs may be used to show competing people and their expression in detail, while in some movies, competing people may stand far away from each other. As for the relation traits, “dominant” is the most difficult trait to predict as it needs to be determined by more complicated factors, such as one’s social role and the environmental context.

Figure 9: (a) Correct positive and negative prediction results on different relation traits. (b) False positives on “competitive”, “assured” and “demonstrative” relation traits (from left to right).
Method Balanced Accuracy
HOG+SVM 59.22%
Baseline S-DCN 62.42%
S-DCN (DCN pre-trained with gender) 63.10%
S-DCN (DCN pre-trained with age) 64.67%
S-DCN (DCN pre-trained with pose) 62.83%
S-DCN (DCN pre-trained with expression) 65.36%
S-DCN without spatial cue 68.17%
Full S-DCN 70.20%
Table 11: Balanced accuracies (%) on the movie testing subset.

To factor out any potential subjective judgement arisen from the data annotation process, we evaluated S-DCN on a subset of 522 movie frames extracted from the test data. This subset is more ‘objective’ since annotators were provided with richer auxiliary cues for relation annotation. Table 11 shows the average balanced accuracy on the eight relation traits of the baseline and the variants of the proposed S-DCN. The results further suggest the reliability of the proposed approach.

Figure 10: The relation traits predicted by our full model with spatial cue (Full S-DCN). The polar graph beside each image indicates the tendency for each trait to be positive.

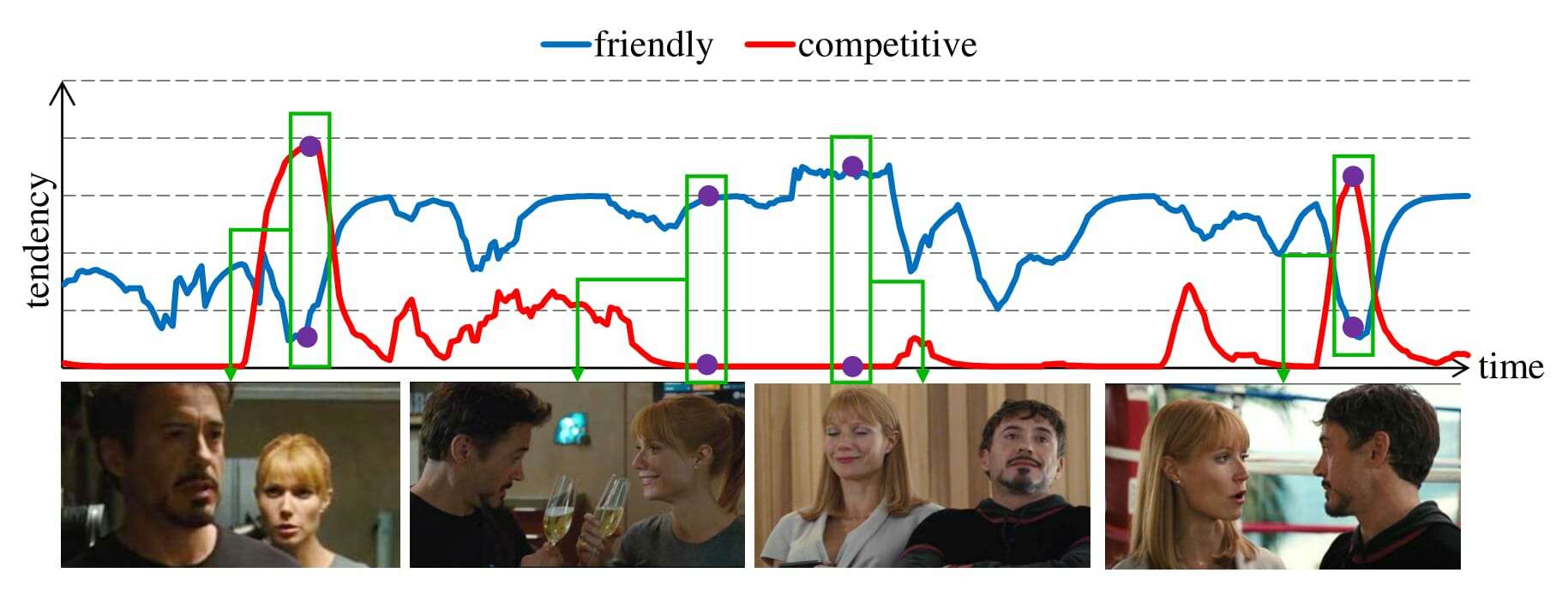

Figure 11: Prediction for relation traits of “friendly” and “competitive” for the movie Iron Man. The probability indicates the tendency for the trait to be positive. It shows that the proposed approach can capture the friendly talking scene and the moment of conflict.

Some positive and negative predictions on different relation traits are shown in Fig. 9(a). It can be observed that the proposed approach is capable of handling images in different scenes and faces with large expression variations. We show some false positives in Fig. 9(b), which are partly caused by the lack of context. For example, in the first image of Fig. 9(b), the two characters were having a serious conversation. The algorithm had no access to the context that they were reading a book and thus guessed that they were competing. Our method also failed given faces with a large degree of occlusions.

More qualitative results are presented in Fig. 10. Positive relation traits, such as “trusting”, “warm”, “friendly” are inferred between the US President Barack Obama and his family members. Interestingly, “dominant” trait is predicted between him and his daughter (Fig. 10 (b)). Fig. 10(c) includes the image for Angela Merkel, Chancellor of Germany, which is usually used in the news articles on US spying scandal, showing a low tendency on the “trusting” trait, while a high tendency on the “competitive” trait. This relation is quite different from that of Fig. 10(d), where Obama and the British Prime Minister David Cameron were watching a basketball game.

We show an example of application of using our method to automatically profile the relations among the characters in a movie. We chose the movie Iron Man and focused on different interaction patterns, such as conversation and conflict, of the main roles “Tony Stark” and “Pepper Potts”. Firstly, we applied a face detector to the movie and selected those frames that captured the two roles. Then, we applied our approach on each frame to infer their relation traits. The predicted probabilities were averaged across 5 neighboring frames to obtain a smooth profile. Figure 11 shows a video segment with the traits of “friendly” and “competitive”. Our method accurately captures the friendly talking scene and the moment when Tony and Pepper were in a conflict, where the “competitive” trait is assigned with a high probability while the “friendly” trait is low.

7 Conclusion

In this work, we studied a new challenging problem of predicting interpersonal relation from face images. We decomposed our solution into two steps. We began with training a reliable deep convolutional network for recognizing facial expression and rich attributes (gender, age, and pose) from single face images. We addressed the problem of learning from heterogeneous data sources with potentially missing attribute labels. This was achieved through a novel approach that leverages the inherent correspondences among heterogeneous sources by attribute propagation in a graphical model. Initialized by the deep convolutional network learned in the first step, a Siamese-like framework is proposed to learn an end-to-end mapping from raw pixels of a pair of face images to relation traits. Extensive experiments demonstrate the effectiveness of the proposed methods on facial expression recognition and interpersonal relation prediction. Future work will combine the face-based relation traits with body-driven immediacy cues chu2015multi for more accurate interpersonal relation prediction.

Acknowledgements.
This work is supported by SenseTime Group Limited and the General Research Fund sponsored by the Research Grants Council of the Hong Kong SAR (CUHK 14241716, 14224316. 14209217).

References

  • (1) Microsoft cognitive services (2016). URL https://www.microsoft.com/cognitive-services/en-us/emotion-api
  • (2) Bi, W., Kwok, J.T.: Multilabel classification with label correlations and missing labels.

    In: AAAI Conference on Artificial Intelligence, pp. 1680–1686 (2014)

  • (3) Bromley, J., Guyon, I., Lecun, Y., Säckinger, E., Shah, R.: Signature verification using a siamese time delay neural network. In: Advances in Neural Information Processing Systems (1994)
  • (4)

    Celeux, G., Forbes, F., Peyrard, N.: EM procedures using mean field-like approximations for markov model-based image segmentation.

    Pattern recognition 36(1), 131–144 (2003)
  • (5) Chakraborty, I., Cheng, H., Javed, O.: 3D visual proxemics: Recognizing human interactions in 3D from a single image. In: IEEE Conference on Computer Vision and Pattern Recognition, pp. 3406–3413 (2013)
  • (6) Chen, Y.Y., Hsu, W.H., Liao, H.Y.M.: Discovering informative social subgraphs and predicting pairwise relationships from group photos. In: ACM Multimedia, pp. 669–678 (2012)
  • (7)

    Chu, X., Ouyang, W., Yang, W., Wang, X.: Multi-task recurrent neural network for immediacy prediction.

    In: Proceedings of the IEEE International Conference on Computer Vision, pp. 3352–3360 (2015)
  • (8) Cristani, M., Raghavendra, R., Del Bue, A., Murino, V.: Human behavior analysis in video surveillance: A social signal processing perspective. Neurocomputing 100, 86–97 (2013)
  • (9) Dahmane, M., Meunier, J.: Emotion recognition using dynamic grid-based hog features. In: IEEE International Conference on Automatic Face & Gesture Recognition, pp. 884–888 (2011)
  • (10) Deng, Z., Vahdat, A., Hu, H., Mori, G.: Structure inference machines: Recurrent neural networks for analyzing relations in group activity recognition. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (11) Dhall, A., Asthana, A., Goecke, R., Gedeon, T.: Emotion recognition using phog and lpq features. In: IEEE International Conference on Automatic Face & Gesture Recognition and Workshops, pp. 878–883 (2011)
  • (12) Dhall, A., Ramana Murthy, O., Goecke, R., Joshi, J., Gedeon, T.: Video and image based emotion recognition challenges in the wild: Emotiw 2015. In: ACM International Conference on Multimodal Interaction, pp. 423–426 (2015)
  • (13) Ding, L., Yilmaz, A.: Learning relations among movie characters: A social network perspective. In: European Conference on Computer Vision (2010)
  • (14) Ding, L., Yilmaz, A.: Inferring social relations from visual concepts. In: IEEE International Conference on Computer Vision, pp. 699–706 (2011)
  • (15) Emily M. Hand, R.C.: Attributes for improved attributes: a multi-task network utilizing implicit and explicit relationships for facial attribute classification. In: AAAI Conference on Artificial Intelligence (2017)
  • (16) Fabian Benitez-Quiroz, C., Srinivasan, R., Martinez, A.M.: Emotionet: An accurate, real-time algorithm for the automatic annotation of a million facial expressions in the wild. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (17) Fathi, A., Hodgins, J.K., Rehg, J.M.: Social interactions: A first-person perspective. In: IEEE Conference on Computer Vision and Pattern Recognition (2012)
  • (18) Gallagher, A.C., Chen, T.: Understanding images of groups of people. In: IEEE Conference on Computer Vision and Pattern Recognition, pp. 256–263. IEEE (2009)
  • (19) Girard, J.M.: Perceptions of interpersonal behavior are influenced by gender, facial expression intensity, and head pose. In: ACM International Conference on Multimodal Interaction, pp. 394–398 (2014)
  • (20) Goodfellow, I., Erhan, D., Carrier, P.L., Courville, A., Mirza, et al.: Challenges in representation learning: A report on three machine learning contests (2013). URL http://arxiv.org/abs/1307.0414
  • (21) Gottman, J., Levenson, R., Woodin, E.: Facial expressions during marital conflict. Journal of Family Communication 1(1), 37–57 (2001)
  • (22) Gupta, A.K., Nagar, D.K.: Matrix variate distributions. CRC Press (1999)
  • (23) Hess, U., Blairy, S., Kleck, R.E.: The influence of facial emotion displays, gender, and ethnicity on judgments of dominance and affiliation. Journal of Nonverbal Behavior 24(4), 265–283 (2000)
  • (24) Hoai, M., Zisserman, A.: Talking heads: detecting humans and recognizing their interactions. In: IEEE Conference on Computer Vision and Pattern Recognition (2014)
  • (25) Hu, Y., Zeng, Z., Yin, L., Wei, X., Zhou, X., Huang, T.S.: Multi-view facial expression recognition. In: IEEE International Conference on Automatic Face & Gesture Recognition, pp. 1–6 (2008). DOI 10.1109/AFGR.2008.4813445
  • (26) Huang, C., Li, Y., Loy, C.C., Tang, X.: Learning deep representation for imbalanced classification. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (27) Hung, H., Jayagopi, D., Yeo, C., Friedland, G., Ba, S., Odobez, J.M., Ramchandran, K., Mirghafori, N., Gatica-Perez, D.: Using audio and video features to classify the most dominant person in a group meeting. In: ACM Multimedia (2007)
  • (28) Ibrahim, M., Muralidharan, S., Deng, Z., Vahdat, A., Mori, G.: A hierarchical deep temporal model for group activity recognition. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (29) Ioffe, S., Szegedy, C.: Batch normalization: Accelerating deep network training by reducing internal covariate shift.

    In: Proceedings of The 32nd International Conference on Machine Learning, pp. 448–456 (2015)

  • (30) Joo, J., Li, W., Steen, F., Zhu, S.C.: Visual persuasion: Inferring communicative intents of images. In: IEEE Conference on Computer Vision and Pattern Recognition, pp. 216–223 (2014)
  • (31) Jung, H., Lee, S., Yim, J., Park, S., Kim, J.: Joint fine-tuning in deep neural networks for facial expression recognition. In: IEEE International Conference on Computer Vision (2015)
  • (32) Khorrami, P., Paine, T., Huang, T.: Do deep neural networks learn facial action units when doing expression recognition? In: IEEE International Conference on Computer Vision Workshop (2015)
  • (33) Kiesler, D.J.: The 1982 interpersonal circle: A taxonomy for complementarity in human transactions. Psychological Review 90(3), 185 (1983)
  • (34) Knutson, B.: Facial expressions of emotion influence interpersonal trait inferences. Journal of Nonverbal Behavior 20(3), 165–182 (1996)
  • (35) Kong, Y., Jia, Y., Fu, Y.: Learning human interaction by interactive phrases. In: European Conference on Computer Vision, pp. 300–313 (2012)
  • (36) Kostinger, M., Wohlhart, P., Roth, P., Bischof, H.: Annotated facial landmarks in the wild: A large-scale, real-world database for facial landmark localization. In: IEEE International Conference on Computer Vision Workshop, pp. 2144–2151 (2011)
  • (37) Krizhevsky, A., Sutskever, I., Hinton, G.E.: ImageNet classification with deep convolutional neural networks. In: Advances in Neural Information Processing Systems (2012)
  • (38) Kumar, N., Belhumeur, P., Nayar, S.: Facetracer: A search engine for large collections of images with faces. In: European Conference on Computer Vision, pp. 340–353. Springer (2008)
  • (39) Lan, T., Sigal, L., Mori, G.: Social roles in hierarchical models for human activity recognition. In: IEEE Conference on Computer Vision and Pattern Recognition (2012)
  • (40)

    Lee, D.H.: Pseudo-label: The simple and efficient semi-supervised learning method for deep neural networks.

    In: International Conference on Machine Learning Workshop, vol. 3, p. 2 (2013)
  • (41) Levi, G., Hassner, T.: Emotion recognition in the wild via convolutional neural networks and mapped binary patterns. In: ACM International Conference on Multimodal Interaction, pp. 503–510 (2015)
  • (42) Li, H., Lin, Z., Shen, X., Brandt, J., Hua, G.: A convolutional neural network cascade for face detection. In: IEEE Conference on Computer Vision and Pattern Recognition (2015)
  • (43) Liu, M., Li, S., Shan, S., Chen, X.: AU-inspired deep networks for facial expression feature learning. Neurocomputing 159, 126–136 (2015)
  • (44) Liu, M., Li, S., Shan, S., Wang, R., Chen, X.: Deeply learning deformable facial action parts model for dynamic expression analysis. In: Asian Conference on Computer Vision (2014)
  • (45) Liu, M., Shan, S., Wang, R., Chen, X.: Learning expressionlets on spatio-temporal manifold for dynamic facial expression recognition. In: IEEE Conference on Computer Vision and Pattern Recognition (2014)
  • (46) Liu, P., Han, S., Meng, Z., Tong, Y.: Facial expression recognition via a boosted deep belief network. In: IEEE Conference on Computer Vision and Pattern Recognition, pp. 1805–1812 (2014)
  • (47) Liu, S., Yang, J., Huang, C., Yang, M.H.: Multi-objective convolutional learning for face labeling. In: IEEE Conference on Computer Vision and Pattern Recognition (2015)
  • (48) Liu, Z., Luo, P., Wang, X., Tang, X.: Deep learning face attributes in the wild. In: IEEE International Conference on Computer Vision (2015)
  • (49) Lucey, P., Cohn, J.F., Kanade, T., Saragih, J., Ambadar, Z., Matthews, I.: The extended cohn-kanade dataset (CK+): A complete dataset for action unit and emotion-specified expression. In: IEEE Conference on Computer Vision and Pattern Recognition Workshops, pp. 94–101 (2010)
  • (50) Luo, P., Wang, X., Tang, X.: Hierarchical face parsing via deep learning. In: IEEE Conference on Computer Vision and Pattern Recognition (2012)
  • (51) Lyons, M.J., Budynek, J., Akamatsu, S.: Automatic classification of single facial images. IEEE Transactions on Pattern Analysis and Machine Intelligence 21(12), 1357–1362 (1999)
  • (52) Mollahosseini, A., Chan, D., Mahoor, M.H.: Going deeper in facial expression recognition using deep neural networks. In: IEEE Winter Conference on Applications of Computer Vision (2016)
  • (53) Moody, J., Hanson, S., Krogh, A., Hertz, J.A.: A simple weight decay can improve generalization. Advances in Neural Information Processing Systems 4, 950–957 (1995)
  • (54)

    Ng, H.W., Nguyen, V.D., Vonikakis, V., Winkler, S.: Deep learning for emotion recognition on small datasets using transfer learning.

    In: ACM International Conference on Multimodal Interaction, pp. 443–449 (2015)
  • (55) Opitz, M., Waltner, G., Poier, G., Possegger, H., Bischof, H.: Grid loss: Detecting occluded faces. In: European Conference on Computer Vision (2016)
  • (56) Pantic, M., Cowie, R., D’Errico, F., Heylen, D., Mehu, M., Pelachaud, C., Poggi, I., Schroeder, M., Vinciarelli, A.: Social signal processing: the research agenda. In: Visual analysis of humans, pp. 511–538. Springer (2011)
  • (57) Pantic, M., Valstar, M., Rademaker, R., Maat, L.: Web-based database for facial expression analysis. In: IEEE International Conference on Multimedia and Expo (2005)
  • (58) Parkhi, O.M., Vedaldi, A., Zisserman, A.: Deep face recognition. In: British Machine Vision Conference (2015)
  • (59) Pearson, K.: Note on regression and inheritance in the case of two parents. Proceedings of the Royal Society of London 58, 240–242 (1895)
  • (60) Pentland, A.: Social signal processing. IEEE Signal Processing Magazine 24(4), 108 (2007)
  • (61) Raducanu, B., Gatica-Perez, D.: Inferring competitive role patterns in reality TV show through nonverbal analysis. Multimedia Tools and Applications 56(1), 207–226 (2012)
  • (62) Ramanathan, V., Yao, B., Fei-Fei, L.: Social role discovery in human events. In: IEEE Conference on Computer Vision and Pattern Recognition, pp. 2475–2482 (2013)
  • (63) Ricci, E., Varadarajan, J., Subramanian, R., Rota Bulo, S., Ahuja, N., Lanz, O.: Uncovering interactions and interactors: Joint estimation of head, body orientation and f-formations from surveillance videos. In: IEEE International Conference on Computer Vision (2015)
  • (64) Ruiz, A., Van de Weijer, J., Binefa, X.: From emotions to action units with hidden and semi-hidden-task learning. In: IEEE International Conference on Computer Vision, pp. 3703–3711 (2015)
  • (65) Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein, M., Berg, A.C., Fei-Fei, L.: ImageNet Large Scale Visual Recognition Challenge. International Journal of Computer Vision 115(3), 211–252 (2015)
  • (66) Schroff, F., Kalenichenko, D., Philbin, J.: Facenet: A unified embedding for face recognition and clustering. In: IEEE Conference on Computer Vision and Pattern Recognition (2015)
  • (67) Shan, C., Gong, S., McOwan, P.W.: Facial expression recognition based on local binary patterns: A comprehensive study. Image and Vision Computing 27(6) (2009)
  • (68) Sun, Y., Wang, X., Tang, X.: Sparsifying neural network connections for face recognition. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (69) Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S., Anguelov, D., Erhan, D., Vanhoucke, V., Rabinovich, A.: Going deeper with convolutions. In: IEEE Conference on Computer Vision and Pattern Recognition (2015)
  • (70) Tian, Y., Kanade, T., Cohn, J.F.: Facial expression recognition. In: Handbook of face recognition. Springer (2011)
  • (71) Tian, Y.l., Kanade, T., Cohn, J.F.: Recognizing action units for facial expression analysis. IEEE Transactions on Pattern Analysis and Machine Intelligence 23(2), 97–115 (2001)
  • (72) Tianqi Chen Mu Li, Y.L.M.L.N.W.M.W.T.X.B.X.C.Z., Zhang, Z.: Mxnet: A flexible and efficient machine learning library for heterogeneous distributed systems. In: NIPS Workshop on Machine Learning Systems (2016)
  • (73) Trigeorgis, G., Snape, P., Nicolaou, M.A., Antonakos, E., Zafeiriou, S.: Mnemonic descent method: A recurrent process applied for end-to-end face alignment. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (74) Valstar, M.F., Mehu, M., Jiang, B., Pantic, M., Scherer, K.: Meta-analysis of the first facial expression recognition challenge. IEEE Transactions on Systems, Man, and Cybernetics, Part B: Cybernetics 42(4), 966–979 (2012)
  • (75) Vinciarelli, A., Pantic, M., Bourlard, H.: Social signal processing: Survey of an emerging domain. Image and Vision Computing 27(12), 1743–1759 (2009)
  • (76) Vinciarelli, A., Pantic, M., Heylen, D., Pelachaud, C., Poggi, I., D’Errico, F., Schröder, M.: Bridging the gap between social animal and unsocial machine: A survey of social signal processing. IEEE Transactions on Affective Computing 3(1), 69–87 (2012)
  • (77) Wang, G., Gallagher, A., Luo, J., Forsyth, D.: Seeing people in social context: Recognizing people and social relationships. In: European Conference on Computer Vision, pp. 169–182 (2010)
  • (78) Wang, J., Cheng, Y., Feris, R.S.: Walk and learn: Facial attribute representation learning from egocentric video and contextual data. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (79) Weng, C.Y., Chu, W.T., Wu, J.L.: RoleNet: Movie analysis from the perspective of social networks. IEEE Transactions on Multimedia 11(2), 256–271 (2009)
  • (80) Wu, Y., Ji, Q.: Constrained joint cascade regression framework for simultaneous facial action unit recognition and facial landmark detection. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (81) Yang, B., Yan, J., Lei, Z., Li, S.Z.: Aggregate channel features for multi-view face detection. In: International Joint Conference on Biometrics (2014)
  • (82) Yang, B., Yan, J., Lei, Z., Li, S.Z.: Convolutional channel features. In: IEEE International Conference on Computer Vision (2015)
  • (83) Yang, H., Zhou, J.T., Cai, J.: Improving multi-label learning with missing labels by structured semantic correlations. In: European Conference on Computer Vision, pp. 835–851 (2016)
  • (84) Yang, S., Luo, P., Loy, C.C., Tang, X.: From facial parts responses to face detection: A deep learning approach. In: IEEE International Conference on Computer Vision (2015)
  • (85) Yang, S., Luo, P., Loy, C.C., Tang, X.: Wider face: A face detection benchmark. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
  • (86) Yao, A., Shao, J., Ma, N., Chen, Y.: Capturing au-aware facial features and their latent relations for emotion recognition in the wild. In: ACM International Conference on Multimodal Interaction, pp. 451–458 (2015)
  • (87) Yu, H.F., Jain, P., Kar, P., Dhillon, I.: Large-scale multi-label learning with missing labels. In: International Conference on Machine Learning, pp. 593–601 (2014)
  • (88) Yu, Z., Zhang, C.: Image based static facial expression recognition with multiple deep network learning. In: ACM International Conference on Multimodal Interaction, pp. 435–442 (2015)
  • (89) Zafeiriou, S., Papaioannou, A., Kotsia, I., Nicolaou, M.A., Zhao, G.: Facial affect in-the-wild: A survey and a new database. In: IEEE Conference on Computer Vision and Pattern Recognition Workshop (2016)
  • (90) Zelnik-Manor, L., Perona, P.: Self-tuning spectral clustering. In: NIPS, pp. 1601–1608 (2004)
  • (91) Zhang, N., Paluri, M., Ranzato, M., Darrell, T., Bourdev, L.: Panda: Pose aligned networks for deep attribute modeling. In: IEEE Conference on Computer Vision and Pattern Recognition (2014)
  • (92) Zhang, Z., Luo, P., Loy, C.C., Tang, X.: Learning deep representation for face alignment with auxiliary attributes. In: IEEE Transactions on Pattern Analysis and Machine Intelligence (2015)
  • (93) Zhang, Z., Luo, P., Loy, C.C., Tang, X.: Learning social relation traits from face images. In: IEEE International Conference on Computer Vision (2015)
  • (94) Zhang, Z., Luo, P., Loy, C.C., Tang, X.: Joint face representation adaptation and clustering in videos. In: European Conference on Computer Vision (2016)
  • (95) Zhao, G., Huang, X., Taini, M., Li, S.Z., Pietikäinen, M.: Facial expression recognition from near-infrared videos. Image and Vision Computing 29(9), 607–619 (2011)
  • (96) Zhao, G., Pietikainen, M.: Dynamic texture recognition using local binary patterns with an application to facial expressions. IEEE Transactions on Pattern Analysis and Machine Intelligence 29(6), 915–928 (2007)
  • (97) Zhao, X., Liang, X., Liu, L., Li, T., Vasconcelos, N., Yan, S.: Peak-piloted deep network for facial expression recognition. In: European Conference on Computer Vision (2016)
  • (98) Zhong, L., Liu, Q., Yang, P., Liu, B., Huang, J., Metaxas, D.N.: Learning active facial patches for expression analysis. In: IEEE Conference on Computer Vision and Pattern Recognition, pp. 2562–2569 (2012)
  • (99) Zhu, X., Lei, Z., Liu, X., Shi, H., Li, S.Z.: Face alignment across large poses: A 3d solution. In: IEEE Conference on Computer Vision and Pattern Recognition (2016)
