# Free Pseudodistance Growth Rates for Spatially Coupled LDPC Codes over the BEC

The minimum pseudoweight is an important parameter related to the decoding performance of LDPC codes with iterative message-passing decoding. In this paper, we consider ensembles of periodically time-varying spatially coupled LDPC (SC-LDPC) codes and the pseudocodewords arising from their finite graph covers of a fixed degree. We show that for certain (J,K)-regular SC-LDPC code ensembles and a fixed cover degree, the typical minimum pseudoweight of the unterminated (and associated tail-biting/terminated) SC-LDPC code ensembles grows linearly with the constraint (block) length as the constraint (block) length tends to infinity. We prove that one can bound the the free pseudodistance growth rate over a BEC from below (respectively, above) using the associated tail-biting (terminated) SC-LDPC code ensemble and show empirically that these bounds coincide for a sufficiently large period, which gives the exact free pseudodistance growth rate for the SC-LDPC ensemble considered.

## Authors

• 1 publication
• 7 publications
• 1 publication
• ### Spatially Coupled Generalized LDPC Codes: Asymptotic Analysis and Finite Length Scaling

Generalized low-density parity-check (GLDPC) codes are a class of LDPC c...
10/30/2019 ∙ by David G. M. Mitchell, et al. ∙ 0

• ### Finite-Length Scaling of Spatially Coupled LDPC Codes Under Window Decoding Over the BEC

We analyze the finite-length performance of spatially coupled low-densit...
03/09/2020 ∙ by Roman Sokolovskii, et al. ∙ 0

• ### Spatially coupled turbo-like codes: a new trade-off between waterfall and error floor

Spatially coupled turbo-like codes (SC-TCs) have been shown to have exce...
04/05/2018 ∙ by Saeedeh Moloudi, et al. ∙ 0

• ### Generalized LDPC Codes with Convolutional Code Constraints

Braided convolutional codes (BCCs) are a class of spatially coupled turb...
02/13/2020 ∙ by Muhammad Umar Farooq, et al. ∙ 0

• ### Algebraic Optimization of Binary Spatially Coupled Measurement Matrices for Interval Passing

We consider binary spatially coupled (SC) low density measurement matric...
09/15/2018 ∙ by Salman Habib, et al. ∙ 0

• ### Improving the Decoding Threshold of Tailbiting Spatially Coupled LDPC Codes by Energy Shaping

We show how the iterative decoding threshold of tailbiting spatially cou...
02/15/2018 ∙ by Thomas Jerkovits, et al. ∙ 0

• ### Spatially Coupled Sparse Regression Codes: Design and State Evolution Analysis

We consider the design and analysis of spatially coupled sparse regressi...
01/05/2018 ∙ by Kuan Hsieh, et al. ∙ 0

##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## I Introduction

Pseudocodewords have been shown to play a key role in understanding the decoding performance of low-density parity-check (LDPC) codes with message-passing iterative decoders [1, 2, 3]. In [1] and [2], it was shown that an iterative decoder cannot distinguish between the original Tanner graph and any of its finite graph covers. As a consequence, the performance of iterative decoders is characterized by the pseudocodewords associated with all of the finite covers. In particular, the minimum pseudoweight (or pseudodistance) plays, in iterative decoding, the role that the minimum distance does for maximum likelihood (ML) decoding [4, 2, 5]. For certain protograph-based LDPC code ensembles, it has been shown in [6] that the minimum pseudoweight, typical of most ensemble members, obtained from graph covers for a fixed degree grows linearly with the block length as . A large pseudodistance growth rate (or typical relative minimum pseudoweight) means that, asymptotically, most pseudocodewords from the ensemble are “good pseudocodewords”.

Spatially coupled LDPC (SC-LDPC), or LDPC convolutional (LDPCC), codes [7] are constructed by coupling together a sequence of uncoupled (or disjoint) Tanner graphs into a single coupled chain, thus introducing memory into the encoding process. SC-LDPC codes have been shown to have excellent iterative decoding thresholds [8, 9] and good asymptotic minimum distance properties [10, 11]. In [11] and [12], Mitchell et al. showed how to bound the free distance growth rate of an SC-LDPC code ensemble from above and below, resulting in an exact free distance growth rate of the code ensemble. In [13], Smarandache et al. studied the pseudocodeword problem from the perspective of convolutional codes. They proved that for a class of quasi-cyclic (QC) based time-invariant LDPCC codes [14], the minimum pseudoweight of an LDPCC code is lower bounded by the minimum pseudoweight of its “wrapped” QC code.

In this paper, we consider ensembles of protograph-based periodically time-varying SC-LDPC codes and their resulting pseudocodewords obtained as projections of codewords from their finite-degree graph covers. We show that for certain -regular SC-LDPC code ensembles, the typical minimum pseudoweight obtained from graph covers for a fixed degree of the unterminated (and associated tail-biting/terminated) SC-LDPC code ensembles grows linearly with the constraint (block) length as the constraint (respectively, block) length tends to infinity. We prove that a similar approach to that from [11] and [12] can be used to obtain the exact free pseudodistance growth rate of the periodically time-varying SC-LDPC code ensembles over a binary erasure channel (BEC). More specifically, we first prove that, on average, the ensemble free pseudodistance can be bounded below by the pseudodistance of an associated tail-biting ensemble and above by the pseudodistance of an associated terminated ensemble, and we derive the upper and lower bounds for the free pseudodistance growth rate of the ensemble.

To demonstrate empirically these theoretical analyses, we perform numerical experiments for degree- and degree- graph covers.111We limit our consideration in this paper to degree-2 and degree-3 covers due to the high computational complexity required to evaluate graph covers of larger degrees. Besides obtaining the aforementioned bounds, we show that these bounds coincide for a sufficiently large period thus give the exact free pseudodistance growth rate of the ensemble considered. We observe that the free pseudodistance growth rate of the unterminated -regular SC-LDPC code ensemble is much larger than the underlying -regular LDPC code ensemble. Also, by comparing to the results in [11], we find that the free pseudodistance growth rate is smaller than the free distance growth rate, as expected.222Note that this paper analyzes the free pseudodistance growth rate which is an important indicator of the decoding performance of iterative decoding, while in [11], the free distance growth rate is derived mainly as a performance indicator for ML decoding.

The paper is structured as follows. In Section II, we describe the necessary background including the protograph construction method, graph-cover pseudocodewords, and convolutional protographs including a discussion of two different ways of terminating SC-LDPC codes which will be used to obtain lower and upper bounds in the following section. In Section III, we conduct the free pseudodistance analysis of SC-LDPC code ensembles with finite-degree covers over a BEC. We first prove bounds for the ensemble average free pseudodistance in Section III-A and then derive related bounds for the free pseudodistance growth rates of the code ensembles considered in Section III-B. Numerical results for the pseudodistance growth rates of a -regular SC-LDPC code ensemble are presented in Section III-C. Finally, concluding remarks are given in Section IV.

## Ii Background

A protograph [15] is a small bipartite graph that is used to derive a larger graph by “lifting”, i.e., taking an -fold graph cover of the protograph. The lifted graph preserves the graph neigbourhood structure and degree distribution of the protograph. The protograph can be represented by a base biadjacency matrix , where , , , is the number of edges connecting variable node to check node . The parity-check matrix of a protograph-based LDPC block code can be constructed by replacing each non-zero entry in by a sum of permutation matrices of size and each zero entry by the

all-zero matrix. The ensemble of protograph-based LDPC block codes with block length

is defined by the set of matrices that can be derived from a given protograph by choosing all possible combinations of permutation matrices.

### Ii-a Graph-Cover Pseudocodewords

Let be an integer. Given a Tanner graph with variable nodes, consider an -fold graph cover of , denoted as . Let be a codeword of , then is a pseudocodeword of , where , [6]. The pseudoweight of over a BEC is , the number of nonzeros in , denoted as . The pseudodistance, , for finite covers of a fixed degree of is defined as the minimum pseudoweight among all non-zero pseudocodewords from the degree- covers. Without danger of ambiguity, we will use instead; however, it should be emphasized that in our paper is not defined for all possible finite-degree covers of . In addition, we will use the term pseudodistance and minimum pseudoweight interchangeably.

### Ii-B Convolutional protographs

An ensemble of unterminated SC-LDPC codes can be described by a convolutional protograph [10] with base matrix

 \scalebox1.0B[0,∞]=⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢⎣[]ccccccB0B1B0⋮B1⋱Bms⋮⋱Bms⋱⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥⎦, (1)

where denotes the syndrome former memory of the convolutional codes and the component base matrices , , represent the edge connections from the variable nodes at time to the check nodes at time . An ensemble of time-varying SC-LDPC codes can then be formed from using the protograph construction method described above, resulting in the associated parity-check matrix

A rate time-varying SC-LDPC code with parity-check matrix is periodically time-varying with period if is periodic, i.e., , and if , the code is time-invariant. We call the decoding constraint length.

Starting from the base matrix of a block code ensemble, one can construct SC-LDPC code ensembles with the same computation trees. This is achieved by an edge spreading procedure (see [10] for details) that divides the edges from each variable node in the base matrix among component base matrices , , such that the condition is satisfied. For example, a (3,6)-regular SC-LDPC ensemble with can be formed from the block base matrix by defining the component base matrices .

From a convolutional protograph with base matrix , we can form a periodically time-varying -fold graph cover with period by choosing, for the submatrices in the first columns of , a set of permutation matrices randomly and independently to form submatrices , respectively, for . These submatrices are then repeated periodically (indefinitely) to form such that , . An ensemble of periodically time-varying SC-LDPC codes with period , rate , and decoding constraint length can then be derived by letting the permutation matrices used to form , for , vary over the choices of permutation matrix.

### Ii-C Termination of SC-LDPC codes

Suppose that we start the convolutional code with parity-check matrix defined in at time and terminate it after time instants. The resulting finite-length base matrix is then given by

 \scalebox1.0B[0,L−1]=⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢⎣B0⋮⋱BmsB0⋱⋮Bms⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥⎦(L+ms)bc×Lbv. (2)

The matrix can be considered as the base matrix of a terminated protograph-based SC-LDPC code ensemble. Termination in this fashion results in a rate loss. The design rate of the terminated code ensemble is given as

 RL=1−(L+msL)bcbv=1−(L+msL)(1−R), (3)

where is the rate of the unterminated convolutional code ensemble. Note that, as the termination factor increases, the rate increases monotonically and approaches the rate of the unterminated convolutional code ensemble.

The convolutional base matrix can also be terminated using tail-biting [16, 17]. Here, for any , the last rows of the terminated parity-check matrix are removed and added to the first rows to form the tail-biting parity-check matrix with tail-biting termination factor . Terminating in such a way preserves the design rate of the ensemble, i.e., , and we see that has exactly the same degree distribution as the original block base matrix .

## Iii Free pseudodistance analysis of SC-LDPC code ensembles with finite-degree covers over the BEC

In this section, we investigate the free pseudodistance of periodically time-varying SC-LDPC code ensembles with finite-degree covers over a BEC by deriving bounds for the ensemble average free pseudodistance using terminated and tail-biting SC-LDPC code ensembles.

### Iii-a Free pseudodistance bounds for SC-LDPC code ensembles with degree-m covers

Let denote the ensemble of unterminated periodically time-varying SC-LDPC codes as described in Section II-B. Let denote the associated ensemble of tail-biting SC-LDPC codes derived from the base matrix with termination factor , referred to simply as the tail-biting ensemble. Let denote the associated ensemble of terminated SC-LDPC codes derived from the base matrix with block length and termination factor , referred to as the terminated ensemble. For a fixed integer , consider the degree- graph covers of a code ensemble, i.e., for each code in the ensemble, consider all of its degree- covers. We define the ensemble average minimum pseudoweight over all of the pseudocodewords from all of the degree- covers of all of the codes in the ensemble. Let , and denote the ensemble average pseudodistance of , , and , respectively.

###### Lemma 1

Let be an arbitrary SC-LDPC code drawn from ensemble and consider a degree- cover of . Let and be the associated tail-biting codes of and , respectively, with tail-biting termination factor , , .333Note that we must select a multiple of the period as the termination factor so that the wrapped word is a codeword in the tail-biting code. For more details, see [12]. Let be an arbitrary pseudocodeword of obtained from a degree- cover, where , , and is a codeword of

. Then the “wrapped” vector

, where , , is a pseudocodeword of obtained from a degree- cover. Furthermore, we have pseudoweight over a BEC.

Sketch of Proof. Following the argument in [12], given a codeword in , the wrapped vector where all sums are performed modulo 2, is a codeword in . By summing every entries in , we obtain , a pseudocodeword from a degree- cover of . Clearly, , i.e., over a BEC, the pseudoweight .

###### Example 1

To illustrate the idea in Lemma 1, consider an ensemble of time-invariant SC-LDPC codes constructed from the block base matrix with component base matrices .444Note that we drop the notation of period for time invariant codes. Then we have the base matrix of the convolutional protograph

 B[0,∞]=⎡⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢⎣111111111111⋱⋱⎤⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥⎦.

For the purpose of illustration, let’s consider the trivial ensemble with -fold cover, so . Consider pseudocodewords from a degree- cover of ,

where and . When the tail-biting termination factor , we have

 B(λ)tb=B(2)tb=[11111111]

and

Here, and defines , defines , defines , and defines in Lemma 1. Consider a -cover pseudocodeword of which is constructed by summing every two bits of a codeword (in general not unique) of the code , e.g., is constructed from . Note that we grouped the associated two bits together for easy interpretation. Since , by “wrapping” the codeword , we obtain a vector of length () , where for example, and . It is easy to check that is a codeword of . By summing every two bits of , we obtain , a -cover pseudocodeword of . Lastly, we have , i.e., over a BEC, the pseudoweight .

We now use Lemma 1 to prove our first result, that the ensemble average free pseudodistance of the unterminated SC-LDPC code ensemble can be bounded below by the pseudodistance of an associated tail-biting ensemble.

###### Theorem 1 (Lower bound)

The ensemble average free pseudodistance of is bounded below by for tail-biting termination factor , i.e.,

 ¯wfree(T)≥¯w(T)min,tb. (4)

Proof. By Lemma 1, for , each degree- pseudocodeword for induces a degree- pseudocodeword for with pseudoweight . Hence and on average .

We now use the terminated ensemble to prove an upper bound on the ensemble average free pseudodistance of the unterminated SC-LDPC code ensemble.

###### Theorem 2 (Upper bound)

The ensemble average free pseudodistance of is bounded above by for termination factor , i.e.,

 ¯wfree(T)≤¯w(T)min,t. (5)

Proof. For every code in , there corresponds a terminated code in with , and every terminated code in with automatically induces a code in . Consequently, for every given pair of and , each degree- pseudocodeword of , , automatically induces a degree- pseudocodeword of . Hence and on average .

Without loss of clarity, we will drop the overline notation in the following discussion of ensemble average pseudodistances.

### Iii-B Free pseudodistance growth rates of SC-LDPC code ensembles

It has been shown in [6] how to calculate the asymptotic ensemble pseudoweight enumerator for protograph-based LDPC code ensembles for a finite-degree cover. If the asymptotic pseudoweight curve has a positive zero crossing , then it indicates that the minimum pseudoweight typical of most members of the ensemble is close to as , where is the pseudodistance growth rate of the ensemble, which equals to , and is the code length. A large pseudodistance growth rate means that, asymptotically, most pseudocodewords from the ensemble are “good pseudocodewords”.

Similar to the definition of free distance growth rate in [11], for SC-LDPC code ensembles, we define the free pseudodistance growth rate, , to be the ratio of the free pseudodistance to the decoding constraint length , i.e.,

 δ(T)free=w(T)freeνs.

Then by (4), we obtain lower bound

 δ(T)free≥ˇδ(T)minT(ms+1), (6)

where is the pseudodistance growth rate of with and base matrix . Finally, by (5), we obtain upper bound

 δ(T)free≤^δ(T)minT(ms+1), (7)

where is the pseudodistance growth rate of with and base matrix .

### Iii-C Numerical results

Consider, as an example, the -regular SC-LDPC code ensemble with defined by (1) with base matrices and . Further, consider and , the degree- covers and degree- covers of the ensemble. Since our terminated protographs are finite, we can use the same approach from [6] to calculate and .555Note that with our optimization framework, it was not necessary to employ the conjecture used in [6] to simplify the numerical calculations. We used MOSEK [18] as the inner optimization solver to solve the entropy maximization problems, the most time-consuming subroutines. For the outer optimization, we used the conjugate gradient method as the subproblem algorithm in MATLAB. Then, by (6) and (7), we calculate the lower bound for and the upper bound for . Figure 1 shows the pseudodistance growth rate (respectively, ) of the tail-biting (terminated) ensembles defined by base matrix for ( for ) and the associated lower (upper) bound on the free pseudodistance growth rate .

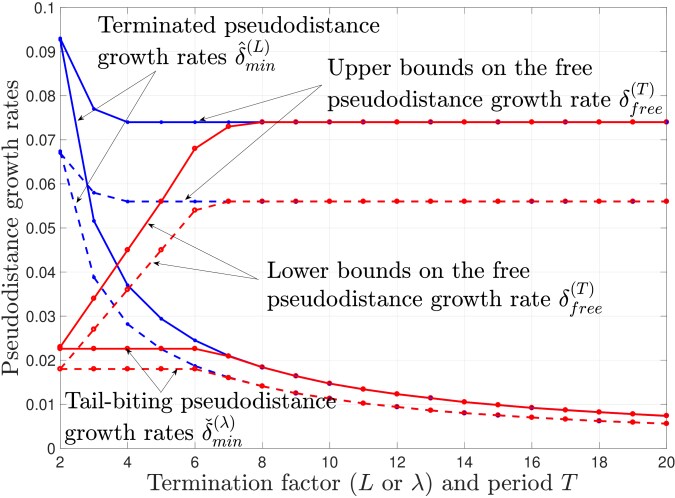

In Figure 1, we observe that for degree- covers (solid lines) the tail-biting and terminated ensembles have minimum pseudoweights that grow linearly with block length, i.e., asymptotically most pseudocodewords are good. We find that the calculated tail-biting pseudodistance growth rate stays constant until the termination factor and then decreases to zero as . Whereas the calculated terminated pseudodistance growth rate decreases monotonically to zero as tends to infinity (and coincides with as ). More importantly, we observe that the lower and upper bounds on the free pseudodistance growth rate , derived by (6) and (7), coincide for , and hence gives the exact free pseudodistance growth rate, . A similar observation can be made for the degree- covers (dashed lines) in Figure 1 with exact free pseudodistance growth rate, . This implies that for degree- and degree- covers, most pseudocodewords in the unterminated SC-LDPC code ensemble are asymptotically good, and the two growth rates are significantly larger than the pseudodistance growth rates, and , of the -regular LDPC block code ensemble with degree- and degree- covers, respectively.
