1 Introduction
Generative models have recently moved to the center stage of deep learning in their own right. Most notable is the seminal work on Generative Adversarial Networks (GAN)
(Goodfellow et al., 2014)as well as probabilistic architectures known as Variational Autoencoder (VAE)
(Kingma & Welling, 2013; Rezende et al., 2014). Here, the focus has moved away from density estimation and towards generative models that – informally speaking – produce samples that are perceptually indistinguishable from samples generated by nature. This is particularly relevant in the context of highdimensional signals such as images, speech, or text.
Generative models like GANs typically define a generative model via a deterministic generative mechanism or generator , , parametrized by . They are often implemented as a deep neural network (DNN), which is hooked up to a code distribution , to induce a distribution . It is known that under mild regularity conditions, by a suitable choice of generator, any can be obtained from an arbitrary fixed (Kallenberg, 2006). Relying on the power and flexibility of DNNs, this has led to the view that code distributions should be simple and a priori fixed, e.g. . As shown in Arjovsky & Bottou (2017) for DNN generators, is a countable union of manifolds of dimension though, which may pose challenges, if . Whereas a current line of research addresses this via alternative (nonMLE or KLbased) discrepancy measures between distributions (Dziugaite et al., 2015; Nowozin et al., 2016; Arjovsky et al., 2017), we investigate an orthogonal direction:
Claim 1.
It is advantageous to increase the modeling power of a generative model, not only via , but by using more flexible prior code distributions .
Another potential benefit of using a flexible latent prior is the ability to reveal richer structure (e.g. multimodality) in the latent space via , a view which is also supported by evidence on using more powerful posterior distributions (Mescheder et al., 2017). This argument can also be understood as follows. Denote by the distribution induced by the generator. Our goal is to ensure the distribution matches the true data distribution
. This brings us to consider the KLdivergence of the joint distributions which can be decomposed as
(1)
Assuming that the generator is powerful enough to closely approximate the data’s generative process, then the contribution of the term vanishes or becomes extremely small, and what remains is the divergence between the priors. This means that in light of using powerful neural networks to model , the prior agreement becomes a way to assess the quality of our learned model.
Empowered by this quantitative metric to evaluate the modeling power of a generative model, we will demonstrate some deficiencies in the assumption of using an arbitrary fixed prior such as a Normal distribution. We will further validate this observation by demonstrating that a flexible prior can be learned from data by mapping back the data points to their latent space representations. This procedure relies on a (trained) generator to compute an approximate inverse map
such that .Claim 2.
The generator implicitly defines an approximate inverse, which can be computed with reasonable effort using gradient descent and without the need to cotrain a recognition network. We call this approach generator reversal.
Note that, if the above argument holds, we can easily find latent vectors
corresponding to given observations . This then induces an empirical distribution of ”natural” codes. An extensive set of experiments presented in this paper reveals that this induced prior yields strong evidence of improved generative models. Our findings clearly suggest that further work is needed to develop flexible latent prior distributions in order to achieve generative models with greater modeling power.2 Measuring the Modeling Power of the Latent Prior
2.1 Gradient–Based Reversal
Let us begin with making Claim 2 more precise. Given a data point , we aim to compute some approximate code such that . We do so by simple gradient descent, starting from some random initialization for (see Algorithm 1).
Section B in the Appendix demonstrates that the generator reversal approach presented in Algorithm 1 ensures local convergence of gradient descent for a suitable choice of loss function.
Given the generator reversal procedure presented in Algorithm 1, a key question we would like to address is whether good (low loss) codevectors exist for data points . First of all, whenever was actually generated by , then surely we know that a perfect, zeroloss preimage exists. Of course finding it exactly would require the exact inverse function of the generator process but our experiments demonstrate that, in practice, an approximate answer is sufficient.
Secondly, if is in the training data, then as is trained to mimic the true distribution, it would be suboptimal if any such would not have a suitable preimage. We thus conjecture that learning a good generator will also improve the quality of the generator reversal, at least for points of interest (generated or data). Note that we do not explicitly train the generator to produce preimages that would further optimize the training objective. This would require backpropagating through the reversal process which is certainly possible and would likely yield further improvements.
Anecdotally, we have found the generator reversal procedure to be quite effective at finding reasonable preimages of data samples even for generators initialized for random weights. Some empirical results are provided in Section C of the Appendix.
2.2 Measuring Prior Agreement
Modeling the distribution of a complex set of data requires a rich family of distributions which is typically obtained by introducing latent variables and modeling the data as Often the prior is assumed to be a Normal distribution, i.e. .
This principle underlies most modern generative models such as GANs, effectively turning the generation process as mapping latent noise to observed data through a generative model . In GANs, the generative model  or generator  is a neural network parameterized as , and optimized to find the best set of parameters . Note that an implicit assumption that is made by this modeling choice is that the generative process is adequate and therefore sufficiently powerful to find in order to reconstruct the data . For GANs to work, this assumption has to hold despite the fact that the prior is kept fixed. In theory, such generator does exist as neural networks are universal approximators and can therefore approximate any function. However, finding requires solving a highdimensional and nonconvex optimization problem and is therefore not guaranteed to succeed.
We here explore an orthogonal direction. We assume that we have found a suitable generative model that could produce the data distribution but the prior is not appropriate. We would like to quantify to what degree does the assumed prior disagrees with the data induced prior therefore measuring how well our generated distribution agrees with the data distribution. Our goal in doing so is not to propose a new training criterion, but rather to assess the quality of our generative model by measuring the quality of the prior.
Prior Agreement (PAG) Score
We consider the standard case where is modeled as a multivariate Normal distribution with diagonal uniform covariance. Our goal is to measure the disagreement between this prior and some more suitable prior. The latter not being known apriori, we instead settle for a multivariate Normal with diagonal covariance where the are inferred from a trained generator as detailed below. This choice of prior will allow for a simple computation of divergence as follows:
(2)
The divergence defined in Equation 2 defines the Prior Agreement (PAG) Score. It requires the quantities which can easily be computed by mapping the data to the latent space using the reversal procedure described in Section 2.1 and then performing an SVD decomposition on the resulting latent vectors . The
then correspond to the singular values
obtained in the SVD decomposition .Note that more complex choices as a substitute for the data induced prior would allow for a better characterization of the inadequacy of the Normal prior with uniform covariance. We will however demonstrate that the PAG score defined in Equation 2 is already effective at revealing surprising deficiencies in the choice of the Normal prior.
3 Learning the Data Induced Prior

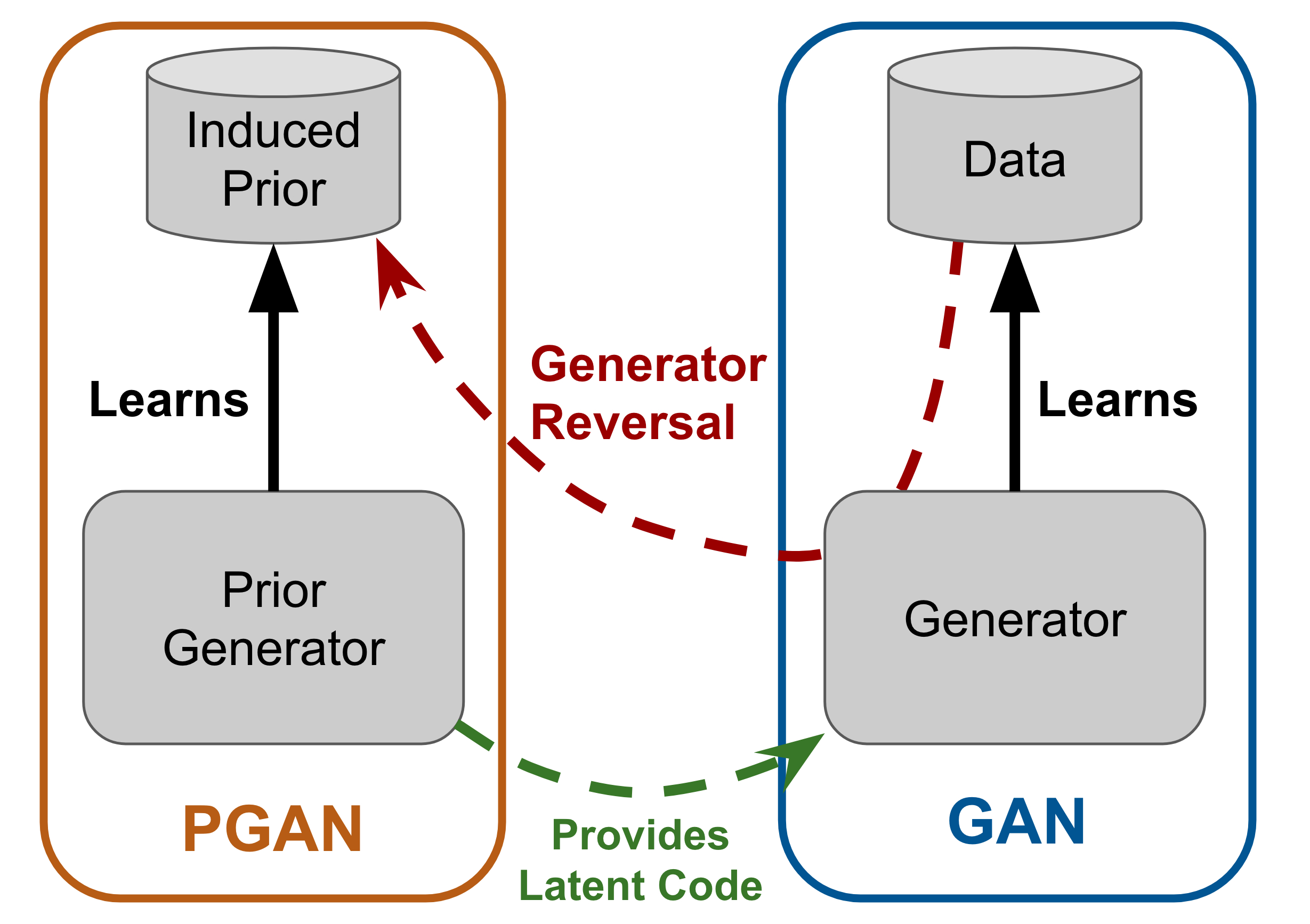

So far, we have introduced a way to characterize the fit of a chosen prior to model the data distribution given a trained generator . Equipped with this agreement score, we now turn our attention to designing a method to address the potential problems that could arise from choosing an inappropriate prior . As shown in Figure 1, we suggest learning the data induced prior distribution using a secondary GAN we name PGAN which learns a mapping function where is an auxiliary latent space with the same or higher ambient dimension as the original latent space . The mapping defines a transformation of the noise vectors in order to match the data induced prior. Note that training the mapping function is done by keeping the original GAN unchanged, thus we only need to run the reversal process once for the dataset and then the reverted data in the latent space becomes the target to train .
If the original prior over the latent space is indeed not a good choice to model , we should see evidence of a better generative model by sampling from the transformed latent space
. Such evidence including better quality samples, less outliers and higher PAG scores are shown in Figure
5 (see details in Section 4). Note that having obtained this mapping opens the door to various schemes such as multiple rounds of retraining the original GAN and training the PGAN using the newly learned prior or training yet another PGAN to match the data induced prior of the first PGAN. We leave these practical considerations to future work, as our goal is simply to provide a method to quantify and remedy the fundamental problem of prior disagreement.4 Experiments
The experimental results presented in this section are based on offtheshelf GAN architectures whose details are provided in the appendix. We restrict the dimension of the latent space to . Although similar experimental results can be obtained with latent spaces of larger dimensions, the lowdimensional setting is particularly interesting as it requires more compression, providing an ideal scenario to empirically verify the fitness of the fixed Gaussian prior with respect to the data induced prior.
4.1 Mapping a dataset to the latent space
Given a generator network, we first map 1024 data points from the MNIST dataset to the latent space using the Generator Reversal procedure. We then use tSNE to reduce the dimensionality of the latent vectors to 2 dimensions. We perform this procedure for both an untrained and a fullytrained networks and show the results in Figure 2. One can clearly see a multimodal structure emerging after training the generator network, indicating that a unimodal Normal distribution is not an appropriate choice as a prior over the latent space.
4.2 PriorDataDisagreement samples
In order to demonstrate that a simple Normal prior does not capture the data induced prior, we sample points that are likely under the Normal prior but unlikely under the data induced prior. This is achieved by sampling a batch of 1000 samples from the Normal prior, then ordering the samples according to their mean squared distance to the found latent representations of a batch of data. Figure 3
shows the the top 20 samples in the data space (obtained after mapping the top 20 latent vectors to the data space using the generator). The poor quality of these samples indicate that the induced prior assigns loss probability mass to unlikely samples.
4.3 Evaluating the PAG Score




We now evaluate how the PAG score correlates with the visual quality of the samples produced by a generator. We first train a selection of 16 GAN models using different combinations of filter size, layer size and regularization constants. We then select the best and the worst model by visually inspecting the generated samples. We show the samples as well as the corresponding PAG scores in Figure 4. These results clearly demonstrate that the PAG score strongly correlates with the visual quality of the samples. We also report the Inception score for datasets that provide a class label, and observe a strong agreement with the PAG scores.
4.4 Learning the Data Induced Prior using a secondary GAN
Following the procedure presented in Section 3, we train a GAN until convergence and then use the Generator Reversal procedure to map the dataset to the latent space, therefore inducing a datainduced prior. We then train a secondary GAN (called PGAN) to learn this prior from which we can then continue training the original GAN for a few steps.
We expect that the model trained with the datainduced prior will be better at capturing the true data distribution. This is empirically verified in Figure 5 by inspecting samples produced by the original and retrained model. We also report the PAG scores for which we see a significant reduction therefore confirming our hypothesis of obtaining an improved generative model. Note that the datainduced prior yields more realistic and varied output samples, even though it uses the same dimensionality of latent space as the original simple prior.




5 Related Work
Our generator reversal is similar in spirit to Kindermann & Linden (1990), but their intent differs as they use this technique as a tool to visualize the information processing capability of a neural network. Unlike previous works that require the transfer function to be bijective Baird et al. (2005); Rippel & Adams (2013), our approach does not strictly have this requirement, although this could still be imposed by carefully selecting the architecture of the network as shown in Dinh et al. (2016); Arjovsky et al. (2017).
In the context of GANs, other works have used a similar reversal mechanism as the one used in our approach, including e.g. Che et al. (2016); Dumoulin et al. (2016); Donahue et al. (2016). All these methods focus on training a separate encoder network in order to map a sample from the data space to its latent representation. Our goal is however different as the reversal procedure is here used to estimate a more flexible prior over the latent space.
Finally, we note that the importance of using an appropriate prior for GAN models has also been discussed in Han et al. (2016) which suggested to infer the continuous latent factors in order to maximize the data loglikelihood. However this approach still makes use of a simple fixed prior distribution over the latent factors and does not use the inferred latent factors to construct a prior as suggested by our approach.
6 Conclusion
We started our discussion by arguing that is advantageous to increase the modeling power of a generative model by using more flexible prior code distributions. We substantiated our claim by deriving a quantitative metric estimating the modeling power of a fixed prior such as the Normal prior commonly used when training GAN models. Our experimental results confirm that this measure reveals the standard choice of an arbitrary fixed prior is not always an appropriate choice. In order to address this problem, we presented a novel approach to estimate a flexible prior over the latent codes given by a generator . This was achieved through a reversal technique that reconstruct latent representations of data samples and use these reconstructions to construct a prior over the latent codes. We empirically demonstrated that the resulting datainduced prior yields several benefits including: more powerful generative models, better modeling of latent structure and semantically more appropriate output.
References
 Arjovsky & Bottou (2017) Martin Arjovsky and Léon Bottou. Towards principled methods for training generative adversarial networks. In NIPS 2016 Workshop on Adversarial Training. In review for ICLR, volume 2016, 2017.
 Arjovsky et al. (2017) Martin Arjovsky, Soumith Chintala, and Léon Bottou. Wasserstein gan. arXiv preprint arXiv:1701.07875, 2017.
 Baird et al. (2005) L Baird, D Smalenberger, and S Ingkiriwang. Onestep neural network inversion with PDF learning and emulation. In International Joint Conference on Neural Networks, pp. 966–971. IEEE, 2005.
 Che et al. (2016) Tong Che, Yanran Li, Athul Paul Jacob, Yoshua Bengio, and Wenjie Li. Mode Regularized Generative Adversarial Networks. December 2016.
 Dinh et al. (2016) Laurent Dinh, Jascha SohlDickstein, and Samy Bengio. Density estimation using real nvp. arXiv preprint arXiv:1605.08803, 2016.
 Donahue et al. (2016) Jeff Donahue, Philipp Krähenbühl, and Trevor Darrell. Adversarial feature learning. arXiv preprint arXiv:1605.09782, 2016.
 Dumoulin et al. (2016) Vincent Dumoulin, Ishmael Belghazi, Ben Poole, Olivier Mastropietro, Alex Lamb, Martin Arjovsky, and Aaron Courville. Adversarially Learned Inference. June 2016.
 Dziugaite et al. (2015) Gintare Karolina Dziugaite, Daniel M Roy, and Zoubin Ghahramani. Training generative neural networks via Maximum Mean Discrepancy optimization. May 2015.
 Goodfellow et al. (2014) Ian Goodfellow, Jean PougetAbadie, Mehdi Mirza, Bing Xu, David WardeFarley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio. Generative Adversarial Nets. pp. 2672–2680, 2014.
 Han et al. (2016) Tian Han, Yang Lu, SongChun Zhu, and Ying Nian Wu. Alternating backpropagation for generator network. arXiv preprint arXiv:1606.08571, 2016.
 He et al. (2016) Kun He, Yan Wang, and John Hopcroft. A powerful generative model using random weights for the deep image representation. In Advances In Neural Information Processing Systems, pp. 631–639, 2016.
 Kallenberg (2006) Olav Kallenberg. Foundations of modern probability. Springer Science & Business Media, 2006.
 Kindermann & Linden (1990) Joerg Kindermann and Alexander Linden. Inversion of neural networks by gradient descent. Parallel computing, 14(3):277–286, 1990.
 Kingma & Welling (2013) Diederik P Kingma and Max Welling. AutoEncoding Variational Bayes. arXiv.org, December 2013.
 Mescheder et al. (2017) Lars Mescheder, Sebastian Nowozin, and Andreas Geiger. Adversarial variational bayes: Unifying variational autoencoders and generative adversarial networks. arXiv preprint arXiv:1701.04722, 2017.
 Nowozin et al. (2016) Sebastian Nowozin, Botond Cseke, and Ryota Tomioka. fgan: Training generative neural samplers using variational divergence minimization. In Advances in Neural Information Processing Systems, pp. 271–279, 2016.
 Rezende et al. (2014) D J Rezende, S Mohamed, and D Wierstra. Stochastic backpropagation and approximate inference in deep generative models. arXiv.org, 2014.
 Rippel & Adams (2013) Oren Rippel and Ryan Prescott Adams. HighDimensional Probability Estimation with Deep Density Models. CoRR, 2013.

Tieleman & Hinton (2012)
Tijmen Tieleman and Geoffrey Hinton.
Lecture 6.5rmsprop: Divide the gradient by a running average of its recent magnitude.
COURSERA: Neural networks for machine learning
, 4(2), 2012.
Appendix A Derivation Equation 1
(3)
Appendix B Local Convergence of the Gradient–Based Reversal
Let us demonstrate that the generator reversal approach presented in Algorithm 1 ensures local convergence of gradient descent for a suitable choice of loss function.
Proposition 1.
We are given an loss function and a generator function . Consider a point and assume the function is locally invertible around ^{1}^{1}1Note that this is a less restrictive assumption than the diffeomorphism property required in Arjovsky & Bottou (2017). Then the reconstruction problem is locally convex at .
Proof.
We prove the result stated above by showing that the Hessian of at is positive semidefinite.
(4)
Let denote the Jacobian of and let’s compute the Hessian of at :
Since is assumed to be locally invertible around , then and the Hessian is therefore positive semidefinite. ∎
Note that one could also add an regularizer to Equation 4 in order to obtain a locally stronglyconvex function.
Appendix C Random Network Experiments
It is very hard to give quality guarantees for the approximations obtained via generator reversal. Here, we provide experimental evidence by showing that even a DNN generator with random weights can provide reasonable preimages for data samples. As we argued above, we believe that actual training of will improve the quality of preimages, so this is in a way a worst case scenario.

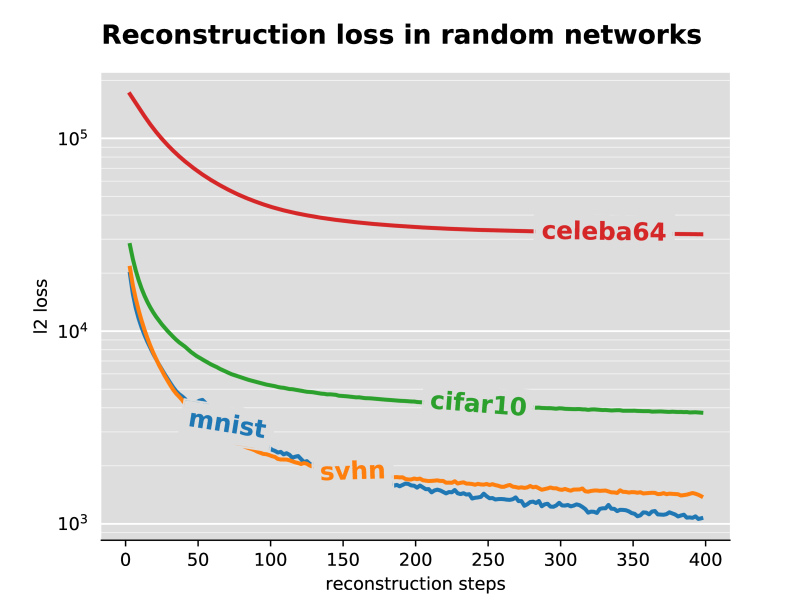

Examples for three different image data sets are shown in Figure 7. Here we show the average reconstruction error as a function of the number of gradient update steps. We observe that the error decreases steadily as the reconstruction progresses and reaches a low value very quickly. We also show randomly selected reconstructed samples in Figure 7, which reflect the fast decrease in terms of reconstruction error. After only 5 update steps, one can already recognize the general outline of the picture. This is perhaps even more surprising considering that these results were obtained using a generator with completely random weights. A similar finding was also reported in He et al. (2016) which constructed deep visualizations using untrained neural networks initialized with random weights.
Appendix D Latent space data distribution
Figure 8 shows the distribution of the obtained latent codes after Generator Reversal. Interestingly, although the distributions are different from the naive prior, they are not indicative of low rank latent data. This agrees with our expectations, as a well trained generator will make use of all available latent dimensions.
Appendix E Detailed Experiment Setup
Our experimental setup closely follows popular setups in GAN research in order to facilitate reproducibility and enable qualitative comparisons of results. Our network architectures are as follows:
The generator samples from a latent space of dimension 20, which is fed through a padded deconvolution to form an initial intermediate representation of
, which is then fed through four layers of deconvolutions with 512, 256, 128 and 64 filters, followed by a last deconvolution to get to the desired output size and channels.The discriminator consists of three layers of convolutional layers with 512, 256, 128 and 64 filters, followed by a fully connected layer and a sigmoid classifier.
Both the generator and the discriminator use
filters with a stride of
in order to up and downscale the representations, respectively. The generator employs ReLU nonlinearities, except for the last layer, which uses hyperbolic tangent. The discriminator uses Leaky ReLU nonlinearities with a leak of
, which is standard in the GAN literature.The PGAN consists of four layers of fully connected units in both the generator and discriminator. Apart from the layers being fully connected, the architecture is analogous to the original GAN.
We use RMSProp(Tieleman & Hinton, 2012) with a step size of and minibatches of size 100 for optimization for all networks.
For the generator reversal process, we use a learning rate of . The initial noise vectors are sampled from a normal distribution with .
We train until we can no longer see any significant qualitative improvement in the generated images or any quantitative improvement in the inception score (if available).
For the CelebA dataset, we crop the images to a size of pixels, after which we resize them to pixels.
