Fixation probability and fixation time in structured populations

09/27/2018 ∙ by Josef Tkadlec, et al. ∙ 0

The rate of biological evolution depends on the fixation probability and on the fixation time of new mutants. Intensive research has focused on identifying population structures that augment the fixation probability of advantageous mutants. But these `amplifiers of natural selection' typically increase fixation time. Here we study population structures that achieve a tradeoff between fixation probability and time. First, we show that no amplifiers can have a significantly lower fixation time than the well-mixed population. Then we design population structures that substantially augment the fixation probability with just a minor increase in fixation time. Finally, we show that those structures enable higher effective rate of evolution than the well-mixed population provided that the rate of generating advantageous mutants is relatively low. Our work sheds light on how population structure affects the rate of evolution. Moreover, our structures could be useful for lab-based, medical or industrial applications of evolutionary optimization.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The two primary forces that drive evolutionary processes are mutation and selection. Mutation generates new variants in a population. Selection chooses among them depending on the reproductive rates of individuals. Evolutionary processes are intrinsically random. A new mutant that is initially present in the population at low frequency can go extinct due to random drift. The key quantities of evolutionary dynamics which affect the rate of evolution are [1, 2, 3, 4, 5]: (a) the mutation rate , which is the rate at which new mutants are generated; (b) the fixation probability , which is the probability that the lineage of a mutant takes over the whole population; and (c) the fixation time , which is the expected time until the lineage of a mutant fixates in the population.

A classical and well-studied evolutionary process is the discrete-time Moran birth-death process [6]. Given a population of individuals, at each time step an individual is chosen for reproduction proportionally to its fitness; then the offspring replaces a random individual (see Figure 1a). In the case of a well-mixed population, each offspring is equally likely to replace any other individual. For a single new mutant with relative fitness , its fixation probability is . Thus, for and large we have  [7, 3].

For measuring time, there are two natural options. The absorption time is the average number of steps of the Moran process until the population becomes homogeneous, regardless of whether the mutant fixates or becomes extinct. Alternatively, the (conditional) fixation time is the average number of steps of those evolutionary trajectories that lead to the fixation of the mutant, ignoring trajectories that lead to the extinction of the mutant.

For the well-mixed population, both the absorption time and the fixation time are of order of  [8, 9]. Specifically, for and large , the absorption time is approximately while the fixation time is approximately . For neutral evolution, , the absorption time is approximately while the fixation time is . In what follows, we focus on the fixation time, because it is more relevant for the rate of evolution.

Both the fixation probability and the fixation time depend on population structure [10, 11, 12, 13, 14, 15, 16, 17, 18]. Evolutionary graph theory is a framework to study the effect of population structure. In evolutionary graph theory, the structure of a population is represented by a graph [7, 19, 20, 21, 22, 23]: each individual occupies a vertex; the edges represent the connections to neighboring sites where a reproducing individual can place an offspring. The edge weights represent the proportional preference to make such a choice. The well-mixed population is given by the complete graph where each individual is connected to each other individual (Figure 1b). Graphs can also represent deme structured populations, where islands are represented by complete graphs and connections (of different weights) exist between islands. Graphs can also represent spatial lattices or asymmetric structures.

A well-studied example is the star graph , which has one central vertex and surrounding vertices each connected to the central vertex (Figure 1b). For the star graph, the fixation probability tends to approximately for and large while the fixation time is proportional to approximately  [24, 25]. Hence, if a mutant has fitness advantage, which means , the star graph amplifies the advantage to , but at the cost of increasing the time to fixation (Figure 1c).

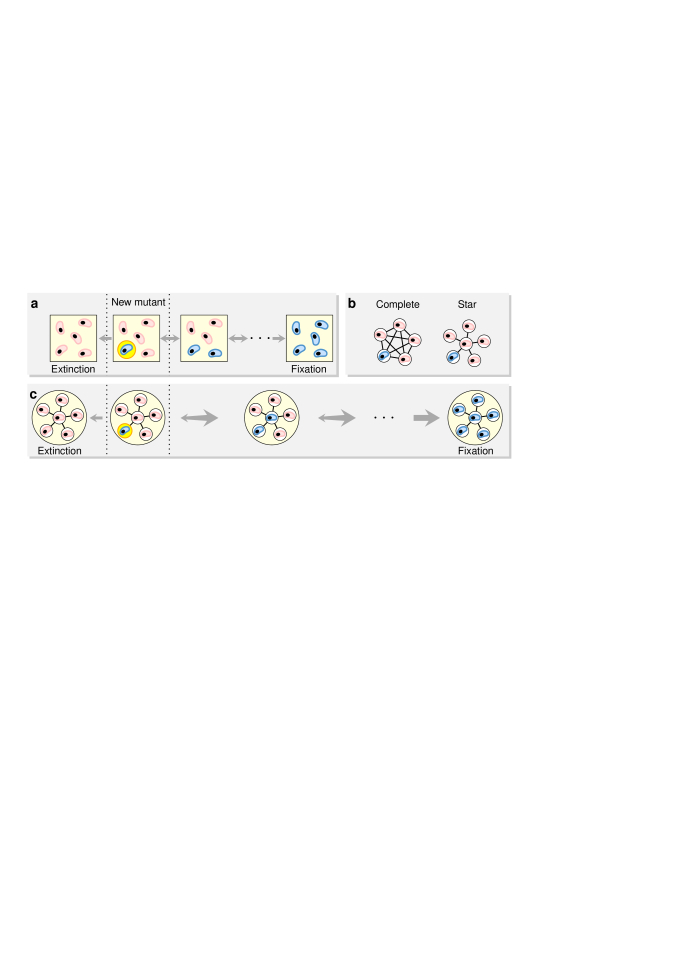

Figure 1: Moran process on graphs. a, A new mutant (blue) appears in a population of finite size. The lineage of the new mutant can either become extinct or reach fixation. The Moran process is a birth death process; in any one time step one new offspring is generated and one individual dies. b, All fixed spatial structures can be described by graphs. The classical, well-mixed population corresponds to a complete graph, where all positions are equivalent. The star graph is a well-studied example of extreme heterogeneity, where one individual, the center, is connected to all others, but each leaf is only connected to the center. c, Population structure influences both the fixation probability and the fixation time. An advantageous mutant introduced at a random vertex of a star graph is more likely to fixate than on a complete graph (the arrows pointing to the right are thicker), but the (average) fixation time on the star is much longer than on the complete graph (the arrows are longer). The star graph achieves amplification at the cost of deceleration.

Several population structures have been identified that alter the fixation probability of advantageous mutants. Structures that decrease the fixation probability are known as suppressors of selection and those that increase it are known as amplifiers of selection [7, 26, 27, 28]. However, amplification is usually achieved at the cost of increasing fixation time [13, 17, 29, 30]. For example, the star graph has higher fixation probability but also longer fixation time as compared to the well-mixed population. There also exist superamplifiers (also known as arbitrarily strong amplifiers of natural selection) that guarantee fixation of advantageous mutants in the limit of large population size [31, 32, 33, 34]. But those structures tend to require even longer fixation times.

We can refer to population structures that decrease the fixation time as accelerators. Both the fixation probability and the fixation time play an important role in the speed of evolution. Ideally, we prefer a population structure that is both an amplifier and an accelerator, but all known amplifiers achieve amplification at the cost of deceleration. In fact, this slowdown can be so prominent that it outweighs the amplification and leads to longer evolutionary timescales [17].

Here we show that no amplifier can be asymptotically faster than the well-mixed population. Thus, compared to amplifiers, the complete graph is asymptotically optimal with respect to fixation time. Given this negative result, we proceed to study the tradeoff between fixation probability and time more closely. We have computed fixation probabilities and fixation times for a large class of graphs. While the well-mixed population is asymptotically optimal with respect to fixation time, and the star graph is favorable with respect to fixation probability, there is a very interesting trade-off curve between fixation probability and fixation time. In other words, there exist population structures which provide different trade-offs between high fixation probability and short fixation time. As our main analytical results, we present population structures that asymptotically achieve fixation probability equal to that of star graphs and fixation time similar to that of well-mixed populations. Thus, we achieve amplification with negligible deceleration.

Finally, while the above analytical results are established for large population sizes, we also study evolutionary processes on population structures of small or intermediate size by numerical simulation. Specifically, we consider the effective rate of evolution as proposed in an influential paper by Frean, Rainey, and Traulsen [17]. Generally speaking, the well-mixed population has a high effective rate of evolution if the mutation rate is high, while the star graph has a high effective rate of evolution if the mutation rate is very low. We show that for a wide range of intermediate mutation rates, our new structures achieve higher effective rate of evolution than both the well-mixed population and the star graph.

2 Results

We study several fundamental questions related to the probability-time trade-off of a single advantageous mutant in a population of size . Mutants can arise either spontaneously or during reproduction. Mutants that arise spontaneously appear at a vertex chosen uniformly at random among all vertices. This is called uniform initialization. Mutants that arise during reproduction appear at each vertex proportionally to its replacement rate, which is called temperature of that vertex. This is called temperature initialization. We study the probability-time trade-off for both types of initialization.

2.1 No amplifier is a significant accelerator

First, we investigate whether there are population structures that are amplifiers and significant accelerators of selection as compared to the complete graph (well-mixed population). We answer the question in negative by proving that for any amplifier with population size , the fixation time is at least , for both types of initialization. Since the fixation time for complete graph is also of the order of , regardless of initialization, no amplifier ensures asymptotically faster fixation than the complete graph. While the above result holds for any graph that is an amplifier, we present a simple graph that is a suppressor and has a shorter fixation time than the complete graph for the same population size (see Appendix 1).

2.2 Uniform initialization: -Balanced bipartite graphs

Second, we consider uniform initialization. There are two interesting questions: (1) For fixed (small) population size, how do different population structures fare with respect to the probability-time trade-off? (2) In the limit of large population size, do there exists population structures that achieve the same amplification as the star graph, with shorter fixation time? Our results are as follows:

  • For small population size, both fixation probability and fixation time can be computed numerically [35]. We do this for all graphs with vertices and a mutant with relative fitness advantage (see Figure 2). We observe that the complete graph has the shortest fixation time, and the star graph has the highest fixation probability. However, the star graph has much longer fixation time than the complete graph. While some graphs have smaller fixation probability and longer fixation time than the complete graph, there are other graphs which provide a trade-off between high fixation probability and short fixation time. In particular, there are Pareto-optimal graphs. Recall that in two- or multi-dimensional optimization problems, the Pareto front is the set of non-dominated objects. In our case, the Pareto front consists of graphs for which the fixation probability can not be improved without increasing the fixation time. The complete graph and the star graph are the two extreme points of the Pareto front. This finding holds for other values of and as well (see Figures 7 and 8).

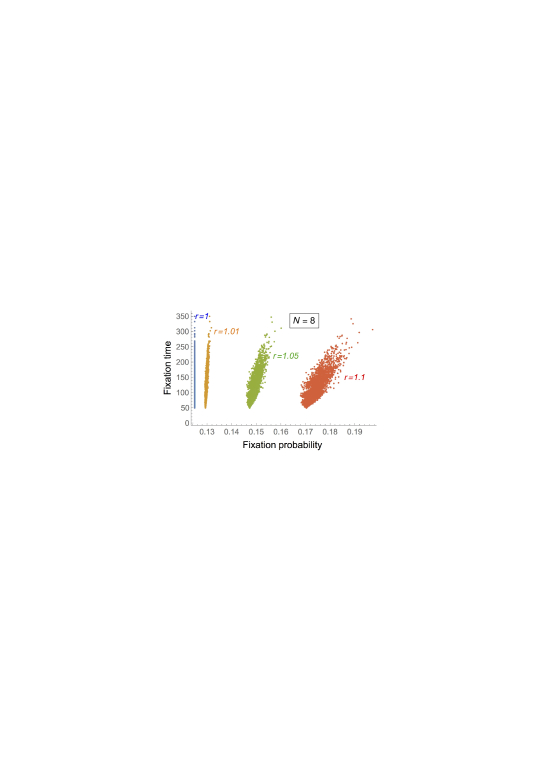

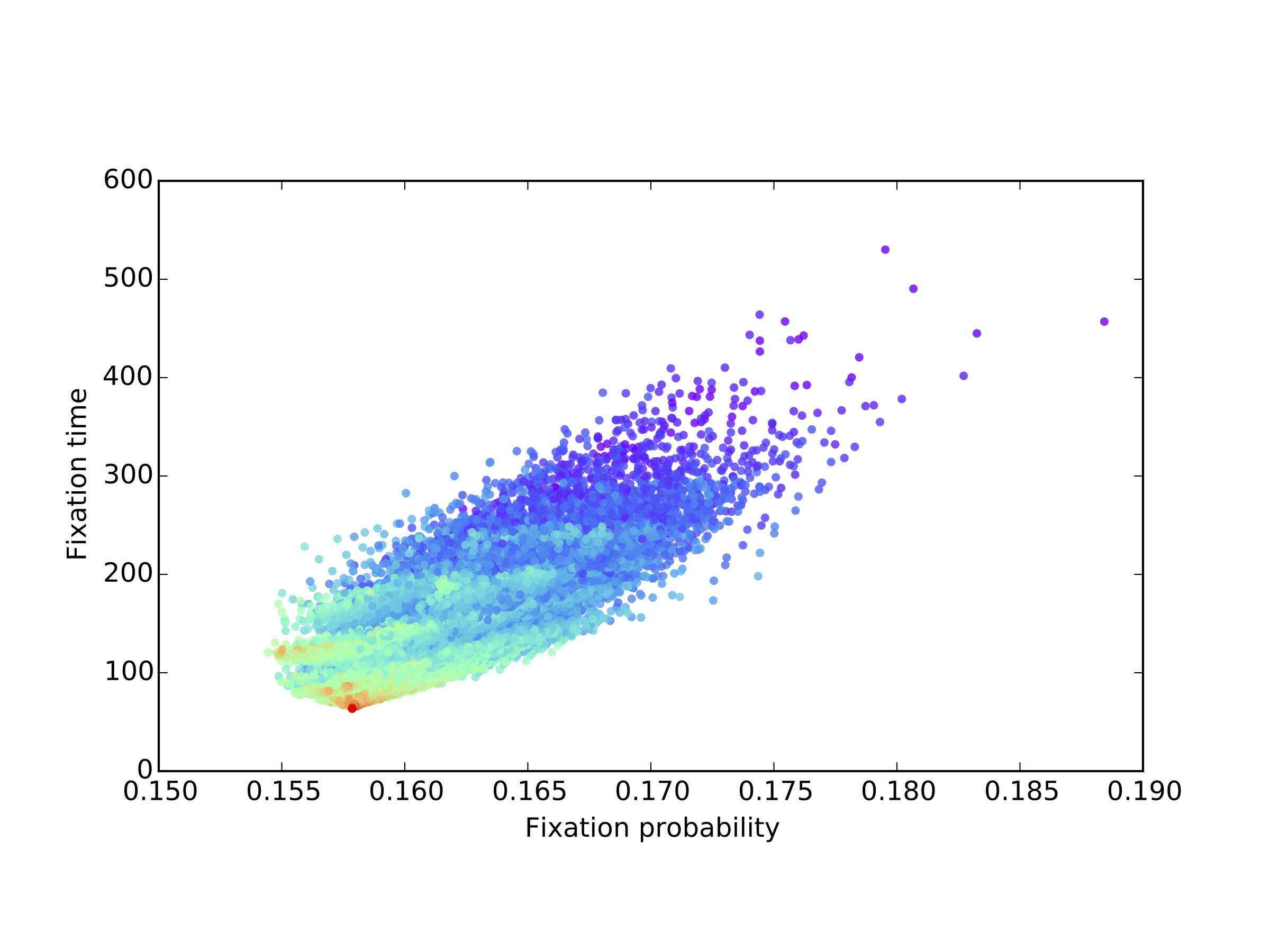

    Figure 2: Fixation probability and time under uniform initialization. Numerical solutions for all 11,117 undirected connected graphs of size . Each graph is represented by a dot and color corresponds to the number of its edges. The - and -coordinates show the fixation probability and the fixation time for a single mutant with relative fitness , under uniform initialization. The graphs to the right of the complete graph are amplifiers of selection: they increase the fixation probability. Any graph below the complete graph would be an accelerator of selection: it would decrease the fixation time. Graphs close to the bottom right corner provide good trade-off between high fixation probability and short fixation time. All the values are computed by numerically solving large systems of linear equations (see e.g. [35]). See Figures 7 and 8 for other values and .
  • We answer the second question in the affirmative. The trade-off results (Figure 2) that we study allow us to obtain graphs which we call -Balanced bipartite graphs. Intuitively, they are defined as follows: We split the vertices into two groups such that one is much smaller than the other, but both are relatively large. Then we connect every two vertices that belong to different groups. We show that, in the limit of large population size, this bipartite graph achieves the same fixation probability as the star graph and that its fixation time asymptotically approaches that of the complete graph. Formally, an -Balanced bipartite graph is a complete bipartite graph with the parts containing and vertices (see Figure 3a for illustration with and ). We show that the fixation probability of such graphs tends to while the fixation time is of the order of , for any (compared to fixation time of complete graph). Thus we achieve the best of two worlds, that is, we present a graph family that, in the limit of large population size, is as good an amplifier as the star graph and almost as good with respect to time as the complete graph.

Moreover, we support the analytical result with computer simulations for fixed population size . We compute the fixation probability and time for selected families of graphs, such as Trees or random Erdős–Rényi graphs (see Figure 3b). The -Balanced bipartite graphs outperform all of them. Hence the analytical results are interesting not only in the limit of large population but already for relatively small population sizes.

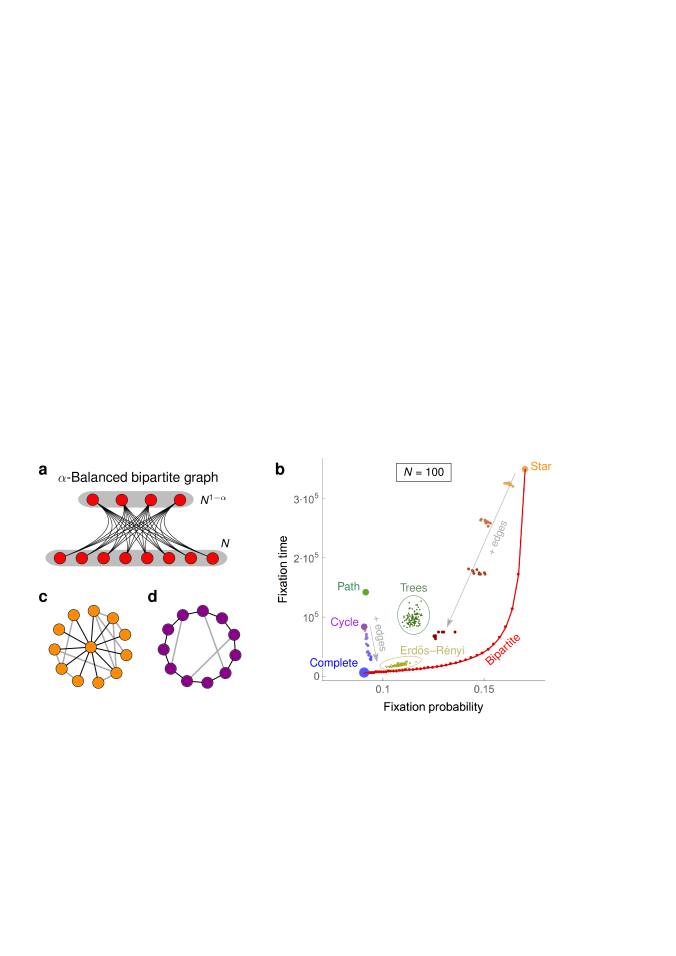

Figure 3: -Balanced bipartite graphs. a, An -Balanced bipartite graph is a complete bipartite graph with vertices in the larger part and vertices in the smaller part. Here and . We prove that for large , the -Balanced bipartite graphs achieve the fixation probability of a star and, for small, approach the fixation time of the complete graph (see Figures 9 and  10). b, In general, bipartite graphs provide great trade-offs between high fixation probability and short fixation time. Comparison is with selected graphs of size such as Trees (), random Erdős–Renyi graphs (, ), star graphs with additional 10, 30, 50, 100 random edges ( each), and cycle graphs with additional 1, 3, 5, 10 random edges ( each). The values were obtained by simulating the Moran process times. c, Star graph with several random edges. d, Cycle graph with several random edges.

2.3 Temperature initialization: -Weighted bipartite graphs

Third, we consider temperature initialization. The above questions for uniform initialization are also the relevant questions for temperature initialization. Our results are as follows:

  • Simulation results. Again we numerically compute the fixation probability and the fixation time for all graphs with vertices (see Figure 4). In contrast to the results for uniform initialization (Figure 2), under temperature initialization, the complete graph has both the highest fixation probability and the shortest fixation time. This finding holds for other values of and as well (see Figures 11 and 12).

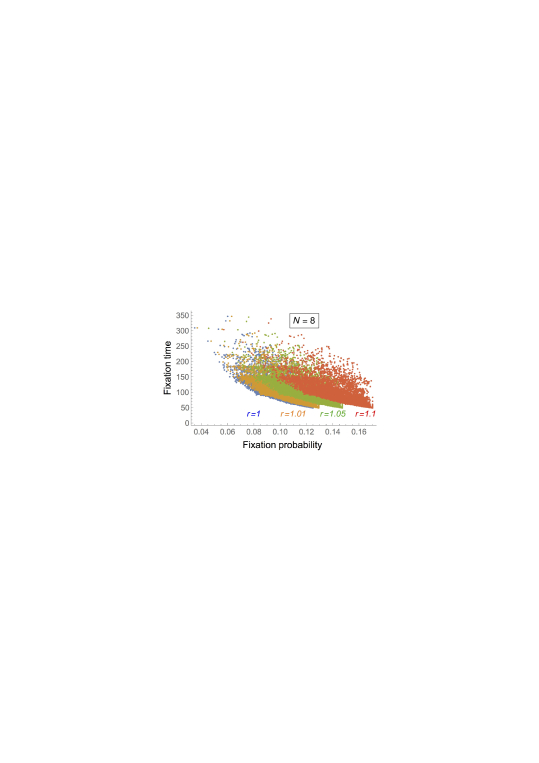

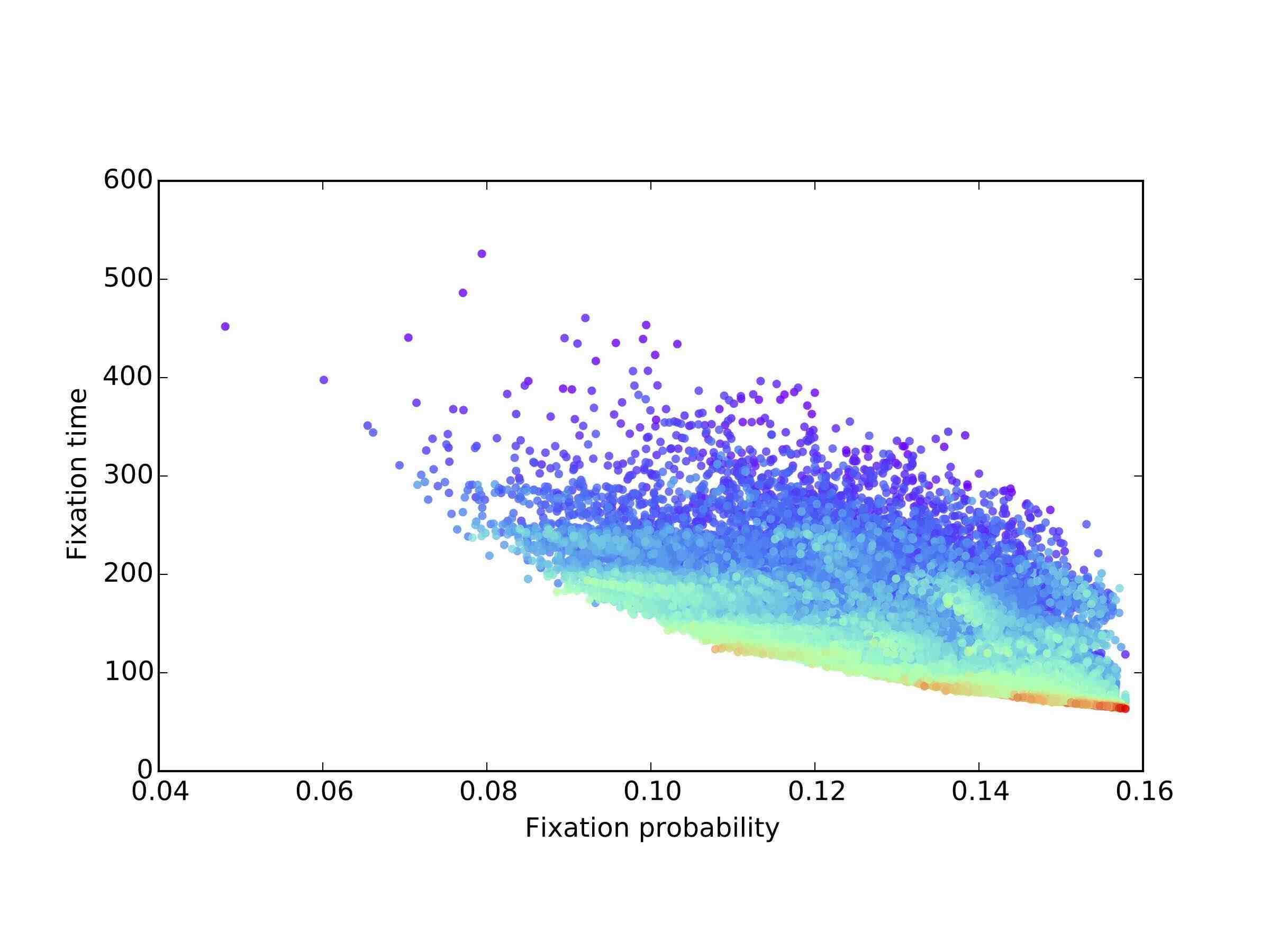

    Figure 4: Fixation probability and time under temperature initialization. Numerical solutions for all undirected connected graphs of size , under temperature initialization (). There are no amplifiers and no (strict) accelerators. By the isothermal theorem [7], all the regular graphs achieve the same fixation probability as the complete graph. See Figures 11 and 12 for other values and .
  • Analytical results. Figure 4 shows that there is no trade-off for temperature initialization. The result is not surprising as it has recently been shown that, for temperature initialization, no unweighted graphs can achieve significant amplification [34], and in the present work we have established that complete graph is asymptotically optimal among amplifiers with respect to fixation time. Thus the important analytical question is whether weighted graphs can achieve interesting trade-offs between fixation probability and time. We answer this question in the affirmative by presenting a weighted version of -Balanced bipartite graphs (see Figure 5a). Intuitively, we add weighted self-loops to all vertices in the larger group of an -Balanced bipartite graph, such that when such a vertex is selected for reproduction, its offspring replaces the parent most of the time and migrates to the smaller group only rarely. Formally, the -Weighted bipartite graph is a complete bipartite graph with the parts containing and vertices. Moreover, each vertex in the larger part has an extra self-loop of weight approximately . We show that, in the limit of large population size, this weighted bipartite graph structure achieves the fixation probability (which is the same as the star graph under uniform initialization), while the fixation time is of the order of , for any (compared to fixation time of complete graph). Thus we again achieve the best of two worlds, that is, we present a graph family that, in the limit of large population, is as good an amplifier as the star graph (under uniform initialization) and almost as good with respect to time as the complete graph.

As before, Figure 5b shows computer simulations for , including Trees, random Erdős–Rényi graphs and the Bipartite graphs. The -Weighted bipartite graphs are the only graphs that considerably increase the fixation probability as compared to the complete graph.

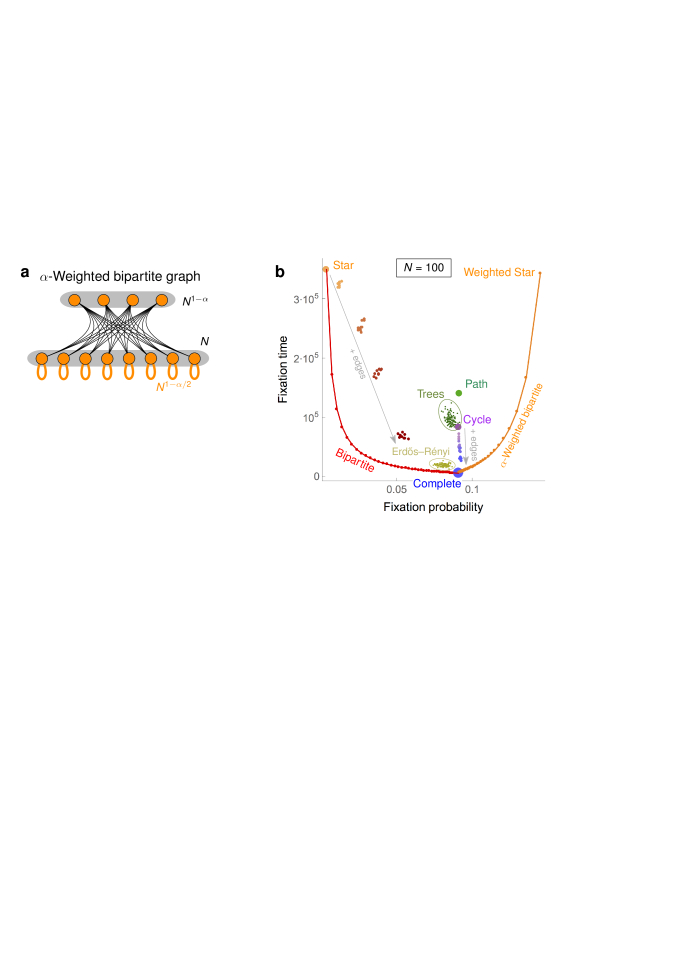

Figure 5: -Weighted bipartite graphs. a, An -Weighted bipartite graph is obtained by adding self-loops with weight to all vertices in the larger part of an -Balanced bipartite graph. Here and . We prove that for large , the -Weighted bipartite graphs improve the fixation probability to and, for small, approach the fixation time of the complete graph. b, Computer simulations for selected graphs of size (as in Figure 3b). It is known than among unweighted graphs, only a very limited amplification can be achieved [34]. -Weighted bipartite graphs (with self-loops of varying weight) overcome this limitation and provide trade-offs between high fixation probability and short fixation time.

2.4 Effective rate of evolution

Finally, we study the effectiveness of the presented population structures for small population sizes. In their influential paper, Frean, Rainey, and Traulsen introduced an elegant mathematical formula for the effective rate of evolution that combines both fixation probability and fixation time [17]. Let denote the expected number of generations to generate a mutant that will eventually fixate, where is the population size, is the mutation rate and is the fixation probability. Let denote the expected number of generations for a mutant to fixate, once it is generated. Note that is the fixation time measured in steps of the Moran process, and represents the number of generations. The effective rate of evolution is defined as the inverse of the sum of the above two quantities, i.e., . The effective rate of evolution was studied for the complete graph and for the star graph under uniform initialization [17]. Here we further investigate the effective rate of evolution for -Balanced bipartite graph under uniform initialization, and for -Weighted bipartite graphs under temperature initialization, for relatively small population sizes.

Regarding uniform initialization, we numerically compute the effective rate of evolution on -Balanced bipartite graphs for a wide range of mutation rates and compare it to the effective rate of evolution on complete graphs and stars (see Figure 6a for fixed population size and Figure 6b for varying population sizes). The complete graph is more effective for high mutation rates and the star graph is more effective for low mutation rates but in the intermediate regime, suitable -Balanced bipartite graphs are more effective than both the complete graph and the star. This is in a perfect alignment with the Pareto front presented in Figure 2.

Regarding temperature initialization, we study -Weighted bipartite graphs instead of -Balanced bipartite graphs (Figure 6c,d). As before, the complete graph is the most effective population structure for high mutation rates. However, star graph is a suppressor under temperature initialization and performs poorly. Therefore, other than in the high mutation rate regime, various -Weighted bipartite graphs achieve higher effective rate of evolution than both the complete graph and the star.

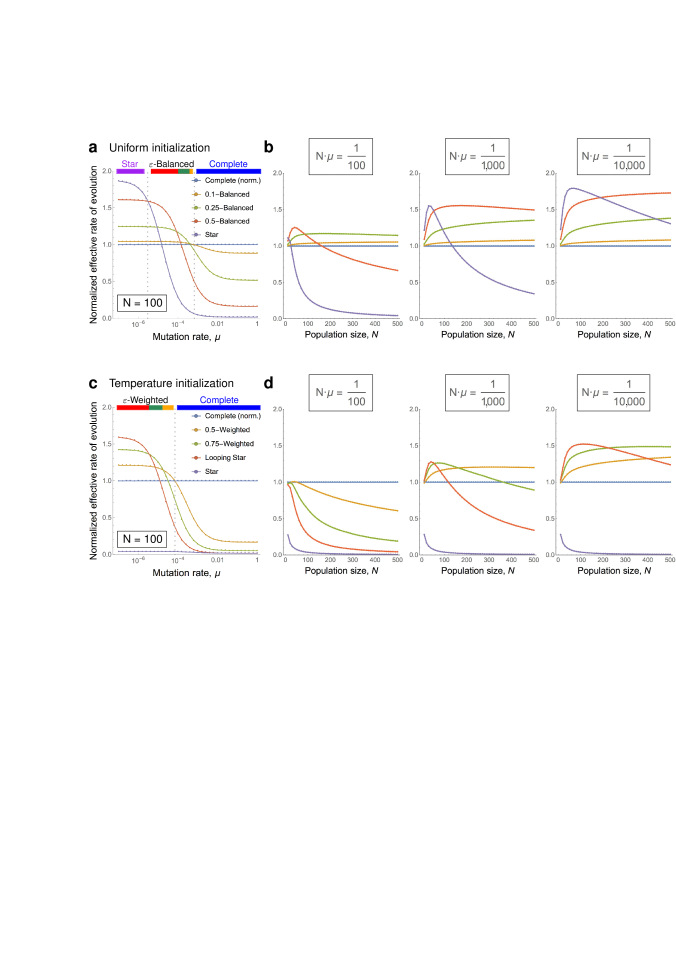

Figure 6: Fig. 4. Effective rate of evolution. The effective rate of evolution depends on the population size, , the mutation rate, , and the population structure. For uniform initialization, we compare five different population structures: the complete graph (blue), -Balanced graphs with (orange, green, red), and the star graph (purple), always showing the relative rate of evolution with respect to the complete graph. a, We fix , and vary . The complete graph has a higher effective rate of evolution if the mutation rate is high () and star is favourable if the mutation rate is low (). In the intermediate regime, suitable -Balanced graphs outperform both of them. b, We fix and and vary . The star is favourable if mutations are rare ( and small). Otherwise, suitable -Balanced graphs are more efficient. c, d Analogous data for temperature initialization. This time we compare the complete graph (blue) and the star (purple) with -Weighted bipartite graphs for (orange, green, red). The complete graph dominates if mutations are common (). In other cases, -Weighted bipartite graphs are preferred. The star is not an amplifier for temperature initialization.

3 Discussion

Many previous studies have explored how population structure affects the fixation probability of new mutants [7, 16, 19, 20, 21, 23, 31, 32, 33, 34, 36, 37]. While such studies cover one major aspect of evolutionary dynamics, the other aspect, which is fixation time, is much less studied. Both fixation probability and fixation time play an important role in determining the rate of evolution. If the mutation rate is low, the rate-limiting step is waiting for an advantageous mutant to occur. In this regime the fixation probability is more important than the fixation time. Conversely, if the mutation rate is high, then fixation time is more relevant than fixation probability. In the intermediate-mutation rate regime, the trade-off between fixation probability and fixation time must be considered. We study this trade-off and propose population structures, called -Balanced bipartite graphs and -Weighted bipartite graphs, that provide significant amplification with negligible increase in the fixation time. This is in stark contrast with all previous works that achieve amplification at the cost of substantially increasing the fixation time. As a consequence, compared to previous works, our population structures enable higher effective rate of evolution than the well-mixed population for a wide range of mutation-rate regimes.

There are some interesting mathematical questions that remain open. While we show that (i) amplifiers cannot have better asymptotic fixation time than the well-mixed population (in the limit of large population size, ), and (ii) there are graphs of fixed population size , that are suppressors and have shorter fixation time than the well-mixed population, two particularly interesting questions are: (a) Does there exist an amplifier of fixed population size that is faster than the well-mixed population? (b) Does there exist a graph family (which must be suppressing) that has better asymptotic fixation time (for ) than the well-mixed population?

Note that, in general, clonal interference can occur and the fixation of a mutant need not be achieved before the next mutation arrives [4, 38, 39]. Thus, the fixation probability and fixation time alone may not completely characterize the performance of a population structure with respect to the overall rate and efficiency of an evolutionary search process. Nevertheless, the effective rate of evolution and the probability-time trade-off curves are indicative of the efficacy of each population structure in speeding-up evolution. The numerical and experimental study of population structures in the presence of clonal interference is another interesting direction for future work.

The population structures which we have described here could become an important tool for in vitro evolution [40, 41, 42, 43], since they can significantly speed up the process of finding advantageous mutants. In vitro evolution, can be used to discover optimized protein or nucleotide sequences for any medical or industrial purpose. Depending on the mutation-rate regime, our work shows that different population structures can lead to more effective time scales of discovery.

4 Methods

In this section we introduce the model in detail and formally state our results, pointing to the relevant appendices for the full derivation.

Moran process on graphs

Moran Birth-death process is a discrete-time stochastic (random) process that models evolutionary dynamics in a spatially structured population. The population structure is represented by a connected graph , possibly with weighted edges or self-loops. At all times, each vertex of the graph is occupied by a single individual that is of one of two types: either a resident or a mutant. The individuals of one type are considered indistinguishable. Moreover, residents are assigned (normalized) fitness 1 while the mutants have fitness . Here we consider advantageous mutants (). In one step of the process, an individual is selected for reproduction randomly and proportionally to its fitness. This individual produces an offspring that is a copy of itself. This offspring then selects one of the adjacent edges proportionally to the edge weight and travels along that edge to replace the individual at its other endpoint. (If the selected edge happened to be a self-loop then the offspring replaces the parent and nothing changes.) These steps continue until the population becomes homogeneous: either all individuals are mutants (fixation occurred) or they are all residents (extinction occurred). The well-mixed population is modelled by an unweighted complete graph with self-loops.

Initialization scheme

We study the situation of a single mutant invading a population of residents. This initial mutant can appear either spontaneously or during reproduction. In the first case, called uniform initialization, the mutant is placed at a vertex chosen uniformly at random. In the second case, called temperature initialization, we perform one step of the Moran process in a population that consists entirely of residents and place the mutant at the vertex that the offspring migrates to. Formally, the mutant is placed at a random vertex, proportionally to the temperature (or turnover rate) of that vertex. Here temperature of a vertex is defined by

where is the weight of edge between and and is the set of neighbors of , that is vertices connected to by an edge.

Fixation probability and time

Given a graph with vertices and one specific vertex , we denote by the fixation probability of a single mutant with fitness starting at vertex , in a standard Moran Birth-death process. Then the fixation probability under uniform initialization is simply the average . The fixation probability under temperature initialization is a weighted average , where is the temperature of vertex . Similarly, we define (or ) to be the fixation time, that is the expected number of steps of the Moran process until the mutants reach fixation (conditioning on them doing so). Likewise we define (or ) to be the extinction time and (or ) to be the (unconditional) absorption time.

Amplifiers and suppressors

A graph with vertices is called an amplifier if it increases the fixation probability of any advantageous mutant, as compared to the Complete graph (that is, for any ). On the other hand, a graph with vertices is called a suppressor if it decreases the fixation probability of any advantageous mutant, as compared to the Complete graph (that is, for any ).

Notation for asymptotic behavior

To talk about asymptotic behavior (in the limit of large population size ), we use standard mathematical notations , , and that denote asymptotically strictly smaller, asymptotically less than or equal to, and asymptotically equal to (up to a constant factor), respectively. For example, we will write (as is much smaller than 1, for large ) or . For detailed treatment see [44, Section 1.3].

Graphs

We introduce and study the following graphs.

Complete graph

Complete graph on vertices models a well-mixed population. This case is well understood. In particular, the fixation probability satisfies

for as and the (unconditional) absorption time is of the order of  [8]. In fact, using a standard difference method one can derive that, for , we have and . For reference purposes we present those proofs in Appendix 4.

Star graph

Star graph consists of one central vertex connected to each of the remaining vertices on the periphery. It is known that and . Under uniform initialization, the Star graph amplifies the fixation probability but at the cost of significantly increasing the fixation time. Under temperature initialization, star graph is a suppressor (in fact, as ).

-Balanced bipartite graph

For uniform initialization we present a family of graphs that, in the limit of large population size, achieve the fixation probability of the Star and the fixation time almost as good as the Complete graph. The graphs are complete bipartite graphs with both parts large but one part asymptotically larger than the other one. Formally, given and , the -Balanced bipartite graph is a complete bipartite graph with parts of size and . That is, there are vertices in one part, vertices in the other part, and all edges that connect vertices in different parts.

-Weighted bipartite graphs

For temperature initialization, the -Balanced bipartite graphs fail to amplify. We present another family of weighted graphs with self-loops that, in the limit of large population size, provide fixation probability (the same as Star under uniform initialization) and the fixation time almost as good as the Complete graph. The graphs are obtained by adding self-loops of relatively large weight to all vertices in the larger part of an -Balanced bipartite graph. Formally, given and , the -Weighted bipartite graph is a complete bipartite graphs with one (smaller) part of size , one (larger) part of size , and every vertex of the larger part having a self-loop of such a weight that .

Analytical results

Here we summarize our analytical results. They are all related to the trade-off between fixation probability and fixation time, under both uniform and temperature initialization.

First, we prove that no amplifier is asymptotically faster than the Complete graph (recall that , see Appendix 4). Informally, the idea is as follows: For every , we denote by the expected time it takes to gain a single mutant from any configuration consisting of mutants. To gain a mutant, one of the mutants has to be selected for reproduction (and then the mutant has to replace a resident). We show that this yields a lower bound for that is proportional to . Summing over all ’s we get that the total fixation time is of the order of at least . Since the fixation time for the complete graph is also proportional to , no amplifier is significantly faster than the complete graph.

Theorem 1.

Fix . Let be any graph with vertices and let be the fixation probability of a single mutant under uniform initialization. Then

In particular, for an arbitrary graph and for an arbitrary amplifier .

For the formal proof, see Appendix 1.

Second, we give tight results for the fixation time on Bipartite graphs. In particular, we prove that under uniform initialization, the -Balanced bipartite graphs asymptotically achieve the fixation probability of the Star and the fixation time almost as good as the Complete graph. The analysis of fixation probability is relatively straightforward. For fixation time, we provide tight lower and upper bounds. We first present the lower bound that is proportional to . For the upper bound we then distinguish two cases: If the size of the smaller part is small, that is , then the argument is simpler and we get a matching upper bound. If the size of the smaller part is relatively close to , the upper bound has an additional factor of . As a consequence, we can prove the following theorem.

Theorem 2.

Fix and . Let be the -Balanced bipartite graph. Then

  • .

    • (small center) If then there exist constants , such that

    • (large center) If then there exist constants , such that

For the formal proof, see Appendix 2.

Third, we prove that under temperature initialization, analogous results can be achieved using -Weighted bipartite graphs .

Theorem 3.

Fix and . Let be the -Weighted bipartite graph. Then

  • .

  • There exist constants , such that

For the formal proof, see Appendix 3.

Finally, for reference purposes we compute the absorption, fixation, and extinction times of a single advantageous mutant () on a Complete graph, using the standard difference method.

Theorem 4.

Fix and let be the Complete graph on vertices. Then

In particular for , small, we have , , and .

For the formal proof, see Appendix 4.

Acknowledgments

J.T. and K.C. acknowledge support from ERC Start grant no. (279307: Graph Games), Austrian Science Fund (FWF) grant no. P23499-N23 and S11407-N23 (RiSE). M.A.N. acknowledges support from Office of Naval Research grant N00014-16-1-2914 and from the John Templeton Foundation. The Program for Evolutionary Dynamics is supported in part by a gift from B. Wu and E. Larson.

Competing interests

The authors declare that no competing interests exist.

References

  • [1] Kimura M. Evolutionary Rate at the Molecular Level. Nature. 1968;217(5129):624–626.
  • [2] Ewens WJ. Mathematical Population Genetics 1: Theoretical Introduction. Interdisciplinary Applied Mathematics. Springer New York; 2004.
  • [3] Nowak MA. Evolutionary dynamics: exploring the equations of life. Cambridge, Massachusetts: Belknap Press of Harvard University Press; 2006.
  • [4] Desai MM, Fisher DS, Murray AW. The speed of evolution and maintenance of variation in asexual populations. Curr Biol. 2007;17(5):385–394.
  • [5] McCandlish DM, Epstein CL, Plotkin JB. Formal properties of the probability of fixation: Identities, inequalities and approximations. Theor Popul Biol. 2015;99:98 – 113.
  • [6] Moran PAP. The statistical processes of evolutionary theory. Oxford University Press; 1962.
  • [7] Lieberman E, Hauert C, Nowak MA. Evolutionary dynamics on graphs. Nature. 2005;433(7023):312–316.
  • [8] Díaz J, Goldberg LA, Richerby D, Serna M. Absorption time of the Moran process. Random Structures & Algorithms. 2016;49(1):137–159.
  • [9] Altrock PM, Traulsen A. Fixation times in evolutionary games under weak selection. New Journal of Physics. 2009;11(1):013012.
  • [10] Slatkin M. Fixation Probabilities and Fixation Times in a Subdivided Population. Evolution. 1981;35(3):477–488.
  • [11] Nowak MA, May RM. Evolutionary games and spatial chaos. Nature. 1992;359(6398):826–829.
  • [12] Durrett R, Levin SA. Stochastic spatial models: a user’s guide to ecological applications. Philos Trans R Soc London Ser B Biol Sci. 1994;343(1305):329–350.
  • [13] Whitlock M. Fixation probability and time in subdivided populations. Genetics. 2003;779(June):767–779.
  • [14] Hauert C, Doebeli M. Spatial structure often inhibits the evolution of cooperation in the snowdrift game. Nature. 2004 Apr;428(6983):643–646.
  • [15] Komarova NL. Spatial stochastic models for cancer initiation and progression. Bulletin of mathematical biology. 2006;68(7):1573–1599.
  • [16] Houchmandzadeh B, Vallade M. The fixation probability of a beneficial mutation in a geographically structured population. New J Phys. 2011 Jul;13:073020.
  • [17] Frean M, Rainey PB, Traulsen A. The effect of population structure on the rate of evolution. Proc R Soc B Biol Sci. 2013 Jul;280(1762):20130211.
  • [18] Komarova NL, Shahriyari L, Wodarz D. Complex role of space in the crossing of fitness valleys by asexual populations. Journal of The Royal Society Interface. 2014;11(95):20140014.
  • [19] Broom M, Rychtář J. An analysis of the fixation probability of a mutant on special classes of non-directed graphs. Proc R Soc A Math Phys Eng Sci. 2008 Oct;464(2098):2609–2627.
  • [20] Broom M, Rychtář J, Stadler BT. Evolutionary Dynamics on Graphs - the Effect of Graph Structure and Initial Placement on Mutant Spread. J Stat Theory Pract. 2011;5(3):369–381.
  • [21] Shakarian P, Roos P, Johnson A.

    A review of evolutionary graph theory with applications to game theory.

    Biosystems. 2012;107(2):66–80.
  • [22] Débarre F, Hauert C, Doebeli M. Social evolution in structured populations. Nat Commun. 2014;5.
  • [23] Allen B, Lippner G, Chen YT, Fotouhi B, Momeni N, Yau ST, et al. Evolutionary dynamics on any population structure. Nature. 2017 Apr;544(7649):227–230.
  • [24] Chalub FACC. An asymptotic expression for the fixation probability of a mutant in star graphs. Journal of Dynamics and Games. 2016;3:217–223.
  • [25] Askari M, Samani KA. Analytical calculation of average fixation time in evolutionary graphs. Physical Review E. 2015;92(4):042707.
  • [26] Adlam B, Chatterjee K, Nowak M. Amplifiers of selection. In: Proc. R. Soc. A. vol. 471; 2015. p. 20150114.
  • [27] Hindersin L, Traulsen A. Most undirected random graphs are amplifiers of selection for birth-death dynamics, but suppressors of selection for death-birth dynamics. PLoS Comput Biol. 2015;11(11):e1004437.
  • [28] Pavlogiannis A, Tkadlec J, Chatterjee K, Nowak MA. Amplification on Undirected Population Structures: Comets Beat Stars. Scientific Reports. 2017;7.
  • [29] Díaz J, Goldberg LA, Mertzios GB, Richerby D, Serna M, Spirakis PG. Approximating fixation probabilities in the generalized Moran process. Algorithmica. 2014;69(1):78–91.
  • [30] Hindersin L, Traulsen A. Counterintuitive properties of the fixation time in network-structured populations. J R Soc Interface. 2014 Aug;11(99).
  • [31] Galanis A, Göbel A, Goldberg LA, Lapinskas J, Richerby D. Amplifiers for the Moran process. Journal of the ACM (JACM). 2017;64(1):5.
  • [32] Giakkoupis G. Amplifiers and Suppressors of Selection for the Moran Process on Undirected Graphs. arXiv preprint arXiv:161101585. 2016;.
  • [33] Goldberg LA, Lapinskas J, Lengler J, Meier F, Panagiotou K, Pfister P. Asymptotically Optimal Amplifiers for the Moran Process. arXiv preprint arXiv:161104209. 2016;.
  • [34] Pavlogiannis A, Tkadlec J, Chatterjee K, Nowak MA. Construction of arbitrarily strong amplifiers of natural selection using evolutionary graph theory. Communications Biology. 2018;1(1):71.
  • [35] Hindersin L, Möller M, Traulsen A, Bauer B. Exact numerical calculation of fixation probability and time on graphs. Biosystems. 2016;150:87–91.
  • [36] Díaz J, Goldberg LA, Mertzios GB, Richerby D, Serna, J M, Spirakis PG. On the fixation probability of superstars. Proc R Soc A Math Phys Eng Sci. 2013;469:20130193.
  • [37] Jamieson-Lane A, Hauert C. Fixation probabilities on superstars, revisited and revised. Journal of Theoretical Biology. 2015;382:44–56.
  • [38] Gerrish PJ, Lenski RE. The fate of competing beneficial mutations in an asexual population. Genetica. 1998;102:127.
  • [39] Fogle CA, Nagle JL, Desai MM. Clonal interference, multiple mutations, and adaptation in large asexual populations. Genetics. 2008;.
  • [40] Mitchell A, Romano GH, Groisman B, Yona A, Dekel E, Kupiec M, et al. Adaptive prediction of environmental changes by microorganisms. Nature. 2009 07;460(7252):220–224.
  • [41] Barrick JE, Yu DS, Yoon SH, Jeong H, Oh TK, Schneider D, et al. Genome evolution and adaptation in a long-term experiment with Escherichia coli. Nature. 2009;461(7268):1243–1247.
  • [42] Dai L, Vorselen D, Korolev KS, Gore J. Generic Indicators for Loss of Resilience Before a Tipping Point Leading to Population Collapse. Science. 2012;336(6085):1175–1177.
  • [43] Lang GI, Rice DP, Hickman MJ, Sodergren E, Weinstock GM, Botstein D, et al. Pervasive genetic hitchhiking and clonal interference in forty evolving yeast populations. Nature. 2013;500(7464):571–574.
  • [44] Cormen TH. Introduction to algorithms. MIT press; 2009.
  • [45] Monk T, Green P, Paulin M. Martingales and fixation probabilities of evolutionary graphs. Proc R Soc A Math Phys Eng Sci. 2014;470(2165):20130730.

5 Additional Figures

Figure 7: Fixation probability and time under uniform initialization, other values. Similar data as in Figure 2 for varying . Under uniform initialization, the fixation probability of a neutral mutant equals , independent of the graph structure. As approaches 1, the point cloud gets closer to a vertical line.
Figure 8: Fixation probability and time under uniform initialization, . Similar data as in Figure 2 for all 261,080 graphs of size (here ). The results are qualitatively the same as for .

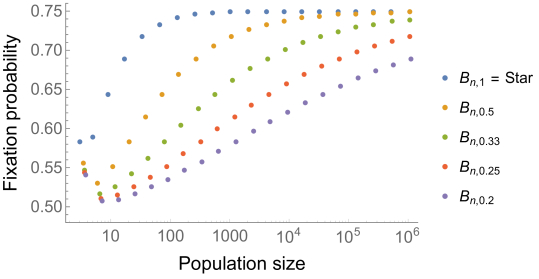

Figure 9: Fixation probability for tends to . We fix and consider the -Balanced bipartite graphs for (i.e. a star) and . The dots are exact values of the fixation probability under uniform initialization. The figure illustrates that the fixation probability tends to for any .
Figure 10: Fixation time for is proportional to . We fix and consider the -Balanced bipartite graphs for and for up to 500. The dots are exact numerical solutions, the lines are the best fits. The figure confirms that the fixation time is proportional to for any .
Figure 11: Fixation probability and time under temperature initialization, other values. Similar data as in Figure 4 for varying . The results are qualitatively the same as for .
Figure 12: Fixation probability and time under temperature initialization, . Similar data as in Figure 4 for all 261,080 graphs of size (here ). The results are qualitatively the same as for .
Figure 13: Effective rate of evolution, other regimes. As in the Figure 6 from the main text, we fix and vary population size . In the first row, we consider uniform initialization and the following graphs: Complete graph (blue), -Balanced graph for (orange, green, red), and the Star graph (purple) which is the same as a -Balanced graph. In the second row, we consider temperature initialization and the following graphs: Complete graph (blue), Star (purple), and -Weighted bipartite graphs for (orange, green) and Weighted Star (, red).

6 Appendices

Appendix 1: No asymptotic accelerators exist

Here we show that for no family of graphs with fixation probability bounded away from zero can be asymptotically faster than the Complete graphs. Specifically, no amplifiers can be asymptotically faster than the Complete graphs. Recall that the expected fixation time for the Complete graph on vertices is of the order of (see Appendix 4).

Theorem 1.

Fix . Let be any graph with vertices and let be the fixation probability of a single mutant under uniform initialization. Then

In particular, for an arbitrary graph and for an arbitrary amplifier .

Proof.

Consider a modified Moran process that is identical with the standard Moran process, except that if the mutation goes extinct then in the next step we again initialize a single mutant uniformly at random and continue the process. Clearly, the modified process always terminates with the mutants fixating and its expected fixation time is given by .

Given any subset of the vertices, let be the probability to gain a mutant in a single step from a configuration consisting of mutants at vertices of and residents elsewhere. To gain a mutant, one of the mutants has to be selected for reproduction and then the offspring has to replace a resident. The probability of the first event alone equals , hence we get an upper bound

that doesn’t depend on but only on .

Finally, fix and observe that any evolutionary trace in has to, at some point, reach a state with mutants and gain another mutant from there. Hence, in expectation, the evolutionary trace spends at least steps in states corresponding to configurations with mutants. By linearity of expectation, summing over gives

as desired. ∎

We remark that the proof clearly applies for all initialization schemes (including temperature initialization) and for graphs that possibly contain directed edges, weighted edges, and/or self-loops.

On the other hand, it is not true that for a given and a population size , Complete graph is the graph with the shortest fixation time. As an example, consider and a graph consisting of three vertices and edges . Then we easily check that while .

Appendix 2: Uniform initialization, -Balanced bipartite graphs

Here we analyze the -Balanced bipartite graph . Recall that consists of vertices in the (smaller) center and vertices in the outside part, each two vertices from different parts connected by an edge.

We prove the following theorem.

Theorem 2.

Fix and . Let be the -Balanced bipartite graph. Then

  • .

    • (small center) If then there exist constants , such that

    • (large center) If then there exist constants , such that

Martingales background

First, we recall the following facts about martingales (see [45]). Fix . Given a complete bipartite graph with vertices at the outside part and vertices in the center, the state (configuration) space can be parametrized by the number of mutants in the outside part and the number of mutants in the center. For each state , let be the fixation probability starting from that state. There is a formula for which can be computed as follows: Let

and for every state define a potential function . (Note that and .) Then

For the rest of this section, we will be using these results for and .

Fixation probability

With the martingales background, the analysis of the fixation probability is relatively straightforward.

Lemma 1.

Fix and . As , we have .

Proof.

The original mutant appears at the outside part with probability . Since and as , we compute

Lower bound on fixation time

Next, we present the lower bound for the fixation time. The idea is to consider the expected time to gain one mutant in the outside part, if there are currently mutants there. By bounding those times and summing up we obtain the following lemma.

Lemma 2.

Fix . Then

Proof.

Consider a state with mutants in the outside part and mutants at the center. Let be the total fitness of the population. The probability that in the next step we gain one mutant in the outside part equals

Since is independent of , the expected time to reach some state with mutants, starting in any state with mutants in the outside part, is at least

As in the proof of Theorem 1 we consider a modified Moran process in which we introduce new mutant randomly if the previous mutant went extinct. The modified process always terminates with the mutants fixating and its fixation time is given by , where is the fixation probability of a single mutant in . In order to fixate in , we need to pass through a state with mutants in the outside part, for each . By linearity of expectation,

since is a constant. ∎

Upper bound: “small” center

For the upper bound, we distinguish two cases. First, we assume that , that is .

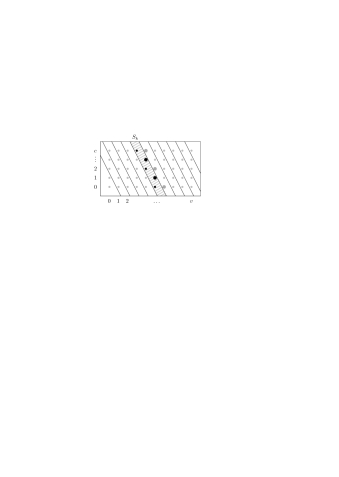

The idea is to split the set of states into sections as follows: section consists of all the states with

mutants in the outside part. Then we consider a Markov chain

whose nodes are the sections . By construction, the only transitions with nonzero probability are of the form or . In the following sequence of Lemmas, we provide upper bounds for the expected number of transitions from to and for the expected number of transitions within each . Summing up, we obtain an upper bound for the fixation time in the original Markov chain.

Formally, fix and let

  • be the maximum fixation probability from a state in . Clearly, is attained in state .

  • be the minimum fixation probability from a state in . Clearly, is attained in state .

  • where is the probability that an evolutionary trace starting at fixates at before visiting any state in .

First, since we have the following:

Lemma 3.

and (for large enough )

Proof.

We have

For we have . If the parenthesis was raised to power , the limit would have been , a constant. Since for , we have . Hence , then and thus as desired. ∎

We aim to bound from below and use it to bound the expected number of transitions from (any state in) to (any state in) from above.

Lemma 4.

Proof.

Let’s run an evolutionary trace from some state in . The trace can’t go extinct without hitting . Conditioning on if the trace first fixates or hits , we can write

which rewrites as

This is true for every , hence it is true for too. ∎

Let

be a random variable counting the transitions from any state in

to any state in , starting from any state.

Lemma 5.

Proof.

Any two transitions from section to section are necessarily separated by an intermediate visit to section . Any time we are in section , with probability at least we fixate before hitting section again. Hence

Rewriting and using the bound for we obtain

Rewriting and in terms of , we deduce that is constant.

Lemma 6.

(for large enough )

Proof.

Recall that where doesn’t depend on , . Plugging this in the bound from Lemma 5 we get

Using the definition and dividing by this can be further rewritten as

as desired. ∎

Let be the expected number of “looping” transitions of the form before a transition of the form occurs (or the process reaches an absorbing state). The following lemma bounds from above.

Lemma 7.

For we have . Moreover, and .

Proof.

Crudely (not caring about ). First, let . We pick a vertex in the center with probability at least . No matter its type, there are at least vertices of the other type at the outside part. Hence with probability

we transition to section in one step. As before, we get the result from . Second, if or and we are not in an absorbing state then there exists a vertex in the center whose type is different to the type of all vertices in the outside part. Hence and we conclude as in the first case. ∎

We are ready to sum those contributions up.

Lemma 8.

If and then

Proof.

Consider the one-dimensional Markov chain whose vertices are the sections , . Fix and let . On average, there are at most transitions . Also, on average there are at most transitions , hence there are at most transitions for a total of at most transitions from outside of to . Similarly, on average there are at most transitions into and at most transitions into . Every time there is a transition into , there are on average transitions within . By linearity of expectation, the total expected number of transitions is at most

where the last equality follows from the sum being and from . ∎

Upper bound: “large” center

Note that the argument used for small center fails for because the difference becomes zero or even negative. Indeed, for we have and for the inequality is even stricter. However an analogous argument can be made to work if we split the state space into different “tilted” sections, taking into account. The idea of the proof is that we fix , consider large , and look at a complete bipartite graph . We assume that is such that there exists an integer called “tilt” satisfying . This assumption guarantees that the states and are assigned exactly the same potential. We can then split the state (configuration) space into sections where each section is not a vertical line but a set of states that looks like a line tilted with slope . We then proceed as before, providing an upper bound for the number of transitions across sections and within sections. The result follows by summing up.

Figure 14: Tilted sections of . For we split the state (configuration) space into “tilted” sections . Here the tilt is . The maximum potential within is attained at any thick black vertex, the minimum potential within is attained at any thick grey vertex.

In the rest of the section we formalize this idea.

We define the (tilted) sections. Let and for let

As before, we fix and define

  • ,

  • , and

  • where is the probability that an evolutionary trace starting at state belonging to fixates at before visiting any state in .

Clearly, is attained for any “top” state of within its column (possibly not in the “top” row). Similarly, is attained in state “bottom” state of (possibly not in the “bottom” row). Note that by construction, those two states are assigned potentials that differ by a factor of .

As before, let be a random variable counting the transitions from any state in to any state in , starting from any state. The following lemma bounds from above. Note that this time the bound is super-constant.

Lemma 9.

(for large )

Proof.

Note that Lemma 4 and Lemma 5 are valid for tilted sections too. Let be some state in for which the value is attained. Then is attained at a state whose potential is equal to . We continue as in the proof of Lemma 6 to get

Since for large we have
