1 Introduction

Fisheye cameras have been widely used in varieties of computer vision tasks, including virtual reality [1, 2], video surveillance [3, 4], automotive applications [5, 6] and depth estimation [7], due to their large field of view. Images captured by such cameras however suffer from lens distortion, and thus it is vital to perform rectification as a fundamental pre-processing step for subsequent tasks. In recent years, active research work has been conducted on automatic rectification of fisheye images. In spite of the remarkable progress, most existing rectification approaches focus on handcrafted features [8, 9, 10, 11, 12, 13, 14, 15], which have limited expressive power and sometimes lead to unsatisfactory results.

We devise, to our best knowledge, the first end-to-end trainable deep convolutional neural network (CNN) for fisheye image rectification. Given a single fisheye image as input, our approach outputs the rectified image with distortions corrected, as shown in Fig. 1. Our method explicitly models the formation of fisheye images by first estimating the distortion parameters, during which step the semantic information is also incorporated. The warped images are then produced using the obtained parameters.

We show the proposed model architecture in Fig. 2. We construct a deep CNN model to extract image features and feed the obtained features to a scene parsing network and a distortion parameter estimation network. The former network aims to learn a high-level semantic understanding of the scene, which is then provided to the latter network with the aim of boosting estimation performance. The obtained distortion parameters, together with the input fisheye image and the corresponding scene parsing result, are then fed to a distortion rectification layer to produce the final rectified image and rectified scene parsing result. The whole network is trained end-to-end.

Our motivation for introducing the scene parsing network into the rectification model is that the learned high-level semantics can guide the distortion estimation. Previous methods usually rely on the assumption that straight lines in the 3D space have to be straight after rectification. Nevertheless, given an input image, it is difficult to determine which curved line should be straight in the 3D space. The semantics could help to provide complementary information for this problem. For example, in the case of Fig. 5, semantic segmentation may potentially provide the knowledge that the boundaries of skyscrapers should be straight after rectification but those of the trees should not, and guide the rectification to produce plausible results shown in the last column of Fig. 5. Such high-level semantic supervision is, however, missing in the CNN used for extracting low-level features. By incorporating the scene parsing branch, our model can therefore take advantage of both low-level features and high-level semantics for the rectification process.

To train the proposed deep network, we construct a synthesized dataset of visually high-quality images using the ADE20K [16] dataset. Our dataset consists of fisheye images and corresponding scene parsing labels, as well as rectified images and rectified scene parsing labels from ADE20K. We synthesize both the fisheye images and the corresponding scene parsing labels. Samples are further augmented by adjusting distortion parameters to cover a higher diversity.

We conduct extensive experiments to evaluate the proposed model on both the synthesized and real-world fisheye images. We compare our method with state of the art approaches on our synthesized dataset and also on real-world fisheye images using our model trained on the synthesized dataset. Our proposed model quantitatively and qualitatively outperforms state of the art methods and runs fast.

Our contribution is therefore the first end-to-end deep learning approach for single fisheye image rectification. This is achieved by explicitly estimating the distortion parameters using the learned low-level features and under the guidance of high-level semantics. Our model yields results superior to the current state of the art. More results are provided in the supplementary material. Our synthesized dataset and code will be made publicly available.

2 Related Work

We first briefly review existing fisheye image rectification and other distortion correction methods, and then discuss recent methods for low-level vision tasks with semantic guidance, which we also rely on in this work.

2.1 Distortion Rectification

Previous work has focused on exploiting handcrafted features from distorted fisheye images for rectification. The most commonly used strategy is to utilize lines[8, 9, 10, 11, 12, 13, 14, 15, 17], the most prevalent entity in man-made scenes, for the correction. The key idea is to recover the curvy lines caused by distortion to straight lines so that the pinhole camera model can be applied.

In the same vein, many methods follow the so-called plumb line assumption. Bukhari et al. [10] proposed a method for radial lens distortion correction using an extended Hough transform of image lines with one radial distortion parameter. Melo et al. [11], on the other hand, used non-overlapping circular arcs for the radial estimation. However, in some cases especially for wide-angle lenses, these approaches yielded unsatisfactory results. Hughes et al. [12] extracted vanishing points from distorted checkerboard images and estimated the image center and distortion parameters. This was, however, unsuitable for images of real-world scenes.

Rosten and Loveland [13] proposed a method that transformed the edges of a distorted image to a 1-D angular Hough space and then optimized the distortion correction parameters by minimizing the entropy of the corresponding normalized histogram. The rectified results were, however, limited by hardware capacity. Ying et al. [14] introduced a universal algorithm for correcting distortion in fisheye images. In this approach, distortion parameters were estimated using at least three conics extracted from the input fisheye image. Brand et al. [17] used a calibration grid to compute the distortion parameters. However, in many cases, it is difficult to obtain feature points whose world coordinates are known a priori. Zhang et al. [15] proposed a multi-label energy optimization method to merge short circular arcs sharing the same or approximately the same circular parameters and selected long circular arcs for camera rectification. These approaches relied on line extractions in the first step, allowing errors to propagate to the final distortion estimation and compromise the results.

The work most related to our method is [18], where CNN was employed for radial lens distortion correction. However, the learning ability of this network was restricted to simulating a simple distortion model with only one parameter, which is not suitable for the more complex fisheye image distortion model. Moreover, this model only estimated the distortion model parameter and could not produce the final output in an end-to-end manner.

All the aforementioned approaches lack semantic information in the finer reconstruction level. Such semantics are, however, important cues for accurate rectification. By contrast, our model explicitly and jointly learns high-level semantics and low-level image features, and incorporates both streams of information in the fisheye image rectification process. The model directly outputs the rectified image and is trainable end-to-end.

2.2 Semantic Guidance

Semantic guidance has been widely adopted in low-level computer vision tasks. Liu et al. [19] proposed a deep CNN solution for image denoising by integrating the modules of image denoising and high-level tasks like segmentation into a unified framework. Semantic information can thus flow into the optimization of the denoising network through a joint loss in the training process. Tsai et al. [20] adopted a joint training scheme to capture both the image context and semantic cues for image harmonization. In their approach, semantic guidance was propagated to the image harmonization decoder, making the final harmonization results more realistic. Qu et al. [21] introduced an end-to-end deep neural network with multi-context architecture for shadow removal from single images, where information from different sources were explored. In their model, one network was used to extract shadow features from a global view, while two complementary networks were used to generate features to obtain both the fine local details and semantic understanding of the input image, leading to state of the art performance.

Inspired by these works, we propose to integrate semantic information to improve fisheye image rectification performance, which has, to our best knowledge, yet to be explored.

3 Methods

In this section, we describe our proposed model in detail. We start by providing a brief review of the fisheye camera model in Section 3.1, describe our network architecture in Section 3.2, and finally provide the definition of our loss function and training process in Section 3.3.

3.1 General Fisheye Camera Model

We start with the pinhole camera projection model, given as:

(1)

where denotes the angle between the incoming ray and the optical axis, is the focal length, and is the distance between the image point and the principal point.

Unlike the pinhole perspective projection model, images captured by fisheye lenses follow varieties of projections, including stereographic, equidistance, equisolid and orthogonal projection [12, 22]. A general model is used for different types of fisheye lenses [22]:

(2)

where are the coefficients. Although Eq. (2) contains only four parameters, it is able to approximate all the projection models with high accuracy.

Given pixel coordinates in the pinhole projection image, the corresponding image coordinates in the fisheye image can be computed: , , where , and are the coordinates of the principal point in the pinhole projection image.

The image coordinates are then transformed to pixel coordinates : , , where are the coordinates of the principal point in the fisheye image, and denote the number of pixels per unit distance in the horizontal and vertical directions, respectively. We define as the parameters to be estimated, and describe the proposed model as follows.

3.2 Network Architecture

The proposed deep network is shown in Fig. 2. It aims to learn a mapping function from the input fisheye image to the rectified image in an end-to-end manner. Our basic idea is to exploit both the local image features and the contextual semantics for the rectification process. To this end, we build our model by constructing a composite architecture consisting of four cooperative components as shown in Fig. 2: a base network (green box), a distortion parameter estimation network (gray box), a distortion rectification layer (red box) and a scene parsing network (yellow box).

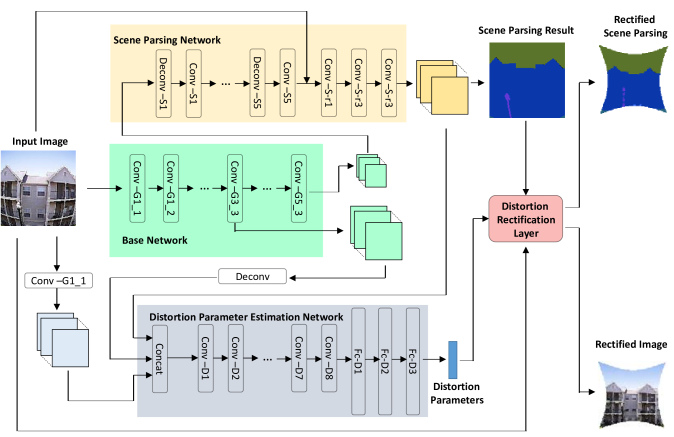

Figure 2: The overview of the proposed joint network architecture. This composite architecture consists of four cooperative components: a base network, a distortion estimation network, a distortion rectification layer, and a scene parsing network. The distortion parameter estimation network takes as input a concatenation of multiple feature maps from the base network and generates corresponding distortion parameters. Meanwhile, the scene parsing network extracts high-level semantic information to further improve the accuracy of distortion parameter estimation as well as rectification. The estimated parameters are then used by the distortion rectification layer to perform rectification on both the input fisheye image and the corresponding scene parsing results.

In this unified network architecture, the base network is first used to extract low-level local features from the input image. The obtained features are then fed to the scene parsing network and the distortion parameter estimation network. The scene parsing network decodes the high-level semantic information to generate a scene parsing result for the input fisheye image. Next, the learned semantics are propagated to the distortion parameter estimation network to produce the estimated parameters. Finally, the estimated parameters, together with the input fisheye image and corresponding scene parsing result, are fed to the distortion rectification layer to generate the final rectified image and rectified scene parsing result. The whole network is trained end-to-end. In what follows, we discuss each component in detail.

3.2.1 Base Network

The base network is built to extract both low- and high-level features for the subsequent fisheye image rectification and scene parsing tasks. Recent work suggests that CNNs trained with large amounts of data for image classification are generalizable to other tasks such as semantic segmentation and depth prediction. To this end, we adopt the VGG-net [23]

model for our base network, which is pre-trained on ImageNet for the object recognition task and fine-tuned under the supervision of semantic parsing and rectification.

3.2.2 Distortion Parameter Estimation Network

Our distortion parameter estimation network aims to estimate the distortion parameters discussed in section 3.1. This network takes as input a concatenation of multiple features maps: (1) The output of conv3-3 layer in the base network. Note that a deconvolution step is performed to raise the spatial resolution of feature maps; (2) The input image convolved with learnable filters, which aims to preserve raw image information; and (3) The output of the scene parsing network. As shown in Section 4, we find that semantic priors help to eliminate the errors in distortion parameters.

In this distortion parameter estimation network, each convolutional layer is followed by a ReLU and a batch normalization

[24]. We construct 8 convolutional layers with learnable filters, where the number of filters is set as 64, 64, 128, 128, 256, 256, 512, and 512, respectively. Pooling layers with kernel size

and stride 2 are adopted after every two convolutions. Three fully-connected layers are added at the end of the network to produce the parameters, where each of the first two layers has 1024 units. To alleviate over-fitting, drop-out

[25]

is adopted after the final convolutional layer with a drop probability of 0.5.

3.2.3 Distortion Rectification Layer

The distortion rectification layer takes as input the estimated distortion parameters , the fisheye image, as well as the scene parsing result. It computes the corresponding pixel coordinates and generates the rectified image and the rectified scene parsing result. This makes the network end-to-end trainable. Details of the distortion rectification layer are described as follows.

In the forward propagation, given pixel location in the rectified image , the corresponding coordinates in the input fisheye image are computed according to the aforementioned fisheye image model:

(3)

The pixel value of location

in the rectified image is then obtained using the bilinear interpolation:

(4)

where the coefficients are computed as: , and , .

In the back propagation, we need to calculate the derivatives of rectified image with respect to the estimated distortion parameters as well as to the fisheye image. For each pixel , derivatives with respect to input fisheye image are computed as follows:

(5)

where if is true and 0 otherwise. Derivatives with respect to the estimated parameters are computed as follows:

(6)

where

(7)

and is obtained according to:

(8)

Similarly, we can calculate and .

3.2.4 Scene Parsing Network

The scene parsing network takes as input the learned local features and is provided with the scene parsing labels for training. Our motivation for introducing this network is that, in many tasks, semantic supervision may benefit low-vision tasks as discussed in Section 2.2. In our case, the scene parsing network outputs the semantic segmentations to provide high-level clues including the object contours in the image. Such segmentations provide much richer information compared to straight lines, which are treated as the only clue in many conventional distortion rectification methods.

In our implementation, we construct a decoder structure based on the outputs of VGG-Net. The decoder network consists of 5 convolution-deconvolution pairs with kernel size for convolution layers and for deconvolutions layers. The number of filters is set as 512, 256, 128, 64 and 32. As parts of the fisheye image are compressed due to distortion, the scene parsing results may lose some local details. We find that adding a refinement network can further improve the scene parsing accuracy. This refinement network takes the fisheye image and the initial scene parsing results as input and further refines the final results according to the details in the input image. Three convolutional layers are contained in the refinement network, with number of filters 32,32,16 and kernel size .

As we will show in Section 4, in fact even without the scene parsing network, our deep learning-based fisheye rectification approach already outperforms current state of the art approaches. With the scene parsing network turned on, our semantic-aware rectification yields even higher accuracy. Since we feed to the network distorted segmentations as well as rectified ones, our network can take advantage of such explicit segment-level supervision and potentially learn a segment-to-segment mapping, which helps to achieve better rectification.

3.3 Training Process

We aim to minimize the reconstruction loss between the output rectified image and the ground truth image :

(9)

In addition to this rectification loss, we also adopt the loss for the scene parsing task introduced by [16]. The final combined loss for the entire network is:

(10)

where and are the weights to balance the losses of fisheye image rectification and scene parsing, respectively. Thanks to the end-to-end trainable network architecture, our model can simultaneously learn the fisheye image rectification and the scene parsing tasks.

In fact, we also tried to train the network by minimizing errors directly on the distortion parameters. However, we found that balancing distortion parameters of different natures, like and , is very challenging. We tested multiple strategies for balancing the terms in the distortion parameter loss, and the best results we achieved are considerably lower than those obtained using image reconstruction loss.

We implement our model in Caffe

[26] and apply the adaptive gradient algorithm (ADAGRAD) [27] to optimize the entire network. We set the initial learning rate as 1e-3 and reduce it by a factor of 10 every 200K iterations. In the joint training process, we start with training data from the ADE20K dataset to obtain an initial solution for both the fisheye image rectification and scene parsing tasks. During this initial training process, we set and . Next, we fix the scene parsing part with , and fine-tune the rest of the network to achieve an optimal solution for fisheye image rectification. Note that, during this fine-tuning step, the scene parsing module propagates learned semantic information to the distortion parameter estimation network.

By integrating the scene parsing model, the proposed network learns high-level contextual semantics like boundary features and semantic category layout and provides this knowledge to the distortion parameter estimation. For example, our network can produce straight-line contours for images with buildings and vehicles, which provides crucial clues for the rectification process.

4 Experiments

In this section, we discuss our experimental setup and results. We first introduce our data generation strategies in Section 4.1 and then compare our rectification results with those of the state of the art methods quantitatively in Section 4.2 and qualitatively in Section 4.3. We further show some scene parsing results in Section 4.4 and compare the runtime of our method and others in Section 4.5. We provide more results in the supplementary material.

4.1 Data Generation

To train the proposed deep network for fisheye image rectification, we must first build a large-scale dataset. Each training sample should consist of a fisheye image, a rectification ground truth, and the scene parsing labels. To this end, we select a subset of the ADE20K dataset [16] with scene parsing labels and then follow the fisheye image model in Section 3.1 to create both the fisheye images and the corresponding scene parsing labels. During training, training samples are further augmented by randomly adjusting distortion parameters. The proposed dataset thus covers various scenes and distortion parameter settings, providing a wide range of diversities that potentially prevent over-fitting.

Our training dataset includes 2,450 unique source images, each of which is used to generate 10 samples with various distortion parameter settings. Our test dataset contains 100 source images and 1000 samples generated using a similar strategy. We will make our dataset publicly available.

4.2 Quantitative Evaluation

The dataset we constructed enables us to quantitatively assess our method. We run the proposed model and the state of the art ones on our dataset and evaluate them using standard metrics including PSNR and SSIM. All the baseline models were realized according to the implementation details provided in corresponding papers. The model [18] was trained on our simulated dataset, as done for ours.

We show the quantitative comparisons in Tab. 1. Our method significantly outperforms existing methods in terms of both PSNR and SSIM. To further verify the semantic guidance, we add two experiments for the proposed method: 1) removing both the scene parsing network and the semantic loss, denoted as “Proposed method - SPN - SL”, and 2) removing the semantic loss, but keeping the scene parsing network, denoted as “Proposed method - SL”. The networks are trained using the same settings. The results indicate that the explicit semantic supervision does play an important role. Robust feature extraction and semantic guidance contribute to more accurate rectification results.

Methods PSNR SSIM
Bukhari [10] 11.47 0.2429
Rong [18] 13.08 0.3356
Zhang [15] 12.52 0.2972
Proposed method -SPN -SL
14.39 0.3903
Proposed method - SL
14.47 0.3932
Proposed method 14.96 0.4129
Table 1: PSNR and SSIM scores of different algorithms on our test dataset.

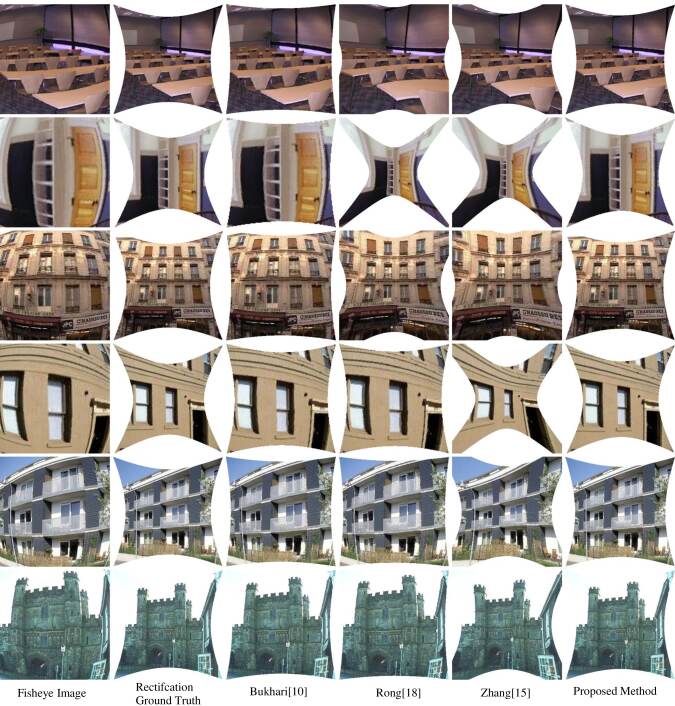

Figure 3: Qualitative results on our synthesized datasets. From left to right, we show the input, the ground truth, results of three state of the art methods ([10, 15, 18]), and the result of our proposed approach. Our method achieves the best overall visual quality of all the compared methods.

4.3 Qualitative Evaluation

The qualitative rectification results on our synthesized dataset obtained by our method and the others are shown in Fig. 3. Our method produces results that are overall the most visually plausible and most similar to the ground truths, as evidenced by the fact that we restore the curvy lines to straight, which the other methods fail to do well.

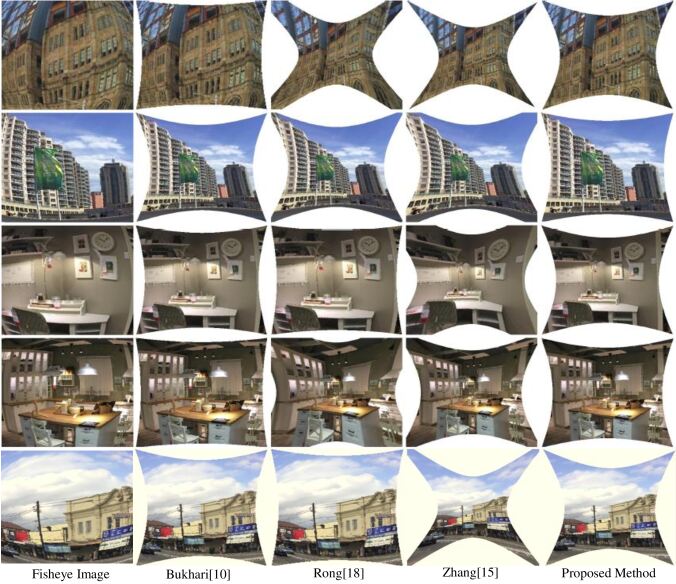

Figure 4: Qualitative results on real fisheye images. From left to right: the input image, results of three state of the art methods ([10, 15, 18]), and results using our proposed method.

To show the effectiveness of our method on real fisheye images, we examine a test set of 650 real fisheye images captured using multiple fisheye cameras with different distortion parameter settings. Samples of different projection types are collected, including stereographic, equidistance, equisolid angle and orthogonal [22]. To cover a wide variety of scenarios, we collect samples from various indoor and outdoor scenes. Selective comparative results are shown in Fig. 4. Our method achieves the most promising visual performance, which indicates our model trained on simululated dataset generalize well to real fisheye images.

The results of [10, 15] are fragile to the hand-crafted feature extraction. In addition, the rectification of [15] is very sensitive to the initial value provided for the Levenberg-Marquardt (LM) iteration process, making it difficult to be deployed in real-world applications. The approach of [18], on the other hand, is limited to a simple distortion model with one parameter only, and thus it often fails to deal with more complex fisheye image distortion model with multiple types of paramters. Our method, by contrast, is a fully end-to-end trainable approach for fisheye image rectification that learns robust features under the guidance of semantic supervision.

The results from both the synthesized dataset and the real fisheye dataset validate the effectiveness of our model, which uses synthesized data to learn how to perform fisheye image rectification given corresponding ground truth-rectified images. Our network learns both low-level local and high-level semantic features for rectification, which is, to our best knowledge, the first attempt at fisheye distortion rectification.

4.4 Scene Parsing Results

As shown in Table 1, even without the scene parsing module, our method already outperforms the other methods. With the guidance of the semantics, our method yields even better results in terms of PSNR and SSIM as shown in Table 1. To provide more insights into the scene parsing module, we show the parsing results obtained by the network in Fig. 5. It can be seen that the obtained parsing results are visually plausible, indicating that the network can produce semantic segmentation on distorted images, which may be further utilized by the rectification that takes place at a later stage.

We further show in Fig. 5 the rectified images produced by our model without and with the semantic guidance. The results without semantics are generated by removing the scene parsing network from the entire architecture. Our model without semantics, in spite of its already superior performance to other state of the art methods, still produces erroneous results like the distorted boundaries of the skyscraper and the vehicle shown in Fig. 5. With the help of explicit semantic supervision, our final model can potentially learn a segment-to-segment mapping for each semantic category, like the skyscraper or the car, and better guide the rectification during testing.

Regarding the influence of segmentation quality, despite that we indeed observe some erroneous parsings in our experiments, the imperfect segmentation results do help improve rectification for over 90% of the cases. We expect the improvement to be even more significant with better segmentations. As for the model generalization, since the ADE20K benchmark [16] comprises objects of 150 classes and covers most semantic categories in daily life, our model is able to handle most common objects. Handling unseen classes is left for further work.

4.5 Runtime

The run times of our methods and others are compared in Tab. 2. The methods of [10, 15] rely on a minimazing complex objective function and time-consuming iterative optimization. Therefore, these approaches are difficult to accelerate by hardware-based parallelization and require much longer processing time on a test image. On the contrary, our method can benefit from non-iterative forward process implemented on GPU. For example, when running the experiments on an Intel i5-4200U CPU, methods of [10, 15] take over 60 seconds to generate one rectified result. Although our model is slower than [18], the rectification performance is much better in terms of PSNR and SSIM.

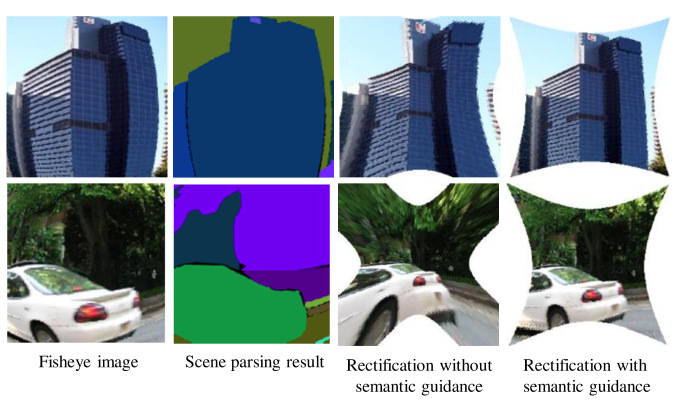

Figure 5: Qualitative rectification results obtained by our model without and with semantic guidance. With semantic supervision, the model can correct distortions that are otherwise neglected by the one without semantics. For example, the straight boundaries of the skyscraper and the shape of the vehicle can be better recovered.
Methods Average run time (seconds)
Bukhari [10] 62.53 (Intel i5-4200U CPU)
Zhang [15] 80.07 (Intel i5-4200U CPU)
Rong [18] 0.87 (K80 GPU)
Proposed method 1.31 (K80 GPU)
Table 2: Run times of different algorithms on our test dataset.

5 Conclusions

We devise a multi-context collaborative deep network for single fisheye image rectification. Unlike existing methods that mainly focus on extracting hand-crafted features from the input distorted images, which have limited expressive power and are often unreliable, our method learns both high-level semantic and low-level appearance information for distortion parameter estimation. Our network consists of three collaborative sub-networks and is end-to-end trainable. A distortion rectification layer is designed to perform rectification on both the input fisheye image and corresponding scene parsing results. For training, we construct a synthesized dataset covering a wide range of scenes and distortion parameters. We demonstrate that our approach outperforms state of the art models on the synthesized and real fisheye images, both qualitatively and quantitatively.

In our further work, we will extend this framework to handle other distortion correction tasks like the general radial lens distortion correction. Also, we will explore to handle unseen semantic classes for rectification.
