Hundreds of millions of web users (i.e. 30% of all internet users (Business Insider Intelligence, 2017)) use filter lists to to maintain a secure, private, performant, and appealing web. Prior work has shown that filter lists, and the types of content blocking they enable, significantly reduce data use (Parmar et al., ), protect users from malware (Li et al., 2012), improve browser performance (Garimella et al., 2017; Pujol et al., 2015) and significantly reduce how often and persistently users are tracked on the web.
Most filter lists are generated through crowd-sourcing, where a large number of people collaborate to identify (by URL) undesirable online resources (e.g. ads, user tracking libraries, anti-adblocking scripts etc..) and generate sets of rules to identify those resources. Crowd-sourcing the generation of these lists has proven a useful strategy, as evidenced by the fact that the most popular lists are quite frequently used and frequently updated (Vastel et al., 2018; Iqbal et al., 2017).
The most popular filter lists (e.g. EasyList, EasyPrivacy) target “global” sites, which in practice means either websites in English, or resources popular enough to appear on English-speaking sites in addition to sites targeting speakers of other languages. Non-English speaking web users face different, generally less appealing options for content blocking. Web users who visit non-English websites that target relatively wealthy users generally have access to well maintained, language-specific lists. Indeed, the French (10), German (13), and Japanese (22) specific filter lists are representative examples of well-maintained, popular filter lists targeting non-English web users. Similarly, linguistic regions with very large numbers of speakers also generally have well maintained filter lists. Examples here include well maintained filter lists targeting Hindi (16), Russian (28), Chinese (7), and Portuguese (26; 5) websites.
Unfortunately, internet users who visit websites in languages with fewer speakers, or with less wealthy users, have worse options. Put differently, the usefulness of crowd-sourced filter lists depends on having a large crowd, or an affluent crowd; filter lists targeting parts of the web with less, or less affluent, users are left with filter lists that are smaller, less frequently maintained, or both. Visitors speaking these less-commonly-spoken languages have degraded web experiences, and are exposed to all the web maladies that filter lists are designed to fix.
Compounding the problem, in many cases, web users in these regions are the ones who could benefit most from robust filter lists, as network connections may be slower, data may be more expensive, the frequency of undesirable web resources may be higher. An example which motivates this work and illustrates the inability of current filter lists to adequately block ads on a regional website in Albania can be seen from the screenshot in Figure 1. In this example, we browse the website gazetatema.net while using AdBlock Plus (which uses EasyList, a “global” targeting filter list).
While there has been significant prior work on automating the generation of filter lists (Iqbal et al., 2018; Gugelmann et al., 2015; Bhagavatula et al., 2014; Dudykevych and Nechypor, 2016), this existing work is focused on replicating and extending the most popular English and globally-focused filter lists, with little to no evaluation on, or applicability to, non-English web regions. In this paper, we target the problem of improving filter lists for web users in regions with small numbers of speakers (relative to prominent global languages). We select three regions as representative of the problem in general: Albania, Hungary and Sri Lanka, using a methodology presented in Section 4.1.
We describe a two-pronged strategy for identifying long-tail resources on websites that target under-served linguistic regions on the web: (i) a classifier that can identify advertisements in a way that generalizes well across languages, and (ii) a method for accurately determining how advertisements end up in pages (as determined by either existing filter lists or our classifier), and by using this information, generate new, generalized filter rules.
We use this novel instrumentation to both build inclusions chains (i.e. measurements of how every remote resource wound up in a web page), and determine how high in each inclusion chain blocking can begin. This allows use to (i) generate generalized filter rules (i.e. rules that target scripts that include ad images on each page, instead of rules that target URLs for individual advertisements), and to (ii) ensure we do not block new resources that will break the website in other ways.
Contributions. In summary, this paper makes the following contributions to the problem of blocking unwanted resources on websites targeting audiences with smaller linguistic audiences.
The implementation and evaluation of an image classifier for automatically detecting advertisements on the web which relies on a mix of perceptual and contextual features. This classifier is designed to be robust across many languages (and particularly those overlooked by existing research) and achieves accuracy of 97.6 % in identifying images and iframes related to advertising.
Novel, open sourcebrowser instrumentation, implemented as modifications to the Blink and V8 run-times that allows for determining the cause of every web request in a page, in a way that is far more accurate than existing tools. This instrumentation also allows us to accurately attribute every DOM modification to its cause, which in turn allows us to predict whether blocking a resource would break a page.
The design of a novel, two stage pipeline for identifying advertising resources on websites, using the previously mentioned classifier and instrumentation, to identify long-tail advertising resources targeting web users who do not speak languages with large global communities.
A real world evaluation of our pipeline on sites that are popular with languages that are (relatively) uncommon online. We find that our approach is successful in significantly improving the quality of filter lists for web users without large, language-specific crowd sourced lists. As our evaluation shows, our generated lists block an additional 2,270 of ad and ad-related resources (1,901 unique) when applied to 6,475 pages targeting these three regions.
2. Solution Requirements
A successful contribution to the problem of improving the quality of filter lists in small web regions should account for the following issues:
Scalability. The primary difficulty of generating effective blocking rules for small-region web users is the reduced number of people who can participate in a crowd-sourced list generation. While portions of the web are targeted at large audiences (e.g. sites in English language, or web regions with a large number of language speakers) can count on a large number of users to report unwanted resources, or generally distribute the task of list generation, regions of the web targeting only a small number of users (e.g. languages with less speakers) do not have this luxury. A successful solution therefore likely requires some kind to automation to augment the efforts of regional list generators.
Generalize-ability. In most of the cases, ads are rendered by scripts. In addition, every time an ad-slot is filled, the embedded ad image may have come from a different URL. Approaches that directly target the URLs serving ad-related resources then are likely to becomes stave very quickly. An effective solution to the problem would instead target the “root cause” of the unwanted resources being included in the page, in this case the script, which determines what image URLs to load. Approaches that attempt to only build lists of URLs of ad-related images are therefore unlikely to be useful solutions to the problem for the long term (as seen also from the screenshot in Figure 1).
Web compatibility. Content blocking necessarily requires modifying the execution of a page from what the site-author intended, to something hopefully more closely aligned with the visitor’s goals and preferences. Modifying the page’s execution in this way (e.g. by changing what resources to load, by preventing scripts from executing, etc.) frequently cause pages to break, and users to abandon content blocking tools. While filter lists targeting large audiences can rely on the crowd to report breaking sites to the list authors, (so that they can tailor the rules accordingly), filter lists targeting smaller parts of the web often do not have enough users to maintain this positive feedback loop. An effective system for programmatically augmenting small-region filter lists must therefore take extra care to ensure that new rules will not break sites.
This section presents a methodology for programmatically identifying advertising and other unwanted web resources in under-served regions. This section proceeds by describing (i) a high-level overview of our approach, (ii) a hybrid classifier used to identify image-based web advertisements, (iii) unique browser instrumentation used in our approach, (iv) how we identify ad-libraries and other “upstream” resources for blocking, (v) how we determined if a request was safe to block (i.e. would not break desirable functionality on the page), and (vi) how we generated filter list rules from the gathered ad URLs.
Our solution to improving filter lists for under-served regions consists of the combination of two unique strategies. First, we designed a system for programmatically determining whether an image is an ad, in a cross-language, highly precise way. We use this classifier to identify ad images that are missed by crowd-sourced filter list maintainers.
Second we developed a technique for identifying additional resources that should be blocked, by considering the request chains that brought the ad into the page, and finding instances where we can block earlier in that request chain. We then apply this “blocking earlier in the chain” principle to both ads identified by existing filter lists, and new ads identified by our classifier, to maximize the number of resources that can be safely blocked. This approach also allows us to generate generalized blocking rules that target the causes of ads being included in the page, instead of only the “symptoms”, the specific, frequently-changing image URLs.
We note that this approach could be applied to any region of the web, including both popular and under-served regions. However, since popular parts of the web are already well-served by crowd-sourced approaches, we expect the marginal improvement of applying this technique will be greatest for under-served regions, where there are comparatively few manual labelers.
The following subsections describe the implementation of each piece in our filter list generation pipeline. Section 4 describes the evaluation of how successful this approach was at generating new filter list rules for under-served regions.
3.2. Hybrid Perceptual/Contextual Classifier
First, our approach requires an oracle for determining if a page element is an advertisement, without human labeling. To solve this problem, we designed and trained a unique hybrid image classifier that considers both the image’s pixel data, and page context an image request occurred in, when predicting if a page element is an advertisement. Our classifier targets both images (i.e. <img>) and sub-documents (i.e. <iframe>). Our classifier prefers precision over recall, since for filter list it is more important to only block ads, instead of blocking every ad.
3.2.1. Comparison to Existing Approaches
While there is significant existing work on image based (i.e. perceptual) web ad classification, we were not able to use existing approaches for two reasons. First, we had disappointing results when applying existing perceptual classifiers to the web at large. The existing approaches we considered did very well on the data sets they were trained on, but did a relatively poor job when applied to new, random crawls of the web.
3.2.2. Classifier Design
Our approach combines both perceptual and contextual page features, each building on existing work. The perceptual features are similar to those described in the Percival (ul Abi Din et al., 2019) paper, while the contextual features are extensions of those used in the AdGraph (Iqbal et al., 2018)
Perceptual Sub-module. The perceptual part of our classifier expands Percival’s SqueezeNet based CNN into a larger network, ResNet18 (He et al., 2016). While the Percival project used a smaller network for fast online, in-browser classification, our classifier is designed for offline classification, and so faces no such constraint. We instead use the larger ResNet18 approach to increase predictive power. Otherwise, our approach is the same as that described in the Percival paper.
Contextual Sub-Module. The contextual part of our classifier does not consider the image’s pixel data, but instead how the image loaded in the web page, and the context of the page the image or subdocument would be displayed in. Examples of contextual features include whether the resource being requested is served on the same domain as the requesting website, and the number of sibling DOM nodes of img or iframe element initiating the request. These features are similar to those described in the AdGraph paper, and detailed in Table 4. The browser instrumentation needed to extract these features is described in detailed in Section 3.3.
3.2.3. Classifier Evaluation
|Initial Alexa 10k Data Set||Alexa 10k Recrawl|
|Perceptual-only||95.9 %||95.5 %||96.4 %||77.0 %||48.8 %||87.4 %|
|Hybrid||-||-||-||97.6 %||92 %||75 %|
|# Images||% Ads||# Frames||% Ads|
|Initial Alexa 10k Set||7,685||48 %||465||77 %|
|Alexa 10k Recrawl||2610||14 %||1,034||41 %|
|Height & Width|
|Is image size a standard ad size?|
|Resource URL length|
|Is resource from subdomain?|
|Is resource from third party?|
|Presence of a semi-colon in query string?|
|Resource type (image or iframe)|
|Perceptual classifier ad probability|
|Resource load time from start|
|Degree of the resource node (in, out, in+out)|
|Is the resource modified by script?|
|Parent node degree (in, out, in+out)|
|Is parent node modified by script?|
|Average degree connectivity|
We built our image classifier in two steps. First we built a purely perceptual classifier, using approaches described in existing work. Second, when we found the perceptual classifier did not generalize well when applied to a new, independent sampling of images, we moved to a hybrid approach. In this hybrid approach, the output of the perceptual classifier is just one feature among many other contextual features. We found this hybrid approach performed much better on our new, manually labeled, random crawl of the Alexa 10k. The rest of this subsection describes each stage in this process.
Initially, we built a classifier using an approach nearly identical to the perceptual approach described in (ul Abi Din et al., 2019). We evaluated this model on a combination of data provided by the paper’s authors, augmented with a small amount of additional data labeled by ourselves. This data set is referred to in Figure 3 as the “Initial Alexa 10k Set”. When we applied the training method described in (ul Abi Din et al., 2019) to this data set, we received very accurate results, reported in Figure 2.
Later, while building the pipeline described in this paper, we generated a second manually labeled data set of images and frames, randomly sampled a new crawl of the Alexa 10k. This data set is referred to in Figure 3 as “Alexa 10k Recrawl”, and was collected between 2-6 months later than the previous data set111the date range here is due to the majority of this data set being collected by the Percival authors, 6 months before our work, with a smaller additional amount of data being collected by ourselves later on.. When we applied the prior purely-perceptual approach to this new data set, we received greatly reduced accuracy. Most alarming of which, for our purposes, was the dramatically reduced precision. These numbers are also reported in Figure 2.
We concluded that perceptual features alone were insufficient to handle the breath of advertisements found on the web, and so wanted to augment the prior perceptual approach with additional, contextual features we expected to generalize better, both across languages and across time. A subset of these contextual features are presented in Figure 4, and are heavily based on the contextual ad-identification features discussed in the AdGraph (Iqbal et al., 2018) project.
After constructing our hybrid classifier from the combination of perceptual and contextual features, we achieved greatly increased precision, though at the expense some recall. We used a Random Forest approach to combine the perceptual and contextual features, and after conducting a 5-fold cross-validation, achieved mean precision of 92 % and mean recall of 75 %, again summarized in Figure2.
3.3. Browser Instrumentation
Our approach is similar to the AdGraph (Iqbal et al., 2018) project, but is more robust (i.e. corrects categories of attribution errors) and broader (i.e. cover an even greater set of page behaviors). PageGraph is implemented as a large set of patches and modifications to Blink and V8 (approximately 12K LOC). The code for PageGraph is open source and actively maintained, and can be found at222Link removed for anonymous submission,along with information on how other researchers can use the tool.
The remainder of this subsection provides a high-level summary of the graph-based approach used by PageGraph, and how it differs from existing work.
3.3.1. Graph Representation of Page Execution
3.3.2. Differences from Existing Work
The most relevant related work to PageGraph is the AdGraph project, which also modifies the Blink and V8 systems in Chromium to build a graph-representation of page execution. PageGraph differs from AdGraph in several significant ways.
Increased Attribution Breadth. PageGraph significantly increases the set of page events tracked in the graph, beyond what AdGraph records. For example, PageGraph tracks image requests initiated because of CSS rules and prefetch instructions, records modifications made in local sub-documents, and tracks failed network requests, among many others. This additional attribution allows for greater understanding of the context scripts execute in.
3.4. Generalizing Filter Rules
We next discuss how we generate generalized filter rules from the data gathered by the previously described image classifier and browser instrumentation. The general approach is to find URLs serving ad images and frames using the classifier, use the browser instrumentation to build the entire request chain that caused the advertisement to be included in the page (e.g. the script that fetched the script that inserted the image), and then again use the browser instrumentation to determine how far up each request chain we can block without breaking the page.
We build these request chains for both images (and frames) our classifier identifies as an ad, and for resources identified by network rules in existing filter lists (i.e. EasyList, EasyPrivacy and the most up to date applicable regional list). The former allows us to generalize the benefits of our image classifier, the latter allows us to maximize the benefits of existing filter lists.
Blocking higher in the request chain has several benefits. First, and most importantly, targeting URLs higher in the request chain yields a more consistent set of URLs. While the specific images that an ad library loads will change frequently, the URL of the ad library itself will rarely change. Approaches that target the frequently changing image URLs will result in filter list rules that quickly go stale; rules that target ad library scripts (as one example) are more likely to be useful over time, and to a wider range of users. Moving higher in the request chain means we are more likely to programmatically identify ad libraries in addition to frequently changing, one-off image URLs.
Second, blocking higher in request chains reduces the total number of requests, bringing privacy and performance improvements. Blocking a single “upstream” ad library may prevent the browser from needing to consider several “downstream” requests.
3.4.2. Building Request Chains
To generate optimized filter list rules, we target not only the ad images and ad frames in each page, but the scripts that injected those images and frames (and, potentially, the scripts that injected those scripts, etc.). We refer to the cause of a request as being “upstream”, and the thing being requested “downstream”. We refer to the list of elements that participated in an advertisement being included as its “request chain.”
For each <img>, <iframe> and <script> in a page, we determine the request chain as follows:
Locate each element in the PageGraph generated graph structure. Call this element X.
Use the graph edges to determine how X was inserted in the document. If X was inserted by the parser (i.e. it appeared in the initial HTML text) then stop.
Otherwise, append the script element X into the request chain for X, set the responsible script element as the new X and continue from #2 above.

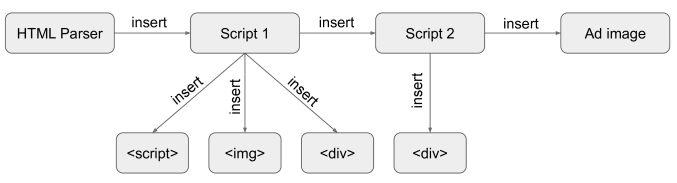

A simplified result of this process is depicted in Figure 5. The figure shows a simplified request chain, where a script was included in the initial HTML (“script one”), that script programmatically inserted another script element into the document (“script two”) and that second script inserted an advertising image into the page.
We use these request chains to determine the optimal place to start blocking, using the approach described in the following section.
3.5. Safe Blocking in Request Chains
This subsection describes how we determine whether blocking a script request is likely to break a page. We use this technique to determine how “high” in each request chain we can block, with the goal of determining the earliest “upstream” request we can block in a request chain without breaking the page. Our approach is “conservative” (i.e. prefers false negatives over false positives), under the intuition that users would prefer a working, ad-filled page, over a broken, ad-less page.
3.5.1. Determining Page Breakage
We use a pair of simple heuristics to determine whether blocking a script is likely to break a page. These heuristics are designed to distinguish scripts that only inject ads into pages from scripts that perform more complex, and hopefully user serving, page operations.
If a script creates more than two subtrees in the document, we consider it unsafe to block.
If a script inserts another script that matches condition #1, we consider it unsafe to block.
We consider all other scripts safe to block.
Less formally, if a script makes no modifications to the structure of a page, or the modifications to the page are isolated to one or two parts of the page (e.g. one or two ads, an ad and an “ad choices” annotation, etc.) we consider it safe to block. Scripts that add elements to more than two parts of the page, or include scripts that do the same, are considered too risky to block, and too likely to break desirable page functionality.
We note that this is only a heuristic, one that matches our experience building and debugging advertising and tracking-blocking tools, but still only a heuristic. We choose the conservative figure of allowing modifications to a maximum of two regions of the page to favor false negatives over false positives (i.e. we’d rather allow an ad than break a page). The larger problem of predicting whether any given page modification breaks a site in the subjective determination of the browser user is an open research question, and one that would be its own complicated project.
3.5.2. Application to Filter List Generation
We use the above-described heuristics to determine the highest point in a request chain that can be blocked. For each request chain describing how an advertising image or frame was included in a page, we select the most “highest”, or earliest script request we can block, that will not break the page. Put differently, we want to select the earliest point in each chain to block, that will have have no “downstream” breaking scripts.
As a demonstration, consider Figure 5. Our system would generate two filter rules for this request chain, on targeting the “ad image”, and one targeting “script 2”. Our system begins by considering the most “downstream” request, the image element at the far right. This image has been identified as an ad, either by our classifier, or by existing filter lists. Using the browser instrumentation described in Section 3.3, we build the request chain for this image.
Next, we try to consider the earliest point in the request chain we can begin blocking. We observe that “script 2” only modifies one other part of the document (inserting a single <div> element) and so we consider this script safe to block. The next element in the request chain, “script 1” inserts elements into more than two parts of the document, and so we consider it “unsafe” for blocking.
3.6. Rule Generation
Finally, we describe how we turn the set of identified ad-serving URLs into filter list rules. We do so through the following four steps for each URL we determine to be blockable:
Reduce the URL’s domain to its eTLD+1 root.
Remove the query parameter portion of the URL.
Remove the fragment portion of the URL.
Remove the protocol from the URL.
We then record the modified (i.e. reduced) version of each URL as a right-rooted AdBlock Plus format filter rule444https://adblockplus.org/filter-cheatsheet. For example, the URL https://a.good.example.com/ad.html?id=3 would be recorded as ||good.example.com/ad.html, and would block requests to https://good.example.com/another-ad.html and http://a.b.good.example.com/ad.html?id=4, but would not block requests to https://bad.example.com/ad.html. This approach is designed to generalize some (i.e. match other similar requests, even when irrelevant details like tracking related query parameters change) but not so much so that unrelated materials served on the same host are blocked.
In this section, we evaluate the approach to regional filter list generation described in Section 3 by applying the technique to three representative under-served web regions. We find that the technique is successful, and generates 946 new rules that identify 1,901 advertising URLs missed by existing filter lists. These new rules, when applied in addition to existing filter list rules, results in 24.2% more advertising resource being blocked than when using existing filter lists alone. We also find that our technique is useful in all three measured regions, though to varying degrees.
This section proceeds by first describing how we selected the three under-served regions used in this evaluation, then presents the crawling methodology we used to measure popular websites in each selected region, and follows by presenting the results of applying our methodology to each of these regions. The section concludes by presenting the output of our measurements (i.e. the newly generated filter list rules), so that they can be used by existing content blockers.
4.1. Selecting Regions for Evaluation
|Country||# Rules||# Network Rules||Last Update||Source|
We evaluated our approach on three regions under-served by existing crowd-sourced filter lists: Albania, Hungary, and Sri Lanka. We selected these regions after looking for regions that matched four criteria.
The national language was not a major world language.
Had a popular sites listing on Alexa Top Sites.
There existed at least one filter list for the region.
We could purchase or gain access to a VPN with an exit point in the country.
Figure 6 presents the regions we selected for this evaluation, along with measurements of the existing best-maintained regional filter list. For each region we identified the best maintained filter list for the region by consulting both the EasyList selection of regional filter lists555https://easylist.to/pages/other-supplementary-filter-lists-and-easylist-variants.html, and the filter lists indexed on a popular, crowd-sourced site of regional filter lists666https://filterlists.com.
4.2. Crawl Data Set
|Country||# Domains||# Pages||# Images||# Frames|
We next built a data set of popular websites and pages for each of the three selected regions. We use this data set for two purposes: first to approximate how internet users in these regions experience the web, and second to determine how much advertising content was being missed by existing content blocking options.
For each region, we first fetched the 1,000 most popular domains for the region, as determined by the Alexa Top Lists. Next, we purchased VPN access from ExpressVPN (9), a commercial VPN service, that provided an IP address in each region. Third, we configured a crawler to visit each domain and select two random child links with the same eTLD+1. We then configured our crawler to use our PageGraph-instrumented browser to visit the domain of each site and each selected child page, each for 30 seconds. All crawling was conducted from the VPN end point, to as closely as possible approximate how the page would run for a local visitor.
After 30 seconds, we recorded the PageGraph data for each page (note, the PageGraph data includes information about all network requests issued during the page’s execution, in addition to the cause of each request). We also record all images and scripts fetched in the top-and-local frames (i.e. <iframe>s with the same domain as the top level frame) during each page’s execution, along with screenshots of each remote child-frame (i.e. <iframe>s of third-party domains).
Figure 7 presents the results of our automated crawl. For each of the regions we encountered a significant number of non-responsive domains, which comprise the difference between the number in the “# Domains” column and the 1,000 domains identified by Alexa. While the 10% non-responsive rate for Hungary and Sri Lanka is inline with prior web-studies (Invernizzi et al., 2016) that find around 11% error rate for automated crawls of the web, the even higher rate of non-responsive sites in Albania was surprising. On manual evaluation of a sample of these domains, we found a small number of cases were due to anti-crawler countermeasures or apparent IP blacklisting of the VPN end point. In a surprising number of cases though, domains seemed to be abandoned and hosting no web content at all. We note this as a point for future study.
4.3. Ads Identified by Existing Filter Lists
|Country||# Ad Images||%||# Ad Frames||%|
Next, we measured how successful existing filter lists are at identifying and blocking advertisements on popular sites in our selected regions. We treated this measurement as our baseline when measuring how much additional blocking benefit our approach provides. Figure 8 shows the amount of advertisement identified by existing filter lists.
We measured the amount of ad resources identified by existing lists in two steps. First, we combined the best maintained regional filter list for each region (listed in Figure 6) with the two most popular “global” filter lists, EasyList and EasyPrivacy. Then, we applied these combined filter lists to the image and iframe requests encountered when crawling each region, using a popular AdBlock filter list library (Andrius Aucinas, 2019). We then noted which images and iframe requests would be blocked by the current best filter lists available to people in each region.
4.4. Ads Identified by Hybrid Classifier
|Country||# Ad Images||%||# Ad Frames||%|
Next, we identified how many advertising images and iframes we missed by existing filter lists. We found a significant number of both; our classifier identified 1,512 ad images and 0 ad frames that were missed by existing filter lists. Put differently, our approach identified 29.6% more ad images, and 0% more ad frames, than existing filter lists.
We note that these figures only include ad images and frames missed by filter lists; we observed a significant amount of overlap between the two approaches. Figure 9 summarizes the additional ad resources our classifier identified. Additionally, we note that while our image classifier was successful at identifying many image-ads missed by filter lists, it identified zero frame ads missed by existing filter lists (i.e. all the frame ads identified by the classifier were already identified by filter lists). We expect this is because frame-based ads are served by a smaller number of easily identified ad brokers, while injected image ads come from a wider variety of sources (and so are more likely to go unidentified in regional manual labeling).
We measured how many advertising images and frames current approaches miss in two steps. First, we identified each image or frame in the corresponding PageGraph graph data, and used that contextual information to extract the contextual features described in Section 3.2.2. Second, we used the pixel data of each resource to feed the perceptual part of the classifier. For images, we used the image file directly; for frames we used a screenshot of the frame taken during the crawling step.
4.5. Generalizing Rules with Request Chains
The “current lists” column describes the number of ad-resources identified by existing filter lists, the “classifier” column describes ad-resources identified by our hybrid classifier but missed by existing filter lists. The “ chains” column describes the number of new ad-resources identified by applying our “upstream” blocking approach to ad-resources identified by either current filter lists or the hybrid classifier. The “” column describes the overall increase in identified ad-resources provided by our techniques, when compared to existing filter lists.
Next, we identified additional resources that should be blocked by examining the request chain for each ad image or frame, and finding the earliest point in each chain that could be blocked without breaking the page. We applied this “upstream request chain” blocking technique to both ad resources labeled by existing filter lists and ad resources newly identified by our hybrid classifier. Doing so allowed us to not only identify specific images and frames that should be blocked, but to programmatically identify the “upstream” libraries that caused those images and frames to be included.
We were able to identify 1,901 additional advertising URLs by analyzing the request chains in this manner, an improvement of 24.2% in advertisement blocking in these regions. We note that by following the methodology described in Section 3.5, targeting these additional resources will result in more generalizable filter rules ,by identifying both the individual ad image URLs and the ad libraries that determine what ads to load. The approach described in Section 3.5 also gives us a high degree of confidence that this “upstream” blocking will not break pages.
Figure 10 shows the final results of our regional filter list methodology when applied to the Albanian, Hungarian and Sri Lankan web regions. The “current lists” column presents the number of ad resources existing filter lists identify in each region in our data set. The “classifier” column gives the number of images and frames our hybrid classifier identifies as ad-related that are not identified by existing filter lists. The “ chains” column gives the total number of ad resources identified by applying the request chain approach (Section 3.4) to images and frames identified as advertisements by either existing filter lists or the hybrid classifier. The final “” column gives the percent-increase in resources identified by our combined methodology, when compared to using only existing filter lists.
4.6. Generated Filter-Lists
Finally, we generated filter lists in AdBlock Plus format to block the advertising resources identified in the previous steps. We used the rule generation methodology described in Section 3.6 to generate 946 new filter rules. Figure 11 presents several representative examples, along with how many times they would have been used during our crawls. We have made the filter lists available at777https://sites.google.com/site/longtailfilterlists/. Counts of the total number of new rules for each region are presented in Figure 12.
In this section, we discuss broader issues related to the problem of filter list generation and ad blocking, including possible next steps and extensions for the described approach, and some limitations and concerns for future researchers to consider.
5.1. Ad Ambiguity
A reoccurring issue in identifying and blocking online advertisements is that many images and ads are context specific. An image in one context might be core content in another. For example, an image of shoes with the name of the shoe maker might be perceived as an advertisement when positioned next to a news article, but the same image might be desirable when placed in the middle of a page on a shoes selling website.
We encountered an even more difficult case when labeling and debugging the pipeline described in this work. We found a movie sharing forum that used a number of banner ads (like the one presented in Figure 13) from elsewhere on the web as a table of contents, to show which movies had most recently been added on the site. In such cases, the “ad-ness” of an image is not ambiguous, its explicitly both an ad and desirable page content!
Crowd-sourced filter list generation approaches rely on the subjective intuition of list contributors to resolve such difficult situations. Programmatic solutions have no such option, and so must address a two tiered problem: first, how to identify images that look like advertisements, and second, how to model subjective user expectations of when an advertisement is desirable to users.
We find these problem presented by the intersection of these two issues is unaddressed by existing literature (current work included) Our resolution to this issue was that “ads are ads”’, that its the job of ad blocking tools to block ads, and if a user is in a scenario where they wish to see and ad, they should disable the ad-blocking tool. How satisfying such an approach is will likely be task specific. Thankfully, the number of ambiguous ads we encountered was low enough that it did not affect the main focus of the work, but we mention it as an interesting area for future research.
5.2. Alternative Image-Identification Oracles
This work used a unique hybrid approach for determining whether an image or a frame was an advertisement. This is only one of an infinite number of possible oracles the same pipeline could adopt. While we designed our approach to be conservative in identifying images (as described in Section 3.2), one could instead use a much more aggressive oracle, if one was willing to accept a greater false-positive rate in ad-identification, or was willing to accept sites breaking, for additional data savings and privacy protections.
In this sense, our oracle represents just one web use preference (less advertisements, but with a low tolerance for error). The same broad approach, as described in this paper, could be used with other oracles, such as those targeting just certain types of advertisements (i.e. blocking adult ads), or certain types of web content in general (i.e. blocking violent images).
While our goal in this work was to improve web browsing for people in under-served regions, the described approach is not specific to advertising. The identify-and-prune-the-request-chain approach could be helpful in addressing many web problems where human labelers are lacking.
5.3. Possible Extensions
We considered many additional features and approaches when designing the methodology in this work. Here, we briefly describe a variety of improvements we considered, but did not implement because of time, cost or complexity. We list them as possible suggestions to other researchers addressing similar problems.
Predicting Page Breakage. An important part of this work was generating and testing useful heuristics for whether blocking a script would break a page. The heuristics discussed in Section 3.5 have proven useful for us, but could be improved. One could, for example, also consider the number and type of Web API calls a script makes, whether the script sets or reads storage, or any number of other behavioral characteristics when trying to predict whether blocking a script would break a page.
Tracking Protections. This work improves blocking advertisements in under-served regions, but similar approach could be taken to target tracking scripts. Instead of building a classifier to determine if an image is an advertisement, one would instead need an oracle to determine whether a script was privacy violating. This might be an easier task, since determining the privacy implications of a script’s execution is in many cases easier that predicting the subjective evaluation of whether an image is an advertisement.
Improving Other Filter Lists. The approach in this paper was designed to help web users in under-served regions. However, the same approach could likely be used to improve filter lists in general, including “global” popular ones like EasyList and EasyPrivacy. Though the marginal improvement would likely be lower, since the relative popularity of such sites likely means a higher percentage of ad resources have been identified by filter list contributors, our approach could still be useful in improving blocking on less popular, or frequently changing sites.
Finally, we note some limitations of this approach, in the hopes that future work might address them. First, while our approach was successful on the three selected regions, its difficult to know if these findings would generalize to all under-served regions on the web. While such a measurement is beyond our ability to carry out, it would be interesting to better understand how similar web advertising is across the web generally.
Second, our approach relies on automated, manual crawls of websites to identify ad-related resources. Its possible that the kinds of advertisements reachable by automated tools are different from the kinds of advertisements humans experience when on parts of the web not reachable by crawlers, such as within web applications, behind paywalls, or within account-requiring portions of websites. This limitation is a subset of a larger open problem in web measurement, of understanding how well automated crawls approximate human user experiences.
Finally, the types of advertisements targeted in this work (i.e. image based web advertisements) are just one of many types of advertisements web users face. A partial list includes audio ads, video interstitials, native text ads, and interactive advertisements. If image- and frame- targeting ad blockers continue to become more popular, we can expect advertisers to adopt to these alternative advertising approaches. Researchers will in turn need to come up with new ad blocking techniques to preserve a usable, performant, privacy respecting web.
6. Related Work
6.1. Filter Lists
In (Vastel et al., 2018), Vastel et al. explored the accumulation of dead rules by studying EasyList, the most popular filter list. Results of their study show that the list has grown from several hundred rules, to well over 60,000 rules, within 9 years, when 90.16% of the resource blocking rules are not useful. Finally, authors, propose optimizations for popular ad-blocking tools, that allow EasyList to be applied on performance constrained mobile devices, and improve desktop performance by 62.5%.
Gugelmann et al. in (Gugelmann et al., 2015) investigated how to detect privacy-intrusive trackers and services from passive measurements and propose an automated approach that relies on a set of web traffic features to identify such services and thus help developers maintaining filter lists. Pujol et al. in (Pujol et al., 2015) used Adblock Plus filter lists for passive network classification. By analyzing data from a major European ISP authors show that 22% of the active users have Adblock Plus deployed. Also they found that 56% and 35% of the ad-related requests are blacklisted by EasyList and EasyPrivacy, respectively.
Iqbal et al., in (Iqbal et al., 2017)
, studied the anti-adblock filter lists that ad blockers use to remove anti-adblock scripts. By analyzing the evolution of two popular anti-adblock filter lists, authors show that their coverage considerably improved the last 3 years and they are able to detect anti-adblockers on about 9% of Alexa top-5K websites. Finally authors proposed a machine learning based method to automatically detect anti-adblocking scripts.
6.2. Resource Blocking
In (Storey et al., 2017), Storey et al. discussed the future of ad blocking by modelling it as a state space with four states and six state transitions, which correspond to techniques that can be deployed by either publishers or ad blockers. They also proposed several new ad blocking techniques, including ones that borrow ideas from rootkits to prevent detection by anti-ad blocking scripts. Zhu et al., in (Zhu et al., 2019), proposed ShadowBlock: a new Chromium-based ad-blocking browser that can hide traces of ad-blocking activities from anti-ad blockers. ShadowBlock leverages existing filter lists and hides all ad elements stealthily so anti-ad blocking scripts cannot detect any tampering of the ads (e.g., absence of ad elements). Performance evaluation on Alexa top-1K websites shows that their approach successfully blocks 98.3% of all visible ads while only causing minor breakage on less than 0.6% of the websites.
Garimella et al. in (Garimella et al., 2017) measured the performance and privacy aspects of popular ad-blocking tools. Their findings show that (i) uBlock has the best performance, in terms of ad and third party tracker filtering, and least privacy tracking. They also found that the time to load pages is not necessarily faster when using adblockers, and this happens due to additional functionality introduced by the adblocking tools. In (ul Abi Din et al., 2019)
, Din at al. proposed Percival: a deep learning based perceptual ad blocker that aims to replace filter list based adblocking. Percival runs within the browser’s image rendering pipeline, intercepts images during page execution and by performing image classification, it blocks ads. Percival can replicate EasyList rules with an accuracy of 96.76% when it imposes a rendering performance overhead of 4.55%.
6.3. Internet Vantage Points
Selecting different vantage points to browse Internet from is a quite common technique in order to understand the different view of the web different users may have. Jueckstock et al. in (Jueckstock et al., 2019) design and deploy a synchronized multi-vantage point web measurement study to explore the comparability of web measurements across different Internet vantage points. In (Fruchter et al., 2015) Fruchter et al. proposed a method for investigating tracking behavior by analyzing cookies and HTTP requests from browsing sessions from different countries. Results show that websites track users differently, and to varying degrees, based on the regulations of the country the visitor’s IP is based in.
Iordanou et al. in (Iordanou et al., 2017) proposed a system for measuring how e-commerce websites discriminate between users. Authors consider several different motivations for discrimination, including geography, prior browsing behavior (e.g., tracking-derived PPI) of the user, and site A/B testing. They found that the first and third motivations explain more website “discrimination” than the second.
In this work we address the problem of augmenting filter lists for users of under-served, linguistically-small parts of the web. The approach described in this work is amenable to full automation, and with sufficient computation resources could be applied to any number of additional under-served populations of web users. Further, we expect the same approach could be used to block tracking-related resources too, improving privacy for under-served web users too.
The problem of poorly maintained filter lists in under-served regions is significant. First, the current predominant approach to filter list generation (i.e. crowd-sourcing) is poorly suited for these web-regions, which by definition have less users, and so smaller “crowds.” Second, in many cases, under-served areas of the web target users with less income, and with less access to cheap, high speed data; the users who would benefit most from ad blocking are often the poorest served by current filter list generating strategies. Third, existing filter list generation strategies that do not rely on crowd-sourcing fail to consider web compatibility (i.e. breaking sites), leaving under-served users with the unappealing trade-off between data-draining, privacy-harming browsing, or, alternatively, breaking web sites.
This work proposes a novel approach for generating filter rules for under-served regions of the web. Our approach determines whether images and frames are advertisements by considering perceptual and contextual aspects of the underlying image (or frame), and then using deep browser instrumentation to determine where in the request chain we can optimally begin blocking requests.
We apply this approach to popular websites in three regions currently poorly served by crowd-sourced filter lists, Sri Lanka, Hungary, and Albania. Our approach is successful at improving blocking without breaking websites. We generate 946 new filter list rules that identify 24.2% new advertising resources that should be blocked, improving blocking by 19.8% over the existing best options for these regions. We are also releasing our generated filter lists so that web users in these regions can benefit from them888https://sites.google.com/site/longtailfilterlists/, along with the source code for our hybrid image classifier999Link removed for anonymous submission and our PageGraph browser instrumentation101010Link removed for anonymous submission.We hope this work advances the goal of improving the web for all users, no matter their location or linguistic-community.
-  Adblock list for albania. Note: https://github.com/anxh3l0/blocklistaccessed: Oct-2019 Cited by: Figure 6.
-  Adblock sri lanka. Note: https://github.com/miyurusankalpa/adblock-list-sri-lankaaccessed: Oct-2019 Cited by: Figure 6.
-  (2019) Brave improves its ad-blocker performance by 69x with new engine implementation in rust. Note: https://brave.com/improved-ad-blocker-performance/ Cited by: §4.3.
Leveraging machine learning to improve unwanted resource filtering.
Proceedings of the 2014 Workshop on Artificial Intelligent and Security Workshop, pp. 95–102. Cited by: §1.
-  Brazilian filterlist. Note: https://raw.githubusercontent.com/easylistbrasil/easylistbrasil/filtro/easylistbrasil.txtaccessed: Oct-2019 Cited by: §1.
-  (2017) 30% of all internet users will ad block by 2018. Note: https://www.businessinsider.com/30-of-all-internet-users-will-ad-block-by-2018-2017-3 Cited by: §1.
-  Chinese filterlist. Note: https://easylist-downloads.adblockplus.org/easylistchina.txtaccessed: Oct-2019 Cited by: §1.
-  (2016-10) Detecting third-party user trackers with cookie files. In 2016 Third International Scientific-Practical Conference Problems of Infocommunications Science and Technology (PIC S T), Vol. , pp. 78–80. External Links: Cited by: §1.
-  ExpressVPN. Note: accessed: Oct-2019 Cited by: §4.2.
-  French filterlist. Note: https://easylist-downloads.adblockplus.org/liste_fr.txtaccessed: Oct-2019 Cited by: §1.
-  (2015) Variations in tracking in relation to geographic location. CoRR abs/1506.04103. External Links: Cited by: §6.3.
-  (2017) Ad-blocking: A Study on Performance, Privacy and Counter-measures. In WebSci, pp. 259–262. Cited by: §1, §6.2.
-  German filterlist. Note: https://easylist.to/easylistgermany/easylistgermany.txtaccessed: Oct-2019 Cited by: §1.
-  (2015) An automated approach for complementing ad blockers’ blacklists. Proceedings on Privacy Enhancing Technologies 2015 (2), pp. 282–298. Cited by: §1, §6.1.
-  (2016) Deep residual learning for image recognition. In , pp. 770–778. Cited by: §3.2.2.
-  Hindi filterlist. Note: https://easylist-downloads.adblockplus.org/indianlist.txtaccessed: Oct-2019 Cited by: §1.
-  Hufilter. Note: https://github.com/hufilter/hufilter/wikiaccessed: Oct-2019 Cited by: Figure 6.
-  (2016) Cloak of visibility: detecting when machines browse a different web. In 2016 IEEE Symposium on Security and Privacy (SP), pp. 743–758. Cited by: §4.2.
-  (2017) Who is fiddling with prices?: building and deploying a watchdog service for e-commerce. In Proceedings of the Conference of the ACM Special Interest Group on Data Communication, SIGCOMM ’17, New York, NY, USA, pp. 376–389. External Links: Cited by: §6.3.
-  (2017) The ad wars: retrospective measurement and analysis of anti-adblock filter lists. In Proceedings of the 2017 Internet Measurement Conference, IMC ’17, New York, NY, USA, pp. 171–183. External Links: Cited by: §1, §6.1.
-  (2018) AdGraph: A machine learning approach to automatic and effective adblocking. CoRR abs/1805.09155. External Links: Cited by: §1, §3.2.2, §3.2.3, §3.3, §6.2.
-  Japanese filterlist. Note: https://raw.githubusercontent.com/k2jp/abp-japanese-filters/master/abpjf.txtaccessed: Oct-2019 Cited by: §1.
-  (2019) The blind men and the internet: multi-vantage point web measurements. CoRR abs/1905.08767. External Links: Cited by: §6.3.
-  (2012) Knowing your enemy: understanding and detecting malicious web advertising. In the ACM Conference on Computer and Communications Security, CCS’12, Raleigh, NC, USA, October 16-18, 2012, pp. 674–686. Cited by: §1.
-  Adblock Plus Efficacy Study. Note: http://www.sfu.ca/content/dam/sfu/snfchs/pdfs/Adblock.Plus.Study.pdfaccessed: Oct-2019 Cited by: §1.
-  Portugese filterlist. Note: https://easylist-downloads.adblockplus.org/easylistportuguese.txtaccessed: Oct-2019 Cited by: §1.
-  (2015) Annoyed users: ads and ad-block usage in the wild. In Proceedings of the 2015 Internet Measurement Conference, IMC ’15, New York, NY, USA, pp. 93–106. External Links: Cited by: §1, §6.1.
-  Russian filterlist. Note: https://easylist-downloads.adblockplus.org/advblock.txtaccessed: Oct-2019 Cited by: §1.
-  (2017) The future of ad blocking: an analytical framework and new techniques. arXiv preprint arXiv:1705.08568. Cited by: §6.2.
-  (2019) Percival: making in-browser perceptual ad blocking practical with deep learning. CoRR abs/1905.07444. External Links: Cited by: Figure 2, §3.2.2, §3.2.3, §6.2.
-  (2018) Who filters the filters: understanding the growth, usefulness and efficiency of crowdsourced ad blocking. CoRR abs/1810.09160. External Links: Cited by: §1, §6.1.
-  (2019) ShadowBlock: a lightweight and stealthy adblocking browser. In The World Wide Web Conference, WWW ’19, New York, NY, USA, pp. 2483–2493. External Links: Cited by: §6.2.
