FILM: Following Instructions in Language with Modular Methods

10/12/2021 ∙ by So Yeon Min, et al. ∙ Facebook Carnegie Mellon University 0

Recent methods for embodied instruction following are typically trained end-to-end using imitation learning. This requires the use of expert trajectories and low-level language instructions. Such approaches assume learned hidden states will simultaneously integrate semantics from the language and vision to perform state tracking, spatial memory, exploration, and long-term planning. In contrast, we propose a modular method with structured representations that (1) builds a semantic map of the scene, and (2) performs exploration with a semantic search policy, to achieve the natural language goal. Our modular method achieves SOTA performance (24.46 (8.17 both expert trajectories and low-level instructions. Leveraging low-level language, however, can further increase our performance (26.49 suggest that an explicit spatial memory and a semantic search policy can provide a stronger and more general representation for state-tracking and guidance, even in the absence of expert trajectories or low-level instructions.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 4

page 6

page 9

page 13

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Human intelligence simultaneously processes data of multiple modalities, including but not limited to natural language and egocentric vision, in an embodied environment. Powered by the success of machine learning models in individual modalities

(Devlin et al., 2018; He et al., 2016; Voulodimos et al., ; Anderson et al., 2018a), there has been growing interest to build multimodal embodied agents that perform complex tasks. An incipient pursuit of such interest was to solve the task of Vision Language Navigation (VLN), for which the agent is required to navigate to the goal area given a language instruction (Anderson et al., 2018b; Fried et al., 2018; Zhu et al., 2020).

Embodied instruction following (EIF) presents a more complex and human-like setting than VLN or Object Goal Navigation (Gupta et al., 2017; Chaplot et al., 2020b; Du et al., 2021); beyond just navigation, agents are required to execute sequences of sub-tasks that entail both navigation and interaction actions from a language instruction (Fig. 1). The additional challenges posed by EIF are threefold - the agent has to understand compositional instructions of multiple types and subtasks, choose actions from a large action space and execute them for longer horizons, and localize objects in a fine-grained manner for interaction (Nguyen et al., 2021).

Most existing methods (Zhang and Chai, 2021; Kim et al., 2021; Nottingham et al., 2021)

for EIF have relied on neural memory of various types (transformer embeddings, LSTM state) which are trained end-to-end with behavior cloning on expert trajectories, upon raw or pre-processed language/visual inputs. However, EIF remains a very challenging task for such end-to-end methods as they require the neural network to simultaneously learn state-tracking, building spatial memory, exploration, long-term planning, and low-level control.

In this work, we propose FILM (Following Instructions in Language with Modular methods). FILM consists of several modular components that each (1) processes language instructions into structured forms (Language Processing), (2) converts egocentric visual input into a semantic metric map (Semantic Mapping), (3) predicts a search goal location (Semantic Search Policy), and (4) outputs subsequent navigation/ interaction actions (Deterministic Policy). FILM overcomes some of the shortcomings of previous methods by leveraging a modular design with structured spatial components. Unlike many of the existing methods for EIF, FILM does not require any input that provides sequential guidance, namely expert trajectories or low-level language instructions. While Blukis et al. (2021) recently introduced a method that uses a structured spatial memory, it comes with some limitations from the lack of explicit semantic search and the reliance on expert trajectories.

On the ALFRED (Shridhar et al., 2020a) benchmark, FILM achieves State-of-the-Art performance (24.46%) with a large margin (8% absolute) from the previous SOTA (Blukis et al., 2021). Most approaches rely on low-level instructions, and we too find that including them leads to an additional 2% improvement in success rate (26.49%). FILM’s strong performance and our analysis indicate that an explicit structured spatial memory coupled with a semantic search policy can provide better state-tracking and exploration, even in the absence of expert trajectories or low-level instructions.

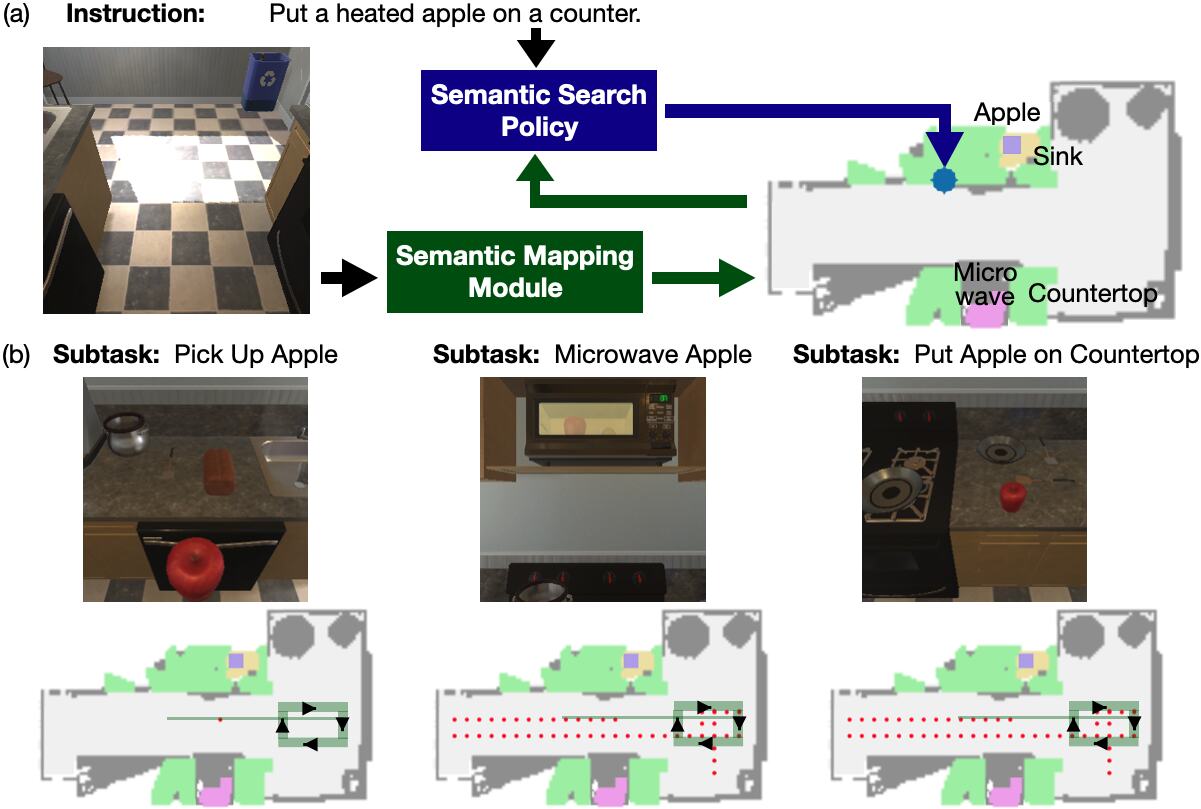

Figure 1: An Embodied Instruction Following (EIF) task consists of multiple subtasks. (a) FILM method overview: The agent receives the language instruction and the egocentric vision of the frame. At every time step, a semantic top-down map of the scene is updated from predicted depth and instance segmentation. Until the subgoal object is observed, a search goal (blue dot) is sampled from the semantic search policy. (b) Example trajectories: Trajectory of an existing model (HiTUT (Zhang and Chai, 2021)) is plotted in a straight green line, and that of FILM is in dotted red. While HiTUT’s agent travels repeatedly over a path of closed loop (thick green line, arrow pointing in the direction of travel), FILM’s semantic search allows better exploration and the agent sufficiently explores the environment and completes all subtasks.

2 Related Work

A plethora of works have been published on embodied vision and language tasks, such as VLN (Anderson et al., 2018b; Fried et al., 2018; Zhu et al., 2020), Embodied Question Answering (Das et al., 2018; Gordon et al., 2018), and topics of multimodal representation learning (Wang et al., 2020; Bisk et al., 2020), such as Embodied Language Grounding (Prabhudesai et al., 2020). On Visual Language Navigation, which is the most comparable to the setting of our work, methods with impressive performances Ke et al. (2019); Wang et al. (2019); Ma et al. (2019) have been proposed since the introduction of R2R Anderson et al. (2018b). While far from conquering VLN, these methods have shown up to 61% success rate on unseen test environments Ke et al. (2019).

On the more challenging task of Embodied Instruction Following (EIF), multiple methods have been proposed with differing levels of modularity in the model structure. As a baseline, Shridhar et al. (2020a) has presented a Seq2Seq model with an attention mechanism and a progress monitor, while Pashevich et al. (2021) proposed to replace to seq2seq model with an episodic transformer. These methods take the concatenation of language features, visual features, and past trajectories as input and predict the subsequent action end-to-end. On the other hand, Kim et al. (2021); Zhang and Chai (2021); Nguyen et al. (2021) modularly process raw language and visual inputs into structured forms, while keeping a separate “action prediction module” that outputs low-level actions given processed language outputs. Their “action taking module” itself is trained end-to-end and relies on neural memory that “implicitly” tracks all of spatial, progressive, and states of the agent. Unlike these methods, FILM’s structured language/ spatial representations make reasons for failure transparent and elucidates directions to improve individual components.

Recently, Blukis et al. (2021) has proposed a more modular method with a persistent and structured spatial memory. Language and visual input are transformed into respectively high-level actions and the 3D map. With the 3D map and high-level actions as input, prediction of low-level action is trained with behavior cloning with expert trajectories, which are often expensive to obtain. Among all proposed methods for EIF, FILM necessitates the least information (neither low-level instructions nor expert trajectories are needed, although the former can be taken as an additional input). Furthermore, FILM addresses the problem of search/ exploration of goal objects.

Various works in visual navigation with semantic mapping are also relevant. Simultaneous Localization and Mapping (SLAM) methods, which build 2D or 3D obstacle maps, have been widely used (Fuentes-Pacheco et al., 2015; Izadi et al., 2011; Snavely et al., 2008). In contrast to these works, recent methods (Chaplot et al., 2020b, a) build semantic maps with differentiable projection operations, which restrain egocentric prediction errors amplifying in the map. The task of Chaplot et al. (2020b, a) is object goal navigation, a much simpler task compared to EIF. Furthermore, while Chaplot et al. (2020b) employs a semantic exploration policy, our and their semantic policies serve fundamentally different purposes; while their policy guides a general sense of direction among multiple rooms in the search for large objects (e.g. fridge), ours guides the search for potential locations of small and flat objects which have little chance of detection at a distance. Also, our semantic policy is conditioned on language instructions. Blukis et al. (2018a, b) also successfully utilized semantic 2D maps in grounded language navigation tasks. These works are for quadcopters, whose fields of view almost entirely cover the scene and the need for “search” or “exploration” is less crucial than for pedestrian agents. Moreover, their settings only involve navigation with a single subtask.

3 Task Explanation

We utilize the ALFRED environment. The agent has to complete household tasks given only natural language instructions and egocentric vision (Fig. 1). For example, the instruction may be given as “Put a heated apple on the counter,” with low-level instructions (which FILM does not use by default) further explaining step-by-step lower level actions. In this case, one way to “succeed” in this episode is to sequentially (1) pick up the apple, (2) put the apple in the microwave, (3) toggle the microwave on/off, (4) pick up the apple again, and (4) place it on the countertop. Episodes run for a significantly longer number of steps compared to benchmarks with only single subgoals ; expert trajectories, which are maximally efficient and perform only the strictly necessary actions (without any steps to search for an object), are often longer than 70 steps.

There are seven types of tasks (Appendix A.1), from relatively simple types (e.g. Pick & Place) to more complex ones (e.g. Heat & Place). Furthermore, the instruction may require that an object is “sliced” (e.g. Slice bread, grab a slice, cook it in the microwave, put it on the counter). An episode is deemed “success” if the agent completes all sub-tasks within 10 failed actions and 1000 max steps.

4 Methods

FILM consists of three learned modules: (1) Language Processing (LP), (2) Semantic Mapping, and (3) Semantic Search Policy; and one purely deterministic navigation/ interaction policy module (Fig. 2). At the start of an episode, the LP module processes the language instruction into a sequence of subtasks. Every time step, the semantic mapping module receives the egocentric RGB frame and updates the semantic map. If the goal object of the current subtask is not yet observed, the semantic search policy predicts a “search goal” at a coarse time scale; until the next search goal is predicted, the agent navigates to the current search goal with the deterministic policy. If the goal is observed, the deterministic policy decides low-level controls for interaction actions (e.g. “Pick Up” object).

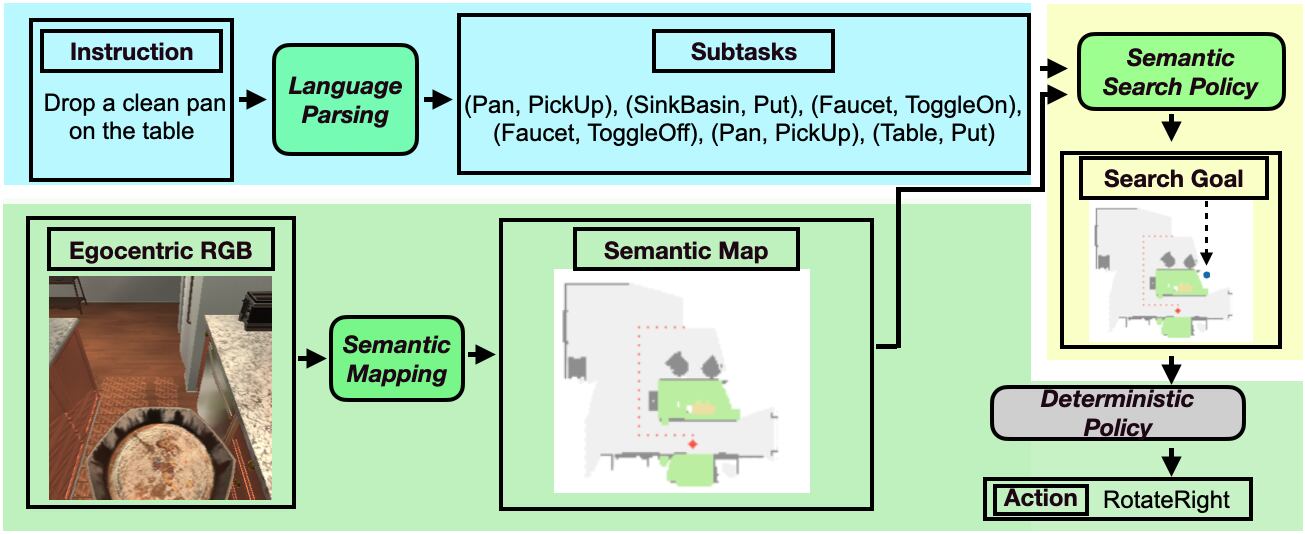

Figure 2: FILM method overview. The “grouping” in blue, green, and yellow denote the coarseness of time scale (blue: at the beginning of the episode, green: at every time step, yellow: at a coarser time scale of every 25 steps). At the beginning of the episode, the Language Processing module processes the instruction into subtasks. At every time step, Semantic Mapping converts egocentric into RGB a top-down semantic map. The semantic search policy outputs the search goal at a coarse time scale. Finally, the Deterministic Policy decides the next action. Modules in bright green are learned; the deterministic policy (grey) is not.

4.1 language processing (LP)

The language processing (LP) module transforms high-level instructions into a structured sequence of subtasks (Fig. 3). It consists of two BERT (Devlin et al., 2018) submodules that receive the instruction as an input at the beginning of the episode. The first submodule (BERT type classification) receives the instruction and predicts the “type” of the instruction - one of the seven types stated in Appendix A.1. The second submodule (BERT argument classification) receives both the instruction and the predicted type as input and predicts the “arguments” - (1) “obj” for the object to be picked up, (2) “recep” for the receptacle where “obj” should be ultimately placed, (3) “sliced” for whether “obj” should be sliced, and (4) “mrecep”

for tasks with intermediate movable receptacles (e.g. “cup” in “Put a knife in a cup on the table” of Appendix A.1). We train a separate BERT model for each argument predictor. The two submodules are easily trainable with supervised learning since the type and the four arguments are provided in the training set. Models use only the CLS token for classification, and they do not share parameters; all layers of “bert-base-uncased” were fine-tuned.

Due to the patterned nature of instructions, we can match the predicted “type” of the instruction to a “type template” with blank arguments. Filling in the “type template” with predictions of the second model, we obtain a list of subtasks (bottom of Fig. 3b) to be completed in the current episode.

4.2 Semantic Mapping Module

We designed the semantic mapping module (Appendix A.2) with inspirations from prior work (Chaplot et al., 2020b). Egocentric RGB is first processed into depth map and instance segmentation, with MaskRCNN (He et al., 2017) (and its implementation by Shridhar et al. (2020b)) and the depth prediction method of Blukis et al. (2021); details of the training are explained in Section 5 333We use the publicly release code of Shridhar et al. (2020b) for instance segmentation. We thank the authors of Blukis et al. (2021) for sharing their code with us for depth prediction.. These pre-trained, off-the-shelf models were finetuned on the training scenes of ALFRED. Once processed, the depth observation is transformed to a point cloud, of which each point is associated with the predicted semantic categories. Finally, the point cloud is binned into a voxel representation; this summed over height is the semantic map. The map is locally updated and aggregated over time.

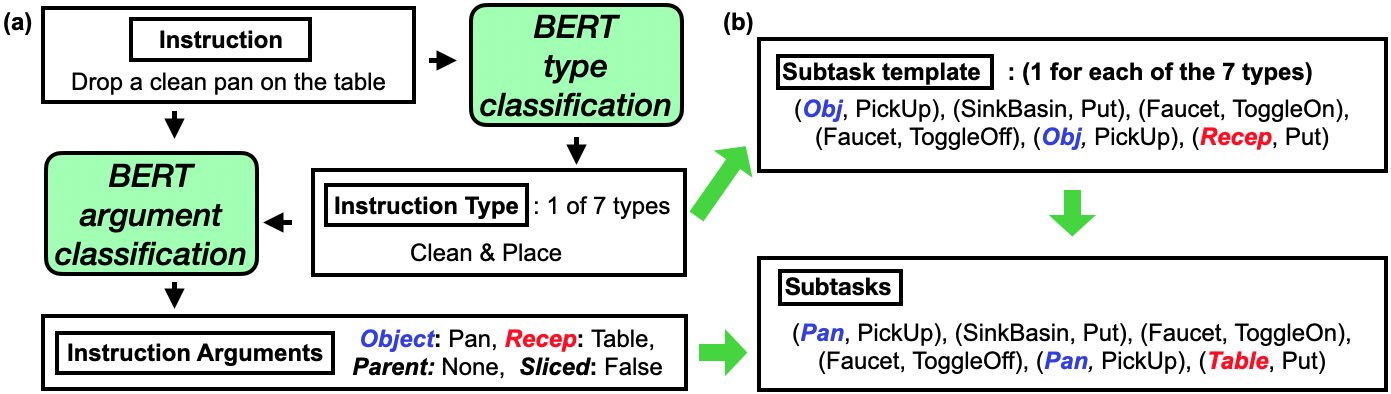

Figure 3: The Language Processing module. (a): Two BERT models respectively predict the “type” and the “arguments” of the instruction. (b): The predicted “type” from (a) is matched with a template, and the “arguments” of the template is filled with the predicted “argument.”

The resulting semantic map is a binary grid, where is the number of object categories and each of the cells represents a 5cm 5cm space of the scene. The channels each represent whether a particular object of interest was observed; the two extra channels denote whether obstacle exists and whether exploration happened in a particular 5cm 5cm space. Thus, the channels are a semantic/spatial summary of the corresponding space. We use (12 meters in the physical world) and . “28” is the number of “receptacle” objects (e.g. “Table”, “Bathtub”), which are usually large and easily detected; in the example of Fig. 1, there is one additional subgoal object (“Apple”).

4.3 Semantic Search Policy

The semantic search policy outputs a coarse 2D distribution for potential locations of a small subgoal object (Fig. 6), given a semantic map with the 28 receptacle objects only (e.g. “Countertop”, “Shelf”). The discovery of a small object is difficult in ALFRED due to three reasons - (1) many objects are tiny (some instances of “pencil” occupies less than 200 pixels even at a very close view), (2) the field of view is small due to the camera horizon mostly being downward444The agent mostly looks down 45 °not only in FILM (for correct depth prediction) but also in existing models (Kim et al., 2021; Zhang and Chai, 2021; Blukis et al., 2021), because the agent does so in expert trajectories., (3) semantic segmentation, despite being fine-tuned, cannot detect small objects at certain angles. The role of the semantic search policy is to predict search locations for small objects, upon the observed spatial configuration of larger ones. While existing works surmise the “implicit” learning of search locations from expert trajectories, we directly learn an explicit policy without expert trajectories.

The policy is trained via supervised learning. For data collection, we deploy the agent without the policy in the training set and gather the (1) semantic map with only receptacle objects and (2) the ground truth location of the subgoal object after every 25 steps. A model of 15 layers of CNN with max-pooling in between (details in Appendix A.3) outputs an

grid, where is smaller than the original map size

; this is a 2D distribution for the potential location of the subgoal object. Finally, the KL divergence between this and a pseudo-ground truth “coarse” distribution whose mass is uniformly distributed over all cells with the true location of the subgoal object is minimized (

where is the coarse ground truth and is the coarse prediction). At deployment, the “search goal” is sampled from the predicted distribution, resized to match the original map size of (e.g. 240 240), with mass in the coarse (e.g. 8 8) grid uniformly spread out to the area centered on it. Because arriving at the search goal requires time, the policy operates at a “coarse” time scale of 25 steps; the agent navigates towards the current search goal until the next goal is sampled or the subgoal object is found (more details in Section 4.4).

Fig. 6

shows a visualization of the semantic search policy’s outputs. The policy provides a reasonably close estimate of the true distribution; the predicted mass of “bowl” is shared around observed furniture that it can appear on, and that of “faucet” peaks around the sink/ the end of the bathtub. While we chose

as the grid size, Appendix A.4 provides a general bound for choosing .

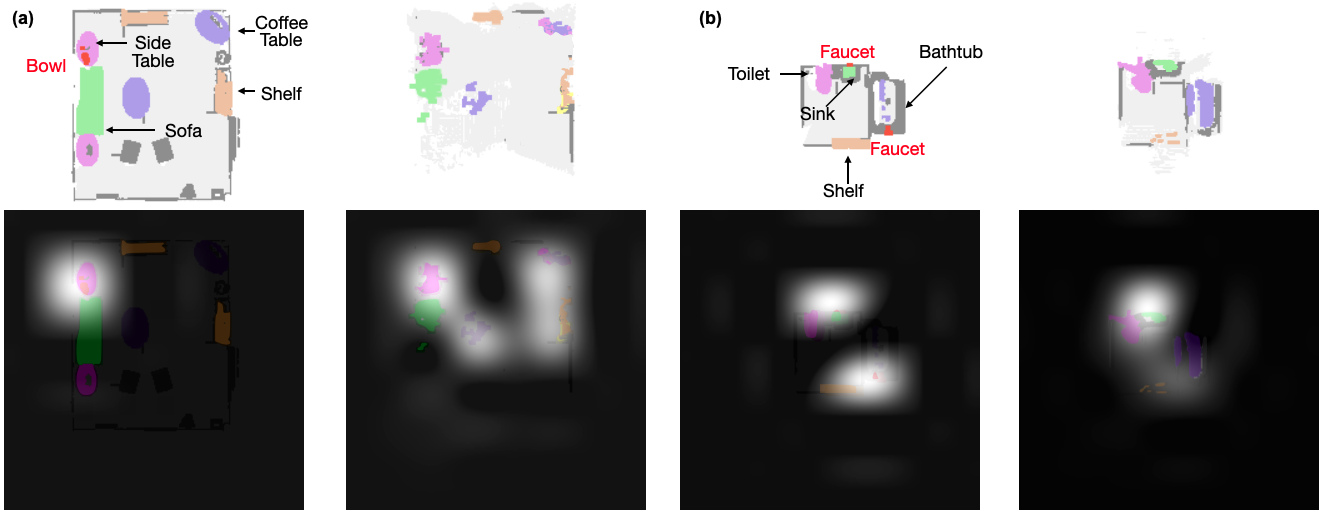

Figure 4: Example visualization of semantic search policy outputs. In each of (a), (b), Top left: map built from ground truth depth/ segmentation, Top right: map from learned depth/ segmentation, Bottom left: ground truth “coarse” distribution, Bottom right: predicted “coarse” distribution.666“Coarse” distributions (8 8) were visualized with cv2.resize with INTER_LANCZOS4interpolation.(a): While the true location of the “bowl” was on the upper left coffee table, the policy distributes mass over all furniture likely to have it on. (b): The true location of the faucet is on the sink and at the end of the bathtub. While the policy puts more mass near the sink, it also allocates some to the end of the bathtub.

4.4 Deterministic Policy

Given (1) the predicted subtasks, (2) the most recent semantic map, and (3) the search goal sampled at a coarse time scale, the deterministic policy outputs a navigation or interaction action (Fig. 2).

Let [(, ), … , (, )] be the list of subtasks and the current subtask be . If is observed in the current semantic map, the closest is selected as the goal; otherwise, the sample from the semantic search policy is chosen as the goal (Section 4.3). The agent then navigates towards the goal via the Fast Marching Method (Sethian, 1996)

and performs the required interaction actions. While this “low-level” policy could be learned with imitation or reinforcement learning, we used a deterministic one based on the findings of earlier work that observed that the Fast Marching Method performs as well as a learned local navigation policy

(Chaplot et al., 2020b). More details and pseudocode are provided in Appendix A.5.

5 Experiments and Results

We explain the metrics, evaluation splits, and baselines against which FILM is compared. Furthermore, we describe training details of each of the learned components of FILM.

Metrics

Success Rate (SR) is a binary indicator of whether all subtasks were completed. The goal-condition success (GC) of a model is the ratio of goal-conditions completed at the end of an episode. For example, in the example of Fig. 1, there are three goal-conditions - a pan must be “cleaned”, a pan should rest on a countertop, and a “clean” pan should rest on a countertop. Both SR and GC can be weighted by (path length of the expert trajectory)/ (path length taken by the agent); these are called path length weighted SR (PLWSR) and path length weighted GC (PLWGC).

Evaluation Splits

The test set consists of “Tests Seen” and “Tests unseen”; the scenes of the latter entirely consist of rooms that do not appear in the training set, while those of the former only consist of scenes seen during training. Similarly, the validation set is partitioned into “Valid Seen” and “Valid Unseen”. The official leaderboard ranks all entries by the SR on Tests Unseen.

Baselines

There are two kinds of baselines: those that use low-level sequential instructions (Kim et al., 2021; Zhang and Chai, 2021; Nguyen et al., 2021; Pashevich et al., 2021) and those that do not (Nottingham et al., 2021; Blukis et al., 2021). While FILM does not necessitate low-level instructions, we report results with and without them and compare them against methods of both kinds.

Training Details of Learned Components

In the LP module, BERT type classification and argument classification were trained with AdamW from the Transformer (Wolf et al., 2019) package; learning rates are 1e-6 for type classification and {1e-4,1e-5,5e-5,5e-5} for each of “object”, “parent”, “mrecep”, “sliced” argument classification. In the Semantic Mapping module, separate depth models for camera horizons of 45°and 0°were fine-tuned from an existing model of HLSM, both with learning rate 1e-3 and the AdamW optimizer (epsilon 1e-6, weight decay 1e-2). Similarly, separate instance segmentation models for small and large objects were fine-tuned, starting from their respective parameters released by Shridhar et al. (2020b), with learning rate 1e-3 and the SGD optimizer (momentum 0.9, weight decay 5e-4). Finally, the semantic search policy was trained with learning rate 1e-3 and the AdamW optimizer (epsilon 1e-6). Appendix A.2 and A.3 discuss more details on the architectures of semantic mapping/ semantic search policy modules. We will release the trained models and the code so that researchers and practitioners can reproduce all experiments.

5.1 Results

Table 1 shows test results. FILM achieves state-of-the-art performance across both seen and unseen scenes in the setting where only high-level instructions are given. It achieves 8.17% absolute (50.15% relative) gain in SR on Tests Unseen, and 0.66% absolute (2.63% relative) gain in SR on Tests Seen over HLSM, the previous SOTA.

FILM performs competitively even compared to methods that require low-level step-by-step instructions. Using them as additional inputs to the LP module, FILM achieves 11.06% absolute (71.68% relative) gain in SR on Tests Unseen compared to ABP. Notably, FILM performs similarly across Tests Seen and Tests Unseen, which implies FILM’s strong generalizability. This is in contrast to that methods that require low-level instructions, such as ABP, E.T., LWIT, MOCA, perform very well on Tests Seen but much less so on unseen scenes. In a Sim2Real situation, these methods will excel if the agent can be trained in the exact household it will be deployed in with multiple low-level instructions and expert trajectories. In the more realistic and cost-efficient setting where the agent is trained in a centralized manner and has to generalize to new scenes, FILM will be more adequate.

Method Tests Seen Tests Unseen
PLWGC GC PLWSR SR PLWGC GC PLWSR SR
Low-level Sequential Instructions + High-level Goal Instruction
Seq2Seq (Shridhar et al., 2020a) 6.27 9.42 2.02 3.98 4.26 7.03 0.08 3.9
MOCA (Singh et al., 2020) 22.05 28.29 15.10 22.05 9.99 14.28 2.72 5.30
E.T. (Pashevich et al., 2021) - 36.47 - 28.77 - 15.01 - 5.04
E.T. + synth. data (Pashevich et al., 2021) 34.93 45.44 27.78 38.42 11.46 18.56 4.10 8.57
LWIT (Nguyen et al., 2021) 23.10 40.53 43.10 30.92 16.34 20.91 5.60 9.42
HiTUT (Zhang and Chai, 2021) 17.41 29.97 11.10 21.27 11.51 20.31 5.86 13.87
ABP (Kim et al., 2021) 4.92 51.13 3.88 44.55 2.22 24.76 1.08 15.43
FILM w.o. Semantic Search 13.10 35.59 9.43 25.90 13.37 35.51 10.17 23.94
FILM 15.06 38.51 11.23 27.67 14.30 36.37 10.55 26.49
High-level Goal Instruction Only
LAV (Nottingham et al., 2021) 13.18 23.21 6.31 13.35 10.47 17.27 3.12 6.38
HiTUT G-only (Zhang and Chai, 2021) - 21.11 - 13.63 - 17.89 - 11.12
HLSM (Blukis et al., 2021) 11.53 35.79 6.69 25.11 8.45 27.24 4.34 16.29
FILM w.o. Semantic Search 12.22 34.41 8.65 24.72 12.69 34.00 9.44 22.56
FILM 14.17 36.15 10.39 25.77 13.13 34.75 9.67 24.46
Table 1: Test results. Top section uses step-by-step instructions; the bottom section does not.

It is also notable that the semantic search policy significantly increases not only SR and GC, but also their path-length weighted versions. On Tests Seen, the gap of PLWSR between FILM with/ without semantic search is larger than the corresponding gap of SR (for both with/ without low-level instructions). This suggests that the semantic policy boosts the efficiency of trajectories.

5.2 Ablations Studies and Error Analysis

Errors due to perception and language processing. To understand the importance of FILM’s individual modules, we consider ablations on the base method, the base method with low-level language, and with ground truth visual/ language inputs. Table 5 shows ablations on the development sets. While the improvement from gt depth is large in unseen scenes (10.64%), it is incremental on seen scenes (1.48%); on the other hand, gt segmentation significantly boosts performances in both cases (9.26% / 9.26%). Thus, among visual perception, segmentation is a bottleneck in both seen/ unseen scenes, and depth is a bottleneck only in the latter. On the other hand, while much gain in SR comes from using ground truth language (7.43 % / 4.22 %), that from adding low-level language as input is rather incremental.

Table 2: Ablation results on validation splits. Method Val Seen Val Unseen GC SR GC SR   Base Method 37.20 24.63 32.45 20.10  + low-level language 38.54 25.24 32.89 20.61  + gt seg. 45.46 34.02 42.88 29.35  + gt depth 38.21 26.59 42.91 30.73  + gt depth, gt seg. 55.54 43.22 64.31 55.05  + gt depth, gt seg., gt lang. 59.47 47.44 69.13 62.48 Table 3: Error Modes. Table showing percentage of errors due to each failure mode for FILM on the Val set. Error mode Seen Unseen  Goal object not found 23.30 26.07  Interaction failures 6.96 8.54  Collisions 6.96 11.00  Object in closed receptacle 18.44 16.16  Language processing error 18.53 24.54  Others 25.81 13.69

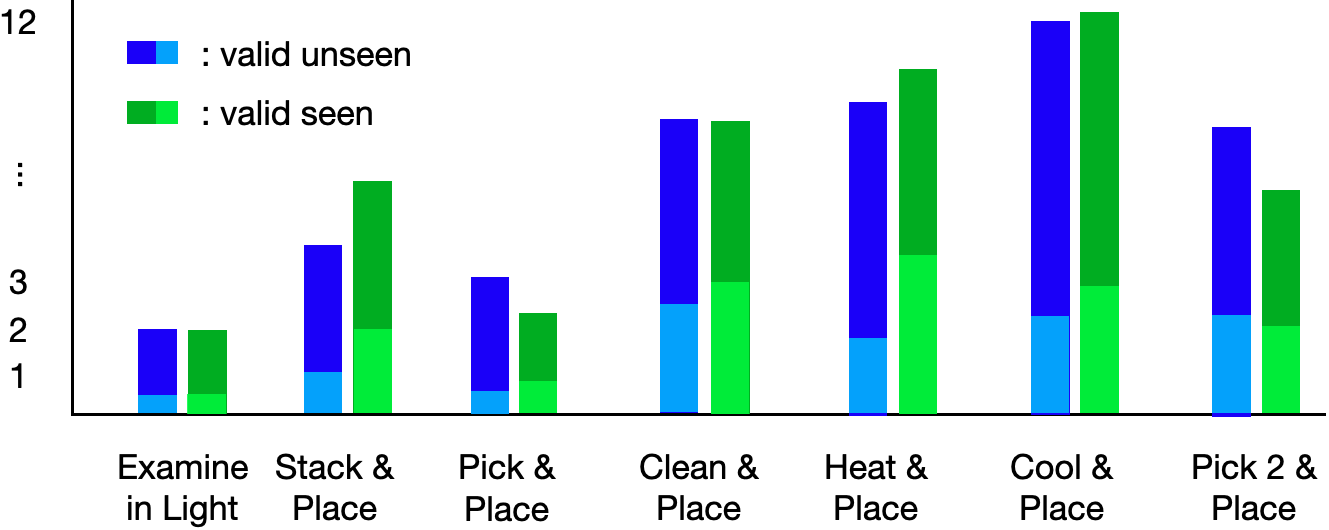

Figure 5: Average number of subtasks completed until failure, by task type (light green/ light blue respectively for valid seen/ unseen). Dark green/ blue: average number of total subtasks in valid seen/ unseen.
Table 4: Performance by task type of base model on validation. Task Type Val Seen Val Unseen GC SR GC SR Overall 37.20 24.63 32.45 20.10 Examine 50.00 34.41 45.06 29.65 Pick & Place 27.46 26.92 16.67 16.03 Stack & Place 23.74 10.71 9.90 1.98 Clean & Place 58.56 44.04 48.89 33.63 Cool & Place 27.04 12.61 27.41 14.04 Heat & Place 40.21 22.02 37.77 23.02 Pick 2 & Place 40.37 23.77 29.28 11.84

Error modes. Table 5 shows common error modes of FILM; the metric is the percent of episodes that failed from a particular error out of all failed episodes. The main failures in valid unseen scenes are due to failures in (1) locating the subgoal object (due to the small field of view, imperfect segmentation, ineffective exploration), (2) locating the subgoal object because it is in a closed receptacle (cabinet, drawer, etc), (3) interaction (due to object being too far or not in field of view, bad segmentation mask), (4) navigation (collisions), (5) correctly processing language instructions, (6) others, such as the deterministic policy repeating a loop of actions from depth/ segmentation failures and 10 failed actions accruing from a mixture of different errors. As seen in Table 5, goal object not found is the most common error mode. This is typically due to objects being small and not visible from a distance or certain viewpoints. Results of the next subsection show that this error mode is alleviated by the semantic search policy in certain cases.

Performance over different task types. To understand FILM’s strengths/ weaknesses across different types of tasks, we further ablate validation results by task type in Table 5. Figure 5 shows the average number of subtasks completed for failed episodes, by task type. First, the SR and GC for “Stack & Place” is remarkably low. Second, the number of the subtasks entailed with the task type does not strongly correlate with performance. While “Heat & Place” usually involves three more subtasks than “Pick & Place”, the metrics for the former are much higher than those of the latter. Since task types inevitably occur in different kinds of scenes (e.g. “Heat & Place” only occurs in kitchens) and therefore involve different kinds of objects (e.g. “Heat & Place” involves food only), the results suggest that the success of the first PickUp action largely depends on the kinds of the scene and size and type of the subgoal objects rather than number of subtasks.

While the above error analysis is specific to FILM, its implications regarding visual perception may generally represent the weaknesses of existing methods for EIF, since most recent methods (ABP, HLSM, HiTUT, LWIT, E.T.) use the same family of segmentation/ detection models as FILM, such as Mask-RCNN and Fast-RCNN (Wang et al., 2017). Specifically, it could be that the inability to find a subgoal object is a major failure mode in the mentioned existing methods as well. On the other hand, FILM is not designed to search inside closed receptacles (e.g. cabinets), although subgoal objects dwell in receptacles quite frequently (Table 5); a future work to extend FILM should learn to perform a more active search.

5.3 Effects of the Semantic Search Policy

Table 5: Dev set results of FILM with/ without the semantic search policy.
Method Validation Unseen
1st Goal Found SR
HLSM (Blukis et al., 2021) N/A 11.8
FILM with Search 80.51 20.09
FILM w.o. Search 76.12 19.85

With Valid Unseen as the development set, we observed that the semantic search policy significantly helps to find small objects (Table 5.3); we use the percent of episodes in which the first goal object was found (1st Goal Found) as a proxy, since it is usually small from that it can be picked up (e.g. “Apple”, “Pen”). Thus, we use FILM with semantic search as the “base method” (default) for all experiments/ ablations.

To further analyze when the semantic search policy especially helps, we ablate on room sizes and task types. Table 5.3 shows the SR and 1st Goal Found with and without search, by room size (details on the assignment of Room Size are in Appendix A.6). As expected, the semantic policy increases both metrics, especially so in large scenes. This is desirable since the policy makes the agent less disoriented in difficult scenarios (large scenes); the model without it is more susceptible to failing even the first subtask. Figure 6 is consistent with the trend of Table 5.3; it shows example trajectories of FILM with and without the semantic search policy in a large kitchen scene. Since the countertop appears in the bottom right quadrant of the map, it is desirable that the agent travels there to search for a “knife”. While FILM travels to this area frequently (straight red line in Fig.6), FILM without semantic search mostly wanders in irrelevant locations (e.g. the bottom left quadrant).

Table 5.3 further shows the performance with and without search by task type. Notably, the gap of performance for the “clean & place” type is very large. In the large kitchen scene of “Valid Unseen” (Fig. 6), the “Sink” looks very flat from a distance and is hardly detected. Since the semantic policy induces the agent to travel near the countertop area, it significantly improves the localization of “Sink.” The detection of the 1st Recep (“Sink”) for the “clean & place” type is significantly improved from the policy (Table 5.3). In conclusion, the semantic policy improves the localization of small and flat objects in large scenes.

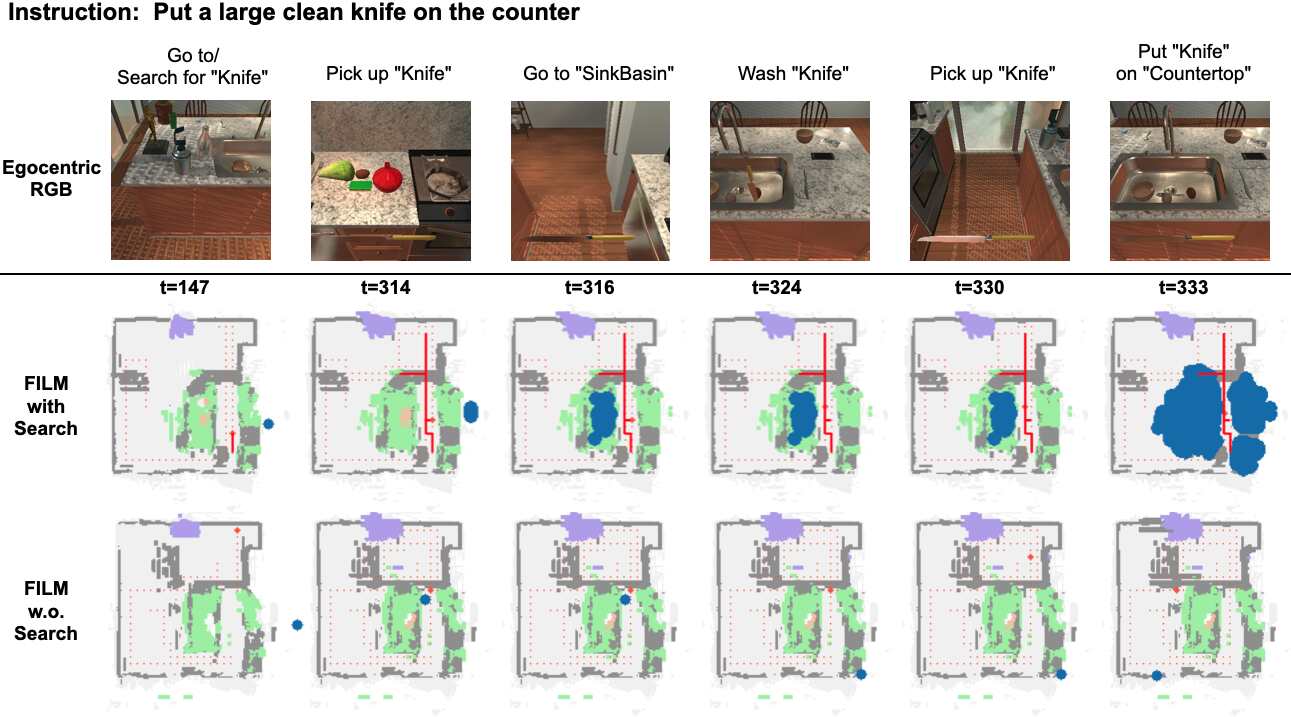

Figure 6: Example trajectories of FILM with and without semantic search policy. Paths near the subgoals that were traveled 3 times or more are in straight red. The goal (which can be the search goal or an observed instance of a subgoal object) is in blue.
Table 6: Performance with and without semantic search policy, by room size. Room Size Small Large FILM FILM FILM FILM w.o. Search w.o. Search SR 26.70 26.63 15.17 14.74 % 1st Goal Found 79.32 81.02 80.13 73.72 Table 7: Performance with and without semantic search policy, by task type. Task Type Clean & Place Other Types FILM FILM FILM FILM w.o. Search w.o. Search SR 33.63 14.16 17.94 20.16 % 1st Goal Found 87.61 79.65 79.38 75.56 % 1st Recep Found 80.53 69.03 58.05 55.93

6 Conclusion

We proposed FILM, a new modular method for embodied instruction following which (1) processes language instructions into structured forms (Language Processing), (2) converts egocentric vision into a semantic metric map (Semantic Mapping), (3) predicts a likely goal location (Semantic Search Policy), and (4) outputs subsequent navigation/ interaction actions (Algorithmic Planning). FILM achieves the state of the art on the ALFRED benchmark without any sequential supervision.

Ethics Statement

This research is for building autonomous agents. While we do not perform any experiments with humans, practitioners may attempt to extend and apply this technology in environments with humans. Such potential applications of this research should take privacy concerns into consideration.

All learned models in this research were trained using Ai2Thor (Kolve et al., 2019). Thus, they may be biased towards North American homes.

Reproducibility Statement

We thoroughly explain training details and model architectures in Section 5.1 and Appendix A.2, A.3. We will also release all trained models and the code at a future date.

References

  • P. Anderson, A. Chang, D. S. Chaplot, A. Dosovitskiy, S. Gupta, V. Koltun, J. Kosecka, J. Malik, R. Mottaghi, M. Savva, et al. (2018a) On evaluation of embodied navigation agents. arXiv preprint arXiv:1807.06757. Cited by: §1.
  • P. Anderson, Q. Wu, D. Teney, J. Bruce, M. Johnson, N. Sünderhauf, I. Reid, S. Gould, and A. Van Den Hengel (2018b) Vision-and-language navigation: interpreting visually-grounded navigation instructions in real environments. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    ,
    pp. 3674–3683. Cited by: §1, §2.
  • Y. Bisk, A. Holtzman, J. Thomason, J. Andreas, Y. Bengio, J. Chai, M. Lapata, A. Lazaridou, J. May, A. Nisnevich, et al. (2020) Experience grounds language. arXiv preprint arXiv:2004.10151. Cited by: §2.
  • V. Blukis, N. Brukhim, A. Bennett, R. A. Knepper, and Y. Artzi (2018a) Following high-level navigation instructions on a simulated quadcopter with imitation learning. arXiv preprint arXiv:1806.00047. Cited by: §2.
  • V. Blukis, D. Misra, R. A. Knepper, and Y. Artzi (2018b) Mapping navigation instructions to continuous control actions with position-visitation prediction. In Conference on Robot Learning, pp. 505–518. Cited by: §2.
  • V. Blukis, C. Paxton, D. Fox, A. Garg, and Y. Artzi (2021) A persistent spatial semantic representation for high-level natural language instruction execution. arXiv preprint arXiv:2107.05612. Cited by: §1, §1, §2, §4.2, §5, §5.3, Table 1, footnote 3, footnote 4.
  • D. S. Chaplot, D. Gandhi, S. Gupta, A. Gupta, and R. Salakhutdinov (2020a) Learning to explore using active neural slam. arXiv preprint arXiv:2004.05155. Cited by: §2.
  • D. S. Chaplot, D. P. Gandhi, A. Gupta, and R. R. Salakhutdinov (2020b) Object goal navigation using goal-oriented semantic exploration. Advances in Neural Information Processing Systems 33. Cited by: Figure 8, §1, §2, §4.2, §4.4.
  • A. Das, S. Datta, G. Gkioxari, S. Lee, D. Parikh, and D. Batra (2018) Embodied question answering. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 1–10. Cited by: §2.
  • J. Devlin, M. Chang, K. Lee, and K. Toutanova (2018) Bert: pre-training of deep bidirectional transformers for language understanding. arXiv preprint arXiv:1810.04805. Cited by: §1, §4.1.
  • H. Du, X. Yu, and L. Zheng (2021)

    VTNet: visual transformer network for object goal navigation

    .
    arXiv preprint arXiv:2105.09447. Cited by: §1.
  • D. Fried, R. Hu, V. Cirik, A. Rohrbach, J. Andreas, L. Morency, T. Berg-Kirkpatrick, K. Saenko, D. Klein, and T. Darrell (2018) Speaker-follower models for vision-and-language navigation. arXiv preprint arXiv:1806.02724. Cited by: §1, §2.
  • J. Fuentes-Pacheco, J. Ruiz-Ascencio, and J. M. Rendón-Mancha (2015) Visual simultaneous localization and mapping: a survey. Artificial intelligence review 43 (1), pp. 55–81. Cited by: §2.
  • D. Gordon, A. Kembhavi, M. Rastegari, J. Redmon, D. Fox, and A. Farhadi (2018) Iqa: visual question answering in interactive environments. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 4089–4098. Cited by: §2.
  • S. Gupta, J. Davidson, S. Levine, R. Sukthankar, and J. Malik (2017) Cognitive mapping and planning for visual navigation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2616–2625. Cited by: §1.
  • K. He, G. Gkioxari, P. Dollár, and R. Girshick (2017) Mask r-cnn. In Proceedings of the IEEE international conference on computer vision, pp. 2961–2969. Cited by: §4.2.
  • K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778. Cited by: §1.
  • S. Izadi, D. Kim, O. Hilliges, D. Molyneaux, R. Newcombe, P. Kohli, J. Shotton, S. Hodges, D. Freeman, A. Davison, et al. (2011) KinectFusion: real-time 3d reconstruction and interaction using a moving depth camera. In Proceedings of the 24th annual ACM symposium on User interface software and technology, pp. 559–568. Cited by: §2.
  • L. Ke, X. Li, Y. Bisk, A. Holtzman, Z. Gan, J. Liu, J. Gao, Y. Choi, and S. Srinivasa (2019) Tactical rewind: self-correction via backtracking in vision-and-language navigation. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pp. 6741–6749. Cited by: §2.
  • B. Kim, S. Bhambri, K. P. Singh, R. Mottaghi, and J. Choi (2021) Agent with the big picture: perceiving surroundings for interactive instruction following. In Embodied AI Workshop CVPR, Cited by: §1, §2, §5, Table 1, footnote 4.
  • E. Kolve, R. Mottaghi, W. Han, E. VanderBilt, L. Weihs, A. Herrasti, D. Gordon, Y. Zhu, A. Gupta, and A. Farhadi (2019) AI2-thor: an interactive 3d environment for visual ai. External Links: 1712.05474 Cited by: §6.
  • C. Ma, Z. Wu, G. AlRegib, C. Xiong, and Z. Kira (2019)

    The regretful agent: heuristic-aided navigation through progress estimation

    .
    In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pp. 6732–6740. Cited by: §2.
  • V. Nguyen, M. Suganuma, and T. Okatani (2021) Look wide and interpret twice: improving performance on interactive instruction-following tasks. arXiv preprint arXiv:2106.00596. Cited by: §1, §2, §5, Table 1.
  • K. Nottingham, L. Liang, D. Shin, C. C. Fowlkes, R. Fox, and S. Singh (2021) LAV. External Links: Link Cited by: §1, §5, Table 1.
  • A. Pashevich, C. Schmid, and C. Sun (2021) Episodic transformer for vision-and-language navigation. arXiv preprint arXiv:2105.06453. Cited by: §2, §5, Table 1.
  • M. Prabhudesai, H. F. Tung, S. A. Javed, M. Sieb, A. W. Harley, and K. Fragkiadaki (2020) Embodied language grounding with 3d visual feature representations. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pp. 2220–2229. Cited by: §2.
  • J. A. Sethian (1996) A fast marching level set method for monotonically advancing fronts. Proceedings of the National Academy of Sciences 93 (4), pp. 1591–1595. External Links: Document, ISSN 0027-8424, Link, https://www.pnas.org/content/93/4/1591.full.pdf Cited by: 2nd item, §A.5, §4.4.
  • M. Shridhar, J. Thomason, D. Gordon, Y. Bisk, W. Han, R. Mottaghi, L. Zettlemoyer, and D. Fox (2020a) Alfred: a benchmark for interpreting grounded instructions for everyday tasks. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, pp. 10740–10749. Cited by: §1, §2, Table 1.
  • M. Shridhar, X. Yuan, M. Côté, Y. Bisk, A. Trischler, and M. Hausknecht (2020b) ALFWorld: aligning text and embodied environments for interactive learning. arXiv preprint arXiv:2010.03768. Cited by: §4.2, §5, footnote 3.
  • K. P. Singh, S. Bhambri, B. Kim, R. Mottaghi, and J. Choi (2020) Moca: a modular object-centric approach for interactive instruction following. arXiv preprint arXiv:2012.03208. Cited by: Table 1.
  • N. Snavely, S. M. Seitz, and R. Szeliski (2008) Modeling the world from internet photo collections. International journal of computer vision 80 (2), pp. 189–210. Cited by: §2.
  • [32] A. Voulodimos, N. Doulamis, A. Doulamis, and E. Protopapadakis Deep learning for computer vision: a brief review. Computational intelligence and neuroscience 2018. Cited by: §1.
  • R. Wang, J. Mao, S. J. Gershman, and J. Wu (2020) Language-mediated, object-centric representation learning. arXiv preprint arXiv:2012.15814. Cited by: §2.
  • X. Wang, A. Shrivastava, and A. Gupta (2017) A-fast-rcnn: hard positive generation via adversary for object detection. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2606–2615. Cited by: §5.2.
  • X. Wang, Q. Huang, A. Celikyilmaz, J. Gao, D. Shen, Y. Wang, W. Y. Wang, and L. Zhang (2019) Reinforced cross-modal matching and self-supervised imitation learning for vision-language navigation. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pp. 6629–6638. Cited by: §2.
  • T. Wolf, L. Debut, V. Sanh, J. Chaumond, C. Delangue, A. Moi, P. Cistac, T. Rault, R. Louf, M. Funtowicz, et al. (2019)

    Huggingface’s transformers: state-of-the-art natural language processing

    .
    arXiv preprint arXiv:1910.03771. Cited by: §5.
  • Y. Zhang and J. Chai (2021) Hierarchical task learning from language instructions with unified transformers and self-monitoring. arXiv preprint arXiv:2106.03427. Cited by: Figure 1, §1, §2, §5, Table 1, footnote 4.
  • F. Zhu, Y. Zhu, X. Chang, and X. Liang (2020) Vision-language navigation with self-supervised auxiliary reasoning tasks. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pp. 10012–10022. Cited by: §1, §2.

Appendix A Appendix

a.1 Task Definition

High and low-level instructions are both available to agents. There are 7 types of tasks (Fig 7. b) and the sequence of subtasks is templated according to the task type.

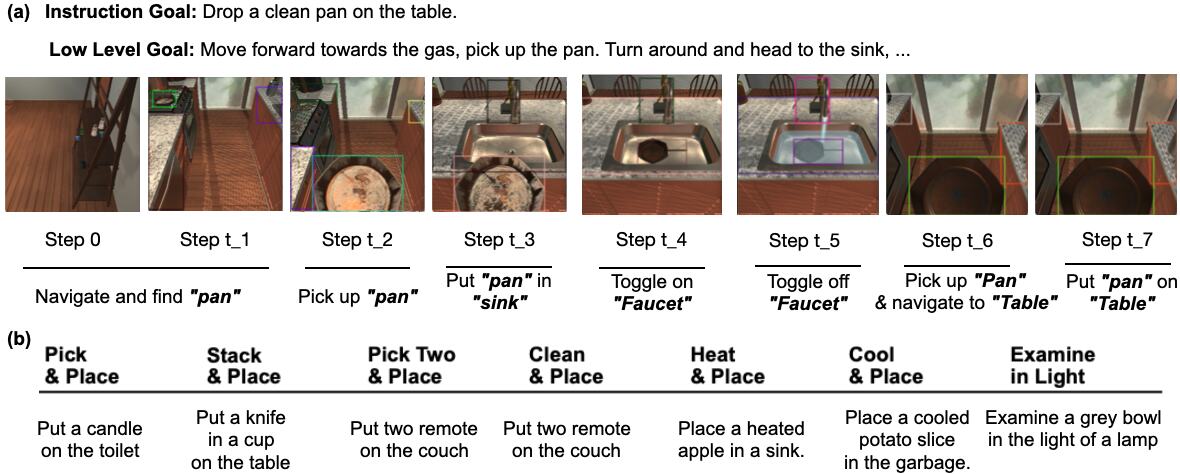

Figure 7: ALFRED overview. The goal is given in high level and low level language instructions. For and agent to achieve “success” of the goal, it needs to complete a sequence of interactions (as in the explanations in the bottom of the figure) and the entailed navigation between interactions.

a.2 Semantic Mapping Module

Figure 8 is an illustration of the semantic mapping module. A depth map and instance segmentation is predicted from Egocentric RGB. Then the first and the later are respectively transformed into a point cloud and a semantic label of each point in the cloud, together producing voxels. The voxels are summed across height to produce the semantic map.

Figure 8: Semantic mapping module. Figure was partially taken from Chaplot et al. (2020b)

a.3 Semantic Search Policy Module

The map from the previous subsection is passed into 7 layers of convolutional nets, each with kernel size 3 and stride 1. There is maxpooling between any two conv nets, and after the last layer, there is softmax over the 64 (8

8) categories, for each of the (73) channels.

At deployment/ validation, if the agent is currently searching for the th object, then a search location is sampled from the th channel of the outputted 8 8 grid.

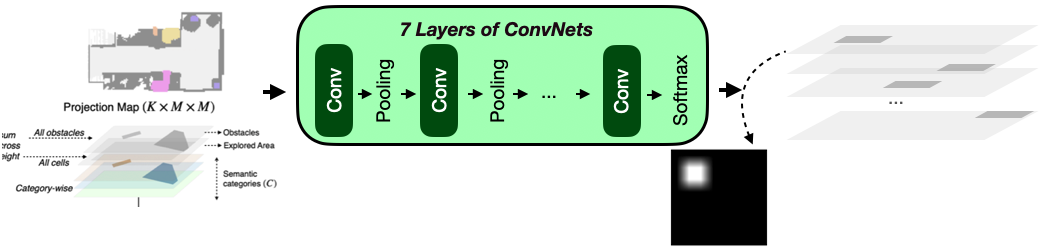

Figure 9: Semantic search policy.

a.4 Impact of Grid Size on the Effectiveness of the Semantic Search Policy

While we chose for the size of the “coarse” cell of the semantic search policy, the desirable choice of may be different if a practitioner attempts to transfer FILM to different scenes/ tasks. While a “too fine” semantic policy will be hard to train due to sparseness of labels, a “too coarse” one will spread the mass of the distribution to widely.

Let us examine the “coarse” and “actual” ground truth distributions just in one direction (e.g. the horizontal direction). Let be the “actual” and “coarse” ground truth CDFs in the horizontal direction. Also, let If the goal object occurs “” times in the horizontal direction, then,

A similar result holds in the vertical direction. The bound above suggests that if the goal object occurs more frequently (smaller ), then a coarser (larger ) is tolerable. On the other hand, if the goal object occurs very infrequently (larger ), then a coarse (larger ) will result in and becoming too different in the worst case. Thus, it is desirable that practitioners choose (and in turn, ) based on the frequency of their goal objects, on average. Furthermore, a search policy with adaptive grid sizing should be explored as future work.

a.5 Pseudocode for the Deterministic Policy

Following the discussion of Section 4.4, let [(, ), … , (, )] be the list of subtasks, where the current subtask is . If is observed in the current semantic map, the closest is selected as the goal to navigate; otherwise, the sample from the semantic search policy is chosen as the goal (Section 4.3). The agent then navigates towards the closest via the Fast Marching Method (Sethian, 1996). Once the stop distance is reached, the agent rotates 8 times to the left (at camera horizon 0, 45, 90,…) until is detected in egocentric vision. Once is in the current frame, the agents decides to take if two criteria are met: whether is in the “center” of the frame, or whether the minimum depth towards is in visibility distance of 1.5 meters). Otherwise, the agent “sidesteps” to keep in the center frame or continue rotating to the left with horizon 0/45 until is seen within visibility distance. If the agent executes and fails, the agent “moves backwards” and the map gets updated.

Below, we present a pseudocode for the deterministic navigation/ interaction policy. We first present explanations of some terms.

  • “visible” means that an object is in the current RGB frame, and minimum (predicted) depth from the agent to it is less than or equal to 1.5 meters (which is set by ALFRED).

  • “FMM” is Fast Marching Method (Sethian, 1996).

  • We assume that a new RGB frame is given as

  • MoveBehind, SideStep, RotateBack are not actions in ALFRED; they are defined by us.

    MoveBehind - RotateRight, MoveAhead, RotateLeft

    SideStep - RotateRight/Left, MoveAhead, RotateLeft/Right

    RotateBack - RotateRight, RotateRight

1:Input: List of goal tuples - [(, ), … , (, )]
2:Output: Task Success - True/False
3:
4:
5:
6:Sample from the semantic search policy
7:
8:
9:
10:
11:
12:
13:;
14:
15:while  do
16:     while  do
17:         update semantic map
18:
19:         if  then
20:              if  then
21:                  Execute
22:                  if  done successfully then
23:
24:              else
25:                  if  visible in current frame and in the center of the frame then
26:
27:                       Execute LookDown 0° void action
28:                  else
29:                       if previous action was OpenObject or CloseObject and not  then
30:                           Execute MoveBehind
31:                       else if previous action was PutObject and not  then
32:                           Re-dilate in the semantic map
33:                           Execute RotateBack
34:                       else if  visible but not in center of the frame then
35:                           Execute SideStep
36:                       else Rotate with camera horizons 0°, 45°until is visible
37:                           if   then
38:                                Execute RotateLeft
39:                           else
40:                                if   then
41:                                    Execute LookDown 45
42:                                Execute RotateLeft
43:                        (mod 8)
44:
45:         else
46:              if not ( found) then
47:                  Execute one of (RotateLeft, RotateRight, MoveAhead) with FMM to
48:              else
49:                   closest in the semantic map
50:                  while distance to meters do
51:                       Execute one of (RotateLeft, RotateRight, MoveAhead) with FMM to
52:                  if distance to meters then
53:
54:
55:
56:         if  (mod 25) then
57:              Sample new from the semantic search policy
58:
59:         if  then
60:
61:              ;
62:
63:
64:
65:
66:              Sample new from the semantic search policy
67:              break
68:
69:if  then
70:
Algorithm 1 Navigation/ interaction algorithm in an episode

a.6 Assignments of Rooms into “Large” and “Small” in Valid Unseen

There are 4 distinct scenes in Valid Unseen (one kitchen scene, one living room, one bed room, one bathroom). The kitchen (Large) has a significantly larger area than all the others (Small).
