Emoji have become an important mode of expression on smartphones as users increasingly use them to communicate on social media and chat applications. Easily accessible emoji suggestions have therefore become an important feature for mobile keyboards.
Gboard is a mobile keyboard with more than 1 billion installs and support for over 600 language varieties. With this work, we provide a mechanism by which Gboard offers emoji as predictions based on the text previously typed, as shown in Figure 1.
Mobile devices are constrained by both memory and CPU. Low-latency is also required, since users typically expect a keyboard response within 20 ms of an input event Hellsten et al. (2017).
A unidirectional recurrent neural network architecture (RNN) is used in this work. Since forward RNNs only include dependencies backwards in time, the model state can be cached at each timestep during inference to reduce latency.
2 Federated Learning
Federated Learning (FL) Bonawitz et al. (2019) is a new computation paradigm in which data is kept on users’ devices and never collected centrally. Instead, minimal and focused model updates are transmitted to the server. This allows us to train models while keeping users’ data on their devices. FL can be combined with other privacy-preserving techniques like secure multi-party computation Bonawitz et al. (2017) and differential privacy McMahan et al. (2018); Agarwal et al. (2018); Abadi et al. (2016). FL has been shown to be robust to unbalanced and non-IID data.
We use the FederatedAveraging algorithm presented in McMahan et al. (2017) to aggregate client updates after each round of local, on-device training to produce a new global model. At training round , a global model with parameters , is sent to devices selected from the device population. Each device has a local dataset which is split into batches of size
. Stochastic gradient descent (SGD) is used on the clients to compute new model parameters. These client weights are then averaged across devices, on the server, to compute the new model parameters .
3.1 Network architecture
The Long-Short-Term Memory (LSTM)Hochreiter and Schmidhuber (1997) architecture has been shown to achieve state-of-the art performance of a number of sentiment prediction and language modeling tasks Radford et al. (2017).
We use an LSTM variant called the Coupled Input and Forget Gate (CIFG) Greff et al. (2017)
. As with Gated Recurrent UnitsCho et al. (2014), the CIFG uses a single gate to control both the input and recurrent cell self-connections. The input gate () and the forget gate () are related by . This coupling reduces the number of parameters per cell by 25%, compared to an LSTM.

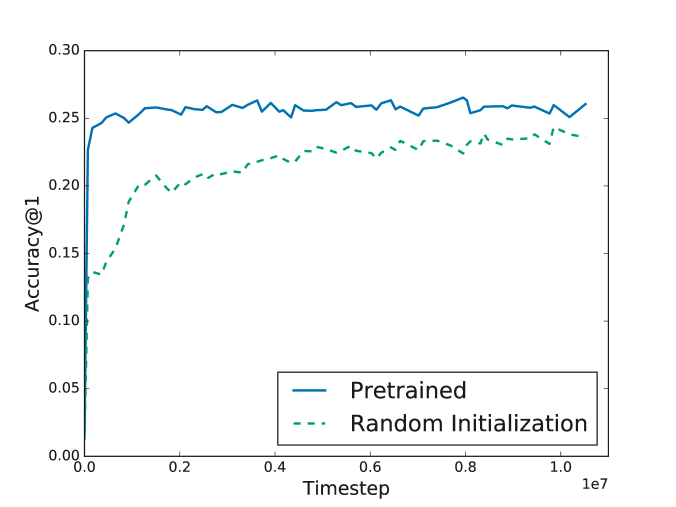

Howard and Ruder (2018) demonstrated that pretraining parameters on a language modeling task can improve performance on other tasks.
We pretrain all layers except the output projection layer, using a language model trained to predict the next word in a sentence. For the output projection, we reuse the input embeddings. This type of sharing of input and output embeddings has been shown to improve performance of language models Press and Wolf (2017). Pretraining is done with federated learning using techniques similar to those described by Hard et al. (2018). The language model achieves an Accuracy@1 of 13.7%, on the same vocabulary. Pretraining with a language model task leads to much faster convergence for the emoji model, as seen in Figure 2.
In addition to predicting the correct emoji, a triggering mechanism must determine when to show emoji predictions to users. For instance, a user is likely to type after typing “Congrats” or “Congrats to you” but not after “Congrats to”.
One way to handle this would be to use a single language model that can predict both words and emojis. However, we want to separate the task of predicting relevant emoji from that of deciding how much we wanted emoji to trigger, since the latter is more of a product decision, rather than a technical challenge. For instance, if we want to allow users to control how often emoji predictions are offered, it’s easier to do with a separate model.
Another way to handle triggering is to use a separate binary classification model that predicts the likelihood of the user typing any emoji after a given phrase. However, using a separate model for triggering leads to additional overhead in terms of memory and latency. Instead, we adjust the softmax layer of the model to predict over emoji and an additional unknown token <UNK> class. The <UNK>
class is set as the target output for inputs without emoji labels. At inference, we show the predictions from the model only if the probability of the<UNK> class is less than a certain threshold.
During training, sentences without emoji are truncated to a random length in the range [1, length of sentence]. Truncation allows the model to learn to not predict emoji after conjunctions, prepositions etc. which typically occur in the middle of sentences.

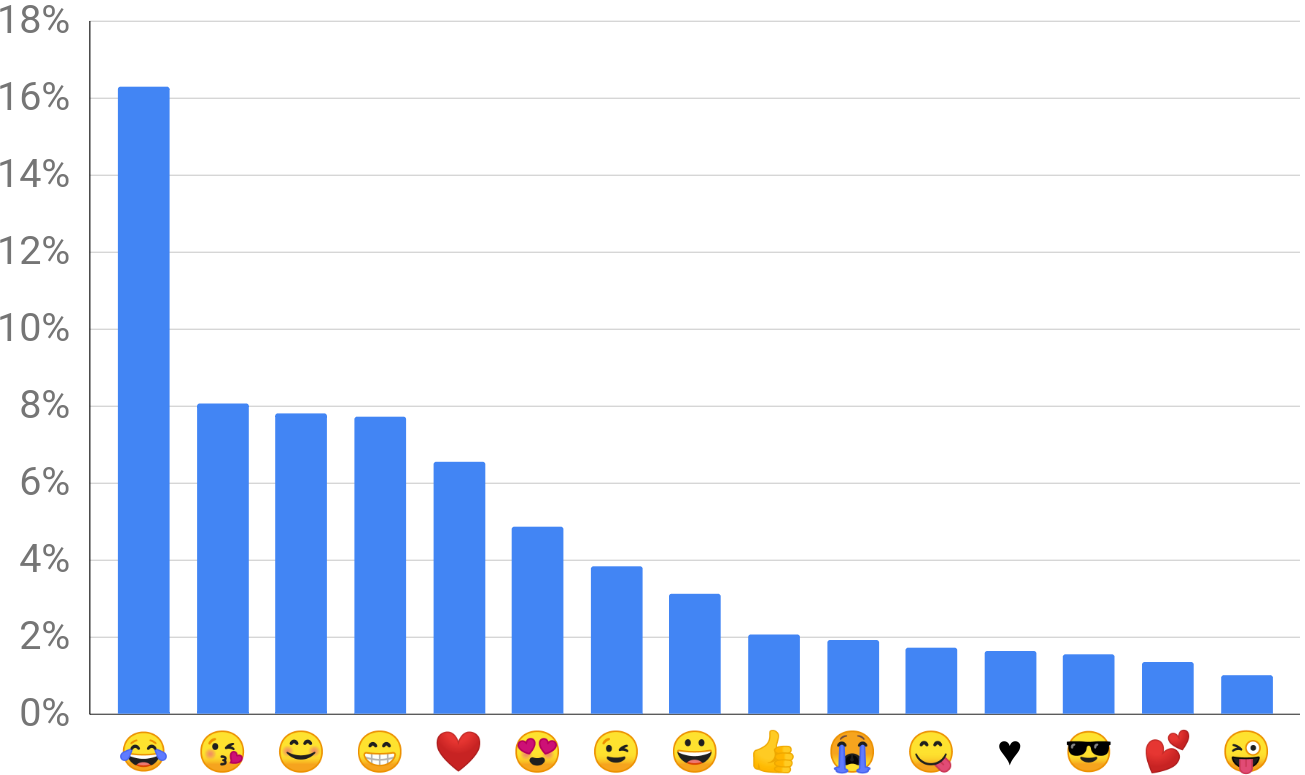

The distribution of emoji usage frequency is very light-tailed as seen in Figure 3. As a result, the top predictions from the model are almost always the most frequent emoji regardless of the input context. To overcome this, the probability of each emoji() is scaled by the empirical probability of that emoji() in the training data as follows.
where is a scaling factor, determined empirically through experiments on live traffic. Setting to 0 removes diversification. Table 1 provides examples with and without diversification.
|Sorry I ended up falling asleep|
|Good morning sunshine|
|Coz I miss you xx|
|I’m so sorry sweetie|
|Hey girl you take it easy|
|not sure what happened to that|
4 Server-based Training
Server-based training of models is done on data logged from Gboard users who have opted to periodically share anonymized snippets of text typed in selected apps. All personally identifiable information is stripped from these logs. The logs are filtered further to only include sentences that are labeled as English with high confidence by a language detection model Botha et al. (2017); Zhang et al. (2018)
. The subset of logs used for training contain approximately 370 million snippets, approximately 11 million of which contain emoji. Hyperparameters for server-based training are optimized using a black-box optimization techniqueGolovin et al. (2017).
5 Federated Training
The data used for federated training is stored in local caches on client devices. For a device to participate in training, it must have at least 2 GB of RAM, must be located in United States or Canada, and must be using English (US) as the primary language. In addition, only devices that are connected to un-metered networks, idle, and charging are eligible for participation at any given time. On average, each client has approximately 400 sentences. The model is trained for one epoch on each client, in each round. The model typically converges after 2000 training rounds.
In federated training, there is no explicit split of data into train and eval samples. Instead, a separate evaluation task runs on a different subset of client devices in parallel to the training task. The eval task uses model checkpoints generated by the federated training task during a 24-hour period and aggregates the metrics across evaluation rounds.
Model quality is evaluated using Accuracy@1, defined as the ratio of accurate top-1 emoji predictions to the total number of examples containing emoji. Area Under ROC Curve (AUC) is used to evaluate the quality of the triggering mechanism. Computing the AUC involves numerical integration and is not straightforward to do in the FL setting. Therefore, we report AUC only on logs data that is collected on the server. All evaluation metrics are computed prior to diversification.
7 Federated Experiments
In FL, the contents of the client caches are constantly changing as old entries are cleared and replaced by new activity. Since these experiments were conducted non-concurrently, the client cache contents are different and therefore numbers cannot be compared across experiments. We conduct experiments to study the effect of client batch size (), devices per round () and server optimizer configuration on model quality. We then take the best model and compare it with a server trained model. The results are summarized in Table 2.
|Best server trained||0.239||0.898|
Because of the sparsity of sentences containing emoji in the client caches, the model quality is improved to a large degree by using large client batch sizes. This is not entirely surprising, since gradient updates are more accurate with larger batch sizes Smith et al. (2018). This is particularly true when the target classes are heavily imbalanced.
The accuracy of the model also increases with the number of devices per round but there are diminishing returns beyond .
We experimented with various optimizers for the server update after each round of federated training and found that using momentum of 0.9 with Nesterov accelerated gradients Sutskever et al. (2013) gives significant benefits over using SGD, both in terms of speed of convergence and model performance.
The best federated model, which runs in production, uses , and is trained with momentum. We assign a weight of 0 to 99% of the <UNK> examples at training time so as to balance the triggering and emoji prediction losses. We ran federated evaluation tasks of the best server-trained model on the client caches in order to fairly compare the two training approaches. The federated model achieved better Accuracy@1 in the federated evaluation, as shown in Figure 4. However, the AUC achieved by the federated model is lower than that of the server trained model.
AUC is only computed on the logs collected on the server. These logs are restricted to short snippets of text typed in selected apps, therefore the data is not believed to be as representative of the text typed by users as data that resides on the client caches. The lower AUC of the federated model is likely because of this bias.
8 Live experiment
At inference time, we use a quantized TensorFlow LiteTFLite model format. The average inference latency is around 1 ms.
We ran a live-traffic experiment for users in USA and Canada typing in English (US). We observed that both the federated and the server trained model lead to significant increases in the overall click-through rate (CTR) of predictions, total emoji shares, and daily active users (DAU) of emoji (see Table 3). We also observed that the federated model did better than the server trained model on all of the metrics.
Given that emoji are triggered rarely, the increase in CTR is quite large, for both the models.
|Metric||Relative change [%]|
Relative changes to metrics as a result of the server trained and federated emoji prediction models, measured in experiments on live user traffic. The baseline does not have any emoji predictions. Quoted 95% confidence interval errors for all results are derived using the jackknife method with user buckets.
In this paper, we train an emoji prediction model using a CIFG-LSTM network. We demonstrate that this model can be trained using FL to achieve better performance than a server trained model. This work builds on previous practical applications of federated learning in Yang et al. (2018); Hard et al. (2018); Bonawitz et al. (2019). We show that FL works even with sparse data and poorly balanced classes.
