1 Introduction and related work

Medical practitioners increasingly store patient data in Electronic Health Records (EHRs) [Hsiao et al.2011], which represents a considerable opportunity for medical investigators to construct novel models and experiments to improve patient care. Some governments even subsidize the adoption of EHRs, such as the Centers for Medicare & Medicaid Services in the United States who have spent over $30 billion in EHR incentive payments to hospitals and medical providers [McCann2015].

A legal prerequisite for a patient note to be shared with a medical investigator is that it must be de-identified. The objective of the de-identification process is to remove all Protected Health Information (PHI). Not appropriately removing PHI may result in financial penalties [DesRoches et al.2013, Wright et al.2013]. In the United States, the Health Insurance Portability and Accountability Act (HIPAA) [Office for Civil Rights2002] defines PHI types that must be removed, ranging from phone numbers to patient names. Failure to accurately de-identify a patient note would jeopardize the patient’s privacy: the performance of a de-identification system is therefore critical.

A naive approach to de-identification is to manually identify PHI. However, this is costly [Douglass et al.2005, Douglas et al.2004] and unreliable [Neamatullah et al.2008]

. Consequently, there has been much work developing automated de-identification systems. These systems are either based on rules or machine-learning models. Rule-based systems typically rely on patterns, expressed as regular expressions and gazetteers, defined and tuned by humans

[Berman2003, Beckwith et al.2006, Fielstein et al.2004, Friedlin and McDonald2008, Gupta et al.2004, Morrison et al.2009, Neamatullah et al.2008, Ruch et al.2000, Sweeney1996, Thomas et al.2002].

Machine-learning-based systems train a classifier to label each token as PHI or not PHI. Some systems are more fine-grained by detecting which PHI type a token belongs to. Different statistical methods have been explored for patient note de-identification, including decision trees

[Szarvas et al.2006]

, log-linear models, support vector machines (SVMs)

[Guo et al.2006, Uzuner et al.2008, Hara2006], and conditional random field (CRFs) [Aberdeen et al.2010]. A thorough review of existing systems can be found in [Meystre et al.2010, Stubbs et al.2015].

A more recent system has introduced the use of artificial neural networks (ANNs) for de-identification [Dernoncourt et al.2016], and obtained state-of-the-art results. The system does not use any manually-curated features. Instead, it solely relies on character and token embeddings. While this allows the system to be developed and deployed faster, it fails to give users the possibility to add features engineered by human experts. Additionally, in practical settings of de-identification, patient notes typically come from a hospital EHR database, which contains metadata such as which patient each note pertains to, and other information such as the names of all doctors who work at the hospital where the patient was treated. The features derived from EHR databases may be useful for boosting the performance of de-identification systems. In this work, we present a method to incorporate features to this ANN-based system, and show that it further improves the state-of-the-art.

2 Method

The first model based on ANNs for patient note de-identification was introduced in [Dernoncourt et al.2016]

: we extend upon their model. They utilized both token and character embeddings to learn effective features from data by fine-tuning the parameters. The main components of the ANN model are Long Short Term Memories (LSTMs)

[Hochreiter and Schmidhuber1997]

, which are a type of recurrent neural networks (RNNs).

The model is composed of three layers: a character-enhanced token embedding layer, a label prediction layer, and a label sequence optimization layer. The character-enhanced token embedding layer maps each token into a vector representation. The sequence of vector representations corresponding to a sequence of tokens are input to the label prediction layer, which outputs the sequence of vectors containing the probability of each label for each corresponding token. Lastly, the sequence optimization layer outputs the most likely sequence of predicted labels based on the sequence of probability vectors from the previous layer. All layers are learned jointly. For more details on the basic ANN model, see

[Dernoncourt et al.2016].

We augment this ANN model by adding features that are human-engineered or derived from EHR database, as presented in Table 1. The majority of human-engineered features are taken from [Filannino and Nenadic2015], a few more features come from [Yang and Garibaldi2015], and additional gazetteers are collected using online resources. All features are binary and computed for each token. The binary feature vector comprising all features for a given token is fed into a feedforward neural network, the output vector of which is concatenated to the corresponding token embeddings, at the output of the character-enhanced token embedding layer, as Figure 1 illustrates.

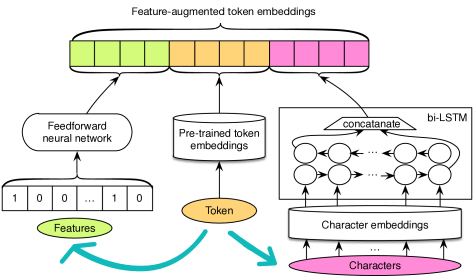

Figure 1: Feature-augmented token embeddings. Each token is mapped to a token embedding that is the concatenation of three elements: the output of a feedforward neural network that takes the features as input, a pre-trained token embedding, and the output of a bidirectional-LSTM (bi-LSTM) that takes the character embeddings as input.
Feature types Features
Note metadata
Hospital data
EHR features
Morphological Ends with s, is the first letter capitalized, contains a digit, is numeric, is alphabetic, is alphanumeric, is title case, is all lower case, is all upper case, is a stop word
Semantic/Wordnet Hypernyms, senses, lemma names
Temporal Seasons, months, weekdays, times of the day, years, years followed by apostrophe, festivity dates, holidays, cardinal numbers, decades, fuzzy quantifier (e.g., “approximately”, “few”), future trigger (e.g., “next”, “tomorrow”)
Gazetteers Honorifics for doctors, honorifics, medical specialists, medical specialties, first names, last names, last name prefixes, street suffixes, US cities, US states (including abbreviations), countries, nationalities, organizations, professions
Regular expressions Email, age, date, phone, zip code, id number, medical record number
Table 1: Feature list. Note metadata and hospital data are derived from the EHR database. Morphological, semantic/wordnet, and temporal features are commonly used features for NLP tasks. Gazetteers and regular expressions are specifically engineered for the task.

3 Experiments

We evaluate our model on the de-identification dataset introduced in [Dernoncourt et al.2016], which is a subset of the MIMIC-III dataset [Goldberger et al.2000, Saeed et al.2011, Johnson et al.2016], using the same train/validation/test split (70%/10%/20%). We chose this dataset as each note comes with metadata, such as the patient’s name, and it is the largest de-identification dataset available to us. It contains 1,635 discharge summaries, 2,945,228 tokens, 69,525 unique tokens, and 78,633 PHI tokens.

The model is trained using stochastic gradient descent, updating all parameters, i.e., token embeddings, character embeddings, parameters of bidirectional LSTMs, and transition probabilities, at each gradient step. For regularization, dropout is applied to the character-enhanced token embeddings before the label prediction layer. We set the character embedding dimension to 25, the character-based token embedding LSTM dimension to 25, the token embedding dimension to 100, the label prediction LSTM dimension to 100, the dropout probability to 0.5, and we use GloVe embeddings

[Pennington et al.2014] trained on Wikipedia and Gigaword 5 [Parker et al.2011]

articles as pre-trained token embeddings. The hyperparameters were optimized based on the performance on the validation set.

4 Results

Table 2

presents the main results. The epochs for which the results are reported are optimized based on either the highest F1-score or the highest recall on the validation set. As expected, choosing the epoch based on the recall improves the recall on the test set, while lowering the precision. Overall, adding features consistently improves the results.

Binary HIPAA (optimized by F1-score) Binary HIPAA (optimized by recall)
Precision Recall F1-score Precision Recall F1-score
No feature 99.103 99.197 99.150 98.557 99.376 98.965
EHR features 99.100 99.304 99.202 98.771 99.441 99.105
All features 99.213 99.306 99.259 98.880 99.420 99.149
Table 2: Binary HIPAA token-based results (%) for the ANN model, averaged over 5 runs. The metric refers to the detection of PHI tokens versus non-PHI tokens, amongst PHI types that are defined by HIPAA. “No feature” is the model utilizing only character and word embeddings, without any feature. “EHR features” uses only 4 features derived from EHR database: patient first name, patient last name, doctor first name, and doctor last name. “All features” makes use of all features, including the EHR features as well as other engineered features listed in Table 1. “Optimized by F1-score” and “optimized by recall” means that the epochs for which the results are reported are optimized based on the highest F1-score or the highest recall on the validation set, respectively.
No feature EHR features All features
P R F1 P R F1 P R F1 Support
Zip 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 24
Date 98.90 99.77 99.33 98.95 99.79 99.36 98.99 99.69 99.34 20627
Phone 98.31 99.58 98.94 98.98 99.46 99.22 99.42 99.32 99.37 1438
Patient 96.89 98.34 97.61 98.62 99.14 98.88 99.21 99.27 99.24 302
ID 99.57 98.24 98.90 99.31 98.82 99.07 99.77 97.97 98.86 612
Doctor1 97.47 98.17 97.82 97.27 98.48 97.87 97.56 98.20 97.88 3676
Location 96.02 95.71 95.86 96.41 96.49 96.45 96.65 96.32 96.46 462
Age 90 75.12 94.29 83.60 77.04 95.72 85.35 78.93 93.57 84.80 28
Hospital1 94.78 95.39 95.08 94.77 95.52 95.14 95.53 95.50 95.51 1259
State1 99.36 94.33 96.76 99.68 94.03 96.73 99.39 91.94 95.49 67
Street 96.77 85.25 90.54 97.63 85.25 90.96 93.91 86.56 89.81 61
Country1 87.51 85.00 86.11 89.29 82.50 85.67 86.87 95.00 90.56 16
Binary 98.41 99.19 98.80 98.48 99.27 98.87 98.61 99.15 98.88 28572
Table 3: Binary token-based results (%) . The reported results are optimized by recall, and averaged over 5 runs. The symbol 1 indicates that the PHI type is not required by HIPAA. The PHI type “location” designates any location that is not a street name, zip code, state or country. P stands for precision, R for recall, and F1 for F1-score.

Table 3 details the results for each PHI type. The system using only the EHR features yields the highest recall for 6 out of 12 PHI types. Most importantly, the recall for patient and doctor names are higher when using features than when using no feature: this is expected as the patient name of the note and the doctor names are used as features. In fact, the two remaining false negatives for patient names are annotation errors. For example, in the sentence “The patient responded well to Natrecor in the past, but the improvement disappeared soon”, the drug name Natrecor was incorrectly marked as a patient name by the human annotator. This result is highly remarkable as patient names are the most sensitive information in a patient note [South et al.2014].

Adding all features often lowers the recall compared to using EHR features only, although the F1-score remains virtually unchanged. This is somewhat surprising, as we had expected that the features would help, as using the same feature set with a CRF to perform de-identification yields state-of-the-art results next to the ANN models [Dernoncourt et al.2016]. This could be explained as follows. Human-engineered features tend to have higher precision than recall, as it is often hard to design regular expressions or gazetteers that can detect all possible instances or variations of the desired entities. We conjecture that as the ANN model learn to rely more on such features, it might lose the ability to learn to pick up tokens that deviate from engineered features, resulting in a lower recall. For example, we notice that the phone PHI tokens that are not detected by the model using all features but are detected by the other two models, are ill-formed phone numbers such as “617-554-2395”, or phone extensions such as “617-690-4031 ext 6599”. Since the phone regular expressions do not capture these two examples, they are more likely to be false negatives in the model that uses the phone regular expression features.

5 Conclusion

In this paper we presented an extension of the ANN-based model for patient note de-identification that can incorporate features. We showed that adding features results in an increase of the recall, in particular features leveraging information from the associated EHRs, namely patient names and doctor names.

Our results suggest that constructing patient note de-identification systems should be performed using structured information from the EHRs, the latter being available in a typical, real-life setting. We restricted our EHR-derived features to patient and doctor names, but it could be extended to the many other structured fields that EHR contain, such as patients’ addresses, phone numbers, email addresses, professions, and ages.


The project was supported by Philips Research. The content is solely the responsibility of the authors and does not necessarily represent the official views of Philips Research. We warmly thank Michele Filannino, Alistair Johnson, Li-wei Lehman, Roger Mark, and Tom Pollard for their helpful suggestions and technical assistance.
