Faster DBSCAN via subsampled similarity queries

06/11/2020 ∙ by Heinrich Jiang, et al. ∙ Google 0

DBSCAN is a popular density-based clustering algorithm. It computes the ϵ-neighborhood graph of a dataset and uses the connected components of the high-degree nodes to decide the clusters. However, the full neighborhood graph may be too costly to compute with a worst-case complexity of O(n^2). In this paper, we propose a simple variant called SNG-DBSCAN, which clusters based on a subsampled ϵ-neighborhood graph, only requires access to similarity queries for pairs of points and in particular avoids any complex data structures which need the embeddings of the data points themselves. The runtime of the procedure is O(sn^2), where s is the sampling rate. We show under some natural theoretical assumptions that s ≈log n/n is sufficient for statistical cluster recovery guarantees leading to an O(nlog n) complexity. We provide an extensive experimental analysis showing that on large datasets, one can subsample as little as 0.1% of the neighborhood graph, leading to as much as over 200x speedup and 250x reduction in RAM consumption compared to scikit-learn's implementation of DBSCAN, while still maintaining competitive clustering performance.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

DBSCAN (Ester et al., 1996)

is a popular density-based clustering algorithm which has had a wide impact on machine learning and data mining. Recent applications include superpixel segmentation

Shen et al. (2016), object tracking and detection in self-driving Wagner et al. (2015); Guan et al. (2010), wireless networks Emadi and Mazinani (2018); Wang et al. (2019), GPS Diker and Nasibov (2012); Panahandeh and Åkerblom (2015), social network analysis Khatoon and Banu (2019); Yao et al. (2019), urban planning Fan et al. (2019); Pavlis et al. (2018), and medical imaging Tran et al. (2012); Baselice et al. (2015)

. The clusters that DBSCAN discovers are based on the connected components of the neighborhood graph of the data points of sufficiently high density (i.e. those with a sufficiently high number of data points in their neighborhood), where the neighborhood radius and the density threshold are the hyperparameters.

One of the main differences of density-based clustering algorithms such as DBSCAN compared to popular objective-based approaches such as k-means

Arthur and Vassilvitskii (2006)

and spectral clustering

Von Luxburg (2007) is that density-based algorithms are non-parametric. As a result, DBSCAN makes very few assumptions on the data, automatically finds the number of clusters, and allows clusters to be of arbitrary shape and size Ester et al. (1996). However, one of the drawbacks is that it has a worst-case quadratic runtime Gan and Tao (2015). With the continued growth of modern datasets in both size and richness, non-parametric unsupervised procedures are becoming ever more important in understanding such datasets. Thus, there is a critical need to establish more efficient and scalable versions of these algorithms.

The computation of DBSCAN can be broken up into two steps. The first is computing the -neighborhood graph of the data points, where the -neighborhood graph is defined with data points as vertices and edges between pairs of points that are distance at most apart. The second is processing the neighborhood graph to extract the clusters. The first step has worst-case quadratic complexity simply due to the fact that each data point may have of order linear number of points in its -neighborhood for sufficiently high . However, even if the -neighborhood graph does not have such an order of edges, computing this graph remains costly: for each data point, we must query for neighbors in its -neighborhood, which is worst-case linear time for each point. There has been much work done in using space-partitioning data structures such as KD-Trees (Bentley, 1975) to improve neighborhood queries, but these methods still run in linear time in the worst-case. Approximate methods (e.g. Indyk and Motwani (1998); Datar et al. (2004)) answer queries in sub-linear time, but such methods come with few guarantees. The second step is processing the neighborhood graph to extract the clusters, which consists in finding the connected components of the subgraph induced by nodes with degree above a certain threshold (i.e. the MinPts hyperparameter in the original DBSCAN Ester et al. (1996)). This step is linear in the number of edges in the -neighborhood graph.

Our proposal is based on a simple but powerful insight: the full -neighborhood graph may not be necessary to extract the desired clustering. We show that we can subsample the edges of the neighborhood graph while still preserving the connected components of the core-points (the high density points) on which DBSCAN’s clusters are based.

To analyze this idea, we assume that the points are sampled from a distribution defined by a density function satisfying certain standard Jiang (2017); Steinwart (2011) conditions (e.g., cluster density is sufficiently high, and clusters do not become arbitrarily thin). Such an assumption is natural because DBSCAN recovers the high-density regions as clusters Ester et al. (1996); Jiang (2017). Under this assumption we show that the minimum cut of the -neighborhood graph is as large as , where is the number of datapoints. This, combined with a sampling lemma by Karger Karger (1999), implies that we can sample as little as of the edges uniformly while preserving the connected components of the -neighborhood graph exactly. - Our algorithm, SNG-DBSCAN, proceeds by constructing and processing this subsampled -neighborhood graph all in time. Moreover, our procedure only requires access to similarity queries for random pairs of points (adding an edge between pairs if they are at most apart). Thus, unlike most implementations of DBSCAN which take advantage of space-partitioning data structures, we don’t require the embeddings of the datapoints themselves. In particular, our method is compatible with arbitrary similarity functions instead of being restricted to a handful of distance metrics such as the Euclidean.

We provide an extensive empirical analysis showing that SNG-DBSCAN is effective on real datasets. We show on large datasets (on the order of a million datapoints) that we can subsample as little as of the neighborhood graph and attain competitive performance to sci-kit learn’s implementation of DBSCAN while consuming far fewer resources – as much as 200x speedup and 250x less RAM consumption on cloud machines with up to 750GB of RAM. In fact, for larger settings of on these datasets, DBSCAN fails to run at all due to insufficient RAM. We also show that our method is effective even on smaller datasets. Sampling between to of the edges depending on the dataset, SNG-DBSCAN shows a nice improvement in runtime while still maintaining competitive clustering performance.

2 Related Work

There is a large body of work on making DBSCAN more scalable. Due to space we can only mention some of these works here. The first approach is to more efficiently perform the nearest neighbor queries that DBSCAN uses when constructing the neighborhood graph either explicitly or implicitly Huang and Bian (2009); Kumar and Reddy (2016). However, while these methods do speed up the computation of the neighborhood graph, they may not save memory costs overall as the number of edges remains similar. Our method of subsampling the neighborhood graph brings both memory and computational savings.

A natural idea for speeding up the construction of the nearest neighbors graph is to compute it approximately, for example by using locality-sensitive hashing (LSH) Indyk et al. (1997) and thus improving the overall running time Shiqiu and Qingsheng (2019); Wu et al. (2007). At the same time, since the resulting nearest neighbor graph is incomplete, the current state-of-the-art LSH-based methods lack any guarantees on the quality of the solutions they produce. This is in sharp contrast with SNG-DBSCAN, which, under certain assumptions, gives exactly the same result as DBSCAN.

Another approach is to first find a set of "leader" points that preserve the structure of the original dataset and cluster those "leader" points first. Then the remaining points are clustered to these "leader points" Geng et al. (2000); Viswanath and Babu (2009). Liu (2006)

modified DBSCAN by selecting clustering seeds among unlabeled core points to reduce computation time in regions that have already been clustered. Other heuristics include

(Patwary et al., 2012; Kryszkiewicz and Lasek, 2010). More recently, Jang and Jiang (2019)

pointed out that it’s not necessary to compute the density estimates for each of the data points and presented a method that chooses a subsample of the data using

-centers to save runtime on density computations. These approaches all reduce the number of data points on which we need to perform the expensive neighborhood graph computation. SNG-DBSCAN preserves all of the data points but subsamples the edges instead.

There are also a number of approaches based on leveraging parallel computing Chen et al. (2010); Patwary et al. (2012); Götz et al. (2015), which includes MapReduce based approaches Fu et al. (2011); He et al. (2011); Dai and Lin (2012); Noticewala and Vaghela (2014). Then there are also distributed approaches to DBSCAN where data is partitioned across different locations, and there may be communication cost constraints Neto et al. (2015); Lulli et al. (2016). Andrade et al. (2013) provides a GPU implementation. In this paper, we assume a single processor, although our method can be implemented in parallel which can be a future research direction.

3 Algorithm

Inputs: , sampling rate , , MinPts
Initialize graph .
For each , sample examples from , and add edge to if for .
Let be the connected components of the subgraph of induced by vertices of degree at least MinPts.
Initialize for and define . For each , add to if . Otherwise, if is connected to some point in , add to (if multiple such exist, choose one arbitrarily).
return .
Algorithm 1 Subsampled Neighborhood Graph DBSCAN (SNG-DBSCAN)

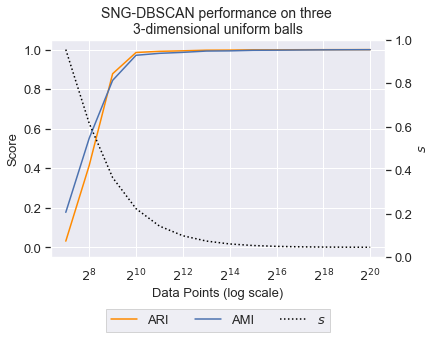

Figure 1: SNG-DBSCAN on simulated uniform balls. Data is generated as a uniform mixture of balls in , where each ball is a true cluster. The -axis is the number of examples on a log scale. We set and show the performance of SNG-DBSCAN under two clustering metrics Adjusted Rand Index (ARI) and Adjusted Mutual Information (AMI). We see that indeed, sampling is sufficient to recover the right clustering for sufficiently large , as the theory suggests. Clustering quality is low at the beginning because the sample size was insufficient to learn the clusters.

We now introduce our algorithm SNG-DBSCAN (Algorithm 1). It proceeds by first constructing the sampled -neighborhood graph given a sampling rate . We do this by initializing a graph whose vertices are the data points, sampling fraction of all pairs of data points, and adding corresponding edges to the graph if points are less than apart. Compared to DBSCAN, the latter computes the full -neighborhood graph, typically using space-partitioning data structures such as kd-trees, while SNG-DBSCAN can be seen as using a sampled version of brute-force (which looks at each pair of points to compute the graph). Despite not leveraging space-partitioning data structures, we show in the experiments that SNG-DBSCAN can still be much more scalable in both runtime and memory than DBSCAN.

The remaining stage of processing the graph is the same as in DBSCAN, where we find the core-points (points with degree at least degree MinPts), compute the connected components induced by the core-points, and then cluster the border-points (those within

of a connected component). The remaining points are not clustered and are referred to as noise-points or outliers. The entire procedure runs in

time. We will show in the theory that can be of order while still maintaining statistical consistency guarantees of recovering the true clusters under certain density assumptions. Under this setting, the procedure runs in time, and we show on simulations in Figure 1 that such a setting for is sufficient.

4 Theoretical Analysis

For the analysis, we assume that we draw i.i.d. samples from a distribution . The goal is to show that the sampled version of DBSCAN (Algorithm 1) can recover the true clusters with statistical guarantees, where the true clusters are the connected components of a particular upper-level set of the underlying density function, as it is known that DBSCAN recovers such connected components of a level set Jiang (2017); Wang et al. (2017); Sriperumbudur and Steinwart (2012).

We make the following Assumption 1 on . The assumption is three-fold. The first part ensures that the true clusters are of sufficiently high density level and the noise areas are of sufficiently low density. The second part ensures that the true clusters are pairwise separated by a sufficiently wide distance and that they are also separated away from the noise regions; such an assumption is common in analyses of cluster trees (e.g. Chaudhuri and Dasgupta (2010); Chaudhuri et al. (2014); Jiang (2017)). Finally, the last part ensures that the clusters don’t become arbitrarily thin anywhere. Otherwise it would be difficult to show that the entire cluster will be recovered as one connected component. This has been used in other analyses of level-set estimation Singh et al. (2009).

Assumption 1.

Data is drawn from distribution on with density function . There exists and compact connected sets and subset such that

  • for all (i.e. clusters are high-density), for all (i.e. outlier regions are low-density), everywhere else, and that (the cluster density is sufficiently higher than noise density).

  • for and (i.e clusters are separated) and for (i.e. outlier regions are away from the clusters).

  • For all , and we have where and is the volume of a unit -dimensional ball. (i.e. clusters don’t become arbitrarily thin).

The analysis proceeds in three steps:

  1. We give a lower bound on the min-cut of the subgraph of the -neighborhood graph corresponding to each cluster. This will be useful later as it determines the sampling rate we can use while still ensure these subgraphs remain connected. (Lemma 1)

  2. We use standard concentration inequalities to show that if MinPts

    is set appropriately, we will with high probability determine which samples belong to clusters and which ones don’t in the sampled graph. (Lemma

    2)

  3. We then combine these two results to give a precise bound on the sampling rate and sample complexity to show that Algorithm 1 properly identifies the clusters. (Theorem 1)

We now give the lower bound on the min-cut of the subgraph of the -neighborhood graph corresponding to each cluster. This will be useful later as it determines the sampling rate we can use while still ensuring these subgraphs remain connected. As a reminder, for a graph , the size of the cut-set of is defined as and the size of the min-cut of is the smallest proper cut-set size: .

Lemma 1 (Lower bound on min-cut of -neighborhood graph of core-points).

Suppose that Assumption 1 holds and . Let . Then there exists a constant depending only on and such that the following holds for . Let be the -neighborhood graph of . Let be the subgraph of with nodes in . Then with probability at least , for each , we have that

We next show that if MinPts is set appropriately, we will with high probability determine which samples belong to clusters and which ones don’t in the sampled graph.

Lemma 2.

Suppose that Assumption 1 holds and . Let . There exists a universal constant such that the following holds. Let the sampling rate be and suppose

and , where . Then with probability at least , all samples in for some are identified as core-points and the rest are noise points.

The next result shows a rate at which we can sample a graph while still have it be connected, which depends on the min-cut and the size of the graph. It follows from classical results in graph theory that cut sizes remain preserved under sampling Karger (1999).

Lemma 3.

There exists universal constant such that the following holds. Let be a graph with min-cut and . If

then with probability at least , the graph obtained by sampling each edge of with probability is connected.

We now give the final result, which follows from combining Lemmas 12, and 3.

Theorem 1.

Suppose that Assumption 1 holds and . Let . There exist universal constants and constant depending only on and such that the following holds. Suppose

and

where .

Then with probability at least , Algorithm 1 returns (up to permutation) the clusters .

Remark 1.

As a consequence, we can take , and, for sufficiently large, the clusters are recovered with high probability, leading to a computational complexity of for Algorithm 1.

5 Experiments

Datasets and hyperparameter settings: We compare the performance of SNG-DBSCAN against DBSCAN on 5 large (~1,000,000+ datapoints) and 12 smaller (~100 to ~100,000 datapoints) datasets from UCI Dua and Graff (2017) and OpenML Vanschoren et al. (2013). Details about each large dataset shown in the main text are summarized in Figure 2, and the rest, including all hyperparameter settings, can be found in the Appendix. Due to space constraints, we couldn’t show the results for all of the datasets in the main text. The settings of MinPts and range of that we ran SNG-DBSCAN and DBSCAN on, as well as how was chosen, are shown in the Appendix. For simplicity we fixed MinPts and only tuned which is the more essential hyperparameter. We compare our implementation of SNG-DBSCAN to that of sci-kit learn’s DBSCAN Pedregosa et al. (2011), both of which are implemented with Cython, which allows the code to have a Python API while the expensive computations are done in a C/C++ backend.

Clustering evaluation: To score cluster quality, we use two popular clustering scores: the Adjusted Rand Index (ARI) Hubert and Arabie (1985) and Adjusted Mutual Information (AMI) Vinh et al. (2010) scores. ARI is a measure of the fraction of pairs of points that are correctly clustered to the same or different clusters. AMI is a measure of the cross-entropy of the clusters and the ground truth. Both are normalized and adjusted for chance, so that the perfect clustering receives a score of 1 and a random one receives a score of . The datasets we use are classification datasets where we cluster on the features and use the labels to evaluate our algorithm’s clustering performance. It is standard practice to evaluate performance using the labels as a proxy for the ground truth Jiang et al. (2018); Jang and Jiang (2019).

5.1 Performance on Large Datasets

mPts
Australian 1,000,000 14 2 0.001 10
Still Stisen et al. (2015) 949,983 3 6 0.001 10
Watch Stisen et al. (2015) 3,205,431 3 7 0.01 10
Satimage 1,000,000 36 6 0.02 10
Phone Stisen et al. (2015) 1,000,000 3 7 0.001 10
Figure 2: Summary of larger datasets and hyperparameter settings used. Includes dataset size (), number of features (), number of clusters (), and the fraction of neighborhood edges kept by SNG-DBSCAN. Datasets Phone, Watch, and Still come from the Heterogeneity Activity Recognition dataset. Phone originally had over 13M points, but in order to feasibly run DBSCAN, we used a random 1M sample. For the full chart, including settings for , see the Appendix.

We now discuss the performance on the large datasets, which we ran on a cloud compute environment. Due to computational costs, we only ran DBSCAN once for each setting. We ran SNG-DBSCAN 10 times for each setting and averaged the clustering scores and runtimes. The results are summarized in Figure 3, which reports the highest clustering scores for the respective algorithms along with the runtime and RAM usage required to achieve these scores. We also plot the clustering performance and runtime/RAM usage across different settings of in Figure 4.

Base ARI SNG ARI Base AMI SNG AMI
Australian 0.0933 (6h 4m) 0.0933 (1m 36s) 0.1168 (4h 28m) 0.1167 (1m 36s)
282 GB 1.5 GB 146 GB 1.5 GB
Still 0.7901 (14m 37s) 0.7902 (1m 21s) 0.8356 (14m 37s) 0.8368 (1m 57s)
419 GB 1.6 GB 419 GB 1.5 GB
Watch 0.1360 (27m 2s) 0.1400 (1h 27m) 0.1755 (7m 35s) 0.1851 (1h 29m)
518 GB 8.7 GB 139 GB 7.6 GB
Satimage 0.0975 (1d 3h) 0.0981 (33m 22s) 0.1019 (1d 3h) 0.1058 (33m 22s)
11 GB 2.1 GB 11 GB 2.1 GB
Phone 0.1902 (12m 36s) 0.1923 (59s) 0.2271 (4m 48s) 0.2344 (46s)
138 GB 1.7 GB 32 GB 1.5 GB
Figure 3: Performance on large datasets. Best Adjusted Rand Index and Adjusted Mutual Information Scores for both DBSCAN and SNG-DBSCAN after -tuning, shown with their associated runtimes and RAM used. Highest scores for each dataset are bolded. We see that SNG-DBSCAN is competitive against DBSCAN in terms of clustering quality while using much fewer resources. On Australian, we see an over 200x speedup. On Still, we see an over 250x reduction in RAM.

From Figure 4, we see that DBSCAN often exceeds the 750GB RAM limit on our machines and fails to complete; the amount of memory (as well as runtime) required for DBSCAN escalates quickly as increases, suggesting that the size of the -neighborhood graph grows quickly. Meanwhile, SNG-DBSCAN’s memory usage remains reasonable and increases slowly across . This suggests that SNG-DBSCAN can run on much larger datasets infeasible for DBSCAN, opening the possibilities for applications which may have previously not been possible due to scalability constraints – all the while attaining competitive clustering quality (Figure 3).

Similarly, SNG-DBSCAN shows a significant runtime improvement for almost all datasets and stays relatively constant across epsilon. We note that occasionally (e.g. Watch dataset for small ), SNG-DBSCAN is slower. This is likely because SNG-DBSCAN does not take advantage of space-partitioning data structures such as kd-trees. This is more likely on lower dimensional datasets where space-partitioning data structures tend to perform faster as the number of partitions is exponential in dimension Bentley (1975). Conversely, we see the largest speedup on Australian, which is the highest dimension large dataset we evaluated. However, DBSCAN was unable to finish clustering Watch past the first few values of due to exceeding memory limits. During preliminary experimentation, but not shown in the results, we tested DBSCAN on the UCI Character Font Images dataset which has dimension 411 and 745,000 datapoints. DBSCAN failed to finish after running on the cloud machine for over 6 days. Meanwhile, SNG-DBSCAN was able to finish with the same settings in under 15 mins using the setting. We didn’t show the results here because we were unable to obtain clustering scores for DBSCAN.

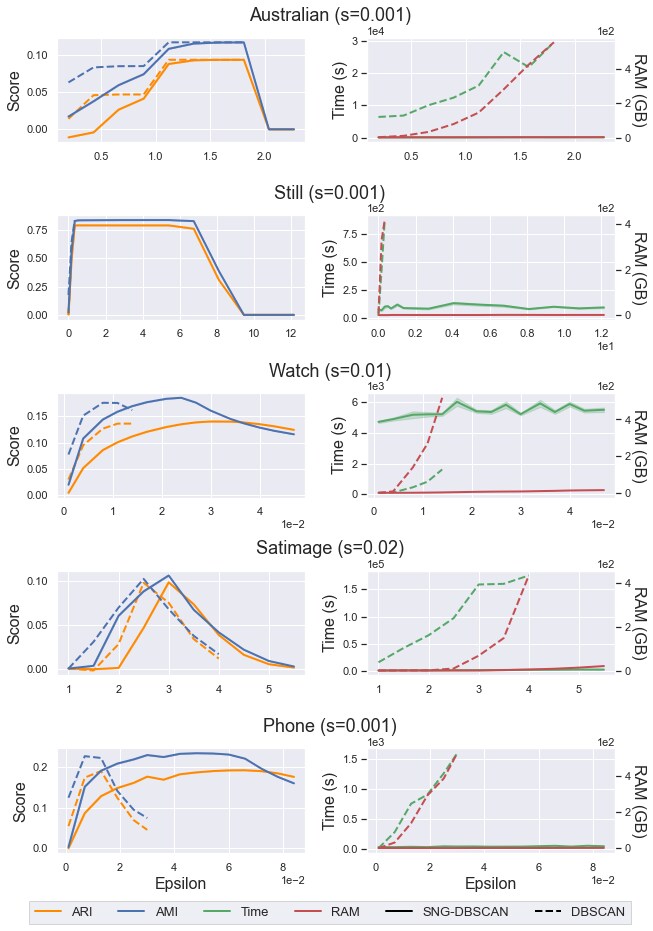

Figure 4: Large dataset results across

. We show the performance of SNG-DBSCAN and DBSCAN on five large datasets. SNG-DBSCAN values are averaged over 10 runs, and 95% confidence intervals (standard errors) are shown. We ran these experiments on a cloud environment and plot the adjusted RAND index score, adjusted mutual information score, runtime, and RAM used across a wide range of

. DBSCAN was run with , and SNG-DBSCAN was run with for all datasets. No data is given for DBSCAN for settings requiring more than 750GB of RAM as it wasn’t possible for DBSCAN to run on these machines.

5.2 Performance on smaller datasets

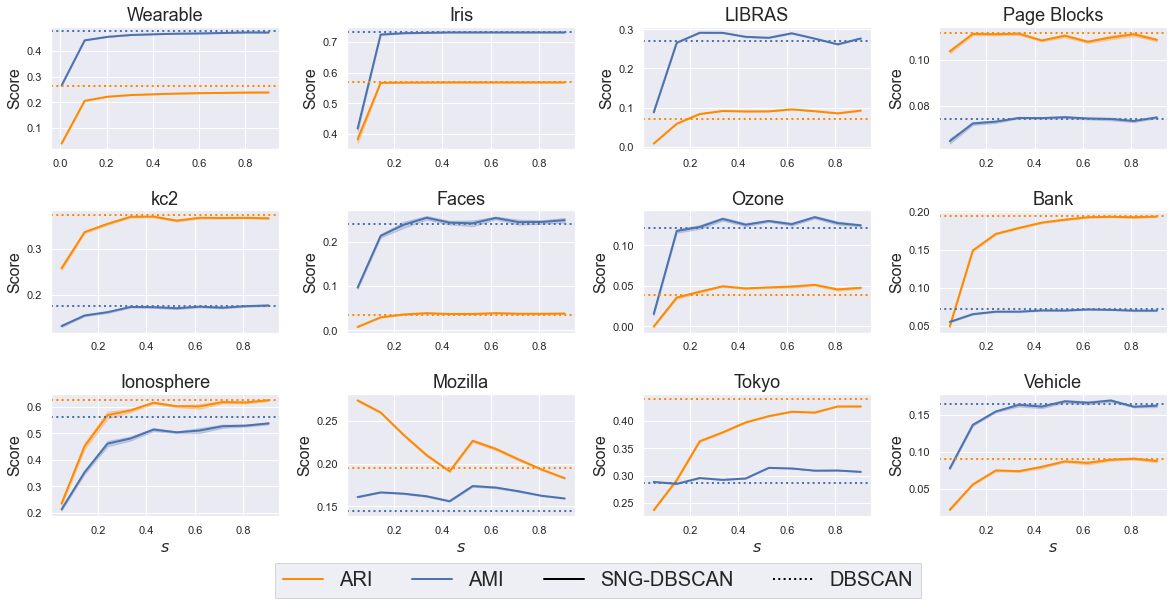

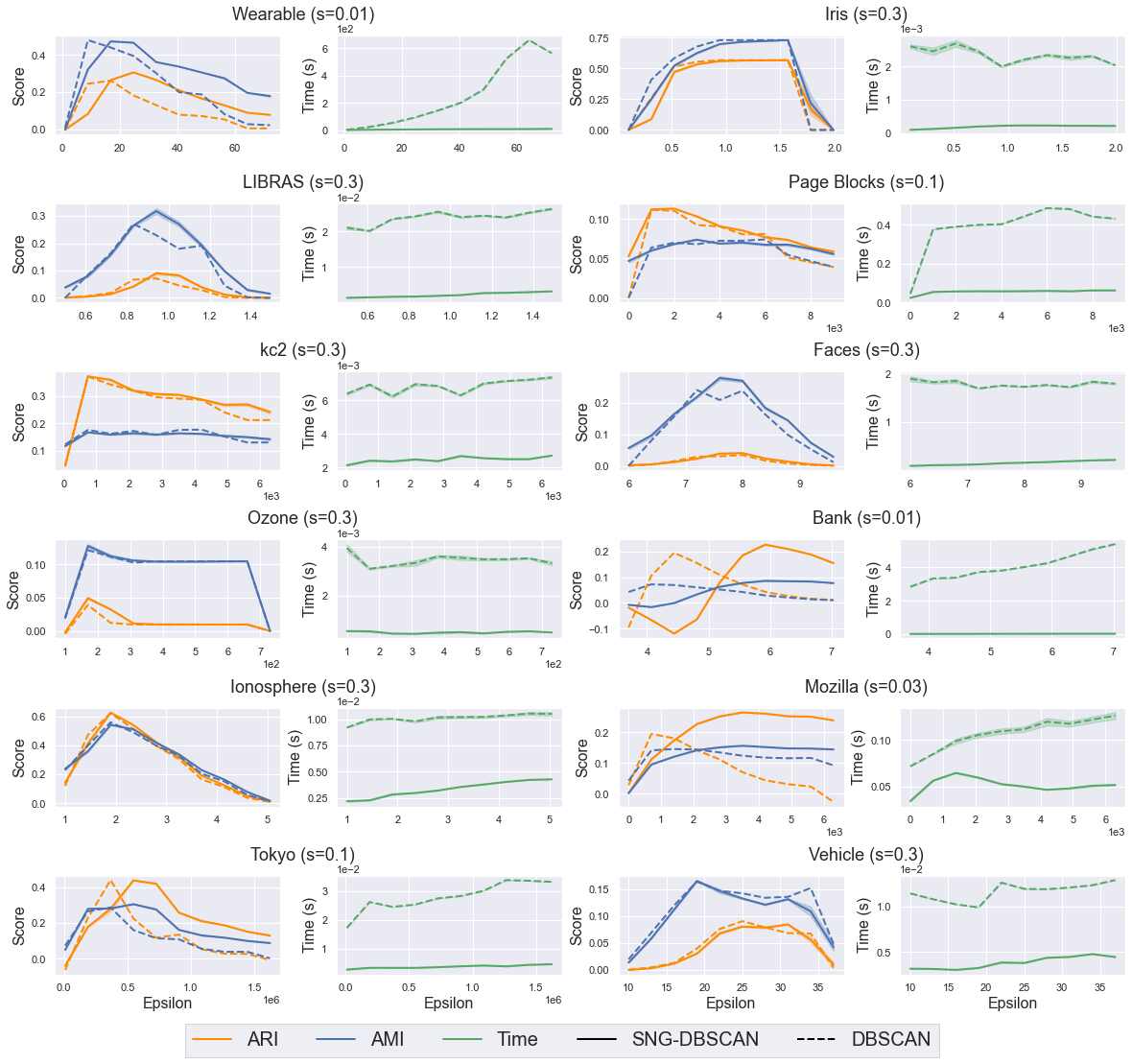

We now show that we don’t require large datasets to enjoy the advantages of SNG-DBSCAN. Speedups are attainable for even the smallest datasets without sacrificing clustering quality. Due to space constraints, we provide the summary of the datasets and hyperparameter setting details in the Appendix. In Figure 5, we show performance metrics for some datasets under optimal tuning. The results for the rest of the datasets are in the Appendix, where we also provide charts showing performance across and different settings of to better understand the effect of the sampling rate on cluster quality– there we show that SNG-DBSCAN is stable in the hyperparameter. Overall, we see that SNG-DBSCAN can give considerable savings in computational costs while remaining competitive in clustering quality on smaller datasets.

Base ARI SNG ARI Base AMI SNG AMI
Wearable 0.2626 (55s) 0.3064 (8.2s) 0.4788 (26s) 0.4720 (6.6s)
Iris 0.5681 (<0.01s) 0.5681 (<0.01s) 0.7316 (<0.01s) 0.7316 (<0.01s)
LIBRAS 0.0713 (0.03s) 0.0903 (<0.01s) 0.2711 (0.02s) 0.3178 (<0.01s)
Page Blocks 0.1118 (0.38s) 0.1134 (0.06s) 0.0742 (0.49s) 0.0739 (0.06s)
kc2 0.3729 (<0.01s) 0.3733 (<0.01s) 0.1772 (<0.01s) 0.1671 (<0.01s)
Faces 0.0345 (1.7s) 0.0409 (0.16s) 0.2399 (1.7s) 0.2781 (0.15s)
Ozone 0.0391 (<0.01s) 0.0494 (<0.01s) 0.1214 (<0.01s) 0.1278 (<0.01s)
Bank 0.1948 (3.4s) 0.2265 (0.03s) 0.0721 (3.3s) 0.0858 (0.03s)
Figure 5: Clustering performance. Best Adjusted Rand Index and Adjusted Mutual Information scores for both DBSCAN and SNG-DBSCAN under optimal tuning are given with associated runtimes in parentheses. Highest scores for each dataset are bolded. Full table can be found in the Appendix.

5.3 Performance against DBSCAN++

We now compare the performance of SNG-DBSCAN against a recent DBSCAN speedup called DBSCAN++Jang and Jiang (2019), which proceeds by performing -centers to select candidate points, computing densities for these candidate points and using these densities to identify a subset of core-points, and finally clustering the dataset based on the -neighborhood graph of these core-points. Like our method, DBSCAN++ also has runtime. SNG-DBSCAN can be seen as subsampling edges while DBSCAN++ subsamples the vertices.

We show comparative results on our large datasets in Figure 6. We ran DBSCAN++ with the same sampling rate as SNG-DBSCAN. We see that SNG-DBSCAN is competitive and beats DBSCAN++ on 70% of the metrics. Occasionally, DBSCAN++ fails to produce reasonable clusters with the given, as shown by the low scores for some datasets. We see that SNG-DBSCAN is slower than DBSCAN++ for the low-dimensional datasets (i.e. Phone, Watch, and Still, which are all of dimension 3) while there is a considerable speedup on Australian. Like in the experiments on the large datasets against DBSCAN, this is due to the fact that DBSCAN++, like DBSCAN, leverages space-partitioning data structures such as kd-trees, which are faster in low dimensions. Overall, we see that SNG-DBSCAN is a better choice over DBSCAN++ when using the same sampling rate.

DBSCAN++ ARI SNG ARI DBSCAN++ AMI SNG AMI
Australian 0.1190 (1185s) 0.0933 (96s) 0.1166 (1178s) 0.1167 (96s)
1.6 GB 1.5 GB 1.6 GB 1.5 GB
Satimage 0.0176 (5891s) 0.0981 (2002s) 0.1699 (4842s) 0.1058 (2002s)
2.3 GB 2.1 GB 2.3 GB 2.1 GB
Phone 0.0001 (11s) 0.1923 (59s) 0.0023 (11s) 0.2344 (46s)
1.0 GB 1.7 GB 1.0 GB 1.5 GB
Watch 0.0000 (973s) 0.1400 (5230s) 0.0025 (1017s) 0.1851 (5371s)
1.4 GB 8.7 GB 1.4 GB 7.6 GB
Still 0.7900 (12s) 0.7902 (81s) 0.8370 (15s) 0.8368 (117s)
1.4 GB 1.6 GB 1.4 GB 1.5 GB
Figure 6: SNG-DBSCAN against DBSCAN++Jang and Jiang (2019) on large datasets.

Conclusion

Density clustering has had a profound impact on machine learning and data mining; however, it can be very expensive to run on large datasets. We showed that the simple idea of subsampling the neighborhood graph leads to a procedure, which we call SNG-DBSCAN that runs in time and comes with statistical consistency guarantees. We showed empirically on a variety of real datasets that SNG-DBSCAN can offer a tremendous savings in computational resources while maintaining clustering quality. Future research directions include using adaptive instead of uniform sampling of edges, combining SNG-DBSCAN with other speedup techniques, and paralellizing the procedure for even faster computation.

Broader Impact

As stated in the introduction, DBSCAN has a wide range of applications within machine learning and data mining. Our contribution is a more efficient variant of DBSCAN. The potential impact of SNG-DBSCAN lies in considerable savings in computational resources and further applications of density clustering which weren’t possible before due to scalability constraints.
