1 Introduction
As we seek to apply high capacity neural network models to new applications, we often encounter data that is not structured as a vector, image, sequence, or set. In these cases, graph neural networks (GNNs)
(Scarselli et al., 2009; Li et al., 2016) can be appealing because they operate on graphstructured inputs. Each node can have data (e.g., an image) associated with it, and edges can encode different kinds of relationships between nodes. The forward pass of a GNN model can be interpreted as nodes exchanging messages with each other along edges of a graph (Gilmer et al., 2017), combining the local pernode information with information about the surrounding context in a flexible manner. Domains where GNNs have found success include chemistry (where graphstructured representations of molecules are mapped to predictions about molecular properties) and program analysis (where a graphstructured representation of a program encodes a combination of syntactic information and semantic relationships between program entities).In the program analysis application of Allamanis et al. (2018), graphs have up to nodes. Computing with batches of dense adjacency matrices is expensive, so common practice is to operate on sparse adjacency matrices. With sparse representations it is straightforward to operate on graphs with ~ nodes per batch. The model can be implemented efficiently using sparse operations such as scatter and gather, or sparse_tensor_dense_matmul
in TensorFlow.
From a hardware perspective, modern advances in deep learning are partly due to the use of GPUs
(LeCun et al., 2015). Modern GPUs have a large number of cores, and the threads started by a single program can access memory, branch, and terminate independently from other threads. Even though performance is maximized when threads do not diverge (facilitating efficient dense linear algebra operations, such as matrixmatrix multiplication), relatively fast implementations of sparse operations are possible (Bell and Garland, 2009). New “AI accelerators” such as Google’s Tensor Processing Units (TPU), Intel’s Nervana Neural Network Processor, and Nvidia’s Volta architecture use domain specific architectures (DSAs)
(Hennessy and Patterson, 2019) to perform matrix multiplication. We refer to these collectively as “dense hardware”. A priori, it is unclear how wellsuited these new DSAs are for sparse models, as the sparse computations must be rewritten in terms of dense matrix multiplies in order to access the computational bandwidth of the AI accelerator. The point of this work is to explore the suitability of this hardware for speeding up the training of sparse GNN models.Our approach will be to think of appropriatelysized matrix multiplication as a primitive in a “virtual machine”. The problem then becomes “compiling” the GNN propagation on a sparse graph to only use primitives in the virtual machine.The first key observation is that if we can reveal a low bandwidth structure (Díaz et al., 2002) in the graph adjacency matrix, then GNN propagation can be losslessly expressed in terms of three applications of a dense batched matrix multiply primitive. This reduces the cost of a step of densified GNN propagation from to , where is the number of nodes, the bandwidth, and the node embedding dimension. The second key observation is that it is possible to permute nodes in the graphs from Allamanis et al. (2018)—which we take to be representative of the types of graphs that arise in program analysis tasks—to expose low bandwidth structure using algorithms from sparse numerical computing.
After applying bandwidth reduction and implementing GNN message propagation for low bandwidth graphs, we achieve performance on TPUv2 hardware that is competitive with a highly optimized sparse GPU implementation. We then take advantage of the ease of scaling out TPU computations to many cores and explore large batch training. We are able to achieve nearlinear scaling as the number of cores grows up to 128 and then see some diminishing returns beyond that, confirming the pattern observed by Shallue et al. (2018). On the challenging VarMisuse problem from Allamanis et al. (2018) (singleGPU training takes close to a day), we show it is possible to reach near stateoftheart accuracy in 13 minutes.
In summary, the contributions of this paper are as follows:

identifying low bandwidth as a structure that enables efficient dense implementation of GNN propagation while also being present in realworld program analysis data;

applying algorithms from sparse numerical computing to reduce bandwidth for GNN graphs, and developing a fast algorithm for dense propagation in sparse low bandwidth GNNs;

empirical results on largebatch training for GNNs, extending the largebatch steps to validation accuracy study of Shallue et al. (2018) to sparse GNN;

empirical results achieving orders of magnitude faster timetoaccuracy on the dataset and task from Allamanis et al. (2018).
In addition, at a higher level, this work shows that sparse hardware is not always necessary for fast computation in sparse models and presents what we believe to be a repeatable recipe for “compiling” a family of sparse graph structures to a sequence of dense primitive operations that implement a GNN model. In the final section we discuss other families of sparse graph structures where we believe a similar recipe can be applied.
2 Background
Graph neural networks
There have been many developments and applications of GNNs over recent years (Zhou et al., 2018; Wu et al., 2019). Of particular relevance are Scarselli et al. (2009), which presented the original GNN model, and Li et al. (2016), which developed the gated GNN (GGNN) variant used by Allamanis et al. (2018) and thus also by us.
A GGNN encoder takes as input a graph on nodes with initial node embeddings , and after a fixed number of timesteps produces final node embeddings that combine local and neighborhood information. In each time step, each node computes a message from its current embedding using a linear map parametrized by a learnable matrix , and broadcasts the message to all its neighbors. Each node sums up its received messages, and updates its embedding using a GRU cell (Cho et al., 2014). Writing for the (transposed) adjacency matrix ( if there is an edge from to ), the forward pass of a GGNN encoder is captured by
(1)
When edges are of discrete types, separate weights parametrize the map from embeddings to messages for each edge type: , where only contains edges of type . The premultiplications by the sparse matrix (or ) are the crucial sparse operations that we seek to replace with fast primitives on dense hardware. The final node embeddings can be used directly (e.g., for node classification), pooled together into an embedding of the whole graph, or, as in our case, fed into an output layer that for each graph picks out a particular node.
Program graphs
Program source code can be represented as a string and treated as textual input to a RNN, but this ignores its precisely defined structure (the syntax of the programming language) and semantics. To alleviate this problem and increase data efficiency Allamanis et al. (2018) proposed to represent source code as a graph. The “backbone” of the graph is the code’s abstract syntax tree (AST). Additional edges of different types, capturing the syntax and semantics of the language, are added into the graph. For example, there could be an edge type linking AST nodes to their children, an edge type linking each token in the source code to the next one, or an edge type linking a variable token to the variables it could have been computed from. Given source code, the program graph can be precomputed using static analysis.
Variable misuse
Introduced by Allamanis et al. (2018), VarMisuse is the following task: Given a snippet of code with one of the usages of a variable masked out (the hole) select which variable is used in the hole from a set of candidates. Once trained, the model can be run on test code by masking out variable usages and finding where model predictions disagree with the actual code.
The model trained by Allamanis et al. (2018) is a neural network consisting of a GGNN encoder, and a readout layer that applies a learned linear map
to the candidate node embeddings to obtain pernode logits, so that a softmax yields the normalized probability of each candidate node filling the hole.
Allamanis et al. (2018) report finding bugs in open source projects using this model.Sparse batching
Instances in a training set of (program) graphs have differing node counts, so the question of efficient batching arises. With sparse adjacency representations of graphs an elegant batching scheme is possible: multiple training graphs can be packed into a single supergraph of fixed maximum size, until no more graphs fit (Allamanis et al., 2018). Individual training graphs are represented by disjoint connected components in this supergraph, and since message passing only proceeds along graph edges, different training graphs do not affect each other. Thanks to the sparse representation, no quadratic overhead is incurred by the large number of nodes in the supergraph.
Sparse numerical linear algebra
Performing sparse matrix multiplication on modern hardware can be difficult due to the irregular memory access patterns. A large body of work has studied implementing sparse matrix operations on a variety of architectures (Saad, 2003, Sec. 3). One consideration is the storage scheme of the matrix, another the ordering of rows and columns, which can significantly affect the performance of certain operations, see, e.g., Tinney and Walker (1967).
When the matrix is a graph adjacency matrix, this ordering corresponds to an ordering of nodes. Finding an ordering of graph nodes to optimize an objective is known as a graph layout problem (Díaz et al., 2002). Of particular interest in this work is bandwidth minimization. The bandwidth of a square matrix is the smallest such that whenever
. This is an NPhard problem, but a popular heuristic algorithm is Reverse Cuthill McKee (RCMK)
(Cuthill and McKee, 1969).3 Method
As an overview, the full training pipeline consists of the following components:

Compilation: a onetime preprocessing step that “compiles” each training point by finding an efficient computation schedule for it. In our case this amounts to finding a permutation of nodes in each training graph such that the resulting adjacency matrix has low bandwidth.

Input pipeline (not a novel contribution): efficient reading of compiled training data from disk, assembly of supergraphs via sparse batching (see Section 2), and feeding them to training hardware so that it is not blocked on waiting for training data. When training on multiple cores, each core receives its own supergraph.

Model: an algorithm that executes the GGNN encoder logic by invoking operations that are fast on the target hardware. In our case, this corresponds to three invocations of batch matrix multiplication, which together perform the message passing logic for lowbandwidth graphs.
3.1 Compilation: reducing bandwidth
Given a sparse graph adjacency matrix, we first permute the nodes to expose reduced bandwidth structure using the RCMK algorithm. Since predictions from a GNN are equivariant to node permutation, we simply permute the labels as we permute the nodes in the graph. This is done as a onetime preprocessing step on each training graph in the dataset.
3.2 Model
Our implementation consists of two parts: 1) an algorithm that expresses the graph message passing operation on lowbandwidth graphs in terms of batch matrix multiplications, and 2) an efficient implementation of this algorithm with a memory layout that avoids tensor transpositions.
Efficient densification of reduced bandwidth GNN propagation
A general class of efficient operations on dense hardware can be expressed using the einsum operation (SciPy, 2019), a particular case of which is batch matrix multiplication (BMM): Given two tensors of compatible shapes and , it performs the matrix multiplications in the last two dimensions, yielding a tensor of shape .
As a first step, suppose that is a square, block diagonal matrix with equal block sizes , i.e. with overall shape . Writing for the individual nonzero blocks of , the matrix product of with another matrix of compatible shape can be expressed as
(2)
where in Matlab notation. Thus it is possible to only store the nonzero blocks (instead of the entire matrix ) and the product can be implemented as
A E = reshape(BMM([C_1,...,C_K], reshape(E, [K,S,H])), [KS,H]).
This idea can be extended to the lowbandwidth case by employing two additional BMMs to “fill the gaps” around the block corners in the block diagonal case (see right). Formally, if is a matrix with bandwidth , then
(3)
where the blocks , , , are all matrices, and additionally the ’s are strictly lowertriangular and the ’s are strictly uppertriangular. The three matrices on the righthand side can be computed using batch matrix multiplications, see Algorithm 1 for details.
In each training run, we choose the block size depending on the bandwidths that we wish to handle. We can still apply our lowbandwidth message passing to graphs that violate the assumption , but some of their edges will be ignored (messages are not passed along them). Specifically, edges with are always taken into account, those with are sometimes taken into account, and those with are always ignored (see illustration above Equation 3).
Memory layout
To efficiently feed data into the dense hardware, the data corresponding to each matrix in the batch matrix multiplies need to be contiguous in memory. When tensor memory is stored in lexicographic order, this corresponds to those dimensions being the last in the respective tensors. Thus, the BMM operation described above is more efficient than an einsum over the same values but with the order of dimensions shuffled. If memory needs to be rearranged before applying the BMM operation, this incurs overhead. To some extent, these concerns can be hidden by a compiler, but we found it beneficial to explicitly choose the memory layout.
The challenge in the GGNN model is that we need to perform two kinds of matrixmultiplies: 1) multiplication by the adjacency matrix to aggregate messages incoming to each node, and 2) multiplication by edge weight matrices to transform node embeddings into messages (see Equation 1). In Algorithm 1, we lay out memory and perform a message passing step in a way that keeps the dimensions being multiplied in the last dimensions, and avoids any tensor transpositions.

4 Data
The dataset released by Allamanis et al. (2018) consists of VarMisuse instances constructed from source code collected from 25 open source C# projects. Each program graph contains a special hole node, representing the location in code for which a variable is to be predicted, and a set of candidate nodes
, representing all typecorrect inscope variables that could potentially fill the hole. The identity of the correct candidate is also provided, so that this is a supervised learning classification task.
The data comes with two predefined trainvalidationtest splits: SeenProj, where validation and test data come from the same projects as the training data, and UnseenProj, where they come from disjoint projects. Allamanis et al. (2018) provide more detailed results using SeenProj, so to allow comparison we report results using the provided SeenProj splits.
Reachability preprocessing
We discarded nodes from all graphs that cannot affect model predictions (and so do not influence training). Specifically, following Allamanis et al. (2018) we use message passing steps in the GGNN encoder, so only nodes from which a candidate node is reachable within steps affect the final embeddings and thus the logits of these candidates. Any other nodes can be discarded. All reported results including the GPU baselines use reachabilityreduced data.
There are training graphs in the dataset. The largest number of nodes in a single graph is after reachability preprocessing ( before). Preserving the provided ordering of the noneliminated nodes, the largest (“original”) bandwidth of a graph adjacency matrix would be . See also the blue and orange histograms in Figure 1 (left). There are edge types.
5 Experiments
We report results from four sets of experiments, demonstrating the following findings:

Our GNN propagation method for lowbandwidth graphs allows fast processing of training data (Section 5.2). A single TPUv2 device achieves similar speed as a stateoftheart sparse implementation on sparse hardware, and the speed scales almost linearly with more cores. For example, a 512core TPUv2 slice processes 11,000 graphs/second with bandwidth 512.

Largebatch training allows training the model to the same validation accuracy significantly faster (Section 5.3), and this holds true despite ignoring some edges in largebandwidth graphs. For example, a training run on a 512core TPUv2 slice can reach the target in minutes.

Instead of using all training points, filtering out “troublesome" graphs can be considered: we can drop graphs with large bandwidths and use our method losslessly (not ignoring any edges), or we can drop graphs with too many nodes, so that full densification becomes feasible for the remaining (smaller) graphs. We find that these approaches generally scale less well, or lead to lower validation accuracies. For space considerations, details are left to Appendix C.
5.1 Allamanis et al. [2018] data has low bandwidth
Figure 1 (left and middle) show that a compilation step can be designed such that most program graphs in the Allamanis et al. (2018) dataset are reduced to a lowbandwidth representation. Moreover, Figure 1 (right) shows that after our compilation step using the RCMK algorithm, the bandwidth of virtually all training graphs in the dataset is significantly smaller than their number of nodes . The ratio of is highlighted as it represents the crossover point at which the theoretical cost of full densification surpasses the cost of covering the bandwidth using our three BMMs.
graphs/sec  GPU model  Lowbandwidth model

number of TPUv2 cores trained on
Block size  trained
on V100  (16GB)  (device)
all edges

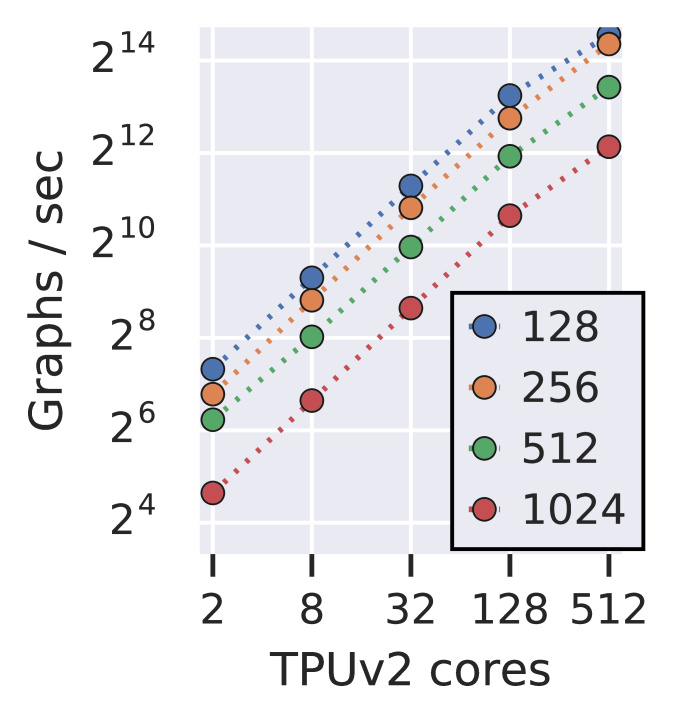

5.2 Training speed in training graphs processed per second
First, as a baseline we reimplemented the GGNN model of Allamanis et al. (2018), for which they reported a training speed of graphs/second on a TitanX GPU, using a hidden dimension . We optimized our input pipeline for speed, and using a newer V100 GPU we achieved a training speed of graphs/second, despite using double the hidden dimension .
We also implemented our lowbandwidth model, using different block sizes . A larger block size covers more edges in the (largebandwidth) training graphs, but the memory cost of storing the wider densified block diagonals decreases the number of nodes in the supergraph that we can fit into memory. A more detailed analysis appears in Appendix A; the table in Figure 2 (left) shows the overall training speeds achieved in training graphs processed per second.
The GPU model does not have a block size parameter, so to obtain the corresponding speeds we dropped edges lying outside of the corresponding bandwidth. However, unlike the lowbandwidth model, the GPU model did not visibly benefit from decreasing the block size (the benefit of not having to pass messages along a few edges far from the diagonal is neglibible).
A single TPUv2 device has
cores with 8GB of RAM each, so for comparison we also estimated the speed on a hypothetical TPUv2 slice with just two cores, matching the 16GB of RAM available on a V100 GPU. As the block size decreases from
to , this 16GB slice surpasses the GPU training speed. A single TPUv2 device as well as TPUv2 slices with more cores lead to further improvements in the training speed: Figure 2 (right) visualizes the almost ideal linear scaling.5.3 Training time to validation accuracy
As explained in Section 4, we evaluate our approach on the SeenProj VarMisuse task of Allamanis et al. (2018). They report a test set accuracy of for this task, however 1) their model is trained on a larger dataset than the one released, and 2) it includes an additional learnable component (node label embeddings). Using the information provided by Allamanis et al. (2018) and our finding that accuracies on the validation set lie percentage points lower than on the test set (see Figure 4 in Appendix B), we set the target validation accuracy at . See Appendix B for the full justification.
We trained the GPU model and our lowbandwidth model capturing different bandwidths. Scaling up to larger TPU slices we were able to train the latter using large batch sizes, and following the findings of Shallue et al. (2018) we performed a fresh learning hyperparameter sweep for each batch size. All runs used the SGD optimizer with momentum; see Appendix D for hyperparameter ranges.
For both the sparse GPU model and our lowbandwidth model the parameters learned during training are the same: the peredgetype matrices (including a bias term), the weights of the GRU cell, and the output layer. This means that at evaluation/prediction time, the weights of a lowbandwidth model trained with any block size can be used by the sparse GPU model, so that for evaluation messages are passed across all edges in the validation graphs. We found that this performed better than only passing messages along edges within the same block size as the one used for training.

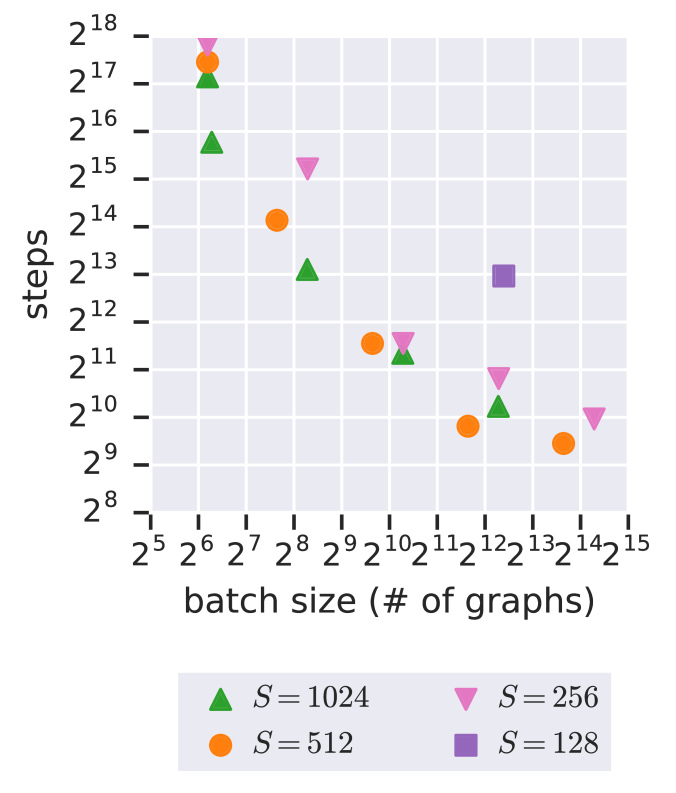

For each training run, we evaluated training checkpoints at regular intervals on the full validation data and smoothed the resulting curves. We then found the earliest checkpoint at which this validation accuracy curve exceeded the target. Figure 3 reports the results. The visualization on the right extends the study of Shallue et al. (2018) to the sparse GGNN model.
GPU model  Lowbandwidth model

Block  trained  number of TPUv2 cores trained on
size  on V100
all edges
(19 h)
(32 h)  (17 h)  (2 h)  (34 min)  (22 min)
(50 h)  (4 h)  (40 min)  (17 min)  (13 min)
(52 h)  (7 h)  (35 min)  (22 min)  (18 min)
not  not  not  not
reached  reached  reached  (75 min)  reached
6 Related work
Sparse linear algebra
Our approach to sparse matrix multiplication is similar to approaches used in classical sparse linear algebra. On vector processors a common storage scheme for sparse matrices is the diagonal representation where a matrix is represented as a vector of integers corresponding to the nonzero diagonals along with a dense matrix containing the entries on these diagonals (Saad, 2003, Sec. 3.4). Our storage scheme can be considered a blockdiagonal version of this storage scheme that is more efficient to process using the systolic array structure on TPUs.
Blocksparse neural networks
In previous work authors have explored blocksparse connectivity patterns as ways of combining the benefits of sparsity with the performance of dense matrix multiplication on modern hardware. Graph neural networks can be interpreted as sparse neural networks with a fixed binary weight matrix (the adjacency matrix) and a large hidden state (the node states). Similarly, grouped convolutions (Xie et al., 2017) and depthwise separable convolutions (Simonyan and Zisserman, 2015) can be interpreted as blocksparse operations. Narang et al. (2017) looked into learning blocksparse weight matrices for RNNs. Gray et al. (2017) explore the implementation of highly performant CUDA kernels for blocksparse matrix multiplication.
Speeding up neural network training
Goyal et al. (2017)
used largebatch training to train a ResNet50 model on ImageNet in one hour. A subsequent chain of work has further reduced the training time to minutes
(Akiba et al., 2017; You et al., 2018; Jia et al., 2018). Our work can be seen as an analogous first step for the GNN model and task from Allamanis et al. (2018). Shallue et al. (2018) recently performed an extensive empirical investigation of largebatch training on a variety of (nonsparse) models on multiple image classification and language modeling tasks.There have been some efforts to speed up GNN training using GPUs. Deep Graph Library (Wang et al., 2019) is a framework for training a variety of neural network models that involve passing messages in a sparse graph. The main optimizations are sparse batching (discussed in Section 2), batching together message computations across nodes, and fusing message and node update functions (e.g., using a sparsedense matrix multiply). Our GPU baseline uses all these optimizations and an additional optimization from Allamanis et al. (2018) where node states can be preaggregated by (receiving node, edge type) pairs when using linear edge transformations. Ma et al. (2018) also develop a general framework for efficient GNN training, using a number of lowerlevel optimizations including custom GPU kernels for scatter and gather operations, and a ringbased dataloading pipeline to reduce contention when transferring data from the host CPU to multiple GPUs. They show that the custom GPU kernels lead to runtimes that range from 50% to 90% that of a baseline TensorFlow implementation, and the ringbased data loading allows nearlinear scaling up to 8 GPUs.
Our focus is on problems where there are many graphs of large size (up to
nodes in a graph). Alternative approaches are available in the domain of a single very large graph like is found in social networks or knowledge graphs. In these cases, methods like GraphSAGE
(Hamilton et al., 2017) or the model from Dai et al. (2018) are likely more appropriate.7 Discussion and future work
At the outset of this work, we were unsure whether dense hardware could be made competitive with GPUs for training sparse graph neural networks. The main result of this paper is to show that for a prominent application of sparse graph neural networks on relatively large graphs, it is indeed possible. Moreover, we studied large batch training for graph neural networks and showed that it is possible to significantly speed up timetoaccuracy by scaling out to many cores and increasing batch sizes.
More generally, we have presented an example of a recipe for tackling the problem of sparse graph message propagation on dense hardware. The general recipe is to think in terms of an abstract virtual machine, comprising a runtime consisting of operations that are fast on dense hardware and a compiler that rewrites the graph propagation step in terms of runtime primitives. It would be straightforward to add more runtime primitives; we mention two that we are particularly excited about. The first is “supernode” propagation where some nodes are allowed to communicate with all nodes, which could be implemented by taking dense slices from the first rows and columns of the adjacency matrix (see right). The second is a general blocksparse matrix multiply like in the CUDA primitives of Gray et al. (2017)
. The compilation step for these primitives will be an interesting combinatorial optimization problem. Furthermore, it would be interesting to identify other primitives that would allow handling specific classes of graphs (e.g., small world networks).
In this work, we held fixed the graph structures that were provided by Allamanis et al. (2018), and already there is low bandwidth structure that can be leveraged for efficient computation. However, going forward we would like to design graph structures that encode relevant domain knowledge while respecting constraints that could lead to even faster computation. We are eager for a dataset that is 1001000 time larger than that of Allamanis et al. (2018) to be collected and to study how performance scales with more data. The techniques presented in this paper will be critical towards making this feasible.
Acknowledgments
The authors would like to thank Cliff Young and Peter Battaglia for valuable comments.
References
 Akiba et al. [2017] T. Akiba, S. Suzuki, and K. Fukuda. Extremely large minibatch SGD: training ResNet50 on ImageNet in 15 minutes. arXiv preprint arXiv:1711.04325, 2017.
 Allamanis et al. [2018] M. Allamanis, M. Brockschmidt, and M. Khademi. Learning to represent programs with graphs. In ICLR, 2018.
 Bell and Garland [2009] N. Bell and M. Garland. Implementing sparse matrixvector multiplication on throughputoriented processors. In Proceedings of the Conference on High Performance Computing Networking, Storage and Analysis, 2009.
 Cho et al. [2014] K. Cho, B. van Merrienboer, C. Gulcehre, F. Bougares, H. Schwenk, and Y. Bengio. Learning phrase representations using RNN encoderdecoder for statistical machine translation. In EMNLP, 2014.
 Cuthill and McKee [1969] E. Cuthill and J. McKee. Reducing the bandwidth of sparse symmetric matrices. In ACM, 1969.
 Dai et al. [2018] H. Dai, Z. Kozareva, B. Dai, A. Smola, and L. Song. Learning steadystates of iterative algorithms over graphs. In ICML, 2018.
 Díaz et al. [2002] J. Díaz, J. Petit, and M. Serna. A survey of graph layout problems. ACM Computing Surveys (CSUR), 2002.
 Gilmer et al. [2017] J. Gilmer, S. S. Schoenholz, P. F. Riley, O. Vinyals, and G. E. Dahl. Neural message passing for quantum chemistry. In ICML, 2017.
 Goyal et al. [2017] P. Goyal, P. Dollár, R. Girshick, P. Noordhuis, L. Wesolowski, A. Kyrola, A. Tulloch, Y. Jia, and K. He. Accurate, large minibatch SGD: Training ImageNet in 1 hour. arXiv preprint arXiv:1706.02677, 2017.
 Gray et al. [2017] S. Gray, A. Radford, and D. P. Kingma. GPU kernels for blocksparse weights. 2017.
 Hamilton et al. [2017] W. Hamilton, Z. Ying, and J. Leskovec. Inductive representation learning on large graphs. In NIPS, 2017.
 Hennessy and Patterson [2019] J. L. Hennessy and D. A. Patterson. A new golden age for computer architecture. ACM, 2019.
 Jia et al. [2018] X. Jia, S. Song, W. He, Y. Wang, H. Rong, F. Zhou, L. Xie, Z. Guo, Y. Yang, L. Yu, et al. Highly scalable deep learning training system with mixedprecision: Training imagenet in four minutes. arXiv preprint arXiv:1807.11205, 2018.
 LeCun et al. [2015] Y. LeCun, Y. Bengio, and G. Hinton. Deep learning. Nature, 2015.
 Li et al. [2016] Y. Li, D. Tarlow, M. Brockschmidt, and R. Zemel. Gated graph sequence neural networks. In ICLR, 2016.
 Ma et al. [2018] L. Ma, Z. Yang, Y. Miao, J. Xue, M. Wu, L. Zhou, and Y. Dai. Towards efficient largescale graph neural network computing. arXiv preprint arXiv:1810.08403, 2018.
 Narang et al. [2017] S. Narang, E. Undersander, and G. Diamos. Blocksparse recurrent neural networks. arXiv preprint arXiv:1711.02782, 2017.
 Saad [2003] Y. Saad. Iterative methods for sparse linear systems. 2003.
 Scarselli et al. [2009] F. Scarselli, M. Gori, A. C. Tsoi, M. Hagenbuchner, and G. Monfardini. The graph neural network model. IEEE Transactions on Neural Networks, 2009.
 SciPy [2019] SciPy. numpy.einsum, 2019. URL https://docs.scipy.org/doc/numpy/reference/generated/numpy.einsum.html. NumPy version 1.16.
 Shallue et al. [2018] C. J. Shallue, J. Lee, J. Antognini, J. SohlDickstein, R. Frostig, and G. E. Dahl. Measuring the effects of data parallelism on neural network training. arXiv preprint arXiv:1811.03600, 2018.
 Simonyan and Zisserman [2015] K. Simonyan and A. Zisserman. Very deep convolutional networks for largescale image recognition. In ICLR, 2015.
 Tinney and Walker [1967] W. F. Tinney and J. W. Walker. Direct solutions of sparse network equations by optimally ordered triangular factorization. Proceedings of the IEEE, 1967.
 Wang et al. [2019] M. Wang, L. Yu, D. Zheng, Q. Gan, Y. Gai, Z. Ye, M. i, J. Zhou, Q. Huang, C. Ma, Z. Huang, Q. Guo, H. Zhang, H. Lin, J. Zhao, J. Li, A. Smola, and Z. Zhang. Deep graph library: Towards efficient and scalable deep learning on graphs. In ICLR Workshop on Representation Learning on Graphs and Manifolds, 2019.
 Wu et al. [2019] Z. Wu, S. Pan, F. Chen, G. Long, C. Zhang, and P. S. Yu. A comprehensive survey on graph neural networks. arXiv preprint arXiv:1901.00596, 2019.
 Xie et al. [2017] S. Xie, R. Girshick, P. Dollár, Z. Tu, and K. He. Aggregated residual transformations for deep neural networks. In CVPR, 2017.
 You et al. [2018] Y. You, Z. Zhang, C.J. Hsieh, J. Demmel, and K. Keutzer. Imagenet training in minutes. In Proceedings of the 47th International Conference on Parallel Processing. ACM, 2018.
 Zhou et al. [2018] J. Zhou, G. Cui, Z. Zhang, C. Yang, Z. Liu, and M. Sun. Graph neural networks: A review of methods and applications. arXiv preprint arXiv:1812.08434, 2018.
Appendix
Appendix A Training speed analysis
In Section 5.2 we saw that a smaller block size allowed processing a larger number of training graphs per second. From a computational cost perspective, there are two forces at play as the block size decreases: 1) the dimension of the densified block diagonals decreases, which 2) in turn allows fitting supergraphs with more nodes into memory. As the cost of the two types of matrix multiplies in our lowbandwidth GGNN message passing algorithm (Algorithm 1) is and , respectively, a priori it is not clear how these two forces contribute to the increased training speed. The purpose of this section is to shed more light on this.
a.1 Number of nodes in a supergraph
Having fixed the hidden dimension and the number of steps of GGNN message passing in all our experiments, we can find the (approximate) largest number of nodes in a supergraph that still fit into memory, given a model and hardware combination. All models need to store the node embeddings for . The memory cost of the sparse adjacency representation on a GPU is negligible, and we can train on supergraphs with up to nodes on a V100 GPU with 16GB of RAM, which on average translates to training graphs per supergraph. Our lowbandwidth model requires storage of three densified block diagonals of shapes roughly , which starts to significantly add to the memory cost for larger block sizes . Table 1 shows the limits for this model, depending on the chosen block size . As expected, covering thinner bands allows fitting larger supergraphs (packing more training graphs) into memory.
Block size

Number of nodes in a supergraph
Average number of graphs in a supergraph
Recall that each TPUv2 core receives its own supergraph, so the actual batch size will scale linearly with the number of TPUv2 cores trained on.
a.2 Number of gradient steps per second
Decreasing the block size allows fitting more nodes into memory, so a priori it is not clear how the wall time to execute a single step of graph message passing would be affected. Table 2 shows the number of global steps (gradient updates) per second. Reading along columns of the table, we can observe that performing a single gradient update with a block size is slightly slower than using a block size , but as the block size decreases further, not only does a single supegraph fit more nodes (and therefore, more training graphs), but also each gradient update gets faster for our lowbandwidth model. This result is not surprising, as the number of nodes in a supergraph increases more slowly as the block size decreases below (see Table 1 above).
step/sec  GPU model  Lowbandwidth model

Block size  trained  TPUv2 cores trained on
on V100
all edges
Appendix B Setting the validation accuracy target
As explained in Section 4, we evaluate our approach on the SeenProj VarMisuse task of [Allamanis et al., 2018]. For this task they report a test set accuracy of using their full model that includes node labels with learnable embeddings. In order to simplify the comparison and eliminate the influence of this additional learnable component, we turn off node labels in our implementation. Allamanis et al. [2018] report a test set accuracy of without node labels. However, these test set accuracies are achieved by a model trained on a larger training data than their published dataset; the difference are projects with a GPL licence that could not be released. In their Appendix D the authors report the test set accuracy of for their full model trained on the released data, i.e. percentage point lower than the model trained on the extended dataset. The test set accuracy using a model trained on the released data and without node labels is not provided, but we can estimate it to be approximately by combining the percentage point cost of only training on the released data, and the percentage point cost of turning off node labels.
When iterating on models and choosing hyperparameters, it is important to use an independent validation dataset that does not pollute the test set. The dataset released by Allamanis et al. [2018] does come with a predefined validation split. Figure 4 shows the alignment of validation and test set accuracies, where we discovered that validation accuracies are well correlated with test set accuracies, but are generally 5 percentage points lower. The figure was produced by evaluating the validation and test set accuracies of models with different hyperparameters and different randomness. We have explicitly not looked at which models achieved what test performance.
Combining the test set accuracy target of with the observation about validation accuracies being percentage points lower, we set the target validation accuracy at .
Appendix C What about filtering graphs?
In this section we consider the strategy of filtering out graphs that we cannot fully handle. In the context of our approach this means only training on training graphs whose bandwidth was reduced below the bandwidth limit that the model being trained is guaranteed to cover (, see Section 3.2). This filtering strategy is investigated in Sections C.1 and C.2 below.
We also investigate an alternative, simple approach based on filtering, that does not rely on bandwidths: dropping graphs with the largest numbers of nodes, so that for the graphs that remain it would be cheaper to have their adjacency matrices fully densified. See Section C.3 below.
c.1 Training speed on bandwidthfiltered datasets
Table 3 shows the training speed in graphs/second achieved for different combinations of model, hardware, and training data filtering criterion.
graphs/second  GPU model  Lowbandwidth model

trained  number of TPUv2 cores trained on
on V100
Training data slice  (16GB)  (16GB)  (device)
(full data)
()
()
()
()
The bandwidth of a graph can be expected to be correlated with the number of nodes it has, so as the bandwidth requirement is strengthened the graphs being trained on tend to become smaller, and so more training graphs fit into one supergraph (see Table 4 below, and cf Table 1 above).
Bandwidth bound  None

Number of nodes in a supergraph (V100)
Average number of graphs in a supergraph
Number of nodes in a supergraph (TPUv2)
Average number of graphs in a supergraph
c.2 Time to validation accuracy on bandwidthfiltered datasets
Following the same procedure as in Section 5.3 where we trained on all training graphs (but ignoring some edges in large bandwidth graphs), we evaluated training time to 78% validation accuracy when training the GPU and lowbandwidth models on training data with large bandwidth graphs entirely discarded. We refer to these two settings as lossy and filtered, respectively. Table 5 reports the results. By comparing to the table in Figure 3, we can observe that while for block size on and TPUv2 cores it is more beneficial to filter out nonconforming graphs than to handle them in a lossy way, for block size where the lossy approach led to the fastest training time to validation accuracy, the filtering approach does not scale nearly as well, and for it is unable to reach the target validation accuracy at all.
GPU model  Lowbandwidth model

Block  trained  TPUv2 cores trained on
size  on V100
all edges
(19 h)
(33 h)  (3 h)  (32 min)  (30 min)
(38 h)  (4 h)  (3 h)  (2.5 h)
not  not  not  not
reached  reached  reached  reached
not  not  not  not
reached  reached  reached  reached
c.3 Eliminating graphs based on bandwidth vs based on number of nodes
A simple strategy of training sparse models on dense hardware would be densification. Unfortunately, computing with dense representations of adjacency matrices is not feasible when some of the training graphs have a large number of nodes (in the [Allamanis et al., 2018] dataset the largest number of nodes in a single training graph is in the released data, and after the reachabilityreduction described in Section 4). However, if one is content with throwing away some number of “cumbersome" training graphs anyway (such as those with large bandwidth), one can equally consider the natural alternative of throwing away graphs with many nodes. That way the remaining training graphs can have small enough adjacency matrices so that computations with fully densified representations become feasible.
In this section we investigate the question of how discarding graphs based on number of nodes compares to discarding based on bandwidth. To this end, for each bandwidth bound considered in this paper we computed the percentage of training graphs within the bound (already reported in the table in Figure 1 (middle)) and then found a corresponding bound on the number of nodes that leads to the same percentage of conforming training graphs. For example, training graphs have a bandwidth smaller than , and if we choose a bound of on the number of nodes, training graphs will have a smaller number of nodes than this bound. See the first two columns of Table 6. We then trained the (sparse) GPU model on training datasets filtered based on these bandwidth and number of nodes bounds, and evaluated the validation accuracy reached at specific training steps. In each case we perfored a random hyperparameter search over the ranges reported in Appendix D, using hyperparameter configuration samples. Columns 35 of Table 6 report the best obtained results for each case.
While at training steps filtering based on number of nodes can in some cases lead to slightly higher validation accuracies, in all other cases filtering based on bandwidth appears to works better. In particular, at training steps all training runs seem to have converged, and filtering based on bandwidth always lead to higher final validation accuracy.
Filtering based on number of nodes versus based on bandwidth has different computational implications for dense hardware implementations. While densifying (and premultiplying by) an node adjacency matrix incurs a cost of , our lowbandwidth message passing algorithm (Section 3.2 for graphs with nodes and bandwidth incurs a cost of (approximately) . The last column of Table 6 reports the estimated pernode computational cost of densification under the appropriate model. One unit of cost corresponds to densifying matrix elements per graph node. We can see that in all cases, under a fixed proportion of graphs that can be thrown away, filtering based on bandwidth not only tends to lead to higher validation accuracies, but does so with lower computational cost.
Remark.
For the full training data the computation cost has been calculated as , where and are the largest bandwidth and number of nodes in the (reachabilityreduced, see Section 4) training data, respectively.
Training data slice  Validation accuracy at training step  Iteration

size  definition  cost
all data
bandwidth
order
bandwidth
order
bandwidth
order
bandwidth
order
To conclude this section, we note one conceptual advantage of handling graphs with lowbandwidth rather than with a low number of nodes. When multiple low bandwidth graphs are placed into a supergraph using the sparse batching technique described in Section 2, the resulting supergraph is automatically lowbandwidth and our lowbandwidth message passing method applies. On the other hand, when multiple graphs with a low number of nodes are placed into a supergraph, this supergraph would have a large number of nodes (sum of node counts of the individual graphs) and so either one again needs a custom densification scheme matching the sparsity structure of the supergraphs’s adjacency matrix, or a different batching strategy needs to be applied.
Appendix D Hyperparameter ranges
Batch size
All GPU training runs used a supergraph with nodes. The number of nodes in a supergraph for the lowbandwidth model trained was given in Table 1. When training on multiple cores, each core independently received a supergraph with this many nodes, i.e. the total number of nodes used in a single gradient update scaled linearly with the number of cores in the system.
Model
All our models used hidden dimensions, message propagation steps, and a learnable peredgetype bias term in the message propagation. We did not use message averaging, i.e. messages incoming into a node were always summed, not averaged.
Optimization
All our training runs used the Momentum optimizer. Further optimization techniques that we employed were dropout (on the GRU cell), label smoothing, weight decay (regularization), a linear learning rate decay schedule, Nesterov momentum, and gradient clipping (by norm).
All GPU training runs were started with random hyperparameter configurations independently sampled from the following values:

dropout_keep_prob

label_smoothing

weight_decay

learning_rate

learning_rate_decay_steps

end_learning_rate_factor

momentum

use_nesterov False, True

gradient_clip
Note the random search automatically marginalizes out any potentially irrelevant hyperparameters; for example, when end_learning_rate_factor , the value of learning_rate_decay_steps does not matter.
Training runs of our lowbandwidth model on TPUv2 were also started with independently sampled random hyperparameter configurations. As the batch size increased, we allowed the TPUv2 model to use larger learning rates and a smaller number of learning rate decay steps:

learning_rate

learning_rate_decay_steps
We had checked that these options would not have aided the GPU baseline.
Comments
There are no comments yet.
