1 Introduction

In recent decades, conformal parameterization of genus-0 closed meshes has been widely studied by various research groups. Also, various quasiconformal parameterization algorithms have been developed for planar domains and simply-connected open meshes by different researchers. However, the study of quasiconformal parameterization on meshes with spherical topology is limited. Given a user-defined quasiconformal distortion, we aim to compute a spherical quasiconformal parameterization with the prescribed distortion. In this work, we first develop the concept of quasiconformal dilation on triangulated meshes as a measurement of quasiconformality. Then, we propose a fast algorithm for the computation of spherical parameterizations that satisfy arbitrary user-defined quasiconformal dilations. In particular, a uniform quasiconformal dilation results in a spherical parameterization with uniform conformality distortion.

With our proposed spherical quasiconformal parameterization algorithm, adaptive surface remeshing can be easily achieved. In computer graphics and animations, the visual quality of surfaces is affected by the piecewise linear discretization of them. Different triangulations (or quadrangulations) of a surface can have significantly different visual effects. In general, regular triangles are preferred as they can provide a smoother approximation of the original surfaces. However, this may not be true in some special cases. For instance, sharp triangles may be more suitable for approximating a sharp and narrow feature on a surface. To adaptively produce different types of triangles on different parts of a surface, we can apply our proposed spherical quasiconformal parameterization algorithm with certain user-defined distortions. Then, using standard remeshing techniques such as the spherical Delaunay triangulation scheme, we can obtain a triangulation on the spherical parameterization. This induces a triangulation on the original surface. Since the parameterization is quasiconformal but not necessarily conformal, the induced triangulation may not be Delaunay. Instead, if the user-defined distortion is assigned in a special way, the induced triangulation will accomplish our goal.

The organization of the paper is as follows. In Section 2, we highlight the contribution of our work. In Section 3, we review the literature related to our work. The mathematical background of our work is introduced in Section 4. In Section 5, we explain the details of our proposed algorithm with application to remeshing. Experimental results are presented in Section 6. In Section 7, we conclude the paper and outline the future work.

2 Contributions

Our proposed spherical quasiconformal parameterization algorithm has following advantages:

  1. Efficiency: Our proposed algorithm only involves solving a few sparse linear systems and hence is highly efficient in practice.

  2. Bijectivity: The bijectivity of the resulting parameterization is supported by quasiconformal theory.

  3. Accuracy: Our algorithm can accurately compute a spherical parameterization with the prescribed distortion.

  4. Applicability: Our algorithm can be effectively applied for adaptively remeshing genus-0 closed surfaces.

3 Previous works

3.1 Conformal and quasiconformal parameterization

Method Topology Parameter domain Distortion criterion Iterative minimization required?
Extremal Quasiconformal Maps [31] Disk-type Plane Uniform Conformality Distortion Yes
Bounded Distortion Mappings [20] Disk-type Plane Quasiconformal Yes
Discrete Curvature Flow [34] Disk-type Plane Quasiconformal Yes
Injective and Bounded Distortion Mappings [1] Disk-type / Genus-0 Plane / Polycube Quasiconformal Yes
QC Iteration [23] Disk-type Plane Uniform Conformality Distortion Yes
TEMPO [25] Disk-type Plane Uniform Conformality Distortion Yes
Our proposed FSQC algorithm Genus-0 Sphere Quasiconformal / Uniform Conformality Distortion No
Table 1: Several works on quasiconformal parameterization of simply-connected surfaces.

In the past two decades, surface conformal parameterization has been widely studied [9, 10, 30, 15]. In particular, the recent approaches of conformal parameterizations include simplifying harmonic energy minimization [19, 7], generalizing Ricci flow to the discrete setting [17, 32, 33], and introducing quasiconformal composition [5, 6, 8].

In recent years, the study of surface quasiconformal parameterizations has been emerging. The works on quasiconformal parameterization of simply-connected surfaces are summarized in Table 1. In [31], Weber et al. introduced an algorithm for computing extremal quasiconformal mappings for simply-connected open meshes using holomorphic quadratic differentials. In [20], Lipman introduced bounded distortion mappings for triangular meshes with boundary. Zeng et al. [34] proposed to compute quasiconformal parameterizations using a discrete auxiliary metric and the Yamabe flow. In [1], Aigerman and Lipman developed an algorithm for computing bounded distortion mappings in 3D. The algorithm can be applied for parameterizing meshes onto the 2D plane or polycubes. In [23], Lui et al. proposed an iterative algorithm for computing Teichmüller maps, which are with uniform conformality distortion, of simply-connected open meshes. The convergence of the algorithm has been proved in [24]. In [25], Meng et al. proposed the TEMPO algorithm for computing landmark-matching Teichmüller parameterization of disk-type point cloud surfaces.

3.2 Remeshing via parameterization

Surface remeshing has been widely studied for generating desired surface meshes in recent decades. In particular, surface remeshing is usually achieved with the aid of parameterization. For instance, Hormann et al. [14] studied the remeshing for topologically disk-like surfaces with a boundary and no holes using parameterization over a planar domain. They applied the Most Isometric Parameterization Strategy (MIPS) [13] for generating triangle meshes with subdivision connectivity. Gu et al. [12] proposed to remesh a surface onto a completely regular structure called geometry image, by cutting the mesh along a network of edge paths into a topological disk and computing a square parameterization. In [26], Praun et al. introduced the idea of remeshing genus-0 closed surfaces by spherical parameterization instead of planar parameterization. This avoids cutting the surface and hence the parameterization becomes unconstrained. Hu et al. [16] proposed a low-distortion spherical parameterization for closed genus 0 meshes to generate subdivision connectivity meshes. The meshes are then smoothed by the umbrella operator. Remacle et al. [27] developed a scheme based on one-to-one discrete harmonic maps for generating surface meshes. In [4], Choi et al. proposed an algorithm to compute planar conformal parametrization of disk-type meshes and to obtain regular triangulations on the planar domain using landmark-matching Teichmüller maps.

4 Mathematical background

In this section, we introduce the concept of conformal maps and quasiconformal maps. Readers are referred to [28, 29, 11, 18, 22] for more details.

4.1 Conformal maps

We begin with the definition of conformal maps between Riemann surfaces.

4.1 (Conformal maps)

Let and be two Riemann surfaces. A map is conformal if there exists a scalar function , called the conformal factor, such that

(1)

An immediate consequence is that every conformal map preserves angles and hence the infinitesimal shapes of the surface.

Among all conformal maps, we are particularly interested in those which map an arbitrary genus-0 closed surface onto a simple standard domain. The existence of such conformal maps is guaranteed by the uniformization theorem.

4.2 (Uniformization of Riemann surfaces)

Every simply connected Riemann surface is conformally equivalent to exactly one of the following three domains:

  1. the Riemann sphere,

  2. the complex plane,

  3. the open unit disk.

As our focus in this work is genus-0 closed surfaces, it is natural to consider the unit sphere as a standard parameter domain. Now, the problem is how to find a spherical conformal map. This can be done by considering harmonic maps.

4.3 (Harmonic maps)

The Dirichlet energy for a map is defined as

(2)

In the space of mappings, the critical points of are called harmonic maps.

On triangulated meshes, the discrete Dirichlet energy is given by

(3)

Here , where are the angles opposite to the edge .

Consequently, the discretization of the Laplacian is given by

(4)

For genus-0 closed surfaces, conformal maps are equivalent to harmonic maps [18]. Hence, the problem of finding a conformal map between two genus-0 closed surfaces is equivalent to an energy minimization problem.

4.2 Quasiconformal maps

In this section, we introduce the concept of quasiconformal maps, a generalization of conformal maps, and the related properties.

4.4 (Quasiconformal maps)

A map is said to be quasiconformal(QC) if it satisfies the Beltrami equation

(5)

for some complex-valued function satisfying , and is non-vanishing almost everywhere. Here, the complex partial derivatives are defined by

(6)

is called the Beltrami coefficient of the quasiconformal map . is conformal around a small neighborhood of if and only if , as Equation (5) becomes the Cauchy-Riemann equation in this situation. Hence, the Beltrami coefficient is closely related to the conformality distortion of .

Besides, Beltrami coefficients are also related to the bijectivity of their associated quasiconformal maps, as explained by the following theorem.

4.5

If is a map satisfying , then is bijective.

In addition, the maximal quasiconformal dilation of is given by

(7)

A geometrical illustration of quasiconformal maps is shown in Figure 1.

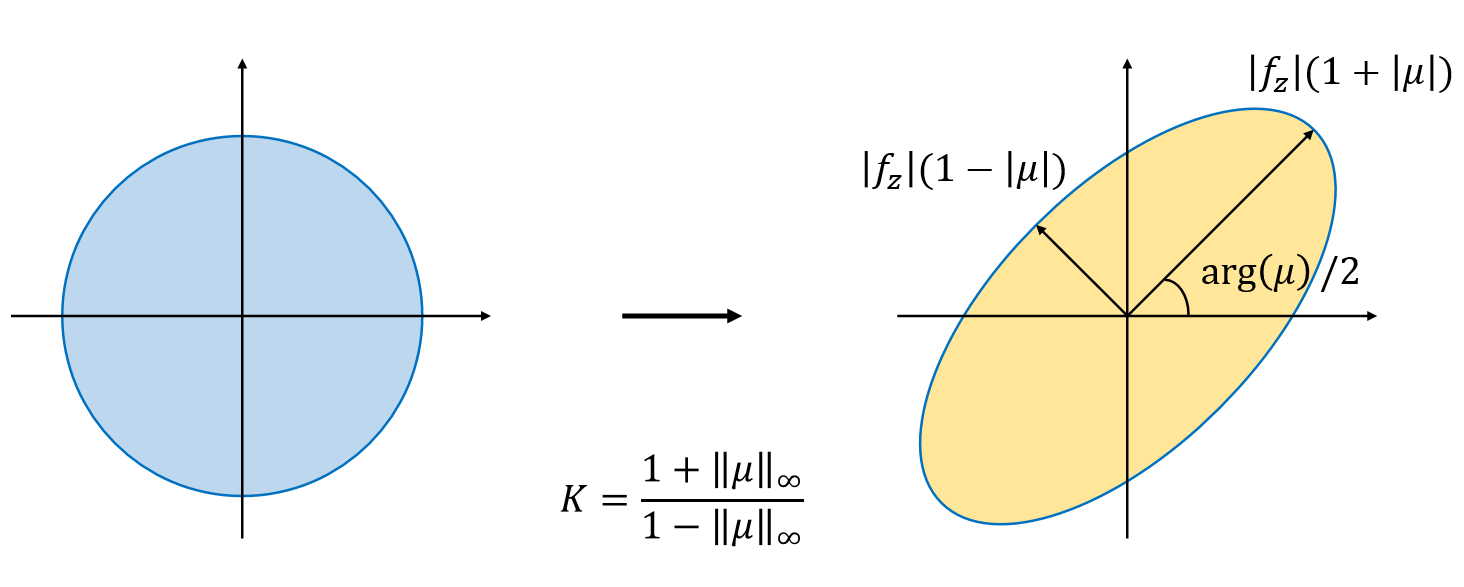

Figure 1: An illustration of quasiconformal maps.

Conversely, with a given complex function, a quasiconformal map can also be computed. More specifically, given a Beltrami coefficient with , there exists a quasiconformal map satisfying the Beltrami equation (5) in the distribution sense [11].

To explicitly compute the quasiconformal map with the given Beltrami coefficient , note that from the Beltrami Equation (5), each pair of the partial derivatives and can be expressed as linear combinations of the other [22]:

(8)

where . Since and , can be obtained by solving

(9)

where . Equation (9) is called the generalized Laplace equation.

In the discrete case, the Beltrami coefficients can be approximated on every triangular face. Let be a quasiconformal map between two triangulated meshes , and let be two corresponding faces on respectively. Suppose and , where for all . The Beltrami coefficient of is approximated on by

(10)

where

(11)

Similarly, in Equation (8) can be discretized. Ultimately, the elliptic PDEs (9) can be discretized into sparse symmetric positive definite linear systems as described in the Linear Beltrami Solver (LBS) method [22].

It is noteworthy that the focus in this section is only the quasiconformal maps on the complex plane. Nevertheless, since in this work we only consider genus-0 closed surfaces, which are conformally equivalent to and hence the extended complex plane, the above concepts and discretizations can be naturally extended for our study.

5 Our proposed method

Note that quasiconformal maps are flexible and not unique in general. Therefore, it is desirable to have an algorithm for computing a spherical quasiconformal parameterization based on an user-defined quasiconformal distortion. The user-defined distortion can be freely set in order to fit into different applications. To achieve this goal, we first develop a measurement of qausiconformal distortion. Then, we propose a fast algorithm to compute a spherical quasiconformal parameterization with a given distortion.

5.1 Quasiconformal dilation

It is desirable to have a quantity that accurately represents the quasiconformality and is easy to compute. For spherical conformal maps, it is common to use the angle difference between the three angles of a triangular face on the input mesh and those of the face on the sphere as a measure of the conformality. Specifically, a map is with good conformality on the face if the three angle differences are all close to 0, or equivalently, if the mean of the absolute angle differences is close to 0. However, the measurement is not appropriate for the case of spherical quasiconformal maps. For instance, under the shear mapping , the three angle differences are highly different from each other and none of them can accurately represent the quasiconformality or the level of the distortion. Hence, instead of the angles, it is desirable to have the user-defined distortion defined on every triangular face of the input mesh.

In the following, we consider the dilation on every triangular face as a measurement of quasiconformality. Mathematically, let be a quasiconformal map. The dilation of at a point is defined by

(12)

where is the Beltrami coefficient of . Geometrically, the dilation is the ratio of the length of the axes shown in Figure 1 under the quasiconformal map .

The dilation of is related to the maximal quasiconformal dilation in Equation (7). More specifically, we have

(13)

The map is said to be -quasiconformal if the maximal quasiconformal dilation is bounded above by . In other words, every infinitesimal circle is mapped to an infinitesimal ellipse with eccentricity at most . In particular, a conformal map is a -quasiconformal map.

An important property about the maximal dilation of composition of quasiconformal mappings is as follows.

5.1

If is a -quasiconformal map and is a -quasiconformal map, then is a -quasiconformal map.

In the discrete case, since the Beltrami coefficients are approximated on every triangular face as described in Equation (10), it is natural to define the dilation on every face. We have the following discretization:

5.2 (Discrete dilation)

Let be a quasiconformal map between two triangulated meshes on . For every triangular face of , the discrete dilation of on is defined by

(14)

where is the Beltrami coefficient of approximated on .

Moreover, the measurement of the dilation can be naturally extended to quasiconformal maps between meshes in .

5.3 (Discrete dilation in )

Let be a quasiconformal map between two triangulated meshes in , and let be two corresponding triangular faces on respectively. Let be an isometric embedding of onto , where . The discrete dilation of on is defined by

(15)

where is a quasiconformal map on .

Note that the above definition is well-defined because only the norm of the Beltrami coefficients is considered. With the above concepts, we are ready to introduce our proposed spherical quasiconformal parameterization algorithm for a genus-0 closed triangulated mesh and a user-defined quasiconformal dilation defined on every face.

5.2 Initial map

We first compute a spherical conformal parameterization as an initialization. Among all existing algorithms for computing the spherical conformal parameterization, we choose the fast spherical conformal parameterization algorithm in [5] for three reasons. Firstly, the algorithm only involves solving two sparse linear systems and hence the computation is highly efficient. Secondly, the algorithm in [5] achieves the best conformality when compared with the existing approaches. The conformality of the initial spherical map is important in the subsequent steps. Thirdly, the algorithm in [5] results in a bijective spherical parameterization. The bijectivity is also crucial for the computation in the remaining steps.

5.3 Optimally projecting the sphere onto the complex plane

After obtaining the initial spherical parameterization, we choose a triangular face on such that and its neighboring triangular faces are the most regular. Then, we apply a rotation on such that the centroid of lies on the positive -axis, followed by the stereographic projection .

The regularity of and its neighboring faces is important because of the stereographic projection . When applying the stereographic projection, the north pole is mapped to on the extended complex plane, and the northernmost region on is mapped to the outermost region on the plane. In particular, is mapped to a big triangle on the plane. Now, denote the geodesic between and on by . Note that is a circular arc on , while the edge connecting and on is an Euclidean straight line. On , this discrepancy between and may not be very large. However, under the stereographic projection, this discrepancy between and the Euclidean straight line becomes serious.

In the continuous case, under the stereographic projection, all other vertices are mapped to the interior of the region enclosed by , and . However, in the discrete case, if and its neighboring faces are not regular enough, some vertices may be mapped outside the Euclidean triangle . The outlying vertices causes computational difficulty in the following step, in which only the three vertices are involved in the boundary constraints. Hence, a suitable choice of is necessary.

5.4 Achieving the desired quasiconformality

By the stereographic projection, the chosen triangular face is mapped to a big triangle on . Next, we compose the map with a quasiconformal map that satisfies the prescribed dilation.

To compute a quasiconformal map using LBS [22], 3 point boundary constraints of the outermost triangular face are required. Moreover, the boundary constraints must be set optimally, otherwise the prescribed quasiconformality cannot be achieved. More specifically, the target location of the boundary points of should satisfy the prescribed quasiconformal dilation .

To explicitly compute the image of under the prescribed dilation , we denote . By Equation (14), we define the Beltrami coefficient on the triangular face by

(16)

Note that the argument of is set to be 0 without loss of generality.

Since is piecewise linear, we have

(17)

for , where are to be determined.

Without loss of generality, we can assume that and .

Also, by Equation (8), we have

(18)

where

(19)

Here, and are respectively the real part and the imaginary part of . By our construction of introduced before, we have and . Hence, we have

(20)

Obviously,

(21)

Lastly, we have

(22)

Altogether, can be explicitly solved by the following linear system:

(23)

Here, the first four equations come from Equation (17), and the last two equations come from Equation (18). The existence and uniqueness of is guaranteed by the following proposition.

5.4

The matrix in Equation (23) is nonsingular.

By a direct calculation, we have

(24)
(25)
(26)

Since is non-degenerate, we have . Also, note that . It follows that

(27)

After obtaining , we can explicitly compute using Equation (17). The above computations give us the desired boundary condition for and of the triangular face .

With the above boundary conditions, we apply the Linear Beltrami Solver (LBS) [22] for computing a quasiconformal map that satisfies the prescribed quasiconformal distortion. More specifically, by Equation (14), we have

(28)

for all triangular faces . We apply LBS with and the boundary constraints on , obtaining the quasiconformal map . It is noteworthy that since , Theorem 4.5 guarantees the bijectivity of the map .

Since may be severely distorted by the prescribed distortion, the origin may no longer be located inside under the quasiconformal map . In this case, the resulting parameterization obtained by the inverse stereographic projection may not be a sphere but only a portion of it. To overcome this problem, we perform a translation on so that the centroid of the whole domain is at the origin. This ensures that will be the northernmost triangular face under .

Now, the desired quasiconformal distortion is achieved. However, as we have fixed two vertices of in computing the boundary constraints, the size of the whole triangular domain may not be optimal. More specifically, if the size of is too large, most vertices will be mapped to the northern hemisphere by . On the other hand, if the size of is too small, most vertices will be mapped to the southern hemisphere by . To achieve an optimal distribution on the spherical parameterization, we apply the balancing scheme in the fast spherical conformal parameterization algorithm [5]. Based on Invariance Theorem in [5], the balancing scheme ensures that and the innermost triangle on will be mapped to two triangles with similar size on the unit sphere under . This completes our task of computing a spherical quasiconformal parameterization with prescribed quasiconformal distortion.

It is noteworthy that our proposed algorithm only involves solving a few sparse linear systems. Hence, our algorithm is highly efficient in practice. Also, the desired quasiconformality of the spherical parameterization is guaranteed by Theorem 5.1. Since the initial spherical map, the rotation and the stereographic projections are all conformal maps (i.e. -quasiconformal maps) and is -quasiconformal, the composition of the maps is also -quasiconformal. Assembling all of the above steps, our proposed fast spherical quasiconformal (FSQC) parameterization algorithm is summarized in Algorithm 1.

Input: A genus-0 closed triangular mesh , a user-defined quasiconformal dilation defined on every face.
Output: A bijective spherical quasiconformal parameterization .
1 Compute a spherical conformal parameterization using the fast algorithm in [5];
2 Choose a triangular face on as described in Section 5.3;
3 Apply a rotation on such that the centroid of lies on the positive -axis;
4 Apply the stereographic projection on ;
5 Compute a quasiconformal map with the prescribed distortion, and an appropriate boundary condition of the big triangle ;
6 Perform a translation so that the centroid of the whole domain is at the origin;
7 Apply the balancing scheme in [5];
8 Apply the inverse stereographic projection and denote the overall result by ;
Algorithm 1 Fast spherical quasiconformal (FSQC) parameterization

5.5 Remeshing via FSQC

Figure 2: A simplified illustration of our proposed remeshing framework. To adaptive remesh a portion of a genus-0 closed surface, we can set a special quasiconformal dilation at that region and compute a spherical quasiconformal parameterization using FSQC. Then, we can apply the spherical Delaunay triangulation algorithm to remesh the corresponding region on the spherical parameterization. Finally, the resulting triangulation on the sphere induces a new triangulation of the original surface.

The spherical qausi-conformal parameterization obtained by our FSQC algorithm can be used for remeshing an input genus-0 closed mesh , where is the set of vertices and is the set of triangular faces of . This brief idea of our framework is that we can apply existing triangulation algorithms, such as the spherical Delaunay triangulation algorithm, for creating a triangulation on the spherical parameterization of . Then, the spherical triangulation induces a triangulation on and this completes the task of remeshing .

A simplified illustration of our proposed remeshing framework is given in Figure 2. The brief idea of our proposed remeshing framework is as follows. Suppose we have a set of points at a sharp part (for instance, a tail) of a genus-0 closed surface. Note that a regular triangulation of the set of points may not lead to a good visualization of the sharpness of the part. Instead, it is desirable to form sharp triangles on the set of points. To achieve this, we compute a sphere quasiconformal parameterization that squeezes the region. Then, we apply existing triangulation algorithms on the simple spherical domain to construct a regular triangulation. The regular triangulation built on the spherical domain induces a triangulation on the original surface. Because of the quasiconformal distortion, the induced triangulation is with sharp triangles at the mentioned region. Therefore, the new triangulation enhances the visual quality of the sharp part of the surface. In the following, we explain our proposed remeshing framework in details.

We start by rigorously introducing the Delaunay triangulation. Mathematically, the definition of the Delaunay triangulation is as follows.

5.5 (Delaunay triangulations)

A triangulation of a set of points is said to be Delaunay if for any triangle in the triangulation, no point in lies inside the circumcircle of .

Consequently, Delaunay triangulations avoid sharp triangles and produce as many regular triangles as possible. As described in [7], for the case of conformal parameterization, a regular triangulation on the spherical parameterization induces a regular triangulation on the original surface. On the contrary, for the case of quasiconformal parameterization, the induced triangulation may not be regular due to the quasiconformal distortion. Nevertheless, it is the discrepancy caused by quasiconformal distortion that enables us to adaptively remesh a surface.

To apply our proposed FSQC algorithm for adaptive surface remeshing, we now describe a strategy in setting the user-defined quasiconformal dilations.

Let be a simply-connected set of triangular faces on that we want to irregularize. We set the user-defined quasiconformal dilation to be

(29)

Then, we select two vertices

that represent the principal direction of the region. This can be done manually or by existing methods such as the Principal Component Analysis (PCA).

As the quasiconformal dilation only encodes the magnitude but not the direction of the desired distortion, we need to insert one extra step in running our proposed FSQC algorithm. More specifically, after Step 4 in Algorithm 1, we have obtained . Before proceeding to Step 5 in Algorithm 1, we rotate the entire planar domain by a map

(30)

where

(31)

This step ensures that the highlighted region will be squeezed in a direction perpendicular to the the line joining and . Then, we continue the FSQC algorithm and obtain the final spherical parameterization . With the spherical parameterization , we can apply the spherical Delaunay triangulation algorithm on the vertices of . The Delaunay triangulation obtained on induces a triangulation on the original surface . It is noteworthy that because of the user-defined quasiconformal dilation, the artificially expanded region on leads to the formulation of squeezed triangles in the remeshing result .

Our proposed remeshing framework is summarized in Algorithm 2.

Input: A genus-0 closed triangular mesh .
Output: The remeshed surface .
1 Set the quasiconformal dilation for all triangular faces;
2 Highlight a region to be adaptively remeshed and set for the region, with elsewhere;
3 Select two vertices that represent the principal direction of the region;
4 Apply our proposed FSQC with the quasiconformal dilation , with an extra rotation of angle of all points on right before Step 5 of Algorithm 1. Here, ;
5 Apply the spherical Delaunay triangulation algorithm on the spherical parameterization;
6 Obtain the induced triangulation from the spherical triangulation;
Algorithm 2 Remeshing via FSQC

6 Experimental Results

In this section, we demonstrate the effectiveness of our proposed fast spherical quasiconformal parameterization algorithm with application to adaptive surface remeshing. Various genus-0 closed triangulated meshes are adopted from the AIM@SHAPE Shape Repository [35] and the Benchmark for 3D Mesh Segmentation [3] for testing our algorithm. Our algorithms are implemented in MATLAB. The spherical Delaunay triangulation algorithm in [36] is adopted for remeshing the spherical parameterizations. All experiments are performed on a PC with an Intel(R) Core(TM) i5-3470 CPU @3.20 GHz processor and 8.00 GB RAM.

Figure 3: A brain and the spherical quasiconformal parameterization obtained by our algorithm. Top left: the input surface. Top right: the spherical parameterization. Bottom left: The target quasiconformal distortion. Bottom right: The resulting quasiconformal distortion of the parameterization.
Figure 4: A Max Planck model with a circle pattern and the spherical quasiconformal parameterization obtained by our algorithm. Top left: the input surface. Top right: the spherical parameterization. Bottom left: The target quasiconformal distortion. Bottom right: The resulting quasiconformal distortion of the parameterization. The user-defined synthetic distortion is achieved on the spherical parameterization.
Figure 5: A bimba model and the spherical quasiconformal parameterization with uniform conformality distortion obtained by our proposed algorithm. Top left: the input surface. Top right: the spherical parameterization. Bottom left: The target quasiconformal distortion. Bottom right: The resulting quasiconformal distortion of the parameterization.
Figure 6: A spiral and the spherical quasiconformal parameterization with uniform conformality distortion obtained by our algorithm. Top left: the input surface. Top right: the spherical parameterization. Bottom left: The target quasiconformal distortion. Bottom right: The resulting quasiconformal distortion of the parameterization.

Figure 3 shows a genus-0 closed brain mesh and the spherical quasiconformal parameterization obtained by our fast algorithm. It can be observed that the resulting quasiconformal distortion closely resembles the desired quasiconformal distortion. Another example is shown in Figure 4. In this example, we consider a discontinuous dilation as the target quasiconformal distortion. Even with the discontinuity, the spherical quasiconformal parameterization obtained can satisfy the desired distortion. It can be observed that the circles on the input mesh are transformed to two types of ellipses on the spherical quasiconformal parameterization. Also, two sharp peaks can be observed in the histogram of the resulting dilation plot.

Then, we apply our algorithm for computing spherical uniform conformality distortion parameterization of genus-0 closed meshes by setting the target dilation as a constant. Figure 5 and Figure 6 show two examples of the spherical uniform conformality distortion parameterizations obtained by our algorithm. It is noteworthy that even for the highly convoluted spiral model, the resulting dilations significantly concentrate at the desired constant. The uniform dilation can also be observed from the triangular faces on the spherical parameterizations. This implies that our algorithm can effectively produce the spherical parameterizations with uniform conformality distortion.

Table 2 records the performance of our proposed fast spherical quasiconformal parameterization algorithm. Because of the sparse linear systems in our algorithm, the computations finish within a few seconds even for very dense meshes. Also, in all examples, the resulting quasiconformal distortion is highly close to the target distortion. This reflects the accuracy of our proposed algorithm. Besides, the absence of extreme values in the resulting dilation distribution implies that the Beltrami coefficient is with sup norm . Hence, the resulting parameterizations are bijective.

Surfaces # of faces Time (s) Target dilation Resulting dilation
Mean SD Mean SD
Max Planck 102212 1.8867 2.5887 0.6692 2.5896 0.6687
Brain 1 91124 1.9399 1.1496 0.2486 1.1643 0.2319
Brain 2 92210 2.0185 1.2149 0.3021 1.2246 0.3030
Lion 100000 2.0651 1.2174 0.2180 1.2246 0.2228
Spiral 96538 1.7577 4.0000 0.0000 4.0079 0.2552
Bimba 149524 3.8332 3.0000 0.0000 3.0007 0.0704
Dolphin 3784 0.0756 1.0876 0.3518 1.2766 0.3628
Human face 43056 0.8036 1.0109 0.1202 1.0314 0.1190
Table 2: The performance of our fast spherical quasiconformal parameterization algorithm.
Figure 7: A human surface with a Delaunay triangulation. Note that the triangles at the nose bridge do not preserve the geometry well. Left: The whole surface. Right: A zoom-in of the nose bridge.
Figure 8: The remeshed human surface obtained by our proposed method. The sharp triangulations make nose bridge more prominent. Left: The whole surface. Right: A zoom-in of the nose bridge.

After demonstrating the efficiency and accuracy of our proposed fast spherical quasiconformal parameterization algorithm, we apply the algorithm for adaptive remeshing. Figure 7 shows a human face represented by a Delaunay triangulation. Note that the triangular faces at the nose bridge do not follow the shape of the nose bridge and hence the nose bridge does not look prominent. We aim to remesh this particular part of the surface in order to enhance the visual quality. To achieve this, we set the quasiconformal dilation as

(32)

for all triangle elements . Two points , are manually selected at the top and the tip of the nose to control the direction of the distortion. Then, we apply our proposed FSQC algorithm with the quasiconformal dilation and obtain a spherical quasiconformal parameterization of the human surface. After that, we apply the spherical Delaunay triangulation algorithm to remesh the spherical parameterization. The final induced triangulation on the original surface is shown in Figure 8. Note that the triangulations at the nose bridge become sharp and naturally follow the geometry of the nose bridge. This improves the visualization of the human face.

Figure 9: Remeshing the dorsal fin of a dolphin surface. Top: The side view and the top view of the dolphin with a Delaunay triangulation. Bottom: The side view and the top view of the remeshed dolphin obtained by our proposed method. It can be easily observed that the dorsal fin of the dolphin becomes more prominent after the remeshing procedure.

Another example of a dolphin surface is shown in Figure 9. The initial triangulation of the dolphin surface is Delaunay. It can be easily observed that the triangles at the dorsal fin of the dolphin are too regular and do not follow the geometry of the dorsal fin. This makes the shape of the dorsal fin non-smooth. To improve the visualization, we define the quasiconformal dilation as

(33)

for all triangle elements . Two points , are again manually selected at the two ends of the dorsal fin for controlling the direction of the distortion. Then, we apply our proposed remeshing framework with the quasiconformal dilation . This results in a remeshed dolphin surface as shown in Figure 9. It is noteworthy that even without any changes in the positions of the vertices, our adaptive remeshing result significantly enhances the visual quality of the dorsal fin of the dolphin surface.

Figure 10: Surface subdivision at the dorsal fins of the two triangulations. Left: The result built upon the original Delaunay triangulation of the dolphin surface. Right: The result built upon the new triangulation obtained by our remeshing framework.

To further highlight the advantage of our remeshing framework, we consider applying a surface subdivision algorithm on the original and the remeshed dolphin surfaces. The LS3 Subdivision Surface Algorithm [2] with Loop’s weight [21] is applied. The algorithm is a built-in function in MeshLab. Figure 10 shows the subdivision results. It can be observed that the original Delaunay triangulation of the dolphin surface does not result in a smooth dorsal fin while our triangulation does. This comparison reflects the importance of our adaptive remeshing framework.

7 Conclusion

In this work, we have developed a fast spherical quasiconformal parameterization algorithm, abbreviated as FSQC, for genus-0 closed surfaces. By appropriately defining the concept of quasiconformal dilation on each triangle element of a mesh, we have proposed a computational scheme for computing a spherical quasiconformal parameterization that satisfies the prescribed quasiconformal distortion. Experimental results have demonstrated the efficiency and accuracy of our algorithm. Furthermore, the FSQC algorithm can be applied for remeshing genus-0 closed surfaces to enhance their visual quality. The effectiveness of our proposed remeshing framework has been illustrated by two remeshing experiments. In the future, we aim to extend the quasiconformal parameterization algorithm for adaptively remeshing high-genus surfaces.

References

  • [1] N. Aigerman and Y. Lipman, Injective and Bounded Distortion Mappings in 3D. ACM Transactions on Graphics (Proceedings of SIGGRAPH), Volume 32, Issue 4, pp. 106:1–106:14, 2013.
  • [2] S. Boyé, G. Guennebaud, and C. Schlick, Least Squares Subdivision Surfaces. Computer Graphics Forum, Volume 29, Issue 7, pp. 2021–2028, 2010.
  • [3] X. Chen, A. Golovinskiy, and T. Funkhouser, A Benchmark for 3D Mesh Segmentation. ACM Transactions on Graphics (Proceedings of SIGGRAPH), Volume 28, Issue 3, pp. 73:1–73:12, 2009.
  • [4] C. P. Choi, X. F. Gu and L. M. Lui, Quasiconformal Surface Remeshing. UCLA CAM report 14-62, 2014.
  • [5] P. T. Choi, K. C. Lam and L. M. Lui, FLASH: Fast Landmark Aligned Spherical Harmonic Parameterization for Genus-0 Closed Brain Surfaces. SIAM Journal on Imaging Sciences, Volume 8, Issue 1, pp. 67–94, 2015.
  • [6] P. T. Choi and L. M. Lui, Fast Disk Conformal Parameterization of Simply-connected Open Surfaces. Journal of Scientific Computing, Volume 65, Issue 3, pp. 1065–1090, 2015.
  • [7] G. P.-T. Choi, K. T. Ho, and L. M. Lui, Spherical Conformal Parameterization of Genus-0 Point Clouds for Meshing. SIAM Journal on Imaging Sciences, forthcoming 2016.
  • [8] G. P.-T. Choi and L. M. Lui, A Linear Formulation for Disk Conformal Parameterization of Simply-connected Open Surfaces. Preprint, arXiv:1508.00396v2, 2016.
  • [9] M. Floater and K. Hormann, Parameterization of Triangulations and Unorganized Points. Tutorials on Multiresolution in Geometric Modelling, pp. 287–316, 2002.
  • [10] M. Floater and K. Hormann, Surface Parameterization: A Tutorial and Survey. Advances in Multiresolution for Geometric Modelling, pp. 157–186, 2005.
  • [11] F. Gardiner and N. Lakic. Quasiconformal Teichmüller Theory. American Mathematics Society, 2000.
  • [12] X. Gu, S. J. Gortler and H. Hoppe, Geometry Images. ACM Transactions on Graphics (Proceedings of SIGGRAPH), Volume 21, Issue 3, pp. 355–361, 2002.
  • [13] K. Hormann and G. Greiner, MIPS: An Efficient Global Parametrization Method. Curves and Surfaces Proceedings (Saint Malo, France), pp. 152–163, 2000.
  • [14] K. Hormann, U. Labsik, and G. Greiner, Remeshing Triangulated Surfaces with Optimal Parameterizations. Computer-Aided Design, Volume 33, Issue 11, pp. 779–788, 2001.
  • [15] K. Hormann, B. Lévy, and A. Sheffer, Mesh Parameterization: Theory and Practice. ACM SIGGRAPH 2007 Course Notes, pp. 1–122, 2007.
  • [16] J. Hu, X. Liu and Q. Xie, Subdivision Connectivity Remeshing and its Applications. Computer Animation and Virtual Worlds, Volume 22, Issue 6, pp. 519–528, 2011.
  • [17] M. Jin, J. Kim, F. Luo, and X. Gu, Discrete Surface Ricci Flow. IEEE Transaction on Visualization and Computer Graphics, Volume 14, Issue 5, pp. 1030–1043, 2008.
  • [18] J. Jost, Riemannian Geometry and Geometric Analysis. Universitext, Springer, 2011.
  • [19] R. Lai, Z. Wen, W. Yin, X. Gu, and L. M. Lui, Folding-free Global Conformal Mapping for Genus-0 Surfaces by Harmonic Energy Minimization. Journal of Scientific Computing, Volume 58, Issue 3, pp. 705–725, 2014.
  • [20] Y. Lipman, Bounded Distortion Mapping Spaces for Triangular Meshes. ACM Transactions on Graphics (Proceedings of SIGGRAPH), Volume 31, Issue 4,, pp. 108:1–108:13, 2012.
  • [21] C. Loop, Smooth Subdivision Surfaces Based on Triangles. M.S. Mathematics thesis, University of Utah, 1987.
  • [22] L. M. Lui, K. C. Lam, T. W. Wong, and X. Gu, Texture Map and Video Compression using Beltrami Representation. SIAM Journal on Imaging Sciences, Volume 6, Issue 4, pp. 1880–1902, 2013.
  • [23] L. M. Lui, K. C. Lam, S. T. Yau, and X. Gu, Teichmüller Mapping (T-map) and its Applications to Landmark Matching. SIAM Journal on Imaging Sciences, Volume 7, Issue 1, pp. 391–426, 2014.
  • [24] L. M. Lui, X. Gu, and S.-T. Yau, Convergence of an Iterative Algorithm for Teichmüller Maps via Harmonic Energy Optimization. Mathematics of Computation, Volume 84, Number 296, pp. 2823–2842, 2015.
  • [25] T. W. Meng, G. P.-T. Choi, and L. M. Lui, TEMPO: Feature-Endowed Teichmüller Extremal Mappings of Point Clouds. Preprint, arXiv:1511.06624, 2015.
  • [26] E. Praun and H. Hoppe, Spherical Parametrization and Remeshing. ACM Transactions on Graphics, Volume 22, Issue 3, pp. 340–349, 2003.
  • [27] J.-F. Remacle, C. Geuzaine, G. Compère, and E. Marchandise, High Quality Surface Remeshing Using Harmonic Maps. International Journal for Numerical Methods in Engineering, Volume 83, Issue 4, pp. 403–425, 2010.
  • [28] R. Schoen and S.T. Yau, Lectures on Differential Geometry. International Press, Cambridge, MA, 1994.
  • [29] R. Schoen and S. Yau, Lectures on Harmonic Maps. International Press, Cambridge, MA, 1997.
  • [30] A. Sheffer, E. Praun, and K. Rose, Mesh Parameterization Methods and their Applications, Foundations and Trends in Computer Graphics and Vision, Volume 2, Issue 2, pp. 105–171, 2006.
  • [31] O. Weber, A. Myles, and D. Zorin, Computing Extremal Quasiconformal Maps. Computer Graphics Forum, Volume 31, Issue 5, pp. 1679–1689, 2012.
  • [32] Y. L. Yang, R. Guo, F. Luo, S. M. Hu, and X. F. Gu, Generalized Discrete Ricci Flow, Computer Graphics Forum, Volume 28, Issue 7, pp. 2005–2014, 2009.
  • [33] M. Zhang, R. Guo, W. Zeng, F. Luo, S. T. Yau, and X. Gu, The Unified Discrete Surface Ricci Flow. Journal of Graphical Models, Volume 76, Issue 5, pp. 321–339, 2014.
  • [34] W. Zeng, L. M. Lui, F. Luo, T. F. Chan, S. T. Yau, and X. Gu, Computing Quasiconformal Maps Using an Auxiliary Metric and Discrete Curvature Flow. Numerische Mathematik, Volume 121, Issue 4, pp. 671–703, 2012.
  • [35] AIM@SHAPE Shape Repository. http://visionair.ge.imati.cnr.it/
  • [36] SPHERE_DELAUNAY. http://people.sc.fsu.edu/jburkardt/m_src/sphere_delaunay/sphere_delaunay.html
