1. Introduction

Automated Machine Learning (AutoML) seeks to model with little or no human-intervention the application of Machine Learning (ML) techniques to well defined problems, avoiding the user to manually perform the data pre-processing, the design and extraction of features, and/or the selection and parameterisation of the most suit ML model. The current paper focuses on a branch of AutoML: NeuroEvolution (NE)

(Floreano et al., 2008)

. NE automatically searches for Artificial Neural Networks (ANNs), enabling the optimisation of their structure (i.e.., number of neurons, layers, and/or connectivity), and/or learning strategy (i.e., learning algorithm and its parameters: e.g., learning rate, momentum); in NE, Evolutionary Computation (EC) is used to automate the search for ANNs.

Figure 1. Example of a grammar for encoding fully-connected networks.

Considering that NE is based on EC, a population of individuals is continuously evolved throughout generations; each single individual encodes an ANN. One of the main drawbacks relies on the time that is required to evaluate the population, which is even higher if we consider deep networks. To overcome this issue the vast majority of NE methods constraint the evaluation of the networks to a fixed (low) number of epochs, or grant the networks a limited amount of Graphic Processing Unit (GPU) training time. However, these evaluation strategies cannot assure that the candidate solutions are being trained for the required time, and make it difficult to assess the quality of the evolved learning strategy, i.e., that the generated learning strategy works beyond the limited number of epochs / GPU training time.

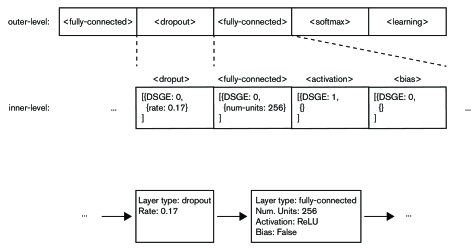

Figure 2. DENSER genotype (top), and respective phenotype (bottom). The example is based on the outer-level structure [((fully-connected, dropout), 1, 10), (softmax, 1, 1), (learning, 1, 1)], and on the grammar of Figure 1.

To overcome the previous limitation, in this paper we propose a new version of Deep Evolutionary Network Structure Representation (DENSER), called Fast-DENSER++ that enables the evaluation time to grow continuously as the complexity of the networks increases throughout the generations. Fast-DENSER++ (F-DENSER++) is an extension to Fast-DENSER (F-DENSER): a previous version of DENSER that generates networks with the same performance of DENSER, but 20x faster. The results demonstrate that F-DENSER++ is statistically superior to and F-DENSER in evolutionary performance; further, when the F-DENSER networks are trained for longer they achieve, on average, lower performances than those reported by F-DENSER++. That is, F-DENSER++ is able to effectively generate models that are ready for deployment after the end of evolution, without the need for additional training.

The remainder of the paper is organised as follows. Section 2 briefly surveys NeuroEvolution works 2. Section 3 presents DENSER, and its extension F-DENSER. Section 4 details F-DENSER++, and the experimental setup and results. Section 5 draws conclusions and addresses future work.

2. NeuroEvolution

NeuroEvolution (NE) approaches usually focus on the evolution of the learning strategy (Whitley, 1989; Parra et al., 2014; Gomez et al., 2008; Stanley et al., 2009) or the  topology (Gruau et al., 1996; Miller et al., 1989). On the optimisation of the learning strategy NE has been able to match and even surpass the results attained by standard learning algorithms (Morse and Stanley, 2016); on the other hand, the automatic optimisation of the topology by NE is faster and finds better solutions than using grid or random search (Lorenzo et al., 2017). Nonetheless, when designing a network from the scratch it is hard to separate the learning from the topology, as both are correlated in what regards the search for the most effective model to solve a specific task. Examples of NE approaches that have successfully addressed the simultaneous optimisation of the learning and topology are  (Moriarty and Miikkulainen, 2001; Stanley and Miikkulainen, 2002; Turner and Miller, 2013).

Although the methods are commonly grouped as above, according to the target of evolution, more recent efforts have been put towards the development of methods that are capable of dealing with Deep Artificial Neural Networks (DANNs), and thus we feel that it is more intuitive to divide them into small-scale (Whitley, 1989; Stanley and Miikkulainen, 2002) and large-scale (Stanley et al., 2009; Miikkulainen et al., 2017; Suganuma et al., 2017; Real et al., 2017; Assunção et al., 2018) NE. The current paper focuses on the latter; more specifically we will extend F-DENSER (Assunção et al., 2019) to enable the generation of models that can be used right-off evolution, without further training. F-DENSER is a general-purpose grammar-based NE approach that can be easily adapted to deal with different problems and/or network types; there is just the need to change the grammar that is feed to the system.

The problem of most of the methods that target the evolution of DANNs is that, even aided by Graphic Processing Units (GPUs) they tend to take a lot of time to find effective models. For example, CoDeepNEAT (Miikkulainen et al., 2017) train on 100 GPUs, and Real et al. use 450 GPUs for 7 days to perform each run (Real et al., 2018). F-DENSER takes approximately 55 hours (2.3 days) with a single GPU to perform each run, and that is the reason why we have selected F-DENSER for the current paper. There are methods that are computationally cheaper, e.g., Lorenzo and Nalepa (Lorenzo and Nalepa, 2018) take about 120 minutes to obtain results; however, the speedup is obtained at the cost of the model performance.

3. Deep Evolutionary Network Structured Representation

Deep Evolutionary Network Structured Representation (DENSER) (Assunção et al., 2018) is a grammar-based general purpose NE method: it enables the automatic generation of the network topology (sequence, type, connectivity, and parameterisation of the network layers), and learning strategy (learning algorithm and parameterisation). To make this possible DENSER has a two-level representation: (i) the outer-level encodes an ordered sequence of evolutionary units111The evolutionary units can encode layers, learning strategies, or even data pre-processing and/or augmentation strategies.; and (ii) the inner-level encodes the parameters of each evolutionary unit. In simple words, each evolutionary unit points to a grammar start symbol, and the grammar itself has every single parameter, and the allowed values. The grammatical nature of DENSER makes the adaption to different network structures and problems easy and transparent, as the user only needs to change the grammar production rules, which are in a text human-readable format. In addition to the grammar, the user needs to define the outer-level structure, which sets the allowed network structure using the following format: [(production-rules, min_evo_units, max_evo_units), …]. An example of an outer-level structure for encoding fully-connect networks is [((fully-connected, dropout), 1, 10), (softmax, 1, 1), (learning, 1, 1)], which defines fully-connected networks with between 2 and 11 layers, and a learning block.

Evolution proceeds by a combination of a Genetic Algorithm (GA) with Dynamic Structured Grammatical Evolution (DSGE). The typical mutation operators of GAs are applied to the outer-level (add, remove, duplicate), and DSGE mutations are applied to the inner-level, i.e., change the expansion possibility, and parameters values. DSGE is chosen over standard Grammatical Evolution (GE) for its ability to deal with the locality and redundancy issues present in GE. To enhance locality the method introduces a one-to-one mapping between the genotype and the non-terminal symbols: there is a list of integers for each non-terminal symbol, and when decoding the genotype the expansion possibility is read from the corresponding list; because each non-terminal symbol has a list associated to it, there is no need for the modulus mathematical operation to select the expansion possibility, and thus redundancy is reduced.

An example of a grammar for encoding fully-connected networks is shown in Figure 1. The grammar encodes the parameters needed for each evolutionary unit, and are encoded according to the structure: [variable-name, variable-type, num_values, min_value, max_value]. The parameter type can be integer, or float; closed choice parameters are enabled using the grammatical expansion possibilities (e.g., line 5 of the grammar). Figure 2 represents an example of the genotype and phenotype of an individual using the above outer-level structure, and the grammar of Figure 1.

parent select_fittest(population)
if parent.train_time ¿ DEFAULT_TIME then
       tmp_parent select_fittest(population-parent)
       retrain(tmp_parent, parent.train_time)
       if ¿ then
             return tmp_parent
             return parent
       end if
       return parent
end if
Algorithm 1 Parent selection algorithm.

To speedup search, Fast-DENSER (F-DENSER) (Assunção et al., 2019) was introduced: a representation with the same outer and inner-levels is used, and another level is created to encode the connectivity of each layer; this level is referred to as the connectivity-level. Therefore, F-DENSER can evolve not only feed-forward networks but also topologies where any given layer can receive multiple previous layers as input. The same mutation operators are applied to promote evolution, but additionally there are two new operators related to the connectivity-level, that add/remove inputs to layers. In F-DENSER the evolutionary engine is replaced by a (1+)-Evolutionary Strategy (ES). Therefore whilst in DENSER a typically large population of individuals needs to be evaluated, in F-DENSER there is just the need to evaluate (1+) individuals. The results have proved that, without sacrificing performance, F-DENSER with is 20x faster than the original DENSER implementation with a population size of 100 individuals. The previous results are achieved with the same evaluation method, i.e., each individual is trained for a fixed number of 10 epochs. In addition, with the rationale to grant all individuals the same computational resources evolution is conducted with the individuals being trained for a maximum GPU time of 10 minutes; this evaluation stop criteria leads to an improvement of the results.

Evolutionary Parameter Value
Number of runs 10
Number of generations 150
Population size 5
Add layer rate 25%
Remove layer rate 25%
DSGE-level rate 15%
Dataset Parameter Value
Train set 42500 instances
Validation set 7500 instances
Test set 10000 instances
Train Parameter Value
Default train time 10 min.
Loss Categorical Cross-entropy
Data Augmentation Parameter Value
Padding 4
Random crop 4
Horizontal flipping 50%
Table 1. Experimental parameters.

4. Fast-DENSER++

Fast-DENSER++ is an extension to F-DENSER that enables the method to generate networks that are ready for deployment, i.e., the evolutionary result requires no further training to be used. To achieve this we introduce a new mutation operator that does not change any of the layer structure and/or learning parameters, and increases the train time of the individual. Whilst in F-DENSER the maximum train time is set the same for all individuals, in F-DENSER++ the maximum train time is set independently for each individual: in the initial population all individuals are trained for the same amount of time, and the mutation operator changes the maximum train time; any of the other mutation operators reset the evaluation time to the default value, so that the offspring solutions are not evaluated for longer than necessary.

The proposed mutation operator enables the train time to grow continuously as needed, i.e., during the initial generations the networks are simple and thus their train time is reduced, and as time passes more complex solutions require longer evaluations. On the other hand, the new operator makes it possible for individuals within the same population to have different evaluation times. This indirectly implies that the parent selection mechanism has to be changed, so that the comparison between the individuals in the population is fair. In case the fittest individual has been trained for the default train time, the selection is the same as before, i.e., the fittest individual seeds the next generation; otherwise, if the fittest individual is trained for longer than the default train time, the fittest individual of those that were trained for the default train time is re-trained, and the fittest among the two seeds the next generation. That is, the variations of the parent are initially evaluated for the default time, and if in the population there is an individual evaluated for longer, the fittest individual is also granted the same time. The parent selection mechanism is clarified in Algorithm 1. Indirectly we are evolving solutions that have to train fast, but that given more time must improve performance.

To assess the ability of F-DENSER++ to generate ready to deploy DANNs we compare it to the F-DENSER implementation. Therefore we address the generation of Convolutional Neural Networks (CNNs) for the CIFAR-10 dataset. Section 4.1 details the experimental setup, and Section 4.2 the experimental results.

4.1. Experimental Setup

(24) layer:batch-norm
Figure 3. Grammar used by F-DENSER++, and F-DENSER for the evolution of CNNs for the CIFAR-10.

The experimental parameters are detailed in Table 1, and are divided into 4 sections: (i) evolutionary – (1+)-ES parameters; (ii) dataset – number of instances of each of the partitions of the dataset; the dataset is divided into three independent sets: (ii.i) the train set is used for training the individual during evolution; (ii.ii) the validation set is used to perform early stopping, and to assess the fitness of the candidate solution, and (ii.iii) the test is kept out of evolution and used only for assessing the performance of the individuals on unseen data; (iii) train – fixed training parameters; and (iv) parameters needed for data augmentation.

The reported parameters are the same for F-DENSER++ and F-DENSER, but additionally F-DENSER++ has another mutation rate, that defines the likelihood of an individual to be trained for longer, which is set to 20%.

The experiments contained in this section are conducted over the CIFAR-10 (Krizhevsky and Hinton, 2009): a dataset of 32 32 real-world images of objects. The CIFAR-10 is composed by 50000 train, and 10000 test instances. We search for CNNs for the CIFAR-10 using the grammar of Figure 3, that defines the search space for the topology, and learning strategy.

4.2. Experimental Results

The results of the evolution of CNNs for the CIFAR-10 with F-DENSER++, and F-DENSER are reported in Table 2. The evolutionary performance, i.e., fitness (validation), and on unseen data during evolution (test) are summarised; the values are the average of the 10 highest performing networks (according to fitness), one from each run. The analysis of the results makes it clear that F-DENSER++ generates higher performing CNNs than F-DENSER; the variation from the validation to the test set is small, and thus the networks generalise well.

Figure 4. Box-plot of the test accuracies of F-DENSER (evo and longer), and F-DENSER++ (evo).

The significance of the results is tested resorting to statistics. To understand if the samples follow a normal distribution we apply the Kolmogorov-Smirnov and Shapiro-Wilk tests (

). For all the collected data, these tests show that the data does not follow any distribution, and consequently to perform the pairwise comparison we use the Mann-Whitney U test ( = 0.05). In addition, we measure the effect size: low (0.1 r 0.3), medium (0.3 r 0.5) and large (r 0.5). The statistical tests show that the difference between F-DENSER++ and F-DENSER is statistically significant, with large effect sizes; the p-values are reported in Table 2.

In F-DENSER during evolution the networks are evaluated up to a maximum fixed time (10 minutes in the conducted experiments), and thus after evolution the best networks may benefit from re-training for longer. This is not required in F-DENSER++, because during evolution the time allocated for the training of each network can increase. The last row of Table 2 shows the results of F-DENSER, when the networks are re-trained until convergence (determined by early stopping). Even when re-trained the results of F-DENSER++ are slightly superior to those of F-DENSER; however, the difference is not statistically significant.

To better analyse the results we use a box-plot (see Figure 4

). The plot shows, as above stated, that F-DENSER++ evolutionary results are with no doubts superior to those of F-DENSER. On the other hand, it provides new insights on the comparison (over the test set) of F-DENSER++ with the re-trained networks of F-DENSER: despite not statistically different, the results of F-DENSER++ tend to be superior to the ones reported by F-DENSER – there are no outliers (despite the slightly larger dispersion), and the median of F-DENSER++ is above the median of F-DENSER; the difference in the median is of approximately 1%, which translates into about 100 more correctly labeled test instances.

Validation 89.44% 87.56% 0.03752
Test (evo) 88.73% 86.91% 0.03156
Test (longer) n/a 87.76% 0.30772
Table 2. Comparison of the results obtained on the evolution of the topology and learning strategy with F-DENSER++, and F-DENSER on the CIFAR-10. The results report the validation accuracy (fitness), and the test accuracy, and are measured with the generated networks right off evolution (evo), and when trained for longer (longer); the longer training is not applicable to F-DENSER++. The test (longer) results of F-DENSER are compared to the test (evo) results of F-DENSER++. Bold highlights statistically significant results.

From the above, it is demonstrated that F-DENSER++ can effectively generate networks that are ready to be deployed right-off evolution, i.e., there is no need for further training. This helps in the testing of the evolved training policy, as it is used until convergence; the training policies that are generated for F-DENSER despite providing good results when applied for longer training cycles may not be the most adequate ones. Most importantly, the above results are achieved without a major increase in the time required to search for the networks: from an average of 0.73 hours/generation to an average of 1.13 hours/generation, which is still fairly bellow the average of 10.83 hours/generation of DENSER222All the times are measure in machines with the same specifications: 1080 Ti GPUs, 64 GB of RAM, and an Intel Core i7-6850K CPU.. From this point onward we focus on the use of F-DENSER++.

5. Conclusions

The current work introduces F-DENSER++: an extension to F-DENSER that enables it to generate fully-trained models, i.e., models that can be deployed right-off evolution. The results demonstrate that the evolutionary results of F-DENSER++ are statistically superior to those of F-DENSER. The results of F-DENSER still need to be trained for longer after evolution; nonetheless, the performance of the longer trains is still bellow the evolutionary performance of F-DENSER++. In addition, we can state that the new method is superior to the standard DENSER implementation; the evolutionary results of F-DENSER are statistically superior to DENSER, and F-DENSER++ is statistically superior to F-DENSER, and consequently superior to DENSER.

Future work will be guided into two separate directions: (i) perform experiments with a wider set of datasets, and (ii) investigate transfer and multi-task learning with F-DENSER++. The common approach to NE seeks to generate a network for a specific task, without using any of the information gathered when addressing previous tasks. In the future, it is our objective to evolve DENSER to a point where learning is incremental and cumulative, using past knowledge, and avoiding catastrophic forgetting. That is, we want a system that grows with time, and learns new tasks without stopping being able to solve the previous ones.
