1 Introduction
Estimating the similarity between data points often constitutes a central part of any data processing pipeline. In computer vision it is relevant in matching points in from frames [31] or visual place recognition. In the latter case, [27] mention one particular challenge: a place’ visual appeareance can change drastically within a short time frame, e.g., through weather conditions or whether a picture was taken during the night or the day time. For a method to be successful, certain invariances have to either be used as an inductive bias or presented through data. This asks for highly expressive models.
Recently, deep learning has made training generative models on largescale databases, as typically found in computer vision, practical
[7, 21]. Such models have been used for similarity estimation from the perspective of Riemannian manifolds in the context of Gaussian process latent variable models [32]. As such nonparametric approaches scale poorly with data set size, several authors [9, 10, 2] proposed the marriage of Riemannian manifoldbased metric learning with deep generative models. This results in a principled measure of similarity between two members of the data distribution by relating it to the shortest path, or, geodesic between two corresponding points in latent space. A downside of this approach is that the geodesic has to be obtained as the solution to a nonlinear optimisation problem. Consequently, there is high computational demand and no guarantee for the quality of the solution. The representation of this shortest path is also not obvious, as it is continuous in nature but ultimately has to be represented in a discrete fashion.In contrast, local and global descriptors [26]
do not suffer from said computational challenges. As their representation is a vector over real numbers, it is compactly represented as an array of floating point numbers, paving the way for efficient indexing techniques for nearest neighbour lookup
[5, 20].This work takes a step in making Riemannian manifold based approaches faster, and hence applicable in highdimensional settings. We will see that spanning the latent space of a latent variable model with a discrete and finite graph allows us to apply a classic search algorithm,
. This lets us obtain accurate approximations of the geodesic. These are superior to the previously proposed ODE and neural network based approaches, in terms of computation performance, without loss in quality. Once the graph has been built, estimating the geodesic is
and hence bounded for any pair of points.We apply the proposed framework to a toy example, that of a visual pendulum, to foster intuition of the approach, as it can be easily visualised. The practical applicability to more challenging data sets is then illustrated for the Chair, Faces, and FashionMNIST data sets.
2 Related work
A wide range of approaches have been proposed for estimating the similarity between data points. Typically, distance metrics are assumed to be given, however they often come with certain assumptions about the data. For example instances of the Minkowski distance require the data to be invariant to rotation under the
norm. The Mahalanobis distance, is a popular choice when the data are multivariate Gaussian distributed, as it is invariant to translation and scaling.
Transforming the data can further allow to apply known metrics, even when the data does not directly fulfil the assumptions required by the metric. In [34, 17]
, the authors proposed the use of linear transformations for supervised learning. To enable an accurate measurement of even more complicated data, nonlinear transformations based on neural networks were introduced in
[30]. Additionally, transformations of timeseries data to constantlength spaces have been proposed in [4], which allow to apply similarity measures using recurrent neural networks.
To alleviate the problem of manually specifying a distance metric, learning distances directly from data have been proposed by several approaches [36, 33, 12, 23]. That is especially useful in highdimensional spaces, where obtaining a meaningful distance metric is challenging. Traditional metrics may not even be qualitatively meaningful, since the ratio of the distances of the nearest and farthest neighbours to a given data point is almost for a wide variety of distributions [1].
In recent work, [32]
suggested perceiving the latent space of Gaussian process latent variable models as a Riemannian manifold, where the distance between two data points is given as the shortest path along the data manifold. Treating the latent space as a Riemannian manifold enables to use interpolation
[28] and trajectorygeneration [11] algorithms between given points, with the advantage that the observablespace trajectory remains sufficiently close to the previously used training data [9, 10, 2, 24]. The geodesics, i.e. the lengthminimising curve given the curvature of the manifold, have been approximated by neural networks [9, 10] or represented by ODEs [2].Beside interpolation, using the geometry of the manifold has been proposed and used in other approaches based on generative models. For instance, in [14] the authors used task manifolds for metalearning and in [18] the authors developed a constantcurvature manifold prior for adversarial autoencoders used for graph data.
3 Methods
3.1 Variational autoencoders
Latentvariable models (LVMs), defined by
(1)
represent observable data through latent variables , which are based on hidden characteristics in .
The integral in Eq. (1) is usually intractable and has to be approximated through sampling [19, 15] or variational inference [22, 29]. In the latter case, the problem is rephrased as the maximisation of the evidence lower bound (ELBO):
(2)
where is the likelihood, the prior, and approximates the intractable posterior. The distribution parameters of and can be expressed by neural networks—the encoder and the decoder, which are parameterised through and , respectively. By this means we obtain a variational autoencoder (VAE) [22, 29].
3.2 Riemannian geometry in variational autoencoders
The Riemannian space is a differentiable manifold with an additional metric to describe its geometric properties. This enables assigning an inner product in the tangent space to each point
in the latent space through the corresponding metric tensor
:(4)
with and .
Treating the latent space of a VAE as a Riemannian manifold allows us to compute the observation space distance of latent variables. Assuming we have a trajectory in the Riemannian (latent) space that is transformed by a continuous function (decoder) to an dimensional Euclidean (observation) space. The length of this trajectory in the observation space, referred to as the Riemannian distance, is defined by
(5)
with the Riemannian velocity
(6)
where is the time derivative. The metric tensor is defined as , with as the Jacobian of the decoder. The trajectory which minimises the Riemannian distance is referred to as the geodesic.
3.3 Graphbased geodesics
Computing the geodesic is a challenging task, since Eq. (6
) has to be minimised. The main issue lies in the necessity to use the Hessian of the decoder during the optimisation process. It is a time consuming optimisation procedure, which scales poorly with the dimensionality of the observable and the latent space, and hence is not feasible for a lot of applications. In addition, the Hessian has limitations of the selection of the neural network’s activation functions
[2, 9]. To bypass the abovementioned hurdles we introduce a graphbased approach, where a discrete and finite graph is built in the latent space using a binary tree data structure, kd tree, with edge weights based on Riemannian distances. Once the graph has been built, geodesics can be approximated by applying a classic search algorithm, [13].3.3.1 Building the graph
The graph is structured as a kd tree, a special case of binary space partitioning trees, where each leaf node corresponds to a kdimensional vector.
The nodes of the graph are obtained by encoding the observable data into their latent representations . This is done by using the respective mean values of the approximate posterior . Each node is connected by a undirected edge to its knearest neighbours. The edge weights are Riemannian distances , where is the shortest Euclidean path between the related pair of nodes.
3.3.2 Approximating geodesics
A classic graphtraversing method to obtain the shortest path between nodes is search. It is an iterative algorithm that, given a graph , maintains a sorted list of nodes that can be visited in the current state. The list is typically initialised with the starting node and is being sorted according to the estimated cost of including node into the optimal path. The estimated cost is computed by
(7)
where is the cost of the path from the starting node to and
is a heuristic function that estimates the remaining cost from
to the target node .The cost function we use in our approach is the Riemannian distance between two subsequent nodes on the path, whereas the Euclidean distance is used as heuristic. , in order to operate, requires a heuristic function that underestimates the true cost. It can be shown that the proposed heuristic fulfills this requirement. The performance of the algorithm is optimal among any other similar algorithm to the number of nodes that are being expanded. When the target node is reached, the algorithm terminates.
The result is the shortest path through the graph regarding the Riemannian distance. This path approximates the geodesic well as shown in Section 4.
4 Results
We present an empirical evaluation of our graphbased approach for approximating geodesics in deep generative models. First, we compare the graphbased approximation to a neuronal network (NN)based method, that has been proposed in
[9]. We proceed by evaluating the our approach in high latentdimensional spaces on a synthetic dataset of pendulum images, fashion MNIST, chairs, faces and human motion datasets.We use the magnification factor () [6] to observe the generative models in 2D latent space and evaluate the approximated geodesic. The can be interpreted as the scaling factor when moving from the Riemannian (latent) to the Euclidean (observation) space, due to the change of variables.
4.1 Pendulum
The pendulum dataset contains pixel images of a simulated pendulum, used as input to our algorithm. We gathered an image dataset by collecting images for two different joint angle ranges, and degrees. Subsequently, we augmented the dataset by adding Gaussian noise to each pixel, to avoid overfitting and to improve the coherence of the latent space.
We present our results using and latent dimensions for the IWAE and used 15 samples for the importance weighting step. After training, points were chosen to build the graph. Each node had four nearest neighbours based on the distance in the latent space. We generated random pairs of data points, as show in Fig. 1, to compute the distances and the searching time. We show that with the increasing latent dimensionality, the search time does not increase, as it is dependent solely to the number of nodes.

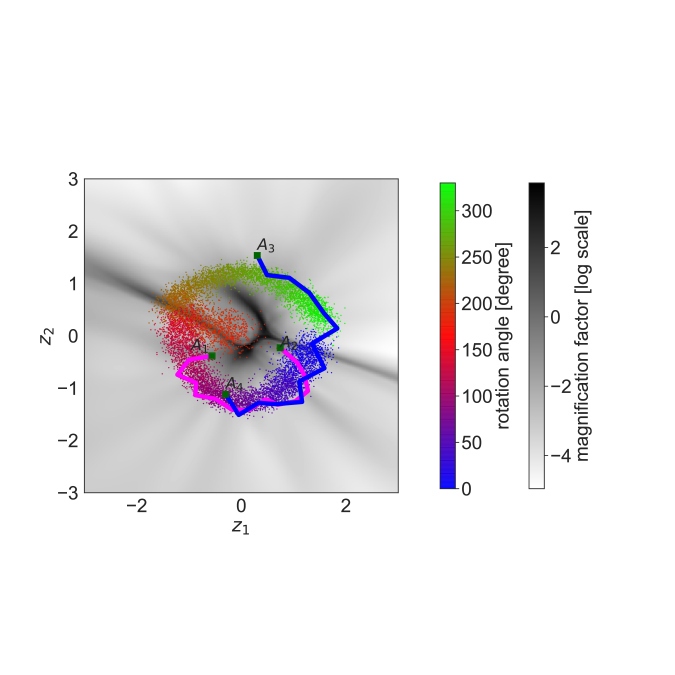

Two of the generated geodesic and Euclidean interpolant trajectories of two latent dimensions are illustrated in Fig. 2, with Fig. 3 showing their reconstructions using the decoder. For , our graphbased search finds a trajectory in the latent space which is significantly longer than a simple Euclidean interpolation. However, this is because at approximately halfway in the Euclidean interpolant path, there is a region of large magnification factor, and consequently large change in the visual output. This is shown in the 9th frame in Fig. 3 where, for the Euclidean version, two different pendulums appear at the same time. On the other hand, for the geodesic trajectory, the reconstruction appears smooth and physically plausible. moves across a boundary which has no training data. In this case, the geodesic cannot avoid a relative high , but it still has lower Riemannian velocity than that of Euclidean interpolation.
We compared our proposed method with the NNbased approach. Both the ODEbased [2] and the NNbased [10] methods require second derivatives to approximate the geodesic. The ODEbased method takes more time than the NNbased method, so we only used latter for this method comparison. Fig. 0(a) shows that the geodesic of both the NNbased and graphbased method are shorter than those of from the Euclidean interpolation. We can see from Fig. 0(b) that the searching time of the graphbased method is dramatically faster than that of the NNbased method. It took about 30 minutes for each graph with nodes. The graph building time is slightly different with different latent dimensions. We used the same model of 10 hidden layers with
activations for the decoder and sigmoid for the output layer. The only difference of the architecture is that the NNbased model requires a radial basis function (RBF) layer for the variance of the decoder. NNbased was evaluated using only two latent dimensions, as the computation time is large and the time increases significantly with increasing the number of latent dimensions.
4.2 Fashion MNIST
For the Fashion MNIST [35] evaluation, we used the standard training set, i.e.
pixel images, for fitting an IWAE consisting of eight 128neuron layers with ReLU activation
[16]. We use and latent dimensions for our evaluations. Additionally, standard augmentation strategies were used, e.g., horizontal flipping and jitter, and 20% dropout, to avoid overfitting.To generate the nodes of the geodesic graph, we used the validation dataset, encoded into the latent space. For each node, we selected the twentieth nearest data samples, based on a Euclidean distance. For each edge we calculated the velocity and geodesic of the trajectory, using fifteen interpolation points.

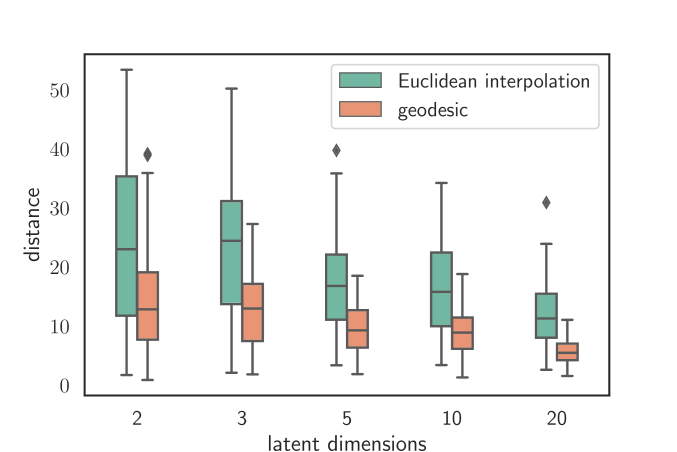

In Fig. 4 we randomly sampled trajectories between data points and calculated the geodesic and a distance based on Euclidean interpolation. The Euclideanbased trajectories result in consistently higher MF values, for all latent dimensions used. Therefore, the Euclideanbased trajectories cross more areas with high MF, resulting in fewer smooth transitions in the observational space. However, following the geodesic, smoothness is not guaranteed. There are cases where it is unavoidable for certain trajectories to cross an area of high magnification factor. Rather, following the geodesic can be interpreted as the minimisation of the overall Riemannian distance for a trajectory and it is expected that the MF will be lower than a simple Euclidean interpolation. Fig. 5 demonstrated this property on a 2D manifold, where the edges between data samples are lighter for lower magnification factors. The areas where the MF is high, the edges are darker even if the samples are adjacent in the observational space. In such situations, the graphbased approach will therefore produce a more complex trajectory, but with a lower MF.
Fig. 7 shows visual examples of such trajectories for Fashion MNIST. Image reconstructions are produced from the decoder of the VAE by moving through the latent space along the trajectory specified by either the geodesic or Euclidean interpolation. Transitions are smoother for the geodesic, with classes being blended more gradually both in terms of shape and greyscale values.
4.3 Chairs
For the chairs dataset [3], we split chair sequences 80/20 for training and validation, with 74400 and 11966 images respectively. We used a zoom factor of 1.3 and rescaled to pixels.
We generated the geodesic graph in exactly the same way as Fashion MNIST.

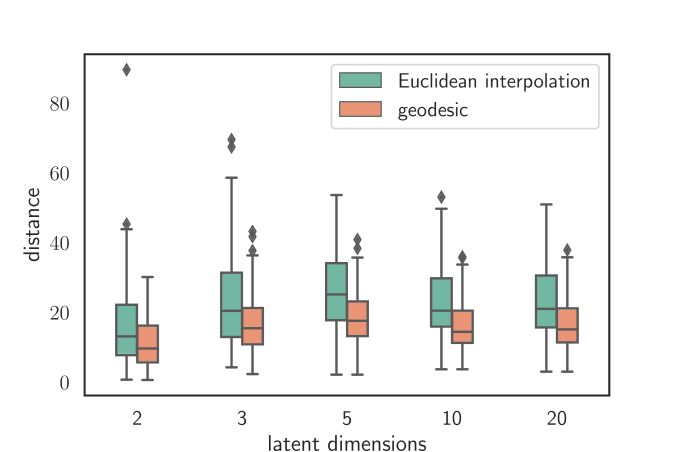

In Fig. 9, we can see Euclideanbased trajectories result in consistently higher MF values, for all latent dimensions used (2, 3, 5, 10, 20). Similarly to previous datasets, these were generated by randomly sampling 2000 trajectories.
4.4 Celebrity Faces
The CelebFaces Attributes Dataset [25] was separated with a typical 80/20 split for training and validation, rescaling the images to pixels and greyscale, using and images respectively. We generated the geodesic graph similarly to the Fashion MNIST and Chairs datasets.

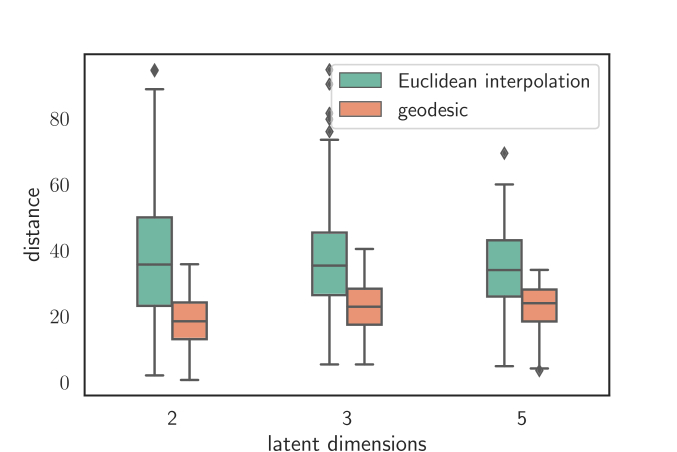

In Fig. 11 we present the Euclideanbased trajectories that result in consistently higher MF values, compared to the number of latent dimensions used. The distances where computed using randomly sampled trajectories, as in the evaluation using the Fashion MNIST dataset. Fig. 10 shows three sampled trajectories.

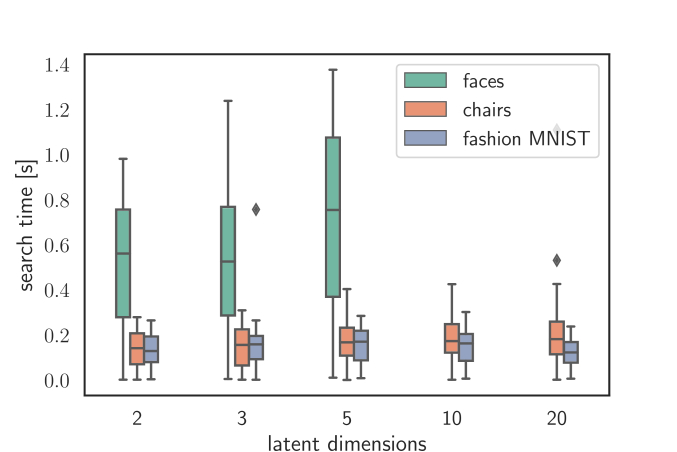

In Fig 12 we can see a difference in search time of geodesic paths for this dataset. This is because the graph contains significantly more nodes and edges, since we used the entire validation dataset. To minimise the computation time to build the graph and search, one can choose to subsample.
4.5 Human Motions
In addition to the evaluation using image data, we evaluated our approach on the CMU human motion dataset ^{1}^{1}1http://mocap.cs.cmu.edu/. The dataset includes various movements, where walking (subject 35), jogging (subject 35), balancing (subject 49), punching (subject 143) and waving (subject 143) were selected. The input data was a 50dimensional vector of the joint angles. In Fig. 13 we present the results with three latent dimensions. We observe that using the Euclidean interpolation the algorithm would generate trajectories crossing areas where the MF is high. However, using the geodesic the proposed approach is able to find similar gestures between the classes compared with the Euclidean interpolation. Interpolating between different classes of movement, the geodesic also generates abrupt movements as during training no data traversing between classes were provided.
5 Conclusion and future work
We have seen how the major computational demand of applying Riemannian geometry to deep generative models, that of a nonconvex optimisation problem, can be sidestepped by solving a related graphbased shortest path problem instead. After probing the method with a toy data set of which the true latent space is known, we have continued to a set of more extensive problems. Although the approach is only approximate, our experiments on a wide range of data sets show little loss in quality of interpolations while linear paths are consistently outperformed. The machinery paves the way towards the application of Riemannian geometry to more applied problems requiring the expressivity of deep generative models and the robustness of distance based approaches.
Further research in this topic can be how to efficiently choose the nodes such as using sigma points of unscented transform.
