1. Introduction

Software bugs are inevitable in modern software systems, costing trillions of dollars in financial loss and affecting billions of people (Boulder, 2013). Meanwhile, software debugging can be extremely challenging and costly, consuming over half of the software development time and resources (Software, 2016). Therefore, a large body of research efforts have been dedicated to automated debugging techniques (Wong et al., 2016; Monperrus, 2018a; Gazzola et al., 2017). Among the existing debugging techniques, automated program repair (Goues et al., 2019) (APR) techniques hold the promise of reducing debugging effort by suggesting likely patches for buggy programs with minimal human intervention, and have been extensively studied in the recent decade. Please refer to the recent surveys on APR for more details (Monperrus, 2018a; Gazzola et al., 2017).

Generate-and-validate (G&V) APR refers to a practical category of APR techniques that attempt to fix the bugs by first generating a pool of patches and then validating the patches via certain rules and/or checks (Gazzola et al., 2017). A patch is said to be plausible if it passes all the checks. Ideally, we would apply formal verification (Nielson and Nielson, 2019) techniques to guarantee correctness of generated patches. However, in practice, formal specifications are often unavailable for real-world projects, thus making formal verification infeasible. In contrast, testing is the prevalent, economic methodology of getting more confidence about the quality of software (Ammann and Offutt, 2016). Therefore, the vast majority of recent G&V APR techniques leverage developer tests as the criteria for checking correctness of the generated patches (Gazzola et al., 2017), i.e., test-based G&V APR.

Two main costs are associated with such test-based G&V APR techniques: (1) the cost of manipulating the program code to fabricate/generate a patch based on certain transformation rules; (2) repeated executions of all the developer tests to identify plausible patches for the bugs under fixing. Since the search space for APR is infinite and it is impossible to triage the elements of this search space due to theoretical limits, test-based G&V APR techniques usually lack clear guidance and act almost in a brute-force fashion: they usually generate a huge pool of patches to be validated and the larger the program the larger the set of patches to be generated and validated. This suggests that the speed of patch generation and validation plays a key role in scalability of the APR techniques, which is one of the most important challenges in designing practical APR techniques (D Le, 2018). Therefore, apart from introducing new, more effective, transformation rules, some APR techniques have been proposed to mitigate the aforementioned costs. For example, JAID (Chen et al., 2017) uses mutation schema to fabricate meta-programs that bundle multiple patches in a single source file, while SketchFix (Hua et al., 2018) uses sketches (Lezama, 2008) to achieve a similar effect. However, such techniques mainly aim to speed up the patch generation time, while patch validation time has been shown to be dominant during APR (Mehne et al., 2018). Most recently, PraPR (Ghanbari et al., 2019) aims to reduce both patch generation and validation time – it reduces the cost of patch generation by modifying program code directly at the level of compiled JVM bytecode, and reduces the cost of patch validation by avoiding expensive process creation/initialization via reusing Java Virtual Machine (JVM) sessions across patches.

We have empirical evidence that shows the optimizations offered by state-of-the-art APR tools make patch generation and validation much faster than before. However, compared to other techniques, the speed-up due to PraPR is huge (e.g. it is 90+X faster than SketchFix). A careful analysis of the architecture of PraPR reveals that this remarkable speed-up is not just because of the way it generates patches, but is also because the tool is using the HotSwap technique (Corporation, 2020) to validate all the generated patches on-the-fly on the same JVM instead of creating a separate JVM process for each patch. This turns out to be a dominant factor. Process creation overhead in systems like JVM is especially pronounced as virtually all the optimization tasks, as well as Just-In-Time (JIT) compilation (Aho et al., 2006), are done at runtime. Therefore, compared to natively executed programs, JVM-based programs are expected to take relatively longer time to warm up. Furthermore, during APR, a similar set of used bytecode files are loaded, linked, and initialized again and again for each patch. This suggests repeated executions of patches in separate processes (which is the dominant approach in mainstream APR techniques) for JVM-based based languages waste a significant amount of time that could be otherwise spent on applying more sophisticated patch generation rules or exploring more of the search space.

PraPR, although is effective, suffers from two major problems: (1) it is not flexible due to its bytecode-level nature; and (2) it is unsafe as it might report unsound/imprecise patch validation results. The first problem is best illustrated by inserting a factor in an arithmetic expression. For example, mutating a*b+(a-b) to a*b+(a*c-b) turns out to be a non-trivial program analysis task at the bytecode level. This is because Java compiler might reorder the bytecode instructions based on the priority of arithmetic operators or avoid repeated memory accesses when the variables a and b are declared final by doing simple optimization of loading the variables once and duplicating their values on the JVM stack. Either of these optimizations would make the such a program transformation hard to implement efficiently as locating the right place for inserting the instructions corresponding to the second multiplication is hard. Apparently this task would be trivial if we had modified the program at the level of source code by manipulating Abstract Syntax Trees (ASTs) of the programs. Also, it has been widely recognized as notoriously challenging to perform large-scale changes at the bytecode level, making the set of bugs fixable by PraPR rather limited. The second problem is that the global JVM state may be polluted by earlier patch executions, making later patch execution results unreliable. For example, some patches may modify some static fields, which are used by some later patches sharing the same JVM. Note that although the original PraPR work does not have such imprecision issue due to the specific limited types of patches supported (by bytecode APR), we do find instances of such imprecision in our study (detailed shown in Section 5.1.2).

Motivated by the strengths and weaknesses of PraPR, in this paper, we propose a unified test-based patch validation framework, named UniAPR, that reduces the cost of patch validation by avoiding unnecessary restarts of JVM for all existing bytecode or sourcode-level APR techniques. UniAPR achieves this by using a single JVM for patch validation, as much as possible, and depends on JVM’s dynamic class redefinition feature (a.k.a. the HotSwap mechanism and Java Agent technology) to only reload the patched bytecode classes on-the-fly for each patch. Furthermore, it also addresses the imprecision problem of PraPR by isolating patch executions via resetting JVM states after each patch execution via runtime bytecode transformation. In this way, UniAPR not only substantially speeds up all state-of-the-art APR techniques at the source-code level (enabling them to explore larger search space to fix more bugs in the near future), but also provides a natural framework to enable hybrid APR to combine the strengths of various APR techniques at both the source-code and bytecode levels.

UniAPR has been implemented as a fully automated Maven (Foundation, 2020) plugin, to which almost all existing state-of-the-art Java APR tools can be attached in the form of patch generation add-ons. We have constructed add-ons for representative APR tools from different APR families. Specifically, we have constructed add-ons for CapGen (Wen et al., 2018), SimFix (Jiang et al., 2018), and ACS (Xiong et al., 2017) that are modern representatives of template-/pattern-based (Le Goues et al., 2012; Debroy and Wong, 2010; Le et al., 2016)

, heuristic-based

(Barr et al., 2014), and constraint-based (Xuan et al., 2017; Nguyen et al., 2013) techniques. With these techniques, we have conducted the first extensive study of on-the-fly validation of patches generated at the source code level. Our experiments show that UniAPR can speed up state-of-the-art APR systems (i.e., CapGen, SimFix, and ACS) by over an order of magnitude without incurring any imprecision in patch validation, enabling all existing APR techniques to explore a larger search space to fix more bugs in the near future.

We envision a future wherein all existing APR tools (like SimFix (Jiang et al., 2018), CapGen (Wen et al., 2018), and ACS (Xiong et al., 2017)) and major APR frameworks (like ASTOR (Martinez and Monperrus, 2016) and Repairnator (Monperrus et al., 2019)) are leveraging this framework for patch validation. In this way, researchers will need only to focus on devising more effective algorithms for better exploring the patch search space, rather than spending time on developing their own components for patch validation, as we can have a unified, generic, and much faster framework for all. Furthermore, our UniAPR directly enables hybrid source and bytecode APR to fix substantially more bugs than all state-of-the-art APR techniques (under the same time limit) in the near future.

In summary, this paper makes the following contributions:

  • Framework. We introduce the first unified on-the-fly patch validation framework, UniAPR, to speed up APR techniques for JVM-based languages at both the source and bytecode levels.

  • Technique. We show the first empirical evidence that on-the-fly patch validation can be imprecise/unsound, and introduce a new technique to reset the JVM state right after each patch execution to address such issue.

  • Implementation. We have implemented on-the-fly patch validation based on the JVM HotSwap mechanism and Java Agent technology (Corporation, 2020), and implemented the JVM-reset technique based on the ASM bytecode manipulation framework (Objectweb, 2020); the overall UniAPR tool has been implemented as a practical Maven plugin, and can accept different APR techniques as patch generation add-ons to reduce their patch validation cost.

  • Study. We conduct a large-scale study of the effectiveness of UniAPR on its interaction with state-of-the-art APR tools from three different APR families, demonstrating that UniAPR can speed up state-of-the-art APR by over an order of magnitude (with precise validation results), and can enable hybrid APR to directly combine the strengths of different APR tools.

The rest of this paper is organized as follows. We introduce the necessary background information in Section 2. In Section 3, we introduce the details of the proposed UniAPR technique. Next, we present our experimental setup and result analysis in Section 4 and Section 5. Finally we discuss related work in Section 6 before we conclude the paper in Section 7.

2. Background

In this section, we set the scene by introducing some background for better understanding this work. More specifically, we first talk about the current status of automated program repair (Section 2.1); then, we talk about Java Agent and HotSwap, on which our UniAPR work is built on (Section 2.2).

2.1. Automatic Program Repair

Automatic program repair (APR) aims to suggest likely patches for buggy programs to reduce the manual effort during debugging. Based on the actions taken for fixing a bug, state-of-the-art APR techniques can be divided into: (1) techniques that monitor the execution of a system to find deviations from certain specifications, and then heal the system by modifying its runtime state in case of any abnormal behavior (Perkins et al., 2009; Long et al., 2014); (2) generate-and-validate (G&V) techniques that attempt to fix the bug by first generating a pool of patches and validating the patches via certain rules and/or checks (Le Goues et al., 2012; Nguyen et al., 2013; Wen et al., 2018; Ghanbari et al., 2019; Jiang et al., 2018; Martinez and Monperrus, 2016). Generated patches that can pass all the tests/checks are called plausible patches. However, not all plausible patches are the patches that the developers want. Therefore, these plausible patches are further manually checked by the developers to find the final correct patches (i.e., the patches semantically equivalent to developer patches). Among these, G&V techniques, especially those based on tests, have gained popularity as testing is the dominant way for detecting bugs in practice, while very few real-world systems are based on rigorous and up-to-date formal specifications.

In recent years, a large number of APR-related research papers have been published in different software engineering and programming languages conferences and journals (Gazzola et al., 2017; Monperrus, 2018a). These papers either introduce new techniques for generating high quality patches or study different aspects of already introduced techniques. Recently, Ghanbari et al. (Ghanbari et al., 2019) showed for the first time that the sheer speed of patch generation and validation gives an otherwise simplistic template-/pattern-based technique like PraPR a discrete advantage, in that it allows the tool to explore more of the entire search space in an affordable amount of time. The explored search space is more likely to contain plausible and hence correct patches.

The speed of patch generation and validation in PraPR comes from on-the-fly patch generation which is possible due to two features: (1) bytecode-level patch generation; (2) on-the-fly patch validation based on dynamic class redefinition. PraPR generates patches by directly modifying programs at the level of compiled JVM bytecode (Lindholm et al., 2017). This allows the tool to bypass expensive tasks of parsing and modifying ASTs, as well as type checking and compilation (which itself is preceded by several undoubtedly expensive accesses to secondary memory). Furthermore, the tool also avoids starting a new JVM session for validating each and every one of the patches. Instead, it creates a single JVM process and leverages the Java Agent technology and HotSwap mechanism offered by JVM to reload only the patched bytecode files for each patch without restarting the JVM. In this way, PraPR not only can avoid reloading (also including linking and initializing) all used classes for each patch (i.e., only the patched bytecode file(s) needs to be reloaded for each patch), but also can avoid the unnecessary JVM warm-up time (i.e., the accumulated JVM profiling information cross patches enables more and more code to be JIT-optimized and the already JIT-optimized code can also be shared across patches). In this paper, we further generalize the PraPR on-the-fly patching to all existing APR systems (whereas prior work only applied it for bytecode APR (Ghanbari et al., 2019)), and also address the unsoundness/imprecision issues for such optimization.

2.2. Java Agent and HotSwap

A Java Agent (Corporation, 2020) is a compiled Java program (in the form of a JAR file) that runs alongside of the JVM in order to intercept applications running on the JVM and modify their bytecode. Java Agent utilizes the instrumentation API (Corporation, 2020) provided by Java Development Kit (JDK) to modify existing bytecode that is loaded in the JVM. In general, developers can both (1) statically load a Java Agent using -javaagent parameter at JVM startup, and (2) dynamically load a Java Agent into an existing running JVM using the Java Attach API. For example, to load it statically, the manifest of the JAR file containing Java Agent must contain a field Premain-Class to specify the name of the class defining premain method. Such a class is usually referred to as an Agent class. Agent class is loaded before any class in the application class is loaded and the premain method is called before the main method of the application class is invoked. The method premain usually has the following signature:

public static void premain(String agentArgs, Instrumentation inst)

The second parameter is an object of type Instrumentation created by the JVM that allows the Java Agent to analyze or modify the classes loaded by the JVM (or those that are already loaded) before executing them. Specifically, the method redefineClasses of Instrumentation, given a class definition (which is essentially a class name paired with its “new” bytecode content), even enables dynamically updating the definition of the specified class, i.e., directly replacing certain bytecode file(s) with the new one(s) during JVM runtime. This is typically denoted as the JVM HotSwap mechanism. It is worth mentioning that almost all modern implementations of JVM (especially, so-called HotSpot JVMs) have these features implemented in them.

By obtaining Instrumentation object, we have a powerful tool using which we can implement a HotSwap Agent. As the name suggests, HotSwap Agent is a Java Agent and is intended to be executed alongside the patch validation process to dynamically reload patched bytecode file(s) for each patch. In order to test a generated patch during APR, we can pass the patched bytecode file(s) of the patch to the agent, which swaps it with the original bytecode file(s) of the corresponding class(es). Then, we can continue to run tests which results in executing the patched class(es), i.e., validating the corresponding patch. Note that subsequent requests to HotSwap Agent for later patch executions on the same JVM are always preceded by replacing previously patched class(es) with its original version. In this way, we can validate all patches (no matter generated by source-code or bytecode APR) on-the-fly sharing the same JVM for much faster patch validation.

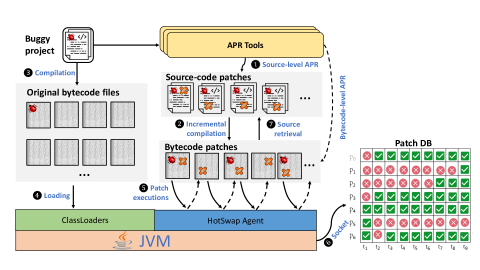

Figure 1. An architectural overview of UniAPR and its workflow

3. Approach

In this section, we first talk about the overall approach for our UniAPR system (Section 3.1). Then, we will talk about our detailed design for fast patch validation via on-the-fly patching (Section 3.2) as well as precise patch validation via JVM reset (Section 3.3).

3.1. Overview

Figure 1 depicts an the overall flow of our UniAPR framework. According to the figure, given a buggy project, UniAPR first leverages any of the existing APR tools (integrated as UniAPR add-ons) to generate source-code level patches (marked with ❶). Then, UniAPR performs incremental compilation to compile the patched source file(s) by each patch into bytecode file(s) (marked with ❷). Note that, UniAPR is a unified framework and can also directly take the bytecode patches generated by the PraPR (and future) bytecode APR technique (marked with the dashed line directly connecting APR tools into bytecode patches). In this way, UniAPR has a pool of bytecode patches for patch validation.

During the actual patch validation, UniAPR first compiles the entire buggy project into bytecode files (i.e., .class files), and then loads all the bytecode files into the JVM through JVM class loaders (marked with ❸ and ❹ in the figure). Note that these two steps are exactly the same as executing the original tests for the buggy project. Since all the bytecode files for the original project are loaded within the JVM, for validating each patch, UniAPR only reloads the patched bytecode file(s) by that particular patch via the Java Agent technology and HotSpot mechanism, marked with ❺ (as the other unpatched bytecode files are already within the JVM). Then, the test driver can be triggered to execute the tests to validate against the patch without restarting a new JVM. After all tests are done for this patch execution, UniAPR will replace the patched bytecode file(s) with the original one(s) to revert to the original version. Furthermore, UniAPR also resets the global JVM states to prepare a clean JVM environment for the next patch execution (marked with the short dashed lines). The same process is repeated for each patch. Finally, the patch validation results will be stored into the patch execution database via socket connections (marked with ❻). Note that for any plausible patch that can pass all the tests, UniAPR will directly retrieve the original source-level patch for manual inspection (marked with ❼) in case the patch was generated by source-level APR.

We have already constructed add-ons for three different APR tool representing three different families of APR techniques. These add-ons include CapGen (Wen et al., 2018) (representing pattern/template-based APR techniques), SimFix (Jiang et al., 2018) (representing heuristic-based techniques), and ACS (Xiong et al., 2017) (representing constraint-based techniques). Users of UniAPR can easily build a new patch generation add-on by implementing the interface PatchGenerationPlugin provided by the framework. For already implemented APR tools, this can be easily done by changing their source code so that the tools abandon validation of patches after generating and compiling them.

3.2. Fast Patch Validation via On-the-fly Patching

Algorithm 1 is a simplified description of the steps that vanilla UniAPR (without JVM-reset) takes in order to validate candidates patches on-the-fly. The algorithm takes as inputs the original buggy program , its test suite , and the set of candidate patches generated by any APR technique. The output is a map, , that maps each patch into its corresponding execution result. The overall UniAPR algorithm is rather simple. UniAPR first initializes all patch execution results as unknown (Line 2). Then, UniAPR gets into the loop body and obtains the set of patches still with unknown execution results (Line 4). If there is no such patches, the algorithm simply returns since all the patches have been validated. Otherwise, it means this is the first iteration or the earlier JVM process gets terminated abnormally (e.g., due to timeout or JVM crash). In either case, UniAPR will create a new JVM process (Line 7) and start to evaluate the remaining patches in this new JVM (Line 8).

We next talk about the detailed validate function, which takes the remaining patches, the original test suite, and a new JVM as input. For each remaining patch , the function first obtains the patched class name(s) and patched bytecode file(s) within (Lines 11 and 12). Then, the function leverages our HotSwap Agent to replace the bytecode file(s) under the same class name(s) as with the patched bytecode file(s) ; it also stores the replaced bytecode file(s) as to recover it later (Line 13). Note that our implementation will explicitly load the corresponding class(es) to patch (e.g., via Class.forName()) if they are not yet available before swapping. In this way, the function can now execute the tests within this JVM to validate the current patch since the patched bytecode file(s) has already been loaded (Lines 14-26). If the execution for a test finishes normally, its status will be marked as Plausible or Non-Plausible (Lines 16-19); otherwise, the status will be marked as Error, e.g., due to timeout or JVM crash (Lines 20-21). Then, ’s status will be updated in (Line 22). If the current status is Non-Plausible, the function will abort the remaining test executions for the current patch since it has been falsified, and move on to the next patch (Line 24); if the current status is Error, the function will return to the main algorithm (Line 26), which will restart the JVM. When the validation for the current patch finishes without the Error status, the function will also recover the patched bytecode file(s) into the original one(s) to facilitate the next patch validation (Line 27).

Input: Original buggy program , test suite , and set of candidate patches
Output: Validation status
1 begin
          // initialize the result function
2          while  do
                   // get all the left patches not yet validated
3                   if  then
                            return // return if there is no left patches
                  // create a new JVM
                   // validate the left patches on the new JVM
8function :
9          for  in  do
                   // Swap in the patched bytecode files
12                   for  in  do
13                            try :
14                                     if run() = FAILING then
16                                     else
19                           catch TimeOutException, MemoryError:
22                            if  = NON-PLAUSIBLE then
                                     break // continue with the next patch when current one is falsified
24                           if  = ERROR then
                                     return // restart a new JVM when this current one timed out or crashed
                  // Swap back the original bytecode files
Algorithm 1 Vanilla on-the-fly patch validation in UniAPR

3.3. Precise Patch Validation via JVM Reset

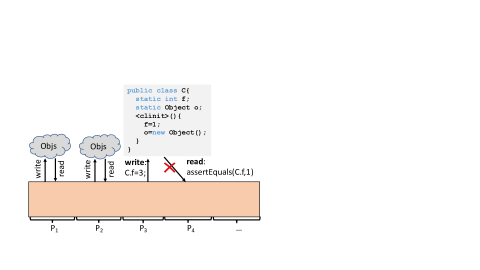

Figure 2. Imprecision under vanilla on-the-fly patch validation

3.3.1. Limitations for vanilla on-the-fly patch validation

The vanilla on-the-fly patch validation presented in Section 3.2 works for most patches of most buggy projects. The basic process can be illustrated via Figure 2. In the figure, each patch (e.g., from to ) gets executed sequentially on the same JVM. It would be okay if every patch accesses and modifies the objects created by itself, e.g., and will not affect each other and the vanilla on-the-fly patch validation results for and will be the same as the ground-truth patch validation results. However, it will be problematic if one patch writes to some global space (e.g., static fields) and later on some other patch(es) reads from that global space. In this way, earlier patch executions will affect later patch executions, and we call such global space pollution sites. To illustrate, in Figure 2, write to some static field C.f, which is later on accessed by . Due to the existence of such pollution site, the execution results for will no longer be precise, e.g., its assertion will now fail since C.f is no longer 1, although it may be a correct patch.

3.3.2. Technical challenges

We observe that accesses to static class fields are the main reason leading to imprecise on-the-fly patch validation. Ideally, we only need to reset the values for the static fields that may serve as pollution sites right after each patch execution. In this way, we can always have a clean JVM state to perform patch execution without restarting the JVM for each patch. However, it turns out to be a rather challenging task:

public class TestYearMonthDay_Constructors extends TestCase {
    private static final DateTimeZone PARIS = DateTimeZone.forID("Europe/Paris");
    private static final DateTimeZone LONDON = DateTimeZone.forID("Europe/London");
    private static final Chronology GREGORIAN_PARIS =
Figure 3. Static field dependency

First, we cannot simply reset the static fields that can serve as pollution sites. The reason is that some static fields are final and cannot be reset directly. Furthermore, static fields may also be data-dependent on each other; thus, we have to carefully maintain their original ordering, since otherwise the program semantics may be changed. For example, shown in Figure 3, final field GREGORIAN_PARIS is data-dependent on another final field, PARIS under the same class within project Joda-Time (JodaOrg, 2020) from the widely studied Defects4J dataset (Just et al., 2014). The easiest way to keep such ordering and reset final fields is to simply re-invoke the original class initializer for the enclosing class. However, according to the JVM specification, only JVM can invoke such static class initializers.

public class TestDateTime_Basics extends TestCase {
    private static final ISOChronology ISO_UTC = ISOChronology.getInstanceUTC();
public final class ISOChronology extends AssembledChronology {
    private static final ISOChronology[] cFastCache;
    static {
        cFastCache = new ISOChronology[FAST_CACHE_SIZE];
        INSTANCE_UTC = new ISOChronology(GregorianChronology.getInstanceUTC());
        cCache.put(DateTimeZone.UTC, INSTANCE_UTC);
Figure 4. Static initializer dependency

Second, simply invoking the class initializers for all classes with pollution sites may not work. A naive way to reset the pollution sites is to simply trace the classes with pollution sites executed during each patch execution; then, we can simply force JVM to invoke the class initializers for all those classes after each patch execution. However, it can bring side effects in practice because the class initializers may also depend on each other. For example, shown in Figure 4, within Joda-Time, the static initializer of class TestDateTime_Basics depends on the static initializer of ISOChronology. If TestDateTime_Basics is reinitialized earlier than ISOChronology, then field ISO_UTC will no longer be matched with the newest ISOChronology state. Therefore, we have to reinitialize all such classes following their original ordering if they had been executed on a new JVM.

Third, based on the above analysis, we basically have two choices to implement such system: (1) customizing the underlying JVM implementation, and (2) simulating the JVM customizations at the application level. Although it would be easier to directly customize the underlying JVM implementation, the system implementation will not be applicable for other stock JVM implementations. That said, we are only left with way of simulating the JVM customizations at the application level.

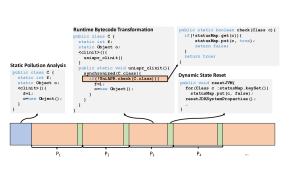

Figure 5. On-the-fly patch validation via JVM reset

3.3.3. JVM reset via bytecode transformation

We now present our detailed approach for resetting JVM at the the application level. Inspired by prior work on speeding up traditional regression testing (Bell and Kaiser, 2014), we perform runtime bytecode transformation to simulate JVM class initializations. The overall approach is illustrated in Figure 5. We next present the detailed three phases as follows.

Static Pollution Analysis. Before all the patch executions, our approach performs lightweight static analysis to identify all the pollution sites within the bytecode files of all classes for the project under repair, including all the application code and 3rd-party library code. Note that we do not have to analyze the JDK library code since JDK usually provides public APIs to reset the pollution sites within the JDK, e.g., System.setProperties(null) can be used to reset any prior system properties and System.setSecurityManager(null) can be leveraged to reset prior security manager. The analysis basically returns all classes with non-final static fields or final static fields with non-primitive types (their actual object states in the heap can be changed although their actual references cannot be changed), since the states for all such static fields can be changed across patches. Shown in Figure 5, the blue block denotes our static analysis, and class C is identified since it has static fields f and o that can be mutated during patch execution.

C1 T is a class and an instance of T is created
C2 T is a class and a static method declared by T is invoked.
C3 A static field declared by T is assigned
C4 A static field declared by T is used and the field is not a constant variable
C5 T is a top level class, and an assert statement lexically nested within T is executed
Table 1. Class initialization conditions

Runtime Bytecode Transformation. According to Java Language Specification (JSL) (Oracle, 2020), static class initializers get invoked when any of the five conditions shown in Table 1 gets satisfied. Therefore, the ideal way to reinitialize the classes with pollution sites is to simply follow the JSL design. To this end, we perform runtime bytecode transformation to add class initializations right before any instance that falls in to the five conditions shown in Table 1. Note that our actual implementation also handles the non-conventional Reflection-based accesses to all potential pollution sites within classes. Since JVM does not allow class initialization at the application level, following prior work (Bell and Kaiser, 2014) on speeding up normal test executions during regression testing, we rename the original class initializers (i.e., <clinit>()) to be invoked into another customizable name (say uniapr_clinit()). Meanwhile, we still keep the original <clinit>() initializers since JVM needs that for the initial invocation; however, now <clinit>() initializers do not need to have any content except an invocation to the new uniapr_clinit(). Note that we also remove potential final modifiers for pollution sites during bytecode transformation to enable reinitializations of final non-primitive static fields. Since this is done at the bytecode level after compilation, the original compiler will still ensure that such final fields cannot be changed during the actual compilation phase.

Now, we will be able to reinitialize classes via invoking the corresponding uniapr_clinit() methods. However, JVM only initializes the same class once within the same JVM, while now uniapr_clinit() will be executed for each instance satisfying the five conditions in Table 1. Therefore, we need to add the dynamic check to ensure that each class only get (re)initialized once for each patch execution. Shown in Figure 5, the pink blocks denote the different patch executions. During each patch execution, the classes with pollution sites will be transformed at runtime, e.g., class C will be transformed into the code block connected with the patch execution. Note that the pink code block denotes the dynamic check to ensure that C is only initialized once for each patch111Note that this pseudo code is just for illustration, and our actual implementation manipulates arrays for faster and safe tracking/check.. The pseudo code for the dynamic check is shown in the top-left of the figure. We can see that the check maintains a concurrent HashMap for the classes with pollution sites and their status (true means the corresponding class has been reinitialized). The entire initialization is also synchronized based on the class object to handle concurrent accesses to class initializers; in fact, JVM also leverages a similar mechanism to avoid class reinitializations due to concurrency (despite implementing that at a different level). In this way, when the first request for initializing class C arrives, all the other requests will be blocked. If the class has not been initialized, then only the current access will get the return value of false to reinitialize C, while all other other requests will get the return value of true and skip the static class initialization. Furthermore, the static class initializers get invoked following the same order as if they were invoked in a new JVM.

Dynamic State Reset. After each patch execution, our approach will reset the state for the classes within the status HashMap. In this way, during the next patch execution, all the used classes within the HashMap will be reinitialized (following the check in Figure 5). Note that besides the application and 3rd-party classes, the JDK classes themselves may also have pollution sites. Luckily, JDK provides such common APIs to reset such pollution sites without the actual bytecode transformation. In this way, our implementation also invokes such APIs to reset potential JDK pollution sites. Please also note that our system provides a public interface for the users to customize the reset content for different projects under repair. For example, some projects may require preparing specific external resources for each patch execution, which can be easily added to our public interface. In Figure 5, the green strips denote the dynamic state reset, and the example reset code connected to simply resets the status for all classes within the status map as false and also resets potential JDK pollution sites within classes.

4. Experimental Setup

4.1. Research Questions

To thoroughly evaluate our UniAPR framework, in this study, we aim to investigate the following research questions:

  • RQ1: How does vanilla on-the-fly patch validation perform for automated program repair?

  • RQ2: How does on-the-fly patch validation with jvm-reset perform for automated program repair?

For both RQs, we study both the effectiveness of UniAPR in reducing the patch validation cost, and the precision of UniAPR in producing precise patch validation results.

4.2. Benchmarks

Sub. Name #Bugs #Tests LoC
Chart JFreeChart 26 2,205 96K
Time Joda-Time 27 4,130 28K
Lang Apache commons-lang 65 2,245 22K
Math Apache commons-math 106 3,602 85K
Closure Google Closure compiler 133 7,927 90K
Total 357 20,109 321K
Table 2. Defects4J V1.0.0 statistics

The benchmark suites are important for evaluating APR techniques. We choose the Defects4J (V1.0.0) benchmark suite (Just et al., 2014), since it contains hundreds of real-world bugs from real-world systems, and has become the most widely studied dataset for program repair or even software debugging in general (Ghanbari et al., 2019; Jiang et al., 2018; Wen et al., 2018; Li et al., 2019). Table 2 presents the statistics for the Defects4J dataset. Column “Sub.” presents the project IDs within Defects4J, while Column “Name” presents the actual project names. Column “#Bugs” presents the number of bugs collected from real-world software development for each project, while Columns “#Tests” and “LoC” present the number of tests (i.e., JUnit test methods) and the lines of code for the HEAD buggy version of each project.

4.3. Studied Repair Tools

Being a well-developed field, APR offers us a cornucopia of choices to select from. According to a recent study (Liu et al., 2020), there are 31 APR tools targeting Java programs considering two popular sources of information to identify Java APR tools: the community-led website and the living review of APR by Monperrus (Monperrus, 2018b). 17 of those Java APR tools are found to be publicly available and applicable to the widely used Defects4J benchmark suite (without additional manually collected information, e.g., potential bug locations) as of July 2019. Note that all such tools are source-level APR, since the only bytecode-level APR tool PraPR was only available after July 2019. Table 3 presents all such existing Java-based APR tools, which can be categorized into three main categories according to prior work (Liu et al., 2020): heuristic-based (Le Goues et al., 2012; Jiang et al., 2018; Liu and Zhong, 2018), constraint-based (Xuan et al., 2017; Durieux and Monperrus, 2016), and template-based (Liu et al., 2019; Wen et al., 2018) repair techniques. In this work, we aims to speed up all existing source-level APR techniques via on-the-fly patch validation. Therefore, we select one representative APR tool from each of the three categories for our evaluation to demonstrate the general applicability of our UniAPR framework. All the three considered APR tools, i.e., ACS (Xiong et al., 2017), SimFix (Jiang et al., 2018), and CapGen (Wen et al., 2018) are highlighted in bold font in the table. For each of the selected tools, we evaluate them on all the bugs that have been reported as fixed (with correct patches) by their original papers to evaluate: (1) UniAPR effectiveness, i.e., how much speedup UniAPR can achieve on those tools, and (2) UniAPR precision, i.e., whether the previously fixed bugs are still fixed when running with UniAPR.

Tool Category Tools
Constraint-based ACS, Nopol, Cardumen, Dynamoth
Heuristic-based SimFix, Arja, GenProg-A, jGenProg, jKali, jMutRepair, Kali-A, RSRepair-A
Template-based CapGen, TBar, AVATAR, FixMiner, kPar
Table 3. Available Java APR tools for Defects4J

4.4. Implementation

Figure 6. UniAPR POM configuration

UniAPR has been implemented as a fully automated Maven Plugin, on which one can easily integrate any patch generation add-ons. The current implementation involves over 10K lines of Java code. As a Maven plugin, the users simply need to add the necessary plugin information into the POM file. The plugin information can be as simple as shown in Figure 6. In this way, once the users fire command mvn [anonymized-groupId]:prf-plugin:validate, the plugin will automatically obtain all the necessary information for patch validation. It will automatically obtain the test code, source code, and 3-rd party libraries from the underlying POM file for the actual test execution. Furthermore, it will automatically load all the patches from the default patches-pool directory (note that the patch directory name and patch can be configured through POM as well) created by the APR add-ons for patch validation. The APR add-ons are constructed by modifying the behavior of the studied APR tools (either through direct modification of the source code or via inheritance and/or decoration when the source code is not available) to not to perform patch validation after generating and/or compiling the patches. UniAPR assumes the patch directory generated by the APR add-ons to include all available patches represented by their patched bytecode files. Note that, each patch may involve more than one patched bytecode file, e.g., some APR tools (such as SimFix (Jiang et al., 2018)) can fix bugs with multiple edits.

During patch validation, our system marks the status of all the patches to UNKNOWN. It forks a JVM and passes all the information about the test suites and the subject programs to the child process. The process runs tests on each patch and reporting their status. Note that following the common practice in APR and the original setting of the studied APR tools (Jiang et al., 2018; Xiong et al., 2017; Wen et al., 2018)

, the process always runs the originally failing tests earlier than the originally passing tests for each patch. The reason is that the originally failing tests have a high probability to fail again and can falsify non-plausible patches faster. The execution results can be either of the following:

PLAUSIBLE if the patch passes all the tests, NON-PLAUSIBLE if the the patch fails to pass a test, TIME_OUT if the patch times out on some test, MEMORY_ERROR if the patch runs out of heap space, and UNKNOWN_ERROR if testing the patch makes the child JVM to crash. We use TCP Socket Connections as a means of communication between processes. UniAPR repeats this process of forking and receiving report results until all the patches are executed. It is worth noting that it is very well possible to fork two or more processes to take maximum advantage of today’s powerful computers’ potentials. However, for a fair comparison with existing work, we always ensure that only one JVM is running patch validation at any given time stamp.

4.5. Experimental Setup

For each of the studied APR tools, we perform the following experiments on all the bugs that have been reported as fixed in their original papers. First, we execute the original APR tools to trace their original patch validation time and detailed repair results (e.g., the number of patches executed and plausible patches produced). Next, we modify the studied tools and make them conform to UniAPR add-on interfaces, i.e., dumping all the generated patches into the patch directory format required by UniAPR. Then, we launch our UniAPR to validate all the patches generated by each of the studied APR tools, and trace the new patch validation time and detailed repair results.

To evaluate our UniAPR system, we include the following metrics: (1) the speedup compared with the original patch validation time, measuring the effectiveness of UniAPR, and (2) the repair results compared with the original patch validation, measuring the precision of our patch validation (i.e., checking whether UniAPR fails to fix any bugs that can be fixed via traditional patch validation).

All our experimentation is done on a Dell workstation with Intel Xeon CPU E5-2697 v4@2.30GHz and 98GB RAM, running Ubuntu 16.04.4 LTS and Oracle Java 64-Bit Server version 1.7.0_80.

5. Result Analysis

In this section we present the detailed result analysis for the research questions outlined in Section 4.1.

5.1. RQ1: Results for Vanilla On-the-fly Patch Validation

(a) CapGen
(b) SimFix
(c) ACS
Figure 7. Speedup achieved by vanilla UniAPR

5.1.1. Effectiveness

For answering this RQ, we executed vanilla UniAPR (without JVM-reset) that is configured to use the add-on corresponding to each studied APR tool. Please note that we measure the original patch validation time by each original APR tool, and compare that against the patch validation time using vanilla UniAPR. The only exception is for CapGen: we observed that CapGen performs much faster even than vanilla UniAPR for some cases; digging into the decompiled CapGen code (the CapGen source code is not available), we realized that the CapGen tool excluded some (expensive) tests for certain bugs (confirmed by the authors). Therefore, to enable a fair comparison, for CapGen, we build a variant for our UniAPR framework that simply restarts a new JVM for each patch. The main experimental results are presented in Figure 7. In each sub-figure, the horizontal axis presents all the bugs that have been reported to be fixed by each studied tool, while the vertical axis presents the time cost (s); the solid and dashed lines then present the time cost for traditional patch validation and our vanilla UniAPR, respectively. From the figure, we can have the following observations:

First, for all the studied APR tools, vanilla UniAPR can substantially speed up the existing patch validation component for all state-of-the-art APR tools. For example, when running CapGen on Math-80, the traditional patch validation costs 18,991s while on-the-fly patch validation via vanilla UniAPR takes only 1,590s to produce the same patch validation results, i.e., 11.9X speedup; when running SimFix on Closure-62, the traditional patch validation costs 1,381s, while on-the-fly patch validation via vanilla UniAPR takes only 48s to produce the same patch validation results, i.e., 28.8X speedup; when running ACS on Math-82, the traditional patch validation costs 127s, while on-the-fly patch validation via vanilla UniAPR takes less than 9s to produce the same patch validation results, i.e., 14.3X speedup. To the best of our knowledge, this is the first study demonstrating that on-the-fly patch validation can also substantially speed up the existing state-of-the-art source-level APR techniques.

Figure 8. Correlation between patch number and speedup

Second, while we observe clear speedups for the vast majority of the bugs, the achieved speedups vary a lot for all the studied APR tools on all the studied bugs. The reason is that the speedups are impacted by many different factors, such as the number of patches executed, the number of bytecode files loaded for each patch execution, the individual test execution time, and so on. For example, we observe that UniAPR even slows down the patch validation for ACS slightly on one bug (i.e., for 1min). Looking into the specific bug (i.e., Math-3), we find that ACS only produces one patch for that bug, and there is no JVM sharing optimization opportunity for UniAPR on-the-fly patch validation. To further confirm our finding, we perform the Pearson Correlation Coefficient analysis (Pearson, 1895) (at the significance level of 0.05) between the number of patches for each studied bug and its corresponding speedup for ACS. Shown in Figure 8, the horizontal axis denotes the number of patches, while the vertical axis denotes the speedup achieved; each data point represents one studied bug for ACS. From this figure, we can observe that UniAPR tends to achieve significantly larger speedups for bugs with more patches (at the significance level of 0.05), demonstrating that UniAPR tends to achieve larger speedups for larger systems with more patches.

Finding-1: This study demonstrates for the first time that vanilla on-the-fly patch validation can also substantially speed up the existing state-of-the-art source-level APR techniques; furthermore, UniAPR tends to perform better for systems/bugs with more patches, demonstrating the scalability of on-the-fly patch validation.

5.1.2. Precision.

Tool # All # Mismatch Ratio (%)
CapGen 22 3 13.64%
SimFix 34 1 2.94%
ACS 18 0 0.00%
All 74 4 5.41%
Table 4. Inconsistent fixing results

We further study the number of bugs that vanilla UniAPR does not produce the same repair results as the traditional patch validation (that restarts a new JVM for each patch). Table 4 presents the summarized results for all the studied APR tools on all their fixable bugs. In this table, Column “Tool” presents the studied APR tools, Column “# All” presents the number of all studied fixable bugs for each APR tool, Column “# Mismatch” presents the number of bugs that vanilla UniAPR has inconsistent fixing results with the original APR tool, and Column “Ratio (%)” presents the ratio of bugs with inconsistent results. From this table, we can observe that vanilla UniAPR produces imprecise results for 5.41% of the studied cases overall. To our knowledge, this is the first empirical study demonstrating that on-the-fly patch validation may produce imprecise/unsound results compared to traditional patch validation. Another interesting finding is that 3 out of the 4 cases with inconsistent patching results occur on the CapGen APR tool. One potential reason is that CapGen is a pattern-based APR system and may generate far more patches than SimFix and ACS. For example, CapGen on average generates over 1,400 patches for each studied bug, while SimFix only generates around 150 on average. In this way, CapGen has way more patches that may affect the correct patch execution than the other studied APR tools. Note that SimFix has only around 150 patches on average since we only studied its fixed bugs, if we had considered the unfixed bugs as well, SimFix will produce many more patches, exposing more imprecise/unsound patch validation issues as well potentially leading to larger UniAPR speedups.

Finding-2: This study presents the first empirical evidence that vanilla on-the-fly patch validation does incur the imprecise/unsound patch validation issue, e.g., failing to fix 5.41% of the studied cases.

5.2. RQ2: Results for On-the-fly Patch Validation via JVM-Reset

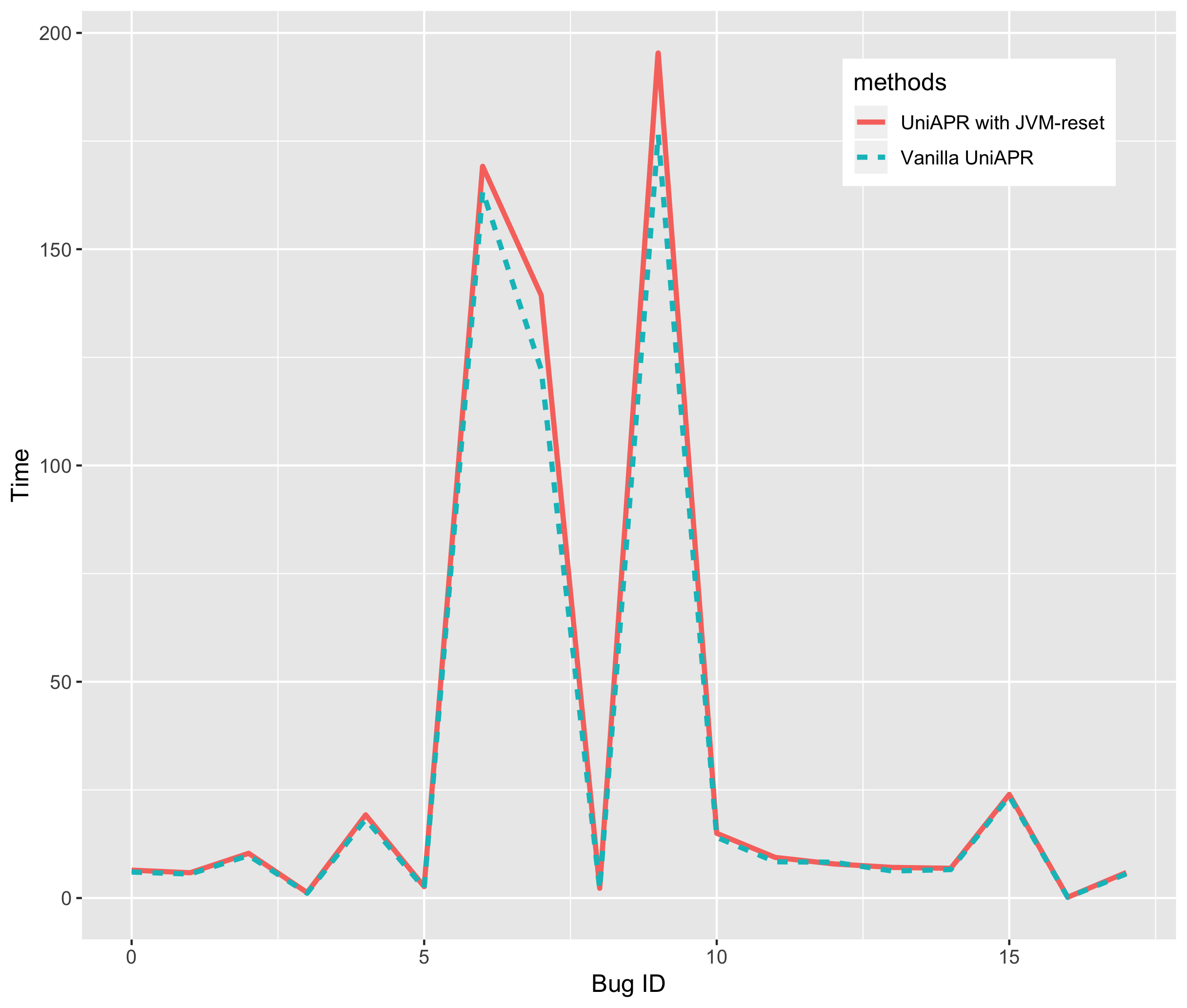

Figure 9. JVM-reset overhead on UniAPR

5.2.1. Effectiveness

We now present the experimental results for our UniAPR with JVM-reset. We observe that UniAPR with JVM reset has negligible overhead compared with the vanilla UniAPR on all the studied bugs for all the studied APR systems. Figure 9 presents the time cost comparison among the two UniAPR variants on ACS (note that we omit the results for the other two APR tools since they have even lower average overhead). In the figure, the horizontal axis presents all the bugs studied by ACS while the vertical axis presents the time cost; the solid and dashed lines present the time cost for UniAPR with JVM-reset and our vanilla UniAPR. Shown in the figure, JVM reset has incurred negligible overhead among all the studied bugs for ACS on UniAPR, e.g., on average 8.33% overhead. The reason is that class reinitializations only need to be performed at certain sites for only the classes with pollution sites. Also, we have various optimizations to speed up JVM reset. For example, although our basic JVM-reset approach in Figure 5 performs runtime checks on a concurrent HashMap, our actual implementation uses arrays for faster class status tracking/check. Furthermore, we observe that the overhead does not change much regardless of the bugs studied, indicating that our UniAPR with JVM-reset has stable overhead across different systems/bugs.

Finding-3: UniAPR with JVM-reset only incurs negligible overhead (e.g., less than 10% for all studied tools) compared to the vanilla UniAPR, demonstrating the scalability of UniAPR with JVM-reset.

5.2.2. Precision

According to our experimental results, UniAPR with JVM-rest is able to produce exactly the same APR results as the traditional patch validation, i.e., UniAPR with JVM-reset successfully fixed all the bugs that vanilla UniAPR failed to fix. We now discuss all the four bugs that UniAPR can fix while vanilla UniAPR without JVM reset cannot fix in details:

    public void testUnescapeHtml4() {
        for (int i = 0; i < HTML_ESCAPES.length; ++i) {
            String message = HTML_ESCAPES[i][0];
            String expected = HTML_ESCAPES[i][2];
            String original = HTML_ESCAPES[i][1];
            // assertion failure: ampersand expected:<bread &[] butter> but was:<bread &[amp;] butter>
            assertEquals(message, expected, StringEscapeUtils.unescapeHtml4(original));
Figure 10. Test failed for a plausible patch without JVM-reset on Lang-6

Figure 10 presents the test that fails on the only plausible (also correct) patch of Lang-6 (using CapGen) when running UniAPR without JVM-reset. Given the expected resulting string ‘‘bread &[] butter’’, the actual returned one is ‘‘bread &[amp;] butter’’. Digging into the code, we realize that class StringEscapeUtils has a static field named UNESCAPE_HTML4, which is responsible for performing the unescapeHtml4 invocation. However, during earlier patch executions, the actual object state of that field is changed, making the unescapeHtml4 method invocation return problematic result with vanilla UniAPR. In contrast, when running UniAPR with JVM-reset, field UNESCAPE_HTML4 will be recreated before each patch execution (if accessed) and will have a clean object state for performing the unescapeHtml4 method invocation.

    public void testIssue695() {
        FirstOrderDifferentialEquations equation = new FirstOrderDifferentialEquations() {
        double tEnd = integrator.integrate(equation, 0.0, y, target, y);
    private static class ResettingEvent implements EventHandler {
        private static double lastTriggerTime = Double.NEGATIVE_INFINITY;
        public double g(double t, double[] y) {
            // assertion error
            Assert.assertTrue(t >= lastTriggerTime);
            return t - tEvent;
Figure 11. Test failed for a plausible patch without JVM-reset on Math-30 and Math-41

Figure 11 shows another test that fails on the only plausible (and correct) patch of Math-30 when running vanilla UniAPR (without JVM-reset) with CapGen patches as well as the only plausible (and correct) patch of Math-41 when running vanilla UniAPR with SimFix patches. Looking into the code, we find that the invocation of integrate() in the test will finally call the method g() in class ResettingEvent (in the bottom). The static field lastTriggerTime of class ResettingEvent should be Double.NEGATIVE_INFINITY in Java, which means the assertion should not fail. Unfortunately, the earlier patch executions pollute the state and change the value of the field. Thus, the test failed when running with vanilla UniAPR on the two plausible patches. In contrast, UniAPR with JVM-reset is able to successfully recover the field value.

    public class UniformCrossoverTest {
        private static final int LEN = 10000;
        private static final List<Integer> p1 = new ArrayList<Integer>(LEN);
        private static final List<Integer> p2 = new ArrayList<Integer>(LEN);
        public void testCrossover() {
        private void performCrossover(double ratio) {
            // assertion failure: expected:<0.5> but was:<5.5095>
            Assert.assertEquals(1.0 - ratio, Double.valueOf((double) from1 / LEN), 0.1);
Figure 12. Test1 failed for a plausible patch without JVM-reset on Math-5
    public class ComplexTest {
        private double inf = Double.POSITIVE_INFINITY;
        public void testMultiplyNaNInf() {
            Complex z = new Complex(1,1);
            Complex w = z.multiply(infOne);
            // assertion failure: expected:<-Infinity> but was:<Infinity>
            Assert.assertEquals(w.getReal(), inf, 0);
Figure 13. Test2 failed for a plausible patch without JVM-reset on Math-5

There are four plausible CapGen patches on Math-5 (one is correct) when running with the traditional patch validation. With vanilla UniAPR, all the plausible patches failed on some tests. Figure 12 shows the test that fails on three plausible patches (including the correct one) on Math-5. The expected value of the assertion should be 0.5, but the actual value turned to 5.5095 due to the change of variable from1. After inspecting the code, we found the value of from1 is decided by two static fields p1 and p2 in class UniformCrossoverTest. The other earlier patch executions pollute the field values, leading to this test failure when running with vanilla UniAPR. Figure 13 presents another test that fails on one plausible patch on Math-5. The expected value from invocation w.getReal() should be Infinity, which should be the same as field inf defined in class ComplexTest; however, the actual result from the method invocation is -Infinity. The root cause of this test failure is similar to the previous ones, the static fields NaN and INF in class Complex are responsible for the result of method invocation getReal(). In this way, getReal() returns a problematic result because the earlier patch executions changed the corresponding field values. In contrast, using UniAPR with JVM-reset, all the four plausible patches are successfully produced.

Finding-4: UniAPR with JVM-reset is able to successfully fix all the studied bugs, i.e., mitigating the imprecise/unsound patch validation issue by vanilla on-the-fly patch validation.

5.3. Discussion

Having single JVM session for validating more than one patch has the immediate benefit of skipping the costly process creation, validations done by the JVM, and Just-in-Time compilation. As per our experiments, this offers up to several hundred times speed up in patch validation. On the other hand, this approach might have the following limitations:

First, the execution of the patches might interfere with each other, i.e. the execution of some tests in one patch might have side-effects affecting the execution of other tests on another patch. UniAPR mitigates these side-effects by resetting static fields to their default values and resetting JDK properties. Although our experimental results demonstrate that such JVM reset is able to fix all bugs fixed by the traditional patch validation, resetting in-memory state of JVM might not be enough as the side-effects could propagate via operating system or the network. Our current implementation provides a public interface for the users to resolve such issue between patch executions (note that no subject systems in our evaluation require such manual configuration). In the near future, we will study more subject programs to fully investigate the impact of such side effects and design new solutions to address them fully automatically.

Second, HotSwap-based patch validation does not support patches that involve changing the layout of the class, e.g. adding/removing fields and/or methods to/from a class. It also does not support patches that occur inside non-static inner classes, anonymous classes, and lambda abstraction. Luckily, the existing APR techniques mainly target patches within ordinary method bodies, and our UniAPR framework is able to reproduce all correct patches for all the three studied state-of-the-art techniques. Another thing that worths discussion is that HotSwap originally does not support changes in static initializers; interestingly, our JVM-reset approach naturally helped UniAPR to overcome this limitation, since the new initializers can now be reinvoked based on our bytecode transformation to reinitialize the classes. In the near future, we will further look into other more advanced dynamic class redefinition techniques for implementing our on-the-fly patch validation, such as JRebel (Team, 2020b) and DCEVM (Team, 2020a).

6. Related Work

In this section, we first talk about the related work in the automated program repair (APR) area, including techniques for reducing APR cost (Section 6.1). Next, we further talk about the cost reduction techniques in the mutation testing area (Section 6.2), which shares similar cost issues with APR.

6.1. Automated Program Repair

APR has been the subject of intense research in the last decade (Goues et al., 2019; Gazzola et al., 2017; Monperrus, 2018a)

. APR techniques can be classified into two broad families: (1) techniques that monitor the execution of a system to find deviations from certain specifications, and then heal the system by modifying its runtime state in case of any abnormal behaviors

(Perkins et al., 2009; Long et al., 2014), and (2) so-called generate-and-validate (G&V) techniques that attempt to fix the bug by first generating a pool of patches (at the code representation level) and validating the patches via certain rules and/or checks (Le Goues et al., 2012; Nguyen et al., 2013; Wen et al., 2018; Ghanbari et al., 2019; Jiang et al., 2018; Martinez and Monperrus, 2016; Lou et al., 2019; Jiang et al., 2019). G&V techniques have been widely studied in recent years, since it can substantially reduce developer efforts in both automated (Le Goues et al., 2012) and manual (Lou et al., 2020) bug fixing for improving software productivity. To date, researchers have designed various G&V APR techniques based on heuristics (Liu and Zhong, 2018; Le Goues et al., 2012; Jiang et al., 2018), constraint solving (Xuan et al., 2017; Durieux and Monperrus, 2016; Nguyen et al., 2013; Mechtaev et al., 2016), and pre-defined templates (Kim et al., 2013; Ghanbari et al., 2019; Liu et al., 2019). Heuristic-based APR techniques investigate various strategies to explore a (potentially infinite) search space of syntactic program changes. GenProg (Le Goues et al., 2012)

, the pioneering work for APR, leverages genetic programming to compose and mutate single-change patches into more advanced ones that can fix more complex bugs. Later on, RSRepair

(Qi et al., 2014) demonstrates that using random search rather than genetic programming can help GenProg to mitigate the search space explosion problem. Recently, SimFix (Jiang et al., 2018) and ssFix (Xin and Reiss, 2017) leverage code search information (e.g., from the current project under test or even other projects) to help further reduce the potential search space. Constraint-based APR techniques generally leverage advanced constraint-solving or synthesis techniques to fix certain types of bugs. For example, ACS (Xiong et al., 2017), Nopol (Xuan et al., 2017), and Cardumen (Martinez and Monperrus, 2018) aim to fix problematic conditional expressions. Nopol (Xuan et al., 2017) transforms the APR problem into a satisfiability problem and leverages off-the-shelf SMT solvers to find the fixing ingredients. Cardumen (Martinez and Monperrus, 2018) fixes bugs by synthesizing potential correct expression candidates with its mined templates from the current program under repair. ACS (Xiong et al., 2017) leverages various dimensions of information (including local contexts, API document, and code mining information) to directly synthesize the correct conditional expressions. Template-based APR techniques are also often denoted as pattern-based APR techniques. The basic idea is to fix program bugs via a set of predefined rules/templates/patterns. The PAR (Kim et al., 2013) work produces patches based on a list of fixing patterns manually summarized from a large number of human-written patches. Later on, researchers have also proposed various techniques to automatically mine potential fixing patterns from historical bug fixes, such as the CapGen (Wen et al., 2018) and FixMiner (Koyuncu et al., 2020) work. More recently, the TBar (Liu et al., 2019) work presents an empirical study of prior fixing patterns used in the literature.

Despite this spectacular progress in designing new APR techniques, very few of the works have attempted to reduce the time cost for APR, especially the patch validation time which dominates repair process. For example, JAID (Chen et al., 2017) uses patch schema to fabricate meta-programs that bundle several patches in a single source file, while SketchFix (Hua et al., 2018) uses sketches (Lezama, 2008) to achieve a similar effect. Although they can potentially help with patch generation and compilation, they still require validating each patch in a separte JVM, and have been shown to be rather costly during patch validation (Ghanbari et al., 2019). More recently, PraPR (Ghanbari et al., 2019) uses direct bytecode-level mutation and HotSwap technique to generate and validate patches on-the-fly, thereby bypassing expensive operations such as AST manipulation and compilation on patch generation side and process creation and JVM warm-up on patch validation side. This makes PraPR at least an order of magnitude faster than state-of-the-art APR (including JAID and SketchFix). However, PraPR is limited to only the bugs that can be fixed via bytecode manipulation, and can also return imprecise patch validation results due to the potential JVM pollution.

Motivated by PraPR work, in this paper, we introduce UniAPR, the first unified APR framework for all source-code and bytecode level APR. Compared with PraPR, UniAPR can be applied to any of the existing source-level APR technique and is not limited by the PraPR bug-fixing patterns at the bytecode level. Furthermore, although UniAPR also uses the JVM HotSwap technique to validate patches without unnecessary restart of JVM sessions, different from PraPR, UniAPR resets JVM internal state between patches so as to contain side effects of patch executions for fast&precise patch validation. Lastly, unlike PraPR, this framework is generic and can use any existing APR technique as a patch generation add-on; in this way, it provides a natural platform for combining different APR techniques to take maximum advantage of their strengths.

6.2. Cost Reduction for Mutation Testing

Mutation testing (Ammann and Offutt, 2016), a traditional testing methodology studied for decades, aim to generate artificial bugs to simulate real bugs for test quality evaluation. In recent years, mutation testing has also been applied to various other areas, including regression testing (Lou et al., 2015; Shi et al., 2014), test generation (Zhang et al., 2010; Papadakis et al., 2010), bug localization (Li et al., 2019; Li and Zhang, 2017; Zhang et al., 2013; Papadakis and Le Traon, 2015; Moon et al., 2014), and even APR (Ghanbari et al., 2019; Debroy and Wong, 2010). In fact, mutation testing shares similarities with APR in that both involve making small changes to program and repeatedly running tests. The repeated executions of tests on a large number of mutated program versions also dominate the end-to-end time of mutation testing. Therefore, a body of research is devoted to reduce such mutation execution cost (Zhang et al., 2018; Wang et al., 2017; Coles et al., 2016; King and Offutt, 1991). Weak mutation testing (Howden, 1982), one of the earliest techniques that attempts to reduce mutation testing cost, executes each mutated program partially (only to the mutated program locations) and checks the program internal state change to reduce the mutation testing time. However, it may produce rather imprecise mutation testing results, since the internal state changes may not always propagate to the end. Split-stream (King and Offutt, 1991) attempts to reduce mutation testing cost by reusing the state before the first mutation point. In a recent work (Wang et al., 2017), Wang et al. introduce the concept of Equivalence Modulo States to further elaborate on split-stream technique by reusing the shared states, as much as possible, even after the mutation point. In all these optimization approaches, creating a new process is done as a last resort to avoid the overhead of process creation and to use the shared state as much as possible. However, such techniques cannot handle programs with external resource accesses (e.g., file/network accesses) well (Wang et al., 2017). Process creation overhead in systems like JVM is especially pronounced as virtually all the optimization tasks, as well as Just-in-Time compilation, are done at runtime. Therefore, compared to natively executed programs, JVM-based programs are expected to take relatively longer time to warm up. Therefore, state-of-the-art mutation engine for JVM-based systems, PIT (Coles et al., 2016), attempts to use a single process to perform mutation testing instead of creating a separate process for testing each mutation. PIT has been demonstrated to achieve a significant speedup over similar mutation engines (such as MAJOR (Just, 2014) and Javalanche (Schuler and Zeller, 2009)), and represent state of the art. In fact, the PraPR APR tool is built on top the PIT mutation engine. Compared with our UniAPR system, PIT only supports very simple change/mutation patterns at the bytecode level and also cannot handle the JVM state pollution problem.

7. Conclusion

Automated program repair (APR) has been extensively studied in the last decade, and various APR systems/tools have been proposed. However, state-of-the-art APR tools still suffer from the efficiency problem largely due to the expensive patch validation process. In this work, we have proposed a unified on-the-fly patch validation framework for all JVM-based APR systems. Compared with the existing on-the-fly patch validation work (Ghanbari et al., 2019) which only works for bytecode APR, this work generalizes on-the-fly patch validation to all existing state-of-the-art APR systems, even including systems at the source code level. This work also shows the first empirical evidence that on-the-fly patch validation can incur imprecise/unsound patch validation results, and further introduces a new technique for resetting JVM state for precise patch validation. The experimental results show that this work can speed up state-of-the-art representative APR tools, including CapGen, SimFix, and ACS, by over an order of magnitude without incurring any imprecision.


  • A. V. Aho, M. S. Lam, R. Sethi, and J. D. Ullman (2006) Compilers, principles, techniques. Cited by: §1.
  • P. Ammann and J. Offutt (2016) Introduction to software testing. Cambridge University Press. Cited by: §1, §6.2.
  • E. T. Barr, Y. Brun, P. T. Devanbu, M. Harman, and F. Sarro (2014) The plastic surgery hypothesis. In FSE, FSE’14, pp. 306–317. Cited by: §1.
  • J. Bell and G. Kaiser (2014) Unit test virtualization with vmvm. In Proceedings of the 36th International Conference on Software Engineering, pp. 550–561. Cited by: §3.3.3, §3.3.3.
  • C. Boulder (2013) University of cambridge study: failure to adopt reverse debugging costs global economy $41 billion annually. Note: May, 2019 Cited by: §1.
  • L. Chen, Y. Pei, and C. A. Furia (2017) Contract-based program repair without the contracts. In 2017 32nd IEEE/ACM International Conference on Automated Software Engineering (ASE), pp. 637–647. Cited by: §1, §6.1.
  • H. Coles, T. Laurent, C. Henard, M. Papadakis, and A. Ventresque (2016) Pit: a practical mutation testing tool for java. In Proceedings of the 25th International Symposium on Software Testing and Analysis, pp. 449–452. Cited by: §6.2.
  • O. Corporation (2020) Java instrumentation api. Note: Accessed: May, 2020 External Links: Link Cited by: 3rd item, §1, §2.2.
  • X. B. D Le (2018) Overfitting in automated program repair: challenges and solutions. Ph.D. Thesis, Singapore Management University. Cited by: §1.
  • V. Debroy and W. E. Wong (2010) Using mutation to automatically suggest fixes for faulty programs. In ICST, Vol. , pp. 65–74. Cited by: §1, §6.2.
  • T. Durieux and M. Monperrus (2016) Dynamoth: dynamic code synthesis for automatic program repair. In Proceedings of the 11th International Workshop on Automation of Software Test, pp. 85–91. Cited by: §4.3, §6.1.
  • A. S. Foundation (2020) Apache maven. Note: Accessed: May, 2020 External Links: Link Cited by: §1.
  • L. Gazzola, D. Micucci, and L. Mariani (2017) Automatic software repair: a survey. IEEE Transactions on Software Engineering 45 (1), pp. 34–67. Cited by: §1, §1, §2.1, §6.1.
  • A. Ghanbari, S. Benton, and L. Zhang (2019) Practical program repair via bytecode mutation. In Proceedings of the 28th ACM SIGSOFT International Symposium on Software Testing and Analysis, pp. 19–30. Cited by: §1, §2.1, §2.1, §2.1, §4.2, §6.1, §6.1, §6.2, §7.
  • C. L. Goues, M. Pradel, and A. Roychoudhury (2019) Automated program repair. Communications of the ACM 62 (12), pp. 56–65. Cited by: §1, §6.1.
  • W. E. Howden (1982) Weak mutation testing and completeness of test sets. IEEE Transactions on Software Engineering (4), pp. 371–379. Cited by: §6.2.
  • J. Hua, M. Zhang, K. Wang, and S. Khurshid (2018) Towards practical program repair with on-demand candidate generation. In Proceedings of the 40th International Conference on Software Engineering, pp. 12–23. Cited by: §1, §6.1.
  • J. Jiang, L. Ren, Y. Xiong, and L. Zhang (2019) Inferring program transformations from singular examples via big code. In 2019 34th IEEE/ACM International Conference on Automated Software Engineering (ASE), pp. 255–266. Cited by: §6.1.
  • J. Jiang, Y. Xiong, H. Zhang, Q. Gao, and X. Chen (2018) Shaping program repair space with existing patches and similar code. In ISSTA, pp. 298–309. Cited by: §1, §1, §2.1, §3.1, §4.2, §4.3, §4.4, §4.4, §6.1.
  • JodaOrg (2020) Joda time. Note: Accessed: May, 2020 External Links: Link Cited by: §3.3.2.
  • R. Just, D. Jalali, and M. D. Ernst (2014) Defects4J: a database of existing faults to enable controlled testing studies for java programs. In Proceedings of the 2014 International Symposium on Software Testing and Analysis, pp. 437–440. Cited by: §3.3.2, §4.2.
  • R. Just (2014) The major mutation framework: efficient and scalable mutation analysis for java. In Proceedings of the 2014 International Symposium on Software Testing and Analysis, pp. 433–436. Cited by: §6.2.
  • D. Kim, J. Nam, J. Song, and S. Kim (2013) Automatic patch generation learned from human-written patches. In ICSE, pp. 802–811. Cited by: §6.1.
  • K. N. King and A. J. Offutt (1991) A fortran language system for mutation-based software testing. Software: Practice and Experience 21 (7), pp. 685–718. Cited by: §6.2.
  • A. Koyuncu, K. Liu, T. F. Bissyandé, D. Kim, J. Klein, M. Monperrus, and Y. Le Traon (2020) Fixminer: mining relevant fix patterns for automated program repair. Empirical Software Engineering, pp. 1–45. Cited by: §6.1.
  • C. Le Goues, T. Nguyen, S. Forrest, and W. Weimer (2012) GenProg: A generic method for automatic software repair. IEEE TSE 38 (1), pp. 54–72. Cited by: §1, §2.1, §4.3, §6.1.
  • X. B. D. Le, D. Lo, and C. Le Goues (2016) History driven program repair. In SANER, Vol. 1, pp. 213–224. Cited by: §1.
  • A. S. Lezama (2008) Program synthesis by sketching. Ph.D. Thesis, PhD thesis, EECS Department, University of California, Berkeley. Cited by: §1, §6.1.
  • X. Li, W. Li, Y. Zhang, and L. Zhang (2019) Deepfl: integrating multiple fault diagnosis dimensions for deep fault localization. In Proceedings of the 28th ACM SIGSOFT International Symposium on Software Testing and Analysis, pp. 169–180. Cited by: §4.2, §6.2.
  • X. Li and L. Zhang (2017) Transforming programs and tests in tandem for fault localization. Proceedings of the ACM on Programming Languages 1 (OOPSLA), pp. 1–30. Cited by: §6.2.
  • T. Lindholm, F. Yellin, G. Bracha, and A. Buckley (2017) The java virtual machine specification, java se 9 edition. 1st edition, Addison-Wesley Professional. External Links: ISBN 013390590X, 9780133905908 Cited by: §2.1.
  • K. Liu, A. Koyuncu, D. Kim, and T. F. Bissyandé (2019) TBar: revisiting template-based automated program repair. In Proceedings of the 28th ACM SIGSOFT International Symposium on Software Testing and Analysis, pp. 31–42. Cited by: §4.3, §6.1.
  • K. Liu, S. Wang, A. Koyuncu, K. Kim, T. F. D. A. Bissyande, D. Kim, P. Wu, J. Klein, X. Mao, and Y. Le Traon (2020) On the efficiency of test suite based program repair: a systematic assessment of 16 automated repair systems for java programs. In 42nd ACM/IEEE International Conference on Software Engineering (ICSE), Cited by: §4.3.
  • X. Liu and H. Zhong (2018) Mining stackoverflow for program repair. In 2018 IEEE 25th International Conference on Software Analysis, Evolution and Reengineering (SANER), pp. 118–129. Cited by: §4.3, §6.1.
  • F. Long, S. Sidiroglou-Douskos, and M. C. Rinard (2014) Automatic runtime error repair and containment via recovery shepherding. In PLDI, PLDI’14, pp. 227–238. Cited by: §2.1, §6.1.
  • Y. Lou, J. Chen, L. Zhang, D. Hao, and L. Zhang (2019) History-driven build failure fixing: how far are we?. In Proceedings of the 28th ACM SIGSOFT International Symposium on Software Testing and Analysis, pp. 43–54. Cited by: §6.1.
  • Y. Lou, A. Ghanbari, X. Li, L. Zhang, H. Zhang, D. Hao, and L. Zhang (2020) Can automated program repair refine fault localization? a unified debugging approach. In ISSTA, Note: to appear Cited by: §6.1.
  • Y. Lou, D. Hao, and L. Zhang (2015) Mutation-based test-case prioritization in software evolution. In 2015 IEEE 26th International Symposium on Software Reliability Engineering (ISSRE), pp. 46–57. Cited by: §6.2.
  • M. Martinez and M. Monperrus (2016) ASTOR: a program repair library for java (demo). In Proceedings of the 25th International Symposium on Software Testing and Analysis, ISSTA 2016, pp. 441–444. Cited by: §1, §2.1, §6.1.
  • M. Martinez and M. Monperrus (2018) Ultra-large repair search space with automatically mined templates: the cardumen mode of astor. In International Symposium on Search Based Software Engineering, pp. 65–86. Cited by: §6.1.
  • S. Mechtaev, J. Yi, and A. Roychoudhury (2016) Angelix: scalable multiline program patch synthesis via symbolic analysis. In Proceedings of the 38th international conference on software engineering, pp. 691–701. Cited by: §6.1.
  • B. Mehne, H. Yoshida, M. R. Prasad, K. Sen, D. Gopinath, and S. Khurshid (2018) Accelerating search-based program repair. In 2018 IEEE 11th International Conference on Software Testing, Verification and Validation (ICST), pp. 227–238. Cited by: §1.
  • M. Monperrus, S. Urli, T. Durieux, M. Martinez, B. Baudry, and L. Seinturier (2019) Repairnator patches programs automatically. Ubiquity 2019 (July). External Links: Link, Document Cited by: §1.
  • M. Monperrus (2018a) Automatic software repair: a bibliography. ACM Computing Surveys (CSUR) 51 (1), pp. 1–24. Cited by: §1, §2.1, §6.1.
  • M. Monperrus (2018b) The living review on automated program repair. Technical report Technical Report hal-01956501. HAL/archives-ouvertes. fr, HAL/archives …. Cited by: §4.3.
  • S. Moon, Y. Kim, M. Kim, and S. Yoo (2014) Ask the mutants: mutating faulty programs for fault localization. In 2014 IEEE Seventh International Conference on Software Testing, Verification and Validation, pp. 153–162. Cited by: §6.2.
  • H. D. T. Nguyen, D. Qi, A. Roychoudhury, and S. Chandra (2013) Semfix: program repair via semantic analysis. In 2013 35th International Conference on Software Engineering (ICSE), pp. 772–781. Cited by: §1, §2.1, §6.1.
  • F. Nielson and H. R. Nielson (2019) Formal methods. Springer. Cited by: §1.
  • Objectweb (2020) ASM bytecode manipulation framework. Note: Accessed: May, 2020 External Links: Link Cited by: 3rd item.
  • Oracle (2020) The java language specification. Note: Accessed: May, 2020 External Links: Link Cited by: §3.3.3.
  • M. Papadakis and Y. Le Traon (2015) Metallaxis-fl: mutation-based fault localization. Software Testing, Verification and Reliability 25 (5-7), pp. 605–628. Cited by: §6.2.
  • M. Papadakis, N. Malevris, and M. Kallia (2010) Towards automating the generation of mutation tests. In Proceedings of the 5th Workshop on Automation of Software Test, pp. 111–118. Cited by: §6.2.
  • K. Pearson (1895) Notes on regression and inheritance in the case of two parents proceedings of the royal society of london, 58, 240-242. Cited by: §5.1.1.
  • J. H. Perkins, S. Kim, S. Larsen, S. P. Amarasinghe, J. Bachrach, M. Carbin, C. Pacheco, F. Sherwood, S. Sidiroglou, G. Sullivan, W. Wong, Y. Zibin, M. D. Ernst, and M. C. Rinard (2009) Automatically patching errors in deployed software. In SOSP, SOSP’09, pp. 87–102. Cited by: §2.1, §6.1.
  • Y. Qi, X. Mao, Y. Lei, Z. Dai, and C. Wang (2014) The strength of random search on automated program repair. In Proceedings of the 36th International Conference on Software Engineering, pp. 254–265. Cited by: §6.1.
  • D. Schuler and A. Zeller (2009) Javalanche: efficient mutation testing for java. In Proceedings of the 7th joint meeting of the European software engineering conference and the ACM SIGSOFT symposium on The foundations of software engineering, pp. 297–298. Cited by: §6.2.
  • A. Shi, A. Gyori, M. Gligoric, A. Zaytsev, and D. Marinov (2014) Balancing trade-offs in test-suite reduction. In Proceedings of the 22nd ACM SIGSOFT International Symposium on Foundations of Software Engineering, pp. 246–256. Cited by: §6.2.
  • U. Software (2016) Increasing software development productivity with reversible debugging. Note: May, 2019 Cited by: §1.
  • D. Team (2020a) Dynamic code evolution vm for java. Note: Accessed: May, 2020 External Links: Link Cited by: §5.3.
  • J. Team (2020b) JRebel. Note: Accessed: May, 2020 External Links: Link Cited by: §5.3.
  • B. Wang, Y. Xiong, Y. Shi, L. Zhang, and D. Hao (2017) Faster mutation analysis via equivalence modulo states. In Proceedings of the 26th ACM SIGSOFT International Symposium on Software Testing and Analysis, ISSTA 2017, pp. 295–306. Cited by: §6.2.
  • M. Wen, J. Chen, R. Wu, D. Hao, and S. Cheung (2018) Context-aware patch generation for better automated program repair. In 2018 IEEE/ACM 40th International Conference on Software Engineering (ICSE), pp. 1–11. Cited by: §1, §1, §2.1, §3.1, §4.2, §4.3, §4.4, §6.1.
  • W. E. Wong, R. Gao, Y. Li, R. Abreu, and F. Wotawa (2016) A survey on software fault localization. IEEE TSE 42 (8), pp. 707–740. External Links: ISSN 0098-5589 Cited by: §1.
  • Q. Xin and S. P. Reiss (2017) Leveraging syntax-related code for automated program repair. In 2017 32nd IEEE/ACM International Conference on Automated Software Engineering (ASE), pp. 660–670. Cited by: §6.1.
  • Y. Xiong, J. Wang, R. Yan, J. Zhang, S. Han, G. Huang, and L. Zhang (2017) Precise condition synthesis for program repair. In ICSE, ICSE’17, pp. 416–426. Cited by: §1, §1, §3.1, §4.3, §4.4, §6.1.
  • J. Xuan, M. Martinez, F. Demarco, M. Clement, S. R. L. Marcote, T. Durieux, D. L. Berre, and M. Monperrus (2017) Nopol: automatic repair of conditional statement bugs in java programs. IEEE TSE 43 (1), pp. 34–55. Cited by: §1, §4.3, §6.1.
  • J. Zhang, L. Zhang, M. Harman, D. Hao, Y. Jia, and L. Zhang (2018) Predictive mutation testing. IEEE Transactions on Software Engineering 45 (9), pp. 898–918. Cited by: §6.2.
  • L. Zhang, T. Xie, L. Zhang, N. Tillmann, J. De Halleux, and H. Mei (2010) Test generation via dynamic symbolic execution for mutation testing. In 2010 IEEE International Conference on Software Maintenance, pp. 1–10. Cited by: §6.2.
  • L. Zhang, L. Zhang, and S. Khurshid (2013) Injecting mechanical faults to localize developer faults for evolving software. ACM SIGPLAN Notices 48 (10), pp. 765–784. Cited by: §6.2.
