1 Introduction

The huge computation power of today’s computing systems, equipped with GPUs, special ASICs, FPGAs, or multi-core CPUs, makes it possible to train deep networks using tremendous datasets. Although such high-performance systems can be used for training, actual inference in the real world may be executed on small devices such as a handheld device or an embedded controller. Hence, various techniques (such as Hinton et al. (2015) and Han et al. (2016)) to achieve high prediction accuracy without increasing computation time have been studied to enable more applications to be deployed in the real world. Recently, graph compilers and optimizers, such as NNVM/TVM (Chen et al. (2018)) and Glow (Rotem et al. (2018)), were developed to make small and efficient executables suitable for handheld devices from trained networks.

Ensembling multiple predictions is a widely-used technique to improve the accuracy of various machine learning tasks (e.g. Hansen and Salamon (1990), Zhou et al. (2002)) at the cost of more computation power. In the image classification tasks, for example, accuracy is significantly improved by ensembling the local predictions for multiple patches extracted from the input image to make the final prediction. Moreover, accuracy is further improved by using multiple networks trained independently to make local predictions. Krizhevsky et al. (2012) averaged 10 local predictions using 10 patches extracted from the center and the 4 corners with and without horizontal flipping in their Alexnet paper. They also used up to 7 networks and averaged the prediction to get higher accuracy. GoogLeNet by Szegedy et al. (2015) averaged up to 1,008 local predictions by using 144 patches and 7 networks. In some ensemble methods, meta-learning during the training to learn how to best mix the multiple local predictions from the networks is used (e.g. Tekin et al. (2015)). In the Alexnet or GoogLeNet papers, however, the significant improvements were obtained by just averaging the local predictions without the meta-learning. In this paper, we do not use meta-learning either.

Although the benefits of ensemble prediction are quite significant, one obvious drawback is its higher execution cost during inference. If we make the final prediction by ensembling 100 predictions, we need to make 100 local predictions, and hence the execution cost will be 100 times as high as that without ensembling.

Figure 1: Improvements by ensemble and probabilities of predictions in ILSVRC 2012 validation set. X-axis shows percentile of probability of first local predictions from high (left) to low (right). Ensemble reduces error rates for inputs with low probabilities but does not affect inputs with high probabilities.
Figure 2: Breakdown of samples into four categories based on 1) whether first local prediction is correct or incorrect and 2) whether first and second predictions are same or different. X-axis shows percentile of probability of first local predictions from high (left) to low (right). Two networks tend to make same (mis)predictions for samples predicted with a high probability (left).

In this paper, we first describe our insights on relationship between the probability of the prediction and the effect of ensembling with current deep neural networks; ensembling does not help mispredictions for inputs predicted with a high probability, i.e. the output from the softmax, even when there is a non-negligible number of mispredicted inputs. To exploit this finding to speedup ensembling, we develop an adaptive ensemble prediction, which achieves the benefits of ensembling with much smaller additional costs. During the ensembling process, we calculate the confidence level of the probability obtained from local predictions for each input. If an input reaches a high enough confidence level, we stop ensembling and making more local predictions for this input to avoid wasting computation power. We evaluated the adaptive ensembling by using four image classification datasets: ILSVRC 2012, CIFAR-10, CIFAR-100, and SVHN. Our results showed that the adaptive ensemble prediction reduces the computation cost significantly while achieving similar accuracy to the static ensemble prediction with the fixed number of local predictions. We also showed that our statistically rigorous confidence-level-based termination condition reduces the burden of the task-dependent parameter tuning compared to the naive termination condition based on the pre-defined threshold in the probability in addition to yielding a better accuracy with the same cost (or lower cost for the same accuracy).

2 Ensembling and Probability of Prediction

This section describes the observations that have motivated us to develop our proposed technique: how the ensemble prediction improves the accuracy of predictions with different probabilities.

2.1 Observations

To show the relationship between the probability of the prediction and the effect of ensembling, we evaluate the prediction accuracy for the ILSVRC 2012 dataset with and without ensembling of two predictions made by two independently trained networks. Figure 1(a) shows the results of this experiment with GoogLeNet; the two networks follow the design of GoogLeNet and use exactly the same configurations (hence the differences come only from the random number generator). In the experiment, we 1) evaluated the 50,000 images from the validation set of the ILSVRC 2012 dataset using the first network without ensembling, 2) sorted the images by the probability of the prediction, and 3) evaluated the images with the second network and assessed the accuracy after ensembling two local predictions using the arithmetic mean. The x-axis of Figure 1(a) shows the percentile of the probability from high to low, i.e. going left (right), the first local predictions become more (less) probable. The gray dashed line shows the average probability for each percentile class. Overall, the ensemble improves accuracy well, although we only averaged two predictions. Interestingly, we can observe that the improvements only come in the right of the figure. There are almost no improvements by ensembling two predictions on the left side, i.e. input images with highly probable local predictions, even when there is a non-negligible number of mispredicted inputs. For example, in the 50- to 60-percentile range with GoogLeNet, the top-1 error rate is 29.6% and is not improved by averaging two predictions from different networks.

For more insight into these characteristics, Figure 2(a) shows the breakdown of 5000 samples in each 10-percentile range into four categories based on 1) whether the first prediction is correct or not and 2) whether the two network makes the same prediction or different predictions. When a prediction with a high probability is made first, we can observe that another local prediction tends to make the same prediction regardless of its correctness. In the highest 10-percentile range, for instance, two independently trained networks make the same misprediction for all the 43 mispredicted samples. The two networks make different predictions only in two out of 5,000 samples even when we include the correct predictions. In the 10- to 20-percentile range, two networks generate different predictions only in three out of 139 mispredicted samples. Ensembling does not work well when local predictions tend to make the same mispredictions.

To determine whether or not this characteristic of ensembling is unique to GoogLeNet architecture, we conducted the same experiment using Alexnet as another network architecture and show the results in Figure 1(b) and 2(b). Although the prediction error rate is higher for Alexnet than for GoogLeNet, we observe similar characteristics of improvements by ensembling.

When we combine Alexnet (for the first prediction) and GoogLeNet (the second prediction), ensembling the local prediction from GoogLeNet, which yields much higher accuracy than the first prediction by Alexnet, does not give significant gain in 0- to 20-percentile range. We discuss this deeper in the supplementary material.

These characteristics of the improvements by the ensemble are not unique to an ILSVRC dataset; we have observed similar trends in other datasets.

2.2 Why this happens

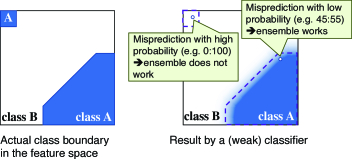

Figure 3:

Schematic examples of mispredictions with a high and low probabilities. A classifier may fail to learn some decision boundaries and this lead to mispredictions with high probability; ensemble cannot help them.

Trained neural networks (or any classifiers in general) often make a prediction for a sample near the decision boundary of class A and class B with a low probability; the classifier assigns similar probabilities for both classes and a class with a higher probability (but with a small margin) is selected as the result. For such samples, ensemble works efficiently by reducing the effects of random perturbations.

While the ensemble works near the decision boundary that is properly learned by the classifier, some decision boundary can be totally missed in the trained classifier due to the insufficient expressiveness in the used model or the lack of the appropriate training data. Figure 3 shows an example of the true decision boundaries in the 2-D feature space and a classification results by a classifier which is not capable of capturing all of these boundaries. In this case, a small region of class A at the left-top is totally missed in the classification results; i.e. the samples in this region are mispredicted with high probabilities. Typically, such mispredictions cannot be avoided by ensembling predictions from another classifier trained with different random numbers since both classifiers tends to make the same mispredictions. We show this problem in more detail using an actual neural network for a simple classification task and in the supplemental material.

These results motivate us to make our adaptive ensemble prediction for reducing the additional cost of ensembling while keeping the benefit of improved accuracy. Once we obtain high enough prediction probability for an input image, doing further local predictions and ensembling will waste computation power without improving accuracy. The challenge is how to identify the condition in which to terminate ensembling. As described later, we identify the termination condition based on the confidence level of the probability works well for all the tested datasets.

3 Related Work

Various prediction methods that ensemble the outputs from many classifiers (e.g. neural networks) have been widely studied to achieve higher accuracy in machine learning tasks. Boosting (Freund and Schapire 1996) and Bagging (Breiman (1996)

) are famous examples of ensemble methods. Boosting and Bagging produce enough variances in classifiers included in an ensemble by changing the training set for each classifier. Another technique to improve binary classification using multiple classifiers is Soft-cascade (e.g.

Bourdev and Brandt (2005), Zhang and Viola (2008)). In Soft-cascade, multiple weak sub-classifiers are trained to reject a part of the negative inputs. Hence, as the entire strong classifier, many easy-to-reject inputs are rejected in early stages without consuming huge computation time. Compared to Boosting, Bagging or Soft-cascade, ours is an inference-time technique and does not affect the training phase. In recent studies on image classifications with deep neural networks, random numbers (e.g. for initialization or for ordering input images) used in the training phase can give sufficient variances in networks even using the same training set for all classifiers (networks). Hence, we use networks trained using the same training set and network architecture in this study and we assume that the capabilities of local classifiers are not that different. If a classifier is too much weaker than the later classifiers as in Soft-cascade, mispredictions in the weak classifier may predicted correctly by later powerful classifiers even they are predicted with high probabilities in the local prediction by the weak classifier.

Another series of studies to accelerate classification tasks with two or few classes is based on dynamic pruning of majority voting (e.g. Hernández-Lobato et al. (2009), Soto et al. (2016)). Like our technique, the dynamic pruning uses a certain confidence level to prune the ensembling with the sequential voting process to avoid wasting the computation time. We show that the confidence-level-based approach is quite effective to accelerate the ensembling by averaging local predictions in many-class classifications tasks with deep neural networks when we use the output of the softmax as the probability of the local predictions. Some existing classifiers with a deep neural network (e.g. Bolukbasi et al. (2017)) take an early exit approach similar to ours. In our study, we study how the exit condition for the termination affects the execution time and the accuracy in detail and showed our confidence-level-based condition works better than the naive threshold-based conditions.

The higher execution cost of the ensembling is a known problem, so we are not the first to attack it. For example, Hinton et al. (2015) also tackled the high execution cost of the ensembling. Unlike us, they trained a new smaller network by distilling the knowledge from an ensemble of networks by following Buciluǎ et al. (2006).

In our technique, we use the probability of the predictions to control the ensembling during the inference. Typically, the probability of the prediction generated by the softmax is used during the training of the network; the cross entropy of the probabilities is often used as the objective function of the optimization. However, using the probability for purposes other than the target of the optimization is not unique to us. For example, Hinton et al. (2015) used the probabilities from the softmax while distilling the knowledge from the ensemble. As far as we know, ours is the first study focusing on the relationship between the probability of the prediction and the effect of ensembling with current deep neural networks.

Opitz and Maclin (1999) showed an important observation related to ours. They showed that the large part of the gain of ensembling came from the ensembling of the first few local predictions. Our observation discussed in the previous section enhances Opitz’s observation from a different perspective: most gain of the ensembling comes from inputs with low probabilities in the prediction.

4 Adaptive Ensemble Prediction

4.1 Basic Idea

This section details our proposed adaptive ensemble prediction method. As shown in Figure 1, the ensemble typically does not improve the accuracy of predictions if a local prediction is highly probable. Hence, we terminate ensembling without processing all local predictions on the basis of the probabilities of the predictions. We execute the following steps:

  1. start from = 1

  2. obtain -th local prediction, i.e. the probability for each class label. We denote the probability for label of -th local prediction

  3. calculate the average probabilities for each class label

    (1)
  4. if and the termination condition is not satisfied, increment and repeat from step 2

  5. output the class label that has the highest average probability as the final prediction.

4.2 Confidence-Level-Based Termination

For the termination condition in Step 4, we propose a condition based on a confidence level.

We can use a naive condition on the basis of a pre-determined threshold to terminate the ensembling, i.e. we just compare the highest average probability against the threshold . If the average probability exceeds the threshold, we do not execute further local predictions for ensembling. As we empirically show later, the best threshold heavily depends on task. To avoid this difficult tuning of the threshold , we propose more statistically rigorous condition in this paper.

Instead of the pre-defined threshold, we can use the confidence intervals (CIs) as a termination condition. We first find the label that has the highest average probability (

predicted label). Then, we calculate the CI of the probabilities using local predictions. If the calculated CI of the predicted label does not overlap with the CIs for other labels, i.e. the predicted label is the best prediction with a certain confidence level, we terminate the ensembling and output the predicted label as the final prediction.

We calculate the confidence interval for the probability of label using local predictions by

(2)

Here,

is defined such that a random variable

that follows the Student’s-t distribution with degrees of freedom satisfies the following condition: . is called the significance level and is called the confidence level. We can read the value

from a precomputed table at runtime. To compute the confidence interval with small number of samples (i.e. local predictions), it is known that the Student’s-t distribution is more suitable than the normal distribution. When the number of local predictions increases, the Student’s-t distribution approximates the normal distribution.

We can do pair-wise comparisons between the predicted label and all other labels. However, computing CIs for all labels is costly, especially when there are many labels. To avoid excess costs of computing CIs, we compare the probability of the predicted label against the total of the probabilities of other labels. Since the total of the probabilities of all labels (including the predicted label) is 1.0 by definition, the total of the probabilities for the labels other than the predicted label are and the CI is the same size as that of the probability of the predicted label. Hence, our termination condition is

(3)

We avoid computing CI if to avoid wasteful computation because the termination condition of equation 2 cannot be met in such cases. Since the CI cannot be calculated with only one local prediction as is obvious from equation (3) to avoid zero divisions, we can use a hybrid of the two termination conditions. We use the static-threshold-based condition only for the first local prediction with a quite conservative threshold (99.99% in the current implementation) to terminate ensembling only for trivial inputs as early as possible, and after the second local prediction is calculated, the confidence-level-based condition of equation (3) is used. We also evaluated by doing pair-wise comparisons of CIs with all other labels or with the label having the second-highest probability. But the differences in the results by doing the pair-wise comparisons were mostly negligible. There can be many other criteria for the termination conditions, but our approach with the confidence level is a reasonable choice to balance multiple objectives including accuracy, computation cost and ease of tuning.

5 Experiments

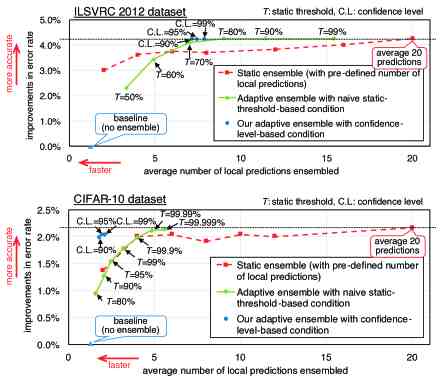

Figure 4: Prediction accuracy and computation cost with static ensemble and our adaptive ensemble using different termination conditions.Confidence-level-based condition achieved better accuracy than static-threshold-based conditions with same computation cost especially for CIFAR-10. Tuning of confidence level (CL) is less sensitive than that of static threshold.
Table 2: Number of local predictions ensembled with and without adaptive ensemble
Table 3: Execution time with and without adaptive ensemble
Table 2: Number of local predictions ensembled with and without adaptive ensemble
Table 3: Execution time with and without adaptive ensemble
Table 1: Prediction accuracy with and without adaptive ensemble

In this section, we investigate the effects of adaptive ensemble prediction on the prediction accuracy and the execution cost using various image classification tasks: ILSVRC 2012, Street View House Numbers (SVHN), CIFAR-10, and CIFAR-100 (with fine and course labels) datasets.

For the ILSVRC 2012 dataset, we use GoogLeNet as the network architecture and train the network using the stochastic gradient descent with momentum as the optimization method. For other datasets, we use a network that has six convolutional layers with batch normalization (

Ioffe and Szegedy (2015)

) followed by two fully connected layers with Dropout. We used the same network architecture except for the number of neurons in the output layer. We train the network using Adam (

Kingma and Ba (2014)) as the optimizer. For each task, we trained two networks independently. During the training, we used data augmentations by extracting a patch from a random position of the input image and using random horizontal flipping. Since adaptive ensemble prediction is an inference-time technique, it does not affect the network training.

We averaged up to 20 local predictions using ensembling. We created 10 patches from each input image by extracting from the center and the four corners with and without horizontal flipping by following Alexnet. For each patch, we made two local predictions using two networks. The patch size is 224x224 for the ILSVRC 2012 dataset and 28x28 for the other datasets. We made local predictions in the following order: (center, no flip, network1), (center, no flip, network2), (center, flipped, network1), (center, flipped, network2), (top-left, no flip, network1), …, (bottom-right, flipped, network2). Since averaging local predictions from different networks typically yield better accuracy and hence we use this order for both our adaptive ensembling and fixed-number static ensembling.

To study the effects of our adaptive ensemble on the computation cost and accuracy, we show the relationship between them for ILSVRC 2012 and CIFAR-10 datasets in Figure 4. In the figure, the x-axis is the number of ensembled predictions, so smaller means faster. The y-axis is the improvements in classification error rate over the baseline (no ensemble), so higher means better. We evaluated the static ensemble (averaging the fixed number of predictions) by changing the number of predictions to average and our adaptive ensemble. For the adaptive ensemble, we also evaluated with two termination conditions: with naive static threshold and with confidence interval. We tested the static-threshold-based conditions by changing the threshold and drew lines in the figure. Similarly, we evaluated the confidence-level-based condition with three confidence levels frequently used in statistical testing: 90%, 95% and 99%.

From the figure, there is an obvious tradeoff between the accuracy and the computation cost. The static ensemble with 20 predictions is at one end of the tradeoff because it never terminates early. The baseline, which does not execute ensemble, is at the other end, which always terminates at the first prediction regardless of the probability. Our adaptive ensemble with the confidence-level-based condition achieved better accuracy with the same computation cost (or smaller computation cost for the same accuracy) compared to the static ensemble or the naive adaptive ensemble with a static threshold. The gain with the confidence-level-based condition over the static-threshold-based is significant for CIFAR-10 whereas it is marginal for ILSVRC 2012. These two datasets show the largest and smallest gain with the confidence-level-based condition over the static-threshold-based condition; other datasets showed improvements between those of the two datasets shown in Figure 2.

When comparing two termination conditions in the adaptive ensemble, the confidence-level-based condition eliminates the burden of the parameter tuning compared to the naive threshold-based condition in addition to the benefit of the reduced computation cost. Obviously, how to decide the best threshold is the most important problem for the static-threshold-based condition. The threshold can be used as a knob to control the tradeoff between the accuracy and the computation cost, but the static threshold tuning is highly dependent on the dataset and task. From figure 4, for example, seems to be a reasonable choice for ILSVRC 2012, but it is a problematic choice for CIFAR-10. For the confidence-level-based condition, the confidence level also controls the tradeoff. However, the differences in the computation cost and the improvements in accuracy due to the choice of the confidence level are much less significant and less sensitive to the current task than the differences due to the static threshold. Hence task-dependent fine tuning of the confidence level is not as important as the tuning of the static threshold. The easier (or no) tuning of the parameter is an important advantage of the confidence-level-based condition.

Tables 1, 2, and 3 show how adaptive ensemble prediction affected the accuracy of predictions and the execution costs in more detail for five datasets. Here, for our adaptive ensemble, we use the confidence-level-based termination condition with a 95% confidence level based on the results of Figure 4. We test two different configurations: with one network (i.e. up to 10 local predictions) and two networks (up to 20 local predictions). In all datasets, the ensemble improves the accuracy in a tradeoff for the increased execution costs as expected. Using two networks doubles the number of local predictions on average (from 10 to 20) and increased both the benefit and drawback. If we use further local predictions (e.g. original GoogLeNet averaged up to 1,008 predictions), the benefit and the cost will become much more significant. Comparing our adaptive ensemble with the static ensemble, our adaptive ensemble similarly improves accuracy (from 92% to 99% when we use two networks and from 83% to 99% when we use one network) while reducing the number of local predictions used in the ensembles; the reductions are up to 6.9x and 12.7x for the one-network and two-network configurations. The reduced numbers of local predictions result in shorter execution time; the speedup was by 2.1x to 2.8x and by 2.3x to 3.5x for the one-network and two-network configurations, respectively. The reductions in the execution time over the static ensemble are smaller than the reduction in the number of averaged predictions because of the additional overhead due to the confidence interval calculation, which is written in Python in the current implementation. Also, mini batches gradually become small as ensembling for parts of inputs terminated. The smaller batch sizes reduce the efficiency of execution on current GPUs. Since the speedup by our adaptive technique over the static ensemble becomes larger as the number of max predictions to ensemble increases, the benefit of our adaptive technique will become more impressive if we use larger ensemble configurations.

6 Conclusion

In this paper, we described our adaptive ensemble prediction to reduce the computation cost of ensembling many predictions. We were motivated to develop this technique by our observation that ensembling does not improve the prediction accuracy if predictions are highly probable. Our experiments using various image classification tasks showed that our adaptive ensemble makes it possible to avoid wasting computing power without significantly sacrificing the prediction accuracy by terminating ensembles based of the probabilities of the local predictions. The benefit of our technique will become larger if we use more predictions in an ensemble. Hence, we expect our technique to make the ensemble techniques more valuable for real-world systems by reducing the total computation power required while maintaining good accuracies and throughputs.

References

7 Appendix

Here, we show additional results and discussion on mispredictions with high probabilities.

7.1 Appendix A: How mispredictions with high probability happen

In Section 2.2 of the paper, we discussed that the mispredictions with high probabilities can be caused by the insufficient expressiveness in the used model.

We show a simple example in Figure 5. We built a three-layer perceptron for a simple binary classification problem which maps a 2-D feature into class A or B as shown in Figure 5(a). We label a sample with feature

as

We use the three-layer perceptron with 10 or 100 neurons in the hidden layer as the classifier and Sigmoid function as the activation function. We generated 1,000 random samples as the training data. The training is done by using stochastic gradient descent as the optimizer for 10,000 epochs.

Figure 5(b) depicts the classification results with 10 hidden neurons. In this case, the top-left region of class A is not captured by the classifier at all due to the poor expressiveness of the network even though we have enough training samples in this region. As a result, this (weak) classifier misclassifies the samples in this region for the class B with almost 100% probability. Although we repeat the training using different random number seeds, this mispredictions cannot be avoided with 10 hidden neurons. Hence, the ensembling multiple local predictions from this classifier cannot help this type of mispredictions in the top-left region. The decision boundary between class A and B at the bottom-right region is not sharp and its shape differs run by run due to the random numbers. The ensembling can statistically reduce the mispredictions near the boundary by reducing the effects of the random numbers.

When we increase the number of hidden neurons from 10 to 100, the top-left region of class A is captured as shown in Figure 5(c). So the expressiveness of the used model matters to avoid the mispredictions with high probabilities.

Another type of the mispredictions with high probabilities can happen if we do not have enough training data in small regions, e.g. the top-left region of class A in the above example. In such case, of course, even highly capable classifiers cannot learn the decision boundary around the small region and mispredict the samples in this region with high probability.

Ensembling multiple local predictions from the multiple local classifiers does not help both types of mispredictions and hence stop ensembling for them is effective to avoid wasting computation power without increasing the overall error rate.

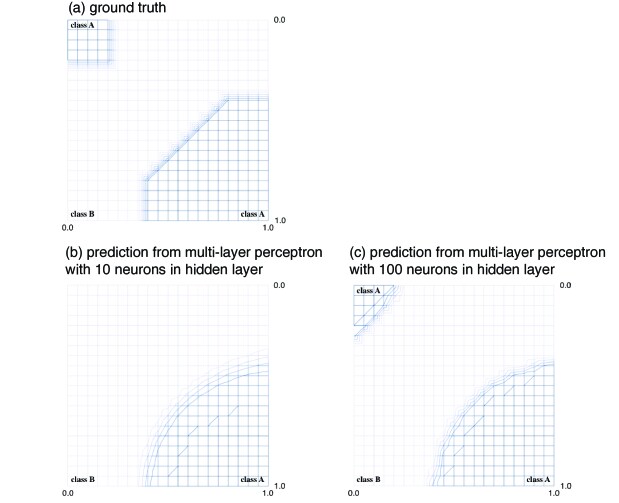

Figure 5: An example of mispredictions with high probabilities due to limited expressiveness of the classifier. A classifier with limited capability (10 hidden neurons) fails to learn the decision boundaries at the top-left region, while a classifier with higher capability (100 hidden neurons) can capture this decision boundary. The weak classifier makes incorrect classifications with almost 100% probabilities in the top-left region.

7.2 Appendix B: Using different networks

In Section 2 of the paper, we showed that ensembling two predictions from two local classifiers of the same network architecture (Alexnet or GoogLeNet) can improve the prediction accuracy only for samples that have low probabilities of prediction. Here, we show the results when we mix the predictions from Alexnet and GoogLeNet. Figure 2 shows the result when we use Alexnet in the first prediction and GoogLeNet in the second. The x-axis shows the percentile of the probability of the prediction by Alexnet from high to low as in figures shown in the main paper. The basic characteristics with two different networks are consistent with the cases using two identical networks discussed in the paper, although the improvements from the ensemble is much more significant since the second local classifier (GoogLeNet) is more powerful than the first one (Alexnet). For the leftmost region, i.e. 0- to 20-percentile samples, the ensemble from the two different networks does not improve the accuracy over the results with only the first local classifier. For the rightmost region, the ensemble improves the error rate significantly.

Here, the ensemble improves the accuracy for much wider regions compared to the cases with two identical networks. For the 20- to 40-percentile range, ensembling two local predictions from Alexnet does not improve the accuracy as shown in Figure 1(b) of the main paper while ensembling local predictions from Alexnet and GoogLeNet yields improvements in Figure 2. As discussed above using Figure 1(b) and 1(c), a more powerful classifier can avoid some mispredictions with high probabilities. GoogLeNet, which has higher capability than Alexnet, can correctly classify some samples that are misclassified with high probabilities by Alexnet in this range. However, GoogLeNet cannot do better classification in the 0- to 20-percentile range compared to Alexnet.

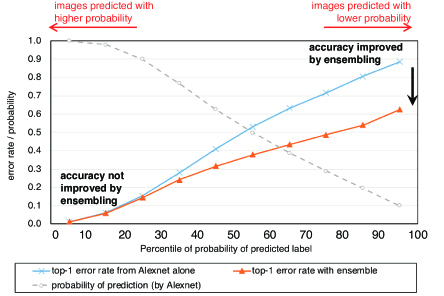

Figure 6: Improvements by ensemble and probabilities of predictions in ILSVRC 2012 validation set using Alexnet and GoogLeNet. X-axis shows percentile of probability of first local predictions from high (left) to low (right). Ensemble reduces error rates for inputs with low probabilities but does not affect inputs with high probabilities.
