1 Introduction

There are two types of frames in the video coding domain, Intra-frames and Inter-frames. Intra-frames (I-frames) are encoded/decoded independently of other frames. I-frame coding is equivalent of image compression. Inter-frames are encoded using motion compensation followed by residuals a prediction of an input frame is initially devised by moving pixels or blocks of one or multiple reference frames and then the prediction is corrected using residuals. Prediction is an essential task in inter-coding, for it is the primary way in which temporal redundancy is exploited. In the traditional paradigm of video coding [34, 41]

, motion vectors are used to model the motion of blocks of pixels between a reference and an input image

[34]. In the neural video coding domain, dense optical flow is usually used to model individual pixels movements. In both cases, a warping is performed on references using motion vectors or optical flow to generate the prediction.

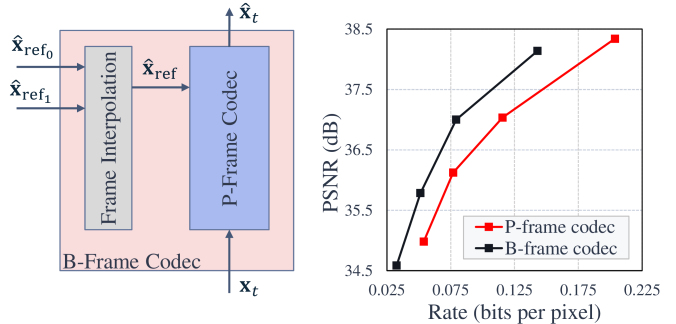

Figure 1: (a) the general idea of this work extending an existing P-frame codec to a B-frame codec by adding an interpolation block, (b) the rate-distortion improvements on the UVG dataset [38] where the P-frame [2] and the B-frame codecs are trained on the Vimeo-90k dataset [46] for the same number of iterations. The improvement is equivalent of 28.5% saving in bit-rate measured by BD-rate gain [6].

Inter-frames are further divided into Predicted (P) frames and Bi-directional predicted (B) frames. P-frame coding, which is suitable for low-latency applications such as video conferencing, uses only past decoded frames as references to generate a prediction. Most of the available literature on neural inter coding falls under this category and the methods often use a single past decoded frame as reference [24] (see Fig. 2.b). On the other hand, B-frame coding, which is suitable for applications such as on-demand video streaming, uses both past and future decoded frames as references. Future references provide rich motion information that facilitate frame prediction and eventually lead to better coding efficiency. The number of neural video codecs that address B-frame coding is limited [11, 13, 16, 43]

. They use two references and generate a prediction either by bidirectional optical flow estimation and warping or by performing frame interpolation. The reported results show that these approaches, despite relative success in video coding, do not fully exploit the motion information provided by two references as the results are not competitive with state-of-the-art P-frame codecs

[2].

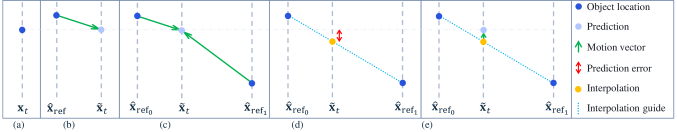

Figure 2: Prediction in inter-frame coding. , , and denote an input frame, the corresponding prediction and the reference, respectively. (a) Actual object location. (b) P-Frame prediction, a motion vector with respect to a single reference is transmitted. (c) B-frame prediction based on bidirectional flow/warp, two motion vectors with respect to two references are transmitted. (d) B-frame prediction based on frame interpolation, the interpolation result is treated as the prediction. No motion information is transmitted. (e) Our B-frame prediction approach, the interpolation result is corrected using a unidirectional motion vector similar to P-frame.

For a given input frame, when references from both past and future are available, under a linear motion assumption, one can come up with a rough prediction of the input frame by linearly interpolating the two references. This prediction does not need to be coded since the two references are already available to the receiver. The neural B-frame coding methods that work based on bidirectional flow/warping [13], do not use this useful information and send the optical flows with respect to both references (see Fig. 2.c). On the other hand, the interpolation outcome is only accurate under linear motion assumption. So in the neural B-frame models that rely on frame interpolation [11, 43], the prediction is likely to not exactly be aligned with the input frame (see Fig. 2.d). Even when a non-linear frame interpolator is employed [45], misalignment could still occur. In these situations, the codec solely relies on residuals to compensate for the misalignment. As a result, coding efficiency could be significantly lower compared to a scenario where the misalignment is mitigated via some inexpensive side-information first before applying residual coding.

In this work, we address this issue by introducing a new approach for neural B-frame coding, which despite its simplicity, is proven very effective. The method involves interpolating two reference frames to obtain a single reference frame, which is then used by a P-frame model to predict the current frame (see Fig. 1 and Fig. 2.e). A residual is applied to this prediction.

Our method takes advantage of the rich motion information available to the receiver by performing frame interpolation and does not suffer from the residual penalty due to misalignment. Since our B-frame coding solution operates based on a P-frame codec, an existing P-frame codec can be used to code B-frames. In fact, the same network can learn to do both P-frame coding as well as contributing to B-frame compression. In other words, by adding a frame interpolator to a P-frame codec, the codec is able to code both P-frames and B-frames. One can freely choose an existing interpolation and P-frame method when implementing our technique.

In video coding, videos are split into groups of pictures (GoP) for coding. The neural video codec that we develop in this work (B-Frame compression through Extended P-frame & Interpolation Codec) supports all frame types. Given that different frame types yield different coding efficiencies, it is crucial to choose the right frame type for the individual frames in a GoP. In this work, we look closely into GoP structure.

Our main contributions and findings are as follows:

  • [leftmargin=*]

  • We introduce a novel B-frame coding approach based on existing P-frame codecs and frame interpolation,

  • A single P-frame network is used for both P-frame and B-frame coding through weight-sharing,

  • A thorough analysis of the effect of GoP structure on performance is provided,

  • The proposed solution outperforms existing neural video codecs by a significant margin and achieves new state-of-the-art results.

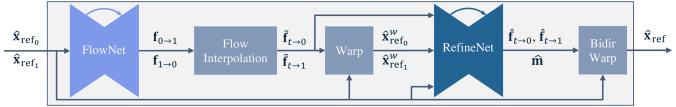

Figure 3: Frame interpolation method based on  [17]. and are trainable while , , and are non-trainable operators. See section 3.1 for details.

2 Related work

I-frame/Image coding: Great progress has been made in the development of neural image codecs. Research has focused on various aspects of neural coding, such as architecture [4, 26, 30, 37], quantization [1], priors [5, 26], and multi-rate coding [12, 25, 36]

. Recently, a hierarchical hyperprior model

[3, 5]

has been widely adopted in the neural coding field and there are multiple variants including some equipped with autoregressive models

[27, 28] and attention mechanisms [10].

P-frame coding: Most of the existing neural video codecs fall under this category where unidirectional motion estimation/compensation is followed by residual correction [21, 22, 31]. Lu et al. introduced DVC [24], a basic P-frame codec which is later upgraded in [23]. While motion is often modelled using spatial optical flow, Agustsson et al. introduced scale-space flow [2] to address uncertainties in motion estimation via a blur field which is further enhanced in [47]. Recent works have introduced more sophisticated components, Golinski et al.  [15] added re currency to capture longer frame dependencies, Lin et al. look at multiple previous frames to generate a prediction in M-LVC [19], Liu et al. perform multi-scale warping in feature space in NVC [20], and Chen et al.  [9] replaced optical flow and warping by displaced frame differences.

B-frame coding: Wu et al.  [43] introduced one of the pioneering neural video codecs via frame interpolation that was facilitated by context information. Chang et al.  [11] improved the idea through adding a residual correction. Habibian et al.  [16] provided an implicit multi-frame coding solution based on 3D convolutions. Djelouah et al.  [13] employed bidirectional optical flow and warping feature domain residuals for B-frame coding. A recent work [29] provides a multi-reference video codec that could be applied to both P-frame and B-frame coding.

3 Method

We develop a neural video codec that consists of an I-frame codec, a P-frame codec, and a frame interpolator. The I-frame codec (Fig. 4.a) encodes individual frames independently to produce a reconstruction . The P-frame codec applies a warp to a reference frame to produce a prediction of , which is then corrected by a residual to obtain the reconstruction (see Fig. 4.b). The frame interpolator takes two reference frames and and produces an interpolation (see Fig. 3).

Our novel B-frame codec (Fig. 1) works by using the frame interpolator on references and to produce a single reference , which is then used by the P-frame codec to encode . The resulting system thus supports I-frames, P-frames and B-frames in a flexible manner.

Although our general method can be implemented using any frame interpolator and P-frame codec, in this work we develop a specific codec that uses the  [17] frame interpolator and the Scale-Space Flow () codec [2]. The P-codec is used within our video codec in a stand-alone fashion as well as in a B-frame codec when bundled with , while the two instances share weights. In the following subsections we discuss and

, as well as the GoP structure and loss function in more detail.

3.1 Frame interpolation

In the frame interpolation block, the goal is to interpolate two references whose time indices are normalized to and , and , to time where . Since in B-frame coding, could be anywhere between and , an important factor in choosing over other competitors is that supports an arbitrary while many other methods assume . The latter can be still used within our model, though they will impose restrictions on the GoP size. See section 3.3 for more details.

The block diagram of is depicted in Fig. 3. consists of two trainable components and as well as non-trainable , , and blocks. Optical flow between and in the forward and backward directions, and where denotes the optical flow from to , are initially calculated in and then interpolated at time in using linear interpolation:

(1)

and are then warped using the interpolated optical-flows and . The two warped references together with the original references and the interpolated optical flows are given to for further adjustment of the bidirectional optical flows , , and generating a mask . The interpolation result is finally generated using bidirectional warping:

(2)

where denotes element-wise multiplication.

In this work, and are implemented using a  [35] and a  [32], respectively. See Appendix A for a more detailed illustration of the architecture.

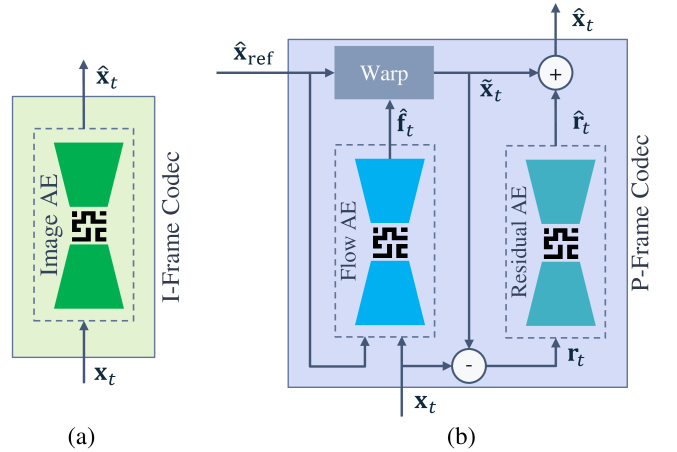

Figure 4: Block diagrams of (a) I-frame and (b) P-frame codecs, both based on  [2]. See section 3.2 for more details.

3.2 I-/P-frame codecs

Our I-frame and P-frame codecs are depicted in Fig. 4

. While the I-frame codec consists of a single autoencoder

that compresses to a reconstruction , the P-frame codec first generates a prediction of through motion estimation via and motion compensation via and then corrects using residuals via to reconstruct

(3)

where , , and denote optical flow, encoder residual, and decoder residual, respectively.

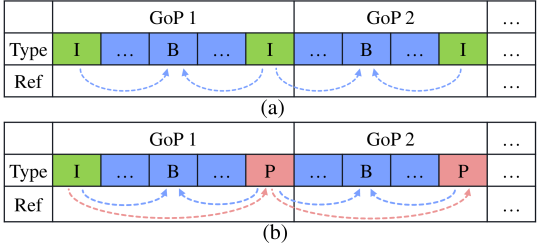

Figure 5: Frame type selection111What we show as GoP in this figure is related to a structure of pictures (SoP), but we use GoP liberally because it is more intuitive [42], the first reference of a video is always coded as I-frame. (a) In the configuration, the subsequent references are coded as I-frame as well while (b) in the configuration, they are coded as P-frame. The arrows show the references used in inter-coding.

In , consists of spatial and scale displacement maps and is a trilinear interpolation operator on a blur stack of . While uses Gaussian filters to generate a blur stack and uses scale to non-linearly point to the blur stack, we generate the blur stack using a Gaussian pyramid followed by bilinearly upsampling all pyramid scales to the original resolution and use scale to linearly point to the blur stack.

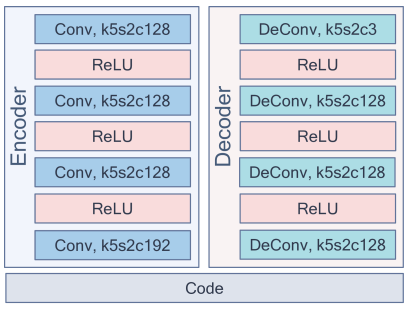

All the above autoencoders , , and , have the same architecture (without weight sharing) based on the mean-scale hyperprior model [5]

that consists of a main autoencoder (an encoder and a decoder) and a hyperprior (a hyper-encoder, a mean hyper-decoder and a scale hyper-decoder) where all the components are parameterized via convolutional neural networks. The quantized latent variables

are broken down into a latent and a hyper-latent where the latent has a Gaussian prior whose probabilities are conditioned on the hyper-latent and the hyper-latent has a data-independent factorized prior. See Appendix

A for more details about the architecture.

3.3 GoP structure

3.3.1 Frame type selection

I-frame is the least efficient frame type in terms of coding efficiency, next is P-frame, and finally B-frame delivers the best performance. Since supports all three frame types, it is important to use the right frame type to improve the overall coding efficiency.

In neural video coding, reference frames are often inserted at GoP boundaries. A common practice is to code reference frames as intra and use them as references to code the other frames as inter. In this work, we call this configuration where GoP boundaries are coded as I-frames and the middle frames are coded as B-frames. See Fig. 1.a for an illustration. On the other hand, given that I-frames are the least efficient among the three frame types, we can code some references as P-frames to improve the performance. Here, we call this configuration as shown in Fig. 1.b where the first reference is coded as an I-frame and the subsequent references are coded as P-frames [33] .

3.3.2 B-frames order

Once a B-frame is coded, it can be used as a reference for the next B-frames. It is thus very important to code the B-frames in a GoP in the optimal order to i) maximally exploit the information available through the available references and ii) derive good references for the next B-frames.

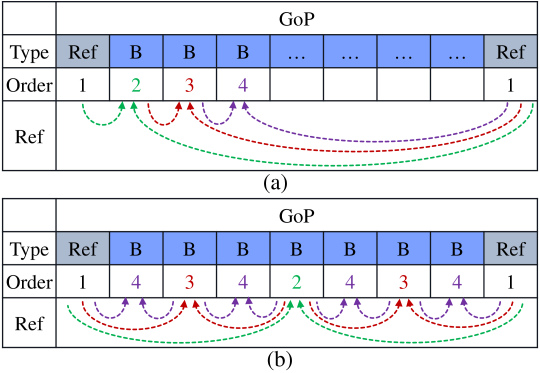

Figure 6: B-frames order, (a) , (b) .

Here, we present two ways to traverse the B-frames in a GoP, and  [33] as shown in Fig. 6. We assume that for each given GoP, the boundary frames are references that are already available (decoded) and the middle frames are B-frames.

In the order, we start from one end of GoP and code one B-frame at a time until we reach the other end while in the order, we always code the middle frame of two references as the next B-frame. The plain order only supports GoP sizes that are a power of 2 plus 1 9, 17, 33. However, we devised an algorithm based on bisection to traverse a GoP with an arbitrary size in the order as shown in Algorithm 1.

Assumption: Given a GoP of size , suppose and are available as references. ;
Initialize an empty ;
push to ;
while  is not empty do
        pop to retrieve ;
        Define new index ;
        Encode as a B-frame to generate . Use and as references ;
        if  then
               push to
        end if
       if  then
               push to
        end if

end while
Algorithm 1 Traversing an arbitrary size GoP in order.

3.4 Loss function

We assume that the training is done on GoPs of frames whose boundaries are references. The loss function for the configuration is defined as a rate-distortion tradeoff as follows:

(4)

where represents the entropy estimate of a latent in terms of bits-per-pixel which corresponds to the expected size in the bitstream, denotes the latent of the I-frame codec’s , and represent the latents of the P-frame codec’s and , denotes distortion in terms of or  [40], and

is a hyperparameter that controls the balance between rate and distortion. The loss function for

is similar.

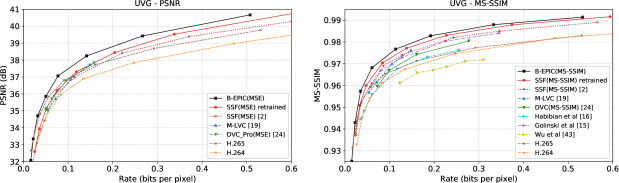

Figure 7: Rate-distortion comparison on the UVG dataset.

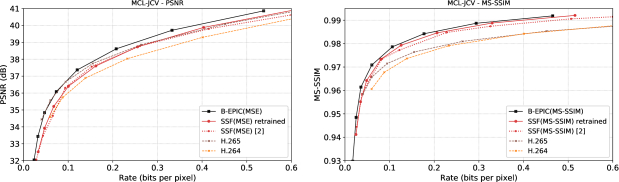

Figure 8: Rate-distortion comparison on the MCL-JCV dataset.

4 Experiments & Results

4.1 Training setup

Dataset: We used Vimeo-90k as training dataset [46]. It consists of 7-frame sequences in RGB format.

Trained models: We trained models at various rate-distortion tradeoffs ( values), using both and as distortion losses. The models were trained on and the models were trained on , where both and were measured in the RGB color space.

Training plan: we followed the exact schedule provided in [2] to train the and models to facilitate comparison. Specifically, we initially trained all models for 1,000,000 gradient updates on , then trained the models for extra 200,000 gradient updates on , and finally fine-tuned all the models for 50,000 gradient updates.

In both training and fine-tuning steps, we employed the Adam optimizer [18], used batch size of 8, and trained the network on 4-frame sequences, so the training GoP structure was IBBI and IBBP for the and models, respectively. We tried other training GoP lengths as well. Longer GoP lengths, despite dramatically slowing down the training, did not improve the performance significantly. In the training step, we set the learning-rate to and used randomly extracted patches. In the fine-tuning step, we reduced the learning-rate to and increased the patch size to .

We started all the components in our network from random weights except in the interpolation block where a pretrained with frozen weights was employed. The gradient from B-frame codecs was stopped from propagating to the I-frame and P-frame codecs for more stable training [2].

4.2 Evaluation setup

We evaluated on the UVG [38], MCL-JCV [39], and HEVC [7] datasets, all of which are widely used in the neural video codec literature. All these datasets are available in YUV420. We used FFMPEG [14] to convert the videos to RGB that is acceptable by (and almost all other neural codecs). See Appendix B for the FFMPEG commands details.

As shown in section 4.5, the B-frame order together with the GoP structure generate our best results. The results we report in the rest of this section are based on these settings as well as an evaluation GoP size of 12 for consistency with other works [23, 43].

We report video quality in terms of and

where both are first calculated per-frame in the RGB color space, then averaged over all the frames of each video, and finally averaged over all the videos of a dataset. Due to the network architecture, our codec accepts inputs whose spatial dimensions are a multiple of 64. Whenever there is a size incompatibility, we pad the frame to the nearest multiple of 64 before feeding to the encoder, and crop the decoded frame to compensate for padding. This issue, which may be fixable, could lead to a coding inefficiency depending on the number of pixels that have to be padded.

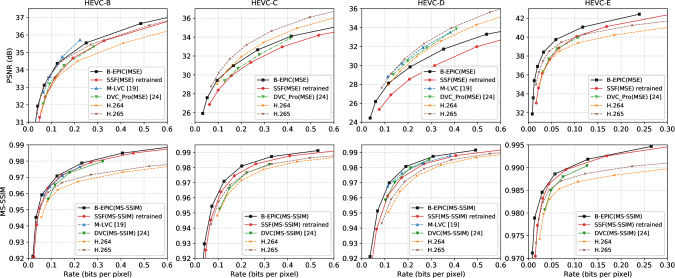

Figure 9: Rate-distortion comparison on the HEVC dataset.

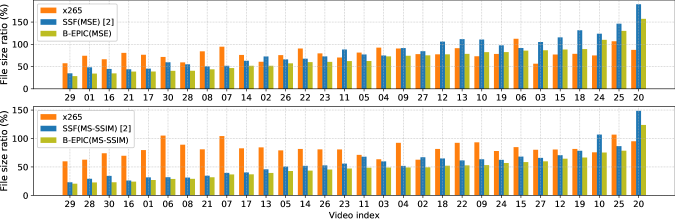

Figure 10: File sizes generated by , , and relative to on the MCL-JCV dataset, measured by (top) and (bottom) BD-rate gain. A value of 100% translates to equal sizes and no bit-rate savings. Smaller values are preferable.

4.3 Compared methods

We compared our results with several neural video codecs including  [2], DVC [23], M-LVC [19], Golinski et al.  [15], Wu et al.  [43], and Habibian et al.  [16]. We reimplemented and trained , and here provide both the original results reported in the paper as well as the reproduced results. The results in the original paper where obtained with GoP size of infinity only the first frame of a sequence is an I-frame and the rest are all P-frames while we report the performance on GoP of 12.

The standard codecs that we compare with are  [41] and  [34]. We generated the results for both and using FFMPEG where GoP size of 12 was used with all the other default settings. This is unlike the other papers that limit the FFMPEG performance by not allowing B-frames, or changing the preset to fast or superfast. See Appendix B for the FFMPEG commands details.

4.4 Results & Discussion

Rate-distortion: the rate-distortion comparisons on the UVG, MCL-JCV, and HEVC datasets are shown in Figs. 7, 8, 9, respectively.

When evaluated in terms of , outperforms all the compared methods on all the datasets across all bit-rates.

When evaluated in terms of , as can be observed from Figs. 7 and 8, significantly outperforms all the competing neural codecs as well as across all bit-rates on both UVG and MCL-JCV datasets. Compared to , maintains a large margin in the average and high bit-rates and is roughly on-par in extremely low bit-rate cases. On the HEVC dataset, the results are similarly favorable on HEVC class-B and class-E. On class-C, the standard codecs outperform all neural methods, and on class-D performs poorly. This is most likely due to the fact that the class-D videos have to be padded from to the nearest multiple of , i.e. , before it can be fed to our encoder. This means our method in its current form has to encode more pixels, all of which are discarded on the decoder side. It is worth noting that HEVC class-D is already removed in the common test conditions of the most recent standard video codec  [8] due to very small resolution.

can be thought of as a B-frame equivalent of and as can be observed from the rate-distortion comparisons, outperforms significantly across all bit-rates on all the datasets. This proves the effectiveness of our B-frame approach when applied to an existing P-frame codec.

Bjøntegaard delta rate (BD-rate): in this section, we report BD-rate [6] gains versus . Table 1 lists the average BD-rate gains versus on the UVG, MCL-JCV, and HEVC datasets in terms of both and . Here, the numbers show how much a method can save on bit-rate compared to while generating the same video quality. yields the highest BD-rate gains and performs relatively well in terms of BD-rate gains.

BD-rate gain (%) BD-rate gain (%)
 Dataset
 UVG -28.66 -25.71 -47.89 -24.03 -41.05 -50.79
 MCL-JCV -20.86 -15.90 -31.91 -18.22 -43.25 -52.12
 HEVC-B -25.0 -16.28 -35.68 -19.70 -48.23 -55.19
 HEVC-C -19.51 47.69 11.22 -15.80 -27.32 -41.53
 HEVC-D -16.25 82.89 29.05 -11.86 -20.79 -43.98
 HEVC-E -32.53 -24.35 -53.87 -30.45 -47.81 -61.32
 HEVC-Avg -23.32 22.49 -12.32 -19.46 -36.04 -50.50
Table 1: Average BD-rate gain versus on different datasets.

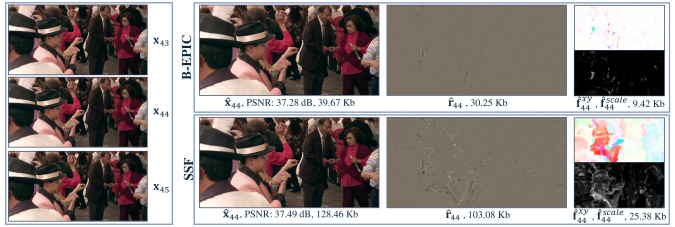

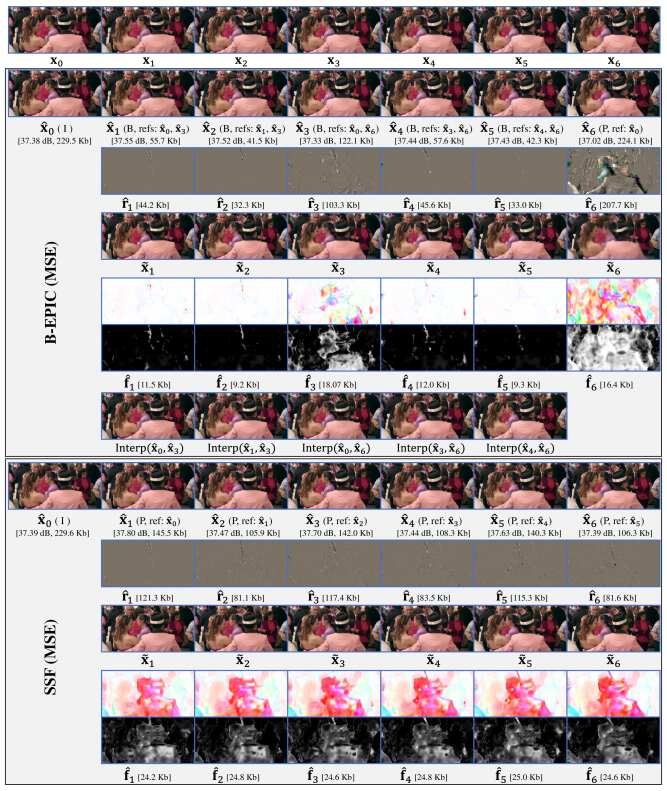

Figure 11: Qualitative results on frame 44 of Tango video from Netflix Tango in Netflix El Fuente222 Video produced by Netflix, with CC BY-NC-ND 4.0 license:
https://media.xiph.org/video/derf/ElFuente/Netflix_Tango_Copyright.txt
 [44]. , , and are an input sequence. In , is coded as a P-frame with used as reference. In , is coded as a B-frame with both and used as references. The interpolation block delivers an accurate baseline frame used in the P-frame codec as reference. As a result, both flow and residual are less detailed and consume fewer bits compared to .

Furthermore, in Fig 10 we show the file sizes of the individual MCL-JCV videos encoded using , , and compared to , estimated by BD-rate. As observed here, delivers better results compared to across the board. Compared to , it performs significantly better on the majority of the videos, specially in terms of . The under-performance on the last sequences of the figure is potentially because they are animated movies, while our training dataset Vimeo-90k is only comprised of natural videos, as pointed out in [2] as well.

Qualitative results: Fig. 2 shows a sample qualitative result where an input sequence together with the decoded frames, optical flow maps, and residuals for and are visualized. relies on much less detailed optical flow and residuals due to the frame-interpolation outcome being used as reference, and as a result, generates a lot less bits compared to at a similar .

Per-frame performance: Fig. 12 shows how performs on average across a GoP of 12 frames when using the and B-frames orders on the UVG dataset. As expected, as the gap between the two references closes (by newly coded B-frames used as reference), improves and Rate drops.

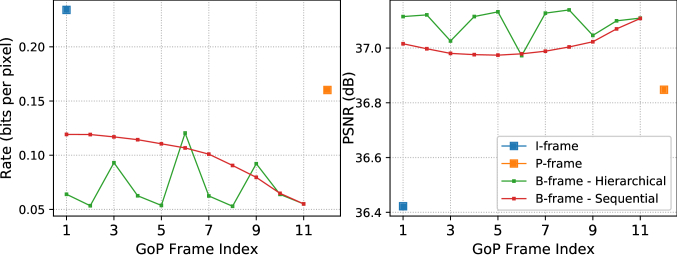

Figure 12: Average per-frame results across a GoP of 12 for the and B-frames orders on the UVG dataset. The first frame of each sequence is coded I, the last frame of each GoP is coded P, and the rest are coded B.

4.5 Ablation studies

We studied the effectiveness of different components of our codec including: GoP structure ( vs ), B-frames order ( vs ), pretraining , and removing for the P-frame codec and relying only on . The last configuration where is removed, is similar to the B-frame codecs that use interpolation followed by residual correction [11]. These ablation studies are shown in Fig. 13.a. Moreover, we studied the effect of the training GoP on the performance by finetuning our model on different sequences including: 4 consecutive frames, 7 consecutive frames, and 4 frames where consecutive frames are two frames apart. All the studied configurations delivered similar rate-distortion results on the UVG datasets. So, we proceeded with 4 consecutive frames as it is the most memory efficient and fastest to train.

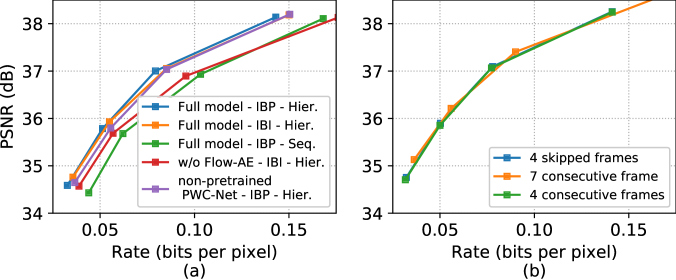

Figure 13: Ablations studies on the UVG dataset, (a) effectiveness of each component, (b) effect of the training sequence length/shape on the performance.

5 Conclusion

In this paper, we proposed a method to add B-frame coding capability to an existing neural P-frame codec by adding an interpolation block. It significantly improves the performance of the P-frame codec and delivers state-of-the-art neural video coding results on multiple datasets. Since the prototype we developed in this work is based on 2-reference B-frames and 1-reference P-frame codecs, as a future direction, this idea can be extended to the cases where more that 2 references are available to B-frames and/or with multi-frame P-frame codecs

References

  • [1] E. Agustsson, F. Mentzer, M. Tschannen, L. Cavigelli, R. Timofte, L. Benini, and L. V. Gool (2017) Soft-to-hard vector quantization for end-to-end learning compressible representations. In Advances in Neural Information Processing Systems, Vol. 30, pp. . External Links: Link Cited by: §2.
  • [2] E. Agustsson, D. Minnen, N. Johnston, J. Balle, S. J. Hwang, and G. Toderici (2020-06) Scale-space flow for end-to-end optimized video compression. In

    Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)

    ,
    Cited by: §A.1, Figure 1, §1, §2, Figure 4, §3, §4.1, §4.1, §4.3, §4.4.
  • [3] J. Ballé, V. Laparra, and E. P. Simoncelli (2016) End-to-end optimization of nonlinear transform codes for perceptual quality. In 2016 Picture Coding Symposium (PCS), Vol. , pp. 1–5. External Links: Document Cited by: §2.
  • [4] J. Ballé, V. Laparra, and E. P. Simoncelli (2016-01-01) Density modeling of images using a generalized normalization transformation. (English (US)). Note: 4th International Conference on Learning Representations, ICLR 2016 Cited by: §2.
  • [5] J. Ballé, D. Minnen, S. Singh, S. J. Hwang, and N. Johnston (2018) Variational image compression with a scale hyperprior. In International Conference on Learning Representations, External Links: Link Cited by: §A.1, §2, §3.2.
  • [6] G. Bjøntegaard (2001-07) Calculation of average PSNR differences between RD-curves. Doc. VCEG-M33. ITU-T SG16/Q6 VCEG Austin, TX, USA. Cited by: Appendix C, Figure 1, §4.4.
  • [7] F. Bossen (2011) Common test conditions and software reference configurations. Note: JCTVC-F900 Cited by: Appendix C, §4.2.
  • [8] B. Bross, J. Chen, S. Liu, and Y.-K. Wang (2020-07) Versatile video coding (draft 10). Output Document JVET-S2001 Cited by: §4.4.
  • [9] M. Chen, T. Goodall, A. Patney, and A. C. Bovik (2020) Learning to compress videos without computing motion. External Links: 2009.14110 Cited by: §2.
  • [10] T. Chen, H. Liu, Z. Ma, Q. Shen, X. Cao, and Y. Wang (2021) End-to-end learnt image compression via non-local attention optimization and improved context modeling. IEEE Transactions on Image Processing 30 (), pp. 3179–3191. External Links: Document Cited by: §2.
  • [11] Z. Cheng, H. Sun, M. Takeuchi, and J. Katto (2019-06) Learning image and video compression through spatial-temporal energy compaction. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Cited by: §1, §1, §2, §4.5.
  • [12] Y. Choi, M. El-Khamy, and J. Lee (2019-10) Variable rate deep image compression with a conditional autoencoder. In Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV), Cited by: §2.
  • [13] A. Djelouah, J. Campos, S. Schaub-Meyer, and C. Schroers (2019-10) Neural inter-frame compression for video coding. In Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV), Cited by: §1, §1, §2.
  • [14] ffmpeg Developers Ffmpeg. Note: http://ffmpeg.org/Accessed: 2020-02-21 Cited by: §4.2.
  • [15] A. Golinski, R. Pourreza, Y. Yang, G. Sautiere, and T. S. Cohen (2020-11) Feedback recurrent autoencoder for video compression. In Proceedings of the Asian Conference on Computer Vision (ACCV), Cited by: §2, §4.3.
  • [16] A. Habibian, T. v. Rozendaal, J. M. Tomczak, and T. S. Cohen (2019-10) Video compression with rate-distortion autoencoders. In Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV), Cited by: §1, §2, §4.3.
  • [17] H. Jiang, D. Sun, V. Jampani, M. Yang, E. Learned-Miller, and J. Kautz (2018-06) Super slomo: high quality estimation of multiple intermediate frames for video interpolation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Cited by: Figure 3, §3.
  • [18] D. P. Kingma and J. Ba (2015) Adam: a method for stochastic optimization. Note: International Conference for Learning Representations, San Diego, 2015 External Links: Link Cited by: §4.1.
  • [19] J. Lin, D. Liu, H. Li, and F. Wu (2020-06) M-LVC: multiple frames prediction for learned video compression. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Cited by: §2, §4.3.
  • [20] H. Liu, M. Lu, Z. Ma, F. Wang, Z. Xie, X. Cao, and Y. Wang (2020) Neural video coding using multiscale motion compensation and spatiotemporal context model. IEEE Transactions on Circuits and Systems for Video Technology (), pp. 1–1. External Links: Document Cited by: §2.
  • [21] H. Liu, H. Shen, L. Huang, M. Lu, T. Chen, and Z. Ma (2020-Apr.) Learned video compression via joint spatial-temporal correlation exploration.

    Proceedings of the AAAI Conference on Artificial Intelligence

    34 (07), pp. 11580–11587.
    External Links: Link, Document Cited by: §2.
  • [22] S. Lombardo, J. Han, C. Schroers, and S. Mandt (2019) Deep generative video compression. In Advances in Neural Information Processing Systems, Vol. 32, pp. . External Links: Link Cited by: §2.
  • [23] G. Lu, X. Zhang, W. Ouyang, L. Chen, Z. Gao, and D. Xu (2020) An end-to-end learning framework for video compression. IEEE Transactions on Pattern Analysis and Machine Intelligence. Cited by: §2, §4.2, §4.3.
  • [24] G. Lu, W. Ouyang, D. Xu, X. Zhang, C. Cai, and Z. Gao (2019-06) DVC: an end-to-end deep video compression framework. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Cited by: §1, §2.
  • [25] Y. Lu, Y. Zhu, Y. Yang, A. Said, and T. S. Cohen (2021) Progressive neural image compression with nested quantization and latent ordering. External Links: 2102.02913 Cited by: §2.
  • [26] F. Mentzer, E. Agustsson, M. Tschannen, R. Timofte, and L. Van Gool (2018-06) Conditional probability models for deep image compression. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Cited by: §2.
  • [27] D. Minnen, J. Ballé, and G. D. Toderici (2018) Joint autoregressive and hierarchical priors for learned image compression. In Advances in Neural Information Processing Systems, S. Bengio, H. Wallach, H. Larochelle, K. Grauman, N. Cesa-Bianchi, and R. Garnett (Eds.), Vol. 31, pp. . External Links: Link Cited by: §2.
  • [28] D. Minnen and S. Singh (2020) Channel-wise autoregressive entropy models for learned image compression. In IEEE International Conference on Image Processing (ICIP), Cited by: §2.
  • [29] W. Park and M. Kim (2021) Deep predictive video compression using mode-selective uni- and bi-directional predictions based on multi-frame hypothesis. IEEE Access 9 (), pp. 72–85. External Links: Document Cited by: §2.
  • [30] O. Rippel and L. Bourdev (2017-06–11 Aug) Real-time adaptive image compression. In

    Proceedings of the 34th International Conference on Machine Learning

    ,
    Vol. 70, pp. 2922–2930. Cited by: §2.
  • [31] O. Rippel, S. Nair, C. Lew, S. Branson, A. G. Anderson, and L. Bourdev (2019-10) Learned video compression. In Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV), Cited by: §2.
  • [32] O. Ronneberger, P. Fischer, and T. Brox (2015) U-net: convolutional networks for biomedical image segmentation. In Medical Image Computing and Computer-Assisted Intervention – MICCAI 2015, Cham, pp. 234–241. External Links: ISBN 978-3-319-24574-4 Cited by: §3.1.
  • [33] H. Schwarz, D. Marpe, and T. Wiegand (2006) Analysis of hierarchical b pictures and mctf. In 2006 IEEE International Conference on Multimedia and Expo, Vol. , pp. 1929–1932. External Links: Document Cited by: §3.3.1, §3.3.2.
  • [34] G. J. Sullivan, J. R. Ohm, W. J. Han, and T. Wiegand (2012-12) Overview of the High Efficiency Video Coding (HEVC) Standard. IEEE Trans. Circuits Syst. Video Technol. 22 (12), pp. 1649–1668. External Links: ISSN 1051-8215 Cited by: §1, §4.3.
  • [35] D. Sun, X. Yang, M. Liu, and J. Kautz (2018) PWC-Net: cnns for optical flow using pyramid, warping, and cost volume. In 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Vol. , pp. 8934–8943. External Links: Document Cited by: §A.2, §3.1.
  • [36] G. Toderici, S. M. O’Malley, S. J. Hwang, D. Vincent, D. Minnen, S. Baluja, M. Covell, and R. Sukthankar (2015)

    Variable rate image compression with recurrent neural networks.

    .
    CoRR abs/1511.06085. External Links: Link Cited by: §2.
  • [37] G. Toderici, D. Vincent, N. Johnston, S. Jin Hwang, D. Minnen, J. Shor, and M. Covell (2017-07)

    Full resolution image compression with recurrent neural networks

    .
    In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Cited by: §2.
  • [38] Ultra Video Group UVG test sequences. Note: http://ultravideo.cs.tut.fi/Accessed: 2020-02-21 Cited by: Appendix C, Figure 1, §4.2.
  • [39] H. Wang, W. Gan, S. Hu, J. Y. Lin, L. Jin, L. Song, P. Wang, I. Katsavounidis, A. Aaron, and C. -. J. Kuo (2016) MCL-jcv: a jnd-based h.264/avc video quality assessment dataset. In 2016 IEEE International Conference on Image Processing (ICIP), Vol. , pp. 1509–1513. External Links: Document Cited by: Appendix C, §4.2.
  • [40] Z. Wang, A. C. Bovik, H. R. Sheikh, E. P. Simoncelli, et al. (2004) Image quality assessment: from error visibility to structural similarity. IEEE Trans. on Image Processing 13 (4), pp. 600–612. Cited by: §3.4.
  • [41] T. Wiegand, G. J. Sullivan, G. Bjontegaard, and A. Luthra (2003-07) Overview of the H.264/AVC video coding standard. IEEE Transactions on Circuits and Systems for Video Technology 13 (7), pp. 560–576. External Links: ISSN 1558-2205 Cited by: §1, §4.3.
  • [42] M. Wien (2014) High efficiency video coding: coding tools and specification. Springer Publishing Company, Incorporated. External Links: ISBN 3662442752 Cited by: footnote 1.
  • [43] C. Wu, N. Singhal, and P. Krahenbuhl (2018-09) Video compression through image interpolation. In Proceedings of the European Conference on Computer Vision (ECCV), Cited by: §1, §1, §2, §4.2, §4.3.
  • [44] Xiph.org Xiph.org video test media [derf’s collection]. Note: https://media.xiph.org/video/derf/Accessed: 2020-02-21 Cited by: Figure 17, Figure 11.
  • [45] X. Xu, L. Siyao, W. Sun, Q. Yin, and M. Yang (2019) Quadratic video interpolation. In Advances in Neural Information Processing Systems, Vol. 32, pp. . External Links: Link Cited by: §1.
  • [46] T. Xue, B. Chen, J. Wu, D. Wei, and W. T. Freeman (2019) Video enhancement with task-oriented flow. International Journal of Computer Vision (IJCV) 127 (8), pp. 1106–1125. Cited by: Figure 1, §4.1.
  • [47] R. Yang, Y. Yang, J. Marino, and S. Mandt (2021) Hierarchical autoregressive modeling for neural video compression. In International Conference on Learning Representations, External Links: Link Cited by: §2.

Appendix A Architecture details

a.1 I-/P-frame codec

The details of the main autoencoder and the hyperprior in , , and are shown in Figs. 14 and 15, respectively.

Figure 14: Main autoencoder details. , , and

denote kernel size, stride, and the number of output channels, respectively.

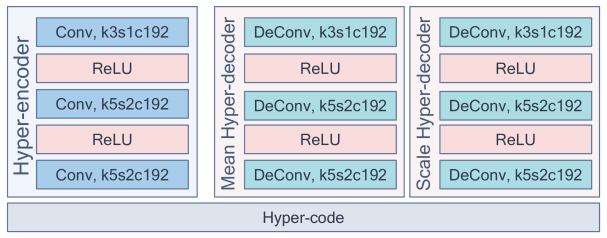

Figure 15: Hyperprior details. , , and denote kernel size, stride, and the number of output channels, respectively.

In our implementation of the hyperprior, we followed [5] which differs slightly from  [2] as pointed below:

  • in the scale hyper-decoder, activations are replaced by and the last

    is removed. To have a lower bound on standard deviation values, we clamp the scale hyper-decoder output at

    ,

  • in both hyper-decoders, the last layer is implemented as a with stride 1 as opposed to with stride 2 in ,

  • the hyper-encoder, the first layer is implemented as a with stride 1 as opposed to with stride 2 in .

a.2 Frame interpolation

In the frame interpolation component, is a pre-trained  [35] without modifications and is a shown in Fig. 16.

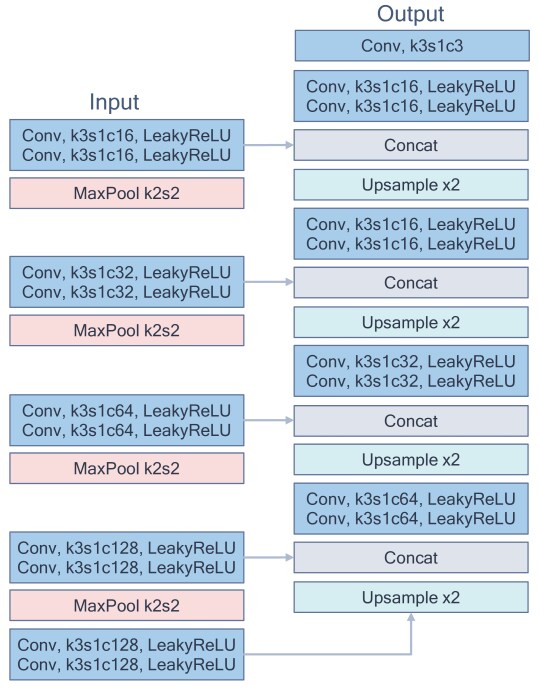

Figure 16: U-Net architecture details. , , and denote kernel size, stride, and the number of output channels, respectively.

Appendix B FFMPEG commands

We generated and baselines using FFMPEG. The command that we used to run FFMPEG with all the default configurations is as follows:

ffmpeg -pix_fmt yuv420p -s [W]x[H] -r [FR] -i [IN].yuv -c:v libx[ENC] -b:v -crf [CRF] [OUT].mkv

and the command that we used to run FFMPEG with GoP=12 is as follows:

ffmpeg -pix_fmt yuv420p -s [W]x[H] -r [FR] -i [IN].yuv -c:v libx[ENC] -b:v -crf [CRF] -x[ENC]-params "keyint=[GOP]:min-keyint=[GOP]:verbose=1" [OUT].mkv

where the values in brackets represent the encoder parameters as follows: H and W are the frame dimensions, FR is the frame rate, ENC is the encoder type (x264 or x265), GOP is the GoP size (12), INPUT and OUTPUT are the input and the output filenames, respectively, and CRF controls the bit-rate (We tried CRF).

In order to measure and in the RGB color space, we saved all video frames as PNG files using FFMPEG using the following commands for YUV and MKV files:

ffmpeg -pix_fmt yuv420p -s [W]x[H] -i [IN].yuv %9d.png

ffmpeg [IN].mkv %9d.png

Appendix C Extended results

Bjøntegaard delta rate (BD-rate) comparison: We report the BD-rate [6] gains for a scenario where both and are configured to use all the default parameters as opposed to the results for GoP=12 reported in 4.4 (see Table 2).

BD-rate gain (%) BD-rate gain (%)
 Dataset
 UVG -29.02 11.05 -26.93 -24.28 -11.55 -25.99
 MCL-JCV -20.06 3.77 -17.27 -16.76 -29.69 -40.76
 HEVC-B -22.44 6.69 -18.21 -16.54 -32.36 -41.80
 HEVC-C -12.96 91.98 43.38 -8.21 -5.24 -24.66
 HEVC-D -7.64 149.80 72.16 -3.13 5.71 -27.71
 HEVC-E -27.31 34.28 -18.12 -27.24 -4.36 -30.77
 HEVC-Avg -17.59 70.69 19.80 -13.78 -9.05 -31.23
Table 2: Average BD-rate gain versus (with FFMPEG default parameters) on different datasets.

Qualitative results:

In Fig. 17 we show the intermediate visualizations as well as the detailed rate-distortion results across a GoP of seven frames for both and .

Figure 17: Qualitative results for the first GoP (GoP=7) of Tango video from Netflix Tango in Netflix El Fuente [44] (resolution , zoom in for more details). Both and models are trained on with . is an intra frame with similar performance on and . The other six frames are inter frames (P or B). yields consistent bit-rates across the inter frames due to similar level of details in the optical flow and the residuals. That is mainly because all the inter frames are P-frames where the immediate previous decoded frame is used as reference. In , the inter frames are mostly B-frames where the distances to the references are quite variable. As a result, it delivers different bit-rates across the inter frames. The average results for the inter-frames for and are as follows: : 37.37dB vs 37.57dB, bit-rate: 90.5 Kb vs 124.7 kb, residual bit-rate: 77.7 Kb vs 100.0 Kb, flow bit-rate: 12.8 Kb vs 24.7 Kb. Here, the bit-rate values are obtained by multiplying (bits-per-pixel) by frame resolution.
[Video produced by Netflix, with CC BY-NC-ND 4.0 license: https://media.xiph.org/video/derf/ElFuente/Netflix_Tango_Copyright.txt]

Rate-distortion results: We report the per-video performance of our and models on the UVG [38], MCL-JCV [39], and HEVC [7] datasets in Tables 3 through 14.

Performance across models - (dB) vs (bits-per-pixel)
Video
Beauty 0.956 37.92 0.553 36.8 0.229 35.53 0.061 34.51 0.029 34.16 0.018 33.9 0.012 33.54 0.009 33.1
Bosphorus 0.235 42.71 0.12 41.41 0.067 40.09 0.04 38.8 0.025 37.34 0.016 36.0 0.013 34.45 0.01 33.1
HoneyBee 0.415 39.87 0.112 38.56 0.036 37.66 0.017 36.68 0.01 35.49 0.007 34.4 0.007 33.01 0.006 31.68
Jockey 0.419 40.79 0.193 39.73 0.11 39.0 0.071 38.29 0.053 37.42 0.034 36.59 0.026 35.44 0.02 34.18
ReadySetGo 0.455 41.38 0.28 40.14 0.178 38.75 0.119 37.26 0.084 35.65 0.054 34.12 0.039 32.46 0.031 30.77
ShakeNDry 0.599 40.13 0.292 38.7 0.159 37.42 0.094 36.17 0.058 34.81 0.035 33.46 0.02 31.92 0.013 30.68
YachtRide 0.474 41.87 0.316 40.64 0.21 39.28 0.139 37.75 0.091 36.1 0.057 34.46 0.036 32.6 0.024 30.96
Average 0.508 40.67 0.267 39.43 0.141 38.25 0.077 37.07 0.05 35.85 0.032 34.71 0.022 33.35 0.016 32.07
Table 3: Detailed rate-distortion performance of on the UVG dataset.
Performance across models - vs (bits-per-pixel)
Video
Beauty 0.842 0.98 0.607 0.973 0.377 0.961 0.21 0.946 0.102 0.928 0.031 0.906 0.017 0.898 0.01 0.892
Bosphorus 0.37 0.995 0.203 0.993 0.112 0.99 0.065 0.986 0.035 0.98 0.021 0.972 0.015 0.959 0.012 0.942
HoneyBee 0.47 0.992 0.253 0.989 0.105 0.985 0.054 0.981 0.01 0.974 0.016 0.966 0.011 0.95 0.008 0.934
Jockey 0.589 0.991 0.365 0.987 0.207 0.981 0.115 0.976 0.07 0.969 0.039 0.962 0.03 0.952 0.02 0.934
ReadySetGo 0.413 0.995 0.245 0.993 0.146 0.99 0.095 0.986 0.063 0.98 0.039 0.971 0.028 0.958 0.02 0.939
ShakeNDry 0.573 0.992 0.362 0.988 0.207 0.983 0.135 0.976 0.065 0.966 0.049 0.954 0.027 0.929 0.018 0.905
YachtRide 0.47 0.995 0.296 0.993 0.19 0.99 0.121 0.986 0.08 0.98 0.05 0.971 0.03 0.954 0.019 0.931
Average 0.532 0.991 0.333 0.988 0.192 0.983 0.114 0.977 0.061 0.968 0.035 0.957 0.023 0.943 0.015 0.925
Table 4: Detailed rate-distortion performance of on the UVG dataset.
Performance across models - (dB) vs (bits-per-pixel)
Video
videoSRC01 0.371 40.88 0.093 39.54 0.036 38.96 0.017 38.49 0.011 37.97 0.007 37.39 0.007 36.65 0.006 35.88
videoSRC02 0.19 44.26 0.124 43.36 0.086 42.36 0.061 41.23 0.046 39.94 0.032 38.64 0.025 37.09 0.02 35.36
videoSRC03 0.328 41.5 0.166 40.29 0.09 39.08 0.05 37.78 0.029 36.31 0.018 35.07 0.013 33.62 0.01 32.07
videoSRC04 0.858 41.28 0.648 39.92 0.481 38.46 0.339 36.71 0.231 35.07 0.152 33.55 0.093 31.88 0.056 30.36
videoSRC05 0.905 37.94 0.467 36.77 0.266 35.89 0.169 35.0 0.113 34.01 0.074 33.0 0.051 31.68 0.038 30.25
videoSRC06 1.374 33.86 1.021 33.42 0.647 32.51 0.169 31.15 0.016 30.63 0.009 30.54 0.007 30.43 0.006 30.3
videoSRC07 0.895 37.22 0.55 36.31 0.253 35.18 0.111 34.33 0.061 33.64 0.038 32.99 0.025 32.16 0.017 31.37
videoSRC08 0.62 38.96 0.205 37.69 0.1 37.1 0.054 36.5 0.031 35.8 0.019 35.03 0.014 34.14 0.011 33.2
videoSRC09 1.107 38.1 0.744 36.83 0.446 35.4 0.233 33.74 0.128 32.05 0.078 30.42 0.05 28.59 0.035 26.83
videoSRC10 0.899 40.18 0.612 38.8 0.417 37.32 0.286 35.81 0.202 34.29 0.132 32.77 0.093 31.08 0.084 29.35
videoSRC11 0.274 44.58 0.186 43.39 0.126 42.07 0.086 40.65 0.061 39.1 0.039 37.58 0.028 36.0 0.022 34.33
videoSRC12 0.338 41.55 0.19 39.79 0.11 38.04 0.061 36.18 0.034 34.47 0.02 32.94 0.014 31.55 0.011 30.18
videoSRC13 0.781 39.28 0.544 38.11 0.347 36.65 0.176 34.74 0.067 32.58 0.024 30.35 0.012 27.8 0.009 25.8
videoSRC14 0.544 40.75 0.284 39.46 0.166 38.37 0.107 37.26 0.072 36.05 0.048 34.8 0.035 33.38 0.026 31.89
videoSRC15 1.0 38.48 0.63 37.19 0.329 35.69 0.139 33.99 0.054 32.41 0.03 31.18 0.02 29.87 0.014 28.55
videoSRC16 0.232 41.51 0.09 40.68 0.05 40.14 0.03 39.49 0.02 38.75 0.013 37.94 0.011 36.98 0.008 35.81
videoSRC17 0.525 40.34 0.244 39.15 0.152 38.29 0.097 37.36 0.065 36.28 0.043 35.12 0.029 33.73 0.021 32.49
videoSRC18 0.316 39.3 0.191 37.82 0.12 36.89 0.079 35.19 0.055 33.49 0.034 31.83 0.024 29.98 0.017 28.45
videoSRC19 0.517 41.81 0.333 40.35 0.219 38.82 0.145 37.24 0.096 35.61 0.061 34.05 0.041 32.51 0.03 31.07
videoSRC20 0.409 42.06 0.284 40.84 0.202 39.6 0.14 38.08 0.1 36.57 0.068 35.13 0.05 33.66 0.038 32.13
videoSRC21 0.172 45.04 0.111 44.25 0.075 43.46 0.052 42.54 0.036 41.5 0.025 40.38 0.019 39.1 0.015 37.78
videoSRC22 0.525 42.84 0.348 41.5 0.242 40.23 0.172 38.91 0.124 37.49 0.088 35.95 0.063 34.29 0.046 32.58
videoSRC23 0.317 43.45 0.186 42.05 0.113 40.61 0.072 39.13 0.047 37.57 0.031 36.04 0.022 34.47 0.016 32.88
videoSRC24 0.333 41.48 0.216 40.51 0.146 39.68 0.095 38.53 0.061 37.07 0.039 35.76 0.027 33.95 0.02 32.22
videoSRC25 1.084 36.19 0.809 35.27 0.594 34.45 0.411 33.06 0.27 31.49 0.174 30.02 0.107 28.09 0.067 26.31
videoSRC26 0.243 42.55 0.138 41.65 0.093 40.85 0.065 39.94 0.047 38.89 0.034 37.8 0.026 36.48 0.021 34.9
videoSRC27 0.447 42.4 0.299 40.89 0.2 39.28 0.132 37.59 0.086 35.82 0.054 34.12 0.034 32.3 0.023 30.7
videoSRC28 0.178 42.72 0.085 41.74 0.046 40.74 0.027 39.63 0.018 38.44 0.012 37.16 0.011 35.8 0.009 34.39
videoSRC29 0.071 45.3 0.035 44.59 0.021 43.96 0.013 43.28 0.009 42.5 0.007 41.71 0.006 40.84 0.005 39.79
videoSRC30 0.286 40.02 0.144 39.26 0.054 38.36 0.022 37.52 0.013 36.72 0.009 35.94 0.008 35.06 0.007 34.08
Average 0.538 40.86 0.333 39.71 0.208 38.62 0.12 37.37 0.073 36.08 0.047 34.84 0.032 33.44 0.024 32.04
Table 5: Detailed rate-distortion performance of on the MCL-JCV dataset.
Performance across models - vs (bits-per-pixel)
Video
videoSRC01 0.567 0.991 0.347 0.987 0.178 0.982 0.078 0.976 0.021 0.97 0.009 0.966 0.008 0.961 0.006 0.955
videoSRC02 0.312 0.996 0.177 0.995 0.106 0.993 0.068 0.99 0.047 0.987 0.031 0.982 0.025 0.976 0.018 0.964
videoSRC03 0.467 0.994 0.273 0.992 0.136 0.988 0.064 0.983 0.029 0.976 0.016 0.968 0.014 0.957 0.011 0.941
videoSRC04 0.634 0.994 0.45 0.991 0.318 0.986 0.223 0.98 0.154 0.971 0.1 0.957 0.065 0.935 0.04 0.907
videoSRC05 0.642 0.988 0.415 0.984 0.249 0.979 0.144 0.972 0.085 0.963 0.051 0.952 0.035 0.933 0.023 0.9
videoSRC06 0.9 0.95 0.652 0.938 0.433 0.919 0.269 0.896 0.108 0.865 0.016 0.839 0.009 0.834 0.004 0.83
videoSRC07 0.756 0.981 0.512 0.975 0.307 0.966 0.158 0.955 0.08 0.944 0.043 0.932 0.029 0.917 0.019 0.902
videoSRC08 0.708 0.986 0.487 0.982 0.272 0.975 0.117 0.967 0.041 0.96 0.018 0.953 0.013 0.946 0.009 0.934
videoSRC09 0.62 0.994 0.371 0.991 0.211 0.985 0.125 0.978 0.067 0.966 0.041 0.948 0.029 0.922 0.021 0.887
videoSRC10 0.58 0.995 0.388 0.993 0.263 0.99 0.171 0.985 0.114 0.979 0.071 0.971 0.05 0.96 0.038 0.945
videoSRC11 0.29 0.996 0.175 0.995 0.114 0.993 0.077 0.991 0.054 0.987 0.034 0.982 0.026 0.975 0.018 0.963
videoSRC12 0.259 0.995 0.146 0.992 0.086 0.988 0.066 0.983 0.032 0.973 0.019 0.961 0.014 0.945 0.011 0.926
videoSRC13 0.338 0.995 0.158 0.991 0.072 0.986 0.036 0.979 0.011 0.971 0.006 0.959 0.006 0.941 0.007 0.923
videoSRC14 0.526 0.994 0.326 0.991 0.191 0.987 0.111 0.983 0.067 0.976 0.041 0.968 0.03 0.956 0.021 0.938
videoSRC15 0.727 0.992 0.501 0.988 0.315 0.982 0.174 0.972 0.075 0.956 0.039 0.939 0.018 0.911 0.013 0.883
videoSRC16 0.461 0.992 0.264 0.988 0.127 0.984 0.055 0.98 0.026 0.976 0.015 0.971 0.012 0.965 0.008 0.949
videoSRC17 0.604 0.992 0.385 0.989 0.227 0.985 0.133 0.979 0.078 0.972 0.051 0.963 0.034 0.949 0.022 0.929
videoSRC18 0.215 0.994 0.136 0.991 0.089 0.986 0.066 0.98 0.041 0.969 0.026 0.954 0.02 0.932 0.015 0.897
videoSRC19 0.496 0.995 0.326 0.993 0.213 0.989 0.139 0.984 0.089 0.976 0.055 0.965 0.037 0.947 0.025 0.925
videoSRC20 0.326 0.996 0.228 0.994 0.16 0.991 0.116 0.987 0.079 0.98 0.053 0.97 0.04 0.956 0.029 0.931
videoSRC21 0.261 0.995 0.146 0.992 0.085 0.99 0.053 0.988 0.036 0.985 0.024 0.981 0.019 0.976 0.013 0.968
videoSRC22 0.48 0.995 0.323 0.993 0.216 0.99 0.148 0.986 0.106 0.981 0.074 0.974 0.055 0.962 0.038 0.944
videoSRC23 0.334 0.996 0.196 0.995 0.113 0.992 0.068 0.989 0.04 0.984 0.027 0.978 0.019 0.968 0.014 0.954
videoSRC24 0.303 0.996 0.182 0.995 0.112 0.992 0.071 0.99 0.045 0.986 0.028 0.98 0.02 0.969 0.014 0.946
videoSRC25 0.637 0.994 0.447 0.991 0.302 0.987 0.207 0.98 0.135 0.968 0.085 0.951 0.054 0.923 0.033 0.874
videoSRC26 0.388 0.994 0.216 0.991 0.115 0.988 0.069 0.985 0.045 0.981 0.031 0.977 0.024 0.969 0.018 0.956
videoSRC27 0.374 0.996 0.238 0.994 0.158 0.992 0.107 0.988 0.066 0.982 0.043 0.973 0.027 0.957 0.018 0.937
videoSRC28 0.272 0.994 0.128 0.992 0.055 0.99 0.027 0.988 0.015 0.985 0.01 0.981 0.008 0.975 0.007 0.965
videoSRC29 0.19 0.995 0.089 0.993 0.042 0.991 0.02 0.989 0.012 0.987 0.007 0.984 0.007 0.98 0.006 0.975
videoSRC30 0.294 0.989 0.138 0.985 0.048 0.981 0.021 0.976 0.009 0.971 0.006 0.965 0.007 0.957 0.006 0.946
Average 0.465 0.992 0.294 0.989 0.177 0.984 0.106 0.979 0.06 0.971 0.036 0.961 0.025 0.949 0.017 0.93
Table 6: Detailed rate-distortion performance of on the MCL-JCV dataset.
Performance across models - (dB) vs (bits-per-pixel)
Video
BQTerrace 1.18 36.28 0.799 35.4 0.414 34.13 0.185 32.9 0.089 31.61 0.046 30.32 0.026 28.75 0.018 27.15
BasketballDrive 0.858 37.98 0.411 36.76 0.219 35.85 0.13 34.93 0.083 33.93 0.053 32.91 0.036 31.55 0.026 30.15
Cactus 0.986 36.74 0.525 35.69 0.239 34.64 0.108 33.51 0.06 32.39 0.036 31.27 0.023 29.89 0.017 28.58
Kimono 0.55 39.96 0.247 38.69 0.138 37.7 0.082 36.67 0.052 35.49 0.034 34.32 0.023 32.97 0.017 31.75
ParkScene 0.805 38.02 0.445 36.73 0.241 35.39 0.122 33.83 0.061 32.2 0.034 30.78 0.021 29.33 0.016 28.11
Average 0.876 37.8 0.486 36.66 0.25 35.54 0.125 34.37 0.069 33.13 0.041 31.92 0.026 30.5 0.019 29.15
Table 7: Detailed rate-distortion performance of on the HEVC class-B dataset.
Performance across models - vs (bits-per-pixel)
Video
BQTerrace 0.635 0.987 0.413 0.983 0.238 0.977 0.12 0.968 0.049 0.956 0.026 0.94 0.014 0.911 0.01 0.881
BasketballDrive 0.608 0.989 0.381 0.985 0.22 0.98 0.121 0.974 0.065 0.964 0.038 0.952 0.026 0.933 0.017 0.896
Cactus 0.7 0.987 0.452 0.982 0.243 0.975 0.122 0.965 0.048 0.952 0.028 0.939 0.018 0.917 0.013 0.893
Kimono 0.587 0.992 0.371 0.988 0.211 0.983 0.119 0.977 0.063 0.968 0.04 0.958 0.026 0.941 0.017 0.92
ParkScene 0.628 0.991 0.416 0.986 0.244 0.98 0.139 0.971 0.064 0.956 0.036 0.936 0.018 0.904 0.013 0.872
average 0.632 0.989 0.407 0.985 0.231 0.979 0.124 0.971 0.058 0.959 0.033 0.945 0.02 0.921 0.014 0.892
Table 8: Detailed rate-distortion performance of on the HEVC class-B dataset.
Performance across models - (dB) vs (bits-per-pixel)
Video
BQMall 0.741 38.11 0.436 36.97 0.269 35.83 0.168 34.33 0.105 32.65 0.063 31.06 0.04 29.24 0.027 27.43
BaskehallDrill 0.68 36.6 0.392 35.48 0.257 34.4 0.167 33.06 0.106 31.63 0.066 30.35 0.042 28.69 0.029 27.01
PartyScene 1.182 33.32 0.799 32.6 0.546 31.72 0.354 30.27 0.202 28.38 0.107 26.61 0.054 24.58 0.031 22.91
RaceHorses 1.175 36.33 0.834 35.44 0.589 34.43 0.395 32.96 0.249 31.27 0.145 29.7 0.076 27.86 0.046 26.37
Average 0.945 36.09 0.615 35.12 0.415 34.09 0.271 32.65 0.165 30.98 0.095 29.43 0.053 27.59 0.033 25.93
Table 9: Detailed rate-distortion performance of on the HEVC class-C dataset.
Performance across models - vs (bits-per-pixel)
Video
BQMall 0.439 0.993 0.235 0.989 0.13 0.985 0.077 0.978 0.045 0.968 0.025 0.953 0.018 0.932 0.014 0.902
BasketballDrill 0.451 0.991 0.275 0.987 0.162 0.98 0.096 0.968 0.055 0.951 0.033 0.928 0.025 0.899 0.017 0.853
PartyScene 0.474 0.99 0.288 0.986 0.165 0.979 0.098 0.965 0.053 0.942 0.03 0.904 0.021 0.855 0.014 0.796
RaceHorses 0.758 0.991 0.524 0.987 0.35 0.981 0.231 0.973 0.138 0.957 0.075 0.932 0.041 0.893 0.025 0.843
average 0.531 0.991 0.33 0.987 0.202 0.981 0.125 0.971 0.073 0.954 0.041 0.93 0.026 0.895 0.017 0.849
Table 10: Detailed rate-distortion performance of on the HEVC class-C dataset.
Performance across models - (dB) vs (bits-per-pixel)
Video
BQSquare 1.249 34.09 0.87 33.36 0.593 32.21 0.391 30.58 0.217 28.49 0.109 26.59 0.043 24.38 0.02 22.24
BasketballPass 0.883 36.99 0.623 35.85 0.449 34.74 0.308 33.21 0.197 31.45 0.121 29.88 0.072 28.1 0.047 26.44
BlowingBubbles 1.124 33.82 0.729 32.92 0.468 31.96 0.281 30.46 0.154 28.63 0.08 26.95 0.042 25.07 0.025 23.47
RaceHorses 1.253 36.63 0.903 35.55 0.648 34.3 0.434 32.68 0.268 30.81 0.154 29.07 0.083 27.19 0.053 25.61
Average 1.127 35.38 0.781 34.42 0.539 33.31 0.354 31.73 0.209 29.85 0.116 28.12 0.06 26.19 0.036 24.44
Table 11: Detailed rate-distortion performance of on the HEVC class-D dataset.
Performance across models - vs (bits-per-pixel)
Video
BQSquare 0.4 0.991 0.228 0.987 0.121 0.981 0.066 0.972 0.029 0.952 0.011 0.921 0.008 0.889 0.008 0.851
BasketballPass 0.477 0.993 0.311 0.99 0.208 0.984 0.137 0.975 0.084 0.961 0.05 0.939 0.033 0.908 0.021 0.857
BlowingBubbles 0.393 0.989 0.22 0.984 0.117 0.975 0.066 0.96 0.035 0.936 0.019 0.897 0.015 0.851 0.01 0.797
RaceHorses 0.697 0.992 0.474 0.989 0.317 0.983 0.206 0.973 0.125 0.956 0.064 0.928 0.037 0.892 0.022 0.835
average 0.492 0.992 0.308 0.987 0.191 0.981 0.119 0.97 0.068 0.951 0.036 0.921 0.023 0.885 0.015 0.835
Table 12: Detailed rate-distortion performance of on the HEVC class-D dataset.
Performance across models - (dB) vs (bits-per-pixel)
Video
Vidyo1 0.234 42.17 0.108 40.84 0.052 39.65 0.029 38.44 0.018 37.06 0.012 35.68 0.01 33.95 0.008 32.24
Vidyo3 0.243 42.48 0.125 41.17 0.066 39.81 0.037 38.46 0.022 36.78 0.014 35.08 0.011 33.1 0.009 31.24
Vidyo4 0.241 42.61 0.118 41.17 0.058 39.73 0.032 38.36 0.019 36.85 0.012 35.39 0.01 33.68 0.008 32.12
Average 0.239 42.42 0.117 41.06 0.059 39.73 0.033 38.42 0.02 36.89 0.013 35.39 0.01 33.58 0.009 31.87
Table 13: Detailed rate-distortion performance of on the HEVC class-E dataset.
Performance across models - vs (bits-per-pixel)
Video
Vidyo1 0.298 0.994 0.154 0.992 0.07 0.988 0.032 0.984 0.013 0.979 0.008 0.972 0.009 0.962 0.008 0.95
Vidyo3 0.254 0.995 0.112 0.992 0.047 0.989 0.026 0.985 0.012 0.979 0.008 0.97 0.009 0.956 0.008 0.941
Vidyo4 0.243 0.995 0.118 0.992 0.054 0.989 0.031 0.985 0.014 0.979 0.009 0.972 0.009 0.959 0.008 0.947
average 0.265 0.995 0.128 0.992 0.057 0.989 0.029 0.985 0.013 0.979 0.009 0.971 0.009 0.959 0.008 0.946
Table 14: Detailed rate-distortion performance of on the HEVC class-E dataset.
