Introduction

Facial expression editing is the task that transforms the expression of a given face image to a target one without affecting the identity properties. It has applications in facial animation, human-computer interactions, entertainment, etc. The area has been attracting considerable attention both from academic and industrial research communities.

Existing methods that address expression editing can be divided into two categories. One category tries to manipulate images by reusing parts of existing ones [Yang et al.2011, Mohammed, Prince, and Kautz2009, Yeh et al.2016] while the other resorts to synthesis techniques to generate a face image with the target expression [Susskind et al.2008, Reed et al.2014, Cheung et al.2014]. In the first category, traditional methods [Yang et al.2011]

often make use of the expression flow map to transfer an expression by image warping. Recently, yeh2016semantic yeh2016semantic applies the idea to a variational autoencoder to learn the flow field. Although the generated face image has high resolution, paired data where one subject has different expressions are needed to train the model. In the second category, deep learning-based methods are mainly used. The early work by susskind2008generating susskind2008generating uses a deep belief network to generate emotional faces, which can be controlled by the Facial Action Coding System (FACS) labels. In

[Reed et al.2014]

, a three-way gated Boltzmann machine is employed to model the relationships between the expression and identity. However, the synthesized image of these methods has low resolution (48 x 48), lacking fine details and tending to be blurry.

Moreover, existing works can only transform the expression to different classes, like Angry or Happy. However, in reality, the intensity of facial expression is often displayed over a range. For example, humans can express the Happy expression either with a huge grin or by a gentle smile. Thus it is appealing if both the type of the expression and its intensity can be controlled simultaneously. Motivated by this, in this paper, we present a new expression editing model, Expression Generative Adversarial Network (ExprGAN) which has the unique property that multiple diverse styles of the target expression can be synthesized where the intensity of the generated expression is able to be controlled continuously from weak to strong, without the need for training data with intensity values.

To achieve this goal, we specially design an expression controller module. Instead of feeding in a deterministic one-hot vector label like previous works, the expression code generated by the expression controller module is used. It is a real-valued vector conditioned on the label, thus more complex information such as expression intensity can be described. Moreover, to force each dimension of the expression code to capture a different factor of the intensity variations, the conditional mutual information between the generated image and the expression code is maximized by a regularizer network.

Our work is inspired by the recent success of the image generative model, where a generative adversarial network [Goodfellow et al.2014] learns to produce samples similar to a given data distribution through a two-player game between a generator and a discriminator. Our ExprGAN also adopts the generator and discriminator framework in addition to the expression controller module and regularizer network. However, to facilitate image editing, the generator is composed of an encoder and a decoder. The input of the encoder is a face image, the output of the decoder is a reconstructed one, and the learned identity and expression representations bridge the encoder and decoder. To preserve the most prominent facial structure, we adopt a multi-layer perceptual loss [Johnson, Alahi, and Fei-Fei2016] in the feature space in addition to the pixel-wise loss. Moreover, to make the synthesized image look more photo-realistic, two adversarial networks are imposed on the encoder and decoder, respectively. Because it is difficult to directly train our model on the small training set, a three-stage incremental learning algorithm is also developed.

The main contributions of our work are as follows:

  • We propose a novel model called ExprGAN that can change a face image to a target expression with multiple styles, where the expression intensity can also be controlled continuously.

  • We show that the synthesized face images have high perceptual quality, which can be used to improve the performance of an expression classifier.

  • Our identity and expression representations are explicitly disentangled which can be exploited for tasks such as expression transfer, image retrieval, etc.

  • We develop an incremental training strategy to train the model on a relative small dataset without the rigid requirement of paired samples.

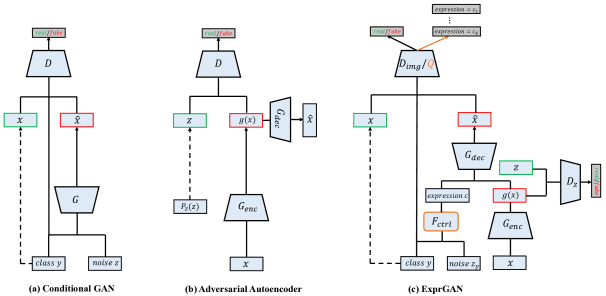

Figure 1: Comparison of previous GAN architectures and our proposed ExprGAN.

Related Works

Deep Generative Model

Deep generative models have achieved impressive success in recent years. There are two major approaches: generative adversarial network (GAN) [Goodfellow et al.2014] and variational autoencoder (VAE) [Kingma and Welling2014]. GAN is composed of a generator and a discriminator, where the training is carried out with a minimax two-player game. GAN has been used for image synthesis [Radford, Metz, and Chintala2016], image superresolution [Ledig et al.2017], etc. One interesting extension of GAN is Conditional GAN (CGAN) [Mirza and Osindero2014] where the generated image can be controlled by the condition variable. On the other hand, VAE is a probabilistic model with an encoder to map an image to a latent representation and a decoder to reconstruct the image. A reparametrization trick is proposed which enables the model to be trained by backpropogation [Rumelhart et al.1988]. One variant of VAE is Adversarial Autoencoder [Makhzani et al.2016], where an adversarial network is adopted to regularize the latent representation to conform to a prior distribution. Our ExprGAN also adopts an autoencoder structure, but there are two main differences: First, an expression controller module is specially designed, so a face with different types of expressions across a wide range of intensities can be generated. Second, to improve the generated image quality, a face identity preserving loss and two adversarial losses are incorporated.

Facial Expression Editing

Facial expression editing has been actively investigated in computer graphics. Traditional approaches include 3D model-based [Blanz et al.2003], 2D expression mapping-based [Liu, Shan, and Zhang2001] and flow-based [Yang et al.2011]. Recently, deep learning-based methods have been proposed. susskind2008generating susskind2008generating studied a deep belief network to generate facial expression given high-level identity and facial action unit (AU) labels. In [Reed et al.2014], a higher-order Boltzman machine with multiplicative interactions was proposed to model the distinct factors of variation. cheung2014discovering cheung2014discovering proposed a decorrelating regularizer to disentangle the variations between identity and expression in an unsupervised manner. However, the generated image is low resolution with size of 48 x 48, which is not visually satisfying. Recently, yeh2016semantic yeh2016semantic proposed to edit the facial expression by image warping with appearance flow. Although the model can generate high-resolution images, paired samples as well as the labeled query image are required.

The most similar work to ours is CFGAN [Kaneko, Hiramatsu, and Kashino2017], which uses a filter module to control the generated face attributes. However, there are two main differences: First, CFGAN adopts the CGAN architecture where an encoder needs to be trained separately for image editing. While for the proposed ExprGAN, the encoder and the decoder are constructed in a unified framework. Second, the attribute filter of CFGAN is mainly designed for a single class, while our expression controller module works for multiple categories. Most recently, zhang2017age zhang2017age proposed a conditional AAE (CAAE) for face aging, which can also be applied for expression editing. Compared with these studies, our ExprGAN has two main differences: First, in addition to transforming a given face image to a new facial expression, our model can also control the expression intensity continuously without the intensity training labels; Second, photo-realistic face images with new identities can be generated for data augmentation, which is found to be useful to train an improved expression classifier.

Proposed Method

In this section, we describe our Expression Generative Adversarial Network (ExprGAN). We first describe the Conditional Generative Adversarial Network (CGAN) [Mirza and Osindero2014] and Adversarial Autoencoder (AAE) [Makhzani et al.2016], which form the basis of ExprGAN. Then the formulation of ExprGAN is explained. The architectures of the three models are shown in Fig. 1.

Conditional Generative Adversarial Network

CGAN is an extension of a GAN [Goodfellow et al.2014] for conditional image generation. It is composed of two networks: a generator network G and a discriminator network D that compete in a two-player minimax game. Network G is trained to produce a synthetic image to fool D to believe it is an actual photograph, where and are the random noise and condition variable, respectively. D tries to distinguish the real image and the generated one . Mathematically, the objective function for G and D can be written as follows:

(1)

Adversarial Autoencoder

AAE [Makhzani et al.2016] is a probabilistic autoencoder which consists of an encoder , a decoder and a discriminator . Apart from the reconstruction loss, the hidden code vector is also regularized by an adversarial network to impose a prior distribution . Network aims to discriminate from , while is trained to generate that could fool . Thus, the AAE objective function becomes:

(2)

where is the norm:

Expression Generative Adversarial Network

Given a face image with expression label , the objective of our learning problem is to edit the face to display a new type of expression at different intensities. Our approach is to train a ExprGAN conditional on the original image and the expression label with its architecture illustrated in Fig. 1 (c).

Network Architecture

ExprGAN first applies an encoder to map the image to a latent representation that preserves identity. Then, an expression controller module is adopted to convert the one-hot expression label to a more expressive expression code . To further constrain the elements of to capture the various aspects of the represented expression, a regularizer is exploited to maximize the conditional mutual information between and the generated image. Finally, the decoder generates a reconstructed image combining the information from and . To further improve the generated image quality, a discriminator on the decoder is used to refine the synthesized image to have photo-realistic textures. Moreover, to better capture the face manifold, a discriminator on the encoder is applied to ensure the learned identity representation is filled and exhibits no “holes” [Makhzani et al.2016].

Expression Controller Networks and

In previous conditional image generation methods [Tran, Yin, and Liu2017, Zhang, Song, and Qi2017], a binary one-hot vector is usually adopted as the condition variable. This is enough for generating images corresponding to different categories. However, for our problem, a stronger control over the synthesized facial expression is needed: we want to change the expression intensity in addition to generating different types of expressions. To achieve this goal, an expression controller module is designed to ensure the expression code can describe the property of the expression intensity except the category information. Furthermore, a regularizer network is proposed to enforce the elements of to capture the multiple levels of expression intensity comprehensively.

Expression Controller Module To enhance the description capability, transforms the binary input to a continuous representation by the following operation:

(3)

where the inputs are the expression label

and uniformly distributed

, while the output is the expression code , is the number of classes. If the class expression is present, i.e., , is set to be a positive vector within 0 and 1, while has negative values from -1 to 0. Thus, in testing, we can manipulate the elements of to generate the desired expression type. This flexibility greatly increases the controllability of over synthesizing diverse styles and intensities of facial expressions.

Regularizer on Expression Code It is desirable if each dimension of could learn a different factor of the expression intensity variations. Then faces with a specific intensity level can be generated by manipulating the corresponding expression code. To enforce this constraint, we impose a regularization on by maximizing the conditional mutual information between the generated image and the expression code . This ensures that the expression type and intensity encoded in is reflected in the image generated by the decoder. The direct computation of is hard since it requires the posterior , which is generally intractable. Thus, a lower bound is derived with variational inference which extends [Chen et al.2016] to the conditional setting:

(4)

For simplicity, the distribution of is fixed, thus is treated as a constant. Here the auxiliary distribution

is parameterized as a neural network, thus the final loss function is defined as follows:

(5)

Generator Network

The generator network adopts the autoencoder structure where the encoder first transforms the input image to a latent representation that preserves as much identity information as possible. After obtaining the identity code and the expression code , the decoder then generates a synthetic image which should be identical as . For this purpose, a pixel-wise image reconstruction loss is used:

(6)

To further preserve the face identity between and , a pre-trained discriminative deep face model is leveraged to enforce the similarity in the feature space:

(7)

where are the

layer feature maps of a face recognition network, and

is the corresponding weight. We use the activations at the , , , and layer of the VGG face model [Parkhi et al.2015].

Discriminator on Identity Representation

It is a well known fact that face images lie on a manifold [He et al.2005, Lee et al.2003]

. To ensure that face images generated by interpolating between arbitrary identity representations do not deviate from the face manifold

[Zhang, Song, and Qi2017], we impose a uniform distribution on , forcing it to populate the latent space evenly without “holes”. This is achieved through an adversarial training process where the training objective is:

(8)

Discriminator on Image

Similar to existing methods [Huang et al.2017, Tran, Yin, and Liu2017], an adversarial loss between the generated image and the real image is further adopted to improve the photorealism:

(9)

Overall Objective Function

The final training loss function is a weighted sum of all the losses defined above:

(10)

We also impose a total variation regularization  [Mahendran and Vedaldi2015] on the reconstructed image to reduce spike artifacts.

Incremental Training

Empirically we find that jointly training all the subnetworks yields poor results as we have multiple loss functions. It is difficult for the model to learn all the functions at one time considering the small size of the dataset. Therefore, we propose an incremental training algorithm to train the proposed ExprGAN. Overall our incremental training strategy can be seen as a form of curriculum learning, and includes three stages: controller learning stage, image reconstruction stage and image refining stage. First, we teach the network to generate the image conditionally by training , and where the loss function only includes and . is set to be random noise in this stage. After the training finishes, we then teach the network to learn the disentangled representations by reconstructing the input image with and . To ensure that the network does not forget what is already learned, is also trained but with a decreased weight. So the loss function has three parts: , and . Finally, we train the whole network to refine the image to be more photo-realistic by adding and with the loss function defined in (10). We find in our experiments that stage-wise training is crucial to learn the desired model on the small dataset.

Experiments

We first describe the experimental setup then three main applications: expression editing with continuous control over intensity, facial expression transfer and conditional face image generation for data augmentation .

Dataset

We evaluated the proposed ExprGAN on the widely used Oulu-CASIA [Zhao et al.2011] dataset. Oulu-CASIA has 480 image sequences taken under Dark, Strong, Weak illumination conditions. In this experiment, only videos with Strong condition captured by a VIS camera are used. There are 80 subjects and six expressions, i.e., Angry, Disgust, Fear, Happy, Sad and Surprise. The first frame is always neutral while the last frame has the peak expression. Only the last three frames are used, and the total number of images is 1440. Training and testing sets are divided based on identity, with 1296 for training and 144 for testing. We aligned the faces using the landmarks detected from [Zhang et al.2016], then cropped and resized the images to dimension of 128 x 128. Lastly, we normalized the pixel values into range of [-1, 1]. To alleviate overfitting, we augmented the training data with random flipping.

Implementation Details

The ExprGAN mainly builds on multiple upsampling and downsampling blocks. The upsampling block consists of the nearest-neighbor upsampling followed by a 3 x 3 stride 1 convolution. The downsampling block consists of a 5 x 5 stride 2 convolution. Specifically,

has 5 downsampling blocks where the numbers of channels are 64, 128, 256, 512, 1024 and one FC layer to get the identity representation . For , it has 7 upsampling blocks with 512, 256, 128, 64, 32, 16, 3 channels. consists of 4 FC layers with 64, 32, 16, 1 channels. We model as a factored Gaussian, and share many parts of with to reduce computation cost. The shared parts have 4 downsampling blocks with 16, 32, 64, 128 channels and one FC layer to output a 1024-dim representation. Then it is branched into two heads, one for and one for . has branches where each has two individual FC layers with 64, channels to predict the expression code

. Leaky ReLU

[Maas, Hannun, and Ng2013]

and batch normalization

[Ioffe and Szegedy2015] are applied to and , while ReLU [Krizhevsky, Sutskever, and Hinton2012] activation is used in and . The random noise is uniformly distributed from -1 to 1. We fixed the dimensions of and to be 50 and 30, and found this configuration sufficient for representing the identity and expression variations.

We train the networks using the Adam optimizer [Kingma and Ba2014], with learning rate of 0.0002, , and mini-batch size of 48. In the image refining stage, we empirically set , , , ,

. The model is implemented using Tensorflow

[Abadi et al.2016].

Figure 2: Visual comparison of facial expression editing results. For each input, we compare the ground truth images (top), the synthetic images of ExprGAN (middle) and CAAE (bottom). Zoom in for details.

Facial Expression Editing

In this part, we demonstrate our model’s ability to edit the expression of a given face image. To do this, we first input the image to to obtain an identity representation . Then with the decoder , a face image of the desired expression can be generated by setting to be positive and to be negative. A positive (negative) value indicates the represented expression is present (absent). Here 1 and -1 are used. Some example results are shown in Fig. 2. The left column contains the original input images, while the middle row in the right column contains the synthesized faces corresponding to six different expressions. For comparison, the ground truth images and the results from the recent proposed CAAE [Zhang, Song, and Qi2017] are also shown in the first and third row, respectively. We can see faces generated by our ExprGAN preserve the identities well. Even some subtle details like the transparent eyeglasses are also kept. Moreover, the synthesized expressions look natural. While CAAE failed to transform the input faces to new expressions with fine details, and the generated faces are blurry.

Figure 3: Face images are transformed to new expressions with different intensity levels. The top row contains the input faces with the original expressions, and the rest rows are the synthesized results. Each column corresponds to a new expression with five intensity levels from weak to strong. The Neutral expression which is not in the training data is also able to be generated.

We now demonstrate that our model can transform a face image to new types of expressions with continuous intensity. This is achieved by exploiting the fact that each dimension of the expression code captures a specific level of expression intensity. In particular, to vary the intensity of the desired class , we set the individual element of the expression code to be 1, while the other dimensions of and all other to be -1. The generated results are shown in Fig. 3. Take the Happy expression in the forth column as an example. The face in the first row which corresponds to the first element of being 1 displays a gentle smile with mouth closed, while a big smile with white teeth is synthesized in the last row that corresponds to the fifth element of being 1. Moreover, when we set all to be -1, a Neutral expression is able to be generated even though this expression class is not present in the training data. This validates that the expression code discovers the diverse spectrum of expression intensity in an unsupervised way, i.e., without the training data containing explicit labels for intensity levels.

Facial Expression Transfer

In this part, we demonstrate our model’s ability to transfer the expression of another face image to a given face image . To do this, we first input to to get the identity representation . Then we train an expression classifier to predict the expression label of . With and , the expression code can be obtained from . Finally, we can get an image with identity A and expression B from . The generated images are shown in Fig. 4. We observe that faces having the source identities and expressions similar to the target ones can be synthesized even for some very challenging cases. For example, when the expression Happy is transferred to an Angry face, the teeth region which does not exist in the source image is also able to be generated.

Figure 4: Facial expression transfer. Expressions from the middle column are transferred to faces in the left column. The results are shown in the right column.
Figure 5: Random generated subjects displaying six categories of expressions.

Face Image Generation for Data Augmentation

In this part, we first show our model’s ability to generate high-quality face images controlled by the expression label, then quantitatively demonstrate the usefulness of the synthesized images. To generate faces with new identities, we feed in random noise and expression code to . The results are shown in Fig. 5. Each column shows the same subject displaying different expressions. We can see the synthesized face images look realistic. Moreover, because of the design of the expression controller module, the generated expressions for the same class are also diverse. For example, for the class Happy, there are big smile with teeth and slight smile with mouth closed.

We further demonstrate that the images synthesized by our model can be used for data augmentation to train a robust expression classifier. Specifically, for each expression category, we generate 0.5, 1, 5, and 10 images, respectively. The classifier has the same network architecture as

except one additional FC layer with six neurons is added. The results are shown in Table

1. We can see by only adding 3 synthetic images, the improvement is marginal, with an accuracy of 78.47% vs. 77.78%. However, when the number is increased to 30, the recognition accuracy is improved significantly, reaching to 84.72% with a relative error reduction by 31.23%. The performance starts to saturate when more images (60) are utilized. This validates the synthetic face images have high perceptual quality.

# Syn. Images 0 3 6 30 60
Accuracy (%) 77.78 78.47 81.94 84.72 84.72
Table 1: Comparison of expression recognition accuracy with different numbers of synthesized images.

Feature Visualization

In this part, we demonstrate that the identity and expression representations learned by our model are disentangled. To show this, we first use t-SNE [Maaten and Hinton2008] to visualize the 50-dim identity feature on a two dimensional space. The results are shown in Fig. 6. We can see that most of the subjects are well separated, which confirms the latent identity features learn to preserve the identity information.

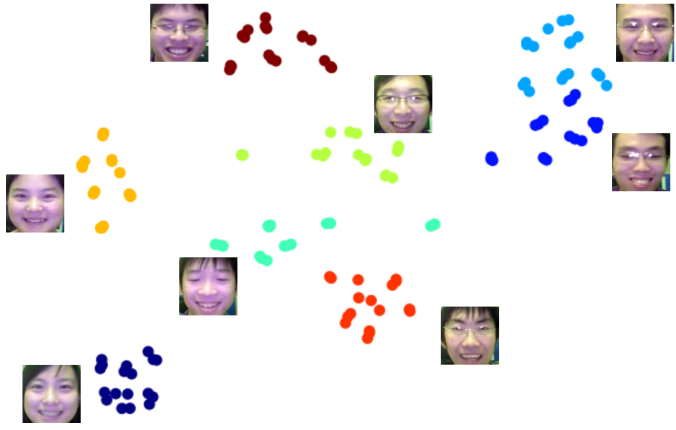

Figure 6: Identity feature space. Each color represents a different identity and the images for one identity are labeled.

To demonstrate that the expression code captures the high-level expression semantics, we perform image retrieval experiment based on in terms of Euclidean distance. For comparison, the results with expression label and image pixel space are also provided in Fig. 7. As expected, the pixel space sometimes fails to retrieve images from the same expression. While the images retrieved by do not always have the same style of expressions as the queries. For example, the query face in the second row shows a big smile with teeth, but the retrieved image by only has a mild smile with mouth closed. However, with the expression code , we observe that face images with similar expressions are always retrieved. This validates that the expression code learns a rich and diverse feature representation.

Figure 7: Expression-based image retrieval. First column shows query images. Other columns show top one retrieval based on , and .

Conclusions

This paper presents ExprGAN for facial expression editing. To the best of our knowledge, it is the first GAN-based model that can transform the face image to a new expression where the expression intensity is allowed to be controlled continuously. The proposed model learns the disentangled identity and expression representations explicitly, allowing for a wide variety of applications, including expression editing, expression transfer, and data augmentation for training improved face expression recognition models. We further develop an incremental learning scheme to train the model on small datasets. Our future work will explore how to apply ExprGAN to a larger and more unconstrained facial expression dataset.

References

  • [Abadi et al.2016] Abadi, M.; Agarwal, A.; Barham, P.; Brevdo, E.; Chen, Z.; Citro, C.; Corrado, G. S.; Davis, A.; Dean, J.; Devin, M.; et al. 2016. Tensorflow: Large-scale machine learning on heterogeneous distributed systems. arXiv preprint arXiv:1603.04467.
  • [Blanz et al.2003] Blanz, V.; Basso, C.; Poggio, T.; and Vetter, T. 2003. Reanimating faces in images and video. In Computer graphics forum, volume 22, 641–650. Wiley Online Library.
  • [Chen et al.2016] Chen, X.; Duan, Y.; Houthooft, R.; Schulman, J.; Sutskever, I.; and Abbeel, P. 2016. Infogan: Interpretable representation learning by information maximizing generative adversarial nets. In NIPS, 2172–2180.
  • [Cheung et al.2014] Cheung, B.; Livezey, J. A.; Bansal, A. K.; and Olshausen, B. A. 2014. Discovering hidden factors of variation in deep networks. arXiv preprint arXiv:1412.6583.
  • [Goodfellow et al.2014] Goodfellow, I.; Pouget-Abadie, J.; Mirza, M.; Xu, B.; Warde-Farley, D.; Ozair, S.; Courville, A.; and Bengio, Y. 2014. Generative adversarial nets. In NIPS, 2672–2680.
  • [He et al.2005] He, X.; Yan, S.; Hu, Y.; Niyogi, P.; and Zhang, H.-J. 2005. Face recognition using laplacianfaces. IEEE TPAMI 27(3):328–340.
  • [Huang et al.2017] Huang, R.; Zhang, S.; Li, T.; and He, R. 2017. Beyond face rotation: Global and local perception gan for photorealistic and identity preserving frontal view synthesis. ICCV.
  • [Ioffe and Szegedy2015] Ioffe, S., and Szegedy, C. 2015. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In ICML, 448–456.
  • [Johnson, Alahi, and Fei-Fei2016] Johnson, J.; Alahi, A.; and Fei-Fei, L. 2016.

    Perceptual losses for real-time style transfer and super-resolution.

    In ECCV, 694–711. Springer.
  • [Kaneko, Hiramatsu, and Kashino2017] Kaneko, T.; Hiramatsu, K.; and Kashino, K. 2017. Facial expression editing in video using a temporally-smooth factorization. In CVPR. IEEE.
  • [Kingma and Ba2014] Kingma, D., and Ba, J. 2014. Adam: A method for stochastic optimization. ICLR.
  • [Kingma and Welling2014] Kingma, D. P., and Welling, M. 2014. Auto-encoding variational bayes. NIPS.
  • [Krizhevsky, Sutskever, and Hinton2012] Krizhevsky, A.; Sutskever, I.; and Hinton, G. E. 2012. Imagenet classification with deep convolutional neural networks. In NIPS, 1097–1105.
  • [Ledig et al.2017] Ledig, C.; Theis, L.; Huszár, F.; Caballero, J.; Cunningham, A.; Acosta, A.; Aitken, A.; Tejani, A.; Totz, J.; Wang, Z.; et al. 2017. Photo-realistic single image super-resolution using a generative adversarial network. CVPR.
  • [Lee et al.2003] Lee, K.-C.; Ho, J.; Yang, M.-H.; and Kriegman, D. 2003. Video-based face recognition using probabilistic appearance manifolds. In CVPR, volume 1, I–I. IEEE.
  • [Liu, Shan, and Zhang2001] Liu, Z.; Shan, Y.; and Zhang, Z. 2001. Expressive expression mapping with ratio images. In Proceedings of the 28th annual conference on Computer graphics and interactive techniques, 271–276. ACM.
  • [Maas, Hannun, and Ng2013] Maas, A. L.; Hannun, A. Y.; and Ng, A. Y. 2013. Rectifier nonlinearities improve neural network acoustic models. In ICML, volume 30.
  • [Maaten and Hinton2008] Maaten, L. v. d., and Hinton, G. 2008. Visualizing data using t-sne. JMLR 9(Nov):2579–2605.
  • [Mahendran and Vedaldi2015] Mahendran, A., and Vedaldi, A. 2015. Understanding deep image representations by inverting them. In CVPR, 5188–5196.
  • [Makhzani et al.2016] Makhzani, A.; Shlens, J.; Jaitly, N.; Goodfellow, I.; and Frey, B. 2016. Adversarial autoencoders. ICLR Workshop.
  • [Mirza and Osindero2014] Mirza, M., and Osindero, S. 2014. Conditional generative adversarial nets. arXiv preprint arXiv:1411.1784.
  • [Mohammed, Prince, and Kautz2009] Mohammed, U.; Prince, S. J.; and Kautz, J. 2009. Visio-lization: generating novel facial images. In ACM TOG, volume 28,  57. ACM.
  • [Parkhi et al.2015] Parkhi, O. M.; Vedaldi, A.; Zisserman, A.; et al. 2015. Deep face recognition. In BMVC, volume 1,  6.
  • [Radford, Metz, and Chintala2016] Radford, A.; Metz, L.; and Chintala, S. 2016. Unsupervised representation learning with deep convolutional generative adversarial networks. ICLR.
  • [Reed et al.2014] Reed, S.; Sohn, K.; Zhang, Y.; and Lee, H. 2014. Learning to disentangle factors of variation with manifold interaction. In ICML, 1431–1439.
  • [Rumelhart et al.1988] Rumelhart, D. E.; Hinton, G. E.; Williams, R. J.; et al. 1988. Learning representations by back-propagating errors. Cognitive modeling 5(3):1.
  • [Susskind et al.2008] Susskind, J. M.; Hinton, G. E.; Movellan, J. R.; and Anderson, A. K. 2008. Generating facial expressions with deep belief nets. In Affective Computing. InTech.
  • [Tran, Yin, and Liu2017] Tran, L.; Yin, X.; and Liu, X. 2017. Disentangled representation learning gan for pose-invariant face recognition. In CVPR, volume 4,  7.
  • [Yang et al.2011] Yang, F.; Wang, J.; Shechtman, E.; Bourdev, L.; and Metaxas, D. 2011. Expression flow for 3d-aware face component transfer. In ACM TOG, volume 30,  60. ACM.
  • [Yeh et al.2016] Yeh, R.; Liu, Z.; Goldman, D. B.; and Agarwala, A. 2016. Semantic facial expression editing using autoencoded flow. arXiv preprint arXiv:1611.09961.
  • [Zhang et al.2016] Zhang, K.; Zhang, Z.; Li, Z.; and Qiao, Y. 2016. Joint face detection and alignment using multitask cascaded convolutional networks. IEEE Signal Process. Lett. 23(10):1499–1503.
  • [Zhang, Song, and Qi2017] Zhang, Z.; Song, Y.; and Qi, H. 2017. Age progression/regression by conditional adversarial autoencoder. CVPR.
  • [Zhao et al.2011] Zhao, G.; Huang, X.; Taini, M.; Li, S. Z.; and Pietikäinen, M. 2011. Facial expression recognition from near-infrared videos. Image and Vision Computing 29(9):607–619.
