1 Mechanization: An Ideal Process With Limits

In Turing (1936) Turing outlines an a-machine, a machine with a finitely complex mechanical head along an infinite tape where symbols can be stored. The abstract machine requires the current configuration of the head, a list of basic instructions that tell the machine what to do in that configuration, and the complete configuration (state) of the whole thing. The components of an a-machine are given by the following list, loosely following Immerman (2016):

  • a finite set of machine states ;

  • a finite set of symbols , e.g. , where the result of machine computation, a computable number, is recorded in binary with a blank option,

  • an infinite “tape” where these symbols are recorded, comprised of cells , which is often pre-populated with a finite sequence of symbols that will set up for desired behavior when the machine is in operation;

  • current position along the tape, cell , where ;

  • a transition function , which determines at a given state for a given scanned symbol in how to update the position of the head , i.e., it moves left, stays in place, or moves right.

Future work would introduce various instantiations of this idea, including essential pieces of the modern computer such as stored program architecture and clocking. However, these add-ons do not change a central premise of Turing’s paper: the capacity of computing machines. Specifically, he defines the class of numbers that can be computed by a properly formed (circle-free) machine to be enumerable (infinite but countable). That is, there are many, many more numbers that cannot be computed (e.g., irrational numbers without formulas for computation like ) than can be. This is seen through application of Cantor’s diagonal process, which shows that the correspondence between natural numbers and computable numbers is one-to-one (or that the set of real numbers and computable numbers is not one-to-one) due to an inescapable recursive loop that traps an a-machine checking its own description number (this is known as the Halting Problem) Petzold (2008). That is, we can imagine many more numbers than machines can compute, which means we can imagine many more machine behaviors than machines can perform.

Now, to establish a way of thinking about machine movement (mechanization), invert the a-machine, establishing an æ-machine. In this abstraction the idea of a physical workspace replaces Turing’s idea of “scratch paper” where computations could be worked out. An ideal mechanization machine will be able to complete tasks in the physical environment using extra workspace as needed. This is similar to (but certainly not the same as111Indeed, unlike Turing, I want to motivate how this framework provides a limiting picture of machines rather than a mechanistic model for how humans (may) work, as analysis in Changizi (2003) also motivates.) how a human artisan will use a workshop table during their work, placing part of a product off to the side while working on another element, using this tool or that to complete various steps, and increasing the size of their workshop as needed. Similarly, this machine can perform actions inside its workspace, layering simple actions in sequence to produce desired effect on the environment. Define such a machine as follows:

  • a finite set of states ;

  • a finite set of actions, or motion primitives , e.g. , where the result of machine mechanization is executed as either moving, moving in the opposite direction, or doing nothing, ;

  • an infinite “workspace” where these actions are executed, comprised of cells , which may be pre-populated with a finite set of primitives (or tools) that will set up for desired behavior when the machine is in operation;

  • current position in the workspace, cell ,where ;

  • a transition function , which determines at a given state for a given motion primitive in how to update the position in the workspace , which might be envisioned as a 1-, 2-, or 3-dimensional “tape”.

What was a computation process (a sequence of logical symbols manipulated in an abstract, memory-like space) is now a mechanization process: a sequence of motion primitives executed in a discretized environment. This sequence is likewise represented as a number – one from Turing’s set of computable numbers – showing the infinite, but enumerable, action sequences possible to be executed by æ-machines. Thus, æ-machines (idealized robots) have the same fundamentally limited capacity as a-machines (idealized computers). That is, they cannot produce all the behaviors we might arbitrarily design. In particular, the cardinality of behaviors is equal to the cardinality of the set of computable numbers and is many orders of magnitude smaller than the cardinality of the set of real numbers. Moreover, just as Turing established subroutines to build his Universal Machine, we can create more complex behaviors of motion primitives that fire in sequence together, acting as a tool in the workspace. In practice, that tool could be “software” (a stereotyped, preprogrammed gesture or action) or “hardware” (an end effector attachment as a CNC machine selects distinct cutting tools).

2 Static, Kinematic Capacity for A Mechanical Source

This discrete way of thinking immediately sets up a practical formalism for the concept of expressivity. In order to consider how complex the movement behaviors a machine can instantaneously exhibit are (independent of environment or further augmentation), note that a bounding practical limit on behavior is the cardinality of or . While a robot with only a couple of degrees of freedom could split a given mechanization task into many steps, a robot with more might be able to do the entire task in one step222Imagine a switchboard of buttons, which may be arrange in a manner advantageous to a particular platform morphology. In order to press one, two, three, four, and so on, buttons at the same time, a platform must have enough degrees of freedom (or the appropriate tool) to accomplish the task.. (We see a similar parallel in computational devices.) Then, is a good bottleneck measure on how complex the instantaneous behavior of the machine can be (ignoring kinematically infeasible configurations and dynamic changes like velocity). Thus, let be the number of actuator types on a machine. Let be the number of degrees of freedom with a particular number of available configurations , which is computed via counting from an actuators minimum to maximum range via its resolution where . From this description of a machine’s construction, let


be the number of discrete geometric or kinematic configurations (shapes) available to a platform. From there the kinematic expressivity of that platform is the amount of information, or bits, needed to uniquely identify a configuration for that platform. This is given by


On a robot with a simple gripper (which is either open or closed), two identical servos, and a single LED . Assume each servo has range and resolution with a gripper that may be ‘open’ or ‘closed’ and an LED that may be ‘on’ or ‘off’, with and with . This becomes

This means the robot, as an information source, can express

of information, through state change, in its environment. Moreover, for this robot, most of it’s complexity comes from mechanical actuators. Removing the LED from the analysis gives a kinematic mechanization capacity of

Thus, this simplistic robot can be compared to a 25-bit display in terms of mechanical complexity.

Any computer that is Turing-complete can, in theory, compute the set of computable numbers, given enough memory and time. Similarly, a complete robot, with unlimited workspace and time, can produce a mechanization behavior associated with a computable number (i.e., it can simulate any æ-machine). However, the number of transistors in the CPU is a useful, implementation-specific measure (which has been growing Schaller (1997)) of precision to understand how practically powerful a given machine is. Similarly, robots need more mechanical options in order to complete more complex mechanizations inside practical time and space limits.333

This discrete view of robotic motion need not supplant the common practice of using a continuous vector-space model of configuration space

Choset et al. (2005). Indeed, both abstractions can be useful.

3 Computational and Mechanical Trends in Robotics

This measure and way of thinking about the duality of computation and mechanization can categorize artificial systems. The plot in Figure 1 shows the number of transistors in the onboard CPU of a range of robots over the past 15 years. Although, as many platforms are now internet connected, it is a limiting picture of the computational power available to these platforms. Plots like this have been used to track the progress of computational power over time, which has roughly doubled every year, even serving as a driving goal for the industry (Moore’s Law Schaller (1997)). In such plots each additional component on an integrated circuit represents the ability to represent a larger – or more precise – number on a single chip. Each new transistor adds a new power of 2 in representation precision. Note, that the the number of transistors in modern, stand-alone processors is in the billions. To convert that to possible machine configurations, where the actuators are transistors, the number 2 (which is the number of configurations for each actuator) has to be raised to that large number, resulting in a number of configurations that is bounded by or . This number is an important, practical measure of how expressive the computers onboard robots are.

Figure 1: The number of transistors, , used in computational processors of robots over the last fifteen years. The number of internal configurations available is then . Some platform names are omitted for clarity; see Appendix for full list.

Figure 2 shows how this expressivity measure has evolved on robots over time. Specifically, the plot shows the number of possible kinematic configurations for a number of rigid-body robots whose motion is governed by motors and encoders over time. Like Moore’s proxy of the number of transistors within a single chip, this kinematic configuration space is a static snapshot and does not account for dynamics, but it gives a starting point for measurement and comparison. Here, the corresponding practical measure of how externally expressive these robots are is bounded by .

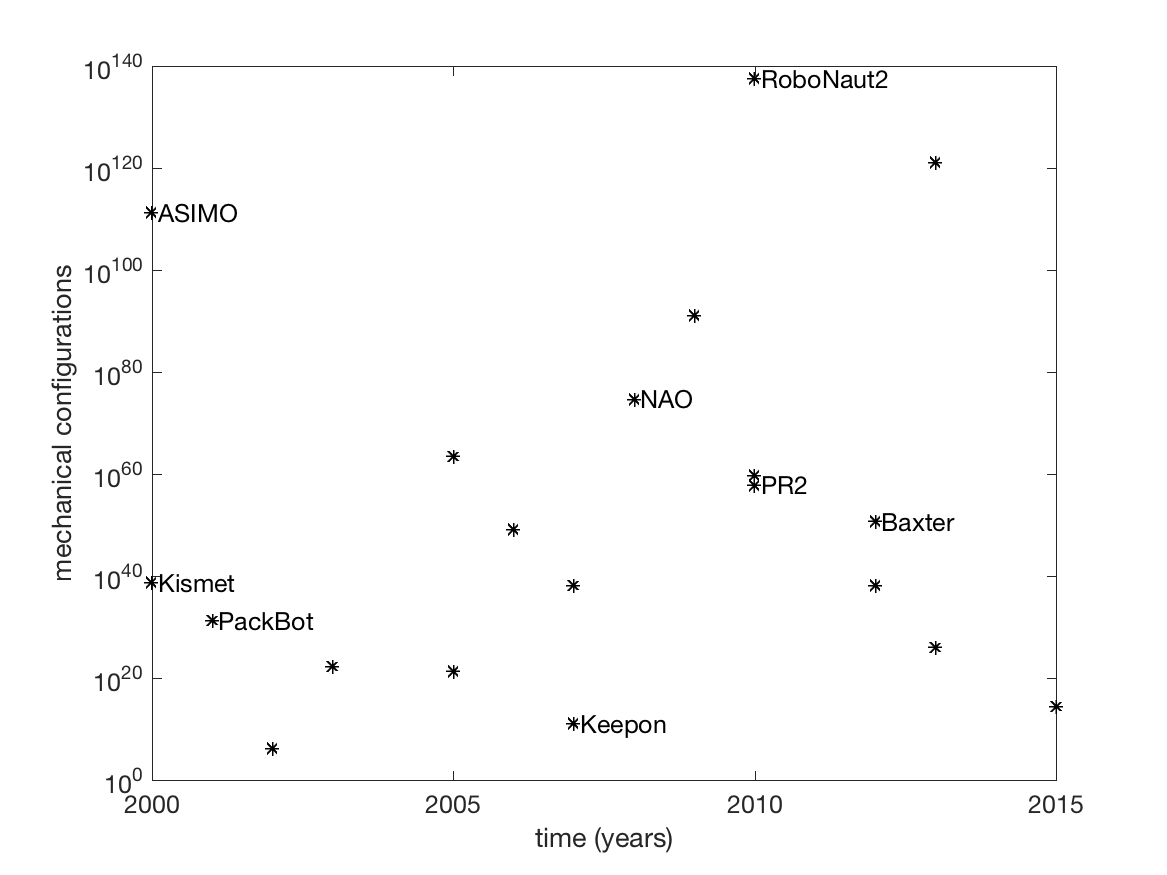

Figure 2: The number of external configurations available, , for mechanization in robot platforms over time. Several platforms have been assumed to have a positioning resolution of

and an estimated range of motion. Some platform names are omitted for clarity; see Appendix for full list.

By converting the number of configurations to a number represented in a base 2 number system, , the change in the computational capacities of these platforms can be compared to their mechanization capacities as in Fig. 3. This log-log plot provides a comparison in terms of the number of bits which it would take to describe the largest number that would fit in the onboard CPU versus the number of bits needed to uniquely represent each pose. The plot shows a dramatic imbalance between computation and mechanization capacities and a flat trend in the order of magnitude of mechanical capacity over the past 15 years. Through this lens, the NAO Aldebaran, a small humanoid robot is comparable to a 1960s computer chip with only 256 transistors (see Appendix for detailed calculation).

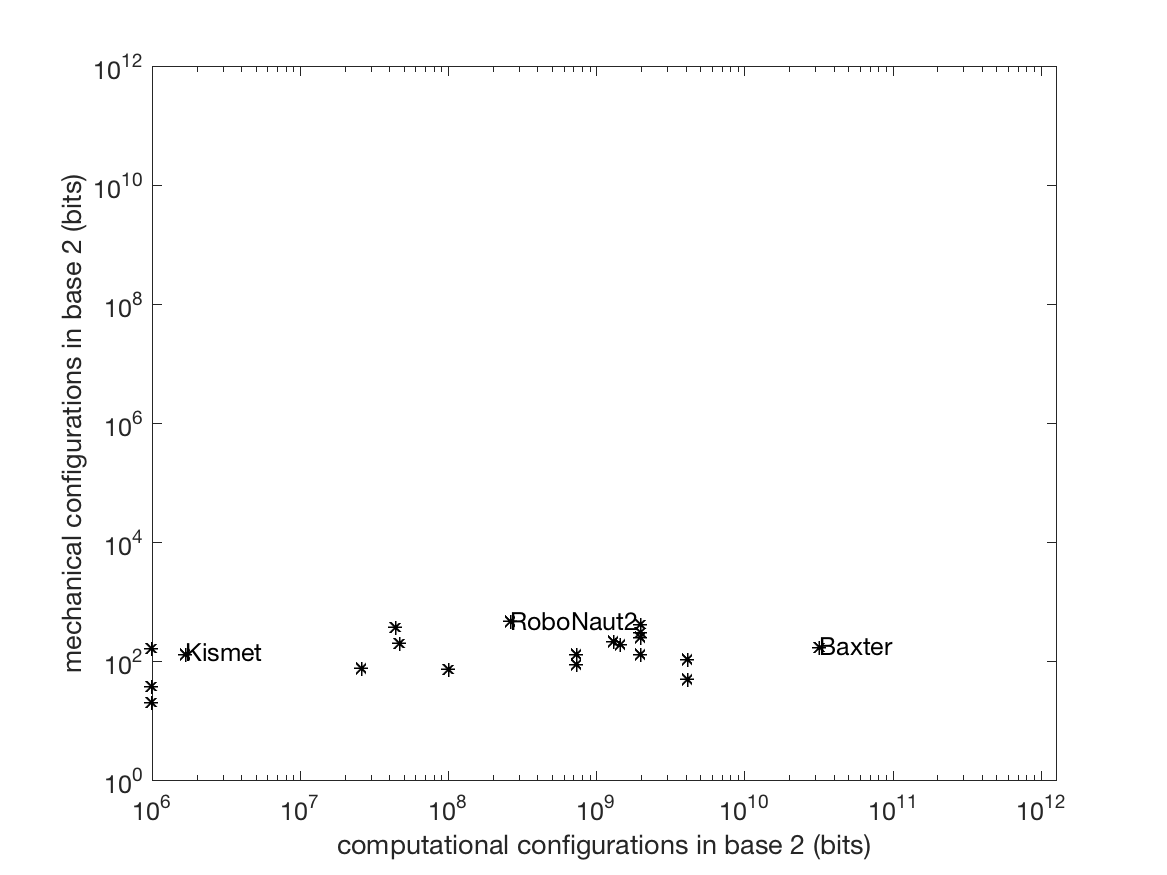

Figure 3: A comparison of computational complexity (# of transistors in the CPU) relative to mechanical complexity () on robotic platforms over time. Platform names are omitted for clarity; see Appendix for full list. The unit of measure on both axes is bits; a square plot highlights imbalance between internal and external states.

4 A Comparison Between Machines and Animals

The previous section outlines a way to compare robot capacity for complex behavior, but the same method can be applied to biological creatures – with the caveat that such systems may involve processes not extant in today’s machines. Processes like “mechanization” and “computation” are not appropriate labels for natural systems, and the limit on behavior so carefully derived by Turing is not known to apply here. That is, the cardinality of the set of possible behavior of natural systems may (or may not) be larger than the cardinality of the set of computable numbers. However, we can loosely compare “computation” to internal state changes – those that do not meaningfully impact the environment – and “mechanization” to external state changes – those that cause change in the environment. Moreover, the difference between sensing and actuation blurs for these systems where movement is tightly linked to sensing, e.g. fovea and hairs.

In prior work, the movement of a C. Elegan was analyzed using a curve parameterized by 100 angles; then, after capturing an extended period of behavior on laboratory agar, a principle component analysis was performed, revealing that the structure of the behavior could be explained as a superposition of four primary poses Stephens et al. (2008). Observing the animal through this lens provided new insights into the behavior of this well-studied animal Stephens et al. (2010a, b), implying a meaningful parameterization, further explored in Gomez-Marin et al. (2016). Stephen’s model can be used to compare the C. Elegan to modern robots. A C. Elegan

has 302 neurons, which can be approximated to be either ‘firing’ or ‘not’ in a static snapshot of time. Then, each of the 100 angles have a typical range, shown in the empirical results in

Stephens et al. (2008), between radians to radians, implying radians of precision. Thus, using the metric proposed in Section 2, the kinematic mechanization capacity for this model of a simple animal can be calculated as


The linear model derived in Stephens et al. (2008) can also be used to derive a slightly more compact expression. Here, the idea is that it’s possible that the organism, in a particular task or environment, does not utilize the full span of motion modeled by 100 angles. This could be a function of behavioral patterning, environment, or experimental set up444However, like the pavement ant, the larger behavioral space intoned by the anatomical model may be used in future, unforeseen environments.. Here, linear combinations four “eigenworms” describe 95% of the observed worm behavior. The weights on each eigenworm, , , , and , also have an observed range, which can be estimated from Stephens et al. (2008) as , , and . Four the fourth, which was not found to have behavioral significance and is not provided in Stephens et al. (2008), assume . For each, assume in precision. This leads to the following calculation:


The summary of this analysis is plotted on Fig. 4. The plot gives a sense of the capacity of today’s robots. It is shown that C. Elegans are apt natural analogs for the mechanical capacity of many robots. This does not mean that C. Elegans can do any of the specific functions that these robots can do; it means that they can do the same number things at the same time – or are as expressive. This is consistent with the fact that today’s robots are created for single-tasks in limited environments. C. Elegans must forage for food and carry out other critical to life tasks in real, dynamic environments555There are distinct Reynolds numbers at play. Inertial forces dominate the selected robots, while viscous forces dominate the motion of C. Elegans; however, this analysis is not considering forces, only the complexity of behavioral snapshots..

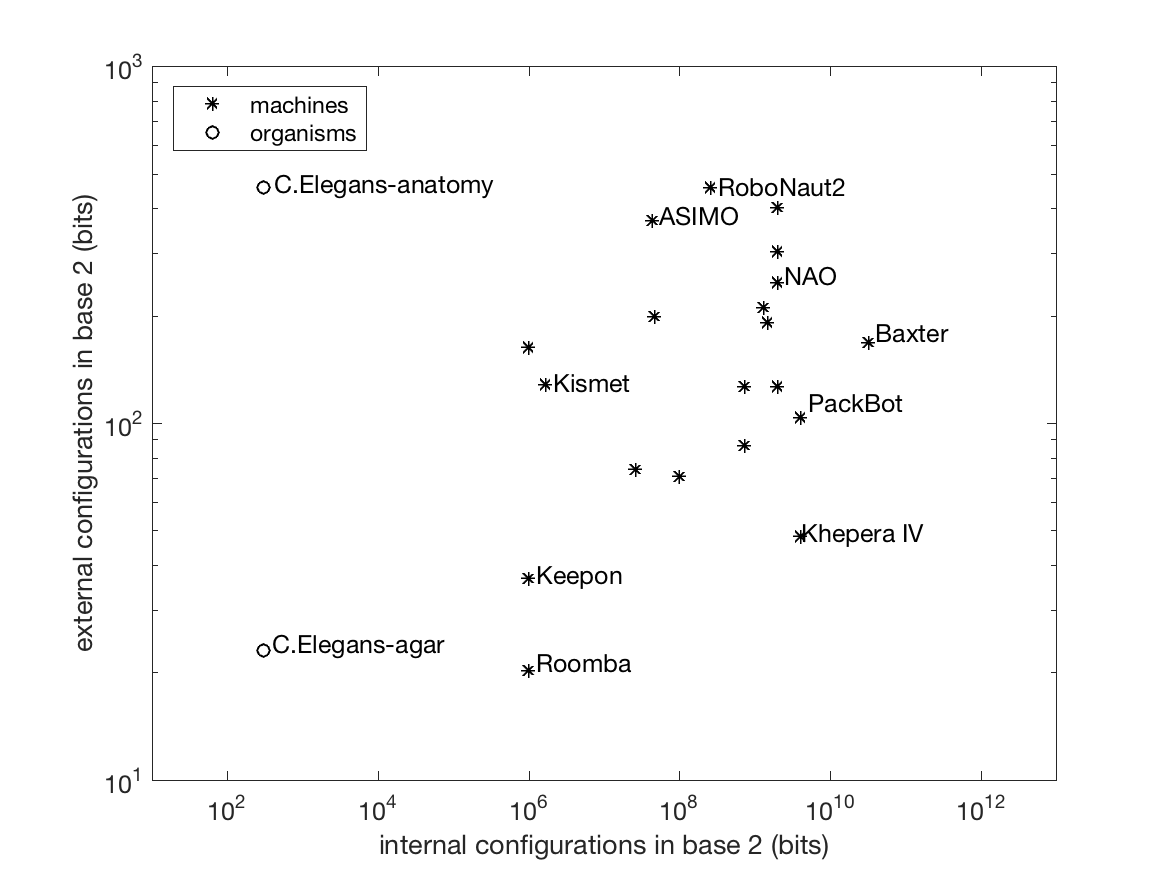

Figure 4: The machine data points are the same as those in Fig. 2. The C. Elegan x-axis points are based on the number of neurons (302). The y-axis data points plotted for C. Elegans show well-established behavioral models, one based on anatomy and the other based on exhibited behavior on agar Stephens et al. (2008).

Such detailed motion models for other animals are not common, but a few clear vignettes are appended to Fig 4 in Fig. 5. Relevant work done on fruit flies (Drosophila) abstracts their state as a vector with a heading over time Dankert et al. (2009), but an anatomical analysis via Chyb and Gompel (2013) can estimate instantaneous complexity of the organism. Researchers look to muscle activity involved in postural control for cats with weights having precision to the hundredth decimal place Ting and Macpherson (2005); generalizing this precision to all estimated 517 Sebastiani and Fishbeck (2005) muscles in cats gives an estimate of the complexity of their muscular control, leaving out the mechanical advantages of their compliant bones, skin, and hair. For human motion, three different established guides to behavior (a public health diagnostic wsu (2014), a Natural Point OptiTrak motion capture file, and an animation of breathing Zordan et al. (2004)) of body posture can be used to show similarity between these models and those that identified behavioral understanding of C. Elegans. Either, humans are as externally complex as C. Elegans or more detailed models are needed.

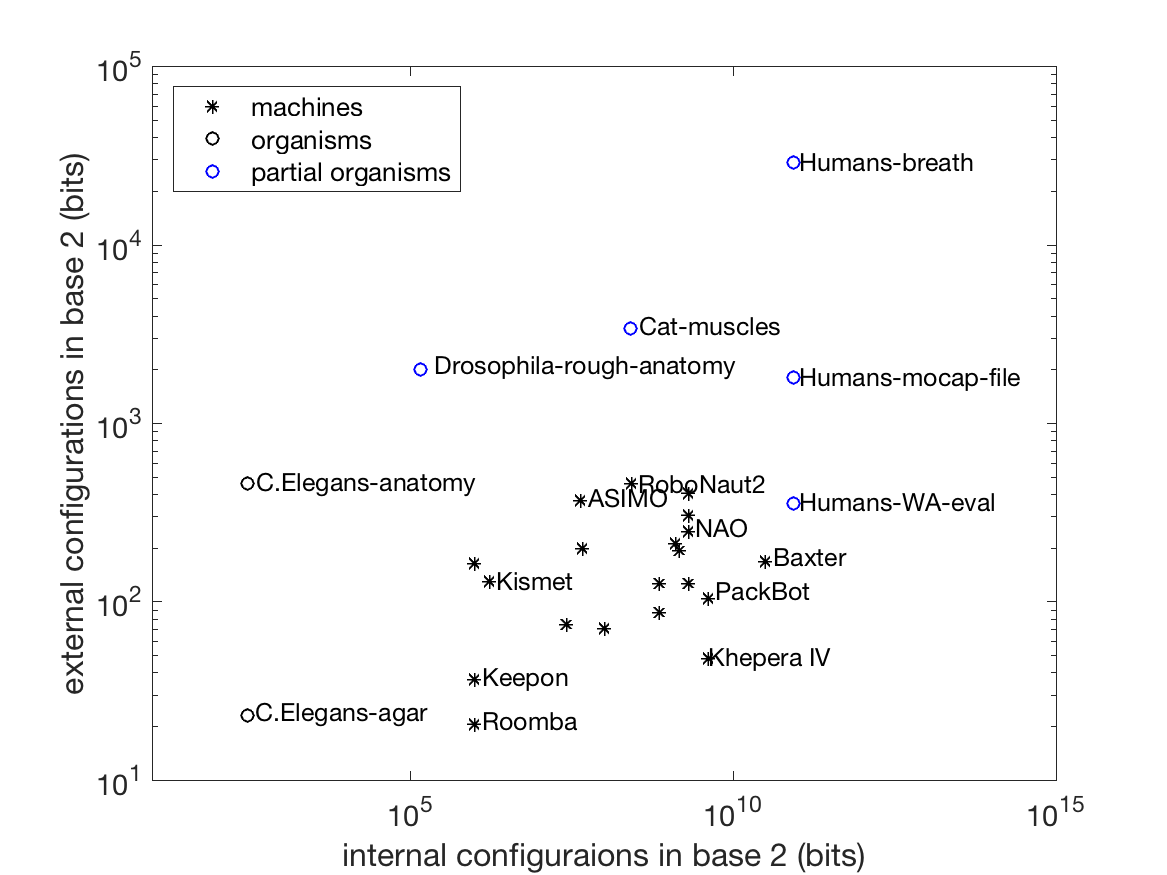

Figure 5: The data in Fig. 4 appended with data of a few more natural systems. The x-axis values for both of these organisms are based on the number of neurons Azevedo et al. (2009); the y-axis values are given by: Drosophila-rough-anatomy: analysis of Chyb and Gompel (2013); Cat-muscles: generalizing the model of muscles in Ting and Macpherson (2005); Humans-WA-eval: the structure of wsu (2014); Humans-mocap: the structure of a Natural Point OptiTrack motion capture file; and Humans-breath: the simulation in Zordan et al. (2004). See Appendix for more detail.

5 Conclusions

The paper has shown a relationship between mechanization and computation, pointing to a fundamental limit on machine behavior. The paper has introduced a static, practical measure for expressivity, clarifying prior points of view on function versus expression. Finally, the paper uses this work to compare extant artificial systems to natural systems, showing many modern robots, including humanoids, are about as expressive as a microscopic worm. This work is an essential piece of information in the discussion, which is by now mainstream, around the effect of machine-based automation of human tasks, particularly in manufacturing. Humans operate in dynamic environments where variability in movement is essential in accommodating and coping with an unpredictable world. Robots do well in repeatable tasks where environmental factors are controlled (as in a factory), but do not have the same capacity to adapt. The trends pointed to here in robotics may help guide system development: in hardware, soft and compliant robots, and, in software, increasing motion variability will offer robotic systems greater expressivity. Further, considering the wide, possibly unused, capacity for motion of natural systems, may produce improved understanding of how animals adapt both as individuals and as species.


This work was funded by DARPA award #D16AP00001. Undergraduate students Jialu Li and Varun Jain helped collect and estimate data on each artificial platform reviewed.


Appendix A Platform Details

Additional numbers used to calculate data points in Figures 1-3. For mechanical configurations, see below. Many of these were determined through observation and are meant to indicate the visual expressiveness of the platforms. Many rows represent multiple, homogeneous degrees of freedom (indicated through ‘l/r’ for ‘left’ and ‘right’ and with numbers in parenthesis) for space.

Robot & DOF Range / Resolution
l/r hand open/close 2
head yaw -119.5 to 119.5 / .1 2390
head pitch (at 0 yaw) -38.5 to 29.5 / .1 680
l/r shoulder pitch -119.5 to 119.5 / .1 2390
l/r shoulder yaw -119.5 to 119.5 / .1 2390
l/r shoulder roll -88.5 to -2 / .1 865
l/r wrist yaw -104.5 to 104.5 / .1 2090
pelvis -65.6 to 42 / .1 1076
l/r hip roll -21.7 to 45.2 / .1 669
l/r hip pitch -88 to 27.7 / .1 1157
l/r knee pitch -5.3 to 121.0 / .1 1263
l/r ankle pitch -68.2 to 52.9 / .1 1211
l/r ankle roll -22.8 to 44.1 / .1 669
l/r S1 open/close 2
l/r E1 -2.864 to 150 / 0.1 1530
l/r W1 -90 to 120 / 0.1 2100
l/r S0 -97.5 to 97.5 / 0.1 1950
l/r E0 -175.0 to 175.0 / 0.1 3500
l/r W0 -175.25 to 175.25 / 0.1 3505
l/r W2 -175.25 to 175.25 / 0.1 3505
Khepera IV
l/r wheel 360 / 0.1 / .1 3600
l/r wheel 360 / 0.1 / .1 3600
l/r ears pitch -67.5 to 67.5 / 0.1 1350
l/r ears yaw -22.5 to 22.5 / 0.1 450
l/r eyelids -1.5 to 1.5 / 0.1 30
l/r brows pitch -10 to 10 / 0.1 200
l/r lips -30 to 30 / 0.1 600
jaw -22.5 to 22.5 / 0.1 450
l/r shoulder pan 170 / 0.1 1700
l/r shoulder tilt 115 / 0.1 1150
l/r upper arm roll 270 / 0.1 2700
l/r elbow flex 140 / 0.1 1400
l/r forearm roll 360 / 0.1 3600
l/r wrist pitch 130 / 0.1 1300
l/r wrist roll 360 / 0.1 3600
head pan 350 / 0.1 3500
head tilt 115 / 0.1 1150
Big Dog
each leg (5) (x4) 150 / 0.08 1875
Robot & DOF Range / Resolution
head (3) 150 / 0.08 1875
arms (14) 150 / 0.08 1875
hands (4) 150 / 0.08 1875
torso (1) 150 / 0.08 1875
legs (12) 150 / 0.08 1875
Little Dog
l/r front knee RY -177 to 57 / 0.1 2340
l/r front hip RX -34 to 34 / 0.1 680
l/r front hip RY -200 to 137 / 0.1 337
l/r back knee RY -57 to177 / 0.1 2340
l/r back hip RX -34 to 34 / 0.1 680
l/r back hip RY -137 to 200 / 0.1 337
head yaw/pitch/roll 150 / 0.08 1875
l/r hands (12) 150 / 0.08 1875
l/r arms (7) 150 / 0.08 1875
tilt -40 to 40 / 0.08 1000
pan -180 to 180 / 0.08 4500
pon 0 to 100 / 0.08 1250
side -25 to 25 / 0.08 625
l/r elbows -90 to 90 / 0.1 1800
l/r shoulders -30 to 150 / 0.1 1800
torso -67.5 to 67.5 / 0.1 1350
l/r hips -60 to 60 / 0.1 1200
neck pitch -25 to 25 / 0.1 500
neck roll -90 to 90 / 0.1 1800
l/r elbow 0 to 150 / 0.1 1500
l/r shoulder rotation -100 to 100 / 0.1 2000
l/r shoulder compression -15 to 15 / 0.1 300
l/r knee 0 to 150 / 0.1 1500
l/r foot 0 to 90 / 0.1 900
l/r waist rotation -15 to 15 / 0.1 300
l/r knee/foot -75 to 75 / 0.1 1500
l/r waist bend 0 to 100 / 0.1 1000
head pan -89 to 89 / 0.1 1780
head tilt -62.5 to 62.5 / 0.1 1250
head roll -29 to 29 / 0.1 580
shoulders (4) 0 to 100 / 0.1 1000
torso -117 to 117 / 0.1 2340
knees (4) 0 to 175 / 0.1 1750
l/r ears 0 to 20 / 0.1 200
tail (front to back) -22.5 to 22.5 / 0.1 450
tail (left to right) -12.5 to 12.5 / 0.1 250
Robot & DOF Range / Resolution
shoulder rot. 0 to 360 / 0.1 3600
shoulder pivot 0 to 220 / 0.1 2200
E1 pivot 0 to 340 / 0.1 3400
E2 pivot 0 to 340 / 0.1 3400
gripper rot. 0 to 360 / 0.1 3600
gripper I/O 180 / 0.1 1800
head rot. 0 to 360 / 0.1 3600
flipper 0 to 360 / 0.1 3600
torso (2) -75 to 75 / 0.1 1500
l/r arm (7) 0 to 200 / 0.1 2000
face (5) 0 to 200 / 0.1 2000
hip rot. (4) 0 to 30 / 0.1 300
hip (4) 0 to 150 / 0.1 1500
knee (4) 0 to 200 / 0.1 2000
spine -10 to 10 / 0.1 200
LBR iiwa
axis 1 -170 to 170 / 0.1 3400
axis 2 -120 to 120 / 0.1 2400
axis 3 -170 to 170 / 0.1 3400
axis 4 -120 to 120 / 0.1 2400
axis 5 -170 to 170 / 0.1 3400
axis 6 -120 to 120 / 0.1 2400
axis 7 -175 to 175 / 0.1 3500
axis 1 -185 to 185 / 0.1 3700
axis 2 -135 to 35 / 0.1 1700
axis 3 -120 to 158 / 0.1 1780
axis 4 -350 to 350 / 0.1 7000
axis 5 -119 to 119 / 0.1 2380
axis 6 -350 to 350 / 0.1 7000

For computational configurations, the following values were used. Here, is where is the number of transistors. Indeed, often, another, larger computer (or cluster of processors) is networked to these machines through wireless or wired connections. But, it is instructive nonetheless to compare how much more sophisticated the computational power (even that which is on board) is relative to the mechanical power.

Robot Processor # of transistors
NAO Atom Z530 4.7E+07
Baxter 3rd Gen Intel Core i7-3770 1.40E+09
Khepera IV ARM Cortex-A8 2.00E+09
Roomba 1.00E+06
Kismet Motorola 68332 (4) 1.68E+06
PR2 Two Quad-Core i7 Xeon (8 cores) 1.462E+09
Big Dog Pentium CPU 1.30E+09
ASIMO Pentium III-M 1.2 GHz 4.40E+07
Little Dog Pentium CPU 2.00E+09
Robotnaut2 2.622E+08
KeepOn PS234 1.00E+06
RoboSapien 200MHz ARM9 2.60E+07
Darwin Intel Atom Z510 4.70E+07
Aibo 64 bit RISC 1.00E+06
Packbot Pentium 3 4.50E+07
Simon 2.00E+09
Cheetah 7.31E+08
LBR iiwa 7.31E+08
KR60HA 1.00E+08

For the natural systems analyzed, the following values were used based on Stephens et al. (2008); Chyb and Gompel (2013); Ting and Macpherson (2005); Sebastiani and Fishbeck (2005); wsu (2014); Zordan et al. (2004).

Organism & DOF () Range / Resolution
C. Elegan (anatomy)
(100) -1.5 rad to 1.5 / 0.1 150
C. Elegan (agar behavior)
, , and -2 to 2 / 0.1 40
-5 to 5 / 0.1 100
Tarsus 5 (6) 0 to 180 / 0.1 1800
Tarsus 4 (6) 0 to 180 / 0.1 1800
Tarsus 3 (6) 0 to 180 / 0.1 1800
Tarsus 2 (6) 0 to 180 / 0.1 1800
Tarsus 1 (6) 0 to 180 / 0.1 1800
Tibia (6) 0 to 180 / 0.1 1800
Femur (6) 0 to 180 / 0.1 1800
Trochanter (6) 0 to 360 / 0.1 3600
Coxa (6) 0 to 10 / 0.1 100
Wing cells (12)) flexed or relaxed 2
Wing hinge (6) 0 to 180 / 0.1 1800
Halteres (6) 0 to 360 / 0.1 3600
Head, Thorax, Abdomen (9) 0 to 45 / 0.1 450
Probiscis in or out 2
Antennae (12) 0 to 10 / 0.1 100
Bristles (200) flexed or not 2
Hairs (1000) flexed or not 2
Organism & DOF () Range / Resolution
Muscles (517) 0 to 1 / 0.01 100
Human (WA-eval)
Each listed diagnostic wsu (2014) (37) various / 0.1 various
Human (mocap)
DOFs (66) -180 to 180 / 0.000001 360000000
Human (breath)
Muscle-spring elements (1500) -1 to 1 / 0.000001 1000000




  • Turner (2013) Turner, J.S. Biology’s second law. Homeostasis, purpose and desire. Beyond mechanism. Putting life back into biology 2013, pp. 183–203.
  • Countryman et al. (2015) Countryman, S.M.; Stumpe, M.C.; Crow, S.P.; Adler, F.R.; Greene, M.J.; Vonshak, M.; Gordon, D.M. Collective search by ants in microgravity. Frontiers in Ecology and Evolution 2015, 3, 25.
  • Laidre and Johnstone (2013) Laidre, M.E.; Johnstone, R.A. Animal signals. Current Biology 2013, 23, R829–R833.
  • Dragan et al. (2013) Dragan, A.D.; Lee, K.C.; Srinivasa, S.S. Legibility and predictability of robot motion. Human-Robot Interaction (HRI), 2013 8th ACM/IEEE International Conference on. IEEE, 2013, pp. 301–308.
  • Ames (2014) Ames, A.D. Human-inspired control of bipedal walking robots. IEEE Transactions on Automatic Control 2014, 59, 1115–1130.
  • Hopkins et al. (2009) Hopkins, J.K.; Spranklin, B.W.; Gupta, S.K. A survey of snake-inspired robot designs. Bioinspiration & biomimetics 2009, 4, 021001.
  • Haldane et al. (2013) Haldane, D.W.; Peterson, K.C.; Bermudez, F.L.G.; Fearing, R.S. Animal-inspired design and aerodynamic stabilization of a hexapedal millirobot. Robotics and Automation (ICRA), 2013 IEEE International Conference on. IEEE, 2013, pp. 3279–3286.
  • Cully et al. (2015) Cully, A.; Clune, J.; Tarapore, D.; Mouret, J.B. Robots that can adapt like animals. Nature 2015, 521, 503.
  • ur5 (2016) UR5 Technical specifications. Technical report, Universal Robots, 2016.
  • kin (2017) JACO2 6 DOF Advanced Specification Guide. Technical report, Kinova Robotics, 2017.
  • ret (2018) Sawyer Collaborative Robot Tech Specs. Technical report, Rethink Robotics, 2018.
  • Meijer et al. (2017) Meijer, J.; Lei, Q.; Wisse, M. Performance study of single-query motion planning for grasp execution using various manipulators. Advanced Robotics (ICAR), 2017 18th International Conference on. IEEE, 2017, pp. 450–457.
  • Hodson (2018) Hodson, R. How robots are grasping the art of gripping. Nature 2018, 557, S23–S25.
  • Reynolds (1999) Reynolds, C.W. Steering behaviors for autonomous characters. Game developers conference, 1999, Vol. 1999, pp. 763–782.
  • Egerstedt et al. (2005) Egerstedt, M.; Balch, T.; Dellaert, F.; Delmotte, F.; Khan, Z. What are the ants doing? vision-based tracking and reconstruction of control programs. Proceedings of the IEEE International Conference on Robotics and Automation (ICRA 2005), 2005, pp. 18–22.
  • Powell et al. (2012) Powell, M.J.; Zhao, H.; Ames, A.D. Motion primitives for human-inspired bipedal robotic locomotion: walking and stair climbing. Robotics and Automation (ICRA), 2012 IEEE International Conference on. IEEE, 2012, pp. 543–549.
  • Breazeal and Scassellati (2002) Breazeal, C.; Scassellati, B. Robots that imitate humans. Trends in cognitive sciences 2002, 6, 481–487.
  • Yamane et al. (2004) Yamane, K.; Kuffner, J.J.; Hodgins, J.K. Synthesizing animations of human manipulation tasks. ACM Transactions on Graphics (TOG). ACM, 2004, Vol. 23, pp. 532–539.
  • Nakaoka et al. (2004) Nakaoka, S.; Nakazawa, A.; Yokoi, K.; Ikeuchi, K. Leg motion primitives for a dancing humanoid robot. Robotics and Automation, 2004. Proceedings. ICRA’04. 2004 IEEE International Conference on. IEEE, 2004, Vol. 1, pp. 610–615.
  • Gillies (2009) Gillies, M. Learning finite-state machine controllers from motion capture data. Computational Intelligence and AI in Games, IEEE Transactions on 2009, 1, 63–72.
  • Kulic et al. (2012) Kulic, D.; Ott, C.; Lee, D.; Ishikawa, J.; Nakamura, Y. Incremental learning of full body motion primitives and their sequencing through human motion observation. The International Journal of Robotics Research 2012, 31, 330–345.
  • LaViers and Egerstedt (2014) LaViers, A.; Egerstedt, M. Style-based Abstractions for Human Motion Classification. ACM/IEEE 5th International Conference on Cyber-Physical Systems 2014.
  • Joo et al. (2015) Joo, H.; Liu, H.; Tan, L.; Gui, L.; Nabbe, B.; Matthews, I.; Kanade, T.; Nobuhara, S.; Sheikh, Y. Panoptic studio: A massively multiview system for social motion capture.

    Proceedings of the IEEE International Conference on Computer Vision, 2015, pp. 3334–3342.

  • Zordan et al. (2004) Zordan, V.B.; Celly, B.; Chiu, B.; DiLorenzo, P.C. Breathe easy: model and control of simulated respiration for animation. Proceedings of the 2004 ACM SIGGRAPH/Eurographics symposium on Computer animation. Eurographics Association, 2004, pp. 29–37.
  • Sueda et al. (2008) Sueda, S.; Kaufman, A.; Pai, D.K. Musculotendon simulation for hand animation. ACM Transactions on Graphics (TOG). ACM, 2008, Vol. 27, p. 83.
  • Sigal et al. (2010) Sigal, L.; Balan, A.O.; Black, M.J. Humaneva: Synchronized video and motion capture dataset and baseline algorithm for evaluation of articulated human motion. International journal of computer vision 2010, 87, 4.
  • Knight and Simmons (2014) Knight, H.; Simmons, R. Expressive motion with x, y and theta: Laban effort features for mobile robots. The 23rd IEEE International Symposium on Robot and Human Interactive Communication. IEEE, 2014, pp. 267–273.
  • Etemad and Arya (2016) Etemad, S.A.; Arya, A. Expert-Driven Perceptual Features for Modeling Style and Affect in Human Motion. IEEE Transactions on Human-Machine Systems 2016, 46, 534–545.
  • Russell and Fehr (1987) Russell, J.A.; Fehr, B. Relativity in the perception of emotion in facial expressions. Journal of Experimental Psychology: General 1987, 116, 223.
  • Heimerdinger and LaViers (2017) Heimerdinger, M.; LaViers, A. Influence of Environmental Context on Recognition Rates of Stylized Walking Sequences. 9th International Conference on Social Robotics (ICSR) 2017.
  • Bartenieff and Lewis (1980) Bartenieff, I.; Lewis, D. Body Movement: Coping with the Environment; Gordon and Breach Science Publishers, 1980.
  • Studd and Cox (2013) Studd, K.; Cox, L. Everybody is a Body; Dog Ear Publishing, 2013.
  • Felleisen (1991) Felleisen, M. On the expressive power of programming languages. Science of computer programming 1991, 17, 35–75.
  • Veltman and Brunner (2010) Veltman, J.A.; Brunner, H.G. Understanding variable expressivity in microdeletion syndromes. Nature genetics 2010, 42, 192.
  • Restle (1979) Restle, F. Coding theory of the perception of motion configurations. Psychological Review 1979, 86, 1.
  • LaViers et al. (2018) LaViers, A.; Cuan, C.; Maguire, C.; Bradley, K.; Brooks Mata, K.; Nilles, A.; Vidrin, I.; Chakraborty, N.; Heimerdinger, M.; Huzaifa, U.; others. Choreographic and somatic approaches for the development of expressive robotic systems. Arts. Multidisciplinary Digital Publishing Institute, 2018, Vol. 7, p. 11.
  • Blum and Kozen (1978) Blum, M.; Kozen, D. On the power of the compass (or, why mazes are easier to search than graphs). Foundations of Computer Science, 1978., 19th Annual Symposium on. IEEE, 1978, pp. 132–142.
  • Donald (1995) Donald, B.R. On information invariants in robotics. Artificial Intelligence 1995, 72, 217–304.
  • Elgin (2010) Elgin, C. Exemplification et la Danse. Philosophie de la Danse. Rennes: Presses Universitaires de Rennes 2010, pp. 81–98.
  • Turing (1936) Turing, A.M. On computable numbers, with an application to the Entscheidungsproblem. J. of Math 1936, 58, 5.
  • Schaller (1997) Schaller, R.R. Moore’s law: past, present and future. IEEE spectrum 1997, 34, 52–59.
  • McMahon and Bonner (1983) McMahon, T.A.; Bonner, J.T. On size and life; Scientific American Library, 1983.
  • Changizi (2003) Changizi, M.A. Relationship between number of muscles, behavioral repertoire size, and encephalization in mammals. Journal of Theoretical Biology 2003, 220, 157–168.
  • Immerman (2016) Immerman, N. Computability and Complexity. In The Stanford Encyclopedia of Philosophy, Spring 2016 ed.; Zalta, E.N., Ed.; Metaphysics Research Lab, Stanford University, 2016.
  • Petzold (2008) Petzold, C.

    The annotated Turing: a guided tour through Alan Turing’s historic paper on computability and the Turing machine

    ; Wiley Publishing, 2008.
  • Choset et al. (2005) Choset, H.; Hutchinson, S.; Lynch, K.; Kantor, G.; Burgard, W.; Kavraki, L.; Thrun, S. Principles of robot motion: theory, algorithms, and implementation; The MIT Press, 2005.
  • Stephens et al. (2008) Stephens, G.; Johnson-Kerner, B.; Bialek, W.; Ryu, W. Dimensionality and dynamics in the behavior of C. elegans. PLoS Comput Biol 2008, 4, e1000028.
  • Stephens et al. (2010a) Stephens, G.; Johnson-Kerner, B.; Bialek, W.; Ryu, W.; Warrant, E. From Modes to Movement in the Behavior of Caenorhabditis elegans. PloS one 2010, 5, 462–465.
  • Stephens et al. (2010b) Stephens, G.; Ryu, W.; Bialek, W. The emergence of stereotyped behaviors in C. elegans. Bulletin of the American Physical Society 2010, 55.
  • Gomez-Marin et al. (2016) Gomez-Marin, A.; Stephens, G.J.; Brown, A.E. Hierarchical compression of Caenorhabditis elegans locomotion reveals phenotypic differences in the organization of behaviour. Journal of The Royal Society Interface 2016, 13, 20160466.
  • Dankert et al. (2009) Dankert, H.; Wang, L.; Hoopfer, E.D.; Anderson, D.J.; Perona, P. Automated monitoring and analysis of social behavior in Drosophila. Nature methods 2009, 6, 297.
  • Chyb and Gompel (2013) Chyb, S.; Gompel, N. Atlas of Drosophila Morphology: Wild-type and classical mutants; Academic Press, 2013.
  • Ting and Macpherson (2005) Ting, L.H.; Macpherson, J.M. A limited set of muscle synergies for force control during a postural task. Journal of neurophysiology 2005, 93, 609–613.
  • Sebastiani and Fishbeck (2005) Sebastiani, A.; Fishbeck, D.W. Mammalian anatomy: the cat; Morton Publishing Company, 2005.
  • wsu (2014) Range of Joint Motion Evaluation Chart. Technical report, Washington State Department of Social and Health Services,, 2014.
  • Azevedo et al. (2009) Azevedo, F.A.; Carvalho, L.R.; Grinberg, L.T.; Farfel, J.M.; Ferretti, R.E.; Leite, R.E.; Lent, R.; Herculano-Houzel, S. Equal numbers of neuronal and nonneuronal cells make the human brain an isometrically scaled-up primate brain. Journal of Comparative Neurology 2009, 513, 532–541.
  • Gouaillier et al. (2009) Gouaillier, D.; Hugel, V.; Blazevic, P.; Kilner, C.; Monceaux, J.; Lafourcade, P.; Marnier, B.; Serre, J.; Maisonnier, B. Mechatronic design of NAO humanoid. IEEE International Conference on Robotics and Automation., 2009, pp. 769–774.
  • (58) Aldebaran, N. Robotics http://www. aldebaran-robotics. com/eng.
  • (59) Echelon. Choreographed Control. Technical report.
  • (60) Journal, L.V.R. Fountains of Bellagio continue to amaze visitors. Technical report.

Appendix B Applied Examples

In this section, the measure introduced in Section 2 will be applied to some instructive examples: a small humanoid robot and Vegas’s Bellagio fountains. Passive systems like the motion of a falling leaf versus a falling brick might also be considered.

b.1 Aldebaran NAO Humanoid Robot

Figure 6 and Table 1 outline the basic capabilities of the platform where the sensor resolution (an encoder with precision) has been used to determine .

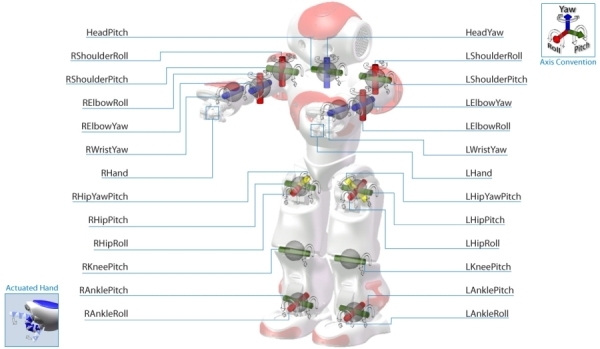

Figure 6: A diagram which lists the degrees of freedom on an Aldebaran NAO robot. In addition to these mechanical degrees of freedom the platform contains an ATOM Z530 onboard computer processor, which has 47 million transistors on board. Gouaillier et al. (2009); Aldebaran
DOF Range / Resolution
l/r hand open/close 2
head yaw -119.5 to 119.5 / .1 2390
head pitch (at 0 yaw) -38.5 to 29.5 / .1 680
l/r shoulder pitch -119.5 to 119.5 / .1 2390
l/r shoulder yaw -119.5 to 119.5 / .1 2390
l/r shoulder roll -88.5 to -2 / .1 865
l/r wrist yaw -104.5 to 104.5 / .1 2090
pelvis -65.6 to 42 / .1 1076
l/r hip roll -21.7 to 45.2 / .1 669
l/r hip pitch -88 to 27.7 / .1 1157
l/r knee pitch -5.3 to 121.0 / .1 1263
l/r ankle pitch -68.2 to 52.9 / .1 1211
l/r ankle roll -22.8 to 44.1 / .1 669
Table 1: NAO Aldebaran robot, mechanical degrees of freedom.

Thus, the kinematic mechanization capacity is calculated as


This calculation includes physical combinations which are kinematically or dynamically infeasible. Further, the capacity for changes in motor speed between configurations is not reflected here and would increase the complexity of behavior. Thus, the number may be seen as a static measure.

b.2 Bellagio Water Fountains

Consider a tourist attraction, like the Bellagio water fountains in Las Vegas, NV. Tourists line up every hour to watch this famous display, routinely included in lists of popular Vegas attractions. This is to say that the fountain display is visually very interesting, or expressive, for human watchers. The fountain has about 1,200 water cannons with 5,000 lights as part of its display. It also has the ability to create fog and features popular or famous music during the shows. For this analysis Echelon ; Journal , we’ll consider only the water cannons and lights. The cannons come in four types: robotic Oarsman and three sizes of Shooters. The 208 Oarsman are articulated cannons with active control; the Shooters simply blast water at three predetermined pressure settings, each having a single pressure setting according to their size. The lights can be a range of colors.

DOF Range / Resolution
Oarsmen RX (208) to / by 160
Oarsmen RY (208) to / by 160
Oarsmen water (208) on/off 2
Shooters (1,175) on/off 2
lights (6,200) off or one of 12 colors 13
Table 2: Estimated fountain system degrees of freedom.

Table 2 articulates a model for this system. For the Oarsman, which rotate about two axes, we assume a range of motion of with a resolution of in each dimension. We assume the water shooting out of the cannon to be on or off with a single pressure setting. Likewise, the Shooters, are either on or off without articulation. The lights can be ‘off’ or one of twelve colors (as modeled by a moderate segmentation of the color wheel). We ignore the music that plays alongside.

Thus, to compute the kinematic mechanization capacity, we find the following computation.


We could argue over which is more interesting to watch: a NAO or the Bellagio fountains, but this metric provides a quantitative bound on how much more expressive the fountains are. In this case, about two orders of magnitude with respect to the amount of information they can encode. This result is consistent with expressivity scaling with system expense and tourist attendance.

What if all the water cannons were the articulated, Oarsman variety? In that case, we have:


Thus, by upgrading 1,175 cannons to the articulated variety, we don’t gain much in expressivity. If, in addition, we boost the resolution of each cannon of the original system to , we have:


Thus here, we can see how adding water cannons and articulation resolution increases the expressivity of the platform, but we do not capture the additional expressivity that the dynamics of timing and water add to (and take away from) the system. For example, by moving variable speeds, these fountains can create different patterns in the water, which add to the system’s expressivity. On the other hand, in the presence of water not all points in the cannon’s range might be physically feasible.
