Exploring the similarity of medical imaging classification problems

06/12/2017 ∙ by Veronika Cheplygina, et al. ∙ 0

Supervised learning is ubiquitous in medical image analysis. In this paper we consider the problem of meta-learning -- predicting which methods will perform well in an unseen classification problem, given previous experience with other classification problems. We investigate the first step of such an approach: how to quantify the similarity of different classification problems. We characterize datasets sampled from six classification problems by performance ranks of simple classifiers, and define the similarity by the inverse of Euclidean distance in this meta-feature space. We visualize the similarities in a 2D space, where meaningful clusters start to emerge, and show that the proposed representation can be used to classify datasets according to their origin with 89.3% accuracy. These findings, together with the observations of recent trends in machine learning, suggest that meta-learning could be a valuable tool for the medical imaging community.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Imagine that you are a researcher in medical image analysis, and you have experience with machine learning methods in applications A, B, and C. Now imagine that a colleague, who just started working on application D, asks your advice on what type of methods to use, since trying all of them is too time-consuming. You will probably ask questions like “How much data do you have?” to figure out what advice to give. In other words, your perception of the similarity of problem D with problems A, B and C, is going to influence what kind of “rules of thumb” you will tell your colleague to use.

In machine learning, this type of process is called meta-learning, or “learning to learn”. In this meta-learning problem, the samples are the different datasets A, B and C, and the labels are the best-performing methods on each dataset. Given this data, we want to know what the best-performing method for D will be. The first step is to characterize the datasets in a meta-feature space. The meta-features can be defined by properties of the datasets, such as sample size, or by performances of simple classifiers [1, 2, 3]. Once the meta-feature space is defined, dataset similarity can be defined to be inversely proportional to the Euclidean distances within this space, and D can be labeled, for example, by a nearest neighbor classifier.

Despite the potential usefulness of this approach, the popularity of meta-learning has decreased since its peak around 15 years ago. To the best of our knowledge, meta-learning is not widely known in the medical imaging community, although methods for predicting the quality of registration[4] or segmentation[5]

can be considered to meta-learn within a single application. In part, meta-learning seems less relevant today because of the superior computational resources. However, with the advent of deep learning and the number of choices to be made in terms of architecture and other parameters, we believe that meta-learning is worth revisiting in the context of its use in applications in medical image analysis.

In this paper we take the first steps towards a meta-learning approach for classification problems in medical image analysis. More specifically, we investigate the construction of a meta-feature space, where datasets known to be similar (i.e. sampled from the same classification problem), form clusters. We represent 120 datasets sampled from six different classification problems by performances of six simple classifiers and propose several methods to embed the datasets into a two-dimensional space. Furthermore, we evaluate whether a classifier is able to predict which classification problem a dataset is sampled from, based on only a few normalized classifier performances. Our results show that even in this simple meta-feature space, clusters are beginning to emerge and 89.3% of the datasets can be classified correctly. We conclude with a discussion of the limitations of our approach, the steps needed for future research, and the potential value for the medical imaging community.

2 Methods

In what follows, we make the distinction between a “classification problem” - a particular database associated with extracted features, and a “dataset” - a subsampled version of this original classification problem.

We assume we are given datasets , where is a dataset from some supervised classification problem, and is a meta-label that reflects some knowledge about . For example, could be the best-performing (but time-consuming) machine learning method for . For this initial investigation, is defined as the original classification problem is sampled from.

We represent each dataset by performances of simple classifiers. Each of the s is therefore represented by an

-dimensional vector

which together form a meta-dataset . Due to different inherent class overlap, the values in might not be meaningful to compare to each other. To address this problem, we propose to transform the values of each by:

  • Normalizing the values to zero mean and unit variance, creating a meta-dataset

  • Ranking the values between 1 and , creating a meta-dataset . In cases of ties, we use average ranks.

The final step is to embed the meta-datasets , and in a 2D space for visualization, to obtain , and . We use two types of embedding: multi-dimensional scaling (MDS) [6] and t-stochastic nearest neighbor embedding (t-SNE) [7]

. These embeddings can help to understand complementary properties of the data. MDS emphasizes large distances, and is therefore good at pointing out outliers, whereas t-SNE emphasizes small distances, potentially creating more meaningful visualizations. An overview of the approach is shown in Fig.

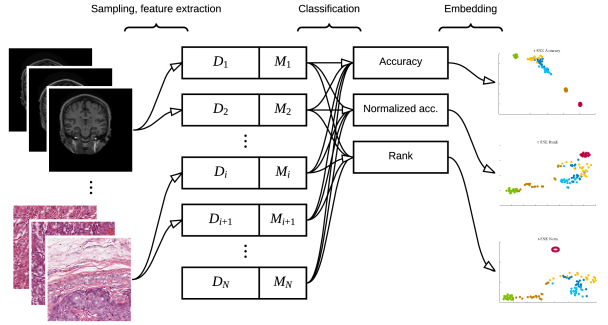

Figure 1: Overview of the method.

3 Experiments

Dataset Type Images Classes Features
Tissue [8] Brain MR 20 7 768, CNN [9]
Mitosis, MitosisNorm [10] Histopathology 12 2 200, CNN [11]
Vessel [12] Retinal 20 2 29, Classical [13]
ArteryVein [14] Retinal 20 2 30, Classical [14]
Microaneurysm [15] Retinal 381 2 30, Classical
Table 1:

Classification problems described by type of image, number of images (subjects), number of classes and number and type of features: “Classical” = intensity and texture-based, “CNN” = defined by output of the fully-connected layer of a convolutional neural network.

Data and Setup. We sample datasets from six classification problems, described in Table 1. The problems are segmentation or detection problems, the number of samples (pixels or voxels) is therefore much higher than the number of images. We sample each classification problem 20 times by selecting 70% of the subjects for training, and 30% of the subjects for testing, to generate datasets for the embedding. For each of dataset, we do the following:

  • Subsample {100, 300, 1K, 3K, 10K} pixels/voxels from the training subjects

  • Train

    classifiers on each training set: nearest mean, linear discriminant, quadratic discriminant, logistic regression, 1-nearest neighbor and decision tree

  • Subsample 10K pixels/voxels from the test subjects

  • Evaluate accuracy on the test set, to obtain accuracies

  • Transform the accuracies by ranking or normalizing

  • Average the ranks/normalized accuracies over the 5 training sizes

We use balanced sampling for both training and test sets, in order to keep performances across datasets comparable (and to remove the “easy” differences between the datasets). The classifiers are chosen mainly due to their speed and diversity (linear vs non-linear). The training sizes are varied to get a better estimation of each classifier’s performance.

Embedding. We use the MDS algorithm with default parameters111http://prtools.org/, and t-SNE222https://lvdmaaten.github.io/tsne/ with perplexity . Because of the stochastic nature of t-SNE, we run the algorithm 10 times, and select the embedding that returns the lowest error. We apply each embedding method to , and , creating embeddings , and so forth.

Classification. To quantify the utility of each embedding, we also perform a classification experiment. We train a 1-nearest neighbor classifier to distinguish between the different classification problems, based on the meta-representation. The classifiers are trained with a random subset of {5, 10, 20, 40, 60} meta-samples 5 times, and accuracy is evaluated on the remaining meta-samples.

4 Results

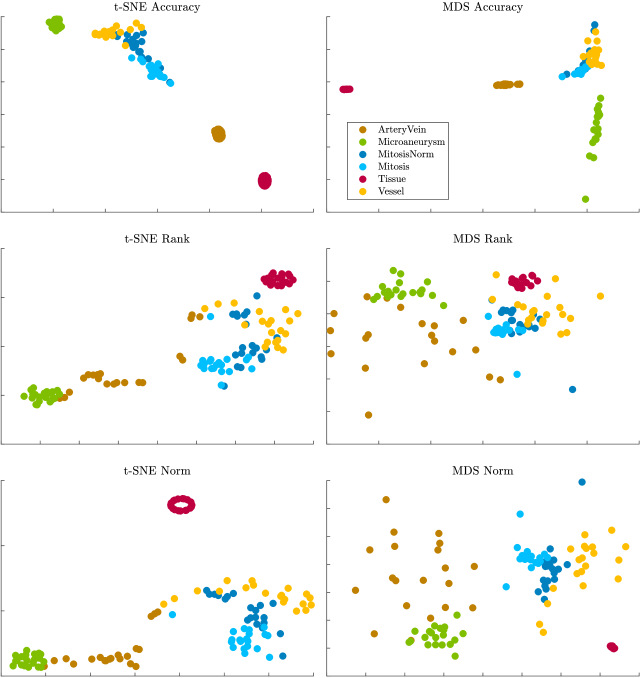

Figure 2: 2D embeddings of the datasets with t-SNE (left) and MDS (right), based on accuracy (top), ranks (middle) and scaling (bottom).

Embedding. The embeddings are shown in Fig. 2. The embeddings based on accuracy are the best at discovering the true structure. Although we sampled the datasets in a balanced way in an attempt to remove some differences in accuracy, it is clear that some problems have larger or smaller class overlap, and therefore consistently lower or higher performances. Both t-SNE and MDS are able to recover this structure.

Looking at and , t-SNE appears to be slightly better at separating clusters of datasets from the same classification problem. This is particularly clear when looking at the ArteryVein datasets. Visually it is difficult to judge whether or provides a more meaningful embedding, which is why it is instructive to look at how a classifier would perform with each of the embeddings.

Looking at the different clusters, several patterns start to emerge. ArteryVein and Microaneurysm are quite similar to each other, likely to to the similarity of the images and the features used. Furthermore, Mitosis and MitosisNorm datasets are quite similar to each other, which is expected, because the same images but with different normalization are used. The Tissue dataset is often the most isolated from the others, being the only dataset based on 3D MR images.

Not all similarities can be explained by prior knowledge about the datasets. For example, we would expect the Vessel to be similar to the ArteryVein and Microaneurysm datasets, but it most embeddings it is actually more similar to Mitosis and MitosisNorm. This suggests that larger sample sizes and/or more meta-features are needed to better characterize these datasets.

Classification. The results of the 1-NN classifier, trained to distinguish between different classification problems, are shown in Fig. 3 (left). The performances confirm that the t-SNE embeddings are better than MDS. As expected, is the best embedding. Between and , which were difficult to assess visually, performs better. When trained on half (=60) of the meta-samples, 1-NN misclassifies 10.7% of the remaining meta-samples, which is low for a 6-class classification problem.

To assess which samples are misclassified, we examine the confusion matrix of this classifier in Fig.

3 (right). Most confusion can be found between Mitosis and MitosisNorm, ArteryVein and Microaneyrism and between Vessel and the Mitosis datasets, as would be expected from the embeddings.

Figure 3: Left: Learning curves of 1-NN classifiers trained on different-size samples from six meta-datasets. Right: confusion matrix of classifier trained on 60 samples from . Each cell shows what % of the true class (row) is classified as (column).

5 Discussion and Conclusions

We presented an approach to quantify the similarity of medical imaging datasets, by representing each dataset by performances of simple classifiers. Even though we used small samples from each dataset and only six simple classifiers, this representation was reasonably successful (89.3% accuracy) in predicting the origin of each dataset. This demonstrates the potential of using this representation in a meta-learning approach, with the goal of predicting which machine learning method will be effective for a previously unseen dataset.

A limitation of our experiments is using artificial meta-labels, based on each dataset’s original classification problem. In a complete meta-learning approach, the labels would reflect the best-performing method on the dataset. However, we would not expect the best-performing method to change if a different subset of subjects is used (which is how the datasets sampled from the same classification problem differ from each other). Therefore, since we observe clusters with these artificial meta-labels, we also expect to observe clusters if more realistic meta-labels are used. Validating the approach with classifier-based meta-labels is the next step for future research in this direction.

Furthermore, we considered features as immutable properties of the classification problem. By considering the features as fixed, our approach would only be able to predict which classifier to apply to these already extracted features. However, due to recent advances in CNNs, where no explicit distinction is made between feature extraction and classification, we would want to start with the raw images. A challenge that needs to be addressed is how to represent the datasets at this point: for example, performances of classifiers on features extracted by CNNs pretrained on external data, or by some intrinsic, non-classifier-based characteristics.

Despite these limitations, we believe this study reaches a more important goal: that of increasing awareness about meta-learning, which is largely overlooked by the medical imaging community. One opportunity is to use meta-learning jointly with transfer learning or domain adaptation, which have similar goals of transferring knowledge from a source dataset to a target dataset. For example, pretraining a CNN on the source, and extracting features on the target, is a form of transfer. In this context, meta-learning could be used to study which source datasets should be used for the transfer: for example, a single most similar source, or a selection of several, diverse sources.

Another opportunity is to learn more general rules of thumb for “what works when” by running the same feature extraction and classification pipelines on different medical imaging datasets, such as challenge datasets. In machine learning, this type of comparison is already being facilitated by OpenML [16], a large experiment database allows running different classification pipelines on already extracted features. We believe that a similar concept for medical imaging, that would also include preprocessing and feature extraction steps, would be a valuable resource for the community.
