Scientific research increasingly uses error-bounded lossy compressors to achieve greater compression ratios in relation to lossless compressors. This improved performance allows applications to run with larger and more frequently produced datasets due to faster I/O times and smaller I/O volumes. The theoretical limit on compressibilty of data using lossless compression is given by the entropy
. The entropy quantifies the information content present in a symbol from a source sequence based upon its probability of occurrence. Thus, for a given sequence of symbols the entropy enables computing the minimum number of bits, on average, needed to represent the data. For over 70 years, this concept has guided the development and evaluation of lossless compression algorithms. However, for lossy compression algorithms, there is currently no known bound for the maximum degree of compression that can be achieved for some specified point-wise error bound. Establishing this bound will allow researchers to anticipate compression performance and adapt compressors to correlation structures of the data ensuring they get the best compression ratio possible. Similarly, establishing the limit for lossy compression allows for the maximum efficiency for storing large scientific datasets.
One possible direction to establish an entropy-like bound for lossy compression is studying the impact on compressibility of correlation structures (correlations in space, time, or other dimensions) of the data, compressor types and error bounds. We refer to “compressibility” as the maximum compression ratio associated with a given error bound. As many compressors implicitly or explicitly exploit correlation structures of the data (e.g. SZ , ZFP ), analyzing the relationships between correlation structures and compression performances will allow researchers to anticipate compression performances. Ultimately, we seek to establish an entropy-like metric for lossy compression algorithms which can guide the lossy compression community to optimal development and usage by adapting compressors to correlation structures present in the data.
In this work, we focus on data correlations and their link to compression ratios for several compressors. The goal of the research paper is to explore:
statistical methods to characterize the correlation structures of the data and
their relationships, through functional models, to compression ratios.
These models will form the first step into evaluating the theoretical limits of lossy compressibility used to eventually predict compression performance. In particular, we focus on estimated correlation ranges through variograms and its effect on compressibility. The variogram is commonly used in geostatistcis to estimate second-order dependence and more precisely how data are correlated with distance. Under stationary conditions, the variogram and covariance function have a direct correspondence. However, in practice the variogram can be estimated in more relaxed assumptions than the covariance and thus is preferred by practitioners. To characterize compressibility, we use the compression ratio, which is an important statistic within lossy compression due to its positive correlation with storing and processing as much data as possible.
In this study, we focus on 2D-gridded datasets and through variogram analysis, perform a characterization of the correlation between grid-points along with a compression analysis (Section IV-C) with several compressors (Section IV-B). We consider two types of data (Section IV-A), synthetic datasets consisting of stochastic correlated Gaussian fields with known correlation structures and another one consisting of simulations from a hydrodynamical model Miranda .
SZ scans through the data block by block: for 2D data the block size is
. For each block, it makes a prediction of what the data in the block is using one of two methods: the Lorenzo predictor or the regression predictor. The Lorenzo predictor uses the values of neighboring points to estimate the value at the current position. The regression predictor fits a hyper-plane through the block, and uses the fitted hyper plane to interpolate the values within the blocks. If these predictions are linearly quantized, and if the quantized values are sufficiently accurate according to the error bound, the quantized values are stored. If the predictions are not accurate, the values are stored exactly. Finally the entire sequence is passed first to a huffman encoding, and then to the Zstd lossless compressor to exploit patterns in the quantized sequence. However, since the the predictor does not observe values outside of its block, it cannot exploit global correlation structures easily.
ZFP likewise uses local correlations, but uses a completely different compression principle based on near orthogonal transforms – a similar approach used by JPEG image compression. ZFP first partitions 2D data into blocks of size , then it converts each block of floating point data into a common fixed point representation, applies the near orthogonal transform, applies an embedded encoding that orders bits from most significant to least significant and then applies a truncation to archive a desired tolerance. Again, because the blocks are compressed independently, the compressor cannot acquire a global knowledge of the data’s correlations structures.
MGARD however is a newer compressor uses a different approach which can account for global correlation structures. MGARD relies on the mathematical theory of multi-grid methods in order to compress the data. MGARD operates by decomposing the data into multi-level coefficients which represent recursively defined sub-regions until the block is represented within the allowed tolerance. These multi-level coefficients are then quantized and then compressed with either Zlib (in older versions) or Zstd (in the newest unreleased version). Because these multi-level coefficients can represent regions of differing sizes and potentially the entire dataset, MGARD can capture multi-level effects in a way that SZ and ZFP cannot making it an important comparison for our paper.
The variogram is a function describing the degree of dependence of a correlated spatial field [7, 8], it gives a measure of how much two points of the same field correlate depending on the distance between those points. The variogram is a function of the distance
and is typically characterized by several parameters: nugget (microscale variability), sill (variance of the studied field), range (distance at which autocorrelation vanishes), see Figure1.
In the following, we focus solely on the variogram range as it corresponds to the distance () where the variogram () plateaus (at the sill value) and indicates the distance beyond which the spatial correlation among grid-points vanishes. Intuitively, the larger the range the stronger the correlation is across grid-points.
In practice, the empirical semi-variogram is computed on the data via Equation (1):
where is the studied field of interest (e.g. velocityx from the Miranda dataset), and are grid-points coordinates or indexes, is the number of grid-points at distance from each other. The variogram corresponds to , in practice the terms semi-variogram and variogram are used interchangeably. In the following, we will refer to variogram as . Finally, to estimate the variogram range we fit by least-squares a parametric squared-exponential variogram () to the empirical variogram range estimated via Equation (1).
Ii-C Complex correlation patterns
Statistical tools exist beyond the variogram to quantify and extract complex correlation structures of datasets for instance in order to analyze long-range dependencies , to detect change-point in time series , to cluster and identify correlation regimes
. Identifying multiscale components of scientific datasets mostly relies on eigen or a basis-function decompositions such as singular value decomposition (SVD) or wavelet decomposition[12, 13]. However due to the often extreme complexity of correlations and dependencies in data, developing methods to extract for instance spatial and spatio-temporal heterogeneity or non-stationarity is still on-going research. Although the detailed use of these techniques is outside the scope of the current work and left for future efforts, we provide preliminary results and future work directions with SVD at the end of the Section V.
Iii Related Work
Beyond the classical efforts to estimate compressiblity using entropy, there has been relatively little attention afforded to the topic of lossy compressiblity. As a parallel in data reduction techniques,
investigated the determination of thresholds for singular value decomposition of large matrices based on some optimality loss criteria. identified several factors that affect compression ratio for SZ and ZFP. They relied on block-based sampling based approach which considered individual data points tailored to each considered compressor that they consider and used Gaussian model to estimate the subsequent compressibility. For SZ, they considered a number of input predictors such as the number of elements in the dataset, the quantization interval, information about the Huffman tree constructed, and the number of points that were unpredictable with SZ’s predictor. For ZFP, they offered a proof of their sampling methods estimated accuracy and empirically show it to be 99% accurate across many datasets. In the same vain,
based on their prior work, used deep neural networks to estimate the compression ratio instead of a Gaussian model. However the built neural network may not generalize to other applications because it could simply over-learn the training data and the testing data would not prevent the over-learning.  designed an automated methodology to switch between SZ and ZFP based on which compressor is estimated to have a greater compression ratio. Compression ratios are estimated in a block-based sampling approach using Shannon entropy  of the sampled quantized blocks to investigate SZ’s behavior. Most of these works have limited generalizability because of their reliance on algorithmic details of each studied compressor or reduction technique.
Finally, little effort has been directed to explore explicit links of correlation structures in the data to reduction and compression techniques and their performance.  has explored the decorrelation efficiency of a specific reduction method on scientific datasets in order to identify trade-offs for parameterization.  lead an evaluation and comparison of several lossy reduction techniques based on basis-function decompositions adapted to temporal and spatial data.
developed an adaptive hierarchical geospatial field data representation (Adaptive-HGFDR) based on blocked hierarchical tensor decomposition to exploit multidimensional correlations on the data. However, none of these works systematically investigate the explicit link between correlation structures and compressibility. Our work goes beyond these approaches to consider a direction that is compressor independent by looking only at local spatial relationships in the data. However, unlike these papers we leave to future work the task of estimating the compression ratio from the observations about spatial relations we study in this paper.
In the following, we refer to datasets as a particular field at a particular time when in an application (e.g. a single continuous variable in memory). In particular, we work with a single temporal snapshot of the studied data.

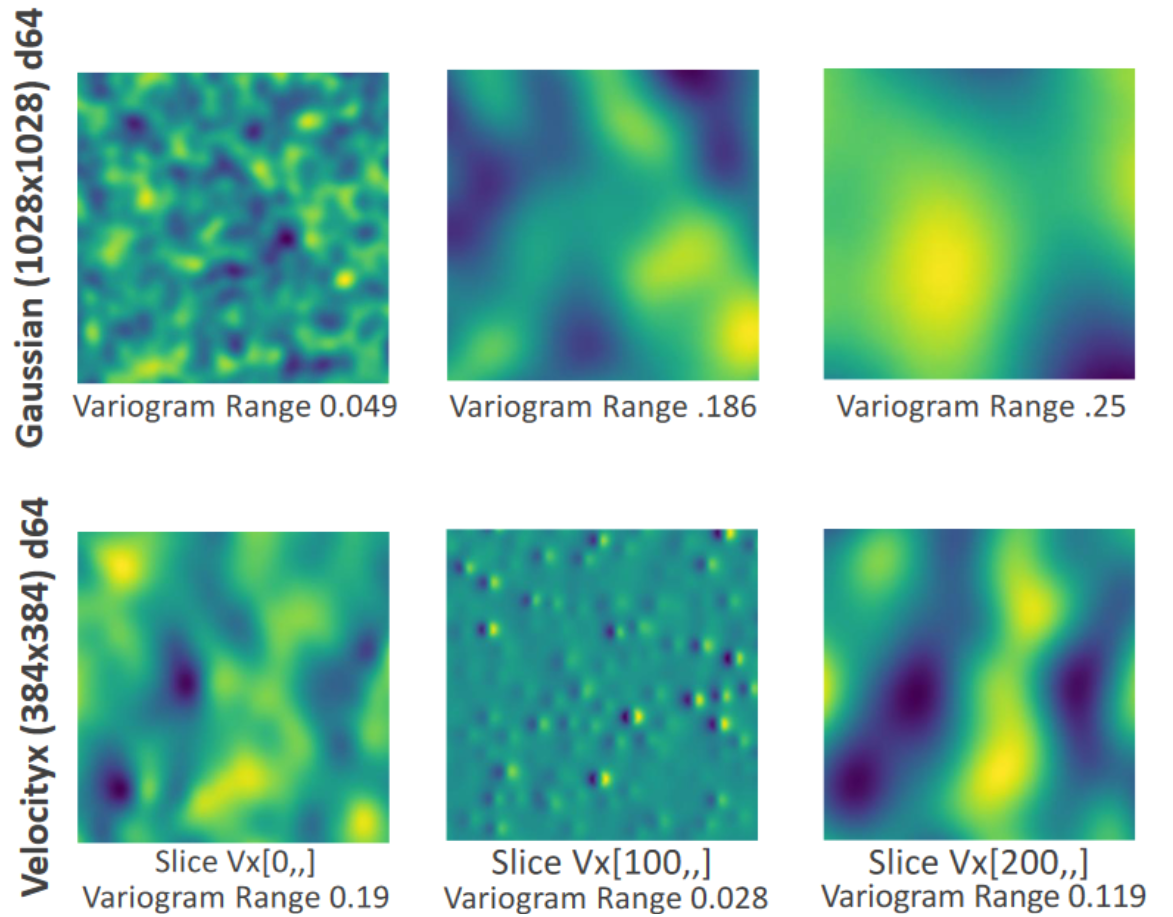

The first dataset consists of synthetic 2D Gaussian fields with a controllable correlation structure following a squared-exponential correlation model. These 2D fields are 10281028 grid-points. We consider these fields as “ideal” as the correlation range is known and varied to create multiple correlated fields. Gaussian fields over a grid defined by indexes
are generated using the following probability distribution
with , the mean in this study, and a squared-exponential correlation , where the variance is set to , is the correlation range that is known and varied, and are spatial grid-points of the 2D field images.
In our evaluation, we consider two types of synthetic Gaussian datasets: single correlation range fields and multiple correlation range fields. We consider single correlation range Gaussian fields as a proof of concept that gives us a high degree of control over correlation structures in the data. However, because application datasets are likely to exhibit complex correlation structure as multiple correlation ranges, we consider also multiple range Gaussian fields. For the multi-range correlation, we generate Gaussian fields with two distinct correlation ranges contributing equally to the total field. This provides a controlled case with increased complexity.
The final dataset is generated from the Miranda code, designed for hydrodynamical large turbulence simulations. These data are more complex than the Gaussian fields due to multiple correlation ranges and complex dependencies. These original 3D data dimensions are 256384384. The 3D datasets are split into separate 2D slices based on equally spaced slices along the first dimension. In this paper, we use slices of the velocityx variable as shown in Figure 2.
Iv-B Compressors and Software
Each lossy compressor in Table I is run with the following absolute error bounds: 1E-5, 1E-4, 1E-3, and 1E-2. We chose the software and compressor versions from the latest available on Spack from a selection of leading error-bounded lossy compressors. We use the absolute error bound because it is supported by each of the leading error-bounded lossy compressors. Additionally, there are formal equivalences between the absolute error bound mode and other error bounds modes such as the value range relative error bound mode which are used by compressors such as SZ . Therefore, considering the compressablity given an absolute error bound is generalizable to other kinds of bounds. All experiments are run on Clemson’s Palmetto cluster using a node with two 32 core Intel(R) Xeon(R) Gold 6148 CPU @ 2.40GHz and 384 GB of RAM. The OS is Linux CentOS 8 with compiler GCC 8.4.1. Additional software and packages used in the study are listed in Table I.
Iv-C Compression Statistics and Statistical Methods
Iv-C1 Compression Statistics
Compression ratio, the ratio of the uncompressed data size by the compressed data size, is used to compare the different compressors and their efficiency. Compression ratio depends on: error bound, compressor used, and correlation structures within the data. The compression ratio is comparable between different compressors and error bounds. In the following, this quantity is computed on the studied datasets from Section IV-A for different compressors and error bounds, and investigated as function of a measure of several correlation statistics of data computed through the variogram range described below.
Iv-C2 Variogram study
In the following section, we compute the empirical variogram of each 2D data-slice from the datasets described in Section IV-A and based on the Euclidean distance between grid-points. The corresponding range is then estimated and reported in the following section as estimated variogram range. In particular, we estimate the variogram ranges on the entire 2D field in order to assess the overall correlation structure of the fields. However, this is insufficient to characterize local heterogeneity in datasets, hence we compute the variogram ranges in windows of a given size that cover the entire 2D field in a tiled fashion
. More specifically, we compute and report the standard deviation of variogram ranges estimated over the windows covering the entire field. This statistic provides information on the spatial diversity and spread of local correlations present in the data.
V Experimental Results
V-a Compressibility and global correlation
In the following figures, the variogram range estimated on entire 2D fields is referred to as “Estimated global variogram range”, the standard deviation of locally estimated variogram range on windows is denoted as “Std estimated of local variogram range (H=32)”. Finally, an additional statistic are considered to illustrate future research directions. It consists in the standard deviation of locally extracted SVD thresholds on windows of size . Thresholds correspond to the number of required singular modes to recover of the variance of the initial field. This statistic is referred to as “Std of truncation level of local SVD (H=32)”.
In Figures 3 and 4 , the compression ratios for SZ and ZFP (top panels) are plotted against the variogram range estimated on entire 2D fields. These statistics are respectively estimated on the synthetic Gaussian fields (left: single-range correlation and right: multi-range correlation) and Miranda datasets. Multiple curves shown on each panel correspond to different error bounds of the lossy compressor. As the estimated global variogram range increases indicating stronger dependence between spatial points, dataset variability decreases yielding smoother, more compressible data. This increasing relationship between compression ratio and variogram range exhibits a plateau for highly correlated data (large variogram ranges) suggesting a limit in compressibility of the data for a given error bound and compressor. Note that this trend is less visible on the multi-range correlation Gaussian fields (right column of Figure 3) due to the equal contributions of each correlation to the total field, preventing any dominant correlation pattern to prevail and thus to be characterized properly by the variogram range of the entire field. Compression ratios for MGARD are less sensitive to the dependencies to correlation ranges present in the data which is likely due to the global scope of the compressor.
Finally, in order to quantify these relationships and compare them across different compressors and error bounds, the compression ratios are fitted by least-squares to logarithmic regressions of the estimated variogram range : , where is the compression ratio, the estimated variogram range, and and
are estimated coefficients and reported in the legend box of each panel. The fitted logarithmic regressions show a good match to the datapoints indicating in most cases a logarithmic dependence of the compression ratios to the estimated variogram ranges. Lower compression error bounds exhibit lower variance of datapoints around the fitted curve and fewer outliers. Regressions fit better the single-scale correlation Gaussian fields (Figure3 left column) than multi-range correlation Gaussian fields and the Miranda data due to their lower complexity that is captured reasonably by the global variogram range. In particular, the fitting on datapoints from Miranda data show more dispersion around the fitted curves but a matching trend.
The variogram range estimated on each entire 2D field represents an average correlation range observed on the entire field and is not suited to characterize spatial local heterogeneity nor multiple scales that can be present in complex scientific datasets, such as in Miranda datasets or multi-range Gaussian fields. In the following section, we explore local correlations and their link to compression ratios.
V-B Compressibility and local correlation
As the variogram ranges estimated on the entire 2D fields may not provide enough insights on local heterogeneity, we estimate the variogram ranges on local windows () tiling each entire 2D-field. Additionally, exploring local heterogeneity is important since many leading error-bounded lossy compressors exploit some notions of locality in their algorithms as discussed in Section II-A. In Figure 3, as the global variogram range increased, the compression ratio fails to have a slope of greater than absolute value of 1E-2 for mutli-range Gaussian fields (right column). This illustrates the shortcomings of the global variogram range statistic while dealing with multi-range correlation datasets. Figure 5 shows the compression ratios computed on single-range correlation Gaussian fields (left) and multi-range correlation fields (right) as a function of the local variogram ranges and the left column of Figure 7 shows the statistics computed on the Miranda fields. Both figures corroborate and illustrate the benefit of considering local information for complex datasets to be better explain compression ratios by local variograms rather than global ones. In particular, we observe that Figures 3 and 4 depict several close values of compression ratios for close variogram ranges, whereas this effect is less visible in Figures 5 and 7 indicating a stronger exploratory skill of the local statistic to the compression ratios. However, results for the single-range correlation Gaussian fields show a weaker sensitivity of the compression ratios to this local statistic. This might suggest the need to use several statistics to provide appropriate explanatory skills. Future work will explore this path.
V-C Towards multiscale analysis and summary statistics
Figure 6 and the right column of Figure 7 illustrate an initial step towards the use of decomposition techniques to analysis fields with multiscale patterns. In this section, local SVD are performed on the fields and summarized via the standard deviation of locally required number of singular modes to capture of the variance of each local window. This local statistic, larger values of required singular modes are associated with less compressible fields so we expect mostly decreasing relationship of compression ratios to this local statistic. For simplicity, as this section provides insights to future works, we omit the compressor MGARD as it showed less sensitivity to the previous statistics. Figure 6 and the right column of Figure 7 indicate that this local statistic provide a more diverse representation of the data as seen by the span of unique values over the x-axis, than the two other statistics based on variogram. This statistic tend to exhibit several relating trends to compression ratio, highlighting a need to refine this statistic. Future work will explore transformation of this statistic or other representations based local SVDs and variograms, as both methods provided various information to explain compression ratios.
Vi Conclusions and Future Work
Establishing the limit for lossy compression would allow for the maximum efficiency for compressing and storing large scientific datasets. Our work represent a first step toward this goal. We have demonstrated that estimated global and local variogram ranges can explain compression ratio in a logarithmic fashion for some compressors and given error bounds. This hypothesis was illustrated on synthetic Gaussian fields providing a proof of concept and corroborated by results on a user scientific dataset from Miranda. With the studied datasets, SZ and ZFP seem to utilize the global and local spatial correlation ranges in a logarithmic fashion with various coefficients showing the strength of the dependence. MGARD seems less sensitive to these trends in its compression ratios.
Since heterogeneous (non-stationary) and multiscale correlations in the data may be mis-represented by the global spatial variogram, other statistics, including local variograms and local SVD, have been studied to address these issues. In continuation of this research, there are a few goals for the future: i) explore more complex dependent variables (local correlation combined with multiscale statistics based on decomposition) as candidate predictors, ii) create more complex synthetic multiscale 2D Gaussian fields and iii) create a model of compression ratio based on correlation metrics and error bound. Future work will investigate the effects of correlation structures on quality metrics of reconstructed data such as PSNR along with a design of the statistics to a 3D context.
Another aspect for future work is how to quickly assess this metric. The currently implementation relies on the singular value decomposition which is slow relative to modern compressors. We plan to leverage a sampling approach similar to prior work[18, 15]. We are hopeful that increasing levels of sampling by block can provide an increasingly accurate proxy for our metric.
Clemson University is acknowledged for generous allotment of compute time on the Palmetto cluster. This material is based upon work supported by the National Science Foundation under Grant No. SHF-1910197.
