Exploring Contextualized Neural Language Models for Temporal Dependency Parsing

by   Hayley Ross, et al.
Brandeis University

Extracting temporal relations between events and time expressions has many applications such as constructing event timelines and time-related question answering. It is a challenging problem that requires syntactic and semantic information at sentence or discourse levels, which may be captured by deep language models such as BERT (Devlin et al., 2019). In this paper, we developed several variants of BERT-based temporal dependency parser, and show that BERT significantly improves temporal dependency parsing (Zhang and Xue,2018a). Source code and trained models will be made available at github.com.



There are no comments yet.


page 1

page 2

page 3

page 4


Neural Ranking Models for Temporal Dependency Structure Parsing

We design and build the first neural temporal dependency parser. It util...

Passage Re-ranking with BERT

Recently, neural models pretrained on a language modeling task, such as ...

LIMIT-BERT : Linguistic Informed Multi-Task BERT

In this paper, we present a Linguistic Informed Multi-Task BERT (LIMIT-B...

A Pilot Study of Text-to-SQL Semantic Parsing for Vietnamese

Semantic parsing is an important NLP task. However, Vietnamese is a low-...

Infusing Disease Knowledge into BERT for Health Question Answering, Medical Inference and Disease Name Recognition

Knowledge of a disease includes information of various aspects of the di...

Interactive Text Graph Mining with a Prolog-based Dialog Engine

On top of a neural network-based dependency parser and a graph-based nat...

A Modest Pareto Optimisation Analysis of Dependency Parsers in 2021

We evaluate three leading dependency parser systems from different parad...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Temporal relation extraction has many applications including constructing event timelines for news articles or narratives and time-related question answering. Recently, Zhang and Xue (2018b) presented Temporal Dependency Parsing (TDP), which organizes time expressions and events in a document to form a Temporal Dependency Tree (TDT). Consider the following example:

Example 1: Kuchma and Yeltsin signed a cooperation plan on February 27, 1998. Russia and Ukraine share similar cultures, and Ukraine was ruled from Moscow for centuries. Yeltsin and Kuchma called for the ratification of the treaty, saying it would create a “strong legal foundation”.

Figure 1 shows the corresponding TDT. Compared to previous pairwise approaches for temporal relation extraction such as Cassidy et al. (2014), a TDT is much more concise but preserves the same (if not more) information. However, TDP is challenging because it requires syntactic and semantic information at sentence and discourse levels.

Figure 1: Temporal Dependency Tree of Example 1. DCT is Document Creation Time (March 1, 1998)

Recently, deep language models such as BERT Devlin et al. (2019) have been shown to be successful at many NLP tasks, because (1) they provide contextualized word embeddings that are pre-trained with very large corpora, and (2) BERT in particular is shown to capture syntactic and semantic information (Tenney et al., 2019, Clark et al., 2019), which may include but is not limited to tense and temporal connectives. Such information is relevant for temporal dependency parsing.

In this paper, we investigate the potential for applying BERT to this task. We developed two models that incorporate BERT into TDP, starting from a straightforward usage of pre-trained BERT word embeddings, to using BERT as an encoder and training it within an end-to-end system. Experiments showed that BERT improves TDP performance in all models, with the best model achieving a 13 absolute F1 point improvement over our re-implementation of the neural model in (Zhang and Xue, 2019)111We were unable to replicate the F1-score reported in Zhang and Xue (2019). The improvement over the reported, state-of-the-art result is 8 absolute F1 points.. We present technical details, experiments, and analysis in the rest of this paper.

2 Related Work

Much previous work has been devoted to classification of relations between events and time expressions, notably TimeML (Pustejovsky et al., 2003a), TimeBank (Pustejovsky et al., 2003b), and recently TimeBank-Dense (Cassidy et al., 2014) which annotates all pairs of relations. Pair-wise annotation has two problems: complexity, and the possibility of inconsistent predictions such as before , before , before . To address these issues, Zhang and Xue (2018b) present a tree structure of relations between time expressions and events. There, all time expressions are children of the root (if they are absolute), of the special time expression node Document Creation Time (DCT), or of other time expressions. All events are children of either a time expression or another event. Each edge is labelled with before, after, overlap, or depends on. Organizing time expressions and events into a tree reduces the annotation complexity to and avoids cyclic inconsistencies.

This paper builds on the chain of work done by Zhang and Xue (2018b), Zhang and Xue (2018a) and Zhang and Xue (2019), which presents an English corpus annotated with this schema as well as a first neural architecture. Zhang and Xue (2018a) uses a BiLSTM model with simple attention and randomly initialized word embeddings. This paper capitalizes on recent advances in pre-trained, contextualized word embeddings such as ELMo (Peters et al., 2018), ULMFit (Howard and Ruder, 2018) and BERT (Devlin et al., 2019). Besides offering richer contextual information, BERT in particular is shown to capture syntactic and semantic properties (Tenney et al., 2019, Clark et al., 2019) relevant to TDP, which we show yield improvements over the original model.

3 BERT-based Models

Following Zhang and Xue (2018a), we transformed temporal dependency parsing (TDP) to a ranking problem: given a child mention (event or time expression) , the problem is to select the most appropriate parent mention from among the root node, DCT or an event or time expression from the window  222We set in all experiments. around , along with the relation label (before, after, overlap, depends on). A Temporal Dependency Tree (TDT) is assembled by selecting the highest-ranked prediction parent, relation type for each event and time expression in a document (while avoiding cycles).

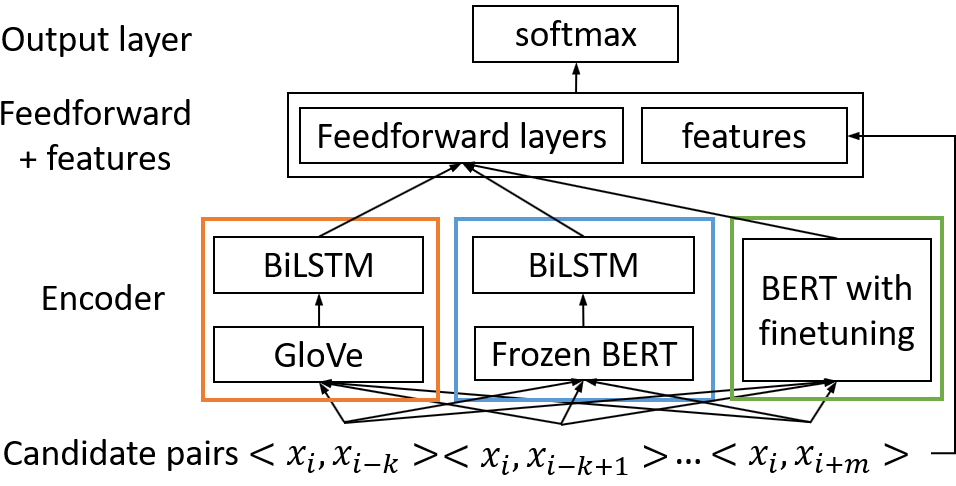

Figure 2: Model architecture for TDP with three different encoders (orange, blue, green boxes). Shown with the parent, child input pairs for a given child (event or time expression) . For simplicity, we did not show and , which are included as candidate pairs for all .

As shown in Figure 2, we developed three models that share a similar overall architecture: the model takes a pair of mentions (child and parent) as input and passes each pair through an encoder which embeds the nodes and surrounding context into a dense representation. Hand-crafted features are concatenated onto the dense representation, which is then passed to one or two feed-forward layers and a softmax function to generate scores for each relation label for each pair. We tested three types of encoder:

  • BiLSTM with non-contextualized embeddings feeds the document’s word embeddings (one per word) to a BiLSTM to encode the pair as well as the surrounding context. The word embeddings can be either randomly initialized (identical to Zhang and Xue (2018a)), or pre-trained from a large corpus – we used GloVe (Pennington et al., 2014).

  • BiLSTM with frozen BERT embeddings replaces the above word embeddings with frozen (pre-trained) BERT contextualized word embeddings. We used the BERT-base uncased model333https://github.com/google-research/bert, which has been trained on English Wikipedia and the BookCorpus.

  • BERT as encoder: BERT’s encoder architecture (with pre-trained weights) is used directly to encode the pairs. Its weights are fine-tuned in the end-to-end TDP training process.

All models use the same loss function and scoring as in

Zhang and Xue (2018a).

3.1 Model 1: BiLSTM with Frozen BERT

The first model adjusts the model architecture from Zhang and Xue (2018a) to replace its word embeddings with frozen BERT embeddings. That is, word embeddings are computed via BERT for every sentence in the document; then, these word embeddings are processed as in the original model by a BiLSTM. The BiLSTM output is passed to an attention mechanism (which handles events / time expressions with multiple words), then combined with the hand-crafted features (listed in Table 2) and passed to a feed-forward network with one hidden layer, which ranks each relation label for each (possible) parent / child pair.

3.2 Model 2: BERT as Encoder

This model takes advantage of BERT’s encoding and classification capabilities since BERT uses the Transformer architecture (Vaswani et al., 2017). The embedding of the first token [CLS] is interpreted as a classification output and fine-tuned.

To represent a child-parent pair with context, BERT as encoder constructs a “sentence” for the (potential) parent node and a “sentence” for the child node. These are passed to BERT in that order and concatenated with BERT’s [SEP] token. Each “sentence” is formed of the word(s) of the node, the node’s label (TIMEX or EVENT), a separator token ‘:’ and the sentence containing the node, as shown in Table 1.

word(s) label sep sentence
February 27, 1998 TIMEX : Kuchma and Yeltsin signed a cooperation plan on February 27 1998.
called EVENT : Yeltsin and Kuchma called for the ratification …
Table 1: “Sentence” inputs to BERT in BERT as encoder, for potential parent February 27, 1998 and child called in Example 1. (The correct parent here is DCT.)

3.3 Additional Features

We used several hand-crafted binary and scalar features (Table 2) in all models, expanding on the features in Zhang and Xue (2018a).

Node distance features
parent is previous node in document
parent is before child in same sentence
parent is before child, more than one sentence away
parent is after child
parent and child are in same sentence
scaled distance between nodes
scaled distance between sentences
Time expression / event label features
child is time expression and parent is root
child and parent both time expressions
child is event and parent is DCT

parent is padding node

444Window is of fixed size, so it must be padded near the start or end of a document.
Table 2: Binary and scalar features used in all models.

4 Experiments

We use the training, development and test data from Zhang and Xue (2019) for all experiments. We evaluated four configurations of the encoders above. Firstly BiLSTM (re-implemented) re-implements Zhang and Xue (2018a)’s model555The original model was implemented in DyNet (Neubig et al., 2017).

in TensorFlow

Abadi et al. (2016) for fair comparison. Replacing its randomly-initialized embeddings with GloVe (Pennington et al., 2014) yields BiLSTM with GloVe. We also test the models BiLSTM with frozen BERT and BERT as encoder as described in Section 3.

We used Adam (Kingma and Ba, 2014)

as the optimizer and performed coarse-to-fine grid search for key parameters such as learning rate and number of epochs using the dev set. We observed that when fine-tuning BERT in the

BERT as encoder model, a lower learning rate (0.0001) paired with more epochs (75) achieves higher performance, compared to using learning rate 0.001 with 50 epochs for the BiLSTM models.

Model F1-score
Baseline (Zhang and Xue, 2019) 0.18
BiLSTM (re-implemented) 0.55
BiLSTM (Zhang and Xue, 2019) 0.60
BiLSTM with GloVe 0.58
BiLSTM with frozen BERT 0.61
BERT as encoder 0.68
Table 3: Performance of the models.


Table 3 summarizes the F1 scores 666Following  Zhang and Xue (2019), F1 scores are reported. For a document with nodes, the TDP task aims at constructing a tree of edges, so F1 is essentially the same as the accuracy or recall (their denominators are the same). of our models. We also include the rule-based baseline and the performance reported in Zhang and Xue (2019)777We were unable to replicate the F1-score reported in Zhang and Xue (2019)

despite using similar hyperparameters. Therefore, we include performances for our re-implementation and the reported score in

Zhang and Xue (2019) in Table 3. as a baseline.

BiLSTM with frozen BERT outperforms the re-implemented baseline BiLSTM model by 6 points and BiLSTM with GloVe by 3 points in F1-score, respectively. This indicates that the frozen, pre-trained BERT embeddings improve temporal relation extraction compared to either kind of non-contextualized embedding. Fine-tuning the BERT-based encoder (BERT as encoder) resulted in an absolute improvement of as much as 13 absolute F1 points over the BiLSTM re-implementation, and 8 F1 points over the reported results in Zhang and Xue (2019). This demonstrates that contextualized word embeddings and the BERT architecture, pre-trained with large corpora and fine-tuned for this task, can significantly improve TDP.

We also calculated accuracies for each model on time expressions or events subdivided by their type of parent: DCT, a time expression other than DCT, or another event. Difficult categories are children of DCT and children of events. By this breakdown, the main difference between the BiLSTM and the BiLSTM with frozen BERT is its performance on children of DCT: with BERT, it scores 0.48 instead of 0.38. Conversely BERT as encoder sees improvements across the board, with a 0.21 increase on children of DCT over the BiLSTM, a 0.14 increase for children of other time expressions, and a 0.11 increase for children of events.

5 Analysis

Why BERT helps: Comparing the temporal dependency trees produced by the models for the test set, we see that these improvements correspond to the phenomena below.

Firstly, unlike the original BiLSTM, BERT as encoder is able to properly relate time expressions occurring syntactically after the event, such as Kuchma and Yeltsin signed a cooperation plan on February 27, 1998 in Example 1. (The BiLSTM falsely relates signed to the “previous” time expression DCT). This shows BERT’s ability to “look forward”, attending to information indicating a parent appearing after the child.

Secondly, BERT as encoder is able to capture verb tense, and use it to determine the correct label in almost all cases, both for DCT and for chains of events. It knows that present tense sentences (share similar cultures) overlap DCT, while past perfect events (was ruled from Moscow) happen either before DCT or before the event immediately adjacent (salient) to them. Similarly, progressive tense (saying) may indicate overlapping events.

Thirdly, BERT as encoder captures syntax related to time. They are particularly adept at progressive and reported speech constructions such as Yeltsin and Kuchma called for the ratification of the treaty, saying [that] it would create where it identifies that called and saying overlap and create is after saying. Similarly, BERT’s ability to handle syntactic properties (Tenney et al., 2019, Clark et al., 2019) may allow it to detect in which direction adverbs such as since should be applied to the events. This means that while all models may identify the correct parent in these cases, BERT as encoder is much more likely to choose the correct label, whereas the non-contextualized BiLSTM models almost always choose either before for DCT or after for children of events.

Lastly, both BERT as encoder and BiLSTM with frozen BERT are much better than the BiLSTM at identifying context changes (new “sections”) and linking these events to DCT rather than to a time expression in the previous sections (evidenced by the scores reported above on children of DCT). Because BERT’s word embeddings use the sentence as context, the models using BERT may be able to “compare” the sentences and judge that they are unrelated despite being adjacent.

Equivalent TDP trees: We note that in cases where BERT as encoder is incorrect, it sometimes produces an equivalent or very similar tree (since relations such as overlap are transitive, there may be multiple equivalent ways of arranging the tree). Future work could involve developing a more flexible scoring function to account for this.

Limitations: There are also limitations to BERT as encoder. For example, it is still fooled by syntactic ambiguity. Consider:

Example 2: Foreign ministers agreed to set up a panel to investigate who shot down the Rwandan president’s plane on April 6, 1994.

A human reading this sentence will infer based on world knowledge that April 6, 1994 should be attached to the subclause who shot down …, not to the matrix clause (agreed), but a syntactic parser would produce both parses. BERT as encoder incorrectly attaches agreed to April 6, 1994: even BERT’s contextualized embeddings are not sufficient to identify the correct parse.

6 Conclusion and Future Work

We present two models that incorporate BERT into temporal dependency parsers, and observe significant gains compared to previous approaches. We present an analysis of where and how BERT helps with this challenging task.

For future research, we plan to explore the interaction between the representation learnt by BERT and the hand-crafted features added at the final layer, as well as develop a more flexible scoring function which can handle equivalent trees.


This work was supported by DARPA/I2O and U.S. Air Force Research Laboratory Contract No. FA8650-17-C-7716 under the Causal Exploration program, and DARPA/I2O and U.S. Army Research Office Contract No. W911NF-18-C-0003 under the World Modelers program. The views, opinions, and/or findings expressed are those of the author(s) and should not be interpreted as representing the official views or policies of the Department of Defense or the U.S. Government. This document does not contain technology or technical data controlled under either the U.S. International Traffic in Arms Regulations or the U.S. Export Administration Regulations.


  • M. Abadi, P. Barham, J. Chen, Z. Chen, A. Davis, J. Dean, M. Devin, S. Ghemawat, G. Irving, M. Isard, et al. (2016)

    Tensorflow: a system for large-scale machine learning

    In 12th USENIX Symposium on Operating Systems Design and Implementation (OSDI 16), pp. 265–283. Cited by: §4.
  • T. Cassidy, B. McDowell, N. Chambers, and S. Bethard (2014) An annotation framework for dense event ordering. Technical report Carnegie-Mellon Univ Pittsburgh PA. Cited by: §1, §2.
  • K. Clark, U. Khandelwal, O. Levy, and C. D. Manning (2019) What does bert look at? an analysis of bert’s attention. arXiv preprint arXiv:1906.04341. Cited by: §1, §2, §5.
  • J. Devlin, M. Chang, K. Lee, and K. Toutanova (2019) BERT: pre-training of deep bidirectional transformers for language understanding. In Proceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long and Short Papers), pp. 4171–4186. Cited by: Exploring Contextualized Neural Language Models for Temporal Dependency Parsing, §1, §2.
  • J. Howard and S. Ruder (2018) Universal language model fine-tuning for text classification. arXiv preprint arXiv:1801.06146. Cited by: §2.
  • D. P. Kingma and J. Ba (2014) Adam: a method for stochastic optimization. arXiv preprint arXiv:1412.6980. Cited by: §4.
  • G. Neubig, C. Dyer, Y. Goldberg, A. Matthews, W. Ammar, A. Anastasopoulos, M. Ballesteros, D. Chiang, D. Clothiaux, T. Cohn, et al. (2017)

    Dynet: the dynamic neural network toolkit

    arXiv preprint arXiv:1701.03980. Cited by: footnote 5.
  • J. Pennington, R. Socher, and C. Manning (2014)

    Glove: global vectors for word representation


    Proceedings of the 2014 conference on empirical methods in natural language processing (EMNLP)

    pp. 1532–1543. Cited by: 1st item, §4.
  • M. E. Peters, M. Neumann, M. Iyyer, M. Gardner, C. Clark, K. Lee, and L. Zettlemoyer (2018) Deep contextualized word representations. arXiv preprint arXiv:1802.05365. Cited by: §2.
  • J. Pustejovsky, J. M. Castano, R. Ingria, R. Sauri, R. J. Gaizauskas, A. Setzer, G. Katz, and D. R. Radev (2003a) TimeML: robust specification of event and temporal expressions in text.. New directions in question answering 3, pp. 28–34. Cited by: §2.
  • J. Pustejovsky, P. Hanks, R. Sauri, A. See, R. Gaizauskas, A. Setzer, D. Radev, B. Sundheim, D. Day, L. Ferro, et al. (2003b) The timebank corpus. In Corpus linguistics, Vol. 2003, pp. 40. Cited by: §2.
  • I. Tenney, D. Das, and E. Pavlick (2019) BERT rediscovers the classical nlp pipeline. arXiv preprint arXiv:1905.05950. Cited by: §1, §2, §5.
  • A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin (2017) Attention is all you need. In Advances in neural information processing systems, pp. 5998–6008. Cited by: §3.2.
  • Y. Zhang and N. Xue (2018a) Neural ranking models for temporal dependency structure parsing. arXiv preprint arXiv:1809.00370. Cited by: Exploring Contextualized Neural Language Models for Temporal Dependency Parsing, §2, 1st item, §3.1, §3.3, §3, §3, §4.
  • Y. Zhang and N. Xue (2018b) Structured interpretation of temporal relations. arXiv preprint arXiv:1808.07599. Cited by: §1, §2, §2.
  • Y. Zhang and N. Xue (2019) Acquiring structured temporal representation via crowdsourcing: a feasibility study. In Proceedings of the Eighth Joint Conference on Lexical and Computational Semantics (* SEM 2019), pp. 178–185. Cited by: §1, §2, Table 3, §4, §4, §4, footnote 1, footnote 6, footnote 7.
