Exploiting NOMA/OMA for Multi-UAV Communications in Large-Scale Networks

02/05/2019 ∙ by Tianwei Hou, et al. ∙ BEIJING JIAOTONG UNIVERSITY Queen Mary University of London 0

This paper advocates a pair of strategies in non-orthogonal multiple access (NOMA) in unmanned aerial vehicles (UAVs) communications, where multiple UAVs play as new aerial communications platforms for serving terrestrial NOMA users. A new multiple UAVs framework with invoking stochastic geometry technique is proposed, in which a pair of practical strategies are considered: 1) UAV-Centric strategy for offloading actions and 2) User-Centric strategy for providing emergency communications. In order to provide practical insights for the proposed NOMA assisted UAV framework, an imperfect successive interference cancelation (ipSIC) scenario is taken into account. For both UAV-Centric strategy and User-Centric strategy, we derive new exact expressions for the coverage probability. We also derive new analytical results for orthogonal multiple access (OMA) for providing a benchmark scheme. The derived analytical results in both User-Centric strategy and UAV-Centric strategy explicitly indicate that the ipSIC coefficient is a dominant component in terms of coverage probability. Numerical results are provided to confirm that i) for both User-Centric strategy and UAV-Centric strategy, NOMA assisted multi-UAV networks is capable of outperforming OMA by setting power allocation factors and targeted rate properly; and ii) the coverage probability of NOMA assisted multi-UAV framework is affected to a large extent by ipSIC coefficient, target rates and power allocations factors of paired NOMA users.

READ FULL TEXT VIEW PDF

Authors

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

In the past decades, much research effort has been directed towards developing remotely operated unmanned aerial vehicles (UAVs), which stand as a potential candidate of aerial base station (BS) to provide access services to wireless devices located on the ground [2] or in the sky [3]. UAV communications are also an effective approach to provide connectivity during temporary events and after disasters in the remote areas that lack cellular infrastructure [2]. As compared to conventional terrestrial communications, one distinct feature of UAV communication is that the existence of line-of-sight (LoS) is capable to offer stronger small-scale fading between UAV and the ground users due to the high altitude of UAVs, which brings both opportunities and challenges in the design of UAV cellular networks [3]. The distinctive channel characteristics for UAV networks were investigated in [4], where different types of small-scale fading channels, i.e., Loo model, Rayleigh model, Nakagami- model, Rician model and Werbull model, were summarized to demonstrate the channel propagation of UAV networks. Generally speaking, Nakagami- distribution and Rician distribution are used to approximate the fluctuations in the fading channel with LoS propagations. It is also worth noting that the fading parameter of Nakagami- fading , the distribution of Nakagami- is approximately Rician fading with parameter  [5, eq. (3.38)]. Due to the limited spectrum resources on board of a UAV, achieving higher spectrum efficiency is of paramount importance to reap maximum benefits from UAV based communication networks.

To exploit the spectrum efficiency in the next generation wireless networks and beyond, especially in the UAV communication networks, non-orthogonal multiple access (NOMA) is considered to be a promising technique [6, 7]. More specifically, in contrast to the conventional orthogonal multiple access (OMA) techniques, NOMA is capable of exploiting the available resources more efficiently by opportunistically capitalizing on the users’ specific channel conditions [8], and it is capable of serving multiple users at different quality-of-service (QoS) requirements in the same resource block [9, 10, 11]. To be more clear, NOMA technique sends the signal to multiple users simultaneously by power domain multiplexing within the same frequency, time and code block. The basic principles of NOMA techniques rely on the employment of superposition coding (SC) at the transmitter and successive interference cancelation (SIC) techniques at the receiver [6, 12], and hence multiple accessed users can be realized in the power domain via different power levels for users in the same resource block. Therefore, UAV networks can serve multiple users simultaneously by utilizing NOMA techniques for enhancing the achievable spectrum efficiency.

I-a Prior Work and Motivation

Regarding the literature of UAV networks, early research contributions have studied the performance of single UAV or multiple UAVs networks. The air-to-air channel characterization in [13], studied the influence of the altitude–-dependent Rician K factor. This work indicated that the impact of the ground reflected multi-path fading reduces with increasing UAV altitude. It is also worth noting that Rayleigh fading channel [14], which is a well-known model in scattering environment, can be also used to model the UAV channel characteristics in the case of large elevation angles in the mixed–-urban environment. Mozaffari et al. [3, 15] proposed a UAV network with LoS probability, which depends on the height of the UAV, the horizontal distance between the UAV and users, the carrier frequency and type of environment. For the case that LoS exists, a fixed LoS coefficient, e.g., an extra 20dB attenuation, is the dominant component of small-scale fading channels. Chetlur et al. [16] proposed a downlink UAV network, where UAVs are distributed in a finite 3-D network. An uniform binomial point process was invoked to model the proposed network. Zhang et al. [17] proposed two possible paradigms for UAV assisted cellular communications, namely, cellular-enabled UAV communication and UAV-assisted cellular communication. The trajectory of the UAV has optimized under connectivity-constrained. Liu et al. [18] proposed a multiple-input multiple-output (MIMO) assisted UAV network, where the UAV serves multiple users through multi-beam simultaneously. However, the prior research contributions [13, 14, 3, 15, 16, 17, 18] mainly focus on addressing the effects of OMA assisted UAV networks. Therefore, new research on UAV under emerging next generation network architectures is needed.

Recently, the use of NOMA in wireless communication has attracted great interest. Ding et al. [19] evaluated the performance of NOMA with randomly deployed users, where order statistics and stochastic geometry tools were invoked to evaluate the performance of paired NOMA users. Some application scenarios of NOMA have been investigated in the previous literature. More particularly, Liu et al. [20] proposed an innovative model of cooperative NOMA with simultaneous wireless information and power transfer (SWIPT), where a NOMA cluster consists of two NOMA users, one that is located in a small disk and the other is in a ring with a larger external radius. Ding et al. [8] evaluated the performance of NOMA with fixed power allocation (F-NOMA) and cognitive radio inspired NOMA (CR-NOMA), and the user pairing strategies were carefully discussed. The analytical results show that it is more preferable to pair users whose channel gains are more distinctive to improve the diversity order in F-NOMA, whereas CR-NOMA prefers to pair the users with the best channel conditions. Recently, an imperfect SIC scenario has attracted great interest. Due to the fact that SIC techniques are deployed at the receivers, the residues of the multiplexed signal detected by SIC technique cannot be ignored [21]. Once an error occurs for carrying out SIC at the user with better channel gain, the NOMA systems will suffer from the residual interference signal. Hence it is significant to examine the detrimental impacts of imperfect SIC for NOMA system. Hou et al. [22] evaluated the outage performance of NOMA downlink transmission in both LoS and NLoS scenarios. A potential future research direction for NOMA, called Rate-Splitting multiple access, has been proposed by Mao et al. [23]. The analytical results in [23] demonstrated that RSMA can outperform SDMA and NOMA in the multi-antenna system and comes with a lower complexity than NOMA. RSMA assisted multi-cell networks and multi-antenna assisted RSMA were also proposed in [24]. The results derived concluded that RSMA can provide rate, robustness and QoS enhancements over SDMA and NOMA. With the goal of enhancing the physical layer security of NOMA networks, Liu et al. [25] proposed a NOMA assisted physical layer security framework in large-scale networks, where both single antenna and multiple antenna aided transmission scenarios were considered.

Integrating UAVs and NOMA into cellular networks is considered to be a promising technique to significantly enhance the performance of terrestrial users in the next generation wireless system and beyond, where UAVs are deployed with single antenna or multi-antenna to serve ground users by OMA or NOMA [26, 27]. A general introduction of UAV communications has been proposed by Liu et al. [28]

. Three case studies, i.e., performance evaluation, joint trajectory design, and machine learning assisted UAV deployment

[29], were carried out in order to better understand NOMA enabled UAV networks. Some challenges were concluded for future research directions. Nguyen et al. [30] proposed a cooperative UAV network, where UAVs are used as a flying relay in wireless backhaul network. Hou et al. [27] proposed a MIMO-NOMA assisted UAV network, where the closed-form expressions of outage performance and ergodic rate were evaluated in the downlink scenario. A NOMA assisted uplink scenario of UAV communication was proposed by Mao et al. [31], where two special cases, i.e., egoistic and altruistic transmission strategies of the UAV, were considered to derive the optimized solutions. Han et al. [32] proposed a UAV assisted millimeter-wave air-to-everything networks, where aerial access points provide access services to users located on the ground, air, and tower. The buildings were modeled as a Boolean line-segment process with the fixed height.

The previous contributions [26, 27, 28, 31, 32] mainly consider NOMA in single UAV cell, and thus do not account for inter-cell interferences. The research contributions in terms of conducting on multi-UAV aided NOMA networks are still in their infancy, particularly with the focus of potential association strategies. NOMA enhanced UAV networks design poses three additional challenges: i) NOMA technology brings additional intra-cell interference from the connected UAV to the served users; ii) UAV communication requires different fading channels to evaluate the channel gain of LoS/NLoS propagation. iii) the user association policy requires to be reconsidered in NOMA assisted UAV networks. In this article, aiming at tackling the aforementioned issues, by proposing two potential association strategies, namely UAV-Centric strategy and User-Centric strategy, for intelligently investigating the effect of NOMA assisted UAV network performance is desired. The motivation of proposing two strategies is that the User-Centric strategy is a promising solution for providing access services after disasters in the remote areas, where all of terrestrial users can be served by UAVs. On the contrary, the UAV-Centric strategy can be perfectly deployed in the dense networks, i.e., concerts or football matches, to provide supplementary access services for offloading actions. Stochastic geometry tools are invoked to provide the mathematical paradigm to model the spatial randomness of both UAVs and users in multi-UAV networks. In contrast to the conventional terrestrial communication structure, stochastic geometry is capable of analyzing the average performance of the mobility and flexibility of the UAV networks.

I-B Contributions

In contract to most existing research contributions in context of UAV communications [27, 31, 32], which focus on single cell networks, we consider multi-cell set-up in this treatise. We propose two new NOMA assisted multi-UAV strategies, namely User-Centric strategy and UAV-Centric strategy. Based on the proposed strategies, the primary theoretical contributions can be summarized as follows:

  • We develop two potential association strategies to address the impact of NOMA on the nearest user, namely User-Centric strategy and UAV-Centric strategy, where stochastic geometry approaches are invoked to model the locations of both UAVs and users.

  • For the User-Centric strategy: we derive the exact analytical expressions of a typical user in the NOMA enhanced User-Centric strategy in terms of coverage probability. Additionally, we derive the exact expressions in terms of coverage probability for the OMA assisted User-Centric strategy. Our analytical results illustrate that the distance of previous round user has almost no effect on the coverage probability of the typical user.

  • For the UAV-Centric strategy: we derive the exact analytical expressions of paired NOMA users in the NOMA enhanced UAV-Centric strategy in terms of coverage probability. The exact expressions in terms of coverage probability for the OMA case are derived. Our analytical results demonstrate that the coverage probability of the near user is zero in the case of poor SIC quality.

  • Simulation results confirm our analysis, and illustrate that by setting power allocation factors and targeted rate properly, NOMA assisted multi-UAV frameworks has superior performance over OMA assisted multi-UAV frameworks in terms of coverage probability, which demonstrates the benefits of the proposed strategies. Our analytical results also illustrate that the coverage probability can be greatly enhanced by LoS links.

I-C Organization

The rest of the paper is organized as follows. In Section II, the NOMA assisted User-Centric strategy is investigated for multi-UAV frameworks, where the UAV provides access services to all the users. In Section III, the NOMA assisted UAV-Centric strategy is investigated, where the UAV only provides access services to the restricted area. Our numerical results are demonstrated in Section IV for verifying our analysis, which is followed by the conclusion in Section V.

Ii User-Centric Strategy for Emergency Communications

We first focus our attention on a scenario, where all the terrestrial users are needed to be served equally after disasters in the remote areas or in the rural areas. Motivated by this purpose, we propose User-Centric strategy for providing emergency access services to all the terrestrial users.

(a) Illustration of the system model.
(b) Example of the User-Centric strategy cellular networks.
Fig. 1: Illustration of NOMA assisted User-Centric strategy model.

Focusing on downlink transmission scenarios, we consider the User-Centric strategy as shown in Fig. 1(a). In this article, the UAV equipped with a single antenna communicates with multiple users equipped with a single antenna each. The UAVs are distributed according to a HPPP with density . For the simplicity of theoretical analysis, as shown in Fig. 1(b), an user is located at the original point in the User-Centric strategy, which becomes the typical user. The User-centric strategy is a useful model for the large-scale networks, i.e., field area, where users are uniformly located in the Voronoi cell according to a HPPP with density . Unlike the UAV-Centric strategy, the User-Centric strategy considers that users are connected to the UAV one by one due to the fact that the number of users could be very small for the case of low user density. Without loss of generality, we consider that each UAV is associated with one user in the previous round of user association process. For simplicity, we assume that the horizontal distances between the associated users and the connected UAVs are the same, denoted by , which can be any arbitrary values, and the horizontal distance between the typical user and the connected UAV is random, denoted by .

Ii-a Channel Model

Consider the use of a composite channel model with two parts, large-scale fading and small-scale fading. In the User-Centric strategy, for simplicity, we consider a two users case, where and denote the channel coefficients for the typical user and the fixed user, respectively. It is assumed that the horizontal distance and the height of the UAV are independent and identically distributed (i.i.d.). In this article, large-scale fading represents the path loss and shadowing between the UAV and users.

In order to better illustrate the LoS propagation between the UAV and user, the small-scale fading is defined by Nakagami-m fading as

(1)

where denotes the fading parameter, and denotes Gamma function. Note that when is an integer. In this paper, the UAV can be projected to the coverage disc by projection theorem. Thus, the distance between the UAV to the typical user can be written as

(2)

In order to avoid infinite received power, it is assumed that the height of the UAV is greater than 1m to simplify the analytical results. Therefore, the large-scale fading can be expressed as

(3)

where denotes the path loss exponent. Thus, the received power from the associated UAV for the user at origin is given by

(4)

where denotes the transmit power of the UAV.

In downlink transmission, paired NOMA users also detect interference from neighboring UAVs. Therefore, the co-channel interference can be further expressed as follows:

(5)

where and denote the distance and the small-scale fading between the user and the -th interfering UAV.

Besides, it is assumed that the channel state information (CSI) of UAVs is perfectly known at the typical user. The signal-to-interference-plus-noise ratio (SINR) of the User-Centric strategy will be derived in the following subsection.

Ii-B SINR Analysis

For the User-Centric strategy, since it is not pre-determined that the typical user is the near user or the far user, we have to provide all potential cases for the SINR analysis. Thus, on the one hand, for the far user case that the distance from the UAV to the typical user is larger than the fixed user, the typical user treats the signal from the fixed user as noise, and the SINR can be expressed as

(6)

where denotes the additive white Gaussian noise (AWGN) power, and denote the power allocation factors for the far user and the near user, respectively. Note that in NOMA communication.

Then, the fixed user needs to decode the information from the typical user with the SINR

(7)

where denotes the distance between the fixed user and the associated UAV with .

Once it is decoded successfully, the fixed user will decode its own signal with imperfect SIC coefficient, and the SINR can be expressed as

(8)

where denotes the imperfect SIC coefficient. Since in practice that SIC is not perfect, a fraction is considered in our model for the user with better channel gain. On the one hand, when perfect SIC is assumed, and the near user can be perfectly decode the signal intended for the far user. On the other hand, when SIC is failed or there is no corresponding SIC, .

On the other hand, when the typical user has smaller distance to the UAV than the fixed user, the SINR at the fixed user can be expressed as

(9)

Based on (7) and (8), The SINR at the typical user in the near user case can be expressed as

(10)

if the typical user decodes the information from the fixed user successfully.

Ii-C Coverage Probability of the User-Centric Strategy

In the networks considered, we first focus on analyzing the probability density functions (PDF) of user distance distributions for paired NOMA users, which will be used for both User-Centric strategy and UAV-Centric strategy.

Lemma 1.

The UAVs are distributed according to a HPPP with density . It is assumed that an extra UAV or an extra user is located at the origin of the disc, which is under expectation over the HPPP. Thus, in this case, the distance , which is the distance between the original UAV or the original user and other UAVs, follows the distribution

(11)

Then, we focus on analyzing the User-Centric strategy of the proposed framework in order to increase the system fairness. In the User-Centric strategy, the user association is based on connecting the nearest UAV at the users. As such, the first step is to derive the Laplace transform of interference for the typical user.

Lemma 2.

For the User-Centric strategy, the Laplace transform of interference distribution for the both NOMA users is given by

(12)

where , , is the nearest horizontal distance allowed between a typical user and its connected UAV, and denotes incomplete Beta function.

Proof.

Please refer to Appendix A. ∎

For the case of large-scale networks, the exist of LoS propagation between interfering UAVs at infinity and users is not reasonable. Thus, a special case that and

is worth estimating.

Corollary 1.

For the special case that the small scale fading channels between interference sources and users follow Rayleigh fading and of the User-Centric strategy, the Laplace transform of interference distribution for the both paired NOMA users can be transformed into

(13)

where is resulted from applying , is obtained by substituting , and denotes hypergeometric function.

Then, we focus on the coverage behavior of the User-Centric strategy. The fixed power allocation strategy is deployed at the UAV, where the power allocation factors and are constant during transmission. It is assumed that the target rates of the typical user and fixed user are and , respectively. Therefore, the coverage probability of the typical user is given in following two Lemmas.

Lemma 3.

The conditional coverage probability of a typical user for the near user case in the User-Centric strategy is expressed in closed-form as

(14)

where , , , , , ,
, , and .

Proof.

Please refer to Appendix B. ∎

Noth that decoding will succeed if the typical user can decode its own message by treating the signal from connected user as noise. The conditional coverage probability of a typical user for the far user case is calculated in the following Lemma.

Lemma 4.

The conditional coverage probability of a typical user for the far user case in the User-Centric strategy is expressed in closed-form as

(15)

where ,
, and .

Proof.

Based on the SINR analysis in (6), and following the similar procedure in Appendix B, with interchanging with , we can obtain the desired result in (15). Thus, the proof is complete. ∎

Based on Lemma 3 and Lemma 4, the coverage probability of the typical user in the User-Centric strategy can be calculated in the following Theorem.

Theorem 1.

The exact expression of the coverage probability for the typical user is expressed as

(16)

where is given in (14), is given in (15), and is given in (11).

Proof.

Considering the distance distributions of the typical user at the origin associated to the UAV with the serving distance , which is distance of the associated user in previous round, we can readily obtain the desired results in (16). The proof is complete. ∎

Remark 1.

The derived results in (14) and (15) demonstrate that the coverage probability of a typical user is determined by the target rate of itself, fading parameter of the small scale fading channels and the distance of the connected user served by the same UAV.

Remark 2.

Inappropriate power allocation such as, and , will lead to the coverage probability always being zero.

In order to provide more insights of multi-UAV networks, the coverage probability of the typical user is also derived in the OMA case.

Corollary 2.

The conditional coverage probability of a typical user for the OMA case in the User-Centric strategy is expressed in closed-form as

(17)

where , , ,
, and .

Proof.

Following the similar procedure in Appendix B, with interchanging with , we can obtain the desired result in (17). Thus, the proof is complete. ∎

Iii UAV-Centric Strategy for offloading actions

In conventional BS communication system, the BS are distributed in order to cover all the ground, whereas UAV communications mainly focus on providing access services to support BS in the dense networks, i.e., airports or resorts, where most people are located in the lounge. Motivated by this purpose, and on the basis of the above User-Centric strategy, another strategy considered in this paper is the UAV-Centric strategy, where paired NOMA users are located inside the coverage disc as shown in Fig. 2.

Fig. 2: Example of the UAV-Centric strategy cellular networks.

For the UAV-Centric strategy, an UAV is located at the original point, which becomes the typical UAV serving users in the typical cell. Therefore, it is assumed that the distance between the UAV at the origin and the nearest UAV is , and the potential paired NOMA users are located in the coverage area within the radius . In the UAV-Centric strategy, user pairing strategy is determined by the connected UAV, where all the users in the coverage disc are connected to the UAV. For simplicity, two users, near user and far user , access to the UAV at the origin. It is assumed that the users are uniformly located, which is according to HPPP, denoted by and it is associated with the density , within large ring and small disc with radius and , respectively. In the UAV-Centric strategy, and denote the channel coefficients for the near user and the far user, respectively.

Iii-a SINR Analysis

For the UAV-Centric strategy, the distances between the interfering UAVs and the users are more complicated. For notational simplicity, the location of the -th interfering UAV is denoted by , where . The locations of the cluster users are conditioned on the locations of their cluster heads (UAVs). As such, the distance from a user to its UAV is simply given by , where denotes the Euclidean distance of the user . In this article, we only focus on the users in the typical cell, and the distance between the user and interfering UAV is denoted by . Thus, the SINR of the far user can be derived as

(18)

where and denote the small scale fading channels and the distance between -th interfering UAV and the far user, respectively.

The near user will first decode the signal of the far user with the following SINR

(19)

If the signal of the -th user can be decoded successfully, the -th user then decodes its own signal. As such, the SINR at the -th user can be expressed as

(20)

Iii-B Coverage Probability of the UAV-Centric Strategy

Consider a disk centered at the origin with the radius , which has shown in Fig. 2. In order to deploy NOMA protocol, we separate the disc to two parts equally, the small disc with radius and the ring with radius from to

, to serve paired NOMA users. It is assumed that the near users and the far users are located in the small disc and ring, respectively. Focusing on the typical cell, which located at the origin, the link distance between a user uniformly distributed in the small disc, and conditioned on

, follows

(21)

where .

The PDF of far users can be obtained by

(22)

where .

In order to derive the system performance, the Laplace transform of interfering UAVs needs to be derived. We calculate the Laplace transform of inter-cell interference for the paired users in the following Lemma.

Lemma 5.

For the UAV-Centric strategy, the Laplace transform of interference distribution conditioned on the serving distance for the near user is given by

(23)

where .

Proof.

Please refer to Appendix C. ∎

It’s also worth noting that for the case of low UAV density, the small-scale fading between users and interfering UAVs can be considered to Rayleigh fading. Thus, the Laplace transform can be further obtained in the following Corollary.

Corollary 3.

For the near user in the case of low UAV density, the Laplace transform of interference distribution conditioned on the serving distance is given by

(24)

Then, we focus on the coverage behavior of the near user , who is the user with higher channel gain. In the UAV-Centric strategy, the coverage probability is more complicated than the User-Centric strategy due to the fact that an extra interference source, the first interference, is necessary to evaluate separately. It is assumed that the target rates of user and user are and , respectively. Therefore, the coverage probability of the -th user is given in the following Lemma.

Lemma 6.

The closed-form expression of the conditional coverage probability on serving distance for the near user is expressed as

(25)

where , , , , , , ,
, ,
, and .

Proof.

Please refer to Appendix D. ∎

Similar to Lemma 6, the coverage probability of the far user can be derived in the following Lemma.

Lemma 7.

The closed-form expression of the conditional coverage probability on serving distance for the far user is expressed as

(26)

where , ,
, ,
, and .

Proof.

Similar to Appendix D, the derivation in (26) can be readily proved. ∎

Then, the coverage probability of the paired NOMA user in the UAV-Centric strategy can be derived in the following Theorem.

Theorem 2.

Based on Lemma 6, the exact expressions of the coverage probability for the paired NOMA users can be expressed as

(27)

and

(28)

where , , is given in (25), is given in (26), is given in (21), and is given in (11).

Proof.

Please refer to Appendix E. ∎

In order to provide more engineering insights, the coverage probability for the near user in the OMA assisted UAV-Centric strategy is also derived in the following Corollary.

Corollary 4.

The conditional coverage probability of the near user for the OMA case in the UAV-Centric strategy is expressed in closed-form as

(29)

where , , ,
, ,
, and ..

Proof.

Following the similar procedure in Appendix D, with interchanging with , we can obtain the desired result in (29). Thus, the proof is complete. ∎

Iv Numerical Studies

In this section, numerical results are provided to facilitate the performance evaluation of NOMA assisted multi-UAV networks. Monte Carlo simulations are conducted to verify analytical results. In the considered network, it is assumed that the power allocation factors are for the far user and for the near user. The path loss exponent . In Monte Carlo simulations, it is not possible to simulate a real infinite distribution for UAVs. Hence, the UAVs are distributed in a disc, and the radius of the disc is . The power of AWGN noise is set as dBm. The UAV density . It is also worth noting that LoS and NLoS scenarios are indicated by the Nakagami fading parameter , where for NLoS scenarios (Rayleigh fading) and for LoS scenarios. Without loss of generality, we use to represents LoS scenario in Section IV.

Iv-a User-Centric Strategy

(a) Coverage probability of User-Centric NOMA versus transmit power in NLoS scenario, where the fading parameters and .
(b) Coverage probability of User-Centric NOMA versus transmit power in both NLoS and LoS scenarios, where the fading parameters and .
Fig. 3: Coverage probability of paired NOMA users versus the power of UAV in the User-Centric strategy, with target rate bits per channel use (BPCU) and BPCU. The height of the UAV is fixed to 50m, and the horizontal distance of the fixed user is 300m. The exact results of NOMA are calculated from (16).

First, we evaluate the coverage performance of downlink NOMA users in the User-Centric strategy. In Fig. 3(a), for a given set of the distance of fixed users, the solid curves and dashed curves are the coverage probability for typical users and fixed users, respectively. We can see that, as the power of UAV increases, the coverage ceilings of both typical users and fixed NOMA users occur. This is due to the fact that, as the higher power level of interfering UAVs is deployed, the received SINR decreases dramatically. It is observed that as imperfect SIC coefficient increases, the coverage probability of typical users decreases, which indicates that the performance of NOMA assisted UAV communication can be effectively improved by decreasing the imperfect SIC coefficient. For example, for the case of , the power residual from imperfect SIC is greater than the power of near users, i.e., . We can also see that for the case of , the coverage probabilities of fixed users are the same. This is due to the fact that the imperfect SIC is the critical component of typical users, whereas the imperfect SIC has no effect for fixed users for the case BPCU. As we can see in the figure, the outage of typical users occurs more frequently than fixed users. This is due to the fact that the chosen of power allocation factors and the distance of the fixed user. Note that the simulation results and analytical results match perfectly in Fig. 3(a), which demonstrate the accuracy of the developed analytical results.

Fig. 3(b) shows the coverage probability achieved by typical users in both NLoS and LoS scenario. In order to better illustrate the performance affected by the LoS transmission, the NLoS case is also shown in the figure as a benchmark for comparison. In Fig. 3(b), we can see that higher fading parameter would result in reduced outage probability for different UAV power levels and different imperfect SIC coefficients. This is because that the LoS link between the UAV and users provides higher received power level. It is also worth noting that for the multi-UAV networks, the proposed network is not in need of a larger UAV power for increasing the coverage probability due to the fact that the error floor occurs in the high SNR regime.

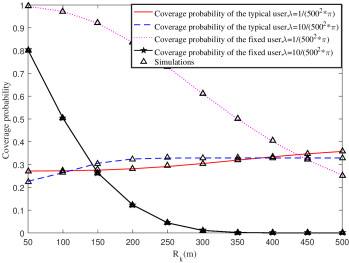

Fig. 4: Coverage probability of User-Centric NOMA versus the distance of fixed users, with target rate BPCU and BPCU. The height of the UAV is fixed to 50m, and the power of UAV is fixed to 40dBm.

In Fig. 4, the impact of different choices of UAV density and the distance of fixed users is studied. As can be observed from the figure, increasing the distance of fixed users will decrease the coverage probability for fixed users, whereas the coverage probability of typical users changes slightly. This is due to the fact that the location distribution of typical users is not affected by fixed users. For fixed users, the received power decreases dramatically when the distance increases. On the other hand, for the dashed curve and star curves, where the density of UAV is 10 times greater than the solid curve and dotted curves, the coverage probability of fixed NOMA users is much smaller. This is because that the number of interfering UAVs is increased, which leads to the increase of received interference power level for both paired NOMA users. It is also worth noting that there are two crosses of typical users, which mean that there exists an optimal distance of fixed users for the given UAV density.

Fig. 5: Coverage probability of typical users versus targeted rate BPCU, and power allocation factor , with the imperfect SIC coefficient . The target rate of fixed users BPCU, The height of the UAV is fixed to 50m, and the horizontal distance of the fixed user is 300m. The transmit power of UAVs is fixed to 40dBm. The fading parameters and .

Next, Fig. 5 plots the coverage probability of typical users versus target rate and power allocation factor . It is observed that the coverage probability is zero in the case of inappropriate target rates and power allocation factors, which verifies the insights from Remark 2. The coverage probability of typical users in OMA is also plotted, which indicates that NOMA is capable for outperforming OMA for the appropriate power allocation factors and target rates of paired users even in the case of .

Iv-B UAV-Centric strategy

In the UAV-Centric strategy, m to evaluate the interference received from the UAV located at the distance . Then, we evaluate the performance of the downlink users in the UAV-Centric strategy. In Figs. 6(a) and 6(b), the impact of the NOMA assisted UAV-Centric strategy on the coverage probability is studied. The target rates of near users and far users are set as BPCU and BPCU, respectively. Solid curves and dashed curve are the coverage probability of near users and far users, respectively. An interesting phenomenon occurs in the UAV-Centric strategy that for the case , the coverage probability of near users is all zero, which indicates that the transmission is failed. This is again due to the fact that , which verifies our obtained insights in Remark 2.

(a) Coverage probability of the UAV-Centric NOMA versus the transmit power in NLoS scenario, where the fading parameters , .
(b) Coverage probability of the UAV-Centric NOMA versus the transmit power in both NLoS and LoS scenarios, where the fading parameters , .
Fig. 6: Coverage probability of paired NOMA users versus the transmit power, with target rate and BPCU, respectively. The height of the UAV is fixed to 100m. The exact results of NOMA are calculated from (27).

Comparing Fig. 6(a) with Fig. 6(b), one can observe that the impact of fading parameter on the coverage probability is also significant, which is due to the fact that the received power level is greater in the case of larger . Again, we can see that the coverage probability is also one of near users in the case of , which indicates that the LoS propagation has no effect on Remark 2.

Fig. 7: Coverage probability of the near user versus the target rate, with the fixed serving height m. The transmit power of UAVs is fixed to 40dBm. The fading parameters and .

Fig. 7 plots the coverage probability for near users in the UAV-Centric strategy in the cases of , , and
