I Introduction

With the increasing development of cellular internet-of-things (IoT), the fifth-generation (5G) wireless networks are expected to support massive connections over limited radio spectrum [1], [2]. Thus, it is required for 5G to adopt a novel multiple access technology to realize spectral-efficient massive access. In this context, non-orthogonal multiple access (NOMA), with a great potential of improving the spectral efficiency and admitting a large number of users simultaneously, has been widely recognized as a promising technology for 5G [3, 4]. On the other hand, since a massive number of heterogeneous user equipments share the same spectrum, wireless security becomes a critical issue of 5G due to the broadcast nature of wireless channels [5]. As such, it is desired to design a secure massive NOMA scheme.

From an information-theoretic viewpoint, in order to improve the communication secrecy performance, it is necessary to enhance the received signal quality at the legitimate users and to reduce the signal leakage to the unintended users [6], [7]. Since the principle of NOMA is to separate the users in the power domain, power allocation is naturally applied into NOMA to enhance the wireless security. In [8] and [9], power allocation schemes were designed for multiuser secure NOMA systems from the perspectives of maximizing the secrecy rate and minimizing the total power consumption, respectively. For the sake of reducing the computational complexity, a fixed-proportion power allocation scheme was proposed in [10]. However, performing power allocation only has a limited capability of security enhancement, since increasing the transmit power may not only improve the signal quality at the legitimate user, but also at the eavesdropper. To effectively improve the performance of physical layer security (PHY-security), a commonly used approach is to equip with multiple antennas at the base station (BS) [11, 12, 13]. Then, by performing spatial beamforming at the multiple-antenna BS based on the available channel state information (CSI), it is possible to simultaneously increase the rate of the legitimate channel and decrease the rate of the eavesdropping channel, and thus improve the secrecy rate [14, 15, 16]

. For instance, if the confidential signal is transmitted in the null space of the eavesdropping channel, the eavesdropper is unable to receive any signal. Moreover, by making use of the spatial degrees of freedom offered by the multiple antennas, artificial noise (AN) can be sent together with the desired signal to confuse the eavesdropper

[17, 18]. Thus, in the adverse case of short-distance interception, the eavesdropper would suffer from a strong interference signal. However, in the context of massive access, there might be not enough degrees of freedom for combating the eavesdropping and transmitting the AN. To solve this problem, there are two feasible solutions. First, the required spatial degrees of freedom for the transmission of the legitimate signals can be effectively reduced via user clustering [19]. For example, the users are partitioned into several clusters, and the users in a cluster share a beam [20], [21]. Second, massive multiple-input multiple-output (MIMO) can be applied to the NOMA systems to significantly increase the available spatial degrees of freedom [22]. Especially, a BS equipped with a massive antenna array can generate high-resolution spatial beams. Thereby, the signal leakage between the users can be reduced significantly, resulting in a low inter-user interference [23] and a low eavesdropping channel rate [24]. Moreover, there are more spatial degrees of freedom to send the AN to facilitate communication secrecy provisioning [25], [26].

To exploit the benefits of massive MIMO for secure massive NOMA systems, the BS should obtain accurate CSI of the downlink channels [27]. However, it is not a trivial task for the BS to acquire accurate CSI in massive MIMO systems operated in frequency division duplex (FDD) mode or time division duplex (TDD) mode. First, in FDD mode, the amount of CSI feedback in massive MIMO systems is unbearable, since the number of required feedback bits should increase linearly proportionally to the number of BS antennas for guaranteeing a given CSI accuracy [28]. Thus, massive MIMO systems are usually suggested to operate in TDD mode. Specifically, by exploiting channel reciprocity, the BS obtains CSI through channel estimation based on the training sequences sent by the users over the uplink channels. However, in secure massive NOMA systems based on TDD mode, there also exists several challenging issues in CSI acquisition. On the one hand, the length of training sequence should be larger than the number of users [29]. In the case of massive access, the required training sequence might be longer than the duration of a channel coherence time, such that the estimated CSI has been already outdated. To effectively reduce the length of training sequence, multiple users, e.g., the users in a cluster for NOMA, should share the same training sequence. In other words, such a non-orthogonal channel estimation method reduces the length of pilot sequence at the expense of sacrificing the CSI accuracy. On the other hand, in secure communications, the eavesdroppers may actively attack the channel estimation by transmitting the same training sequence as the legitimate users [30], [31]. As a result, the CSI accuracy is further deteriorated. With inaccurate CSI, the conventional secure communication schemes based on the AN are inapplicable, since the AN may severely interfere with the legitimate users.

In the context of massive access, especially in the presence of active attacking from the eavesdroppers, there are many challenging issues in the design of secure NOMA scheme. This is mainly because there is severe inter-user interference during the stages of CSI acquisition and multiple access. The inter-user interference decreases the CSI accuracy and the quality of the legitimate signal, resulting in a high probability of interception. However, the inter-user interference also has a great impact on the quality of the eavesdropping signal. Specifically, the inter-user interference can be harnessed and served as AN signal to confuse the eavesdroppers. Inspired by that, this paper proposes to exploit the inter-user interference to enhance the secrecy performance of secure massive NOMA systems. The contributions of this paper are three-fold:

  1. We design a secure non-orthogonal transmission framework for 5G wireless networks with massive connections, where the originally harmful inter-user interference is exploited to enhance the communication secrecy performance.

  2. We analyze the performance of the proposed secure massive NOMA system, and derive a closed-form expression for the ergodic secrecy rate. Moreover, we reveal the relationship between ergodic secrecy rate and various important system parameters via asymptotic analysis.

  3. We propose two optimization schemes for the design of channel estimation and multiple access of secure massive NOMA systems, so as to fully exploit the benefits of inter-user interference for security enhancement.

The rest of this paper is outlined as follows. Section II designs a non-orthogonal transmission framework for secure massive NOMA systems. Section III focuses on the analysis of the secrecy performance of the secure massive NOMA system, and reveals the relationship between ergodic secrecy rate and system parameters. Section IV proposes two power allocation schemes at the user and the BS to fully exploit the inter-user interference. Section V presents extensive simulation results to validate the effectiveness of the proposed schemes, finally Section VI concludes the whole paper.

Notations

: We use bold upper (lower) letters to denote matrices (column vectors),

to denote conjugate transpose, to denote expectation,

to denote the variance,

to denote the -norm of a vector, to denote the Kronecker product, to denote the vectorization of a matrix, to denote the absolute value, to denote the distribution with degrees of freedom, and

to denote the complex Gaussian distribution with mean

and variance .

Ii System Model

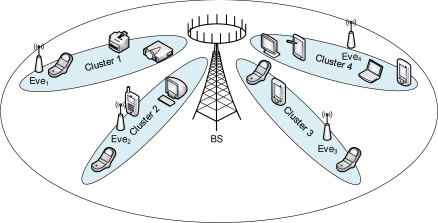

Fig. 1: A secure massive NOMA system with four clusters.

Consider a single-cell multiuser downlink communication system111The proposed schemes can be extended to the case of multiple-cell directly. We will discuss the multi-cell case in Section III., where a base station (BS) equipped with antennas broadcasts messages to single-antenna user equipments (UEs), cf. Fig. 1. Note that both the number of BS antennas and the number of UEs might be very large in future 5G wireless networks. In other words, we consider a massive access cellular system by making use of the massive multiple-input multiple-output (MIMO) technique. To reduce the computational complexity, the UEs are grouped into clusters. In particular, the UEs in the same direction but with distinct propagation distances based on their spatial directions are partitioned into a cluster for exploiting the spatial degrees of freedom offered by the multiple-antenna BS222The spatial direction of users can be found via various methods/technologies such as GPS or user location tracking algorithms.. Without loss of generality, it is assumed that there are UEs in the th cluster. In each cluster, we assume that there is an eavesdropper (Eve) intercepting the messages sent to the UEs in that cluster. In particular, the Eve is or pretends to be a UE, thus we assume that it is also equipped with a single antenna. For ease of notation, we use UE and Eve to denote the th UE and the associated eavesdropper in the th cluster, respectively. To guarantee secure communication, PHY-security technique is applied to the massive access system. To fully exploiting the benefits of multiple-antenna BS for enhancing the secrecy performance, the BS should have partial CSI of the downlink channels. Thus, we first design a CSI acquisition method which is suitable for massive access.

Ii-a Non-Orthogonal Channel Estimation

Similar to most related works about massive MIMO systems, the considered system operates in TDD mode for ease of CSI acquisition. To be specific, the UEs first send training sequences over the uplink channels, and then the BS obtains the CSI of the uplink channels through channel estimation. Due to the property of channel reciprocity in TDD mode, the CSI of the uplink channels can be used as the CSI of the corresponding downlink channels. For the traditional CSI acquisition methods, in order to guarantee accurate CSI, the training sequences are designed with pairwise orthogonality. However, in the context of massive access, the length of the training sequence might be longer than the channel coherence time for guaranteeing pairwise orthogonality, resulting in outdated CSI. On the other hand, for eavesdropping more information, the Eves may interfere with the channel estimation by transmitting the same training sequence as the legitimate users. To simultaneously handle the two challenging issues, we propose a non-orthogonal channel estimation method for secure massive access in the following.

At the beginning of each time slot, the UEs in the th cluster simultaneously send a common training sequence with a length of symbols over the uplink channels, while the Eve actively attacks the channel estimation through transmitting the same training sequence as the UEs. We note that although the training sequences in a cluster are the same, the training sequences across the clusters are pairwise orthogonal, namely and . Hence, the length of the training sequences is only required to be longer than the number of clusters , which usually can be realized in practical systems. Based on the non-orthogonal training sequences, the received training signal at the BS can be expressed as

(1)

where and denote the path loss and the -dimensional small-scale fading vector of the channel from the UE to the BS. Variables and are the path loss and the -dimensional small-scale fading vector from the Eve to the BS, respectively. It is assumed that and remain constant during a relatively long time, while and independently fade over time slots according to the distribution . Moreover, and represent the transmit power of the UE and the Eve, and is an additive white Gaussian noise (AWGN) matrix with zero mean and unit variance elements. Since the UEs in a cluster share the same pilot sequence, we only need to estimate the effective CSI for the th cluster, where . Let us focus on the estimation of as an example. First, right-multiplying by , we have

(2)

where is the effective CSI for the th cluster in presence of the active attacking signal from the Eve. Note that we let , , and for clarity of notation. Then, by using minimum mean square error (MMSE) channel estimation, the estimated CSI at the BS is given by

(3)

where

(4)

and . Combining (3) and (4), for the UE, the relation between the actual CSI and the estimated CSI can be expressed as

(5)

where is the channel estimation error vector with independently and identical distribution (i.i.d.) zero mean and unit variance complex Gaussian distributed entries, and is independent of . The variable () is the correlation coefficient between and . Specifically, a large means a high CSI accuracy, which is affected by the inter-user interference. Note that the effective CSI also contains partial information of the eavesdropper channel , namely . If the Eves are passive, we have . In other words, the case of passive Eves is a special one of the considered model, and thus the proposed schemes in the following is also applicable in the case of passive Eves.

Remark 1: Non-orthogonal channel estimation significantly shortens the length of training sequences which facilitates CSI acquisition in the scenario of massive access. Meanwhile, the proposed non-orthogonal channel estimation leads to the decrease of CSI accuracy, which is similar to pilot contamination in multi-cell massive MIMO systems. However, the impact of low accurate CSI caused by non-orthogonal channel estimation can be alleviated via successive interference cancellation (SIC) at the UEs, but the interference due to pilot contamination is difficult to be mitigated. In addition, non-orthogonal channel estimation decreases the number of required training sequences in each cell, and thus it is possible to solve the problem of pilot contamination due to pilot shortage. More importantly, it is able to fight against the active attacking from the Eves by making use of inter-user interference during non-orthogonal channel estimation. Especially, one can coordinate the transmit power to further alleviate the negative impact due to active attacking. Thereby, non-orthogonal channel estimation is more appealing for secure massive NOMA systems.

Ii-B Non-Orthogonal Multiple Access

In order to support massive access over limited radio spectrum, the considered system also adopts a non-orthogonal scheme based on user clustering during the stage of signal transmission. Specifically, the BS first performs superposition coding to the signals of the th cluster as below:

(6)

where and are the Gaussian distributed signal with a unit norm and the corresponding transmit power for the UE, respectively. Then, the BS combines all clusters’ signals as follows:

(7)

where is an -dimensional transmit beam designed for the th cluster based on the obtained CSI through non-orthogonal channel estimation. In this paper, we adopt a low-complexity maximum ratio transmission (MRT) beamforming scheme333MRT can achieve the asymptotically optimal performance as the number of BS antennas approaches infinity [23].. For such a beamforming scheme, can be expressed as

(8)

Finally, the BS broadcasts the signal over the downlink channels. Therefore, the received signal at the UE is given by

(9)

where is the AWGN with zero mean and unit variance. Note that the second term at the right hand of (9) is the intra-cluster interference, which can be partially cancelled by using SIC techniques at the UEs for enhancing the legitimate signal quality. Without loss of generality, it is assumed that the effective channel gains related to the UEs in the th cluster have a descending order, namely

(10)

Each UE perfectly knows its effective channel gain through channel estimation, which is conveyed to the BS over the uplink links. Then, the BS obtains the order of effective channel gains in each cluster and informs the UEs. As such, the UE first decodes the signals of the UE, , in the reverse order, then subtracts the intra-interference from these UEs in its received signal , and finally demodulates its desired signal . In other words, the residual intra-cluster interference is only from the UEs with stronger channel gains after SIC444In Practice, due to channel estimation error, hardware limitation of the UEs, the low signal quality, and other factors, the decoding error of the weak interfering signal may occur. As a result, there exists residual interference from the weak UEs after SIC, namely imperfect SIC [32]. We will discuss the impact of imperfect SIC in Section III.. Thus, for the UE, the intra-cluster interference is reduced to , and its received signal-to-interference-plus-noise ratio (SINR) can be computed as

(11)

Meanwhile, the Eves also receive the signal from the BS. The eavesdropping signal related to and the corresponding SINR at the Eve can be expressed as

(12)

and

(13)

where is the AWGN with zero mean and unit variance at the Eve. Note that the Eves do not perform SIC within a cluster, since it is difficult for the Eves to know the ordering of the effective channel gains, namely the reverse ordering of SIC. If the Eves Perform SIC with an arbitrary ordering, the decoding error might be inevitable. Moreover, through exploiting the inter-user interference, it is possible to make the eavesdropping channel rate less than a given threshold, which is not larger than the transmit rate of the confidential signals. In this case, if the Eves try to perform SIC, the decoding error will also occur since the eavesdropping channel rate is less than the transmit rate. In fact, if the Eves are capable of decoding the weak signals for SIC, secure communication can not be realized for a ceratin UEs at least.

Remark 2: Due to non-orthogonal multiple access, inter-user interference exists inevitably, resulting in a potential performance degradation. However, the originally harmful inter-user interference can be used to confuse the Eves, and thus enhances the communication security. In this paper, we aim to exploit the inter-user interference for balancing the interference to the UEs and to the Eves, so as to improve the secrecy performance of secure massive NOMA systems.

Iii Secrecy Performance Analysis of Massive NOMA

In this section, we study the ergodic secrecy rate of secure massive NOMA communications and reveal the impacts of inter-user interference caused by non-orthogonal channel estimation and non-orthogonal multiple access. The results of this section shed lights on the optimization of system parameters for enhancing the secrecy performance.

Iii-a Ergodic Secrecy Rate

In general, the ergodic secrecy rate of the UE can be computed as

(14)

where and are the rates of the legitimate channel and the eavesdropping channel related to the UE, respectively. In the case that the BS is equipped with a massive number of antennas, the ergodic secrecy rate is lower bounded by [25]

(15)

where and are the ergodic rates of the legitimate channel and the eavesdropping channel, respectively. In other words, one can obtain a lower bound on the ergodic secrecy rate by computing the achievable rate of the legitimate channel and the eavesdropping channel. In what follows, we analyze the two ergodic rates in detail, respectively. Firstly, according to the definition of the received SINR of the UE in (11), the ergodic rate of the legitimate channel can be expressed as

(16)

However, it is a nontrivial task to compute the expectation with respect to a complicated random variable

. To solve this challenge, we resort to an approximation of the ergodic rate of the legitimate channel. To be more specific, we rewrite the after-SIC signal at the UE as

(17)

where is the mean of the desired signal, and is the effective noise, which is given by

(18)

where is the signal leakage, is the residual intra-cluster interference, and is the inter-cluster interference, respectively. If is the AWGN independent of and the number of BS antennas is large, we can obtain an approximated ergodic rate as [37]

(19)

where is the effective SINR with

(20)

and

(21)

being the powers of the desired signal, the signal leakage, the intra-cluster interference, and the inter-cluster interference, respectively. Thus, the derivation of the ergodic rate of the legitimate channel is equivalent to the computation of expectations in (20) and (21). In what follows, we compute these expectations in detail, respectively.

We first consider the term for the computation of . Substituting and into , we have

(22a)
(22b)
(22c)
(22d)

where denotes the Gamma function. Eq. (22b) follows the fact of , and Eq. (22d) holds true since has a scaled distribution by a factor . Equivalently, we have . According to (22d), it is easy to obtain the power of the desired signal as

(23)

Furthermore, if the number of BS antennas is large, the power of the desired signal can be approximated as

(24)

where Eq. (24) follows the fact of when is large. It is seen that the CSI accuracy has a direct impact on the power of the desired signal.

Then, we analyze the power of the signal leakage, which can be computed as

(25a)
(25b)
(25c)
(25d)
(25e)
(25f)

where Eq. (25e) holds true since and are independent of each other and Eq. (25f) follows the facts of and . Also, if the number of BS antennas is sufficiently large, the term in (25f) is negligible, such that the power of the signal leakage can be approximated as

(26)

Intuitively, the signal leakage is caused by channel fading. However, the downlink channels becomes deterministic due to channel hardening as tends to infinity, and thus the power of the signal leakage asymptotically approaches zero.

Similarly, it is easy to derive the powers of the residual intra-cluster interference and the inter-cluster interference as

(27a)
(27b)
(27c)
(27d)
(27e)

and

(28a)
(28b)
(28c)

respectively, where Eq. (27b) and (28b) hold true since the signals are independent of each other, Eq. (27c) follows the fact that and are independent of each other, Eq. (27e) neglects the term , and Eq. (28c) is obtained because has a scaled distribution by a factor . Substituting (24), (25f), (27e), and (28c) into (19), the ergodic rate of the legitimate channel in secure massive NOMA systems can be expressed as

(29)

Now, we analyze the ergodic rate of the eavesdropping channel, . It is noticed that the Eve can be regarded as a special UE without performing SIC. Thus, similar to the derivation of , can be expressed as

(30)

Note that if the Eves do not actively attack the channel estimation by transmitting the same training sequence, they cannot receive any of the desired signal due to the fact . Moreover, if the Eves only send the interference signal independent of the training sequence, they are also unable to intercept the message. This is because the massive antenna array can generate high-resolution spatial beams to avoid the signal leakage to the unintended users. However, massive MIMO systems operating in TDD mode is preferable, therefore it is vulnerable to active eavesdropping during channel estimation.

Substituting (29) and (30) into (15), we can obtain a closed-form expression for a lower bound on the ergodic secrecy rate . It is found that is a function of the CSI accuracy and the transmit power . The derived lower bound can be regarded as the case of channel hardening. Thus, when the number of BS antennas is sufficiently large, the lower bound is tight. In fact, as seen in Fig. 2, even with a finite number of BS antennas, e.g., , the lower bound is accurate. Notice that is determined by non-orthogonal channel estimation, and is an important parameter for controlling the interference caused by non-orthogonal multiple access. As such, it is possible to improve the secrecy performance by optimizing these system parameters, which is equivalent to coordinating the inter-user interference to enhance the communication secrecy. Moreover, it is seen that the number of BS antennas also plays an important role in the secrecy performance, since it simultaneously affects the rates of the legitimate channel and the eavesdropping channel.

Remark 3: The derived ergodic secrecy rate can be extended to the multi-cell case directly. In the scenario of multi-cell, both the UEs and the Eves would suffer from the inter-cell interference [33, 34]. Consequently, there exists the term of inter-cell interference in the denominators of (29) and (30). Similar to the inter-cluster interference, the power of the inter-cell interference is regardless of , since the transmit beam is independent of the inter-cell interfering channels.

Remark 4: As aforementioned, SIC at the UEs might be performed imperfectly, resulting in residual interference from the weaker UEs. In general, the residual interference can be modeled as a linear function of the power of the interfering signal, and the coefficient of imperfect SIC can be obtained by long-term measuring [35, 36]. Thus, the ergodic secrecy rate in the presence of imperfect SIC can be directly derived by adding the term of residual interference in the denominators of (29).

Remark 5: In this paper, we consider that the Eve is or pretends to be a UE. Thus, the BS is able to obtain full information of the Eve, and derive the ergodic rate of the eavesdropping channel in (30). However, if the BS has inexact information of channel parameters, e.g., and , there exist uncertainty about the ergodic rate of the eavesdropping channel. Consequently, the BS only has a possible range of the ergodic secrecy rate, but not an exact value.

Iii-B Asymptotic Characteristics

To provide clear insights into the impacts of the three key parameters of secure massive NOMA systems, namely , , and , we carry out asymptotic analysis on the ergodic secrecy rate in two important scenarios.

Iii-B1 A Massive Number of BS Antennas

We first reveal the impact of the number of BS antennas on the ergodic secrecy rate . As mentioned earlier, the BS in 5G wireless networks is usually equipped with a large-scale antenna array, and thus the number of BS antennas might be very large. As approaches infinity, the inter-cluster interference and the received noise are negligible compared to the intra-cluster interference. Thereby, the ergodic rates of the legitimate channel and the eavesdropping channel can be approximated as

(31)

and

(32)

In this scenario, the asymptotic ergodic secrecy rate can be expressed as

(33)

It is found that there is a fixed gap between the rates of the legitimate channel and the eavesdropping channel, which is caused by the intra-cluster interference from the UEs with weaker channel gains. In other words, the intra-cluster interference can be exploited to confuse the eavesdropper, and thus improve the secrecy performance. As an illustrative example, one can increase the power of the weak user so as to increase the interference to the Eve, but does not affect the received signal quality at the legitimate user.

Remark 6: A massive number of BS antennas hardens the communication channels and both the inter-cluster interference and noise become negligible, resulting in the following phenomenons:

  • The asymptotic ergodic secrecy rate is independent of the number of BS antennas, thus the ergodic secrecy rate will be saturated when the number of BS antennas is sufficiently large.

  • The asymptotic ergodic secrecy rate is independent of path loss and CSI accuracy, since the signals in the same cluster experience the same channel gain.

  • The asymptotic ergodic secrecy rate is independent of the BS transmit powers for the other clusters’ signals, since the inter-cluster interference becomes asymptotically negligible.

Iii-B2 A High Transmit Power

Then, we investigate the impact of BS transmit power on the ergodic secrecy rate. For convenience of analysis, we let , where is the total transmit power at the BS and is a nonnegative power allocation factor related to the UE with a constraint . As approaches infinity, the noise power at the receiver is negligible. Then, the ergodic rates of the legitimate channel and the eavesdropping channel can be simplified as

(34)

and

(35)

respectively. Thus, the asymptotic ergodic secrecy rate in the scenario of a sufficiently high BS transmit power is given by

(36)

It is seen from (36) that the UE and the Eve suffer the same inter-cluster interference, but the desired signal and the intra-cluster interference are different. In particular, the desired signal and the intra-cluster interference are functions of CSI accuracy and power allocation factors. Therefore, one can improve the ergodic secrecy rate by optimizing these two parameters, namely exploiting the inter-user interference during the stages of non-orthogonal channel estimation and non-orthogonal multiple access.

Remark 7: In the high BS transmit power regime, we have the following observations:

  • The asymptotic ergodic secrecy rate is independent of the BS transmit power, thus the ergodic secrecy rate will be saturated when the BS transmit power is sufficiently large.

  • The asymptotic ergodic secrecy rate is independent of path loss, since both the signal and the inter-user interference experience the same channel gain.

  • The asymptotic ergodic secrecy rate is independent of the BS power allocation for the other clusters’ signals, since the inter-cluster interference is directly determined by the sum of the signal powers of the other clusters.

Furthermore, if the number of BS antennas is also very large, the inter-cluster interference is negligible. As a result, the asymptotic ergodic secrecy rate is only determined by the power allocation in a cluster. Hence, it makes sense to optimize the power allocation within a cluster for security enhancement. In what follows, we study the optimization of secrecy performance by exploiting the inter-user interference.

Iv Secrecy Performance Optimization of Massive NOMA

An advantage of the proposed secure massive NOMA scheme is that the inter-user interference can be leveraged to confuse the Eves, and thus enhance the secrecy performance. To fully exploit the benefits of inter-user interference for security provisioning, it is desired to optimize the system parameters according to channel conditions. In particular, the inter-user interference is determined by non-orthogonal channel estimation and non-orthogonal multiple access, it is likely to optimize these two important stages of secure massive NOMA systems. Inspired by that, we propose to optimize these two stages from the perspectives of the maximization of the secrecy rate and the minimization of the transmit power, respectively.

Iv-a Exploiting Inter-User Interference in Non-Orthogonal Channel Estimation

As analyzed above, the Eves send the same training sequences as the legitimate users to interfere with the channel estimation, resulting in the information leakage during the stage of information transmission. According to (30), the amount of information leakage is directly determined by the CSI accuracy of the eavesdropper channel. Since the CSI accuracy of the eavesdropper channel is also affected by the training sequences of the UEs, it is possible to coordinate the transmit powers of the UEs to combat the interception of the Eves.

Iv-A1 The Maximization of Secrecy Rate

First, we optimize the non-orthogonal channel estimation from the perspective of maximizing the secrecy rate. However, the secrecy rate, defined as the difference of the legitimate channel rate and the eavesdropping channel rate, is in general non-convex. To improve tractability of this problem, we transform it as the maximization of the minimum legitimate channel rate subject to a constraint on the maximum eavesdropping channel rate. This problem formulation ensures a rate gap to facilitate secure communication. Furthermore, one can adjust the rate gap for meeting the requirements of various secure communications. In this case, the optimization of non-orthogonal channel estimation can be described as the following optimization problem:

s.t. C1
C2 (37)

where is a collection of the transmit powers of the UEs for channel estimation, and is the maximum transmit power of the UE. Constant is the maximum tolerable ergodic rate achieved at the Eves, which is also used to ensure the rate of the eavesdropping channel less than the transmit rate such that the Eves cannot perform SIC perfectly. To solve such a maxmin problem, OP1 is first transformed as the following equivalent optimization problem

s.t. C1,
C3 (38)

where is a minimum ergodic rate of the UEs. According to the expression of in (30), C1 can be rewritten as
