1 Introduction

Deep learning models have become increasingly complex, and unfortunately their inscrutability has grown in tandem with their predictive power Doshi-Velez and Kim (2017). This has motivated efforts to design example-specific approaches to interpreting black box NLP model predictions, i.e., indicating specific input tokens as being particularly influential for a given prediction. This in turn facilitates the construction of saliency maps over texts, in which words are highlighted with intensity proportional to continuous ‘importance’ scores. Prominent examples of the latter include gradient-based attribution (Simonyan et al., 2014; Sundararajan et al., 2017; Smilkov et al., 2017), LIME (Ribeiro et al., 2016), and attention-based (Xu et al., 2015) heatmaps.

While widely used and potentially useful for some lexicon-driven tasks (e.g., sentiment analysis), we argue that by virtue of being constrained to highlighting individual input tokens, saliency maps will necessarily fail to explain predictions in more complex semantic tasks involving reasoning, such as natural language inference (NLI), where fine-grained interactions between multiple words or spans are key

(Camburu et al., 2018). Moreover, saliency maps are inherently limited as a model debugging tool; they may tell us which inputs the model found to be important, but not why.

To address these shortcomings, we investigate the use of what Lipton (2018) referred to as explanation by example. Instead of constructing importance scores over the input texts on which the model makes predictions, such methods rank training examples by their influence on the model’s prediction for the test input (Caruana et al., 1999; Koh and Liang, 2017; Card et al., 2019). Specifically, we are interested in the use of influence functions (Koh and Liang, 2017), which are in a sense inherently ‘faithful’ in that they reveal the training examples most responsible for particular predictions. These do not require any modifications to the model structure.

Figure 1: A sentiment analysis example interpreted by gradient-based saliency maps (left) and influence functions (right). Note that this example is classified incorrectly by the model. Positive saliency tokens and highly influential examples may suggest why the model makes the wrong decision; tokens and examples with negative saliency or influence scores may decrease the model’s confidence in making that decision.

This paper presents a series of experiments intended to evaluate the potential utility of influence functions for better understanding modern neural NLP models. In this context, our contributions include answering the following research questions.

  1. We empirically assess whether the approximation to the influence functions (Koh and Liang, 2017) can be reliably used to interpret decisions of deep transformer-based models such as BERT Devlin et al. (2019).

  2. We investigate the degree to which results from the influence function are consistent with insights gleaned from gradient-based saliency scores for representative NLP tasks.

  3. We explore the application of influence functions as a mechanism to reveal artifacts (or confounds) in training data that might be exploited by models.

To the best of our knowledge, this is the first work in NLP to compare interpretation methods that construct saliency maps over inputs with methods that explain predictions via influential training examples. We also propose a new quantitative measurement for the effect of hypothesized artifacts (Gururangan et al., 2018; McCoy et al., 2019) on the model’s prediction using influence functions.

2 Explaining Black-box Model Predictions

Machine learning models in NLP depend on two factors when making predictions: the input text and the model parameters. Prior attempts to interpret opaque NLP models have typically focused on the input text. Our work investigates the complementary approach of interpreting predictions by analyzing the influence of examples in training data. Saliency maps aim to provide interpretability by highlighting parts of the input text, whereas influence functions seek clues in the model parameters, eventually locating interpretations within the training examples that influenced these estimates. In this section we explain the two interpretation methods in detail.222 Here we focus on interpretability approaches which are faithful (Wiegreffe and Pinter, 2019; Jacovi and Goldberg, 2020; Jain et al., 2020) by construction; other approaches are discussed in §6.

2.1 Gradient-based saliency maps

As a standard, illustrative ‘explanation-by-input-features’ method, we focus on gradient-based saliency maps, in which the gradient of the loss is computed with respect to each token in the input text, and the magnitude of the gradient serves as a feature importance score (Simonyan et al., 2014; Li et al., 2016a). Gradients have the advantage of being locally ‘faithful’ by construction: they tell us how much the loss would change, were we to perturb a token by a small amount. Gradient-based attributions are also agnostic with respect to the model, as long as it is differentiable with respect to inputs. Finally, calculating gradients is computationally efficient, especially compared to methods that require post-hoc input perturbation and function fitting, like LIME (Ribeiro et al., 2016).

We are interested in why the model made a particular prediction. We therefore define a loss with respect to the prediction that the model actually made, rather than the ground truth . For each token , we define a saliency score , where is the embedding of . This is also referred as the “gradient input” method in Shrikumar et al. (2017). The “gradient” captures the sensitivity of the loss to the change in the input embedding, and the “input” leverages the sign and magnitude of the input. The final saliency score of each token would be L1-normalized across all tokens in .

Unlike Simonyan et al. (2014) and Li et al. (2016a), when scoring features for importance, we do not take the absolute value of the saliency score, as this encodes whether a token is positively influencing the prediction (i.e., providing support the prediction) or negatively influencing the prediction (highlighting counter-evidence). We show an example in the left part of Figure 1.

2.2 Influence functions

In contrast to explanations in the form of token-level heatmaps, the influence function provides a method for tracing model predictions back to training examples. It first approximates how upweighting a particular training example in the training set by would change the learned model parameters :

We can then use the chain rule to measure how this change in the model parameters would in turn affect the loss of the test input (as in saliency maps, w.r.t. the model prediction):

More details (including proofs) can be found in Koh and Liang (2017).

We define the influence score for each training example as , and then -normalize it across all examples in the training set. Note that since is defined with respect to a particular test input, influence scores of training examples are also defined for individual test instances.

Intuitively, a positive influence score for a training example means: were we to remove this example from the train set, we would expect a drop in the model’s confidence when making the prediction on the test input. A negative influence score means that removing the training example would increase the model’s confidence in this prediction. We show an example in the right part of Figure 1.

3 Experimental Setup

We are interested in analyzing and comparing the two interpretation approaches (gradient-based attributions and influence functions) on relatively shallow, lexicon-driven tasks and on more complex, reasoning-driven tasks. We focus on sentiment analysis and natural language inference (NLI) as illustrative examples of these properties, respectively. Both models are implemented on top of BERT encoders (Devlin et al., 2019). In particular we use BERT-Base, with the first 8 of the 12 layers frozen, only fine-tuning the last 4 transformer layers and the final projection layer.333We used smaller BERT models because influence functions are notoriously expensive to compute. We also resort to the same stochastic estimation method, LiSSA (Agarwal et al., 2017), as in Koh and Liang (2017), and we deliberately reduce the size of our training sets. Even with these efforts, computing the influence scores of 10k training examples w.r.t. one typical test input would take approximately 10 minutes on one NVIDIA GeForce RTX 2080 Ti GPU.

It is worth noting that influence functions are guaranteed to be accurate only when the model is strictly convex (i.e., its Hessian is positive definite and thus invertible) and is trained to convergence. However, deep neural models like BERT are not convex, and one often performs early stopping during training. We refer to Koh and Liang (2017) for details on how influence functions can nonetheless provide good approximations. To summarize briefly: for the non-convexity issue, we add an appropriate ‘damping’ term to the model’s Hessian so that it is positive definite and invertible. Concerning non-convergence: the approximated influence may still be interpretable as the true influence of each training example plus a constant offset that does not depend on the individual examples. Aside from this theory, we also perform a sanity check in §4 to show that influence functions can be applied to BERT in practice on the two tasks that we consider.

Sentiment analysis

We use a binarized version of the

Stanford Sentiment Treebank (SST-2) (Socher et al., 2013). Our BERT-based model is trained on 10k examples; this achieves 89.6% accuracy on the SST-2 dev set of 872 examples. We randomly sample 50 examples from the SST-2 dev set as the set for which we extract explanations for model predictions.

Natural language inference

Our deeper ‘semantic’ task is NLI, a classification problem that concerns the relationship between a premise sentence and a hypothesis sentence. NLI is a ternary task with three types of premise–hypothesis relations: entailment, neutral, and contradiction. We train our BERT model on the Multi-Genre NLI (MNLI) dataset (Williams et al., 2018), which contains 393k premise and hypothesis pairs of three relations from 10 different genres. We collapse the neutral and contradiction labels to a single non-entailment label and only use 10k randomly sampled examples for training. On the MNLI dev set of 9815 examples, the model achieves an accuracy of 84.6%.

To evaluate model interpretations in a controlled manner, we adopt a diagnostic dataset, HANS (McCoy et al., 2019)

. This contains a balanced number of examples where hypotheses may or may not entail premises with certain artifacts that they call ‘heuristics’ (e.g., lexical overlap, subsequence). The original HANS dataset contains 30k examples that span 30 different heuristic sub-categories. We test our model and interpretation methods on 30 examples covering all the sub-categories.

4 Evaluating Influence Functions for NLP

rq1: Is influence function approximation reliable when used for deep architectures in NLP?

Influence functions are designed to be an approximation to leave-one-out training for each training example. But the theory only proves that this works on strictly convex models. While Koh and Liang (2017) show that influence functions can be a good approximation even when the convexity assumption is not satisfied (in their case, a CNN for image classification), it is still not obvious that the influence function would work for BERT.

Therefore, we conduct a sanity check: for each instance in our test set, we by turns remove the most positively influential 10%, the most negatively influential 10%, the least influential (where influence scores are near zero) 10%, and a random 10% of training examples. We are interested in how these removals in retraining would affect the confidence of model predictions. Table 1 and Table 2 show the result of experiments on sentiment analysis and NLI, repeated with 5 random initialization seeds.

Removal type Avg. in prediction confidence
Positively influential ()
Negative influential ()
Least influential ()
Random ()
Table 1: Sanity check for influence function result on BERT in sentiment analysis.
Removal type Avg. in prediction confidence
Positively influential ()
Negative influential ()
Least influential ()
Random ()
Table 2: Sanity check for influence function result on BERT in NLI.

The results are largely in accordance with our expectation in both tasks: removing the most positively influential training examples would cause the model to have a significantly lower prediction confidence for each test example; removing the most negatively influential examples makes the model slightly more confident during prediction; and removing the least influential examples leads to an effect that is closest to removing a same amount of random examples (although we note that deleting the least influential features still yields a larger than choosing features at random to remove in NLI). We therefore conclude that the influence function behaves reasonably and reliably for BERT in both sentiment analysis and NLI tasks.

rq2. Are gradient-based saliency maps and ‘influential’ examples compatible?

Comparing saliency maps and outputs from application of the influence function is not straightforward. Saliency maps communicate the importance of individual tokens in test instances, while influence functions measure the importance of training examples. Still, it is reasonable to ask if they seem to tell similar stories regarding specific predictions. We propose two experiments that aim to estimate the consistency between these two interpretation methods.

The first experiment addresses whether a token with high saliency also appears more frequently in the training examples that have relatively high influence. For each example in the test set, we find the tokens with the most positive, most negative, and median saliency scores. We then find all the influential training examples w.r.t. the test inputs that contain one of these tokens. These training examples could have any labels in the label set. We further only consider examples whose label is the same as the test prediction, because the token saliency scores, whether positive or negative, are directly w.r.t. the test prediction, and the effect of a token in an oppositely labeled training example is therefore indirect.

We compute the average influence score of these training examples and report the results on top 10%, 20%, 50%, and all training examples for both sentiment analysis and NLI tasks in Figure 2 and Figure 3 respectively. The reason we have results at different granularity is that from empirical results in Koh and Liang (2017), we see that the influence function approximations tend to be less accurate when going from the most influential to the less influential examples down in the spectrum.

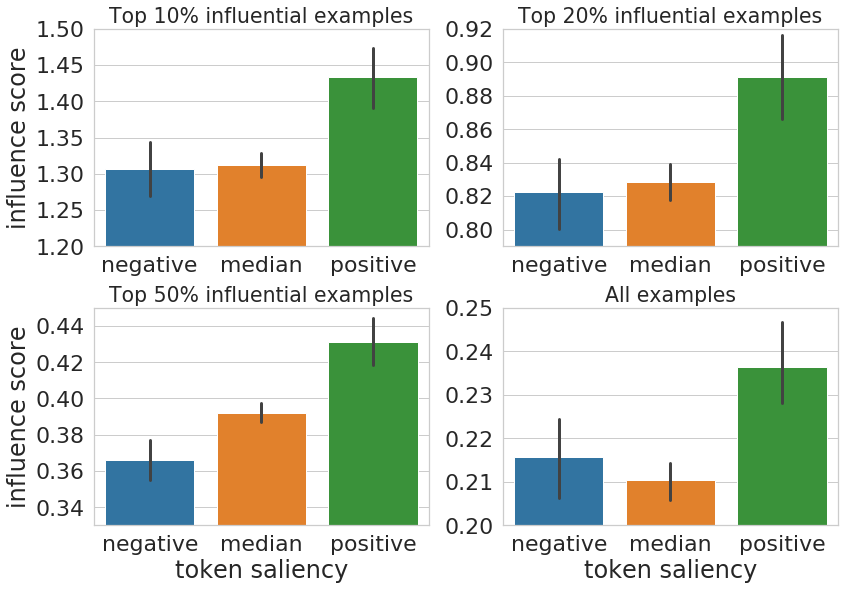

Figure 2: Average influence score of top sentiment analysis

training examples that contain a token in test example with most positive, most negative, or median saliency. Error bars depict standard errors.

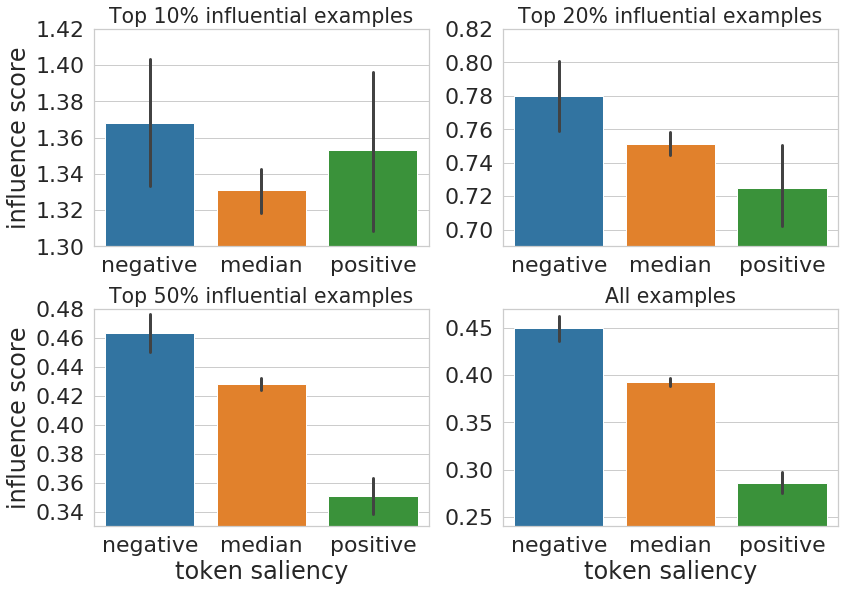

Figure 3: Average influence score of top NLI training examples that contain a token in test example with most positive, most negative, or median saliency. Standard error is shown in error bars.

In the task of sentiment analysis, we observe that training examples containing the most positively salient token in the test example generally have a higher influence to the test prediction. However, we do not see this trend (in fact, it is the opposite) in the task of natural language inference.

The second experiment answers the question of whether the influence result would change significantly when a salient token is removed from the input. Again, for each of the test examples, we identify the tokens with the most positive, most negative, and median saliency score. We by turns remove them from the input and compute the influence distribution over all training examples. We compare these new influence results with the one on the original input, and report an overlap rate of the top 0.1%, 0.2%, 0.5%, and 1% influential training examples before and after the token removal. Table 3 and Table 4 show results for sentiment analysis and NLI, respectively.

Saliency of the removed token @0.1% @0.2% @0.5% @1%
Most negative 75.6% 77.4% 80.0% 82.4%
Median 84.2% 86.7% 88.9% 89.1%
Most positive 65.2% 68.8% 71.4% 72.0%
Table 3: Average overlap rate of top influential sentiment analysis training examples before and after removal of a token with the most positive, most negative, or median saliency.
Saliency of the removed token @0.1% @0.2% @0.5% @1%
Most negative 33.0% 33.5% 37.5% 40.9%
Median 79.3% 78.0% 80.5% 84.0%
Most positive 46.0% 48.3% 49.9% 54.9%
Table 4: Average overlap rate of top influential NLI training examples before and after removal of a token with the most positive, negative, or median saliency.

When removing a token with the most positive saliency score, we expect the model to be less confident about its current prediction; it could possibly make a different prediction. Therefore, we expect to see a most different influence distribution from the original influence result compared to removing the token with median or the most negative saliency score. This is exactly what we observe in Table 3 for sentiment analysis. However, for NLI, we again see a rather opposite trend: removing the most negatively salient token (might make the prediction more confident but should not change the prediction itself) leads to the most different influence distribution.

We conclude from the above two experiments that gradient-based saliency maps and influential examples are compatible and consistent with each other in sentiment analysis. However, for NLI the two approaches do not agree with each other and could potentially tell very different stories. To this end, we take a closer look at the task of NLI.

5 Interpreting NLI Predictions with Influence Functions

Are saliency-based explanations useful for NLI?

Gradient-based saliency maps are faithful by construction, but this does not mean that they will highlight input tokens that humans find plausible or useful. We hypothesize that highlighting individual input tokens as important is likely most useful for ‘shallow’ classification tasks like sentiment analysis, and less so for more complex reasoning tasks such as NLI.

To contrast the types of explanations these methods offer in this context, we show explanations for a prediction made for a typical example in HANS in the form of a saliency map and influential examples in Table 5. The tokens that get the most positive and most negative saliency scores are marked in cyan and red, respectively. The training examples with the most positive and most negative influence scores are presented as supporting and opposing instances, respectively.

Test input
P: The manager was encouraged by the secretary. H: The secretary encouraged the manager. {entail}
Most supporting training examples
P: Because you’re having fun. H: Because you’re having fun. [entail]
P: I don’t know if I was in heaven or hell, said Lillian Carter, the president’s mother, after a visit. H: The president’s mother visited. [entail]
P: Inverse price caps. H: Inward caps on price. [entail]
P: Do it now, think ’bout it later. H: Don’t think about it now, just do it. [entail]
Most opposing training examples
P: H’m, yes, that might be, said John. H: Yes, that might be the case, said John. [non-entail]
P: This coalition of public and private entities undertakes initiatives aimed at raising public awareness about personal finance and retirement planning. H: Personal finance and retirement planning are initiatives aimed at raising public awareness. [non-entail]
Table 5: A correctly predicted example in HANS interpreted by saliency map and influence function.

The relationship classification decision in NLI is often made through an interaction between multiple words or spans. Therefore, an importance measure on each individual token might not give us much useful insight into model prediction. Though influence functions also do not explicitly tell us which latent interactions between words or spans informed the model prediction, we can test whether the model is relying on some hypothesized artifacts in a post-hoc way by looking at patterns in the influential training examples.

In Table 5, though the most influential examples (both supporting and opposing) are ostensibly far from the test input, they all exhibit lexical overlap between the premise and hypothesis. Some of the influential training examples (e.g., the 4th supporting example and 2nd opposing example) capture a reverse ordering of spans in the premise and hypothesis. We note that our test input also has a high lexical overlap and similar reverse ordering. This exposes a problem: the model might be relying on the wrong artifacts like word overlap during the decision process rather than learning the relationship between the active and passive voice in our case. This problem was surfaced by finding influential examples.

5.1 Quantitatively measuring artifacts

McCoy et al. (2019) hypothesize that the main artifact NLI models might learn is lexical overlap. In fact, for all of the examples in HANS, every word in the hypothesis would appear in the corresponding premise (100% lexical overlap rate). Half of the examples would have an entailment relationship while the other half have an non-entailment relationship. McCoy et al. (2019) compare four models with strong performance in MNLI, and all of them predict far more entailments than non-entailments. Because of this imbalance in prediction, they conclude that the models are perhaps exploiting artifacts in data when making decisions.

We see one potential problem out of the above method: it can only be applied to a certain group of examples and imply a general model behavior by examining the prediction imbalance. However, model behavior should depend on the actual example it sees each time. The extent to which the model exploits the artifact in each individual example remains unclear.

To analyze the effect of artifacts on individual examples, we propose a method using influence functions. We hypothesize that if an artifact informs the model’s predictions for a test instance, the most influential training examples for this test example should contain occurrences of said artifact. For instance, if our model exploits ‘lexical overlap’ when predicting the relation between a premise and a hypothesis, we should expect the most influential training examples found by the influence function to have a highly overlapping premise and hypothesis.

In (a), we plot each training example’s influence score and lexical overlap rate between its premise and hypothesis for a typical example in the HANS dataset. In linen with our expectation, the most influential (both positively and negatively) training examples tend to have a higher lexical overlap rate. Note that we also expect this trend for the most negatively influential examples, because they influence the model’s prediction as much as the positively influential examples do, only in a different direction.

To quantify this bi-polarizing effect, we find it natural to fit a quadratic regression to the influence-artifact distribution. We would expect a high positive quadratic coefficient if the artifact feature appears more in the most influential examples. For an irrelevant feature, we would expect this coefficient to be zero. With this new quantitative measure, we are ready to explore the below problems unanswered by the original diagnostic dataset.

For test examples predicted as non-entailment, did the model fail to recognize that they have a lexical overlap feature? Was the artifact not exploited in these cases?

(a) and (b) show two examples in HANS, one predicted as entailment and the other predicted as non-entailment. We observe that the example predicted as non-entailment does not have a significantly different influence-artifact pattern from the entailment example. In fact, the average quadratic coefficients for all examples predicted as entailment and non-entailment are and respectively. Therefore, for predicted non-entailment examples, we still see that the most influential training examples tend to have a high rate of lexical overlap, indicating that the model still recognizes the artifact in these cases.

(a) HANS example predicted as entailment. (P: The athlete by the doctors encouraged the senator. H: The athlete encouraged the senator.) Quadratic coefficient: .
(b) HANS example predicted as non-entailment. (P: Since the author introduced the actors, the senators called the tourists. H: The senators called the tourists.) Quadratic coef: .
(c) A typical MNLI example. (P: And uh as a matter of fact he’s a draft dodger. H: They dodged the draft, I’ll have you know.) Quadratic coefficient: .
Figure 4: Influence-artifact distribution for different test examples.
(a) Lexical overlap in original HANS example. Quadratic coefficient: .
(b) Negation in original HANS example. Quadratic coefficient: .
(c) Lexical overlap in negated HANS example. Quadratic coefficient: .
(d) Negation in negated HANS example. Quadratic coefficient: .
Figure 5: Influence-artifact distribution for an original and negated HANS example. (P: The lawyers saw the professor behind the bankers. H: The lawyers saw / did not see the professor.)

The model relies on training examples with high lexical overlap when predicting in the artificial HANS dataset. Would it still exploit the same artifact for natural examples?

Apart from finding the most influential training examples for each HANS example, we also apply influence functions on 50 natural MNLI examples, not controlled to exhibit any specific artifacts. A typical example is shown in (c). The average quadratic coefficient over all 50 natural examples is , which is considerably smaller than the above cases in HANS dataset. The model therefore does not rely on as much lexical overlap in natural examples as in the diagnostic dataset.

We have been analyzing scenarios focusing on one data artifact. What if we have a second artifact during prediction possibly indicating a contradicting decision? How will the model recognize the two artifacts in such a scenario?

We know that lexical overlap could be a data artifact exploited by NLI models for making an entailment prediction in HANS. On the other hand, as briefly pointed out by McCoy et al. (2019), other artifacts like negation might be indicative of non-entailment. We are interested in how two contradicting artifacts might compete when they both appear in an example. We take all examples in HANS labeled as entailment and manually negate the hypothesis so that the relationship becomes non-entailment. For example, a hypothesis “the lawyers saw the professor” would become “the lawyers did not see the professor”.

(a) and (b) show the influence-artifact distributions on both lexical overlap and negation for an original HANS example. (c) and (d) show the distributions for the same HANS example with negated hypothesis. The average quadratic coefficients on all examples are shown in Table 6. We observe that in the original HANS example, negation is actually a negative artifact: the training examples with negation tend to be the least influential ones. In the negated HANS example, we see the effect of negations becomes positive, while the effect of lexical overlap is drastically weakened. This confirms that the model recognizes the new set of artifacts, and the two are competing with each other.

Lexical overlap coef Negation coef
Table 6: Average quadratic coefficients of the influence-artifact distribution for all original HANS examples and all negated HANS examples.

Importantly, observing an artifact in the most influential training examples is a necessary but not sufficient condition to concluding that it was truly exploited by the model. However, it can serve as a first step towards identifying artifacts in black-box neural models and may be complemented by probing a larger set of hypothesized artifacts.

6 Related Work

Interpreting NLP model predictions by constructing importance scores over the input tokens is a widely adopted approach Belinkov and Glass (2019). Since the appearance and rise of attention-based models, many work naturally inspect attention scores and interpret with them. However, we are aware of the recent discussion over whether attention is a kind of faithful explanation (Jain and Wallace, 2019; Wiegreffe and Pinter, 2019). Using vanilla attention as interpretation could be more problematic in now ubiquitous deep transformer-based models, such as we use here.

Gradient-based saliency maps are locally ‘faithful’ by construction. Other than the vanilla gradients (Simonyan et al., 2014) and the “gradient input” method (Shrikumar et al., 2017) we use in this work, there are some variants that aim to make gradient-based attributions robust to potential noise in the input (Sundararajan et al., 2017; Smilkov et al., 2017). We also note that Feng et al. (2018) find that gradient-based methods sometimes yield counter-intuitive results when iterative input reductions are performed.

Other token-level interpretations include input perturbation (Li et al., 2016b) which measure a token’s importance by the effect of removing it, and LIME (Ribeiro et al., 2016) which can explain any model’s decision by fitting a sparse linear model to the local region of the input example.

The main focus of this work is the applicability of influence functions (Koh and Liang, 2017) as an interpretation method in NLP tasks, and to highlight the possibility of using this to surface annotation artifacts. Other methods that can trace the model’s decision back into the training examples include deep weighted averaging classifiers (Card et al., 2019), which make decisions based on the labels of training examples that are most similar to the test input by some distance metrics. Croce et al. (2019) use kernel-based deep architectures that project test inputs to a space determined by a group of sampled training examples and make explanations through the most activated training instances. While these methods can similarly identify the ‘influential’ training examples, they require special designs or modifications to the model and could sacrifice the model’s performance and generalizability.

Other general methods for model interpretability include adversarial-attack approaches that identify that part of input texts can lead to drastically different model decisions when minimally edited (Ebrahimi et al., 2018; Ribeiro et al., 2018), probing approaches that test internal representations of models for certain tasks and properties (Liu et al., 2019b; Hewitt and Liang, 2019), and generative approaches that make the model jointly extract or generate natural language explanations to support predictions (Lei et al., 2016; Camburu et al., 2018; Liu et al., 2019a; Rajani et al., 2019).

Specific to the NLI task, Gururangan et al. (2018) recognize and define some possible artifacts within NLI annotations. McCoy et al. (2019) create a diagnostic dataset that we use in this work and suggest that the model could be exploiting some artifacts in training data based on its poor performance on the diagnostic set. Beyond NLI, the negative influence of artifacts in data was explored in other text classification tasks (Pryzant et al., 2018; Kumar et al., 2019; Landeiro et al., 2019), focusing on approaches to adversarial learning to demote the artifacts.

7 Conclusion

We compared two complementary interpretation methods—gradient-based saliency maps and influence functions—in two text classification tasks: sentiment analysis and NLI. We first validated the reliability of influence functions when used with deep transformer-based models. We found that in a lexicon-driven sentiment analysis task, saliency maps and influence functions are largely consistent with each other. They are not consistent, however, on the task of NLI. We posit that influence functions may be a more suitable approach to interpreting models for such relatively complex natural language ‘understanding‘ tasks (while simpler attribution methods like gradients may be sufficient for tasks like sentiment analysis).

We introduced a new potential use of influence functions: revealing and quantifying the effect of data artifacts on model predictions, which have been shown to be very common in NLI. Future work might explore how rankings induced over training instances by influence functions can be systematically analyzed in a stand-alone manner (rather than in comparison with interpretations from other methods), and how these might be used to improve model performance. Finally, we are interested in exploring how these types of explanations are actually interpreted by users, and whether providing them actually establishes trust in predictive systems.


We thank the anonymous ACL reviewers and members of TsvetShop at CMU for helpful discussions of this work. This material is based upon work supported by NSF grants IIS1812327 and SES1926043, and by Amazon MLRA award. Wallace’s contributions were supported by the Army Research Office (W911NF1810328). We also thank Amazon for providing GPU credits.


  • Agarwal et al. (2017) Naman Agarwal, Brian Bullins, and Elad Hazan. 2017. Second-order stochastic optimization for machine learning in linear time. Journal of Machine Learning Research (JMLR), 18:116:1–116:40.
  • Belinkov and Glass (2019) Yonatan Belinkov and James Glass. 2019. Analysis methods in neural language processing: A survey. Transactions of the Association for Computational Linguistics, 7:49–72.
  • Camburu et al. (2018) Oana-Maria Camburu, Tim Rocktäschel, Thomas Lukasiewicz, and Phil Blunsom. 2018. e-snli: Natural language inference with natural language explanations. In Proc. NeurIPS.
  • Card et al. (2019) Dallas Card, Michael Zhang, and Noah A. Smith. 2019. Deep weighted averaging classifiers. In FAT*.
  • Caruana et al. (1999) Rich Caruana, Hooshang Kangarloo, John David N. Dionisio, Usha S. Sinha, and David B. Johnson. 1999. Case-based explanation of non-case-based learning methods. Proc. AMIA Symposium, pages 212–5.
  • Croce et al. (2019) Danilo Croce, Daniele Rossini, and Roberto Basili. 2019. Auditing deep learning processes through kernel-based explanatory models. In Proc. EMNLP.
  • Devlin et al. (2019) Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2019. BERT: Pre-training of deep bidirectional transformers for language understanding. In Proc. NAACL-HLT.
  • Doshi-Velez and Kim (2017) Finale Doshi-Velez and Been Kim. 2017. Towards a rigorous science of interpretable machine learning. arXiv preprint arXiv:1702.08608.
  • Ebrahimi et al. (2018) Javid Ebrahimi, Anyi Rao, Daniel Lowd, and Dejing Dou. 2018. HotFlip: White-box adversarial examples for text classification. In Proc. ACL.
  • Feng et al. (2018) Shi Feng, Eric Wallace, Alvin Grissom, Mohit Iyyer, Pedro Rodriguez, and Jordan L. Boyd-Graber. 2018. Pathologies of neural models make interpretation difficult. In Proc. EMNLP.
  • Gururangan et al. (2018) Suchin Gururangan, Swabha Swayamdipta, Omer Levy, Roy Schwartz, Samuel R. Bowman, and Noah A. Smith. 2018. Annotation artifacts in natural language inference data. In Proc. NAACL-HLT.
  • Hewitt and Liang (2019) John Hewitt and Percy Liang. 2019. Designing and interpreting probes with control tasks. In Proc. EMNLP, pages 2733–2743.
  • Jacovi and Goldberg (2020) Alon Jacovi and Yoav Goldberg. 2020. Towards faithfully interpretable NLP systems: How should we define and evaluate faithfulness? ArXiv, abs/2004.03685.
  • Jain and Wallace (2019) Sarthak Jain and Byron C. Wallace. 2019. Attention is not explanation. In Proc. NAACL-HLT.
  • Jain et al. (2020) Sarthak Jain, Sarah Wiegreffe, Yuval Pinter, and Byron C. Wallace. 2020. Learning to faithfully rationalize by construction. In Proc. ACL.
  • Koh and Liang (2017) Pang Wei Koh and Percy Liang. 2017. Understanding black-box predictions via influence functions. In Proc. ICML.
  • Kumar et al. (2019) Sachin Kumar, Shuly Wintner, Noah A. Smith, and Yulia Tsvetkov. 2019. Topics to avoid: Demoting latent confounds in text classification. In Proc. EMNLP, pages 4151–4161.
  • Landeiro et al. (2019) Virgile Landeiro, Tuan Tran, and Aron Culotta. 2019. Discovering and controlling for latent confounds in text classification using adversarial domain adaptation. In Proc. SIAM International Conference on Data Mining, pages 298–305.
  • Lei et al. (2016) Tao Lei, Regina Barzilay, and Tommi S. Jaakkola. 2016. Rationalizing neural predictions. In Proc. EMNLP.
  • Li et al. (2016a) Jiwei Li, Xinlei Chen, Eduard H. Hovy, and Dan Jurafsky. 2016a. Visualizing and understanding neural models in NLP. In Proc. HLT-NAACL.
  • Li et al. (2016b) Jiwei Li, Will Monroe, and Dan Jurafsky. 2016b. Understanding neural networks through representation erasure. ArXiv, abs/1612.08220.
  • Lipton (2018) Zachary Chase Lipton. 2018. The mythos of model interpretability. Commun. ACM, 61:36–43.
  • Liu et al. (2019a) Hui Liu, Qingyu Yin, and William Yang Wang. 2019a. Towards explainable NLP: A generative explanation framework for text classification. In Proc. ACL.
  • Liu et al. (2019b) Nelson F. Liu, Matt Gardner, Yonatan Belinkov, Matthew E. Peters, and Noah A. Smith. 2019b. Linguistic knowledge and transferability of contextual representations. In Proc. NAACL-HLT.
  • McCoy et al. (2019) R. Thomas McCoy, Ellie Pavlick, and Tal Linzen. 2019. Right for the wrong reasons: Diagnosing syntactic heuristics in natural language inference. In Proc. ACL.
  • Pryzant et al. (2018) Reid Pryzant, Kelly Shen, Dan Jurafsky, and Stefan Wagner. 2018. Deconfounded lexicon induction for interpretable social science. In NAACL-HLT.
  • Rajani et al. (2019) Nazneen Fatema Rajani, Bryan McCann, Caiming Xiong, and Richard Socher. 2019. Explain yourself! leveraging language models for commonsense reasoning. arXiv preprint arXiv:1906.02361.
  • Ribeiro et al. (2016) Marco Tulio Ribeiro, Sameer Singh, and Carlos Guestrin. 2016. “why should i trust you?”: Explaining the predictions of any classifier. In Proc. HLT-NAACL (System Demonstrations).
  • Ribeiro et al. (2018) Marco Tulio Ribeiro, Sameer Singh, and Carlos Guestrin. 2018. Semantically equivalent adversarial rules for debugging NLP models. In Proc. ACL.
  • Shrikumar et al. (2017) Avanti Shrikumar, Peyton Greenside, and Anshul Kundaje. 2017. Learning important features through propagating activation differences. In Proc. ICML.
  • Simonyan et al. (2014) Karen Simonyan, Andrea Vedaldi, and Andrew Zisserman. 2014. Deep inside convolutional networks: Visualising image classification models and saliency maps. In Workshop at International Conference on Learning Representations.
  • Smilkov et al. (2017) Daniel Smilkov, Nikhil Thorat, Been Kim, Fernanda B. Viégas, and Martin Wattenberg. 2017. SmoothGrad: removing noise by adding noise. ArXiv, abs/1706.03825.
  • Socher et al. (2013) Richard Socher, Alex Perelygin, Jean Wu, Jason Chuang, Christopher D. Manning, Andrew Y. Ng, and Christopher Potts. 2013. Recursive deep models for semantic compositionality over a sentiment treebank. In Proc. EMNLP.
  • Sundararajan et al. (2017) Mukund Sundararajan, Ankur Taly, and Qiqi Yan. 2017. Axiomatic attribution for deep networks. In Proc. ICML.
  • Wallace et al. (2019) Eric Wallace, Jens Tuyls, Junlin Wang, Sanjay Subramanian, Matt Gardner, and Sameer Singh. 2019. AllenNLP interpret: A framework for explaining predictions of NLP models. In Proc. EMNLP (System Demonstrations), pages 7–12.
  • Wiegreffe and Pinter (2019) Sarah Wiegreffe and Yuval Pinter. 2019. Attention is not not explanation. In Proc. EMNLP, pages 11–20.
  • Williams et al. (2018) Adina Williams, Nikita Nangia, and Samuel R. Bowman. 2018. A broad-coverage challenge corpus for sentence understanding through inference. In Proc. NAACL-HLT.
  • Wolf et al. (2019) Thomas Wolf, Lysandre Debut, Victor Sanh, Julien Chaumond, Clement Delangue, Anthony Moi, Pierric Cistac, Tim Rault, R’emi Louf, Morgan Funtowicz, and Jamie Brew. 2019. HuggingFace’s transformers: State-of-the-art natural language processing. ArXiv, abs/1910.03771.
  • Xu et al. (2015) Kelvin Xu, Jimmy Ba, Ryan Kiros, Kyunghyun Cho, Aaron C. Courville, Ruslan Salakhutdinov, Richard S. Zemel, and Yoshua Bengio. 2015. Show, attend and tell: Neural image caption generation with visual attention. In Proc. ICML.

Appendix A Implementation Details

The main model we used for experiments is a BERT-Base model (Devlin et al., 2019), adapted from Wolf et al. (2019)

. We “froze” the embedding layer and the first 8 transformer layers and only fine-tuned the last 4 transformer layers and the final projection layer. We used the default BERT optimizer with default hyperparameters: a learning rate of

, a total of epochs, a max sequence length of , and a training batch size of .

For gradient-based saliency maps, we used a “vanilla” version implemented by Wallace et al. (2019). For influence functions, we adapted code from Koh and Liang (2017)

to PyTorch and used the same stochastic estimation trick, LiSSA

(Agarwal et al., 2017). Since our model is not convex, we used a “damping” term (as mentioned in §3) of

. This value was picked so that the recursive approximation to the inverse Hessian-vector product can be finished (converged) in a reasonable time. More specifically, we chose the recursion depth to be

(with a total of 10k training examples), the number of recursions to be , and a scaling factor to be . In each step estimating the Hessian-vector product, we took a batch of training examples for stability. We empirically checked that the inverse Hessian-vector product converges after the recursive estimation for all test examples on which we performed the analysis.
