1. Introduction
From late 2019 to early 2020, COVID19 went from a local outbreak to a worldwide pandemic, one that has infected over 6.67M people and resulted in over 391K deaths worldwide (WHO, 2020)
. Between largescale countrywide quarantines and ‘lockdowns’, COVID19 is responsible for an estimated 310 trillion dollars in economic damage to the global economy
(Nations, 2020). In a state of pandemic, the ability to accurately forecast caseload is extremely important to help inform policymakers on how to provision limited healthcare resources, rapidly control outbreaks, and ensure the safety of the general public.In order to prepare, understand, and control the spread of the disease, researchers worldwide have come together in a collaborative effort to model and forecast COVID19. Based on our review of the literature, there are two popular approaches for such epidemiological modelling. One is the mechanistic approach – for example, compartmental and agent based models that hardcode predefined disease transmission dynamics at either the population level (Yang et al., 2020; Pei and Shaman, 2020) or the individual level (Chang et al., 2020). The other is the time series learning approach – for example, applying curvefitting (Murray and others, 2020), Autoregression (AR) (Durbin and Koopman, 2012), or deep learning (Yang et al., 2020) on time series data.
These approaches often assume a relatively closedsystem, where forecasts for a given location are dependent only on information from that location or some observed patterns from other locations. In practice, we intuit that infection data on interregional interactions provides a unique and highly meaningful avenue for modelling forecasts. In other words, it is reasonable that a region’s future disease cases are dependent on its own historical information as well as other regions’, people traveling to/out of this region and regions with similar epidemic patterns, etc. Based on this insight, we believe we can improve forecast accuracy by 1) utilizing more accurate realtime data that can describe the interregion interactions and regionlevel mobility and 2) developing a unifying approach that can encompass both the temporal and spatial interactions for infectious disease modeling. Historically, this kind of regional movement is difficult to capture. However, researchers have correctly noticed that the widespread use of GPS enabled mobile devices provides a novel and highly accurate source of mobility data, and have called upon the epidemiological community to make ample use of this powerful new data source (Oliver et al., 2020; Buckee et al., 2020).
In this work, we focus on the problem of forecasting COVID19 at the county level in the United States. We propose a spatiotemporal graph neural network that can learn the complex dynamics inherent to disease modeling, and use this model to make forecasts on COVID19 daily new cases from finegrained mobility data. We run several experiments showing the power of novel mobility data within the GNN framework, and conclude with an analysis of mobility data and its potential in tracking disease spread.
2. Background
2.1. Mobility Data in Graphs
Obtaining finegrained human mobility data that can effectively capture the inter and intraregion flows of human activity has become significantly more feasible in the last decade. In addition to being vital for accurately modeling disease spread, these data sources are especially important to understand the efficacy of nonpharmaceutical interventions (NPI) against COVID19, such as social distancing, shelterinplace, and the shutdown of interstate and international travel.
The rapid work of the epidemiological academic community was vital for understanding the role of international flights in the early spread of COVID19 to different countries (Adiga et al., 2020; Yang et al., 2020), while epidemic curve fitting analysis for COVID19 on the SafeGraph dataset (Woody et al., 2020) helped to better model the effects and efficacy of social distancing. We build on those efforts by examining and utilizing two Google mobility datasets, which offer a global and comprehensive view of inter and intraregion human mobility. These datasets are described in more detail in subsection 4.1.
2.2. SpatioTemporal Graph Neural Networks
Graphs are natural representations for a wide variety of reallife data in social, biological, financial, and many other fields. Recently, graph neural network (GNN) based deep learning methods (Zhou et al., 2018; Wu et al., 2019; Zhang et al., 2018; Battaglia et al., 2018; Bronstein et al., 2017) have shown superior performance on several tasks, including semisupervised node classification (Kipf and Welling, 2016a; Hamilton et al., 2017; Velickovic et al., 2017), link prediction (Kipf and Welling, 2016b; Bojchevski and Günnemann, 2018; Zhang and Chen, 2018), community detection (Chen et al., 2018; Shaham et al., 2018; Kawamoto et al., 2018), graph classification (Gilmer et al., 2017; Xu et al., 2018; Niepert et al., 2016), and recommendations (Monti et al., 2017; Ying et al., 2018).
Spatiotemporal graphs are a kind of graph that model connections between nodes as a function of time and space, and have found uses in a wide variety of fields (Reinhart and others, 2018). GNNs have been successfully applied to spatiotemporal traffic graphs (Diao et al., 2019) and (especially relevant to this work) spatiotemporal influenza forecasting (Deng et al., 2019). In these latter two cases, temporal dependencies were primarily incorporated at the model level, either through decomposition of a dynamic Laplacian matrix or through a recurrent neural net.
3. Method
3.1. Graph Neural Networks
The core insight behind graph neural network models is that the transformation of the input node’s signal can be coupled with the propagation of information from a node’s neighbors in order to better inform the future hidden state of the original input. This is most evident in the messagepassing framework proposed by Gilmer et al. (2017), which unifies many previously proposed methods. In such approaches, the update at layer is:
(1)
where and are learned message functions and node update functions respectively, are the messages passed between nodes, and are the node representations. The computation is carried out in two phases: first, messages are propagated along the neighbors; and second, the messages are aggregated to obtain the updated representations.
3.2. Modelling the COVID19 Graph
In infectious disease modeling, we usually have multiple timeseries sequences that represent the observables of transmission dynamics in each location. The prediction problem is usually formulated as a regression learning task that takes in a certain time series and outputs a single value or future time series as forecasted values. However, time series make a poor fit for modeling human mobility across locations. Mobility data is naturally represented as a spatialgraph, where any individual node represents a location that is connected to an arbitrary number of other nodes , and where edgeweights correspond to measures of human mobility between the nodes.

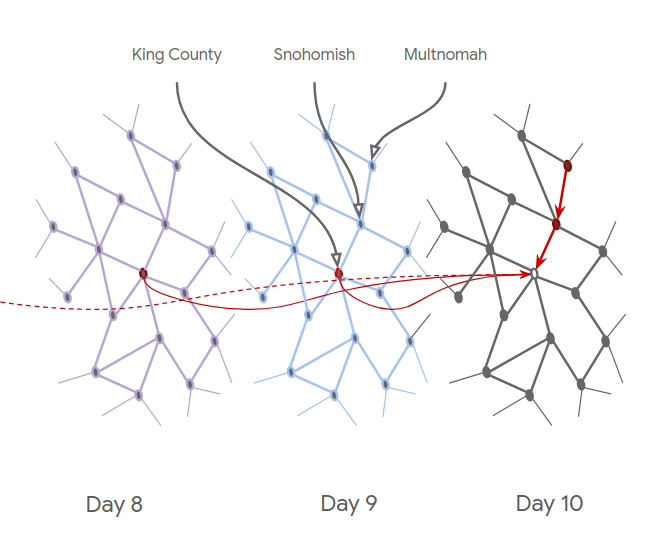

In order to model spatial and temporal dependencies, we create a graph with different edge types. In the spatial domain, edges represent direct locationtolocation movement and are weighted based on mobility flows normalized against the intraflow (in other words, the amount of flow internal to the location). In the temporal domain, edges simply represent binary connections to past days. The graph manifests as 100 stacked layers. Each layer represents the county connectivity graph for that day, with the bottom layer representing Feb 22nd, 2020 (when cases began appearing in earnest in the US), and the top layer representing May 31st, 2020. Each node within each layer has direct edges to the 7 nodes directly before it in time, i.e. a week’s worth of temporal information. We provide a visual of a part of the graph in Figure 1.
3.3. SkipConnections Model
For our graph convolutions, we use a version of the spectral graph convolution model proposed by Kipf and Welling (2016a), modified with skipconnections between layers to avoid diluting the selfnode feature state. Specifically, the output of each layer is concatenated with a learned embedding from the temporal node features. The model prediction can be represented as:
(2)
(3)
(4)
where represents the hidden state at layer , is the spectral normalized adjacency matrix, is the learned weight matrix at layer , is the concat operator, and
is a nonlinearity (in our case, a relu). See

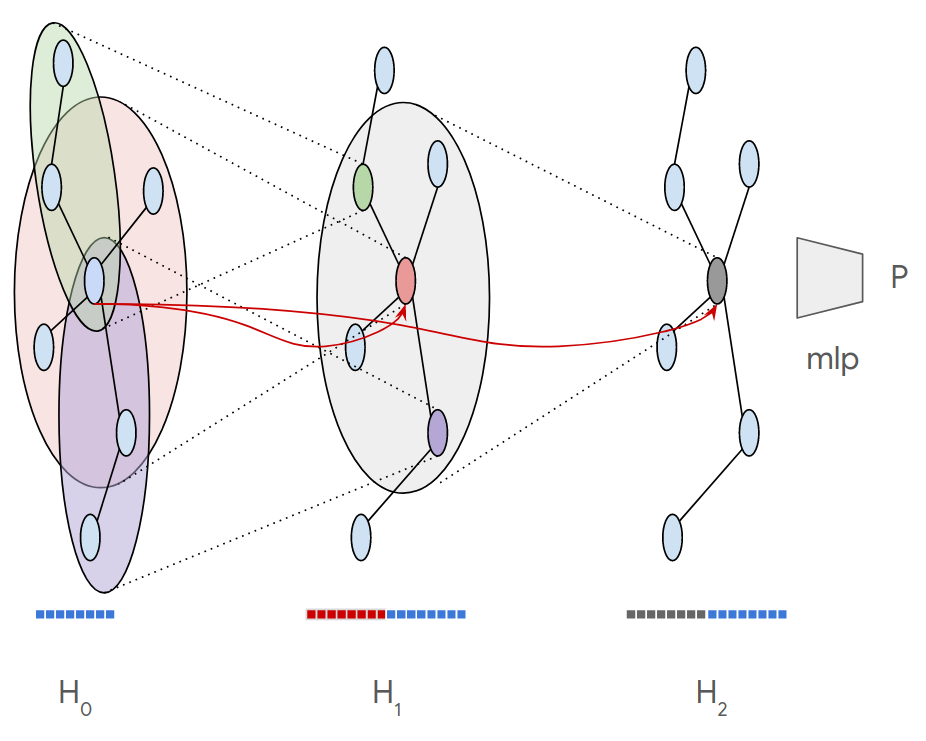

Figure 2 for a visual representation. The first embedding, , is simply the output of an mlp over the node’s temporal features at time reaching back days, while the final prediction is the output of an mlp over spatial hops.4. Experiments
4.1. Data
We make use of three datasets: the New York Times (NYT) COVID19 dataset^{1}^{1}1https://github.com/nytimes/covid19data, the Google COVID19 Aggregated Mobility Research Dataset, and the Google Community Mobility Reports^{2}^{2}2https://www.google.com/covid19/mobility/. The Aggregated Mobility Research Dataset helps us understand the quantity of movement, while the Community Mobility Reports helps us understand the dynamics of various types of movement. Together, these datasets add significant lift to the standard node features provided by the NYT.
4.1.1. Common Node Features
Each node contains features for state, county, day, past cases, and past deaths. The latter two are represented as normalized vectors that stretch back days. We use COVID19 case and death count numbers published by the New York Times (The New York Times, 2020), which includes daily reports of new infections and deaths at both state and county level in US.
4.1.2. Aggregated Mobility Research Dataset
The Google COVID19 Aggregated Mobility Research Dataset aggregates weekly flows of users from region to region, where the region is at a resolution of 5km. The flows can be further aggregated to obtain intercounty flows and intracounty flows(source and destination regions are in the same county) to build our proposed graph network. This information is useful for understanding how people move before and during the pandemic – for example, Figure 5 shows the reduction in intercounty flows in US counties in April, compared to a January baseline. Figure 5 illustrates the change in mobility to King County, Washington, where mobility dropped by nearly from distant counties, likely due to reductions in air travel. By comparison, reductions are less strong from nearby counties, e.g. reduction from Snohomish County, Washington. For a full description of how the Aggregated Mobility Research Dataset is created, see (Appendix) 6.1.
4.1.3. Community Mobility Reports

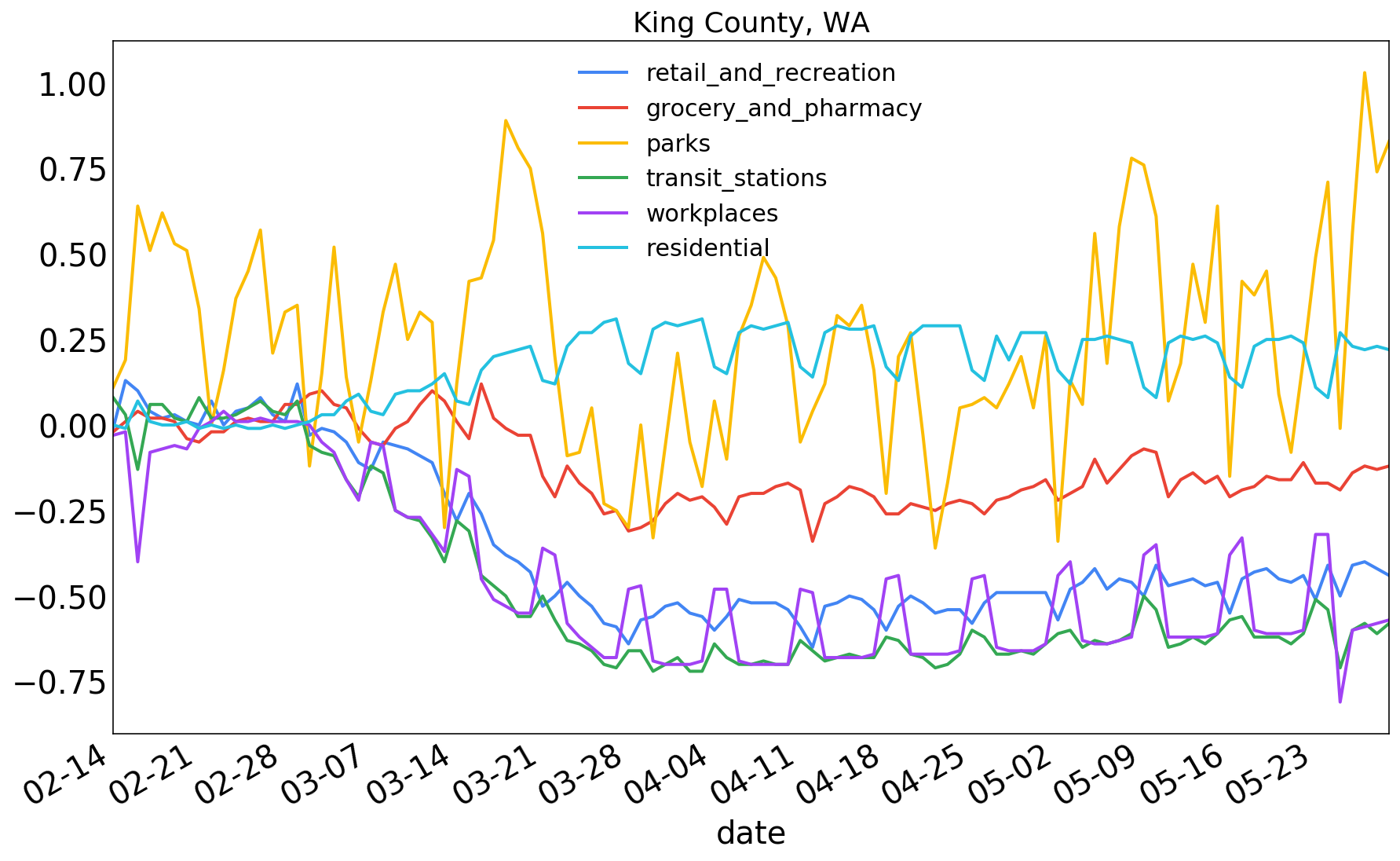

The Community Mobility Reports summarize mobility trends at various categories of places that are aggregated at the county level. The categories include: grocery and pharmacy, parks, transit stations, workplaces, residential, and retail and recreation. The dataset was normalized to have 0 as the ‘normal’ mobility based on median value for the corresponding day of the week, during the 5week period Jan 3Feb 6, 2020 (LLC, 2020), and deviations are measured as the relative changes in mobility from the baseline. A value of 0.25 under transit stations therefore represents a 25% reduction in visits to public transit stations compared against baseline. Figure 5 provides a visual example of the daily mobility changes in King County, Washington for each category in Google’s Community Mobility Reports.
4.1.4. Limitations of Data Sources
These results should be interpreted in light of several important limitations. First, the Google mobility data is limited to smartphone users who have opted in to Google’s Location History feature, which is off by default. These data may not be representative of the population as whole, and furthermore their representativeness may vary by location. Importantly, these limited data are only viewed through the lens of differential privacy algorithms, specifically designed to protect user anonymity and obscure fine detail. Moreover, comparisons across rather than within locations are only descriptive since these regions can differ in substantial ways. This data can be viewed as similar to the data used to show how busy certain types of places are in Google Maps — for example, helping identify when a local business tends to be the most crowded.
We also note that there are significant other factors not captured in any of these datasets, such as the increased prevalence of wearing masks or changes in the weather. These factors, combined with increased awareness, can effectively reduce the transmission even when mobility remains unchanged. We encourage future work that explores the addition of these external features.
4.2. Hyperparameters, Architectures, and Splits
Unless explicitly stated otherwise, for all of our GNN experiments, we use a 7 day (i.e. one week) time horizon and look over 2 hops of spatial data (using the 32 neighbors with the highest edge weight for each hop). GNN models were implemented in Tensorflow. We utilize an ADAM optimizer with learning rate set to 1e5. We use a two hop spatial model with a single layer MLP on either side. Therefore, we have four hidden layers – an initial embedding layer, the two hops of spatial aggregation, and the final prediction layer. The hidden layer architecture for
, , , and are [64, 32, 32, 32], respectively. Each layer has a dropout rate of 0.5, and a l2 regularization term of 5e4. GNN models were trained for 1M steps with a MSLE regression loss.All models were trained to predict the change in the number of cases on day , given previous information. We have data from January 1st onwards; however, we do not observe cases in the US until late February. As a result, we use data from days 59120 (roughly, March and April, 2020) for training, and data from days 120 to 150 (roughly, May, 2020) was used for testing. For each model, we look at the top 20 counties by population. The reported values are averaged across all counties for all thirty days of inference.
4.3. Baselines
To evaluate the benefits of the GNN framework, we compare against a range of popular methods as baselines. For all of our baselines, we examine how regionlevel mobility features, such as aggregated flows and place visit trends, affect our results. ‘No Mob’ versions of our baselines indicate that these baselines do not utilize any mobility information.
4.3.1. Previous Day
Next day case prediction is highly correlated with features from the previous day. We use two previous day baselines. For Previous Delta, we predict that the delta in the number of cases will be the same as the delta from the previous day. For Previous Cases, we predict that the delta in the number of cases will be 0 (and that the actual number of cases will be the same as the previous day). These baselines help us understand what lift, if any, our models are able to extract from the rest of the provided features; however, we do not treat these as ‘model‘ baselines in our analysis.
4.3.2. Arima
We utilize a univariate ARIMA model that treats the time dependent daily new cases as a univariate time series that follows a fixed dynamic. Each day’s new case count is dependent on the previous days of observations and the previous days of estimation errors. We selected the order of the ARIMA model using Akaike Information Criterion (AIC) and Bayesian Information Criterion (BIC) to balance model complexity and generalization, we minimize parameters by using a constant trend with .
4.3.3. LSTM and Seq2Seq
Our LSTM baseline contains a stack of two LSTM layers (with 32, 16 units respectively) and a final dense layer. The LSTM layers encode sequential information from input through the recurrent network. The dense connected layer takes the final output from the second LSTM layer and outputs a vector of size four, which is equal to the number of steps ahead predictions needed.
The Seq2Seq model has an encoderdecoder architecture, where the encoder is composed of a fully connected dense layer and a GRU layer that can learn from sequential input and return a sequence of encoded outputs in a final hidden state. The decoder is an inverse of the encoder. The dense layer is 16 units and the GRU layer is 32 units. To match common practice, we apply Bahdanau attention (Bahdanau et al., 2015) on the sequence of encoder outputs at each decoding step to make next step prediction. Both the LSTM and Seq2Seq models, we use a Huber loss, an Adam optimizer with a learning rate of 0.02, and a dropout rate of 0.2 for training. During inference, both models observe data from the previous 10 days in order to make a prediction about the next day in the sequence.
4.4. Case Prediction Performance
In Table 1, we compare the forecasting performance of the spatiotemporal GNN with a range of baseline models. We report the RMSLE and Pearson Correlation for the predicted caseload (RMSLE, Corr), calculated as the sum of the predicted delta and the previous day’s cases. We aggregate the performance metrics from top 20 populated counties in US. We note that we can trivially achieve a high correlation because the problem framing naturally relies on the general trend of the data from time – in fact, the Previous Cases baseline achieves the highest case correlation overall. To account for this, we also report the RMSLE and Pearson Correlations for the case deltas ( RMSLE, Corr), even though we expect the ground truth values to be confounded by unaccounted variables like the availability of testing centers or whether it is a workday.
We find that the GNN successfully outperforms our baselines, achieving either best or secondbest score on each evaluation metric. Further, we note that for all of our deep models, introducing additional mobility data improves results. Interestingly, introducing mobility data resulted in worse performance for the ARIMA baseline. ARIMA assumes fixed dynamics and a linear dependence on the countylevel mobility – while this helps the ARIMA model in the early stages of the epidemic, when there was a strong positive correlation between reduced mobility and daily new cases, it may cause the model to underperform with the increase of mobility in late May.
Model  RMSLE  Corr  RMSLE  Corr

Previous Cases  0.0226  0.9981  4.7879  NaN
Previous Delta  0.0127  0.9965  0.9697  0.1854
No Mob ARIMA  0.0124  0.9968  0.9217  0.1449
ARIMA  0.0144  0.9952  0.9624  0.0966
No Mob LSTM  0.0125  0.9978  0.9172  0.1540
LSTM  0.0121  0.9978  0.9163  0.1863
No Mob Seq2Seq  0.0118  0.9976  0.8467  0.1020
Seq2Seq  0.0116  0.9977  0.8634  0.2802
GNN  0.0109  0.9980  0.7983  0.2230
5. Conclusion
In this work we developed a graph neural network based approach for COVID19 forecasting with spatiotemporal mobility signals. This modeling framework can be readily extended to regression problems with large scale spatiotemporal data – in particular for our case, disease status reports and human mobility patterns at various temporal and geographical scales. In comparison to previous mechanistic or autoregressive approaches, our model does not rely on assumptions of the underlying disease dynamics and can learn from a variety of data, including interregion interaction and regionlevel features.
There is still much to be done, both for COVID19 and for modeling infectious disease in general; we hope that this paper sparks an increased focus on leveraging this powerful new source of mobility information through novel techniques in graph learning. Future work can expand on these results by incorporating new features, expanding the time horizon for long term predictions, and experimenting on epidemiological mobility data in other parts of the world.
References
 Evaluating the impact of international airline suspensions on the early global spread of covid19. medRxiv. External Links: Document, https://www.medrxiv.org/content/early/2020/03/02/2020.02.20.20025882.full.pdf Cited by: §2.1.
 Neural machine translation by jointly learning to align and translate. In 3rd International Conference on Learning Representations, ICLR 2015, San Diego, CA, USA, May 79, 2015, Conference Track Proceedings, Cited by: §4.3.3.
 Hierarchical organization of urban mobility and its connection with city livability. Nature communications 10 (1), pp. 1–10. Cited by: §6.1.
 Relational inductive biases, deep learning, and graph networks. arXiv preprint arXiv:1806.01261. Cited by: §2.2.
 Deep gaussian embedding of graphs: unsupervised inductive learning via ranking. Cited by: §2.2.
 Geometric deep learning: going beyond euclidean data. IEEE Signal Processing Magazine 34 (4), pp. 18–42. Cited by: §2.2.
 Aggregated mobility data could help fight covid19.. Science (New York, NY) 368 (6487), pp. 145. Cited by: §1.
 Modelling transmission and control of the covid19 pandemic in australia. arXiv preprint arXiv:2003.10218. Cited by: §1.
 Supervised community detection with line graph neural networks. Cited by: §2.2.
 Graph message passing with crosslocation attentions for longterm ili prediction. arXiv preprint arXiv:1912.10202. Cited by: §2.2.

Dynamic spatialtemporal graph convolutional neural networks for traffic forecasting
. InProceedings of the AAAI Conference on Artificial Intelligence
, Vol. 33, pp. 890–897. Cited by: §2.2.  Time series analysis by state space methods: second edition. 2nd edition, Oxford University Press. Cited by: §1.
 Neural message passing for quantum chemistry. arXiv preprint arXiv:1704.01212. Cited by: §2.2, §3.1.
 Inductive representation learning on large graphs. In Advances in Neural Information Processing Systems, pp. 1024–1034. Cited by: §2.2.
 Meanfield theory of graph neural networks in graph partitioning. In NeurIPS, Cited by: §2.2.
 Semisupervised classification with graph convolutional networks. arXiv preprint arXiv:1609.02907. Cited by: §2.2, §3.3.
 Variational graph autoencoders. arXiv preprint arXiv:1611.07308. Cited by: §2.2.
 Google covid19 community mobility reports.. Note: https://www.google.com/covid19/mobility/ (visited on 6/4/2020) Cited by: §4.1.3.
 Geometric matrix completion with recurrent multigraph neural networks. In NIPS, Cited by: §2.2.
 Forecasting covid19 impact on hospital beddays, icudays, ventilatordays and deaths by us state in the next 4 months. Cited by: §1.
 COVID19 to slash global economic output by 8.5 trillion over next two years.. Note: https://www.un.org/development/desa/en/news/policy/wespmid2020report.html (visited on 6/4/2020) Cited by: §1.

Learning convolutional neural networks for graphs.
In
International conference on machine learning
, pp. 2014–2023. Cited by: §2.2.  Mobile phone data for informing public health actions across the covid19 pandemic life cycle. American Association for the Advancement of Science. Cited by: §1.
 Initial simulation of sarscov2 spread and intervention effects in the continental us. medRxiv. External Links: Document, https://www.medrxiv.org/content/early/2020/03/27/2020.03.21.20040303.full.pdf Cited by: §1.
 A review of selfexciting spatiotemporal point processes and their applications. Statistical Science 33 (3), pp. 299–318. Cited by: §2.2.

SpectralNet: spectral clustering using deep neural networks
. arXiv preprint arXiv:1801.01587. Cited by: §2.2.  The New York Times COVID19 Tracking Page.. Note: https://www.nytimes.com/interactive/2020/us/coronavirususcases.html Cited by: §4.1.1.
 Graph attention networks. arXiv preprint arXiv:1710.10903 1 (2). Cited by: §2.2.
 WHO coronavirus disease (covid19) dashboard.. Note: https://covid19.who.int/ (visited on 6/4/2020) Cited by: §1.
 Differentially private sql with bounded user contribution. Proceedings on Privacy Enhancing Technologies 2020 (2), pp. 230–250. Cited by: §6.1.
 Projections for firstwave covid19 deaths across the us using socialdistancing measures derived from mobile phones. medRxiv. Cited by: §2.1.
 A comprehensive survey on graph neural networks. arXiv preprint arXiv:1901.00596. Cited by: §2.2.
 How powerful are graph neural networks?. arXiv preprint arXiv:1810.00826. Cited by: §2.2.
 Modified seir and ai prediction of the epidemics trend of covid19 in china under public health interventions. Journal of Thoracic Disease 12 (2). Cited by: §1, §2.1.
 Graph convolutional neural networks for webscale recommender systems. arXiv preprint arXiv:1806.01973. Cited by: §2.2.
 Link prediction based on graph neural networks. arXiv preprint arXiv:1802.09691. Cited by: §2.2.
 Deep learning on graphs: a survey. CoRR abs/1812.04202. Cited by: §2.2.
 Graph neural networks: a review of methods and applications. arXiv preprint arXiv:1812.08434. Cited by: §2.2.
6. Appendix
6.1. Google COVID19 Aggregated Mobility Research Dataset
The Google COVID19 Aggregated Mobility Research Dataset used for this study is available with permission from Google LLC. The Dataset contains anonymized mobility flows aggregated over users who have turned on the Location History setting, which is off by default. This is similar to the data used to show how busy certain types of places are in Google Maps — helping identify when a local business tends to be the most crowded. The dataset aggregates flows of people from region to region, which is further aggregated at the level of US county, weekly in this study.
To produce this dataset, machine learning is applied to logs data to automatically segment it into semantic trips (Bassolas et al., 2019). To provide strong privacy guarantees, all trips were anonymized and aggregated using a differentially private mechanism (Wilson et al., 2020) to aggregate flows over time^{3}^{3}3See https://policies.google.com/technologies/anonymization for more.. This research is done on the resulting heavily aggregated and differentially private data. No individual user data was ever manually inspected, only heavily aggregated flows of large populations were handled.
All anonymized trips are processed in aggregate to extract their origin and destination location and time. For example, if users traveled from location to location within time interval , the corresponding cell
in the tensor would be
, where is Laplacian noise. The automated Laplace mechanism adds random noise drawn from a zero mean Laplace distribution and yields differential privacy guarantee of and per metric. Specifically, for each week and each location pair , we compute the number of unique users who took a trip from location to location during week . To each of these metrics, we add Laplace noise from a zeromean distribution of scale . We then remove all metrics for which the noisy number of users is lower than 100, following the process described in https://research.google/pubs/pub48778/, and publish the rest. This yields that each metric we publish satisfies differential privacy with values defined above. The parametercontrols the noise intensity in terms of its variance, while
represents the deviation from pure privacy. The closer they are to zero, the stronger the privacy guarantees.
