Evaluation of Retinal Image Quality Assessment Networks in Different Color-spaces

by   Huazhu Fu, et al.

Retinal image quality assessment (RIQA) is essential for controlling the quality of retinal imaging and guaranteeing the reliability of diagnoses by ophthalmologists or automated analysis systems. Existing RIQA methods focus on the RGB color-space and are developed based on small datasets with binary quality labels (i.e., `Accept' and `Reject'). In this paper, we first re-annotate an Eye-Quality (EyeQ) dataset with 28,792 retinal images from the EyePACS dataset, based on a three-level quality grading system (i.e., `Good', `Usable' and `Reject') for evaluating RIQA methods. Our RIQA dataset is characterized by its large-scale size, multi-level grading, and multi-modality. Then, we analyze the influences on RIQA of different color-spaces, and propose a simple yet efficient deep network, named Multiple Color-space Fusion Network (MCF-Net), which integrates the different color-space representations at both a feature-level and prediction-level to predict image quality grades. Experiments on our EyeQ dataset show that our MCF-Net obtains a state-of-the-art performance, outperforming the other deep learning methods. Furthermore, we also evaluate diabetic retinopathy (DR) detection methods on images of different quality, and demonstrate that the performances of automated diagnostic systems are highly dependent on image quality.



There are no comments yet.


page 3


A Dark and Bright Channel Prior Guided Deep Network for Retinal Image Quality Assessment

Retinal image quality assessment is an essential task in the diagnosis o...

Deep Learning for Automated Quality Assessment of Color Fundus Images in Diabetic Retinopathy Screening

Purpose To develop a computer based method for the automated assessment ...

A Deep Retinal Image Quality Assessment Network with Salient Structure Priors

Retinal image quality assessment is an essential prerequisite for diagno...

Lesson Learnt: Modularization of Deep Networks Allow Cross-Modality Reuse

Fundus photography and Optical Coherence Tomography Angiography (OCT-A) ...

Hybrid Robotic-assisted Frameworks for Endomicroscopy Scanning in Retinal Surgeries

High-resolution real-time imaging at cellular levelin retinal surgeries ...

Which Ads to Show? Advertisement Image Assessment with Auxiliary Information via Multi-step Modality Fusion

Assessing aesthetic preference is a fundamental task related to human co...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Retinal images are widely used for early screening and diagnosis of several eye diseases, including diabetic retinopathy (DR), glaucoma, and age-related macular degeneration (AMD). However, retinal images captured using different cameras, by people with various levels of experience, have a large variation in quality. A study based on UK BioBank showed that more than 25% of the retinal images are not of high enough quality to allow accurate diagnosis [8]. The quality degradation of retinal images, e.g., from inadequate illumination, noticeable blur and low contrast, may prevent a reliable medical diagnosis by ophthalmologists or automated analysis systems [1]. Thus, retinal image quality assessment (RIQA) is required for controlling the quality of retinal image. However, RIQA is a subjective task that depends on the experience of the ophthalmologists and the type of eye disease. Moreover, the traditional general quality assessment methods for natural images are not suitable for the RIQA task.

Recently, several methods for RIQA specifically have been proposed, which can be divided into two main categories: structure-based methods and feature-based methods. Structure-based methods employ segmented structures to determine the quality of retinal images. For example, an image structure clustering method was proposed to extract compact representations of retinal structures to determine image quality levels [10]. Blood vessel structures are also widely used for identifying the quality of retinal images [15, 7, 8]. However, structure-based methods rely heavily on the performance of structure segmentation, and cannot obtain latent visual features from images. Feature-based methods, on the other hand, directly extract feature representations from images, without structure segmentation. For example, features quantifying image color, focus, contrast and illumination can be calculated to represent the quality grade [12]. Wang et.al.

 employed features based on the human visual system, with a support vector machine (SVM) or a decision tree to identify high-quality images


. A fundus image quality classifier that analyzes illumination, naturalness, and structure was also provided to assess quality


. Recently, deep learning techniques that integrate multi-level representations have been shown to obtain significant performances in a wide variety of medical imaging tasks. A combination of unsupervised features from saliency maps and supervised deep features from convolutional neural networks (CNNs) have been utilized to predict the quality level of retinal images

[17]. For instance, Zago et.al.

 adapted a deep neural network by using the pre-trained model from ImageNet to deal with the quality assessment task

[18]. Although these deep methods have successfully overcome the limitations of hand-crafted features, they nevertheless have several of their own drawbacks. First, they focus on the RGB color-space, without considering other color-spaces that from part of the human visual system. Second, the existing RIQA datasets only contain binary labels (i.e., ‘Accept’ and ‘Reject’), which is a coarse grading standard for complex clinical diagnosis. Third, the RIQA community lacks a large-scale dataset, which limits the development of RIQA related methods, especially for deep learning techniques, since these require large amounts of training data.

To address the above issues, in this paper, we discuss the influences on RIQA of different color-spaces in deep networks. We first re-annotate an Eye-Quality (EyeQ) dataset with 28,792 retinal images selected from the EyePACS dataset, using a three-level quality grading system (i.e., ‘Good’, ‘Usable’ and ‘Reject’). Our EyeQ dataset considers the differences between ophthalmologists and automated systems, and can be used to evaluate other related works, including quality assessment methods, the influence of image quality on disease diagnosis, and retinal image enhancement. Second, we analyze the influences on RIQA of different color-spaces, and propose a general Multiple Color-space Fusion Network (MCF-Net) for retinal image quality classification. Our MCF-Net utilizes multiple base networks to jointly learn image representations from different color-spaces and fuses the outputs of all the base networks, at both a feature-level and prediction-level, to produce the final quality grade. Experiments demonstrate that our MCF-Net outperforms the other deep learning methods. In addition, we also apply the EyeQ dataset to evaluate the performances of DR detection methods for images of various qualities.

2 Eye-Quality Dataset

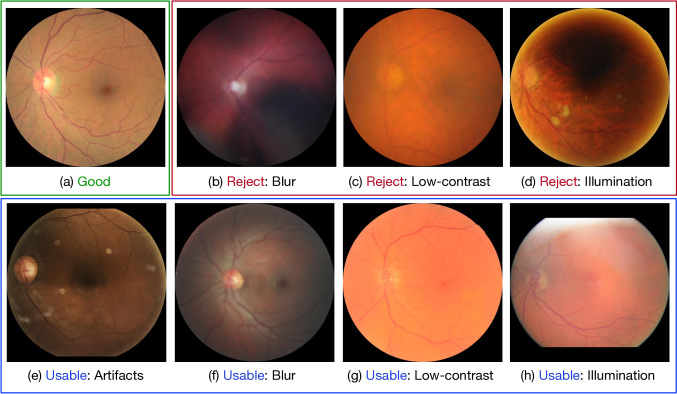

Figure 1: Examples of different retinal image quality grades. The images of ‘Good’ quality (a) provide clear diagnostic information, while the images of ‘Reject’ quality (b-d) are insufficient for reliable diagnosis. However, some images are between ‘Good’ and ‘Reject’ (e-h), having some poor-quality indicators, but the main structures (e.g., disc and macular regions) and lesion are clear enough to be identified by ophthalmologists.

There are several publicly available RIQA datasets with manual quality annotations, such as HRF [7], DRIMDB [13], and DR2 [11]. However, they have various drawbacks. First, the image quality assessment of these datasets is based on binary labels, i.e., ‘Accept’ and ‘Reject’. However, several images fall somewhere between these two categories. For example, some retinal images of poor-quality, e.g., containing a few artifacts (Fig. 1 (e)), or slightly blurred (Fig. 1 (f)), are still gradable by clinicians, so should not be labeled as ‘Reject’, but they may mislead automated medical analysis methods, so can also not be labeled as ‘Accept’. Second, retinal images of the existing RIQA datasets are often captured by the same camera, which can not be used to evaluate the robustness of RIQA methods against various imaging modalities. Third, the existing datasets are limited in size, and there lacks a large-scale quality grade dataset for developing deep learning methods.

Training set Testing set
DR-0 DR-1 DR-2 DR-3 DR-4 All DR-0 DR-1 DR-2 DR-3 DR-4 All
Good 6,342 699 1,100 167 39 8,347 5,966 886 1,354 199 65 8,470
Usable 1,353 103 283 79 58 1,896 3,201 359 721 145 133 4,559
Reject 1,544 109 426 87 154 2,320 2,195 153 569 104 199 3,220
Total 9,239 911 1,809 333 251 12,543 1,1362 1,398 2,644 448 397 16,249
Table 1: Summary of our EyeQ dataset, where DR-i denotes the DR presence on grade i based on the labels in EyePACS dataset.

To address the above issues, in this paper, we re-annotate an Eye-Quality (EyeQ) dataset from the EyePACS dataset, which is a large retinal image dataset captured by different models and types of cameras, under a variety of imaging conditions. Our EyeQ dataset utilizes a three-level quality grading system by considering four common quality indicators, including blurring, uneven illumination, low-contrast, and artifacts. Our three quality grades are defined as:

  • ‘Good’ grade: the retinal image has no low-quality factors, and all retinopathy characteristics are clearly visible, as shown in Fig. 1 (a).

  • ‘Usable’ grade: the retinal image has some slight low-quality indicators, which can not observe the whole image clearly (e.g., low-contract and blur) or affect the automated medical analysis methods (e.g., artifacts), but the main structures (e.g., disc, macula regions) and lesion are clear enough to be identified by ophthalmologists, as shown in Fig. 1 (e-h). For the uneven illumination case, the readable region of fundus image is larger than 80%.

  • ‘Reject’ grade: the retinal image has a serious quality issue and cannot be used to provide a full and reliable diagnosis, even by ophthalmologists, as shown in Fig. 1 (b-d). Moreover, the fundus image with invisible disc or macula region is also be treated as ‘Reject’ grade.

To re-annotate the EyeQ dataset, we asked two experts to grade the quality of images in EyePACS. Then, the images with ambiguous labels were discarded, yielding a collection of 28,792 retinal images. A summary of this EyeQ dataset is given in Table 1. Note that some images with ‘Reject’ grades still have DR grade labels from the EyePACS dataset. The reason is that our quality standard is based on the diagnosability for general eye diseases, such as glaucoma, AMD, etc., rather than only DR. Although some low-quality images have visible lesions for DR diagnosis, they are not of high enough quality for diagnosing other diseases, lacking, for example, clear views of optic disc and cup regions for glaucoma screening, or visible macula regions for AMD analysis.

3 Multiple Color-space Fusion Network

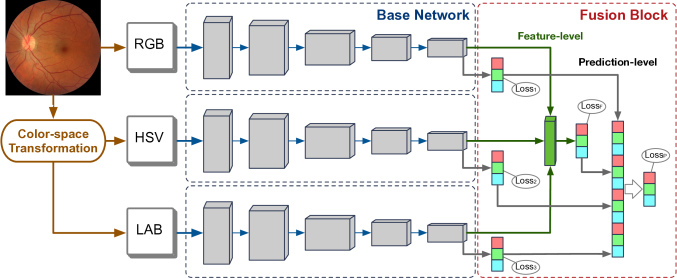

Figure 2: The architecture of our MCF-Net, which contains multiple base networks for different color-spaces. A fusion block is employed to integrate the multiple outputs of these base networks on both feature-level and prediction-level.
