I Introduction

Affordable markerless motion capture technology is becoming increasingly pervasive in applications of human-computer and human-machine interaction, entertainment, healthcare, communication, surveillance and others. Although the methods for capturing and extracting human pose from image data have been around for several years, the advances in sensor technologies (infrared sensors) and computing power (e.g., GPUs) have facilitated new systems that provide robust and relatively accurate markerless acquisition of human movement. An important milestone for wide adoption of these technologies was the release of Microsoft Kinect camera [Zhang_2012] for the gaming console Xbox 360 in 2010, followed by the release of Kinect for Windows with the accompanying Software Development Kit (SDK) in 2011. The Kinect SDK for Windows featured real-time full-body tracking of human limbs based on the algorithm by Shotton et al. [Shotton_2011]. Several other technology makers followed the suit by releasing their own 3D cameras that focused on capture of human motion for interactive applications (Xtion by Asus, RealSense by Intel). Many researchers and commercial developers embraced the Kinect in wide range of applications that took advantage of its real-time 3D acquisition capabilities and provided skeletal tracking, such as in physical therapy and rehabilitation [Hondori2014], fall detection [Stone2011] and exercise in elderly [Webster2014, Ofli2015], ergonomics [Diego-Mas2013, Plantard2015] and anthropometry [Robinson2013]

, computer vision

[Han2013], and many others. In 2013 the second generation of the Kinect camera was released as part of the Xbox One gaming console. In 2014 a standalone version of Kinect for Windows (k4w) was officially released featuring wider camera angle, higher resolution of depth and color images, improved skeletal tracking, and detection of facial expressions.

In this paper we focus on the evaluation of accuracy and performance of skeletal tracking in the two Kinect systems (referred to as Kinect 1 and Kinect 2 in the remainder of this paper) compared to a marker-based motion capture system. Several publications have previously addressed the accuracy of the skeletal tracking of Kinect 1 for various applications; however, the accuracy of Kinect 2 has been reported only to a limited extent in the research literature. Furthermore, concurrent comparison of the two systems has not yet been published to the best of our knowledge. Although both Kinect systems employ similar methodology for human body segmentation and tracking based on the depth data, the underlying technology for acquisition of the depth differs between the two. We report the accuracy rates of the skeletal tracking and the corresponding error distributions in a set of exercise motions that include standing and sitting body configurations. Such an extensive performance assessment of the technology is intended to assist researchers who rely on Kinect as a measurement device in the studies of human motion.

Ii Related Work

In this section we review several publications related to evaluation of the Kinect systems. Kinect 1 has been extensively investigated in terms of 3D depth map acquisition as well as body tracking accuracy for various applications. Khoshelman and Elbernik [Khoshelham_2013] examined the accuracy of depth acquisition in Kinect 1, and found that the depth error ranges from a few millimeters up to about 4 cm at the maximum range. They recommended that the data for mapping applications should be acquired within 1-3 m distance. Smisek et al. [Smisek_2011] proposed a geometrical model and calibration method to improve the accuracy of Kinect 1 for 3D measurements. Kinect 1 and Kinect 2 were jointly evaluated by Gonzalez-Jorge et al. [Gonzalez_2015] who reported that the precision of both systems is similar (about 8 mm) in the range of under 1 m, while Kinect 2 outperforms Kinect 1 at the range of 2 m with the error values of up to 25 mm. They also reported that precision of Kinect 1 decreases rapidly following a second order polynomial, while Kinect 2 exhibits a more stable behavior inside its work range. 3D accuracy of Kinect 2 was recently evaluated by Yang et al. [Yang_2015] who reported on the spatial distribution of the depth accuracy in regard to the vertical and horizontal displacement.

Skeletal tracking of Kinect was examined primarily in the context of biomechanical and exercise performance analyses. In this review, we limit ourselves only to the evaluations of skeletal tracking based on the official Microsoft Kinect SDK. Obdržálek et al. [Obdrzalek_2012] performed accuracy and robustness analysis of the Kinect skeletal tracking in six exercises for elderly population. Their paper reports on the error bounds for particular joints obtained from the comparison with an optical motion capture system. The authors conclude that employing a more anthropometric kinematic model with fixed limb lengths could improve the performance. Clark et al. [Clark_2012] examined the clinical feasibility of using Kinect for postural control assessment. The evaluation with Kinect and motion capture performed in 20 healthy subjects included three postural tests: forward reach, lateral reach, and single-leg eyes-closed standing balance assessment. The authors found high inter-trail reliability and excellent concurrent validity for majority of the measurements. The study, however, revealed presence of proportional biases for some of the outcome measures, in particular for sternum and pelvis evaluations. The authors proposed the use of calibration equations that could potentially correct for such biases. Several other works have examined the body tracking accuracy for specific applications in physical therapy, such as for example upper extremity function evaluation [Kurillo_2013], assessment of balance disorders [Funaya_2013], full-body functional assessment [Bonnechere_2013], and movement analysis in Parkinson’s disease [Galna_2014]. Plantard et al. [Plantard_2015] performed an extensive evaluation of Kinect 1 skeletal tracking accuracy for ergonomic assessment. By using a virtual mannequin, they generated a synthetic depth map that was input into the Kinect SDK algorithm to predict potential accuracy of joint locations in a large number of skeletal configurations and camera positions. The simulation results were validated by a small number of real experiments. The authors concluded that the kinematic information obtained by the Kinect is generally accurate enough for ergonomic assessment.

To the best of our knowledge, publication by Xu and McGorry [Xu_2015] is to date the only work that reported on the evaluation of Kinect 2 skeletal tracking alongside an optical motion capture system. In their study the authors examined 8 standing and 8 sitting static poses of daily activities. Similar poses were also captured with Kinect 1, however the two data sets were not obtained concurrently. The authors reported that the average static error across all the participants and all Kinect-identified joint centers was 76 mm for Kinect 1 and 87 mm for Kinect 2. They further concluded that there was no significant difference between the two Kinects. This conclusion, however, is of limited validity as the comparison was done indirectly with two different sets of subjects.

Since the Kinect 1 system is being replaced by the Kinect 2 system in many applications, it is important to evaluate the performance of the new camera and software for tracking of dynamic human activities. This is especially relevant since the depth estimation in the two systems is based on two different physical principles. Side-by-side comparison can thus provide a better understanding of the performance improvements as well as potential drawbacks. In this paper, we report on the experimental evaluation of the joint tracking accuracy of the two Kinects in comparison to an optical motion capture system. We analyze the results for 12 different activities that include standing and sitting poses as well as slow and fast movements. Furthermore we examine the performance of pose estimation with respect to three different horizontal orientation angles. We provide the error bounds for joint positions and extracted limb lengths for both systems. We also analyze the distribution of joint localization errors by fitting a mixture of Gaussian and uniform distribution models to determine the outliers in the motion data.

Iii Acquisition Systems

In this section we provide more details on the experimental setup and a brief overview of the technology behind each Kinect system. For the experimental evaluation, the movements were simultaneously captured by Kinect 1, Kinect 2, and a marker-based optical motion capture system which served as a baseline. The two Kinects were secured together and mounted on a tripod at the height of about 1.5 m. All three systems were geometrically calibrated and synchronized prior to the data collection using the procedure described below.

Iii-a Motion Capture System (MoCap)

The motion capture data were acquired using PhaseSpace (San Leandro, CA, USA) system Impulse X2 with 8 infrared stereo cameras. The cameras were positioned around the capture space of about 4 m by 4 m. The system provides 3D position of LED markers with sub-millimeter accuracy and frequency of up to 960 Hz. Capture rate of 480 Hz was selected for this study. For each subject 43 markers were attached at standard body landmarks to a motion capture suit using velcro. To obtain the skeleton from the marker data, a rigid kinematic structure was dynamically fitted into the 3D point cloud. We used PhaseSpace Recap2 software to obtain the skeleton for each subject based on collected calibration data which consisted of a sequence of individual joint rotations. The built-in algorithm determines the length of the body segments based on the set of markers associated with different parts of the body and generates a skeleton with 29 joint positions. Once individual’s kinematic model is calibrated, the skeletal sequence can be extracted for any motion of that person.

Iii-B Kinect 1

Kinect 1 sensor features acquisition rates of up to 30 Hz for the color and depth data with the resolution of 640 480 pixels and 320 240 pixels, respectively. The depth data are obtained using structured light approach, where a pseudo-random infrared dot pattern is projected onto the scene while being captured by an infrared camera. Stereo triangulation is used to obtain 3D position of the points from their projections. This approach provides a robust 3D reconstruction even in low-light conditions. The accuracy of the depth decreases with the square of the distance with typical accuracy ranging from about 1-4 cm in the range of 1-4 m [Smisek_2011]

. To obtain a dense depth map, surface interpolation is applied based on the acquired depth values at the data points. Fixed density of the points limits the accuracy when moving away from the camera as the points become sparser. The boundaries of surfaces in the distance are thus often jagged.

Real-time skeletal tracking provided by the Microsoft Kinect SDK is based on the depth data using body part estimation algorithm based on random decision forest proposed by Shotton et al. [Shotton_2011]. The algorithm estimates candidate body parts based on a large training set of synthetically-generated depth images of humans of many different poses and shapes in various poses from a motion capture database [Zhang_2012]. The Kinect 1 SDK can track up to two users, providing the 3D location of 20 joints for each tracked skeleton.

Iii-C Kinect 2

Kinect 2 sensor features high definition color (1920 1080 pixels) and higher resolution depth data (512 424 pixels) as compared to Kinect 1. The depth acquisition is based on the time-of-flight (ToF) principle where the distance to points on the surface is measured by computing the phase-shift distance of modulated infrared light. The intensity of the captured image is thus proportional to the distance of the points in 3D space. The ToF technology as opposed to the structured light inherently provides a dense depth map, however the results can suffer from various artifacts caused by the reflections of light signal from the scene geometry and the reflectance properties of observed materials. The depth accuracy of Kinect 2 is relatively constant within a specific capture volume, however it depends on the vertical and horizontal displacement as the light pulses are scattered away from the center of the camera [Yang_2015]. The reported average depth accuracy is under 2 mm in the central viewing cone and increases to 2-4 mm in the range of up to 3.5 m. The maximal range captured by Kinect 2 is 4.0 m where the average error typically increases beyond 4 mm.

The skeletal tracking method implemented in Kinect SDK v2.0 has not been fully disclosed by Microsoft; however, it appears to follow similar methodology as for Kinect 1 while taking advantage of GPU computation to reduce the latency and to improve the performance. The Kinect SDK v2.0 features skeletal tracking of up to 6 users with 3D locations of 25 joints for each skeleton. In comparison to Kinect 1, the skeleton includes additional joints at the hand tip, thumb tip and neck. The arrangement of the joints, i.e. the kinematic structure of the model, is comparable to standard motion capture skeleton. Kinect 2 includes some additional features, such as detection of hand opening/closing and tracking of facial features.

Iii-D Calibration and Data Acquisition

For the capture of the database, we connected the two Kinect cameras to a single PC running Windows 8.1, with Kinect 1 connected via USB 2.0 and Kinect 2 connected via USB 3.0 on a separate PCI bus. Such arrangement allowed for both sensors to capture at the full frame rate of 30 Hz. The skeletal data for both cameras were extracted in real time via Microsoft Kinect SDK v1.8 and Kinect for Windows SDK v2.0 for Kinect 1 and Kinect 2, respectively.

The temporal synchronization of the captured data was performed using Network Time Protocol (NTP). The motion capture server provided the time stamps for the Kinect PC over the local area network. Meinberg NTP Client Software (Meinberg Radio Clocks GmbH, Bad Pyrmont, Germany) was installed on the Windows computer to obtain more precise clock synchronization.

Prior to the data acquisition, we first calibrated the motion capture system using provided calibration software. The coordinate frames of the Kinect cameras were then aligned with the motion capture coordinates using the following procedure. A planar checkerboard with three motion capture markers attached to corners of the board was placed in three different positions in front of the Kinects. In each configuration, marker position, color and depth data were recorded. Next, the 3D positions of the corners were extracted from the depth data using the intrinsic parameters of the Kinect and corresponding depth pixel values. Finally, a rigid transformation matrix that maps 3D data captured by each Kinect into the motion capture coordinate system was determined by minimizing the squared distance between the Kinect acquired points and the corresponding marker locations.

Fig. 1: Three skeletons captured by Kinect 1, Kinect 2, and motion capture (extracted via Recap2 software) after geometric and temporal alignment.

Iii-E Data Processing

Collected marker data were first processed in Recap2 to obtain the skeletal sequence for each subject, and then exported to BVH file format. The rest of the analysis was performed in MATLAB (MathWorks, Natick, MA). First, the skeletal sequences from the Kinect cameras were mapped to the motion capture coordinate space using the rigid transformation obtained from the calibration. Next, we aligned the sequences using the time stamps, and re-sampled all the data points to the time stamps of Kinect 2 in order to compare the joint localization at the same time instances. Fig. 1 demonstrates the three skeletal configurations projected into the motion capture coordinate space after the calibration.

After the spatial transformation and temporal alignment, we obtained three sequences of 3D joint positions for Kinect 1, Kinect 2, and motion capture. Since the three skeletal configurations have different arrangements and number of joints, we selected 20 joints that are common to all the three systems. Other remaining joints were ignored in this analysis. Next, we evaluated the position accuracy by calculating the distance between the corresponding joints in each time frame. When the Kinect skeletal tracking loses track of the body parts for certain joints (e.g. due to occlusions), such frames can be flagged as outliers. Since the data of the outliers can be assigned arbitrary values, we use a uniform distribution to model the distribution of the outliers. The distribution of the valid (on-track) data samples is on the other hand modeled by a Gaussian distribution with the mean representing the average offset of that joint. The overall distribution of the joint offset data,

, can thus be modeled by a mixture model of Gaussian and uniform distributions as follows:

(1)

In equation (1), and denote the parameters of the Gaussian distribution, , respectively. and denote the parameters of the uniform distribution, , respectively.

denotes the weight of the Gaussian distribution. In this paper, we use the maximum-likelihood method to estimate these parameters with the input data samples. After estimating the mixture model, the data are classified into either

on-track or off-track state. The off-track data is then excluded from the accuracy evaluation.

Another important parameter for the accuracy assessment of human pose tracking is the variability of the limb lengths. The human skeleton is typically modeled as a kinematic chain with rigid body segments. The Kinect skeletal tracking, however, does not explicitly constrain the length of body segments. In the paper, we thus report on the variability of the bone lengths by calculating the distance between two end-joints of each bone for the Kinect systems. For motion capture, the bone length is extracted from the segment length parameters in the BVH file.

Iv Experiments

In this section we describe the experimental protocol for the data accuracy evaluation. As described in Section III, the motion data were captured by the setup consisting of Kinect 1, Kinect 2, and the motion capture system. We selected 12 different exercises (Table I, Fig. 2), consisting of six sitting (and sit-to-stand) exercises and six standing exercises. In the first set of exercises, subjects were interacting with the chair, while no props were used in the second set. We analyze the two sets of exercises separately.

Name Pose Description
1. Shallow Squats Sitting Stand-to-sit movements without sitting.
2. Chair Stands Sitting Sit-to-stand movements.
3. Buddha’s Prayer Sitting Vertical hand lifts with palms together.
4. Cops & Robbers Sitting Shoulder rotation and forward arm extension.
5. Abs in, Knee Lifts Sitting Alternating knee lifts.
6. Lateral Stepping Sitting Alternating front and side stepping.
7. Pickup & Throw Standing Step forward, pick up off the floor and throw.
8. Jogging Standing Running in place.
9. Clapping Standing Wide hand clapping while standing still.
10. Punching Standing Alternating forward punching.
11. Line Stepping Standing Alternating forward foot tapping.
12. Pendulum Standing Alternating leg adduction.
TABLE I: List of exercises.

We captured the motion data in 10 subjects (mean age: 27). Before starting the recording, each subject was instructed on how to perform the exercise via a video. We first recorded the motion capture calibration sequence for the subsequent skeleton fitting. Each exercise recording consisted of five repetitions, except for the Jogging which required subjects to perform ten jogging steps. The recording of the 12 exercises was repeated for three different orientation angles of the subjects with respect to the Kinect cameras, i.e. at with subject facing the cameras and at and with subject rotated to the left of the cameras. Figs. 2 and 3 show the video snapshots and the corresponding motion capture skeletons of the key poses for the 12 exercises in one of the subjects.

(a) Shallow Squats
(b) Chair Stands
(c) Buddha’s Prayer
(d) Cops & Robbers
(e) Abs in, Knee Lifts
(f) Lateral Stepping
(g) Pickup & Throw
(h) Jogging
(i) Clapping
(j) Punching
(k) Line Stepping
(l) Pendulum
Fig. 2: Video snapshots of the 12 exercises. The first set (a-f) consisted of seated exercises, while the second set (g-l) consisted of standing exercises.
(a) Shallow Squats
(b) Chair Stands
(c) Buddha’s Prayer
(d) Cops & Robbers
(e) Abs in, Knee Lifts
(f) Lateral Stepping
(g) Pickup & Throw
(h) Jogging
(i) Clapping
(j) Punching
(k) Line Stepping
(l) Pendulum
Fig. 3: Motion capture skeleton of the key poses for the 12 exercises shown in Fig. 2.

After the data acquisition, the joint coordinates of Kinect 1 and Kinect 2 were transformed into the global coordinate system of the motion capture. Additionally, the temporal data were synchronized according to the time stamp of the sequence captured by Kinect 2, as described in Section III-D.

For the analysis of joint position accuracy, we selected 20 joints that are common between the three systems. These joints and their abbreviated names are shown in Fig. 4. In addition to the joint position accuracy, we also evaluated the accuracy of the bone lengths for the upper and lower extremities. Those bones and their abbreviated names are also shown in Fig. 4.

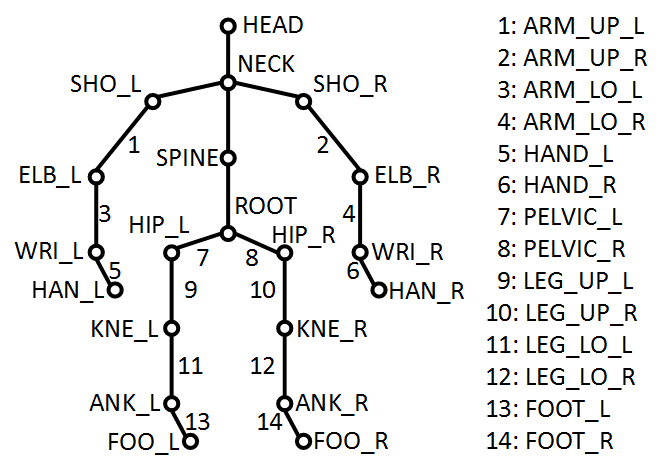

Fig. 4: Diagram of the 20-joint skeleton with labeled joint and bone segments that are used in the analysis (L-left, R-right, UP-upper, LO-lower).

V Results and Discussion

In this section, we present detailed analysis of the pose tracking accuracy in Kinect 1 and Kinect 2 in comparison to the motion capture system which we use as a baseline. All the reported results are the average values across all the subjects. The values in the sitting or standing pose represents the mean values of all the exercises in the sitting or standing set.

V-a Joint Position Accuracy

Tables III and III summarize the mean offsets for all the joints in the sitting and standing sets of exercises in three different viewpoint directions. The mean offset represents the average distance between the corresponding joint position of Kinect 1 or Kinect 2 as compared to the location identified from the motion capture data.

In the sitting set of exercises (Table III), the majority of the mean joint offsets range between 50 mm and 100 mm for both Kinect systems. The largest offset in Kinect 1 is consistently observed in the pelvic area which includes the following three joints: ROOT, HIP_L, and HIP_R. Kinect 2 on the other hand has smaller offsets for these particular joints. In Kinect 2, the largest offsets are observed in the following four joints of the lower extremities: ANK_L, ANK_R, FOO_L, and FOO_R. These joints typically have a large vertical offset from the ground plane, while the same is not observed in Kinect 1. Similar observations can be made in the standing set of exercises (Table III) where the largest offsets in Kinect 1 are again in the pelvic area and the largest offsets in Kinect 2 are found in the lower extremities. These observations are also clearly visible in Fig. 1.

Tables III and III

also summarize the standard deviation (SD) of the joint position offsets which reflects the variability of a particular joint tracking. For most of the joints, the SD ranges between 10 mm and 50 mm. The joints that exhibit considerable motion during an exercise have much higher variability, and thus SD, typically greater than 50 mm. In most cases, the SDs of the joint positions in Kinect 2 are considerably smaller than those in Kinect 1. This is most likely due to an increased resolution and reduced noise level of Kinect 2 depth maps.

Furthermore, we can observe that the mean offset and SD of the joints that are most active in a particular exercise are both increasing with the viewpoint angle. This is especially noticeable on the side of the skeleton that is turned further away from the camera as the occlusion of joints increases the uncertainty of the pose detection. In our experiments, the left side of the skeleton was turning away from the camera with the increasing viewpoint angle.

0 30 60 0 30 60
Fig. 5: Mean offset and SD of skeletal joints for the exercise Cops & Robbers (top row: Kinect 1, bottom row: Kinect 2) as captured at three different viewpoint angles.
0 30 60 0 30 60
Fig. 6: Mean offset and SD of skeletal joints for the exercise Lateral Stepping (top row: Kinect 1, bottom row: Kinect 2) as captured at three different viewpoint angles.
0 30 60 0 30 60
Fig. 7: Mean offset and SD of skeletal joints for the exercise Jogging (top row: Kinect 1, bottom row: Kinect 2) as captured at three different viewpoint angles.
0 30 60 0 30 60
Fig. 8: Mean offset and SD of skeletal joints for the exercise Punching (top row: Kinect 1, bottom row: Kinect 2) as captured at three different viewpoint angles.

In order to examine whether Kinect 2 is performing better than Kinect 1, we performed statistical analysis of the accuracy for each of the 20 joints in comparison to the motion capture. We used pair-wise t-test for the joint position analysis. Our hypothesis was that the position of a particular joint is not significantly different between a Kinect and the motion capture. The results of the analysis are shown in Tables III and III where the joints with significant difference are denoted with * symbol when p 0.05 and ** symbol when p 0.01, respectively.

The results of the t-test analyses show that the joint position offsets of the joints ROOT, SPINE, HIP_L, HIP_R, ANK_L, ANK_R, FOO_L, are FOO_R for Kinect 2 have significantly different mean offsets as compared to Kinect 1. The mean joint position offsets of other joints share the same distribution.

Similar conclusions can be drawn for the standing set of exercises (Table III

). For example, the SDs of the joint position offset in Kinect 2 are usually smaller than those of Kinect 1. The variances in the more active joints are typically increasing with the viewpoint angle. Statistically significant differences in the accuracy of Kinect 1 vs. Kinect 2 can be found in the following joints: ROOT, SPINE, HIP_L, HIP_R, ANK_L, ANK_R, FOO_L, and FOO_R. Overall, the means and SDs of the joint position offsets in the standing poses are usually larger than those in the sitting poses. In the sitting poses there are higher number of static joints, which in general have smaller variability.

Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ROOT00footnotetext: * t-test, p 0.05, ** t-test, p 0.01 256 262 263 25 20 25 100 102 106 17 18 16
SPINE 91 97 100 24 20 21 110 117 126 13 14 11
NECK 79 65 62 25 21 23 84 78 73 14 16 14
HEAD 74 70 67 26 21 21 50 51 50 13 15 12
SHO_L 90 89 97 26 24 33 76 76 82 16 24 29
ELB_L 81 86 98 27 29 35 87 103 114 17 28 25
WRI_L 76 90 118 33 48 55 59 84 115 25 53 44
HAN_L 85 106 134 41 60 68 64 95 125 31 60 53
SHO_R 78 74 69 28 24 23 80 83 78 17 20 17
ELB_R 95 93 89 28 38 34 88 77 70 21 25 19
WRI_R 64 93 110 30 53 65 61 64 71 25 28 24
HAN_R 83 113 130 35 65 80 74 71 75 24 28 26
HIP_L 188 200 215 25 20 22 115 122 139 16 17 15
KNE_L 96 95 93 24 24 27 76 95 114 16 18 25
ANK_L 54 77 81 17 25 32 93 103 113 16 18 29
FOO_L 66 74 86 19 26 38 93 105 119 18 25 39
HIP_R 207 210 211 25 21 24 133 128 132 15 18 16
KNE_R 123 118 128 23 23 34 120 117 119 15 17 24
ANK_R 67 75 91 17 21 27 112 122 132 15 19 27
FOO_R 67 74 84 17 20 26 126 134 139 19 20 28
TABLE III: Joint position offsets in standing exercises.
Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ROOT00footnotetext: * t-test, p 0.05, ** t-test, p 0.01 245 256 267 23 25 25 76 81 93 24 19 18
SPINE 79 89 102 22 22 24 112 129 144 17 16 17
NECK 82 91 102 23 24 23 113 129 143 18 16 16
HEAD 89 84 87 30 29 26 79 82 90 26 22 20
SHO_L 76 76 80 33 36 38 68 72 78 29 31 31
ELB_L 98 112 134 46 52 66 112 137 159 37 41 57
WRI_L 85 93 110 56 57 71 66 84 111 47 52 73
HAN_L 85 96 114 62 65 80 77 94 121 49 55 80
SHO_R 76 76 74 30 30 26 96 106 109 26 24 22
ELB_R 98 89 80 38 39 34 96 91 80 33 32 31
WRI_R 80 82 80 43 43 38 78 88 87 33 32 31
HAN_R 85 83 77 46 49 44 81 79 74 33 34 32
HIP_L 186 205 228 28 27 27 106 125 150 23 19 21
KNE_L 101 111 124 33 38 52 107 129 148 26 34 51
ANK_L 119 144 135 43 61 58 135 168 174 33 51 58
FOO_L 115 135 122 42 60 59 130 170 180 33 56 63
HIP_R 188 195 207 25 24 23 103 104 109 25 17 17
KNE_R 105 102 101 31 29 26 115 119 118 26 25 27
ANK_R 111 113 108 38 39 28 146 158 157 32 33 35
FOO_R 97 93 86 36 37 29 146 157 150 32 33 38
TABLE II: Joint position offsets in sitting exercises.

Figs. 6, 6, 8, and 8 demonstrate the means and SDs of the joint position offsets for the exercises Cops & Robbers, Lateral Stepping, Jogging, and Punching, respectively. In the figures, the skeleton in magenta represents one of the key poses in the exercise sequence as captured by the motion capture system. The blue or black lines on the other hand represent the corresponding skeletons generated from the mean joint position offsets that were observed in either Kinect 1 or Kinect 2, respectively. The ellipsoids at each joint denote the SDs in the 3D space, analyzed for each axis of the local coordinate system attached to the corresponding segment. The larger size of the ellipsoid indicates larger SD of the joint position in Kinect compared with the joint position captured by the motion capture.

Such visualization of results provides a quick and intuitive way for comparison of accuracy of different joints. The results show that the overall SDs are larger in Kinect 1 as compared to Kinect 2. The variability of offsets is also increasing with the viewpoint angle. In more dynamic movements, such as Jogging (Fig. 8) and Punching (Fig. 8), the end-points, such as feet and hands, have considerably larger SD with increasing viewpoint angle. Finally, we can observe that certain joints have consistently large offsets from the baseline skeleton, such as ROOT, HIP_L, and HIP_R in Kinect 1 and ANK_L, ANK_R, FOO_L, and FOO_R, in Kinect 2.

The joint position offsets in general depend on various sources of error, such as systematic errors (e.g. offset of hips in Kinect 1), noise from depth computation, occlusions, loss of tracking, etc. In our further analysis, we analyze the error distribution to discriminate between the random errors and the errors due to tracking loss. We expect that the random errors follow Gaussian distribution while the errors due to tracking loss can be treated as outliers belonging to a uniform distribution. As an example, we show the histogram of the joint position offsets for the right elbow and right knee as captured in the exercises Cops & Robbers and Jogging from different viewpoint angles (Figs. 10 and 10, respectively). These two joints are among the more active joints in these two exercises. The histograms demonstrate our assumption about the error distribution where the joint position offsets are mainly concentrated close to zero with a long tail to the right side. In order to determine the outliers in the tracking data, we use a mixture model of a Gaussian distribution and a uniform distribution to approximate the distribution of the joint position offsets, as defined in equation (1). Fig. 11 demonstrates the distribution fitting results for the right elbow in the exercise Cops & Robbers. The results show the mixture model of the Gaussian and uniform distributions overlaid on the data histograms.

0 30 60
Fig. 9: Distribution of joint position offsets for the right elbow in the exercise Cops & Robbers.
0 30 60
Fig. 10: Distribution of joint position offsets for the right knee in the exercise Jogging.
Kinect 1 Kinect 2
Fig. 11: Mixture model fitting into the distribution of joint position offsets for the right elbow in the exercise Cops and Robbers (viewpoint: 60).

After applying the mixture model fitting for each joint independently, we can classify the data into either on-track state or off-track state. Table IV shows the percentage of the average on-track ratio for each joint defined as the ratio between the number of on-track samples and the total number of frames. The results show that in most joints the on-track ratio is above 90%. For the frontal view, the on-track ratio of all the joint is relatively similar. In the viewpoints of 30 and 60, the active joints which are further away from the camera typically have lower ratios than the joints closer to the camera. If all the joints in a frame are on-track, that frame is marked as a valid frame for the data accuracy evaluation. The last row in Table IV summarized the percentage of valid frames. The percentage of valid frames is typically higher for Kinect 2 than Kinect 1. Furthermore, the percentages of valid frames in the viewpoints of 30 and 60 drop by 10% and 15% compared to those in the frontal view, respectively. Finally, in Tables VI and VI we show the mean and SD of the joint position offsets after the removal of outliers.

Sitting (%) Standing (%)
Kinect 1 Kinect 2 Kinect 1 Kinect 2
0 30 60 0 30 60 0 30 60 0 30 60
ROOT 95 97 96 99 98 100 93 97 99 96 99 99
SPINE 96 98 98 99 99 100 95 100 99 97 99 99
NECK 96 98 99 99 99 99 98 98 98 97 99 99
HEAD 96 99 99 100 99 99 97 98 99 97 99 99
SHO_L 96 98 99 99 97 95 97 96 95 97 97 97
ELB_L 98 98 96 99 97 97 96 94 92 97 96 92
WRI_L 97 93 90 99 91 96 97 95 91 97 95 96
HAN_L 97 93 92 97 89 93 96 93 89 97 96 95
SHO_R 97 97 99 99 98 99 98 98 97 98 99 97
ELB_R 98 94 97 99 98 99 97 95 98 98 99 99
WRI_R 98 93 91 99 99 99 99 99 99 98 99 99
HAN_R 97 92 88 99 98 99 98 99 98 98 99 100
HIP_L 96 97 99 99 98 99 95 99 98 95 98 99
KNE_L 96 99 96 98 98 97 97 95 87 97 96 91
ANK_L 99 98 97 98 98 94 94 93 90 96 91 96
FOO_L 99 98 98 97 94 96 95 89 91 96 94 96
HIP_R 94 93 98 99 96 100 94 98 99 98 99 100
KNE_R 97 96 97 98 97 94 97 98 96 97 98 98
ANK_R 99 96 99 97 99 98 94 95 95 97 96 98
FOO_R 99 99 98 96 96 95 96 97 95 97 97 99
Overall 92 81 75 94 84 81 90 79 73 92 82 80
TABLE IV: On-track ratios for Kinect 1 and Kinect 2.

Compared with the results in Tables III and III, both the mean and SD of most joints in Tables VI and VI are reduced since the outliers are excluded from the analysis. Table VII summarized the average reduction of the mean and SD of the joint position offsets after excluding the outliers. The results demonstrate that the data accuracy can be significantly improved by fitting the data into the mixture model.

Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ROOT 00footnotetext: * t-test, p 0.05, ** t-test, p 0.01 251 259 261 15 13 17 100 100 107 14 12 14
SPINE 85 92 96 13 12 14 110 116 128 11 10 11
NECK 73 61 60 14 14 16 84 73 71 12 11 12
HEAD 69 66 63 15 14 15 49 47 50 11 10 11
SHO_L 84 83 92 14 16 24 74 71 78 13 16 23
ELB_L 77 80 92 18 17 22 86 95 109 13 14 19
WRI_L 70 75 111 20 24 29 55 70 109 15 19 26
HAN_L 78 86 123 28 30 38 60 79 117 19 20 28
SHO_R 71 70 68 16 15 16 79 82 77 14 13 15
ELB_R 90 80 83 18 18 22 88 77 71 17 17 17
WRI_R 59 70 89 19 22 30 59 60 71 16 16 18
HAN_R 79 88 105 23 27 35 72 66 75 14 16 19
HIP_L 182 197 214 15 13 15 115 120 138 13 12 14
KNE_L 92 90 86 17 18 19 76 88 104 14 14 20
ANK_L 52 72 75 13 17 21 93 99 107 13 13 18
FOO_L 66 70 81 17 19 27 91 100 110 14 17 27
HIP_R 200 206 210 14 13 16 132 127 133 13 12 13
KNE_R 120 113 123 16 16 25 120 114 111 12 12 16
ANK_R 66 72 88 13 14 20 112 121 127 13 15 18
FOO_R 66 72 81 13 16 18 125 134 133 14 15 19
TABLE VI: Joint position offsets in standing exercises with excluded outliers.
Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ROOT 00footnotetext: * t-test, p 0.05, ** t-test, p 0.01 244 257 267 16 17 20 67 80 91 10 11 12
SPINE 76 87 99 14 16 17 108 130 143 9 10 10
NECK 81 80 84 18 20 19 73 79 88 13 14 15
HEAD 86 87 87 17 19 18 58 73 77 11 12 13
SHO_L 68 67 70 20 23 26 60 64 71 15 18 20
ELB_L 88 100 109 26 32 35 101 125 136 17 18 23
WRI_L 70 77 85 26 29 34 50 66 80 17 20 24
HAN_L 68 78 84 26 31 35 62 78 89 16 17 22
SHO_R 70 72 70 20 23 21 93 107 109 16 16 16
ELB_R 92 83 76 30 31 28 90 86 78 24 22 23
WRI_R 73 74 74 31 29 27 72 85 86 21 18 19
HAN_R 77 74 70 32 33 31 73 73 71 18 18 18
HIP_L 183 203 224 17 19 19 100 124 145 11 11 13
KNE_L 95 103 108 18 23 23 103 122 132 14 15 18
ANK_L 110 130 119 23 28 25 133 157 160 17 19 21
FOO_L 106 120 105 24 31 26 126 156 165 18 23 25
HIP_R 184 196 207 16 17 19 95 102 109 10 10 12
KNE_R 99 98 98 18 19 19 109 121 118 15 17 17
ANK_R 106 107 108 23 23 22 144 161 156 19 20 20
FOO_R 92 85 85 23 23 24 142 157 151 20 20 24
TABLE V: Joint position offsets in sitting exercises with excluded outliers.
Kinect 1 Kinect 2
Mean (%) SD (%) Mean (%) SD (%)
0 30 60 0 30 60 0 30 60 0 30 60
Sitting 5 8 6 35 38 35 2 5 3 23 36 23
Standing 8 7 8 39 36 33 8 5 6 49 46 43
TABLE VII: Average joint position offsets without outliers.

V-B Bone Length Accuracy

Another important parameter for evaluation of Kinect pose tracking performance is the bone length. As mentioned previously, the Kinect tracking algorithm does not specifically pre-define or calibrate for the anthropometric values of the body/bone segments. On the other hand, the human skeleton can be approximated as a kinematic structure with rigid segments, so we expect that the bone lengths should stay relatively constant. The size of the variance (and SD) of the bone length over time can thus be interpreted as a measure of robustness of the extracted kinematic model.

For the Kinect skeleton, we define the bone length as the distance between the positions of two subsequent joints. The bone length for the motion capture is on the other hand determined during the calibration phase and remains constant during the motion sequence. Figs. 12 and 13 show the means and SDs of the bone length difference of Kinect 1 and Kinect 2, respectively, as compared to the bone length calibrated from the motion capture data across all the subjects. The mean bone length difference does not change too much between different exercises. The SDs are typically increasing with larger viewpoint angle. We can observe that the bone lengths in Kinect 1 usually have larger offsets and SDs as compared to Kinect 2, especially for the upper legs due to the large vertical offset of the hip joints.

0 30 60
Fig. 12: Mean bone length differences and the corresponding SDs for the exercise Cops & Robbers as captured by Kinect 1 and Kinect 2 from three different viewpoints.
0 30 60
Fig. 13: Mean bone length differences and the corresponding SDs for the exercise Jogging as captured by Kinect 1 and Kinect 2 from three different viewpoints.

Tables VIII and IX summarize the mean and SD of the bone length differences in Kinect 1 and Kinect 2 in the three viewpoints for sitting and standing exercises, receptively. We can observe that the mean differences in the bone lengths and SDs are smaller in Kinect 2, suggesting that the kinematic structure of its skeleton is more robust.

Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ARM_UP_L 00footnotetext:                              * t-test, p 0.05, ** t-test, p 0.01 -76 -74 -81 17 18 21 -67 -62 -68 14 17 20
ARM_LO_L -46 -40 -32 17 22 27 -39 -30 -24 14 19 23
HAND_L -3 -4 -3 22 19 20 -20 -17 -17 20 24 25
ARM_UP_R -68 -70 -69 17 17 18 -67 -67 -69 15 14 13
ARM_LO_R -37 -30 -29 17 20 21 -35 -28 -30 13 15 16
HAND_R 2 3 3 21 24 24 -15 -13 -9 20 19 17
PELVIC_L -28 -28 -36 6 5 8 -54 -62 -75 3 3 4
LEG_UP_L 49 38 38 30 32 34 9 5 5 16 18 18
LEG_LO_L -90 -100 -81 23 28 31 -80 -79 -75 17 18 21
FOOT_L -13 -4 1 8 10 13 36 38 32 12 14 19
PELVIC_R -29 -33 -41 6 5 7 -52 -47 -49 3 3 4
LEG_UP_R 44 46 53 31 28 31 1 9 18 16 18 18
LEG_LO_R -86 -88 -95 25 26 31 -76 -82 -74 17 19 23
FOOT_R -8 -2 8 7 9 11 41 44 40 12 11 12
TABLE VIII: Mean and SD of the bone length difference, sitting pose
Kinect 1 Kinect 2
Mean (mm) SD (mm) Mean (mm) SD (mm)
0 30 60 0 30 60 0 30 60 0 30 60
ARM_UP_L 00footnotetext:                              * t-test, p 0.05, ** t-test, p 0.01 -60 -62 -65 19 22 23 -54 -54 -51 15 18 20
ARM_LO_L -30 -31 -34 16 18 20 -34 -33 -32 17 17 18
HAND_L -7 -5 0 21 21 23 -32 -32 -27 20 21 23
ARM_UP_R -53 -58 -59 21 19 18 -59 -66 -66 17 14 14
ARM_LO_R -22 -22 -22 17 18 20 -30 -27 -25 18 18 17
HAND_R -1 4 6 23 21 19 -21 -16 -14 19 18 18
PELVIC_L -27 -30 -37 9 7 8 -52 -63 -75 5 5 5
LEG_UP_L 113 119 137 28 33 39 -13 -10 4 19 21 25
LEG_LO_L -64 -66 -65 29 29 31 -79 -85 -86 21 23 25
FOOT_L -6 -1 2 9 12 12 43 42 34 9 12 14
PELVIC_R -28 -34 -41 7 6 8 -47 -44 -44 7 4 5
LEG_UP_R 103 115 128 29 27 29 -25 -18 -6 18 18 20
LEG_LO_R -61 -57 -58 26 25 25 -79 -79 -77 20 20 20
FOOT_R -2 1 4 8 9 10 48 45 32 9 11 16
TABLE IX: Mean and SD of the bone length difference, standing pose

V-C Summary of Findings

Based on the experimental results reported in this paper, we can make the following observations:

  • [leftmargin=*]

  • As reported by other researchers, the hip joints in Kinect 1 are located much higher than normal with the offset of about 200 mm. The offsets should be considered when calculating knee and hip angles, in particular in sitting position. On the other hand, the skeleton in Kinect 2 is in general more anthropometric with smaller offsets.

  • The foot and ankle joints of Kinect 2 are offset from the ground plane for about 100 mm or more. The orientation of the feet is thus unreliable. Once the foot is lifted off the ground, the tracking of the joints is more accurate. The unreliable foot position may be originating from ToF artifacts that generate large amounts of noise close to large planar surfaces.

  • Overall accuracy of joint positions in Kinect 2 is better than in Kinect 1, except the location of feet. The average offsets are typically between 50 mm and 100 mm.

  • The analysis of the distribution mixture shows that Kinect 2 has smaller uniform distribution component (i.e. less outliers) suggesting that the tracking of joints is more robust. Kinect 2 also tracks human movement more reliably even with partial body occlusions.

  • The difference and variance of the actual limb lengths are smaller in Kinect 2 than in Kinect 1.

  • The skeleton tracking in Kinect 2 has much smaller latency as compared to Kinect 1 which is noticeable especially during fast actions (e.g. exercises Jogging and Punching).

Vi Conclusion

In this paper, we compared the human pose estimation for the first and second generations of Microsoft Kinect with standard motion capture technology. The results of our analysis showed that overall Kinect 2 has better accuracy in joint estimation while providing skeletal tracking that is more robust to occlusions and body rotation. Only the lower legs were tracked with large offsets, possibly due to ToF artifacts. This phenomena was not observed in Kinect 1 which employs structured light for depth acquisition. For Kinect 1, the largest offsets were observed in the pelvic area as also noted by others. Our analyses show that Kinect 1 can be exchanged with Kinect 2 for majority of motions. Furthermore, by applying a mixture of Gaussian and uniform distribution models we were able to evaluate the robustness of the pose tracking. We showed that the SDs of the joint positions can be reduced by 30% to 40% by employing the classification with a mixture distribution model. This finding suggests that by excluding the outliers from the data and compensating for the offsets, more accurate human motion analysis can be achieved.

References
