Evaluating Explainable AI: Which Algorithmic Explanations Help Users Predict Model Behavior?

05/04/2020 ∙ by Peter Hase, et al. ∙ University of North Carolina at Chapel Hill 98

Algorithmic approaches to interpreting machine learning models have proliferated in recent years. We carry out human subject tests that are the first of their kind to isolate the effect of algorithmic explanations on a key aspect of model interpretability, simulatability, while avoiding important confounding experimental factors. A model is simulatable when a person can predict its behavior on new inputs. Through two kinds of simulation tests involving text and tabular data, we evaluate five explanations methods: (1) LIME, (2) Anchor, (3) Decision Boundary, (4) a Prototype model, and (5) a Composite approach that combines explanations from each method. Clear evidence of method effectiveness is found in very few cases: LIME improves simulatability in tabular classification, and our Prototype method is effective in counterfactual simulation tests. We also collect subjective ratings of explanations, but we do not find that ratings are predictive of how helpful explanations are. Our results provide the first reliable and comprehensive estimates of how explanations influence simulatability across a variety of explanation methods and data domains. We show that (1) we need to be careful about the metrics we use to evaluate explanation methods, and (2) there is significant room for improvement in current methods. All our supporting code, data, and models are publicly available at: https://github.com/peterbhase/InterpretableNLP-ACL2020



There are no comments yet.


page 2

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Interpretable machine learning is now a widely discussed topic Rudin (2019); Doshi-Velez and Kim (2017); Lipton (2016); Gilpin et al. (2018). While survey papers have not converged on definitions of “explainable” or “interpretable,” there are some common threads in the discourse. Commentators observe that interpretability is useful for achieving other model desiderata, which may include building user trust, identifying the influence of certain variables, understanding how a model will behave on given inputs, and ensuring that models are fair and unbiased.

In their review, Doshi-Velez and Kim (2017) outline an approach to measuring interpretability. They describe two human-subject tasks that test for a particularly useful property: simulatability. A model is simulatable when a person can predict its behavior on new inputs. This property is especially useful since it indicates that a person understands why a model produces the outputs it does. The first of the two tasks is termed forward simulation: given an input and an “explanation,” users must predict what a model would output for the given input. The second is counterfactual simulation: users are given an input, a model’s output for that input, and an “explanation” of that output, and then they must predict what the model will output when given a perturbation of the original input. The explanation itself is algorithmically generated by a method for interpreting or explaining a model. Simulation tests have been carried out before, but no study to date has isolated the effect of explanations on simulatability Ribeiro et al. (2018); Chandrasekaran et al. (2018); Nguyen (2018); Bang et al. (2019).

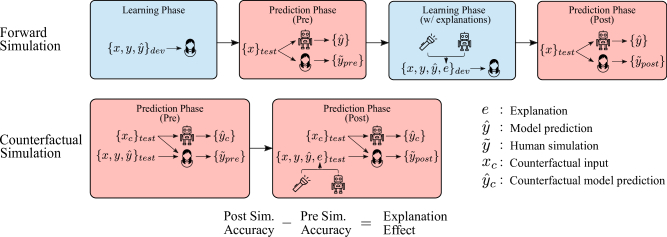

Figure 1: Forward and counterfactual simulation test procedures. We measure human users’ ability to predict model behavior. We isolate the effect of explanations by first measuring baseline accuracy, then measuring accuracy after users are given access to explanations of model behavior. In the forward test, the explained examples are distinct from the test instances. In the counterfactual test, each test instance is a counterfactual version of a model input, and the explanations pertain to the original inputs.

We carry out simulation tests that are the first to incorporate all of the following design choices: (1) separating explained instances from test instances, so explanations do not give away the answers, (2) evaluating the effect of explanations against a baseline of unexplained examples, (3) balancing data by model correctness, so users cannot succeed by guessing the true label, and (4) forcing user predictions on all inputs, so performance is not biased toward overly specific explanations. We display our study design in Figure 1.

We provide results from high-quality human user tests (with over 2100 responses) that include both forward and counterfactual simulation tasks. Through these tests, we measure explanation effectiveness for five methods across text and tabular classification tasks. Our evaluation includes two existing explanation techniques, LIME and Anchor Ribeiro et al. (2016, 2018), and we translate two other explanation methods from image recognition models to work with our textual and tabular setups. The first of these is a latent space traversal method, which we term the Decision Boundary approach Joshi et al. (2018); Samangouei et al. (2018), and the second is a case-based reasoning method, which we term the Prototype method Chen et al. (2019). The final method is a novel Composite approach that combines complementary explanations from each method. Lastly, we also collect subjective, numerical user ratings of explanation quality. Our key findings are:

  1. [nosep, wide=0pt, leftmargin=*, after=]

  2. LIME improves forward and counterfactual simulatability in our tabular classification task.

  3. Prototype improves counterfactual simulatability across textual and tabular data domains.

  4. No method definitively improves forward and counterfactual simulatability together on the text task, though our Prototype and Composite methods perform the best on average.

  5. It appears that users’ quality ratings of explanations are not predictive of how helpful the explanations are with counterfactual simulation.

  6. While users rate Composite explanations as among the best in quality, these combined explanations do not overtly improve simulatability in either data domain.

2 Background and Related Work

2.1 What Does “Interpretable” Mean?

Survey papers use key terms in varying ways. Rudin (2019) draws a distinction between interpretability and explainability, suggesting that a model is interpretable if it performs computations that are directly understandable. Post-hoc explanations, on the other hand, are potentially misleading approximations of the true computations. Gilpin et al. (2018) also distinguish between the two concepts, though they define them differently.

In this paper, we do not distinguish between interpretability and explainability. Rather, we adopt the conceptual framework of Doshi-Velez and Kim (2017), who consider interpretability in terms of downstream desiderata one can assess models with respect to. Our terminology is as follows: we will say that explanation methods may improve the interpretability of a model, in the sense that an interpretable model is simulatable.

2.2 Explanation Methods

Several taxonomies have been proposed for categorizing methods for interpretability. We organize methods below into the categories of: feature importance estimation, case-based reasoning, and latent space traversal.

Feature Importance Estimation.  Feature importance estimates provide information about how the model uses certain features. Most prominent among these methods are the gradient-based approaches first introduced for vision by Simonyan et al. (2014), which Li et al. (2016) show may be translated for use with text data. These approaches have since been demonstrated to sometimes behave in counterintuitive ways Adebayo et al. (2018); Kim et al. (2018). A number of alternative methods have been proposed for quantifying feature importance across data domains Kim et al. (2018); Lundberg and Lee (2017); Sundararajan et al. (2017). In our study, we choose to evaluate two domain-agnostic approaches, LIME and Anchor Ribeiro et al. (2016, 2018). These methods use simple models, i.e. sparse linear models and rule lists, to approximate complex model behavior locally around inputs. They show the estimated effects of directly interpretable features on the model’s output. For these methods, what is “local” to an input is defined in a domain-specific manner via a perturbation distribution centered on that input.

Case-based Reasoning.

 Prototype models classify new instances based on their similarity to other known cases. Two works on prototype models for computer vision introduced neural models that learn prototypes corresponding to parts of images

Chen et al. (2019); Hase et al. (2019). These prototypes are used to produce classifier features that are intended to be directly interpretable.

Latent Space Traversal.  These methods traverse the latent space of a model in order to show how the model behaves as its input changes. In a classification setting, crossing the decision boundary may reveal necessary conditions for a model’s prediction for the original input. Several methods exist for vision models Joshi et al. (2018); Samangouei et al. (2018). To our knowledge no such approach exists for discriminative models of text and tabular data, so we develop a simple method for these kinds of models (described in Section 3.4).

2.3 Evaluating Interpretability

Here we discuss works involving automatic and human evaluations of interpretability, as well as how we improve on past simulation test design. While human evaluations are useful for evaluating many aspects of interpretability, we restrict our discussion to works measuring simulatability.

Improving Forward Test Design.  Forward simulation tasks have been implemented in many different forms, and there is a serious need for consensus on proper procedure here. Doshi-Velez and Kim (2017) originally propose that users predict model behavior, given an input and an explanation. With many explanation methods, this is a trivial task because the explanations directly reveal the output

. For example, LIME gives a predicted probability that indicates the model behavior with high likelihood. We make a number of experimental design choices that give us more reliable estimates of method effectiveness than past studies. (1) We separate the explained instances from the test instances, to prevent explanations from giving away the answers. In three studies, the same data points were used as both explanation and prediction items

Nguyen (2018); Chandrasekaran et al. (2018); Bang et al. (2019). (2) We evaluate the effect of explanations against a baseline where users see the same example data points without explanations. No prior evaluation includes this control. (3) Two choices further distinguish our test from that of Ribeiro et al. (2018). We balance data by model correctness, so users cannot succeed simply by guessing the true label, and we force user predictions on every input, so our metrics do not favor overly niche explanations.

Counterfactual Simulatability.  Counterfactual simulatability has, to our knowledge, never been measured for machine learning models. While Doshi-Velez and Kim (2017) propose asking users to edit inputs in order to change the model outputs, we instead ask users to predict model behavior on edited versions of data points, as this approach is more scalable than soliciting creative responses.

Relation to Automatic Tests.  Prior works have proposed automatic metrics for feature importance estimates Nguyen (2018); Hooker et al. (2019); DeYoung et al. (2020). Typically these operate by checking that model behavior follows reasonable patterns on counterfactual inputs constructed using the explanation, e.g., by masking “important” features and checking that a class score drops. Whereas automatic metrics define appropriate model behavior in advance for counterfactual instances generated by a fixed schema, we present a random counterfactual to a human and elicit their prediction of model behavior for that instance. This allows for human validation of model behavior in a broader range of input scenarios than an automatic procedure, where human expectations are given in response to diverse and concrete examples rather than dictated in advance.

Figure 2: Explanation methods applied to an input from the test set of movie reviews.

Subjective Ratings.  Hutton et al. (2012)

measure user judgments of whether word importance measures explain model behavior in a text classification setting. Our rating task is thus similar to theirs; our changes are that we evaluate with a Likert scale rather than forced ranking, using explanation techniques for neural models rather than word importance estimates from a naive Bayes classifier. In another study, users judged image classification explanations on a Likert scale ranging from “no explanation” to “concise explanation”

Bang et al. (2019). Whereas this scale focuses on conciseness, we ask users to rate how explanations reveal reasons for model behavior.

3 Explanation Methods

In this section, we describe the explanation methods. Example explanations for a test movie review are shown in Figure 2. We limit our discussion of LIME and Anchor, since details for these methods can be found in the original papers. Note that LIME, Anchor, and our Decision Boundary method can be used with arbitrary blackbox models. The Prototype method is itself a neural model that also produces an explanation.

3.1 Lime

Ribeiro et al. (2016) present LIME as a local linear approximation of model behavior. With a user-specified feature space, a linear model is fit to the blackbox outputs on samples from a distribution around an input. We set the number of features to use to 5, and we take class probabilities as our model output. When showing LIME explanations to users, we give them the selected features with estimated weights, the model intercept, the sum of model weights, and the predicted model output.

3.2 Anchor

Ribeiro et al. (2018) introduce a method for learning rule lists that predict model behavior with high confidence. With samples from a distribution around an input, they use a PAC learning approach to obtain a rule list. When the rules apply to an input, there is a high probability it will receive the same prediction as the original. The feature space of the rule list is specified by the user. As in the original work, we use individual tokens for our text data, and we use the same learning parameters for each Anchor explanation.

3.3 Prototype Model

Prototype models have previously been used for interpretable computer vision Chen et al. (2019); Hase et al. (2019)

. We develop a prototype model for use with text and tabular classification tasks. In our model, a neural network

maps inputs to a latent space, and the score of class is:


is a similarity function for vectors in the latent space, and

is the set of protoype vectors for class . We choose the Gaussian kernel for our similarity function: . The model predicts inputs to belong to the same class as the prototype they’re closest to in the latent space. Unlike in Chen et al. (2019), we take the max activation to obtain concise explanations.

In lieu of image heatmaps, we provide feature importance scores. What distinguishes these scores from those of standard feature importance estimates is that the scores are prototype-specific, rather than class-specific. We choose a feature omission approach for estimation. With text data, omission is straightforward: for a given token, we take the difference in function output between the original input and the input with that token’s embedding zeroed out. In the tabular domain, however, variables can never take on meaningless values. To circumvent this problem, we take the difference between the function value at the original input and the expected

function value with a particular feature missing. The expectation is computed with a distribution over possible values for a missing feature, which is provided by a multinomial logistic regression conditioned on the remaining covariates.

When presenting prototype explanations, we provide users with the predicted class score, most similar prototype, and top six feature importance scores, provided that score magnitudes meet a small threshold. In the explanation in Figure 2, no scores meet this threshold. We set the size of to 40 for our text classification task and 20 for our tabular classification task. For further training and feature importance details, see the Appendix.

3.4 Decision Boundary

Joshi et al. (2018) and Samangouei et al. (2018) introduce techniques for traversing the latent spaces of generative image models. Their methods provide paths that start at input data points and cross a classifier’s decision boundary. Such methods may help users see the necessary conditions for the model prediction.

We provide a simple method for traversing the latent space of a discriminative classifier (see example in Figure 2). Our algorithm first samples around the original input to get instances that cross the decision boundary. A counterfactual input is chosen from these by taking the instance with the fewest edited features (tokens or variables), while breaking ties using the Euclidean distance between latent representations. Lastly, we provide a path between inputs by greedily picking the edit from the remaining edits that least changes the model’s evidence margin, which is the difference between positive and negative class scores. The explanations we present to users include the input, steps to the counterfactual input, and evidence margin at each step. When the path is longer than four steps, we show only the last four.

3.5 Composite Approach

We hypothesize that the above explanations provide complementary information, since they take distinct approaches to explaining model behavior. Hence, we test a Composite method that combines LIME and Anchor with our decision boundary and prototype explanations. We make two adjustments to methods as we combine them. First, we show only the last step of each decision boundary explanation, i.e., the set of changes that flips the prediction. Second, we train our prototype model with its feature extraction layers initialized from the neural task model and thereafter fixed. We do so since we are interested in explaining the task model behavior, and this tactic yields prototypes that reflect characteristics of the task model.

Text Tabular
Method Pre Change CI Pre Change CI
User Avg. 1144 62.67 - - 1022 70.74 - -
LIME 190 - 0.99 .834 179 - 11.25 .014
Anchor 181 - 1.71 .704 215 - 5.01 .234
Prototype 223 - 3.68 .421 192 - 1.68 .711
DB 230 -

.756 182 - 5.27 .271
Composite 320 - 3.80 .486 254 - 0.33 .952
Table 1:

Change in user accuracies after being given explanations of model behavior, relative to the baseline performance (Pre). Data is grouped by domain. CI gives the 95% confidence interval, calculated by bootstrap using

user responses, and we bold results that are significant at a level of . LIME improves simulatability with tabular data. Other methods do not definitively improve simulatability in either domain.
Forward Simulation Counterfactual Simulation
Method Pre Change CI Pre Change CI
User Avg. 1103 69.71 - - 1063 63.13 - -
LIME 190 - 5.70 .197 179 - 5.25 .309
Anchor 199 - 0.86 .869 197 - 5.66 .140
Prototype 223 -

.566 192 - 9.53 .032
DB 205 -

.876 207 - 2.48 .667
Composite 286 -

.618 288 - 7.36 .122
Table 2: Change in user accuracies after being given explanations of model behavior, relative to the baseline performance (Pre). Data is grouped by simulation test type. CI gives the 95% confidence interval, calculated by bootstrap using user responses. We bold results that are significant at the level. Prototype explanations improve counterfactual simulatability, while other methods do not definitively improve simulatability for one test.

4 Experimental Design

In this section, we describe our datasets, task models, user pool, and experimental design.

4.1 Data and Task Models

We perform experiments for classification tasks with text and tabular data. The first dataset consists of movie review excerpts (Pang et al., 2002). The dataset includes 10,662 reviews with binary sentiment labels, which we split into partitions of 70%, 10%, and 20% for the train, validation, and test sets, respectively. We use the same neural architecture as in Yang et al. (2016), limited to use with single sentences. The second dataset is the tabular Adult data from the UCI ML repository Dua and Graff (2017). This dataset contains records of 15,682 individuals, and the label is whether their annual income is more than $50,000. We use the same data processing scheme and neural network architecture as Ribeiro et al. (2018). Model accuracies are given in the Appendix.

4.2 User Pool

We gathered over 2100 responses via in-person tests with 32 trained undergraduates who had taken at least one course in computer science or statistics.222We require this advanced background because explanations rely on conditional probabilities, approximations of probabilities, and other quantitative concepts. Each user was randomly assigned to one of the ten conditions corresponding to our dataset-method pairs. Once each condition had at least 3 full tests collected, we allocated remaining participants to the Composite method. In order to ensure high quality data, we employed a screening test to check for user understanding of their explanation method and test procedure. Two participants were screened out due to low scores. We also excluded data from a user whose task completion time was extremely low. We paid all users $15 USD per hour. Ten users were tested again with a new dataset and explanation method, giving us a total of 39 user tests. Some users had to exit the experiment before finishing all of the tasks; for data analysis purposes, we consider only task items answered in both Pre and Post test phases.

4.3 Simulation Tests

We collect forward test and counterfactual test responses in total.

Text Ratings Tabular Ratings
Method CI CI
LIME 144 130
Anchor 133 175
Prototype 191 144
DB 224 144
Composite 240 192
Table 3:

User simulatability ratings by data domain, on a scale of 1 to 7. The mean and standard deviation for ratings are given by

and . The 95% confidence interval for the mean is given by CI, as calculated by bootstrap.

Forward Simulation.  This test is represented in Figure 1. The test is split into four phases: a learning phase, a Pre prediction phase, a learning phase with explanations, and a Post prediction phase. To begin, users are given 16 examples from the validation set with labels and model predictions but no explanations. Then they must predict the model output for either 16 or 32 new inputs, with the number chosen based on user time constraints. Users are not allowed to reference the learning data while in prediction phases. Next, they return to the same learning examples, now with explanations included. Finally, they predict model behavior again on the same instances from the first prediction round. By design, any improvement in user performance in the Post prediction phase is attributable only to the addition of explanations. We show a screenshot of the user testing interface in the Appendix.

Counterfactual Simulation.  Represented in Figure 1, this test requires users to predict how a model will behave on a perturbation of a given data point. The test consists of Pre and Post prediction rounds, where the only difference between them is the addition of explanations. In both rounds, we provide users with the same 32 inputs from the test dataset (or 16 due to time constraints), their ground truth labels, the model’s prediction, and a perturbation of the input. See the Appendix for a description of the perturbation generation algorithm. Users then predict model behavior on the perturbations. In the Post round, users are given the same data, but they are also equipped with explanations of the model predictions for the original inputs. Therefore, any improvement in performance is attributable to the addition of explanations.

Data Balancing.  One critical aspect of our experimental design is our data balancing. We aim to prevent users from succeeding on our tests simply by guessing the true label for every instance. To do so, we ensure that true positives, false positives, true negatives, and false negatives are equally represented in the inputs. Likewise, for the counterfactual test, we sample perturbations such that for any instance, there is a 50% chance that the perturbation receives the same prediction as the original input. We confirm user understanding of the data balancing in our screening test.

Data Matching.  Within each data domain, all users receive the same data points throughout the experiment. This design controls for any differences in the data across conditions and users, though this does reduce the information added by each test, making our confidence intervals relatively wide given the same sample size. We also match data across prediction rounds in order to control for the influence of particular data points on user accuracy between the Pre and Post phases.

4.4 Subjective Simulatability Ratings

Users see explanations in two phases of the tests: the second learning phase in the forward test, and the Post phase of the counterfactual test. In these stages, we ask users to give subjective judgments of the explanations. They rate each method on a 7 point Likert scale, in response to the question, “Does this explanation show me why the system thought what it did?” We explain that users should give higher ratings when the explanation shows the reasons for a model prediction, regardless of whether or not the prediction is correct.

5 Results

We report data from a total of 2166 responses from 39 user tests. Each test is for a method and data domain pair, and contains either 16 or 32 task items, with some missingness due to users exiting the study early. In the results to follow, we use the term Change to refer to our estimate of explanation effectiveness: the difference in user accuracy across prediction phases in simulation tests. We perform two-sided hypothesis tests for this quantity by a block bootstrap, resampling both users and unique task items within each condition Efron and Tibshirani (1994). In addition, since users complete the first prediction round in either simulation test without access to explanations, we estimate the mean Pre accuracy for each method with a random effects model. This allows us to share information across methods to yield more precise estimates of test performance.

Below, we analyze our experimental results and answer three questions: 1) Do explanations help users? 2) How do users rate explanations? 3) Can users predict explanation effectiveness?

5.1 Do explanations help users?

We show simulation test results in Tables 1 and 2. In Table 1, we group results by data domain, and in Table 2, we group results by test type.

Our principal findings are as follows:

  1. [nosep, wide=0pt, leftmargin=*, after=]

  2. LIME with tabular data is the only setting where there is definitive improvement in forward and counterfactual simulatability. With no other method and data domain do we find a definitive improvement across tests.

  3. Even with combined explanations in the Composite method, we do not observe definitive effects on model simulatability.

  4. Interestingly, our prototype method does reliably well on counterfactual simulation tests in both data domains, though not forward tests. It may be that the explanations are helpful only when shown side by side with inputs.

These results suggest that: (1) many explanation methods may not noticeably help users understand how models will behave, (2) methods that are successful in one domain might not work equally well in another, (3) combining information from explanations does not result in overt improvements in simulatability. Yet, given our wide confidence intervals, these results should be considered cautiously. It may also be that other methods do in fact improve simulatability, but we have not precisely estimated this. For example, our Prototype and Composite methods do the best on average with text data, though we cannot be confident that they improve simulatability.

Note that estimates of explanation effectiveness could be influenced by users simply regressing to the mean accuracy between prediction rounds. We find that our primary results are not skewed by this phenomenon: the highest estimates of Change in each data domain and test type come from conditions where mean Pre test performance was either above the overall mean or, in one case, within 1.15 percentage points. This potential problem is further mitigated by our random effects model of Pre test performance, which pulls low Pre test means toward the overall mean.

5.2 How do users rate explanations?

It seems that, as intended, users rated explanations based on quality rather than model correctness, as we observe no significant difference in ratings grouped by model correctness (table in Appendix). In Table 3, we show user ratings for each method and data domain.

We observe that: 1) ratings are generally higher for tabular data, relative to text data, 2) the Composite and LIME methods receive the highest ratings in both domains, and 3) variance in explanation ratings is quite high, relative to their scale.

5.3 Can users predict explanation effectiveness?

We answer this question by measuring how explanation ratings relate to user correctness in the Post phase of the counterfactual simulation test. In this phase, users rate explanations of model predictions for an original input and predict model behavior for a perturbation of that input. If ratings of explanation quality are a good indicator of their effectiveness, we would expect to see that higher ratings are associated with user correctness.

We do not find evidence that explanation ratings are predictive of user correctness. We estimate the relationship via logistic regression with user correctness and ratings. We test models with both absolute ratings and ratings normalized within users, since ratings lack an absolute scale between users. With 640 text data points, we estimate with 95% confidence that moving from a rating of 4 to 5 is associated with between a and percentage point change in expected user correctness. Using normalized ratings, we find that moving from the mean explanation rating to the first standard deviation is associated with between a and percentage point change. With 515 tabular data points, we estimate that a change in rating from 4 to 5 is associated with between a and percentage point change in expected user correctness. Of course, we have not shown that there is no association. Yet it’s important to note that if there is no relationship between user ratings and simulatability, then simply querying humans about explanation quality will not provide a good indication of true explanation effectiveness.

6 Qualitative Analysis

When do explanations succeed at improving user accuracy, and when do they fail at doing so? Below, we present example counterfactual test items, and we analyze how the explanations may have pointed to the reasons for model behavior.

6.1 Explanation Success Example

For the example below, 5 of 6 Post test responses for Prototype and LIME were correct that the model output did not change for the counterfactual, up from 3 of 6 in the Pre test.

Original (

): “Pretty much sucks, but has a funny moment or two.”

Counterfactual (): “Mostly just bothers, but looks a funny moment or two.”

LIME identifies “funny” and “moment” as positive words, with weights adding to after including the baseline. The notable negative word is “sucks” (), which changes to a similar word (“bothers”). All together, LIME suggests the prediction would stay the same since the positive words are unaffected and the only important negative word has a similar substitute.

The Prototype model gives the most activated prototype: “Murders by Numbers isn’t a great movie, but it’s a perfectly acceptable widget.” It identifies “but” and “funny” as important words for the prototype’s activation. The counterfactual is still similar to the prototype in key ways, suggesting the prediction would not change.

6.2 Explanation Failure Example

For the item below, only 7 of 13 responses were correct after seeing explanations, with no method improving correctness relative to the Pre test accuracy. Users needed to predict that the model prediction changed to negative for the counterfactual.

Original (): “A bittersweet film, simple in form but rich with human events.”

Counterfactual (): “A teary film, simple in form but vibrant with devoid events.”

Anchor gives one word as a condition for the original positive prediction: “bittersweet.” But what happens when “bittersweet” changes to “teary”? The Anchor explanation does not actually apply to this counterfactual scenario, as its probabilistic description of model behavior is conditioned on the word bittersweet being present.

LIME gives five words, each with small weights (), while the baseline is . This suggests that LIME has failed to identify features of the input that are necessary to the model output. Among these five words are the three that changed between sentences, but we would not suspect from their weights that the changes made in the counterfactual would flip the model output.

Decision Boundary gives a counterfactual input with a negative prediction: “A sappy film, simple in link but unique with human events.” However, it is difficult to tell whether this counterfactual sentence is similar in decision-relevant ways to the proposed counterfactual sentence.

The Prototype model gives the activated prototype for the original prediction: “Watstein handily directs and edits around his screenplay’s sappier elements…and sustains Off the Hook’s buildup with remarkable assuredness for a first-timer.” No important words are selected. We are left without a clear sense of why this was the most similar prototype and what circumstances would lead to the model output changing.

These examples reveal areas for improvement in explanations. Better methods will need to distinguish between sufficient and necessary factors in model behavior and clearly point to the ways in which examples share decision-relevant characteristics with new inputs. Further, they must do so in the appropriate feature space for the problem at hand, especially for models of complex data.

7 Discussion

Forward Tests Stretch User Memory.  We show users 16 examples during learning phases but do not allow them to reference the learning data during prediction phases. Reasonably, some users reported that it was difficult to retain insights from the learning phase during later prediction rounds.

Generating Counterfactual Inputs.  It may be difficult to algorithmically construct counterfactual inputs that match the true data distribution, especially when seeking to change the model prediction. Our text counterfactuals are regularly out of the data distribution, in the sense that no real movie review would exhibit the word choice they do. We still consider these inputs to be of interest, for the reason that a model will handle such inputs in some manner, and we aim to assess all possible model behaviors in our analysis.

Fair Comparison of Explanation Methods.  In our forward simulation treatment phases, we provide users with 16 explained instances and allow them to read at their own pace. We control for the number of data points between methods, but one could instead control for user exposure time or computation time of explanation generation. Further, for LIME and Anchor, there are approaches for efficiently covering the space of inputs with a limited budget of examples Ribeiro et al. (2018). We opt not to use them since 1) they are not applicable to the Decision Boundary and Prototype methods, which lack a similar notion of coverage, and 2) it is not clear whether these approaches are useful for text data. It may be that when using such approaches, LIME and Anchor perform better on forward simulation tasks.

8 Conclusion

Simulatability metrics give a quantitative measure of interpretability, capturing the intuition that explanations should improve a person’s understanding of why a model produces its outputs. In this paper, we evaluated five explanation methods through simulation tests with text and tabular data. These are the first experiments to fully isolate the effect of algorithmic explanations on simulatability. We find clear improvements in simulatability only with LIME for tabular data and our Prototype method in counterfactual tests. It also appears that subjective user ratings of explanation quality are not predictive of explanation effectiveness in simulation tests. These results suggest that we must be careful about the metrics we use to evaluate explanation methods, and that there is significant room for improvement in current methods.


We thank the reviewers for their helpful feedback and our study users. This work was supported by NSF-CAREER Award 1846185, DARPA MCS Grant N66001-19-2-4031, a Royster Society PhD Fellowship, and Google and AWS cloud compute awards. The views contained in this article are those of the authors and not of the funding agency.


  • J. Adebayo, J. Gilmer, M. Muelly, I. Goodfellow, M. Hardt, and B. Kim (2018) Sanity checks for saliency maps. In Proceedings of the 32nd International Conference on Neural Information Processing Systems, External Links: Link Cited by: §2.2.
  • S. Bang, P. Xie, H. Lee, W. Wu, and E. Xing (2019) Explaining a black-box using Deep Variational Information Bottleneck Approach. arXiv:1902.06918 [cs, stat]. Note: arXiv: 1902.06918 External Links: Link Cited by: §1, §2.3, §2.3.
  • A. Chandrasekaran, V. Prabhu, D. Yadav, P. Chattopadhyay, and D. Parikh (2018) Do explanations make VQA models more predictable to a human?. In

    Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing

    Brussels, Belgium, pp. 1036–1042. External Links: Link, Document Cited by: §1, §2.3.
  • C. Chen, O. Li, C. Tao, A. J. Barnett, J. Su, and C. Rudin (2019)

    This Looks Like That: Deep Learning for Interpretable Image Recognition

    In Proceedings of the 33rd International Conference on Neural Information Processing Systems, Note: Comment: Chaofan Chen and Oscar Li contributed equally to this work External Links: Link Cited by: §1, §2.2, §3.3.
  • J. DeYoung, S. Jain, N. F. Rajani, E. Lehman, C. Xiong, R. Socher, and B. C. Wallace (2020) ERASER: a benchmark to evaluate rationalized nlp models. In Proceedings of the 58th Annual Meeting of the Association for Computational Linguistics (ACL 2020), External Links: Link, arXiv:1911.03429 Cited by: §2.3.
  • F. Doshi-Velez and B. Kim (2017) Towards A Rigorous Science of Interpretable Machine Learning. arXiv:1702.08608 [cs, stat]. Note: arXiv: 1702.086082017 def. Interpret means to explain or to present in understandable terms
  • (24) confirming other desiderata 1. fairness 2. robustness 3. causlity 4. usable 5. trusted incompleteness (of problem formulation) 1. scientific understanding 2. safety 3. ethics 4. mismatched objectives 5. multi-objective tradeoffs taxonomy 1. application grounded 2. human-grounded 3. functionally-grounded experiments (human grounded) 1. pick which of two explanations for a prediction is better 2. forward simulation: predict the prediction given input and explanation 3. counterfactual simulation: humans are presented with explanation, input, and output, and must identify the changes necessary to adjust the model output task-related dimensions of interpretability 1. global vs. local 2. area, severity of incompleteness 3. time constraints 4. user expertise method-related dimensions of interpretability 1. form of cognitive chunks 2. number of cognitive chunks 3. level of compositionality 4. monotonicity and interactions between chunks 5. uncertainty and stochasticity design questions 1. how is the problem formulation incomplete 2. at what level is the evaluation being performed? 3. what are task-related relevant factors 4. what are method-related relevant factors?
  • External Links: Link Cited by: §1, §1, §2.1, §2.3, §2.3.
  • D. Dua and C. Graff (2017) UCI machine learning repository. University of California, Irvine, School of Information and Computer Sciences. External Links: Link Cited by: §4.1.
  • B. Efron and R. J. Tibshirani (1994) An introduction to the bootstrap. CRC press. Cited by: §5.
  • L. H. Gilpin, D. Bau, B. Z. Yuan, A. Bajwa, M. Specter, and L. Kagal (2018) Explaining Explanations: An Overview of Interpretability of Machine Learning.

    The 5th IEEE International Conference on Data Science and Advanced Analytics (DSAA 2018)

    Note: Comment: The 5th IEEE International Conference on Data Science and Advanced Analytics (DSAA 2018). [Research Track] External Links: Link Cited by: §1, §2.1.
  • P. Hase, C. Chen, O. Li, and C. Rudin (2019) Interpretable Image Recognition with Hierarchical Prototypes. In Proceedings of the Seventh AAAI Conference on Human Computation and Crowdsourcing (HCOMP-19), pp. 32–40. External Links: Link Cited by: §2.2, §3.3.
  • S. Hooker, D. Erhan, P. Kindermans, and B. Kim (2019) A benchmark for interpretability methods in deep neural networks. In Proceedings of the 33rd International Conference on Neural Information Processing Systems, External Links: Link, arXiv:1806.10758 Cited by: §2.3.
  • A. Hutton, A. Liu, and C. Martin (2012) Crowdsourcing Evaluations of Classifier Interpretability. In AAAI Spring Symposium: Wisdom of the Crowd, pp. 21–26 (en). Cited by: §2.3.
  • S. Joshi, O. Koyejo, B. Kim, and J. Ghosh (2018) xGEMs: Generating Examplars to Explain Black-Box Models. arXiv:1806.08867 [cs, stat]. Note: arXiv: 1806.08867 External Links: Link Cited by: §1, §2.2, §3.4.
  • B. Kim, M. Wattenberg, J. Gilmer, C. Cai, J. Wexler, F. Viegas, and R. Sayres (2018) Interpretability Beyond Feature Attribution: Quantitative Testing with Concept Activation Vectors (TCAV). In Proceedings of the 35th International Conference on Machine Learning, External Links: Link Cited by: §2.2.
  • J. Li, X. Chen, E. Hovy, and D. Jurafsky (2016) Visualizing and Understanding Neural Models in NLP. In Proceedings of the 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pp. 681–691. Note: notes saliency maps on text to highlight compositionality of negation, intesnfication, and concessive clauses
  • (17)

    saliency maps in NLP Li 2016 how important is a particular word to an overall sentence classification? approximate the logit for a class as a linear function of the word embedding, actually the first order taylor expansion saliency = scalar norm of the gradient of class logit wrt a word embedding saliency is ”how does the logit change if there were ’more’ or ’less’ of this word” – NOT how does the logit change if this word was another word (gradient wrt full one hot vector), or how does the logit change given a change in the sense of this word (gradient wrt embedding)

  • External Links: Link, Document Cited by: §2.2.
  • Z. C. Lipton (2016) The Mythos of Model Interpretability. 2016 ICML Workshop on Human Interpretability in Machine Learning. Note: came out dates after Towards a Rigorous Science, presents a very similar message i think we want causal explanations not of nature but of the model itselfComment: presented at 2016 ICML Workshop on Human Interpretability in Machine Learning (WHI 2016), New York, NY External Links: Link Cited by: §1.
  • S. M. Lundberg and S. Lee (2017) A Unified Approach to Interpreting Model Predictions. In Advances in Neural Information Processing Systems 30, I. Guyon, U. V. Luxburg, S. Bengio, H. Wallach, R. Fergus, S. Vishwanathan, and R. Garnett (Eds.), pp. 4765–4774. External Links: Link Cited by: §2.2.
  • D. Nguyen (2018) Comparing Automatic and Human Evaluation of Local Explanations for Text Classification. In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long Papers), pp. 1069–1078. External Links: Document Cited by: §1, §2.3, §2.3.
  • B. Pang, L. Lee, and S. Vaithyanathan (2002) Thumbs up?: sentiment classification using machine learning techniques. In Proceedings of the ACL-02 conference on Empirical methods in natural language processing - EMNLP ’02, Vol. 10, pp. 79–86 (en). Note: 2002 movie review data source External Links: Link, Document Cited by: §4.1.
  • M. T. Ribeiro, S. Singh, and C. Guestrin (2016) ”Why Should I Trust You?”: Explaining the Predictions of Any Classifier. Knowledge Discovery and Data Mining (KDD). External Links: Link Cited by: §A.1, §1, §2.2, §3.1.
  • M. T. Ribeiro, S. Singh, and C. Guestrin (2018) Anchors: high-precision model-agnostic explanations. In

    AAAI Conference on Artificial Intelligence

    External Links: Link Cited by: §A.1, §A.1, §A.2, Table 4, §1, §1, §2.2, §2.3, §3.2, §4.1, §7.
  • C. Rudin (2019) Stop Explaining Black Box Machine Learning Models for High Stakes Decisions and Use Interpretable Models Instead. Nature Machine Intelligence 1, pp. 206–215. Cited by: §1, §2.1.
  • P. Samangouei, A. Saeedi, L. Nakagawa, and N. Silberman (2018) ExplainGAN: Model Explanation via Decision Boundary Crossing Transformations. In ECCV 2018, (en). External Links: ISBN 978-3-030-01248-9 978-3-030-01249-6, Link, Document Cited by: §1, §2.2, §3.4.
  • K. Simonyan, A. Vedaldi, and A. Zisserman (2014) Deep inside convolutional networks: visualising image classification models and saliency maps. In Workshop at International Conference on Learning Representations, External Links: Link Cited by: §2.2.
  • M. Sundararajan, A. Taly, and Q. Yan (2017) Axiomatic Attribution for Deep Networks. In Proceedings of the 34th International Conference on Machine Learning - Volume 70, External Links: Link Cited by: §2.2.
  • Z. Yang, D. Yang, C. Dyer, X. He, A. Smola, and E. Hovy (2016) Hierarchical Attention Networks for Document Classification. In Proceedings of the 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pp. 1480–1489. Note:

    2016 word-level attention for sentiment analysis give avg. sentence count for various sentiment datasets

    External Links: Link, Document Cited by: §A.1, §4.1.

Appendix A Appendix

a.1 Method Implementations

Explanation methods.

For our tabular data, we use the implementations of Anchor and LIME provided in the code for Ribeiro et al. (2018). We implement our prototype and decision boundary methods. With text data, we use the implementation of Anchor provided by Ribeiro et al. (2018), and for LIME we use the code provided with Ribeiro et al. (2016). As before, we implement our prototype and decision boundary methods.

Text and Tabular Models.

We train neural networks for both tasks as follows: for our tabular task model, we use a neural network with two hidden layers, each of width 50, as Ribeiro et al. (2018) do. For our text task model, we use a BiLSTM of the kind introduced by Yang et al. (2016), who reported state of the art results on a number of sentiment analysis tasks. Since their network is designed for classification of documents, we limit our network components to those relevant to classification of single sentences. We build our prototype models on top of the feature extractor layers of each of these models, meaning that we only replace the final classifier layer of the neural task model with a prototype layer. Accuracies for each model are shown in Table 4

. The task models are trained with stochastic gradient descent and a cross-entropy loss function, using early stopping on a validation dataset and

regularization with a coefficient of . See training details for the prototype models below.

Prototype Model Training.

Here we describe our prototype training algorithm, beginning with weight initialization. We initialize 1) feature extraction layers using the pretrained weights of our neural task model, 2) prototype vectors via k-means clustering on the latent representations of the entire training set, and 3) final classifier weights as 1 where the corresponding prototype’s class matches the weight vector’s class, and

elsewhere. The objective function for our prototype models contains three terms: 1) a cross entropy loss, 2) regularization on off-class weights in the classifier, and 3) a separation cost term, which is the minimum distance between a latent representation and any prototype not belonging to the input’s class.

Model Accuracies
Data & Model Test Acc
 Task Model
 Task Model
Table 4: Model accuracies on each data domain. Text data is split into partitions of 70%, 10%, and 20% for the train, validation, and test sets, respectively. We use the same data processing scheme as Ribeiro et al. (2018) for tabular data.
User Ratings
Model Correctness n CI
 Correct 464 4.44 .49 1.89
 Incorrect 468 4.12 .67 1.81
 Correct 391 5.09 .27 1.64
 Incorrect 394 4.64 .27 1.69
Table 5: User simulatability ratings grouped by model correctness and data domain. Users do not seem to be rating explanations simply based on model correctness, as the differences in group means based on model correctness are not significant at a level of .

Importance Scores in Protoype Model.

For a given feature, we compute an importance score by taking the difference in function output with that feature present in the input, relative to when that feature is omitted. With text data, there are a number of mechanisms by which one can omit a word from an input; we opt for setting that word’s embedding to the zero vector. For tabular data, to estimate a variable value’s importance we compute a measure of evidence gain from knowing the value, relative to not knowing it. Formally, our importance function is the difference between the function value at the original input and the expected function value for the input with variable

removed. The expectation is taken over a distribution generated by an imputation model conditioned on the remaining covariates.

where is given by a multinomial logistic regression fit to the training data, and is the data point without feature , and is the data point with feature value imputed at index

. We choose to use logistic regressions with no feature engineering in order to 1) generate calibrated probability distributions, and 2) scale straightforwardly with dataset size.

Figure 3: Forward simulation test procedure. We measure human users’ ability to predict model behavior. We isolate the effect of explanations by first measuring baseline performance after users are shown examples of model behavior (Rounds 1, 2), and then measuring performance after they are shown explained examples of model behavior (Rounds 3, 4).
Figure 4: Counterfactual simulation test procedure. Users see model behavior for an input, then they predict model behavior on an edited version of the input. We isolate the effect of explanations by measuring user accuracy with and without explanations.

Decision Boundary Algorithm.

In detail, the algorithm takes as input a data point , the classifier , a perturbation distribution , and a measure of distance between inputs . We first sample from the perturbation distribution around . The eligible perturbations to choose from are those with the opposite prediction from the original: . Then using a distance function , we select a counterfactual input as

We provide a path from to by greedily picking the single edit from the remaining edits that least changes the model’s evidence margin, which is the difference between positive and negative class scores. Our distance function is the count of different features between inputs, plus the squared Euclidean distance between latent representations. The Euclidean distance is on a scale such that it serves as a tie-breaker:

Figure 5: A screenshot of our user testing interface. This example is of the counterfactual Post test with LIME for text data.

a.2 Perturbation Distributions

We design perturbation distributions for two points in our experiments: 1) selecting counterfactual inputs in simulation tests, and 2) generating decision boundary explanations. First, we describe our approaches for selecting counterfactual inputs, which are conditioned on the need for a certain prediction type: either the same prediction as the original input or the alternative class. In both data domains, we sample local perturbations around the input and then randomly pick a sample that the model predicts to be of the needed prediction type. While working with tabular data, we sample perturbations as follows: we randomly choose to make between 1 and 3 edits, then choose the features to edit uniformly at random, and finally pick new feature values uniformly at random. The only sampling constraint is that a variable cannot be set as its original value.

For text data, we use a strategy that is similar to sampling from the perturbation distribution in Ribeiro et al. (2018), which is to randomly substitute words with their neighbors in GloVe word embedding space, sampling neighbors with probability proportional to their similarity. We make a few changes: we 1) decrease probability of token change with the length of sentence, 2) cap the number of edited words at 5 in the chosen perturbation if possible, and 3) limit edited tokens to be nouns, verbs, adjectives, adverbs, and adpositions. Example perturbations are shown in the example of the user testing interface in Figure 5, which is given for a counterfactual test with text data.

a.3 Simulation Test Design

In Figures 3 and 4, we include additional representations of our experimental design, showing each test separately and in slightly greater detail than in Figure 1.

a.4 Testing Environment

We show a screenshot of our user testing interface in Figure 5. This example is of the counterfactual Post test with LIME for text data. Tests are administered through spreadsheets, wherein users read test material and place responses. Users are guided from file to file by the experimenter.
