1 Introduction

Preterm birth (PTB) affects 5-18% of pregnancies worldwide, which is equivalent to 15 million preterm neonates each year [1]. Despite major advances in perinatal care, preterm birth still accounts for 75% of neonatal deaths and over 50% of neurological handicap in children [2]. Preterm birth is defined as birth before 37 weeks of gestation, however high mortality and morbidity mainly affects neonates delivered before 34 weeks, often referred to as early preterm (1-3% of all pregnancies) [3]. Prediction and early detection of women at high risk of PTB are crucial as it allows timely intervention. Despite potentially effective treatments like cervical cerclage, vaginal progesterone or pessaries, accurate, early diagnosis still remains a major challenge [4][9]. Current screening methods combine maternal characteristics, obstetric history and cervical length measured at 20-24 weeks [3]. A major disadvantage of this approach lies in failing to identify women with cervical incompetence before the second trimester and therefore missing the opportunity for successful intervention. Attempts have been made at validating the same screening markers in the first trimester with variable results, the best yielding a detection rate of 54.8% at a false-positive rate of 10% [10].

In this paper, we address the problem of spontaneous preterm birth prediction. We present a novel method for estimating two biophysical ultrasound markers: cervical length (CL) and anterior cervical angle (ACA). Cervical length marker refers to the length of the lower end of uterus. Anterior cervical angle is defined by angle between the uterine wall and the cervical canal. We introduce additional feature - ACA marker - for preterm birth prediction as suggested by the results published in [12]. Extending [12], we computed ACA automatically and combined the results with the CL marker, what significantly improved the overall prediction quality. To achieve that goal, we use a deep neural network architecture trained for segmenting prenatal ultrasound images. To overcome the fact that our ultrasound dataset, after balancing procedure, is very small and it could be a vital reason for poor performance, we decide to use a different dataset to perform prediction, to what is described in Sec. 3.3. Finally, we present that in comparison to regular analysis of ultrasound data, our method performs better and can be used to obtain different biophysical markers as well.

Figure 1: The proposed workflow of estimation preterm birth markers. Our method after data preprocessing uses the U-Net network for segmentation of the cervix, and then allows the estimation of CL and ACA markers.

2 Method

In this section we present our method of estimation of CL and ACA markers that relies on cervix extraction with U-Net segmentation, as depicted in Fig. 1. The U-Net [11] architecture is an encoder-decoder neural network implementation used for semantic segmentation, mainly designed for biomedical image processing. This architecture is illustrated in Fig.2

Figure 2: The U-Net architecture [11]. Each box represents feature maps. The number of channels is signed under each feature map.

We start training a U-Net model for the segmentation task of extracting a cervical shape from ultrasound images. Once trained, we use our neural network to obtain binary masks of the cervix. Finally, we use them to estimate CL and ACA markers and then for binary classification task (preterm vs. control). To perform cervical length estimation we apply the centerline algorithm [13] to the binary masks. Such algorithm relies on a generation of a Voronoi diagram for given cervix shape to get the polygon skeleton where the skeleton centerline is selected and smoothed. We use the same extracted masks for ACA estimation with different approach based on a recurential split on centroid location for a given shape.

3 Experiments

In this section, we present results obtained with the proposed method. We first describe the dataset used in our experiments and show the results obtained using the segmentation algorithm. We then verify if the estimated CL and ACA metrics correspond to the ground truth one. In the second part we evaluate whether CL and ACA combined, perform better than current methods and present results of the classification task (preterm vs control).

The first stage in our workflow is cervical segmentation using the U-Net neural network. The segmentation results are used to estimate CL and ACA described in the second stage.

3.1 U-Net segmentation

Dataset and Preprocessing:

The data collection was collected at King’s College London and Warsaw Medical University and it contains data from 359 pregnant women with 316 control pregnancies and 43 preterm deliveries, which is defined as birth before 37 weeks of gestation. The data was registered and labeled using standard infrastructure for ultrasound imagery operated by specialized physicians. Since our dataset contains images (and not the raw data), the annotations are embedded in the graphical layer and hence cannot be filtered automatically out of the data. To overcome this shortcoming and prevent U-Net from focusing only on annotated markers we decide to remove all annotations from images using inpainting method. Inpainting methods using machine learning did not give satisfactory results on our ultrasound images, so we use standard computer vision algorithms. At first we convert our dataset from the RGB to the HSV colour space. Next, we define the range of colours of all annotations in the HSV space, what allows us to detect these ones which we want to get rid of. The next step is to create a mask. Then through thresholding we obtain a binary image based on defined color range. We then use dilation (a morphological operation on the image) to expand our mask to completely remove annotations around the extracted pixels in the first step. The inpainting method was used in order to prevent the U-Net network from focusing on coloured markers in the images. The diagram of the method described above is presented in Fig

3.

Figure 3: Data preprocessing flow.
(a) Image with annotations (b) Image without annotations
Figure 4: Example of using our inpainting method. On the left, we presented the original image, and on the right after applying our inpainting algorithm. Our method was used in order to prevent the U-Net network from focusing on coloured markers in the images.

The dataset contains around 20% preterms which reflects the statistical occurrence of this phenomenon in reality. To mitigate this shortcoming we balanced the dataset by applying data augmentation to achieve a 50:50 ratio, to avoid heavily focusing on the majority class by classification algorithm. We augmented the dataset to 6359 images (359 original and 6000 augmented) by random rotations in the range of -10 to 10 degrees, random contrast and brightness adjustments. We divide it into training and validation subsets maintaining a ratio of 70:30.

Experimental settings:

We use our augmented dataset to train a network on a machine with AMD FX-8320 @ 3.5Ghz CPU and NVIDIA TITAN X 12GB GPU. We implement our models using the PyTorch library with CUDA support. We train U-Net for 650 epochs with a batch size of 4, Adam optimizer with a learning rate of

and weight decay of

. We use BCEWithLogits as a loss function. We use the 256 px

256 px images as input while initializing weights with Xavier uniform method (also known as Glorot initialization) with gain.
Binary segmentation mask: We evaluate the U-Net neural network on the task of cervix segmentation of the dataset. We use Jaccard Index, also known as Intersection over Union (IoU)

as the evaluation metric during training. For two sets A and B, the Jaccard index is defined as the following:

(1)

For cervix segmentation task we obtain average Jaccard Index of 0.91 (min - 0.89, max - 0.92, SD - 0.1). Several results are presented in Fig. 5. In the optimisation of the neural network, we controlled for both Dice and Jaccard index, but more consistent results were obtained with the Jaccard index.

Figure 5:

Segmentation results on our dataset. We present from top to bottom: input image after removing the annotation from the original images, ground truth and prediction after applying the U-Net network. Our method allowed us to achieve an average Jaccard index of 0.91, a minimum of 0.89 and a maximum of 0.92, with a standard deviation of 0.1.

3.2 CL and ACA estimation

Cervical length estimation: For this task we use obtained cervix segmentation masks and perform centerline algorithm [13]

on that image set. Then we evaluate whether the cervical length can be estimated by centerline length by conducting linear regression between estimated and ground truth lengths of cervix. We obtain a RMSE of 110.88 and a correlation coefficient of 0.94 what show that these two sets are almost linearly dependent with constant offset. The results are presented in Fig.

6a.
Anterior cervical angle estimation: For this task we develop an algorithm which we apply to binary segmentation mask in order to obtain an estimation of Anterior Cervical Angle. Such algorithm is a recursion where on each step we split obtained cervical mask in two parts, based on its centroid location. We perform three iterations of that algorithm on every binary mask. Fig. 7 presents results of each iteration. Then we evaluate whether our approach can be used to estimate anterior cervical angle by conducting linear regression between estimated and ground truth dataset. We obtain a RMSE of 16.22 and a correlation coefficient of 0.693. The results are presented in Fig. 6b.

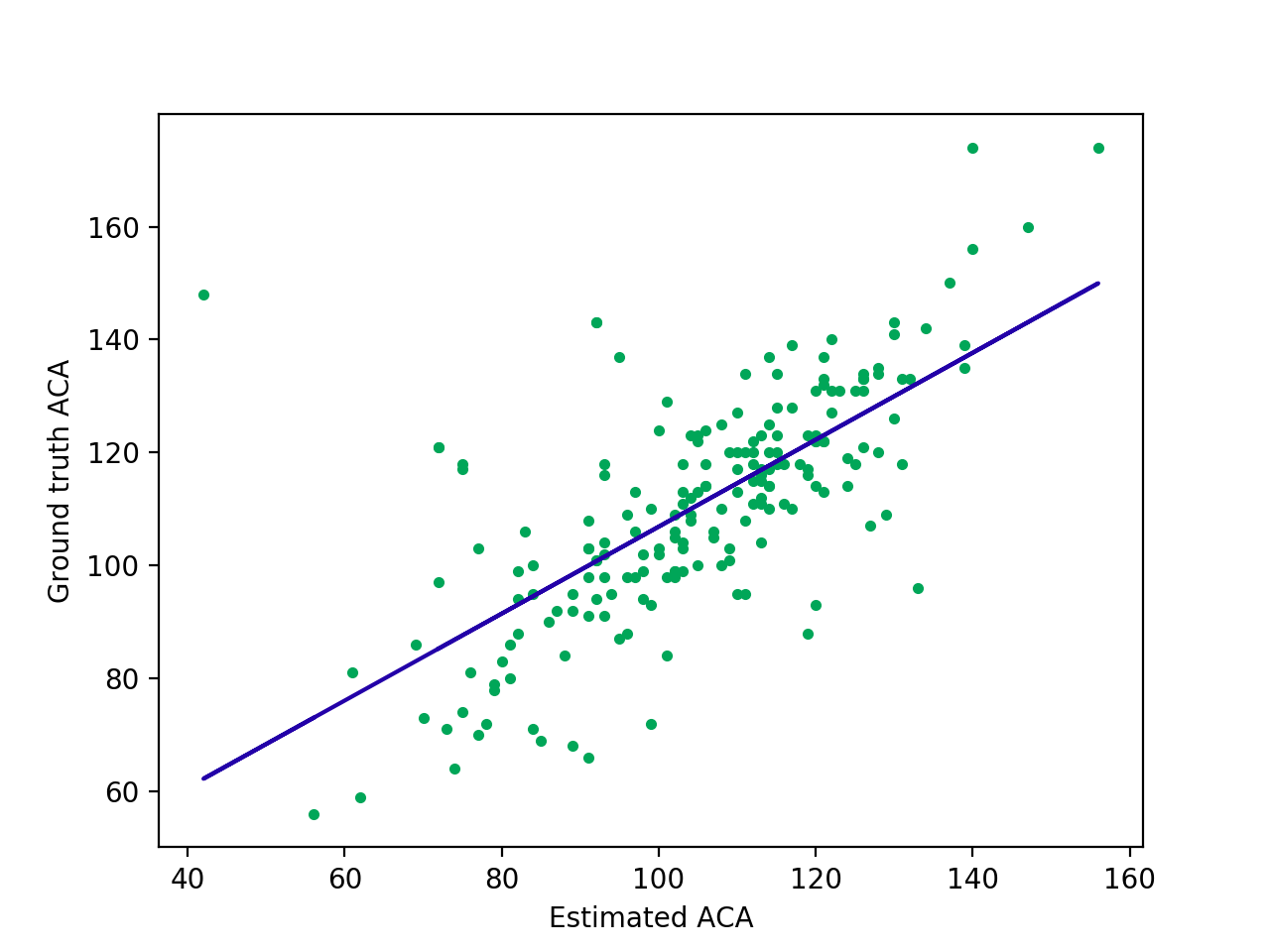

(a) CL estimation (b) ACA estimation
Figure 6: Evaluation of our estimation of: (a) cervical length (CL) and (b) anterior cervical angle (ACA). We obtain a RMSE of 110.88, correlation of 0.94 for cervical length and RMSE of 16.22 and correlation of 0.693 for the anterior cervical angle.
1st iteration 2nd iteration 3rd iteration

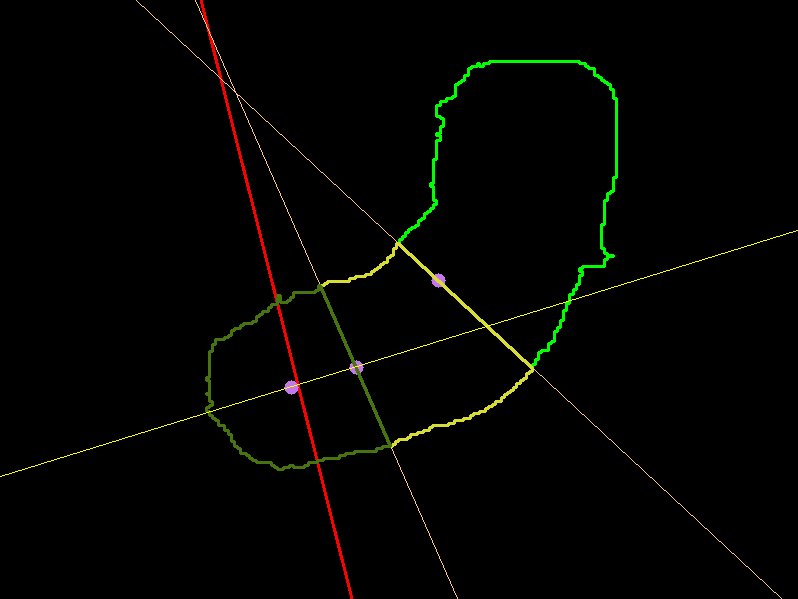

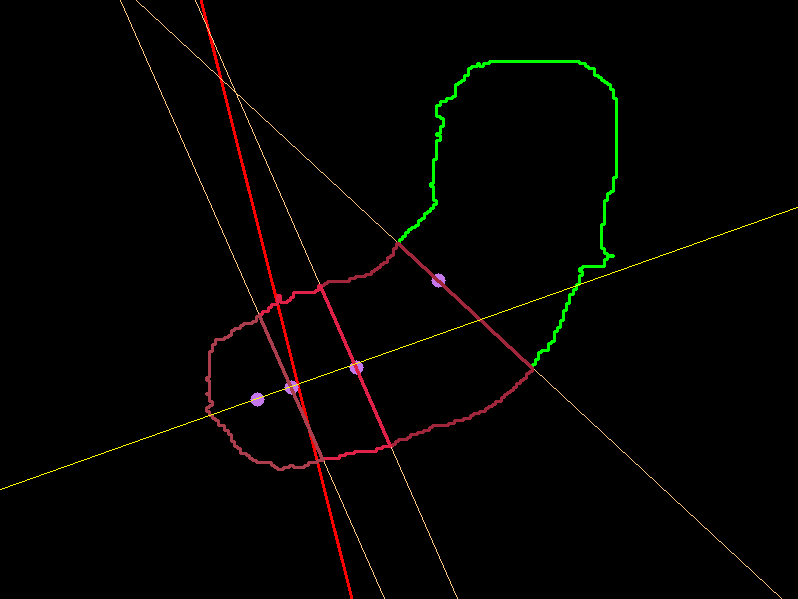

Figure 7: Three first iterations of ACA estimation algorithm. On every iteration algorithm finds centroid point of a given shape, splits it into two shapes and proceeds further with the same steps. In the end, we measure ACA between the anterior wall (red line) and the line between the last two centroids.

3.3 Preterm birth prediction

In this section we evaluate classification algorithm on cervical lengths and anterior cervical angles, to assign preterm vs.

control label to the (CL, ACA) pair. For this purpose, we used four popular machine learning algorithms: Support Vector Machines (SVM), K-Nearest Neighbour, Naive Bayes and Decision Trees. We used the above algorithms for classification due to the fact that they perform well with this type of data.

The best results in terms of accuracy were obtained for classifiers, which were trained on data containing CL and ACA features of the first and second trimesters. This is due to the greater number of features in the set, thus increasing the diversity, which allows for better separation of classes in binary classification.

Despite the simplicity of the naive Bayes classifier, surprisingly high results were obtained, both by analyzing the measures of accuracy, precision and sensitivity for both classes. In addition we conducted a 5-fold cross validation and we obtained the result of accuracy 0.77, confirming the superiority of Bayes classifier. Using this classifier, the highest probability was also obtained that the classifier would determine a randomly chosen positive example higher than the randomly selected negative example, based on the AUC score. Perhaps using the naive Bayes classifier the best results were obtained due to the small correlations between features.

The worst average results in terms of accuracy, precision, sensitivity and area under the ROC curve were obtained by using the algorithm K-nearest neighbors for classification. The probable reason is the small distance of the samples from each other, which significantly reduces the efficiency of the algorithm.

At this stage, to overcome fact that our ultrasound dataset, after balancing procedure, is very small and it could be a vital reason for poor performance of mentioned four algorithms, we decide to use a different dataset. It contains 380 balanced numerical samples with precomputed cervical length and anterior cervical angle for first and second trimester. It was obtained from King’s College Hospital and Warsaw Medical University.

According to paper [12], we have got better results in the classification of spontaneous birth preterm than can be done manually by gynecologists. For the first trimester, we obtained 18% of false negatives, where manually it is 30%. This, in turn, can lead to significant time savings and increase the efficiency of prevention treatment.

classifier trimester accuracy precision recall AUC
SVM I 69.56 77.0 65.0 70.19
II 62.28 65.0 68.0 61.75
I + II 72.5 71.0 75.0 72.5
KNN I 71.74 78.0 73.0 72.1
II 58.77 61.0 69.0 57.75
I + II 72.5 75.0 78.0 71.43
Naive Bayes I 73.91 82.0 69.0 74.62
II 59.64 61.0 73.0 58.4
I + II 77.5 85.0 74.0 78.13
Decision Trees I 69.56 83.0 58.0 71.34
II 59.65 61.0 69.0 58.72
I + II 75.0 88.0 65.0 78.13
Table 1: Classification results for four different classifiers
Predicted
Control Preterm

Actual

Control 46 16
Preterm 21 31
Table 2: Confusion matrix

In Table 2, we presented the confusion matrix after classification on numerical data using the naive Bayesian classifier algorithm. We obtained 18% of false negatives and 14% false positives for the best classification results.
The false negative ratio in our study is higher than the one in [10], since we balanced our dataset (it was unbalanced in [10]

which leads to the accuracy paradox and precision and recall bias.) Still, our reported detection rate is 74% - much higher than 54.8% reported in

[10].

4 Conclusions

In this paper we propose a method to automatically extract and estimate two biophysical ultrasound markers: CL and ACA based on usage of convolutional neural network. In addition we show that those markers combined can be promising predictor of preterm birth. The results presented in this paper show that methods based on deep neural networks can provide automatic, quantitative analysis of ultrasound images. This, in turn, can lead to significant time savings and increase the efficiency of current diagnostic methods without losing its precision.

As future work, we plan to focus on predicting preterm birth with different biophysical markers like shape of cervix or cervix tissue density and on preparing end-to-end method for segmentation and classification task as well.

References

  • [1] Howson, C., Kinney, M., Lawn, J.: March of Dimes, PMNCH, Save the Children, WHO. Born Too Soon: The Global Action Report on Preterm Birth. World Health Organization, Geneva (2012)
  • [2] Barros F et al.: Epidemiology and causes of preterm birth. Lancet 371, 75–84 (2008)
  • [3] Celik E. et al.: Cervical length and obstetric history predict spontaneous preterm birth: development and validation of a model to provide individualized risk assessment. Ultrasound Obstet Gynecol 31, 549–554 (2008)
  • [4] Arabin B. et al.: Cervical pessaries for prevention of spontaneous preterm births: Past, present and future. Ultrasound Obstet Gynecol 44, 390–399 (2013)
  • [5] Berghella V. et al.: Cerclage for short cervix on ultrasonography: meta-analysis of trials using individual patient-level data. Ultrasound Obstet Gynecol 106, 181–189 (2005)
  • [6] Fonseca E. et al.: Progesterone and the risk of preterm birth among women with a short cervix. The New England Journal of Medicine 357, 462–469 (2007)
  • [7] Goya M. et al.: Cervical pessary in pregnant women with a short cervix (PECEP): an open-label randomised controlled trial. Lancet 379, 1800–1806 (2012)
  • [8] Myatt L. et al.: A Standardized Template for Clinical Studies in Preterm Birth. Reproductive Sciences 19, 474–482 (2012)
  • [9] To M. et al.: Cervical cerclage for prevention of preterm delivery in women with short cervix. Lancet 364, 1849–1853 (2005)
  • [10] Beta J. et al.: Prediction of spontaneous preterm delivery from maternal factors, obstetric history and placental perfusion and function at 11-13 weeks. Prenatal Diagnosis 31, 75–83 (2011)
  • [11] Ronneberger O. et al.: U-net: Convolutional networks for biomedical image segmentation. In: International Conference on Medical Image Computing and Computer-Assisted Intervention, pp. 234–241, Munich (2015)
  • [12] Nicole Sochacki-Wojcicka et al.: Anterior cervical angle as a new biophysical ultrasound marker for prediction of spontaneous preterm birth. Ultrasound in Obstetrics and Gynecology 46, 377–-378 (2015)
  • [13] https://github.com/ungarj/label_centerlines
