I Introduction

A common assumption, whether explicit or not, in test automation practice as well as in research in general, is that the more activities that can be automated the better. While manual testing is often seen as mundane, repetitive, and error-prone, automated testing can lead to lower costs, increased test frequency, earlier defect identification, and higher system quality [1, 2]. While the long-term vision [3], as well as shorter-term impetus of test automation, is thus often to reach full automation this is rarely realized in practice [4, 1]. In fact, only a small minority (ca. 6%) of software practitioners surveyed believed in full automation [1]. Clearly, more detailed ways of deciding when and what to automate are needed and general and high-level guidelines have started to appear [5].

One testing activity that software organizations often spend many resources on is system testing at the level of the graphical user interface (GUI). There are a number of challenges with automating higher-level system tests [6], while lower-level testing oftentimes comes with good tool support and easy automation options. Despite industrial case studies that show overall benefits and cost-effectiveness, there is thus evidence that automated GUI testing (AGT) still is relatively rare among software practitioners [7, 6]. One reason for that is that studying the direct costs and benefits involved when automating a manual test suite does not suffice, as maintenance costs over time can be prohibitive [8]. While this has been pointed out in several studies, the methodologies employed are predominantly qualitative and based on a combination of interviews, expert estimations, and opinions, rather than on direct or objective observations [9, 8].

The simple and basic idea of this paper is to use existing source code repositories and the change history they contain to go back in time and ‘replay’ the history while noting the actual development and maintenance costs of the test suite. Not only can this allow more direct measurement of the costs involved in using a particular test automation technology or tool, if done carefully, but it can also allow the comparison of multiple AGT tools and thus provide concrete decision-support to project managers, testers, and developers. This is in line with the trend within the empirical software engineering community of detailed analysis of software repositories [10]. However, in the method proposed here, instead of ‘mining’ the repositories with automated analysis tools, the repository is used as a historical record and the actual code changes are ‘replayed’.

The method has similarities to the ‘Development Replay‘ approach of Hassan and Holt [11] but they don’t expend or measure manual work to understand what it would have been; their focus is on what a certain tool would have told developer if applied at earlier points in time. In contrast, we do expend manual work by replaying history. We will show that this not only allows us to estimate actual implementation and maintenance costs but also has the benefit of providing actual artifacts that the company can then build on. While the overall idea of the methodology is a general one, and can potentially be used to evaluate many different software engineering technologies, we here focus on automation of GUI testing in an industrial context. An industrial company in Sweden that develops a web-based software application is the specific case we use to illustrate the methodology. The specific question we helped them answer, was which of two different AGT tools they should select and what the specific trade-offs to consider are when deciding between them. What we concretely propose and evaluate is thus a context- and project-specific way for an organization to decide between test automation technologies and how to estimate their Return on Investment (ROI).

Thus, the main contributions of this paper are twofold. First, we introduce the source code history replay method to estimate the cost as well as the Return on Investment for automated GUI testing. For clarity in exposition, we present the approach as a method, as we think that it has general value and can be used to evaluate also other automation technologies. Second, a case study comparing two current but conceptually different AGT tools, Selenium (based on access to the GUI components via their ids/names) and EyeAutomate (based on image recognition on the GUI itself), for an industrial software product is conducted. We use both cost and ROI estimation of the method in this case study and consider both implementation cost (at the point in time we replay back to) and the maintenance costs (by stepping forward up until the current time, while tracking actual work).

The remainder of this paper is structured as follows. Section II gives some background and introduces the field of AGT along with related research. In Section III, the step-wise replay method for ROI estimation gets introduced and in Section IV the case study gets detailed. The results of the case study are presented in Section V, and, together with insights regarding the step-wise replay, are discussed in Section VI. Finally, Section VII summarizes the main findings and concludes the paper.

Ii Background and Related Work

This section includes discussion on terminology, concepts, and practices on GUI testing, as well as the different studies reported in the literature that reveal the trade-offs with such techniques.

Ii-a GUI Testing

GUI testing is the activity of testing a system by interacting with the graphical elements presented to the user (e.g., buttons, forms, drop-down menus) [12]. Consequently, GUI testing is on a higher level of abstractions if compared to, e.g., unit-level tests where knowledge of the source code is relevant to understand and maintain the test. For instance, testers can test the System-Under-Test (SUT) by entering data through point/click interfaces, navigating between a number of views in a predefined order or even fill in forms with dynamic visibility/activation constraints. Problems with the SUT or test environment should be visible via the GUI, hence leading to desired test outcomes (i.e., either pass or failure). However, undesired GUI related test outcomes are also possible, such as the toleration of a missed button click test (false positive, i.e., a test that passes but should fail) or the failing of a test for a correct click sequence due to, e.g., a timing issue (false negative, i.e., a test that fails but should pass).

In order to spare human testers of the tedious, laborious and error-prone work of manually interacting with the GUI of a SUT (also referred as Manual GUI Testing–MGT), various techniques and tools that enable automated GUI testing have been proposed in literature [13, 14] and practice [8, 15, 16]. Even though Automated GUI tests (AGT) are more reliable, reproducible, and tolerant to small GUI related changes in the SUT [17], they demand maintenance of the test suite to match the new GUI [8]. On the other hand, humans who manually test a GUI can easily adjust to a re-located, re-named, or re-sized button.

AGT tools and techniques are classified into three generations according to the underlying elements of the GUI used to automate the test, such as

) the coordinates of the GUI (first generation), ) the elements/objects (buttons, forms, menus, etc.) of the GUI (second-generation) and ) images of the GUI (third-generation). Below we briefly distinguish the different generations and present their trade-offs.

The first generation of AGT tools assists testers by creating recordings of traces of movements, mouse-clicks, and other interactions that represent use cases by tracking the coordinates of such actions [18, 19]. Such tools have a low technical usability threshold, but require much manual maintenance, hence being abandoned and replaced by a new generation of GUI testing tools.

Second-generation tools interact with the GUI using references to its elements such as references to Java Swing objects, or buttons of a Document Object Model (DOM). On the one hand, the test benefits from targeting defined GUI element identifiers such as IDs, type or labels, regardless of their layout. On the other hand, a programmer would need to know these identifiers and the composition of GUI elements which can hinder the implementation of the test. This generation tools are more stable due to their reliance on structural properties, hence being popular in industry [20], but they require programming knowledge from the tester. Selenium111https://www.seleniumhq.org/ is a well-known second-generation GUI testing tool which automates interactions with browsers and web applications.

In turn, third-generation AGT, referred to as image-based testing, uses image recognition to navigate the GUI [17]. Therefore, use-cases are described in terms of images from the GUI itself and high-level operations (e.g., commands to click, drag or re-size the GUI) which turns test implementation independent of programming language or frameworks, such as Java or Python. Such tools attempt to find the sweet spot between the technical threshold for entry and re-usability of the use-cases due to an automated interpretation of the user sequences into emulated event-streams [17]. Sikuli222http://www.sikuli.org/ and EyeAutomate333http://www.eyeautomate.com/ are two examples of third-generation tools evaluated in research [21] and practice [13].

Introducing automated tests can significantly increase the testing frequency in order to find errors early (fail fast, fail cheap), allowing quality assurance even for short deployment cycles. However, there is a cost both in implementing and maintaining the set of automated GUI tests that must be considered when evaluating the adoption of an AGT tool in a software project.

Ii-B Empirical evaluation of GUI testing

Automated GUI Testing has been widely investigated in the literature. Recent investigations focus both on understanding the complementary aspect between second and third-generation tools [21, 20, 13], and the automation advantages over manual GUI testing [17]. Several tools have been proposed for both the element-based (GUITAR [22], Selenium, DART [23], Espresso444https://developer.android.com/training/testing/espresso, etc.) and visual-based (Sikuli, JAutomate555https://jautomate.com, EyeAutomate) generations. The tools differ between scripting and recording tests [24] as well as performance [25].

Different tools have been applied in a variety of test activities including repairs of regression test suites (e.g. using GUITAR [26]), daily/nightly GUI test automation [23], web testing [27, 28], Android testing [21, 20], and the evaluation of new GUI testing techniques itself [29]. Moreover, second-generation tools have been particularly useful for agile frameworks [30], and have shown good benefit over manual GUI testing [17, 8]. Several such studies have been conducted in the industry.

In a comparative study, Ardito et al. [21] compares Espresso (second-generation) and EyeAutomate (third-generation) contrasting both AGT tools in terms of productivity (total number of created tests) and quality of the created tests (ratio between correct and written tests). Even though there was not a significant difference in both the tool’s learnability and productivity, the authors found that EyeAutomate enables the creation of better tests. Authors also concluded that practitioners had a marginal preference to third-generation tools given the intuitiveness and ease of use in creating test scripts through screen captures. Our study, on the other hand, focuses on maintenance costs and the trade-offs between tools from distinct generations.

A similar investigation has been conducted by Alégroth et al. [6] where AGT (third-generation) is compared to manual testing in terms of return on investment in two cases. Authors reveal that the ROI of transitioning manually written tests into visual GUI testing scripts would be positive within one month after completion. However, the study includes many limitations in their ROI model, since the cases had different contexts, different number of script developers and did not consider, explicitly, the costs of maintaining the GUI testing scripts. The use of ROI to compare manual and visual GUI testing is refined by  Alégroth et al. [8] revealing that it takes longer to reach positive ROI after automation for companies not highly invested in manual testing. In other words, for small projects not supposed to scale in size, the costs to introduce visual GUI testing does not outweigh the costs of adopting it.

Despite the several attempts of evaluating AGT in terms of ROI, researchers still limit the conclusions based on the constraints introduced to their ROI model, such as using specific cost constructs (e.g., time taken to create the tests, execution time) or introducing assumptions such as similar costs for maintenance and execution of the tests. Our study advances on those initial investigations by proposing a model for ROI that is versatile and can be used with different cost constructs (timeline of the project, execution time, etc.). We evaluate our proposed model using similar cost constructs used in literature (i.e., maintenance in terms of time) but instead, focusing on the comparison of different generation AGT tools within the same context.

Iii Manual Step-wise Replay Testing

Most software projects today use version control software such as Git666https://git-scm.com for source code management. The source history of software documents its evolution over time and simplifies collaboration as well as automation. We propose a method to estimate the cost, and consequentially the ROI, for introducing AGT into existing software projects. The method makes use of the software’s source history including compulsory manual steps for source-change management. Instead of creating automated tests for the latest version of the SUT, a sequence of passed versions gets shortlisted and the automated tests get implemented for the earliest one. A tester relies on documentation, here named the test protocol, that describes the guidelines on how to use the SUT, hence being used during manual testing of the GUI.

On our approach, a tester detached from the development team implements a selection of test-protocols and follows a step-wise process, replaying a sequence of SUT versions from the version-control history in order to emulate the work with AGT. The time spent by the tester is noted for the different steps (detailed further below) until the latest version in that time-window has been reached. Doing the replay after the changes are made eliminates the potential bias by study-aware developers working in parallel. In other words, the developers working on current changes are not hindered by testers studying the maintenance of the SUT. Also, the step-wise approach allows that longer maintenance time (e.g., a year) can be replayed within, e.g., a week.

Fig. 1: The proposed manual step-wise replay method. 1. Software versions for the step-wise replay are shortlisted and test protocols (test cases and related documentation) implemented as automated GUI tests. 2. Manual step-wise replay with time measurements and logging for maintenance is sequentially and chronologically conducted for the selected versions. 3. The ROI gets estimated by comparing the manual testing costs to the implementation and maintenance costs for the AGT tools and associated GUI tests.

Fig. 1 illustrates the three phases of step-wise replay, detailed further below. In phase one, two selection activities are conducted. First, a sequence of versions must be selected from source-control for the emulation of the development process happening in parallel to the testing. Then, we select the corresponding test protocols that will be used by testers to write the automated test scripts. Phase two is the step-wise replay procedure where, for each selected version, the corresponding maintenance cost gets measured based on the activities performed by the tester such as, creating the automated script from scratch, changing the test code, or simply not doing anything (cheap maintenance). In phase three, we estimate ROI using the maintenance cost measurements from phase two.

The method, as presented, measures actual costs in terms of time spent on activities, also as the basis for the ROI. Time spent can trivially be translated into, e.g., the actual costs per hour. However, other cost constructs can be added to that and explored in future work, such as costs for the purchase of the AGT software itself, the effects of increased test frequency on quality, etc.

There are two main assumptions with our approach: First, we limit our scope to parts of the SUT where use-cases are stable throughout the time-span of their considered source code history. In other words, we assume the SUT has not evolved away from its original intent/specification. Second, we assume that the software on the relevant branch of the source-management system builds and deploys without errors. Those assumptions are relevant to avoid noise to the ROI estimation, such as writing test scripts that do not pass due to a broken build or an unstable version of a feature, as opposed to the cost-effectiveness of the GUI testing technique itself. We argue that those assumptions are reasonable given that global commits require unit/regression tests to pass first according to good industrial practice.

An underlying assumption is, of course, also that the implementation and maintenance costs as performed now, after the fact, are similar to what the costs would have been if they had actually been done at the earlier points in time. There are threats to this assumption, in particular, if the manual work is done by coders and developers that have been involved with the project during its actual evolution. Learning effects, i.e. that they know what the system eventually evolved into, could make their work more efficient than it could have been. Alternatively, the effects of forgetting the earlier design and state of the system might have the opposite effect. We argue that this can be overcome in practice by having more independent developers or testers do the actual replay work. In fact, in the case study, they were even external to the company at the time of doing the work. We will discuss these threats later in the paper. Let’s now describe the phases of the method in more detail.

Iii-a Phase one: Preparation

The creation of the AGT scripts is precluded by a selection of a subset of the existing test-protocols. This is because the implementation costs may be prohibitive for the entire manual test-suite. Only after the step-wise replay, once the ROI has been estimated based on the sub-selection and in case the decision was made to go ahead with AGT for the entire SUT, are the remaining test-protocols implemented. The sub-selection can either be done randomly or by some kind of reasoning and discussion process; which method is selected will depend on the particular situation and risks involved. Randomization should be preferred unless there are strong reasons for a more controlled choice. The risk with a non-random choice is that we bias the estimated costs.

To clarify the methodology and its steps, a number of variables will be introduced below. For convenience, find all their definitions in Table I. Let be the chronological commit history of the SUT’s version-control system (or branch we are focused on), with and being the first and latest commits, respectively. Since could be a large number and each commit considered for the estimation requires time, we select a chronological sub-sequence of , namely with for the investigation. We call with version of the software.

Identifier Description
SUT commit history
SUT version history for study
All SUT test protocols
Shortlisted SUT test protocols
SUT test protocol implementations
Set of investigated AGT tools
Time to manually conduct the test
Implementation time of using
Maintenance time for using in version
Total manual testing time for
TABLE I: Step-wise replay testing variable declarations.

The strategy for selecting is project specific and may be chosen arbitrarily but with care. It shall be sensible for key factors such as length of the considered time interval, frequency of commits, code-churn, the total length of history, or the required reliability of the estimate. Examples of possible selection strategies is to opt for a version per a specific time interval, such as a week, or each time a certain code-churn of lines has been reached in-between commits.

Procedure 1 details the implementation of test protocols as automated GUI test scripts with the version vector as input. The sub-selection of test protocols for implementation happens in line 1. This selection shall consider properties such as relevance and code coverage. For instance, in our case study (Section  IV), the developers suggested a few important test protocol while others were randomly selected.

Next, a tester/researcher manually executes each test and records the time spent (line 3), representing the costs for manual GUI testing. For each tool , a tester implements an automated test script and records the implementation time (line 5). With the baseline measurements of time spent on manual testing and implementation times in place, the step-wise replay (phase two) can start.

0:  SUT version sequence , set of test-protocols , set of AGT tools
1:  select representative sub-set considering
2:  for  do
3:     manually conduct on and record the time
4:     for  do
5:        implement automated test that covers and record implementation time
6:     end for
7:  end for
8:  return  automated tests , manual testing times , implementation times
Procedure 1 Test case implementation

Iii-B Phase two: Manual step-wise replay

The step-wise replay is described in procedure 2. Let the set of automated tests be defined as . Step by step, for all versions with , all tests in are executed (line 5). In case the system fails, maintenance activities are carried out and maintenance time is recorded and summed up for that step until all failures are resolved (lines 7-12). Before going over from step to , the tester should document the faults found as well as the fixes/workarounds created in order to stop the fault from triggering in subsequent steps. If a build breaks, i.e., the code does not compile, it gets corrected, re-run, and updated in the AGT test-suite on-wards. Occasional crashes of the SUT or AGT tool are treated by re-running the tests.

0:  SUT version sequence , set of automated tests
1:  for  do
2:     checkout from the version control system
3:     make sure the software builds correctly
4:     for  do
5:        run and record outcome (pass/fail)
6:        if test failed then
7:           record maintenance time for all below
8:           if bug then
9:              record bug
10:              create fix/workaround in SUT
11:           else if breaks then
12:              correct to pass test and update in
13:           end if
14:           re-run
15:        end if
16:     end for
17:  end for
18:  return  maintenance cost
Procedure 2 Step-wise replay.

Iii-C Phase three: ROI Estimation

The maintenance costs can be plotted over the sequence of versions for each AGT tool . A historical view of the maintenance demand over time is obtained. For reasons of conformity, and without loss of generality, we define the implementation cost of a test-case from Procedure 1 as . In order to estimate the ROI, we compare to the total cost of executing the manual tests for each test session . If tests are done periodically with approximately constant time-expenditure, this cost can be represented by a linear cumulative model, with a constant growth factor over time that depends on the frequency of manual testing.

If manual testing is conducted infrequently, the time until ROI is achieved may be longer than the study time, i.e. grows only gradually and the cumulative models for automated and manual testing do not intersect. In those cases, a model for the prediction of the estimate for the AGT cumulative cost can be fitted for each tool in order to extrapolate the expected long term costs. Due to the initial cost of implementation for test cases in , and the gradual familiarization with the automation tools/code, the relationship may well be logarithmic, as suggested by the ROI model presented by Alégroth et al. [17]. A logarithmic model implies a combination of several factors that come together so that most costs are the initial ones while later maintenance and changes take less and less time since the test suite is more mature, the tested system more stable, and testers becoming more and more familiar with the tool and the test scripts.

Iv Case-study

We evaluated the method presented above in a case study to find out whether the proposed step-wise replay can create concrete value, primarily regarding maintenance cost estimation for an industrial software system of reasonable complexity. This question could otherwise not be answered in a simple experimental setup. Maintenance costs could be estimated prospectively, i.e. going forward in time, but this would be very hard to ‘speed up‘ i.e. we would need to do this probably during several months to reach reasonable confidence levels in our cost and ROI estimates. By replaying time instead, we can support decisions about test automation much more quickly, while still basing cost estimates on actual and project-relevant specifics, i.e. the actual system being tested and actual test cases it contains etc. .

The on-premise web-based business management tool CANEA ONE, which is used by more than 200 organizations world-wide, serves as the SUT for this study. CANEA ONE is composed of many different programming languages, with the majority of code being written in C#, Type-/JavaScript, and HTML. The C# code-base alone contains more than 250.000 lines of code, and the web-application comprises of more than 100 unique pages. The source code is automatically tested through roughly 2700 unit tests. The only UI testing used in CANEA ONE is load and performance testing through e.g. JMeter777https://jmeter.apache.org. Most of the UI testing is done manually by a team of testers. CANEA ONE has 20 test-protocols that are conducted four times a year. However, the intention with introducing AGT is not to run four times a year in future, but as often as possible, preferably even for automation in a continuous integration workflow and regression testing on a daily basis to catch faults immediately.

Iv-a AGT tools

We evaluate the introduced method with the second-generation AGT tool Selenium and the third-generation AGT tool EyeAutomate. To our knowledge, only few studies comparing second and third-generation AGT’s have been published so far [31, 6, 21], and none of those present a ROI estimation method for the introduction of AGT.

Selenium is an element-based test automation tool that emulates a web browser and verifies the functionality of a web application through GUI level tests. Selenium tests can be created in two different ways: through the use of Selenium IDE or by using Selenium WebDriver. In this study, we use Selenium WebDriver due to its lower maintenance cost through the creation of scripts using language bindings [24]. We adhere to the PageObject Pattern in our tests, separating GUI logic from business logic in order to reduce maintenance time and increase reusability [32]. Selenium is open-source software released under the Apache 2.0 License.

EyeAutomate is an image-based AGT tool that runs dedicated EyeAutomate test scripts. It was based on the earlier JAutomate system [33] and has built-in support for image-recognition and uses customizable commands (to match and take actions) that the users can also extend. EyeAutomate generates a report after test runs with screenshots for all executed steps of the script for quick problem localization. The EyeAutomate scripts in this study are written using EyeStudio which offers a ’What You See Is What You Get’-like interface for script creation (see screenshot in Fig. 2). EyeAutomate is commercial software, but a free version with limited features exists.

Fig. 2: A screenshot of the interface EyeAutomate offers to the user. This is in stark contrast to the API level user interface Selenium offers to the user by its WebDriver.

Iv-B Test Implementation

Six of the 20, by CANEA called critical, test protocols were selected for implementation. Each test protocol carefully specifies a test scenario containing written instructions and details about the expected behavior. Test cases 1-3 were chosen by employees at CANEA with the intent to optimize for broad system coverage, while test cases 4-6 were selected randomly among the remaining 17 test cases. All implementation, testing, and maintenance were conducted according to the step-wise replay method described above.

None of the authors had been using nor been involved in the development of CANEA ONE before the study and are therefore not biased by knowledge about prior or current GUI versions of the SUT.

Iv-C Version Selection

The source-code history for CANEA ONE, which spans multiple years, has been available for the study. For practical reasons we decided the case study to be based on weekly versions from the active development branch over the total of one year, ending a week before the start of the case study. The choice of a time-based version selection is simple and straight forward following Occam’s razor, limiting bias introduced by more complex/subjective metrics. To control for the sensitivity of the sampling frequency, a version for each day of the week before and after that time-window was included in correct chronological order, making up for a total of 66 investigated versions. Selecting two weeks far apart might reveal non-static behavior in how the company worked on the code and/or tests. We worked with the development branch in order not to restrict ourselves to release candidates, which would likely have masked bugs being fixed in-between releases. Working with the active development branch also highlights the potential for AGT for regression tests.

Iv-D Step-wise replay phase

We followed the manual step-wise replay as introduced in Procedure 2, investigating the investment as the cumulative testing effort over time in order to identify a good fit and justify the model choice by reporting and visualizing the modeling error. The base for return on investment in our study is the time spent on manual testing compared to the time spent implementing and maintaining an automated test suite.

Iv-E Interviews

In order to get feedback on the usability aspects of AGT, we conducted semi-structured interviews with employees at CANEA who work with the SUT. Of the six people interviewed, five were developers and one was a tester, in order to get varied opinions. The interviewees were all rather junior, with 0-10 years of working experience. None had any experience with EyeAutomate but all the developers had experience in C# and Visual Studio, which were used for the Selenium tests. The developers were not involved in the case study and no prior knowledge on AGT was expected. Hence, they all received an individual walkthrough with a single constant assignment for both AGT tools, alternating the order of tools, to begin with to mitigate bias. The time spent on each assignment was limited to 30 minutes; interviewees getting close to, or going over, the time limit, got assistance from a researcher. Only after this detailed introduction to each of the testing tools the semi-structured interview was performed. The interview focused on the interviewee’s perception of the tools with open questions and their assessment regarding the tool’s potential for CANEA ONE. Results of the interviews are discussed in the Discussion section below.

V Results and Analysis

Impl. Time (min.) T1 T2 T3 T4 T5 T6 Total
Selenium 695.8 53.35 419.37 398.33 512.72 205.33 2284.9
EyeAutomate 346.3 19.82 127.68 296.15 183.9 220.52 1194.37
TABLE II: The one-time implementation times for all six test protocols.
Total Time (min.) Occurrences
Maintenance S EA S EA S EA
Analysis broken tests 91.25 67.35 19 22
Repairing broken tests 247.18 570.72 19 22
Handling found bugs 36.35 30.45 24 30
Handling false negatives 56.65 10.23 2 2
Handling crashes 36.1 4.05 4 2
Total 467.53 682.8 28/65 26/65
TABLE III: The Maintenance statistics from the step-wise replay including total and average maintenance-times per test-protocol.

Table II contains the initial implementation costs, in terms of time, for both tools. In total, the entire EyeAutomate implementation took ca.  20 working-hours (1194 minutes, per the table), while the Selenium implementation took ca. 38 working-hours (2285 minutes), almost twice as long. Table III lists statistics about the spread of time for different maintenance activities. For both tools, the majority of time was spent repairing broken tests. This is good for our estimation of ROI since this is likely a cost that would be a real maintenance cost if using the studied tools. The occurrence column contains the total number of occurrences per category. More than one occurrence is possible for a single version. Selenium could reveal 24 bugs during the study, and EyeAutomate with 30 bugs thereby 25% more. Note that even though these found bugs likely introduced additional costs during replay and would have cost even more time to fix they are also likely to have positively affected quality since they represent bugs that the actually used, manual testing hadn’t uncovered. While it can be debated if all of these costs should really be counted as maintenance costs, in particular, the handling of found bugs might be seen as more of a development cost, we argue that fixing bugs is needed to maintain the value of the test suite. If a test case reveals a bug which is not fixed it is less likely to uncover other bugs. So in order to maintain the usefulness of an automated test suite we likely will need to fix bugs. Thus, we have included this cost in maintenance costs. We do argue this means the maintenance costs for the automated testing tools are more likely to be upper than a lower bound, though.

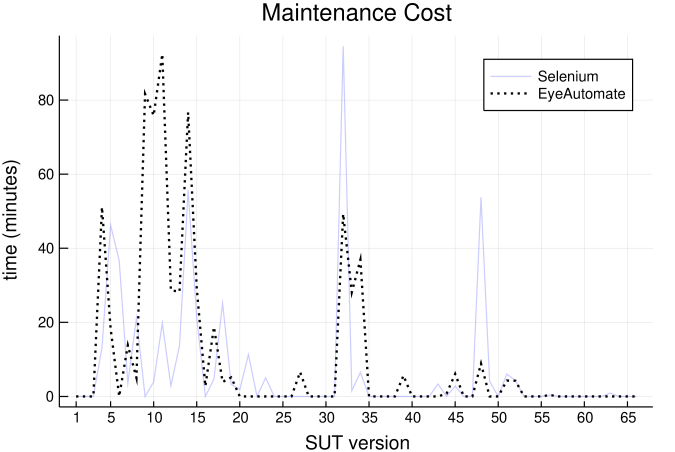

Fig. 3: The maintenance time per version, here measured over one year of source control history, varies largely between the two approaches.

In turn, Fig. 3 shows how the maintenance cost evolves over the course of the entire investigation. The spikes in the interval of versions 7 to 15 indicate larger changes in the GUI appearance. The spike in version 31 was caused by changes to different types of GUI inputs in the SUT, such as date, text, and drop-down boxes. All the spikes can thus be understood when looking at the actual changes to the SUT. The differences between the tools reflect actual differences in how they and the test cases are implemented and what they actually do. This further validates our methodology.

Fig. 4 presents a maintenance cost histogram comparing Selenium and EyeAutomate to see how the maintenance efforts compare in their overall distributions. The distributions are similar, but in those few situations where a change is required, EyeAutomate test cases were more likely to require longer maintenance time compared to the Selenium ones, in this study. On average, they demanded 32% more time from the maintainer.

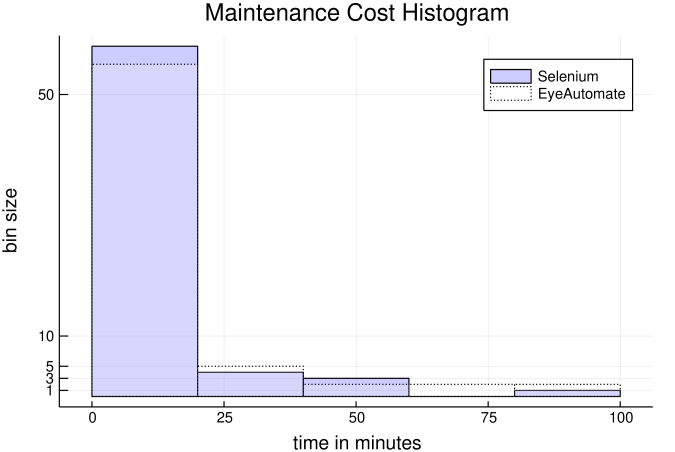

Fig. 4: An overall maintenance-time histogram for both AGT tools reveals similarities in the time-spending patterns. However, EyeAutomation test changes take an average of 32% more time than those for Selenium, which is mostly due to a small number of versions requiring a large overhaul.

In order to gain a better understanding of the maintenance demand over time, we investigated the cumulative testing effort for both tools over the versions based on maintenance cost , as described in Section  III. Fig. 5 illustrates the empirical cumulative testing effort over time, including the initial implementation effort for creating the automated tests. Alongside the two models, a manual testing cost assuming weekly manual testing is plotted as the reference for the calculation of the ROI. The ROI’s for each tool, i.e. the number of versions one needs to run the tests until the costs reach the same level as would have been reached by manual testing, can be seen from Fig. 5. It is 25 versions for EyeAutomate, and 43 for Selenium. Because the first 7 versions were sampled on a daily basis, this translates into approximately 18 weeks for EyeAutomate and 36 weeks for Selenium. The main reason that EyeAutomate has a much higher ROI is its demand for initial implementation being roughly half as long, as mentioned above.

The structure of the readings leads us to further investigate -based models (as introduced in Section  III-C) to predict future costs, resulting in the models presented in Fig. 6, which are further discussed below.

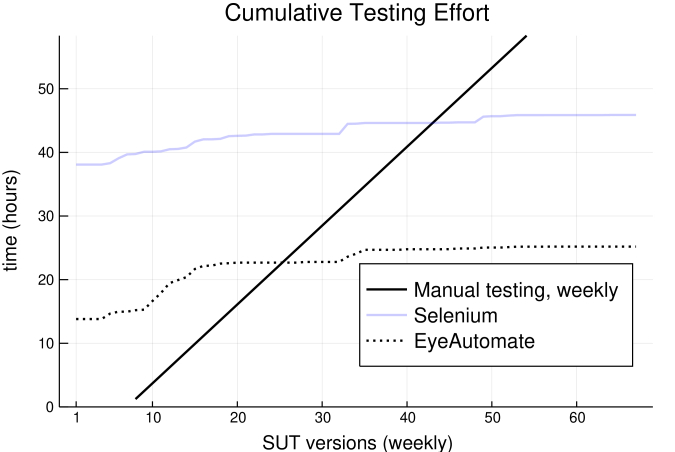

Fig. 5: The cumulative testing effort over time increments (SUT versions) for weekly manual testing and the two tools under evaluation, Selenium, and EyeAutomate. Time increments 1-7 and 60-66 are in days, 8-59 in weeks.
Fig. 6: A model for the cumulative testing effort for the AGT tools can be fit in order to predict an approximate ROI. The point of (positive) ROI can be read from the graph as the intersect of the MGT and AGT functions. The solid (dotted) line models the costs for weekly (monthly) manual testing.

Vi Discussion and Lessons Learned

We proposed a structured process for the evaluation and introduction of automated GUI testing tools and evaluated it in a case study on an existing, industrial software system. This helped us identify the ROI and gave insights as to how appropriate the different tools are for the project’s specific needs. Manual step-wise replay guides the testers, developers, and managers and gives concrete decision support for the introduction of quality ensuring measures in general, and in the scope of this paper and the conducted case study concerning automated GUI testing, in particular.

Overall, as the step-wise replay investigation is detached from the ongoing development process, independent practitioners can take on a role as the AGT specialist, i.e., working on multiple projects at the same time for reasons of cost-efficiency. After the time-consuming implementation phase, concurrent workloads can be considered. Further details and lessons learned for the CANEA ONE case study are presented below.

The maintenance demand for both AGT tools in Fig. 3 are similar in activation patterns, whereas differences in magnitude can be observed. Selenium stands for a few isolated spikes, while EyeAutomate required maintenance in bursts of multiple versions, leading to the 32% higher maintenance costs. The similarity of activation patterns becomes apparent when looking at the histograms in Fig. 4. Apart from a few time-consuming maintenance operations for EyeAutomate, the overlayed histograms look very similar.

Evaluating ROI for more than one AGT tool may be prohibitive in terms of the required resources in real-world situations. Because factors such as programming competence and experience with AGT in the workplace should be weighted into the decision of AGT tool, the results here merely hint on the time required for another SUT. Applying step-wise replay, with six out of the 20 critical test-protocols investigated, required ca. 23 hours for EyeAutomate and ca. 44 hours for Selenium until ROI could be achieved assuming weekly manual tests (see Fig. 5). Implementation costs made up for ca. 87% (20/23 hours) of the total costs for EyeAutomate, and also ca. 87% (38/44 hours) for Selenium. Assuming that the six implemented test protocols were representative, a total initial implementation time of ca. 67 hours for EyeAutomate, and ca. 127 hours for Selenium can be estimated for the entire software systems critical test-protocols initial implementation. For larger systems, with many test-protocols, the growing divide in initial time investment becomes clear.

Five out of six AGT test protocol implementations were faster for EyeAutomate than for Selenium. The exception was a date selection on a calendar view matrix, which led to many false positives in the creation phase of the automated test (T6, see Table II). Third-generation tools may have difficulties in situations where many similar alternatives for selection are visible. For instance, selecting day ’23’ of a month may seem similar to selecting ’22’ for image-based AGT. Also, those dates are, topographically on the GUI, very close to one another. Further, for a calendar with weeks per year listed, a selection of the week ’23’ field instead of the day field easily results in a false positive too. Thus, for a SUT with views containing many similar alternatives for selection, element-based AGT may be a more sensible choice due to the localization of GUI components through, e.g., id locators. Combining different AGT tools where appropriate within the same SUT is certainly an alternative too.

Understanding how implementation/maintenance costs are affected by the complexity of the test protocols, or how they vary among the AGT tools, would shed some light on properties of AGT in general and features of the tools. The costs for both AGT tools varies largely among the six test-protocols. Using the lines of code metric for the test scripts (numbers not reported here), no non-trivial relationship could be identified other than larger test scripts require more time. It is further not possible to clearly see which AGT tool has a generally more unified distribution of costs, both AGT’s time distributions differ largely for all scripts (see Tables II and III).

In their discussion on third-generation AGT, Alegróth et al. in [2] illustrate the ROI with the assumption that initial implementation time is steep and maintenance costs over time very low/negligible. The empirical findings in our case study suggest that initial implementation costs for image-based AGT are, with half the time-demand, much more gentle for EyeAutomate than for the element-based AGT tool Selenium. The maintenance cost, however, largely depends on the frequency and magnitude of changes to the UI. Greater GUI overhauls as for versions 7-15 in Fig. 5 impact in this case study image-based AGT much stronger than element-based AGT, as also seen for AGT of mobile applications [21]. Thus, an important lesson learned is a refinement to the previous, related studies: the stability of the GUI is the main determinant of maintenance costs and should be considered when considering them.

In practice, even test execution times may be of relevance for large test-suites, i.e., when regression testing, with developers waiting in the loop. The time it takes to execute the tests manually and automatically are both presented in Table IV. MGT is the slowest with an average of ca. 75 minutes per run of the shortlisted test-protocols , but as mentioned before, entails no maintenance costs. EyeAutomate runs are slower in execution than Selenium tests. One caveat with EyeAutomate is that the execution, even though entirely automated, is still about half as time-consuming as the manual testing.

Exec. Time (min.) Manual Selenium EyeAutomate
Total 75 7.5 30
Average 12.5 1.25 5
TABLE IV: Manual test protocol execution times compared to Selenium and EyeAutomate execution times from full-pass runs.

In situations where the studied time-window using step-wise replay is too short for reaching a positive ROI, one can use statistical modeling e.g. Bayesian data analysis to make predictions with uncertainty (like, e.g., Afzal and Torkar [34]). One could design a Bayesian model for the cumulative hours using version vector elements as predictors, as has been done in Fig. 6. To the left of the dashed vertical line, we have the actual data collected during our case study, whereas the content to the right contains predicted values. This enables comparison of both tools where, over time, the 95% uncertainty regions (i.e., the shaded areas) increase. In other words, as we predict further maintenance costs, we run into more uncertainty.

Next, we briefly present and argue for our Bayesian model but do not have space for a more detailed introduction and description (a recent introduction to BDA in software research can be found in  [35]). We assume the following:

(1)
(2)
(3)
(4)

In the first line, we assume that the cumulative hours (ch)

, for each tool, are distributed according to a Gamma-Poisson likelihood. The Gamma-Poisson likelihood is shaped as a negative-binomial distribution and was chosen for our model because the mean and the variance differ significantly and its overall shape is in line with our measurements. In the second line, we model

as a linear regression where we will estimate an intercept

and (using a link parameter we assume a parameter’s value is the exponentiation of the linear model). In the remaining lines, we set so-called priors for each of the parameters we want to estimate. In this case, we set very broad priors (generic weakly informative priors) according to recommended best practices.888https://github.com/stan-dev/stan/wiki/Prior-Choice-Recommendations Note that, because versions are a mixture of days and weeks in this case study (see Fig. 3), an estimation error is introduced into the model However, this does not affect the estimation of the required number of hours until ROI, which can directly be derived from the y-axis of the plot.

The frequency in which manual tests are conducted highly affects the time until a positive ROI is obtained. To illustrate this, we here compare Fig. 5 and Fig. 6 with weekly and monthly manual testing efforts, respectively. For weekly manual tests, the ROI is achieved within the emulated time-span of the case study (before dashed line in Fig. 6), while for monthly manual testing we must look above the horizon of our study and extrapolate the time effort of the AGT in order to reach the time at which the intersection between the AGT and MGT models constitutes the estimated ROI.

Some specific lessons learned from the interviews are summarized below. All six interviewees mentioned, to a lesser or greater extent, that programming knowledge is required to use Selenium. The developers were generally positive and found Selenium easy to use due to its familiar language and development environment, while the single tester stated that it was: ’Not for me’. This is something to consider for other companies.

The interviewees overall found the tool for creating EyeAutomate tests, EyeStudio, easy to use. The visual scripts with images made it easy to get an overview and the clickable instructions made it easy to get started. Several interviewees said that little technical knowledge was required to get started with EyeAutomate, mostly due to the outspoken intuitive workflow. This is consistent with existing evaluation in literature, where third-generation tools are perceived as more intuitive and independent of specific knowledge on programming languages or frameworks [21]. However, there were some areas that require experience, specifically when it came to handling timing issues and different so-called recognition modes. Also, most interviewees noted how sensitive and error-prone the image recognition felt, how the test hijacks the computer while running, and how difficult it is to reuse code.

Ultimately, the general consensus of the interviewees was that an AGT can replace manual testing, to a large extent. The majority of interviewees stated that test protocols would have to be well defined up-front in order to be automatized. Also, exploratory testing by humans cannot be easily replaced. Automated GUI tests would further lead to more false positives and false negatives, partly because humans are more forgiving and rationale regarding the relevance of visual changes, according to the interviewees.

Given that the conclusions in this paper are heavily based on a single case study, a number of limitations and threats to validity exist. Only two tools were compared in this study, each representative for the respective second and third-generation of AGT. Other tools in the respective category might have produced different results. The test protocols were not controlled for, i.e. they were completely taken from the real-world scenario and only sampled. Version selection was done on a weekly basis, but there are many other ways to select the software versions for manual step-wise replay, as mentioned in Sect. III. Also, all recorded times for manual testing, implementation, and maintenance, can be biased by the executor of the task. Thus, the ROI from one study can, at best, estimate the directionality and rough range of that of another study and project. Finally, qualitative findings through the interviews are of very limited generality because of the small sample size.

Vii Conclusions

In this paper, we presented a manual step-wise replay method for ROI estimation for the introduction of automated GUI testing into existing software projects. The method replays the existing source-code change history with manual tester/developer intervention at each stage and a pre-defined process to measure ROI. We evaluated the method in a case study on the industrial software CANEA ONE, producing relevant insights for the company as well as lessons learned. Differences between the two testing tools and approaches investigated stood out clearly. The maintenance effort per investigated version was an average of 32% higher for EyeAutomate, but the dominating cost for both tools was the initial implementation time. Implementing the test-protocols for Selenium took almost twice the time than with EyeAutomate. For both tools, this was close to 90% of the total cost up until reaching ROI compared to manual testing. Also, the practical use of the two compared ATG approaches differed. Whereas Selenium requires the tester to have a programming background, EyeAutomate seems not to.

For general conclusions, further empirical studies, covering the introduction of AGT into existing software projects, are required. The effect of the selection of versions must be further investigated. Another future direction includes the investigation of AGT test suites for systems under frequent GUI changes, i.e., how can robustness be enhanced in the AGT tools? How efficient AGT tools are in terms of identifying bugs early, strengthening AGT’s value proposition, is another relevant question. With the manual step-wise replay method introduced here, we argue these and other important software reliability questions can be answered in a context-, company- and project-relevant way.
