I Introduction

A SPaT (Signal Phase and Timing) message describes the current phase at a signalized intersection, together with the residual time of the phase, for every lane (hence every approach and movement) of the intersection. The estimate is periodically broadcast by the intersection, say once per 100ms. For a fixed-time controller the SPaT information is definitive; the challenge is for an actuated controller for which only an estimate of the residual time can be given, and for which the SPaT message data elements include StartTime of the phase, its MinEndTime, MaxEndTime, LikelyTime, Confidence (in the LikelyTime) and NextTime (when this phase will next occur).

A SPaT message is used together with a MAP message, which describes the physical geometry of one or more intersections. A vehicle approaching or leaving the intersection, with knowledge of its own position and speed and MAP information, can take the residual time of the current phase from the SPaT message to calculate a speed profile that reduces stop-and-go driving and idling [1]. No intersection in the U.S. today broadcasts SPaT or MAP messages, and very few cities have a Traffic Management Center that receives phase information from all its intersections. But in our experience, it is inexpensive to collect and process phase information locally at each intersection, and the significant interest and activity in the automotive and ITS communities devoted to standardization of SPaT and MAP message formats [2, 3] suggest that intersections that deliver SPaT may become common.

Several studies offer ‘eco-friendly’ speed advice based on SPaT and simulate its benefits. A model predictive control (MPC) is used in [4] to construct a vehicle trajectory that traverses a sequence of intersections without stopping at a red light, knowing the SPaT sequence in advance. The speed advice in [5] is based on SPaT messages from the upcoming intersection and the expected reduction in emissions and fuel consumption is evaluated using a vehicle dynamics model. A velocity planning algorithm for eco-driving through a signalized corridor is simulated in [6]. These studies report fuel savings in arterial driving ranging between 12 and 47 percent. This wide variability in fuel savings estimates may be due to differences in the underlying vehicle simulation models.

On the other hand, the Glidepath field experiment found drivers who got speed advice saved 7 percent, whereas SPaT-based automatic speed control saved 22 percent of fuel, relative to an uninformed driver [7]. The Glidepath experiments suggest that accuracy in the SPaT estimate is essential to maximize the fuel savings that automation can achieve. Another field experiment [8] reports comparable fuel savings.

SPaT messages may also improve safety by preventing rear-end accidents due to errors in driver predictions of the phase duration and also because drivers can know which conflicting approaches have the right of way. For a review of use cases for SPaT see [3]; [9] gives a European perspective.

I-a Related Work

A few studies propose SPaT estimation based on noisy measurements of signal phase. The approach in [10] estimates the cycle length, phase durations, and the cycle start time for several intersections along a segment of Van Ness Avenue in San Francisco. Only fixed-time signals are considered. The data consists of samples of GPS position and speed taken every 90s or 200m from 4,300 bus runs over this segment for one month. However, to estimate the red duration at an intersection, only between 40 and 350 samples that occurred right before and right after an intersection were found to be usable. These few samples were “aggregated” to estimate the duration of red. The accuracy of the estimates is unimpressive, with absolute errors up to 6s for a red duration of 36s [10, Table I]. (By way of comparison, we report in Figure (b)b below the mean absolute error for an actuated signal between 0.5 and 3s for an average phase duration of 38s.) Since the signal timing parameters are fixed and available from the San Francisco Transportation Authority, the one month-long data collection and processing effort to estimate these parameters seems misspent. A follow-on study that simultaneously estimates the waiting time spent by the bus in queue shows a significant improvement in the SPaT estimate [11, Figure 16]. The approach to estimating parameters for fixed-time signals by associating speed measurements of “floating cars” to the signal status was earlier exploited in [12, 13, 14].

The scheme described in [15]

engages several cooperating drivers with smartphones to locate (detect) the signal light at an intersection and predict its phase duration. Much effort is spent to detect the signal head and identify the signal color. (In the two reported scenarios, the signal head misdetection rates were 7.8 and 12.4 percent, meaning that in one out of ten intersections on average, the signal head was not detected or some other object was mistaken for a signal head.) The two remaining tasks are (1) estimating the phase durations and (2) ‘synchronization’ or locating the current time within the current cycle or phase, so the vehicle can figure out the residual time of the phase. In case of a fixed-time signal with known timing plan, the phase durations are known, and synchronization is equivalent to determining the time of a phase transition from (say) green to red. For an actuated signal the phase duration varies from one cycle to the next, and three machine learning algorithms are tested to predict the duration of the next phase from signal phase history; however, the best prediction based on the five previous phases and cycle lengths is only slightly better than taking the next phase duration to be the same as the last duration. The authors do not discuss how phase duration estimates made by vehicles at earlier times are transferred to the vehicle that is making the current prediction.

The two studies [10, 15] spent much effort in collecting and processing noisy measurements of signal phase. By contrast, city transportation agencies and auto companies obtain the signal phase data directly from the signal controller. Cities may invest in SPaT devices to improve mobility generally and to provide priority to public transportation [16]. Auto companies devote their effort to improving SPaT algorithms and designing interfaces to present SPaT messages to drivers.

The study [17] relies on data collected from traffic intersections to make a probabilistic SPaT prediction. Phase duration data is used to compute its empirical frequency distribution at the beginning of each cycle. Then for each second in the cycle, the prediction of phase takes the value or if with (say) 80 percent ‘confidence’ phase is green or red at second , whereas means the phase may be green or red. But to figure out the residual time of the current phase, a vehicle also needs to know the time within the cycle, although [17] does not mention the need to broadcast this time. Even with this time, however, the prediction in [17] may be uninformative. Of course the ‘80% confidence’ predictions may be incorrect; more importantly, they leave a lot of uncertainty that will grow if we require a higher confidence level. The deeper problem with compressing the raw data into frequency distributions as in [17] is that the frequency distribution obscures the residual times of the phase, which is what the SPaT message is supposed to provide and what vehicles need to design their speed profile.

The brief description in [18] does not explain how its SPaT estimate is derived but states that it is displayed to the driver via a “countdown clock on the dashboard.” The website (conectedsignals.com) declares that it combines real-time signal data (presumably obtained from the Traffic Management Center), with GPS location, and speed limit information, to predict upcoming traffic signal behavior and deliver it via cellphones.

Several papers study predicting vehicle flow at arterial roads and using the prediction for adaptive signal control [19] [20] [21]. Our focus on predicting the phase duration at traffic intersections is quite different.

I-B Contributions of this paper

We develop algorithms to estimate the residual duration of every phase for two semi-actuated intersection in Montgomery County, MD. Detailed description of the algorithms for one intersection is provided; the study of the second intersection suggests that the same procedure can be applied elsewhere. Direct measurements from the intersection provide the ground truth used to evaluate the algorithms. The algorithms predict the times for all future phase transitions, based on previous phase measurements and on the real time information that locates the current time within the current phase. For actuated signals, conditioning the prediction on this real time information greatly reduces the prediction error. To our knowledge this is the first paper to use this information, which is available at the signal controller. Perhaps surprising is the finding that for semi-actuated signals, as time increases, the estimate of the residual phase duration may increase or decrease, posing a challenge to construct fuel-minimizing speed profiles. Another contribution stems from the observation that for a driver the best SPaT estimate is the one that minimizes the driver’s own loss function. For example if, as seems likely, drivers differently weight errors in predicting ‘end of green’ and ‘end of red’, drivers on two different approaches would prefer different estimates of the same phase transition, since ‘end of green’ for one approach to the intersection would be the ‘end of red’ for the other. This suggests that multiple SPaT estimates should be created and broadcast.

The paper is organized as follows. Section II describes the intersection site and the measurement system. Section III formulates the SPaT estimation problem. Sections IV describes the prediction algorithms and the evaluation of their performance. Section V describes prediction as the minimization of a loss function. Prediction of the duration of future phases is described in Section VI. Section VII describes the evaluation of the algorithms using the data from another intersection. Section VIII collects the main conclusions.

Ii Measurement site

Fig. 1: The intersection at Tildenwood Dr. and Montrose Rd.

Figure 1 shows the intersection at Tildenwood Drive and Montrose Road in Montgomery County, MD, the first measurment site we consider (the second measurement site is described in Section VII). The same figure also indicates the six phase movements permitted at this intersection. The movements are arranged in the dual ring and barrier structure of Fig. 2 (The ring structure is described in [22].) Ring 1 comprises phases , , , and ring 2 comprises phases ; phases have zero duration. The thicker vertical lines are the two barriers. Across Montrose Rd., to the east of the intersection, is the pedestrian cross-walk which is actuated in every cycle at the beginning of phases and .

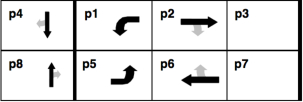

Fig. 2: The dual ring diagram; phases and have zero duration. The thicker vertical lines are the two barriers.

The intersection is equipped with magnetic vehicle detectors at the stop bar, at advance locations, and in the departure lanes. The latter permit an accurate count of turn movements ( and ). In addition, the current signal phase is obtained from the controller every 100ms. All measurements are time stamped with a common clock with a 10ms accuracy. These detectors are for measurement only; the controller itself relies on different detectors for signal control.

In summary, the data consists of the time series of vehicle detections and signal phase at a time resolution of 10ms. The data is sent wirelessly to an access point (AP) located at the controller, from where it is sent via cellular connections to the traffic management center and to our server. The data are obtained courtesy of Sensys Networks, Inc. The analysis here uses two months of data from September and October 2016. Only phase data is used in this study; a future paper will report on the additional predictive power provided by vehicle detection data.

The intersection is regulated by a semi-actuated, coordinated controller. The cycle length is fixed by the timing plan at 100, 110 or 120s, depending on time of day and day of week. The cycle is divided into nominal durations for each phase; the controller modifies these durations in each cycle depending on vehicle detections. Phase or is the coordination phase, implying thereby that this phase is the last one in the cycle to receive its allocation of green time. (The operation of actuated controllers is described in [22].) The main direction of traffic is East-West (Tildenwood) and this direction has no detectors for signal control. There are detectors in the secondary North-South (Montrose) direction. If few vehicles are detected in the secondary direction, its green duration (phases , ) is shortened and the time saved thereby is added to the duration of the phases in the main direction, and . Vehicles making left turn movements (phases , ) are also detected, and their green duration is also reduced if fewer vehicles are detected in the turn pockets, see Figure 1.

Thus if we denote by the duration of phase , we see that all of these durations may vary from one cycle to the next, while maintaining some identities:

(1)
(2)
(3)

Equation (1) recognizes as the cycle length; (2) and (3) are implied by the two barriers shown in Figure 2.

Iii The SPaT Problem

Fig. 3: Variables used to define the SPaT estimation problem.

We use Figure 3 to define the SPaT estimation problem. Time is in seconds. The figure shows two cycles and , each of length , starting at times and ; is the duration and is the end time of phase in cycle ; so if is the current time in cycle during phase , then is the residual time of the phase that is included in the SPaT message. Observe that from the phase end times one can calculate the phase durations, e.g. , etc. Conversely, from the phase durations one can calculate their end times.

The SPaT problem: Let be the information about previous phases available at time during cycle . The problem is to predict the residual times of all phases for all future cycles , given .

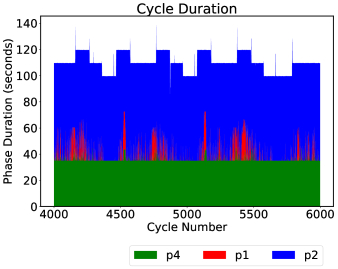

Fig. 4: Variation in Phase durations over 2,000 cycles.

Our study uses data for 36,000 cycles from September and October 2016. The phase data for a sample of 2,000 cycles (about 3 days) is shown in Figure 4. The plot is similar to Figure 3: the difference is that the plot is rotated 90 degrees, the 2,000 cycles are ‘stacked’ horizontally, and only phases in ring 1 are shown (there is a similar plot for phases in ring 2). The coordinate is the cycle number; the coordinate is the time in seconds during that cycle. The length of a cycle is 120, 110 or 100s, as determined by the timing plan. Every cycle starts in phase (and ); its duration is and it is colored green as in Figure 3. The minimum value of is the pedestrian clearance time of 36s; the duration (and ) is extended by 5s each time an additional vehicle is detected (Variation of is difficult to see in the above figure, but will be clear in later plots). Phase is followed by the left turn phase (and ) colored red, and lasting . Duration depends on the detection of left turn vehicles, and each new detection triggers an extension of 5s. is zero in many cycles, when no left turn vehicles are detected. The cycle ends in the coordination phase (and ), colored blue, and lasts for time . (The infrequent ‘spikes’ in occur when a change in the cycle length dictated by the timing plan is accommodated over several cycles.) Large values of and occur only during the AM and PM peaks. The 4s yellow and 1.5 or 2s red signal phases are included in the green duration.

We now present several algorithms for phase duration prediction for SPaT.

Iv Phase Duration Prediction

As in (1)-(3) and Figure 3, let denote the duration of phase . (The treatment of phases

is analogous.) Since in each cycle, each phase is actuated for a contiguous interval of time, it is easy to calculate the histograms or empirical probability distributions (pdf) of the durations from the raw data of Figure

4. In the following, we only consider the phase duration data for cycles whose length is 120 seconds, as it makes no sense to aggregate durations from cycles with different length. Since and (by (1)), it is enough to calculate the pdfs of . Since and may be dependent, the pdf of cannot be calculated from the pdfs of and . The calculated pdfs are plotted in Figure 5. Separate pdfs must be calculated for cycles of length 100 and 110 seconds.

(a)
(b)
(c)
Fig. 5: PDF of and .

In the following we propose two approaches for predicting the phase duration using this empirical pdf: a conditional expectations based prediction and a confidence based prediction. The only real-time information used is the phase and the amount of elapsed time of the phase at time in the cycle when the prediction is made.

Iv-a Conditional expectation based prediction

If the prediction is made at the start of the cycle, , nothing is known except the unconditional pdfs of the phase durations in Figure 5, and so a reasonable prediction for the durations is their expected values. These values, , are inserted in the plots of Figure 5. Now consider the prediction of the residual duration of at some later time in the cycle. We see from the pdf of that if and if is still actuated at , i.e. , a better prediction at would be the expected value of , conditioned on the event . We define this prediction as

(4)

Figure (a)a shows the conditional pdf and its expected value 41.07. Figure (b)b plots the conditional expectation as a function of .

Remark 1 (Residual phase duration).

Predicting the residual phase duration, i.e., the time remaining for the phase to change from red to green (or vice versa), might be more useful in eco-driving applications. Vehicles can control their acceleration based on this information in order to minimize the fuel consumption. Our algorithm provides the residual phase duration. For example, the residual time of at time , is simply

(5)

Figure (c)c shows as a function of .

Remark 2.

One striking feature is that the residual time (in Fig. (c)c) suddenly increases at by about 2.5s, which may appear counter-intuitive. For example, consider a driver waiting for the left turn signal, phase , to turn green which coincides with the end of . The residual time is decreasing initially as one would expect because intuitively increasing suggests less time remaining in . However, the driver will find that residual time suddenly extended by a few more seconds at before decreasing again. (The phenomenon is similar to the experience of the ‘remaining time’ to download a file.) If the residual time is revealed to the driver via a countdown clock as in [18], then the clock must make a backward jump at . By assuming that the prediction of the duration does not change with time, i.e. , the eco-driving control strategies in [5] and [6] rule out the realistic situation depicted in Fig. (c)c. This can create significant problems in designing a control strategies for eco-driving. Of course the complexity of Fig. (c)c disappears in the case of fixed-time signals, whose pdfs are delta-functions.

(a)
(b)
(c)
Fig. 6: Fig. (a)a shows the conditional pdf of , conditioned on . Fig. (b)b shows the conditional expectation based prediction of . Fig. (c)c shows the conditional expectation based prediction of the residual time .

Iv-B Confidence based prediction

The SPaT message includes the confidence level for the prediction. We can use the empirical pdf to give a prediction with a given confidence bound.

Let be the required confidence bound. We can define the confidence based prediction as the value for which one can guarantee . Let

be the cumulative distribution function (cdf) of

. Then and the required is the solution of the equation

(6)

Fig. (a)a plots the pdf and 1-CDF of . The latter is a decreasing function, and the solution of (6) is for . Now suppose we seek the confidence bound at time into the cycle while is actuated. Then the bound is given by

(7)

Here is the CDF of conditioned on the event . So for as shown in Fig. (b)b.

Thus with probability 0.8, at time in the cycle is at least 35, and at time in the cycle is at least 38. Fig. (c)c plots this confidence based prediction as a function of for .

(a)
(b)
(c)
Fig. 7: Confidence based prediction of for confidence bound .

Iv-C Prediction errors

(a)
(b)
(c)
Fig. 8: Prediction error comparison.

Consider the conditional expectation based prediction shown in Fig. (b)b at time into the cycle, for which the prediction of the residual time is (For example, for , .) In our data set there are many cycles or samples for which and for each the exact error in the prediction of the residual time is . So the mean absolute error for the prediction at is

(8)

in which are the samples with .

Remark 3.

Formula (8) may be considered suspect because the calculation of includes the value of the sample . The ‘leave-one-out’ error calculation replaces in (8) by which is the prediction obtained after leaving out the sample . However, since the number of samples is large this will not materially affect the prediction error.

In exactly the same way we can calculate the MAE for the confidence based prediction shown in Figure (c)c. The formula for MAE is the same as (8), the only difference is that is replaced by the confidence based estimate. Fig. (a)a plots the conditional expectation based prediction and confidence based prediction for comparison. Figure (b)b plots the for both the conditional expectation and confidence based predictions (with ). The most noteworthy aspect of the figure is that both prediction errors generally decrease as more real-time information is accumulated by the intersection.

If we take a quadratic loss function, (8) must be replaced by the mean-squared error (9):

(9)

in which is the same as in (8). It is well known that the best prediction which minimizes the MSE is conditional expectation as confirmed in Fig. (c)c.

Evidently, having real-time information significantly improves the prediction, both in the form of conditional expectation (Figure 6) and with confidence bounds (Figure 7).

V Prediction as Minimizing a Loss Function

Different predictors minimize different loss function. Let be the prediction and let be the actual realization of the the phase duration. The optimal prediction at time is defined as

(10)

where

is the specific loss function we are considering and expectation is w.r.t. the random variable

. For example, while considering the MSE (9), the loss function used is .

The function in (8) takes the loss to be the absolute value of the error, i.e., . So a positive error and a negative error of the same magnitude are judged equally harmful. But it seems more likely that an overestimate of the ‘time to red’ is evaluated by a driver differently from the same error in the estimate of ‘time to green’. (In the former case, the driver may be forced to slam on the brakes.) This consideration suggests using the asymmetric loss function

(11)

It is not difficult to show that the optimal prediction which minimizes (11) is given by the formula

(12)

where is the conditional cumulative distribution. So this is just the confidence based estimate (like (6)) for an appropriate choice of the confidence bound.

Fig. 9: An asymmetric loss function in which the unit loss of an overestimate of the residual duration is different from the unit loss of an underestimate.

This loss function is plotted in Figure 9. If , the two slopes are different. So, if our driver feels when driving during phase , he will feel the two slopes should be exchanged when driving during phase . This suggests that the intersection may broadcast different predictions of the same phase duration for different approaches.

Vi Prediction of Other Phases

In Section IV we considered prediction of in detail. We now consider a more complex prediction. Suppose a driver at time on Tildenwood Dr. (see Figure 1), while the minor phase is active, wants to know when the through phase will start. We see from Figure 3 that this means the driver wants a prediction of at time . We consider two approaches to an answer.

Approach 1: We treat as a single random variable, and recognize that implies . We obtain the empirical pdf of and we predict the residual duration as the conditional expectation

(13)

We can also calculate the prediction with confidence level as the residual that solves the equation

(14)

Approach 2: We treat as a 2-dimensional random variable, obtain the empirical conditional distribution , and then calculate the prediction as the conditional expectation .

Approach 1 is approximate, Approach 2 is exact but requires calculating the two-dimensional probability distribution .

The predictions following the two approaches is plotted in Fig. 10, and prediction error is plotted in Fig. 11. As expected, the prediction following Approach 2 has a smaller mean absolute error.

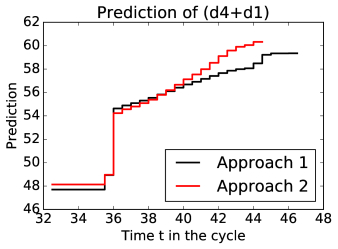

Fig. 10: Conditional expectation based prediction of .

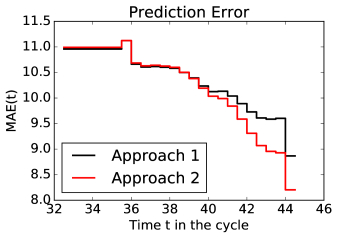

Fig. 11: Prediction error of .

Vii Evaluation at a Different Intersection

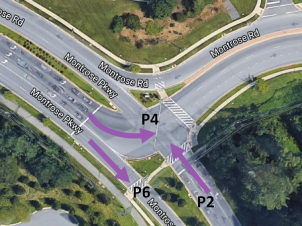

Fig. 12: The intersection at Montrose Rd. and Motrose Pkwy.

In this section we apply our prediction algorithm to the intersection at Montrose Road and Montrose Pkwy shown in Figure 12. The figure also indicates the three phase movements () permitted at this intersection. Each cycle starts with the phase followed by phase . The analysis here uses nine months of data from April 2016 to April 2017 (three months are omitted due to problems in getting data).

We focus on the left turn phase . The empirical pdf of shown in Fig. (a)a uses data for all nine months. Note that the phase duration here is more variable compared to that of the earlier intersection.

In order to get a sense of how much data is necessary to make the prediction (i.e. for computing the empirical pdf), we propose a sliding window approach. For predicting the phase duration on day , we use the data from the days to , where is 14 days, 60 days, or 120 days. So, for each day, we compute three different empirical pdfs and make three different prediction. The prediction is done in the way described in Section IV-A. The prediction for one day using three different ’s are given in Fig. (b)b. The MAE averaged over the whole data is shown in Fig. (c)c. The MAE is larger compared to the previous intersection because the phase duration is more variable.

(a)
(b)
(c)
Fig. 13: Conditional Expectation based prediction for .
Remark 4.

The MAE plot (Fig. (c)c ) shows that the prediction error does not decrease just by using more data, because the traffic, and hence the phase duration process, is not strictly stationary. The MAE is similar for all three window lengths (2 weeks, 2 months and 4 months). If the window length is smaller than 2 weeks, the prediction error increases.

We also evaluated the confidence based prediction (as described in Section IV-B) for this intersection and obtained similar results.

Viii Conclusions

The paper describes several algorithms for SPaT predictions, i.e. estimates of the remaining duration of a signal phase. The algorithms use historical and real-time phase data for a semi-actuated intersection in Montgomery County, MD. The algorithms can be readily implemented at the intersection’s signal controller. We summarize three principal findings.

First, knowing how much time into the current phase has elapsed greatly improves the prediction of the residual time for that phase as well as for a subsequent phase. Further, the important statistic underlying all the algorithms is the probability distribution of the residual time conditioned on the available information. This conditional probability is easy to compute and from the distribution one can readily construct the SPaT message. For example, for the intersection of Figure 1 the SPaT message for phase at time is:

startTime = 0, minEndTime = 35 (Fig (a)a), maxEndTime = 45.5 (Fig (a)a), likelyTime = 38.13 (Fig (a)a), confidence bound = 35 at (Fig (b)b), nextTime = 120 (cycle length).

Second, for an actuated signal, as time increases, the real-time prediction of the residual time can increase as well as decrease. This poses a challenge to the design of speed profiles that reduce fuel consumption. Third, drivers are likely to weight differently errors in predicting ‘end of green’ and ‘end of red’, so drivers on two different approaches would prefer different estimates of the residual time of the same phase. It may therefore be worth considering providing multiple estimates of the residual time.

Several issues warrant further study. Since the duration of a phase in an actuated intersection depends on vehicle detections during the same cycle, incorporating these in the estimate of the phase duration should reduce error. In a future paper we will report the improvement in predictive power from vehicle detection measurements at the intersection in Figure 1. Second, Figure 4 suggests that the sequence of phase durations is not stationary, and so one should not estimate the empirical probability distributions by averaging over all available data. Rather more recent data samples should be given more weight. A more challenging approach is to try to estimate a model of the dependency among subsequent phase durations. To the extent that this is possible, it would certainly improve the SPaT estimates.
