I Introduction

When humans have an accurate mental model of a robot, their subsequent interactions with this robot are safer and more seamless. This mental model may include the robot’s intentions [1, 2, 3], its objectives [4], its capabilities [5, 6], or its decision-making process [7].

In particular, giving human end-users an accurate mental model of a robot’s capabilities is key to establishing an appropriate level of trust in the robot [8, 9, 10]. Establishing appropriate levels of trust in robots is essential: if end-users do not trust a robot, they may unnecessarily interfere with its operation, and will fail to take advantage of all its capabilities [11]. On the other hand, if end-users over-trust a robot, they will expect it to act correctly in situations that it in fact cannot handle, which leads to unexpected behavior, and perhaps injuries and damage. As robots become more capable, they may unintentionally lead humans to over-trust them [12]. In general, trust is a complex phenomenon, and there are a variety of ways in which robots and machines may influence human end-users’ trust [13, 14, 15].

Establishing appropriate trust is particularly challenging when the robot has learned a complex black-box policy. For instance, recently neural network policies have been trained to perform robotic manipulation skills [16] and drive in the real world [17]. These neural networks are trained end-to-end to map directly from raw inputs (e.g., images) to a distribution over actions to take. To decide how much to trust a learned policy, we have to know whether the robot has figured out the correct actions to take. But, it is impossible to examine what the robot plans to do in every possible state.

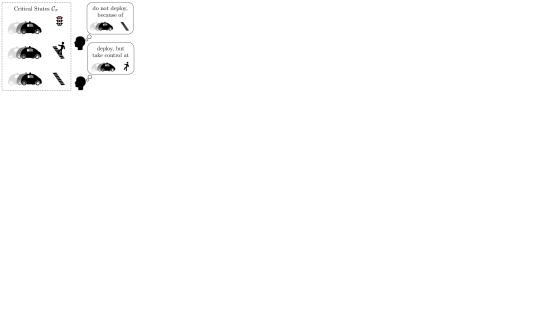

Fig. 1: By introducing human end-users to a policy ’s critical states (left), we enable them to make a more informed decision about whether to deploy the policy, and when to take control from it. For example, suppose that a self-driving car’s policy believes it is critical to stop when it encounters red lights, a pedestrian crossing a crosswalk, and an empty crosswalk. An end-user (top right) might see these critical states and decide not to ride in this car, because the last critical state is clearly incorrect. A different end-user (bottom right) might be comfortable riding in this car, but will be more aware of possibly needing to take control when there is a pedestrian crossing the road without a crosswalk in sight, because the policy did not consider that to be a critical state.

Our insight is that the end-user does not need to know what the robot would do in all states. For many tasks, in most states the ultimate outcome of the task is similar, regardless of which action the robot takes locally. But there are a few states—critical states—where it really matters which action the robot takes.

For instance, imagine an autonomous car driving down a highway. When there are no vehicles nearby, it does not matter whether the car maintains its current speed, speeds up or slows down slightly, or turns slightly to the right or left. In contrast, if the vehicle directly in front slams on its brakes, the autonomous car must immediately slow down as well. The latter is a critical state, whereas the former is not.

Usually when end-users are introduced to a robot, they are only told summary statistics of this robot’s performance. For instance, a potential passenger may be told that a particular autonomous car has driven more than a million miles, without causing any accidents. Without more information, this passenger has no way of knowing what kinds of states this car still cannot handle. If she expects the autonomous car to do the right thing in a critical state, and it does not, then it may be too late to recover.

As end-users observe and interact with a robot over time, they will gradually improve their mental model of it [18], just as they do when observing other humans [19, 20]. However, it may take a while for end-users to learn a sufficiently-accurate mental model in this way. The hope is that we can speed up this process by exposing humans to more informative examples of the robot’s behavior.

To this end, we propose showing end-users how the robot acts in critical states, to give them a better understanding of what it has learned, and enable them to decide which situations to trust the robot in (Fig. 1). After seeing how a robot acts in critical states, a potential user may decide that this robot is not trustworthy, and decline to use it. Or, in human-in-the-loop setups—for instance, a passenger riding in a self-driving car, or an engineer supervising robot arms in a factory—this ensures users are well-equipped to decide when they need to take control over the robot’s operation.

Our main contribution is a method for algorithmic assurance [21], that enables end-users to more quickly establish an appropriate level of trust in robots that they interact with, rely on, or supervise. Our user studies suggest that humans are indeed able to develop more appropriate trust in a robot through observing how it acts in what it considers to be critical states, compared to just observing it act over time. We evaluate this through both self-reported measures of trust, as well as through allowing users to take control during execution of the policy [11]: if they have developed an appropriate level of trust, they would only choose to take control in critical states that the robot likely cannot handle.

Ii Background

Ii-a Notation

We consider the setting of a Markov Decision Process (MDP), defined by

, where is the state space, the action space,

the transition probabilities,

the reward function, and the discount factor.

A robot’s policy is a stochastic function mapping each state to a distribution over actions (, where is the probability simplex on ). Its value function at state is


and its action-value function at state and taking action is


In this framework, a critical state is one for which varies greatly across different actions : there are a small number of actions for which is high, but for most actions it is mediocre or low. We will define this formally in the next section.

Ii-B Maximum-Entropy Reinforcement Learning

Typically a robot’s goal is to maximize expected cumulative discounted reward, or return:


Depending on the MDP, this may result in policies that are essentially deterministic, treating all states as critical.

In contrast, in maximum-entropy reinforcement learning, the policy is trained to not only maximize return, but also to act as randomly as possible while doing so

[22, 23, 24]. Concretely, the policy is trained to maximize


where determines the tradeoff between maximizing return and entropy, and is the entropy of the policy’s output action distribution at state . This leads to a policy with meaningful critical states, since it learns to acts randomly in states where the action has little impact on return, and to act purposefully in states where the action does have a major impact on return.

We train our neural network policies using Soft Actor-Critic111We use the implementation at (SAC) [24], a deep reinforcement learning method that is based on maximum entropy reinforcement learning. We find that in practice, training with SAC indeed produces policies with meaningful critical states.

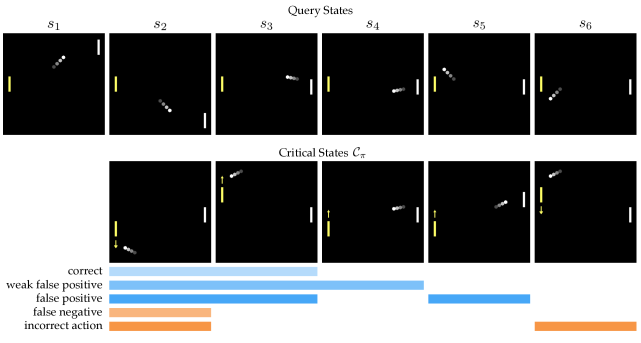

Fig. 2: The query states and sets of critical states shown in our user study for Pong. The policy controls the yellow paddle. Query states through are not critical, because the paddle has plenty of time to reach the ball, whereas and are. The colored bars indicate which states are included in each possible . For example, the incorrect-action contains one correct critical state (the leftmost one) and one incorrect-action critical state (the rightmost one). The false-negative contains one correct critical state, but is missing the second correct critical state—so the corresponding policy would likely miss balls heading toward it from above. Each possible contains at least one correct critical state (the leftmost one).

Iii Computing and Using Critical States

Iii-a Computation of Critical States

Policy-Based. Recall that critical states are those in which a policy (or human) greatly prefers a small set of possible actions over all others. A natural definition of the set of critical states for a stochastic policy is thus


where is the entropy of the policy’s output action distribution at state , and is the threshold for being considered “critical.” This definition of critical states can be applied to both continuous and discrete action spaces.

Value-Based. Certain reinforcement learning approaches for training policies, such as actor-critic methods, also learn a value or action-value function in parallel to (or instead of) learning a policy [25]. Value functions capture the long-term consequences of a policy’s actions, so when they are available, they are a reasonable alternative for computing critical states.

If we define critical states more concretely as those in which acting randomly will produce a much worse result than acting optimally, then the set of critical states for a stochastic policy is:


where is the learned action-value function. If the action space is continuous, this can be applied after discretization. Computing critical states based on a learned value function

is also possible, by using one-step rollouts to estimate

for each action.

We train our policies with SAC, which learns a policy and an action-value function in parallel. In practice, we found that computing critical states based on action-value functions was more reliable, because the policy may learn to exploit environment characteristics (e.g., action clipping) to maximize entropy.

Note that with either of these two approaches, computing the critical states of a policy is agnostic to the implementation of the policy itself; only access to either the policy’s or action-value function’s output is required, so this can be directly applied to black-box policies.

Iii-B Using Critical States

We assume a human expert at the task. Let be the set of (ground-truth) states that she considers critical. We do not know what is—and, in fact, this may differ across human end-users—so we cannot check whether and are the same. However, what we can do is expose the human to . Below, we describe the interaction we envision.

Decline to deploy due to false positives, false negatives, or incorrect actions. Before using a robot that has learned a policy , the human end-user first gets to observe its actions in the states it considers as critical, . If the human spots false-positive or false-negative critical states (i.e., states that are in but not in or vice versa), then she can decline to deploy the robot. False-negative critical states happen, for instance, when an autonomous car does not realize that stopping for a red light is a critical state. False-positive critical states happen, for instance, when an autonomous car considers it critical to slow down, even if there is quite a bit of space left to the car in front. Both false-negative and false-positive critical states indicate that the robot has failed to learn something fundamental about the task, and thus perhaps should not be trusted. Similarly, if the policy identifies a true-positive critical state but is mistaken about which action is correct in that state, then the end-user will observe that and not trust the policy as a result.

Take control. We are also interested in the case where does not have any obvious false-positive, false-negative, or incorrect-action critical states, and the user decides to go ahead and deploy the robot, but the robot operates with the user in the loop. At execution time the user is able to take control from the policy whenever she deems it necessary. Because she has already observed how the policy acts for states in , the user is better equipped to take control from the policy when necessary, and refrain from doing so when not necessary.

Iii-C Justification of Critical States

The user should have enough information based on critical states to take control when necessary at execution time. Note that at execution time, any state encountered by the robot must fall into one of three cases: (1) , (2) and , or (3) and .

In case (1), the user does not consider this state to be critical, so by definition she does not care which action the policy chooses and will refrain from taking control. In contrast, in cases (2) and (3), the user does consider this state to be critical, and cares about which action the policy takes. Since the user has observed (and approved) the policy’s actions for states in , she should trust the robot in case (2). In case (3), is a false-negative critical state that the end-user forgot about when approving this policy. Since this is a critical state that the policy does not know is critical, she should take control from the policy immediately.

If the user had not been able to observe how the policy acts for states in , then she would not be able to distinguish between when she absolutely must take control (states in case (3)), and when she should not but may be tempted to (states in case (2)).

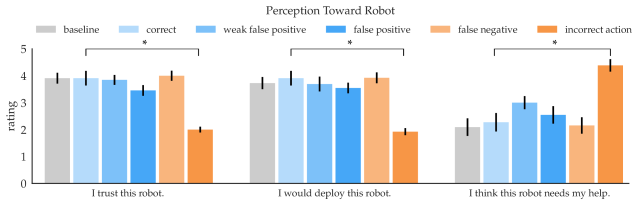

Fig. 3: Ratings for Likert statements in Sec. IV, averaged across participants in each condition. Higher ratings mean higher agreement.

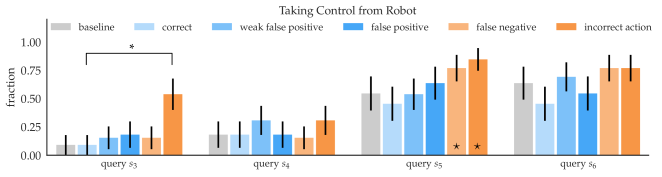

Fig. 4: Participants’ yes/no responses for whether they would take control of the policy at a particular query state (from Fig. 2). A indicates that this is a state in which participants should choose to take control, based on the critical states they observed. Results for and are omitted—people overwhelmingly chose to not take control, regardless of which condition they were in.

Iv User Study: Impact of Critical States

We begin by investigating how human end-users draw conclusions after observing the critical states of a policy, and how they respond to different errors (i.e., false positives, false negatives, or incorrect actions) in these critical states. In order to explore this in a systematic way, instead of obtaining critical states from trained policies, we construct sets of critical states where each set has at most one error. From this we can learn, for example, how much seeing a false-positive critical state impacts trust, versus seeing an incorrect-action. Later, in our main user study (Sec. V), we expose end-users to critical states from actual trained policies.

Iv-a Experiment Design

The study consists of three phases. In the query phase, we first introduce participants to the task and ask them, for a handful of states, whether they consider it critical to take a particular action in that state (Fig. 2, top row). This is to get a sense of what is across participants. In the exposure phase, we introduce participants to a policy, for instance by showing them its critical states. Finally, in the test phase, we ask participants whether they would take control from the policy, for each of the same states as in the query phase.

Domain. We chose a straightforward task with clear critical states: Pong. In Pong, a ball bounces back and forth between two paddles, and the goal is to use your paddle to hit the ball past your opponent’s. So states in which the ball is headed back toward your opponent are non-critical, since it does not matter much how you move your paddle. In contrast, states in which the ball is heading toward your paddle and has almost reached it are critical.

Manipulated Variables. We manipulate the set of critical states shown to the participant. We construct five options for correct, false-negative, weak-false-positive, false-positive, and incorrect-action—that cover all the possible problems with a particular policy’s critical states (Fig. 2). In the baseline condition, instead of showing the participant a set of critical states, we simply give them a summary statistic of the robot’s performance: “this policy wins in 95% of cases.” This establishes a baseline of how much participants trust policies for Pong that are reasonably good.

Dependent Measures. We are interested in whether observing a set of critical states leads participants to develop appropriate trust in the policy that generated those critical states. We measure trust in two ways: subjectively with five-point Likert questions, and objectively with which test phase states participants choose to take control from the policy in, and whether those are correct (i.e., in and either not in , or in but as an incorrect action). This test phase simulates execution-time: after the end-user has already chosen to deploy the policy, and is now supervising it.


H1. When contains false-negative, false-positive, or incorrect-action critical states, users are less inclined to trust the policy , compared to if its critical states match perfectly (i.e., the correct condition).

H2. In states that are critical (i.e., in ), participants will take control if a policy ’s critical states suggest that this policy will not choose the correct action in this state. For example, since the false-negative for Pong is missing critical states in which the paddle needs to immediately move upward to hit the ball, this should lead participants to take control in similar states at execution time (e.g., query state ). But, they should not take control at state , since the false-negative includes a similar critical state and chooses the right action.

Subject Allocation. We used a between-subjects design. We ran this experiment on a total of 72 participants across the six conditions, recruited via Amazon Mechanical Turk. The average age of the participants was 31.4 (). The gender ratio was 0.32 female.

Iv-B Analysis

Subjective. We asked participants how much they trust the robot, whether they would deploy it, and whether they thought the robot needed their help (Fig. 3).

We found a significant difference between incorrect-action and correct

for all three subjective measures (Student’s t test,

). However, false-positives and false-negatives did not decrease users’ perception compared to correct (the trend is in the right direction for the false positives). This may be because Pong is a relatively simple domain, which makes humans more inclined to give policies the benefit of the doubt, in terms of being able to generalize to other critical states (in the case of the false-negative ).

Objective. We also asked participants, for each of the six query states (Fig. 2), a yes/no question for whether they would take control of the policy at that state (Fig. 4). In the query phase, participants agreed that of the six states, only and are truly critical (i.e., in ). We see that overall, across all conditions, participants tend to take control in these two critical states, and not in the others. This supports our assumption that humans will tend to only take control of policies in states that are within .

However, this also indicates that participants are taking control even when it is not necessary. For instance, users who saw the correct saw it act correctly in states similar to both critical query states, but still almost half of users choose to take control in that state.

On the bright side, we saw a number of trends in line with our hypothesis. First, we do notice that for these two critical query states, users tend to be less likely to take control after seeing correct , compared to just being told a summary statistic about the policy, in the baseline condition.

Second, participants in the incorrect-action condition again indicated low trust in the robot, by choosing to take control more often, even in state , which is only weakly critical. We found participants chose to take control significantly more in the incorrect-action condition than the correct condition for (Student’s t, ) and ().

Third, participants who saw false-positive and false-negative critical states actually tended to take control more often than those who saw correct ones, suggesting that they did pick up somewhat on the problems indicated by (with weak significance, for and , ).

Summary. Overall, participants responded most strongly to critical states that reveal incorrect actions. There, they would intervene before deployment. For false negatives, they would tend to take control away from the robot more compared to participants who saw correct critical states. False positives only benefited from slight improvements in how much participants would take control, though at the same time false positives are the smallest of errors, as we discussed in Sec. III.

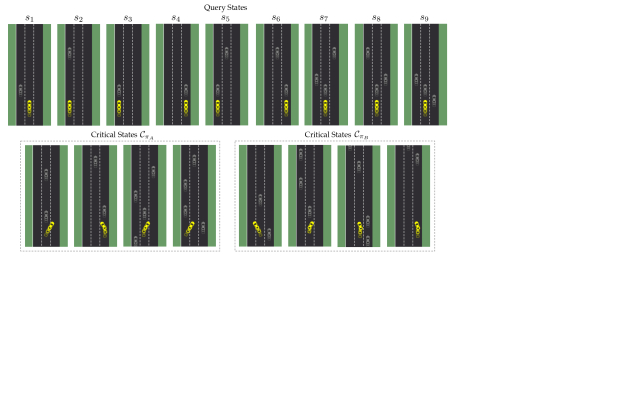

Fig. 5: The query states and a subset of the ten critical states shown in our main user study. The policy controls the steering of the yellow car. Query states and are not critical, but the rest are.

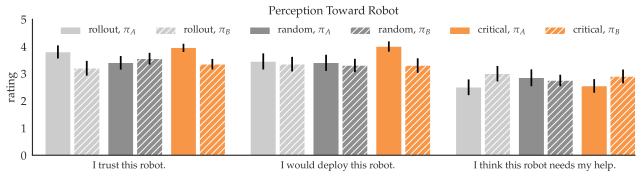

Fig. 6: Ratings for Likert statements in Sec. V, averaged across participants in each condition. Higher ratings mean higher agreement.

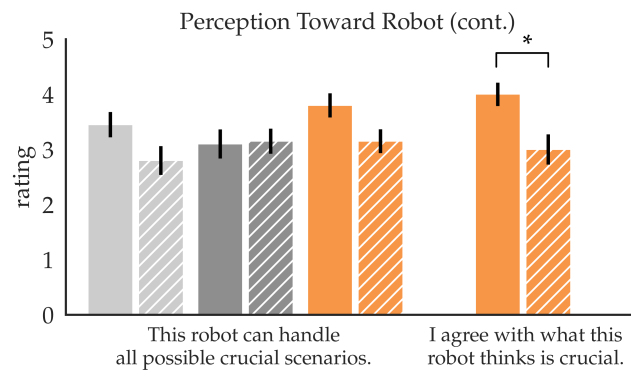

Fig. 7: Ratings for Likert statements in Sec. V.
Fig. 8: Participants’ responses for whether they would take control of the policy at a particular query state (from Fig. 5). Results for and are omitted, since people overwhelmingly chose not to take control, regardless of which condition they were in.

V User Study: Utility of Critical States

Our previous study analyzed how people respond to different errors that critical states might reveal. In our main user study, we evaluate the utility of showing the critical states of a policy against other options of exposing end-users to the policy, in terms of establishing appropriate trust.

We train two neural network policies for a driving domain, and hypothesize that critical states are best at helping people figure out which one is better. We train these policies using SAC, and use Gaussian mixture policies with four components [24].

In practice, critical states in may be very similar to each other, so instead of showing all states in

to the human, we first cluster these states (with k-means++) and then show the policy’s behavior in the most critical state from each cluster. We take advantage of the fact that neural network policies learn hidden-layer feature representations, and use the output of the last hidden layer as features for clustering. Concretely, we collect 10,000 timesteps by rolling out each policy, cluster the 10% most critical states into ten clusters, and show the most critical state from each cluster. So, we end up showing ten critical states per policy.

V-a Experimental Design

This study consists of the same three phases as the previous study.

Domain. We train policies to drive in a top-down driving simulator that mimics highway driving. The goal of the policy is to navigate down this road while passing other, slower cars. Car dynamics follow the bicycle vehicle model [26]. The state space consists of an indicator for which lane the robot car is currently in, its position and heading, and the relative positions, heading, and speed of other nearby cars. The action space is continuous and one-dimensional, in the range ; it corresponds to the change in steering angle.222We discretize this action space evenly into 200 possible actions, in order to compute critical states using the learned action-value function. The reward function encourages forward progress and penalizes getting close to other cars, being off-center in the lane, turning, and steering sharply.

Manipulated Variables. We manipulate two variables: how a user is exposed to the policy, and the quality of the policy. For exposure type, we compare our approach of showing critical states to two baselines: showing a one-minute rollout of the policy, and showing how the policy acts in random states, rather than critical ones. These two baselines are meant to approximate the states a user would happen to encounter as she observes and interacts with the robot over time.

For the quality of the policy, we have a policy trained for 10,000 iterations, and another policy that is trained for only 3,000 iterations. Both policies achieve similar performance on the task: averages one crash per 700 timesteps, and averages one crash per 640 timesteps.333Note that since the agent can only steer, and the other cars surrounding the agent are all driving slower than it, it will often encounter situations where crashes are inevitable. But fails in a few simple traffic scenarios, that has learned to navigate successfully—including query states and (Fig. 5).

Fig. 5 shows a subset of the ten critical states per policy. Looking closely at the critical states of policy (Fig. 5), we see the rightmost two states are false-positives, whereas all the critical states of policy look reasonable. On average, the critical states of policy are also of simpler driving scenarios, which suggests that it may not be able to handle more challenging ones.

Dependent Measures. We keep the same dependent measures as in the previous user study (Sec. IV), except we add two Likert questions that ask participants more specifically about how much they trust the policy with respect to critical states, and change the yes/no question for taking control to a five-point Likert question where higher means more likely to take control.

Hypothesis. Showing users the critical states of a policy establishes appropriate trust, compared to other approaches of exposing users to policies. Appropriate trust, in this setting, means that participants trust over , both in their Likert responses and in how often they choose to take control from the policy.

Subject Allocation.

We used a between-subjects design for exposure type, and within-subjects for policy quality to reduce variance. We ran this experiment on a total of 60 participants across the three conditions, recruited via Amazon Mechanical Turk. The average age of the participants was 32.5 (

). The gender ratio was 0.27 female.

V-B Analysis

Subjective. We see that across all five questions, users who have seen the critical states of both policies tend to favor policy , the better one (Fig. 6, Fig. 7). This trend is also visible for participants who see a one-minute rollout of each policy, but not as consistently. In contrast, when participants see how the policy acts in randomly-selected states, they rate policies and similarly, indicating that their trust is incorrectly calibrated.

We ran a two-way repeated-measures ANOVA, with exposure and policy quality as factors and user ID as a random effect, for each item except the question on agreement. We observe a weak interaction effect between exposure and policy quality for the question on trust (F(2,57) = 2.37, ). We also ran a post-hoc Tukey HSD for each item, which confirmed the trend that participants in the critical-states condition favor the better policy, but this was not statistically significant.

We ran a one-way repeated-measures ANOVA, with policy quality as a factor and user ID as a random effect, for the question on agreement with critical states, and found a significant effect (F(1,19) = 7.92, ).

Objective. We asked participants, for each of the query states (Fig. 5), whether they would take control from the policy at that state. Participants in the critical-states condition consistently choose to take control more in the case of the worse policy, . We do not see this trend in either of the two baseline conditions (Fig. 8).

We also see that across all critical query states ( through ), participants who saw the critical states of either policy are more likely to trust that policy and not take control of it, compared to participants who saw either a rollout of the policy or how it acts in randomly-selected states.

We ran a two-way repeated-measures ANOVA for the combination of participants’ responses across all seven critical query states, and find a significant effect exposure (F(2,57) = 5.57, ) and a significant interaction effect for exposure and policy quality (F(2,777) = 5.30, ). We then ran a post-hoc Tukey HSD, which showed that when participants see the critical states of and , they take control significantly more for policy (), but this is not true for either of the baseline conditions.

This suggests that by showing human end-users the critical states of a policy, we not only lead them to trust the policy more, but also enable them to appropriately calibrate their trust for good and not-as-good policies.

Vi Discussion and Future Work

Our user studies suggest that showing the critical states of a policy is a promising approach for not only building trust in the policy, but also for revealing whether it is trustworthy in the first place. This can be applied to any policy trained with a maximum-entropy-based approach.

The question is, what if a policy has incorrect critical states, but it performs very well, at least in the training environment. Should we trust this policy? Or should we not trust it, because the fact that it has incorrect critical states implies that it does not truly understand the task? This is an open question for future work. Our hunch is that the latter is true—if a policy’s critical states do not make sense, there are likely states (outside the training distribution) that it will not be able to generalize to.

The primary drawback of our approach is that it places significant responsibility and mental burden on the human end-user. For instance, we assume this end-user has domain knowledge about the task; this is likely true for supervising a self-driving car or robots in a factory, but might not be true for more complex tasks. In addition, identifying false-negative critical states requires the end-user to generalize correctly about what other states the robot considers as critical, given the ones they saw. One way to address this limitation is to reason about how humans do this generalization, and show the end-user how the robot acts in additional states (critical or not) to correct their understanding.

Nonetheless, this approach of showing critical states is a step toward giving human end-users a better chance of knowing whether or not to deploy a robot, and when to take control during deployment.


This research was funded in part by DARPA and Intel. Sandy Huang was supported by an NSF Fellowship.


  • [1] M. J. Gielniak and A. L. Thomaz, “Generating anticipation in robot motion,” in Proceedings of the Twentieth IEEE International Symposium on Robot and Human Interactive Communication (RO-MAN), 2011, pp. 449–454.
  • [2] A. D. Dragan, K. C. T. Lee, and S. S. Srinivasa, “Legibility and predictability of robot motion,” in Proceedings of the Eighth ACM/IEEE International Conference on Human-Robot Interaction (HRI).   ACM, 2013, pp. 301–308.
  • [3] D. Szafir, B. Mutlu, and T. Fong, “Communication of intent in assistive free flyers,” in Proceedings of the Ninth ACM/IEEE International Conference on Human-Robot Interaction (HRI).   ACM, 2014, pp. 358–365.
  • [4] S. H. Huang, D. Held, P. Abbeel, and A. D. Dragan, “Enabling robots to communicate their objectives,” in Proceedings of Robotics: Science and Systems (RSS), 2017.
  • [5] S. Nikolaidis, S. Nath, A. D. Procaccia, and S. Srinivasa, “Game-theoretic modeling of human adaptation in human-robot collaboration,” in Proceedings of the Twelfth ACM/IEEE International Conference on Human-Robot Interaction (HRI).   ACM, 2017, pp. 323–331.
  • [6] M. Kwon, S. H. Huang, and A. D. Dragan, “Expressing robot incapability,” in Proceedings of the Thirteenth ACM/IEEE International Conference on Human Robot Interaction (HRI).   ACM, 2018.
  • [7] N. Wang, D. V. Pynadath, and S. G. Hill, “Trust calibration within a human-robot team: Comparing automatically generated explanations,” in Proceedings of the Eleventh ACM/IEEE International Conference on Human Robot Interaction (HRI).   ACM, 2016, pp. 109–116.
  • [8] M. T. Dzindolet, S. A. Peterson, R. A. Pomranky, L. G. Pierce, and H. P. Beck, “The role of trust in automation reliance,” International Journal of Human-Computer Studies, vol. 58, no. 6, pp. 697–718, June 2003.
  • [9] J. D. Lee and K. A. See, “Trust in automation: Designing for appropriate reliance,” Human Factors, vol. 46, no. 1, pp. 50–80, 2004.
  • [10] S. Ososky, D. Schuster, E. Phillips, and F. Jentsch, “Building appropriate trust in human-robot teams,” in

    Proceedings of the Twenty-Seventh AAAI Conference on Artificial Intelligence

    , 2013.
  • [11] A. Freedy, E. DeVisser, G. Weltman, and N. Coeyman, “Measurement of trust in human-robot collaboration,” in 2007 International Symposium on Collaborative Technologies and Systems, May 2007, pp. 106–114.
  • [12] E. Cha, A. D. Dragan, and S. S. Srinivasa, “Perceived robot capability,” in Proceedings of the Twenty-Fourth IEEE International Symposium on Robot and Human Interactive Communication (RO-MAN), 2015, pp. 541–548.
  • [13] B. M. Muir, “Trust between humans and machines, and the design of decision aids,” International Journal of Man-Machine Studies, vol. 27, no. 5, pp. 527–539, 1987.
  • [14] D. H. McKnight and N. L. Chervany, “What trust means in e-commerce customer relationships: An interdisciplinary conceptual typology,” International Journal of Electronic Commerce, vol. 6, no. 2, pp. 35–59, 2001.
  • [15] M. Lewis, K. Sycara, and P. Walker, “The role of trust in human-robot interaction,” in Foundations of Trusted Autonomy, H. A. Abbass, J. Scholz, and D. J. Reid, Eds.   Springer International Publishing, 2018, pp. 135–159.
  • [16] S. Levine, C. Finn, T. Darrell, and P. Abbeel, “End-to-end training of deep visuomotor policies,”

    Journal of Machine Learning Research

    , vol. 17, no. 39, pp. 1–40, 2016.
  • [17] M. Bojarski, D. D. Testa, D. Dworakowski, B. Firner, B. Flepp, P. Goyal, L. D. Jackel, M. Monfort, U. Muller, J. Zhang, X. Zhang, J. Zhao, and K. Zieba, “End to end learning for self-driving cars,” arXiv preprint arXiv:1604.07316, 2016.
  • [18] A. Dragan and S. Srinivasa, “Familiarization to robot motion,” in Proceedings of the Ninth ACM/IEEE International Conference on Human-Robot Interaction (HRI).   ACM, 2014.
  • [19] C. L. Baker, R. Saxe, and J. B. Tenenbaum, “Action understanding as inverse planning,” Cognition, vol. 113, no. 3, p. 329–349, 2009.
  • [20] J. Jara-Ettinger, H. Gwen, L. E. Schulz, and J. B. Tenenbaum, “The naïve utility calculus: Computational principles underlying commonsense psychology,” Trends in Cognitive Sciences, vol. 20, no. 8, p. 589–604, 2016.
  • [21] B. W. Israelsen and N. R. Ahmed, “‘Dave…I can assure you…that it’s going to be all right..’ A definition, case for, and survey of algorithmic assurances in human-autonomy trust relationships,” arXiv preprint arXiv:1711.03846, 2017.
  • [22] B. D. Ziebart, A. Maas, J. A. Bagnell, and A. Dey, “Maximum entropy inverse reinforcement learning,” in Proceedings of the Twenty-Second AAAI Conference on Artificial Intelligence, 2008.
  • [23] T. Haarnoja, H. Tang, P. Abbeel, and S. Levine, “Reinforcement learning with deep energy-based policies,” in International Conference on Machine Learning, 2017.
  • [24] T. Haarnoja, A. Zhou, P. Abbeel, and S. Levine, “Soft actor-critic: Off-policy maximum entropy deep reinforcement learning with a stochastic actor.” in Neural Information Processing Systems (NIPS) Deep Reinforcement Learning Symposium, 2017.
  • [25] R. S. Sutton and A. G. Barto, Introduction to Reinforcement Learning, 1st ed.   Cambridge, MA, USA: MIT Press, 1998.
  • [26] S. Taheri and E. H. Law, “Investigation of a combined slip control braking and closed loop four wheel steering system for an automobile during combined hard braking and severe steering,” in Proceedings of the American Control Conference, 1990.
